Summit 15 inch wide built-in undercounter glass door beverage cooler with panel-ready door trim, 7.61101e+011, SCR1536BGPNR

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters.

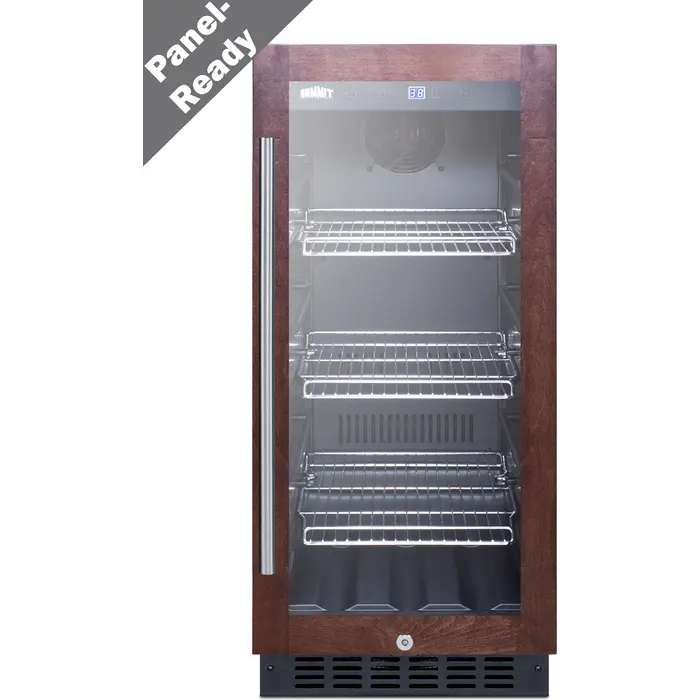

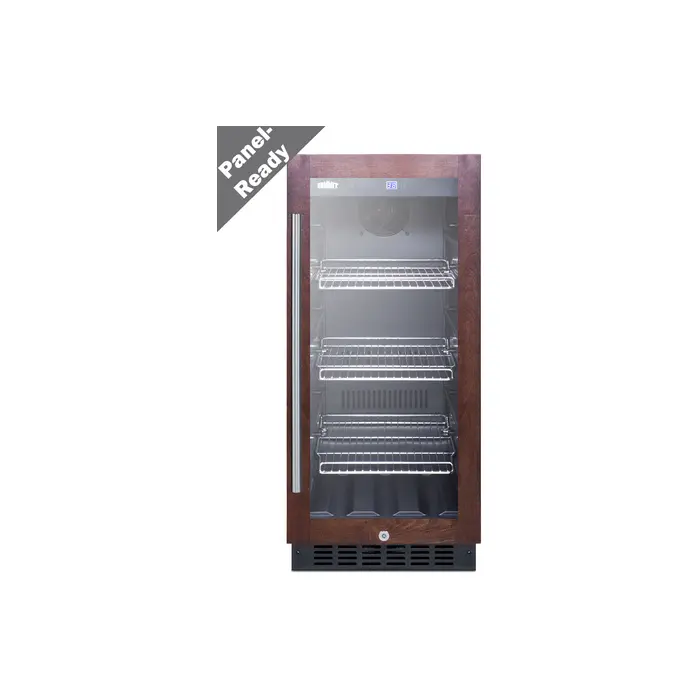

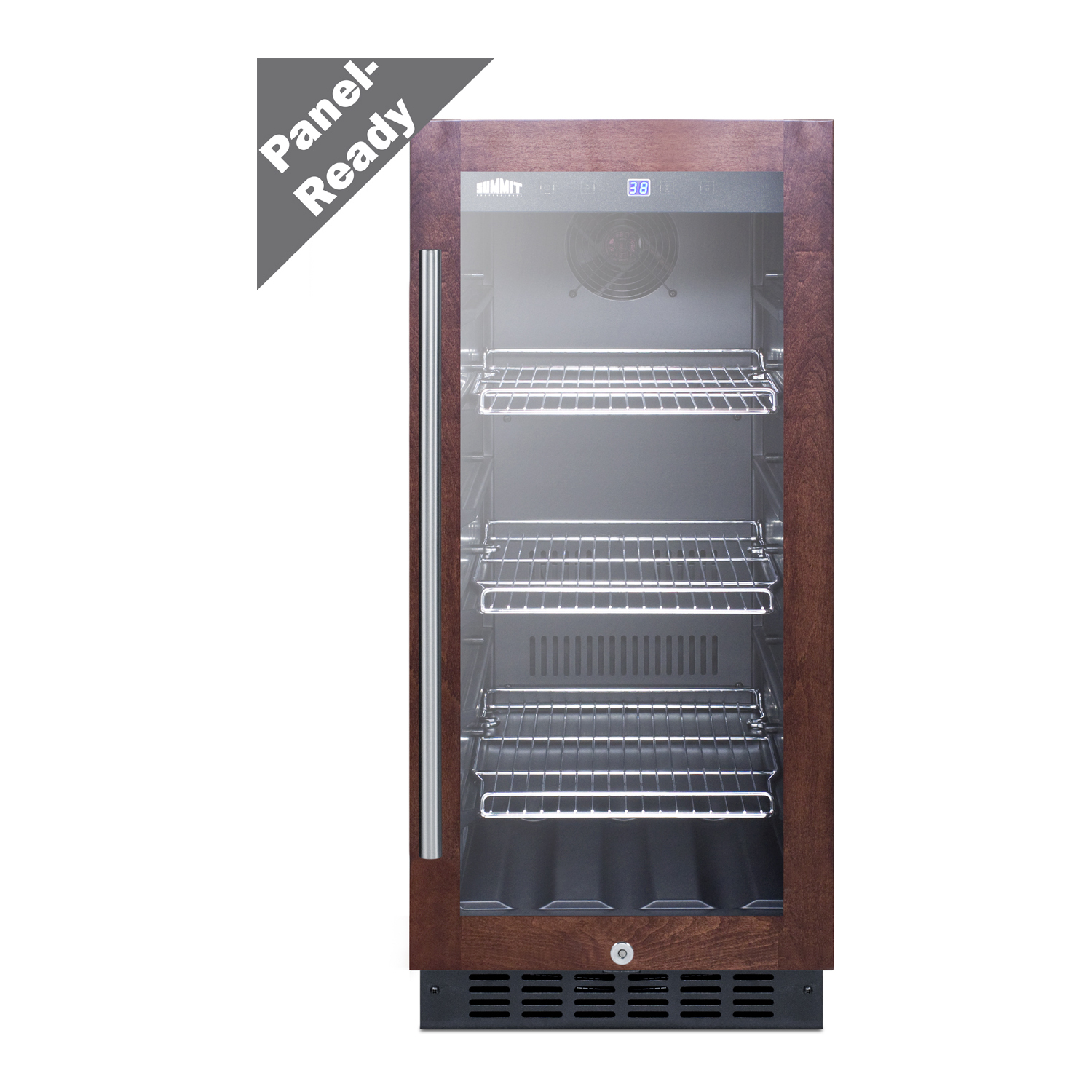

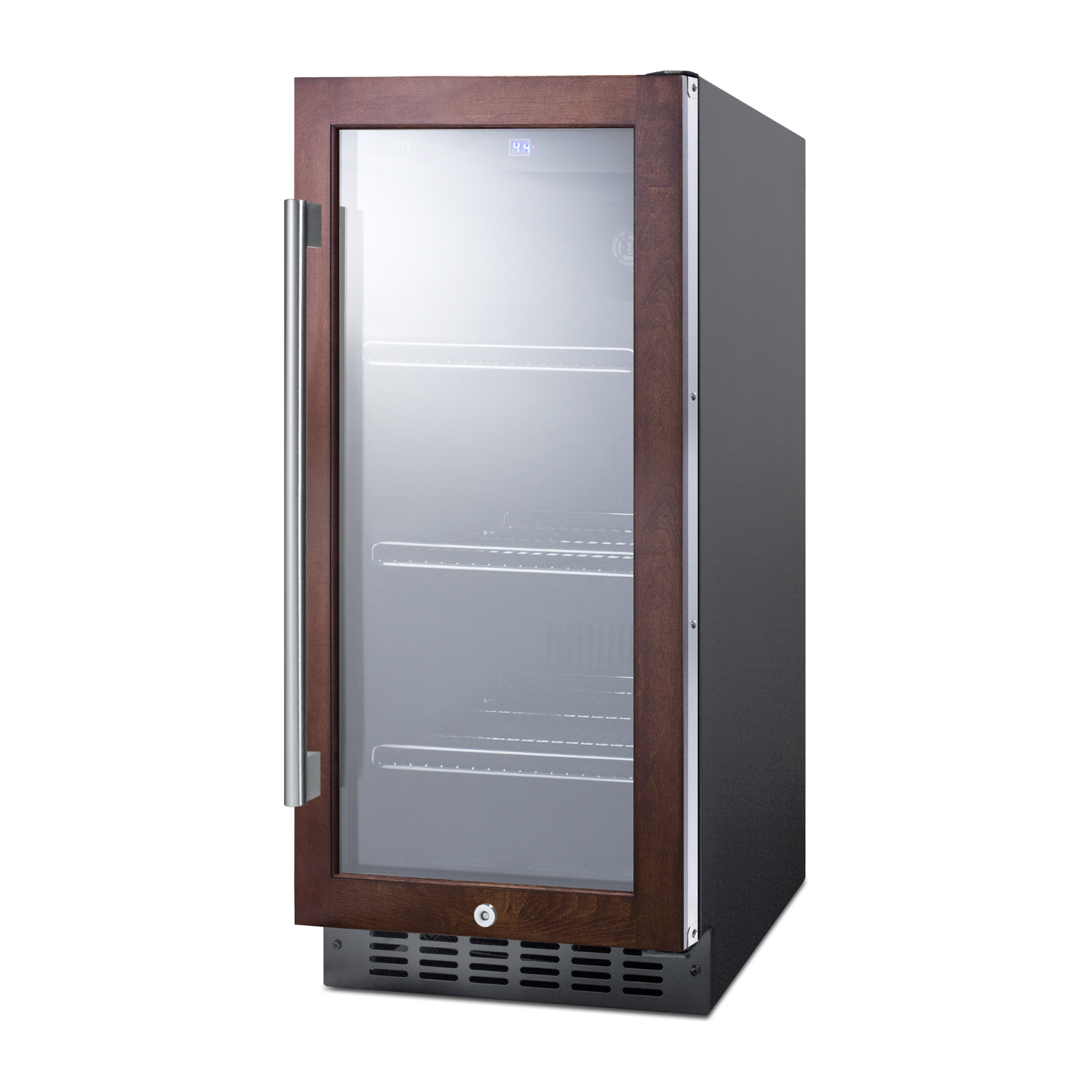

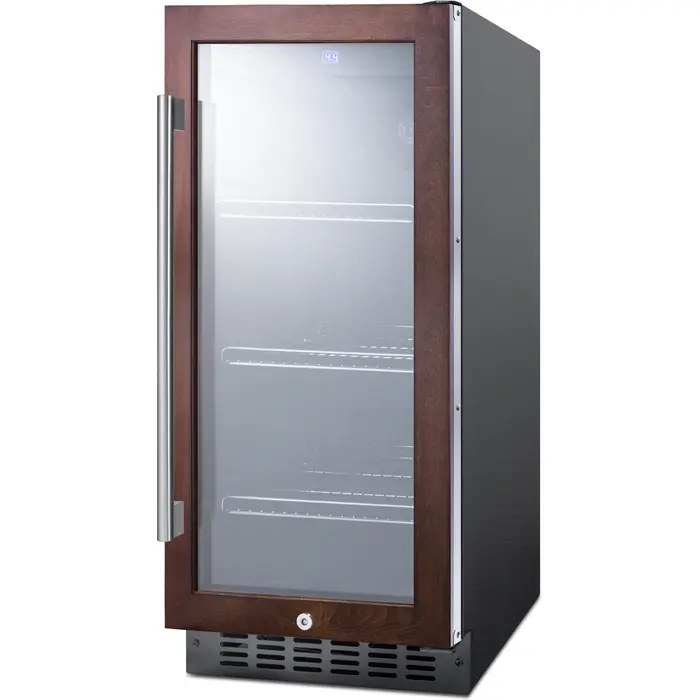

The SCR1536BGPNR is a slim-fitting 14 3/4" wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential use. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows you to use the unit freestanding. This model features a double pane tempered glass door with a panel-ready trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness). This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.A factory-installed lock offers convenient security as needed. Users provide their own handle.

Inside, the SCR1536BGPNR includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance.

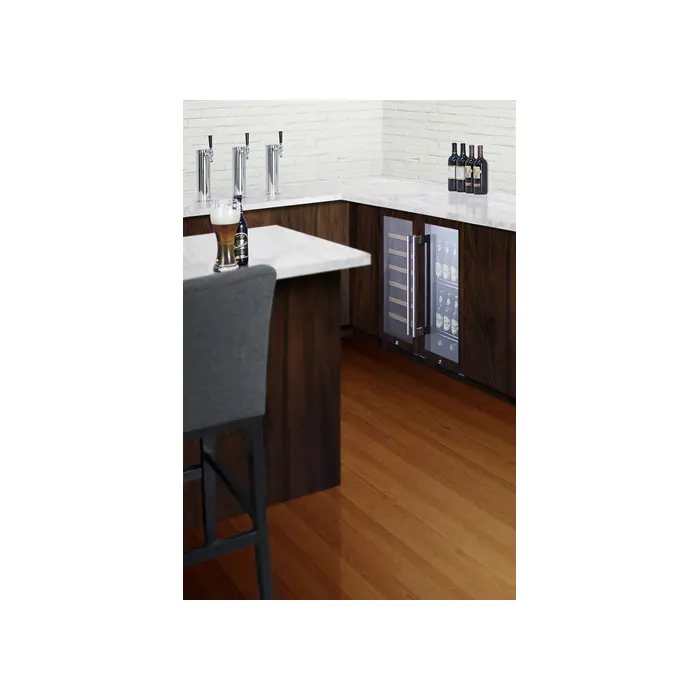

With its perfect size and user-friendly features, the SCR1536BGPNR brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535BPNR wine cellar.

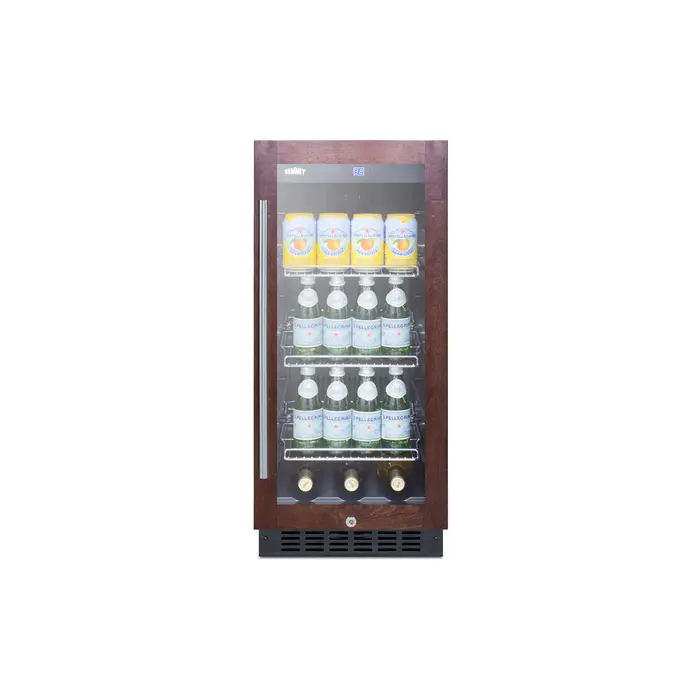

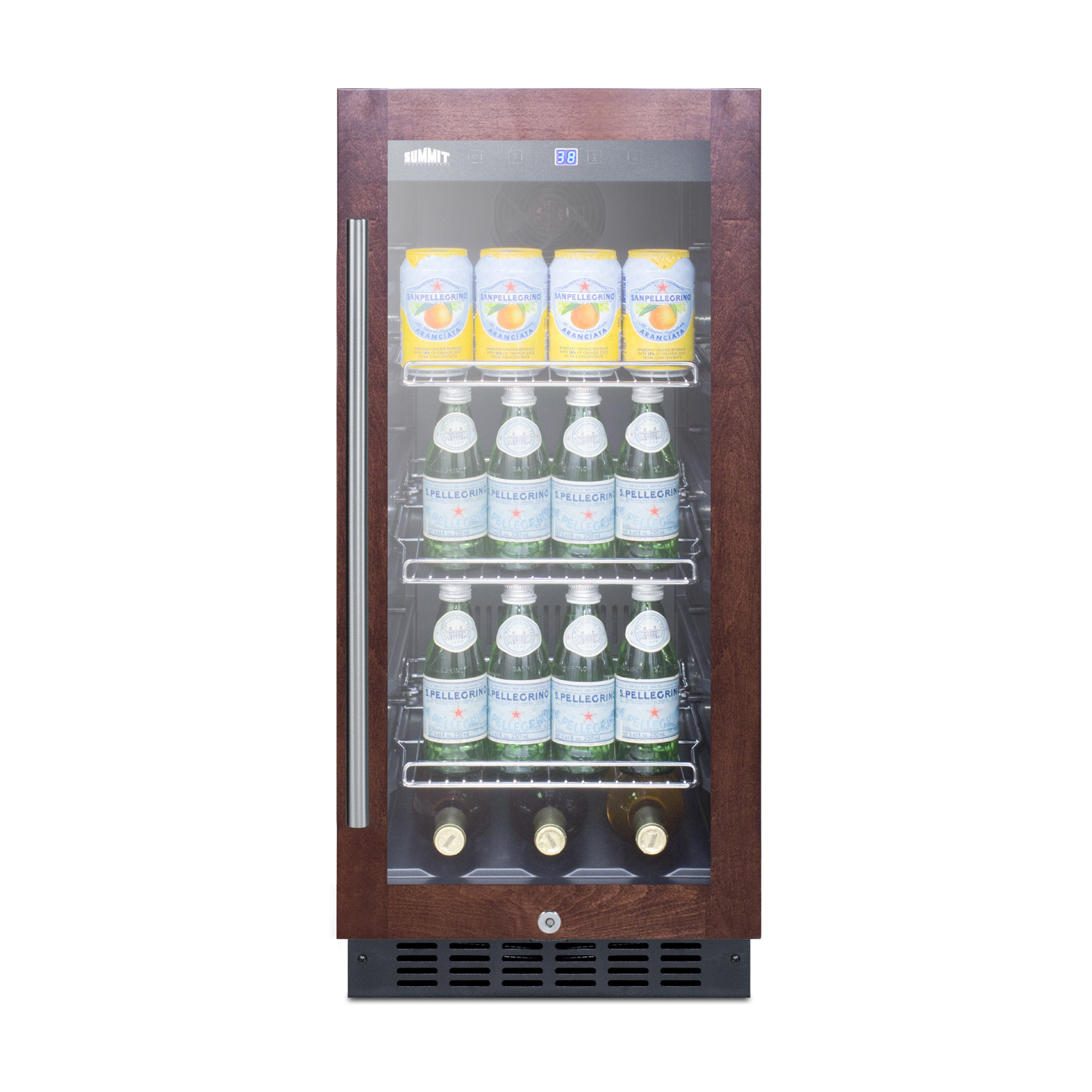

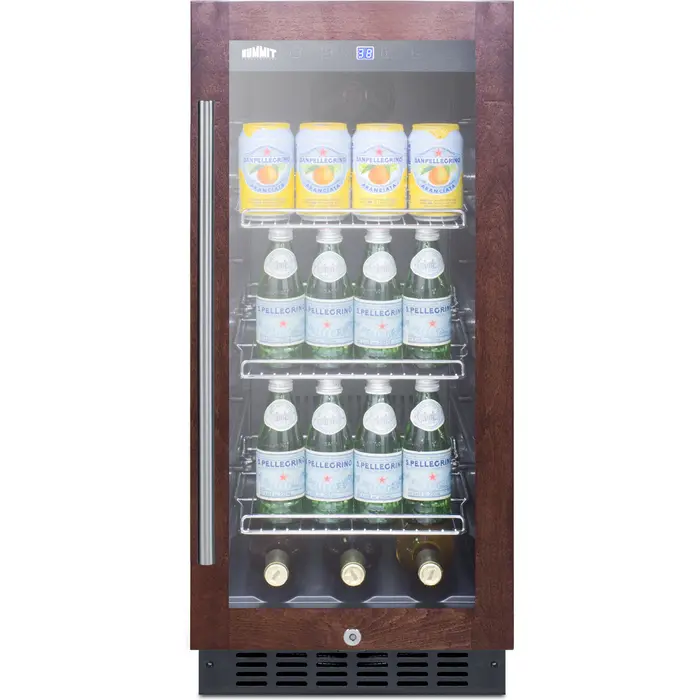

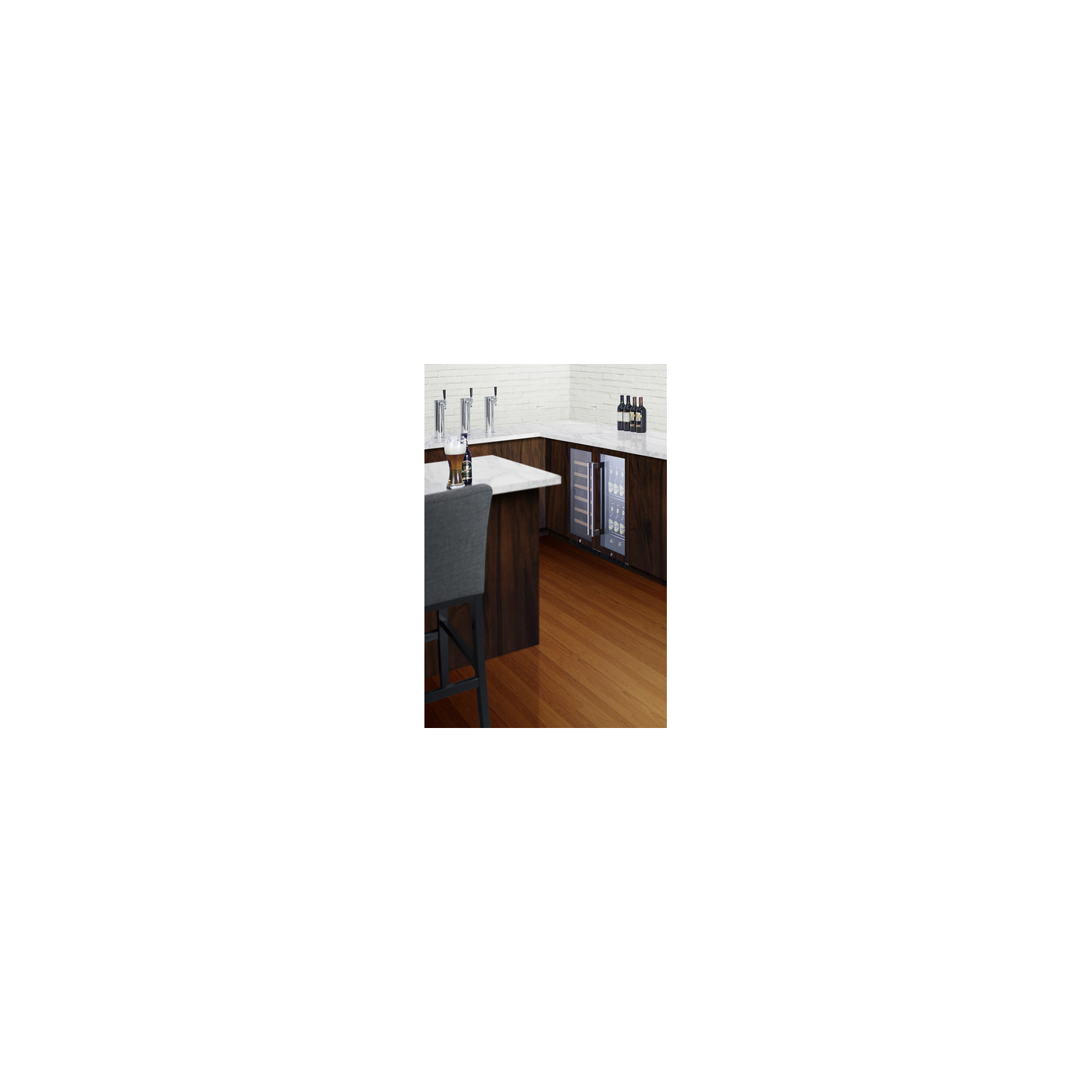

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.88" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with door at 90° 36.25" (92 cm)

Capacity 2.45 cu.ft. (69 L)

Defrost Type Automatic

Door Glass/Panel-Ready Frame

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 245.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 77.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101082868

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Factory Reversible

Shelf Type Chrome

Shelf Qty 3

Thermostat Type Digital

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 10.25" (26 cm)

Interior Depth 16.5" (42 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 10.25" (26 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable Make the best use of space by installing your appliance under the counter

Fully finished black cabinet Allows the unit to be used freestanding

Panel-ready door trim Door frame can be customized with a custom overlay panel (panel frame dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness)

Double pane tempered glass door Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock Keyed security on the door

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Automatic defrost Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves Slide-out shelves offer attractive and convenient storage for beverages

Factory-reversible door swing Door ships with a right hand door swing. For a left hand version, add option "LHD"

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Flush back Space saving design

Matching wine cellar For a complete set, pair this unit with the SWC1535BPNR wine cellar for true beverage storage convenience

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1536BGPNR.pdf)

TECHNICAL DRAWING (.dwg) (SCR1536BG_BEVERAGE_REF__A-C_2000__3.dwg)

USE & CARE (SCR1536BGPNR-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

SUPPORT (772.bin)

Energy Guide
