Summit 15 inch wide built-in undercounter glass door beverage cooler for home or commercial use, with digital controls, lock, LED light, and black cabinet, 7.61101e+011, SCR1536BG

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters.

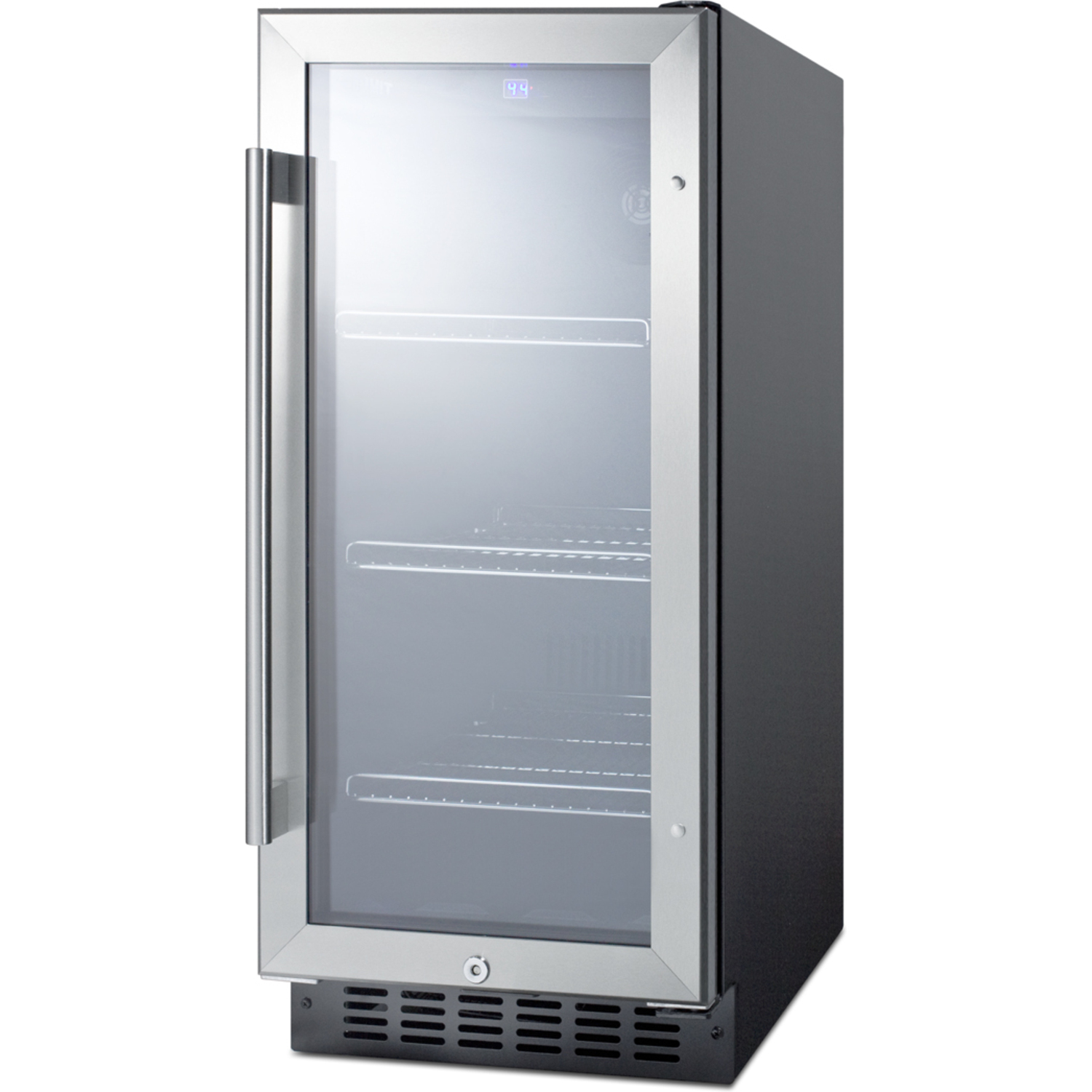

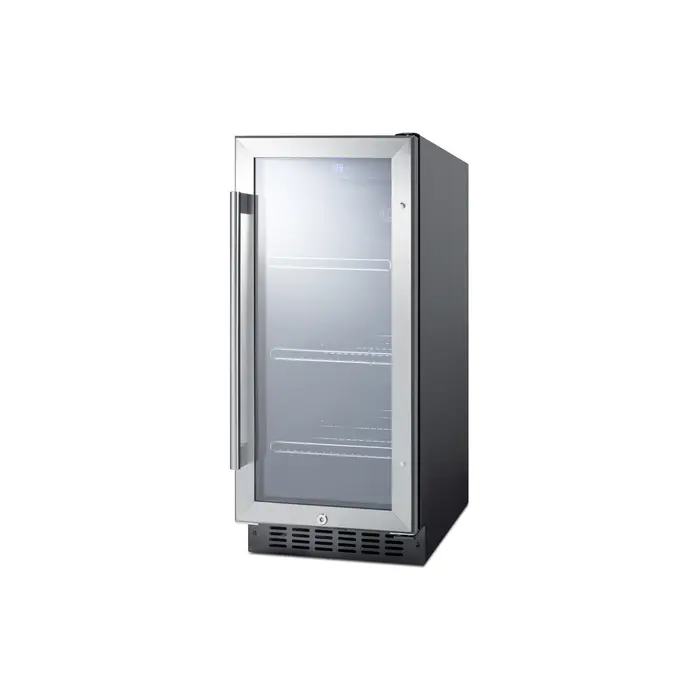

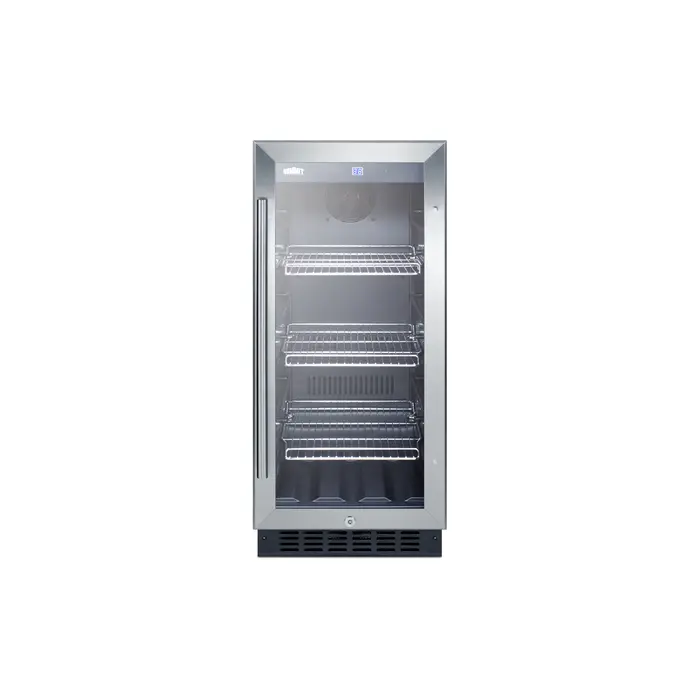

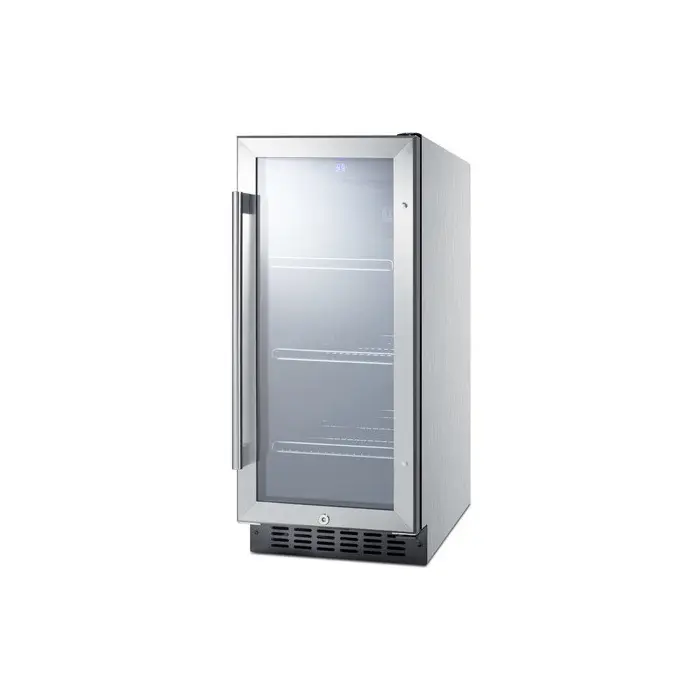

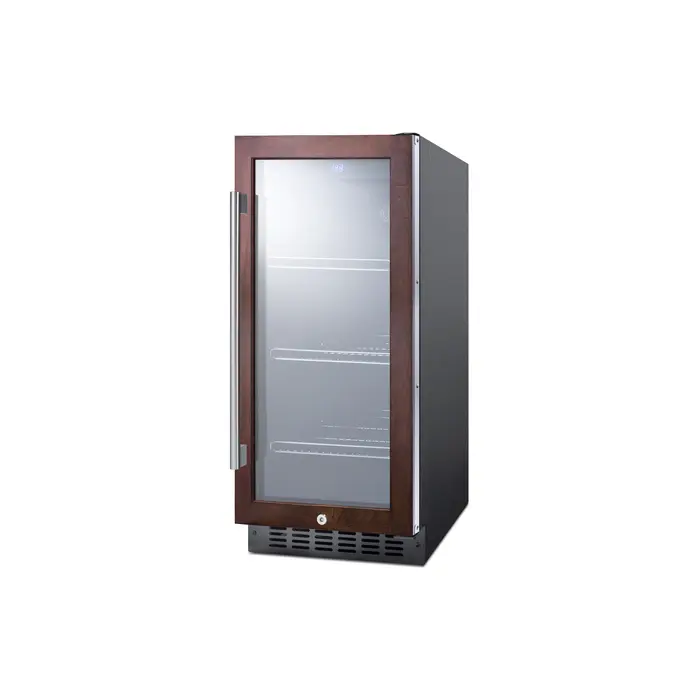

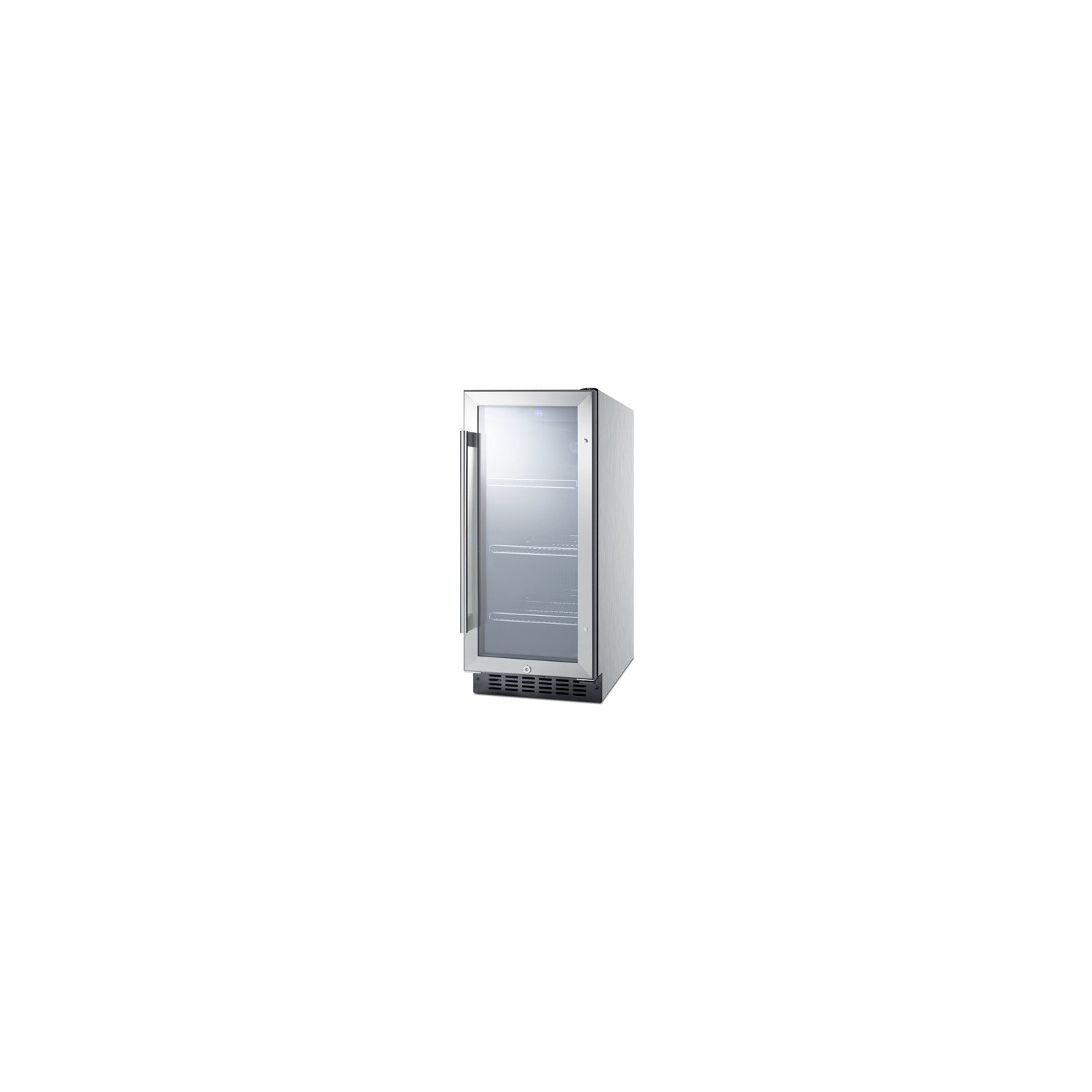

The SCR1536BG is a slim-fitting 14 3/4 inch wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential applications. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also makes it possible to use freestanding. This unit features a user-reversible double pante tempered glass with door with stainless steel trim. A factory-installed lock offers convenient security as needed.

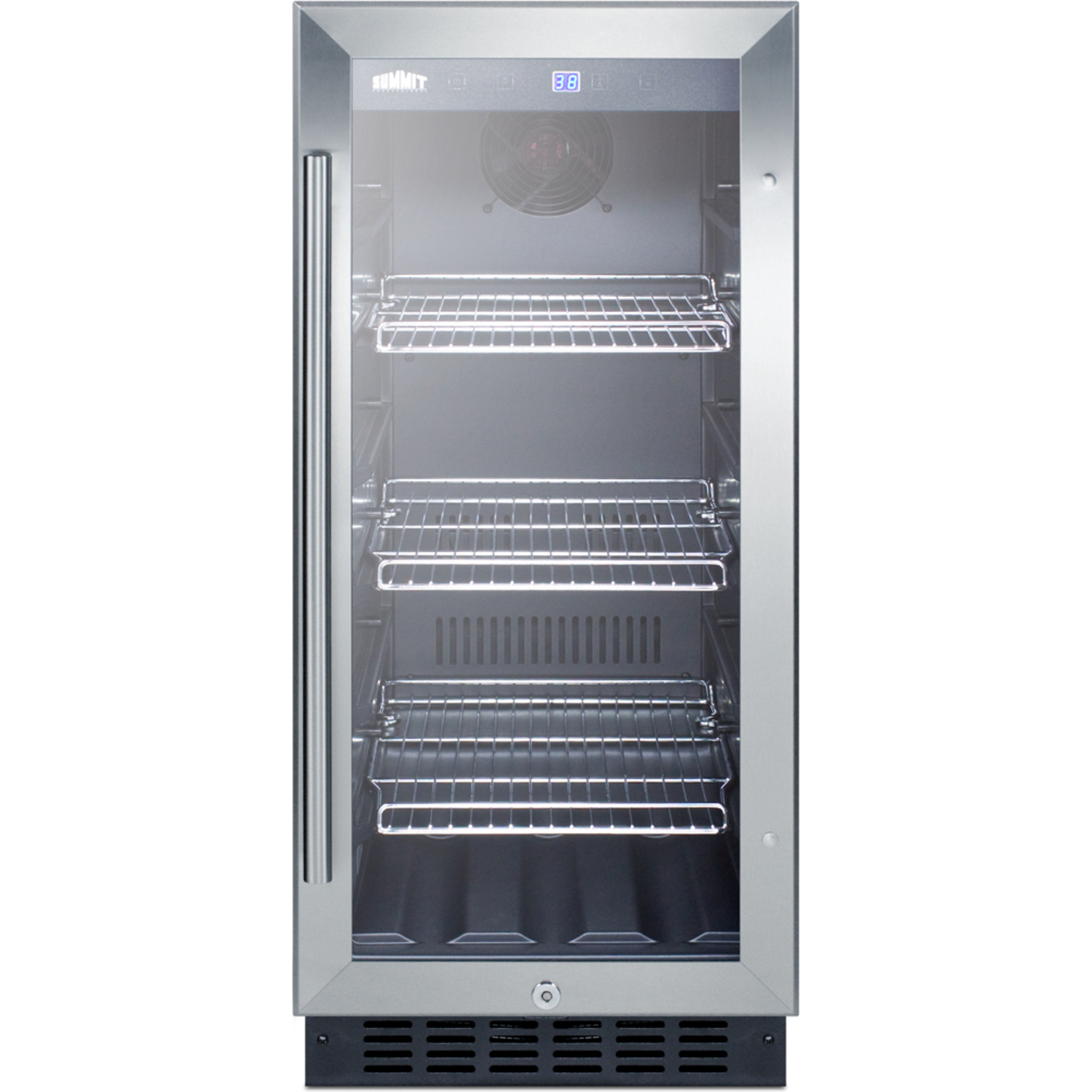

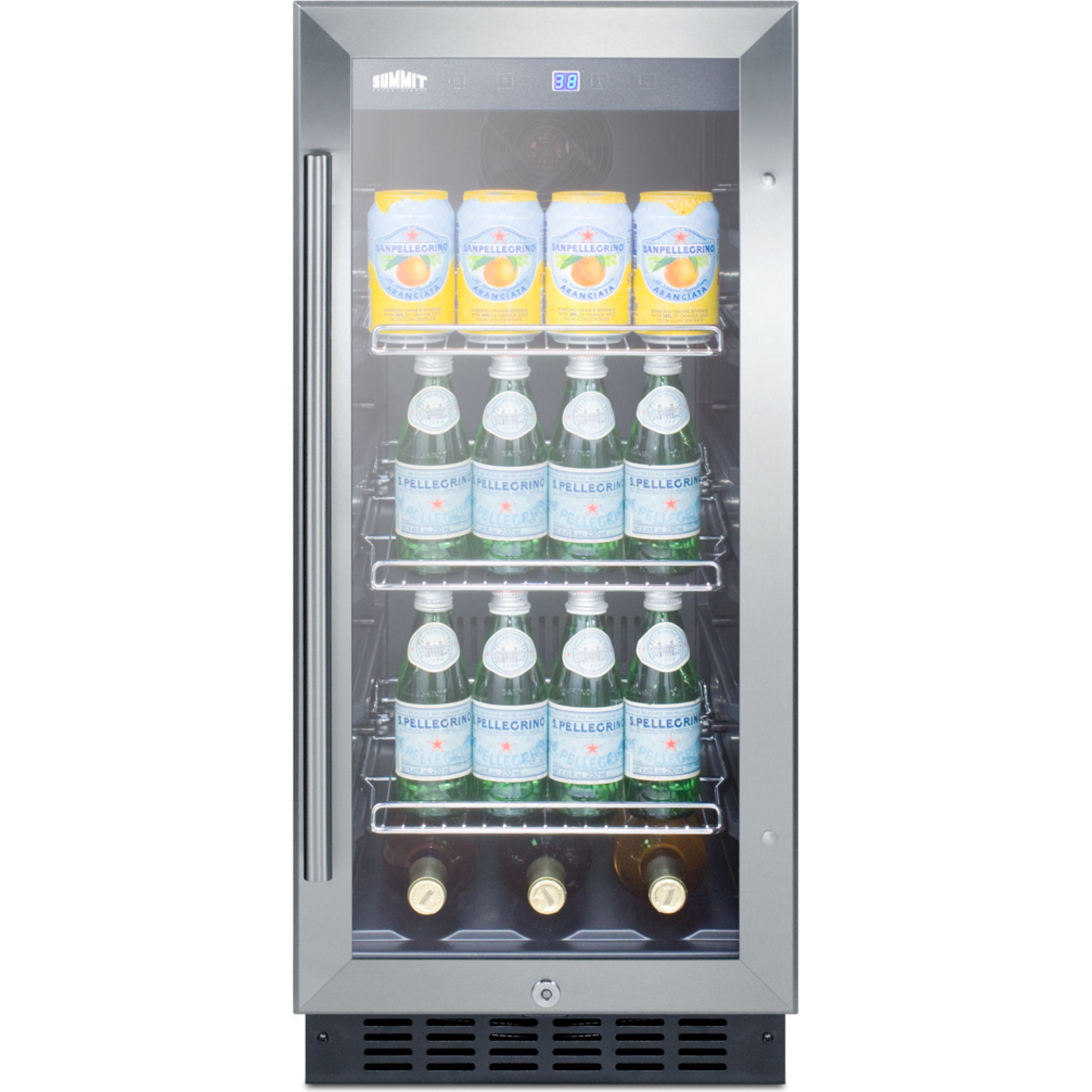

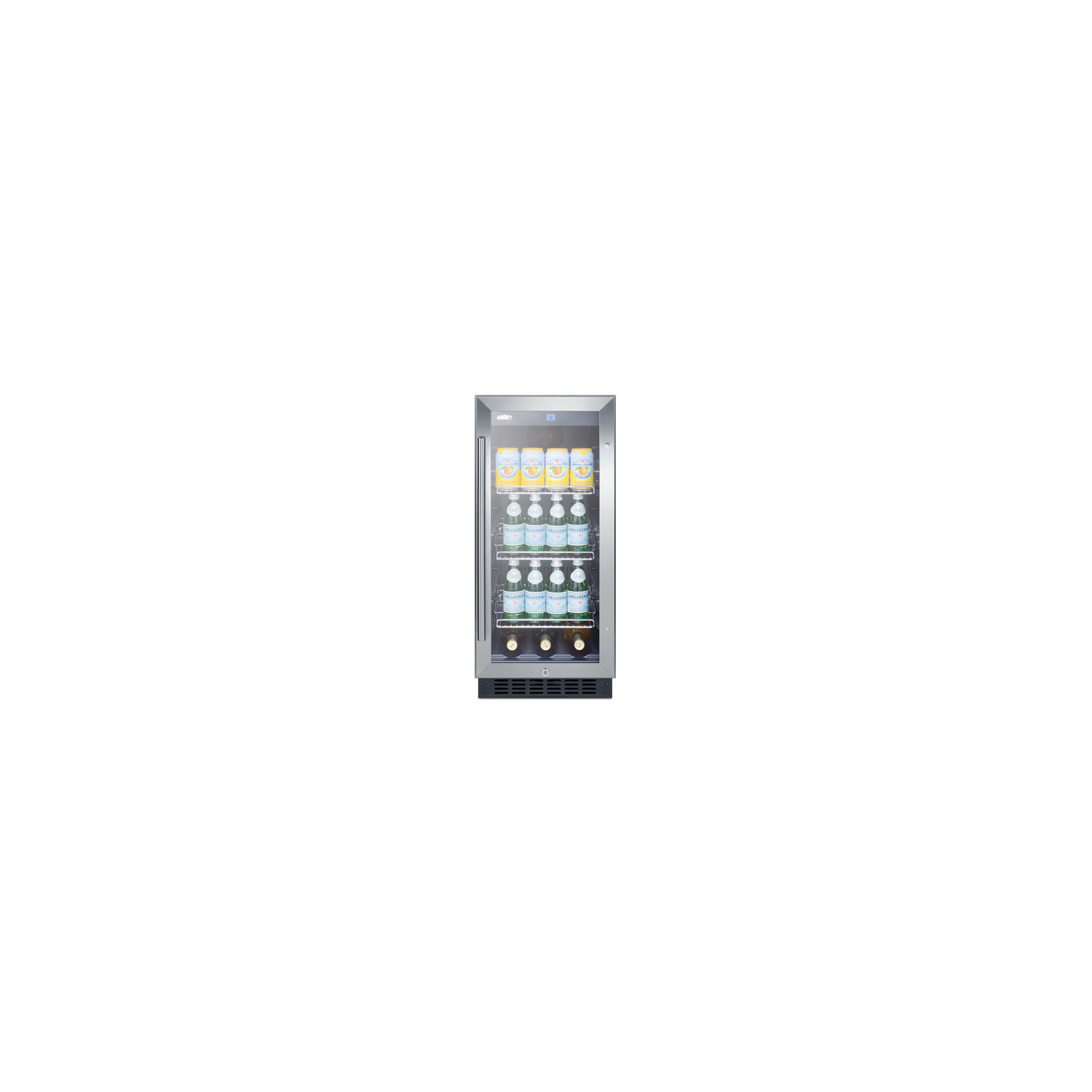

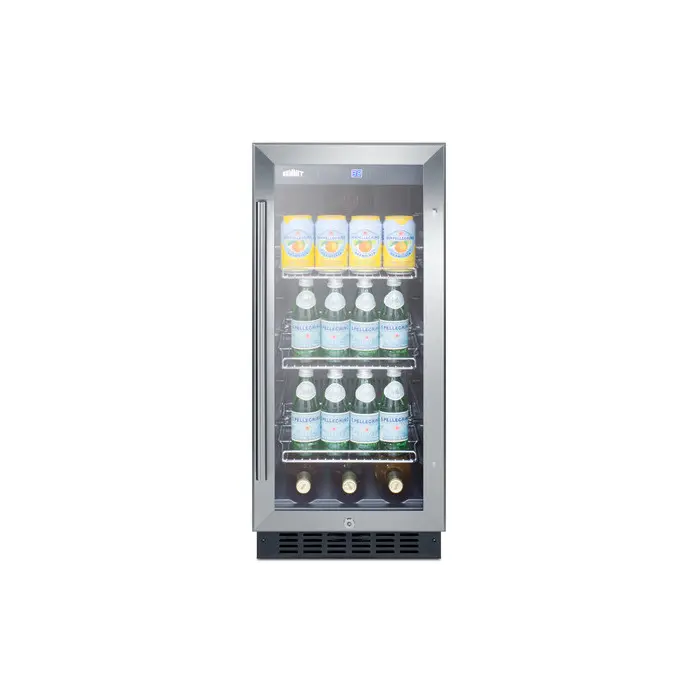

Inside, the SCR1536BG includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view inside the black interior. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. Additional features include audible warning alarms for high temperature and open door alerts, Sabbath mode, and a temperature memory function that restores your settings in the event of power loss.

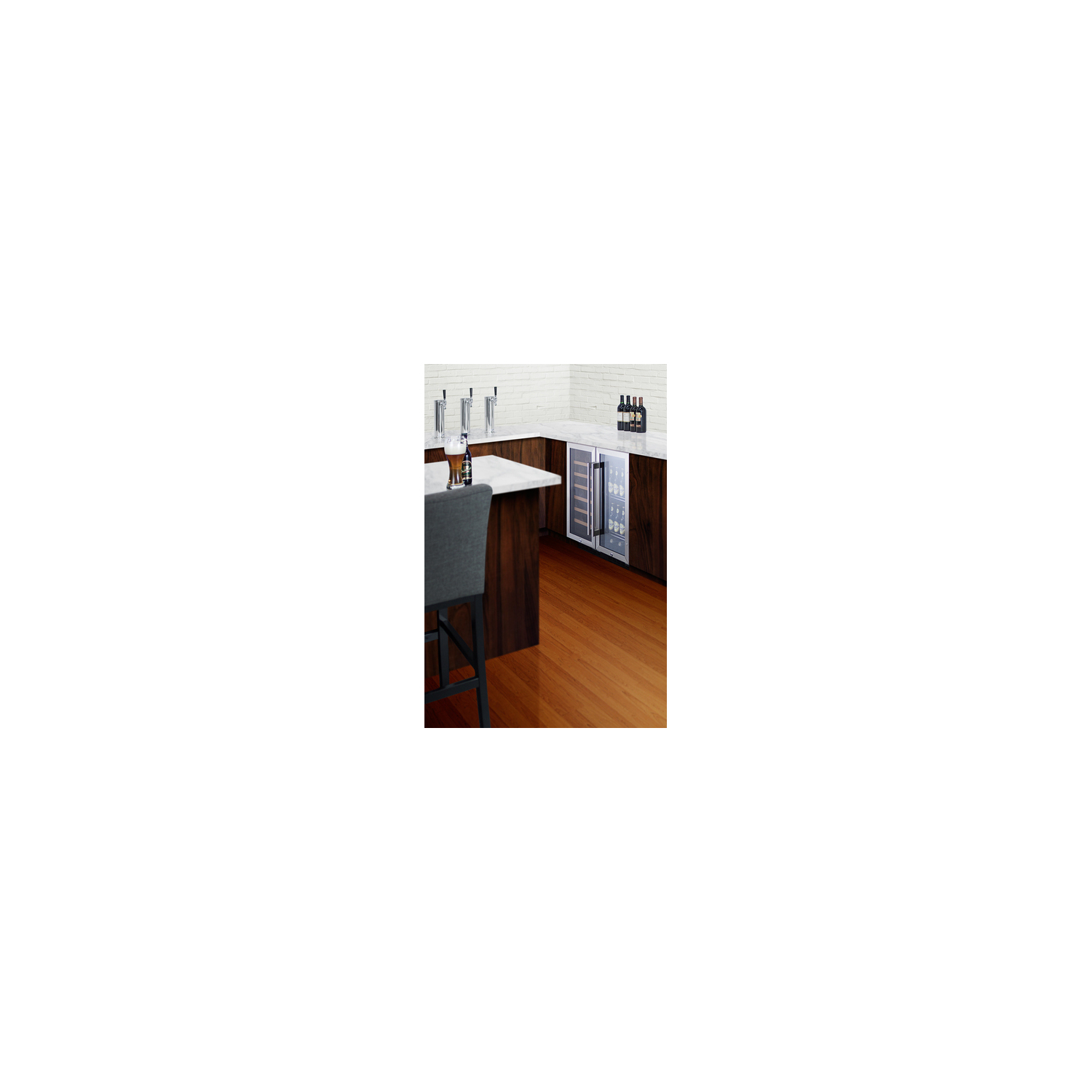

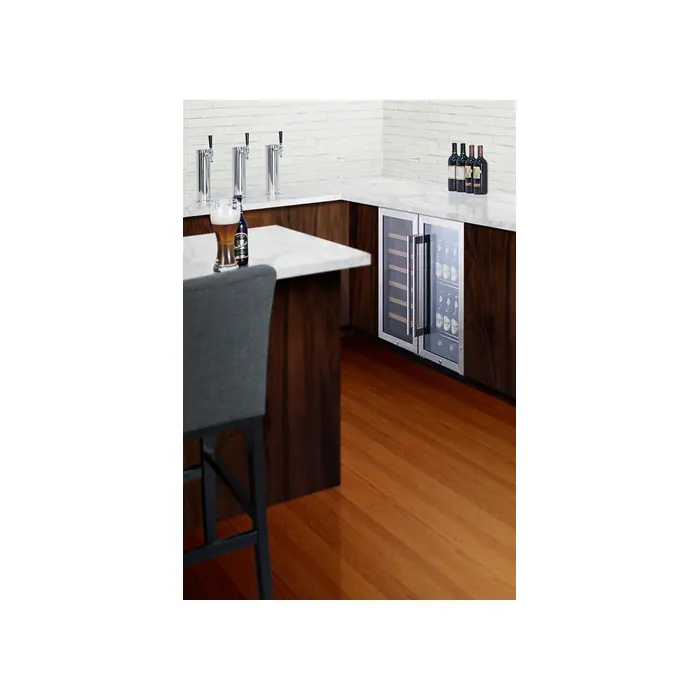

With its perfect size and user-friendly features, the SCR1536BG brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535B wine cellar, along with our extended lineup of 15" wide refrigerators, freezers, and icemakers.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.88" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 36.25" (92 cm)

Capacity 2.45 cu.ft. (69 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 77.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101050225

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 3

Thermostat Type Digital

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 10.25" (26 cm)

Interior Depth 16.5" (42 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 10.25" (26 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable Make the best use of space by installing your appliance under the counter

Fully finished black cabinet Allows the unit to be used freestanding

Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock Keyed security on the door

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Automatic defrost Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves Slide-out shelves offer attractive and convenient storage for beverages

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle Stainless steel look for added elegance

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

High temperature alarm Alerts if the temperature exceeds suggested range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Flush back Space saving design

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1536BG.pdf)

TECHNICAL DRAWING (.dwg) (SCR1536BG_BEVERAGE_REF__A-C_2000_.dwg)

REVIT MODEL (QF_Summit_SCR1536BG_Glass_Door_Beverage_Cooler.rfa)

USE & CARE (SCR1536BG-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
