Summit 24 inch wide upright commercial beverage center with stainless steel interior, 7.61101e+011, SCR1401CSS

Summit's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation.

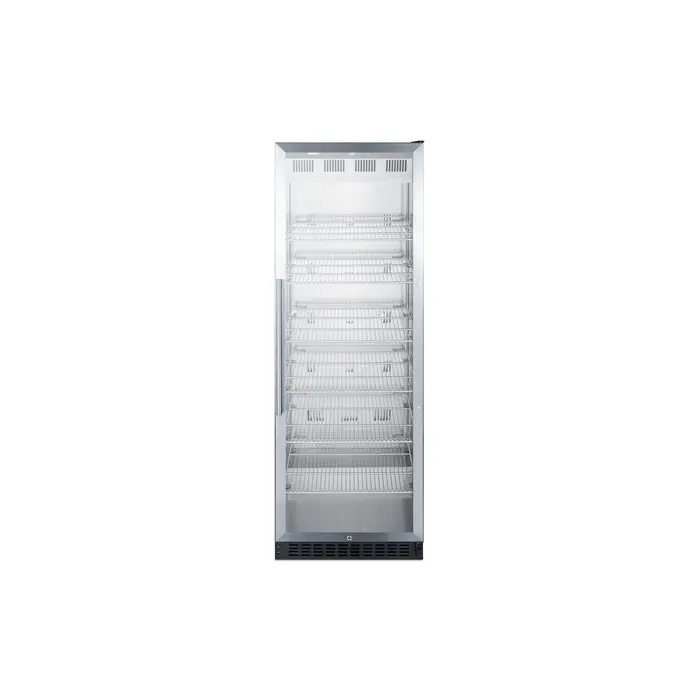

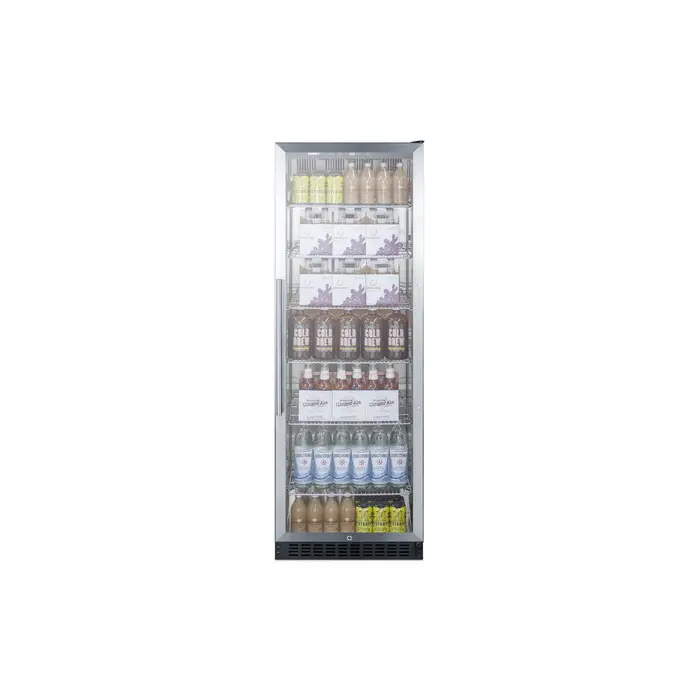

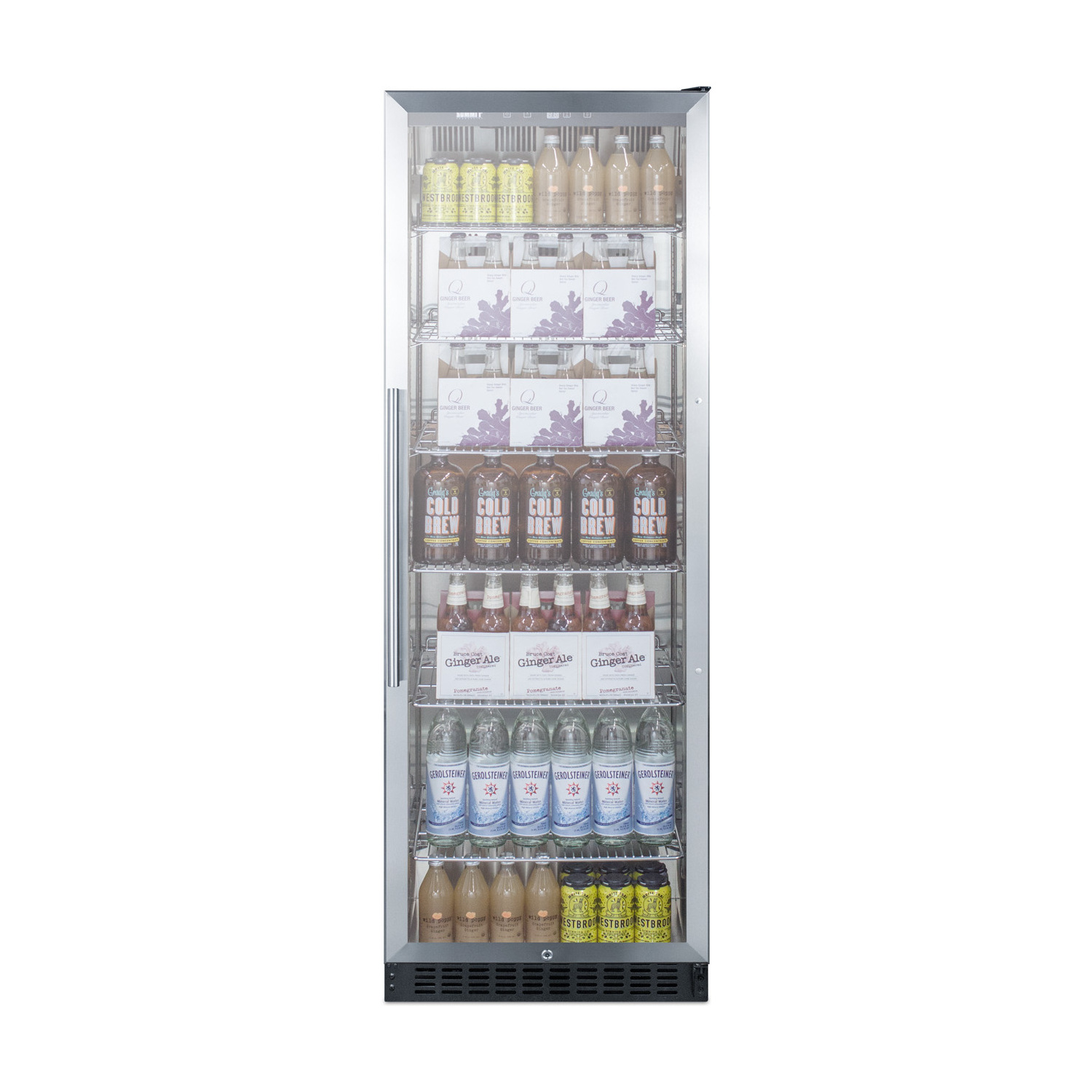

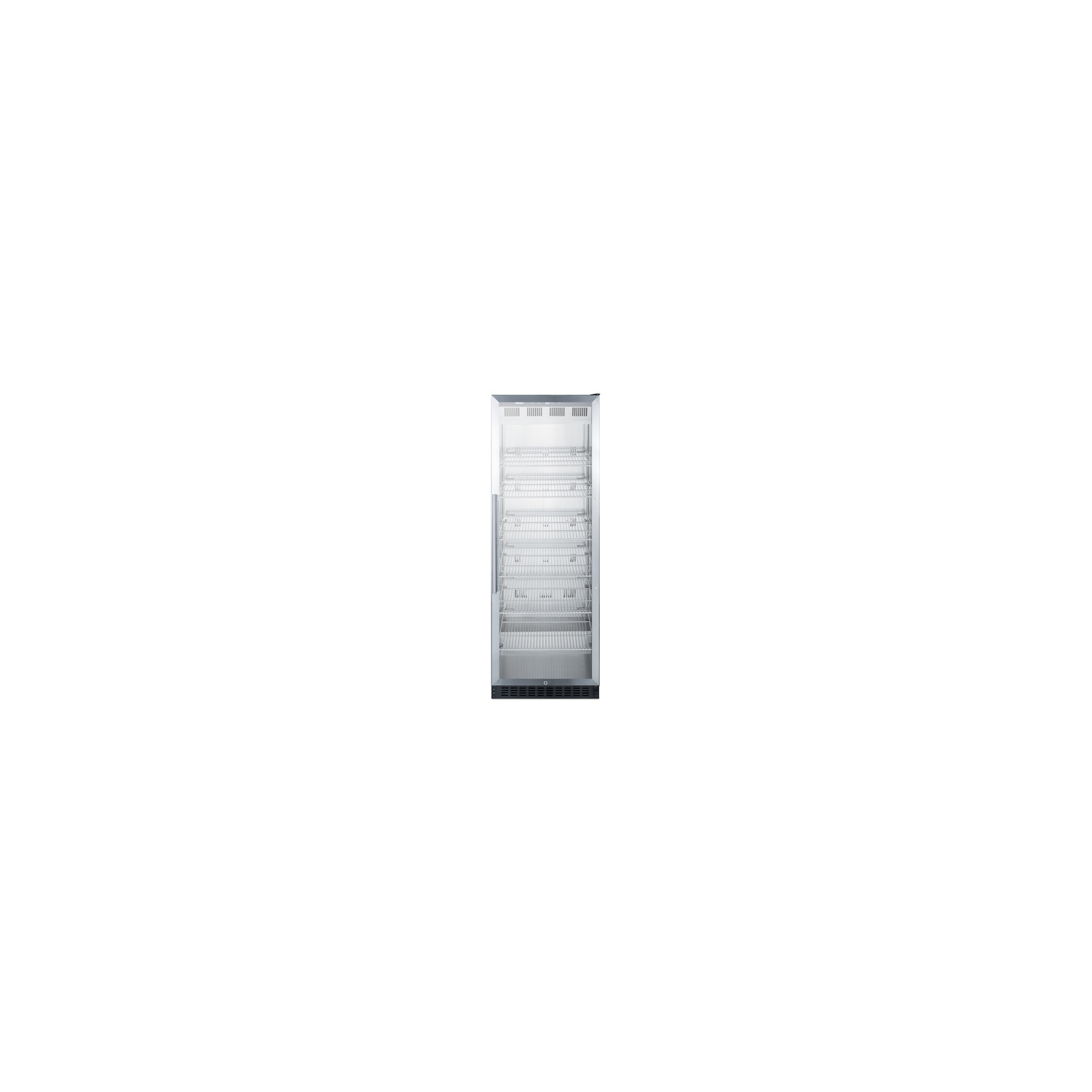

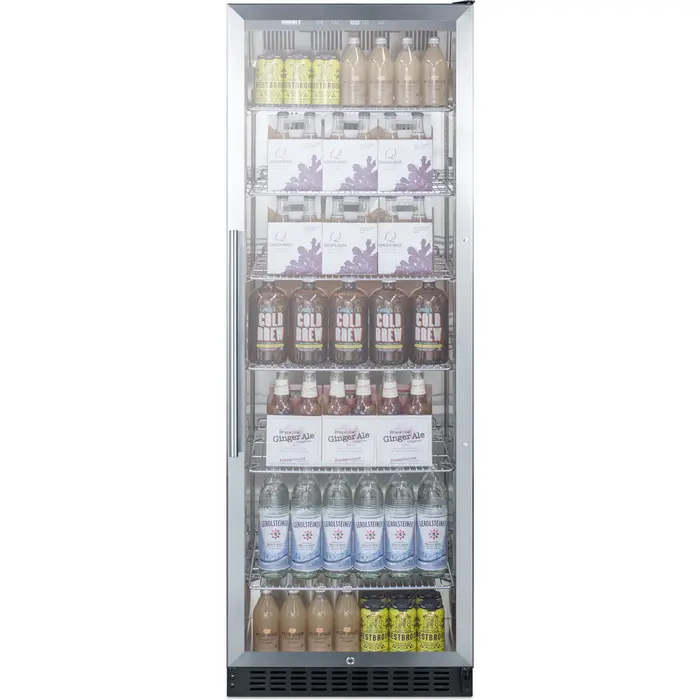

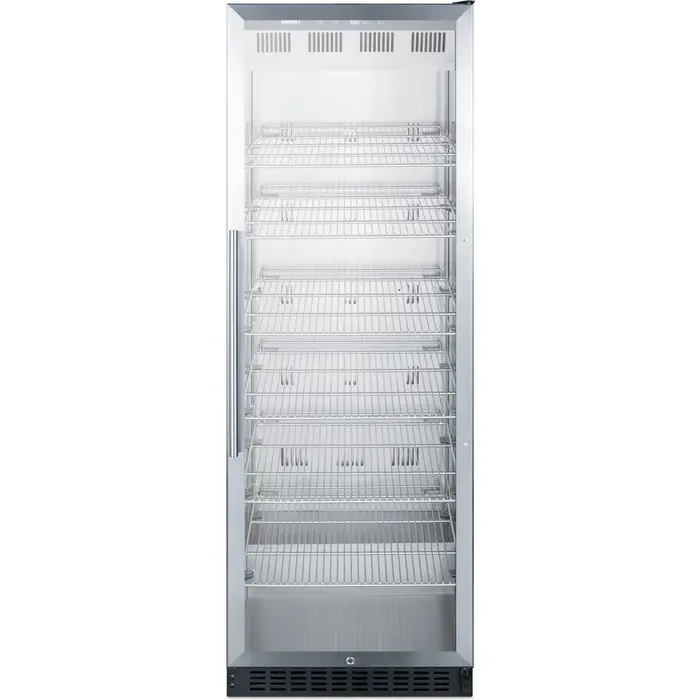

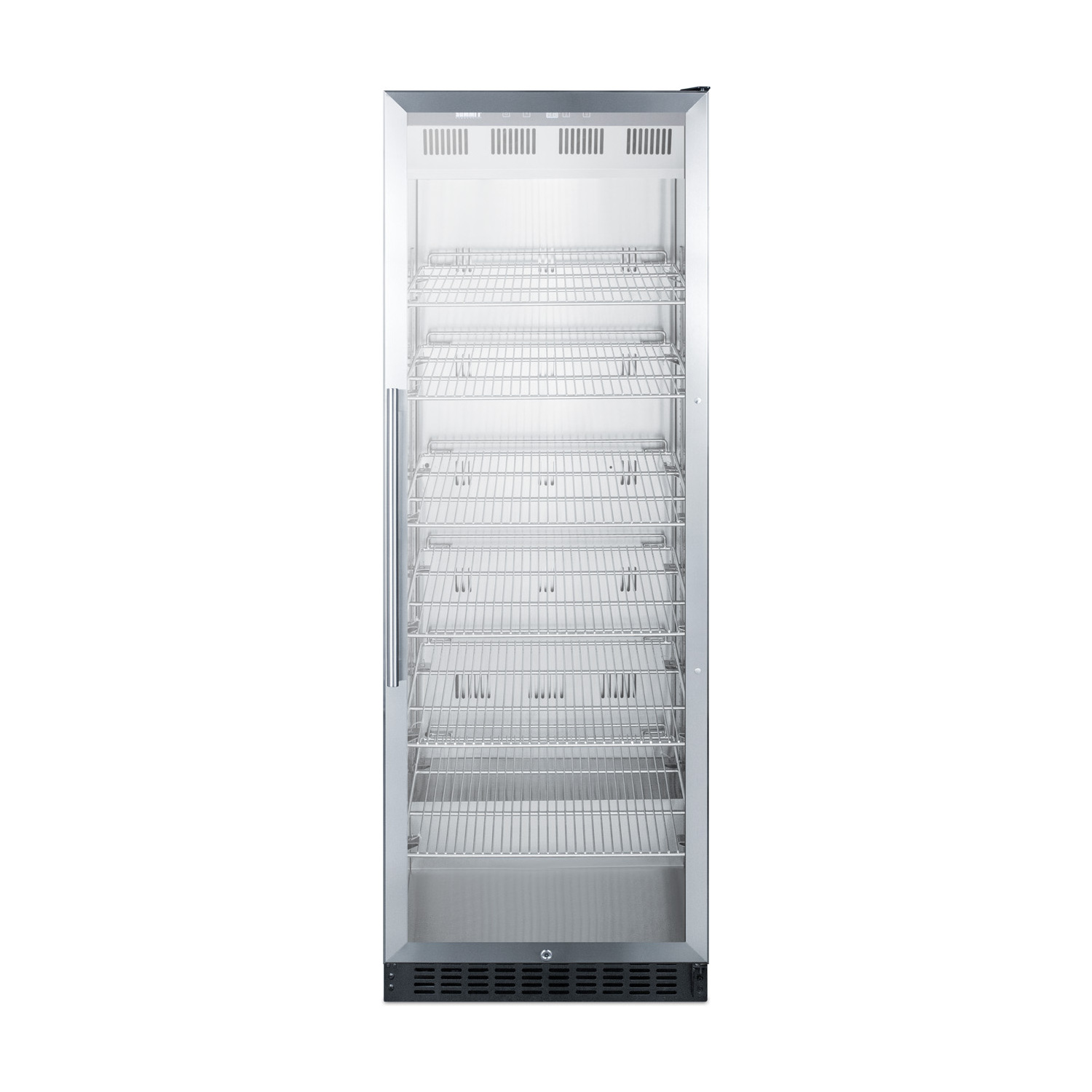

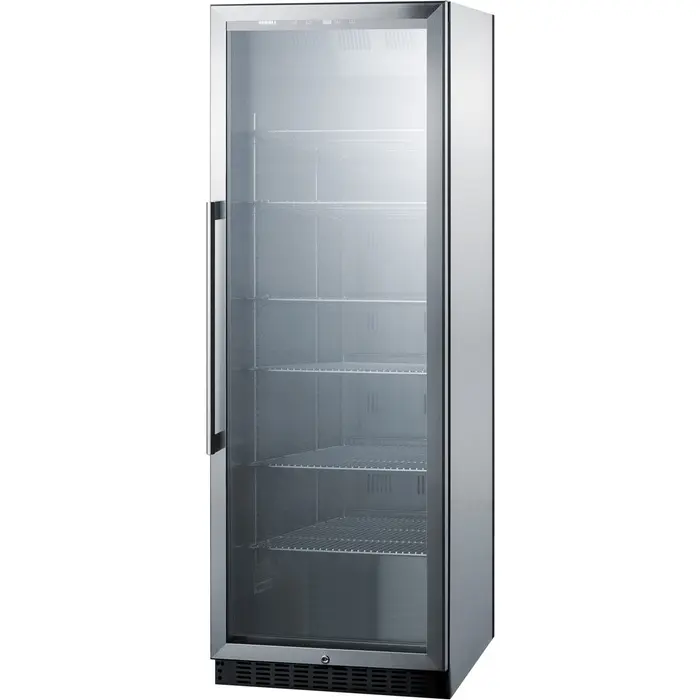

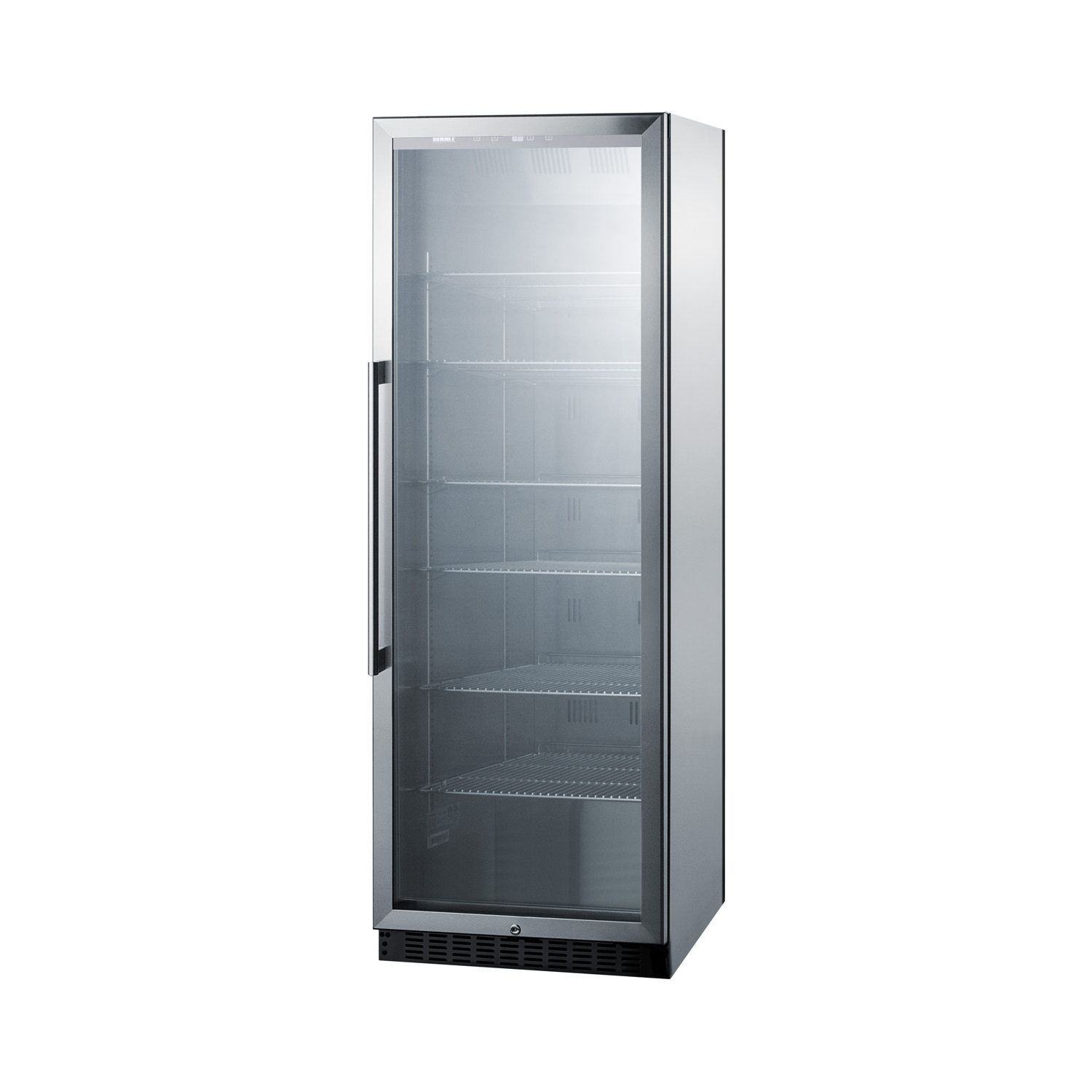

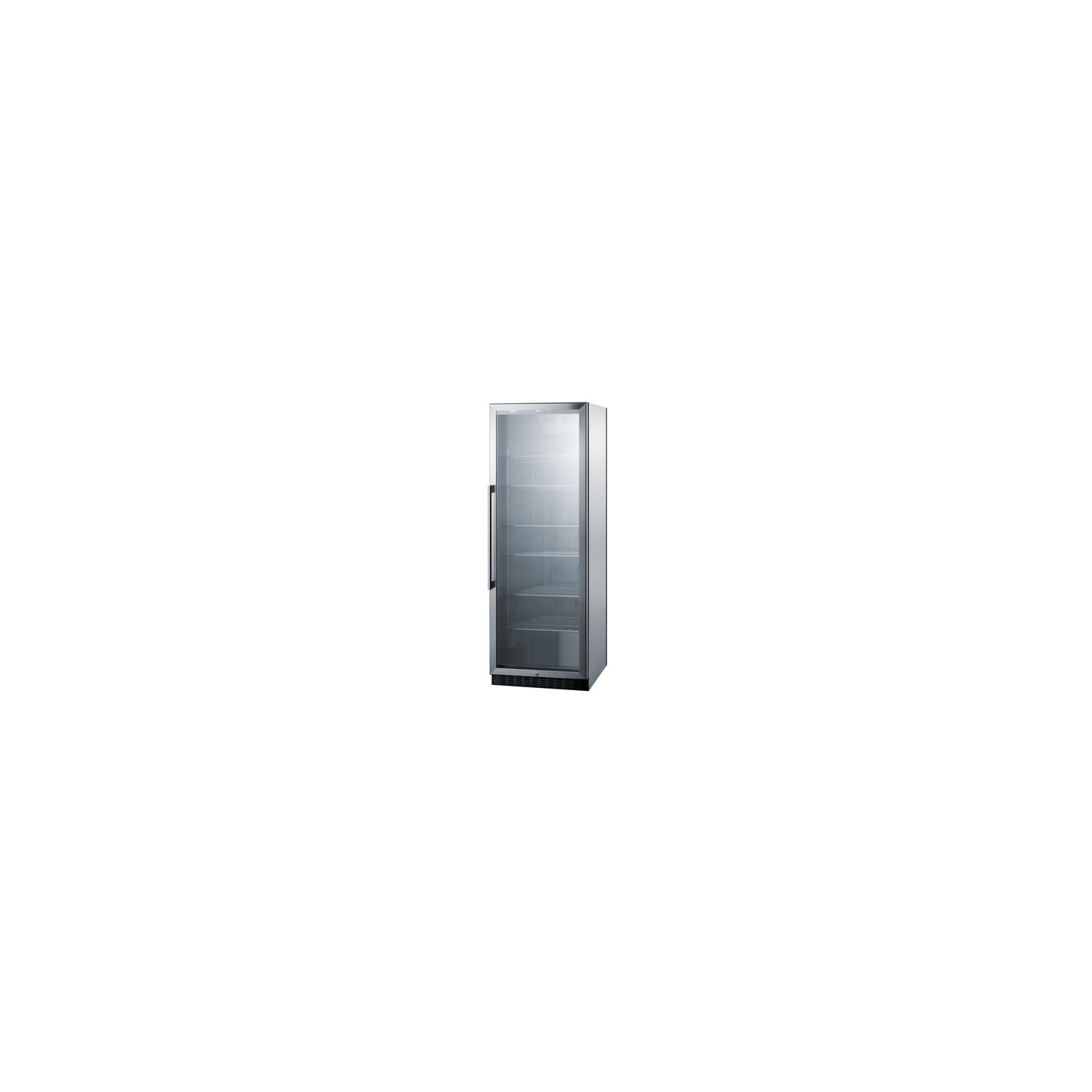

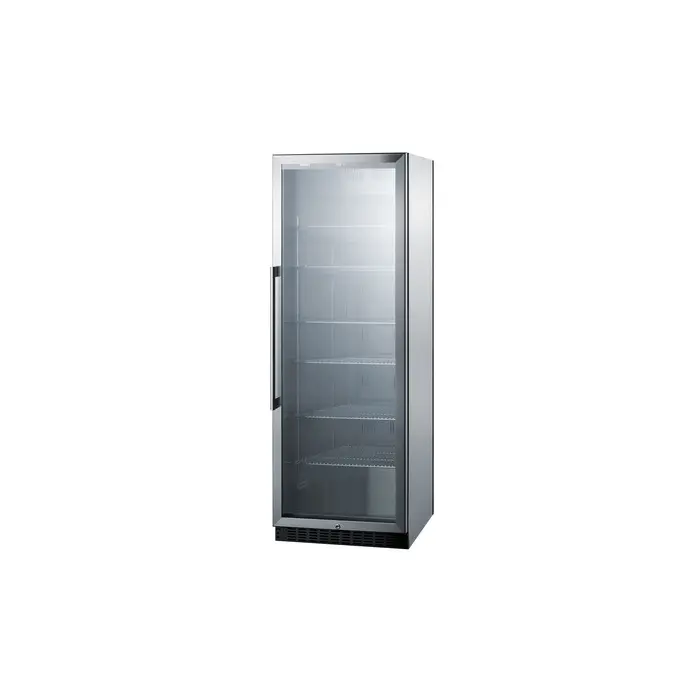

The SCR1401CSS is an upright beverage center conveniently sized with a slim 24 inch footprint. The stainless steel trimmed glass door provides a full view of storage down to the floor, with recessed LED lighting to ensure an attractive and efficient presentation. The door comes in a right hand door swing and features a self-closing design to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. A factory installed lock offers additional security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished 304 grade stainless steel wrapped exterior cabinet that also enables freestanding use.

Inside, the SCR1401CSS utilizes frost-free operation for minimum user maintenance. The interior walls are made from stainless steel for improved durability and sanitation. The cantilevered shelving system allows you to easily adjust your storage to accommodate virtually any size. The digital control panel is conveniently located towards the top, allowing staff to adjust the temperature without bending to the floor. The readout can be viewed in Celsius or Fahrenheit. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.

The SCR1401CSS is ETL-S listed to NSF-7 standards for use in commercial settings. Similar choices are available in lower heights for more space-challenged areas. Browse Summit's commercial product line for more.

SPECIFICATIONS

Overview

Nominal Height 70.0" (178 cm)

Height of Cabinet 69.75" (177 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.75" (60 cm)

Depth with Handle 25.63" (65 cm)

Depth with door at 90° 46.75" (119 cm)

Capacity 12.6 cu.ft. (357 L)

Defrost Type Frost-Free

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.7

Weight 185.0 lbs. (84 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101063690

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible No

Shelf Type Chrome

Shelf Qty 6

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.76oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 68ºF

Sound Level 35.7 dB

Dimensions

Interior Height 59.75" (152 cm)

Interior Width 20.0" (51 cm)

Interior Depth 16.5" (42 cm)

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 4.5" (11 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Commercially listed Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use

Slim fit Just 24" wide and deep for an easy fit in any setting

Frost-free operation No-frost convenience for reduced user maintenance

Stainless steel interior Walls are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door Heat-safe glass door with stainless steel trim offers full display all the way down to the floor

Self-closing door Door will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures

Digital thermostat Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit

Cantilevered shelving Adjustable shelving accommodates virtually any size with convenient cantilevered system

Recessed LED lighting On/off button to illuminate stored products with an attractive and energy efficient glow

Factory installed lock Keyed lock for a secure interior (2 keys included)

Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom

High temperature alarm Alarm sounds if the interior temperature rises out of suggested range

Professional handle Attractive design in stainless steel to complete the look

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Stainless steel cabinet 304 grade stainless steel for durable elegance

Built-in or freestanding Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
