Summit Commercial full-size wine cellar with champagne style shelving, 7.61101e+011, SCR1401CH

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

The SCR1401CH is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a right hand door swing. For a left hand version, see the SCR1401LHCH. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use.

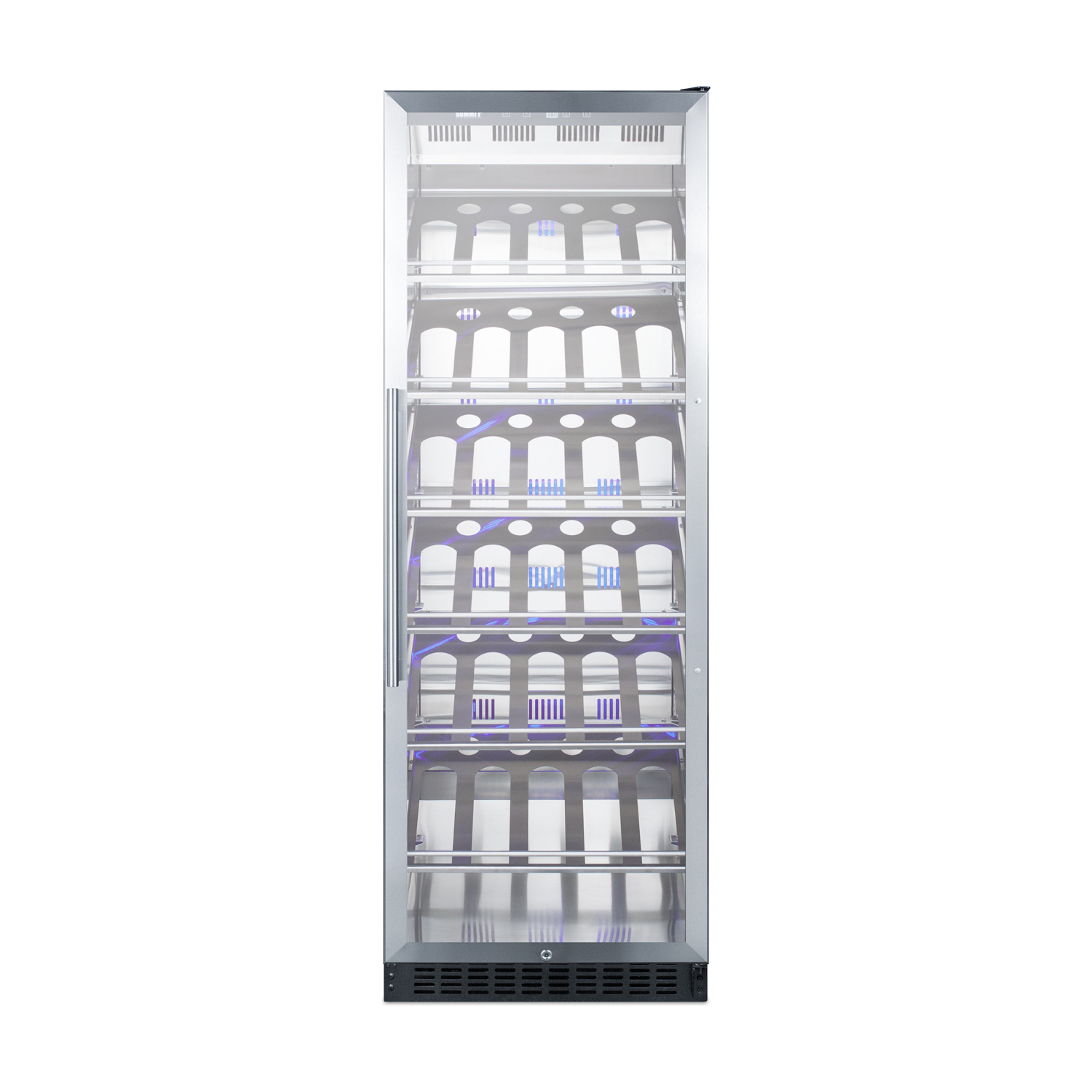

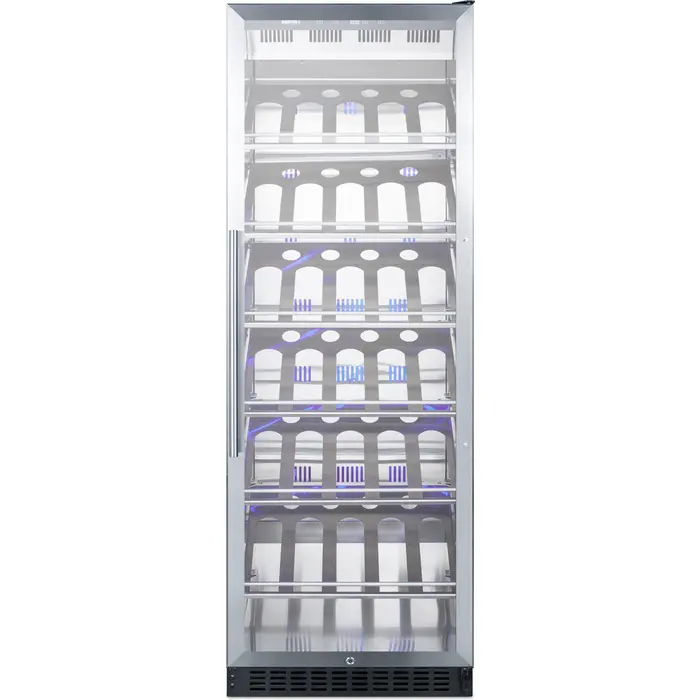

Inside, the SC1401CH includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.

The SCR1401CH comes with a fully finished jet black cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.

SPECIFICATIONS

Overview

Nominal Height 70.0" (178 cm)

Height of Cabinet 69.75" (177 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.75" (60 cm)

Depth with Handle 25.63" (65 cm)

Depth with door at 90° 46.75" (119 cm)

Capacity 12.6 cu.ft. (357 L)

Bottles 35 bottles

Defrost Type Frost-Free

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 250.0 lbs. (113 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101059822

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible No

Shelf Type Steel

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.76 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 59.75" (152 cm)

Interior Width 1 20.0" (51 cm)

Interior Depth 1 16.5" (42 cm)

Temperature Range 36 to 68ºF

Interior Height 2 4.5" (11 cm)

Interior Width 2 20.0" (51 cm)

Interior Depth 2 4.5" (11 cm)

Sabbath Mode Yes

FEATURES

Commercially approved Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use

Champagne racks Stainless steel shelves are specially sized to store wider wine and champagne bottles

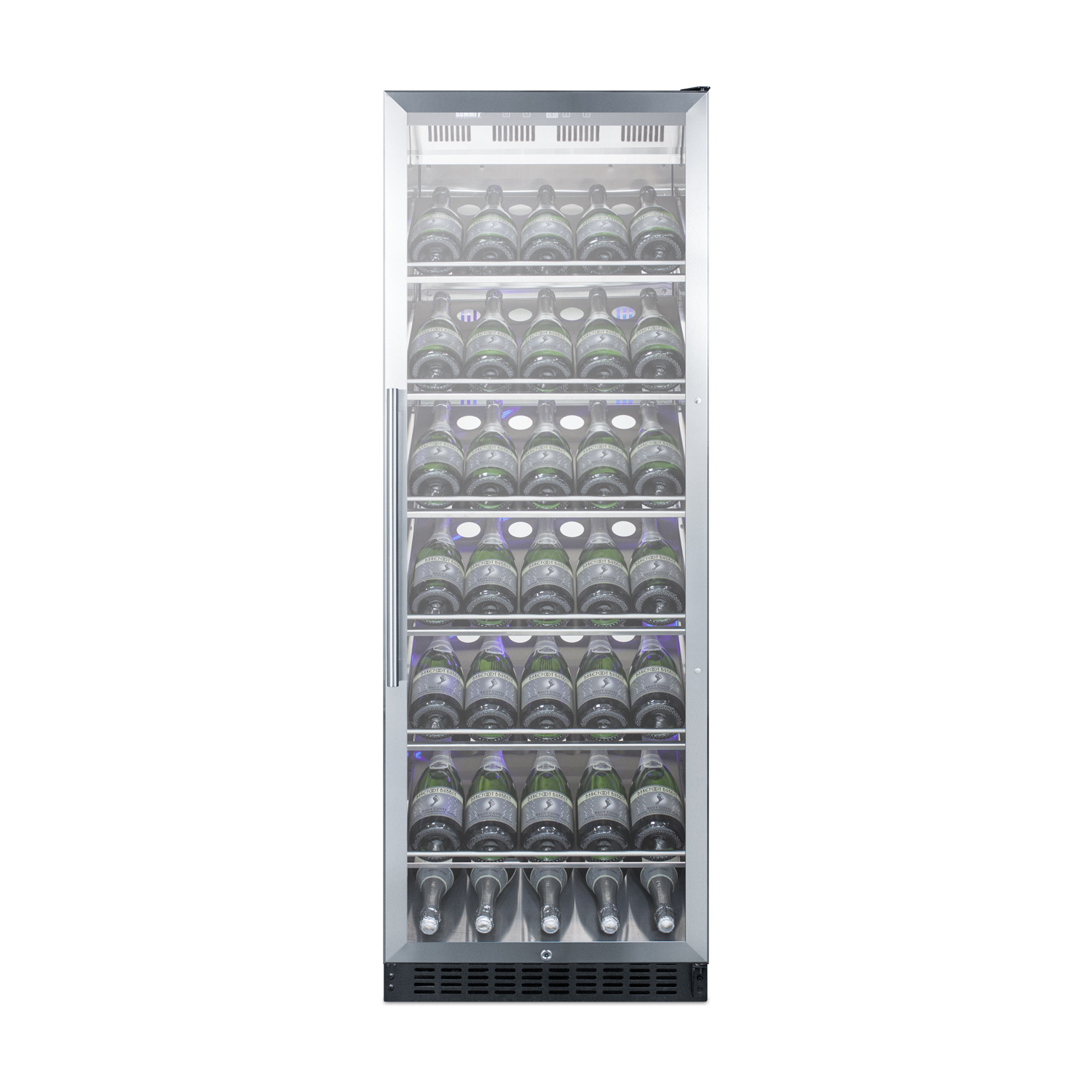

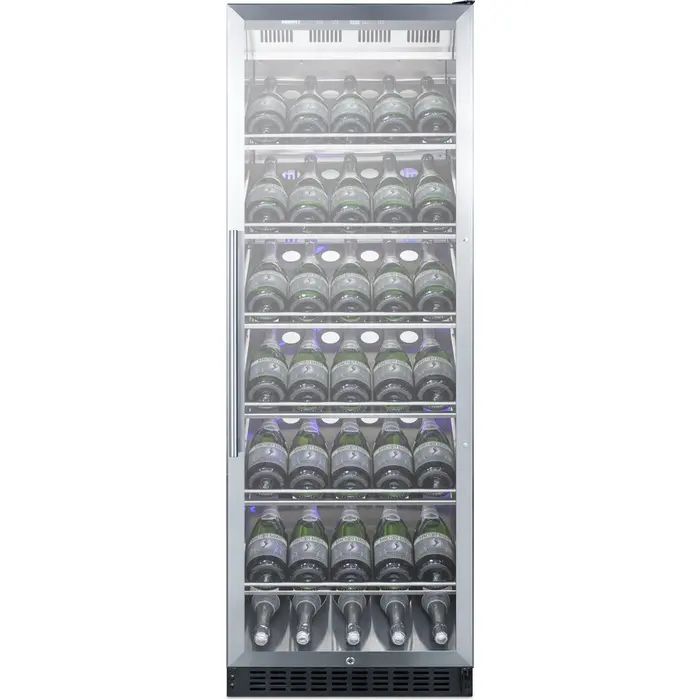

Bottle display Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels

Interior LED lighting Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view

Slim fit Just 24" wide and deep for an easy fit in any setting

Frost-free operation No-frost convenience requires no manual defrosting

Stainless steel interior Walls are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door Heat-safe glass door with stainless steel trim offers full display all the way down to the floor

Self-closing door Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Digital thermostat Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit

Wide temperature range Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne

Factory installed lock Keyed lock for a secure interior (2 keys included)

Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom

High temperature alarm Alarm sounds if the interior temperature rises out of suggested range

Professional handle Attractive design in stainless steel to complete the look

Right hand door swing For this unit with a left hand door swing, order SCR1401LCH

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Fully finished black cabinet Allows the unit to be used freestanding

Built-in or freestanding Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
