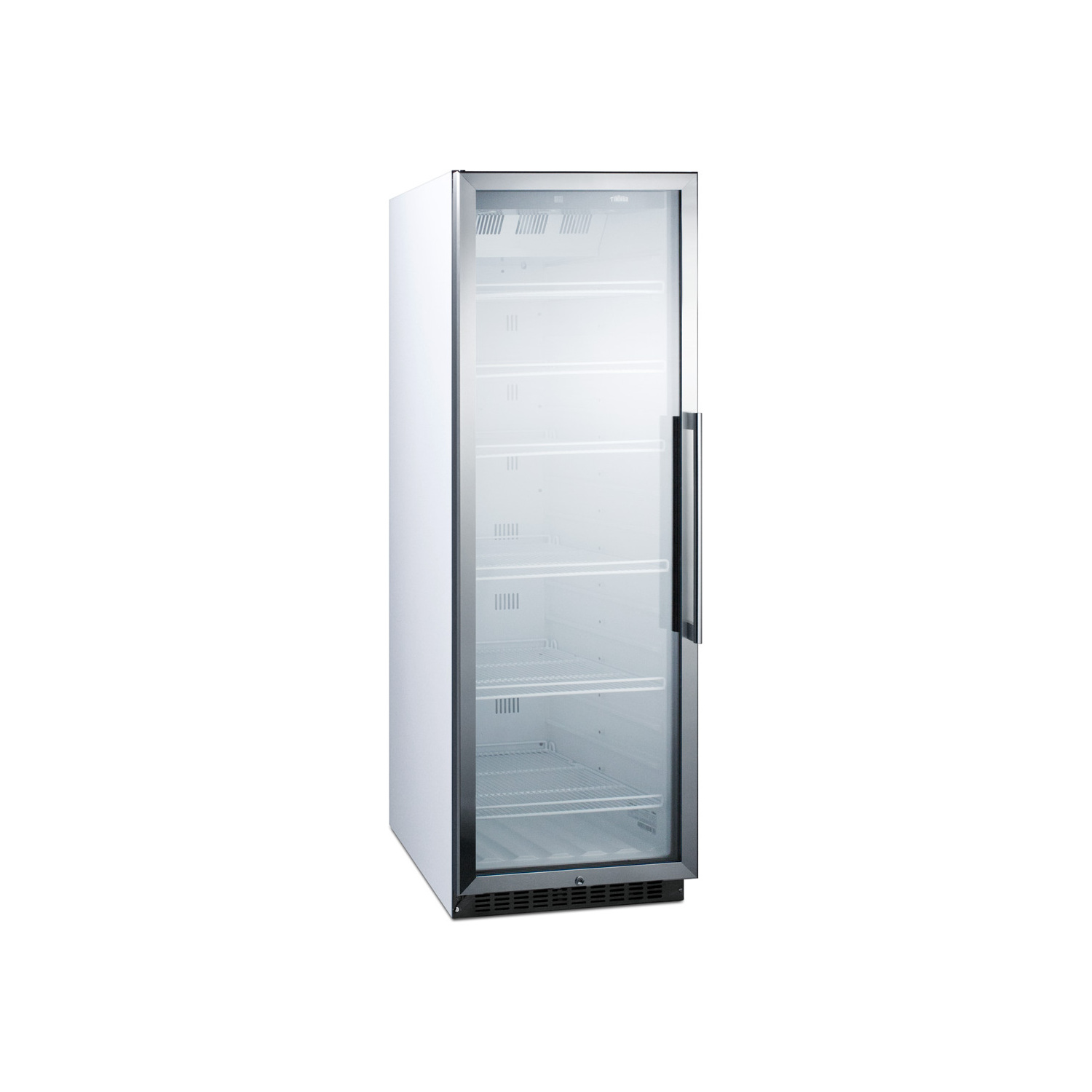

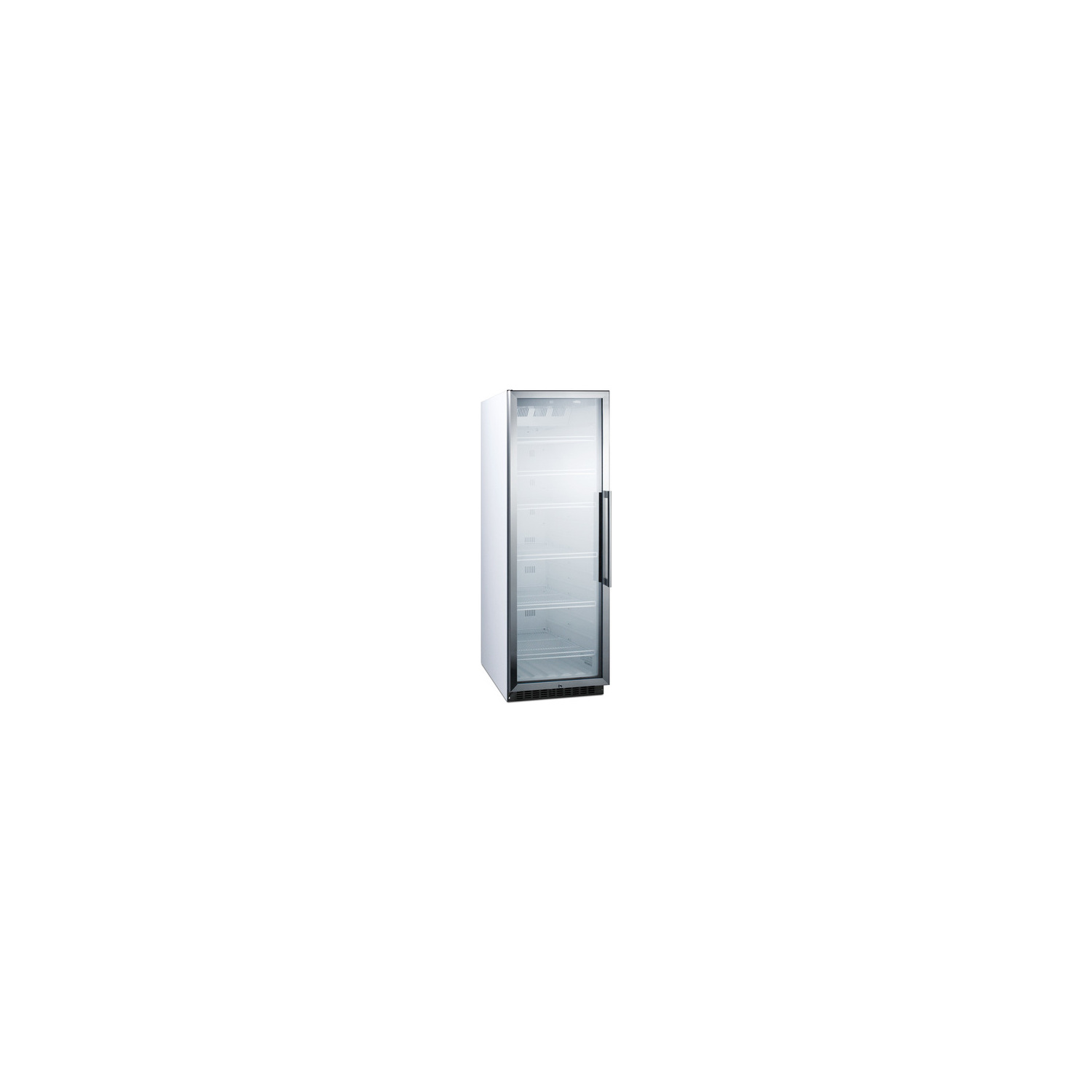

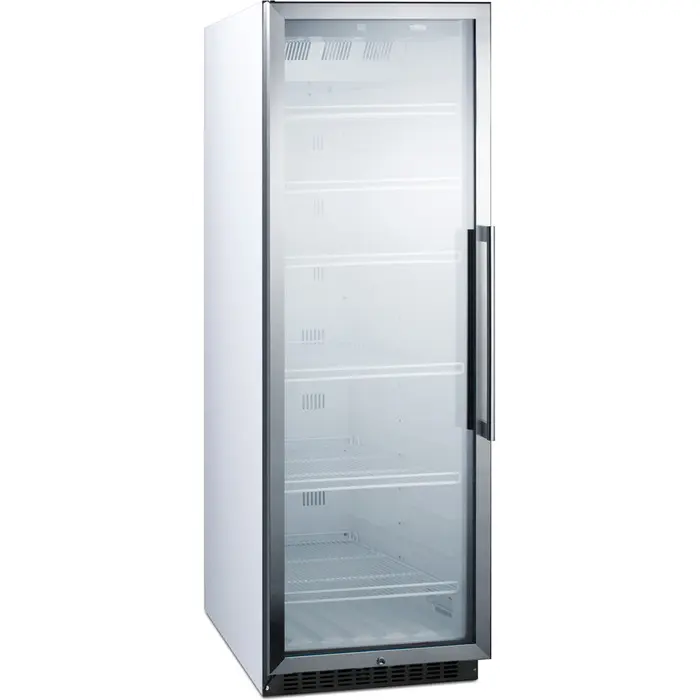

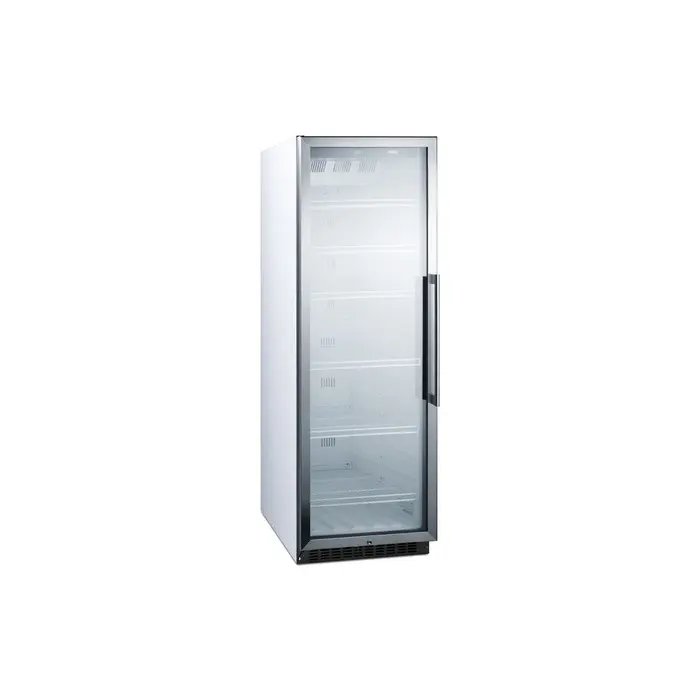

Summit Commercial beverage merchandiser with 12.6 cu.ft. capacity, digital thermostat and self-closing door with a left hand swing, 7.61101e+011, SCR1400WLH

SUMMIT's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation.

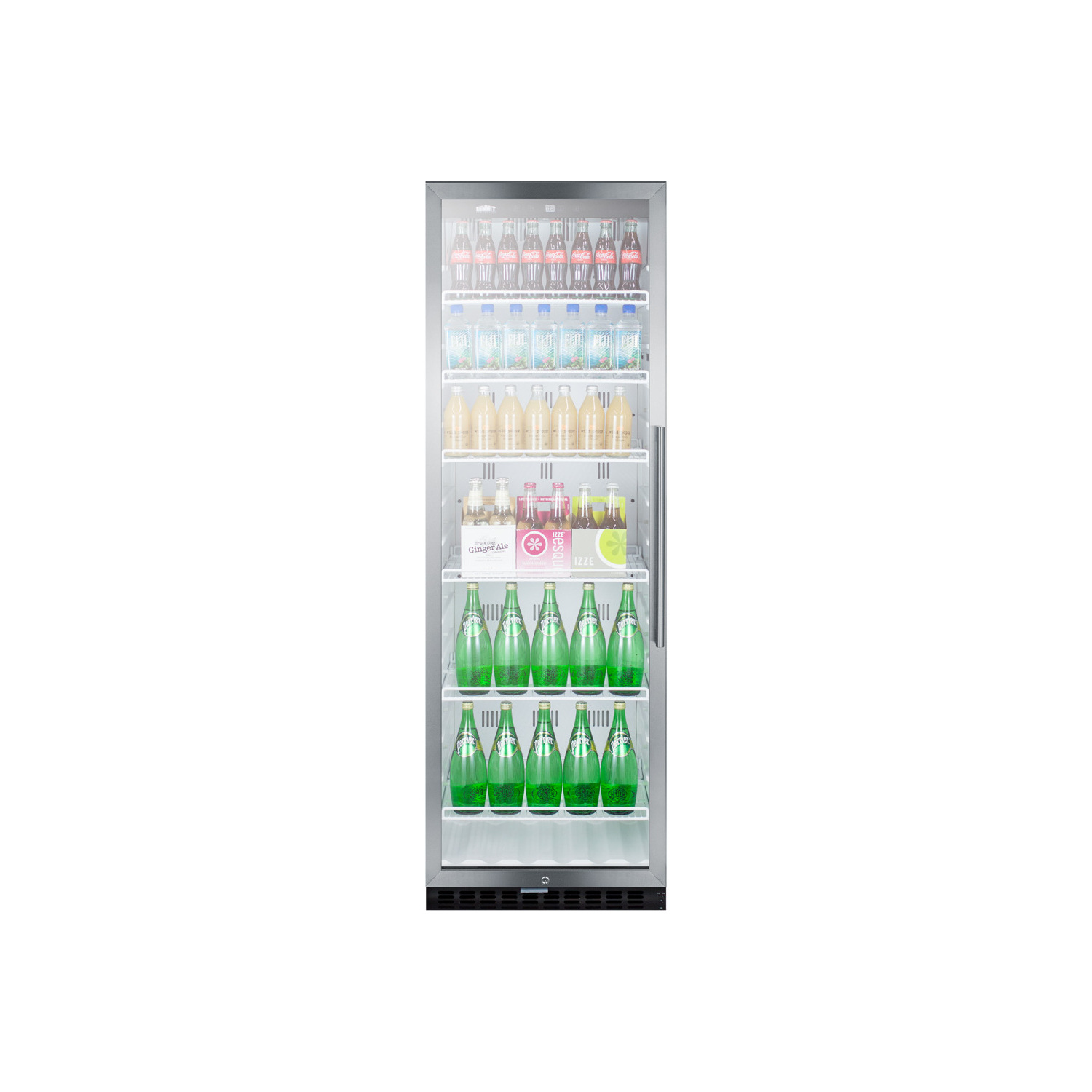

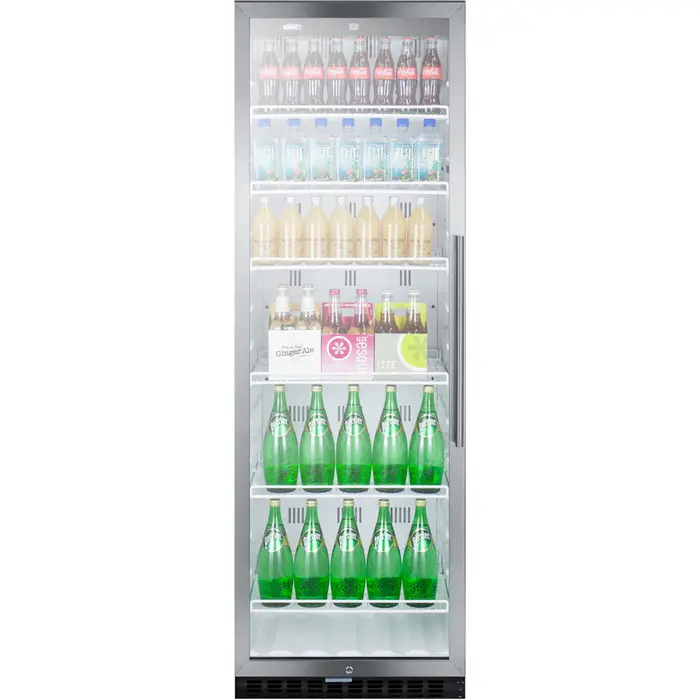

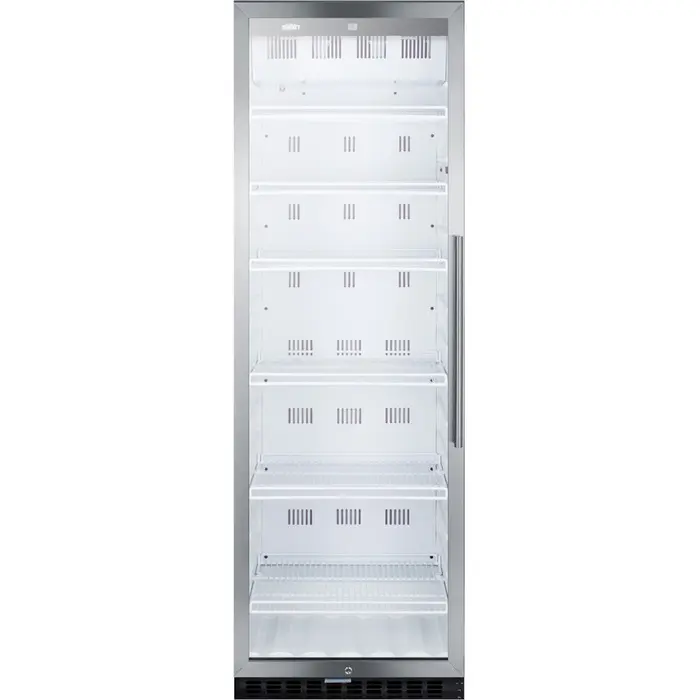

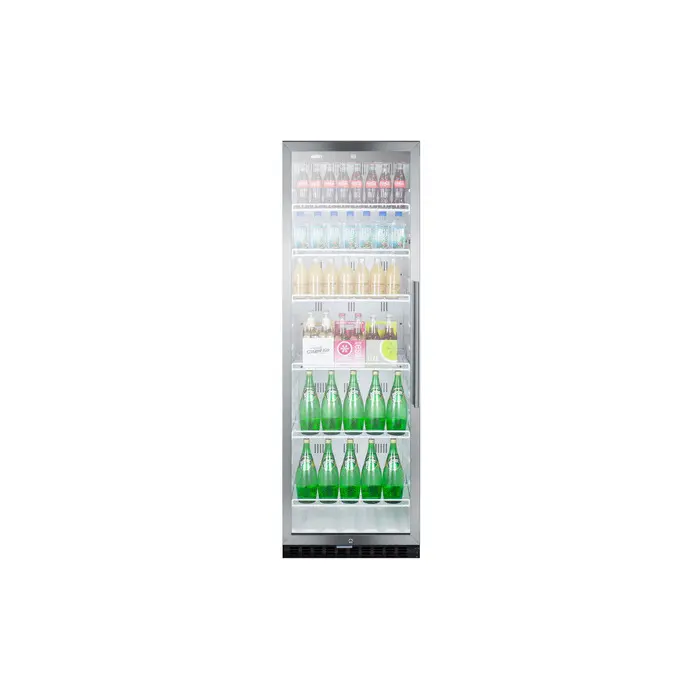

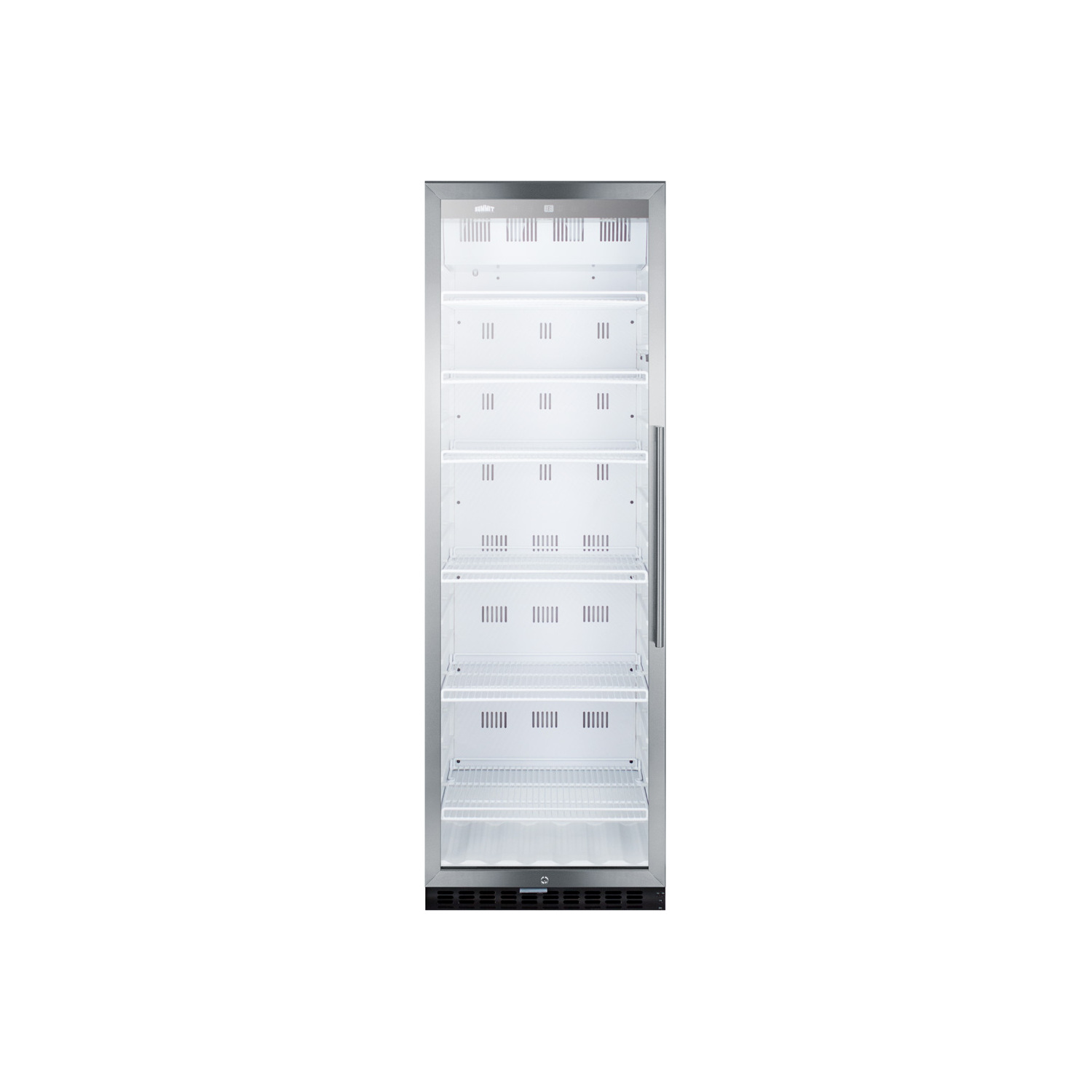

SUMMIT SCR1400WLH offers 12.6 cu.ft. of storage space in a slim-fitting footprint just under 24". Bottles and cans can be stored on six heavy duty wire shelves, with fifteen glide options to accommodate different sizes. LED lighting offers full illumination of stored products and a digital thermostat makes temperature control as simple as touching a button. The readout can be viewed in Celsius or Fahrenheit.

The frost-free SCR1400WLH features a tempered heat-safe glass door trimmed in stainless steel, with a keyed lock for added security. The stainless steel trimmed glass door includes a pro style handle to complete the modern look, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use. This unit has a left hand door swing. For a right hand version, see the SCR1400W.

This model has a white cabinet and a right angle plug for an easier fit. It meets UL-471 commercial standards and is ETL-S listed to NSF standards for use in any commercial foodservice establishment. For this same unit with a stainless steel exterior, see the SCR1400WLHCSS.

NOTE: This is an indoor refrigerator and is not designed for use in the outdoors.

SPECIFICATIONS

Overview

Nominal Height 70.0" (178 cm)

Height of Cabinet 69.75" (177 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.75" (60 cm)

Depth with Handle 25.63" (65 cm)

Depth with door at 90° 46.75" (119 cm)

Capacity 12.6 cu.ft. (357 L)

Defrost Type Frost-Free

Door Glass

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 151.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101059372

Refrigerator Features

Sabbath Mode Yes

Door Swing LHD

Reversible No

Shelf Type Wire

Shelf Qty 6

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.76oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36°F to 43°F

Sound Level 35.7 dB

Dimensions

Interior Height 60.25" (153 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 4.0" (10 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 5.5" (14 cm)

FEATURES

Commercially approved ETL-S listed to NSF standards and meets UL-471 for commercial use

Slim fit Just 24" wide and deep for an easy fit in any setting

Glass door with stainless steel trim Heat-safe design offers safe display of stored products

Self-closing door Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Professional handle Elegant chrome handle finishes the look

Factory installed lock Keyed security on the refrigerator door

Recessed LED lighting On/off button to illuminate stored products with an attractive and energy efficient glow

Frost-free operation No-frost convenience requires no manual defrosting

Adjustable shelves Fifteen glide positions accommodate a variety of sizes, with heavy duty wired shelving

Digital thermostat Electronic controls for precise temperature management. Temperature range: 34º F to 43º F

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Left hand door swing Door is not field reversible. For a right hand version, see the SCR1400W

Fully finished white cabinet Allows the unit to be used freestanding

Built-in or freestanding Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
