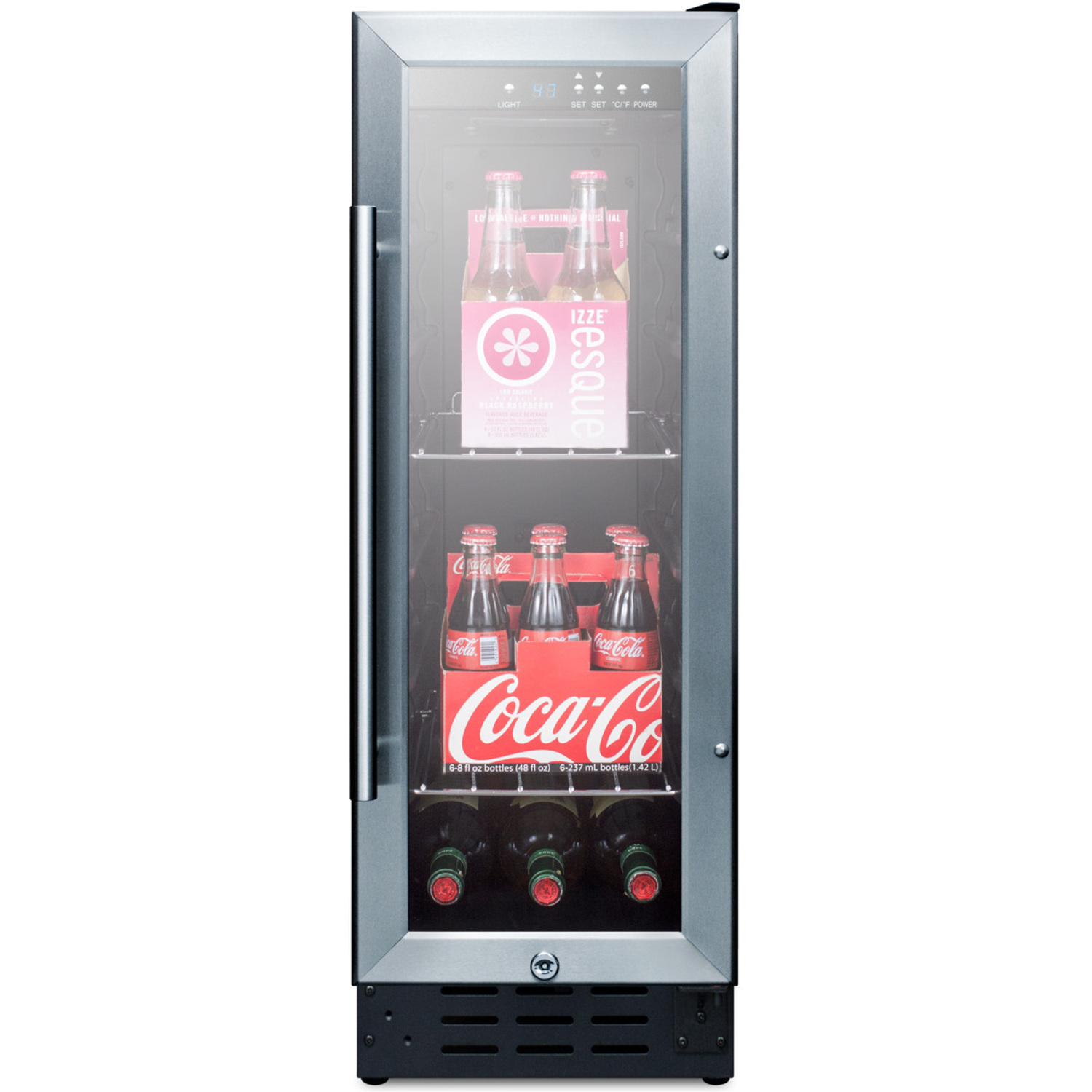

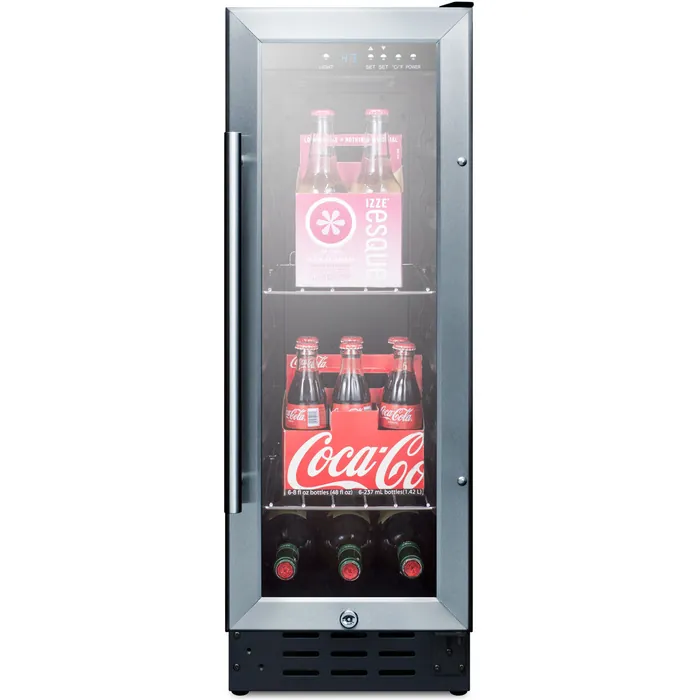

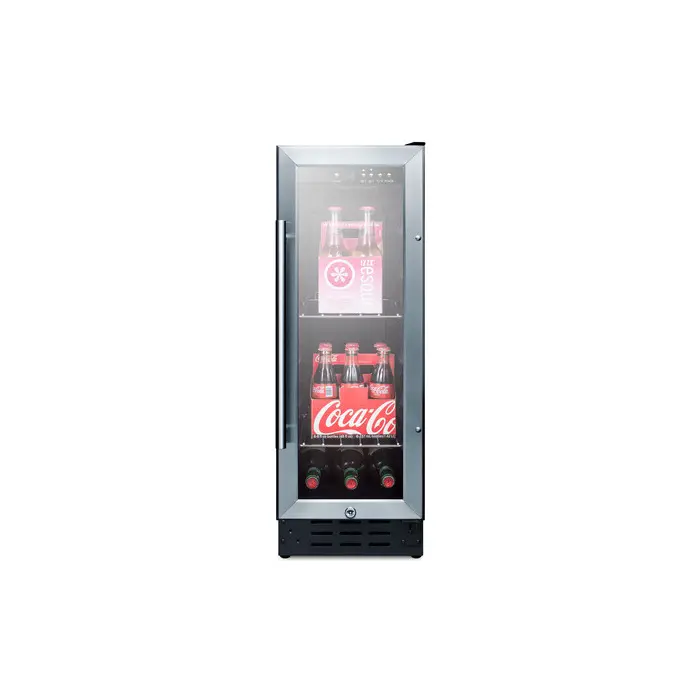

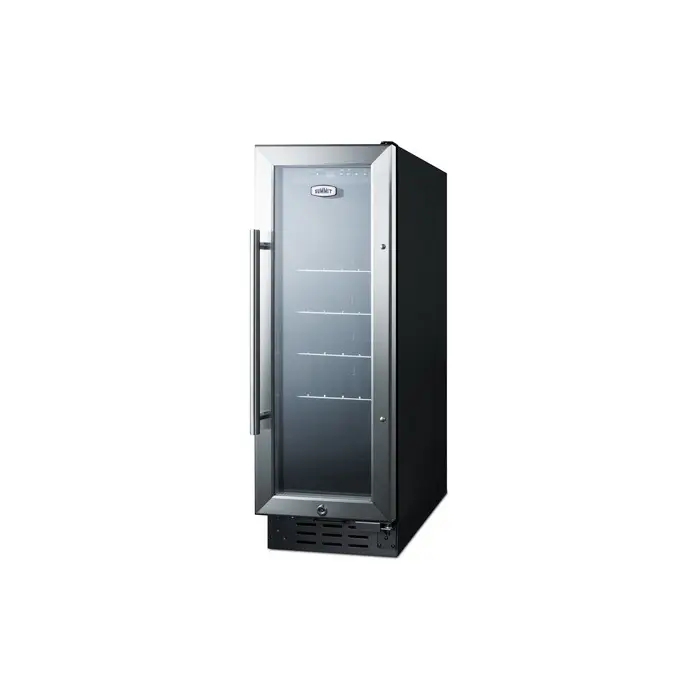

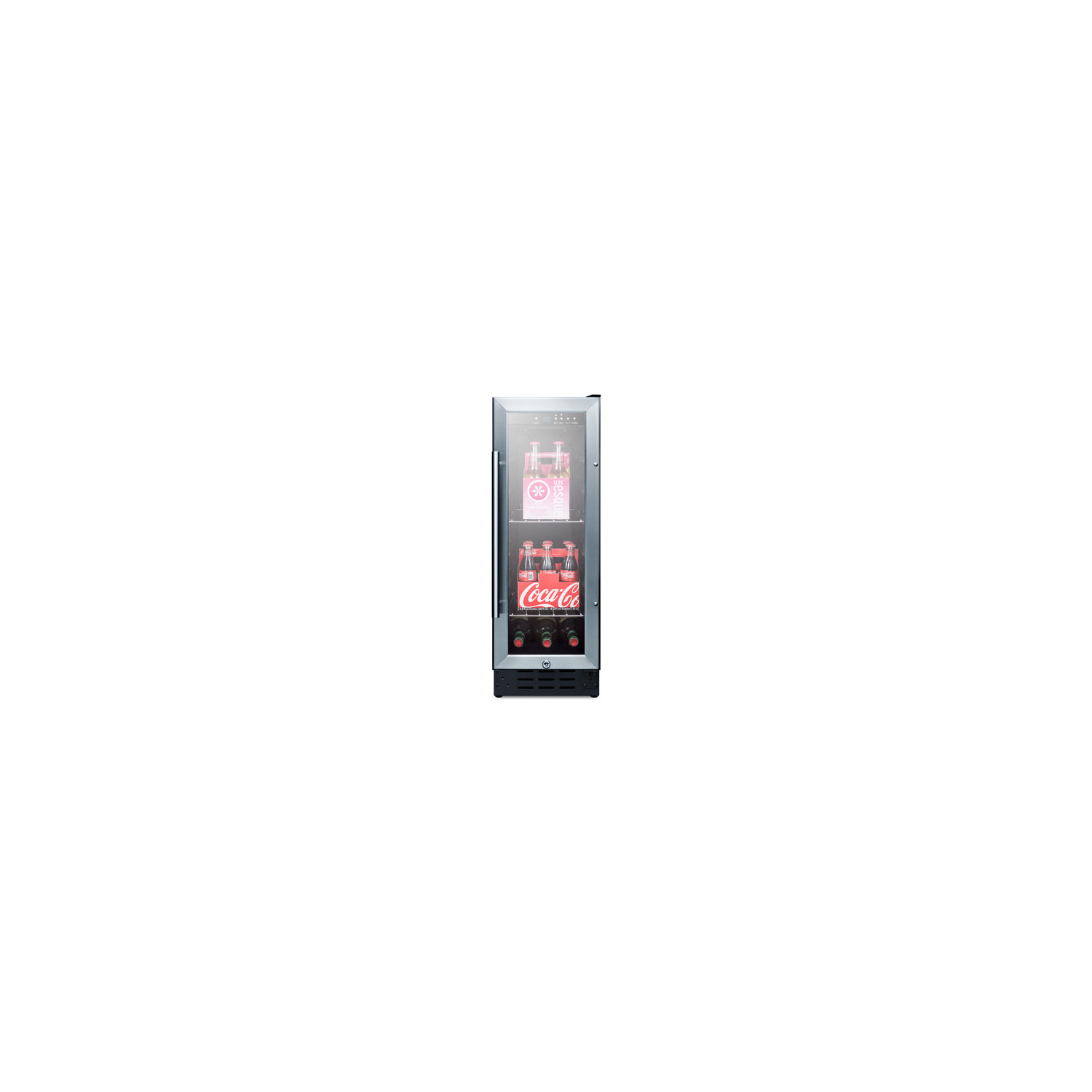

Summit 12 inch wide built-in undercounter commercial beverage center with lock, digital thermostat, and LED lighting, 7.61101e+011, SCR1225B

SUMMIT's collection of built-in beverage centers provides the perfect solution for storing drinks under the counter.

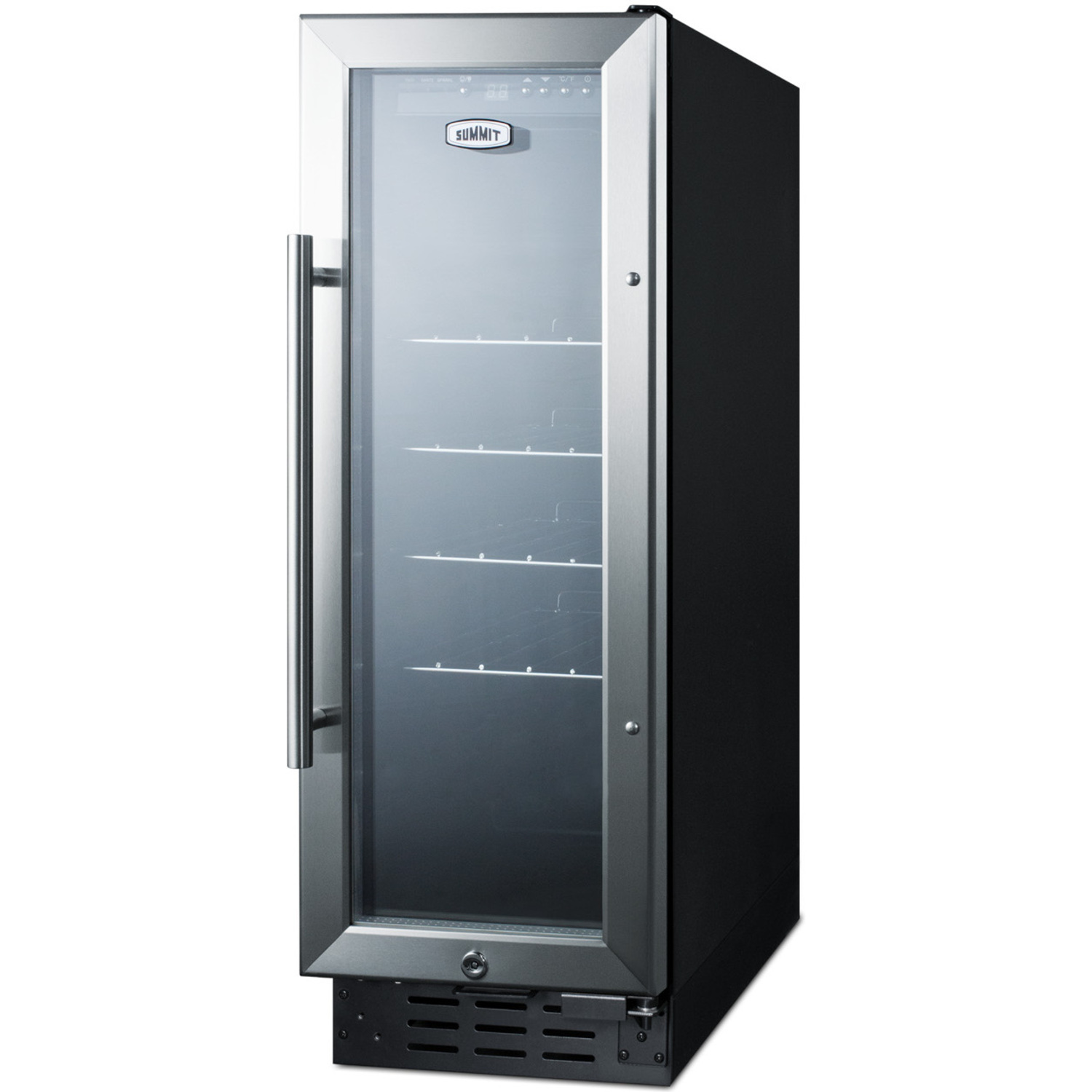

At just 12" wide, SUMMIT SCR1225B is perfectly sized for small spaces. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible triple pane glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.

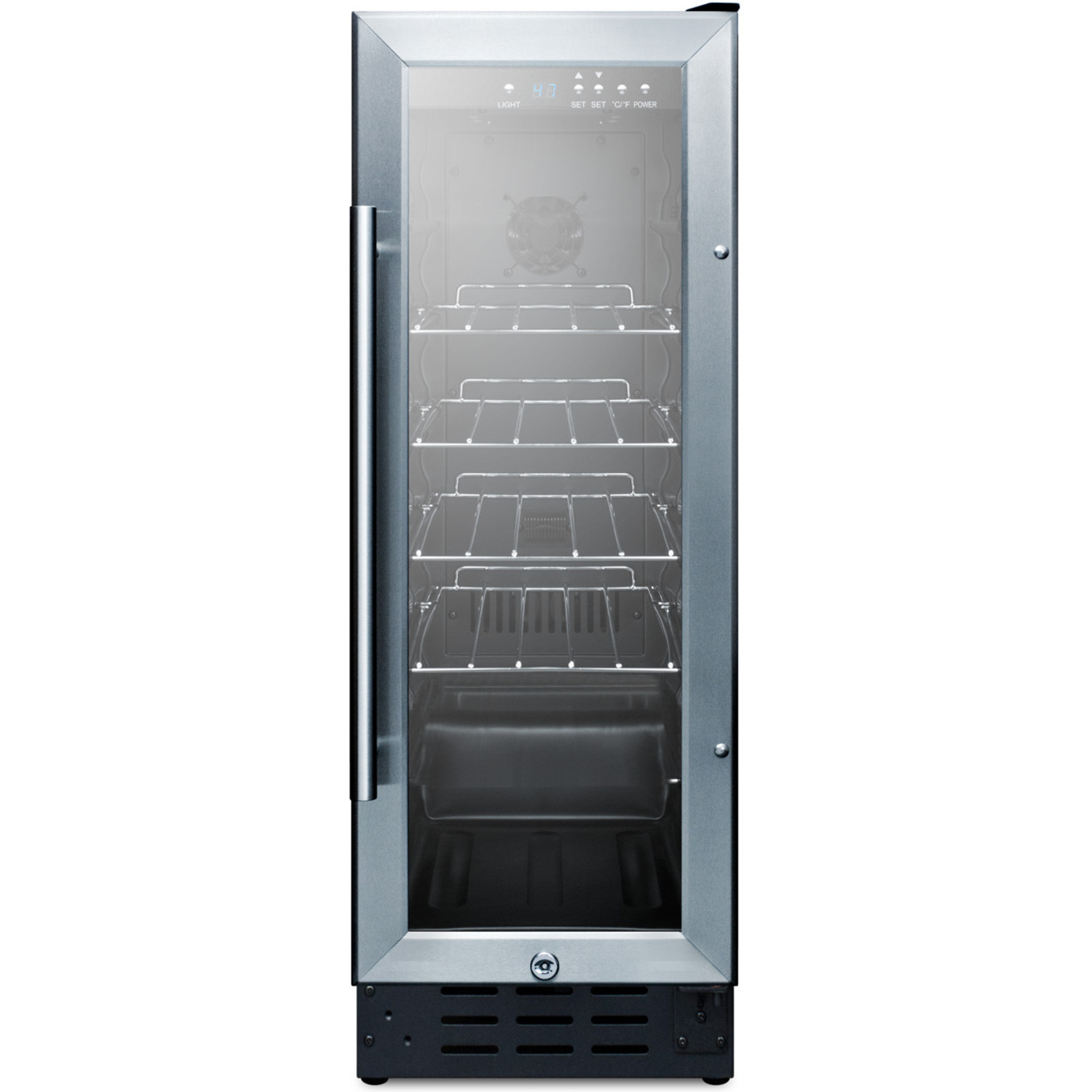

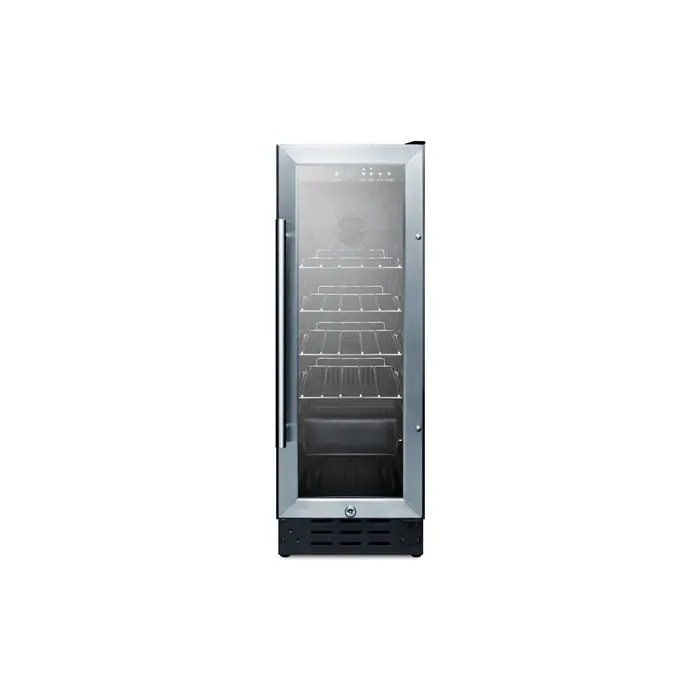

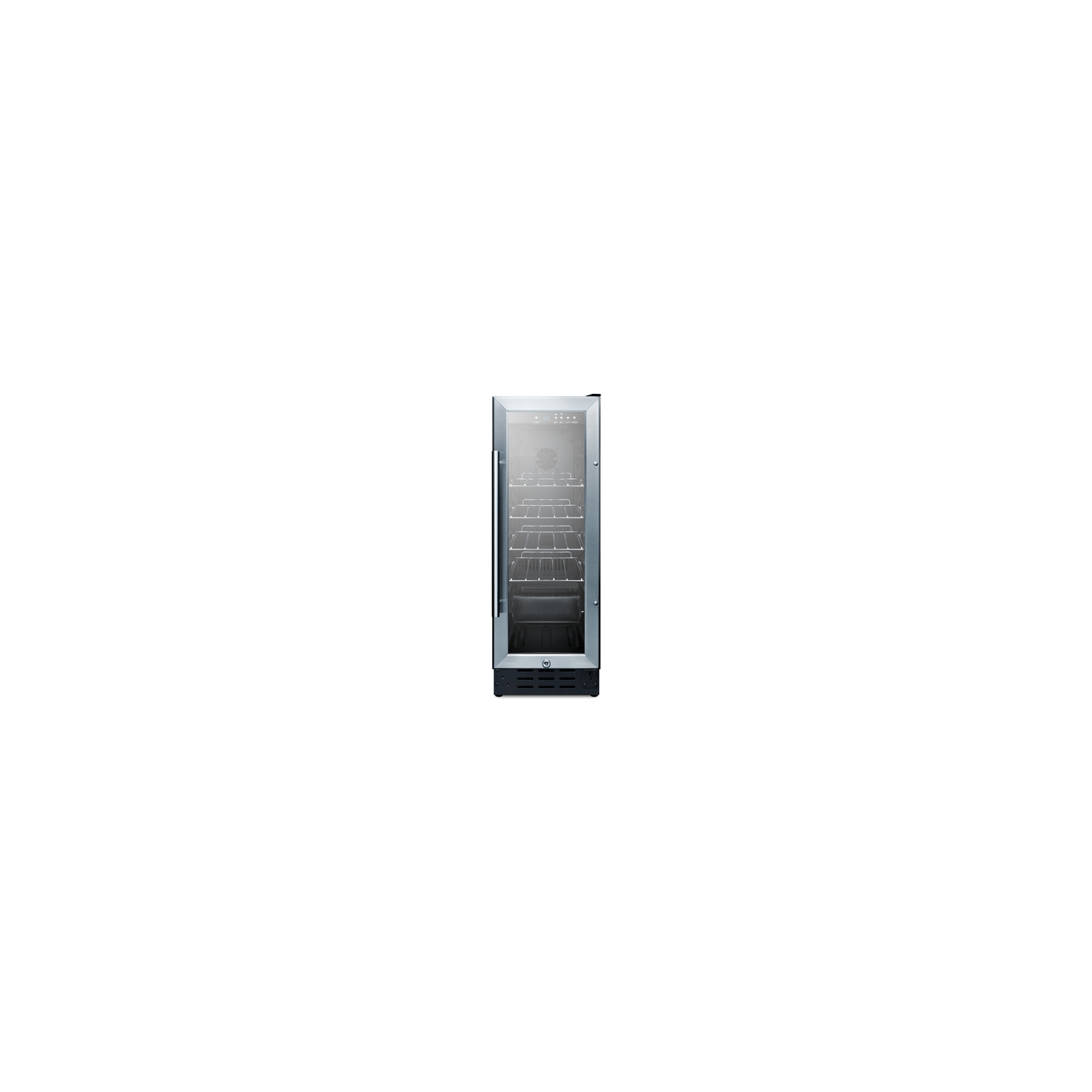

Inside, the SCR1225B includes four slide-out chrome shelves and a floor specially slotted to hold wine bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit.

With its slim fit and user-friendly features, the SCR1225B is perfect for a 12" cutout. This model is ETL-S listed to NSF-7 commercial standards and meets UL Commercial Standard 471. For a matching wine cellar, see the SWC1224B.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.38" (87 cm)

Nominal Width 12.0" (30 cm)

Width 11.88" (30 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 24.13" (61 cm)

Depth with door at 90° 33.0" (84 cm)

Capacity 2.2 cu.ft. (62 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 66.0 lbs. (30 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101049762

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.88oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 9.13" (23 cm)

Interior Depth 17.0" (43 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 9.13" (23 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

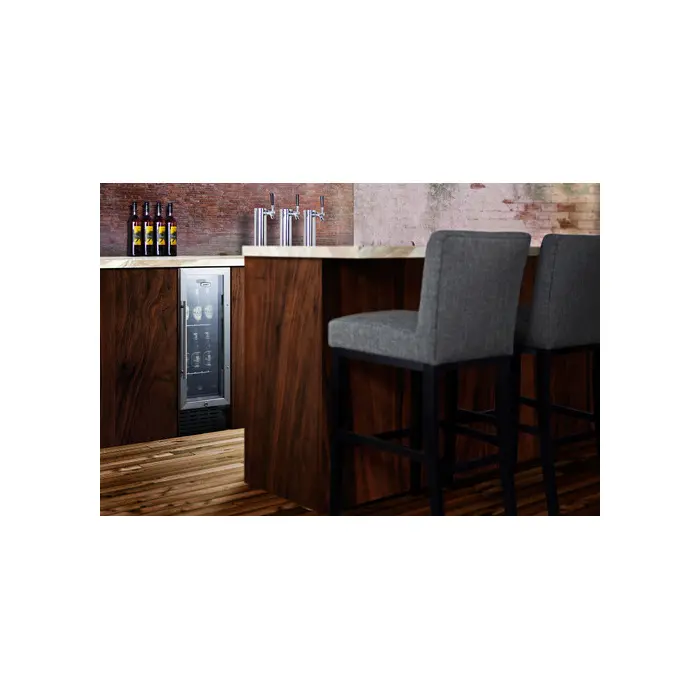

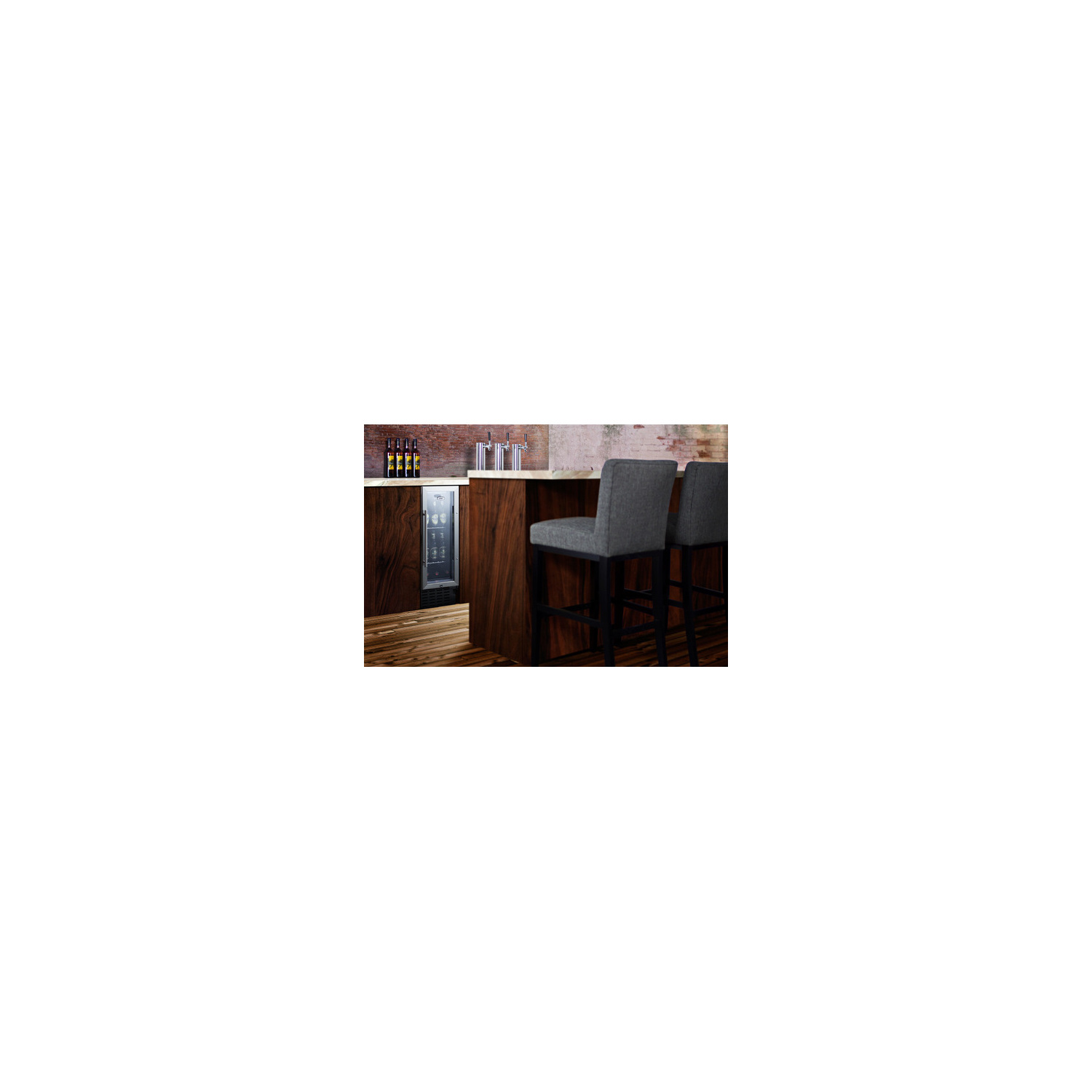

Built-in capable Make the best use of space by installing your appliance under the counter

Commercially approved Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

Glass door with stainless steel trim Provides a full display of stored contents with a heat-safe triple pane tempered design

Factory installed lock Keyed security on the door

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Automatic defrost Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves Slide-out shelves offer attractive and convenient storage for beverages

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

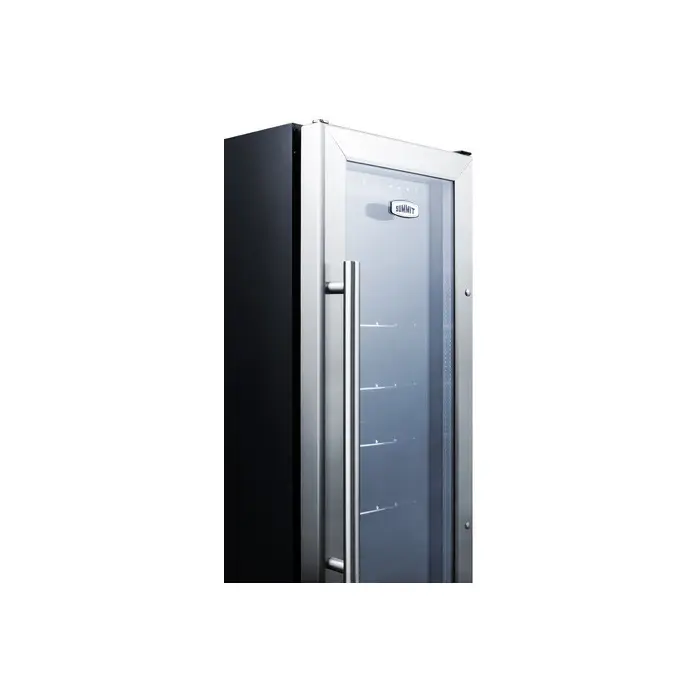

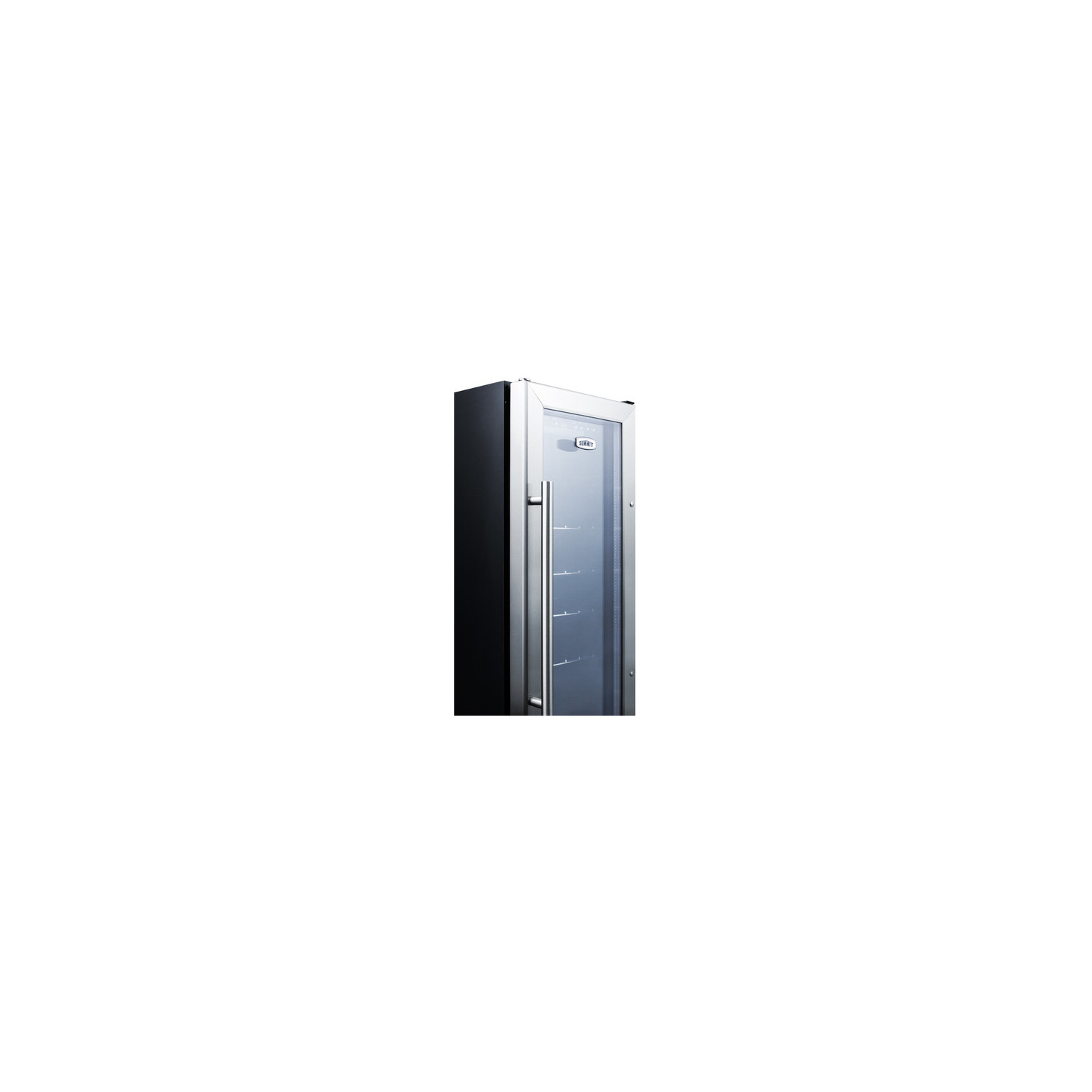

Professional handle Stainless steel look for added elegance

Flush back Space saving design with easier cleanability

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1225B.pdf)

REVIT MODEL (QF_Summit_SCR1225B_Commercial_Glass_Door_Beverage.rfa)

USE & CARE (SCR1225B-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)
