Summit Commercial beverage merchandiser with 11 cu.ft. capacity, SS interior, self-closing door, digital thermostat, and SS wrapped cabinet, 7.61101e+011, SCR1156CSS

Summit's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation.

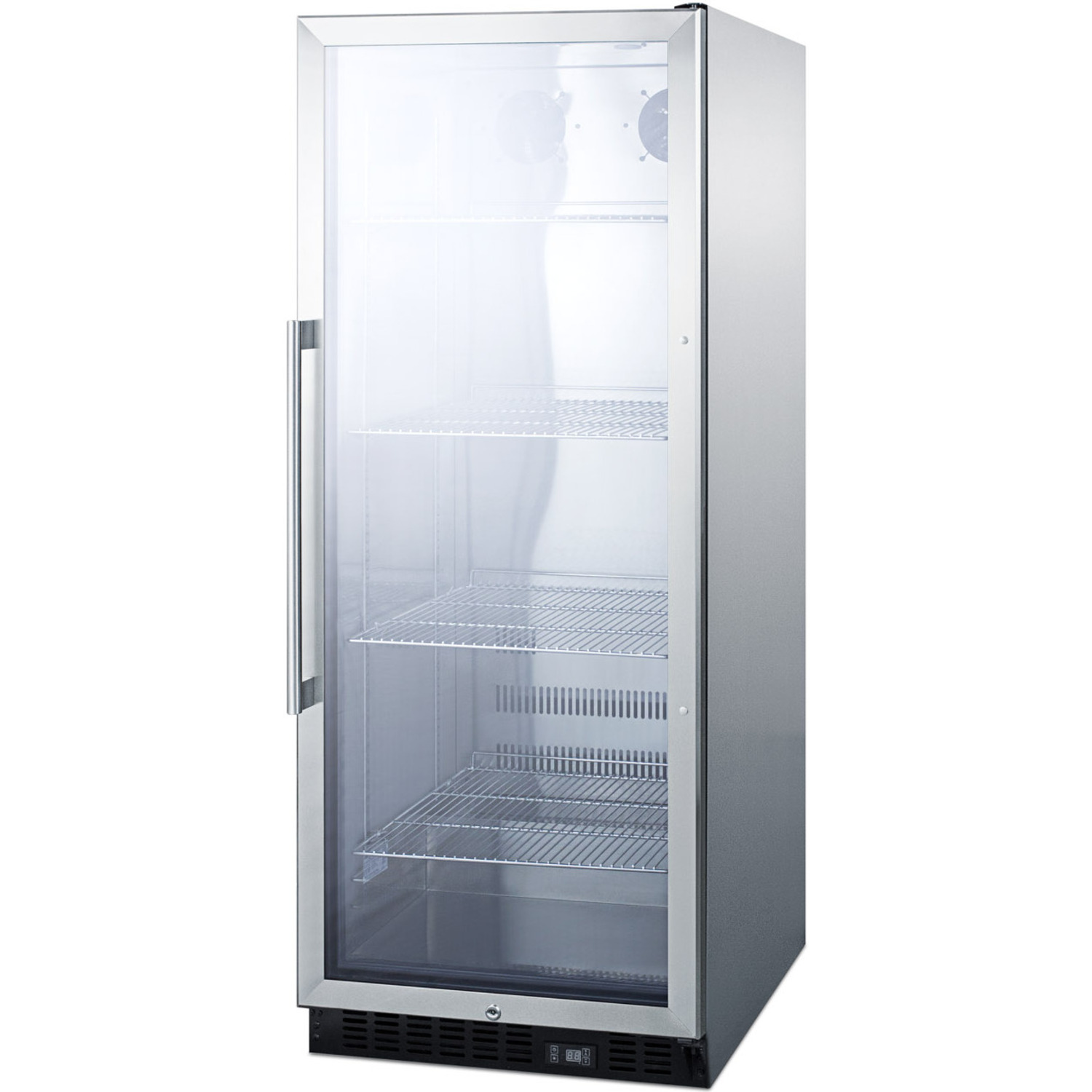

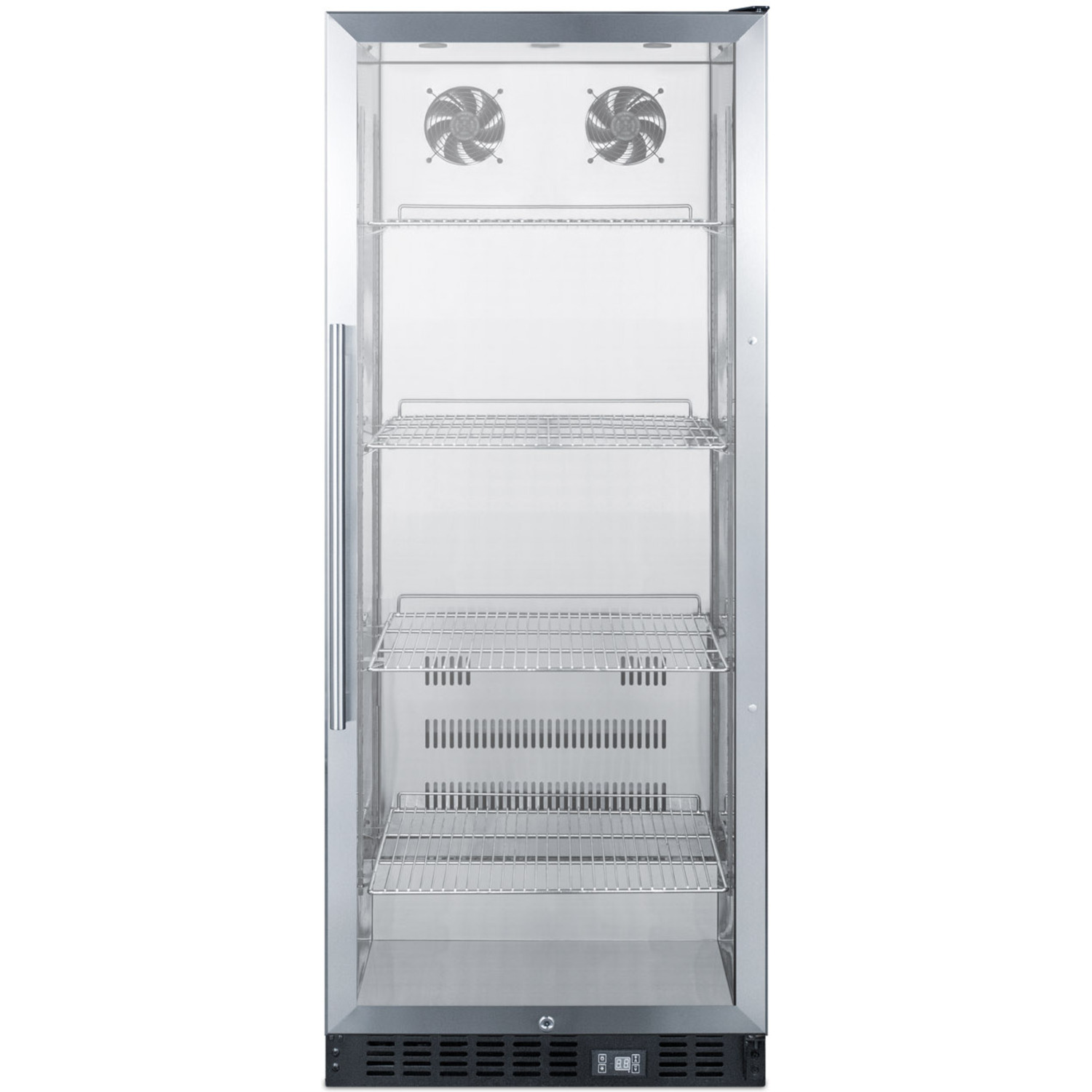

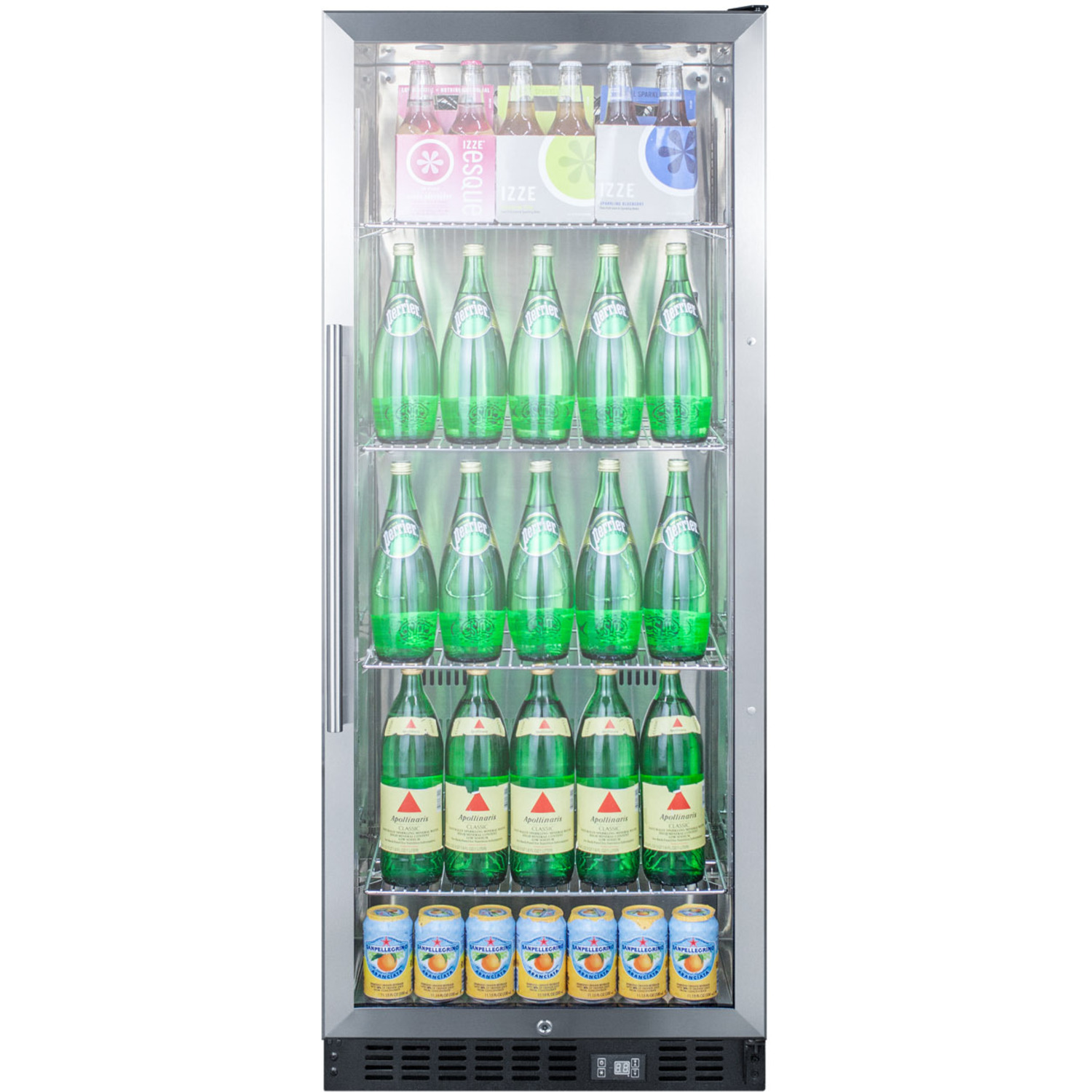

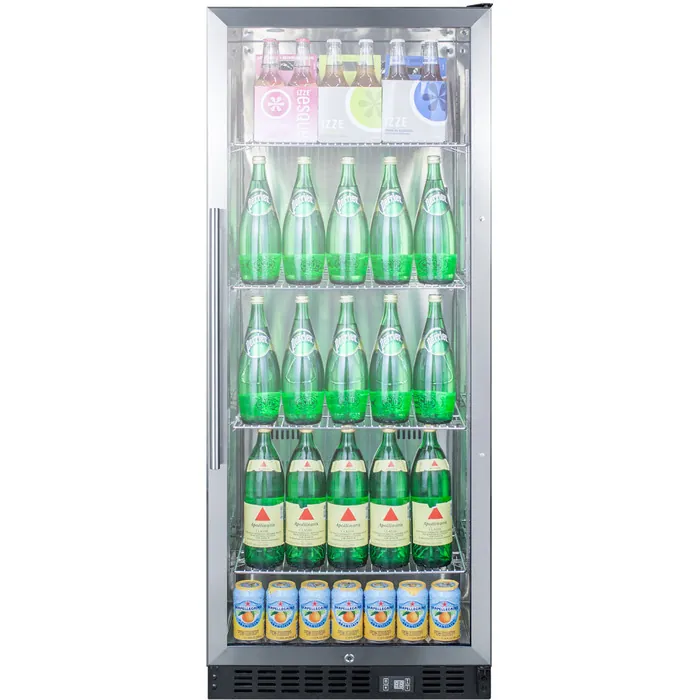

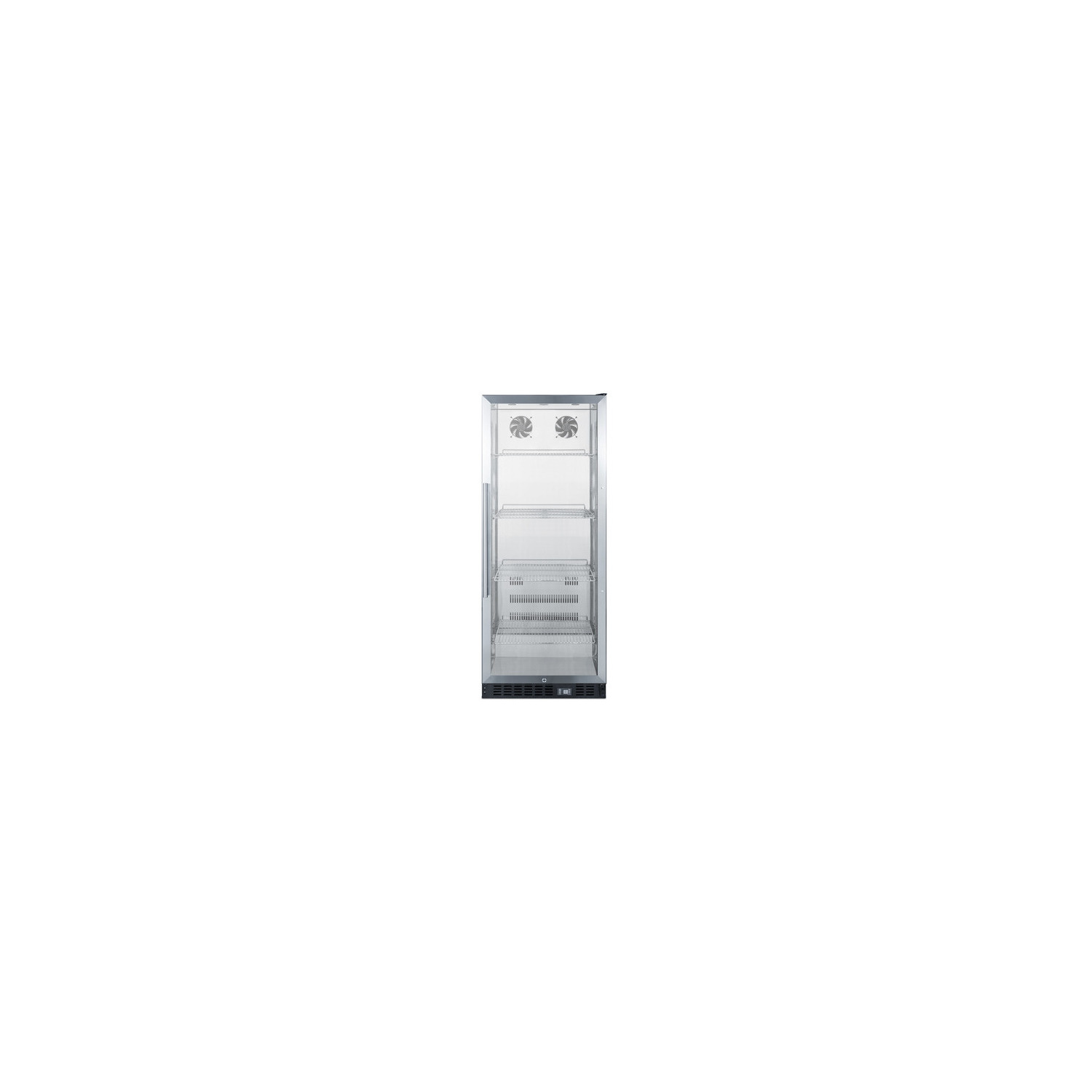

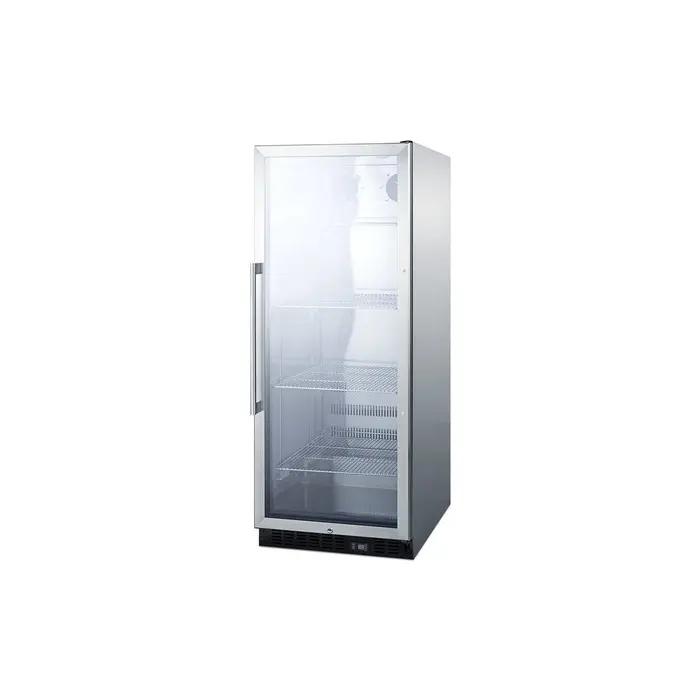

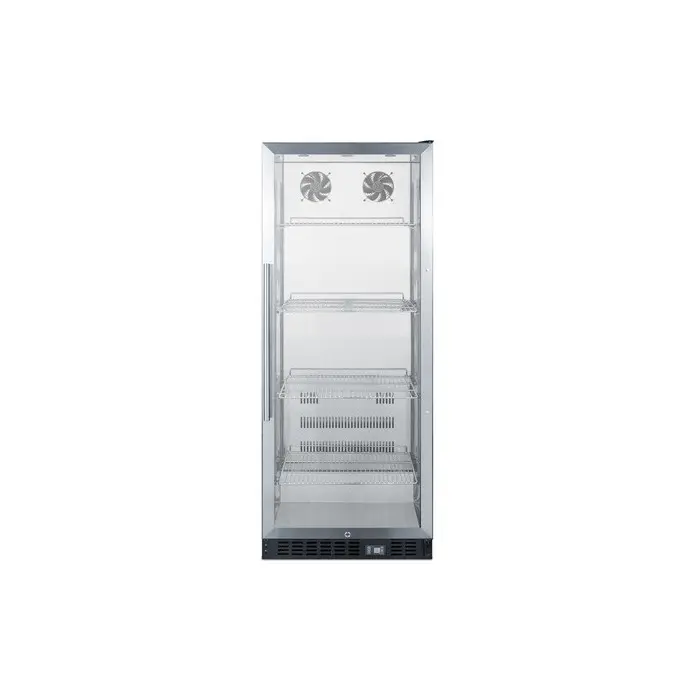

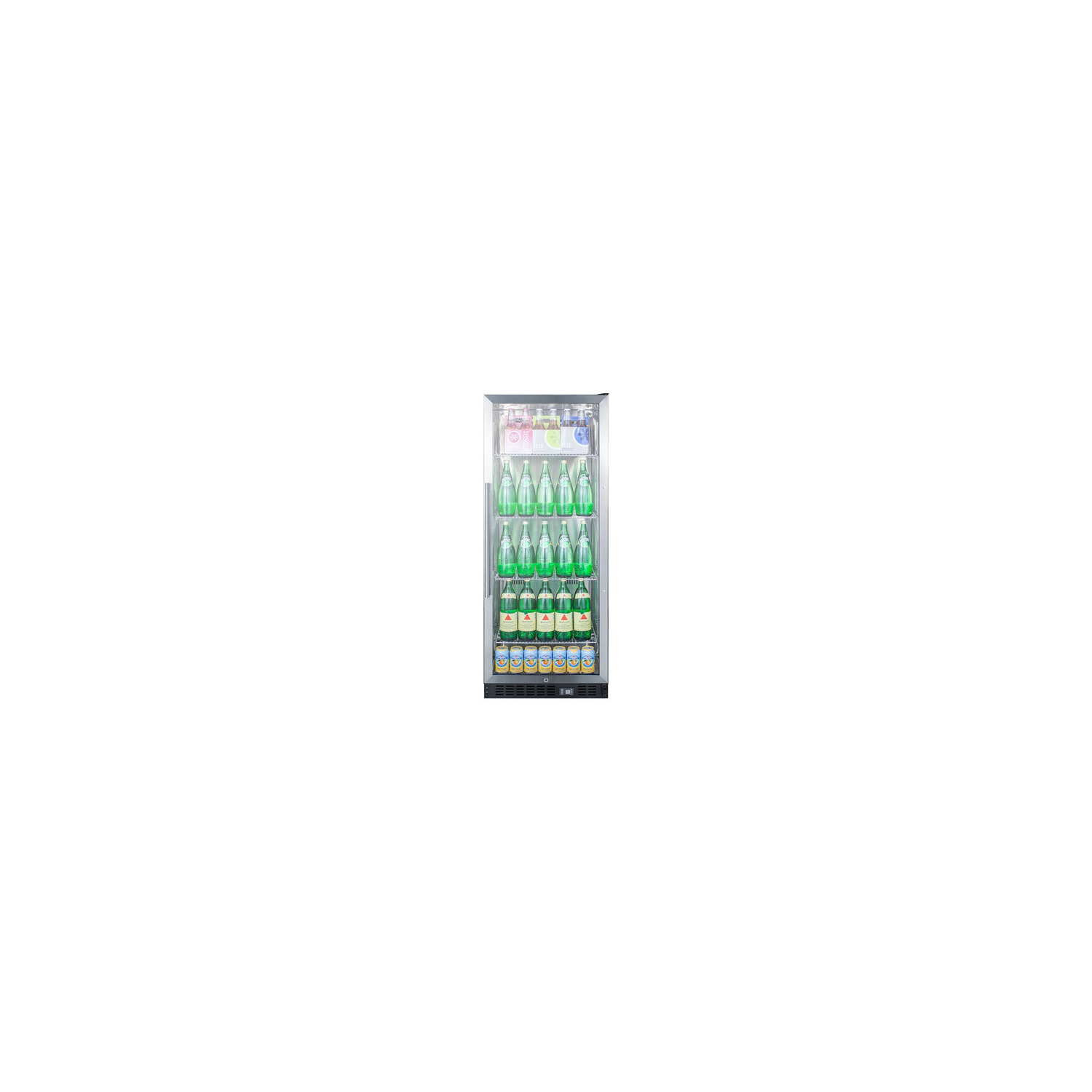

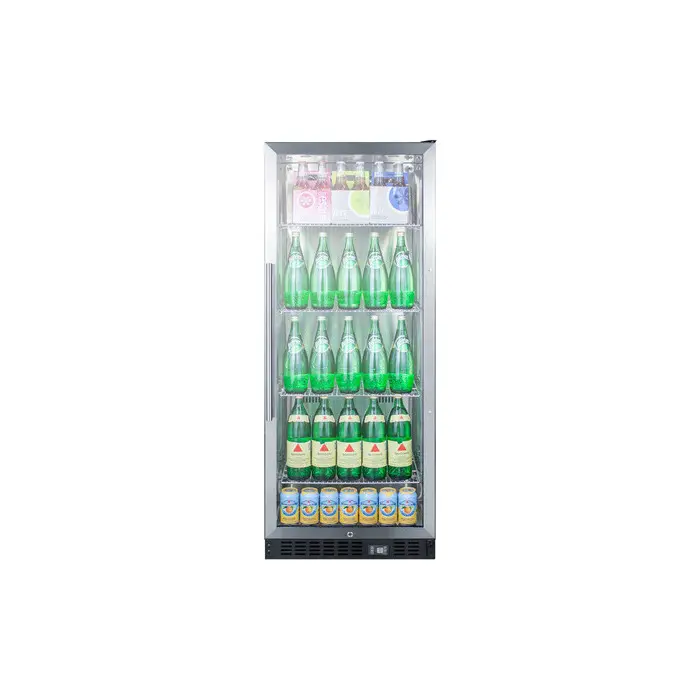

The SCR1156CSS is an upright beverage center conveniently sized with a slim 24 inch footprint. The stainless steel trimmed glass door provides a full view of storage down to the floor, with recessed LED lighting to ensure an attractive and efficient presentation. The door comes in a right hand door swing and features a self-closing design to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. A factory installed lock offers additional security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished stainless steel wrapped cabinet that also enables freestanding use.

Inside, the SCR1156CSS utilizes frost-free operation for minimum user maintenance. The interior walls are made from stainless steel for improved durability and sanitation. The cantilevered shelving system allows you to easily adjust your storage to accommodate virtually any size. The digital control panel ensures easy temperature management with the readout can be viewed in Celsius or Fahrenheit. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.

The SCR115CSS1156 is ETL-S listed to NSF-7 standards and is ENERGY STAR certified as a commercial beverage center. Additional choices are available in larger sizes. Browse Summit's commercial product line for more.

SPECIFICATIONS

Overview

Nominal Height 59.0" (150 cm)

Height of Cabinet 58.38" (148 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.88" (58 cm)

Depth with Handle 24.0" (61 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 11.0 cu.ft. (311 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 150.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101032061

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible No

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.66oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36°F to 43°F

Sound Level 34.4 dB

Dimensions

Interior Height 50.0" (127 cm)

Interior Width 20.0" (51 cm)

Interior Depth 16.5" (42 cm)

Compressor Step Height 4.75" (12 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 4.75" (12 cm)

FEATURES

Commercially listed ETL-S listed to NSF standards for commercial use

ENERGY STAR certified commercial performance Meets ENERGY STAR standards as a commercial refrigerator

Factory installed lock Keyed lock for secure interior

Double pane tempered glass door Heat-safe glass door offers full display all the way down to the floor

Stainless steel wrapped cabinet Durable design brings a professional look to any setting

Recessed LED lighting Energy efficient lighting offers full view of interior

Self-closing door Door will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures

Digital thermostat Electronic controls for precise temperature management with a readout in Celsius or Fahrenheit

Professional handle Solid chrome handle with brushed stainless steel look

Adjustable wire shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Stainless steel interior Walls are constructed from stainless steel for added strength and easy cleanup

Automatic defrost Reduced user maintenance with automatic defrost

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Built-in or freestanding Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCR1156CSS.pdf)

TECHNICAL DRAWING (.dwg) (SCR1156BEVERAGECENTERA-C2000_2.dwg)

USE & CARE (SCR1156CSS-User-Manual.pdf)
