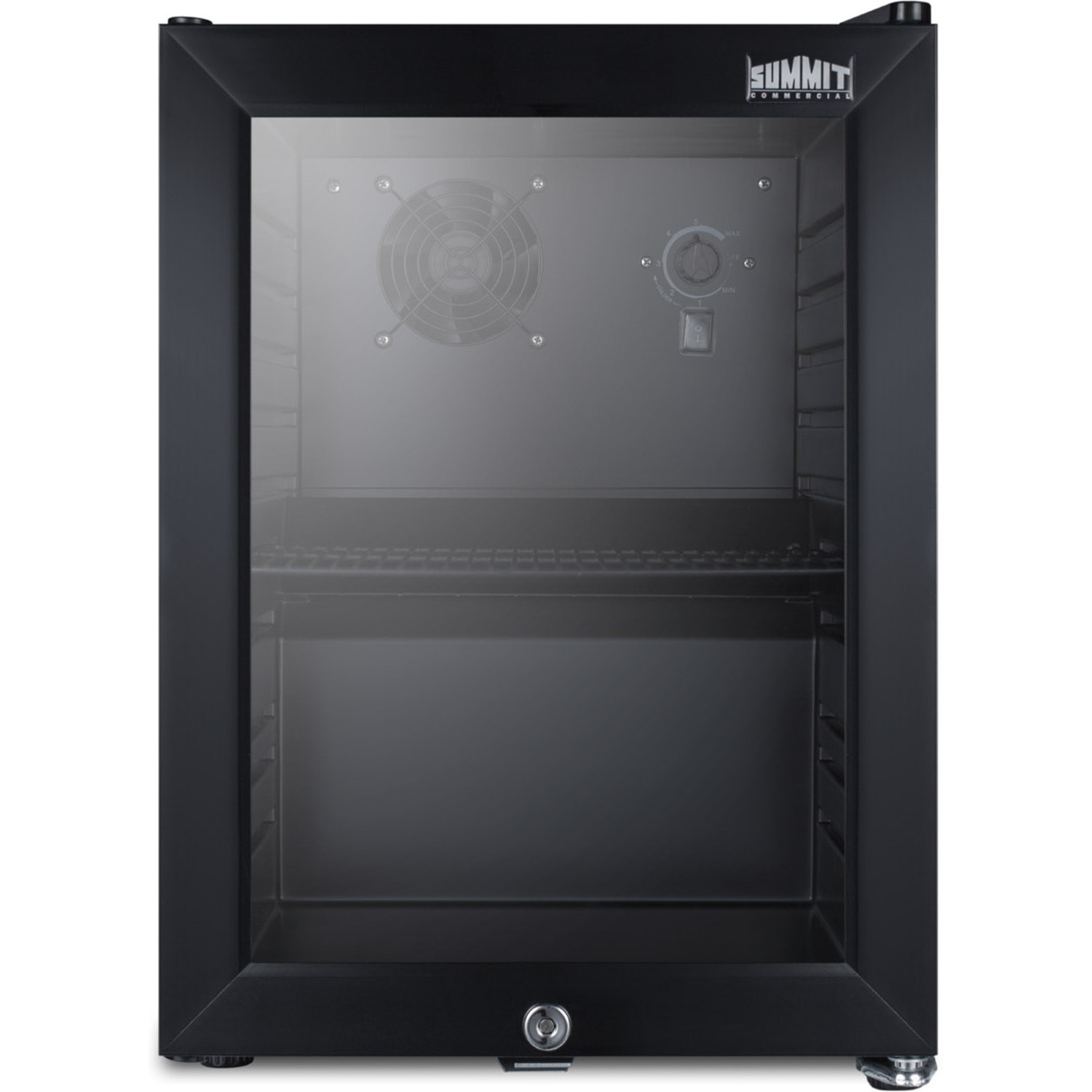

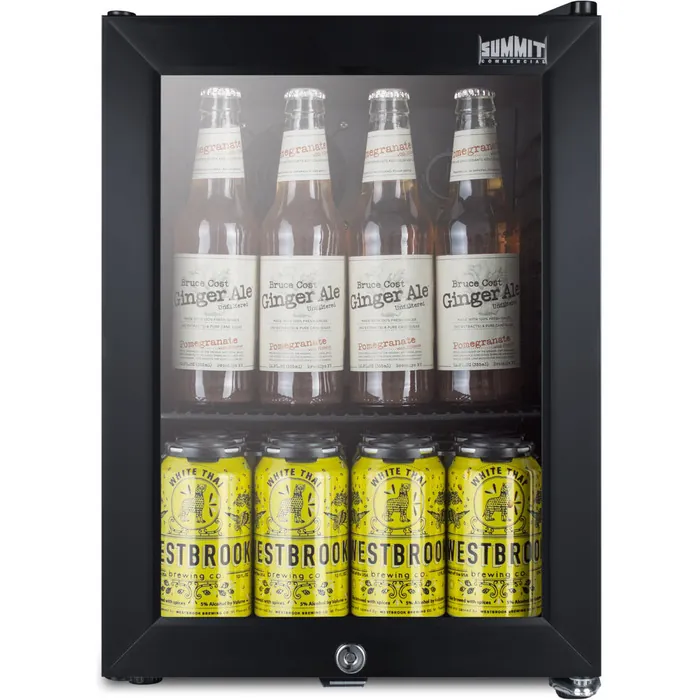

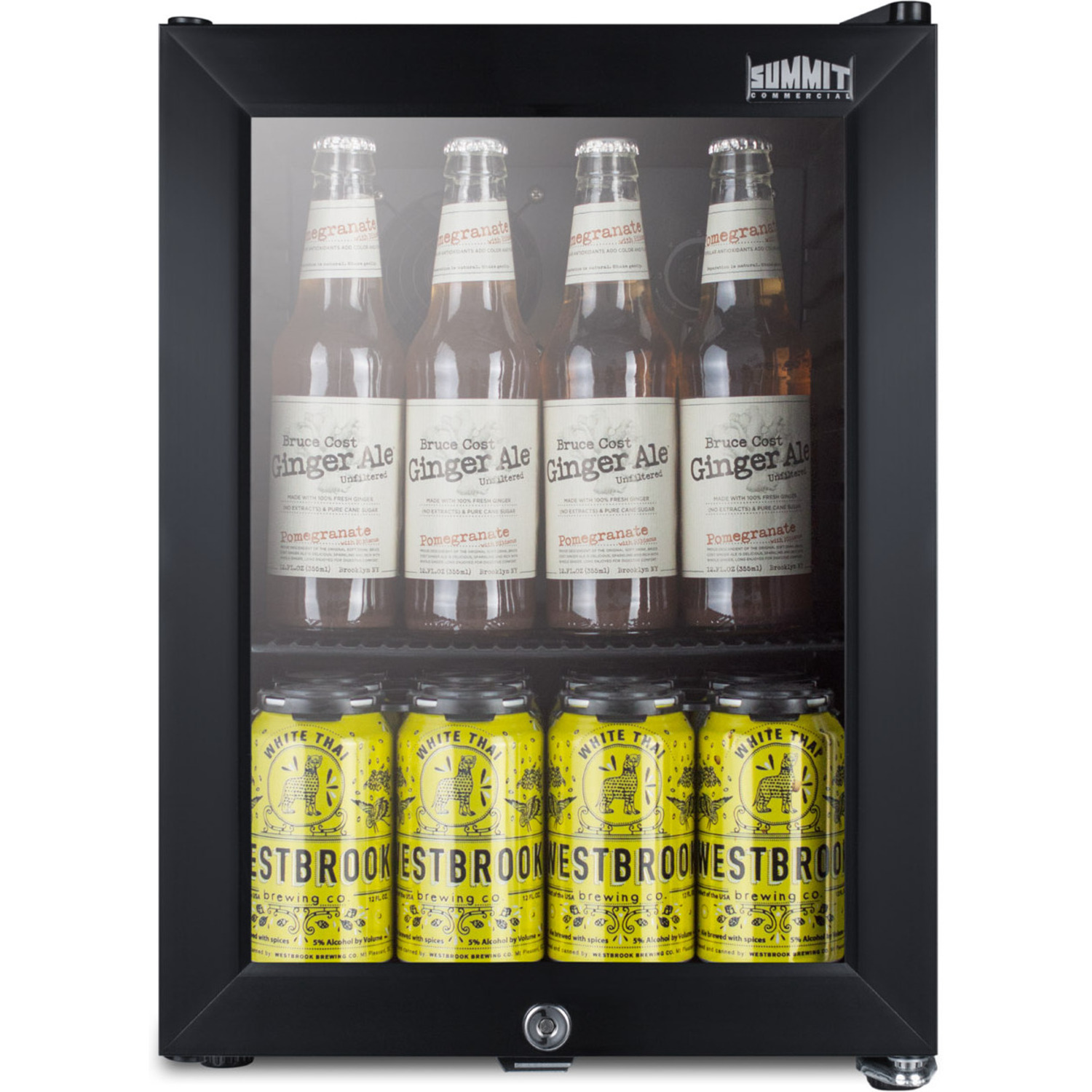

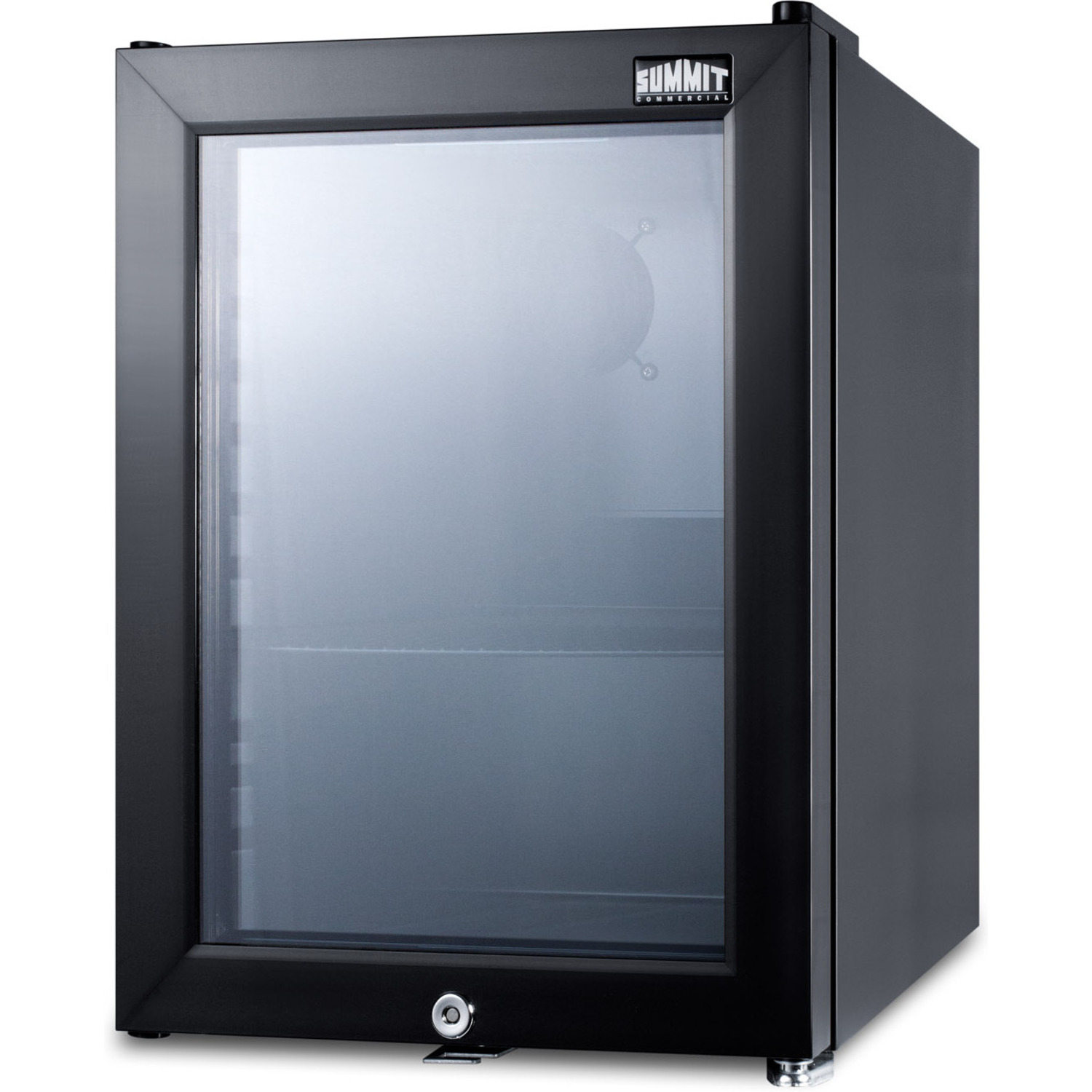

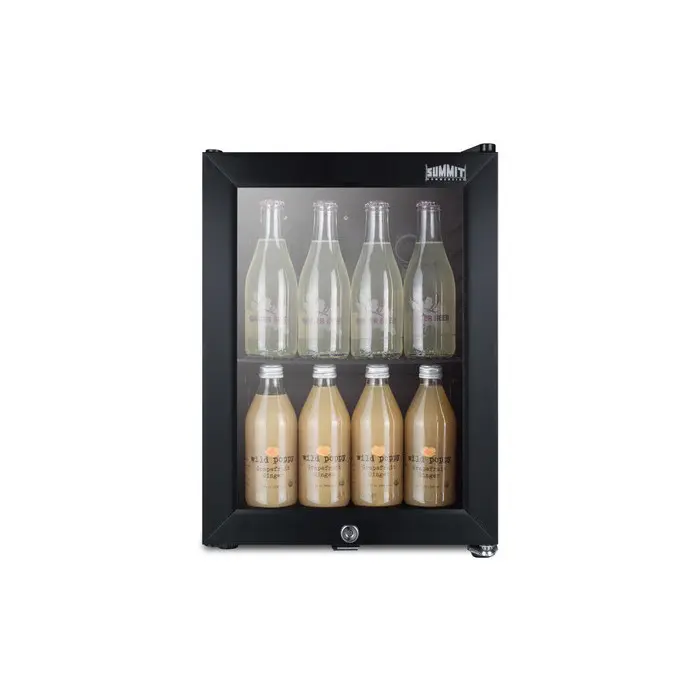

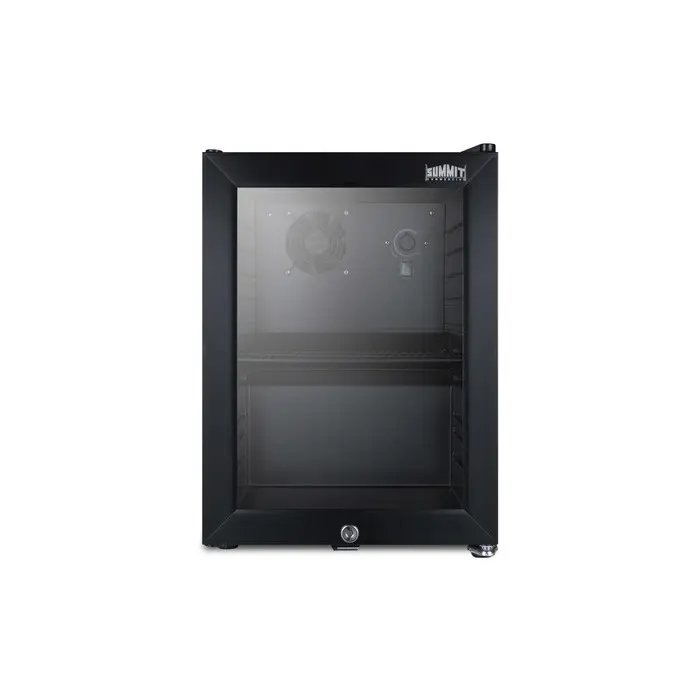

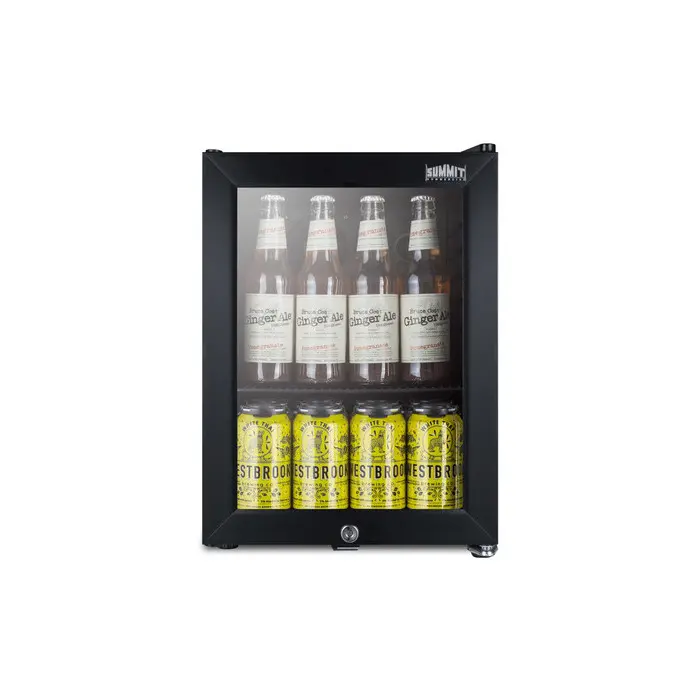

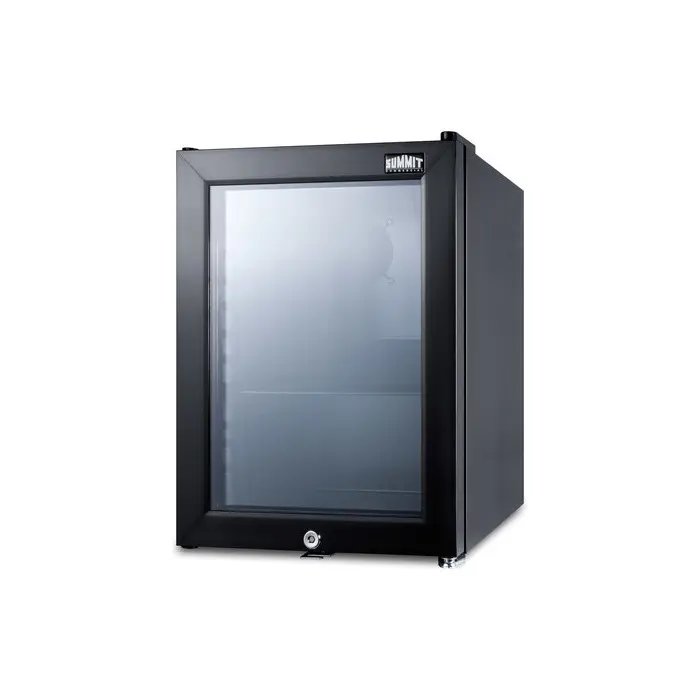

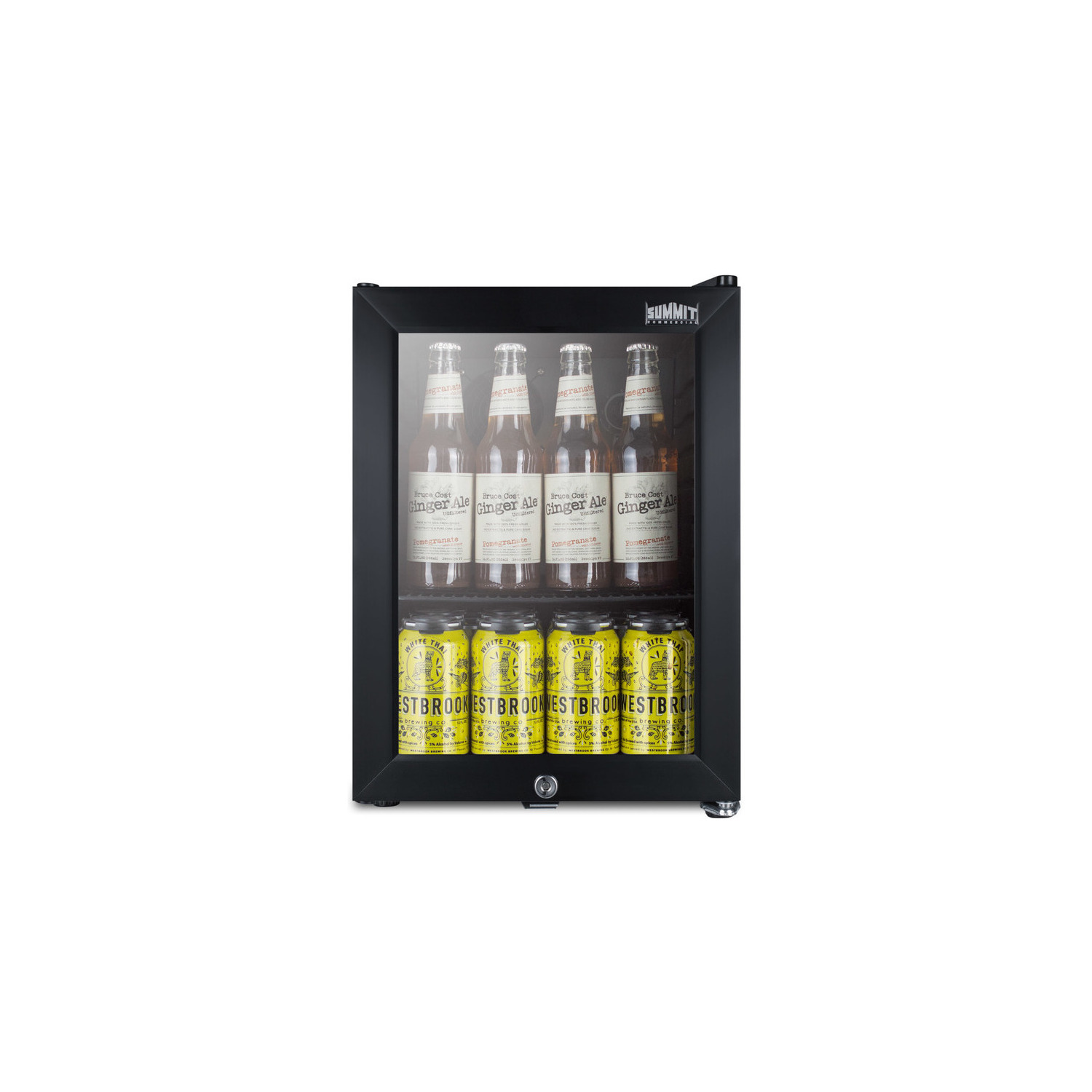

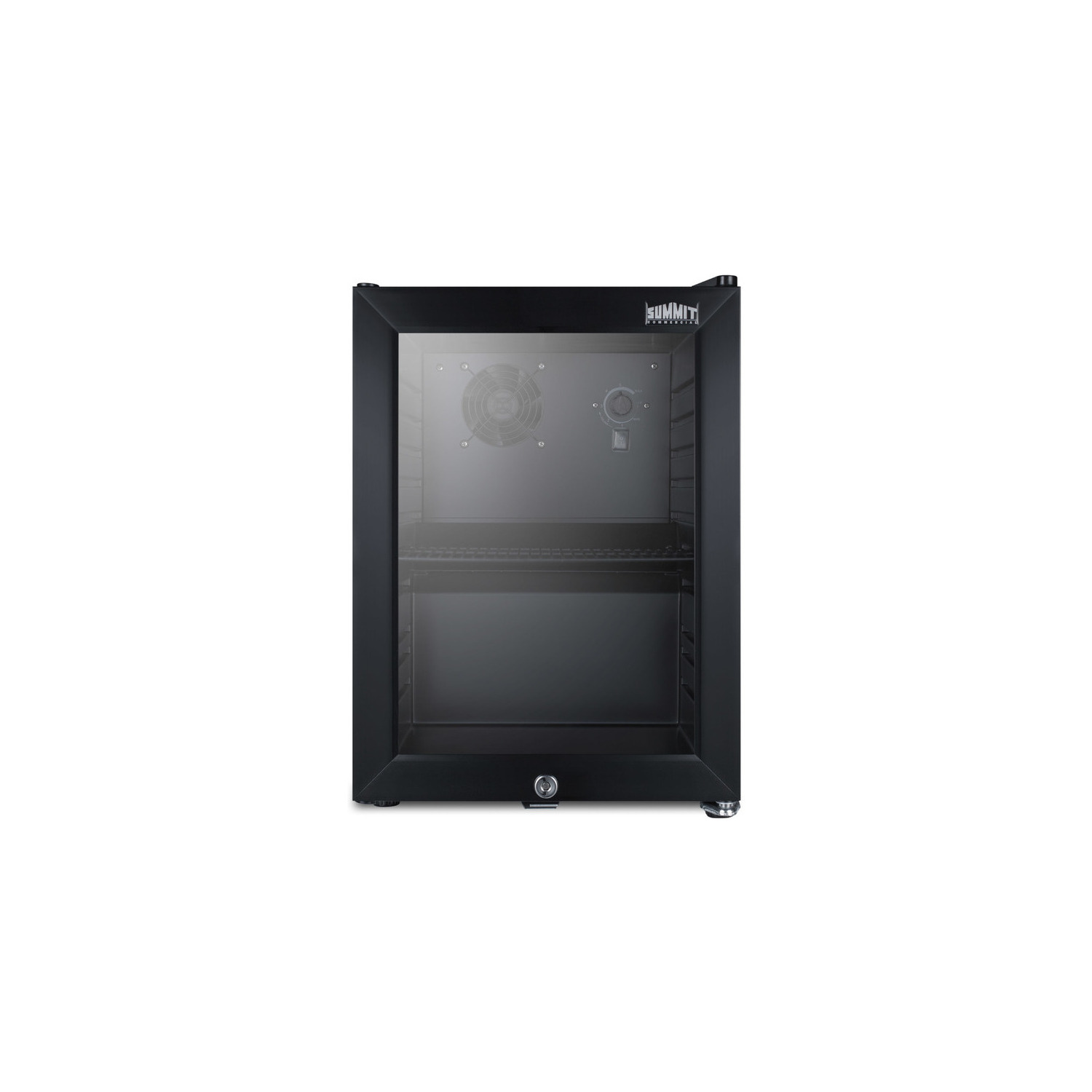

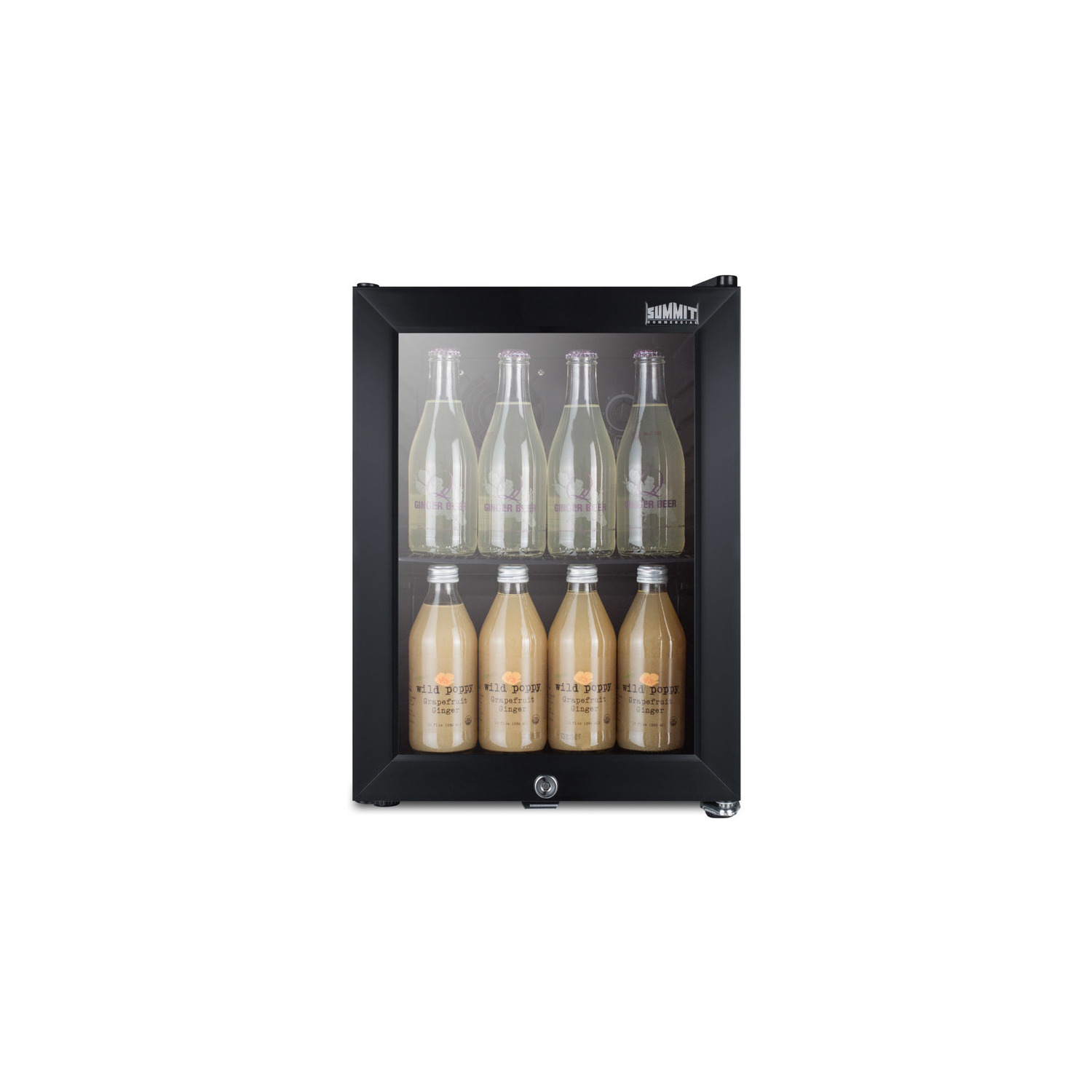

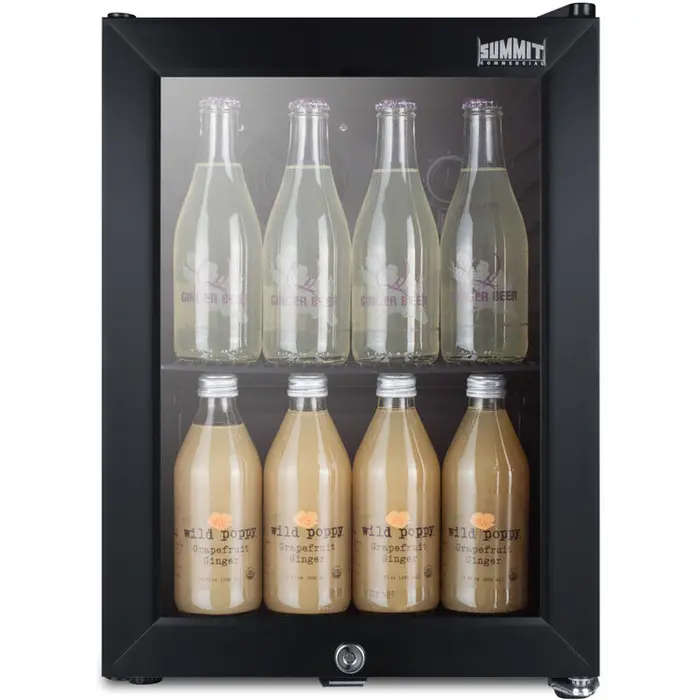

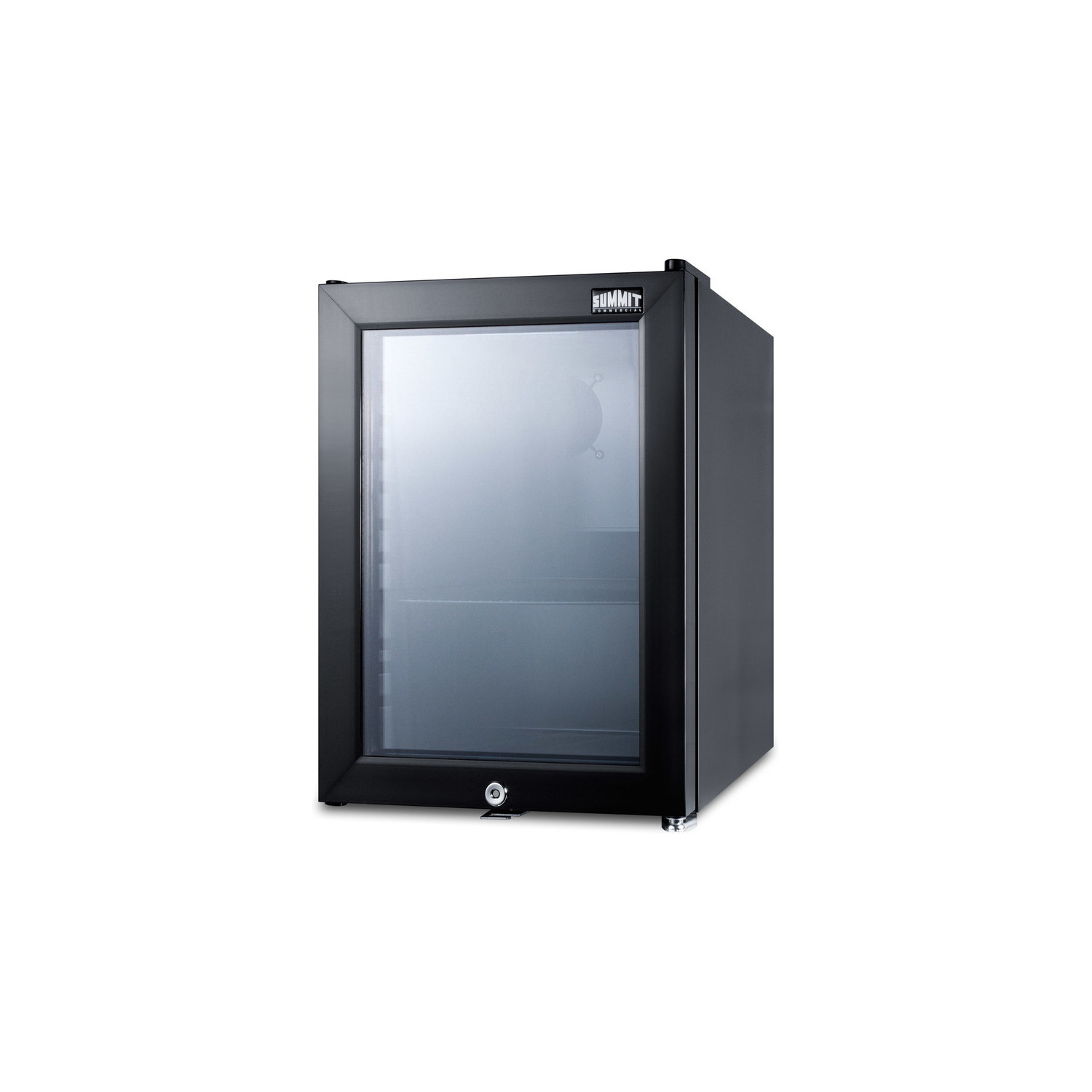

Summit Compact commercial beverage center with glass door, lock, and black cabinet, 7.61101e+011, SCR114L

SUMMIT COMMERCIAL offers a quality line of compact refrigeration designed and constructed for reliable use in commercial applications.

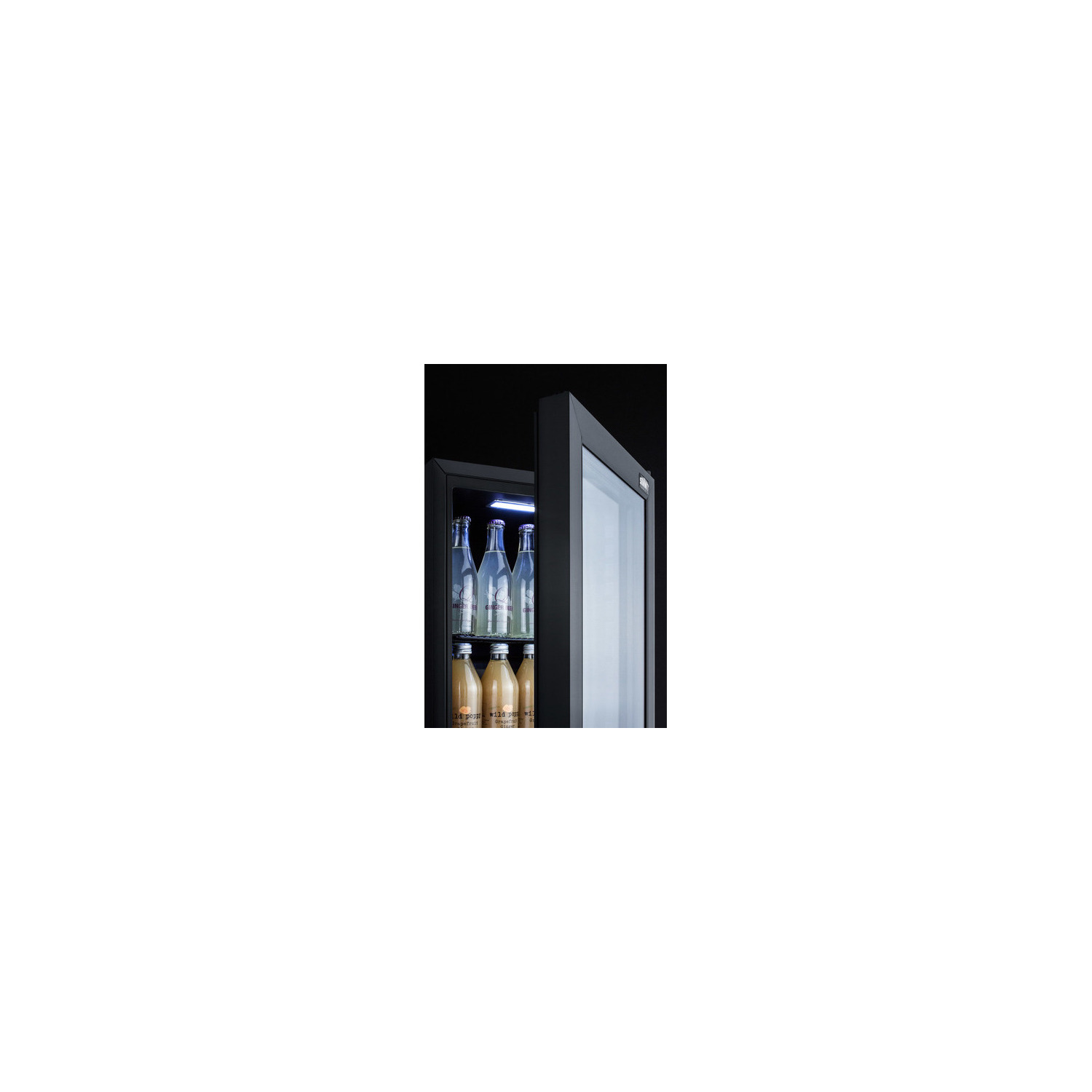

The SCR114L is a compact display refrigerator that is ETL-S listed to NSF-7 commercial standards and meets UL-471. It comes in a jet black finish with a user-reversible double pane tempered glass door to provide a full display of stored items. A factory-installed lock offers added security. This unit has a sealed back for easier cleaning.

Inside, the SCR114L utilizes automatic defrost operation for low maintenance use, with fan-forced cooling to ensure even temperature distribution. The commercial grade compressor helps to ensure more rapid temperature recovery. LED lighting provides an attractive and efficient view of the jet black interior. An adjustable wire shelf in black allows you to accommodate items of all sizes. The dial thermostat and on/off light switch is located inside the unit in order to prevent customers from making any adjustments.

With its ideal dimensions, commercial design, and user-friendly features, the SCR114L offers added convenience to commercial beverage storage and display.

SPECIFICATIONS

Overview

Nominal Height 19.0" (48 cm)

Height of Cabinet 18.88" (48 cm)

Height to Hinge Cap 19.25" (49 cm)

Nominal Width 14.0" (36 cm)

Width 13.75" (35 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.25" (44 cm)

Depth with door at 90° 30.0" (76 cm)

Capacity 0.85 cu.ft. (24 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 47.0 lbs. (21 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101056227

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 1

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.6oz.

High Side PSI 220.0

Low Side PSI 43.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34°F to 43°F

Sound Level 34.5 dB

Dimensions

Interior Height 15.0" (38 cm)

Interior Width 10.63" (27 cm)

Interior Depth 11.0" (28 cm)

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 10.63" (27 cm)

Compressor Step Depth 4.0" (10 cm)

FEATURES

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Compact dimensions Less than 14" wide to take up minimum counter space

Double pane tempered glass door Heat resistant design provides clear view of stored products

Automatic defrost No-frost convenience for reduced user maintenance

Factory installed lock Keyed lock for a secure interior, with 2 keys included

Reversible door User-reversible door swing offers more flexibility

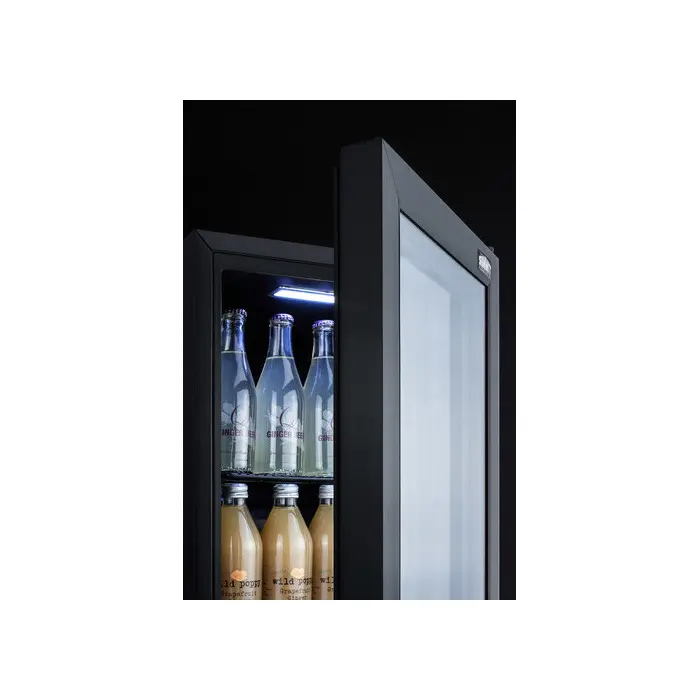

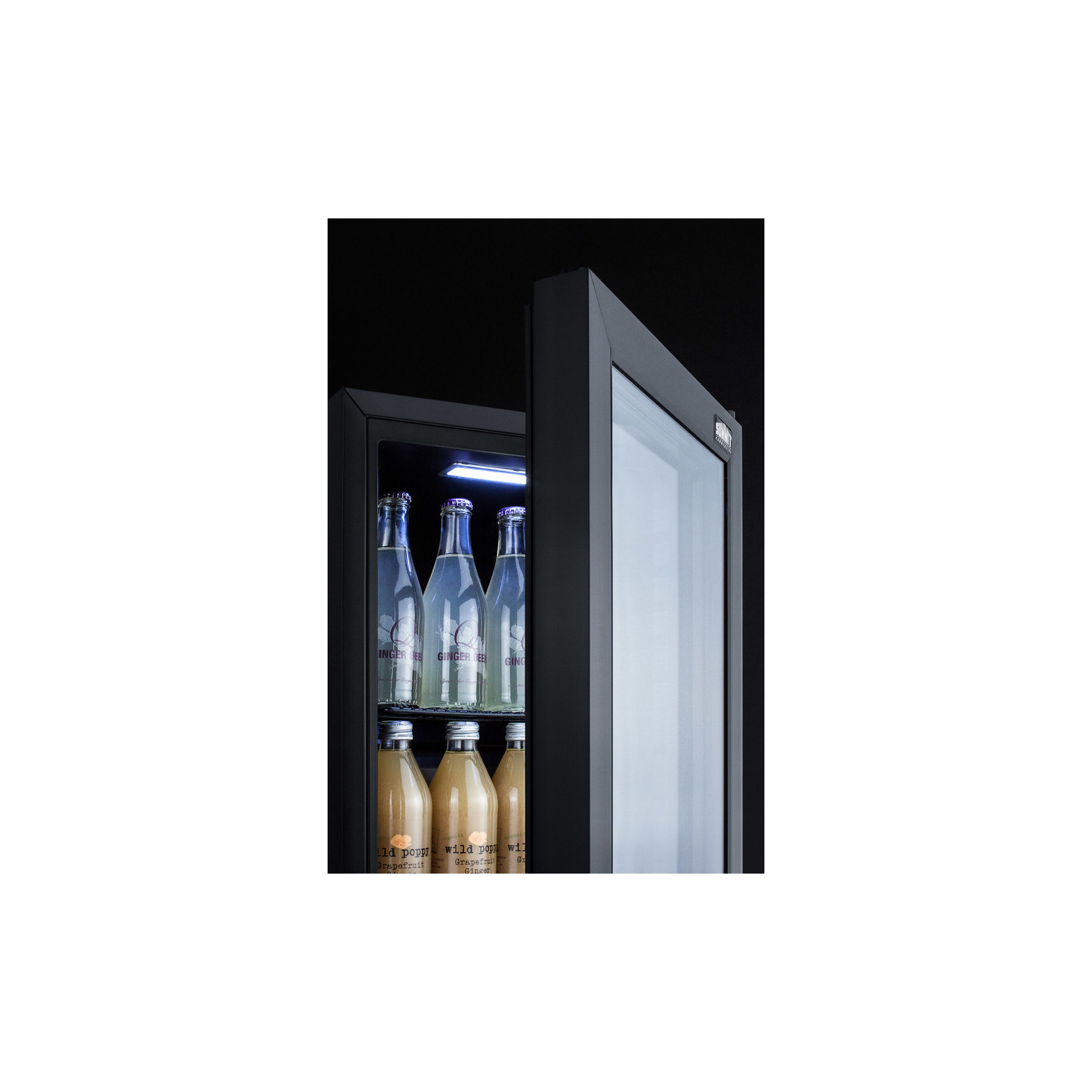

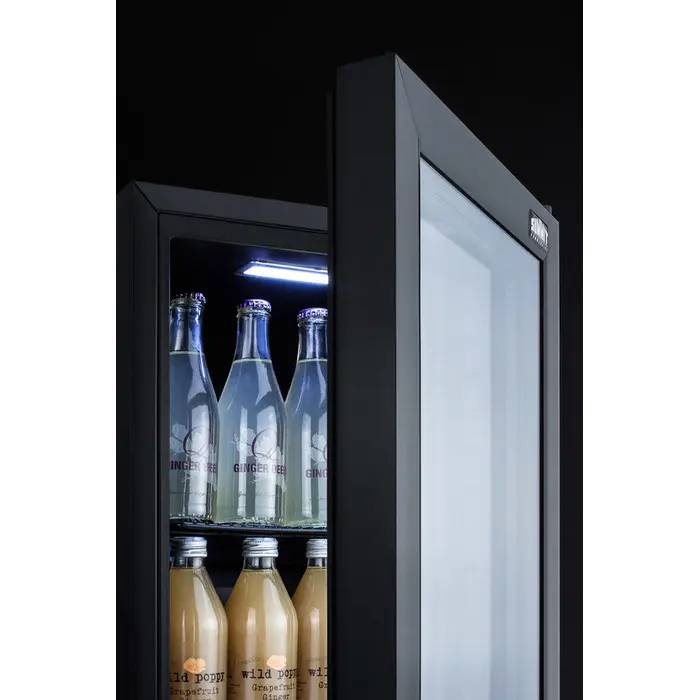

LED lighting Interior LED lighting offers an attractive and energy efficient view

Black interior finish Modern look that pairs well with LED lighting, ensuring stored items are illuminated in attractive style to maximize impulse sales

Dial thermostat Adjustable thermostat located inside to prevent unsupervised temperature changes

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Adjustable wire shelf Multiple positions allow you to adjust your storage to accommodate a range of sizes

Compressor-based cooling system Commercial design with a quality compressor to ensure powerful cooling and fast temperature recovery in busy commercial settings

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
