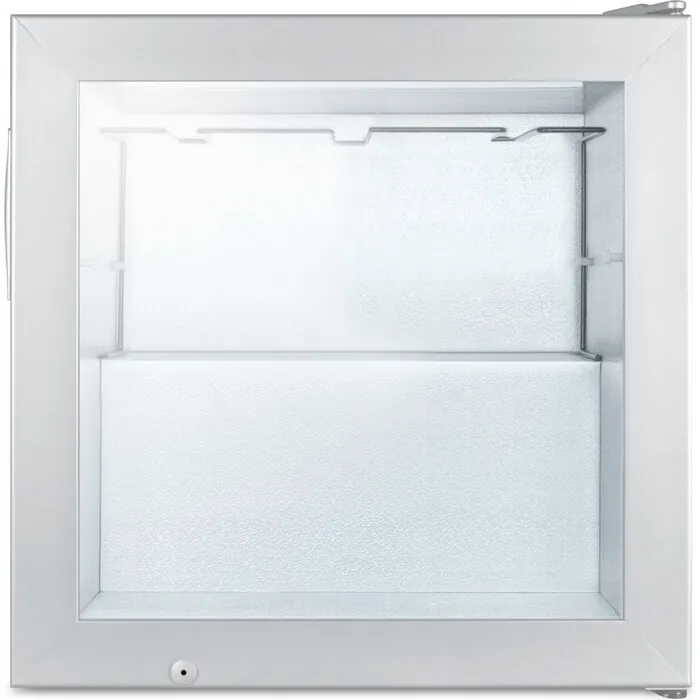

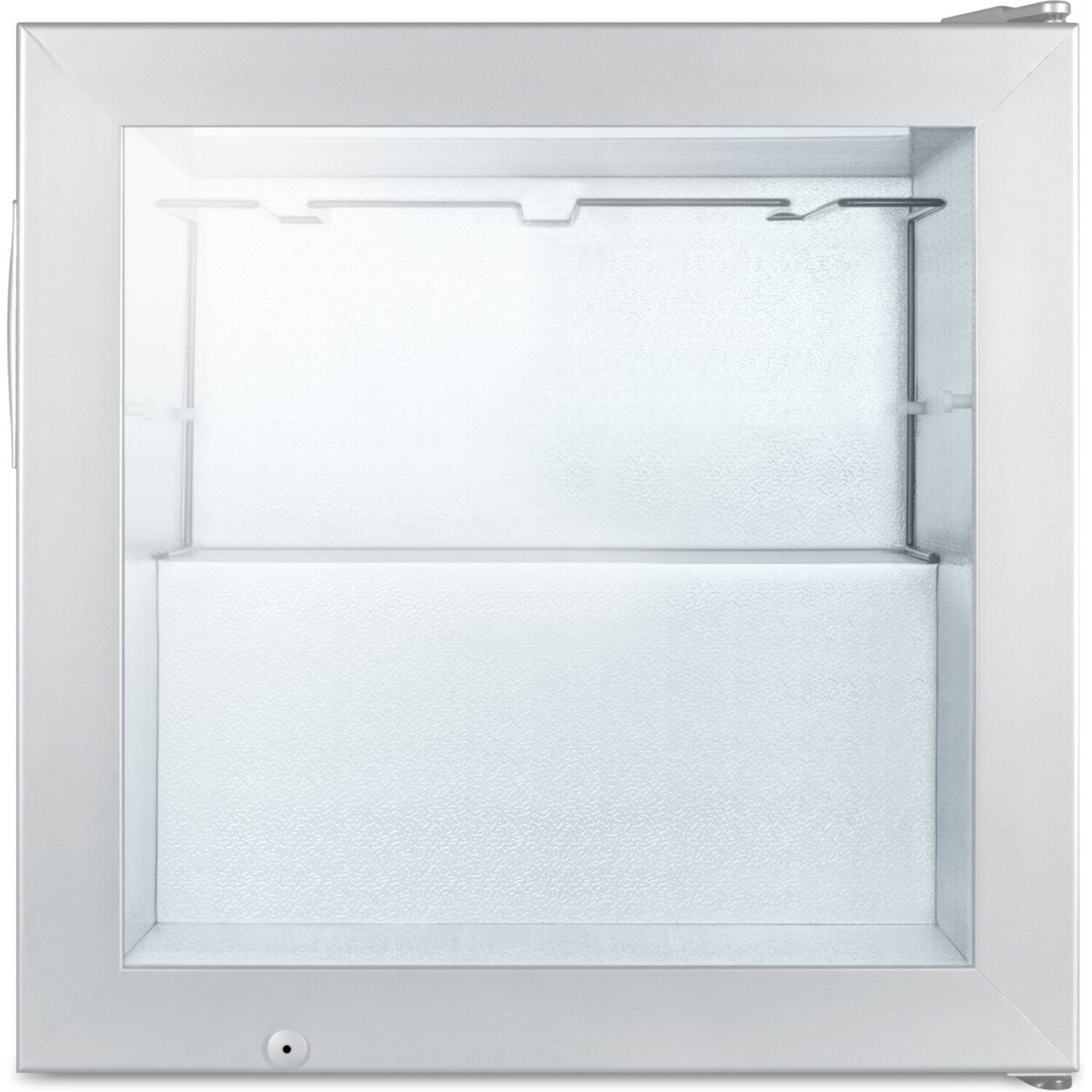

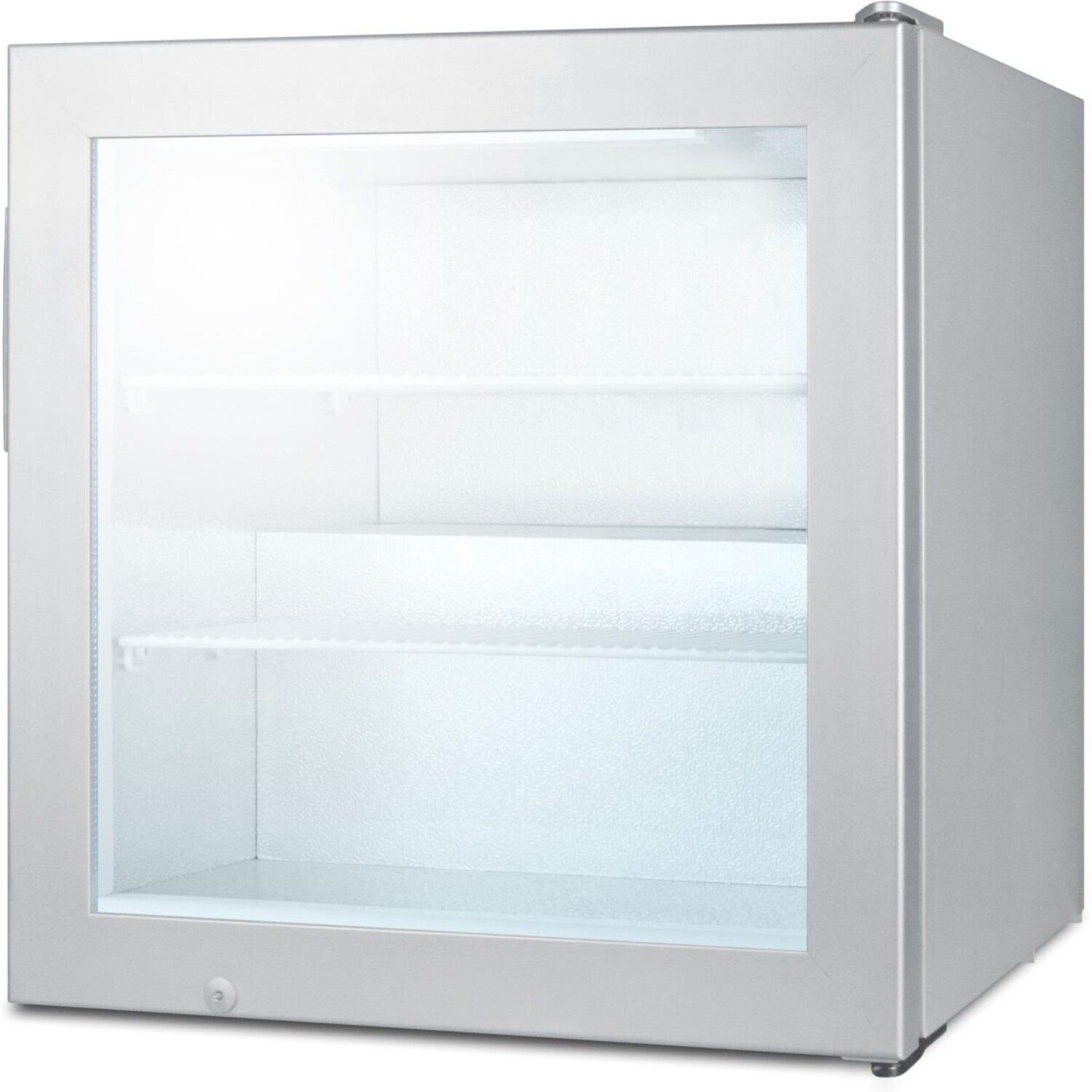

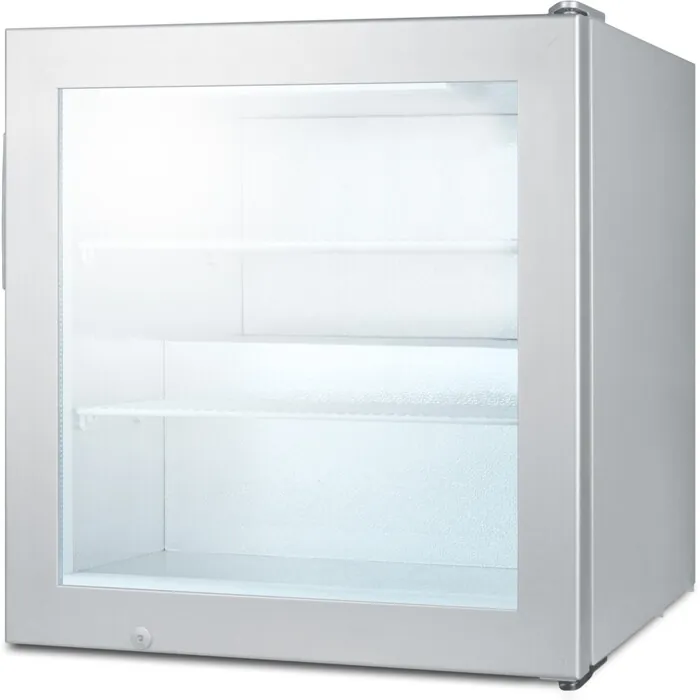

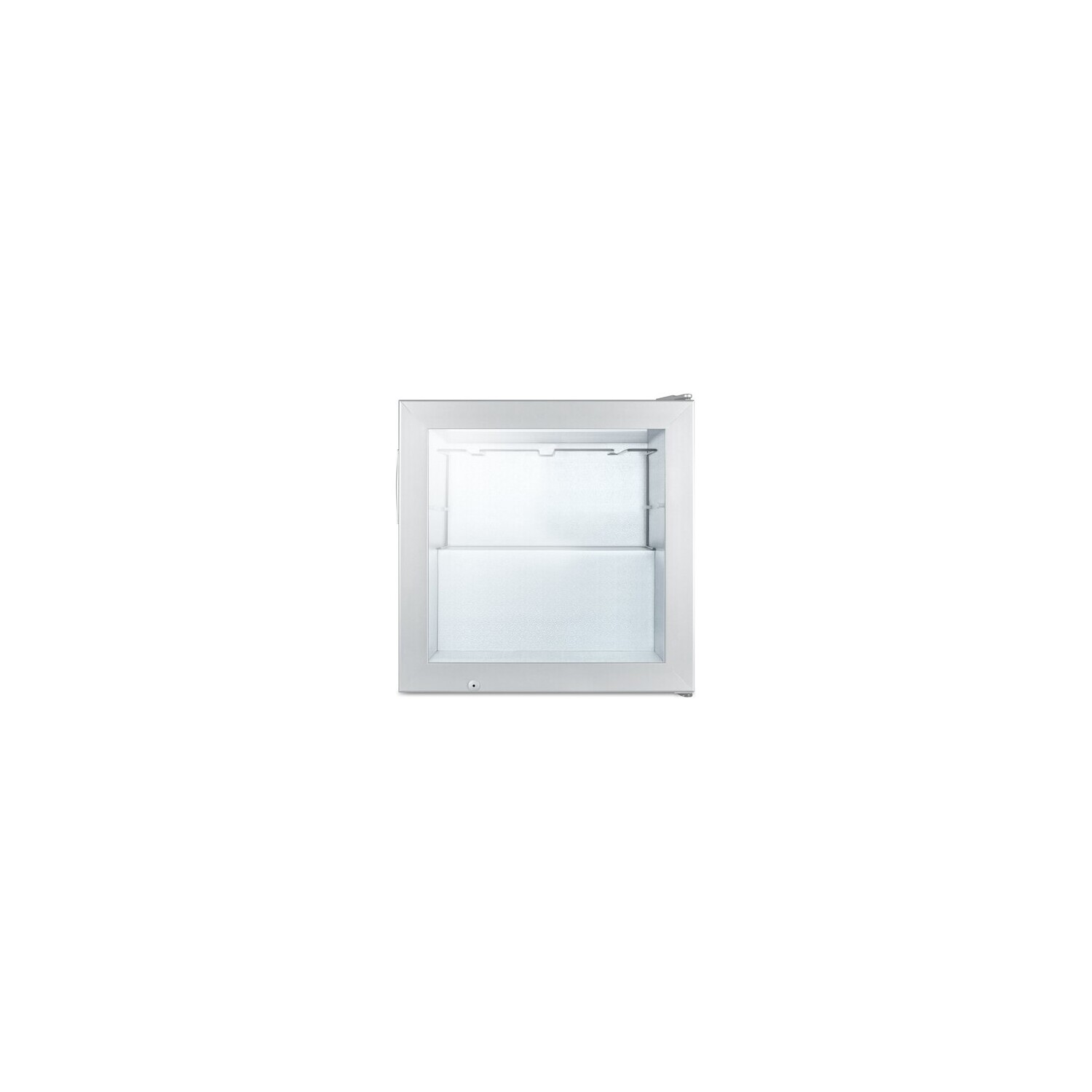

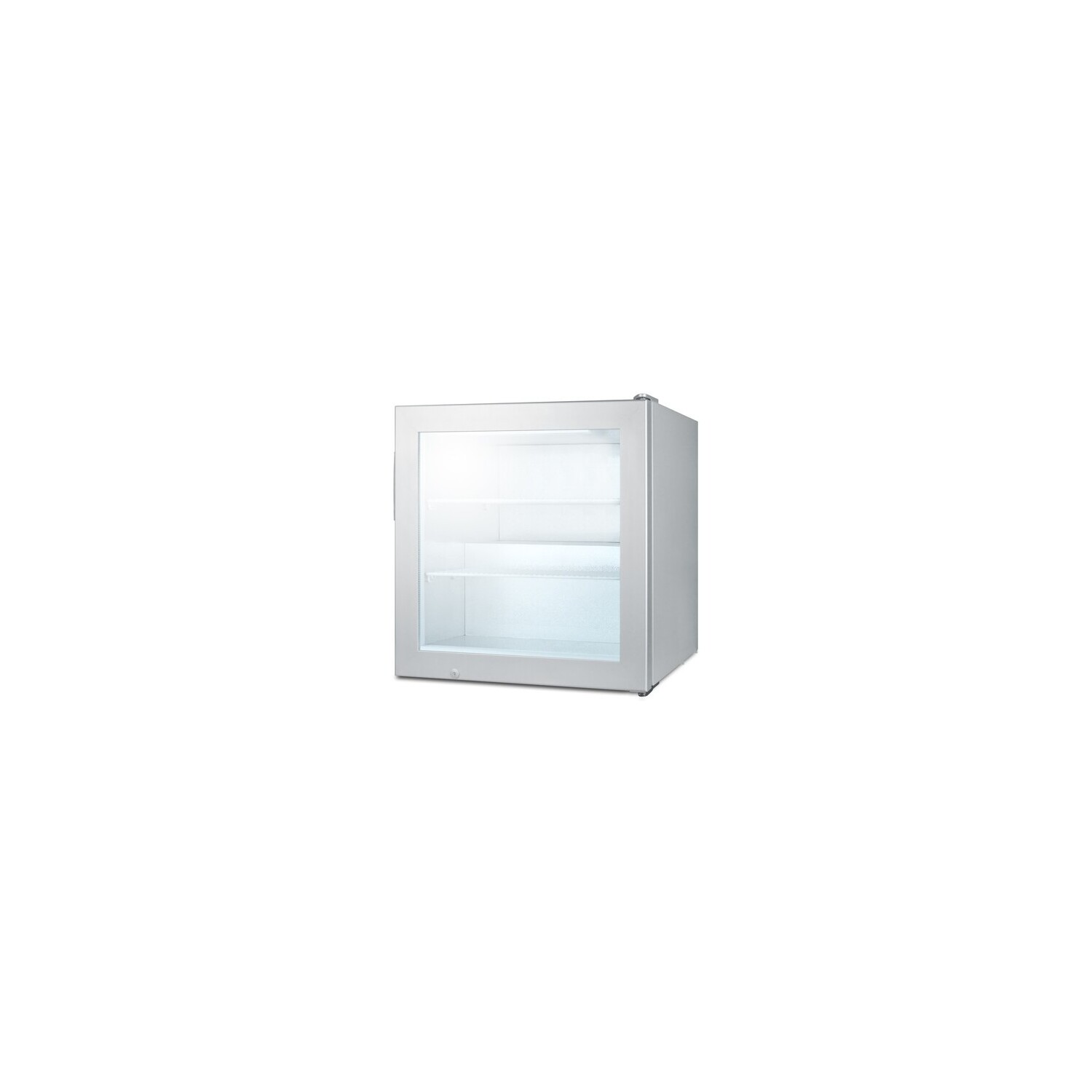

Summit Compact commercial vodka chiller with self-closing glass door, 7.61101e+011, SCFU386VK

Store your spirits in luxury with SUMMIT's SCFU386VK, a unique chiller fit for the finest vodka.

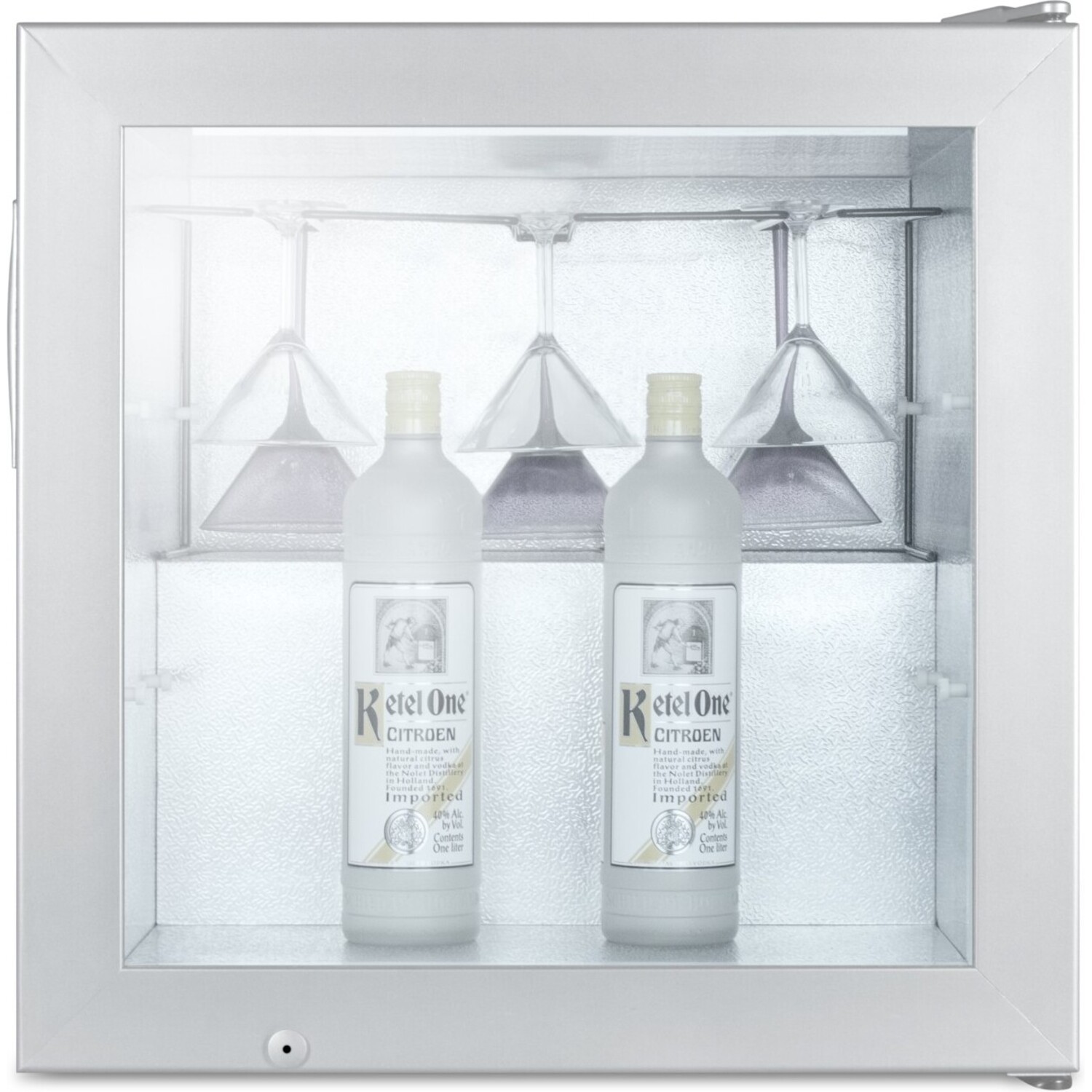

SUMMIT SCFU386VK is a compact commercial display chiller ideal for storing vodka, with unique ceiling racks that let you suspend martini glasses for a true lounge look. A self-closing glass door helps to ensure contents stay cold and a factory installed lock offers convenient security. Manual defrost interior, with LED lighting for an elegant display. This unit is designed to cool vodka at 5ºF.

The SCFU386VK features a 2 cu.ft. capacity with easy fitting dimensions for countertop use. This unit is ETL-S listed to NSF-7 commercial standards.

SPECIFICATIONS

Overview

Nominal Height 24.0" (61 cm)

Height of Cabinet 24.0" (61 cm)

Height to Hinge Cap 24.5" (62 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 21.0" (53 cm)

Depth 20.63" (52 cm)

Depth with door at 90° 42.0" (107 cm)

Capacity 2.0 cu.ft. (57 L)

Defrost Type Manual

Door Glass

Cabinet Gray

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 4.0

Voltage/Frequency 115 V AC/60 Hz

Weight 83.0 lbs. (38 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101024677

Freezer

Door Swing RHD

Reversible No

Interior Height 18.0" (46 cm)

Interior Width 18.75" (48 cm)

Interior Depth 15.38" (39 cm)

Shelf Type Wire

Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.4 oz.

High Side PSI 280.0

Low Side PSI 90.0

Compressor Step Height 8.25" (21 cm)

Compressor Step Width 18.75" (48 cm)

Compressor Step Depth 7.0" (18 cm)

FEATURES

Commercially listed ETL-S listed to NSF standards for commercial use

Compact dimensions Slim-fitting footprint is ideal for countertop use

Glass door Heat-safe design offers full display of interior

Ceiling rack Unique ceiling shelving lets you suspend 6 martini glasses

Factory installed lock Keyed lock for secure interior

5ºF Operation Designed to cool vodka at the ideal temperature for service

Self-closing door Ideal for busy commercial settings, where customers and staff don't always have the chance to ensure the door is closed

LED lighting Switchable light illuminates whole interior

Removable shelves Two additional wire shelves included

Adjustable thermostat Rear mounted to prevent accidental adjustments

Manual defrost Efficient performance with reliable temperature stability

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

BROCHURE (SCFU386VK.pdf)

REVIT MODEL (QF_Summit_SCFU386_Countertop_Commercial_Freezer_4.rfa)
