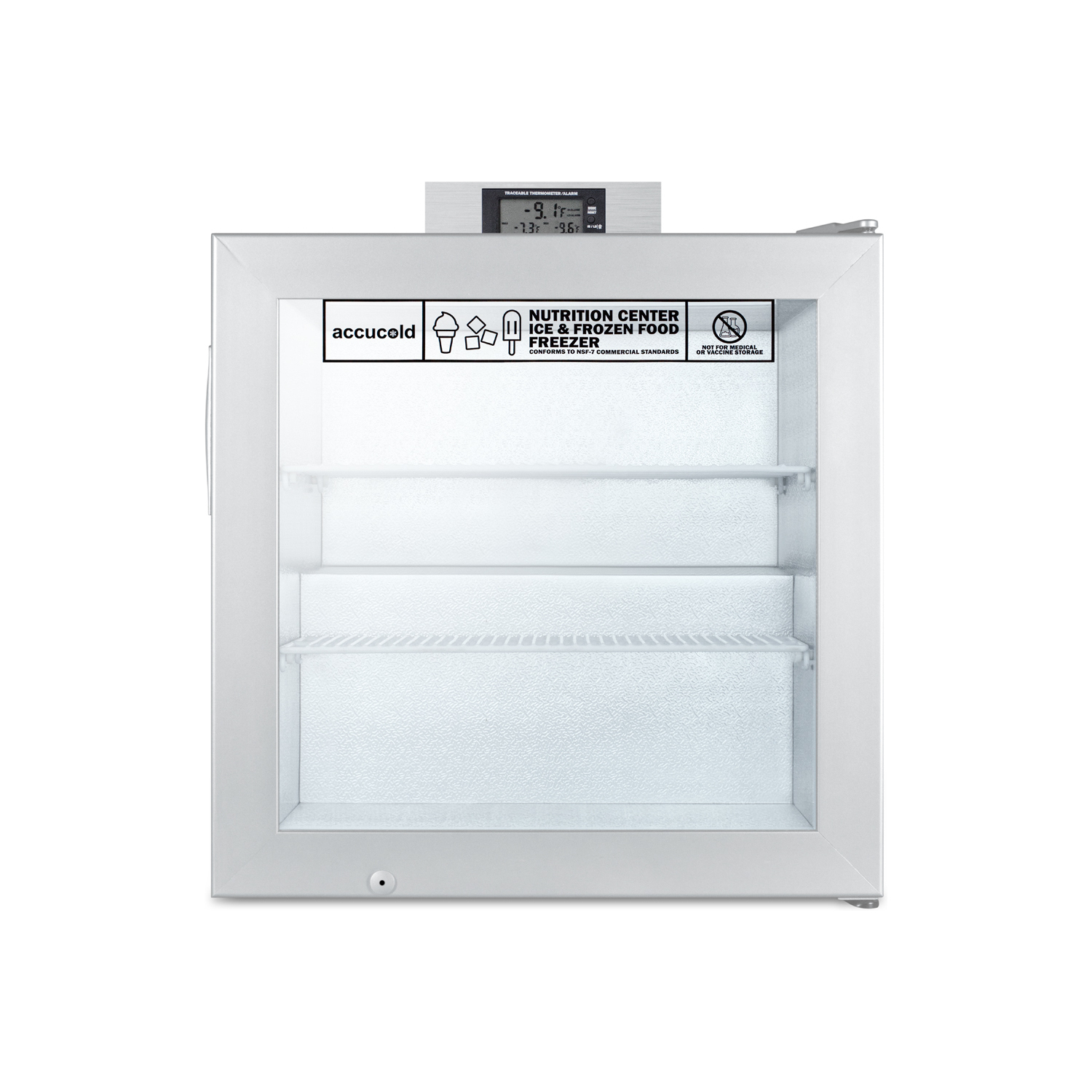

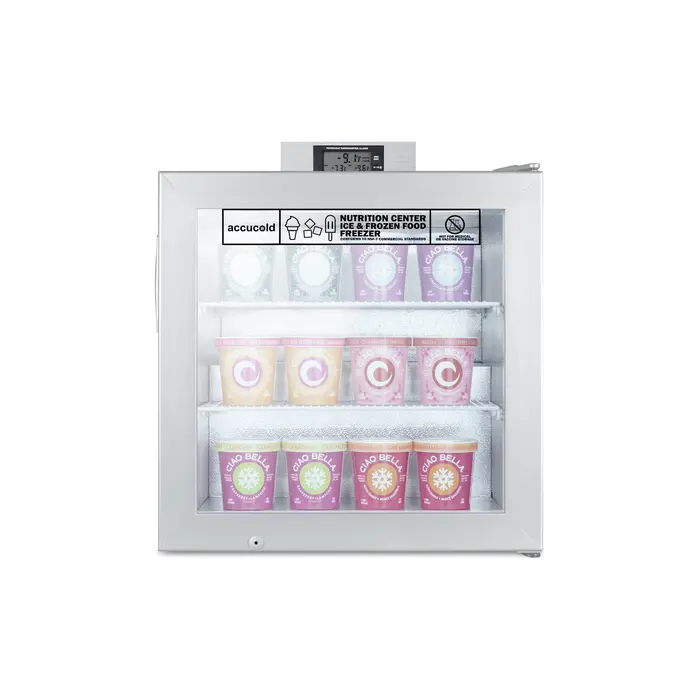

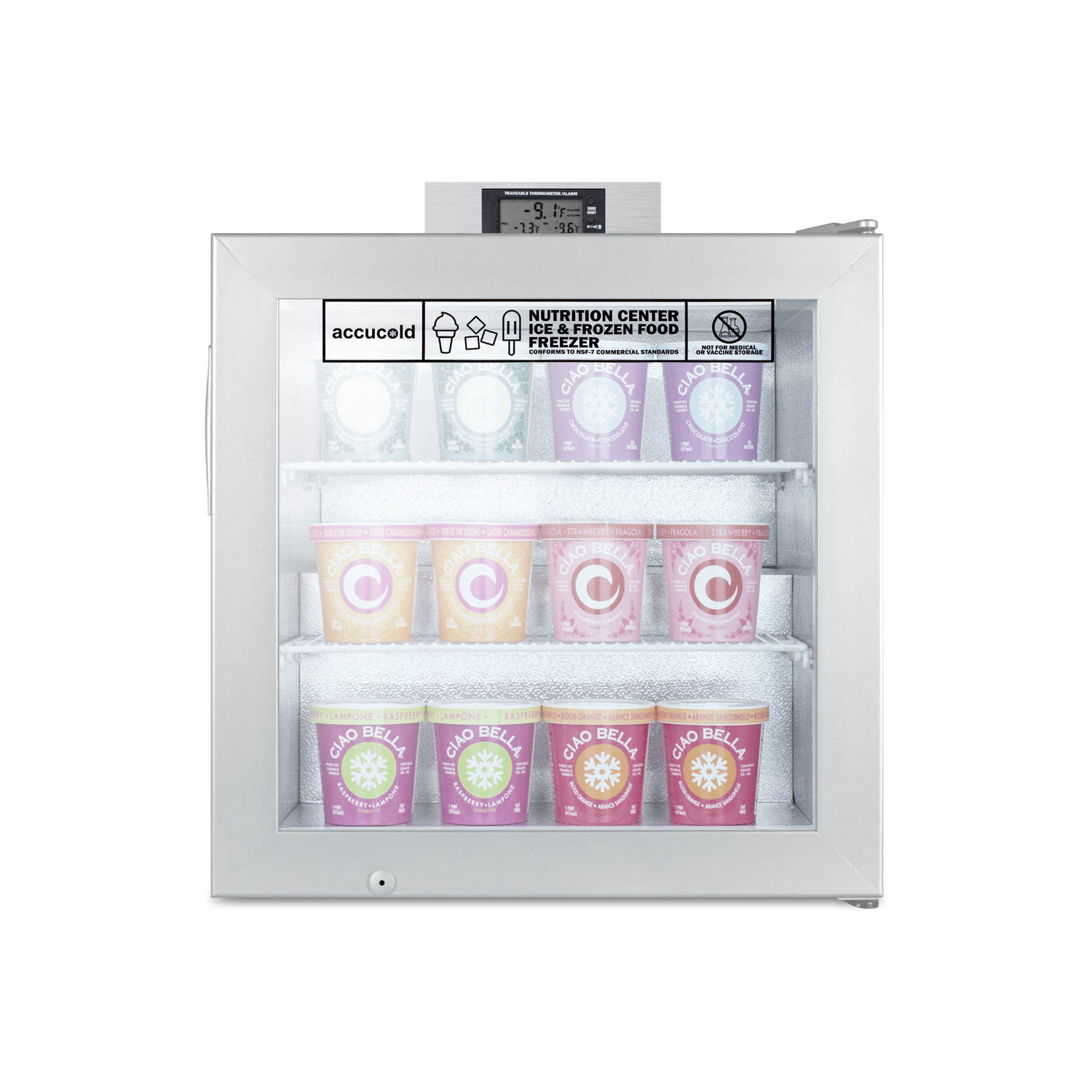

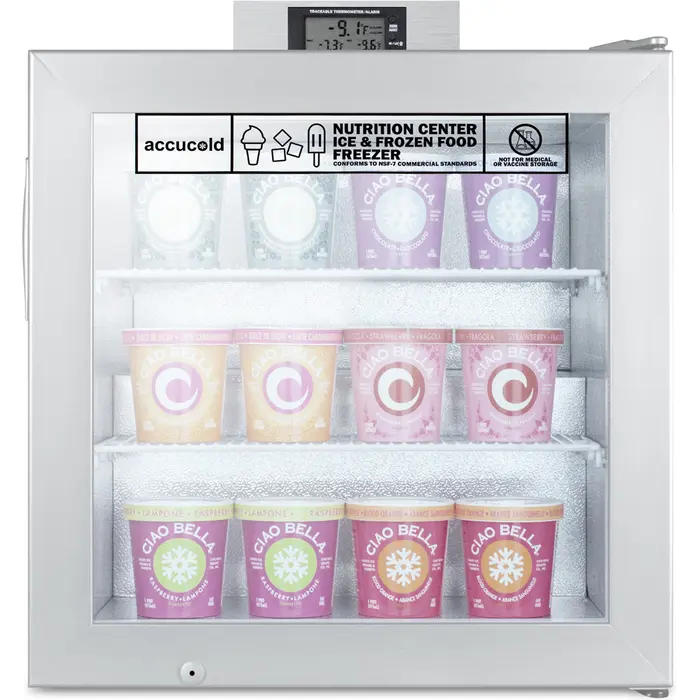

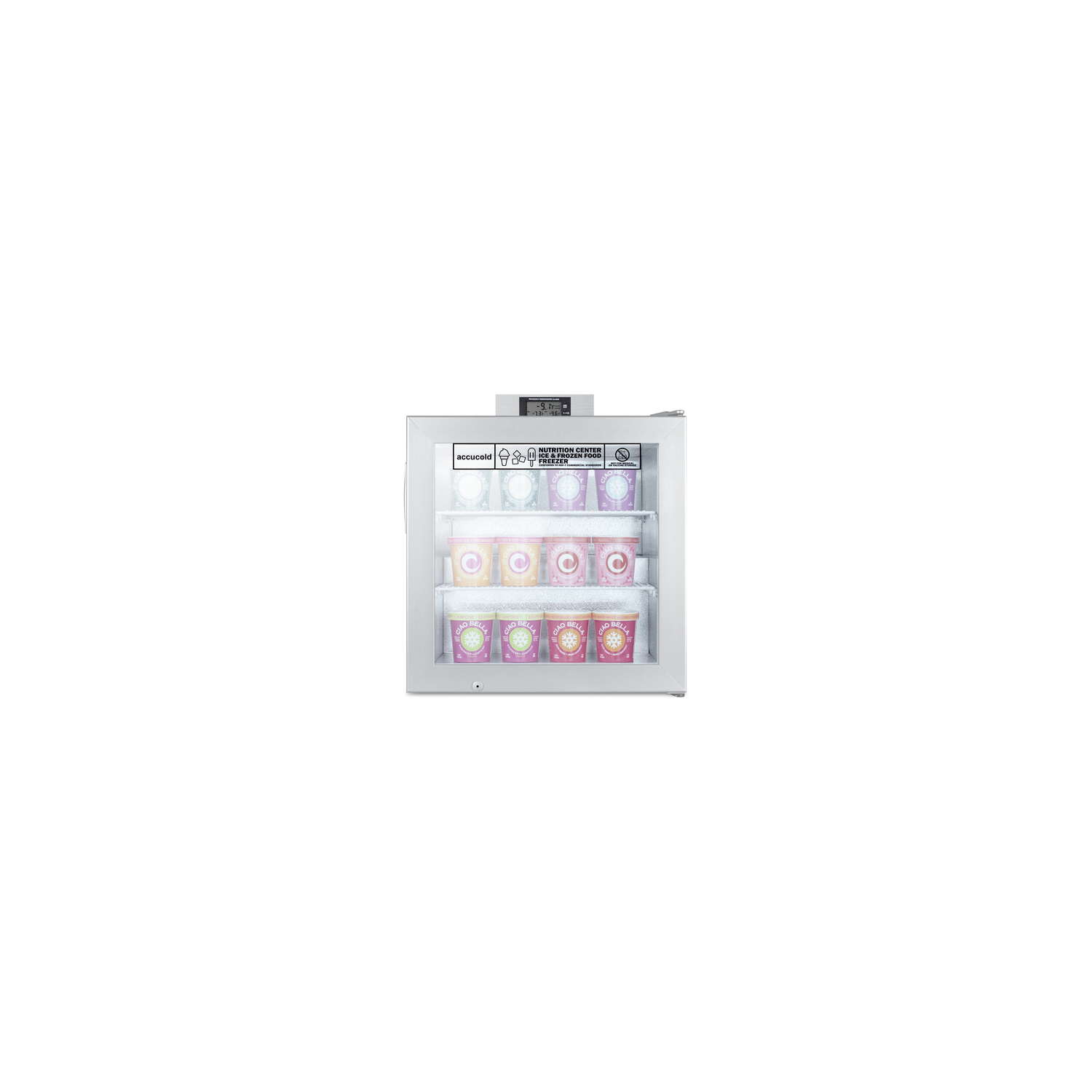

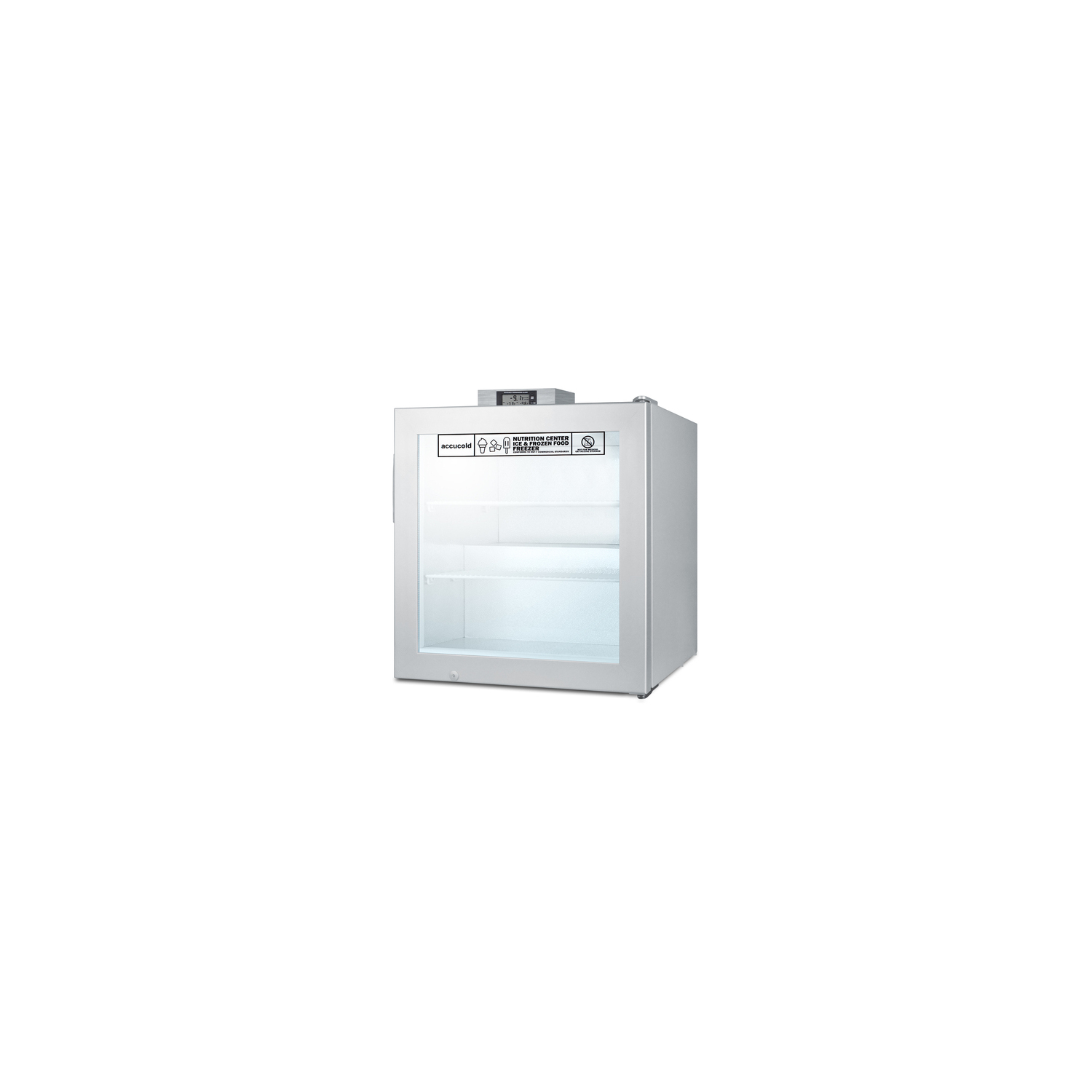

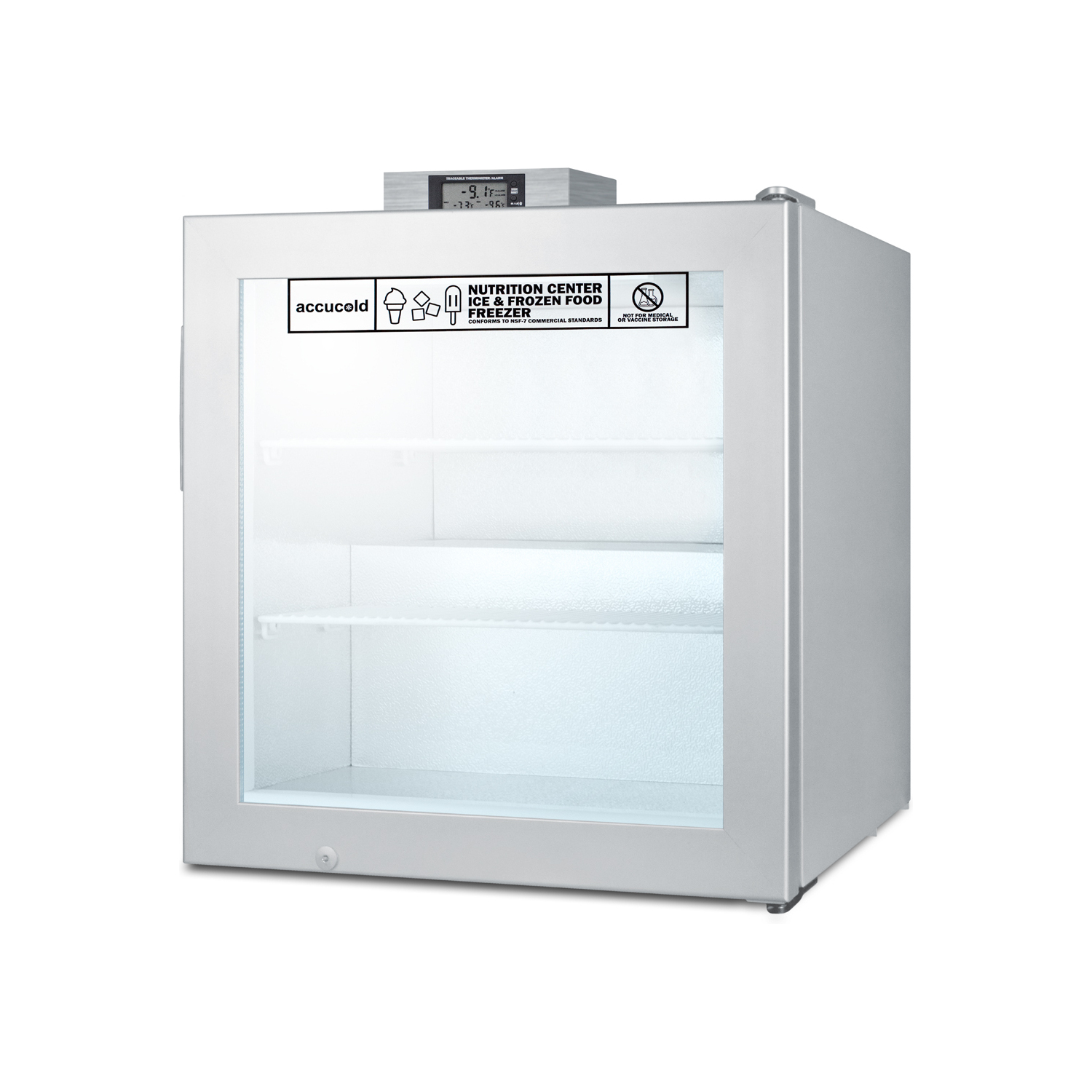

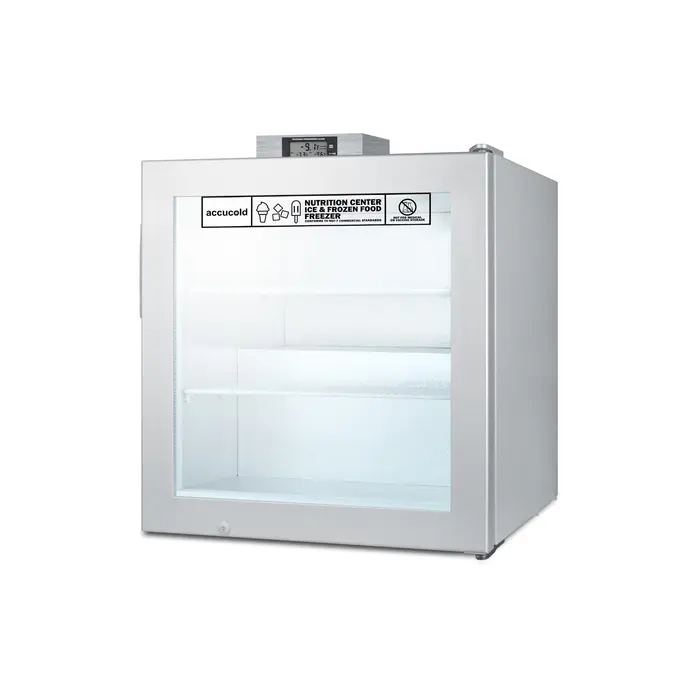

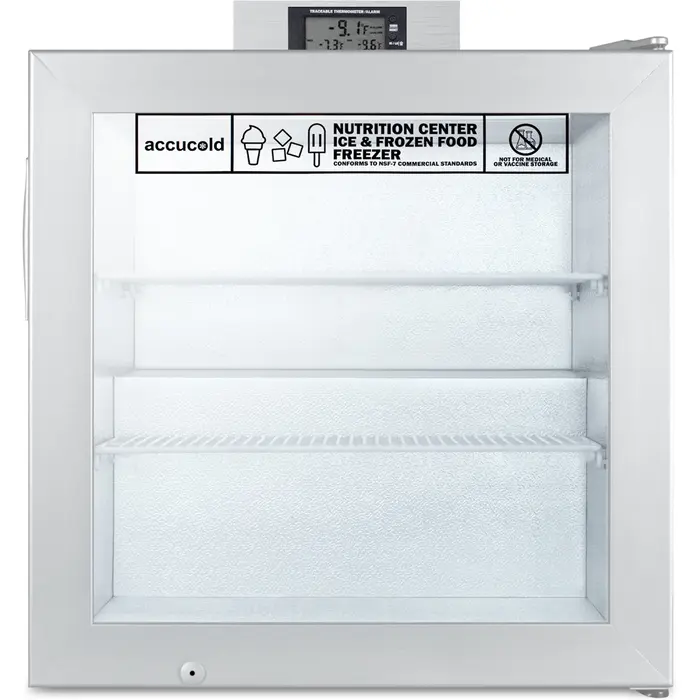

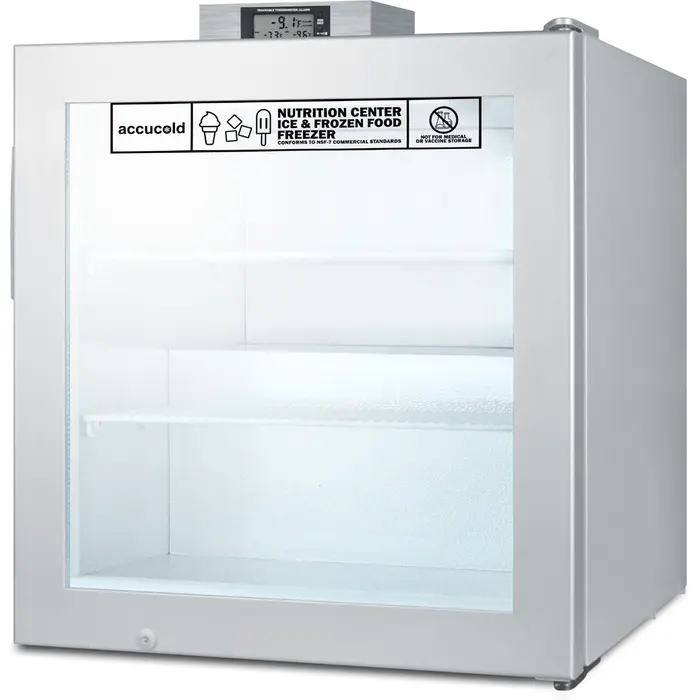

Summit Commercially approved Nutrition Center series compact glass door all-freezer with front lock and NIST calibrated digital temperature display, 7.61101e+011, SCFU386NZ

Accucold's Nutrition Center Series features commercially approved refrigerators and freezers specifically designed for the storage of sealed food and beverages in a variety of facilities, including break rooms, waiting areas, nurses' stations, and more.

The SCFU386NZ is a compact all-freezer sized for countertop use. It is ETL-S listed to NSF-7 standards for the storage of sealed food and beverages. The top cabinet includes a factory installed digital thermometer that provides a continuous external display of the current and minimum/maximum temperature to the nearest tenth of a degree, making it easier for staff to monitor and record the temperature as needed. This device includes a built-in audible alarm that will sound if the unit rises or falls out of the set temperature range. The temperature probe is encased in a glycol-filled bottle to best simulate the temperature of stored contents. All temperature display devices are calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory and include a certificate of calibration.

Designed for optimum display, the SCFU386NZ includes a self-closing glass door with a right hand door swing and front lock. Inside, it utilizes manual defrost operation and includes two adjustable wire shelves. LED lighting offers a full view of the interior.

Designed specifically for institutional food and beverage storage, all Accucold's Nutrition Centers are commercially approved to NSF standards and comply with most JCAHO recommendations for safe storage. Additional sizes and variations are available.

SPECIFICATIONS

Overview

Nominal Height 27.0" (69 cm)

Height of Cabinet 26.25" (67 cm)

Height to Hinge Cap 24.5" (62 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 21.0" (53 cm)

Depth 20.63" (52 cm)

Depth with door at 90° 42.0" (107 cm)

Capacity 2.0 cu.ft. (57 L)

Defrost Type Manual

Door Glass

Cabinet Gray

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 4.0

Voltage/Frequency 115 V AC/60 Hz

Weight 83.0 lbs. (38 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101061306

Freezer

Door Swing RHD

Reversible No

Interior Height 18.0" (46 cm)

Interior Width 18.75" (48 cm)

Interior Depth 15.38" (39 cm)

Shelf Type Wire

Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.4 oz.

High Side PSI 280.0

Low Side PSI 90.0

Compressor Step Height 8.25" (21 cm)

Compressor Step Width 18.75" (48 cm)

Compressor Step Depth 7.0" (18 cm)

Temperature Range -4 to 5°F

FEATURES

Commercially approved ETL-S listed to NSF standards for commercial use

NIST calibrated temperature display Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range

Factory installed lock Keyed security for a secure interior

Self-closing door Ideal for busy commercial settings, where customers and staff don't always have the chance to ensure the door is closed

Versatile display Temperature display can be switched from Celsius to Fahrenheit at the touch of a button

LED lighting Switchable light illuminates whole interior

Glass door Provides a full display of stored contents

Removable shelves Two wire shelves included

Adjustable thermostat Rear mounted to prevent accidental adjustments

Manual defrost Static cooling system for improved temperature stability

Designed to operate at 0ºF Temperature range: -4 to 5ºF

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
