Summit Commercially listed large capacity manual defrost chest freezer with stainless steel corner guards, 7.61101e+011, SCFM252WH

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

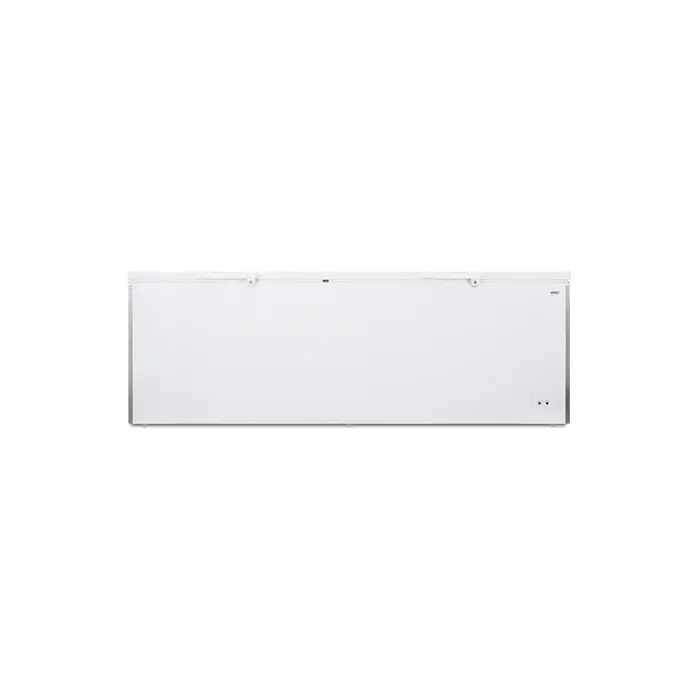

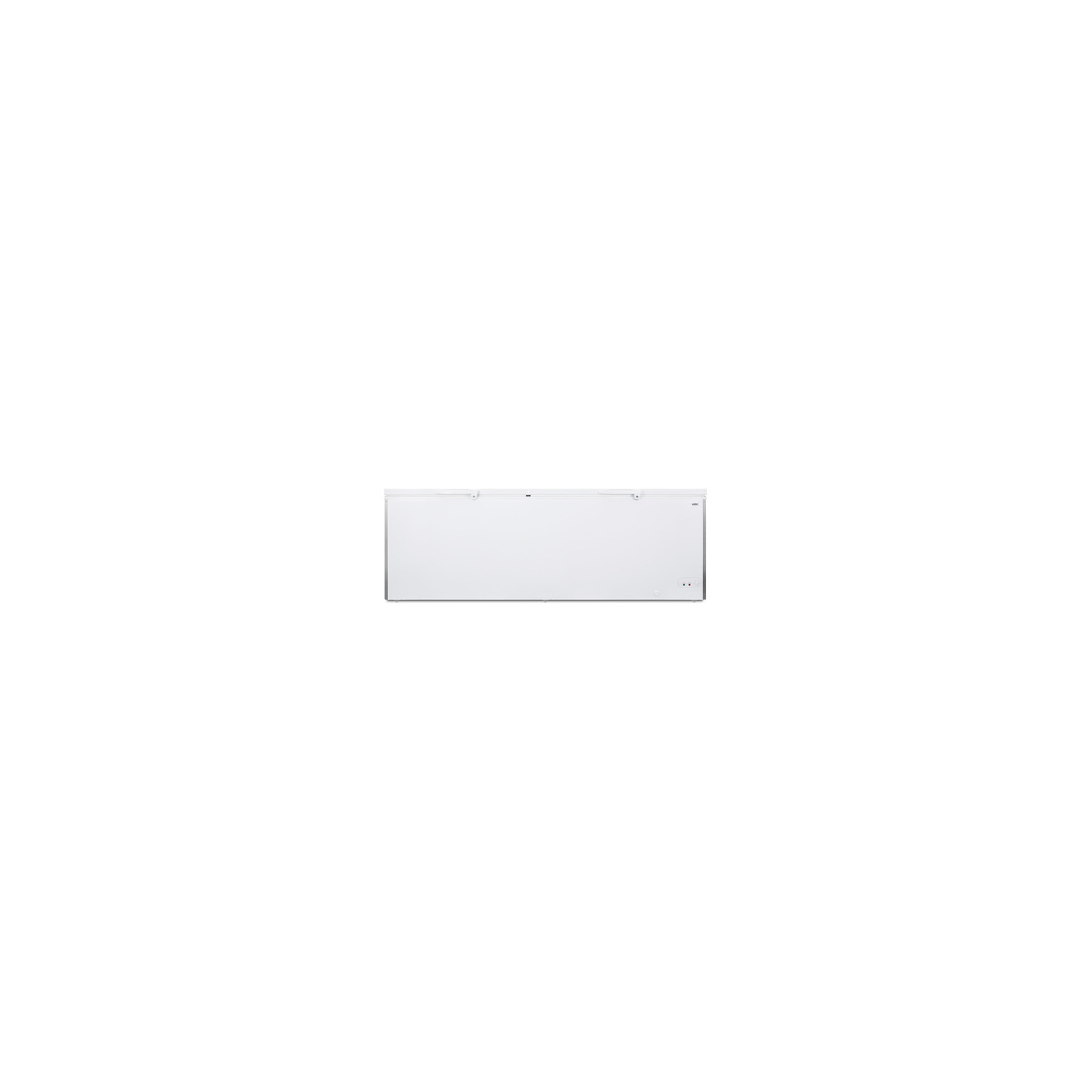

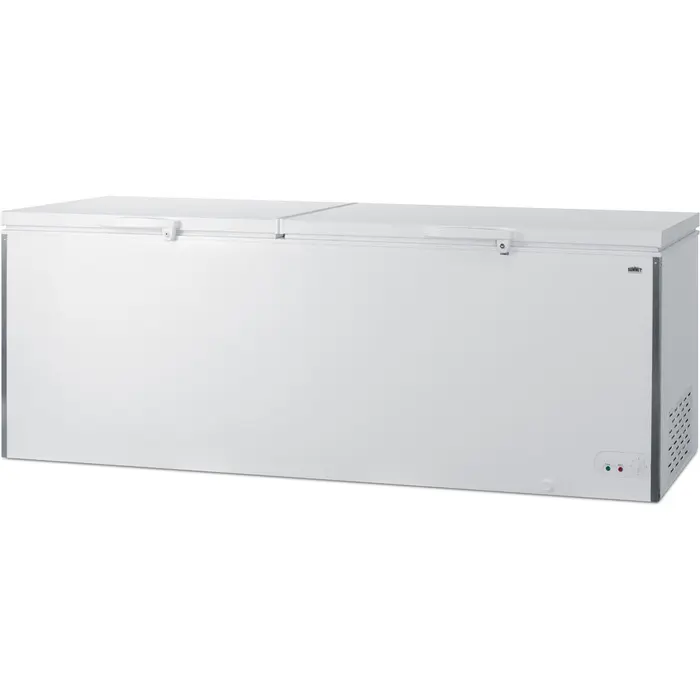

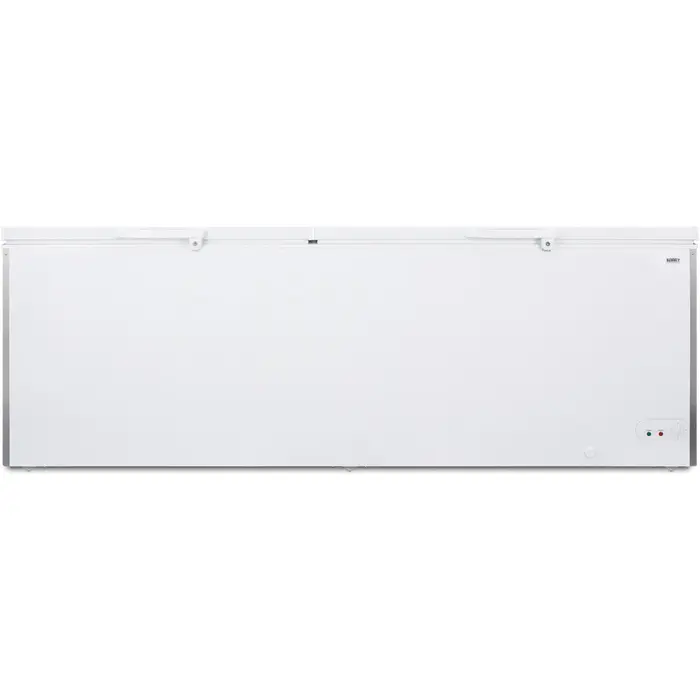

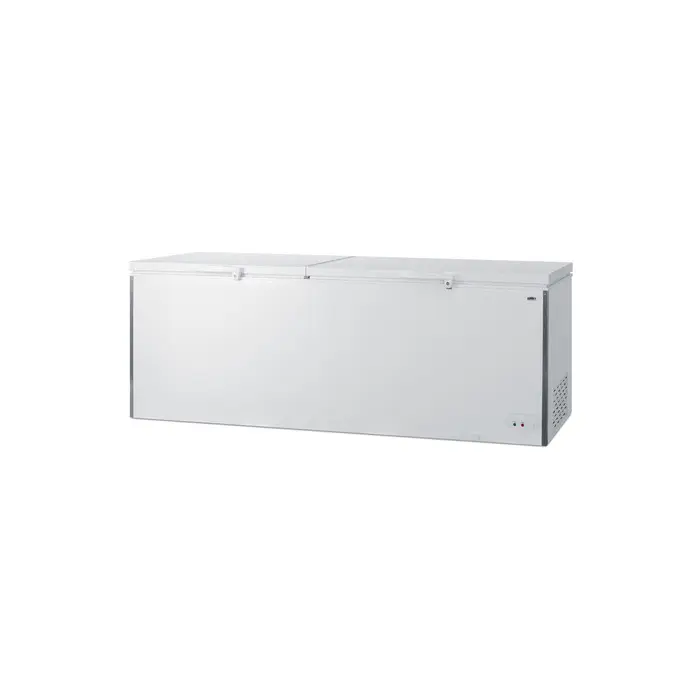

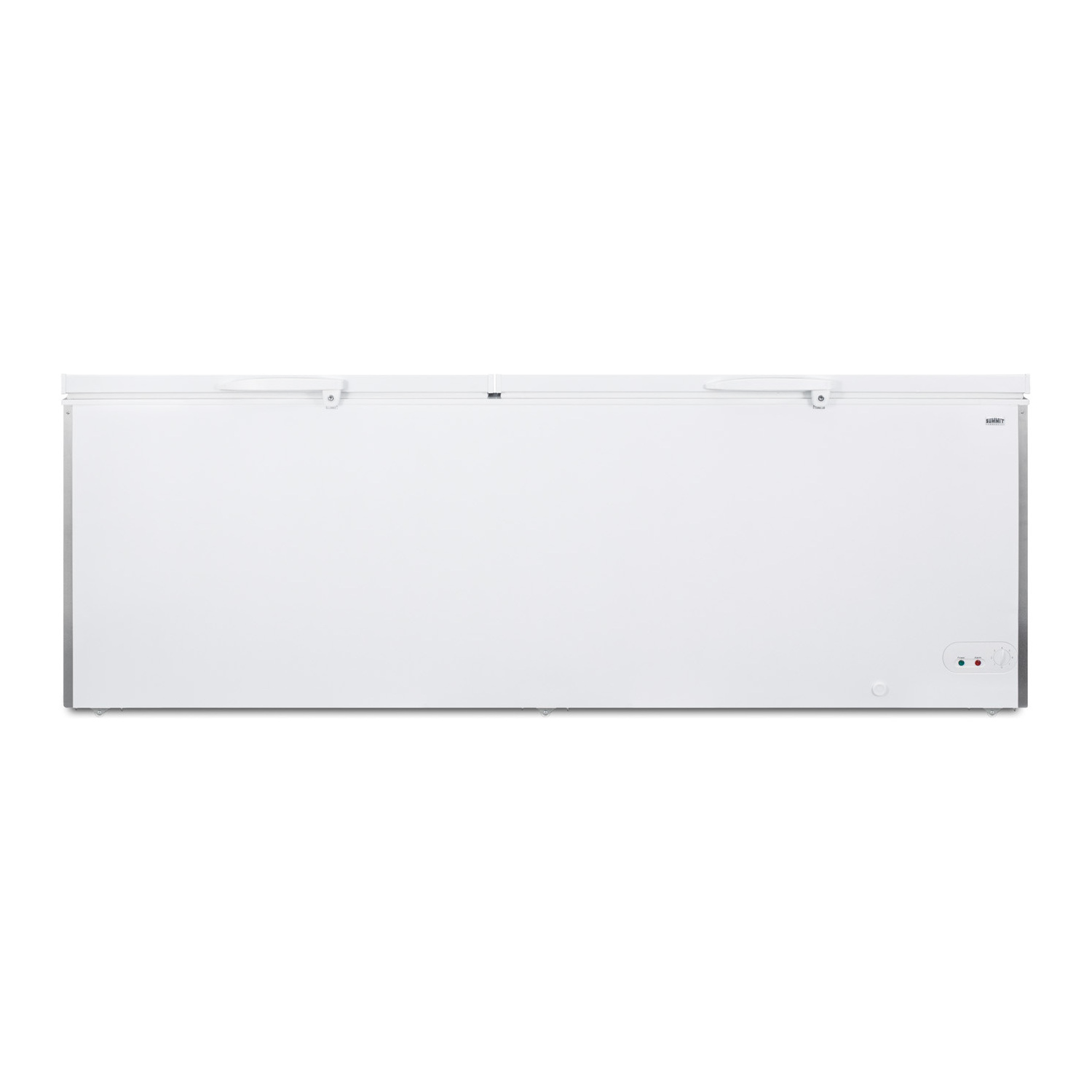

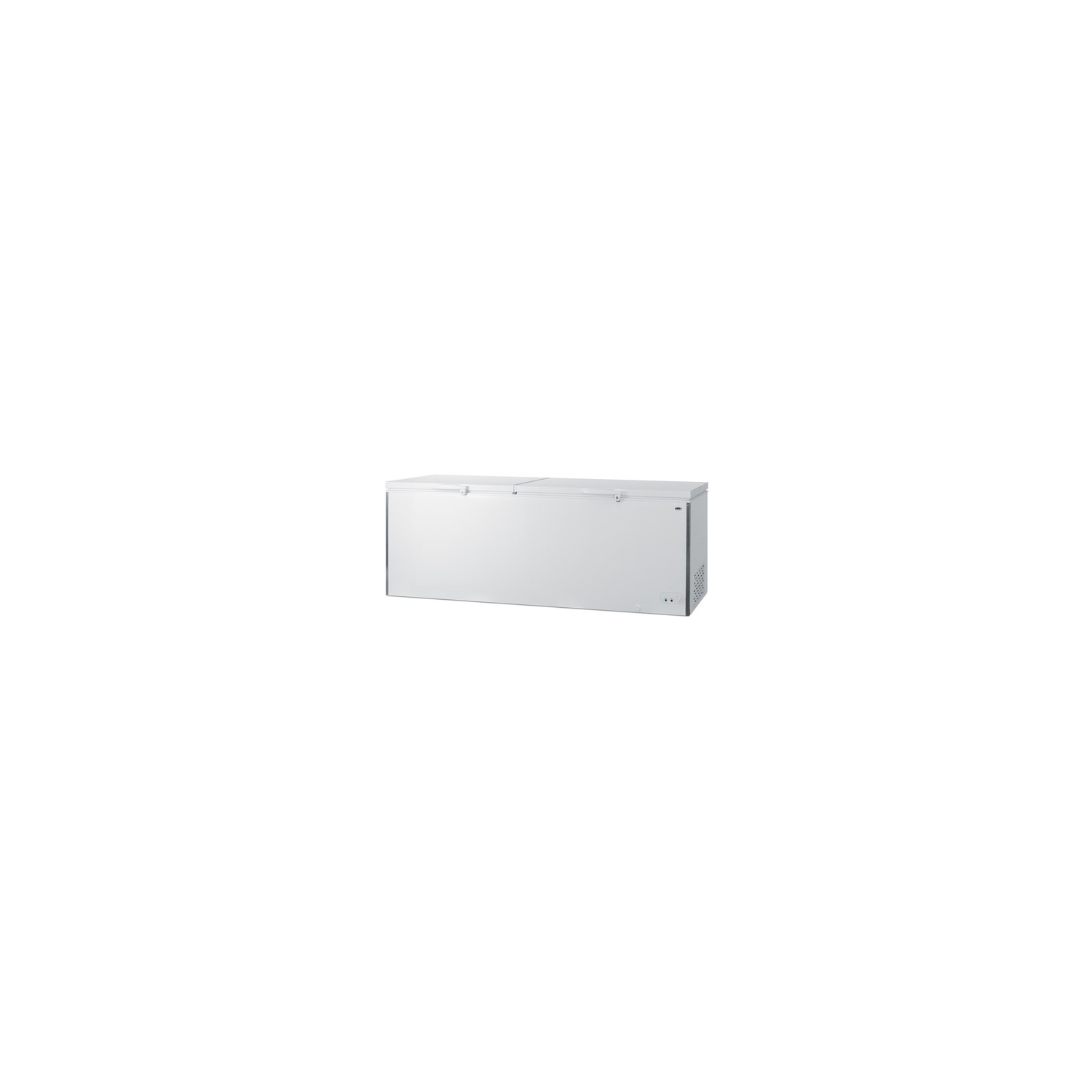

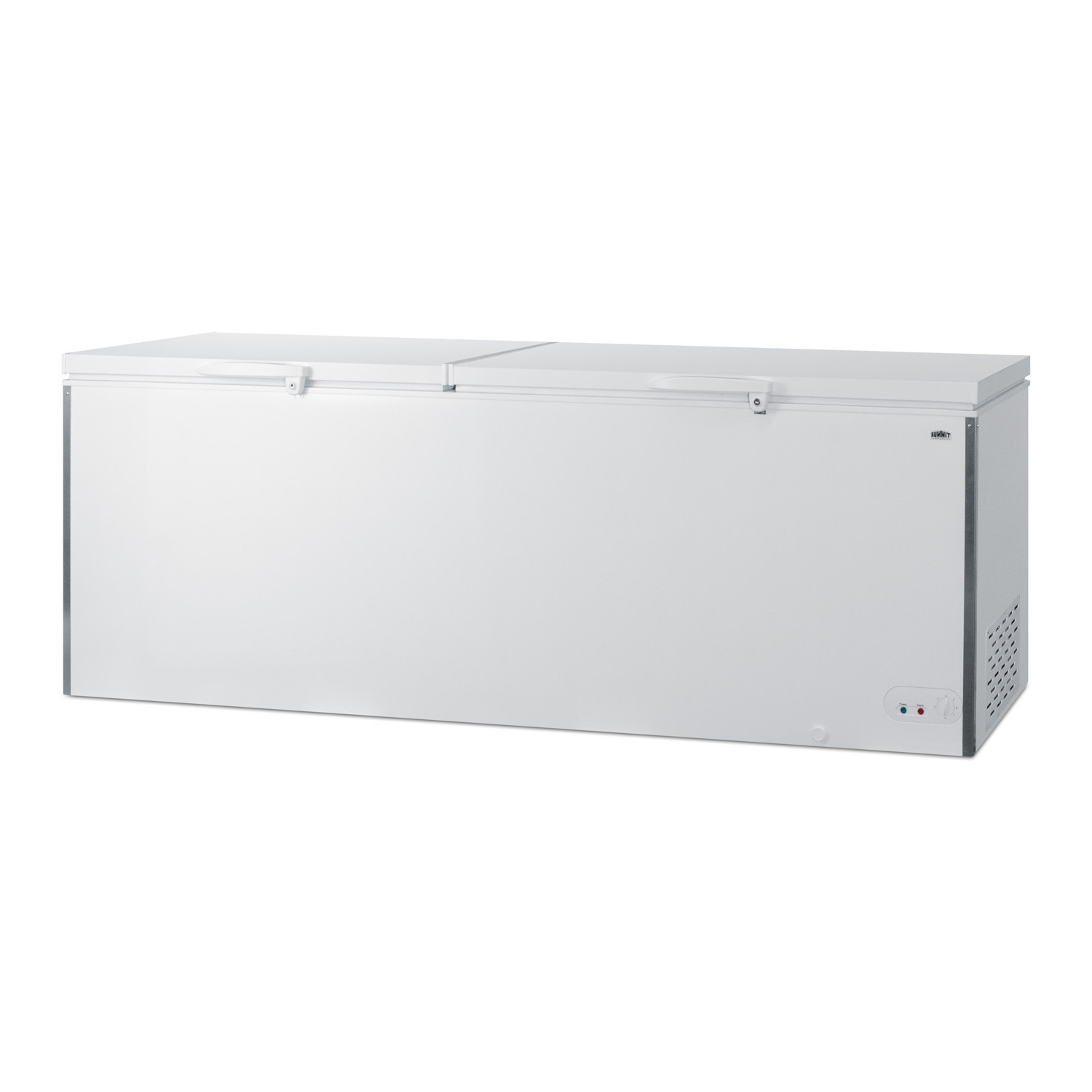

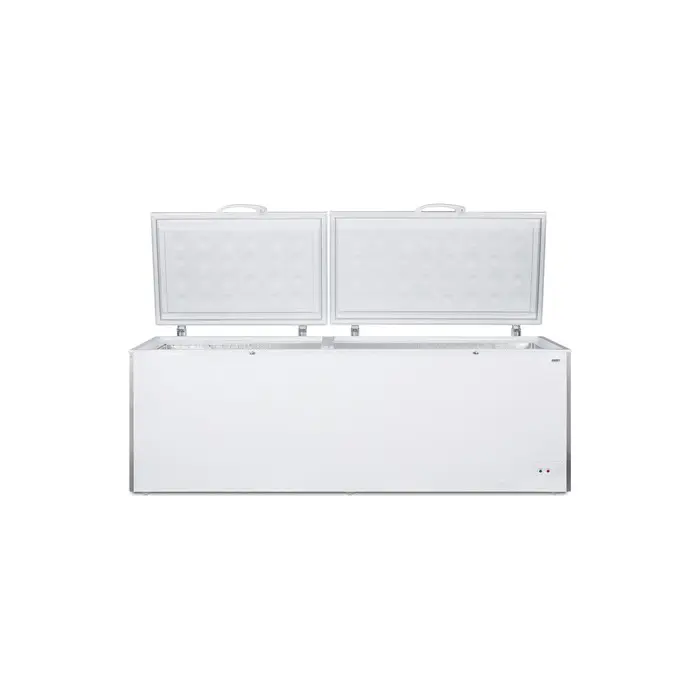

The SCFM252WH is UL-S listed to NSF-7 standards for commercial use, with eco-friendly R290a hydrocarbon refrigerant to meet CARB regulations. It comes in a white finish with stainless steel corner protectors factory installed on the exterior to ensure protection in high traffic areas. Sized at over 91" wide, the SCFM252WH offers a generous 26.66 cu.ft. of storage capacity. This unit features two lift-up lids with counterbalanced hinges for safer loading. The lids include easy-to-grab handles and factory-installed keyed locks. Six small wheels allow you to reposition the freezer with ease.

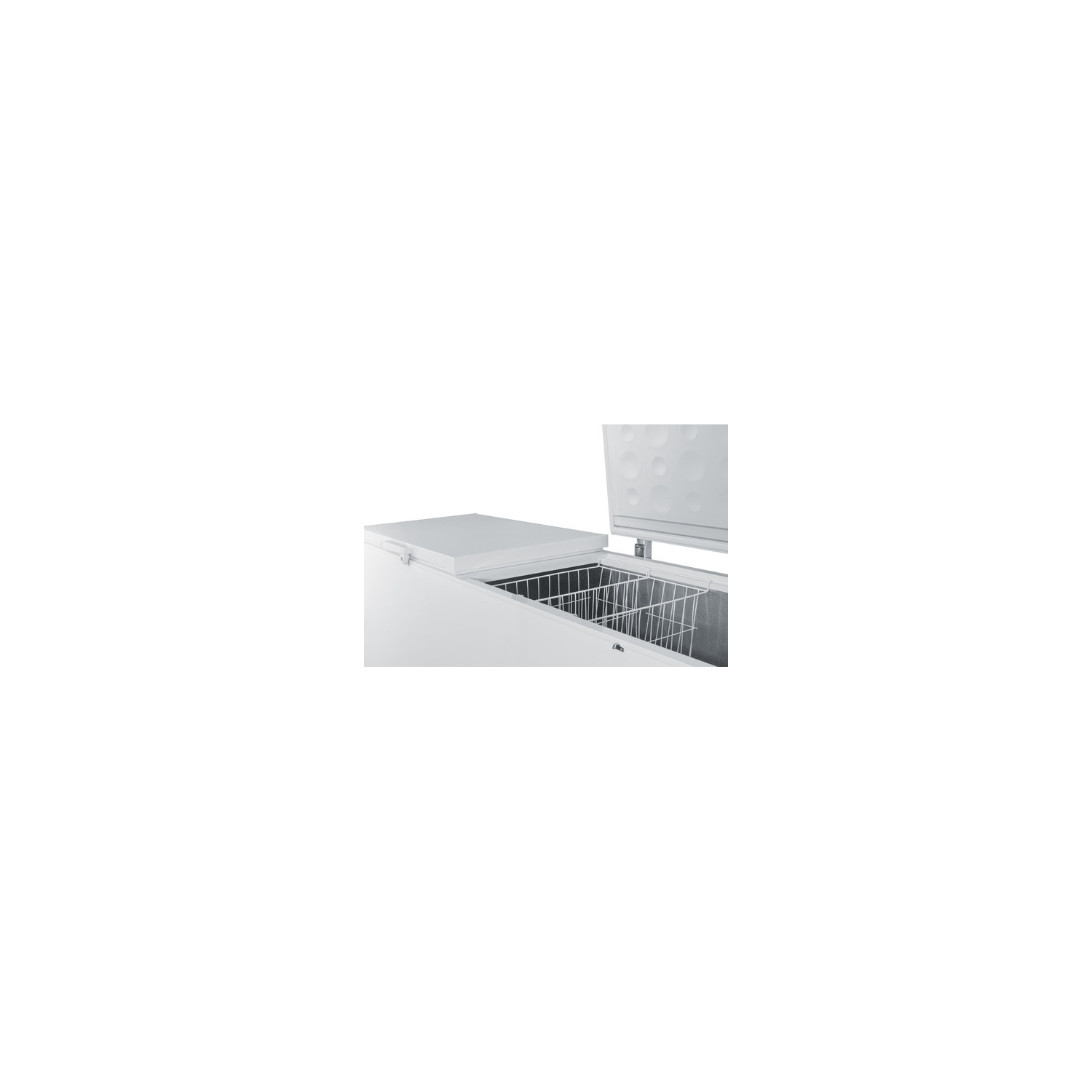

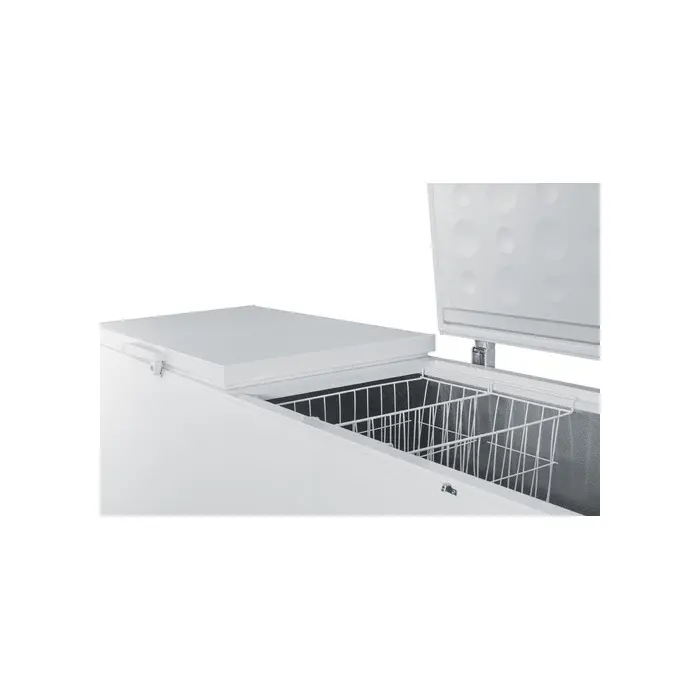

Inside, the SCFM252WH features a hammered aluminum interior for lasting durability in commercial settings. We include two sliding wire baskets for easy storage. This unit utilizes static manual defrost cooling, with a defrost drain conveniently located in the front. The dial thermostat offers intuitive temperature management and a visual alarm lights up if the temperature rises above -11ºC.

In addition to this unit, SUMMIT COMMERCIAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards.

SPECIFICATIONS

Overview

Nominal Height 37.0" (94 cm)

Height of Cabinet 36.75" (93 cm)

Nominal Width 92.0" (234 cm)

Width 91.25" (232 cm)

Nominal Depth 29.0" (74 cm)

Depth 28.25" (72 cm)

Depth with Handle 30.0" (76 cm)

Capacity 26.66 cu.ft. (755 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 2.3

Voltage/Frequency 115 V AC/60 Hz

Weight 250.0 lbs. (113 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101076935

Freezer

Door Swing Lift-Up

Interior Height 27.5" (70 cm)

Interior Width 85.5" (217 cm)

Interior Depth 20.75" (53 cm)

Thermostat Type Dial

Refrigerant Type R290

Refrigerant Amount 3.39 oz.

High Side PSI 246.0

Low Side PSI 132.0

Wheels 6

Compressor Step Height 9.75" (25 cm)

Compressor Step Width 9.0" (23 cm)

Compressor Step Depth 9.0" (23 cm)

Temperature Range -10 to -26ºC

FEATURES

Large capacity 26.66 cu.ft. of interior storage

Commercially approved UL-S listed to ANSI-NSF Standard 7 for commercial use

Packaging safety Ships on a pallet and boxed in a wooden crate for added protection during shipping

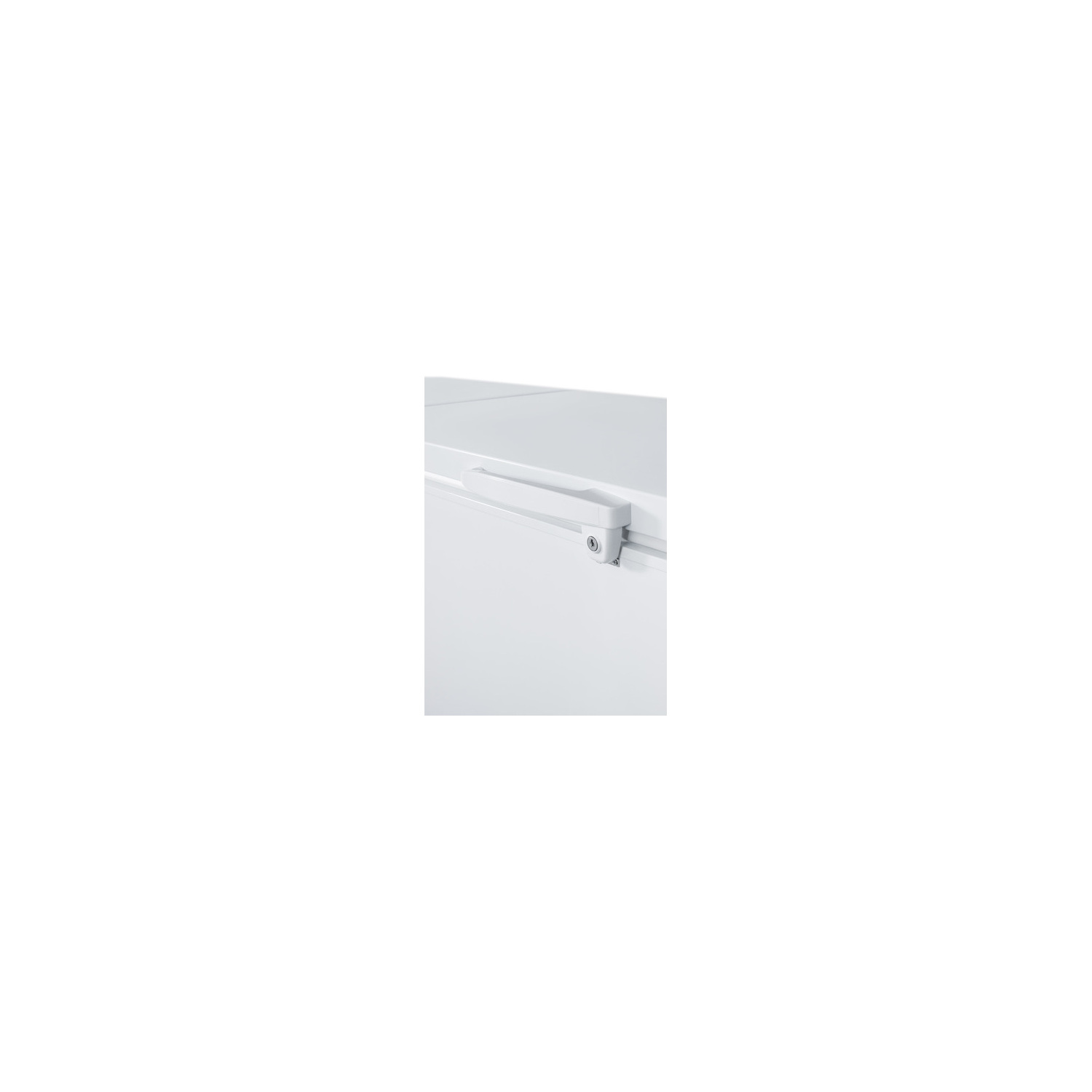

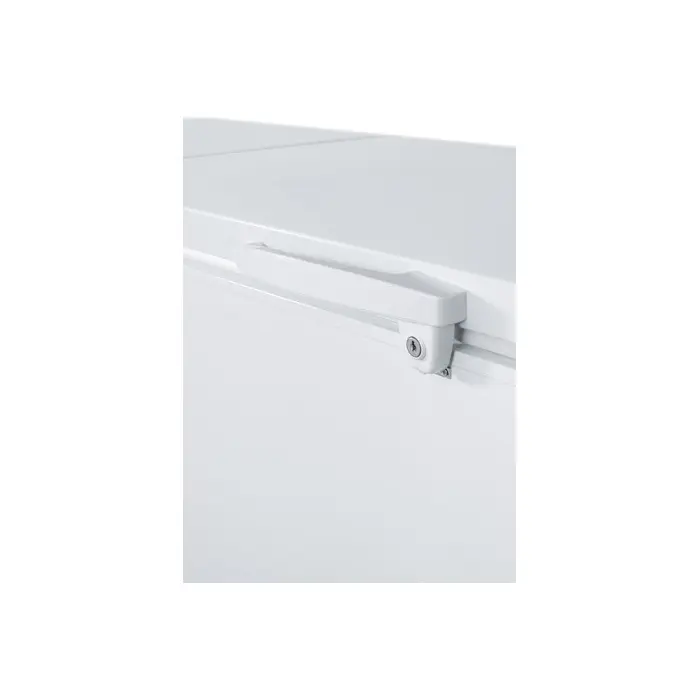

Factory installed locks Keyed lock on each handle offers added security (two sets of keys included)

Manual defrost operation Static cooling system

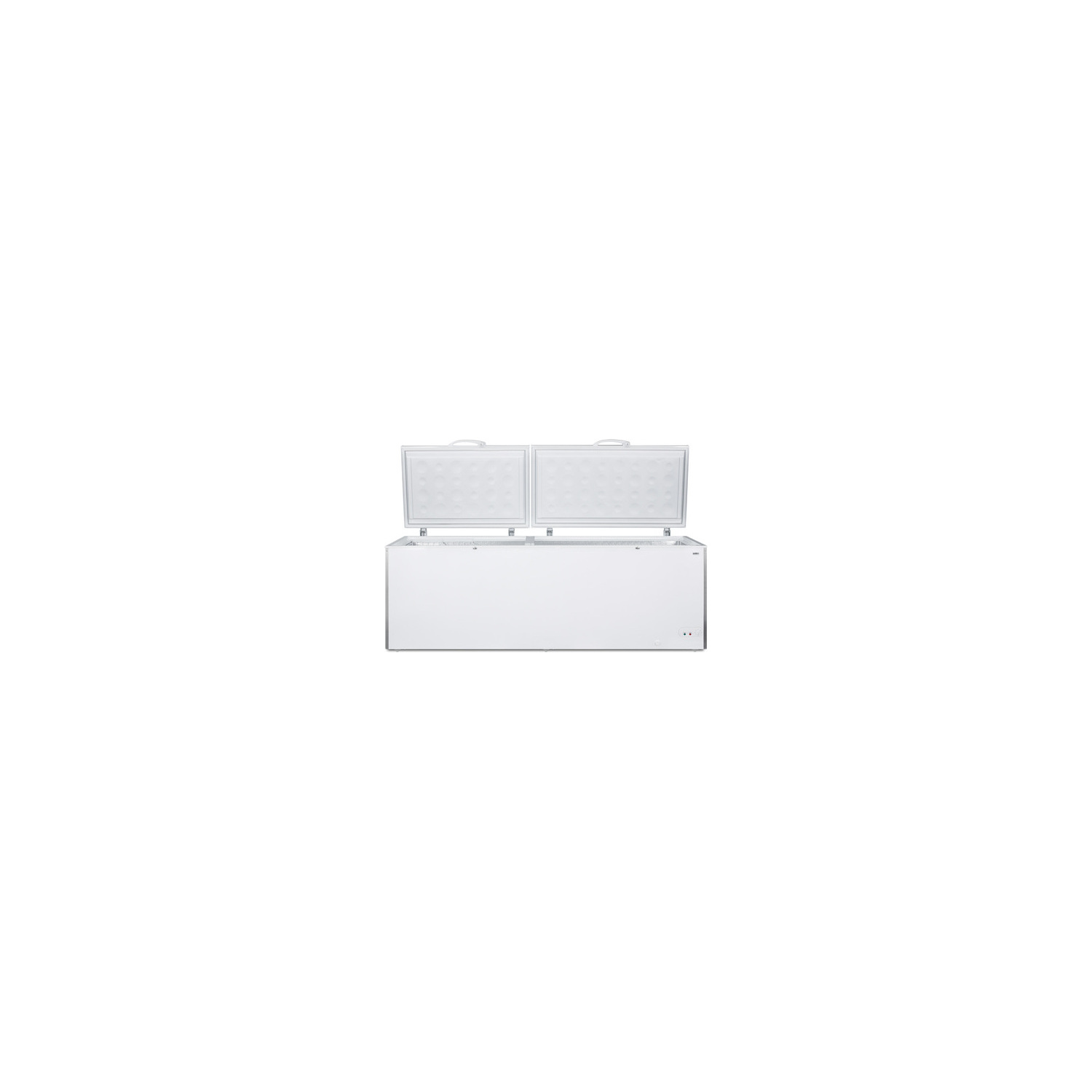

Counterbalanced hinges Two lids feature weighted lids that will stay open for easier loading and unloading

Thick insulation 3" thick walls ensure proper insulation for reliable storage

Stainless steel front corner protectors External "bumpers" are factory installed to protect the unit's front corners from dents

Hammered aluminum interior Solid construction for durable storage in busy settings

Easy-grip handles Both lids include a 2" deep handle for easier access

Adjustable thermostat Dial thermostat for easy temperature management

Storage baskets Two removable plastic baskets included

Visual temperature alarm Located in the front control area, the alarm light displays if the interior temperature rises above -11ºC

Small wheels 6 pre-installed gliding wheels make it easier to move the large freezer as needed

White exterior Textured white finish fits well in any establishment

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCFM252WH.pdf)

TECHNICAL DRAWING (.dwg) (SCFM252W__FREEZER__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_SCFM252WH_27_Cu.Ft._Chest_Freezer.rfa)

USE & CARE (SCFM252WH-User-Manual.pdf)
