Summit Frost-free built-in undercounter all-freezer for residential use, with icemaker, digital thermostat, stainless steel door, lock, and black cabinet, 7.61101e+011, SCFF53BSSIM

SUMMIT's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers.

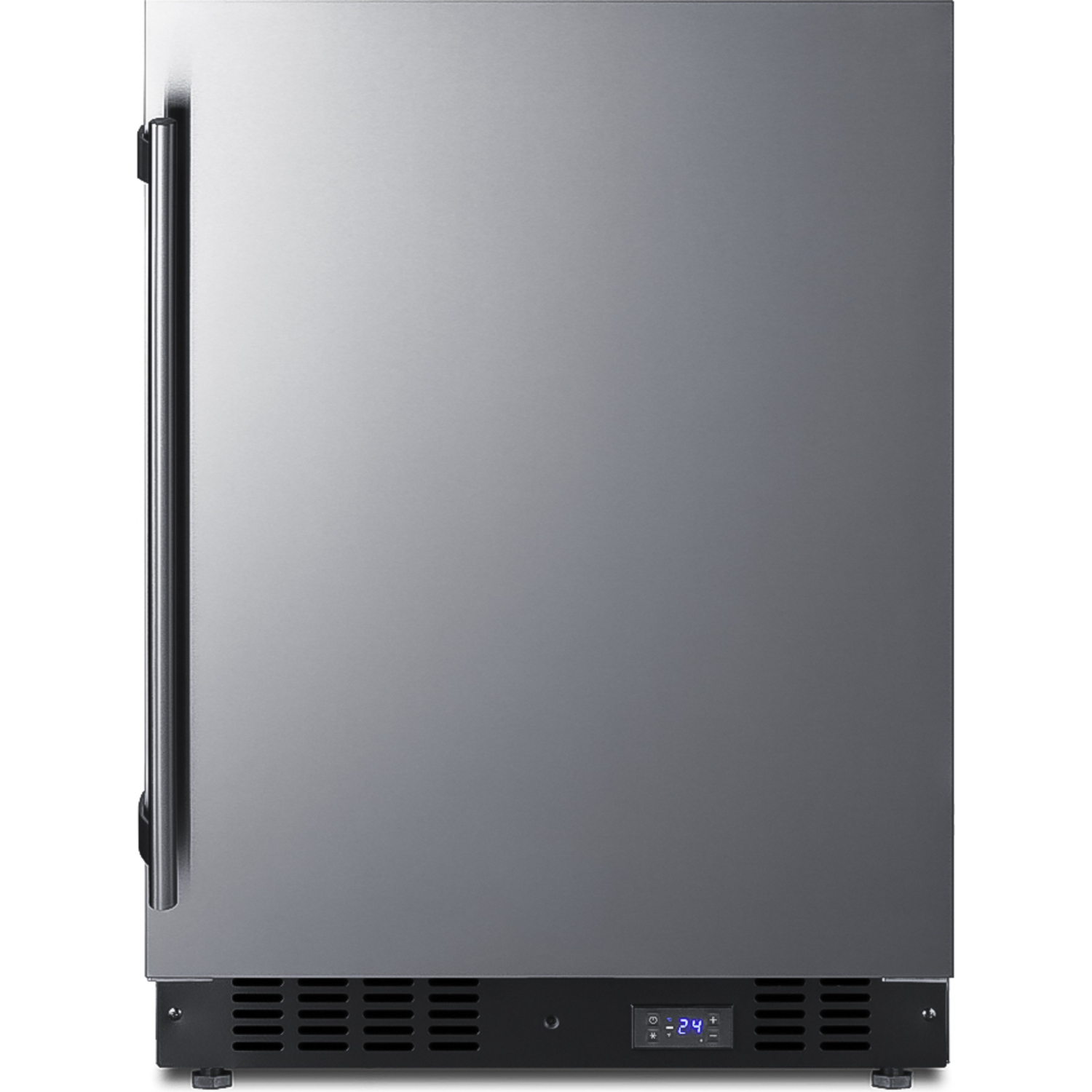

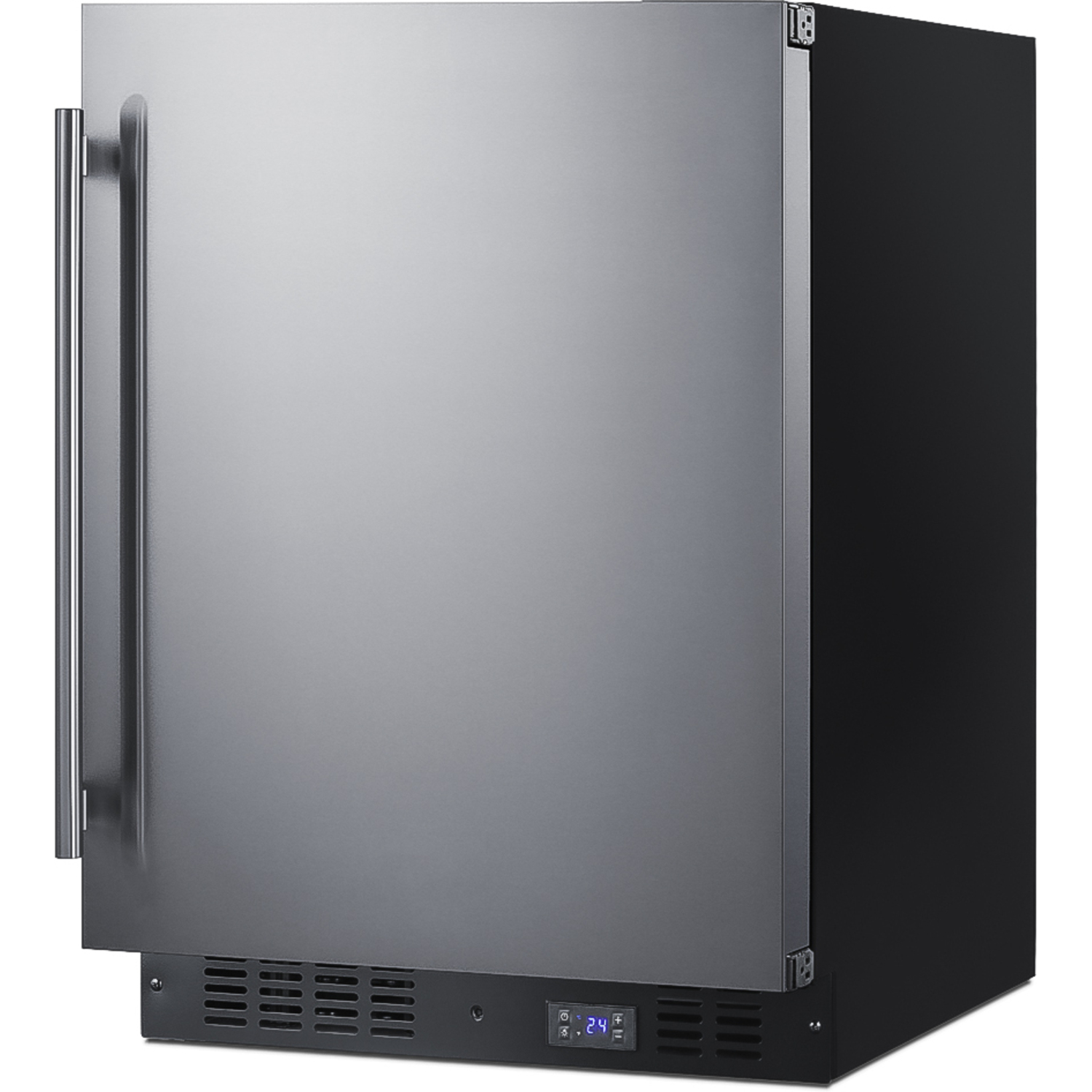

Sized with a convenient 24" footprint, the SCFF53BSSIM freezer can be used built-in or freestanding. It has a black cabinet with a sealed back for easy cleaning. The reversible stainless steel door features a European style fully articulating hinge, pro style handle, and factory installed lock.

Inside, the SCFF53BSSIM utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage and a factory installed icemaker. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style and user-friendly features, the SCFF53BSSIM is the perfect choice for home or commercial kitchens. For a matching frost-free all-refrigerator, see the FF64BSS.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.35" (64 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 4.6 cu.ft. (130 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 390.0kWh/year

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 88.0 lbs. (40 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101046402

Freezer

Door Swing RHD

Reversible Yes

Interior Height 25.75" (65 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.25" (44 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.24 oz.

High Side PSI 270.0

Low Side PSI 106.0

Sabbath Mode Yes

FEATURES

Undercounter freezer Frost-free all-freezer in a 24" footprint for built-in or freestanding use

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Factory installed lock Keyed lock for a secure interior

Factory installed icemaker Produces a steady supply of ice for added entertaining convenience

Digital thermostat Electronic controls offer easy and intuitive temperature management

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Recessed LED light Elegant and efficient interior lighting automatically illuminates when the door is opened

Temperature Memory Function Unit will retain its last settings when power is restored in the event of a power loss

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm High temperature alarm sounds if the unit's temperature goes out of the recommended range

Open door alarm Audible alarm will sound if the door is left open longer than one minute

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Matching refrigerator available Pair with the FF64BSS for a matching side-by-side or stackable set

Reversible door User reversible door swing for added placement flexibility

Professional handle Attractive chrome handle adds a touch of modern style

Fully finished cabinet Allows the freezer to be used as a freestanding model

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE w/ DRAWINGS (SCFF53BSSIM.pdf)

TECHNICAL DRAWING (.dwg) (SCFF51OSFREEZERA-C2000_3.dwg)

REVIT MODEL (Qf_Summit_SCFF53BSS_24_inches_Wide_Built-In_All-Freezer_2.rfa)

USE & CARE (SCFF53BSSIM-User-Manual.pdf)

USE & CARE (SCFF53BSSIM-User-Manual_2.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
