Summit Frost-free built-in undercounter all-freezer for residential or commercial use, with digital thermostat, stainless steel exterior, and lock, 7.61101e+011, SCFF53BCSS

Summit's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers.

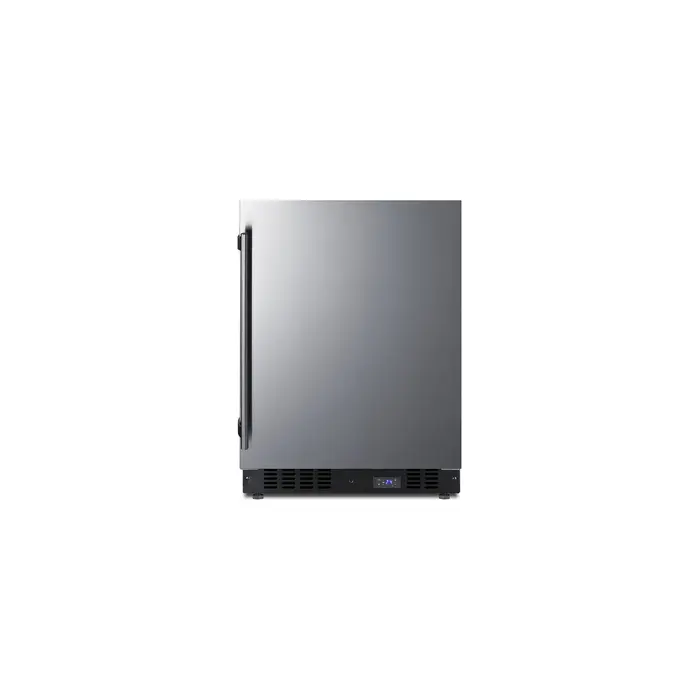

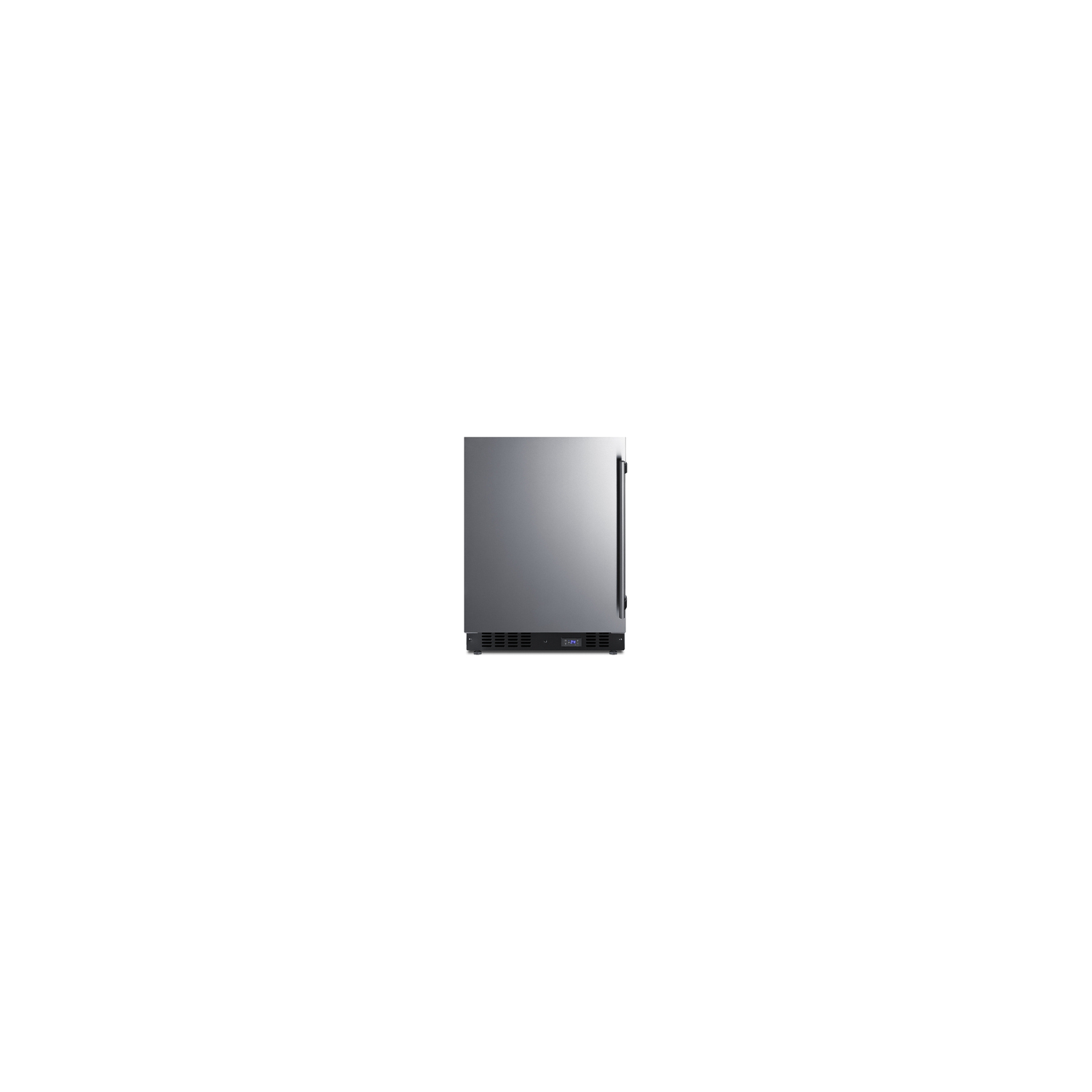

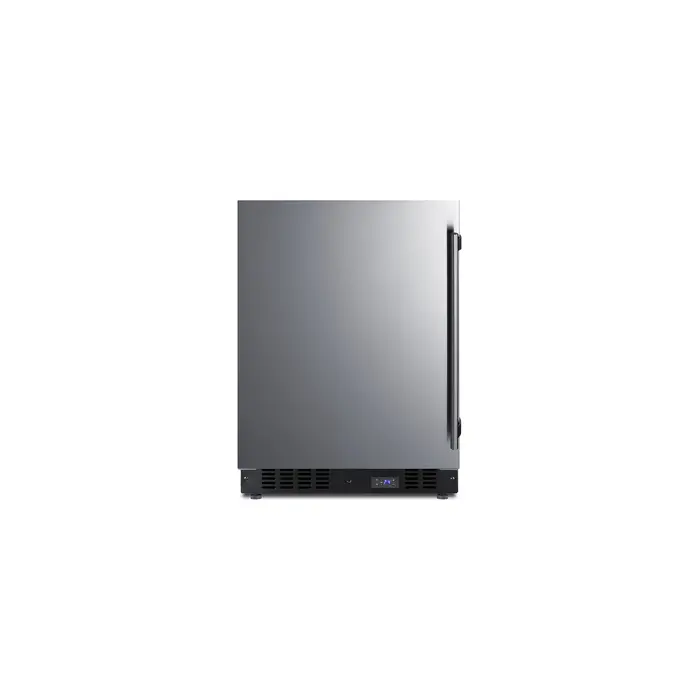

Sized with a convenient 24" footprint, the SCFF53BCSS freezer can be used built-in or freestanding. It has a stainless steel wrapped cabinet and sealed back for easy cleaning. The reversible stainless steel door includes a factory installed lock and a professional style handle.

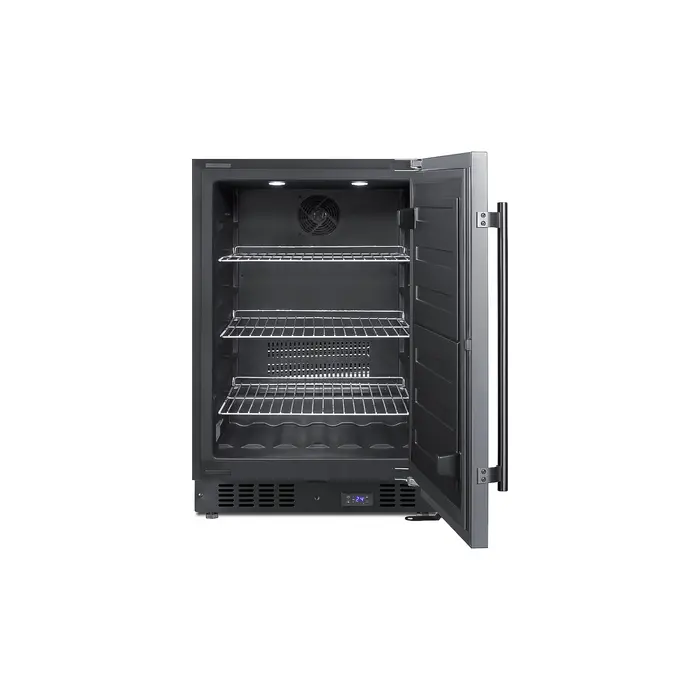

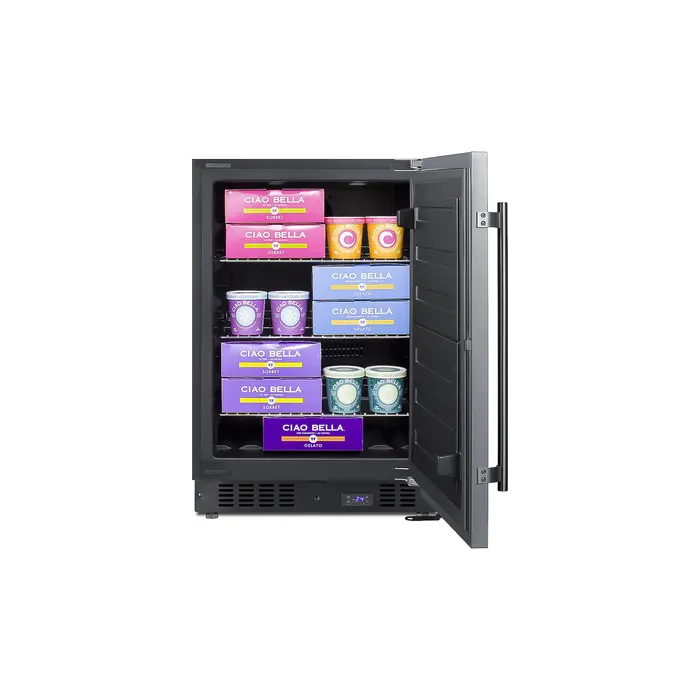

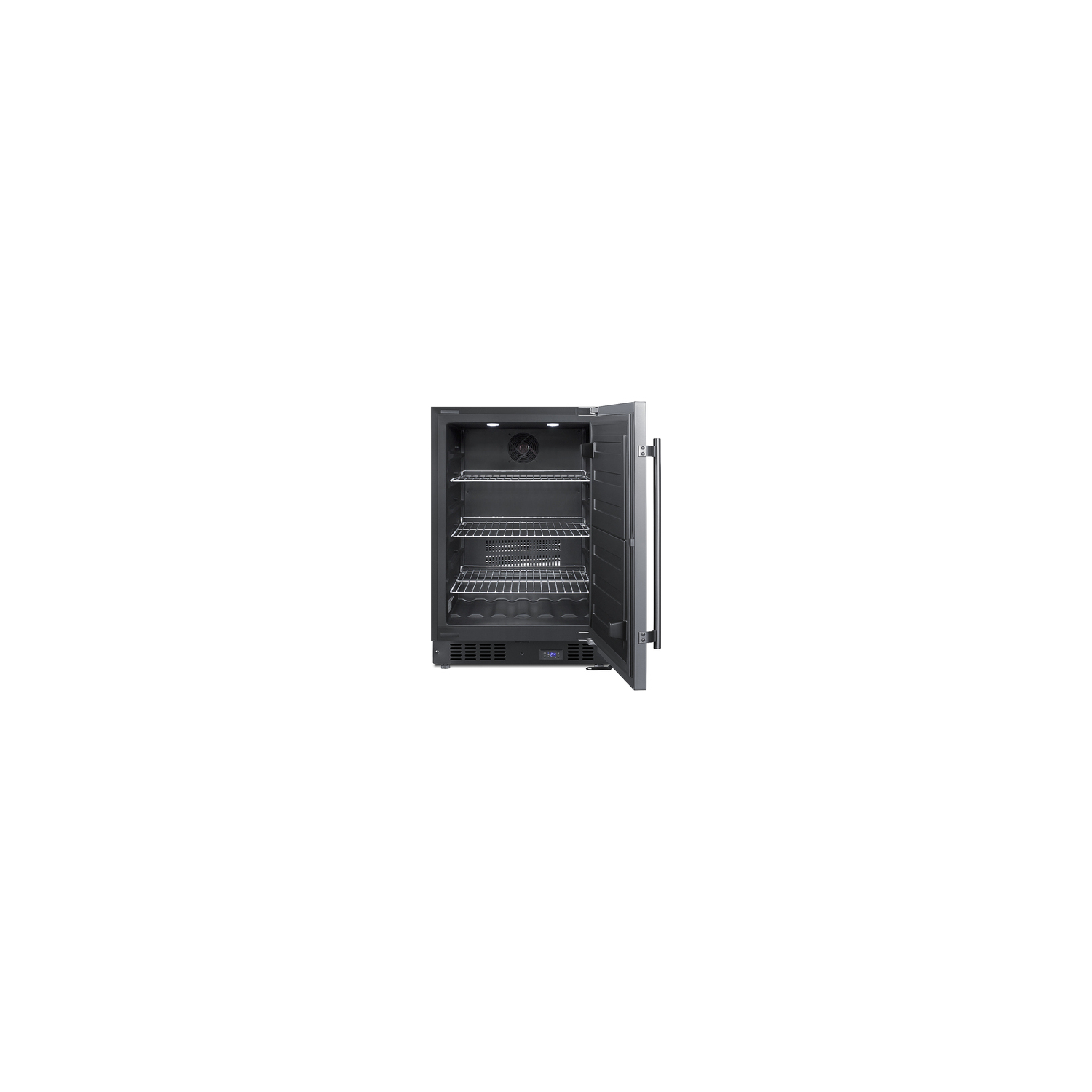

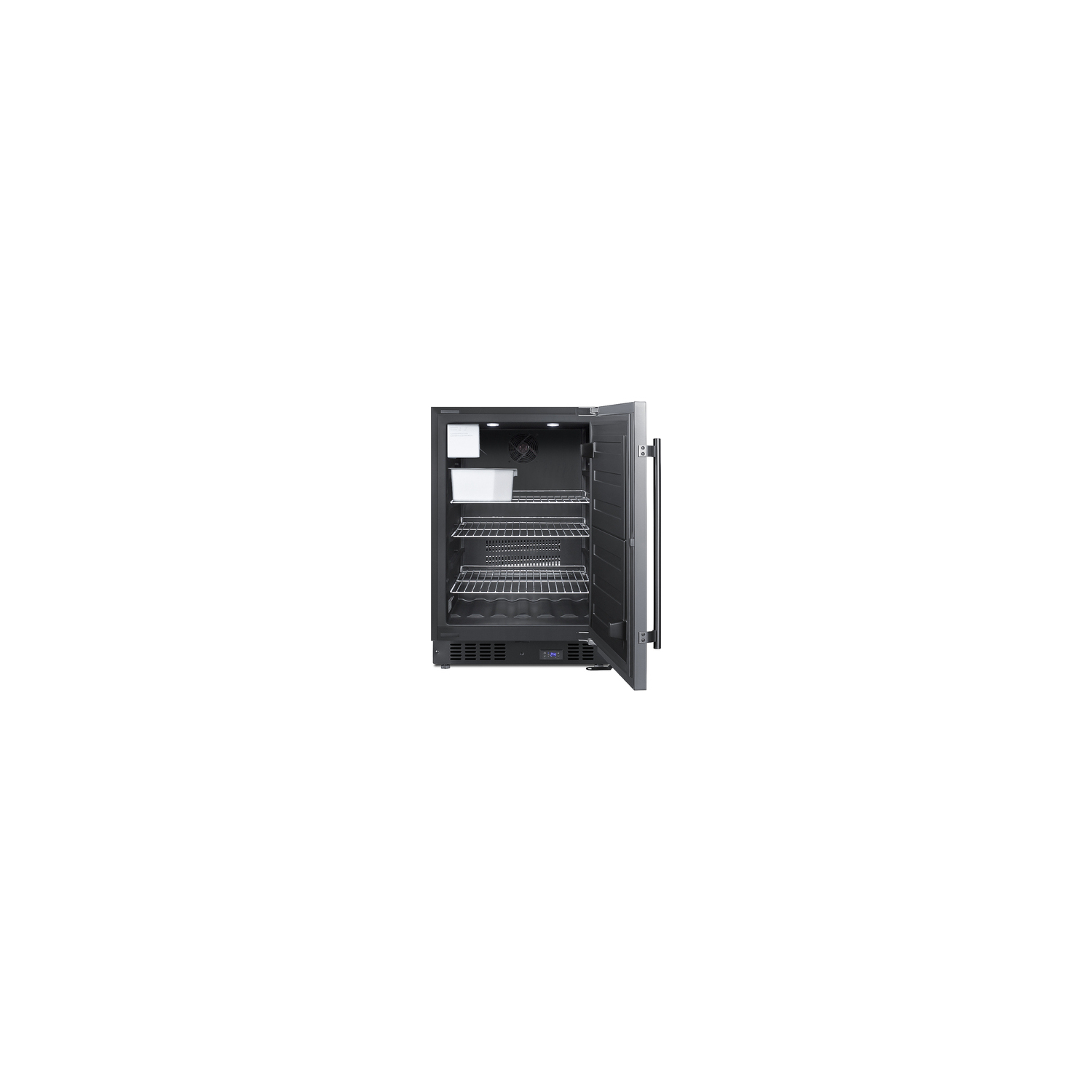

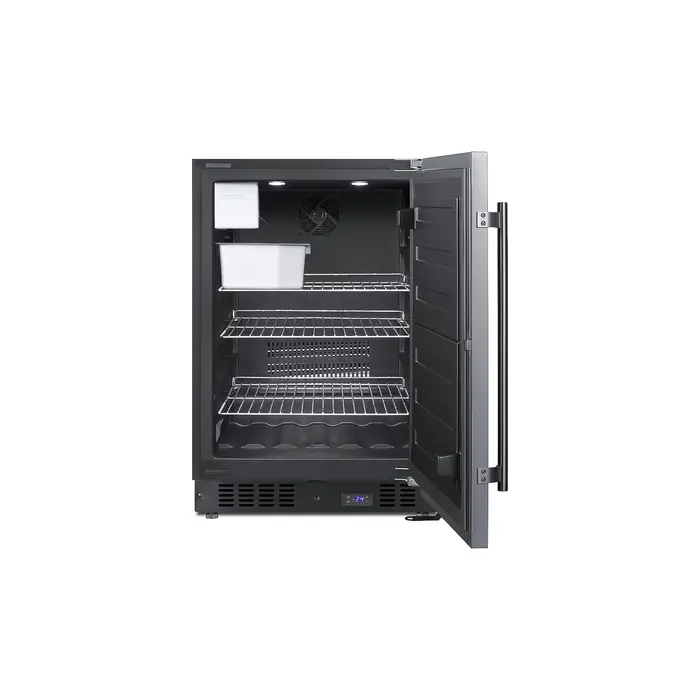

Inside, the SCFF53BCSS utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style and user-friendly features, this unit is the perfect choice for home kitchens. For a matching frost-free all-refrigerator, see the FF64BCSS.

SPECIFICATIONS

Overview

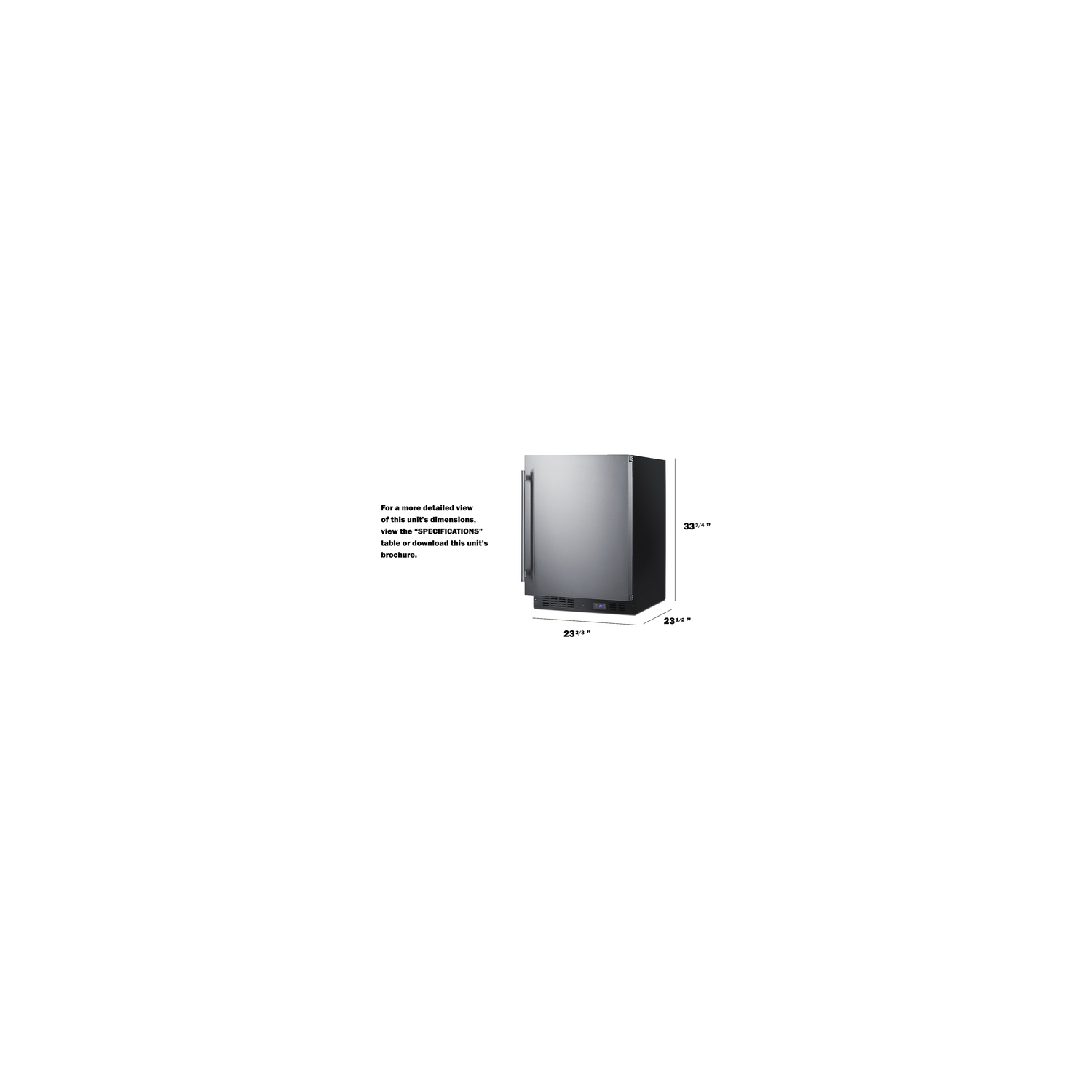

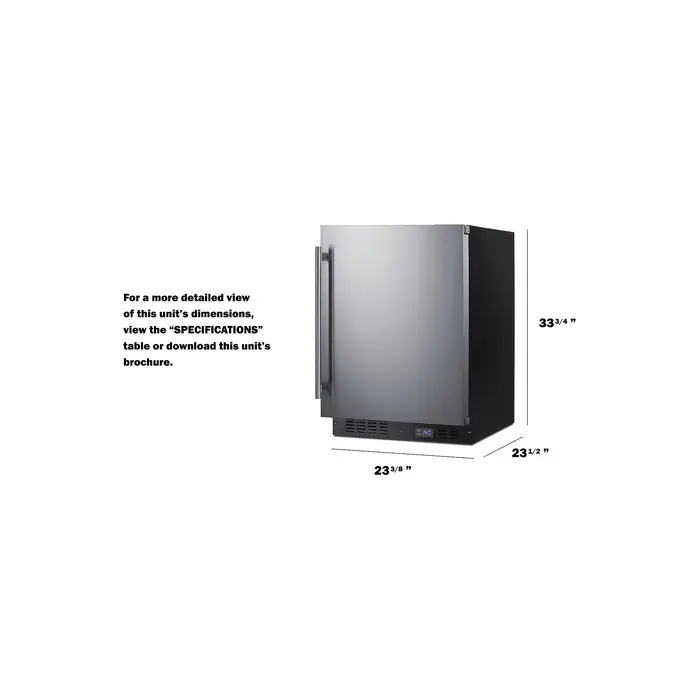

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.35" (64 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 4.72 cu.ft. (134 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 390.0kWh/year

Amps 0.9

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101047553

Freezer

Door Swing RHD

Reversible Yes

Interior Height 25.75" (65 cm)

Interior Width 19.0" (48 cm)

Interior Depth 17.25" (44 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.24 oz.

High Side PSI 270.0

Low Side PSI 105.0

Sabbath Mode Yes

Sound Level 34.6 dB

FEATURES

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets

Stainless steel wrapped cabinet Durable construction with a professional look

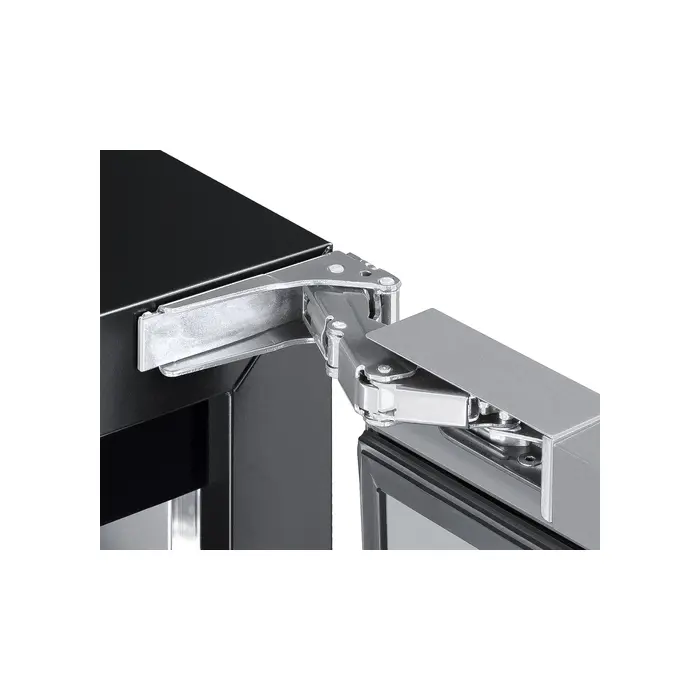

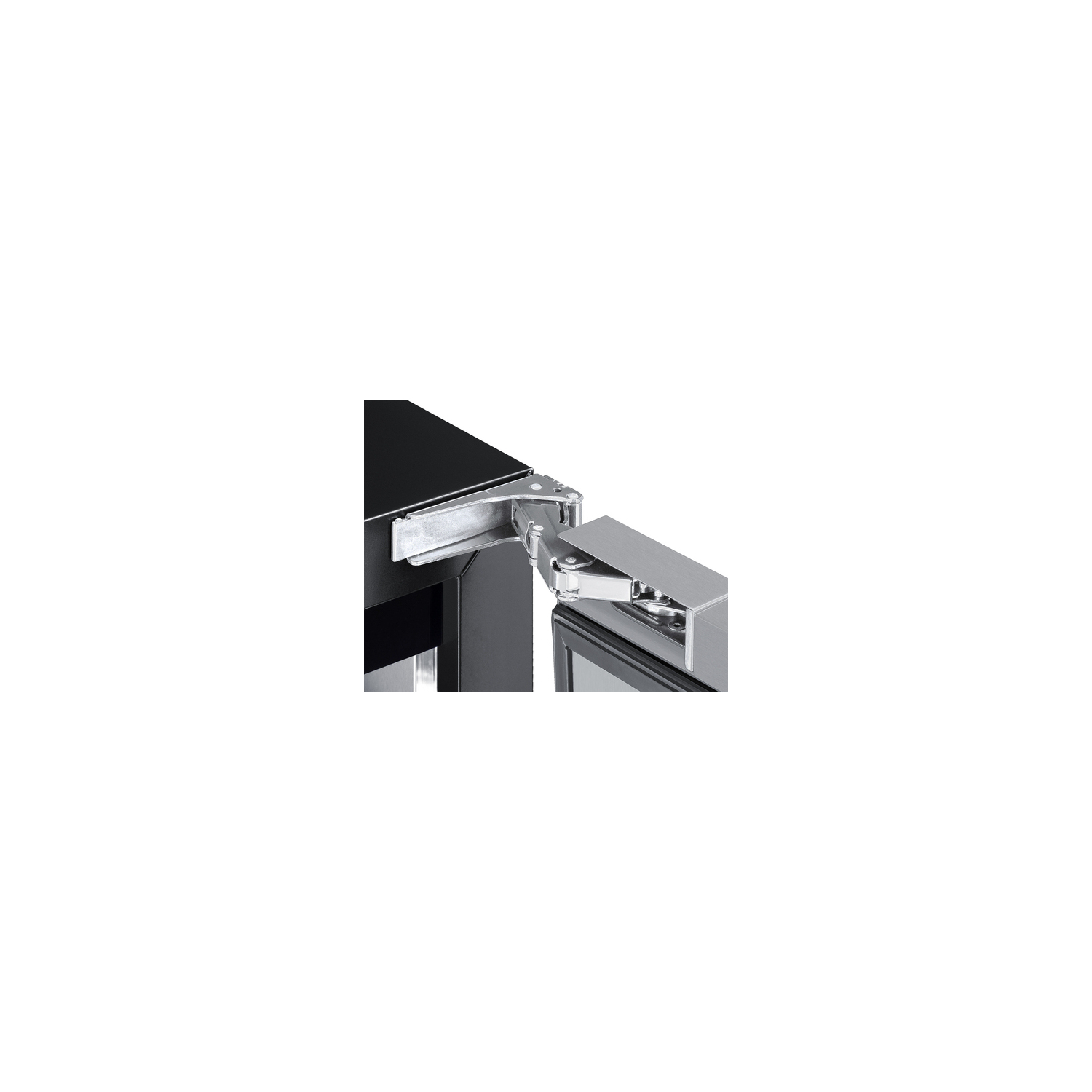

Reversible stainless steel door User-reversible door swing for added flexibility

Professional handle Attractive chrome handle adds a touch of modern style

Digital thermostat Electronic controls offer easy and intuitive temperature management

Recessed LED light Elegant and efficient interior lighting automatically illuminates when the door is opened

Reversible door User-reversible door swing for added flexibility

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock Keyed lock for a secure interior

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Matching refrigerator available Pair with the FF64BCSS for a matching side-by-side or stackable set

Fully finished cabinet Allows the freezer to be used as a freestanding model

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCFF53BCSS.pdf)

TECHNICAL DRAWING (.dwg) (SCFF51OSFREEZERA-C2000_2.dwg)

USE & CARE (SCFF53BCSS-User-Manual.pdf)

Energy Guide
