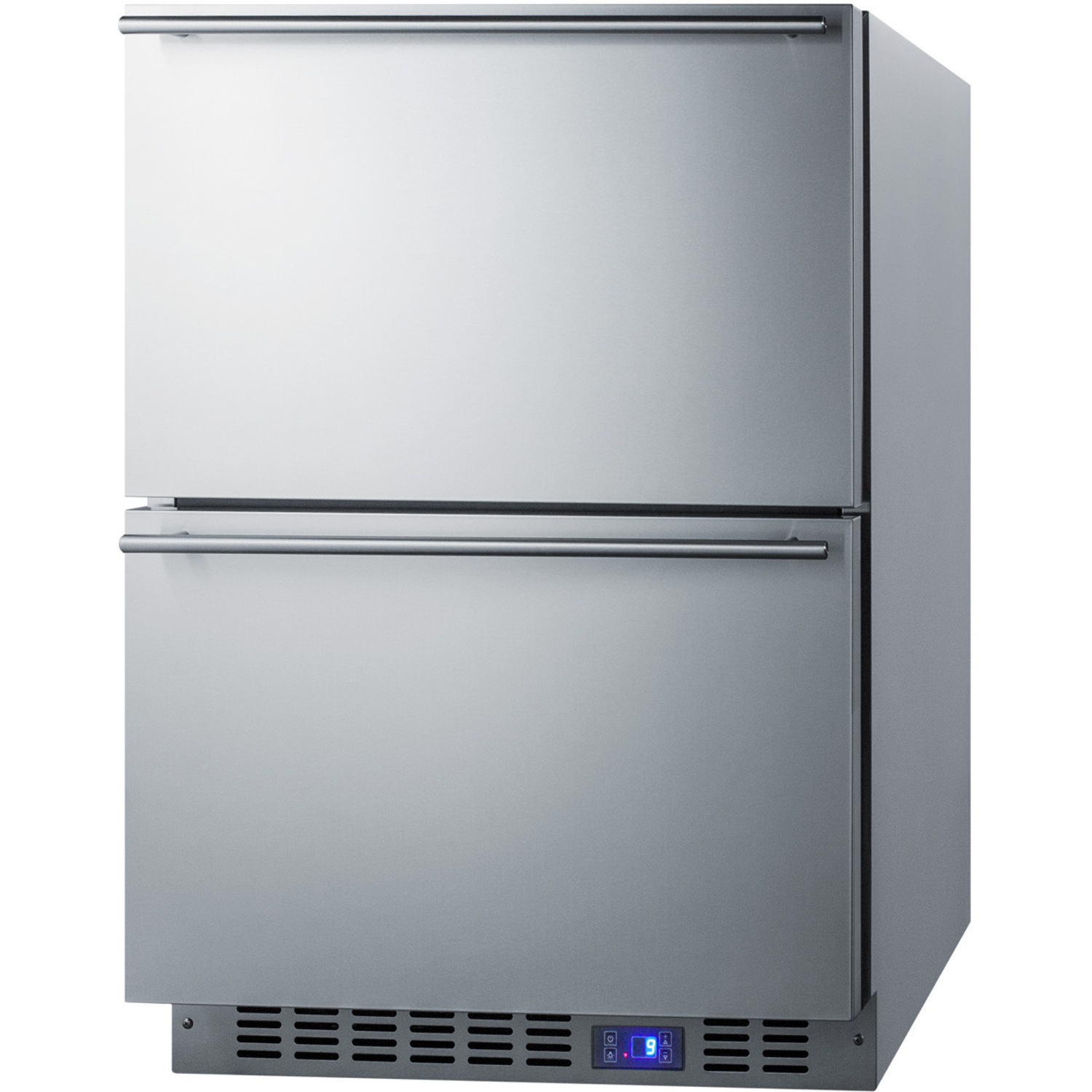

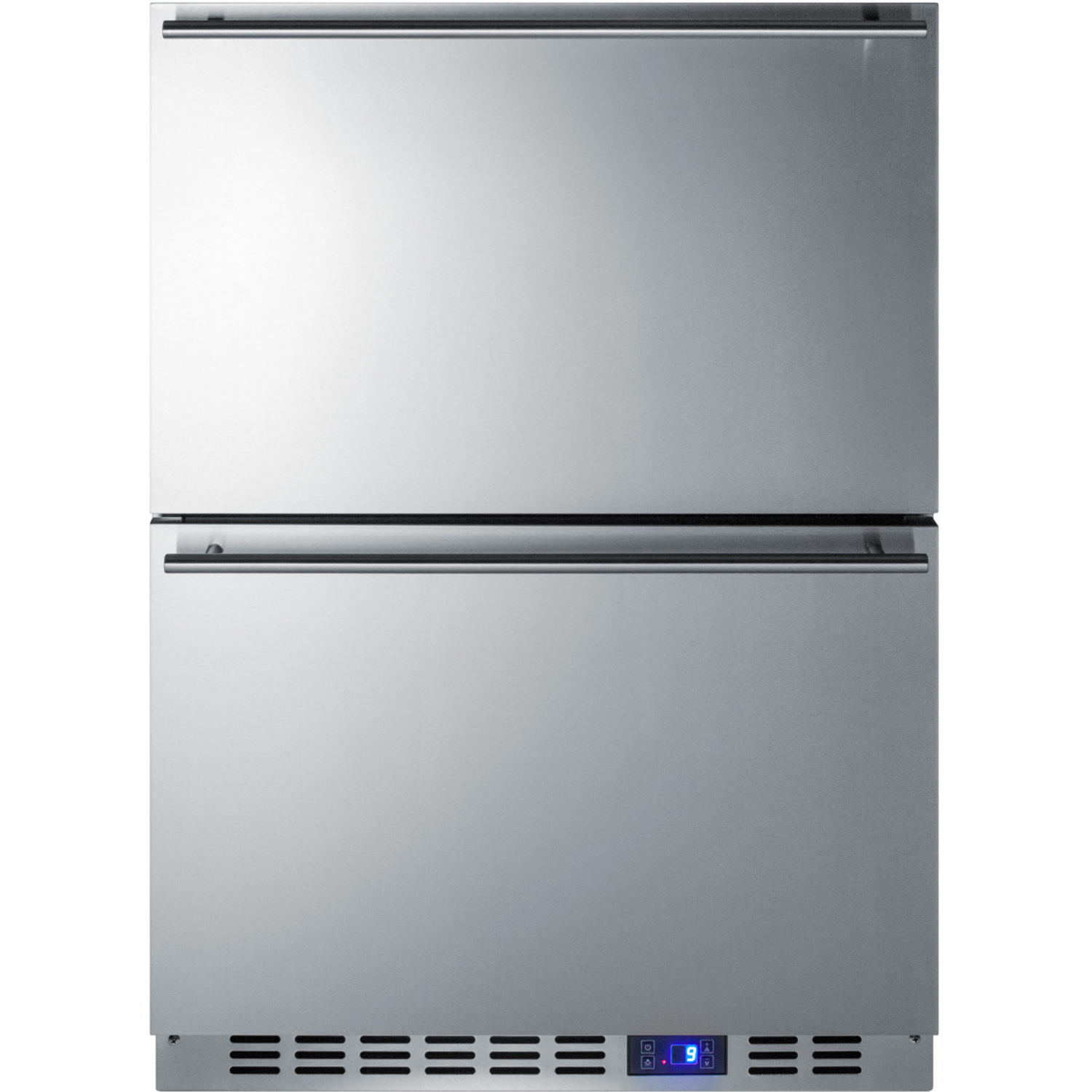

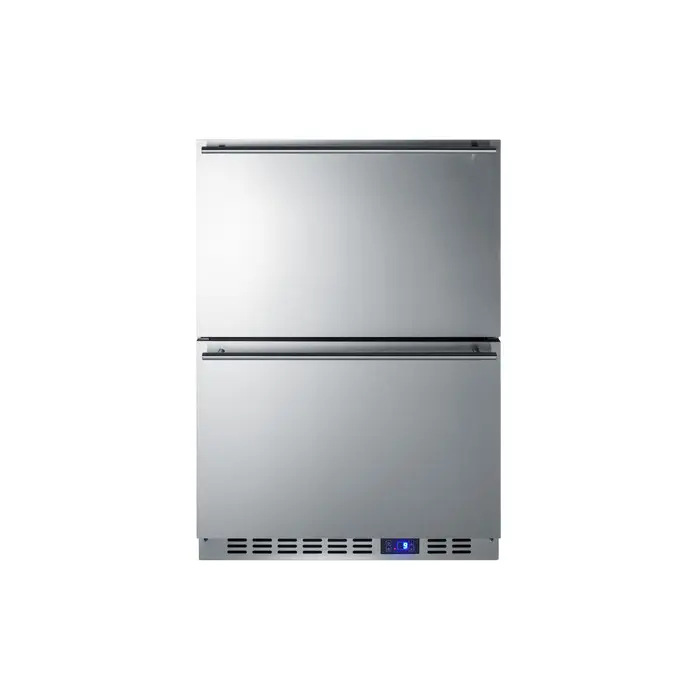

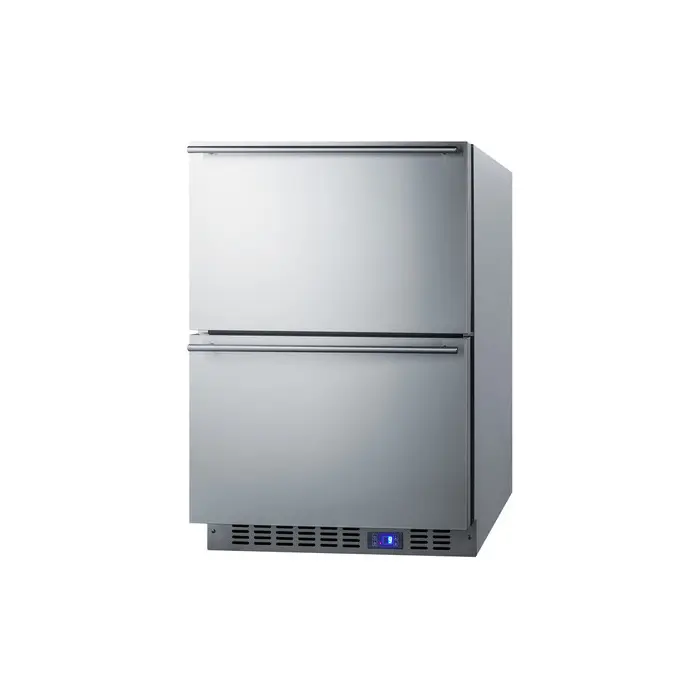

Summit Built-in undercounter two-drawer all-freezer with frost-free operation, stainless steel construction, and panel-ready drawer fronts, 7.61101e+011, SCFF532D

SUMMIT brings luxury and convenience under the counter with a fully featured two-drawer all-freezer.

The SCFF532D is sized with an easy-fitting 24" footprint. The front-breathing system allows built-in installation, while the fully finished cabinet also enables freestanding use. Complete stainless steel construction inside and out offers long-lasting durability with professional elegance. The drawers can be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate and sleek handles complete the look.

The interior utilizes frost-free operation with fan-forced cooling to ensure even temperature distribution with minimum user maintenance. For true storage convenience, the SCFF532D includes a full-width sliding wire basket and two adjustable dividers that let you organize the interior according to any storage needs. Recessed LED lighting offers an attractive yet energy efficient look inside. The digital thermostat located in the stainless steel kickplate makes it easy to manage the temperature, with an LED display that can read in Celsius or Fahrenheit. Additional features include a Sabbath mode setting, temperature memory function, and audible alarms for high temperature fluctuations and open drawer alerts.

The SCFF532D can be used in home or commercial settings. This unit is ETL-S listed to NSF-7 standards and meets UL Commercial Standard 471. For a matching all-refrigerator, see the FF642D.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 39.38" (100 cm)

Capacity 4.26 cu.ft. (121 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 380.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 106.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101044941

Freezer

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.24 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 2

Interior Drawers Yes

Drawers Qty 2

Interior Height - Drawer 1 9.25" (23 cm)

Interior Width - Drawer 1 17.25" (44 cm)

Interior Depth - Drawer 1 15.5" (39 cm)

Interior Height - Drawer 2 10.0" (25 cm)

Interior Width - Drawer 2 17.25" (44 cm)

Interior Depth - Drawer 2 15.5" (39 cm)

Compressor Step Height 3.5" (9 cm)

Compressor Step Width 17.25" (44 cm)

Compressor Step Depth 4.0" (10 cm)

Temperature Range -11°F to 11°F

Sabbath Mode Yes

Sound Level 34.4 dB

FEATURES

2-Drawer Freezer 24" wide frost-free freezer for built-in or freestanding use

Stainless steel construction Cabinet, drawers, and kickplate are fully constructed from stainless steel to ensure lasting durability and easy cleanup

Two sliding drawers Smoothly gliding stainless steel drawers for easy use

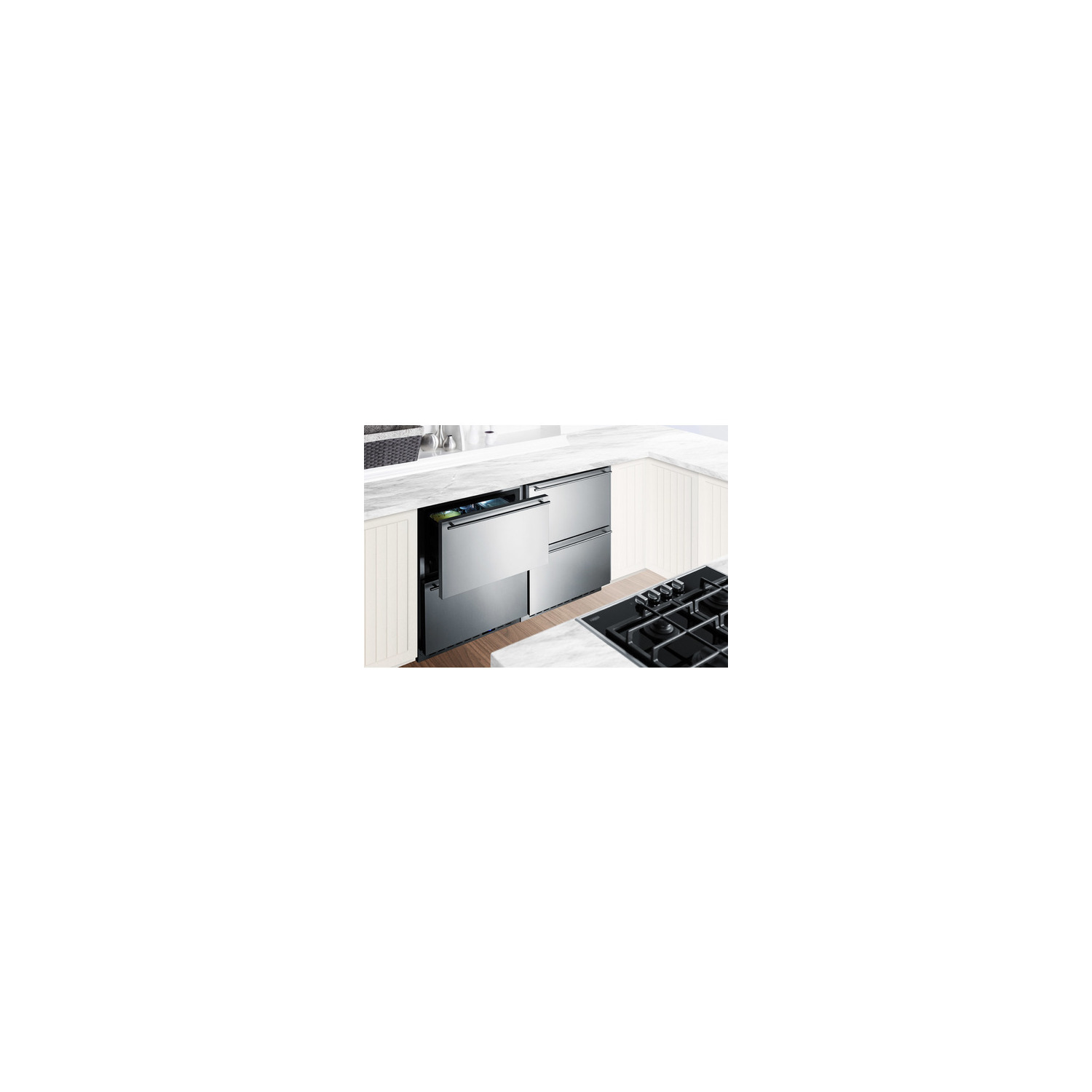

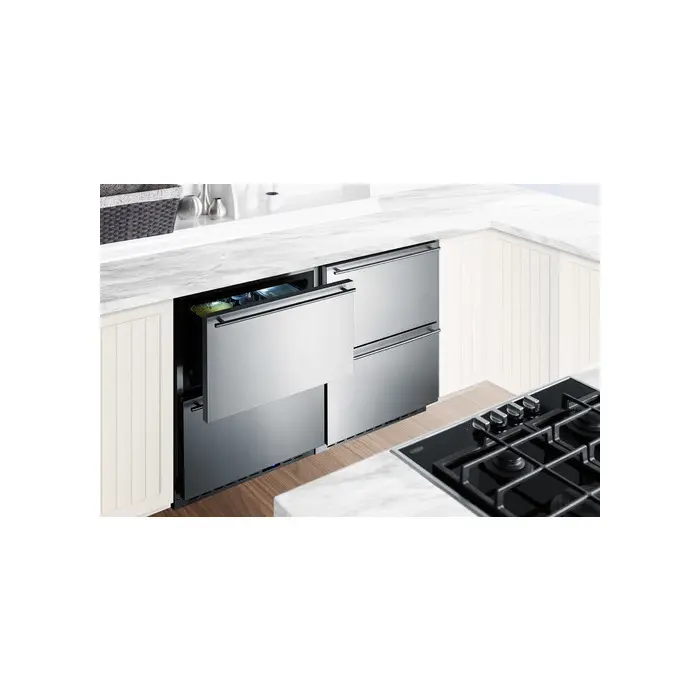

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

Panel-ready drawer fronts Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

Frost-free operation Minimum user maintenance with a fully no-frost operation system

Internal fan Fan-forced cooling ensures even temperature distribution from top to bottom

Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

LED lighting Elegant and efficient lighting offers a gentle illumination for the drawer interiors

Professional handles Sleek stainless steel handles add an elegant touch to any setting

Drawer dividers Two adjustable dividers make it easier to organize the drawer interiors

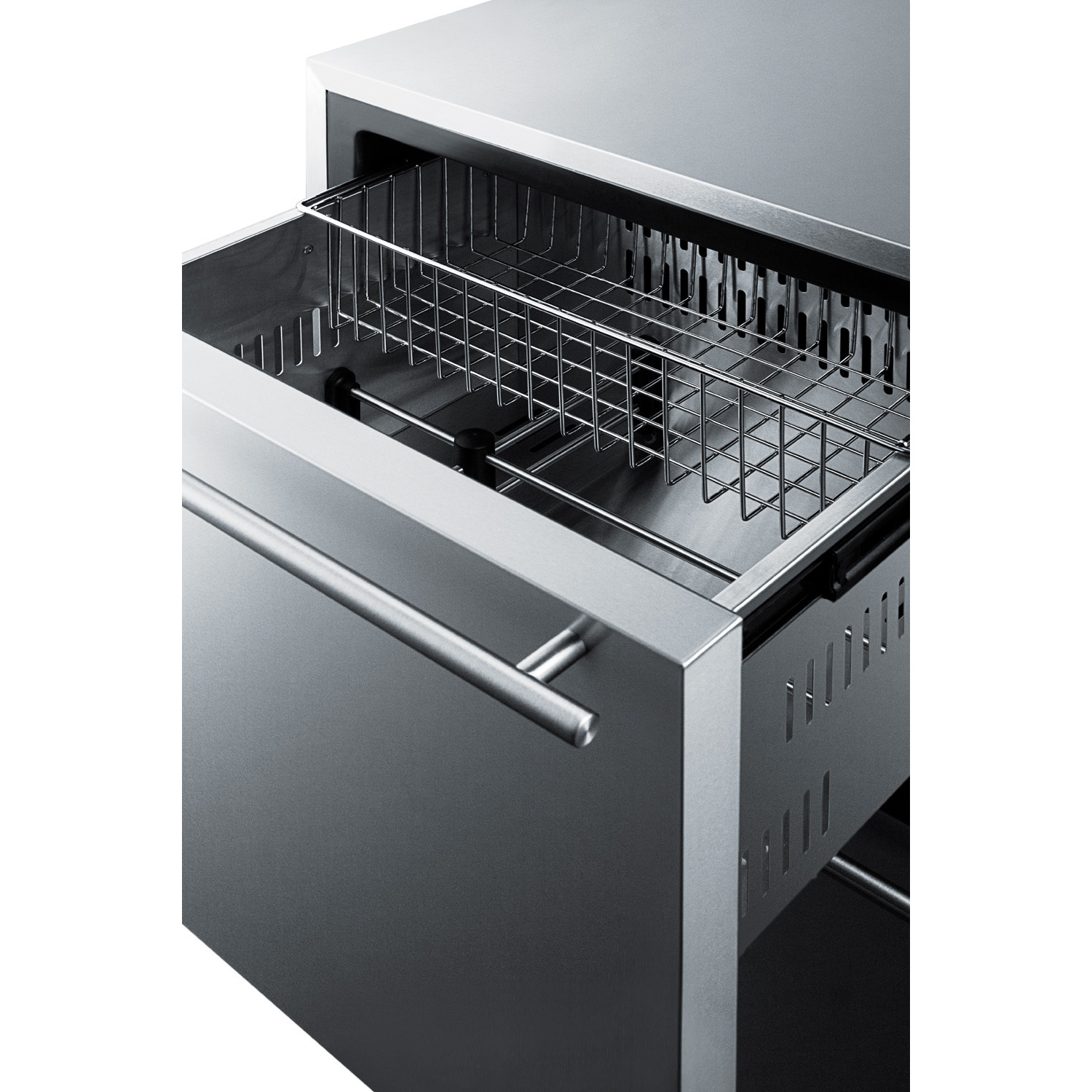

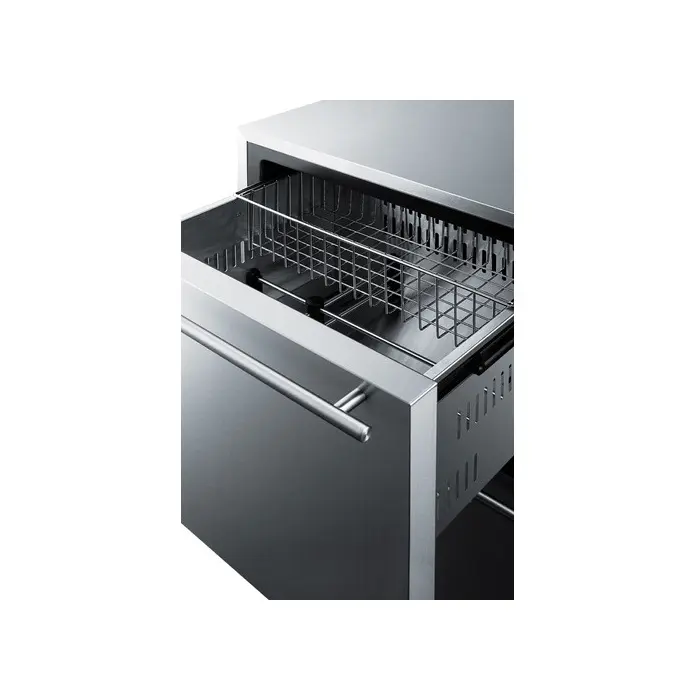

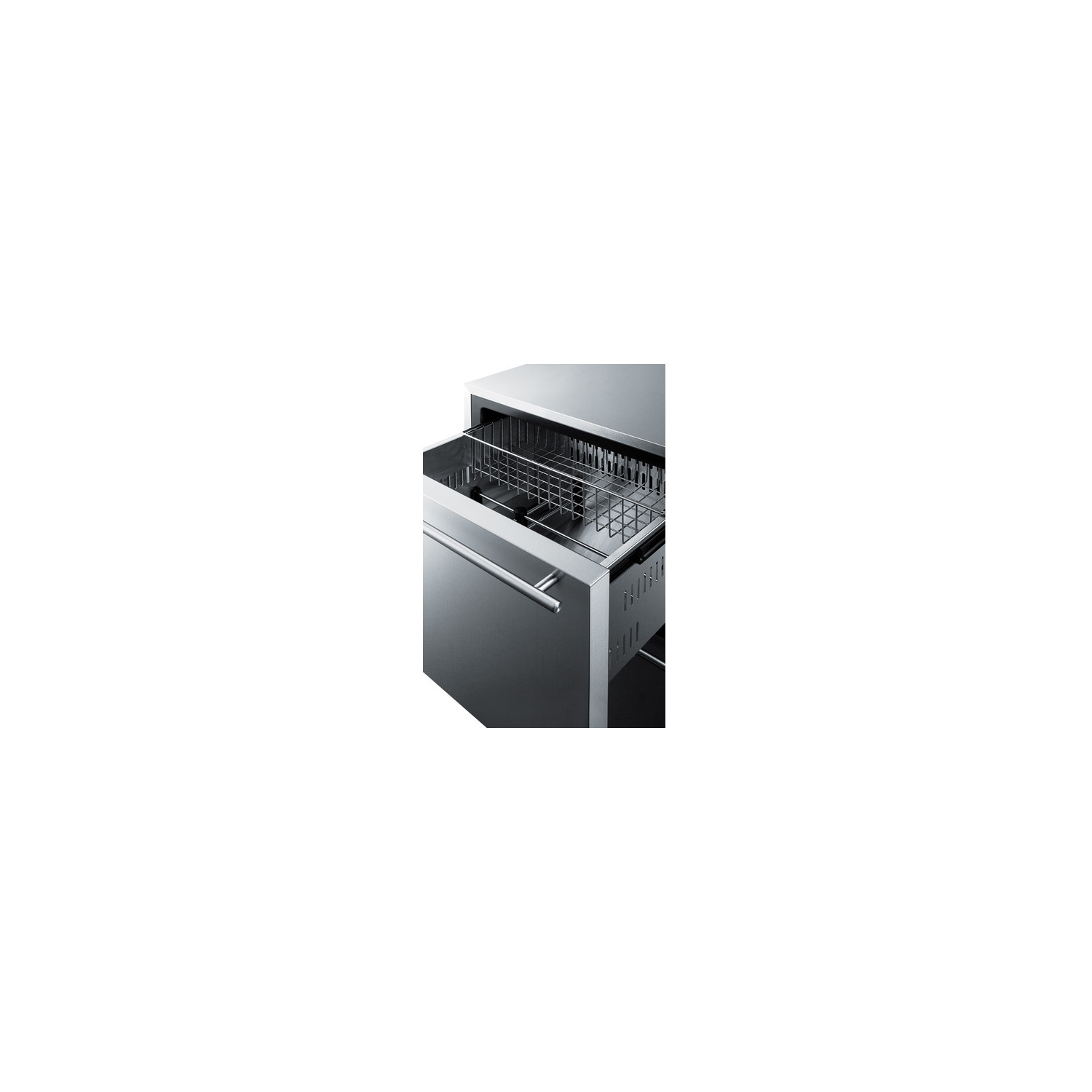

Sliding basket Removable chrome basket included for easier storage convenience

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours

Open drawer alarm Audible alarm will sound if either drawer is left open longer than one minute

Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Fully finished cabinet Allows the freezer to be used as a freestanding model

Sealed back Space-saving design that offers easier cleanability

Commercially approved ETL-S listed to NSF-7 commercial standards

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket Included and recommended for user-installation to reduce the risk of tipping

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
