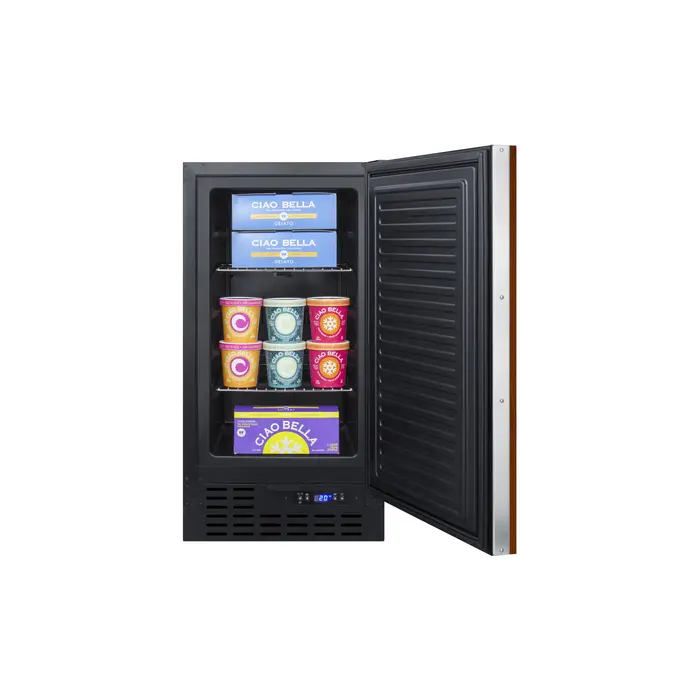

Summit ADA compliant 18 inch wide frost-free freezer in black for built-in or freestanding use, with integrated door frame for overlay panels, 7.61101e+011, SCFF1842IFADA

SUMMIT brings true convenience to small kitchen spaces with the SCFF1842IFADA, an 18" wide fully frost-free all-freezer designed for use under lower ADA compliant counters.

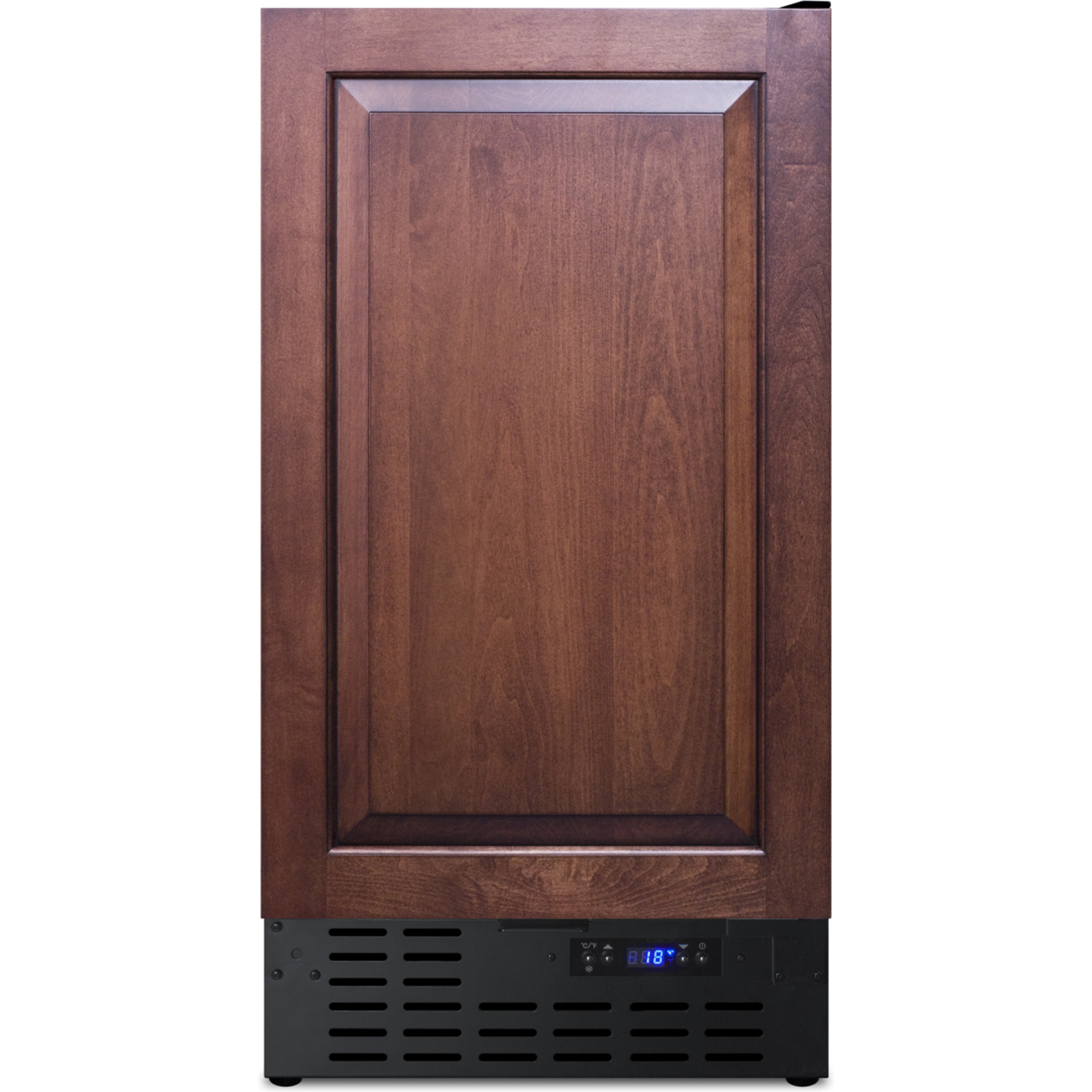

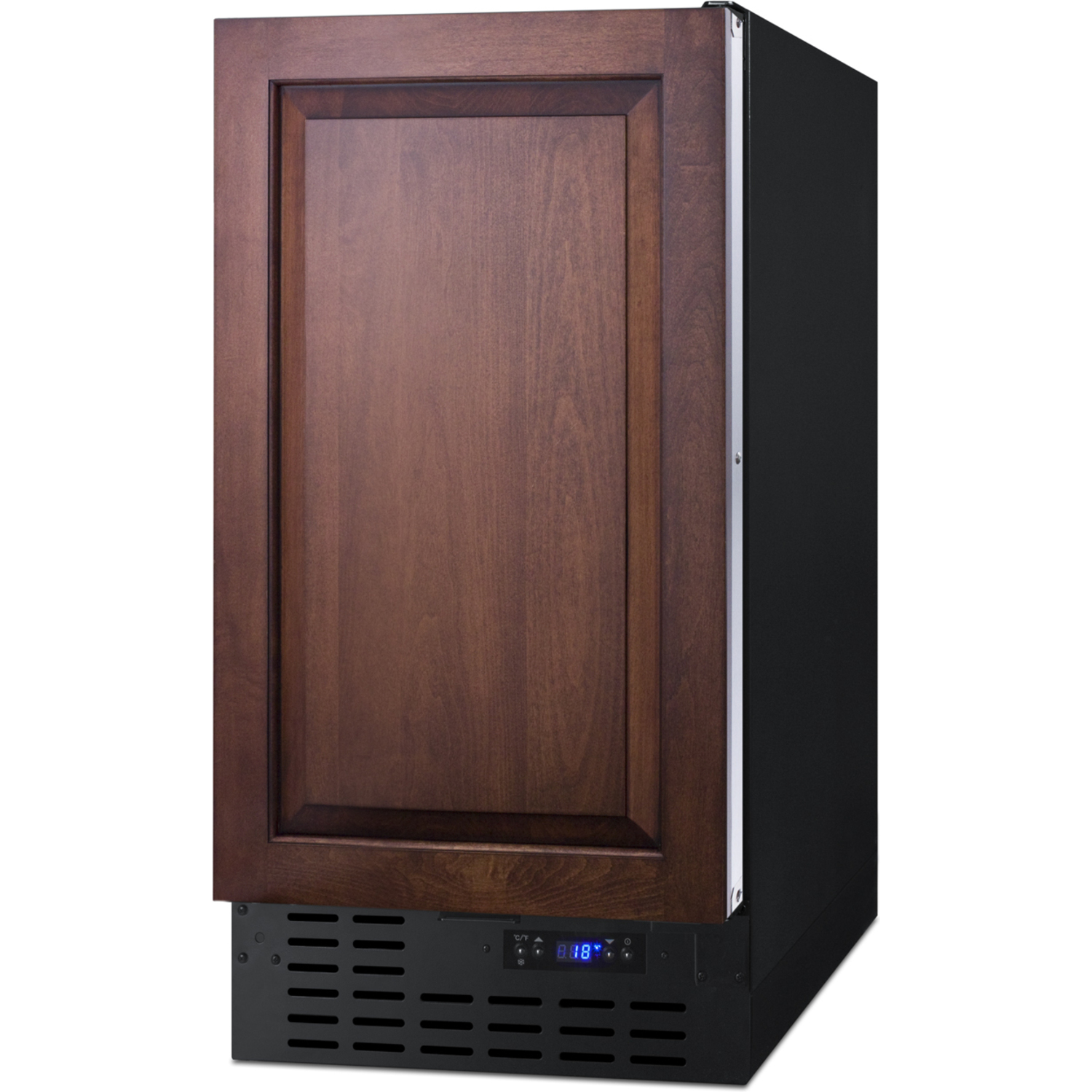

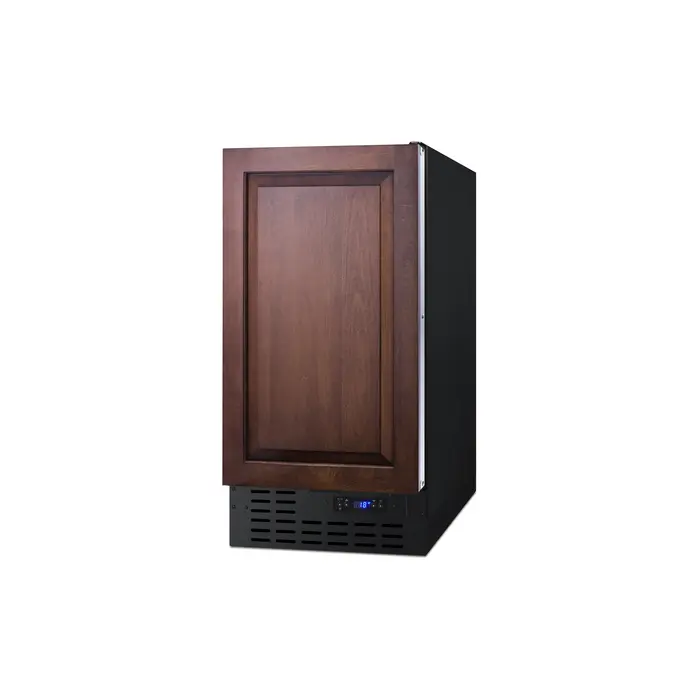

The 32" high SCFF1842IFADA is front-breathing for built-in use under counters, but also features a fully finished jet black cabinet to allow freestanding use. The door includes an integrated stainless steel frame designed to accept full overlay panels for a custom look. Users provide their own handle.

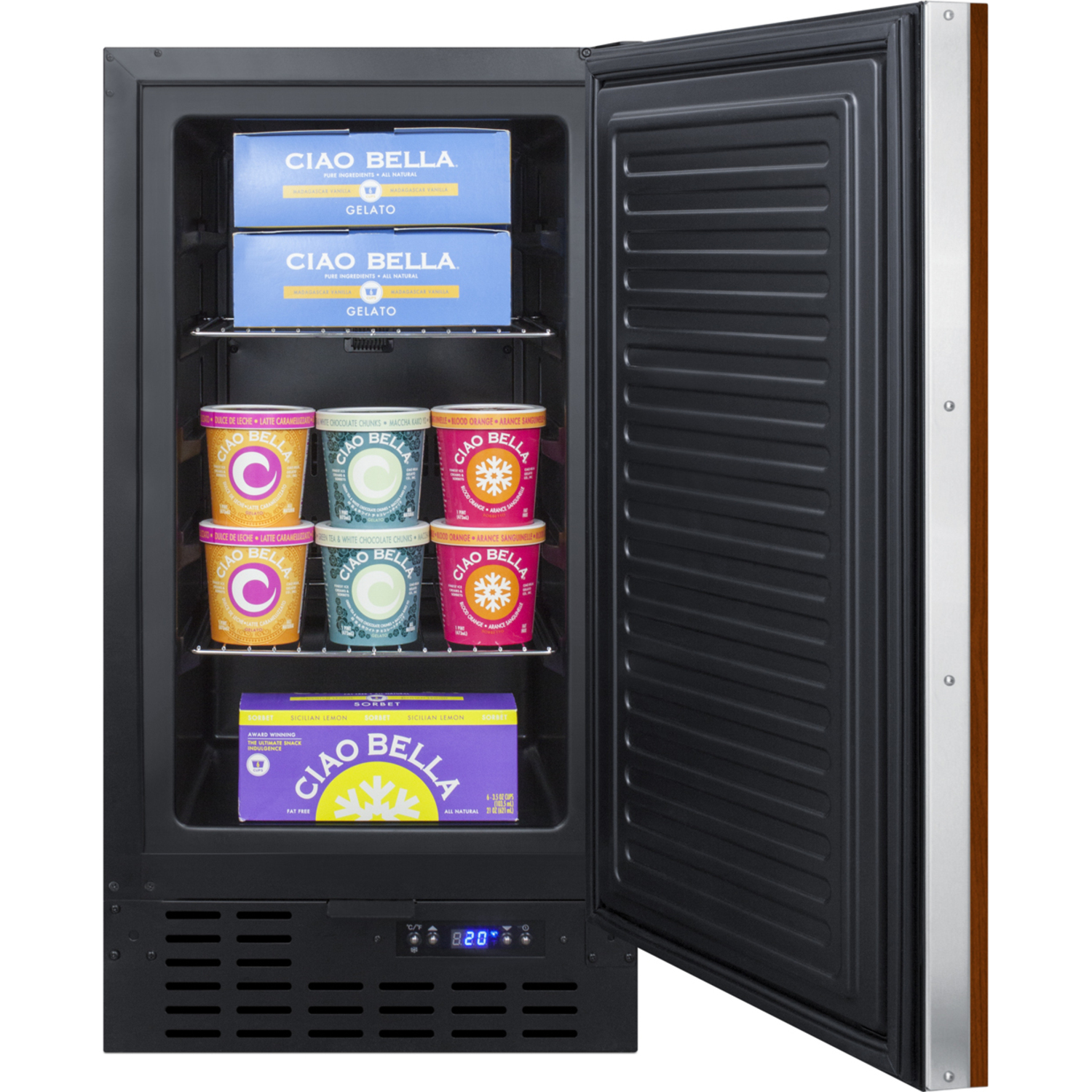

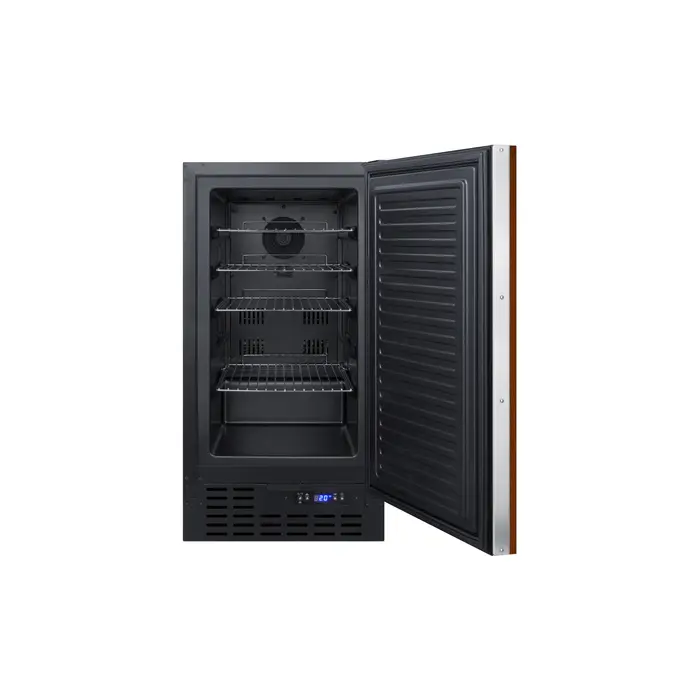

Inside, the SCFF1842IFADA is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items in the 2.7 cu.ft. interior. This unit includes a digital thermostat for easy and intuitive temperature control.

With a uniquely slim size and user-friendly features, the SCFF1842IFADA is the ideal freezer for space-challenged spaces. This model meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial environments.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.38" (80 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.5" (62 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 346.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 85.0 lbs. (39 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101045887

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs 4

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

Sound Level 35.1 dB

FEATURES

18" Wide ADA Height Freezer Frost-free freezer for built-in installation under ADA compliant counters

ADA compliant 32" height to fit under lower ADA compliant counters

Commercially listed ETL-S listed to NSF-7 Standards for use in commercial establishments

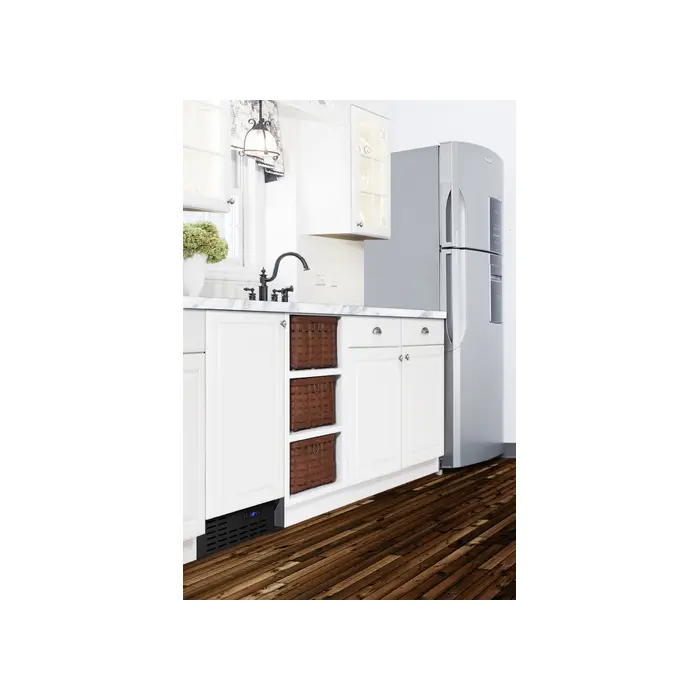

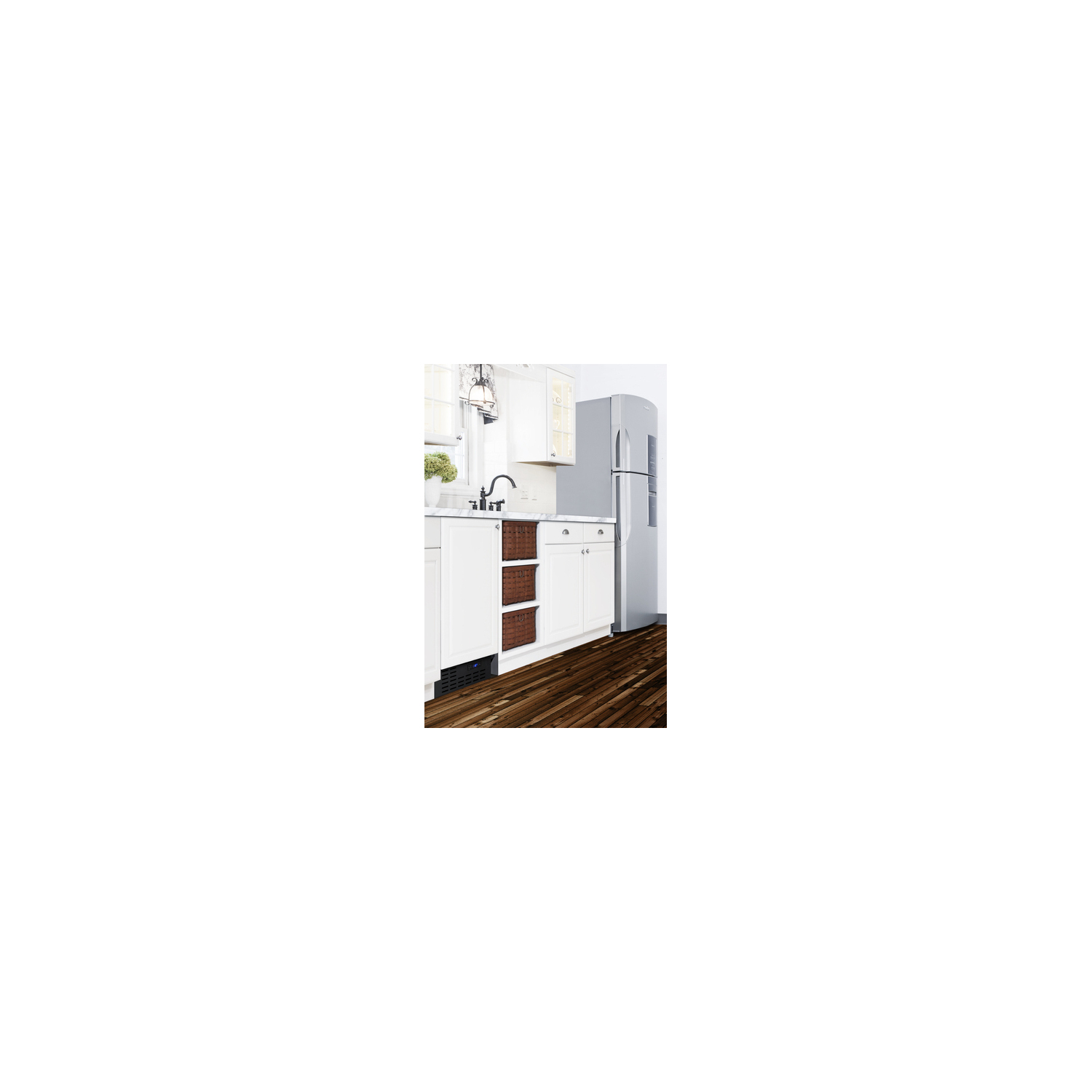

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Fully finished black cabinet Allows the unit to be used freestanding

Integrated door frame Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Frost-free operation Eliminates the need to manually defrost the interior

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back Space-saving design that offers easier cleanability

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
