Summit 18 inch wide frost-free freezer built-in or freestanding use, with stainless steel exterior, lock, and digital thermostat, 7.61101e+011, SCFF1842CSS

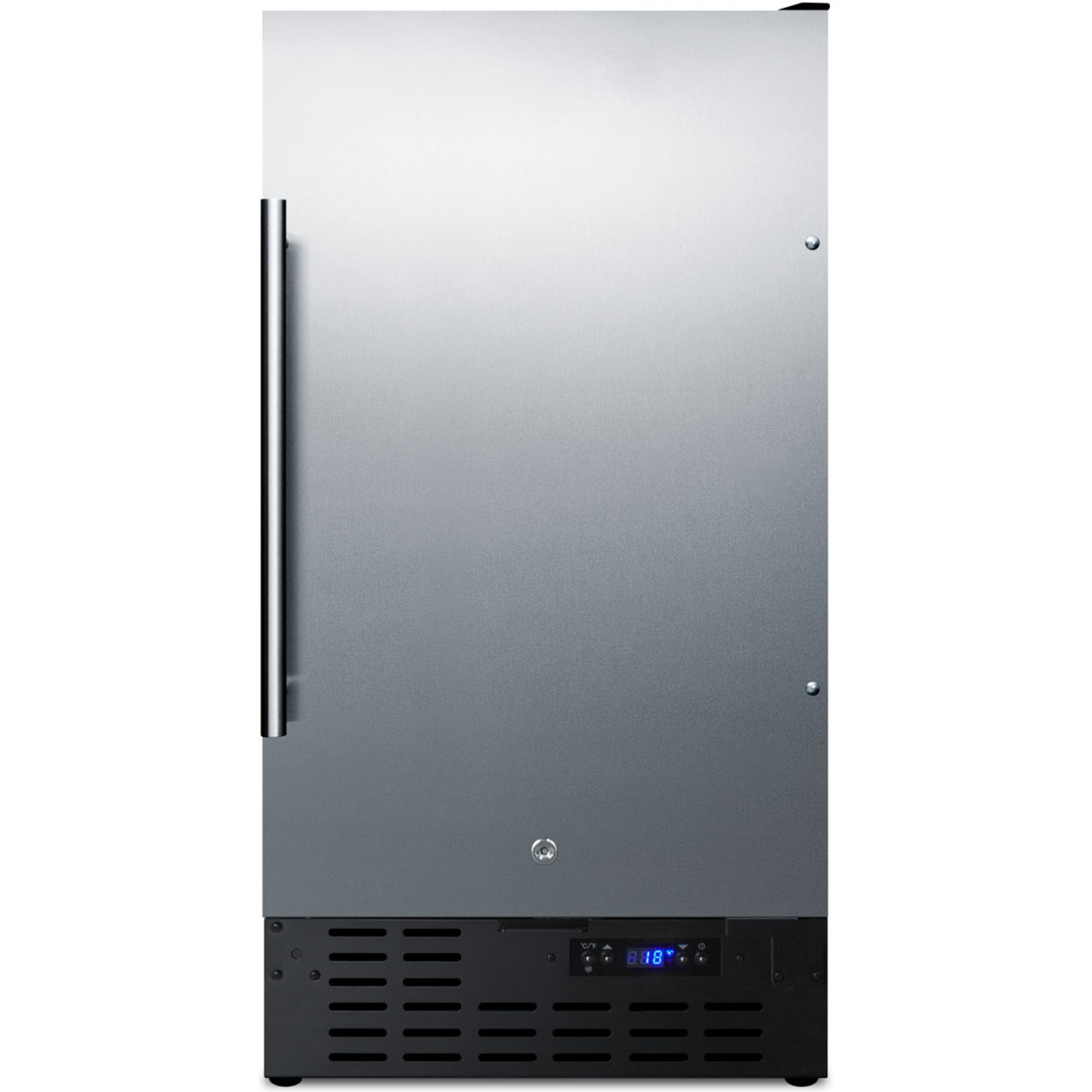

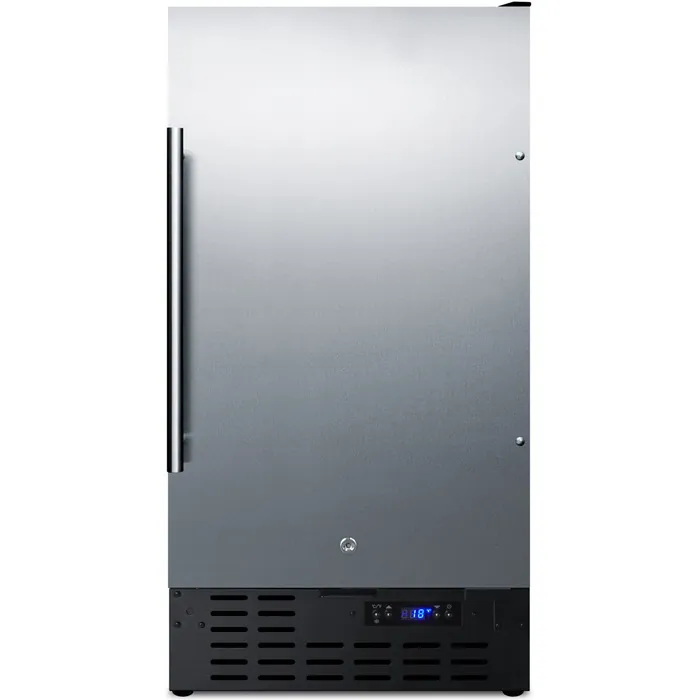

SUMMIT brings true convenience to small kitchen spaces with the SCFF1842CSS, an 18" wide fully frost-free all-freezer.

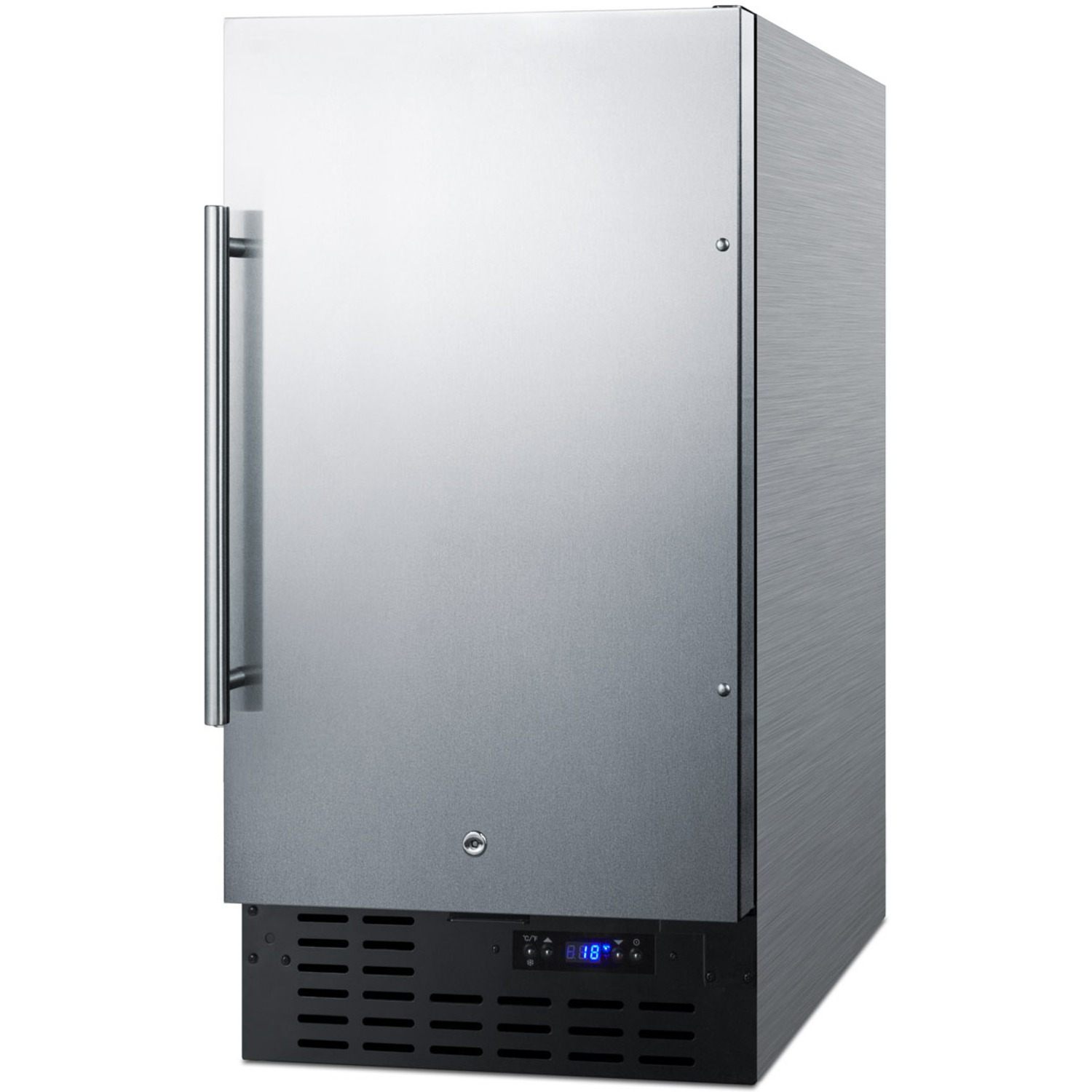

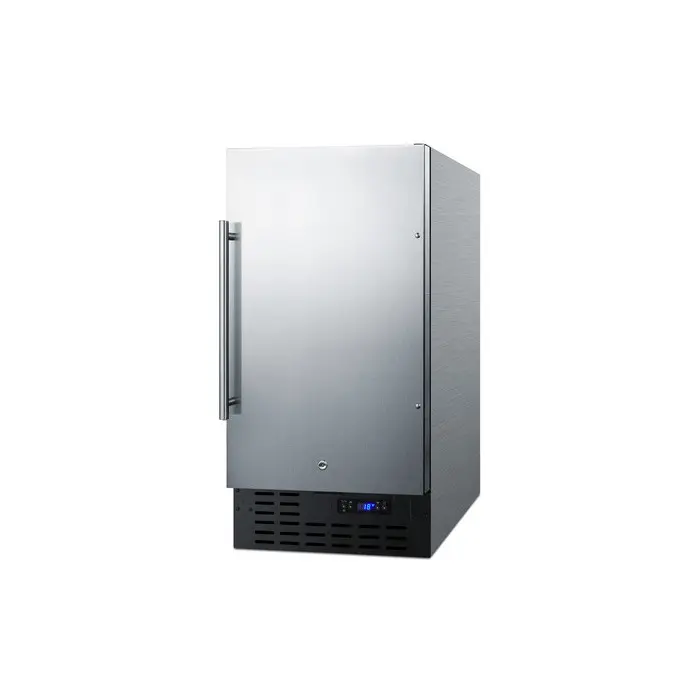

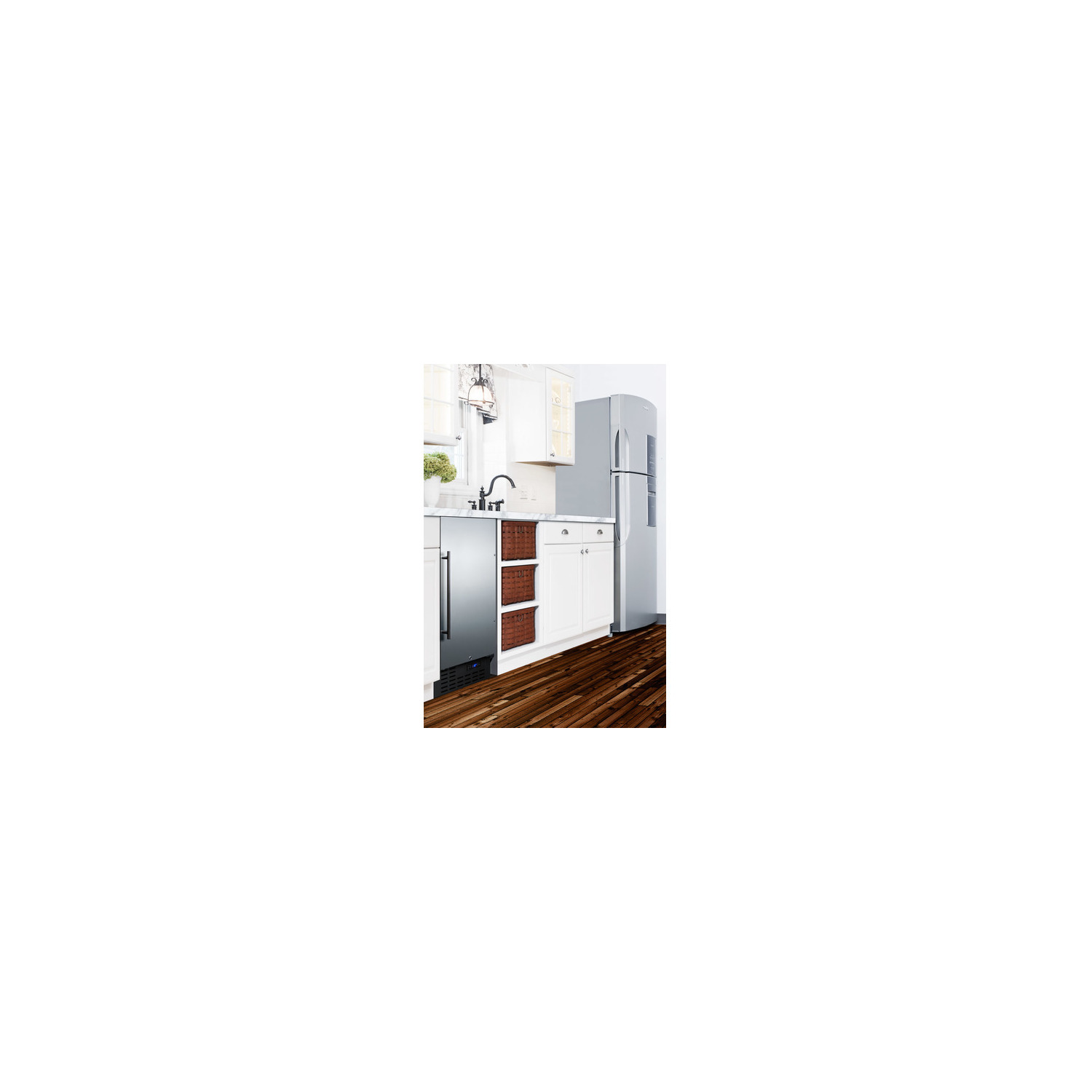

The 32" high SCFF1842CSS is front-breathing for built-in use under counters, but also features a fully finished cabinet to allow freestanding use. This model has stainless steel wrapped exterior. The reversible door includes a factory installed lock and professional handle.

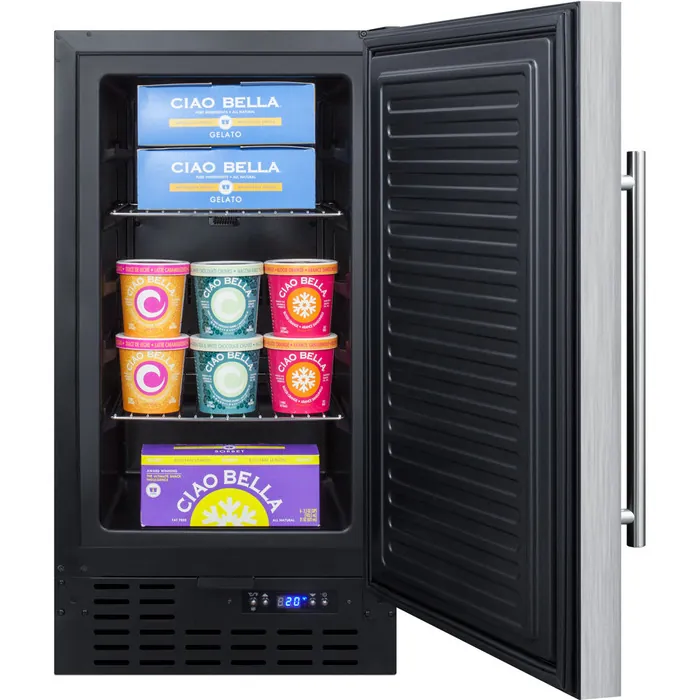

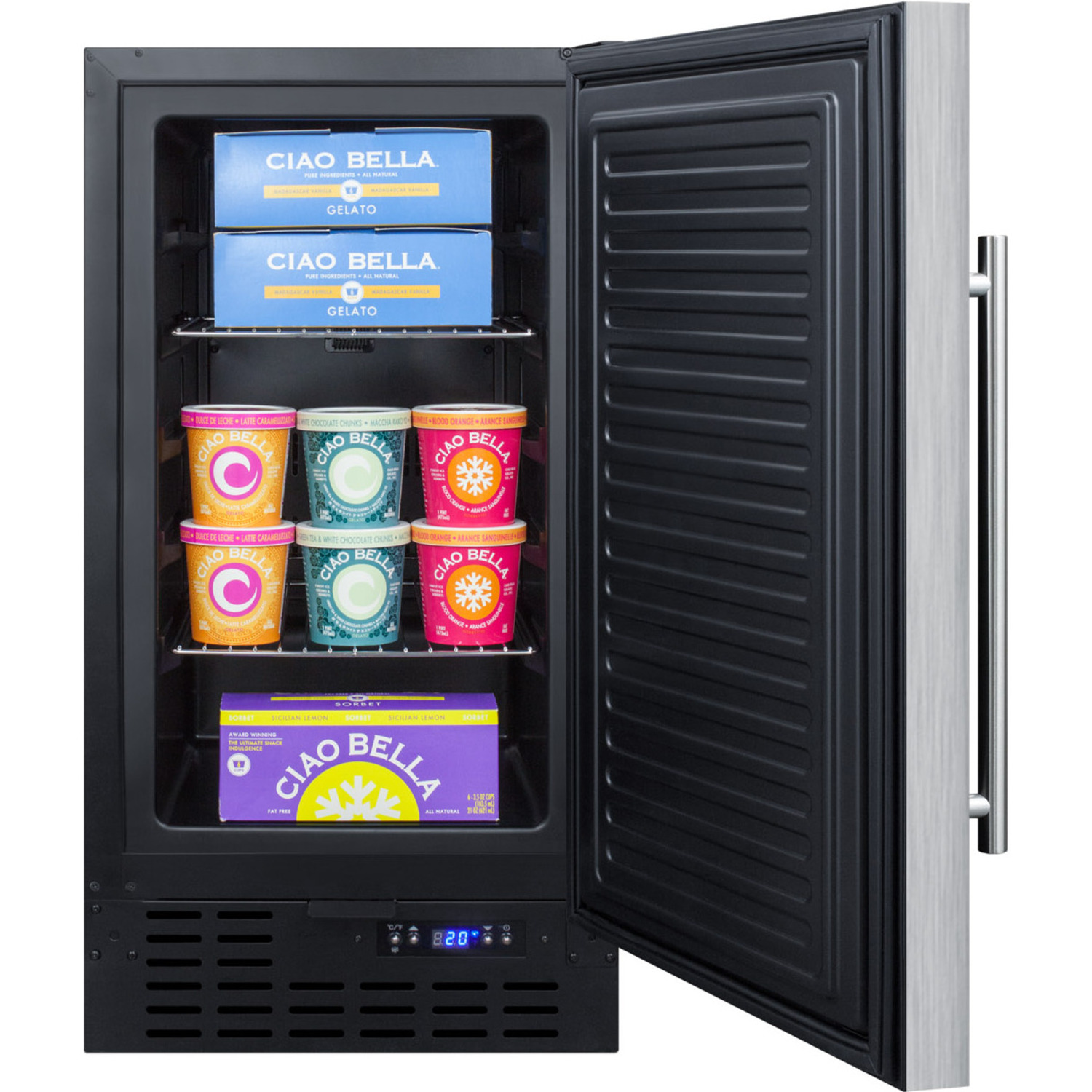

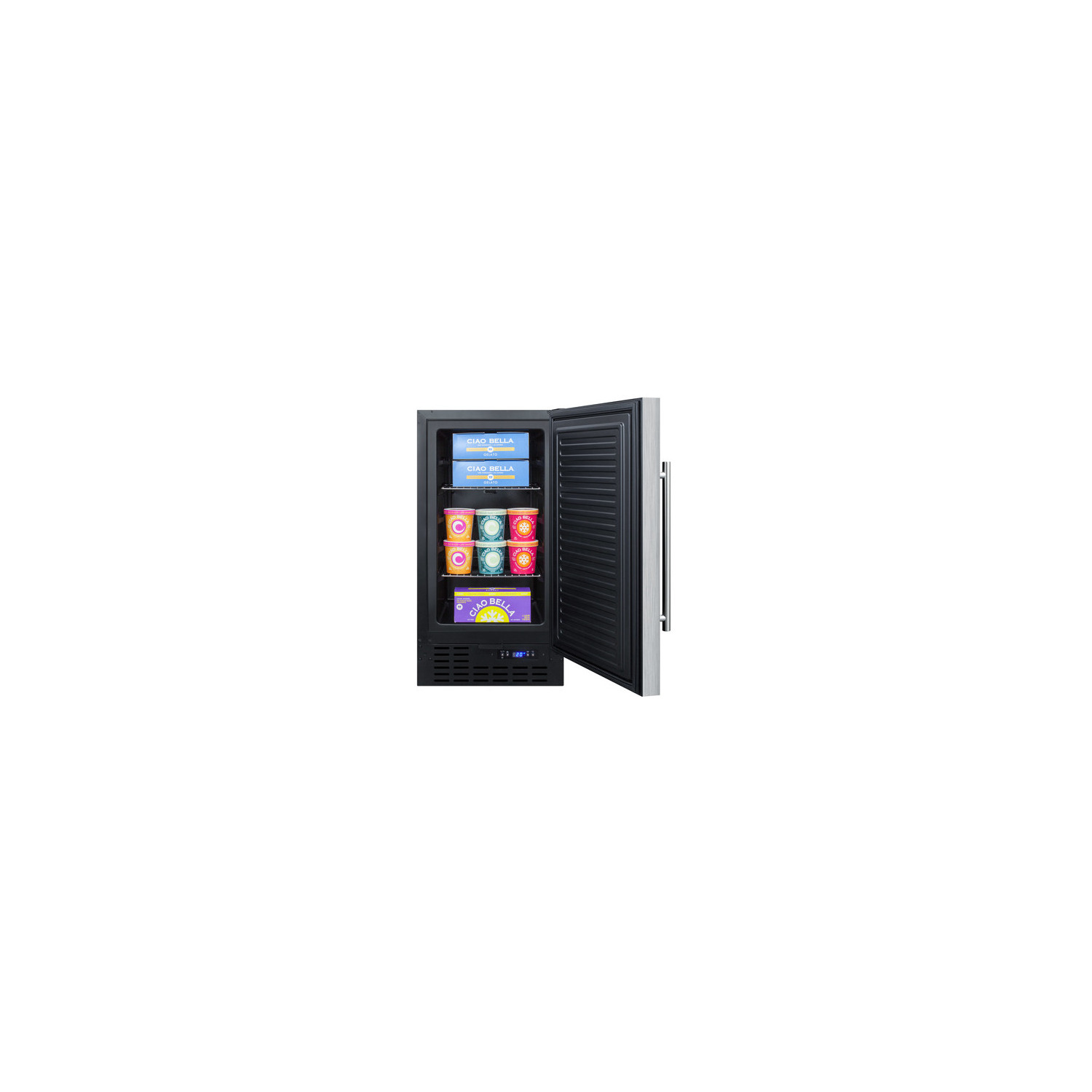

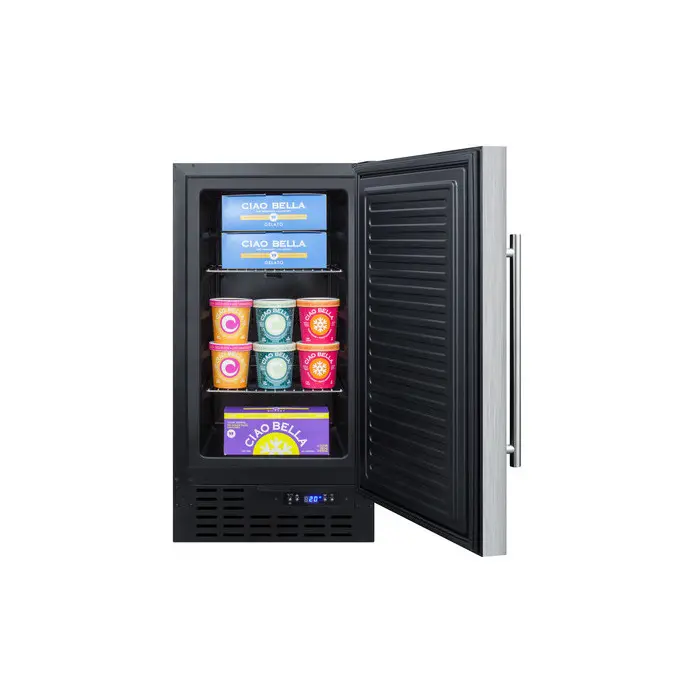

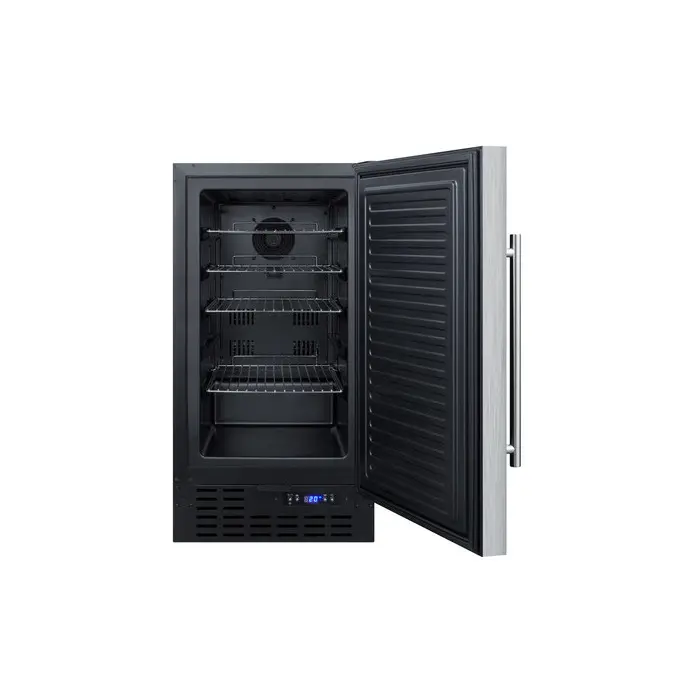

Inside, the SCFF1842CSS is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items in the 2.7 cu.ft. interior. This unit includes a digital thermostat for easy and intuitive temperature control.

With a uniquely slim size and user-friendly features, the SCFF1842CSS is the ideal freezer for space-challenged spaces. This model meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial environments.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.5" (62 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 346.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 90.0 lbs. (41 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101045856

Freezer

Door Swing RHD

Reversible Yes

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs 4

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

Sound Level 35.1 dB

FEATURES

18" Wide Undercounter Freezer Frost-free all-freezer for built-in installation or freestanding use

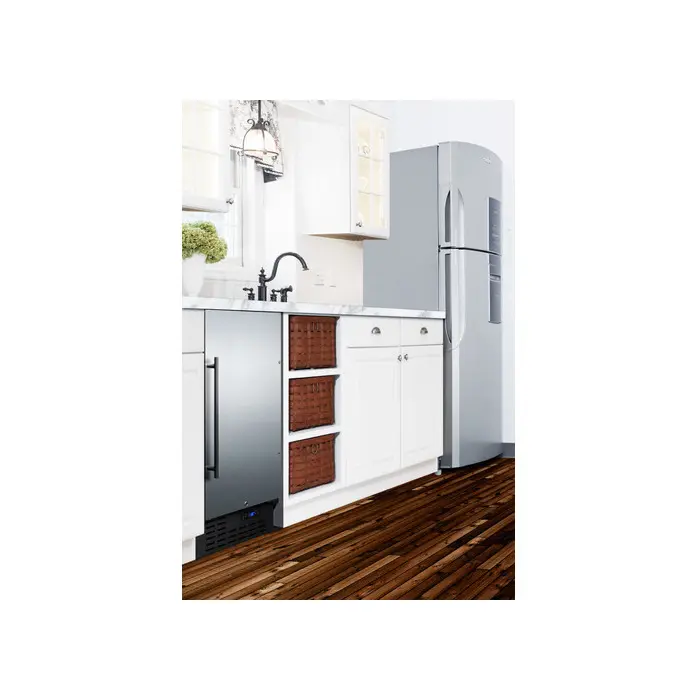

Built-in capable Make the best use of space by installing your appliance under the counter

Fully finished cabinet Allows the unit to be used freestanding

Stainless steel exterior Door and cabinet are fully wrapped in durable stainless steel for a professional look built to last

Commercially listed ETL-S listed to NSF-7 Standards for use in commercial establishments

Factory installed lock Keyed lock for a secure interior

Frost-free operation Eliminates the need to manually defrost the interior

Digital thermostat Electronic controls for precise temperature management.

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Flush back Space-saving design that offers easier cleanability

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (SCFF1842CSS.pdf)

TECHNICAL DRAWING (.dwg) (SCFF1842_FREEZERA-C2000_4.dwg)

ENERGY GUIDES (Energy_label-_SCFF1842__4_.pdf)

USE & CARE (SCFF1842CSS-User-Manual.pdf)

Energy Guide
