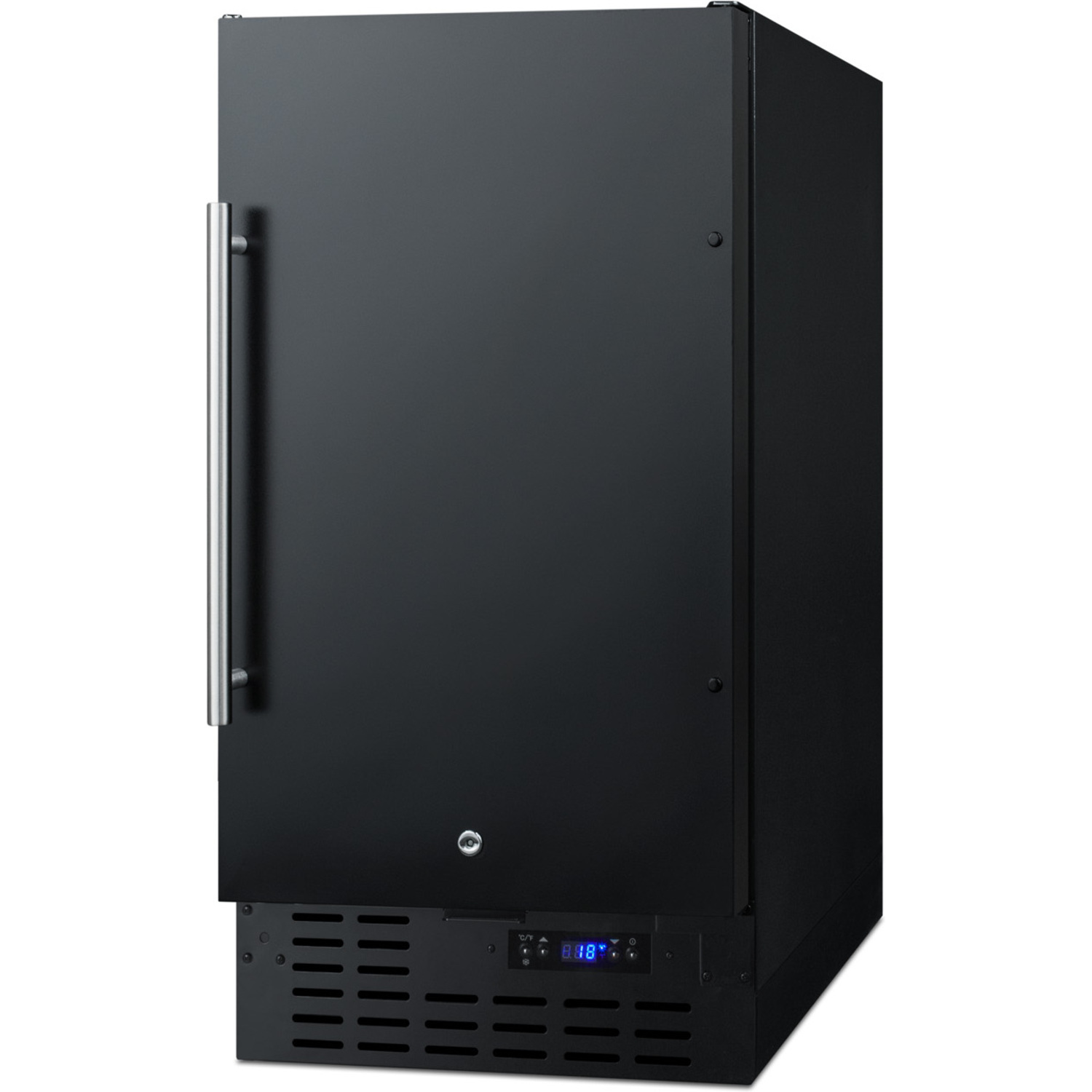

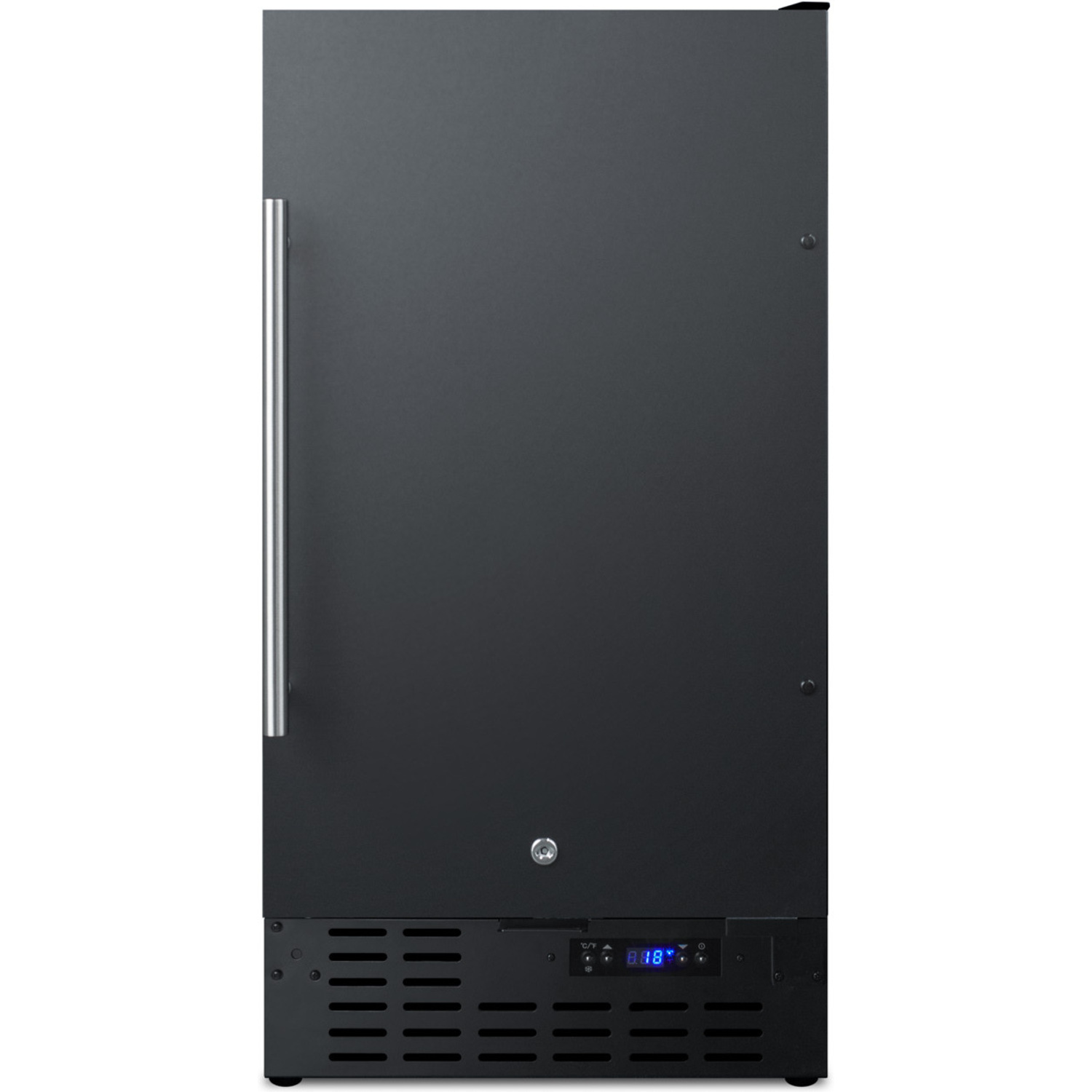

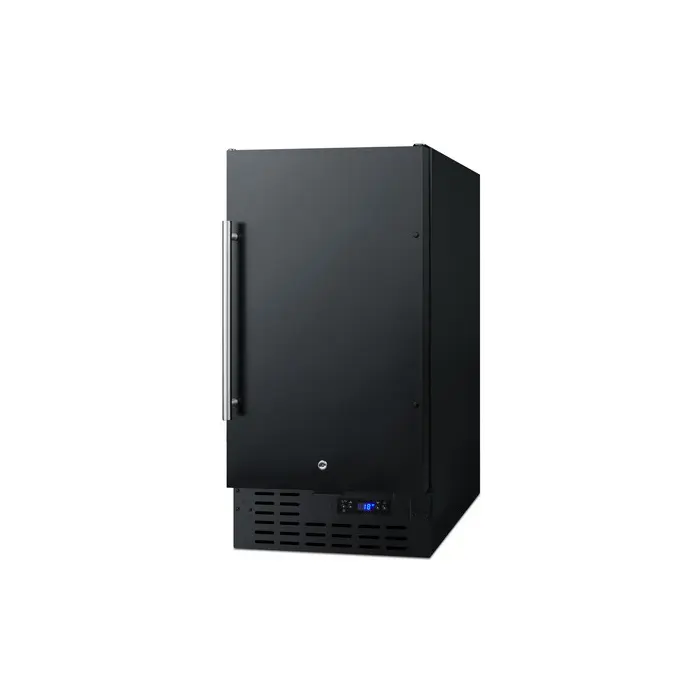

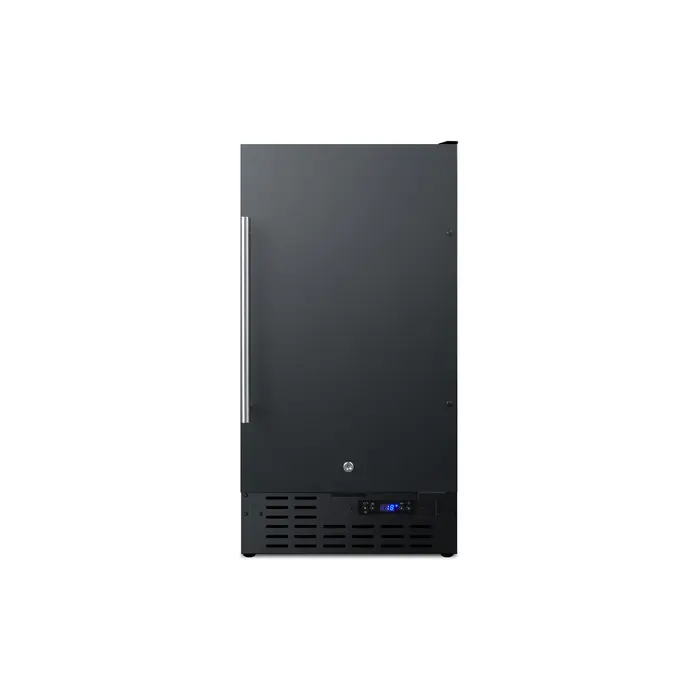

Summit 18 inch wide frost-free freezer in black for built-in or freestanding use, with lock and digital thermostat, 7.61101e+011, SCFF1842

SUMMIT brings true convenience to small kitchen spaces with the SCFF1842, an 18" wide fully frost-free all-freezer.

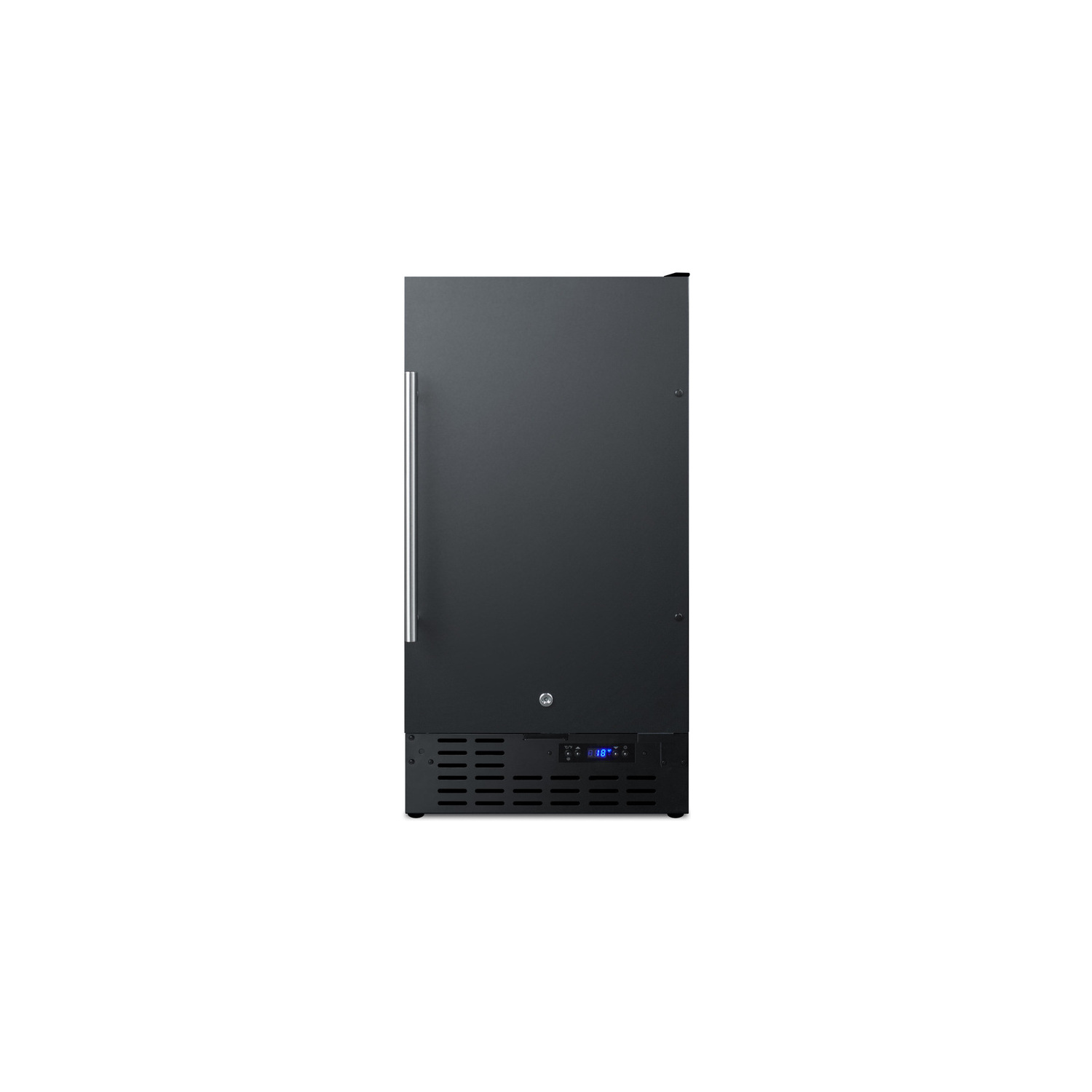

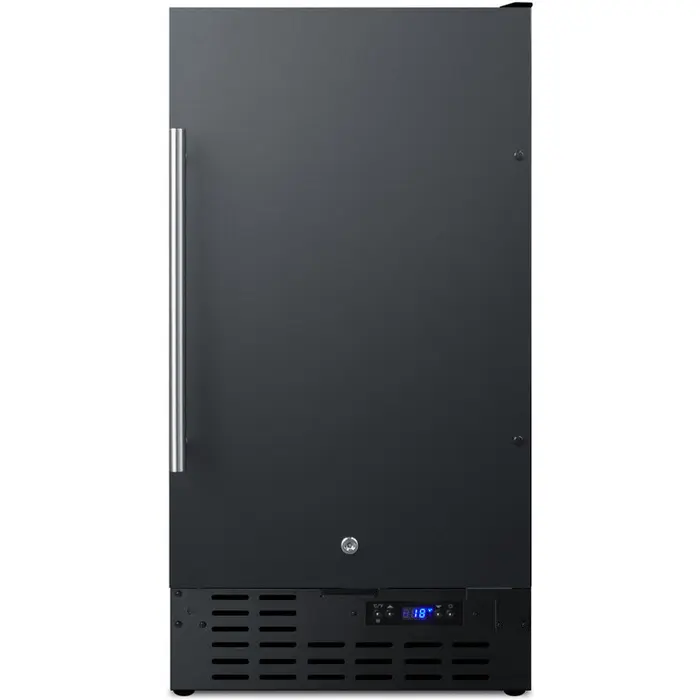

The SCFF1842 is front-breathing for built-in use under counters, but also features a fully finished cabinet to allow freestanding use. The reversible door includes a factory installed lock and professional handle in stainless steel. This unit comes in a jet black finish.

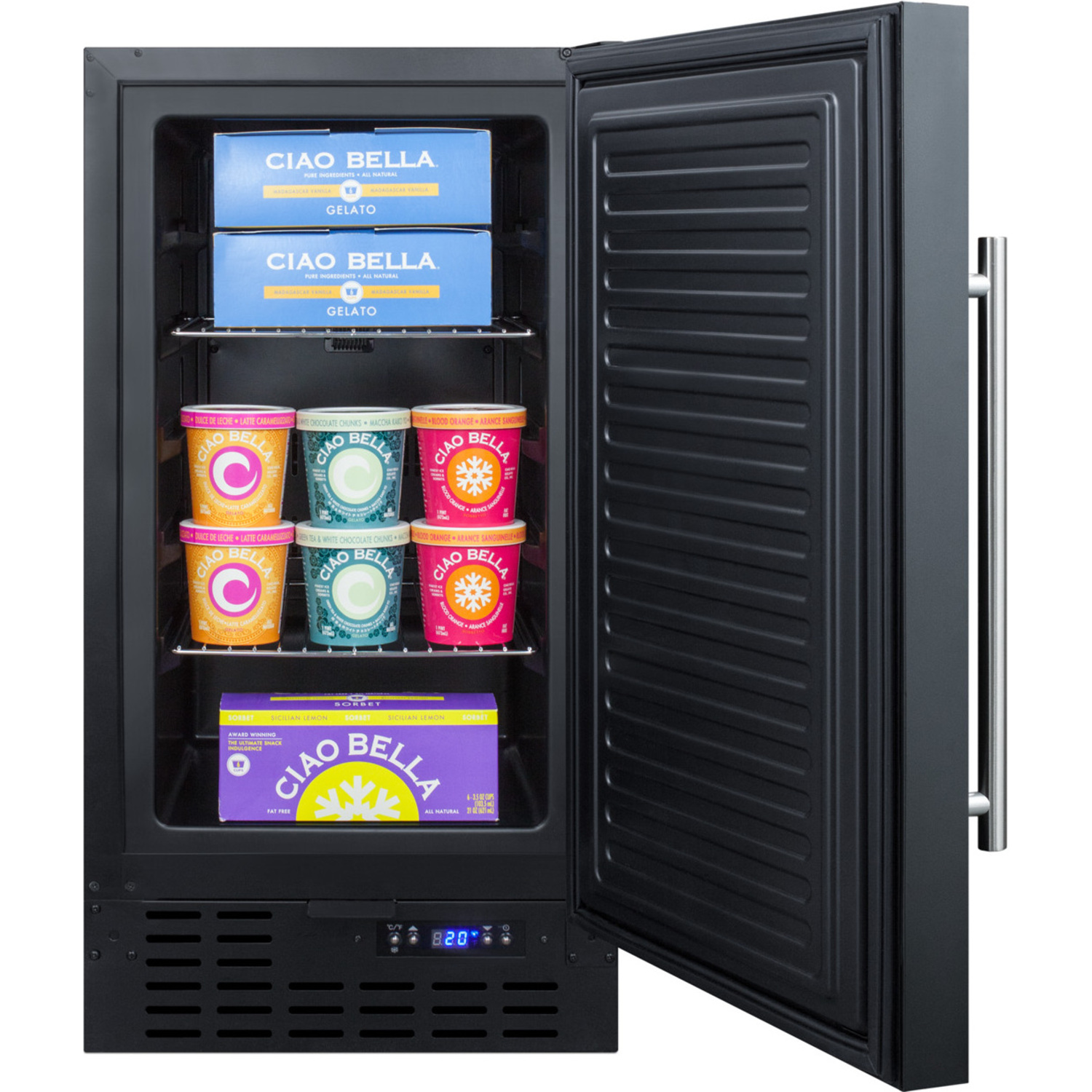

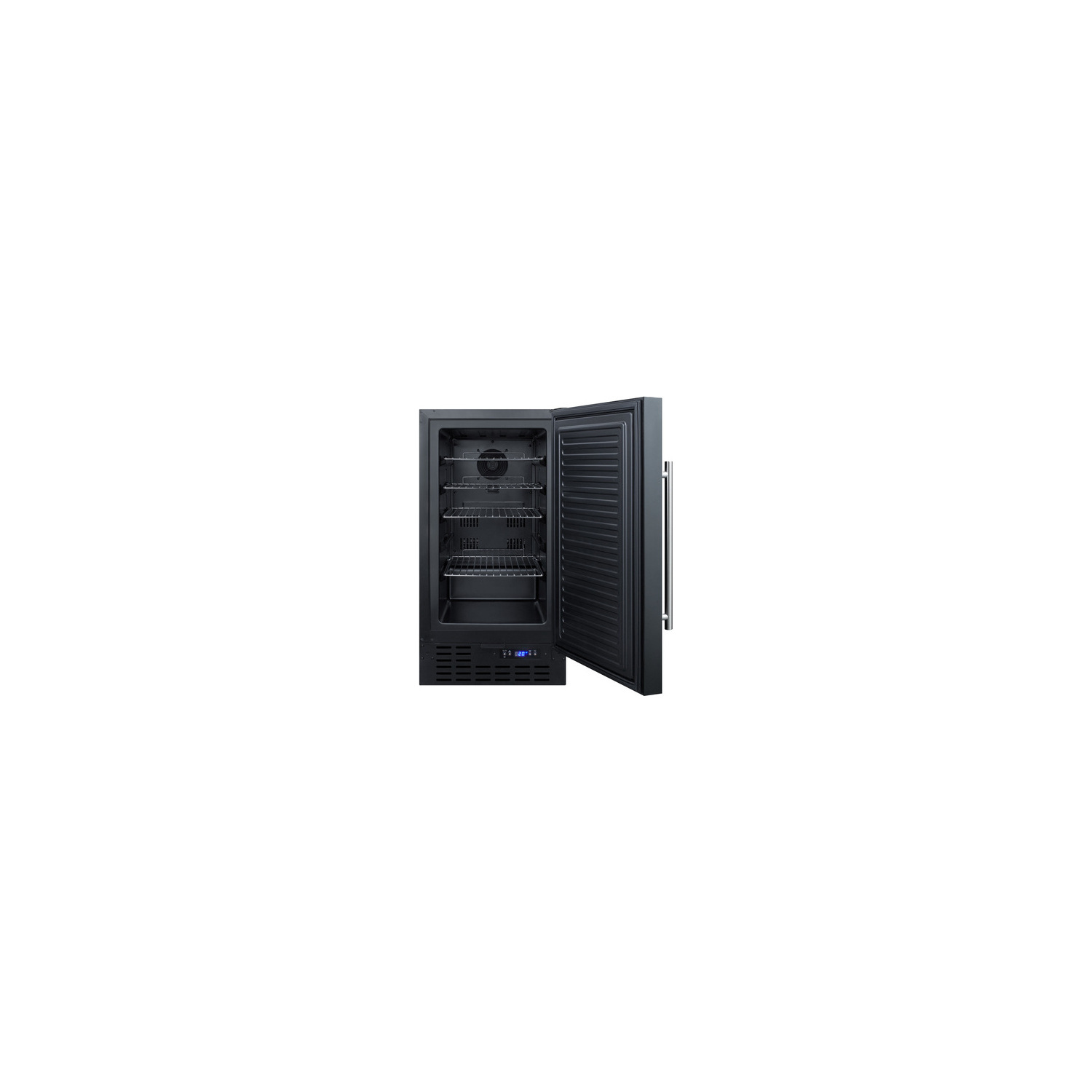

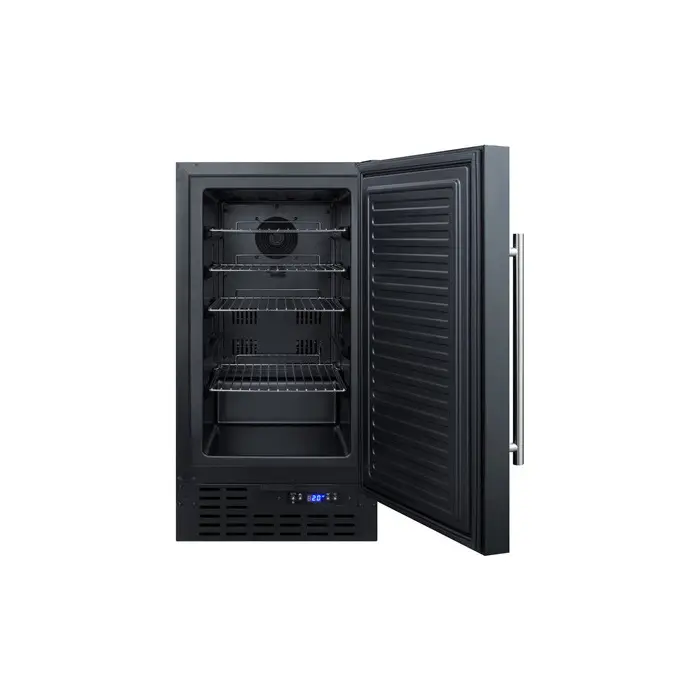

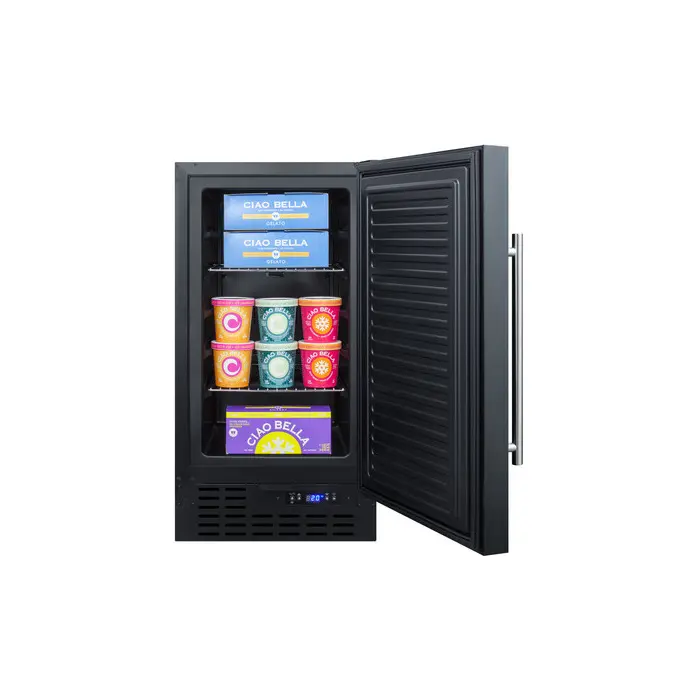

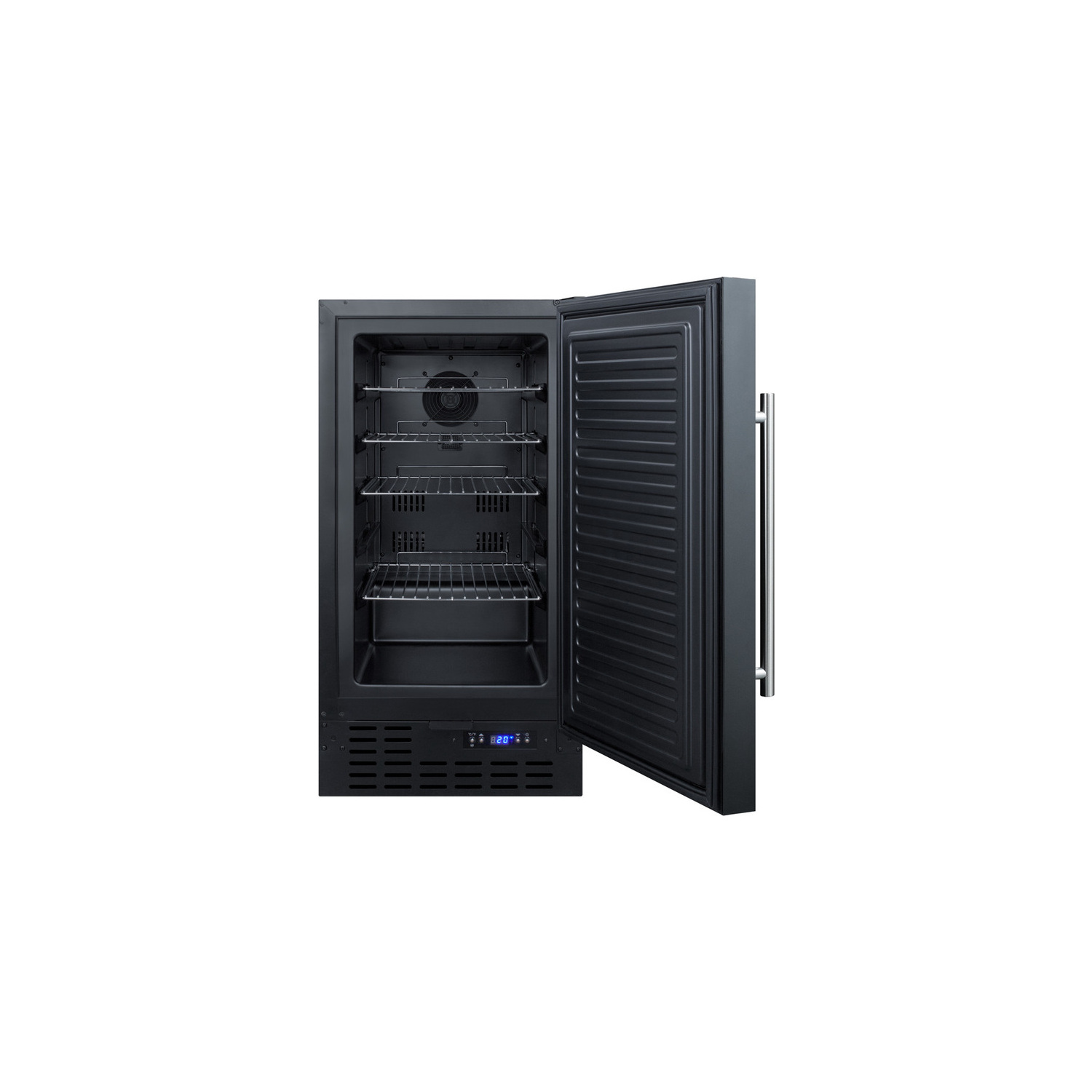

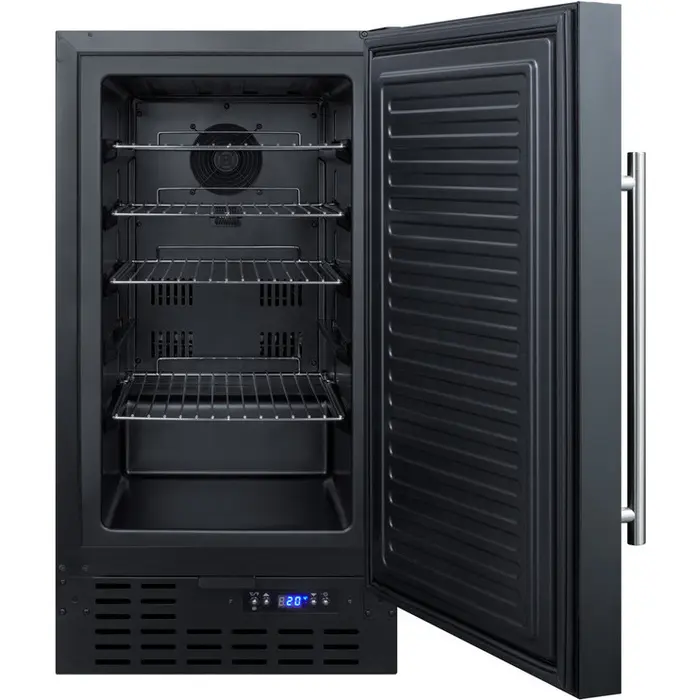

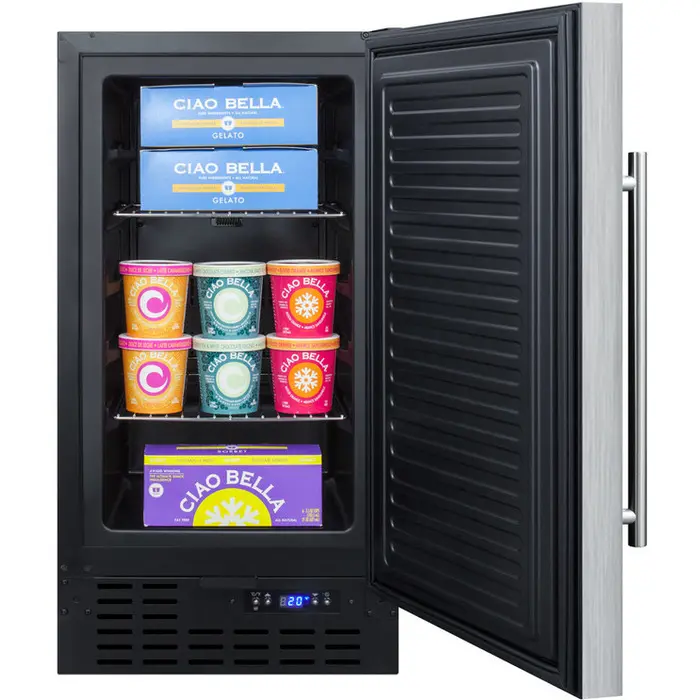

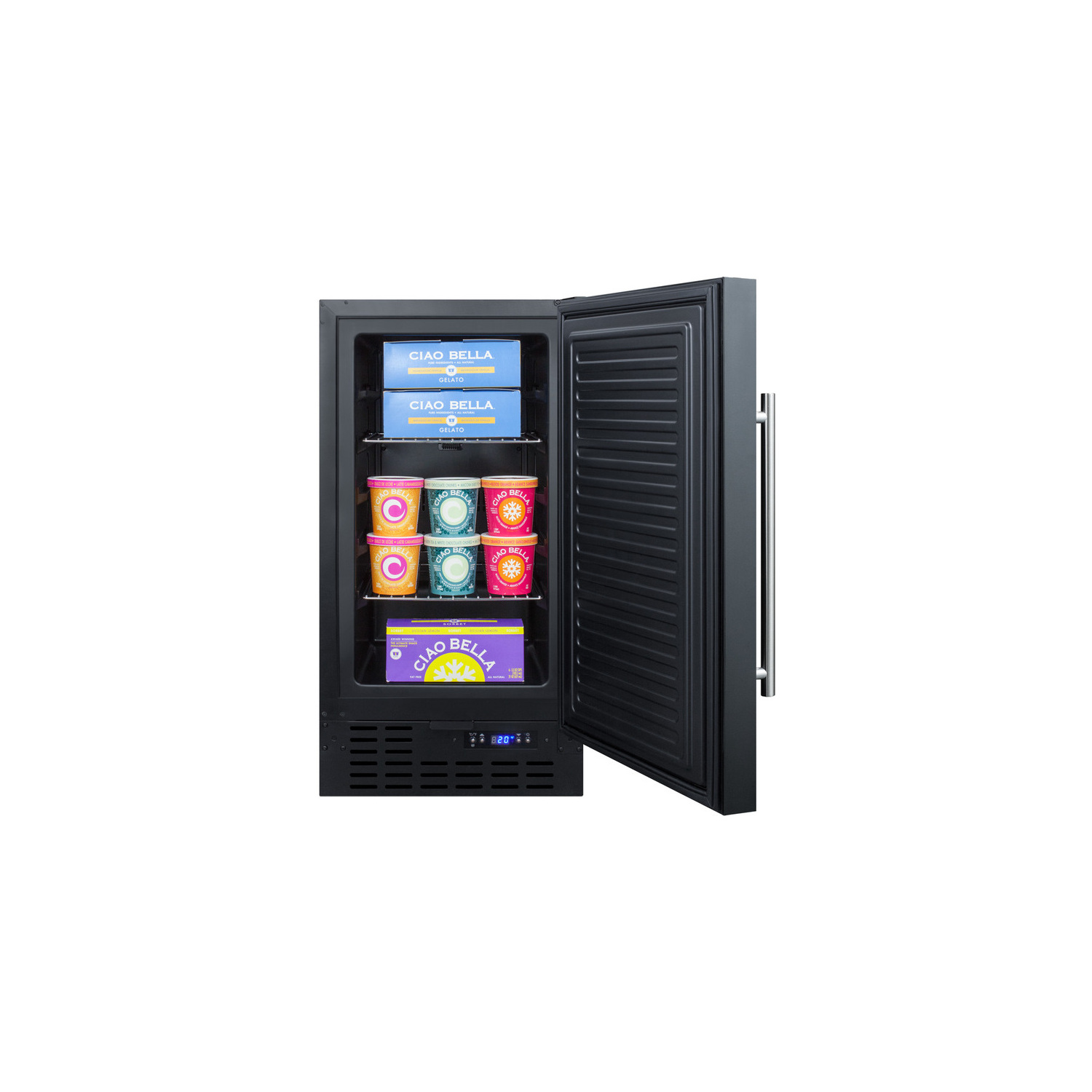

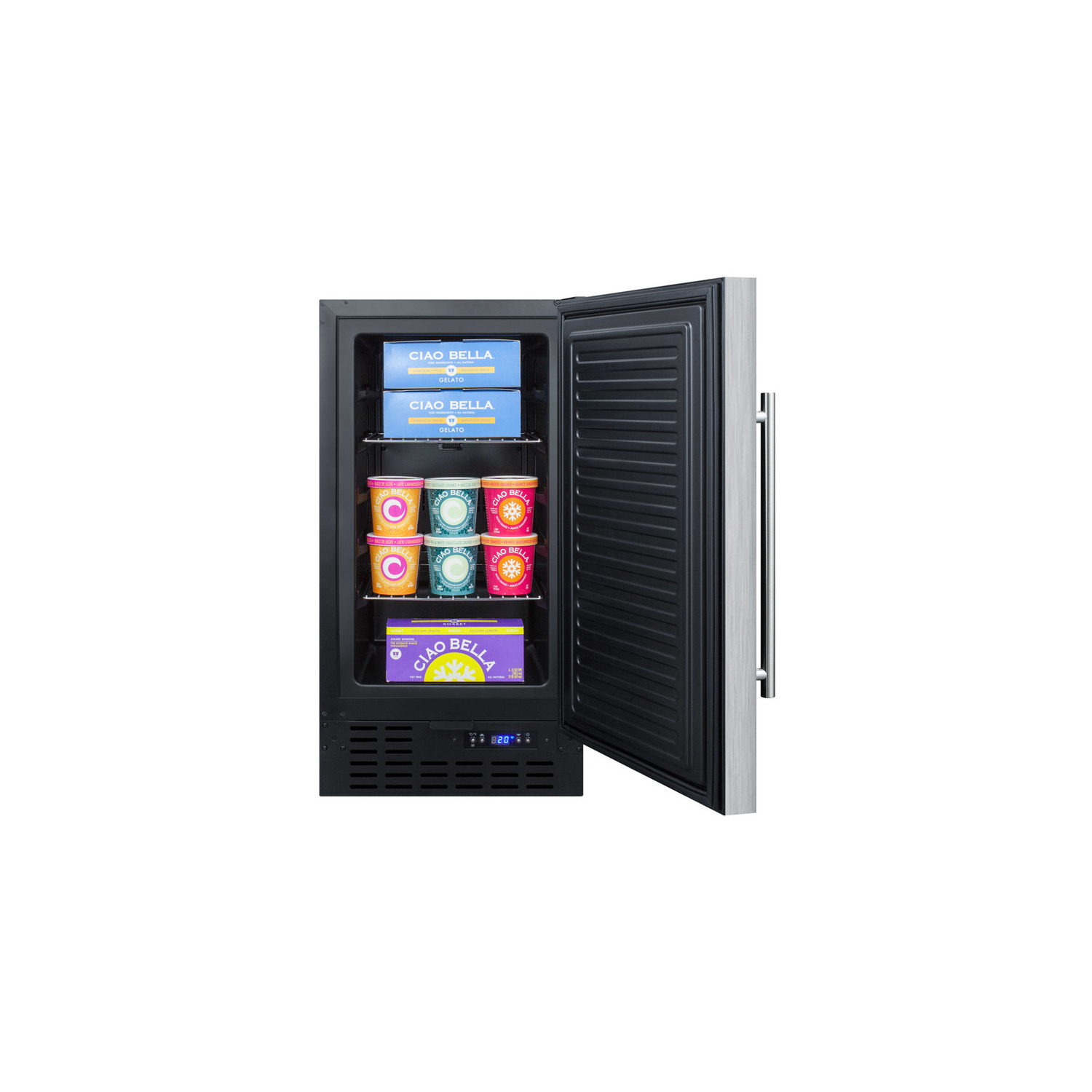

Inside, the SCFF1842 is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items in the 2.7 cu.ft. interior. This unit includes a digital thermostat for easy and intuitive temperature control.

With a uniquely slim size and user-friendly features, the SCFF1842 is the ideal freezer for space-challenged spaces. This model meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial environments.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with Handle 25.75" (65 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Frost-Free

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 346.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 82.0 lbs. (37 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101045078

Freezer

Door Swing RHD

Reversible Yes

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs 4

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

Temperature Range -22 to 14 °F

Sound Level 35.1 dB

FEATURES

18" Wide Undercounter Freezer Frost-free all-freezer for built-in installation or freestanding use

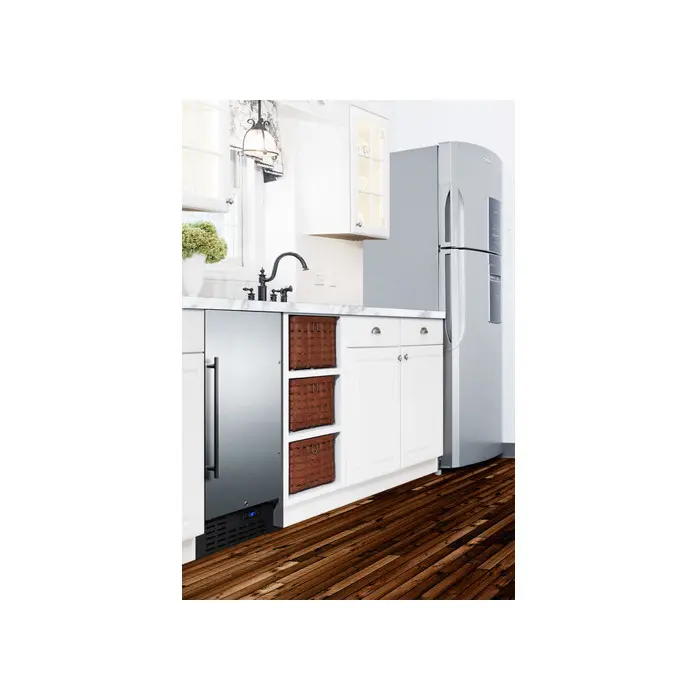

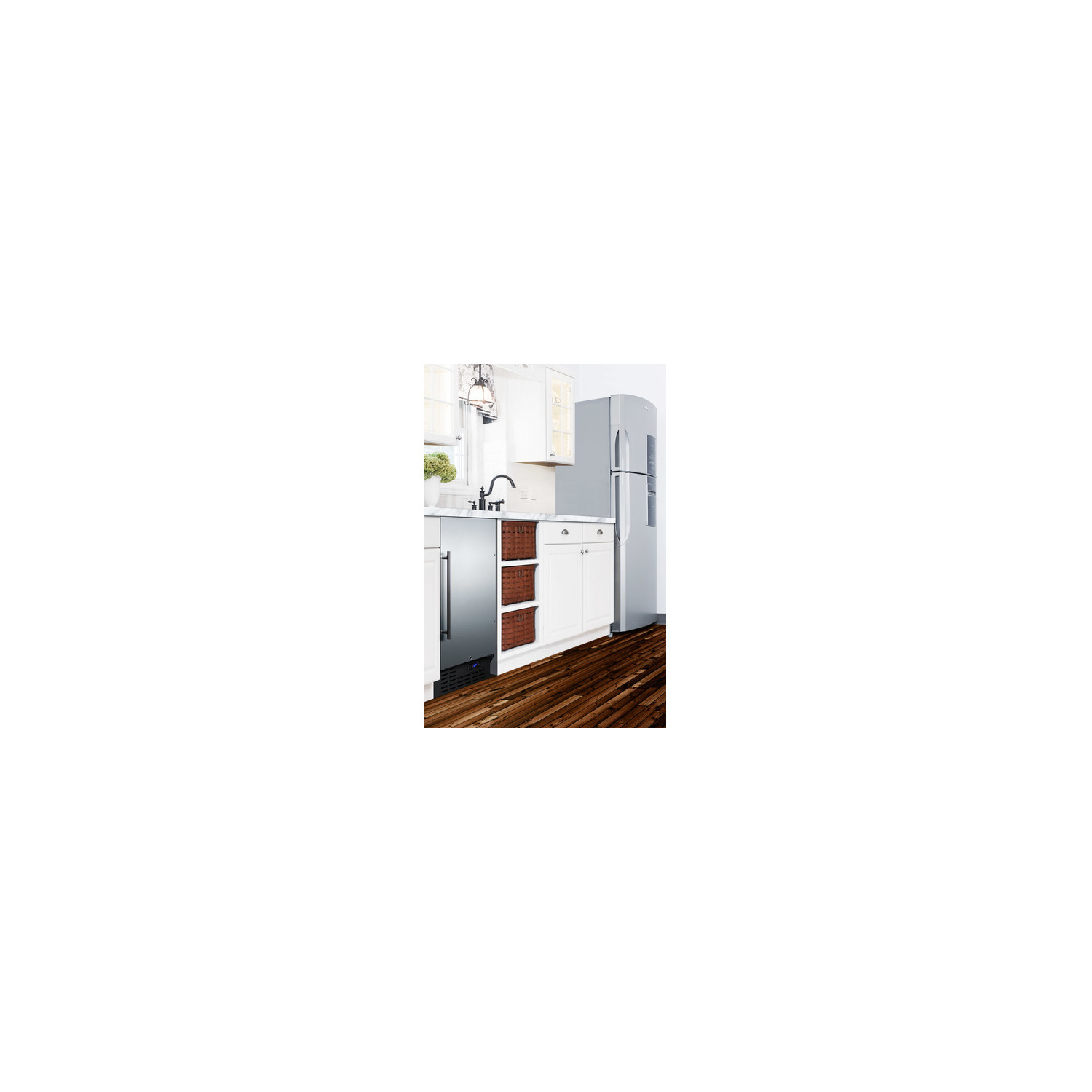

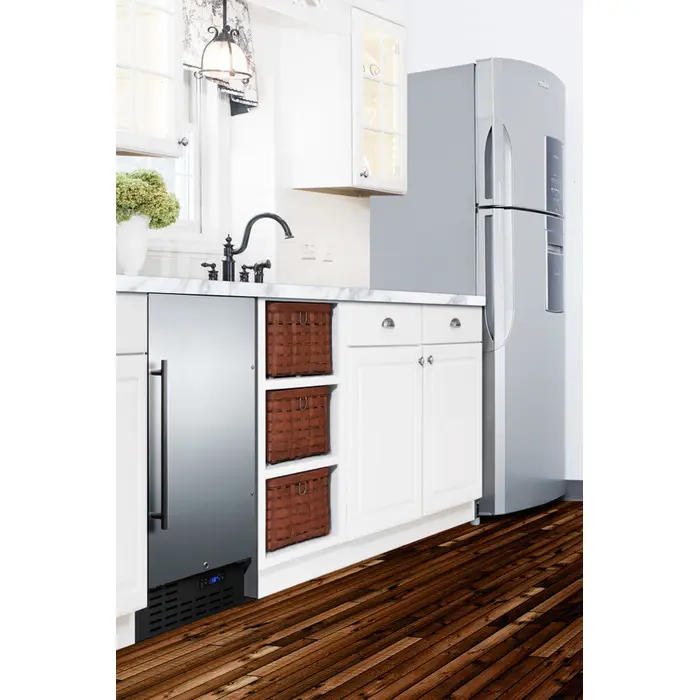

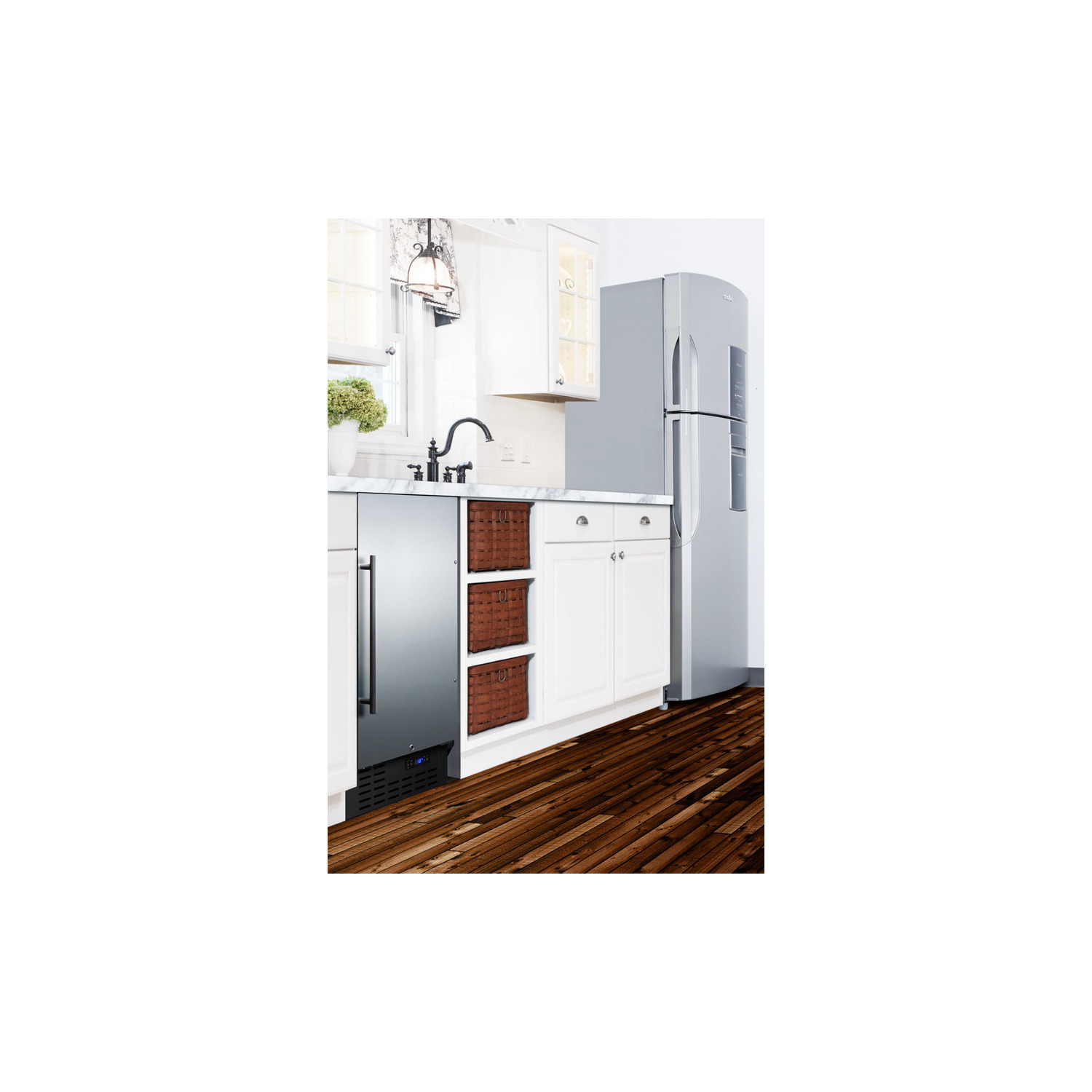

Built-in capable Make the best use of space by installing your appliance under the counter

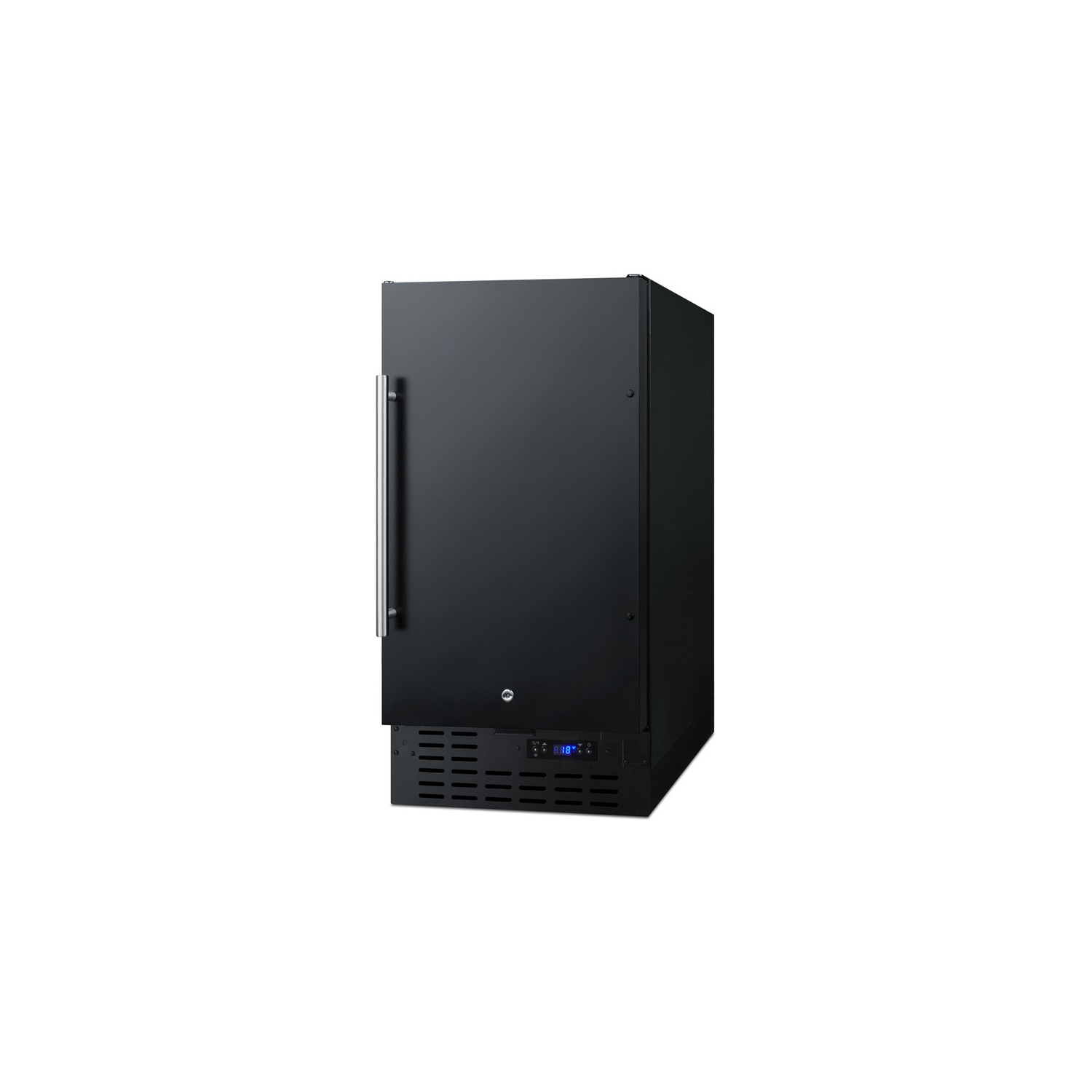

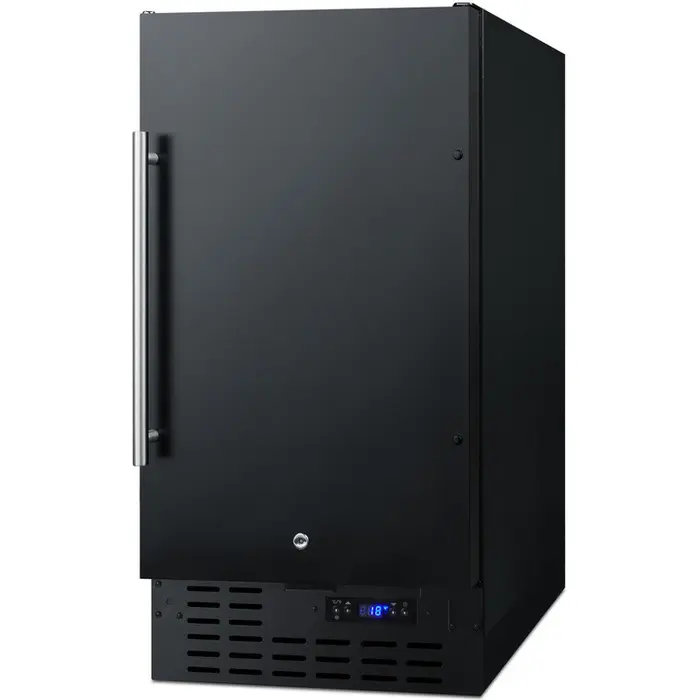

Fully finished black cabinet Allows the unit to be used freestanding

Factory installed lock Keyed security on the door

Commercially listed ETL-S listed to NSF-7 Standards for use in commercial establishments

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Frost-free operation Eliminates the need to manually defrost the interior

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Reversible door User-reversible door swing for added flexibility

Professional handle Stainless steel handle completes the professional look

Flush back Space saving design

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SCFF1842.pdf)

TECHNICAL DRAWING (.dwg) (SCFF1842_FREEZERA-C2000_2.dwg)

REVIT MODEL (Qf_Summit_SCFF1842_18_inches_Built-In_All-Freezer.rfa)

ENERGY GUIDES (Energy_label-_SCFF1842__4_.pdf)

USE & CARE (SCFF1842-User-Manual.pdf)
