Summit 15 inch wide frost-free freezer for built-in or freestanding use, with integrated door frame to accept overlay panels, 7.61101e+011, SCFF1533BIF

Summit brings true convenience to small kitchen spaces with the SCFF1533BIF, a 15" wide fully frost-free all-freezer.

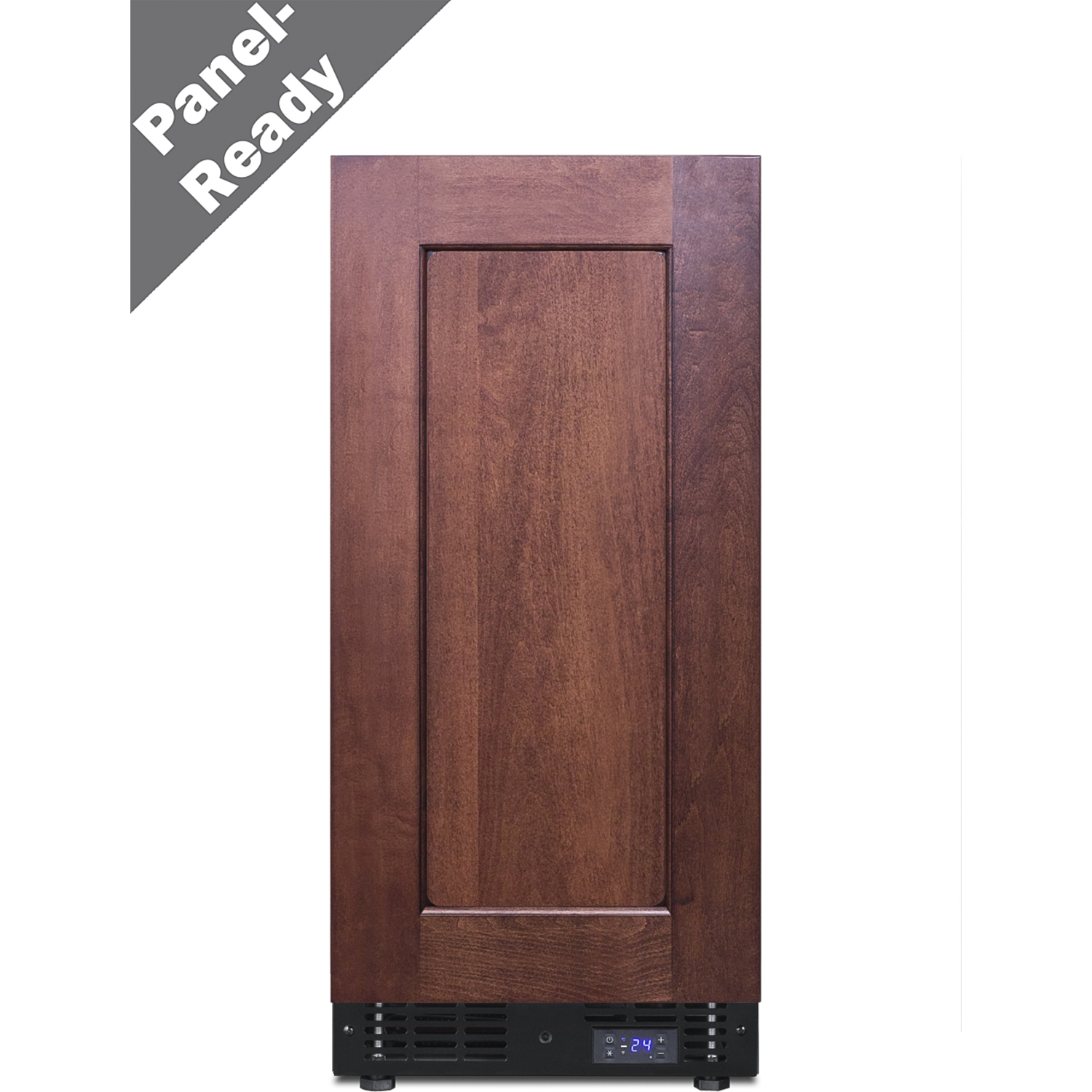

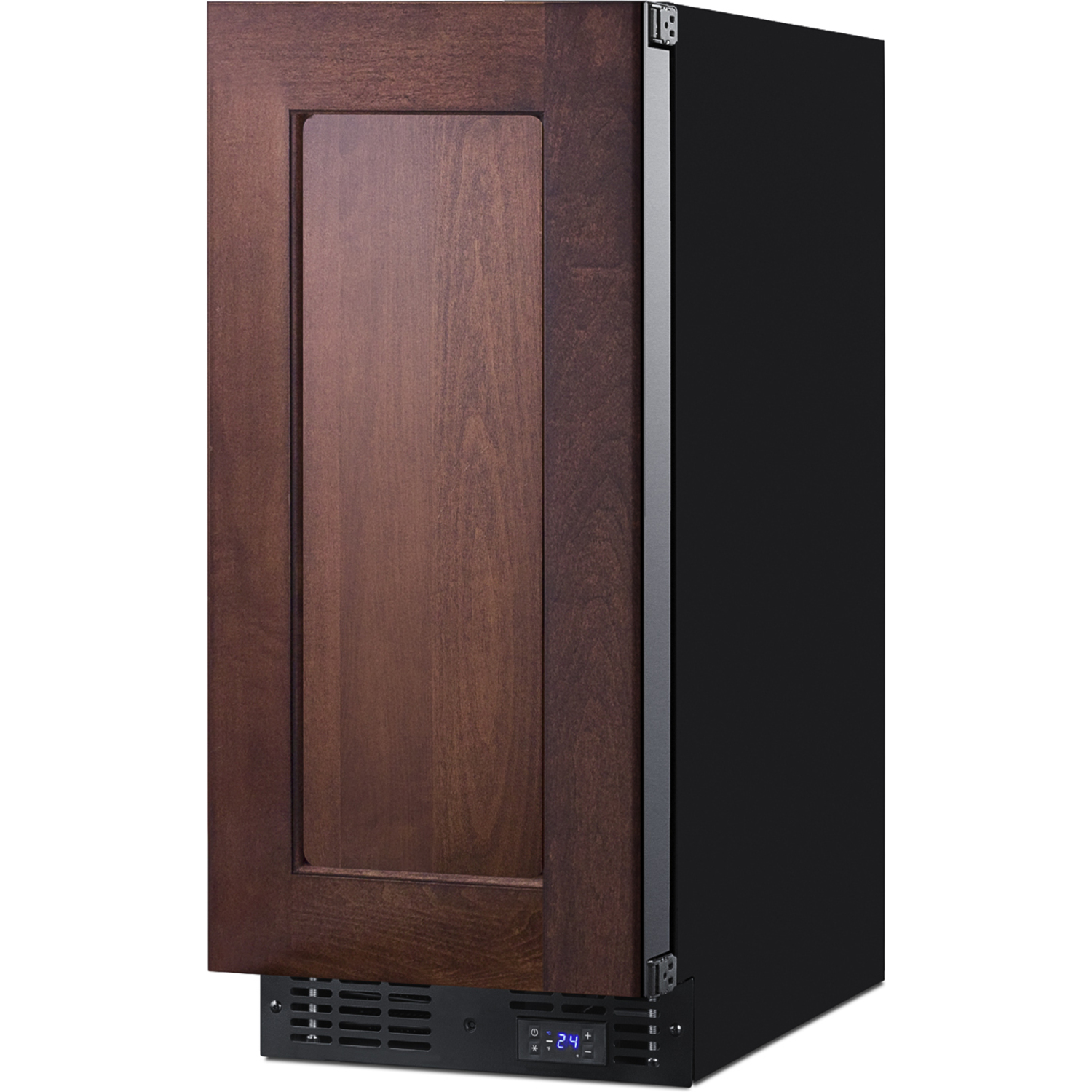

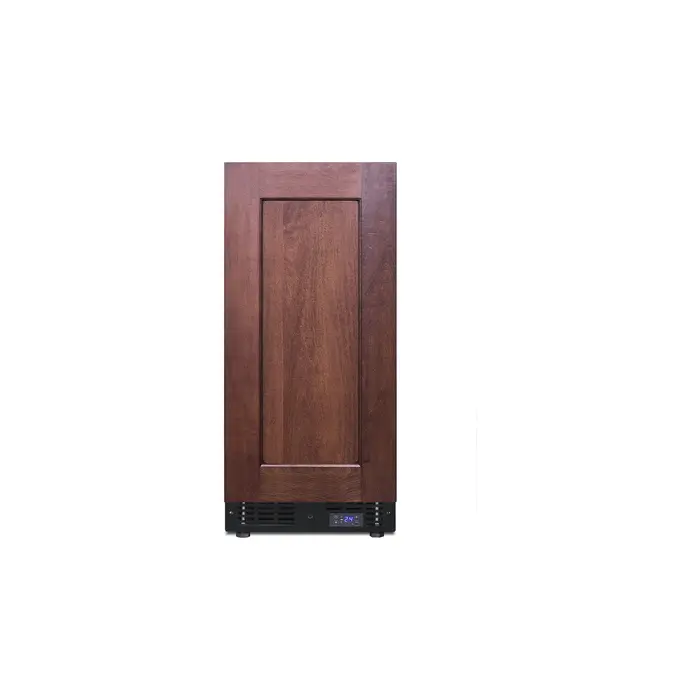

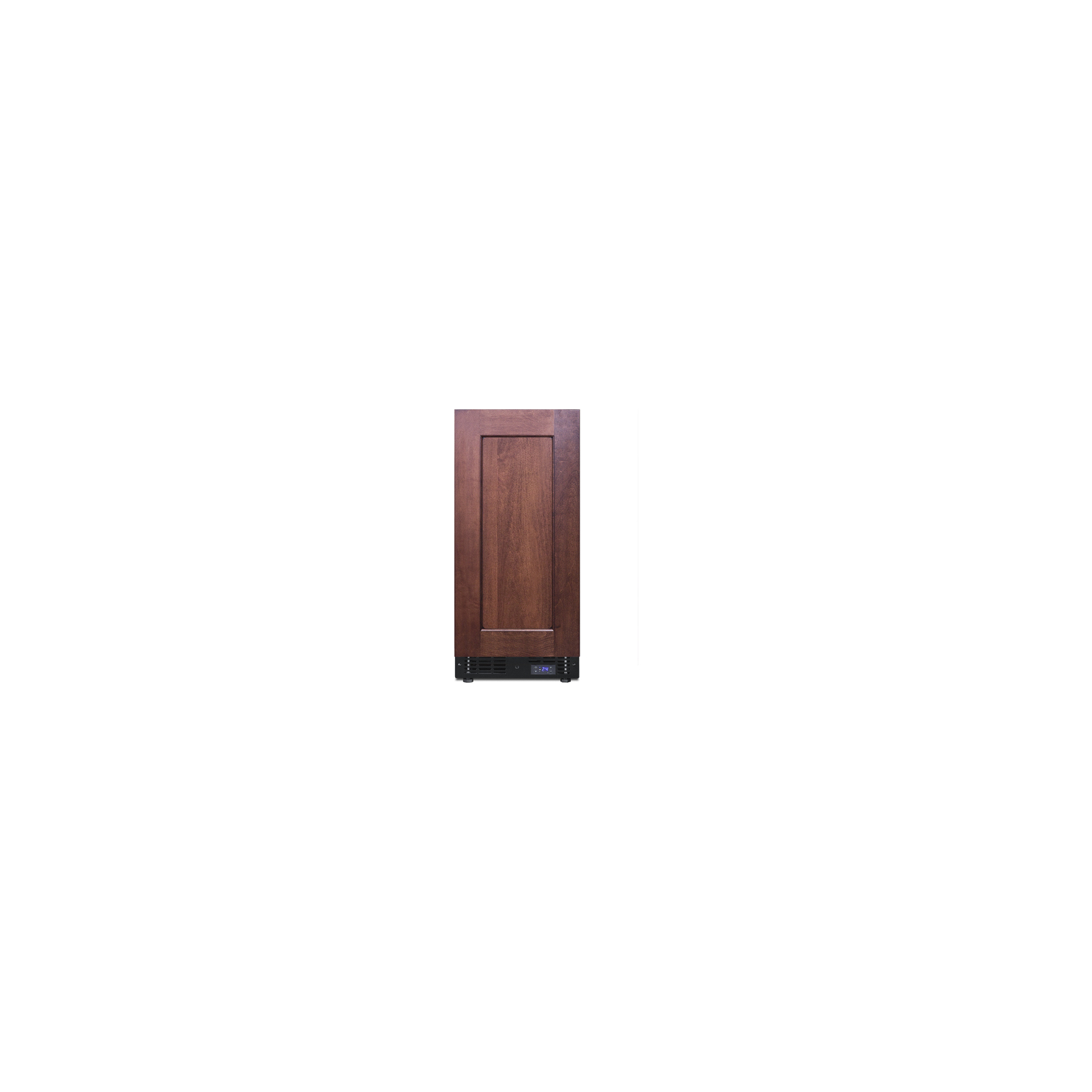

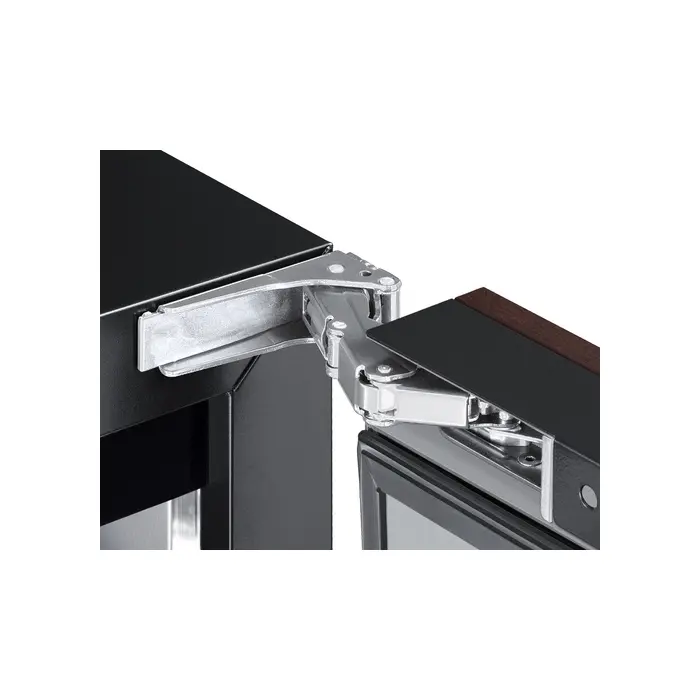

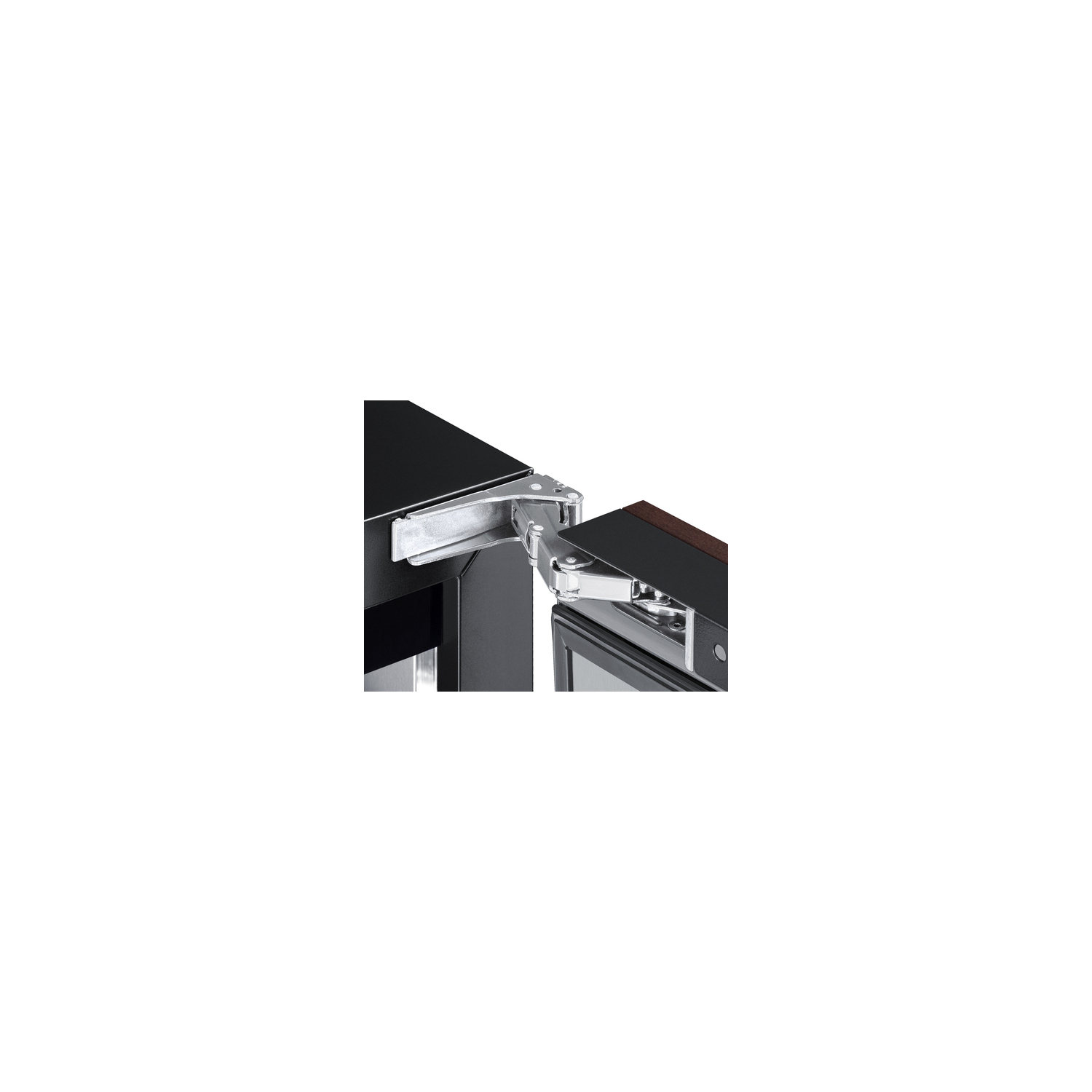

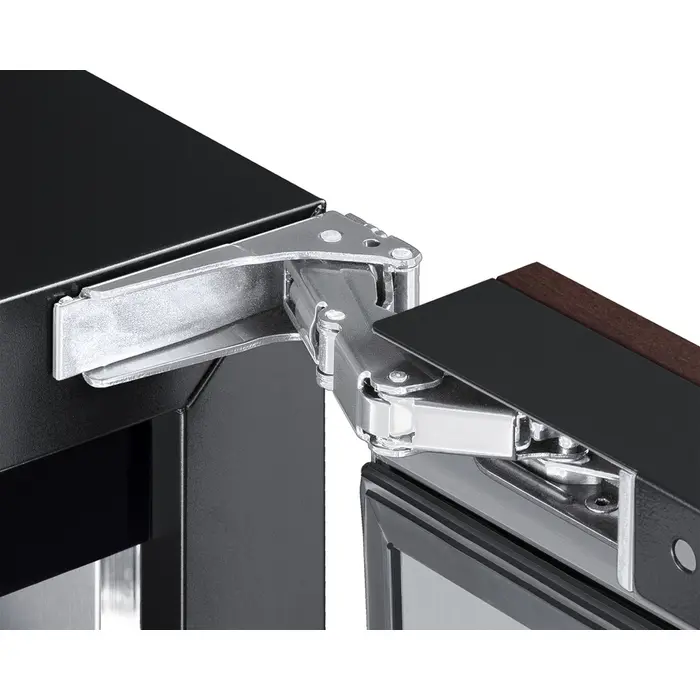

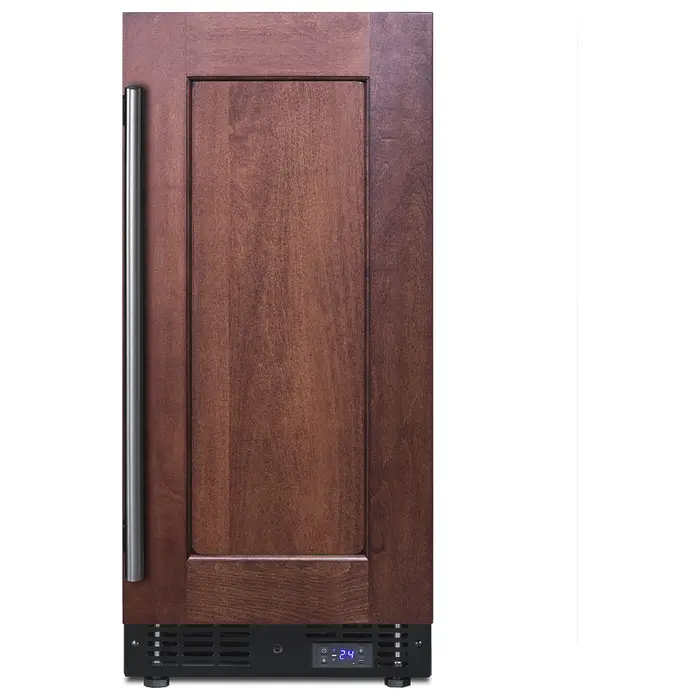

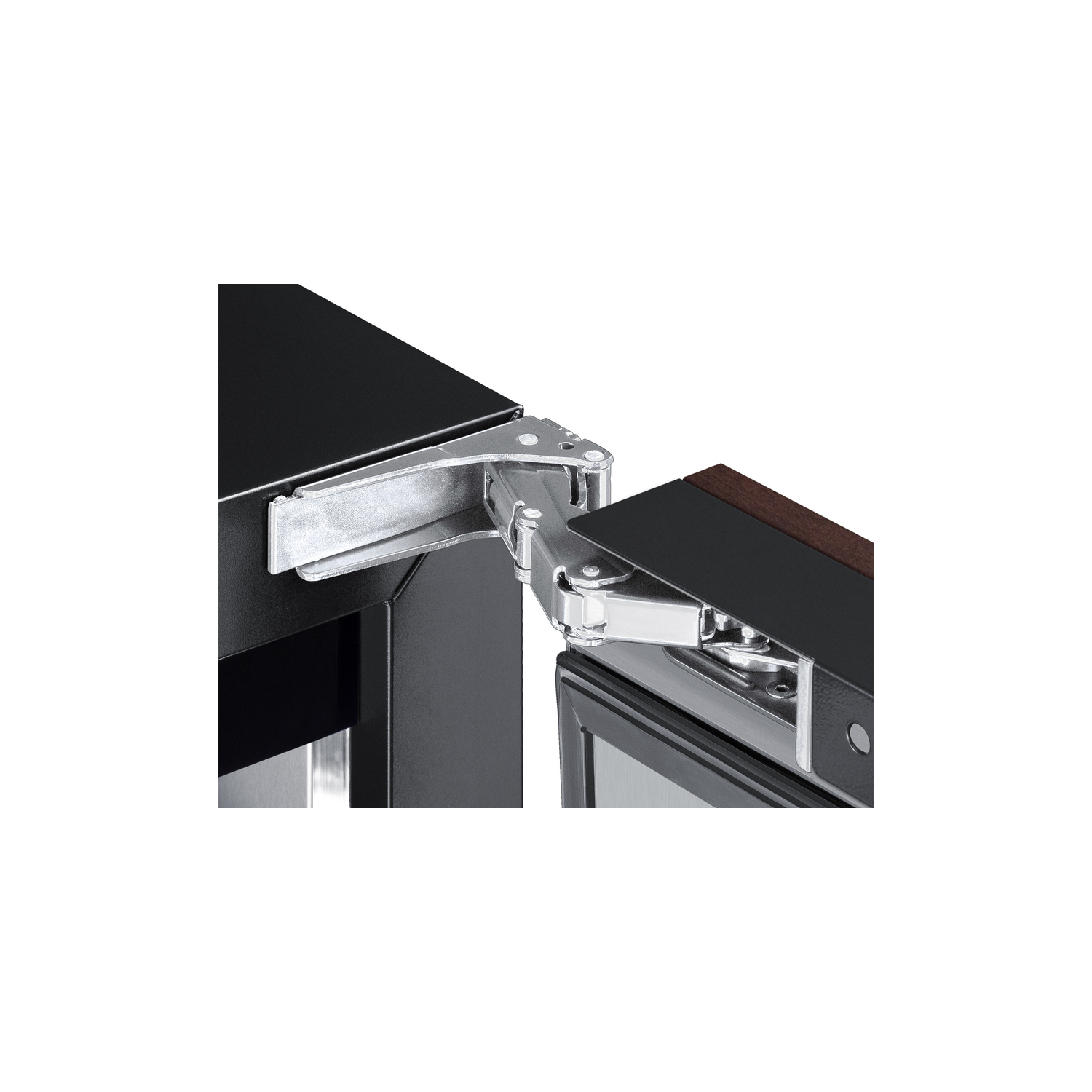

The SCFF1533BIF is front-breathing for built-in use under counters, but also features a fully finished black cabinet to allow freestanding use. This unit features a fully articulating European-style hinge that ensures a smoother opening and better fit. We include a 2-piece bracket kit that allows easy installation of overlay panels over the stainless steel door to create a custom look that can blend into your existing cabinetry design. The user-reversible door swing allows easy adjustment as needed. A factory-installed lock is located in the kickplate.

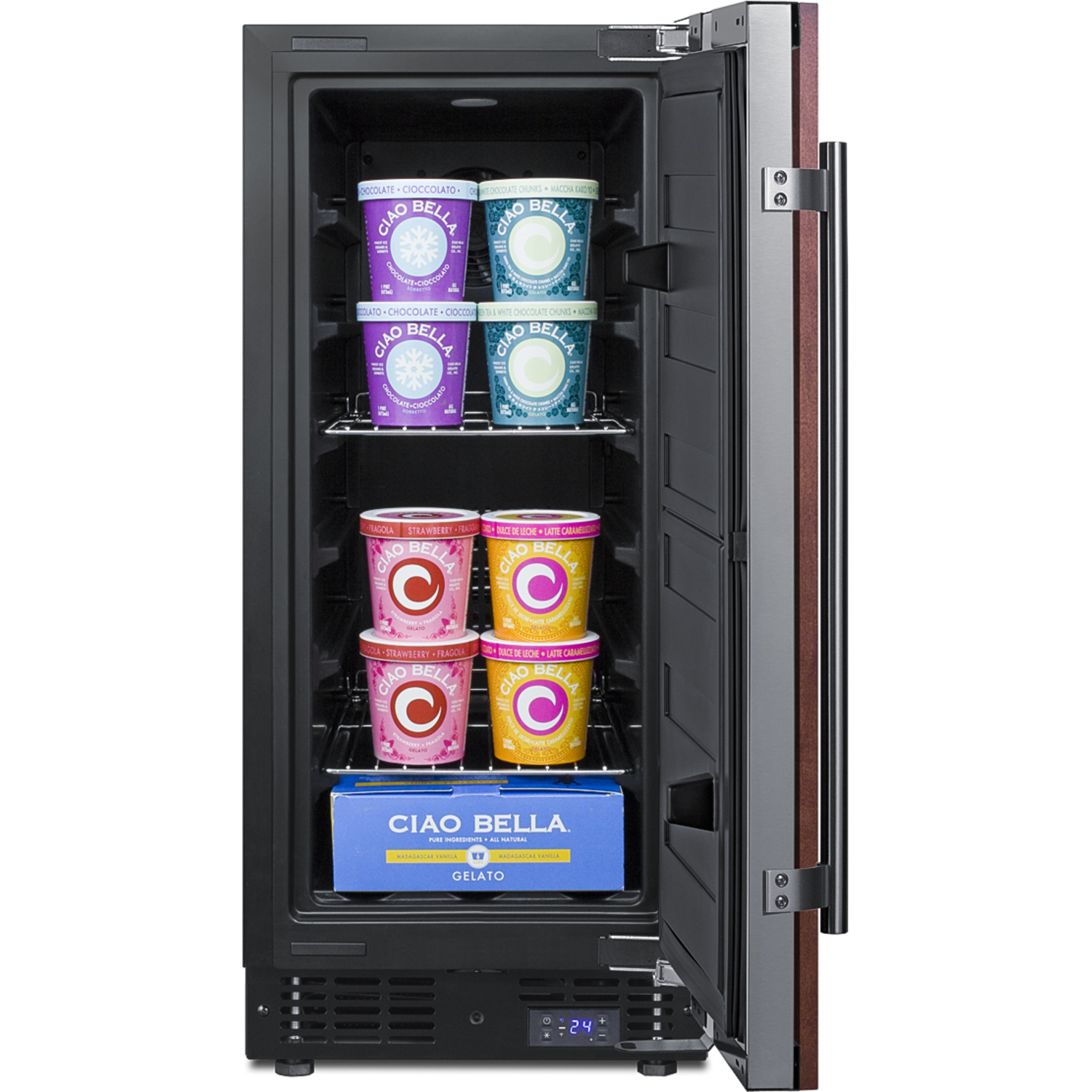

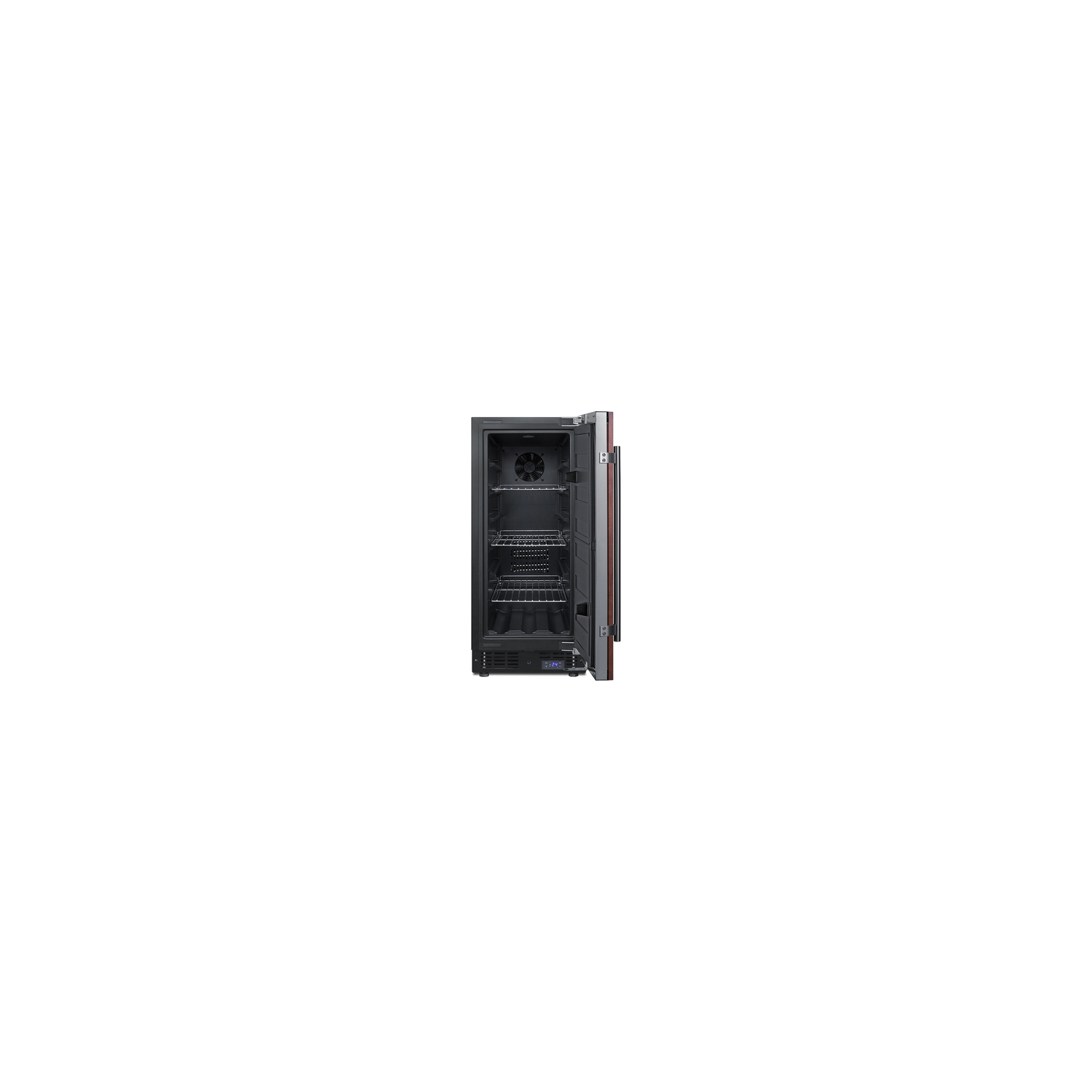

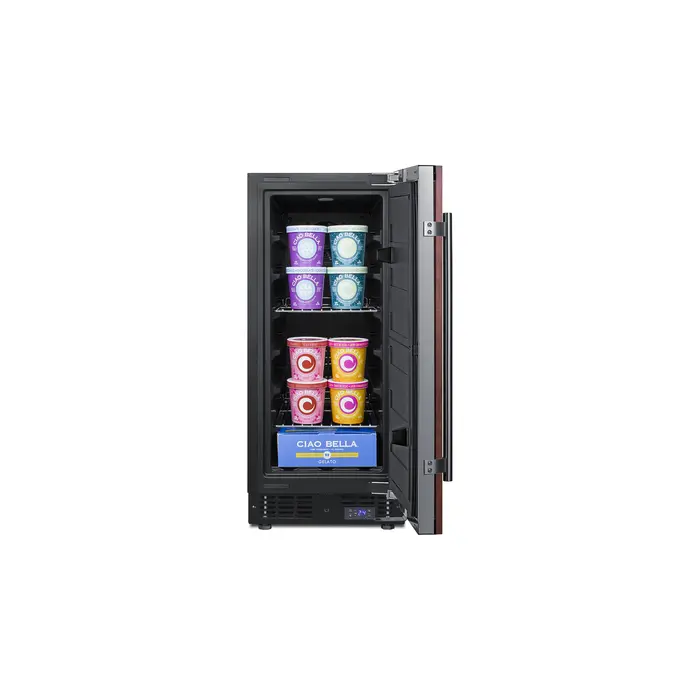

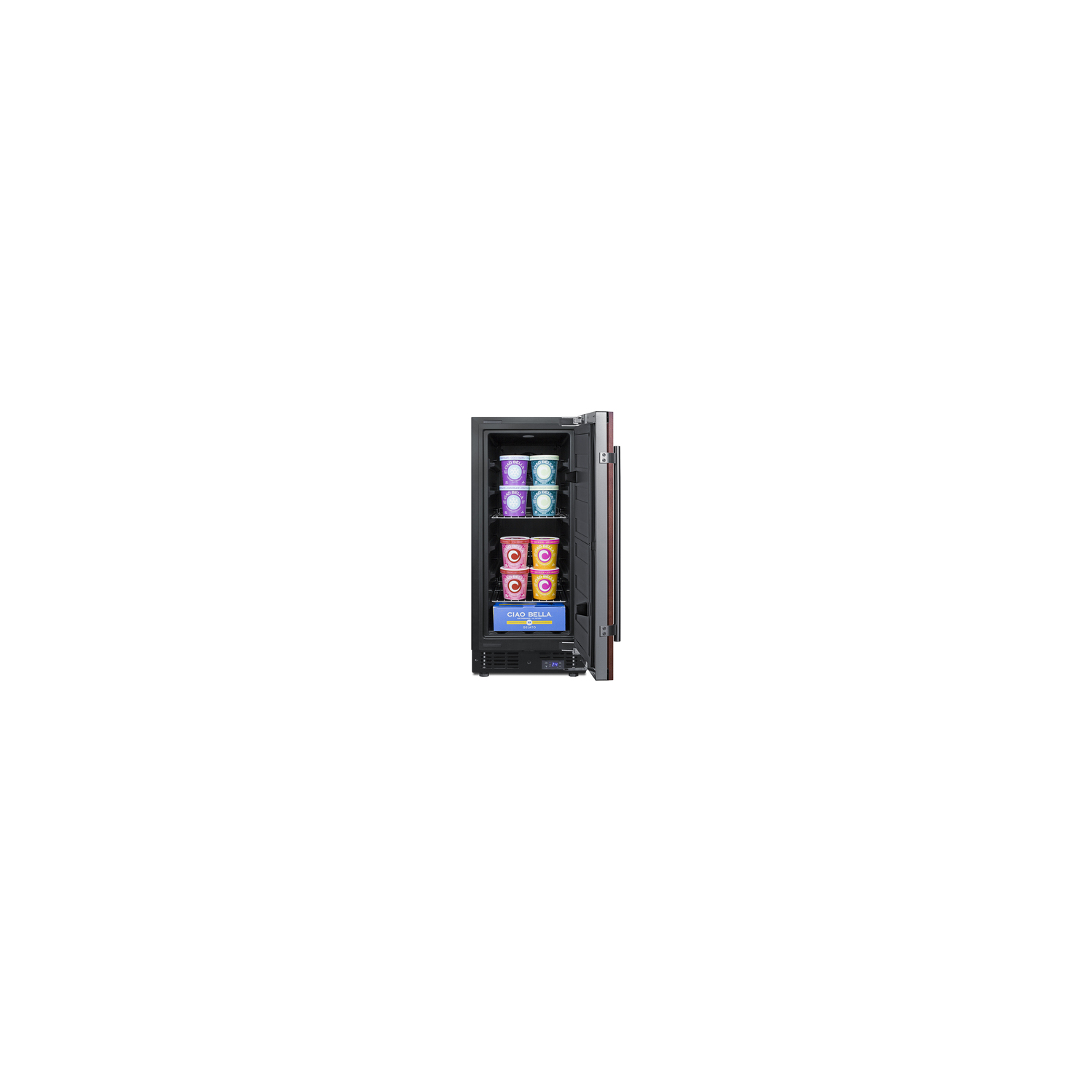

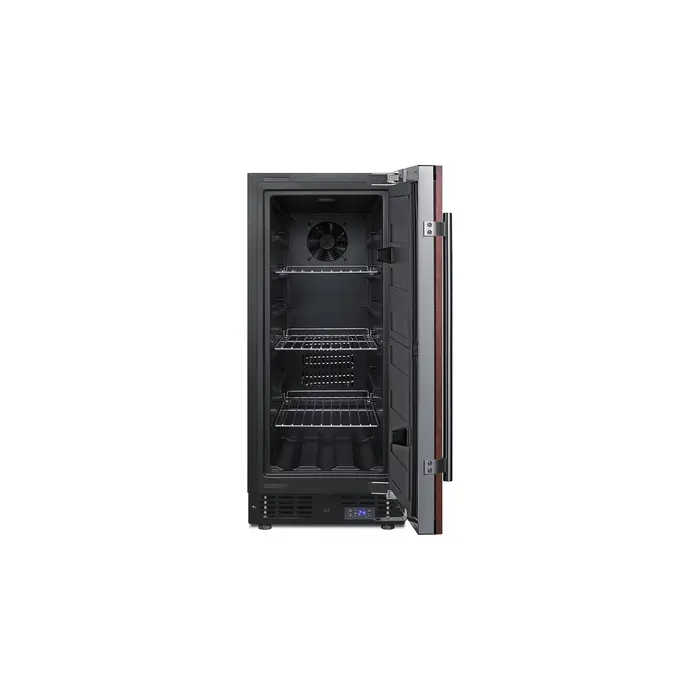

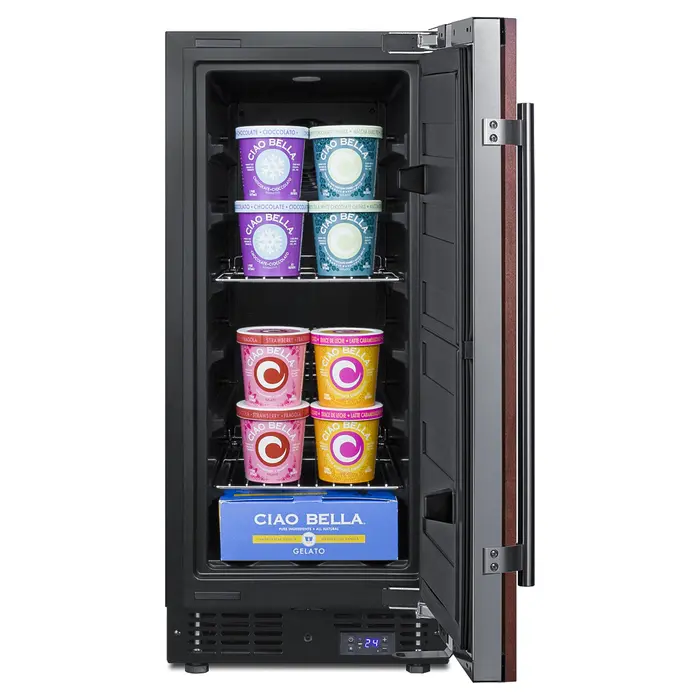

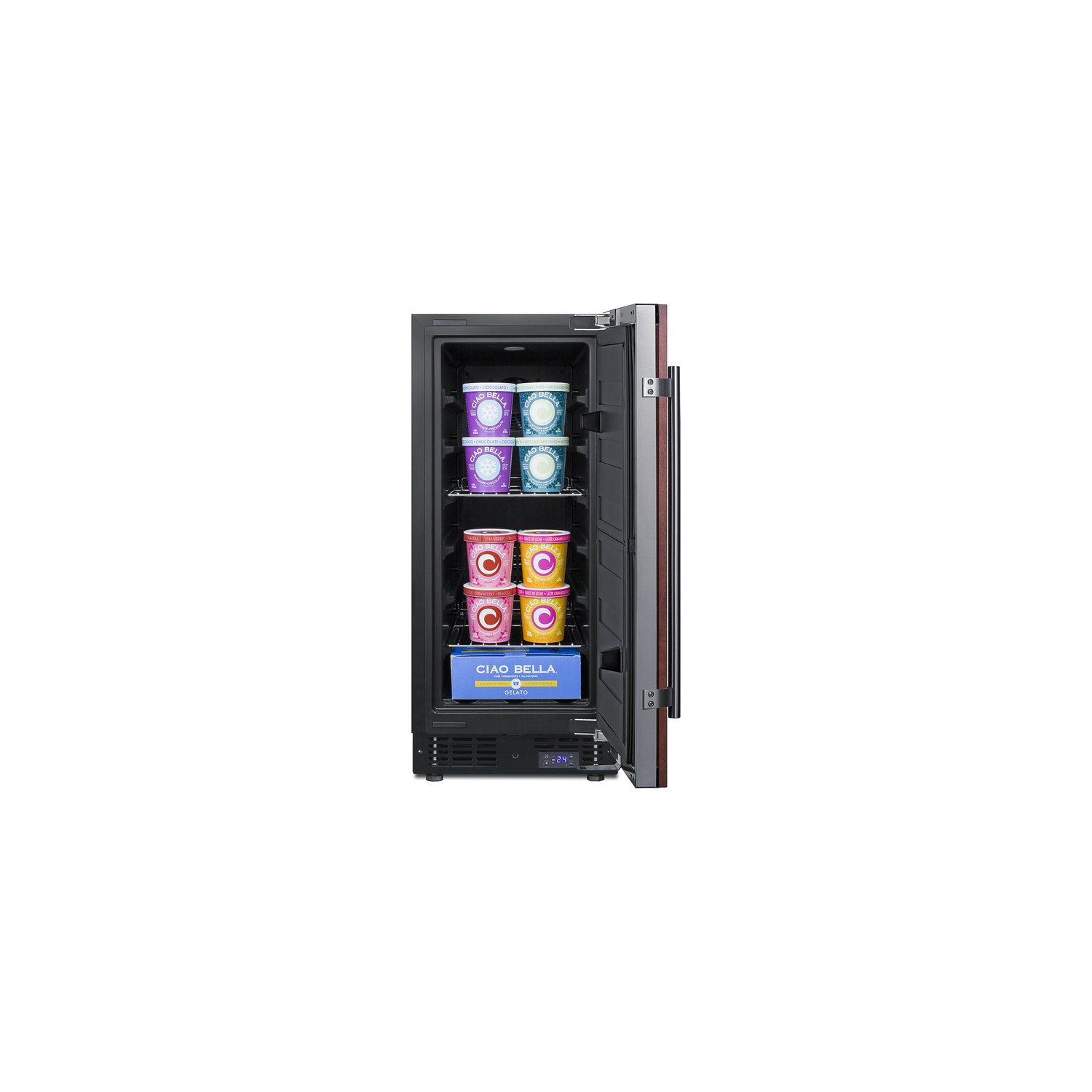

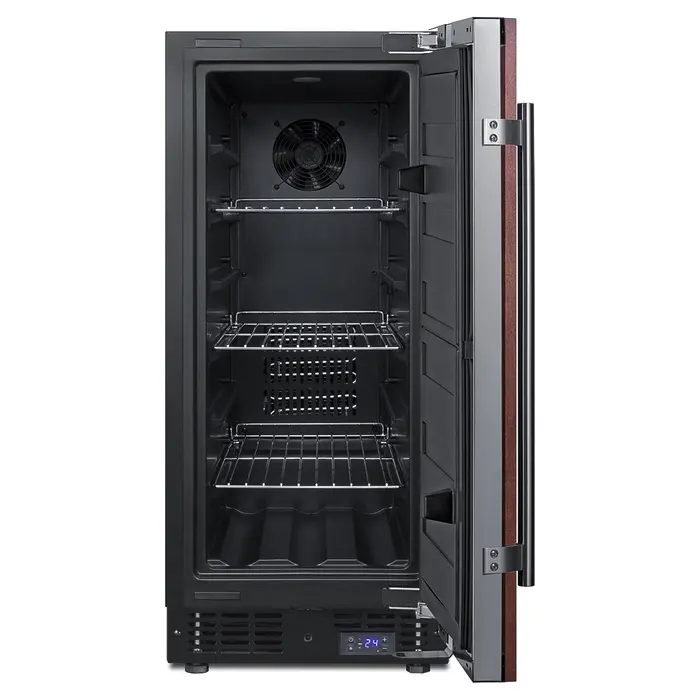

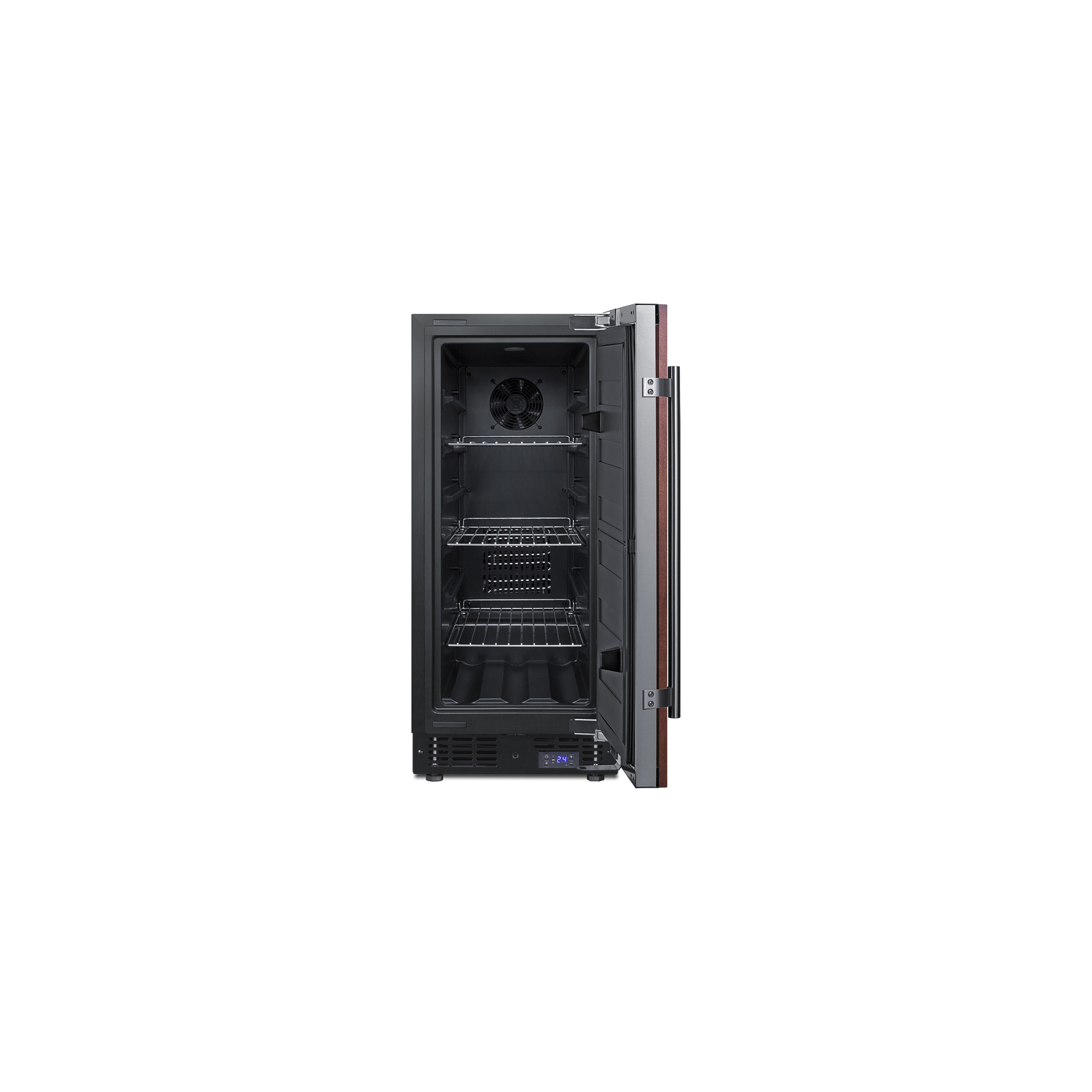

Inside, the SCFF1533BIF is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items. Recessed LED lighting provides an elegant and efficient display inside the 2.4 cu.ft. interior. This unit includes a digital thermostat in the kickplate for easy and intuitive temperature control.

With a uniquely slim size and user-friendly features, the SCFF1533BIF is the ideal freezer for space-challenged homes. This unit can be paired with the matching FF1532BIF all-refrigerator as a side-by-side set or combined with our Stack15.

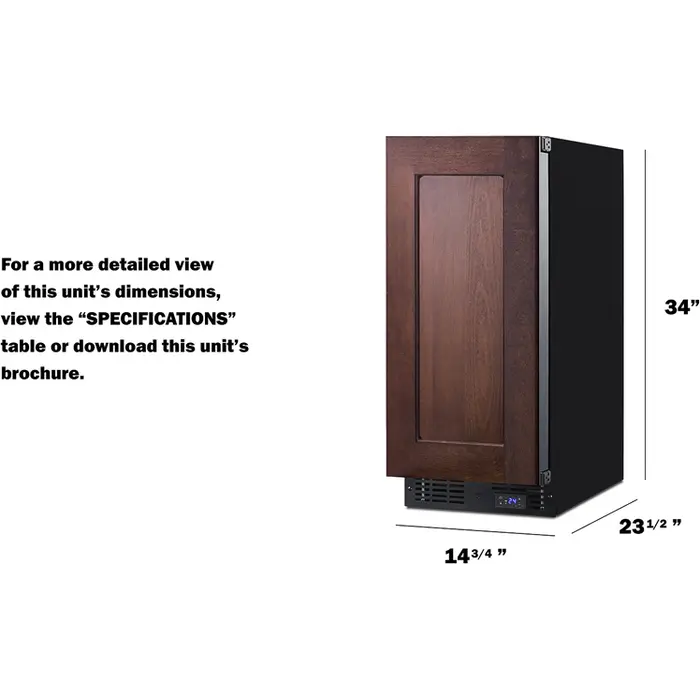

SPECIFICATIONS

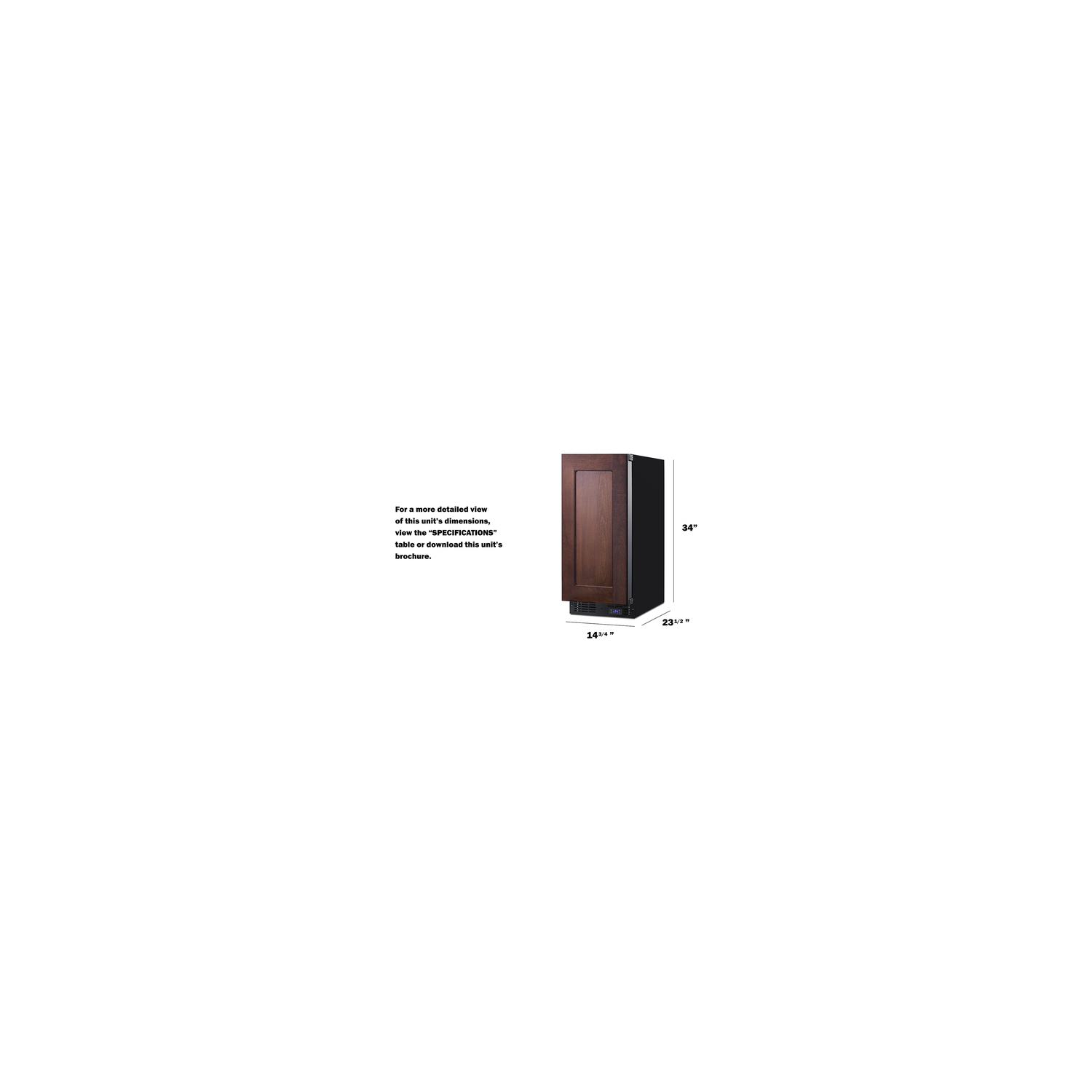

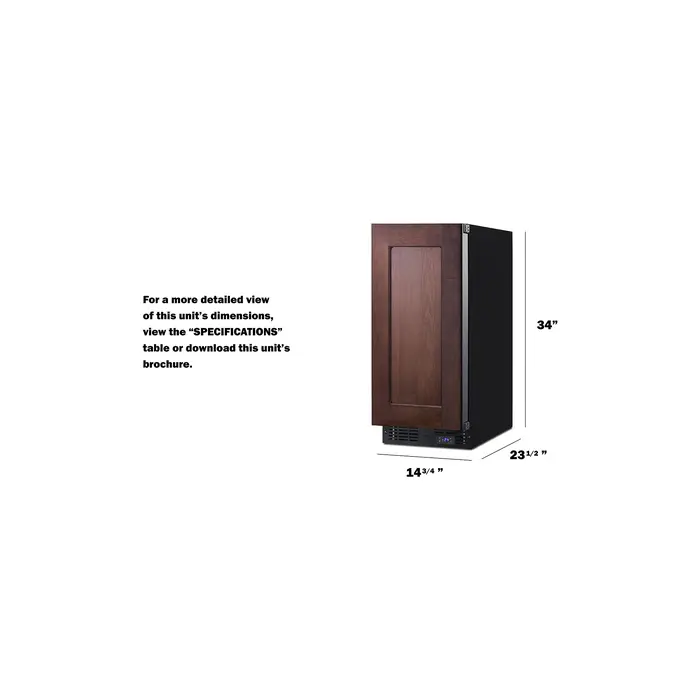

Overview

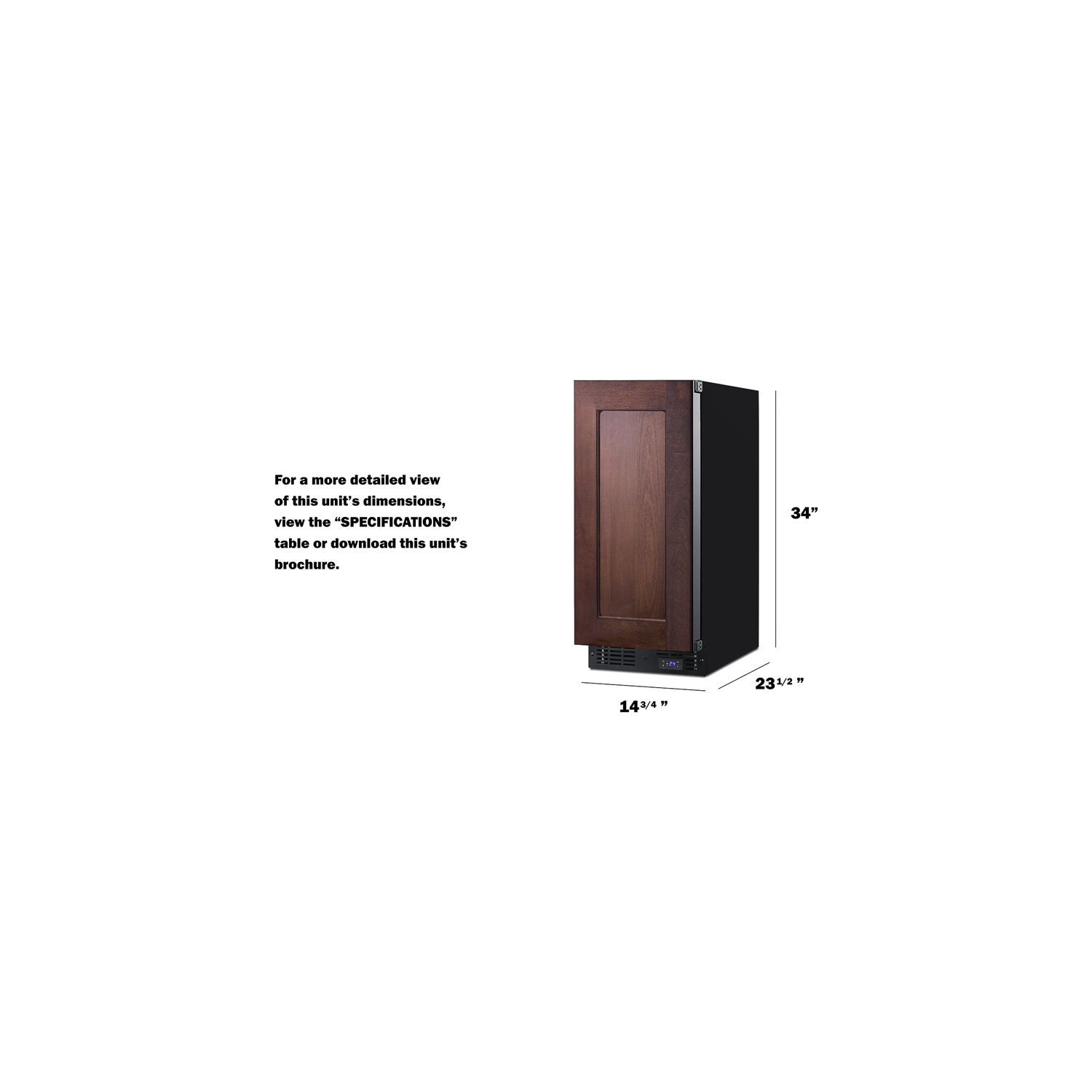

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with door at 90° 36.25" (92 cm)

Capacity 2.4 cu.ft. (68 L)

Defrost Type Frost-Free

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 330.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 73.0 lbs. (33 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101055848

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 25.25" (64 cm)

Interior Width 10.25" (26 cm)

Interior Depth 16.38" (42 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.88 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 4

Compressor Step Height 3.63" (9 cm)

Compressor Step Width 10.25" (26 cm)

Compressor Step Depth 4.63" (12 cm)

Temperature Range -11°F to 11°F

Sabbath Mode Yes

Sound Level 36.3 dB

FEATURES

15" Wide Undercounter Freezer Front-breathing frost-free freezer for for easy installation under the counter

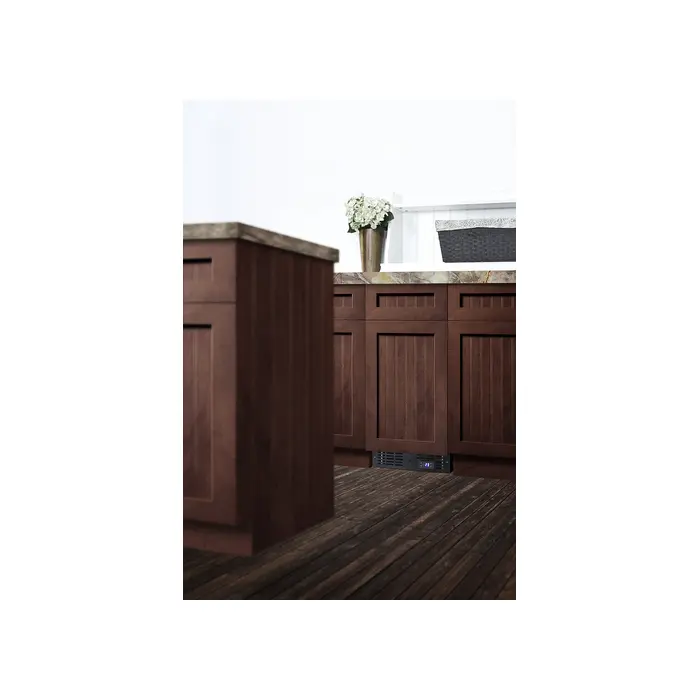

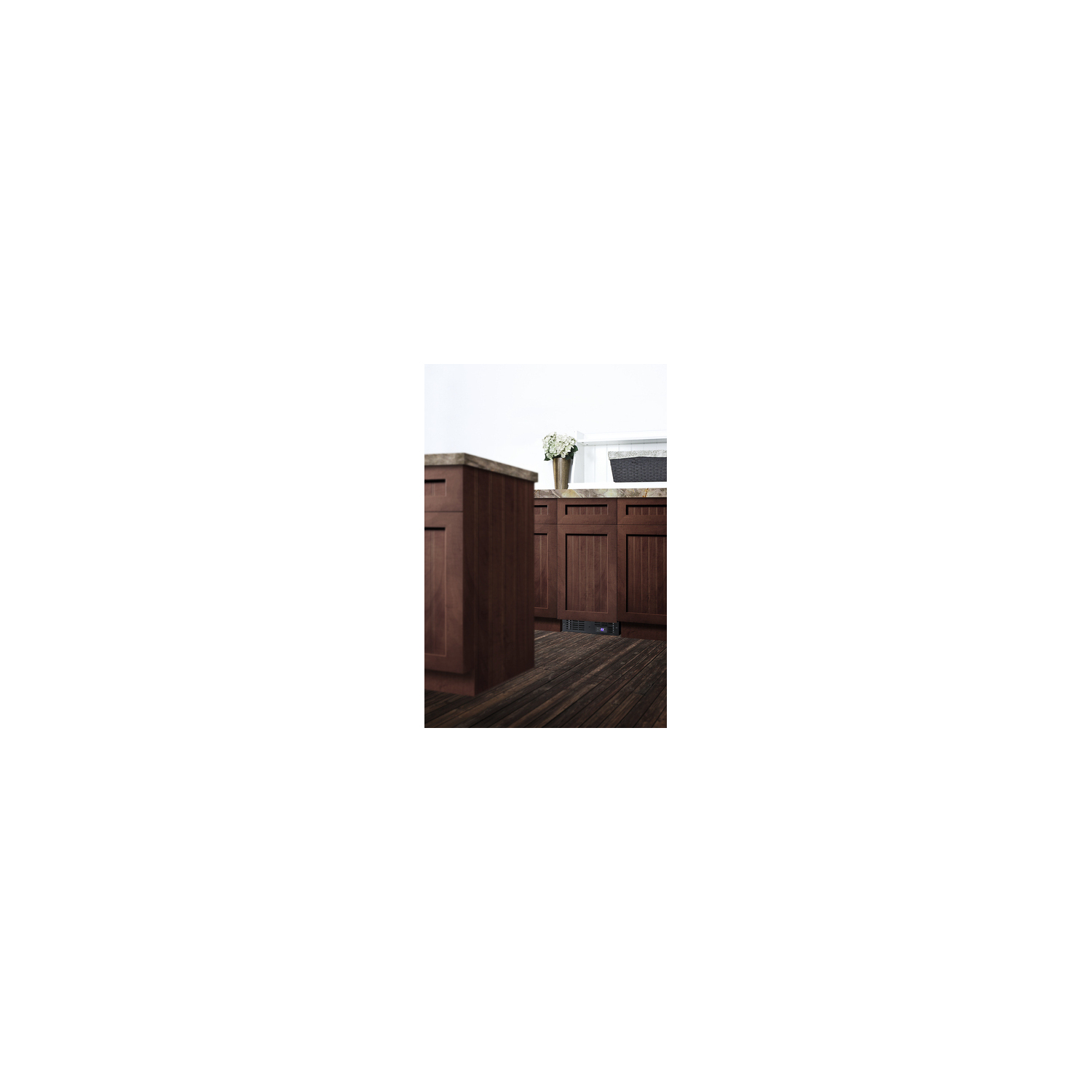

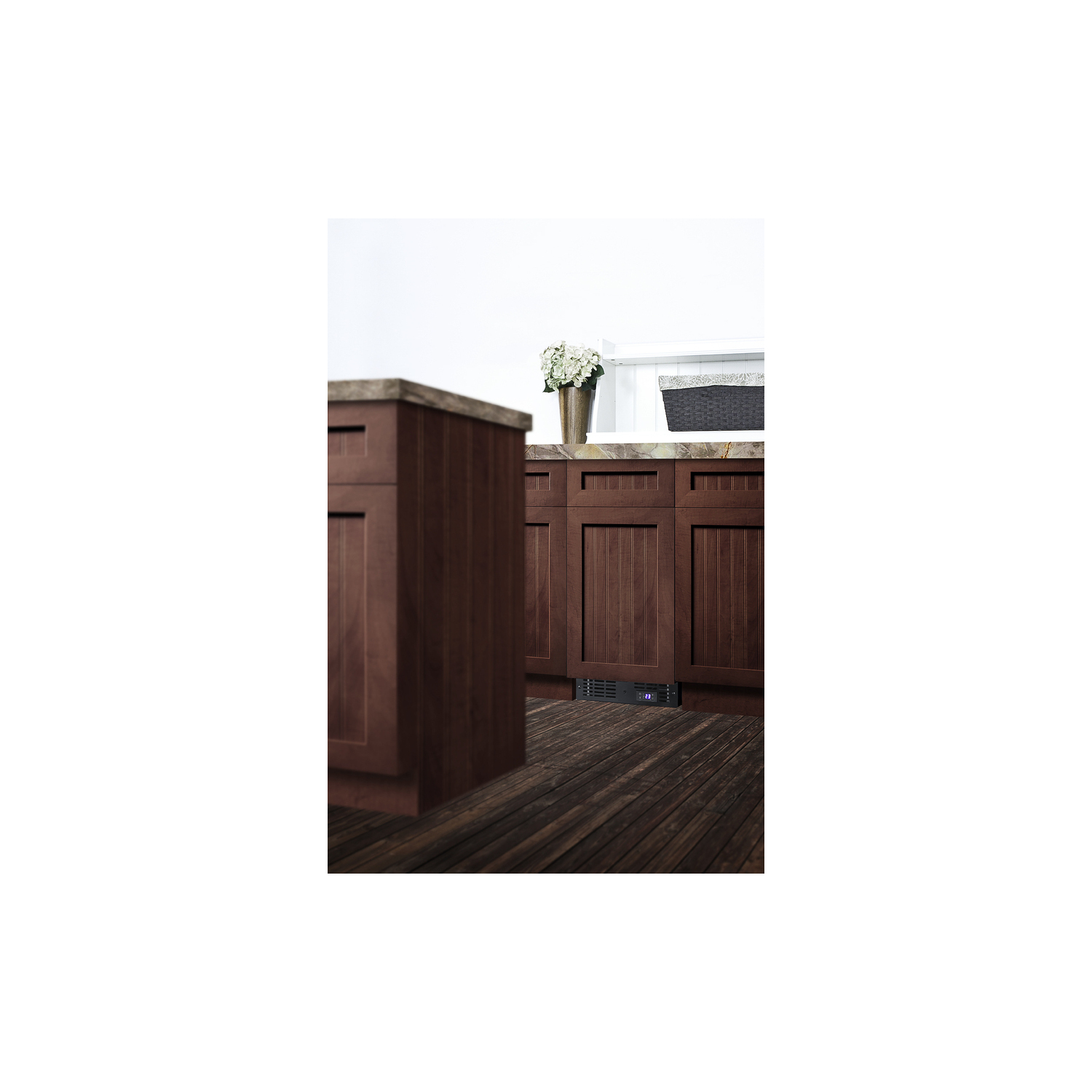

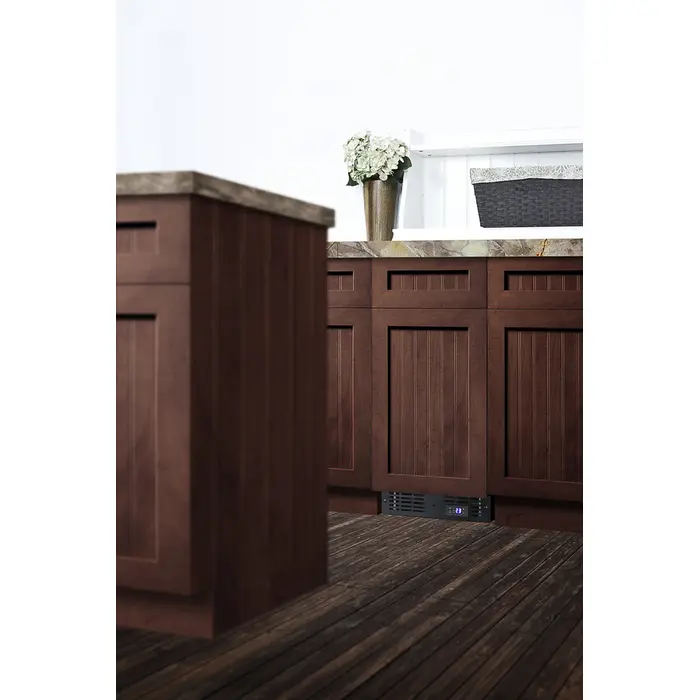

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Fully finished black cabinet Allows the unit to be used freestanding

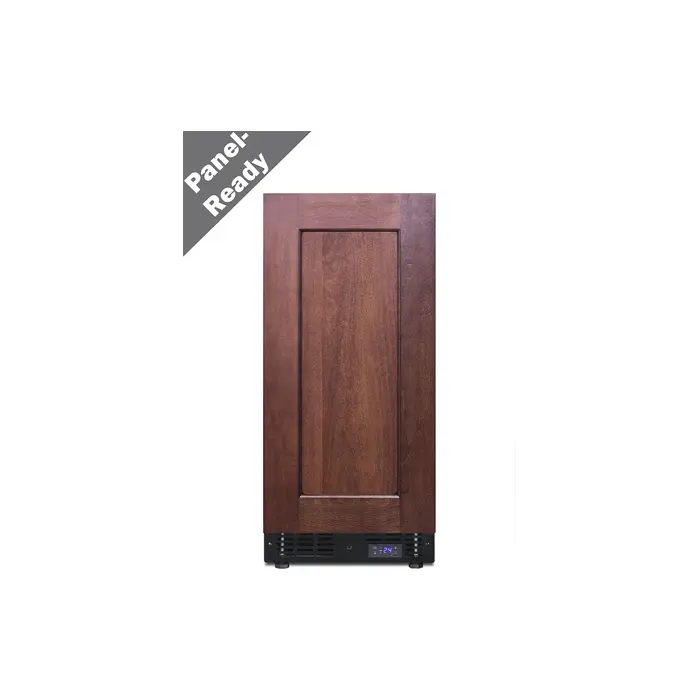

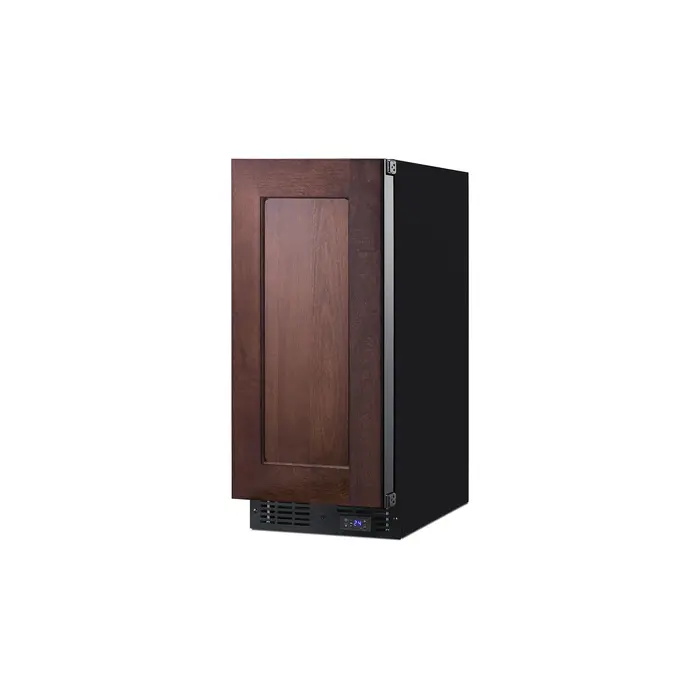

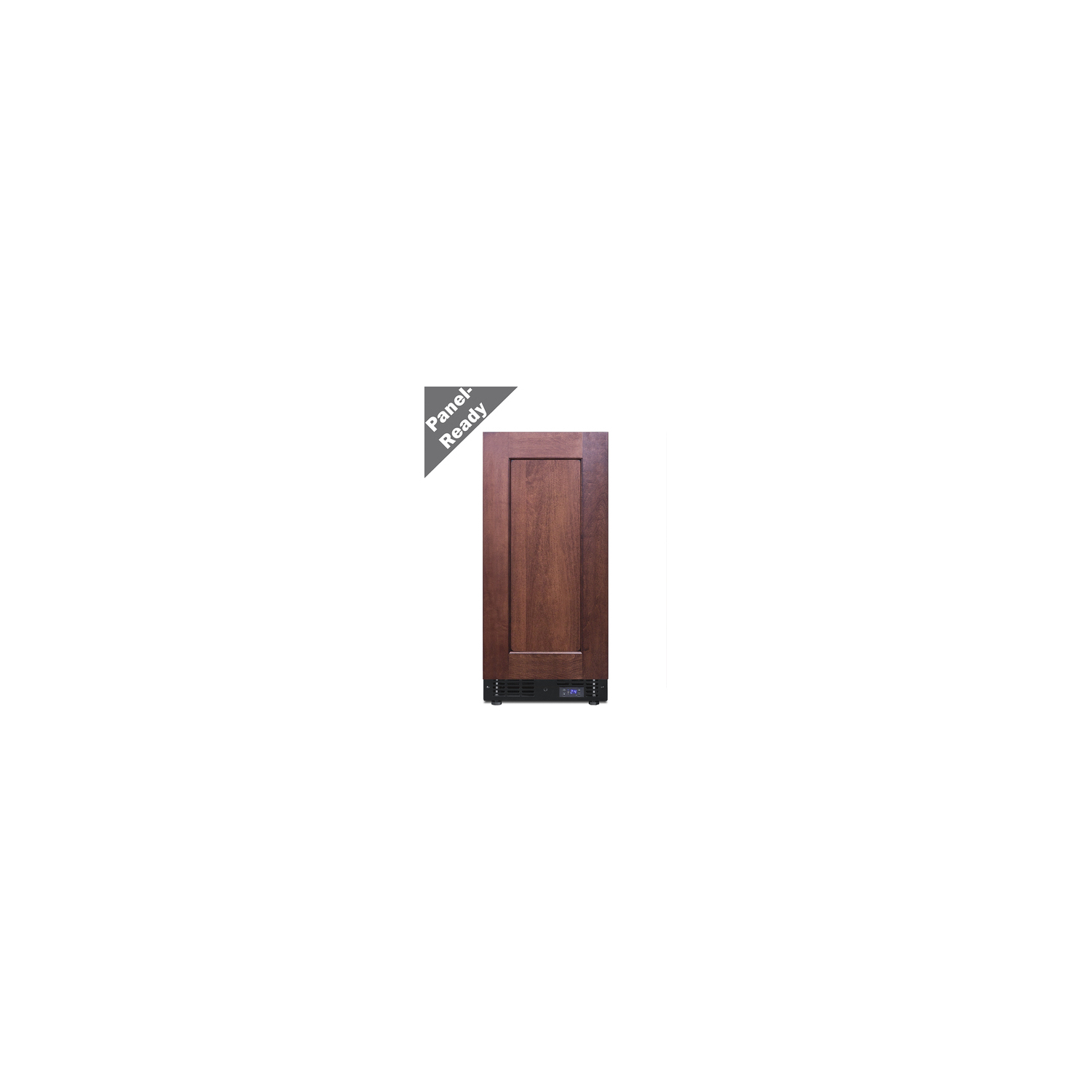

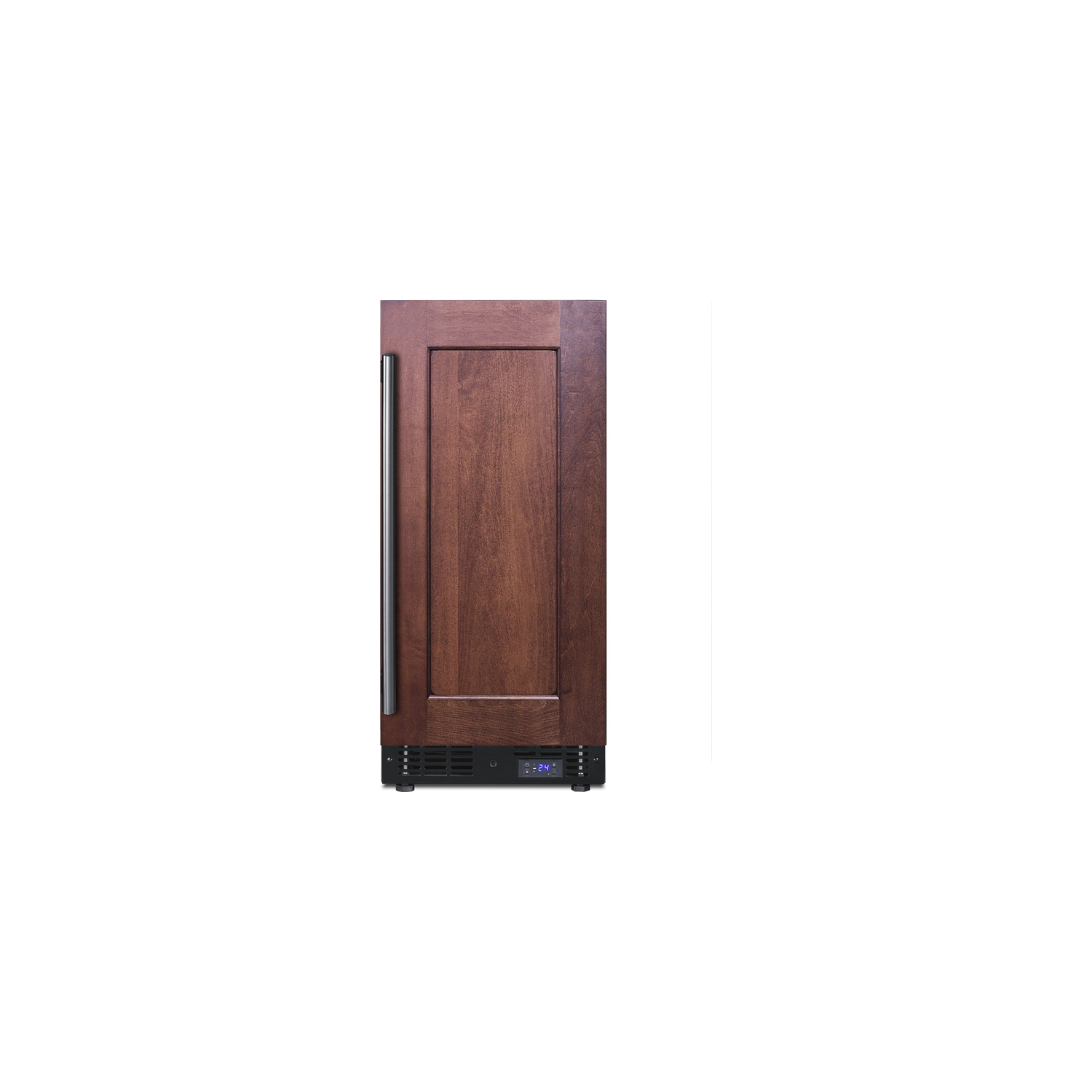

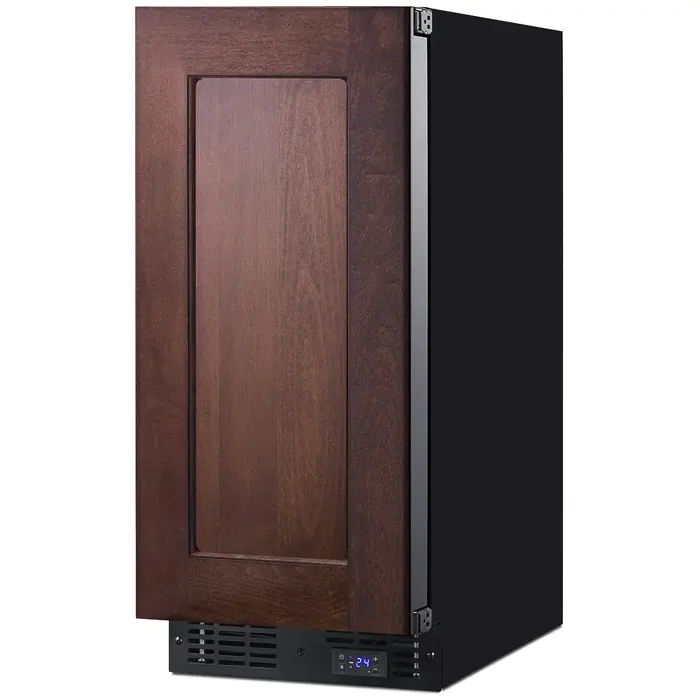

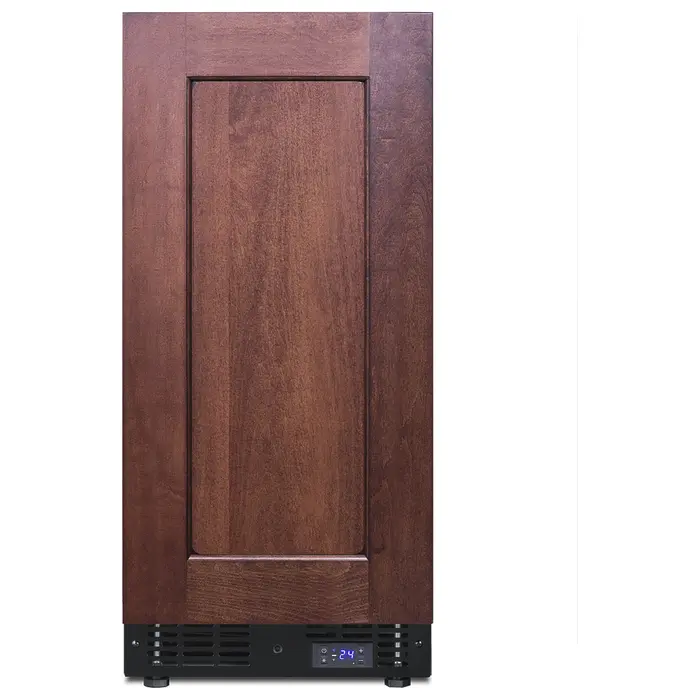

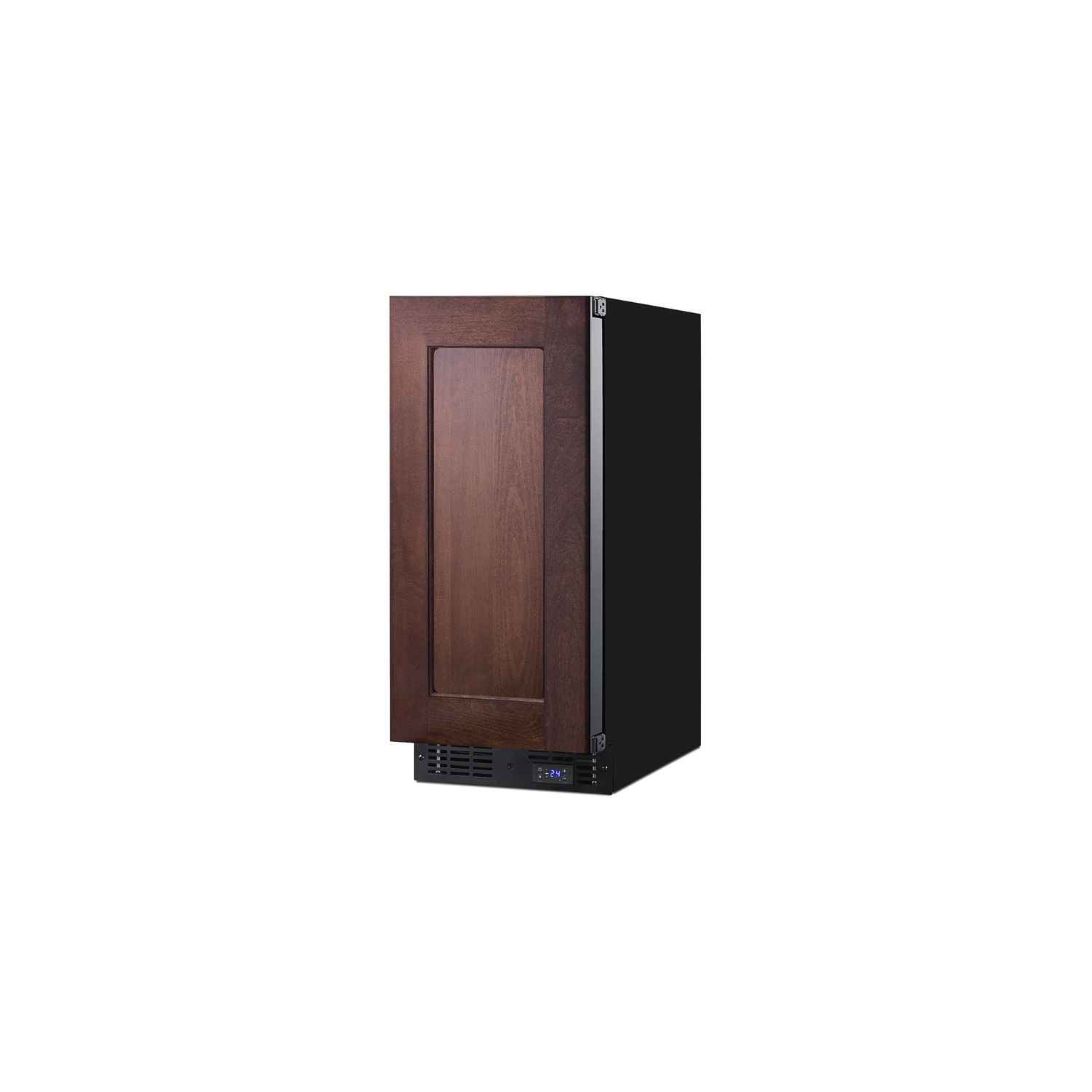

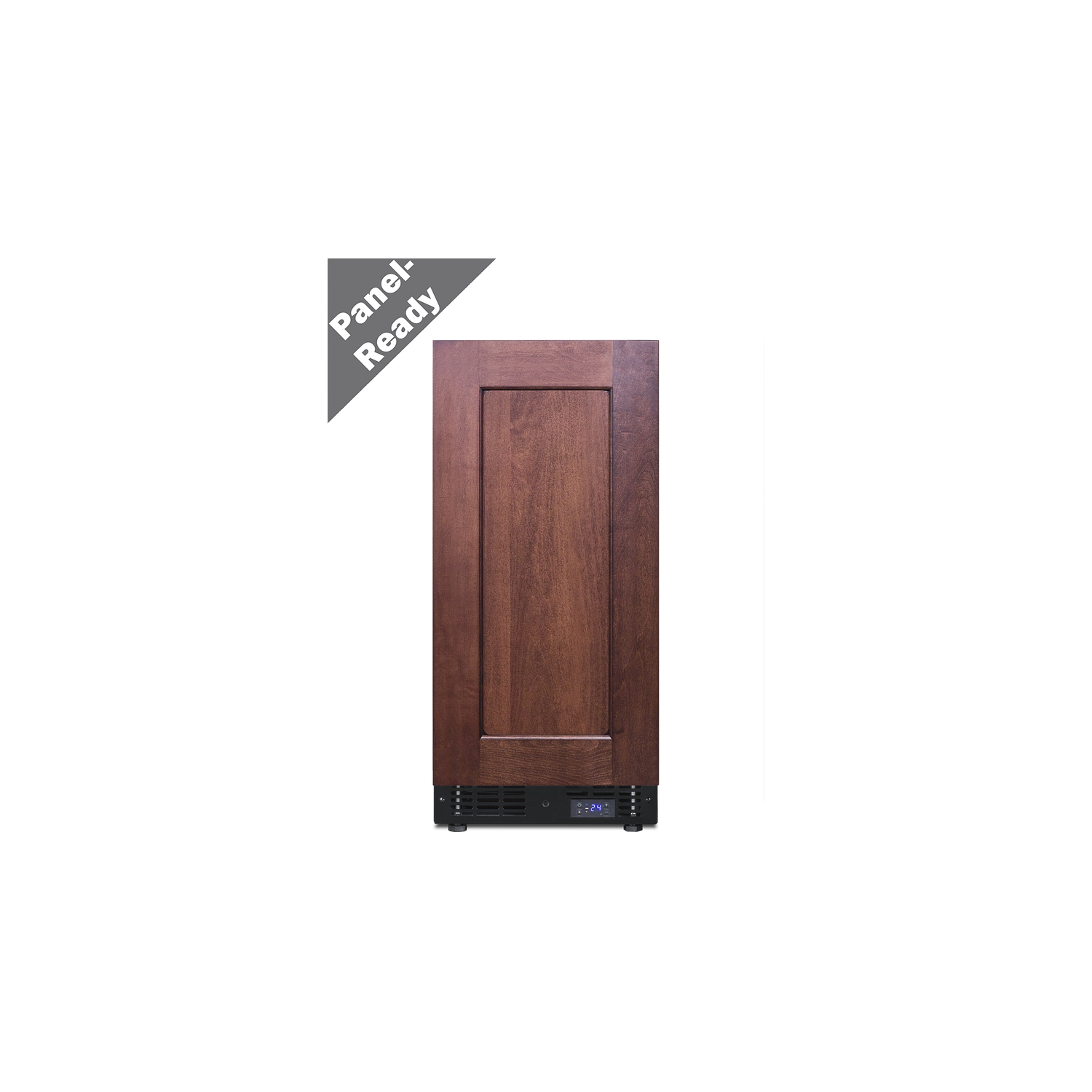

Panel-ready door European style articulating door hinge and 2-piece bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 7/8" H x 14 5/8" W

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Frost-free operation Eliminates the need to manually defrost the interior

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back Space saving design

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (SCFF1533BIF.pdf)

USE & CARE (SCFF1533BIF-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
