Summit 15 inch wide frost-free freezer for built-in or freestanding use, with stainless steel wrapped exterior, lock, and digital thermostat, 7.61101e+011, SCFF1533BCSS

Summit brings true convenience to small kitchen spaces with the SCFF1533BCSS, a 15" wide fully frost-free all-freezer.

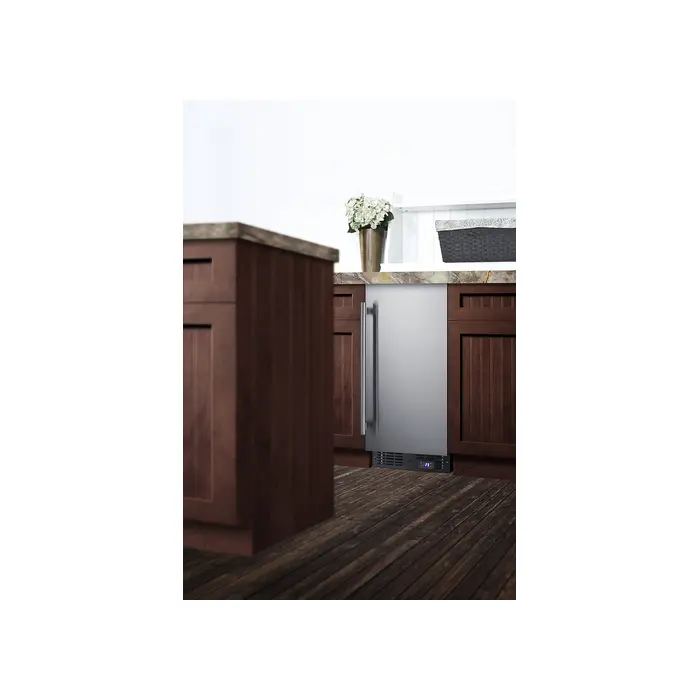

The SCFF1533BCSS is front-breathing for built-in installation under counters, but can also be used freestanding. The cabinet and door are fully wrapped in stainless steel, with a sleek handle to complete the look. The user-reversible door includes a factory installed lock for added security.

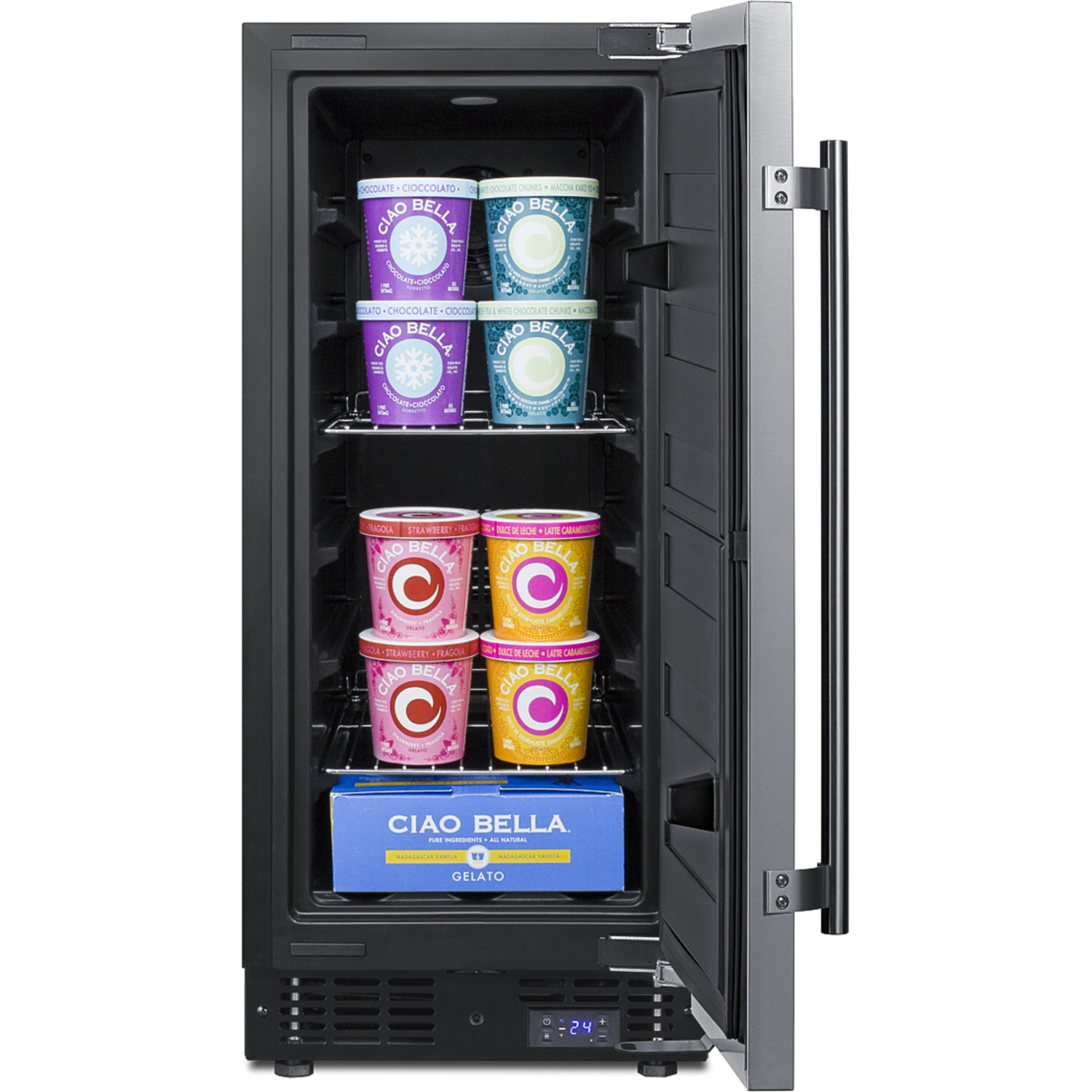

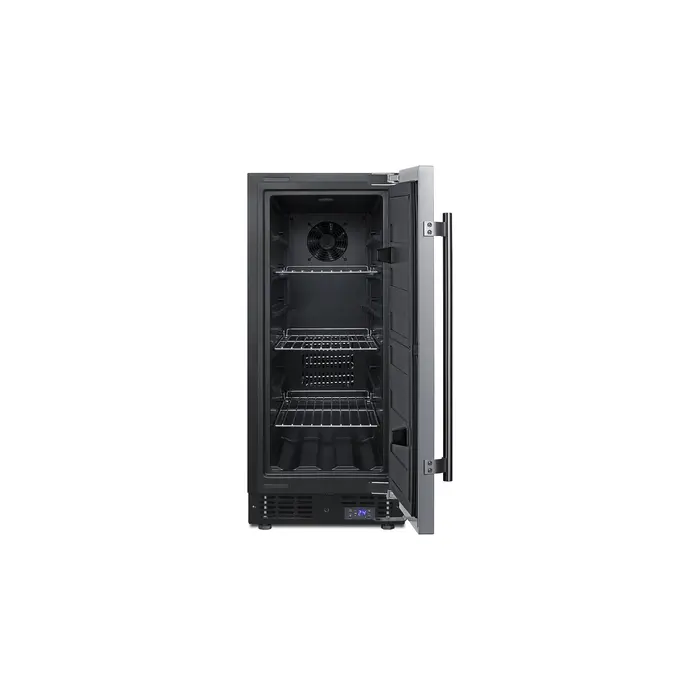

Inside, the SCFF1533BCSS is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items. Recessed LED lighting provides an elegant and efficient display inside the 2.4 cu.ft. interior. This unit includes a digital thermostat in the kickplate for easy and intuitive temperature control.

With a uniquely slim size and user-friendly features, the SCFF1533BCSS is the ideal freezer for space-challenged homes. This unit can be paired with the matching FF1532BCSS all-refrigerator as a side-by-side set or combined with our Stack15.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Capacity 2.4 cu.ft. (68 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 330.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 87.0 lbs. (39 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101055855

Freezer

Door Swing RHD

Reversible Yes

Interior Height 25.25" (64 cm)

Interior Width 10.25" (26 cm)

Interior Depth 16.38" (42 cm)

Shelf Type Chrome

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.88 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 4

Compressor Step Height 3.63" (9 cm)

Compressor Step Width 10.25" (26 cm)

Compressor Step Depth 4.63" (12 cm)

Temperature Range -11°F to 11°F

Sabbath Mode Yes

FEATURES

Built-in capable Make the best use of space by installing your appliance under the counter

Fully finished cabinet Allows the unit to be used freestanding

Stainless steel door Fully wrapped in stainless steel for a professional look

Factory installed lock Keyed lock for a secure interior

Frost-free operation Eliminates the need to manually defrost the interior

Digital thermostat Electronic controls for precise temperature management.

LED lighting Gentle illumination with an on/off switch

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Flush back Space saving design

Open door alarm Audible alarm will sound if the door is left ajar for over a minute

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (SCFF1533BCSS.pdf)

REVIT MODEL (QF_Summit_SCFF1533B_15_Wide_Frost_Free_Freezer.rfa)

USE & CARE (SCFF1533BCSS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
