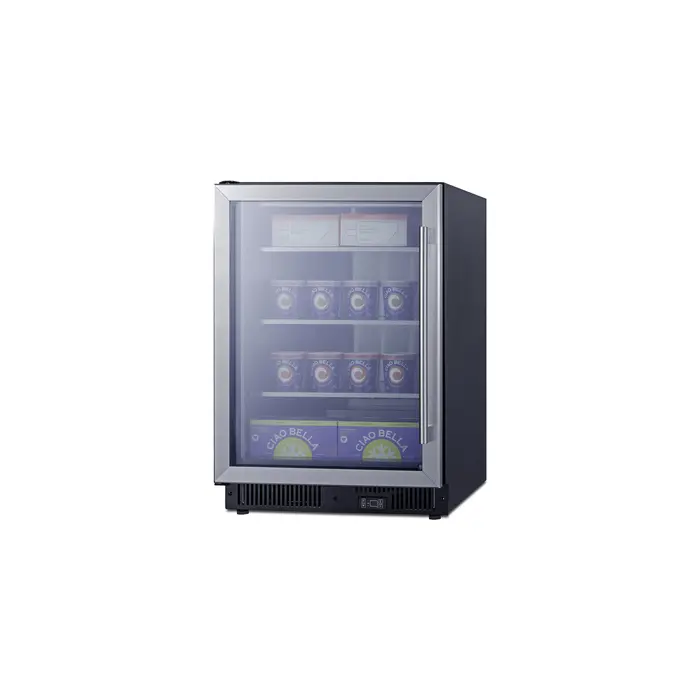

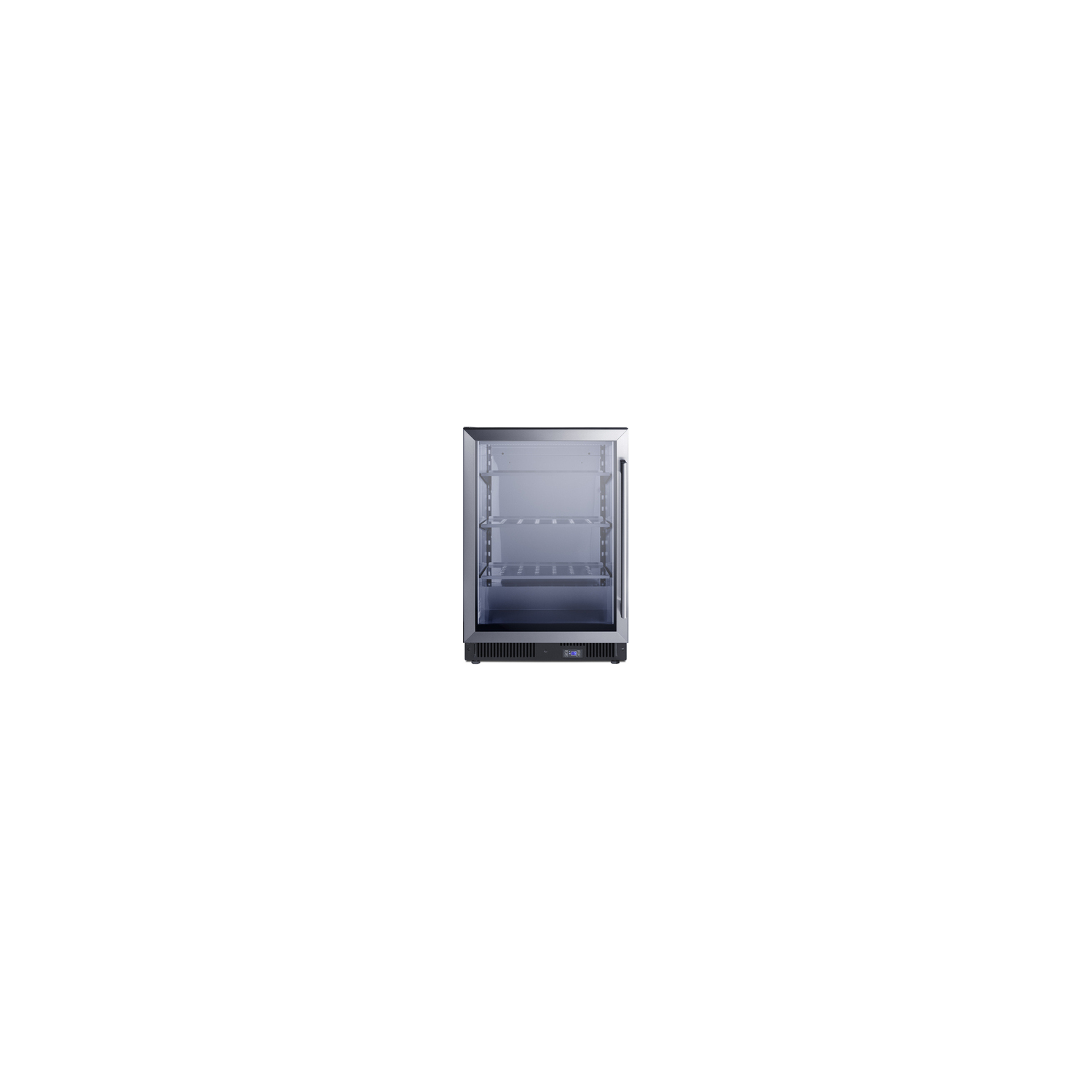

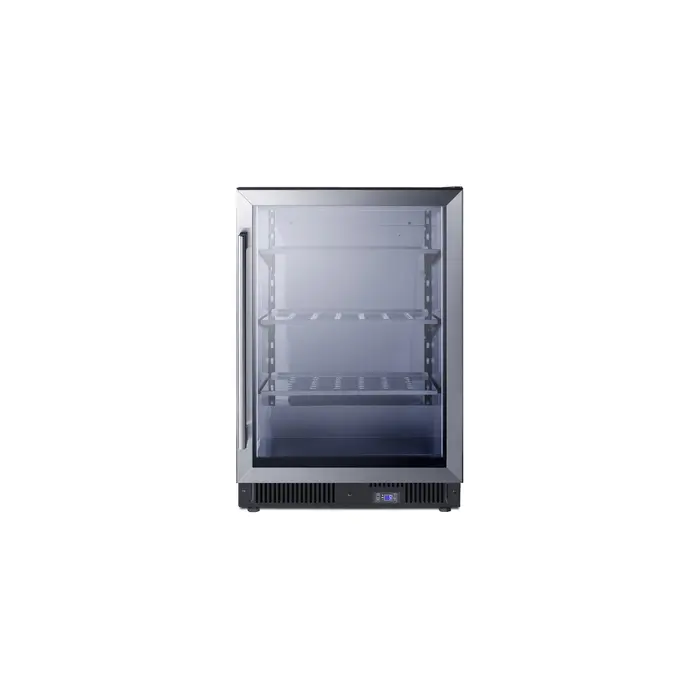

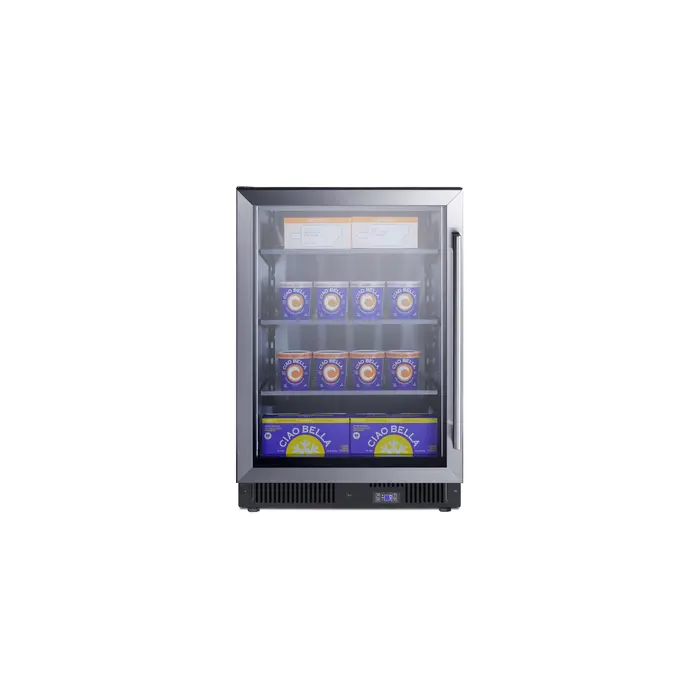

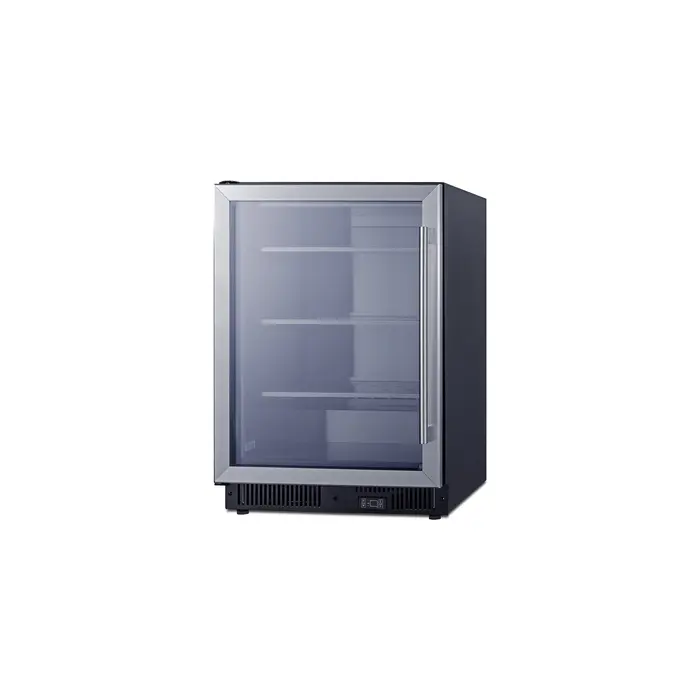

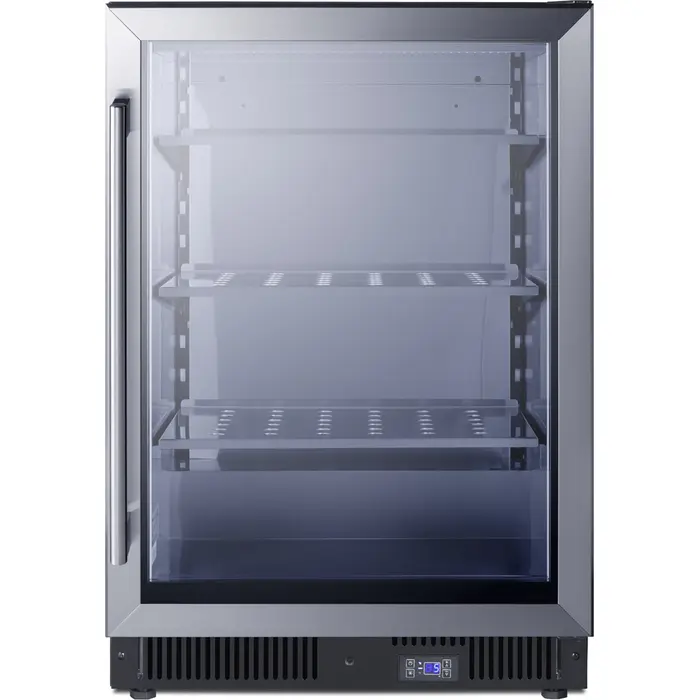

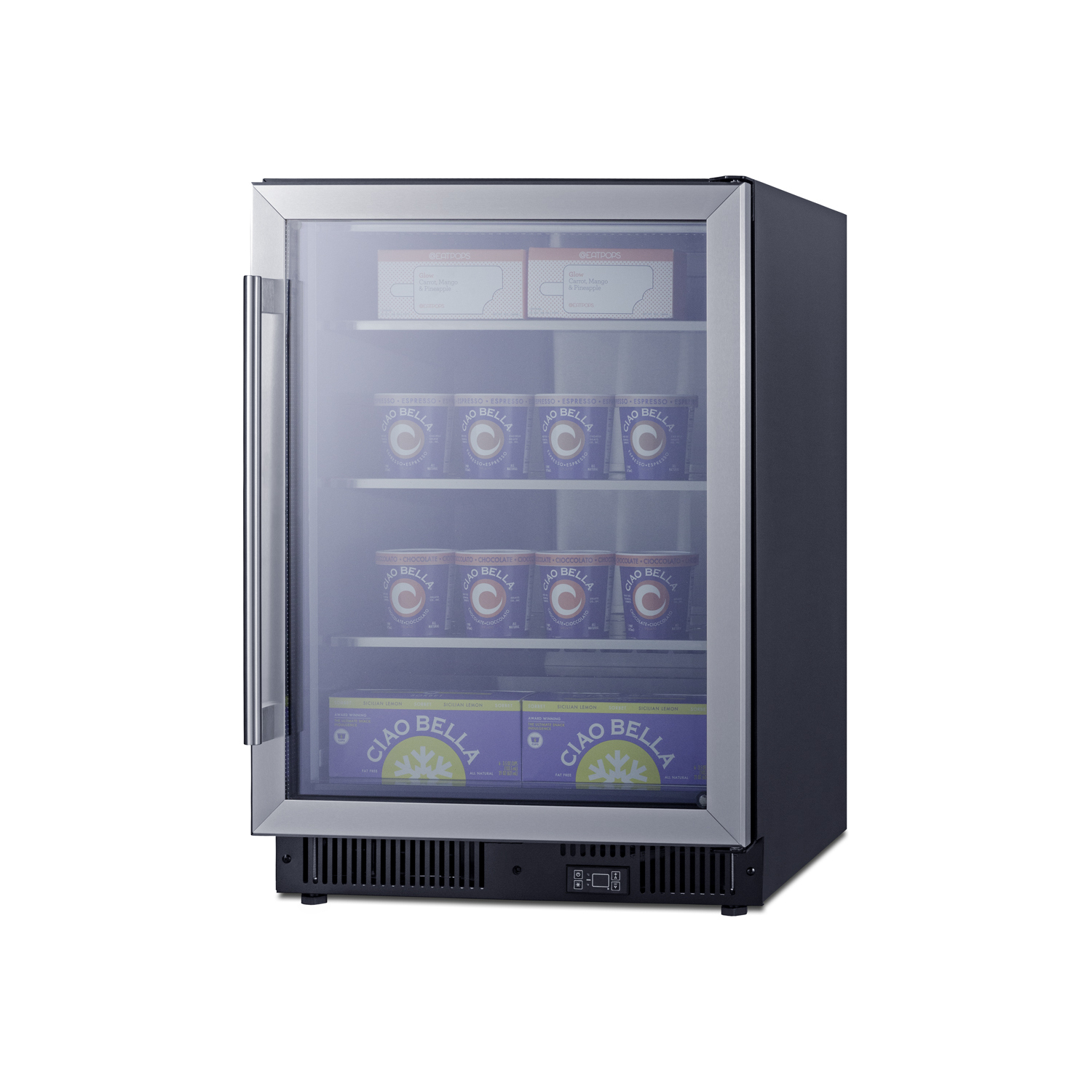

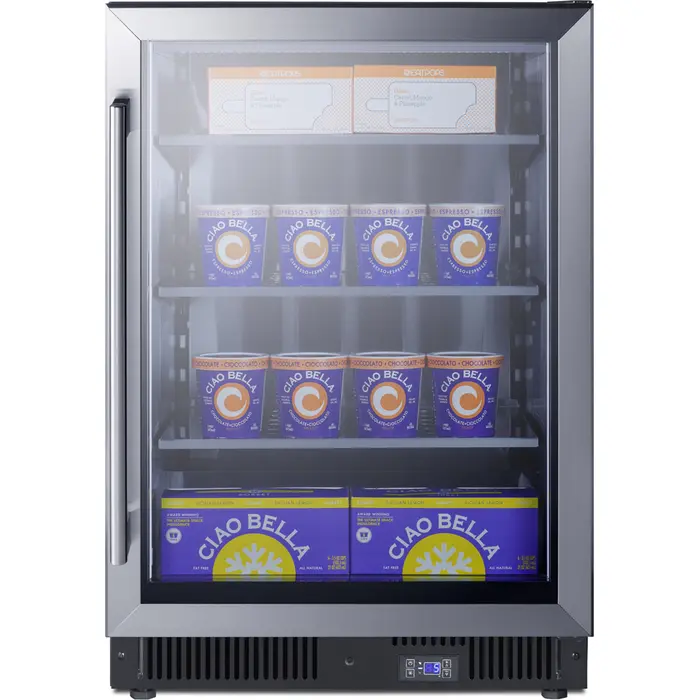

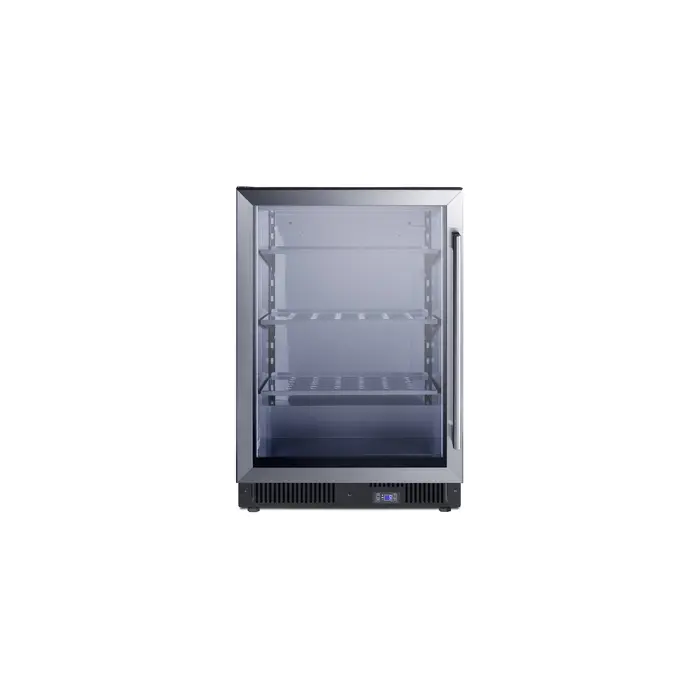

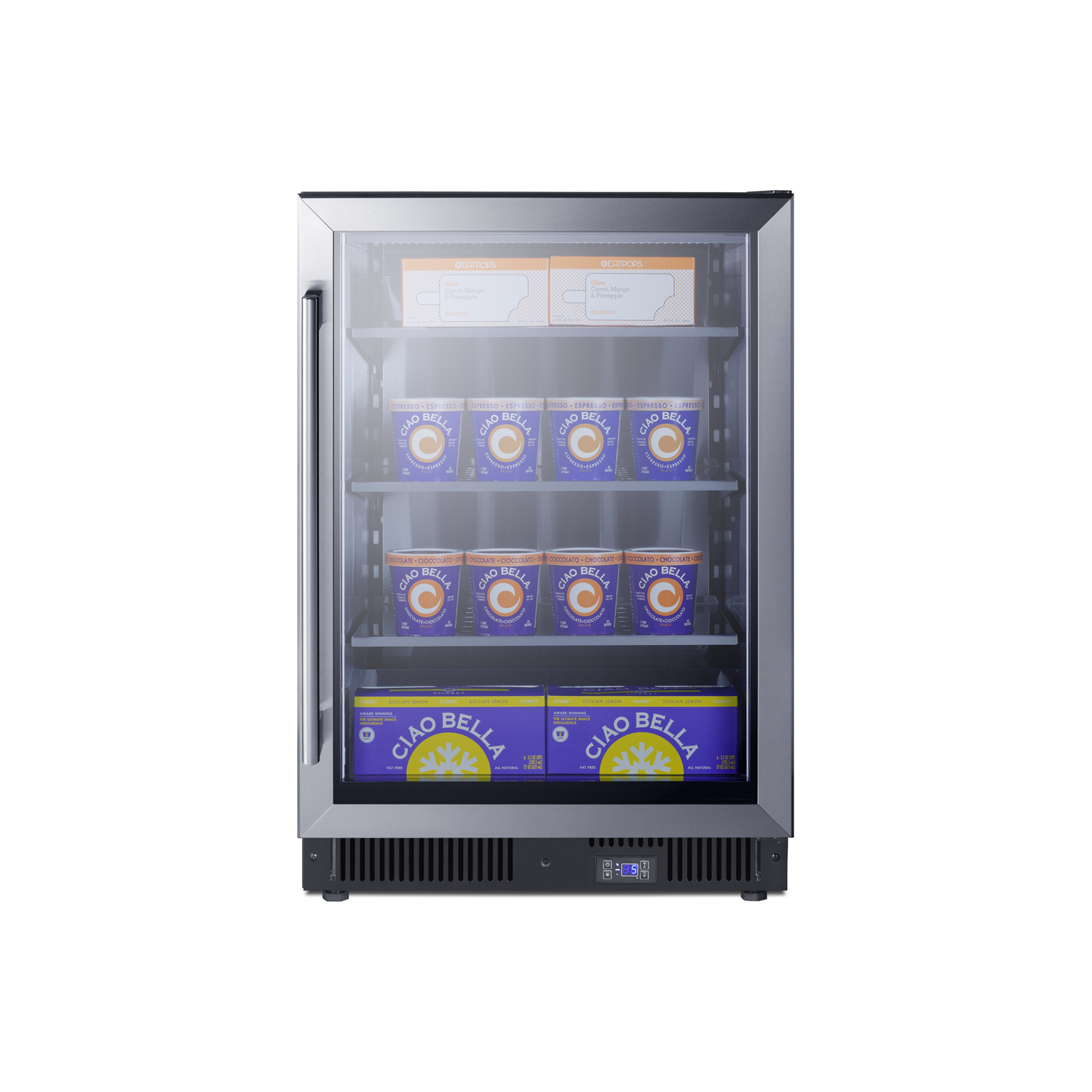

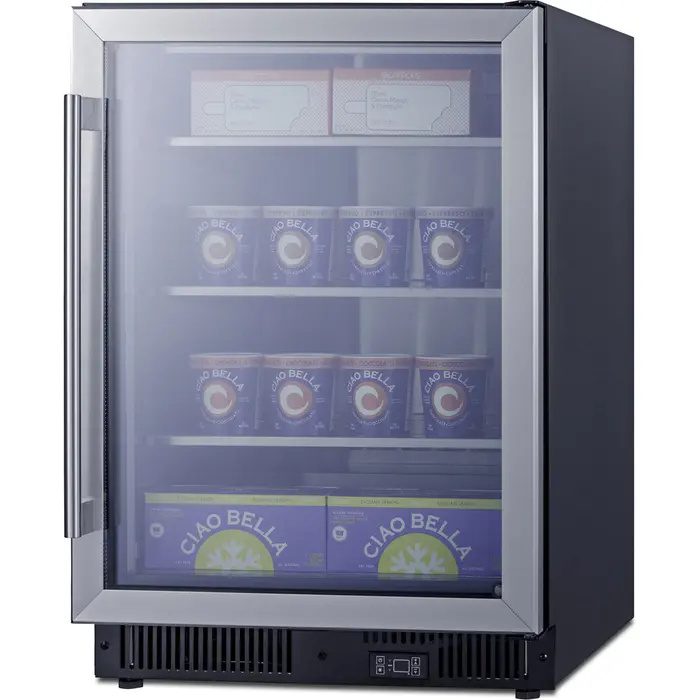

Summit 24 inch wide frost-free undercounter freezer with glass door, 7.61101e+011, SCF475

Summit's commercial series of undercounter freezers offers an attractive display for maximizing impulse sales and keeping products under reliable cold storage conditions.

The SCF475 is a frost-free freezer with an easy-fitting 24" footprint and a front-breathing design ideal for built-in installation under counters. The stainless steel trimmed door features triple-pane tempered glass that is vacuum insulated with a low-e coating, helping to improve energy efficiency and ensure items are on full display. LED lighting in the side walls helps to provide attractive illumination. For increased security, the unit features a factory-installed lock in the kickplate. The digital thermostat is externally located for easy temperature management. The door is user-reversible to best suit your space, with a pro style handle included.

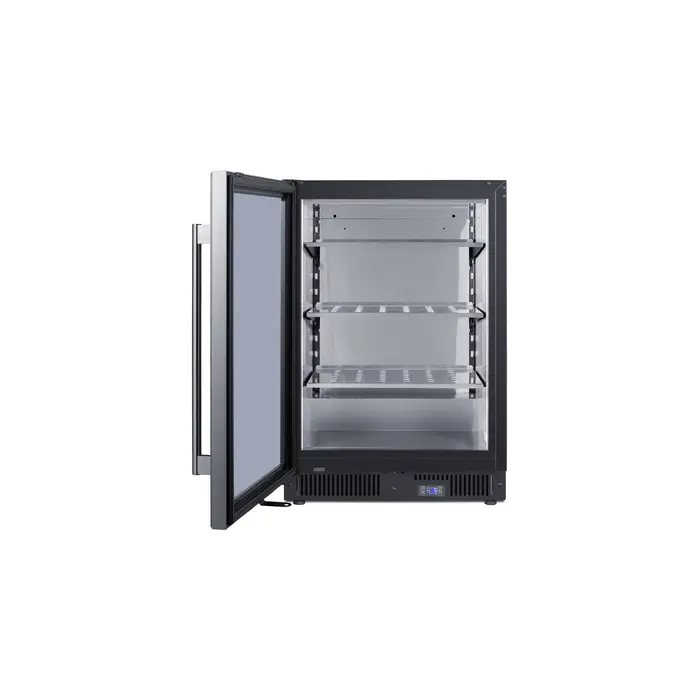

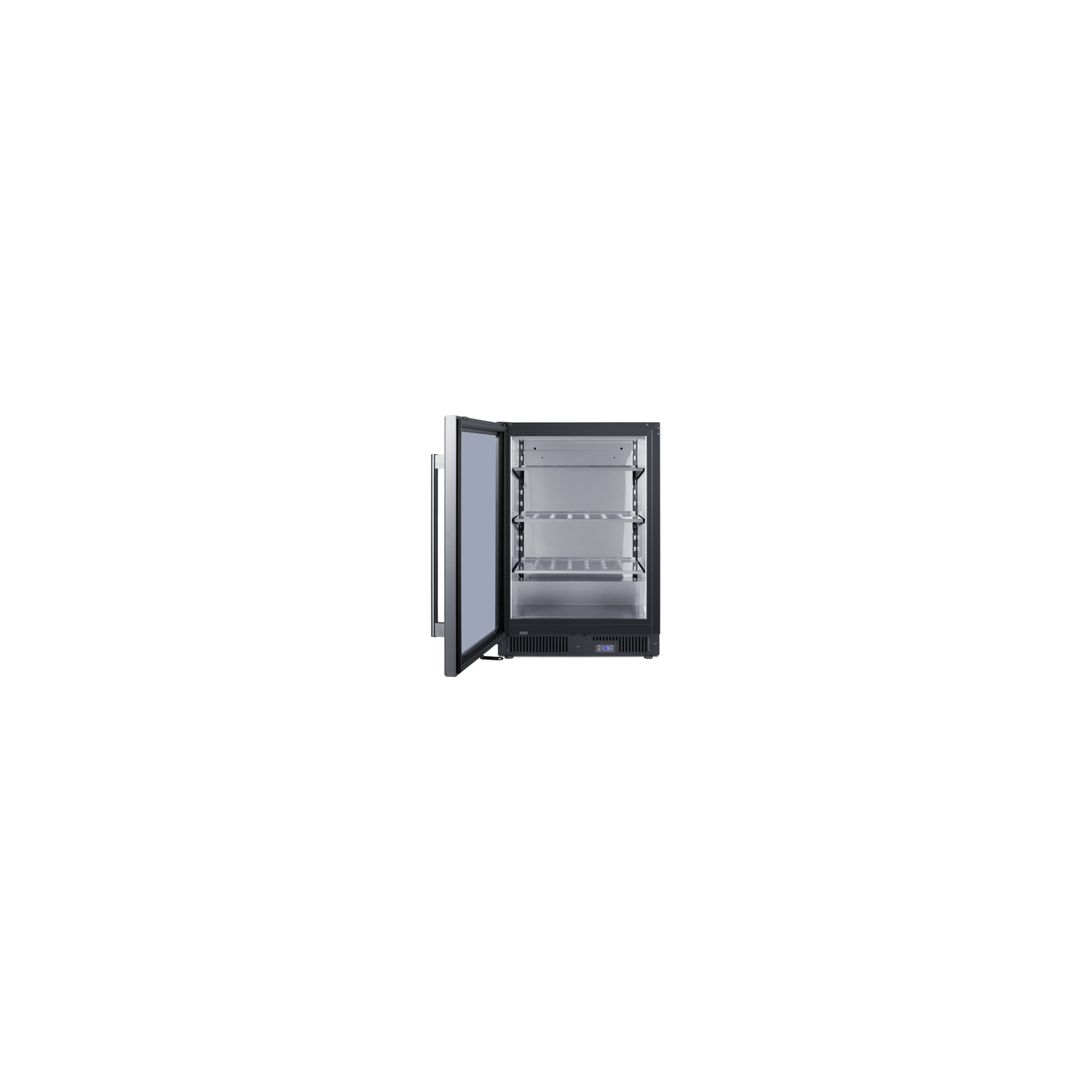

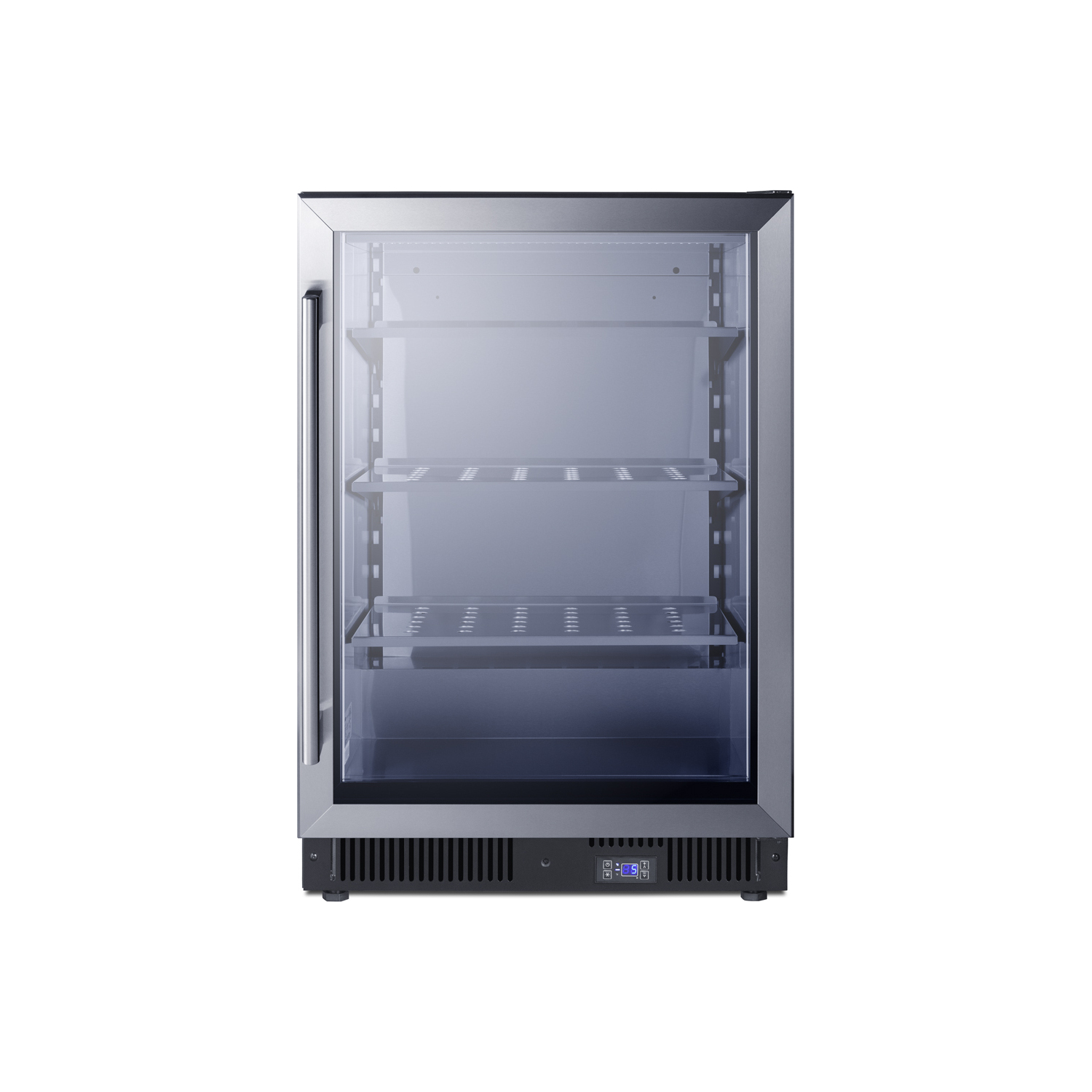

Inside, the SCF475 features 5.14 cu.ft of storage space and stainless steel construction for improved durability and sanitation. A commercial-grade cantilevered shelving system allows flexible storage. Three perforated steel shelves are designed to hold up to heavy duty commercial use and ensure proper cold air circulation. This freezer includes a SuperFreeze setting, which is great for freezing newly loaded foods quickly. Additional features include an open door alarm, high-temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The SCF475 is ETL-S listed to NSF-7 for use in commercial settings. With its deluxe style, user-friendly features, and low maintenance frost-free operating system, this freezer offers premium value for bars, restaurants, hotel marketplaces, and other commercial environments. Create a matching set by pairing this with the SCR610BL, our 24" wide stainless steel beverage center.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.75" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.5" (65 cm)

Depth with door at 90° 47.5" (121 cm)

Capacity 5.14 cu.ft. (146 L)

Defrost Type Frost-Free

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.5

Voltage/Frequency 115 V AC/60 Hz

Weight 145.0 lbs. (66 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101109022

Freezer

Door Swing RHD

Reversible Yes

Interior Height 25.5" (65 cm)

Interior Width 19.5" (50 cm)

Interior Depth 17.24" (44 cm)

Shelf Type Metal

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.31 oz.

High Side PSI 270.0

Low Side PSI 105.0

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 19.5" (50 cm)

Compressor Step Depth 4.75" (12 cm)

Temperature Range -11 to +11ºF

Sabbath Mode Yes

FEATURES

24" Wide Built-In Glass Door Freezer 24" wide 5.14 cu.ft. built-in frost-free freezer with glass door for easier visibility in commercial settings

Commercially Approved ETL-S listed to NSF-7 Standards for use in commercial establishments

Frost-Free Operation No-frost convenience eliminates the need to manually defrost the unit

Built-In Capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

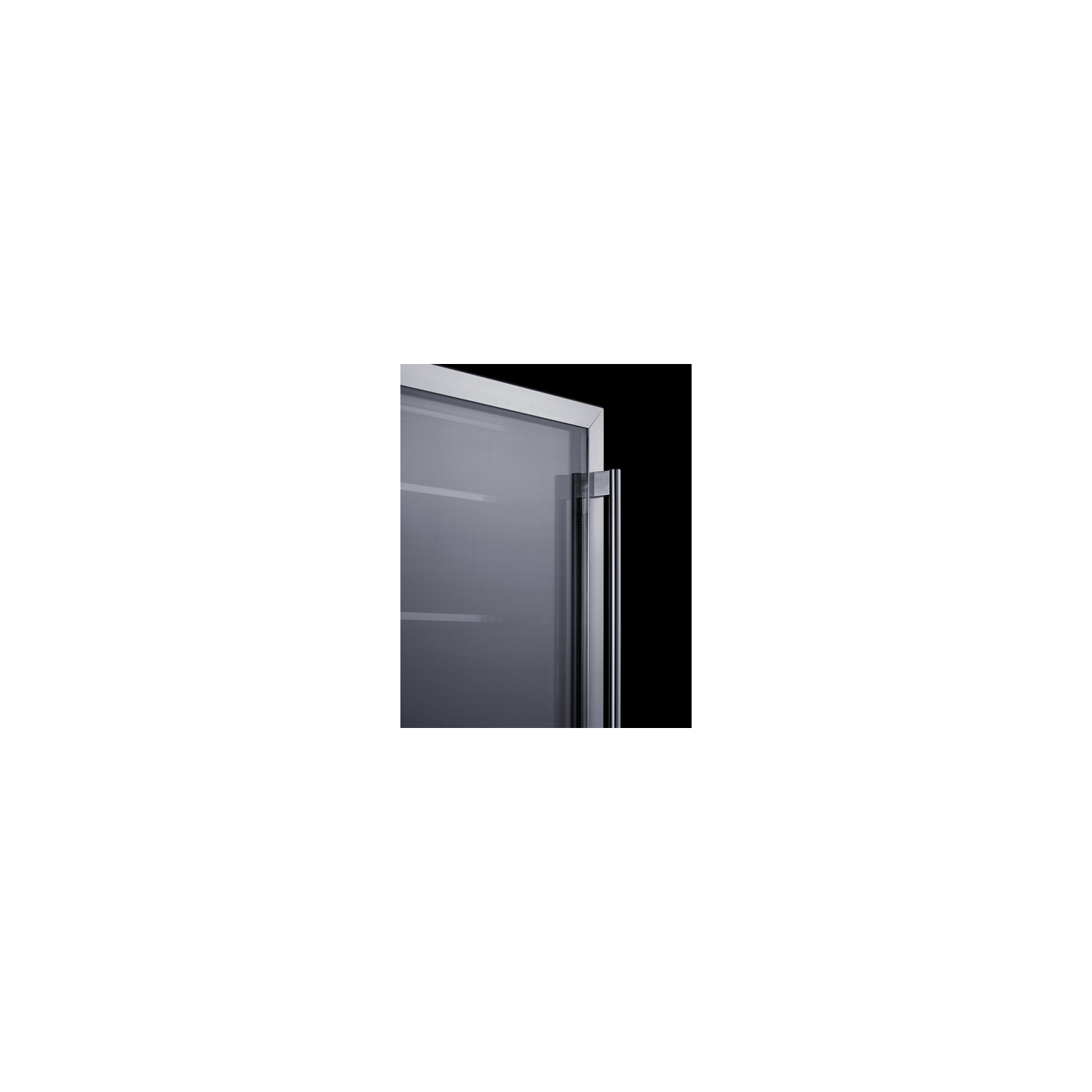

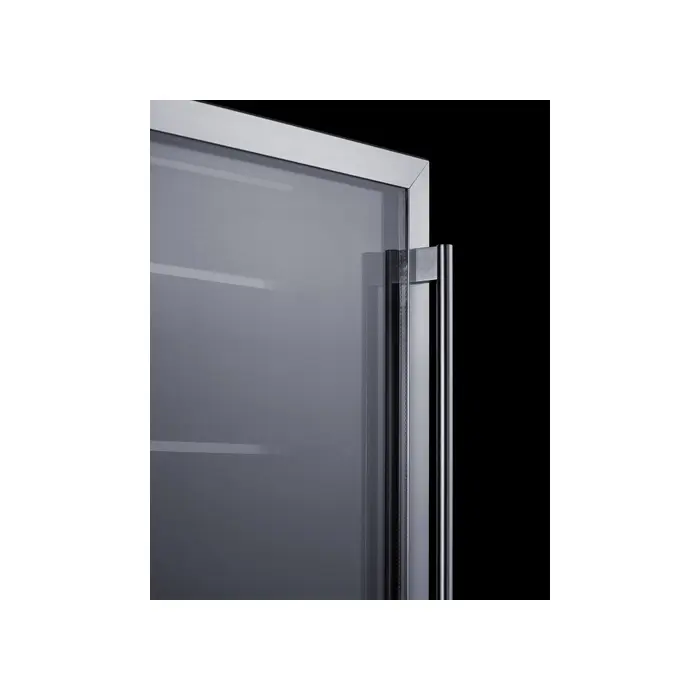

Triple Pane Tempered Glass Door Stainless steel trimmed glass door with a gentle tint offers a full display of stored items to help maximize impulse sales

Vacuum Insulated Glass Advanced VIG technology includes a low-e coating to improve efficiency and prevent condensation on the glass surface, even in high humidity climates

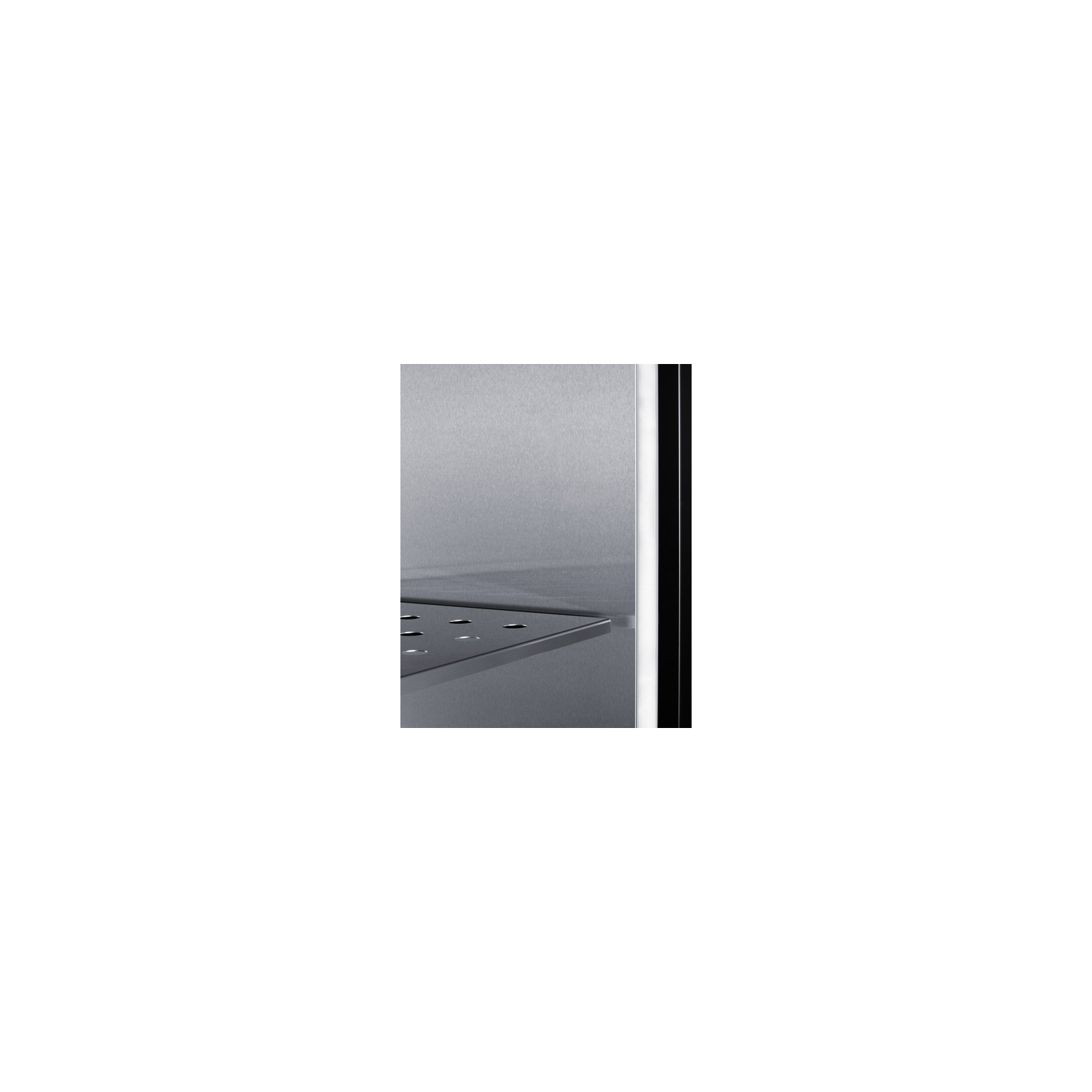

Stainless Steel Interior Interior constructed from stainless steel for added strength and easy cleanup

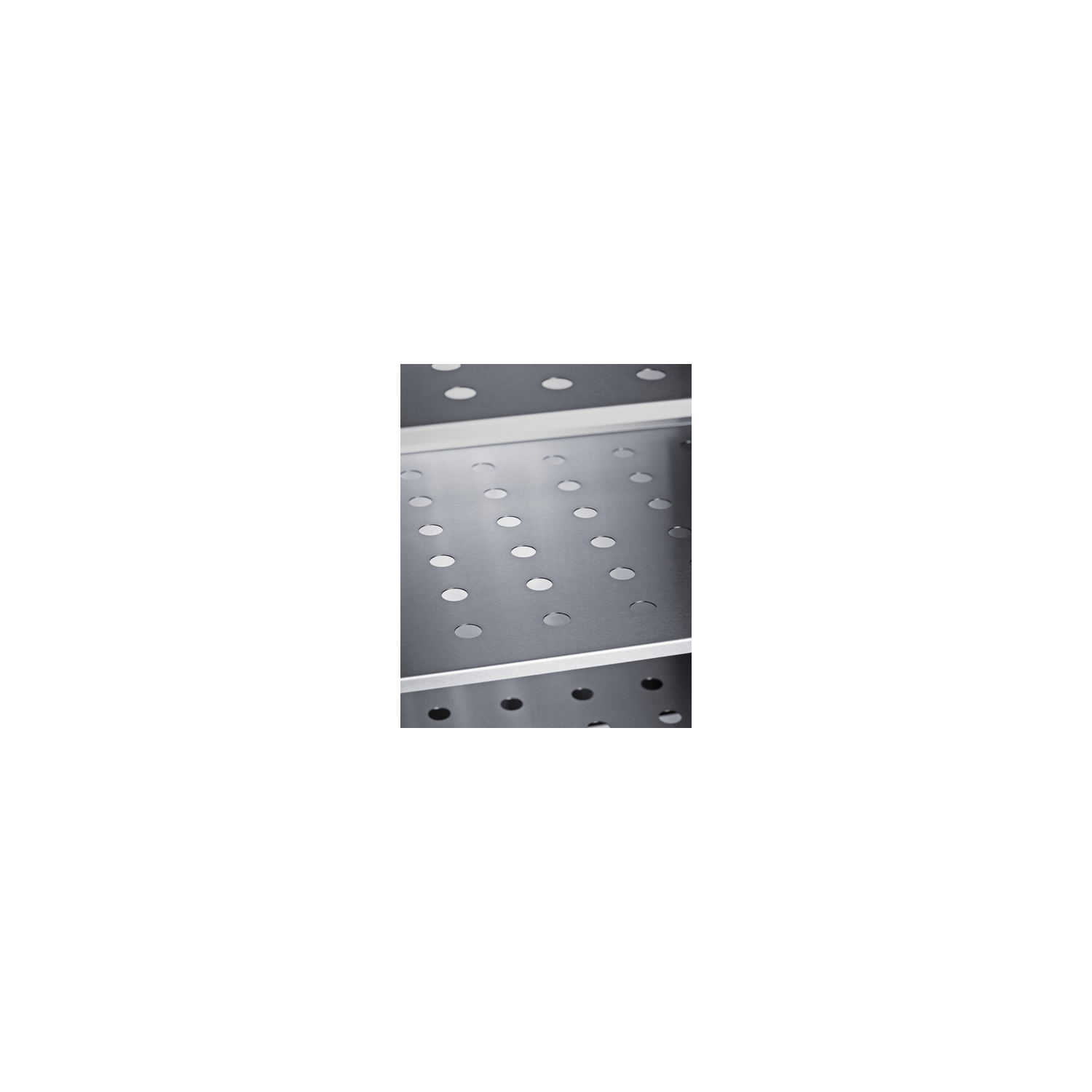

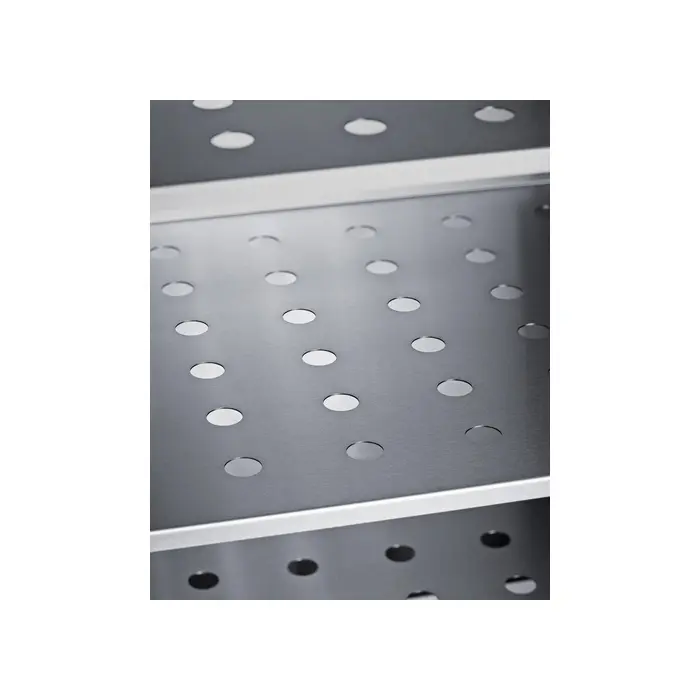

Perforated Metal Shelving Perforations encourages airflow for consistent temperature control and better durability

Cantilevered Shelving Rearrange freezer space to accommodate all sizes or remove shelves for simple cleanup

Digital Thermostat Intuitive digital controls ensure easy temperature management, with a readout viewable in Fahrenheit or Celsius

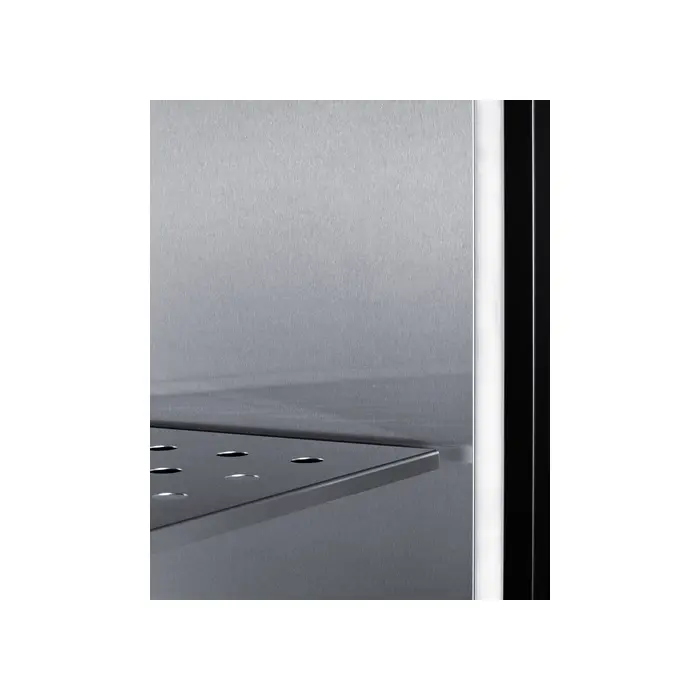

LED Lighting Full-length LED strips located upfront in the side walls to provide an attractive, efficient presentation of stored items

SuperFreeze Function This setting is ideal for freezing fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

High Temperature Alarm Audible alarm sounds if the unit's interior goes out of the recommended range

Open Door Alarm Audible alarm will sound if the door is left open longer than one minute

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Sabbath Mode Optional setting lets you disable the lighting and audible alarms for up to 96 hours

Fan-Forced Cooling Internal fan ensures the interior is evenly cooled from top to bottom

Stainless Steel Handlebar Stainless steel handle completes the professional look

Reversible Door User-reversible door swing for added flexibility

Factory-Installed Lock Keyed lock for a secure interior, with two keys included

Right-Angle Plug Flat design offers added space savings by requiring no extra depth to plug the unit in

Sealed Back Space saving design with easier cleanability

Fully Finished Black Cabinet Allows the unit to be used freestanding

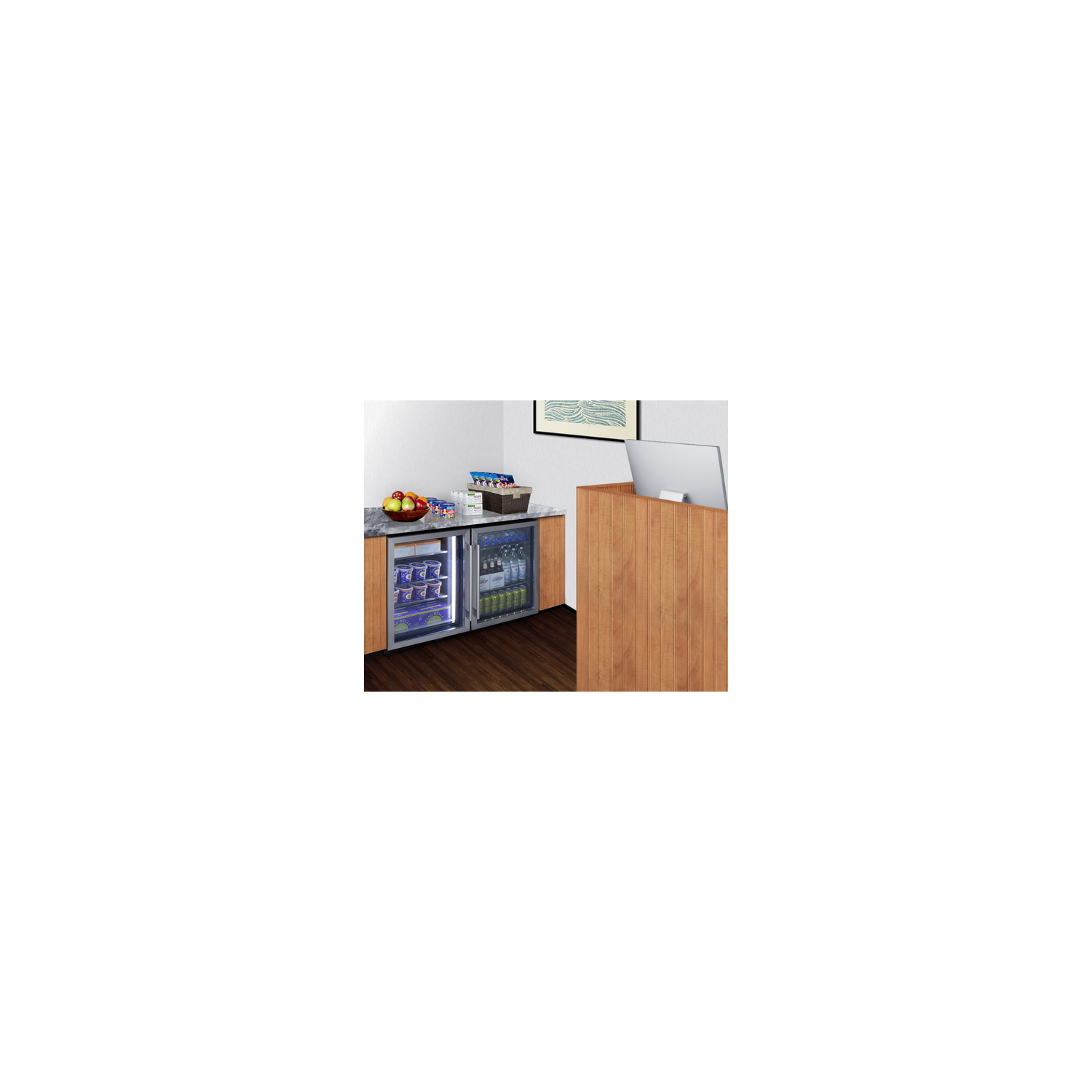

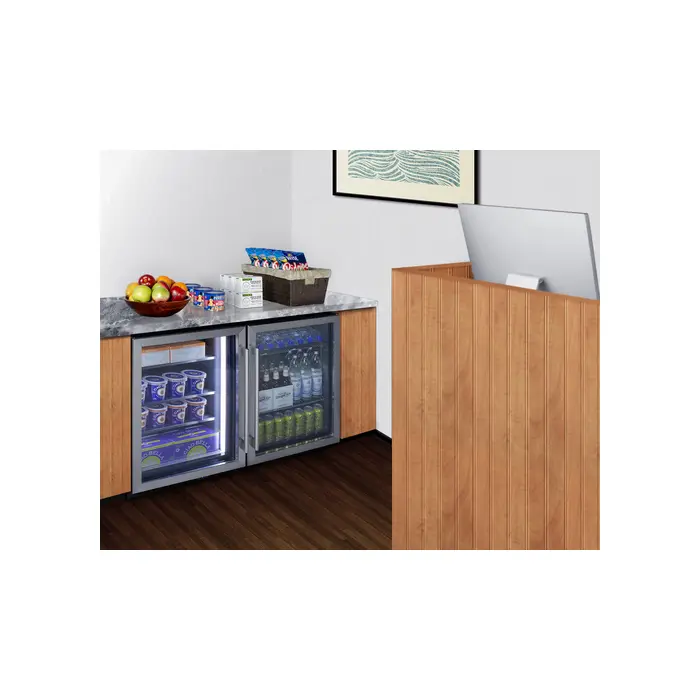

Matching Beverage Center Available Create a matching set with SCR610BL, our stainless steel beverage center

100% CFC Free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
