Summit Commercial dual tap kegerator designed for built-in applications, 7.61101e+011, SBC7BRSIF

Made in Europe, Summit Commercial's SBC7 kegerator series offers refreshing convenience to any home or foodservice setting looking to serve a variety of beverages on tap.

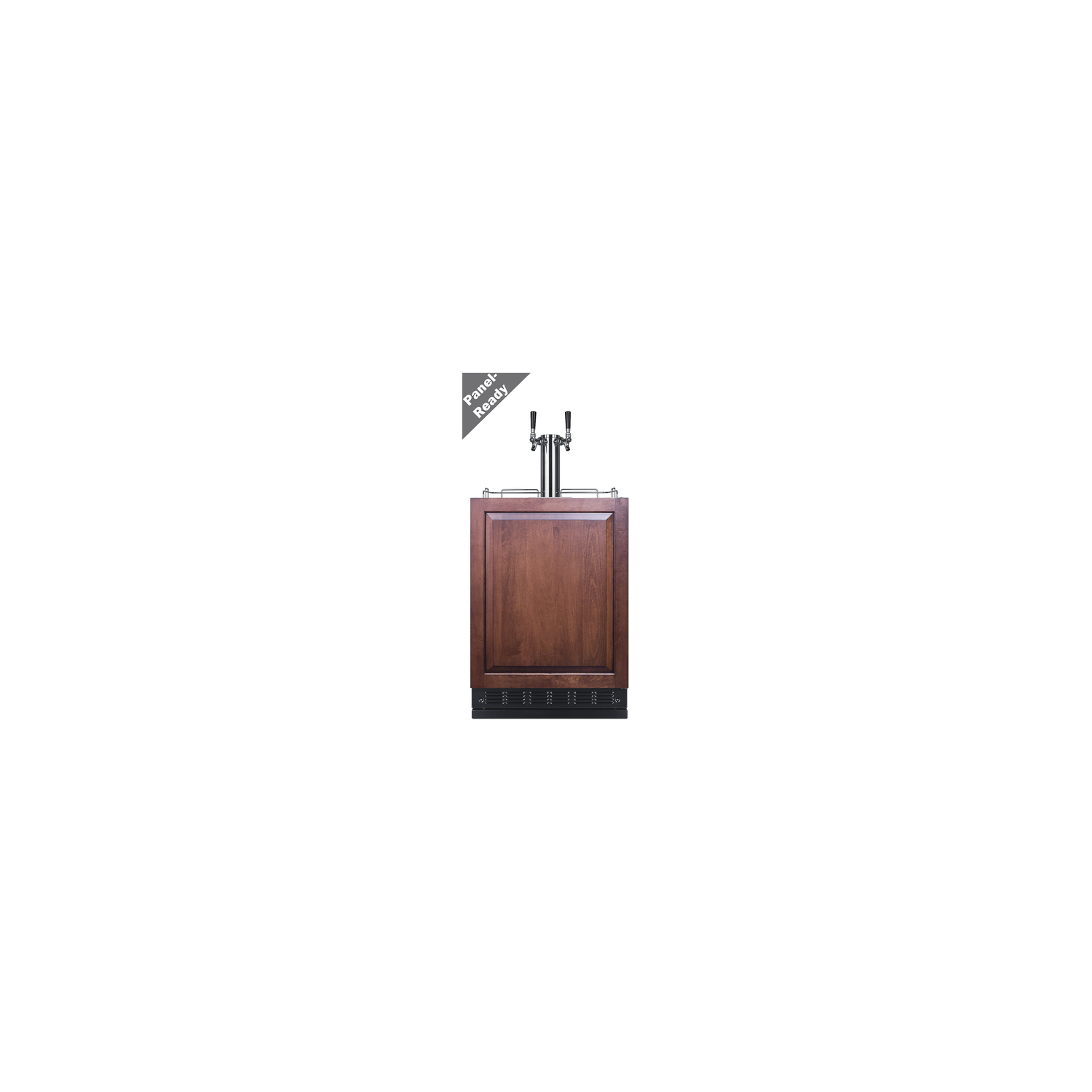

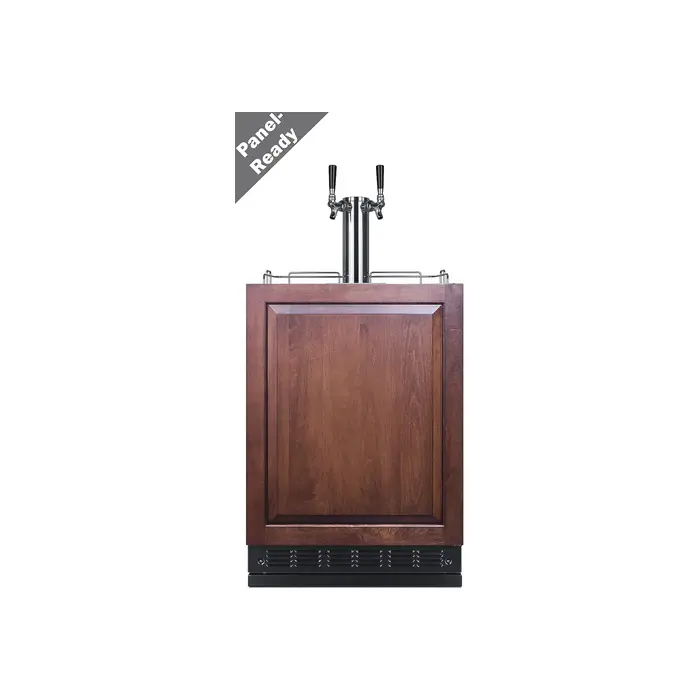

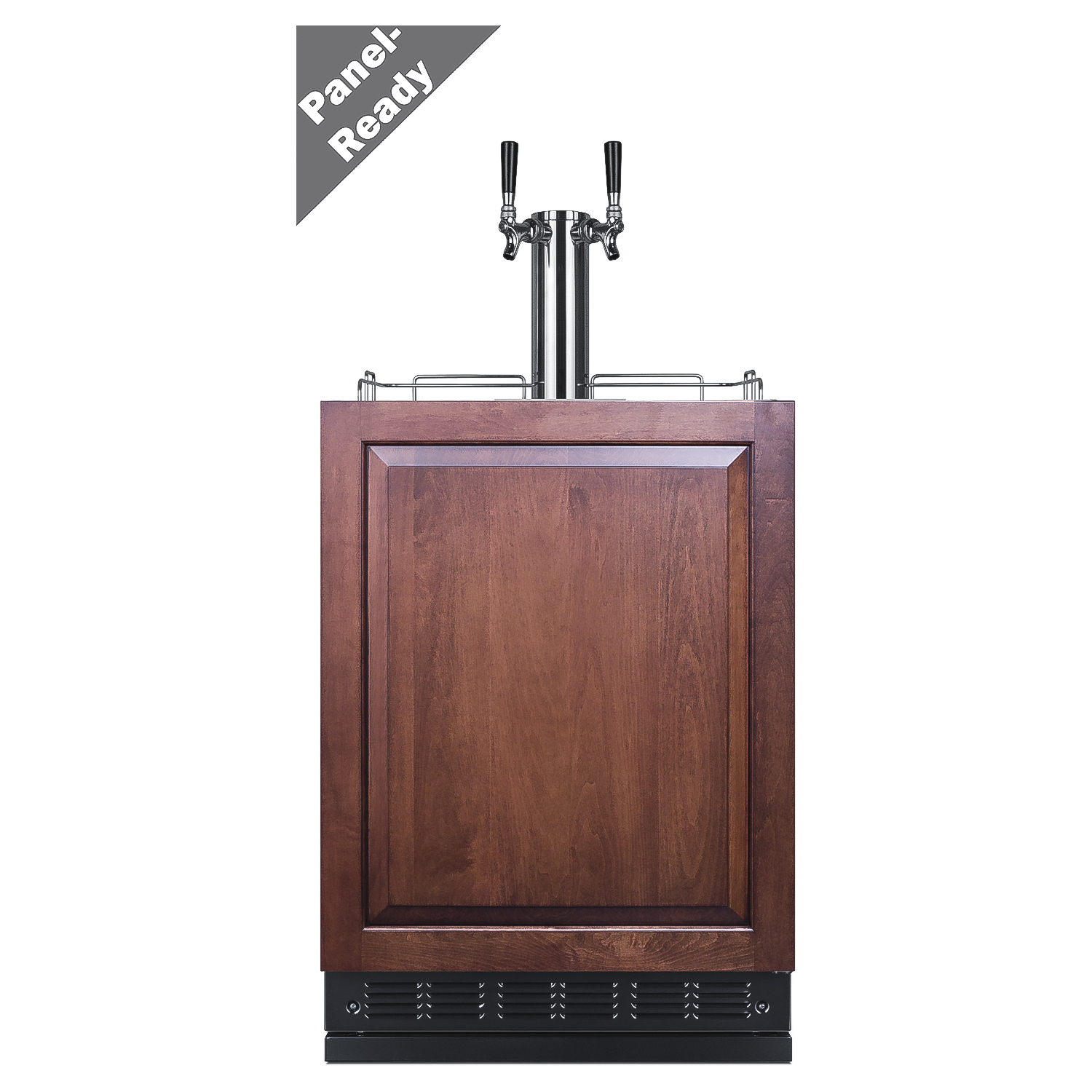

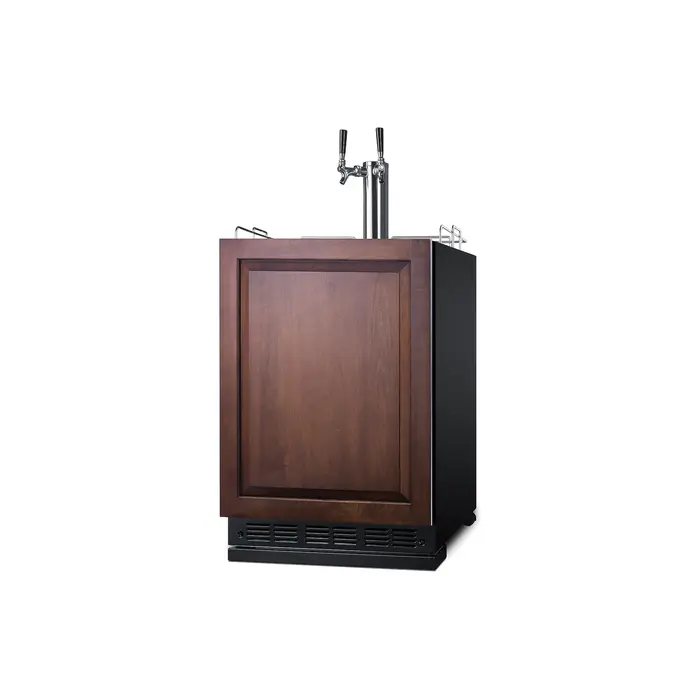

Sized with a 24" footprint, model SBC7BRSIF is a versatile beer dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments. The design also meets residential standards for home use. It can be recessed under counters or used freestanding. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height, as well as a set of casters (two locking) for optional mobility if preferred. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look.

This kegerator ships with our complete commercial grade stainless steel twin tap kit. The tower includes two faucets to serve beer from two 1/6 (sixtel) kegs. We also include a CO2 tank, regulator, and all of the equipment you need to serve beer on tap.

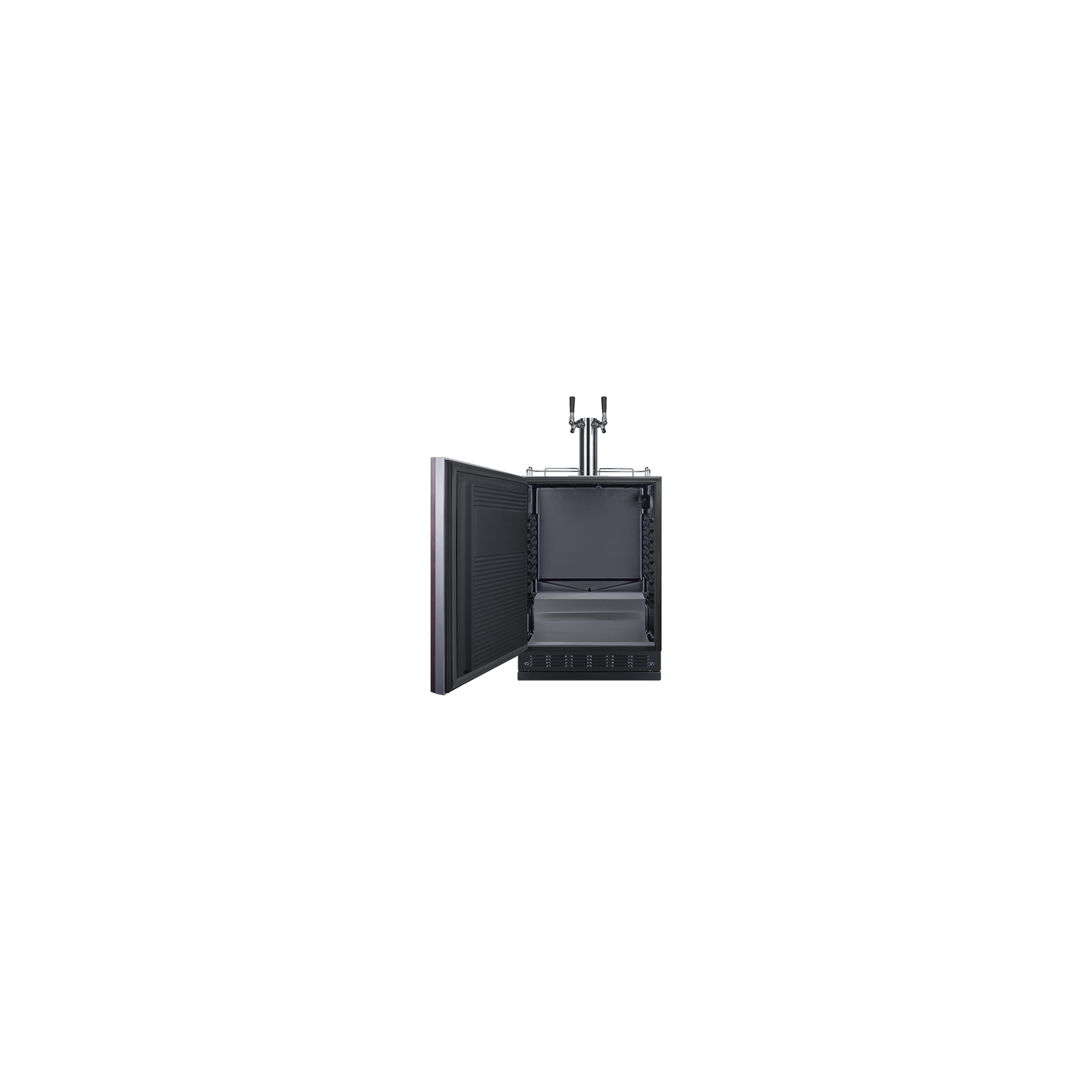

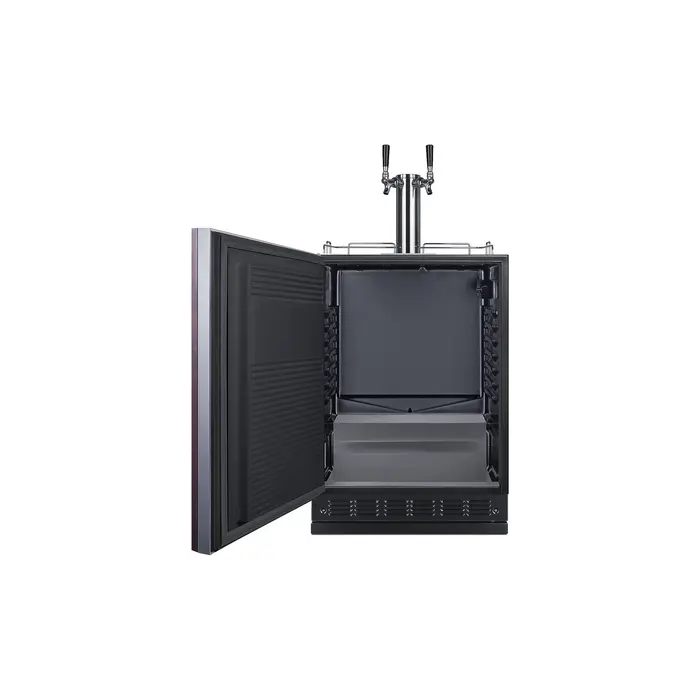

Inside, the SBC7BRSIF features a black interior liner and stainless steel floor for added protection when loading kegs. The interior light comes with an on/off rocker switch located behind the dial thermostat. Classic mechanical controls ensure an intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance and our signature cold wall design creates an efficient, reliable cooling system. We include a set of adjustable glass shelves and one scalloped bottle rack for easy storage if using the interior as a standard beverage refrigerator.

In addition to this dual tap kegerator, the SBC7 series also includes choices that dispense wine and cold brew coffee. Summit also manufactures similar kegerators in ADA compliant height, as well as for outdoor applications. Browse the full Summit product line or contact our product specialists to find the right fit for your needs.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 5.3 cu.ft. (150 L)

Defrost Type Automatic

Door Integrated Frame

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 293.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101106182

Kegerator

Door Swing RHD

Reversible Factory Reversible

Height Adjustable Yes

Tap Kit Yes

Number of Taps 2

Adjustable Shelves Yes

Shelf Type Glass and Scalloped

Shelf Qty 4

Thermostat Type Dial

Interior Light Yes

Refrigerant R600a

Refrigerant Amount 0.64 oz.

Inter Height 27.75" (70 cm)

Interior Width 21.0" (53 cm)

Interior Depth 18.0" (46 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

Level Legs Qty 4

Wheel Qty 4

Temperature Range 36 to 46°F

FEATURES

24" Wide Beer Dispenser Kegerator includes all of the equipment you need to serve beer from two sixtel kegs

Made in Europe & the USA Refrigeration unit is constructed in Europe and designed and modified in the USA

Versatile use Approved for both residential and commercial settings

Commercially listed ETL-S listed to ANSI-NSF Standard 7 for commercial use

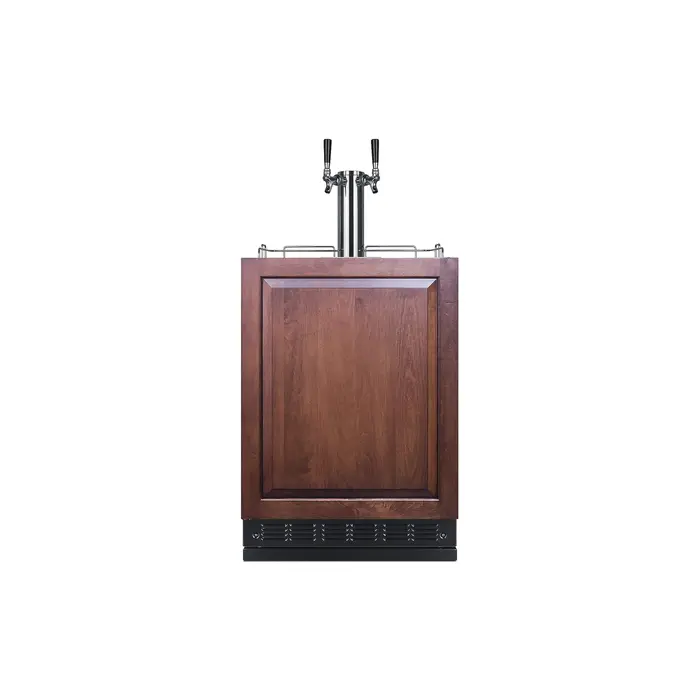

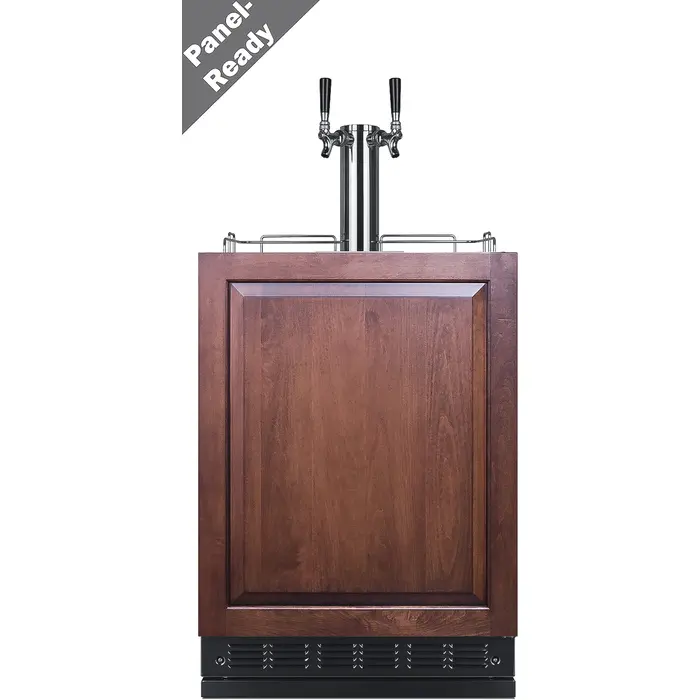

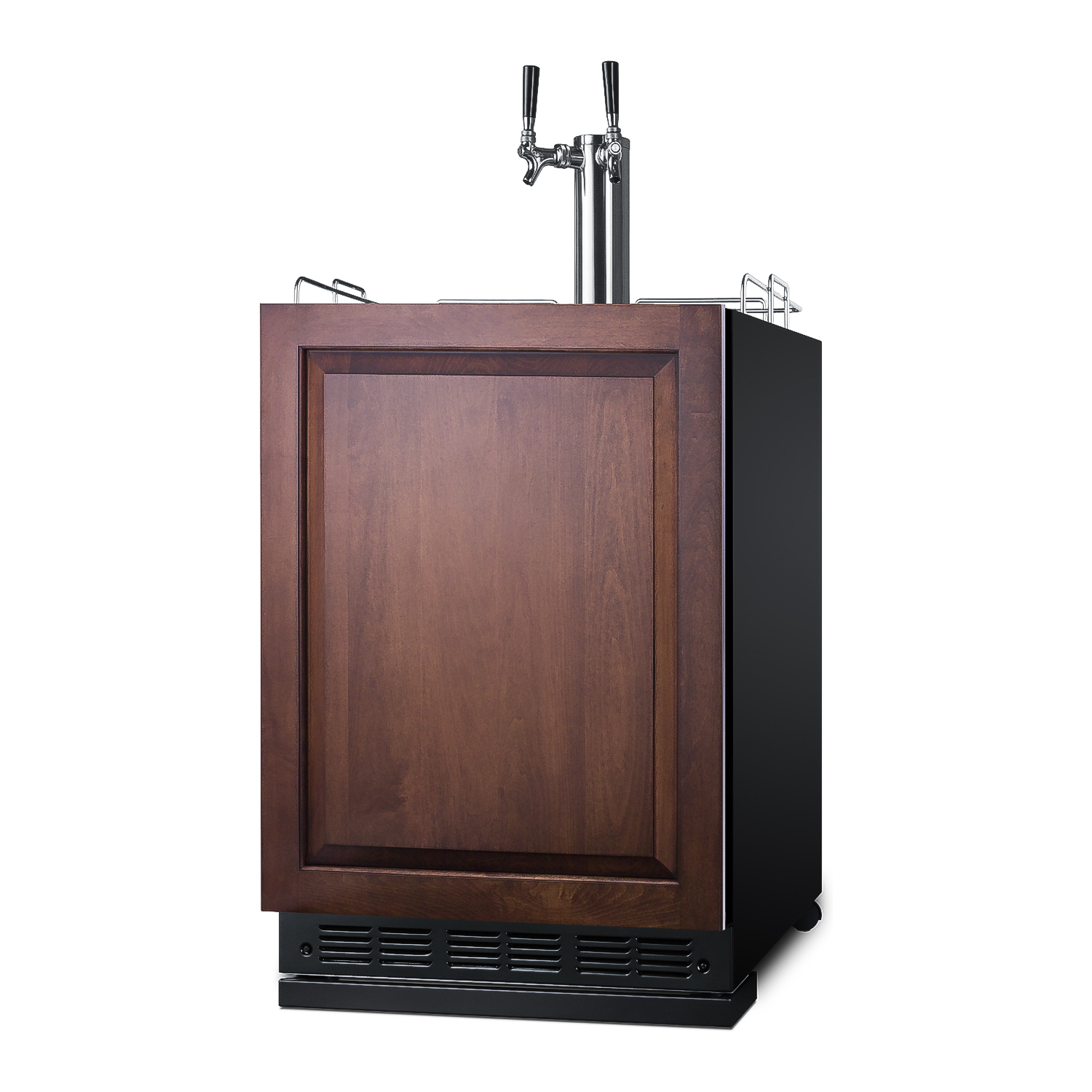

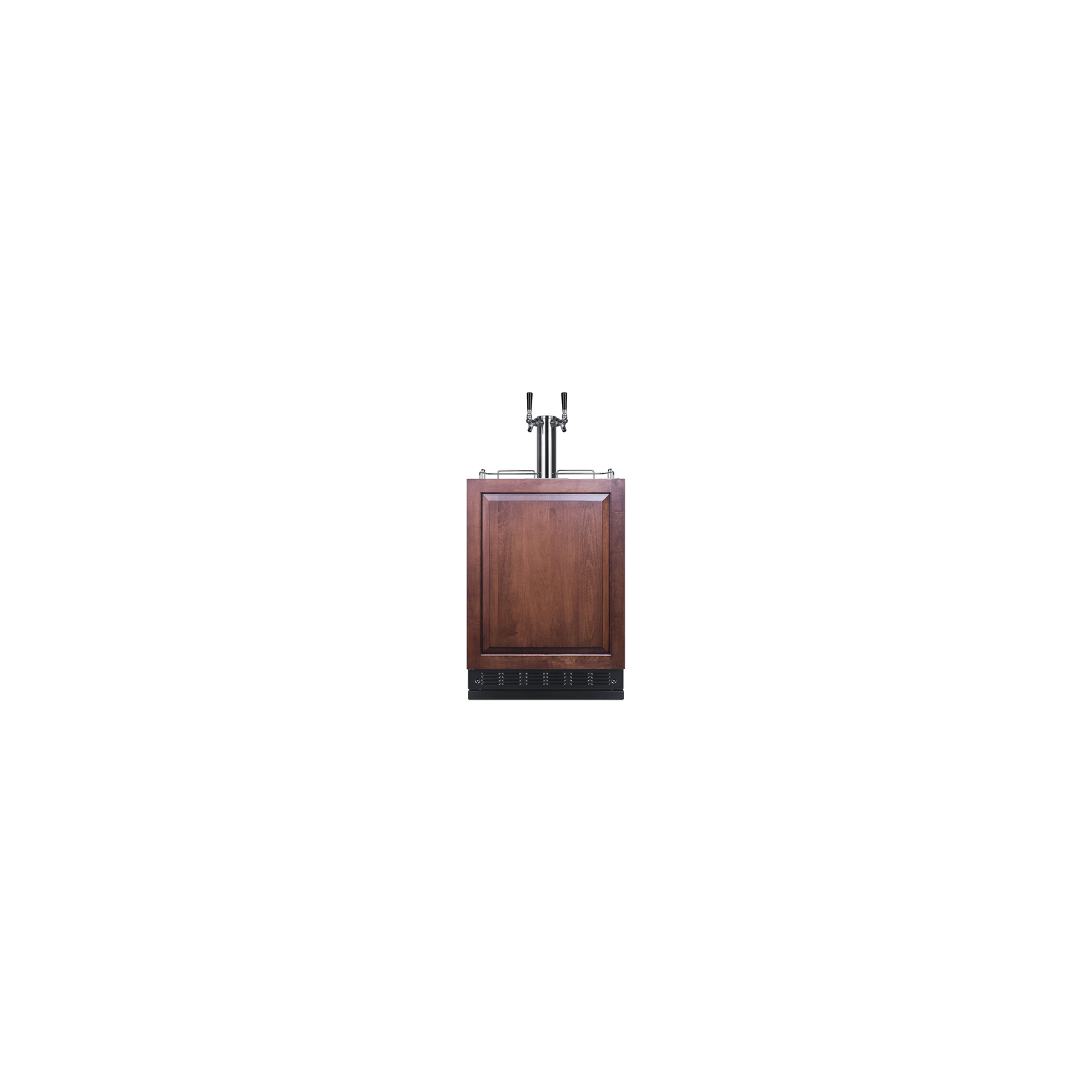

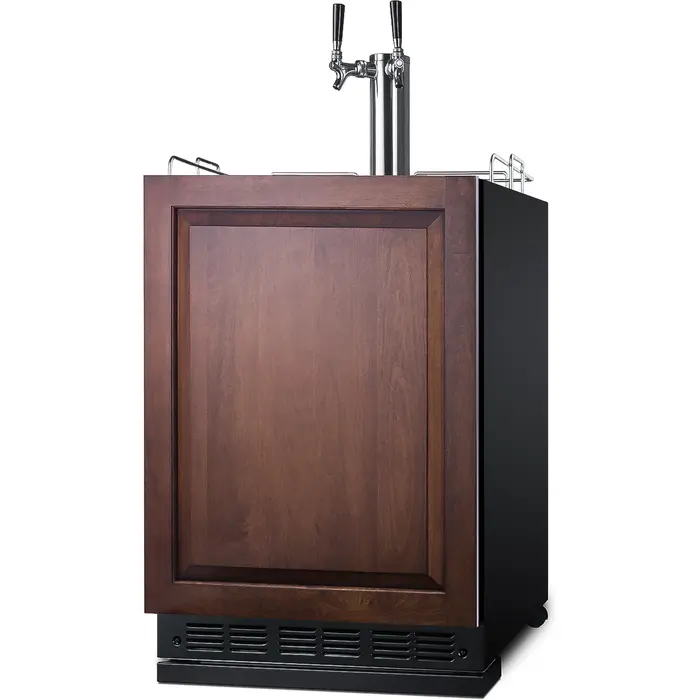

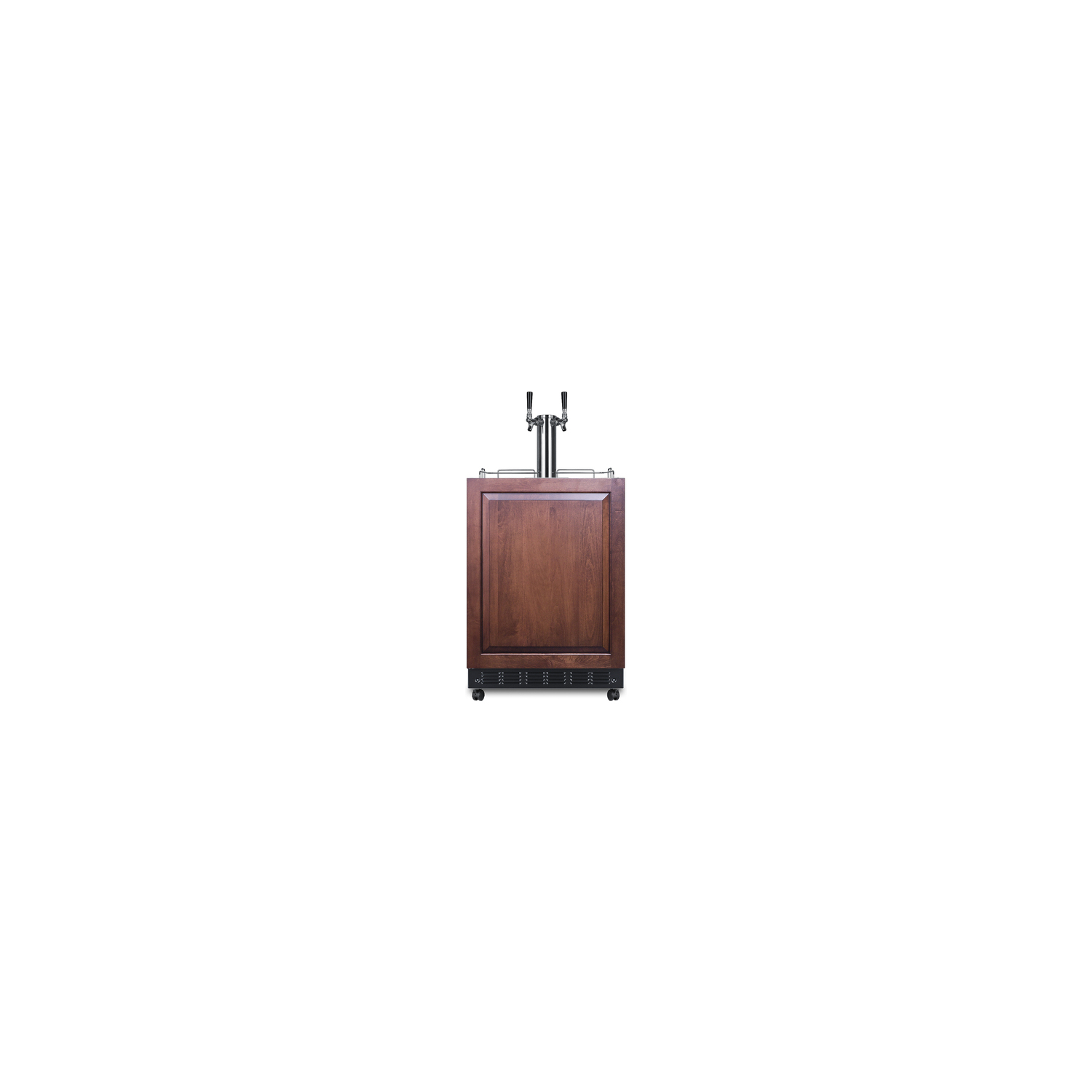

Panel-ready door Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Complete beer tap kit included Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

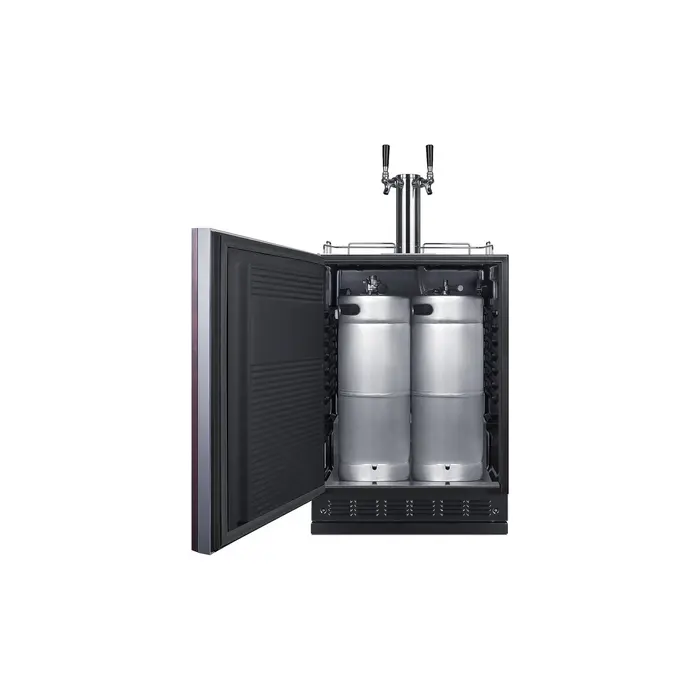

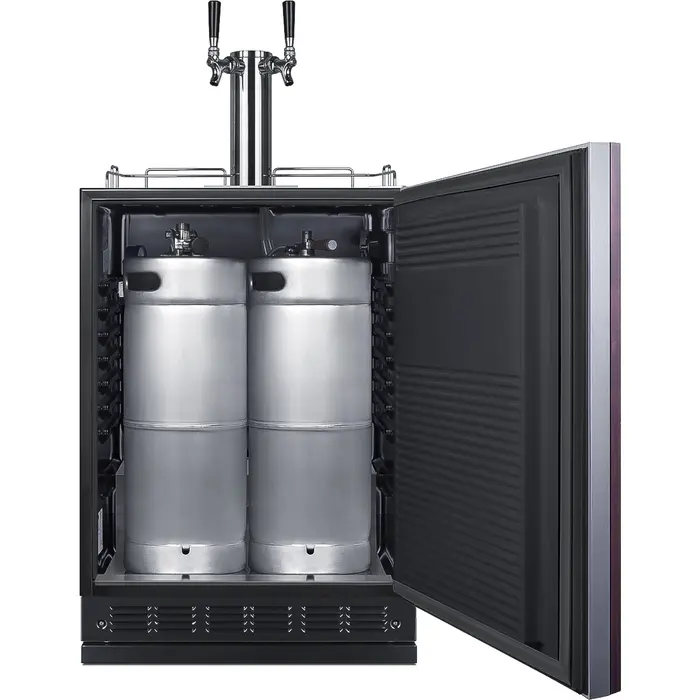

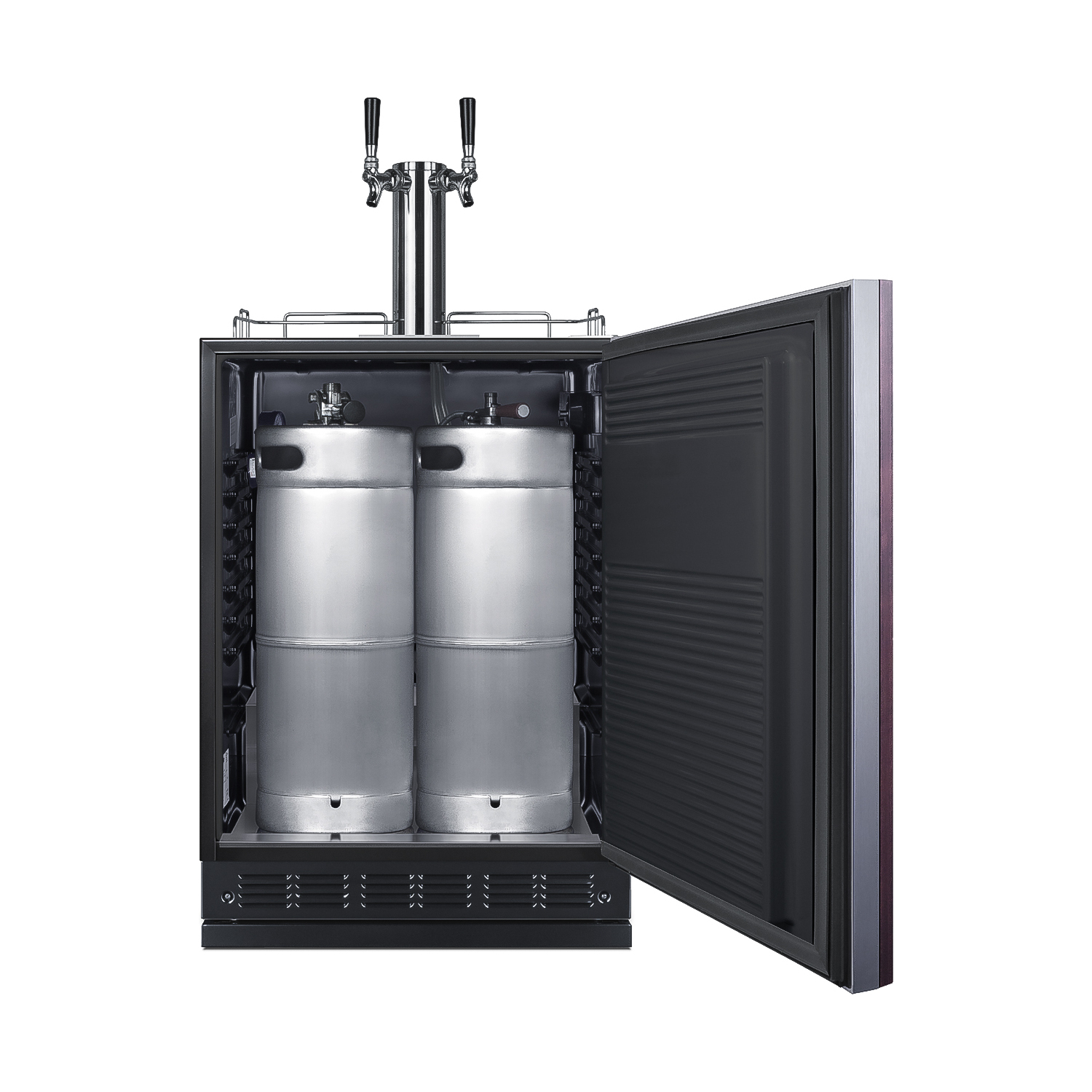

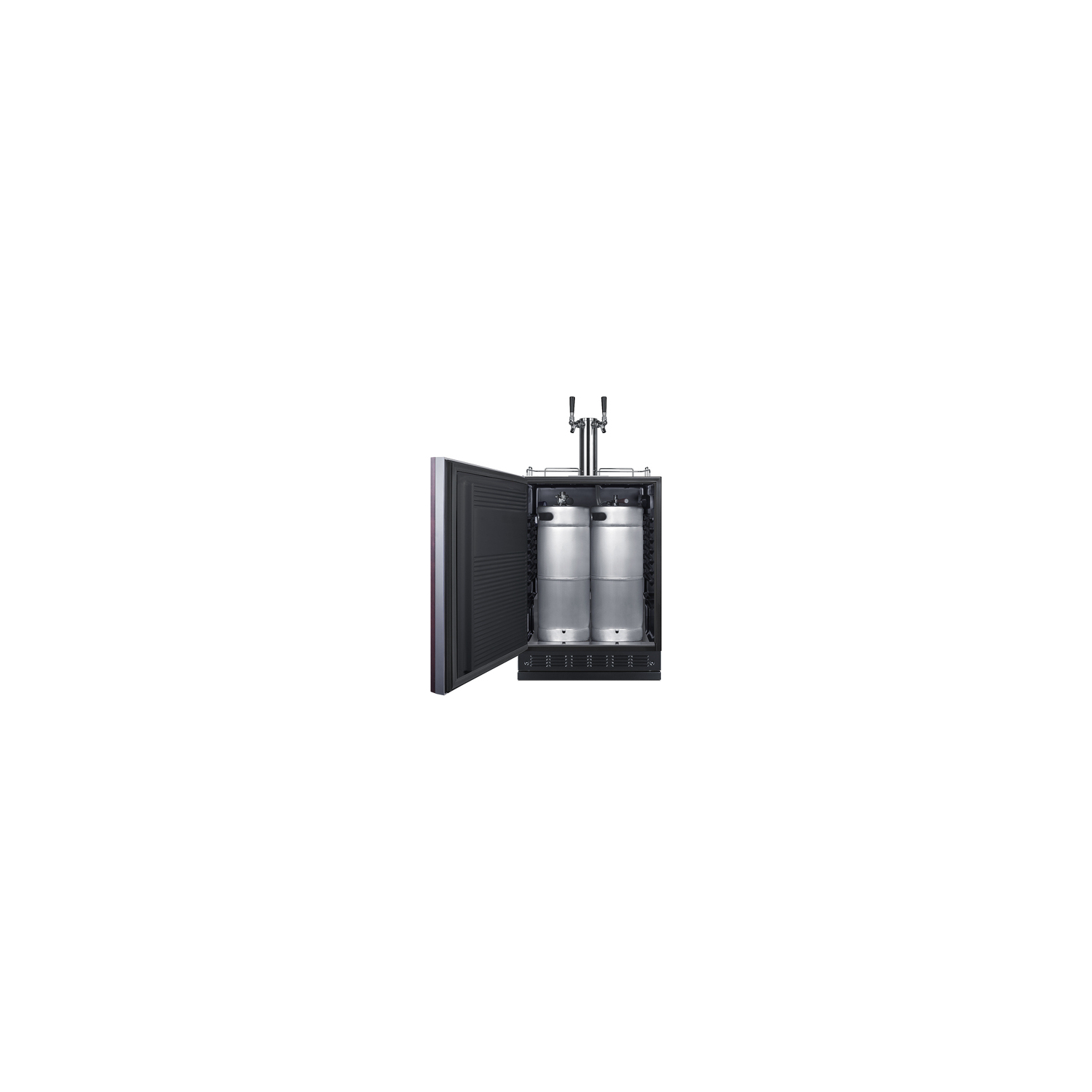

Dual tap system Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Slim counter height dimensions for recessed or freestanding use Ideal 24" footprint for an easy fit

Height adjustable Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter

Leg shield included Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height

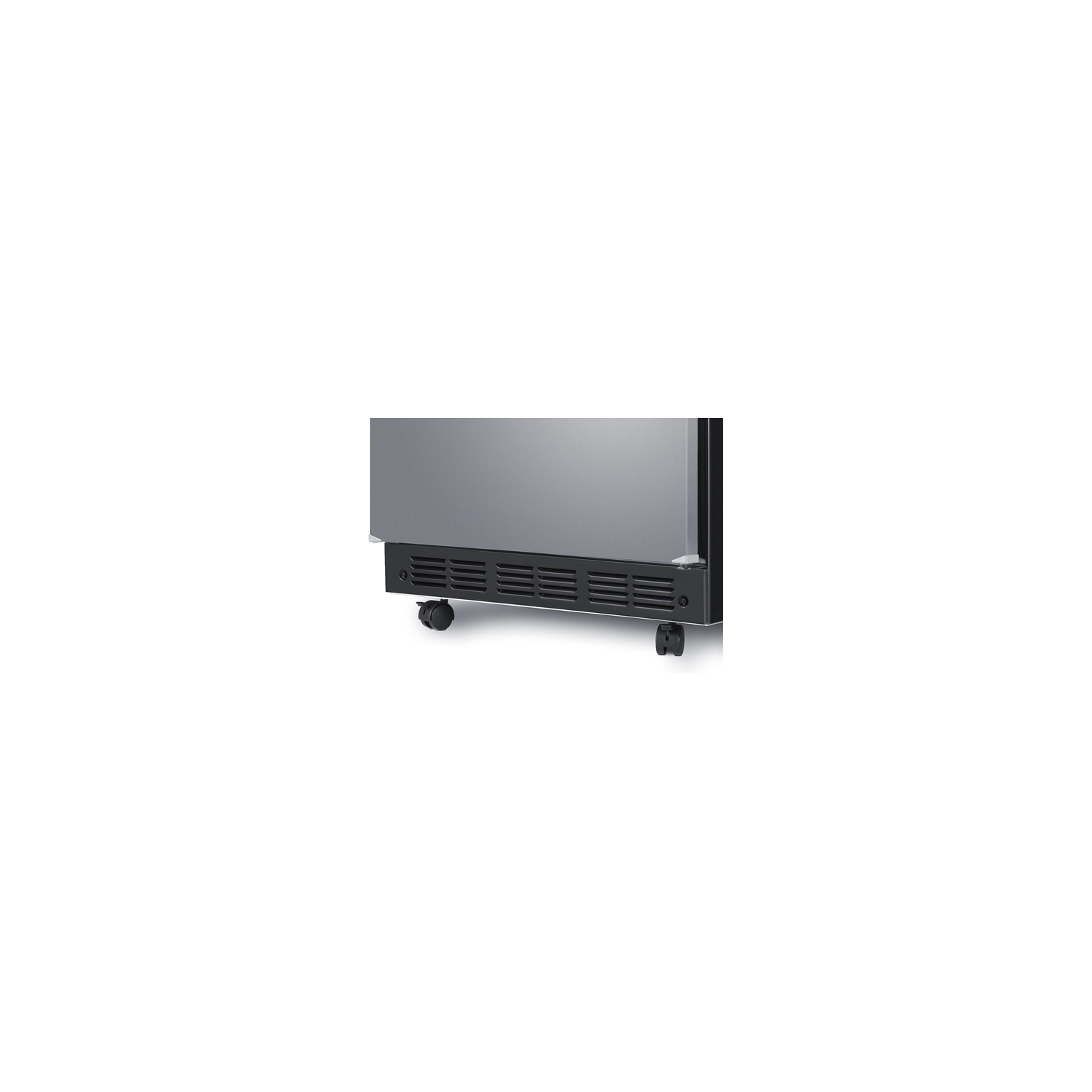

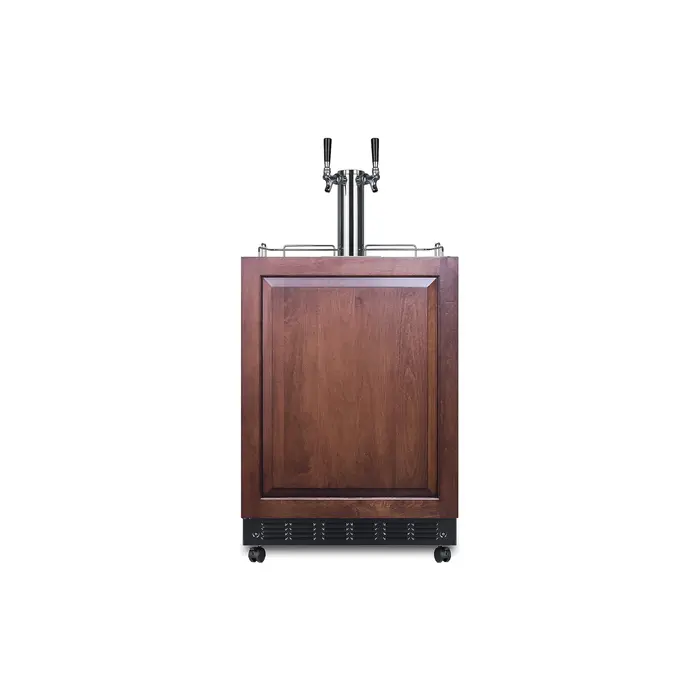

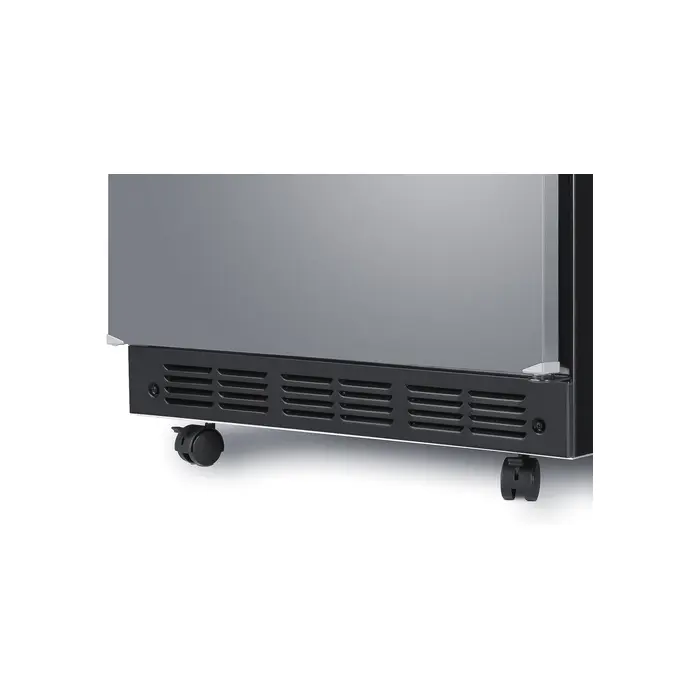

Caster set Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed

Automatic defrost No-frost operation for minimum user maintenance

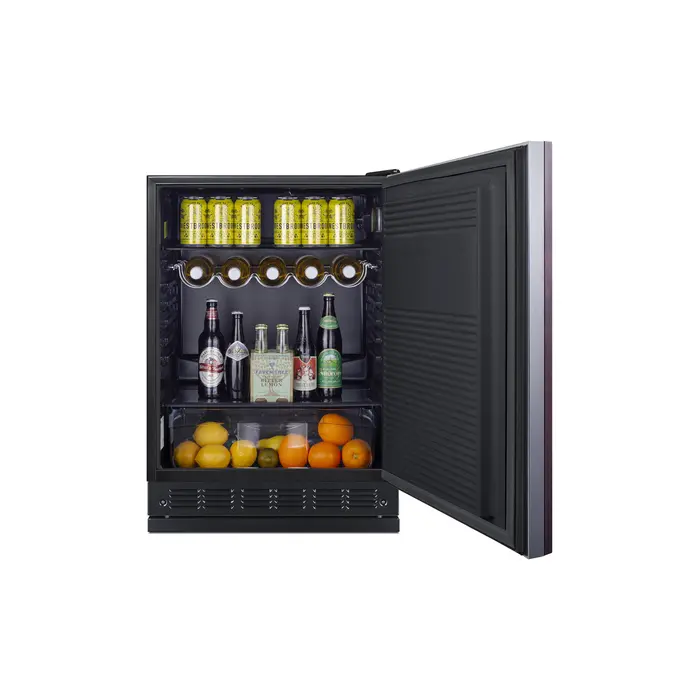

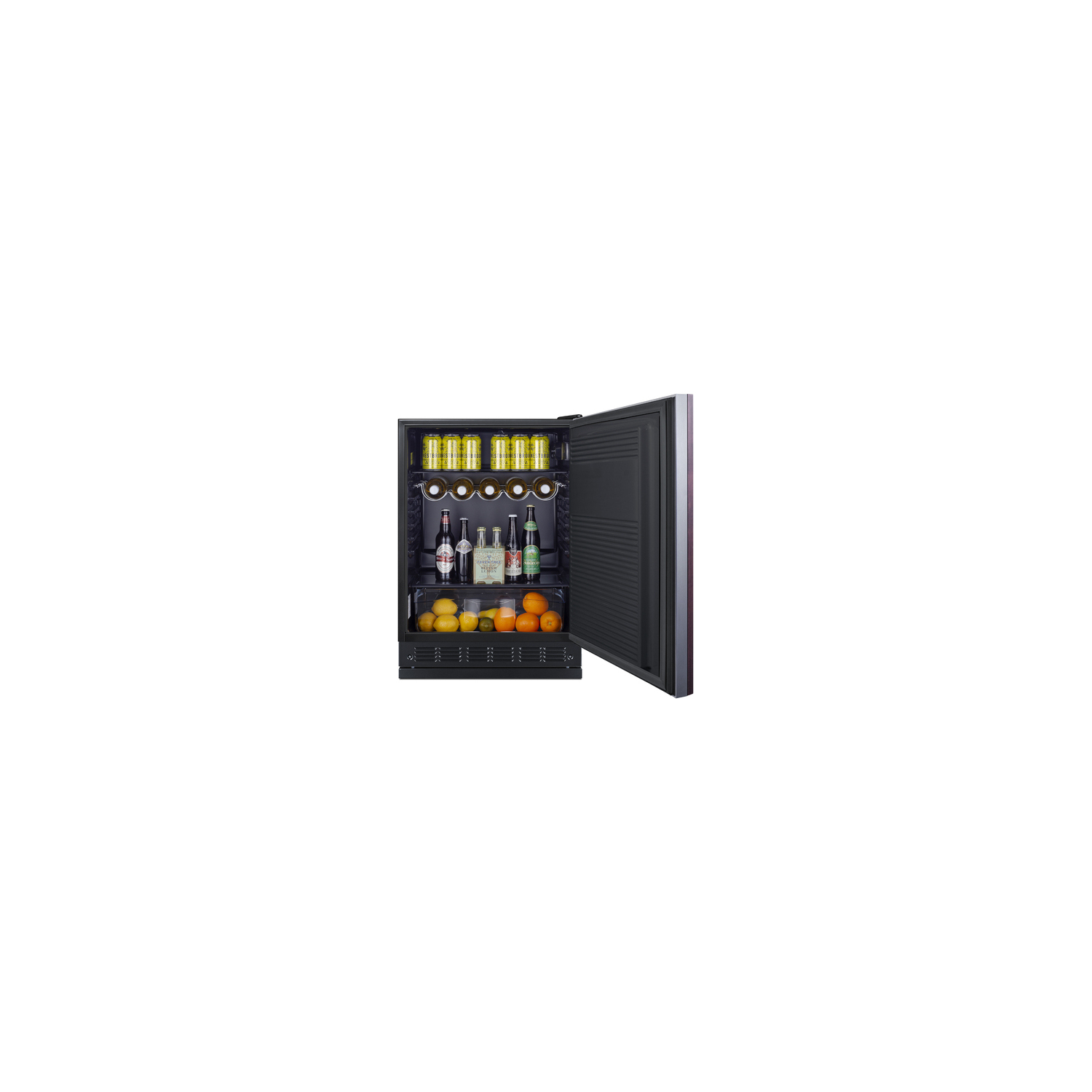

Convertible to a refrigerator Includes tap cover, three glass shelves, and one scalloped bottle rack to allow easy storage when not holding kegs

Interior light on rocker switch Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat

One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Black interior Attractive jet black finish inside to match the cabinet and kickplate

Adjustable mechanical thermostat Simple and intuitive analog controls located inside for easy temperature management

Stainless steel drip tray Removable two-piece drip tray included for added convenience

Interior CO2 holder Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

CO2 tank included Full-sized cannister ships with tapping equipment (ships empty)

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
