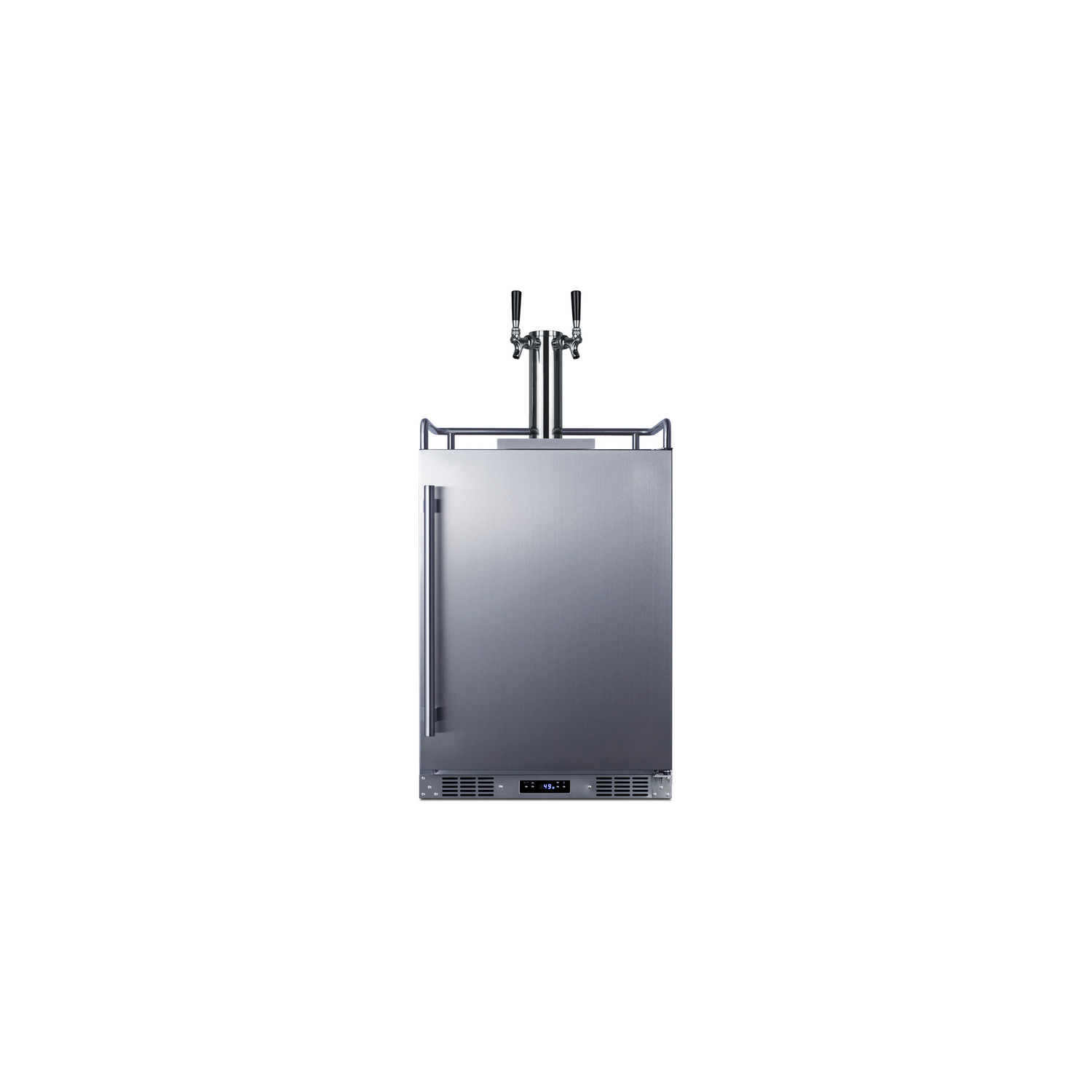

Summit Outdoor/indoor built-in kegerator with dual tap kit to serve both beer and wine, SBC683OSTWINBW

Summit manufactures a complete line of versatile combination kegerators capable of built-in installation in indoor or outdoor home settings.

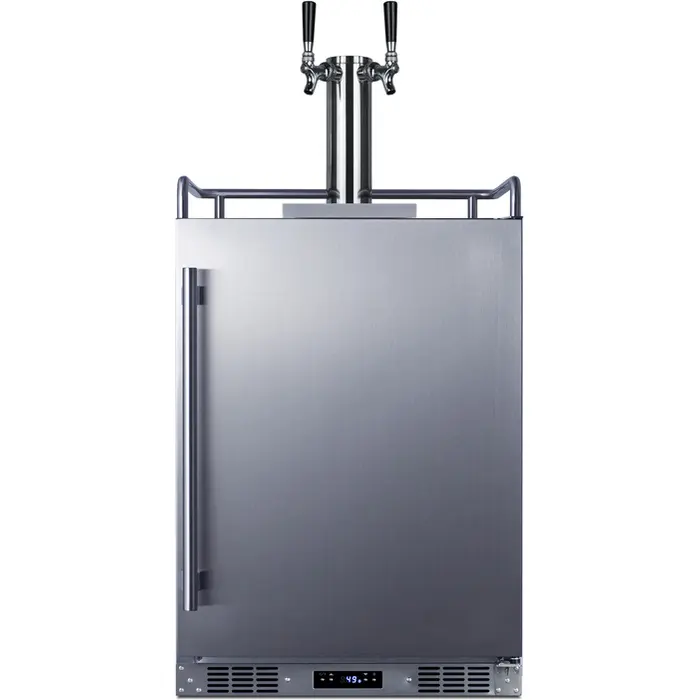

The SBC683OSTWINBW is a full-sized beer and wine dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior door and cabinet feature 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The user-reversible door includes a pro style vertically mounted handle to complete the look. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements.

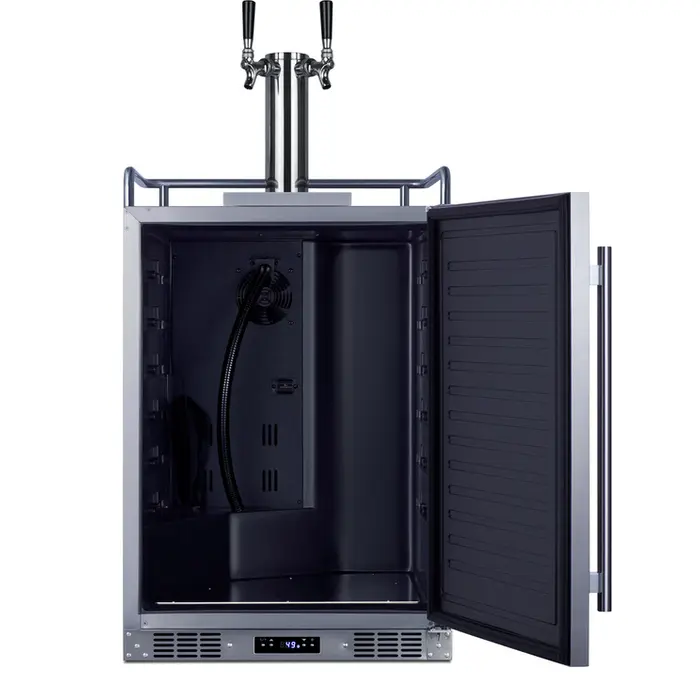

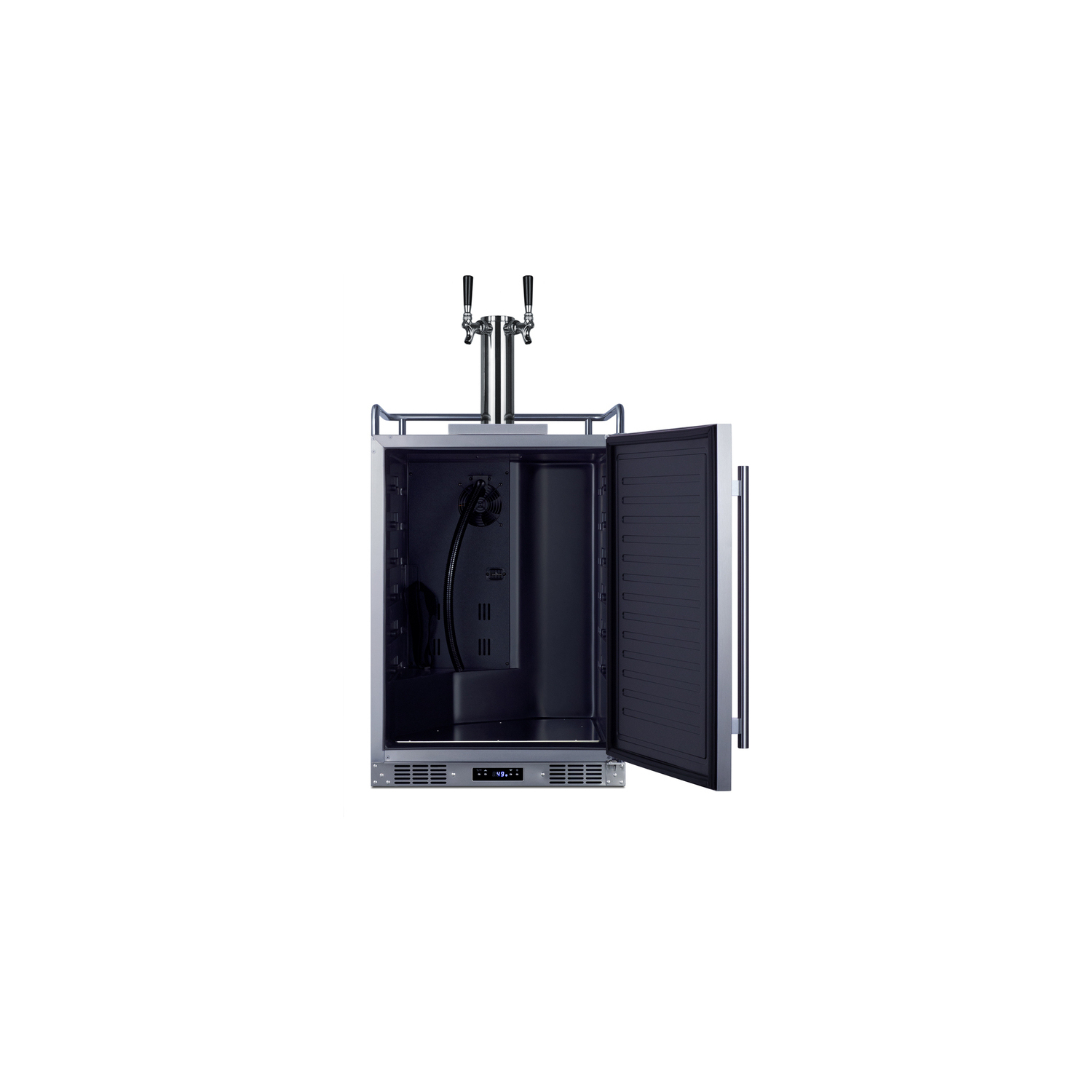

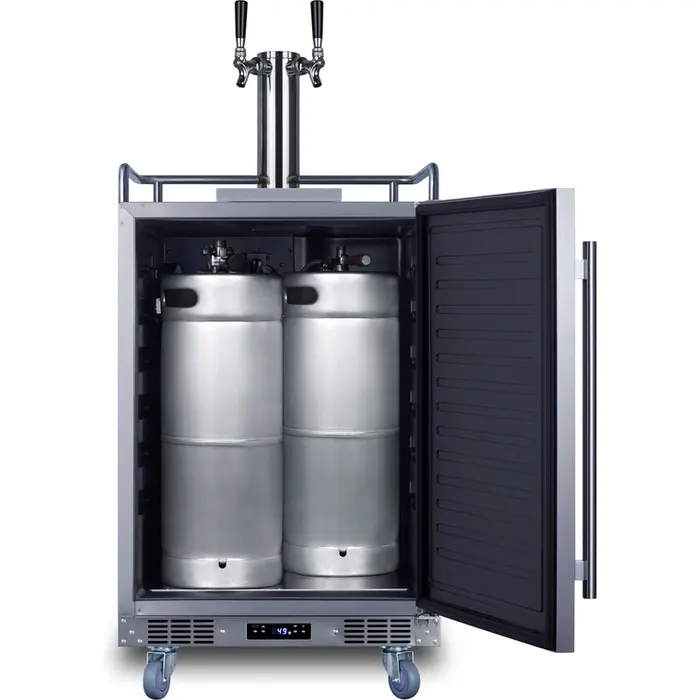

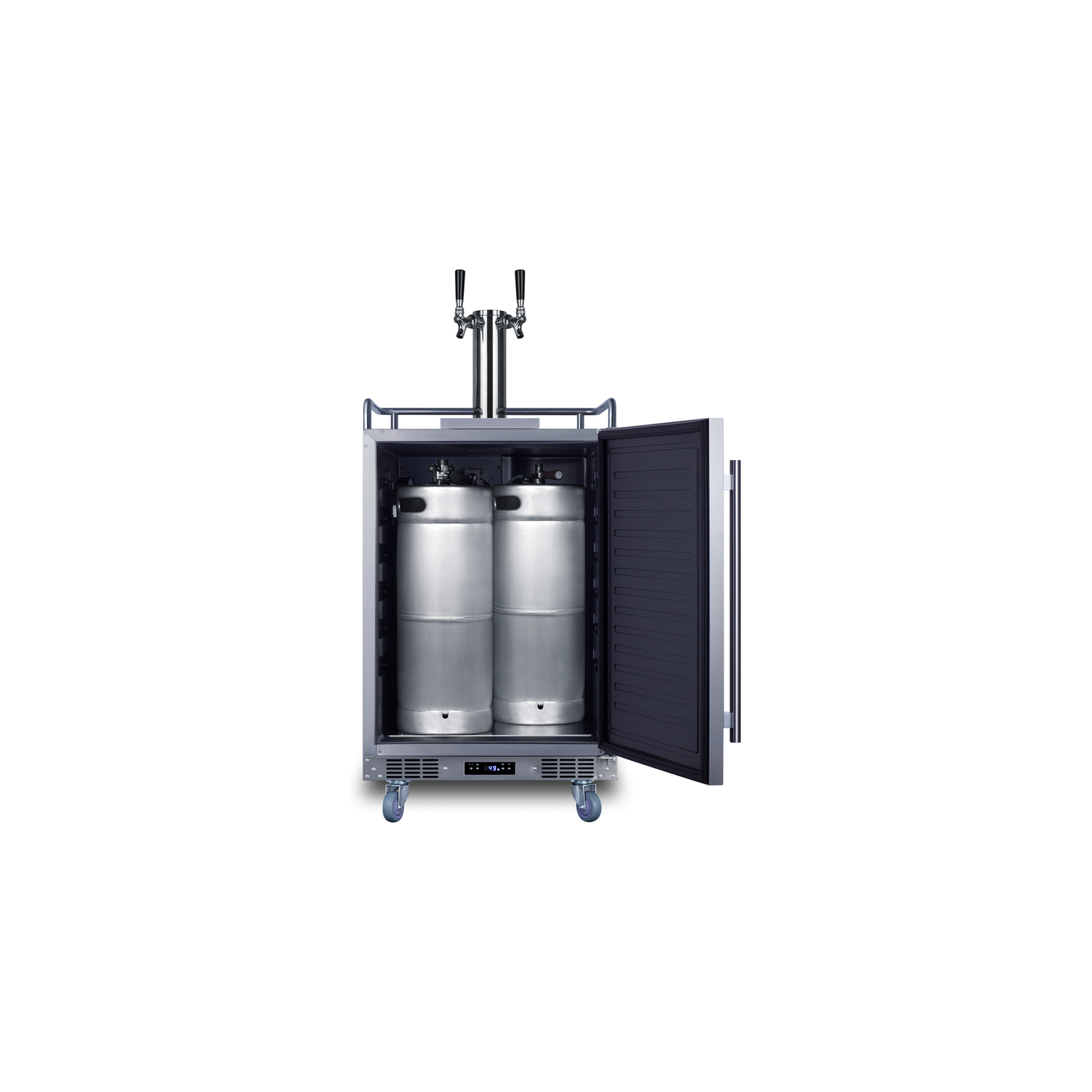

Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete Sankey American dual tap kit complete with a draft tower, one 5 lb. nitrogen/CO2 tank and regulator for wine and one 5 lb. CO2 tank with regulator for beer, and all the equipment you need to serve wine and beer on tap. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

With its solid construction, user-friendly features, and attractive design, the SBC683OSTWINBW is the perfect beer and wine dispenser for any venue or home accommodating all tastes. Additional choices are available with alternate tapping options and in ADA compliant height. Browse the full Summit line to explore all of your options.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.63" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with Handle 26.25" (67 cm)

Depth with door at 90° 46.75" (119 cm)

Capacity 5.6 cu.ft. (159 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 305.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101155180

Kegerator

Door Swing RHD

Reversible Yes

Tap Kit Yes

Height with Tap 51.5" (131 cm)

Number of Taps 2

Adjustable Shelves Yes

Shelf Type Chrome

Shelf Qty 2

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Inter Height 26.75" (68 cm)

Interior Width 20.0" (51 cm)

Interior Depth 19.0" (48 cm)

Level Legs Qty 4

Wheel Qty 4

Temperature Range 34°F to 68°F (1°C to 20°C)

Sound Level 34.0 db

FEATURES

Combination Beer + Wine Kegerator Dual tap kegerator dispenses both beer and wine

Complete dual tap kit Ships with a complete twin tap kit that includes a dual dispenser tower, regulators, and all the connection equipment you need to serve from a 1/6 beer keg, wine keg, or disposable wine keg

Weatherproof design Solid 304 grade stainless steel construction allows placement in the outdoors

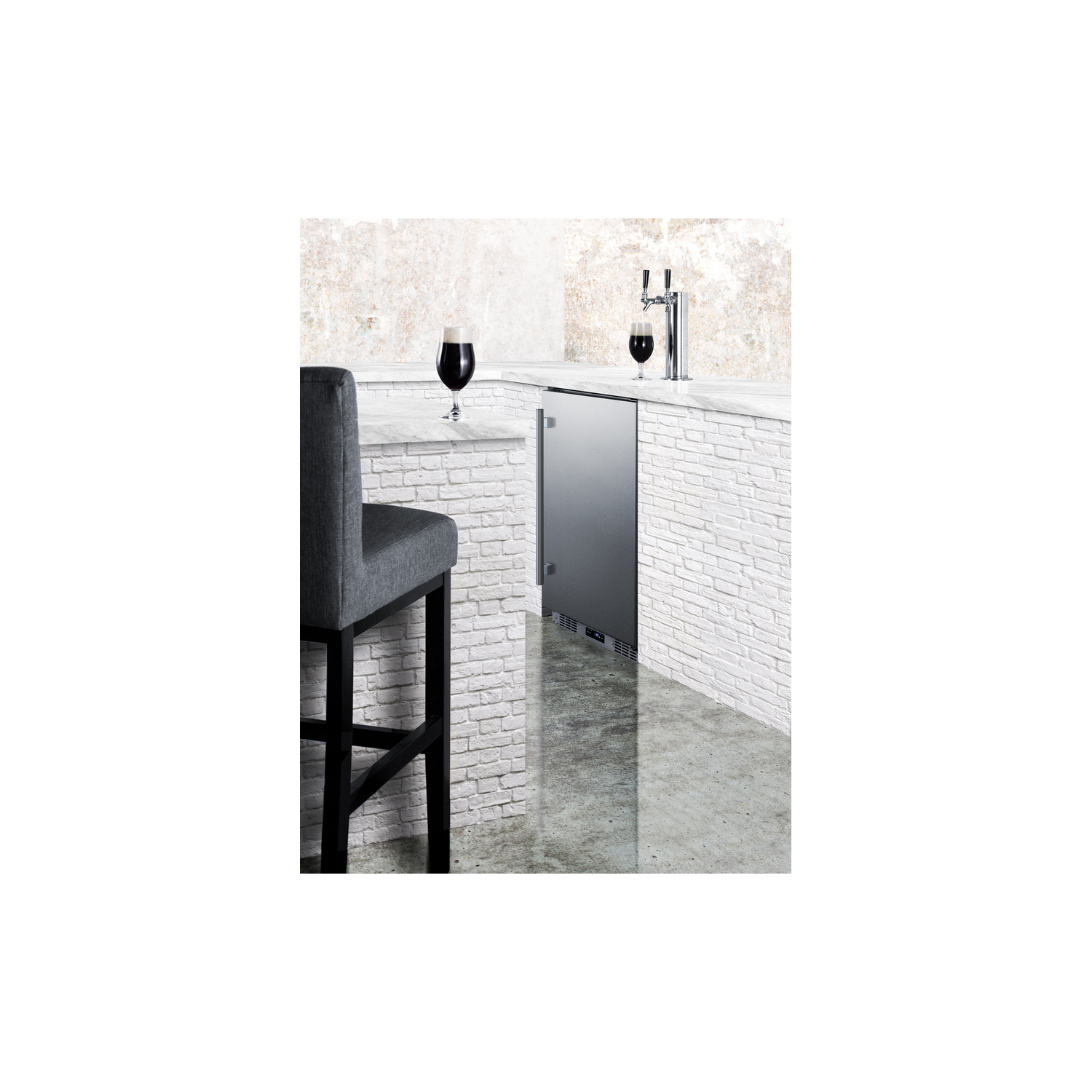

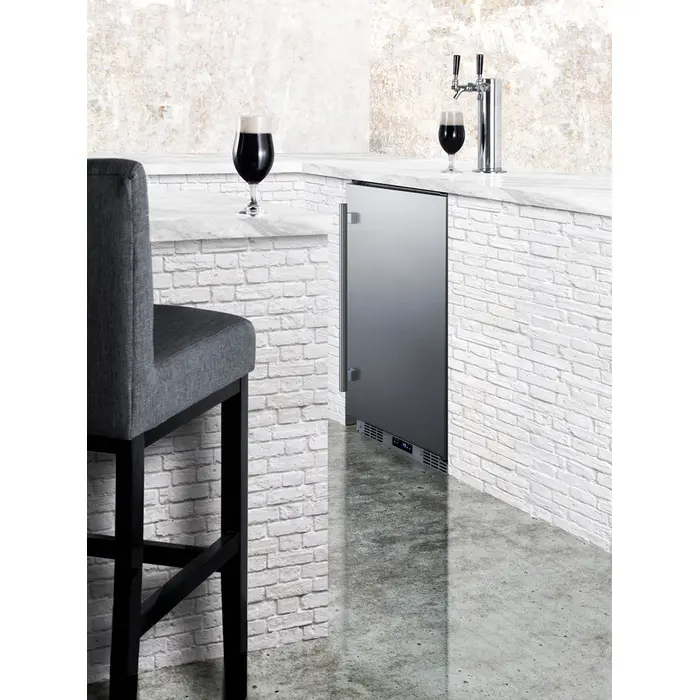

Built-in capable Front-breathing design allows fully recessed installation under counters

Commercially listed ETL-S listed to NSF-7 Standards for use in commercial establishments

Automatic defrost Reduced user maintenance with auto defrost operation

Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system Interior tube allows you to extend the cold air flow up into draft tower, ensuring beer freshly tapped stays cold

Nitrogen/CO2 tanks included Ships with a CO2 tank for beer and nitrogen/CO2 tank for wine

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled) Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray Removable two-piece drip tray catches spills to help contain the mess

Adjustable shelves 2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator

Memory IC function Recovers the unit's last settings in the case of a power outage or disruption

Reversible door User-reversible door swing for added flexibility

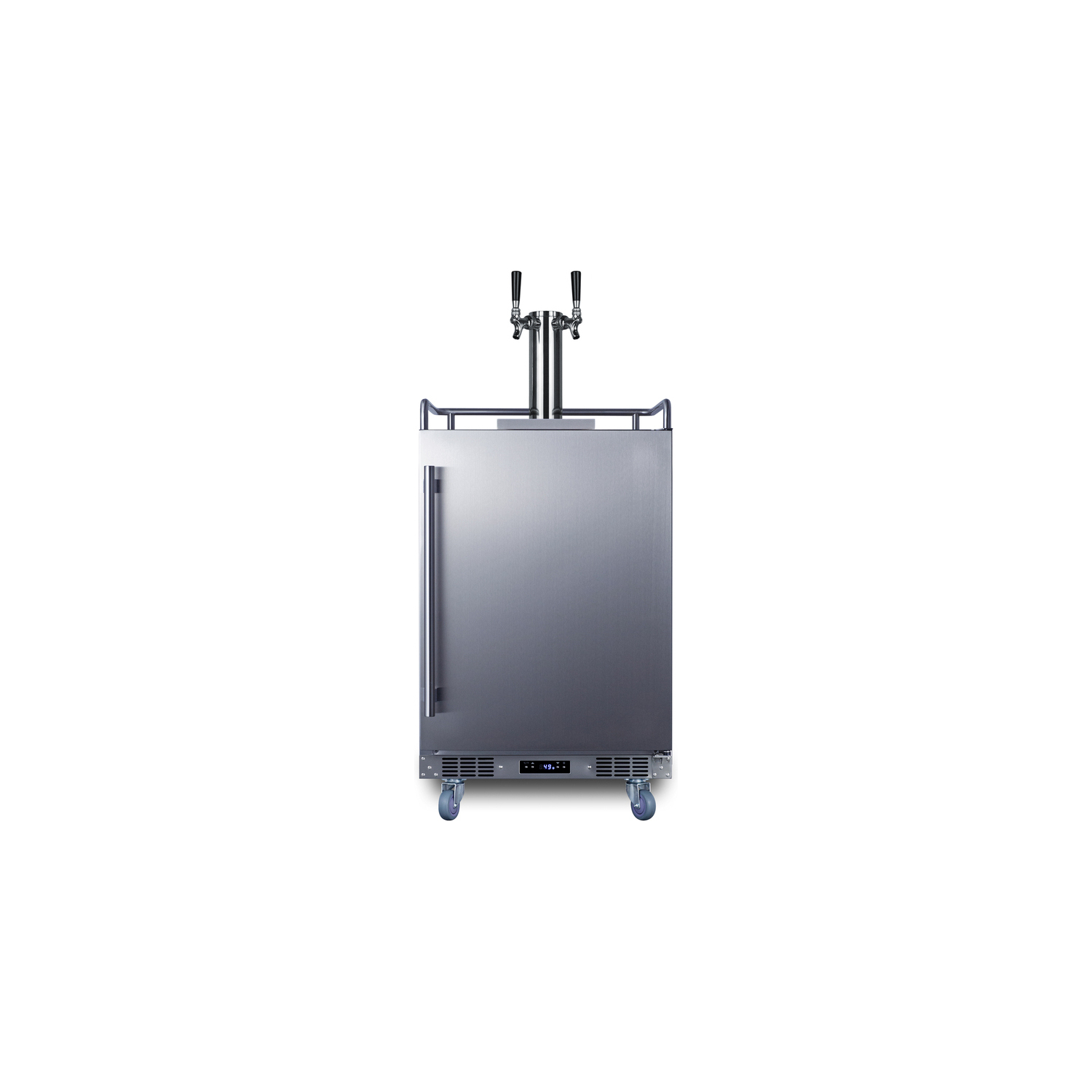

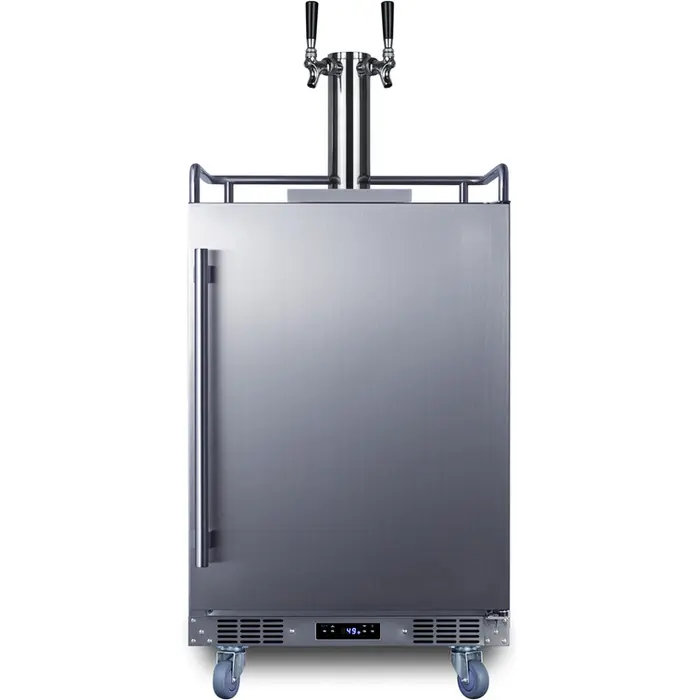

Casters included (ship unassembled) Four casters (two locking) afford easy portability

Pro style handle Stainless steel handle adds style to any setting

Fully finished stainless steel cabinet Allows the dispenser to be used freestanding

Sealed back Space saving design with easier cleanability

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SBC683OSTWINBW.pdf)

TECHNICAL DRAWING (.dwg) (SBC682-SBC683_Series_10.dwg)

ASSEMBLY DRAWING (SBC682-SBC683_Series-Assembly_10.pdf)

3D DRAWING (SBC683OSTWIN_2.3ds)

3D DRAWING (SBC683OSTWIN_2.dwg)

3D DRAWING (SBC682NKNoCord_2.obj)

USE & CARE (SBC683OSTWINBW-User-Manual.pdf)

Energy Guide
