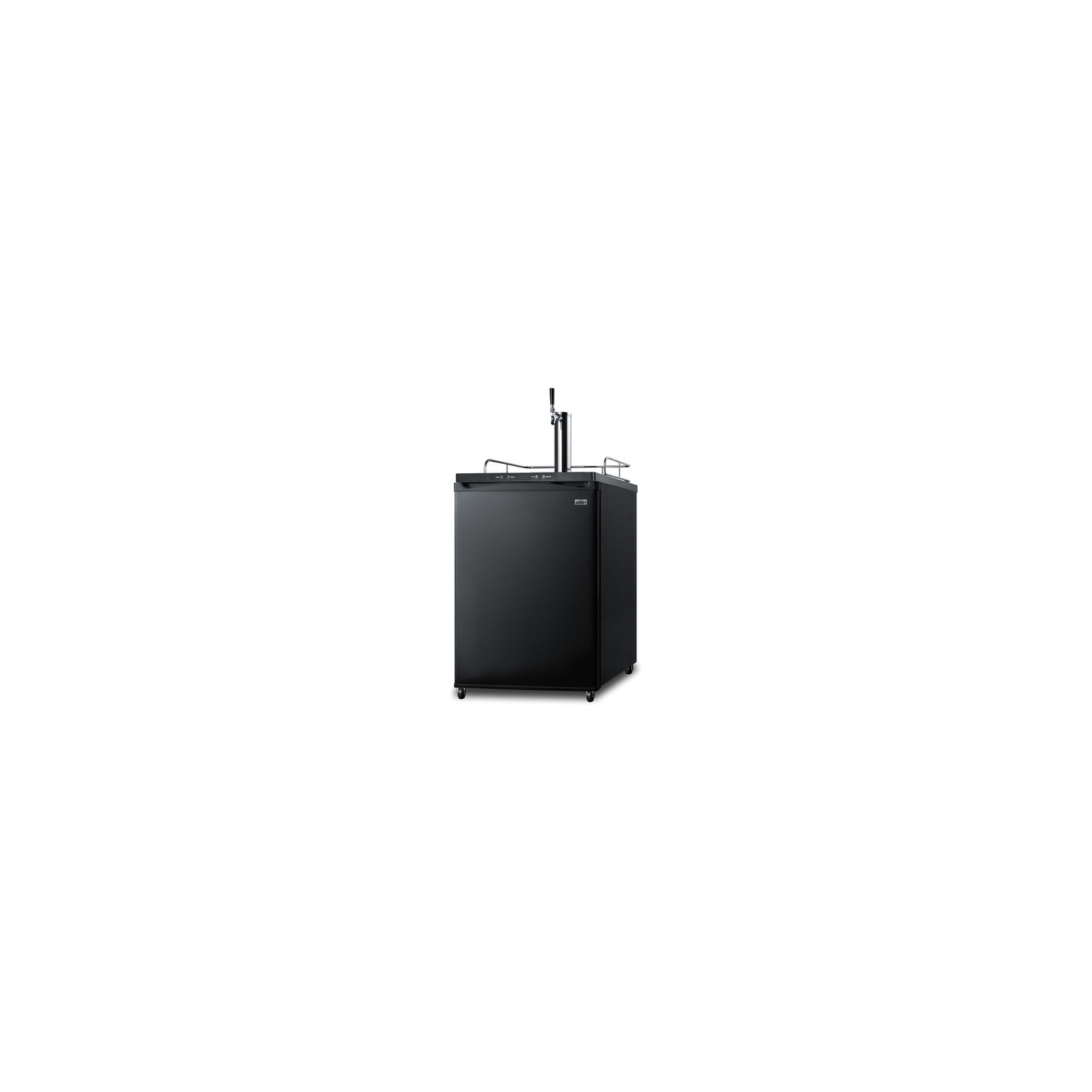

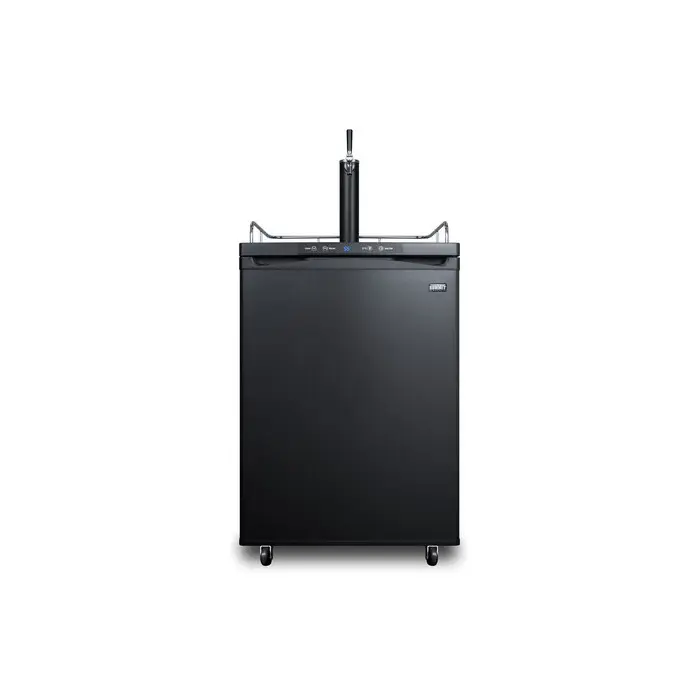

Summit Freestanding residential beer dispenser, auto defrost with digital thermostat and black exterior finish, 7.61101e+011, SBC635M

Summit Appliance offers a versatile line of full-sized freestanding beer dispensers designed for low maintenance storage in the style of your choice.

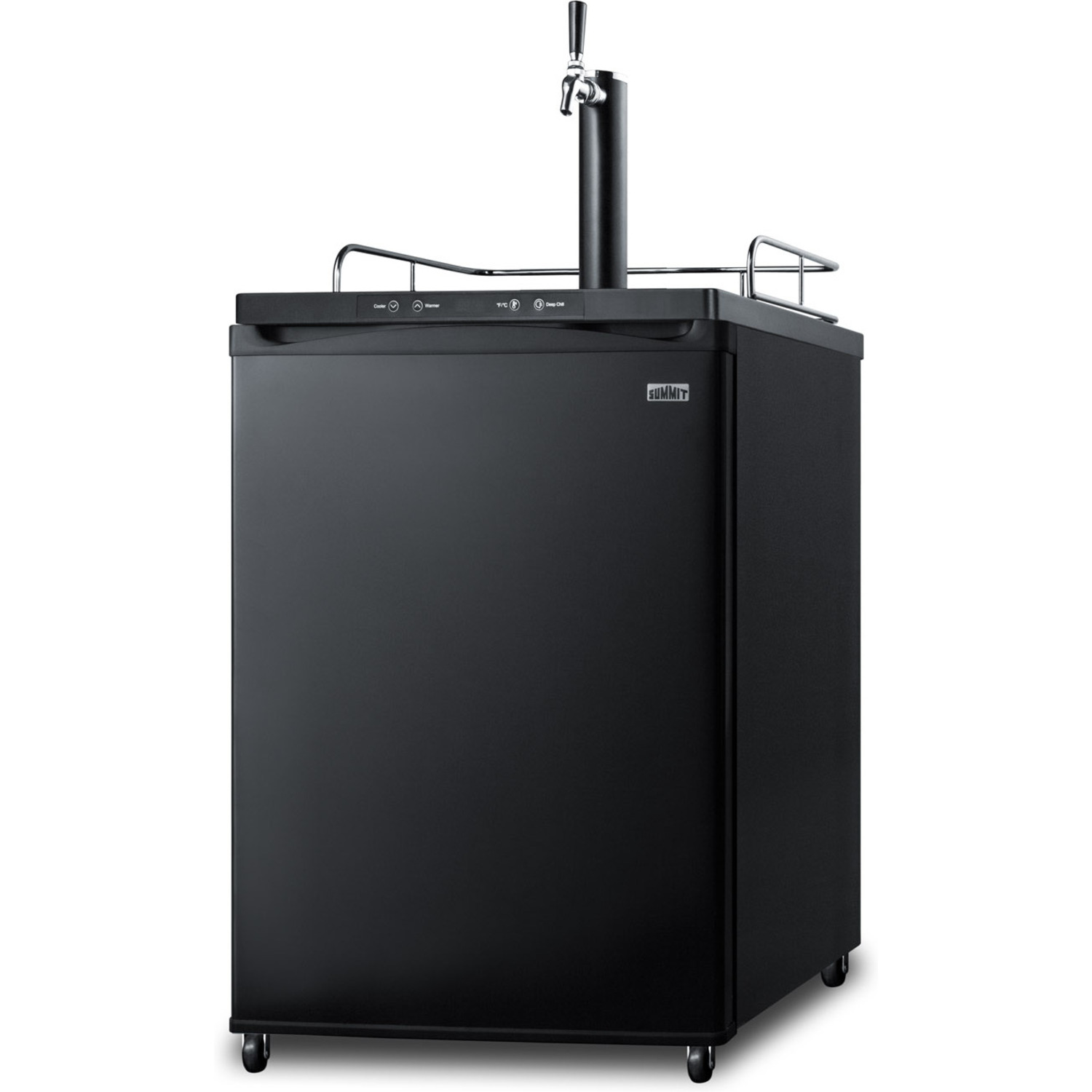

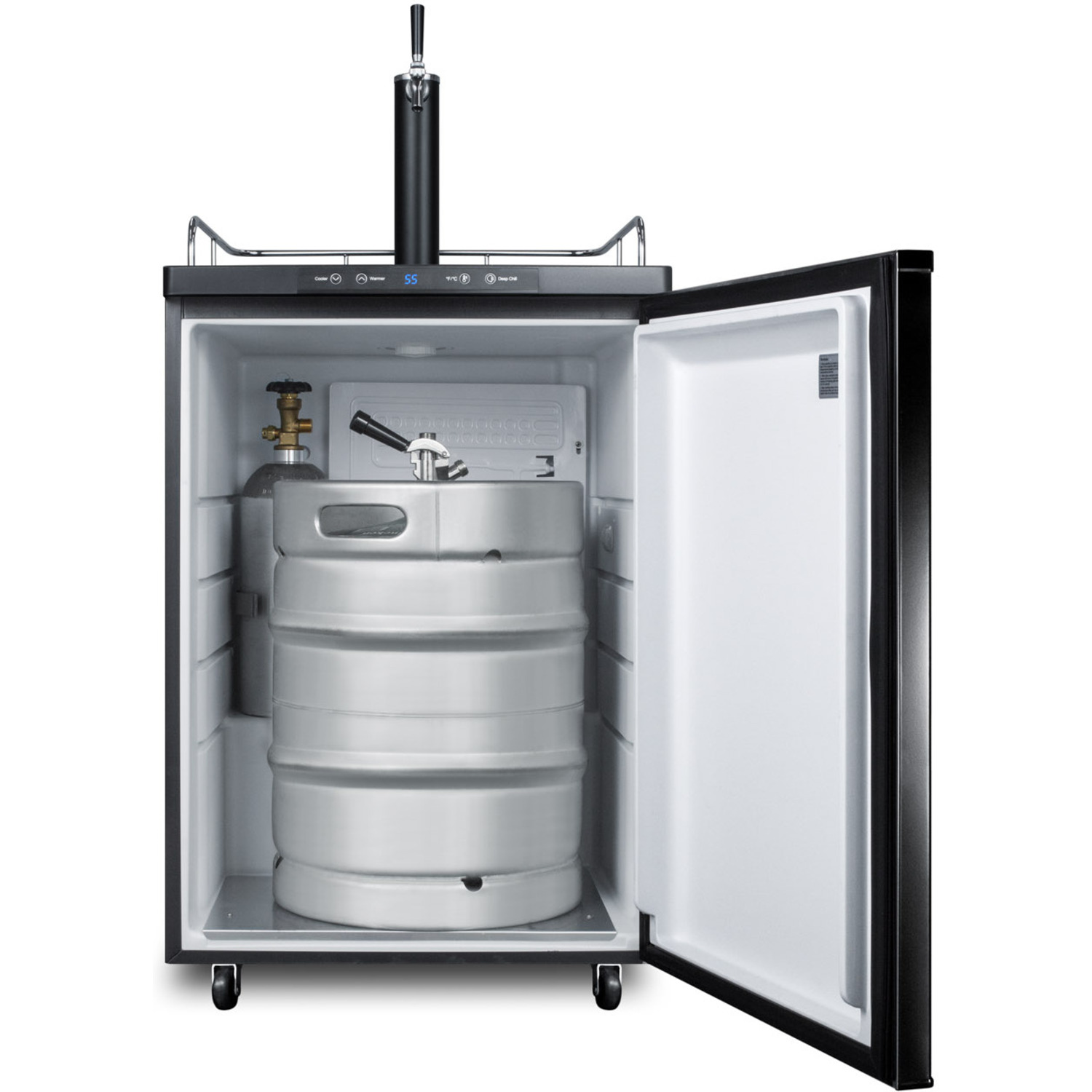

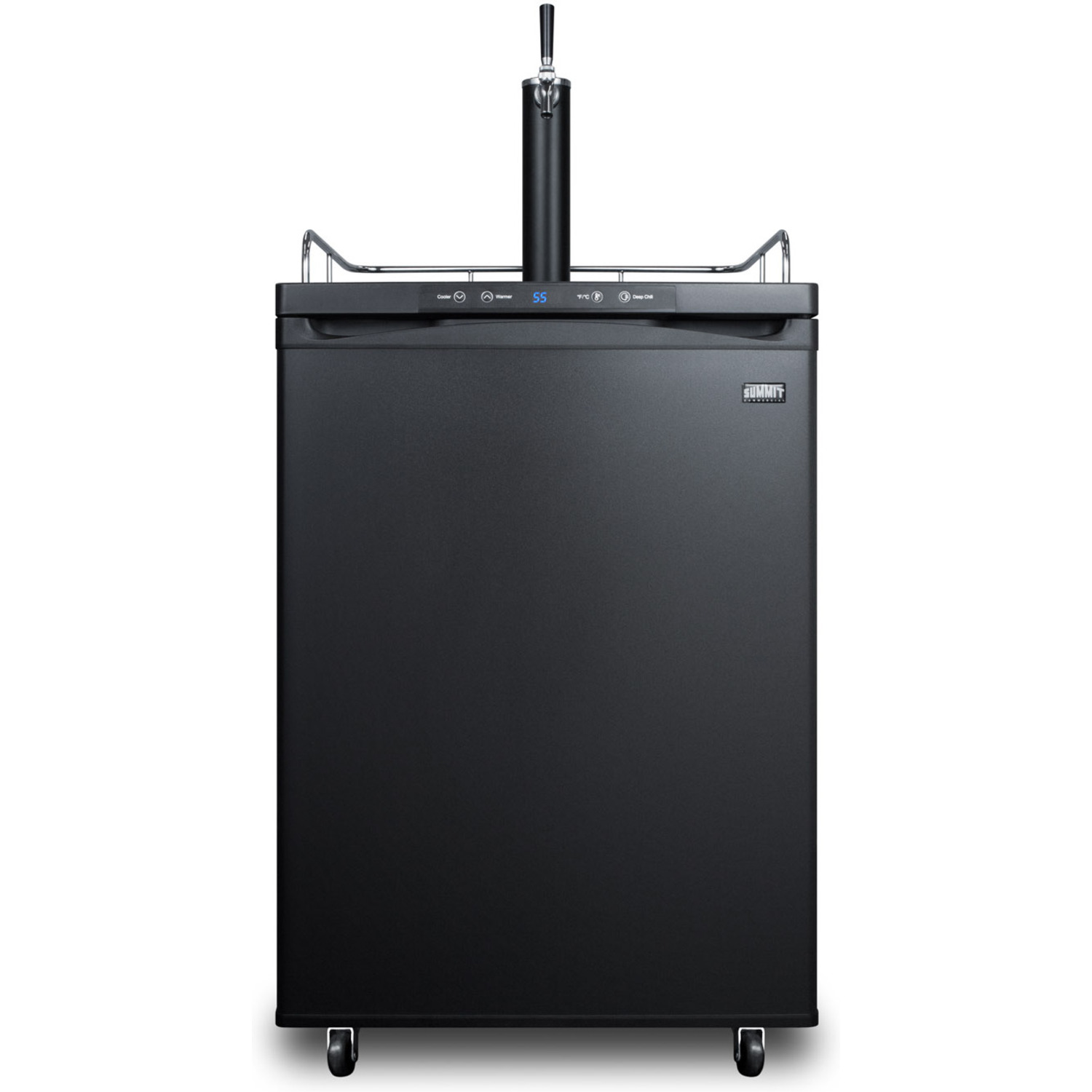

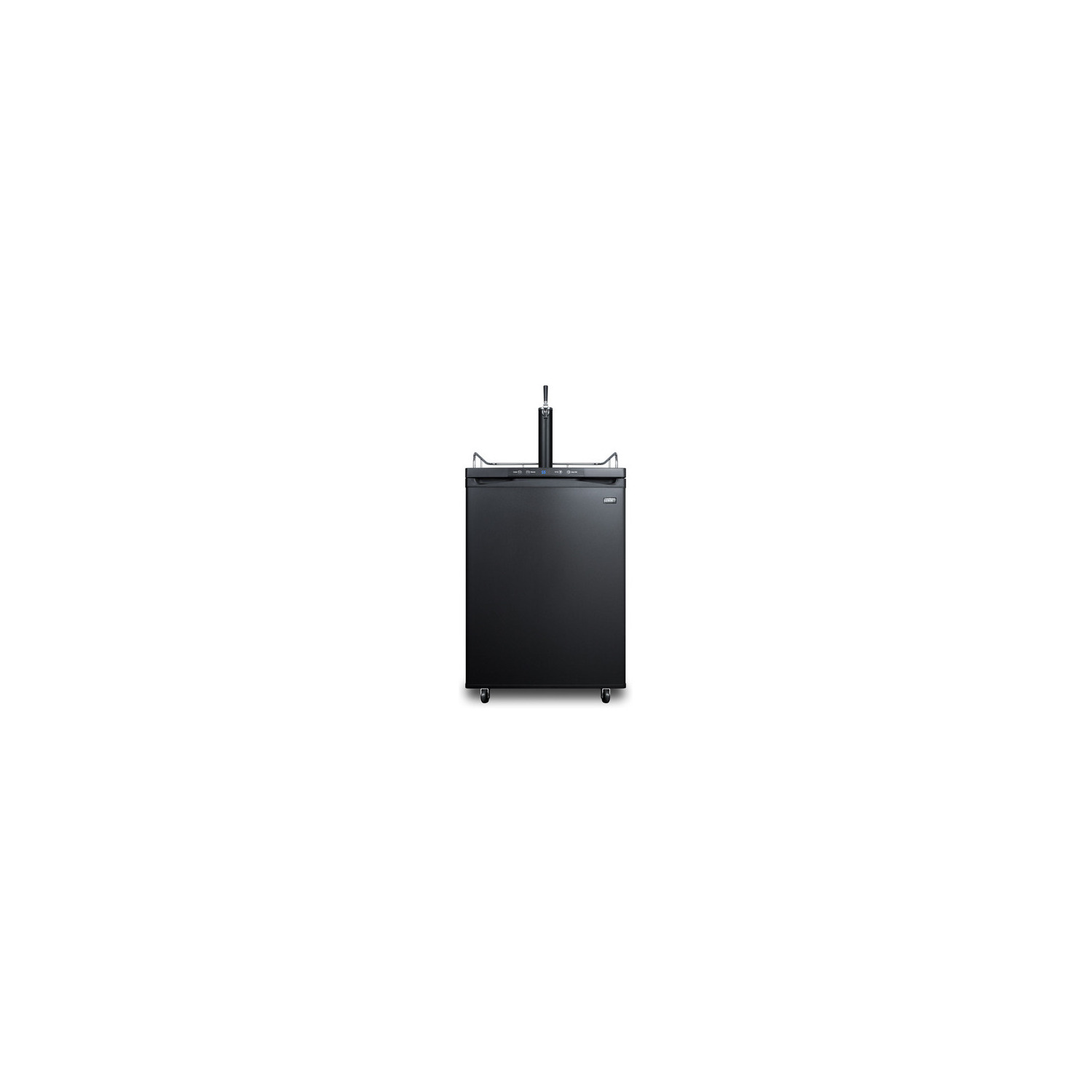

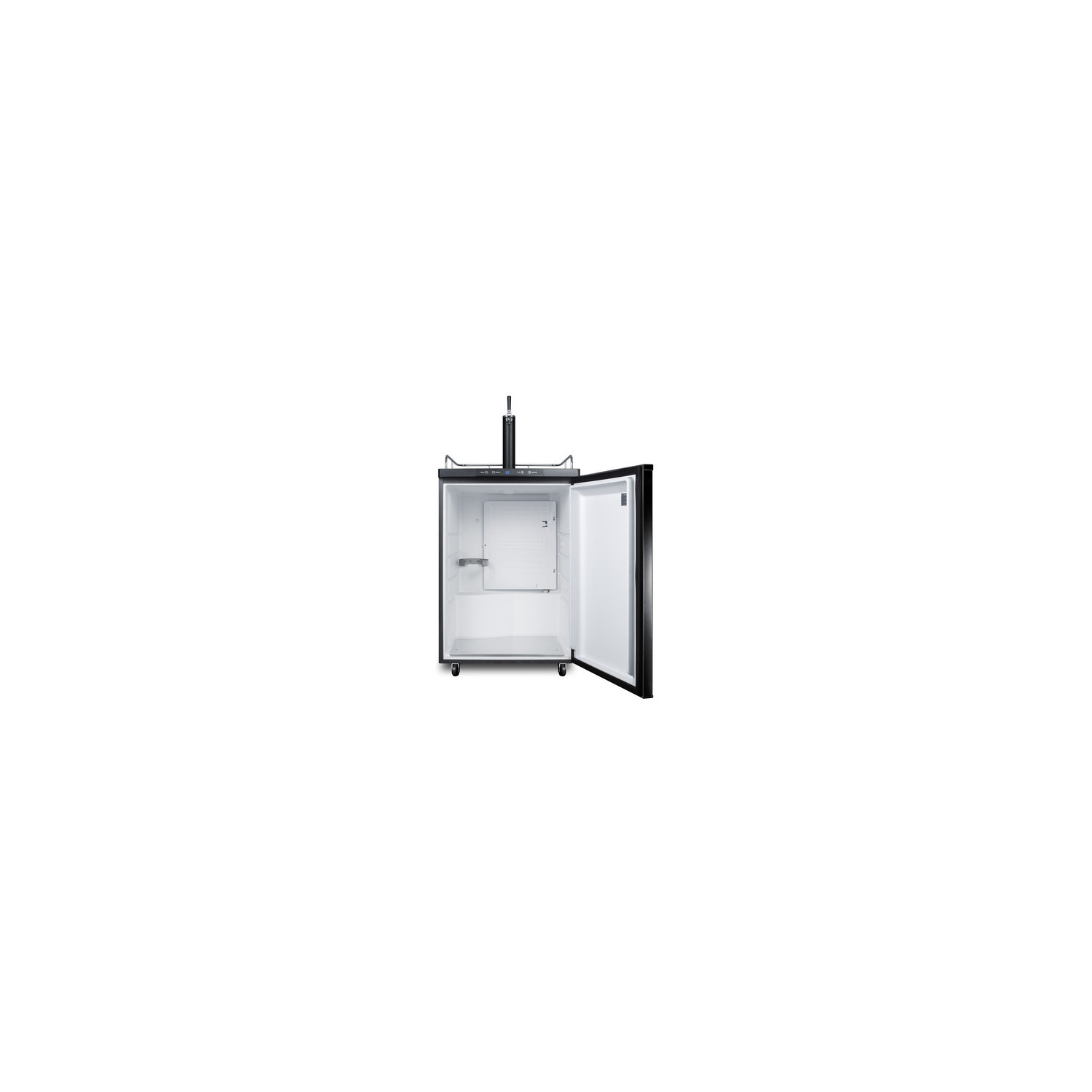

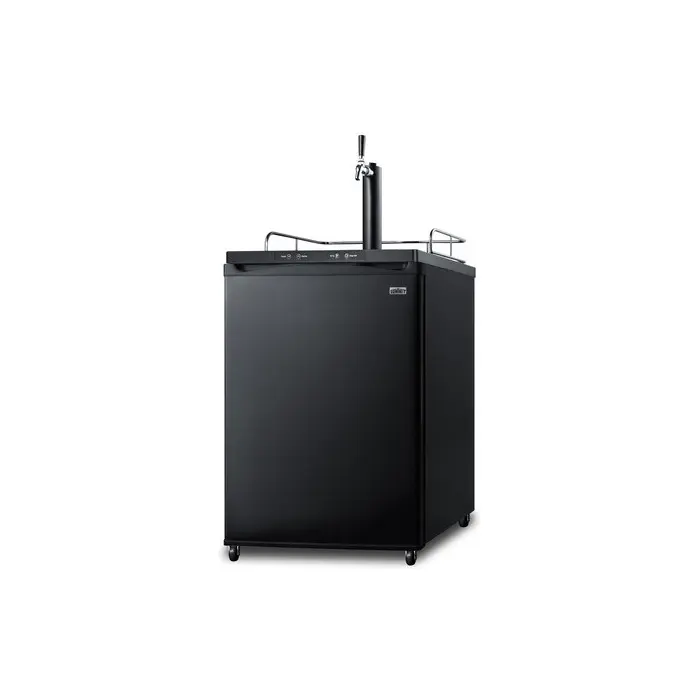

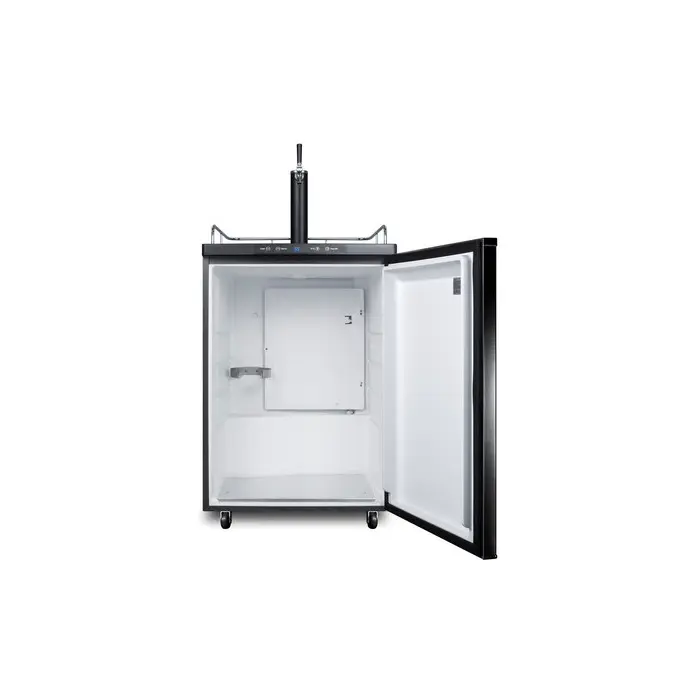

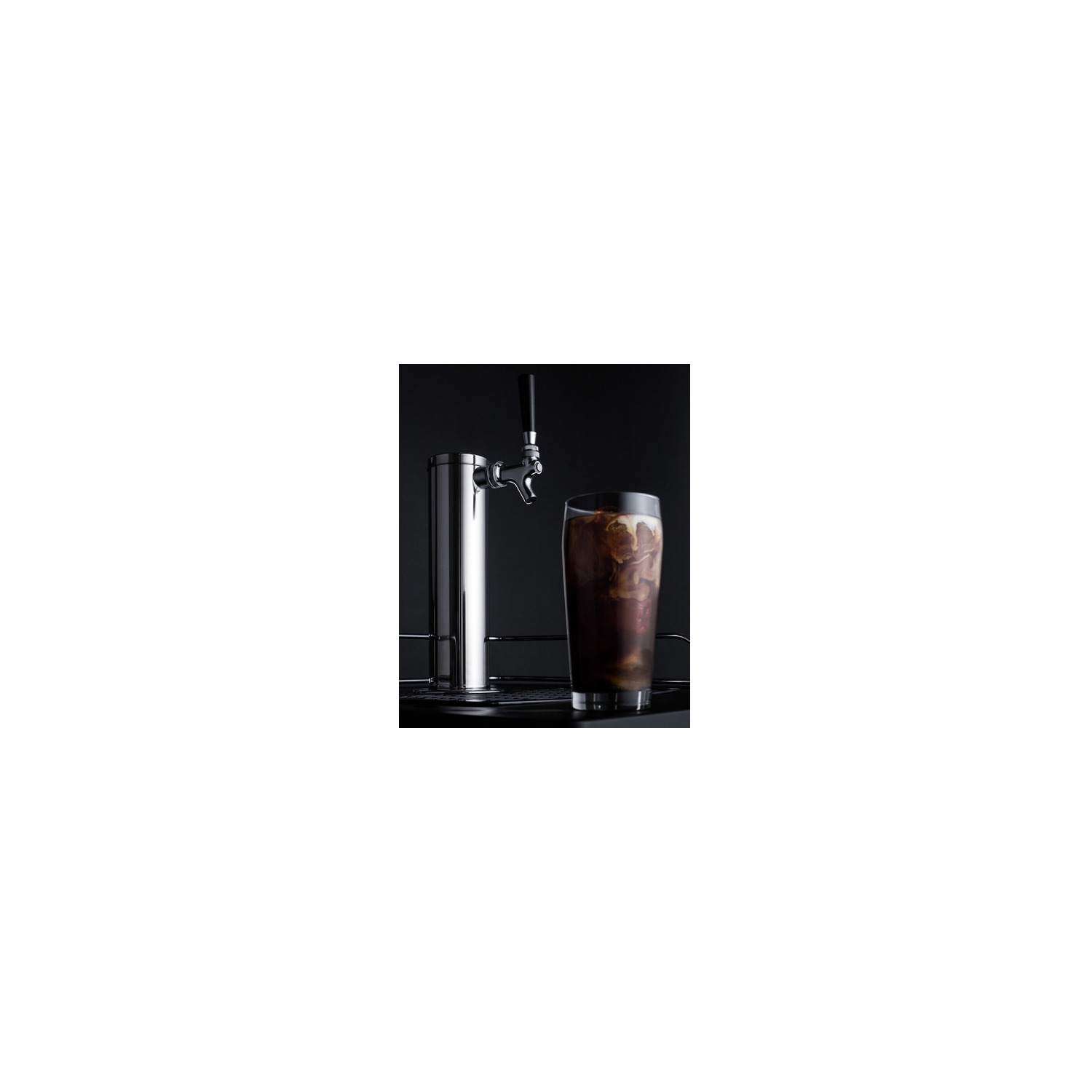

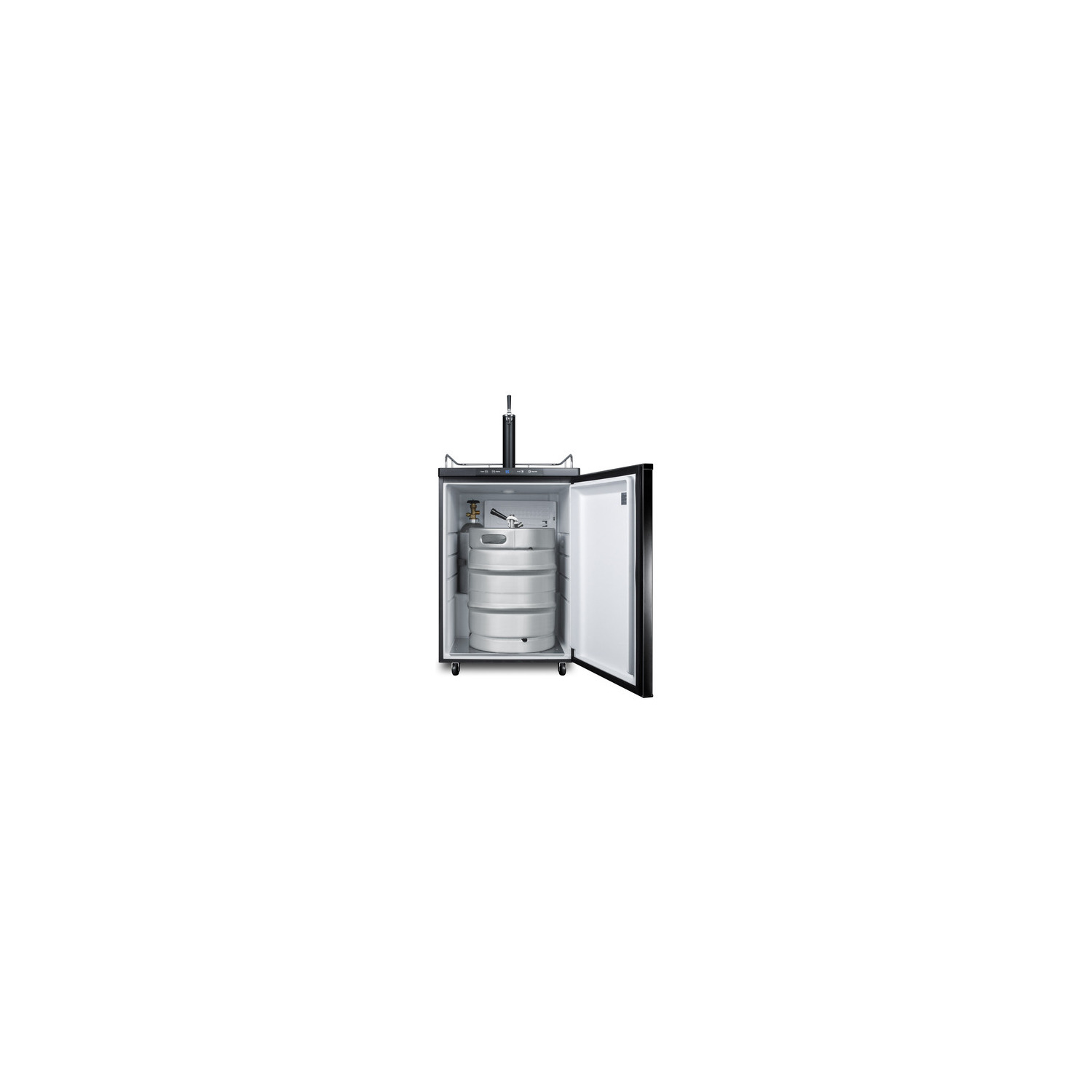

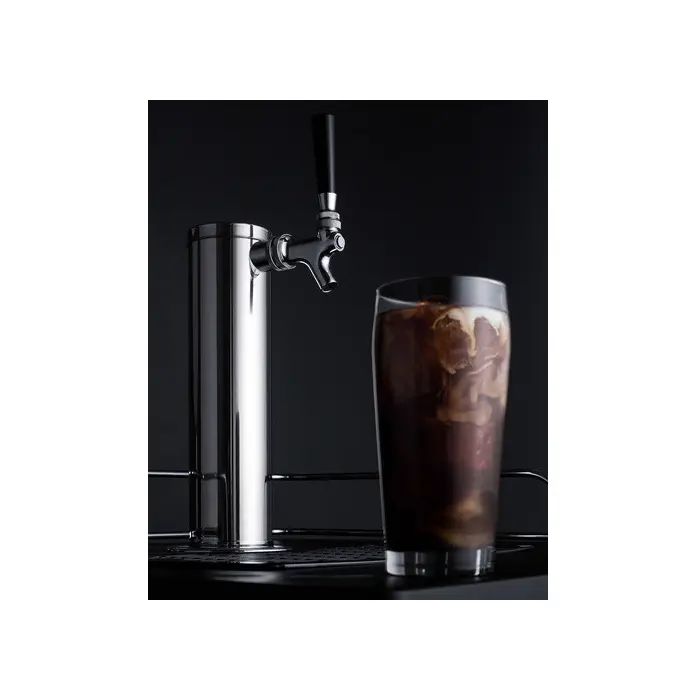

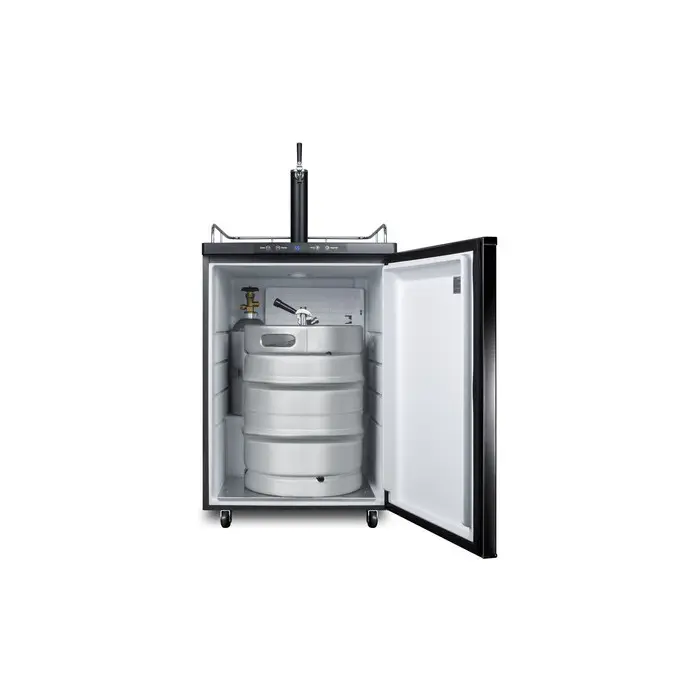

The SBC635M features a large interior that can hold a full half, quarter, 1/6 or mini keg. It comes in a jet black finish with a matching Sankey tower. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. We include a set of locking casters for easy mobility. The user-reversible door swing makes it easy to accommodate any location’s setup.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey tap kit includes all the accessories you need for draft service, including a regulator. The floor is reinforced with a steel cover for added durability when loading kegs.

This unit is designed for freestanding use. For built-in applications, see the SBC635MBI.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Width with Door Open 25.0" (64 cm)

Nominal Depth 25.0" (64 cm)

Depth 25.0" (64 cm)

Depth with door at 90° 47.0" (119 cm)

Capacity 5.6 cu.ft. (159 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 310.0kWh/year

Amps 0.86

Voltage/Frequency 115 V AC/60 Hz

Weight 80.0 lbs. (36 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101032177

Kegerator

Door Swing RHD

Reversible Yes

Tap Kit Yes

Height with Tap 49.0" (124 cm)

Number of Taps 1

Thermostat Type Digital

Refrigerant R600a

Refrigerant Amount 1.13 oz.

High Side PSI 250.0

Low Side PSI 110.0

Inter Height 28.0" (71 cm)

Interior Width 20.5" (52 cm)

Interior Depth 19.0" (48 cm)

Compressor Step Height 8.25" (21 cm)

Wheel Qty 4

Temperature Range 33º to 50º F

FEATURES

Full-sized beer dispenser Large 5.6 cu.ft. interior accepts half, quarter, and mini kegs

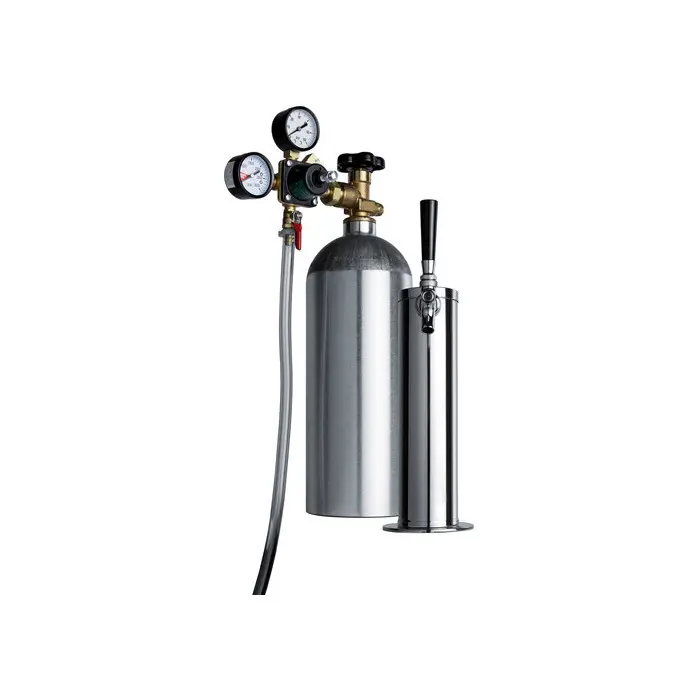

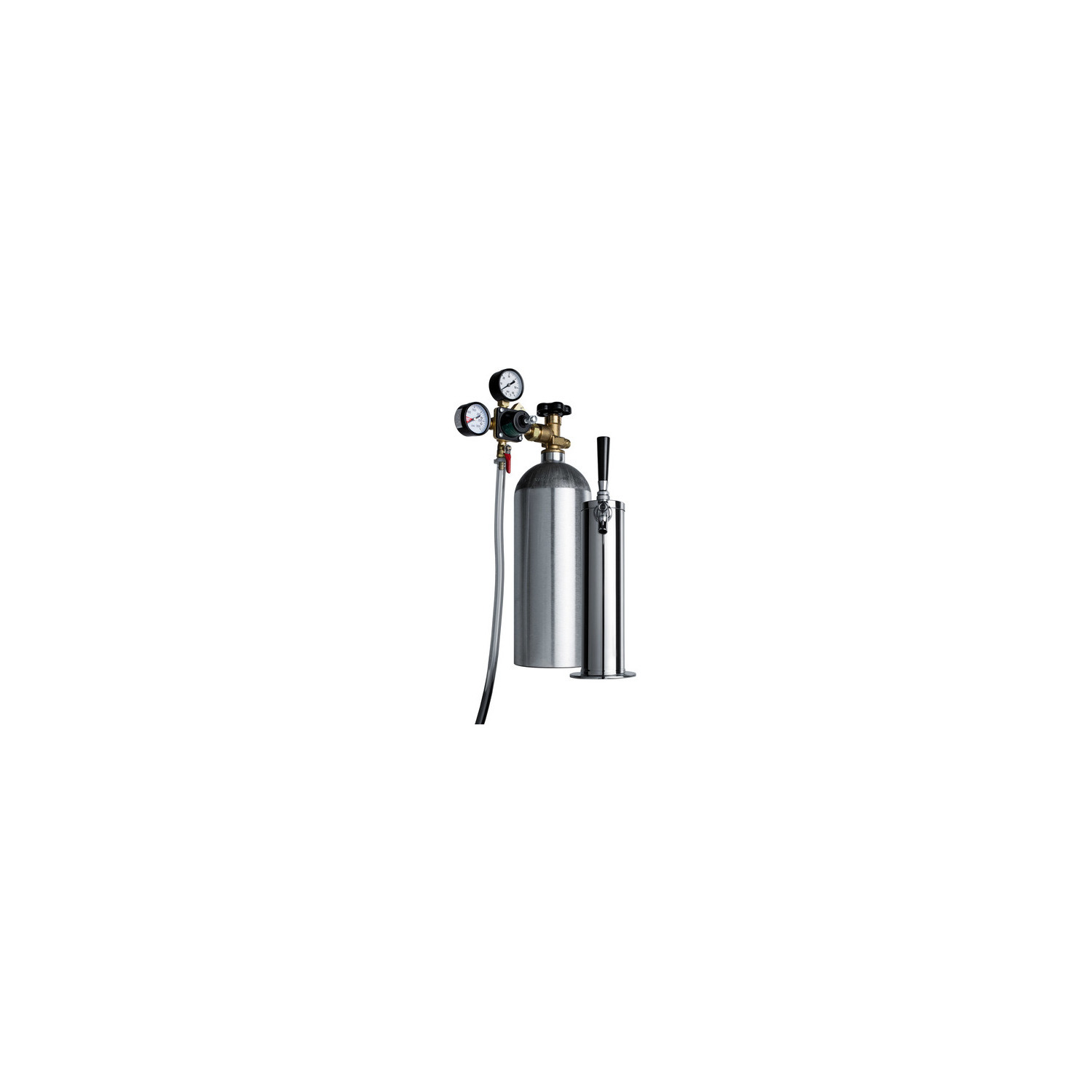

Tap Kit Regulator, draft arm, Sankey American tap, and connection hardware

Automatic defrost Reduced user maintenance with auto defrost operation

Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Ideal beer temperature Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Fully finished black cabinet Allows the beer dispenser to be used freestanding

Reversible door User-reversible door swing for added flexibility

Casters included (ships unassembled) To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled) Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

Drip tray Removable drip tray catches spills to help contain the mess

Deep Chill function Great for getting faster cooling results when loading your first keg

Commercial design Unit meets UL Commercial Standard 471

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
