Summit ADA compliant built-in commercial dual tap beer dispenser in white, 7.61101e+011, SBC58WHBIADA

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe.

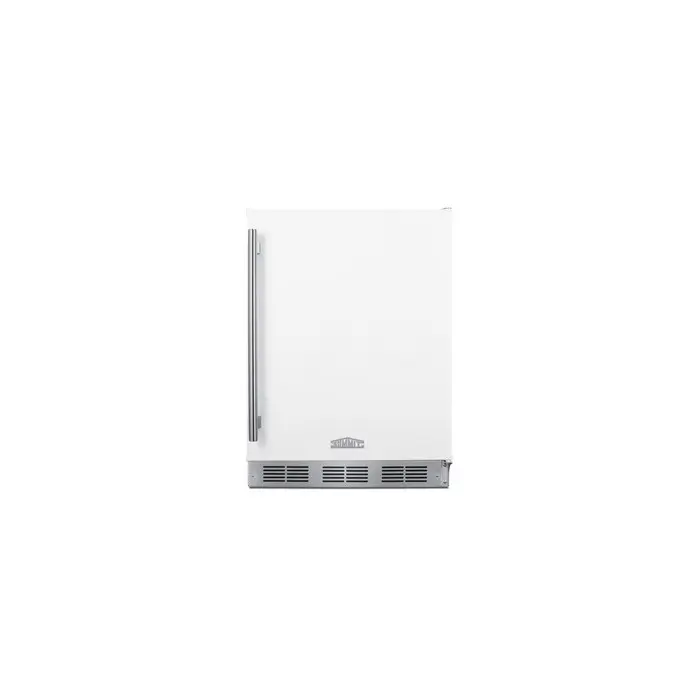

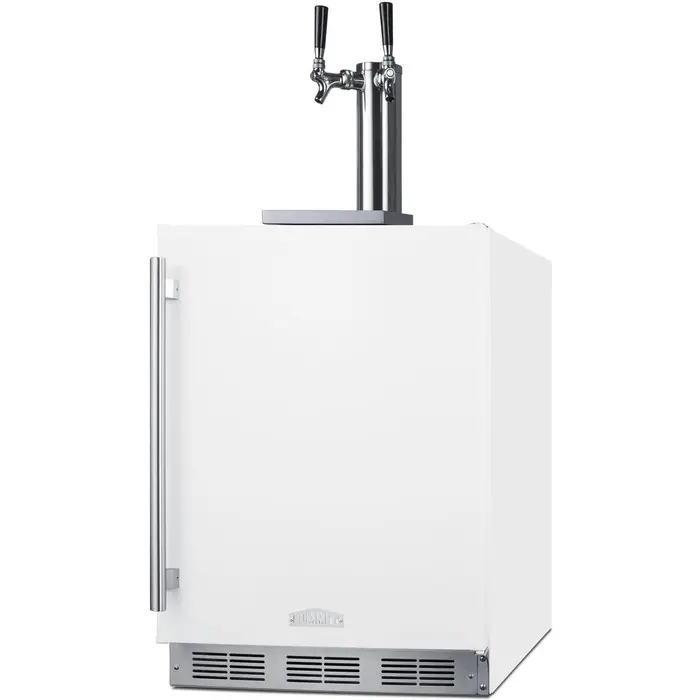

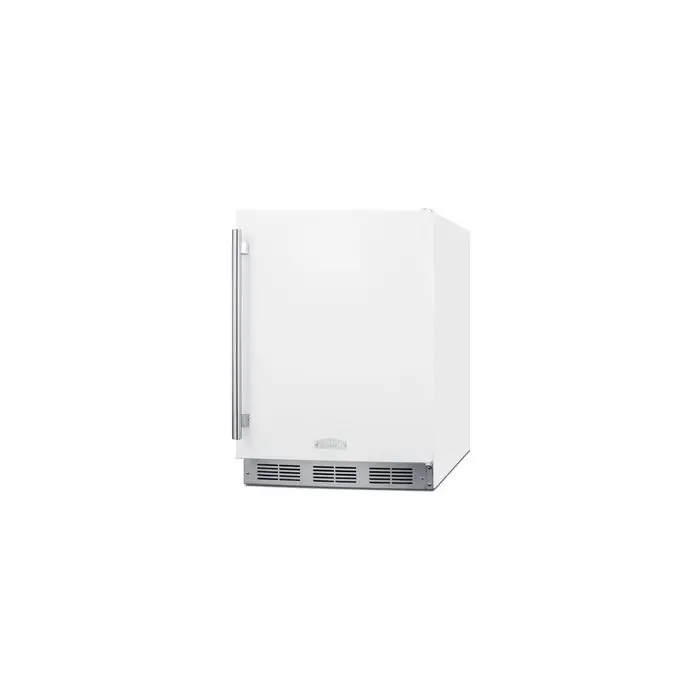

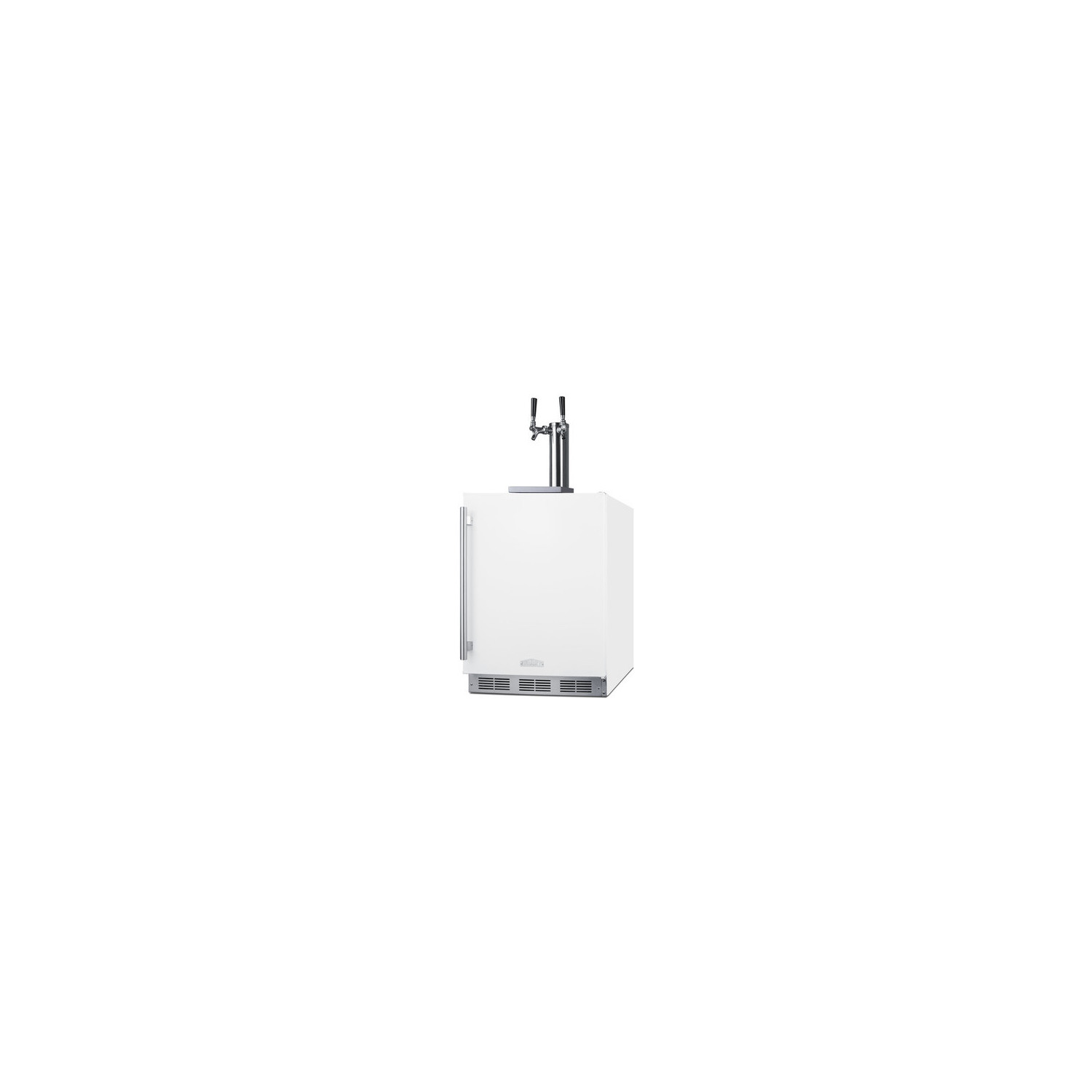

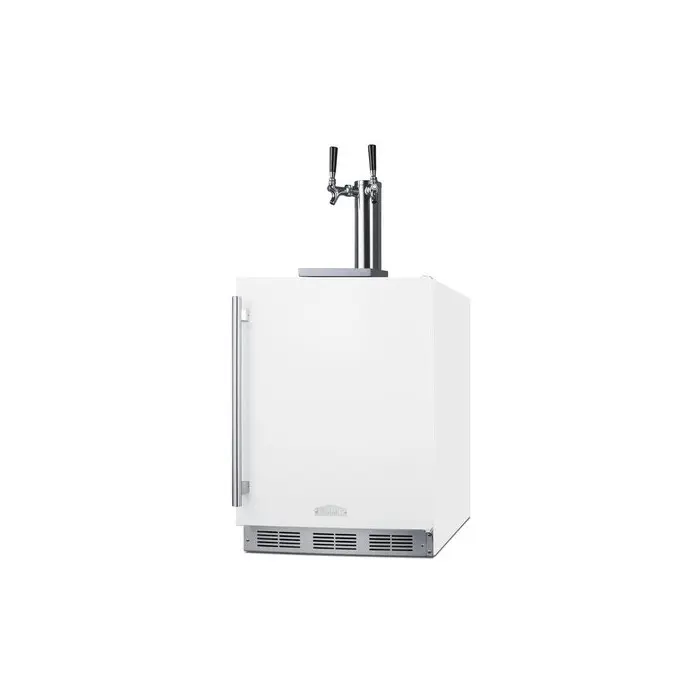

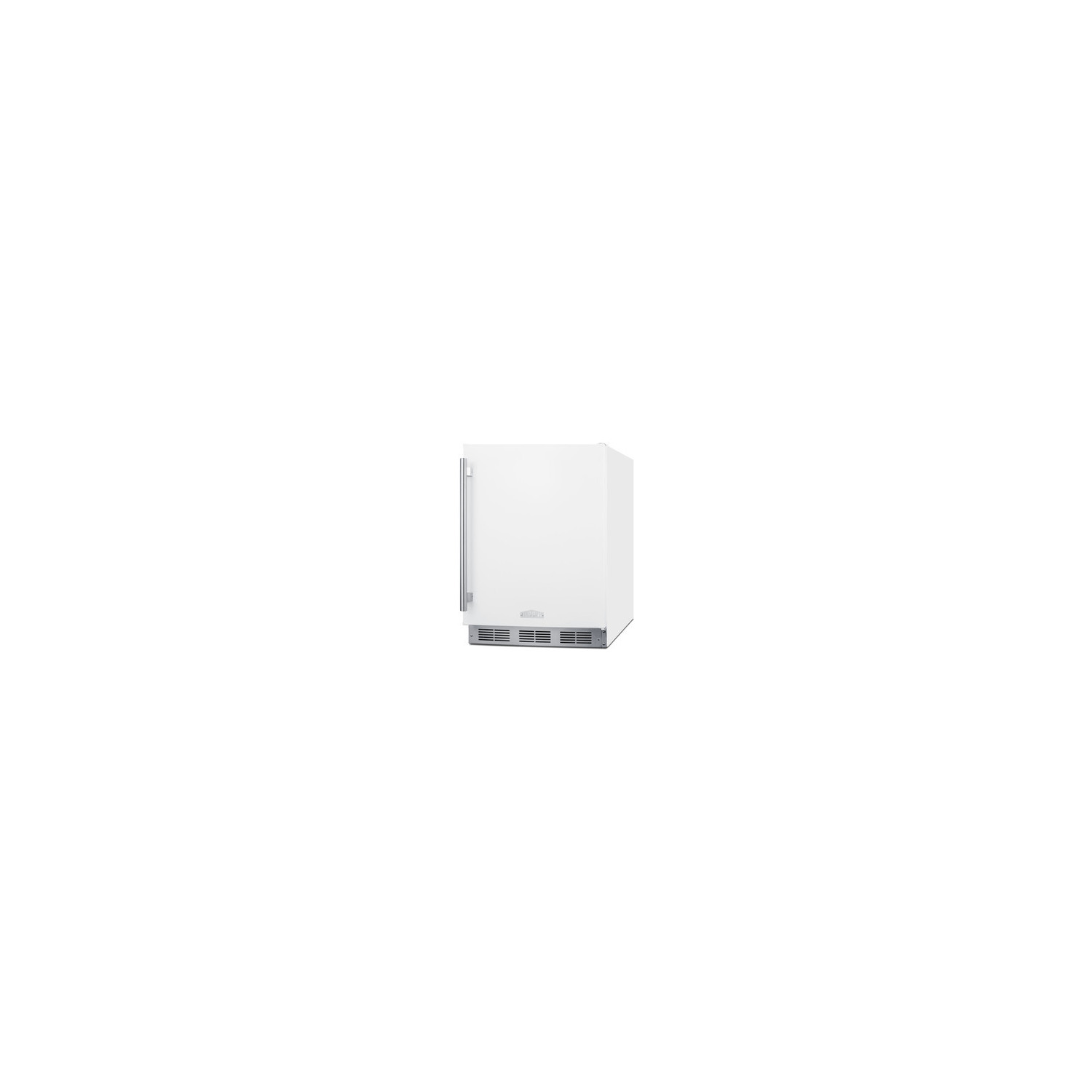

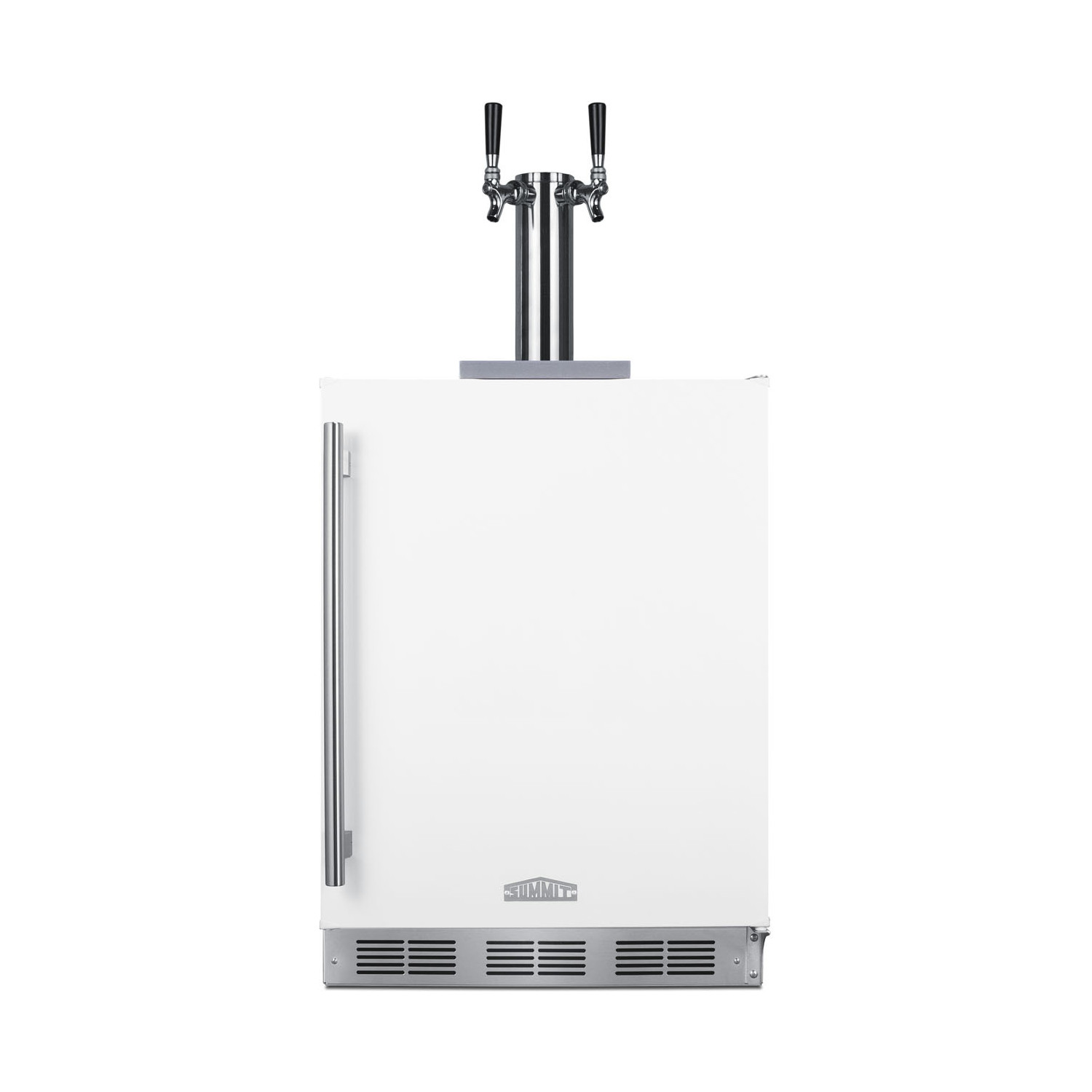

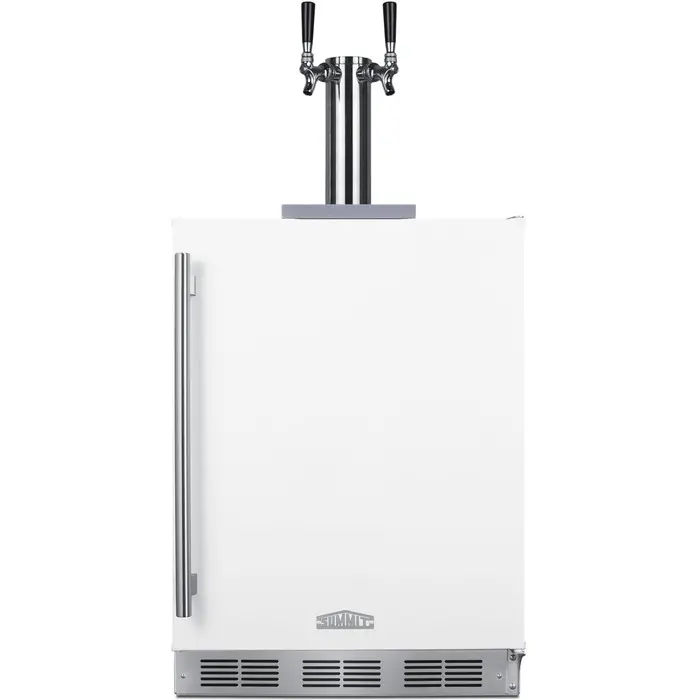

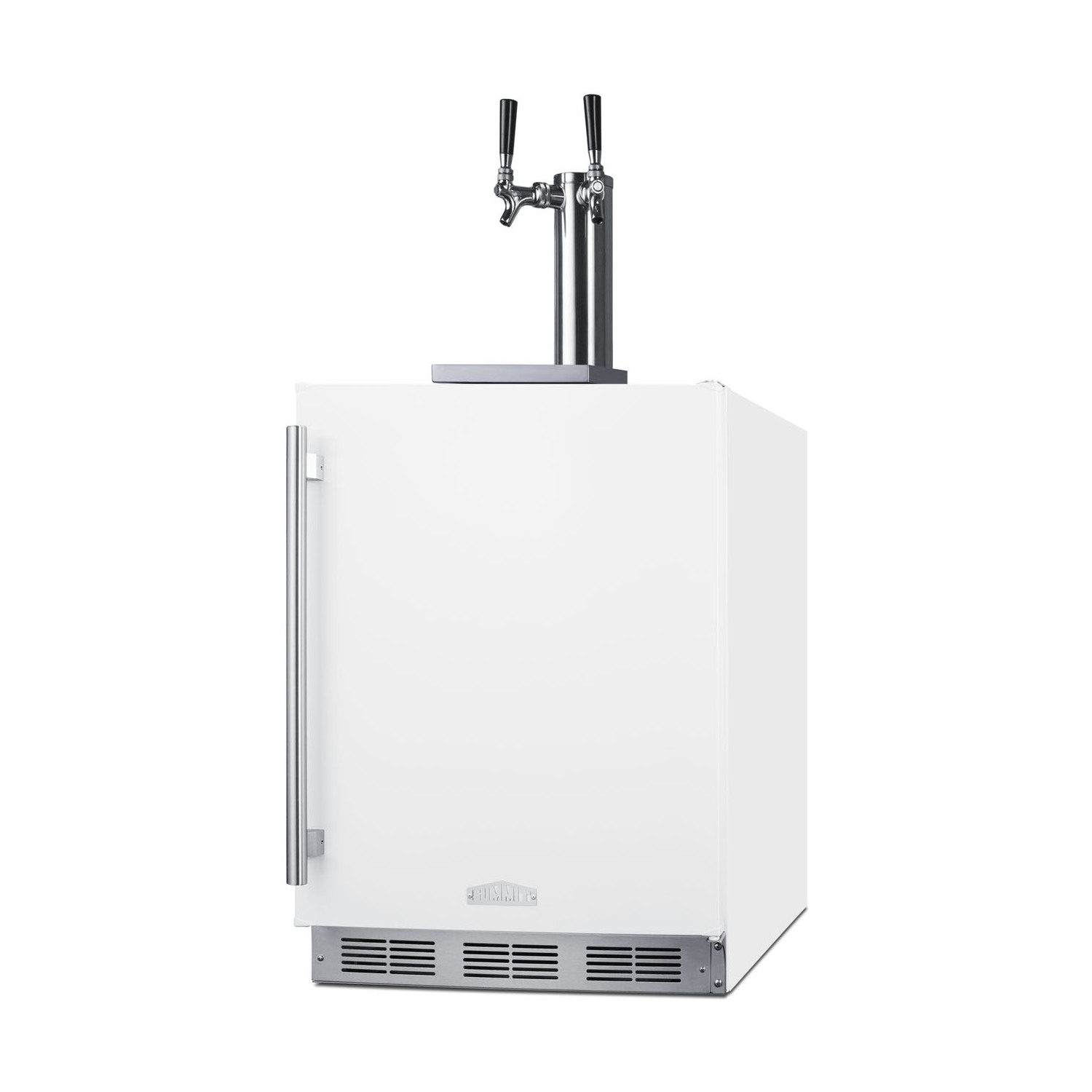

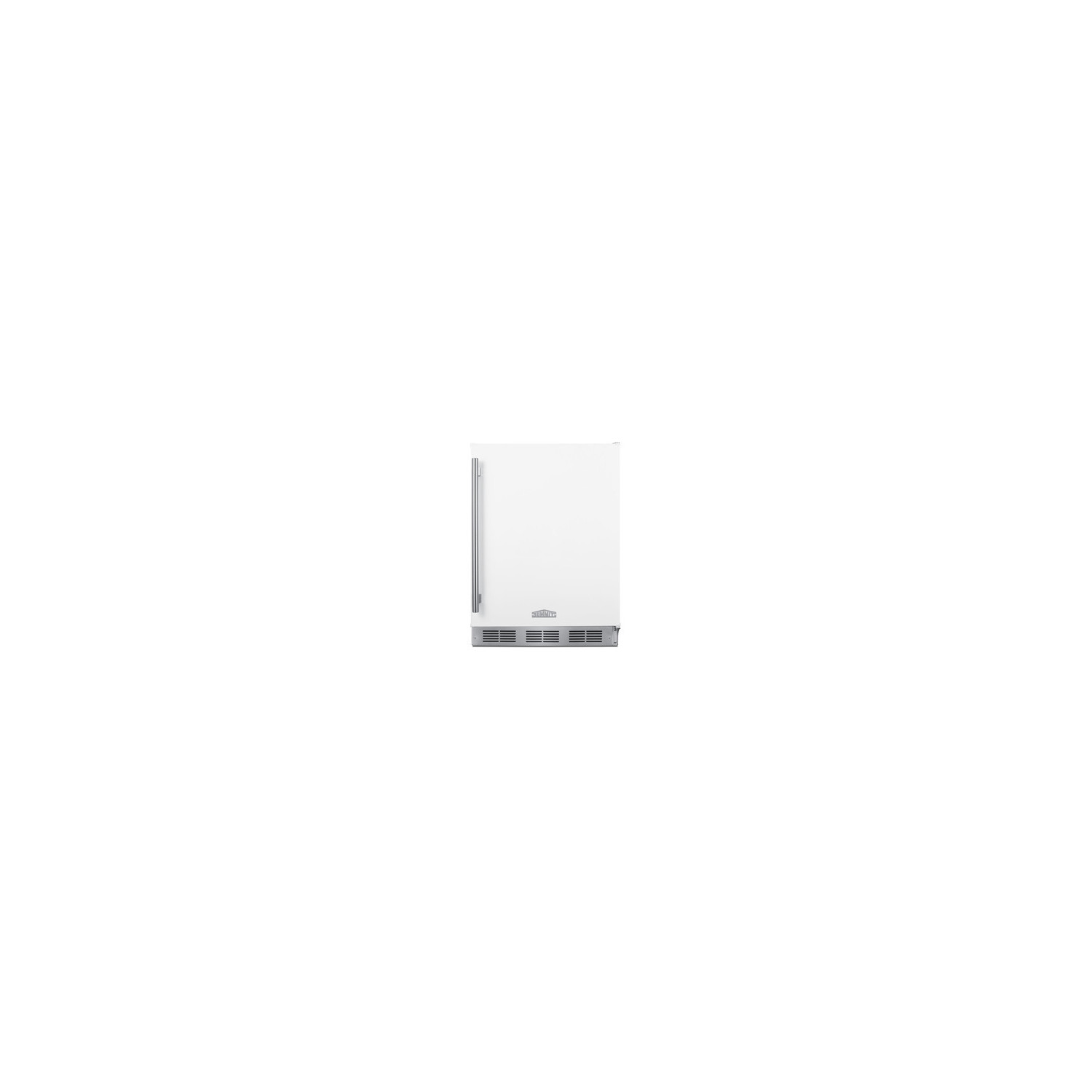

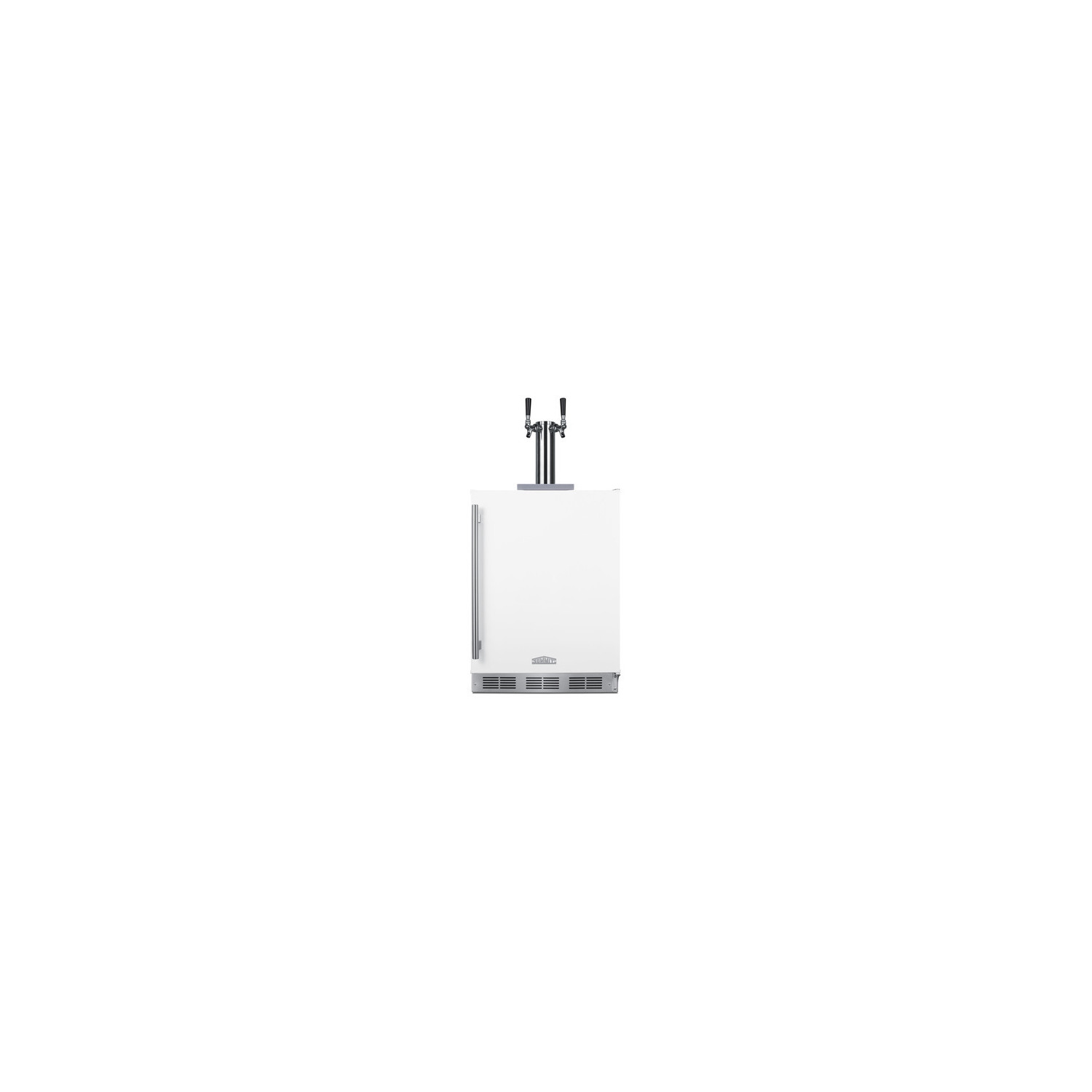

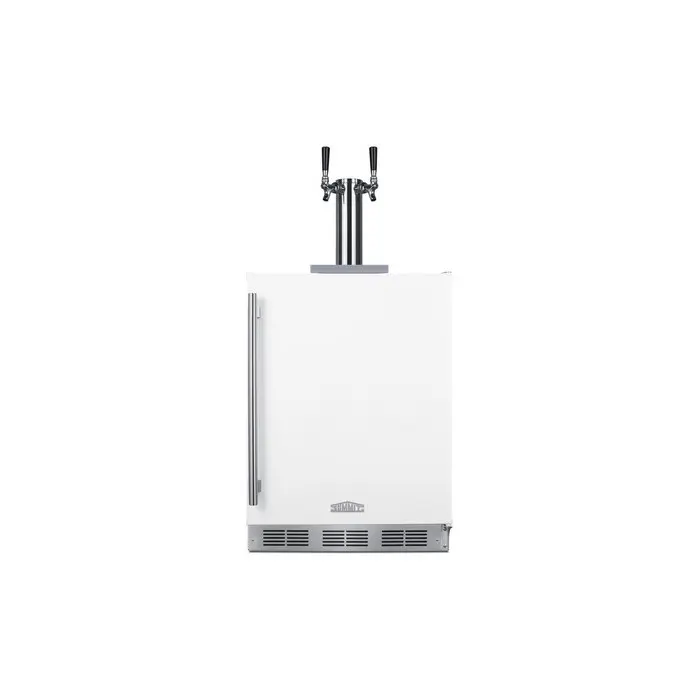

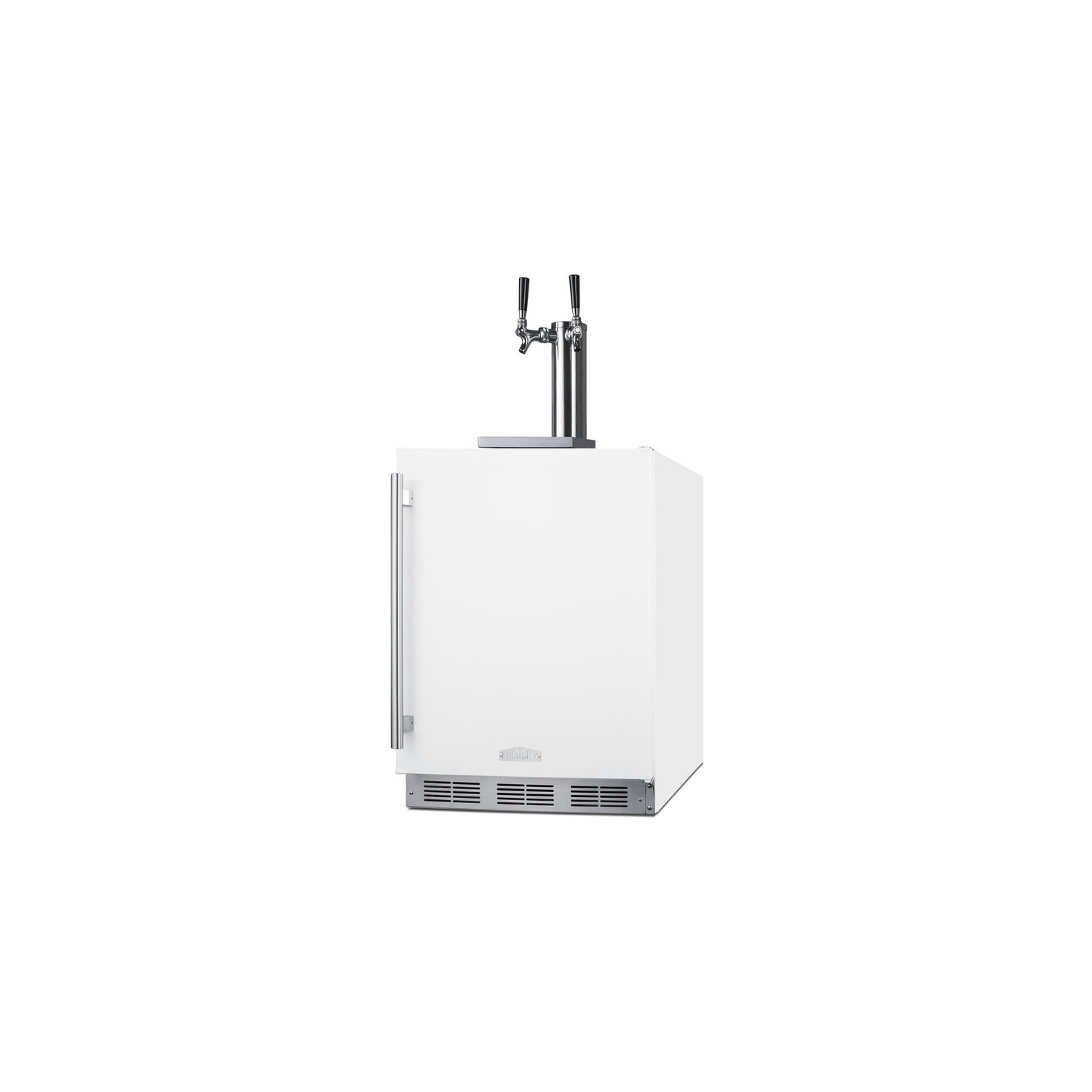

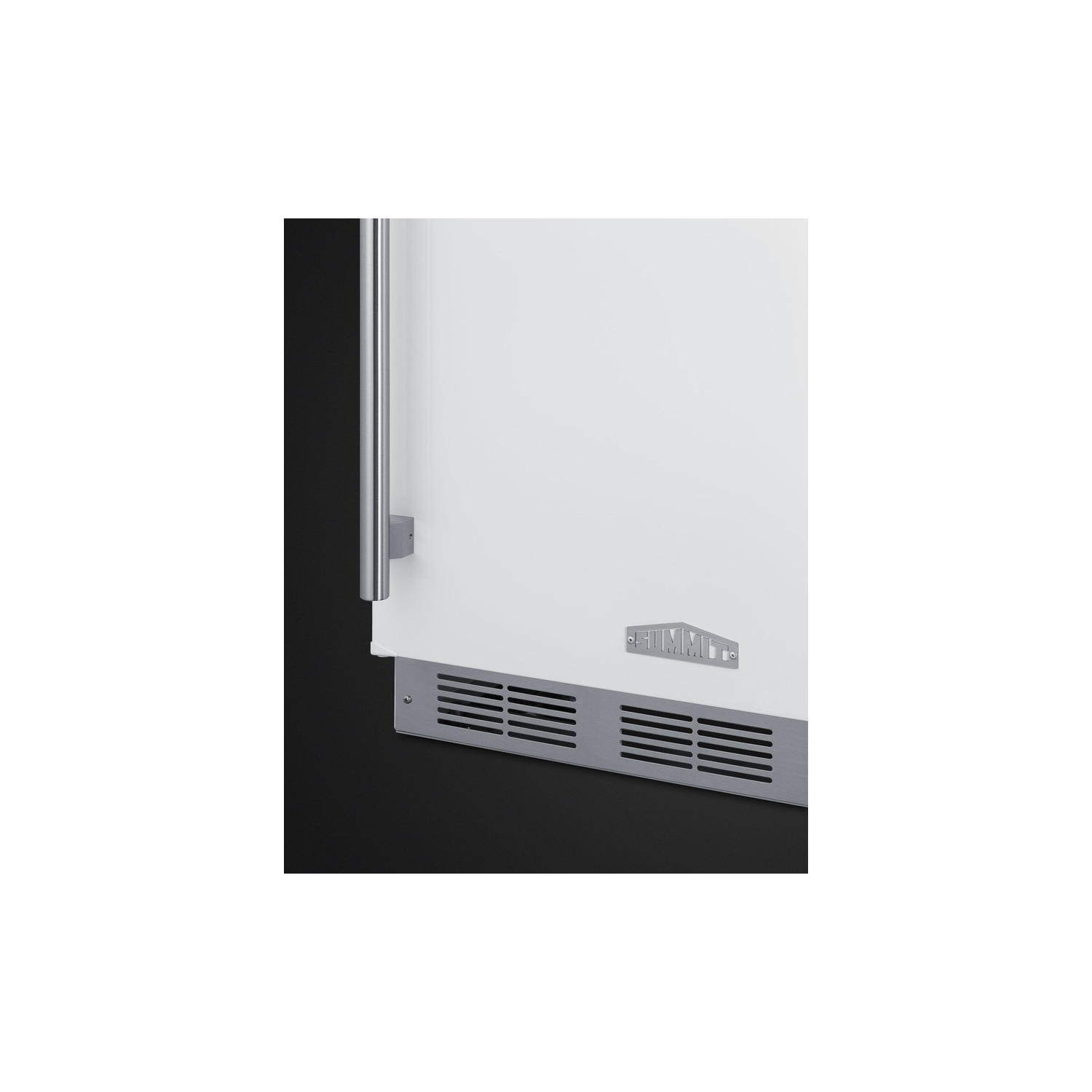

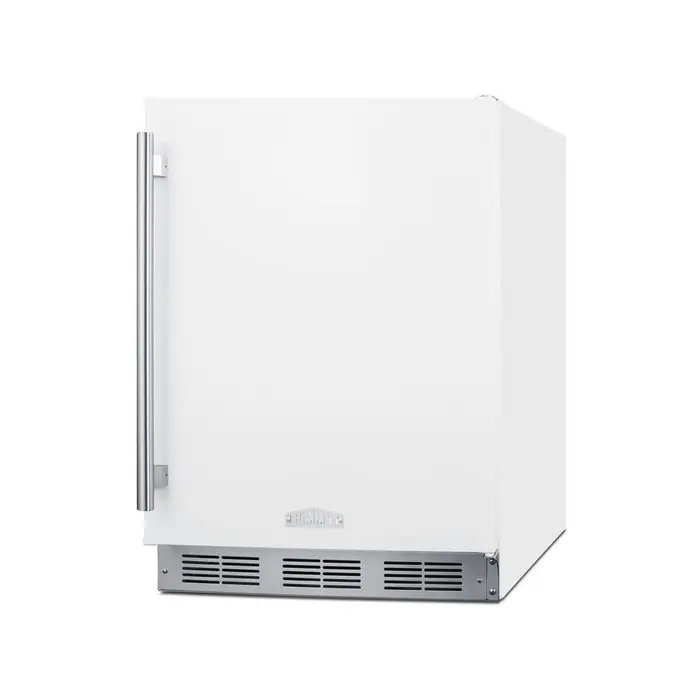

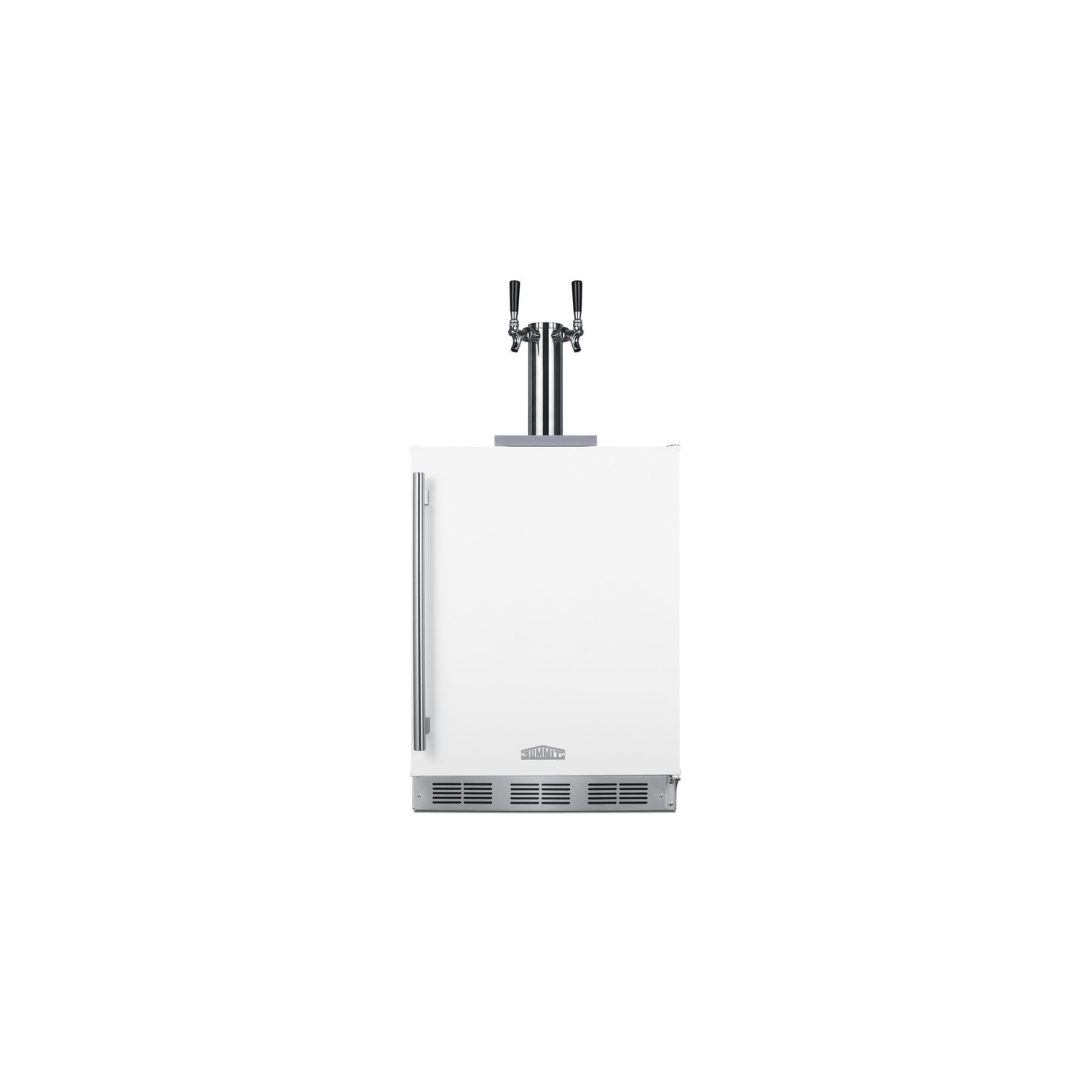

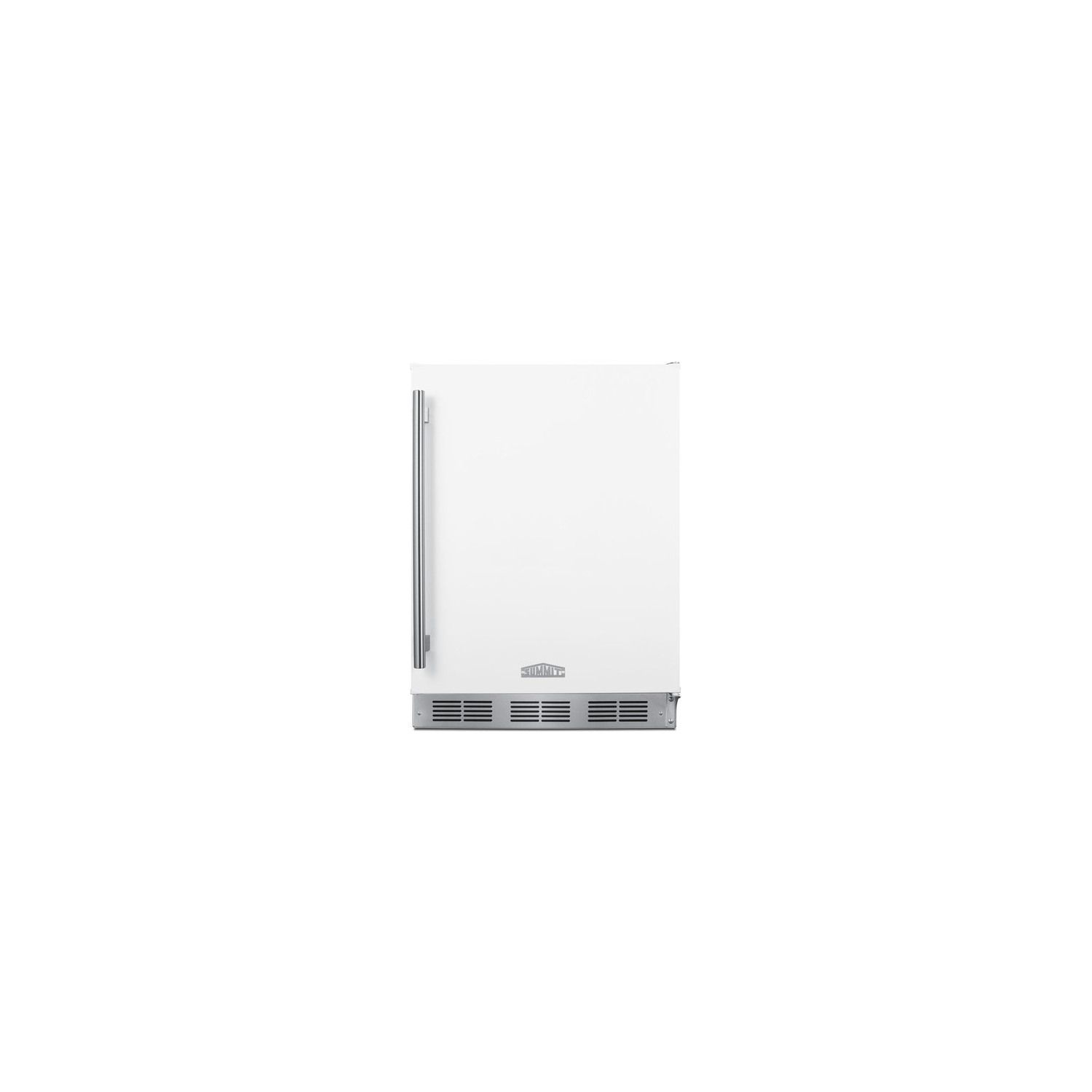

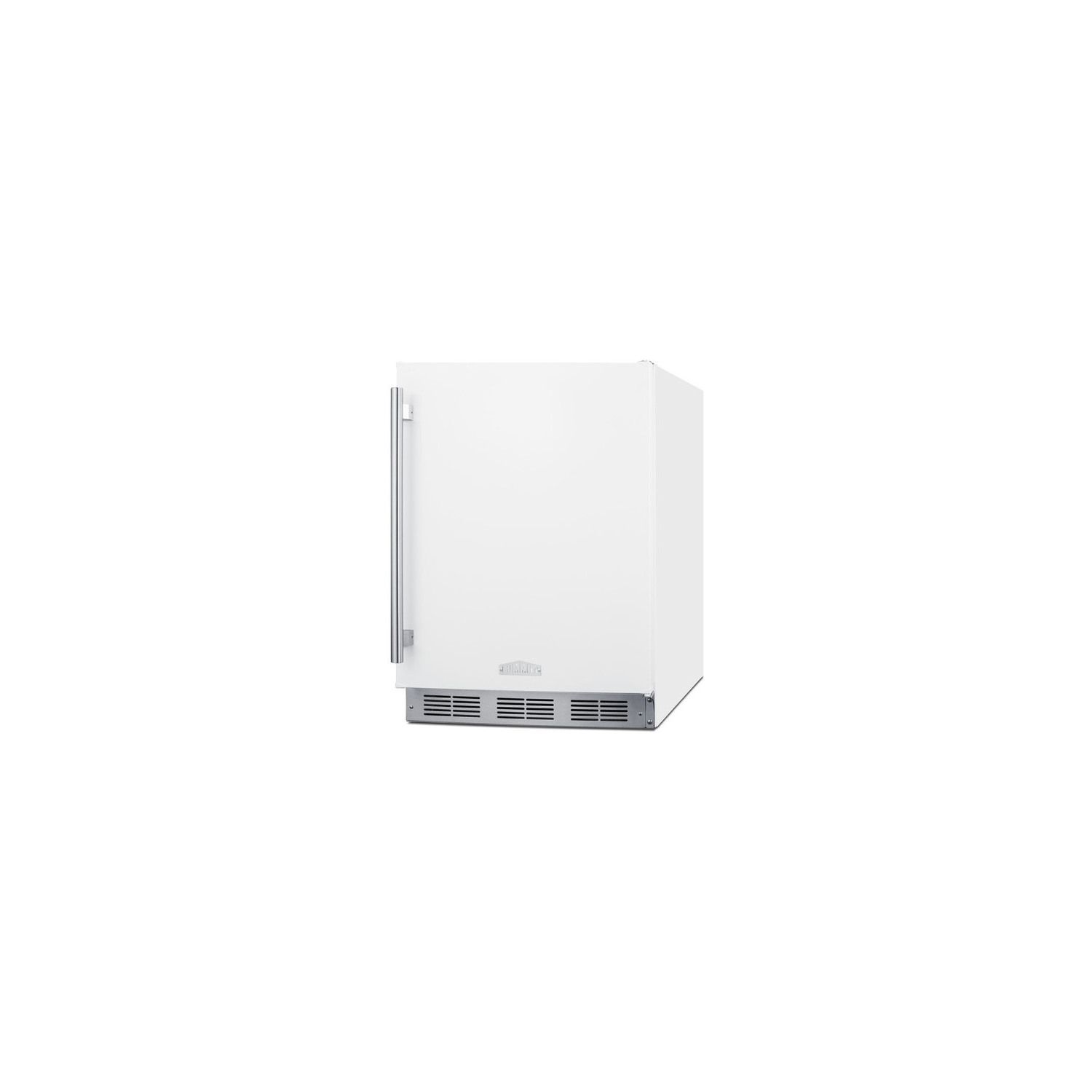

Sized at 32 inches high, the SBC58WHBIADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes in a clean white finish accented by a stainless steel kickplate and pro style handle. We include a removable two-piece stainless steel drip tray for cleaner service. The SBC58WHBIADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap.

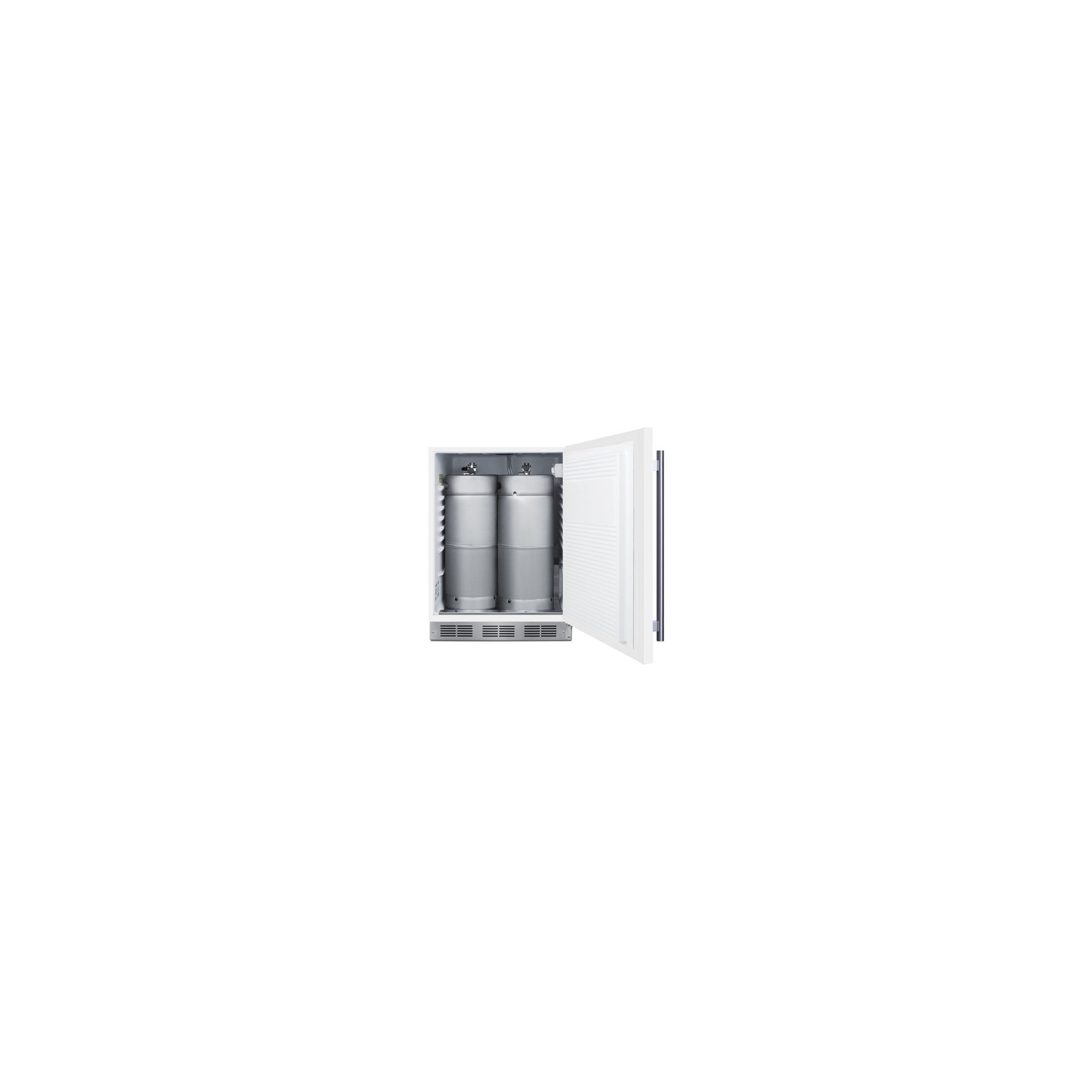

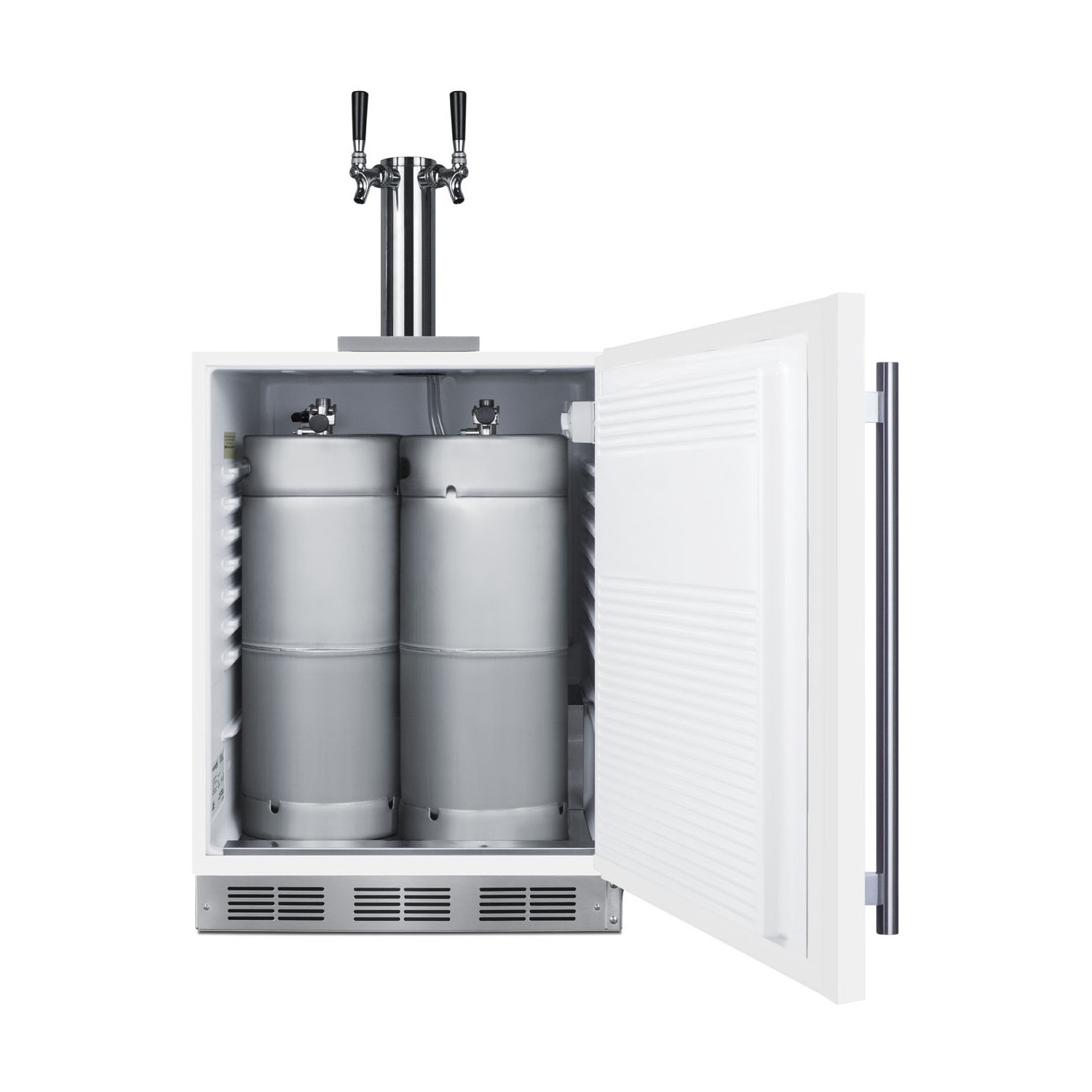

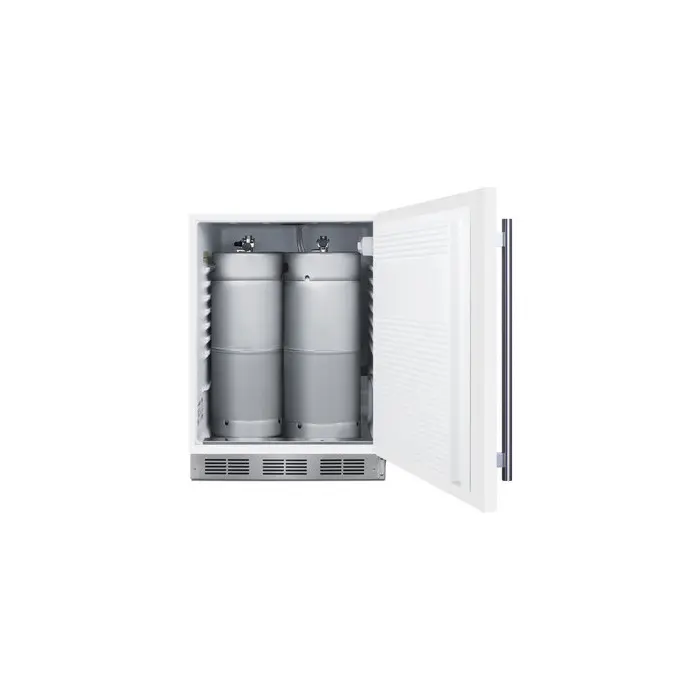

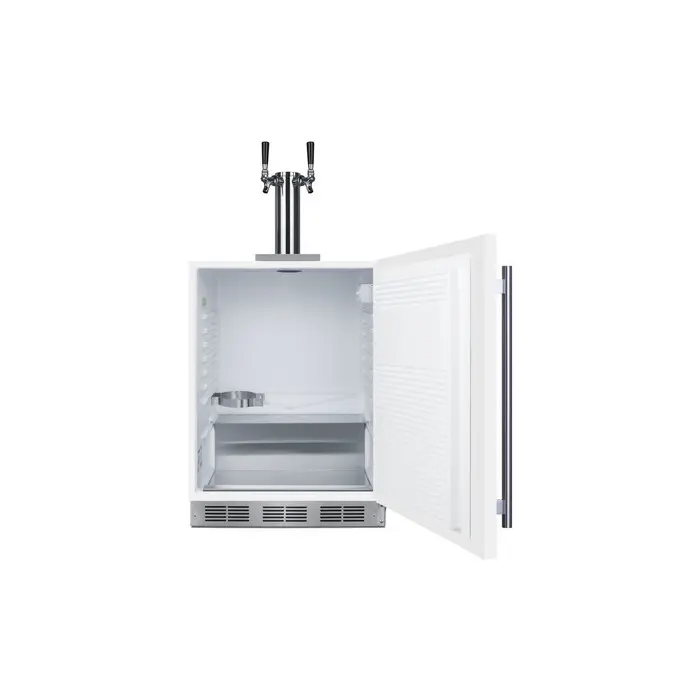

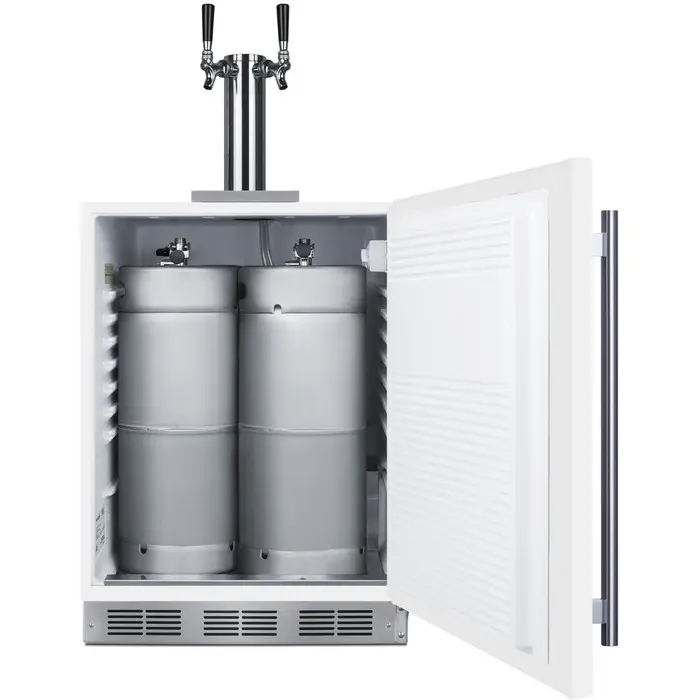

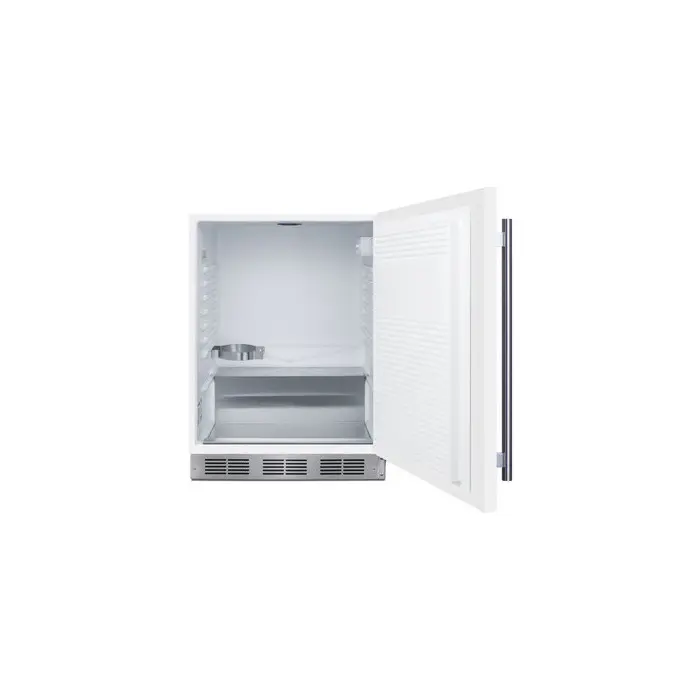

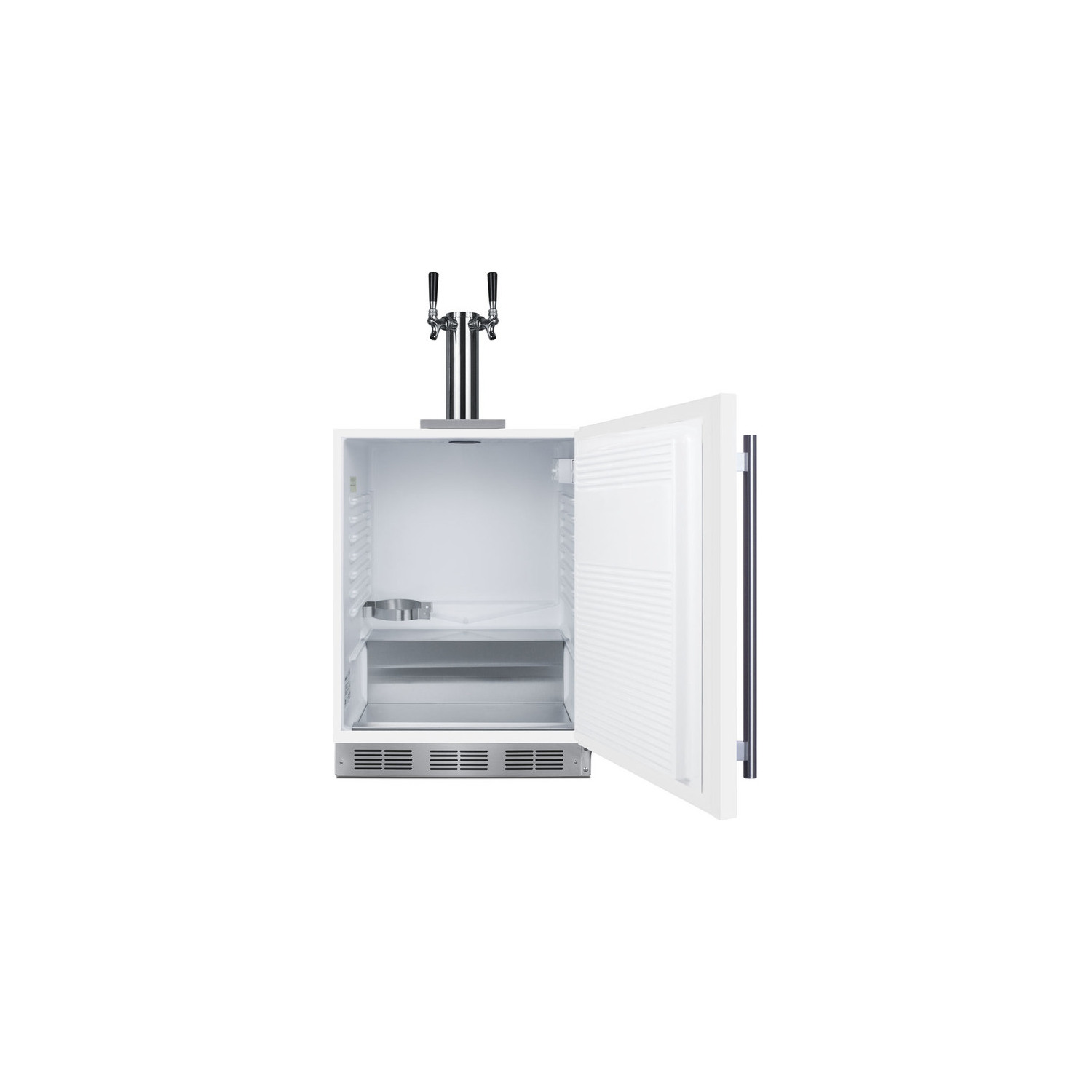

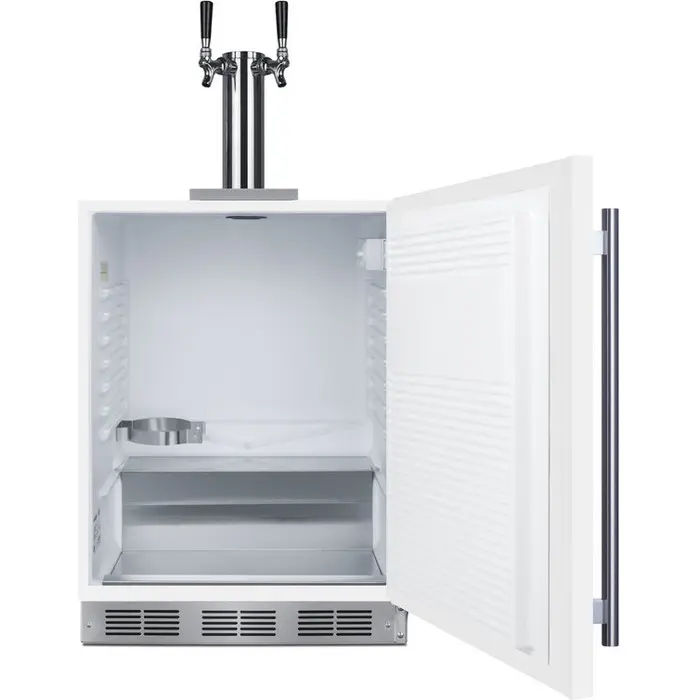

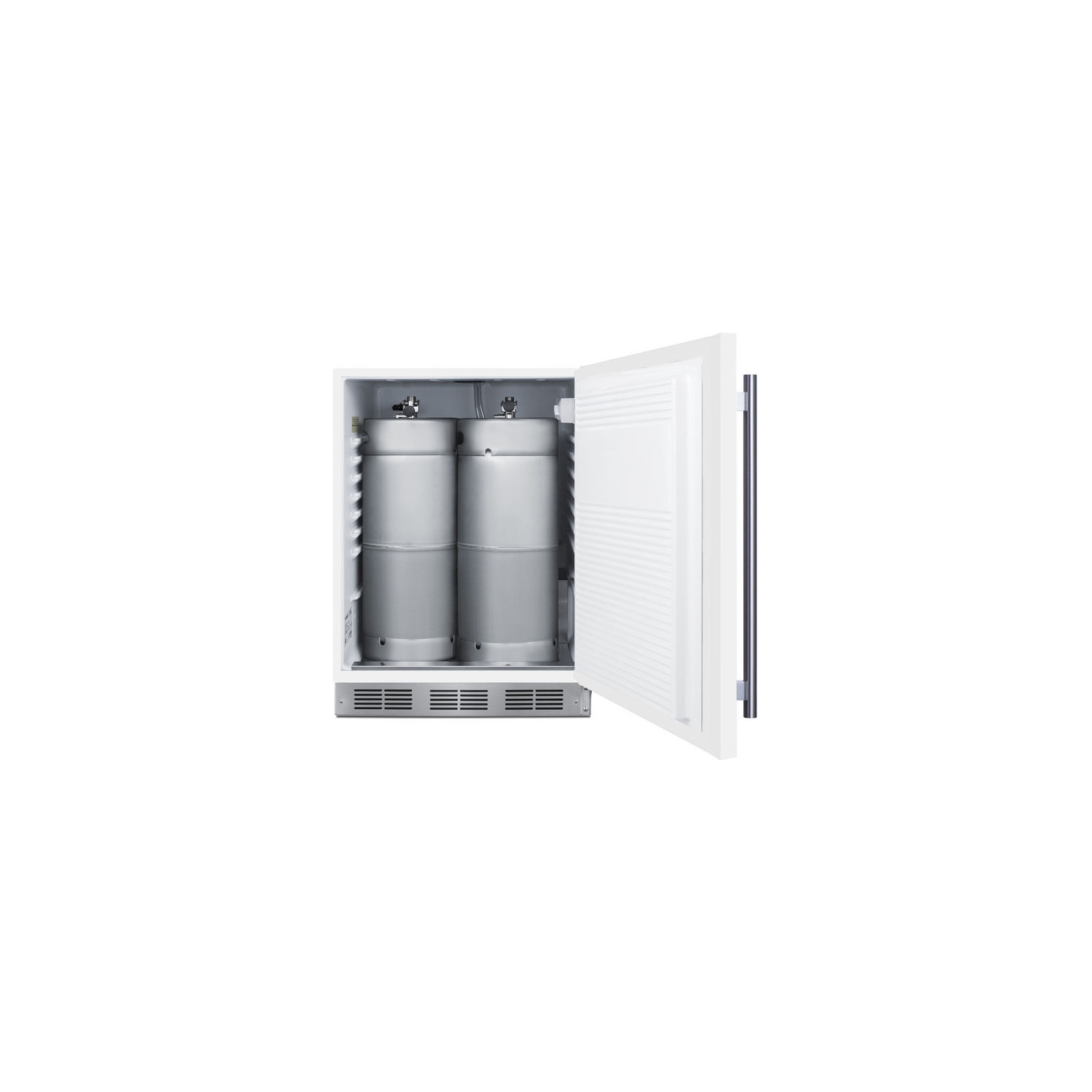

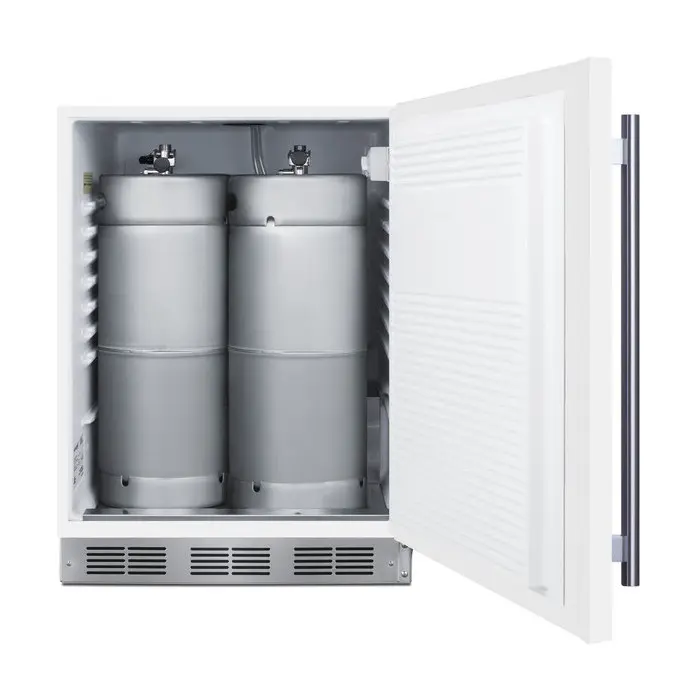

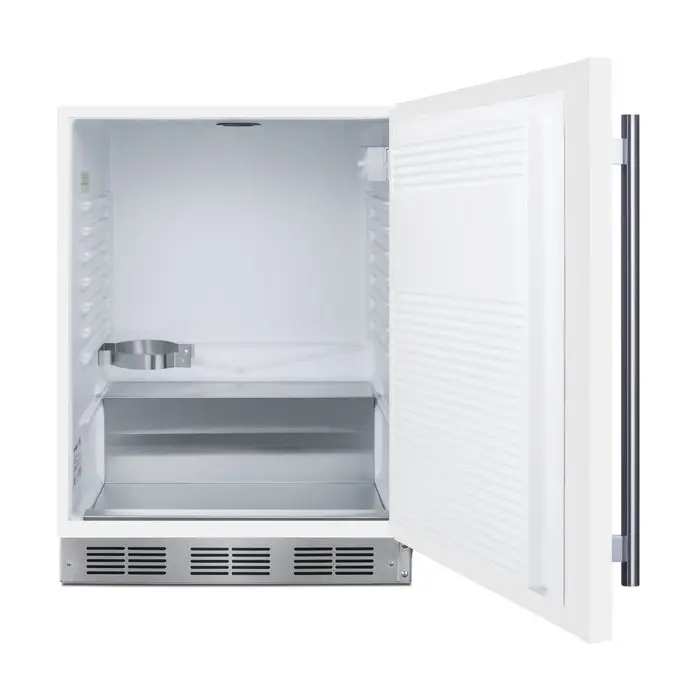

Inside, the SBC58WHBIADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the unit and save on exterior depth.

The SBC58WHBIADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant European kegerators are available with stainless steel, panel-ready, or glass doors. Browse our complete line for more choices.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.75" (63 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101086521

Kegerator

Door Swing RHD

Reversible Factory Reversible

Tap Kit Yes

Height with Tap 47.5" (121 cm)

Number of Taps 2

Thermostat Type Dial

Interior Light Yes

Fan Type Exterior

Refrigerant R600a

Refrigerant Amount 0.64 oz.

High Side PSI 180.0

Low Side PSI 80.0

Inter Height 25.75" (65 cm)

Interior Width 21.0" (53 cm)

Interior Depth 17.75" (45 cm)

Compressor Step Height 6.5" (17 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range 34º to 43ºF

FEATURES

ADA compliant height Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable Front-breathing design allows fully recessed installation under counters

Complete tap kit Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

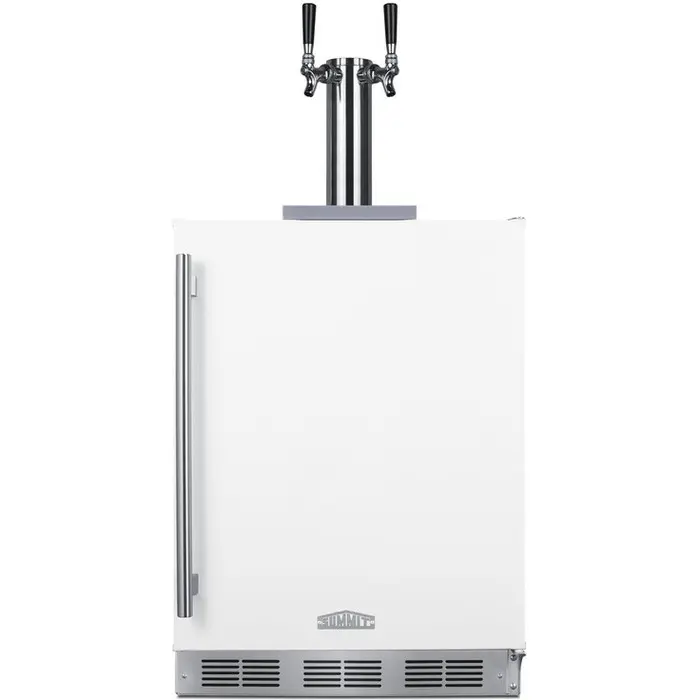

Dual tap system Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

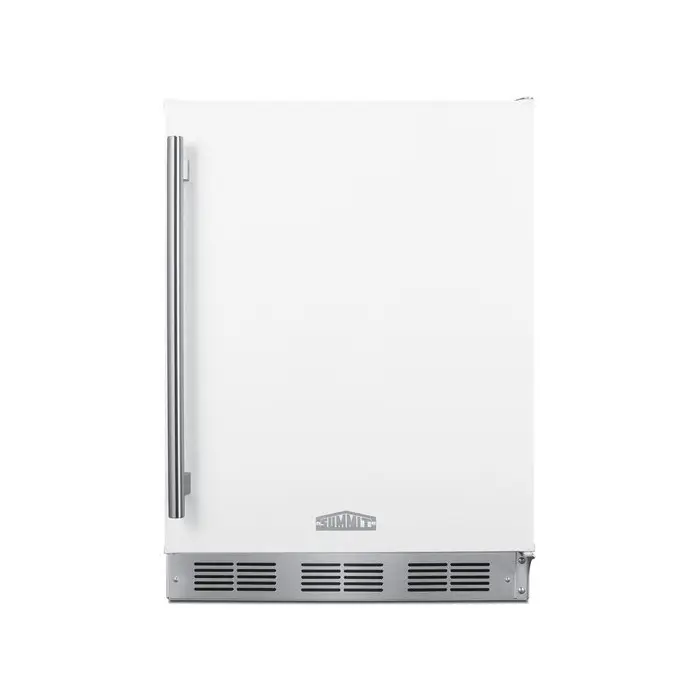

White exterior finish Classic and clean look suits any setting

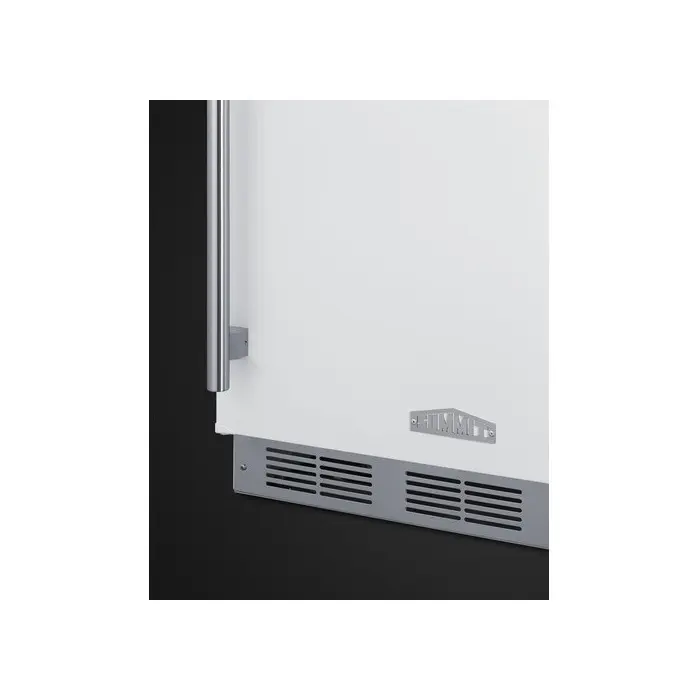

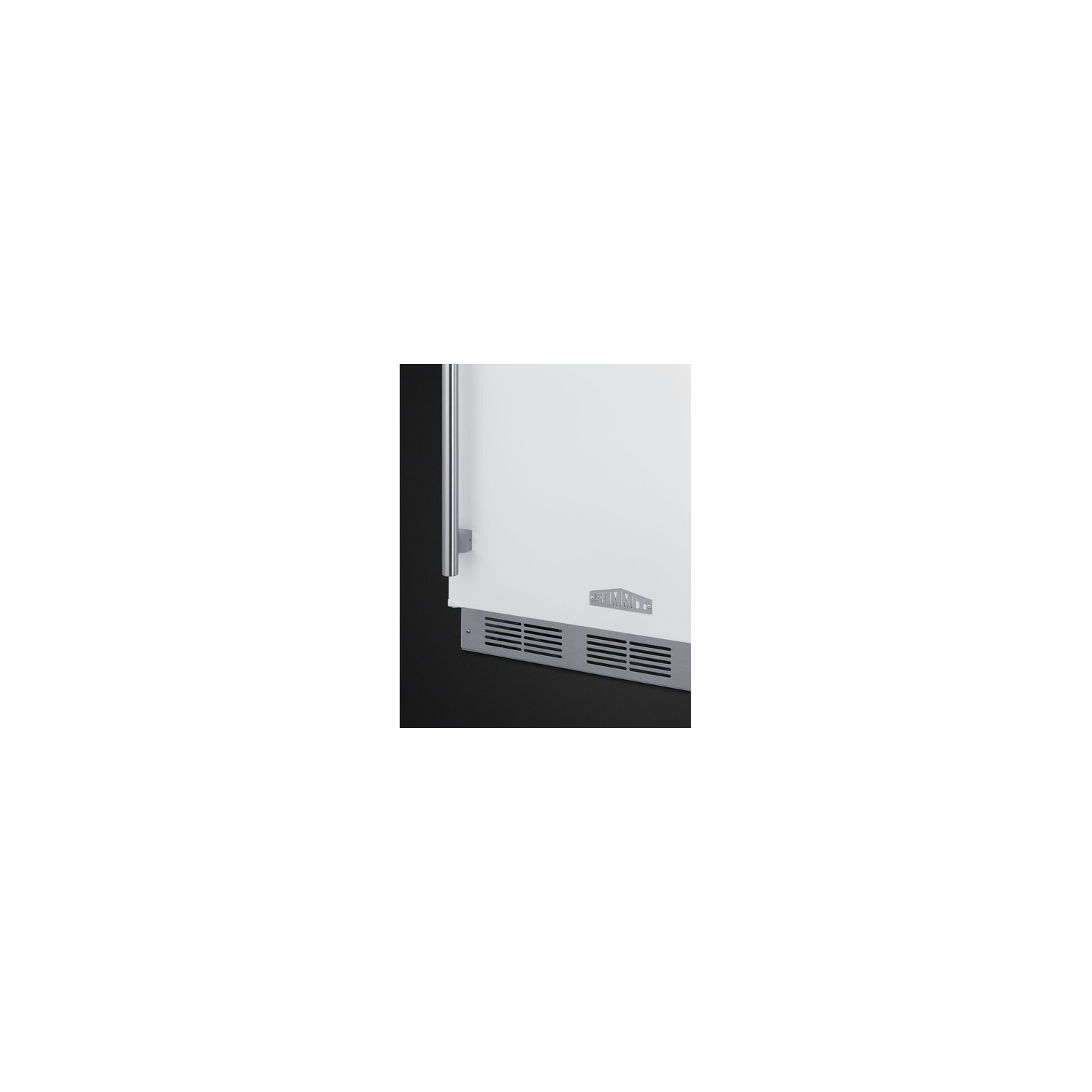

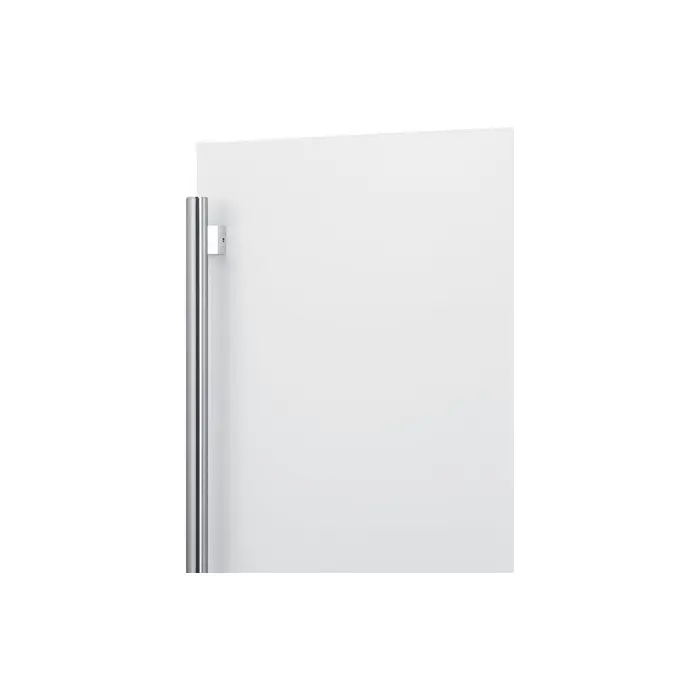

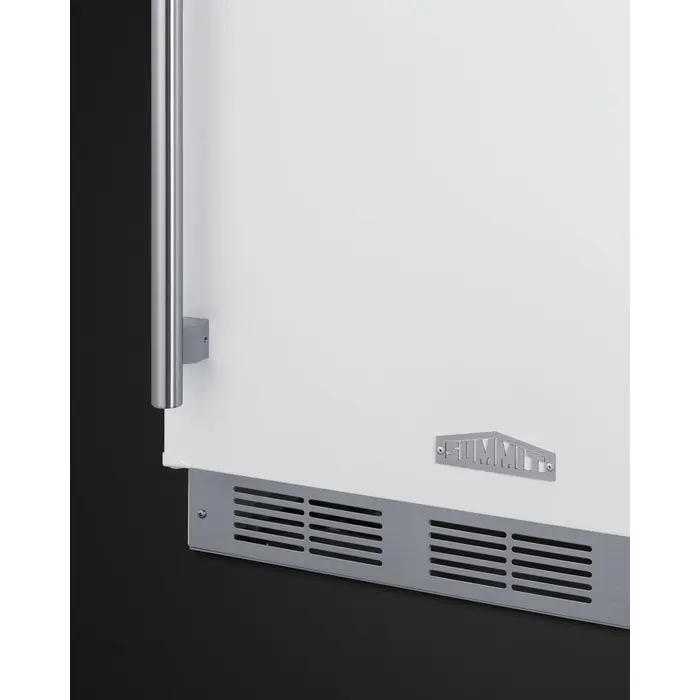

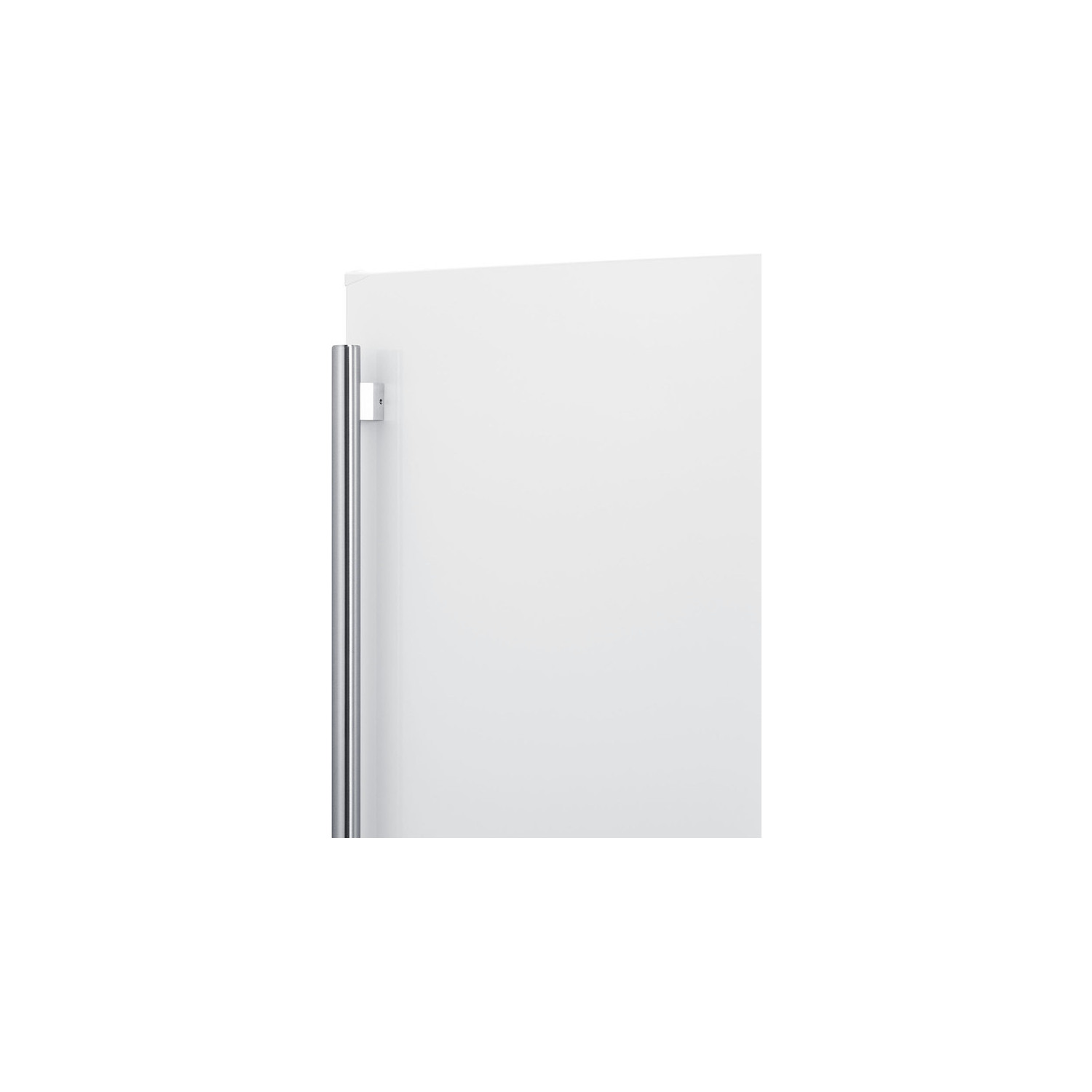

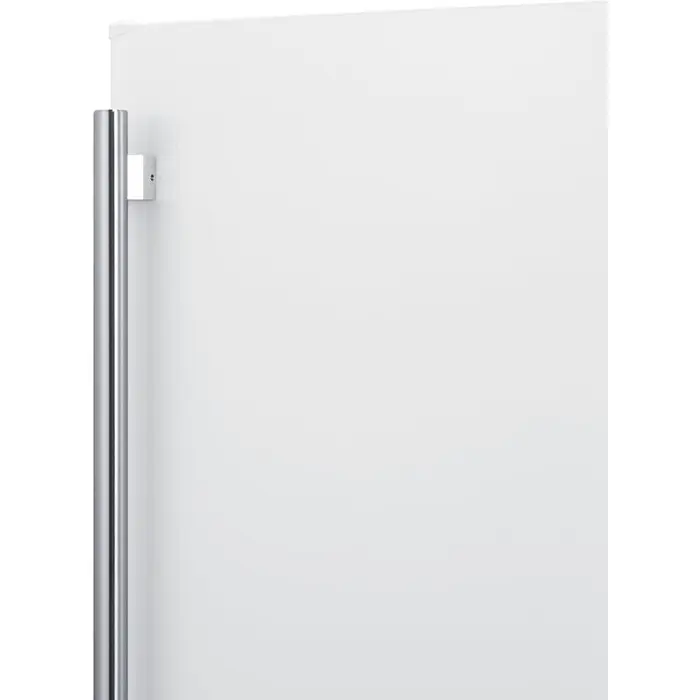

Professional handle Solid tube style handle in brushed stainless steel offers a modern accent to the white door finish

Adjustable thermostat Interior dial thermostat ensures easy temperature management

Automatic defrost No-frost operation for minimum user maintenance

Stainless steel drip tray Removable two-piece drip tray included for added convenience

Interior light Turn the light on when you need it and off when you're done with a convenient rocker switch

CO2 tank included Cannister ships with tapping equipment (ships empty)

Interior CO2 holder Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

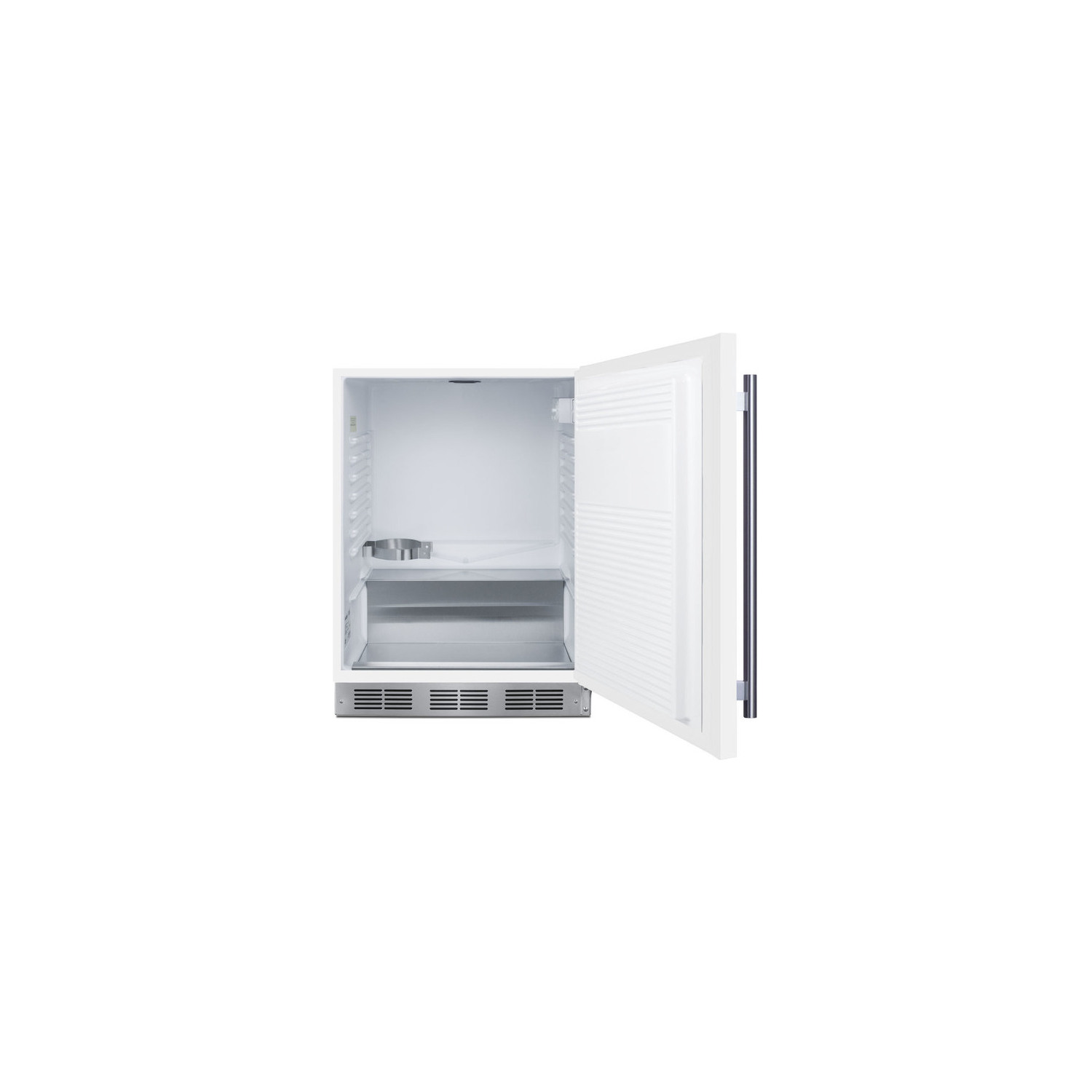

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

Factory-installed lock Keyed lock located at the top of the door for convenient security as needed (2 keys included)

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
