Summit Built-in kegerator for use under ADA compliant counters; no tap kit included, 7.61101e+011, SBC58BLBIADANK

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe.

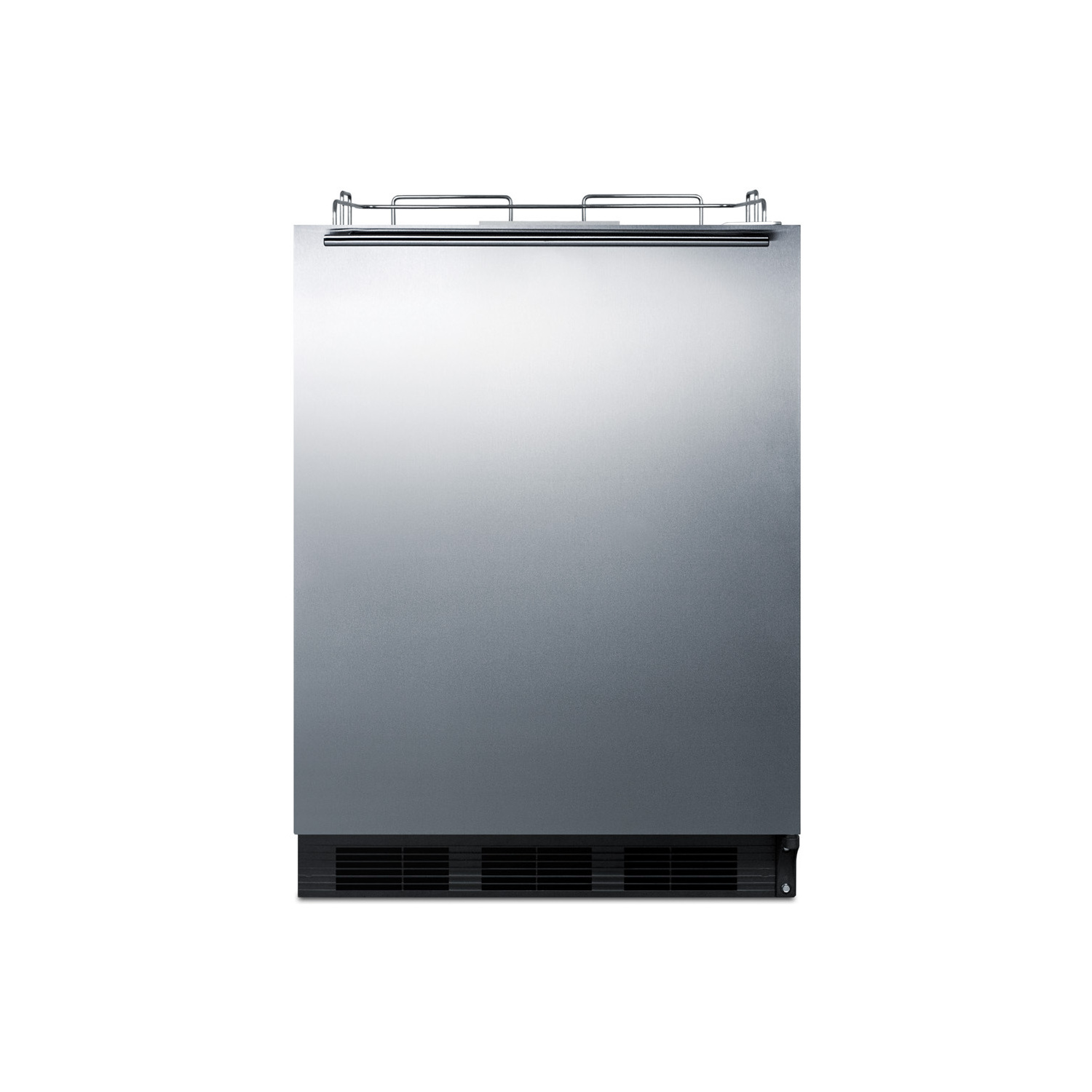

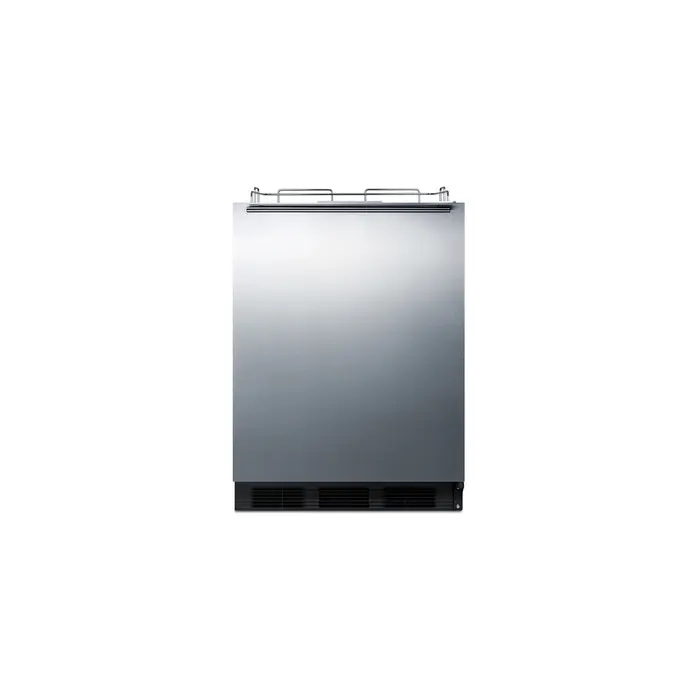

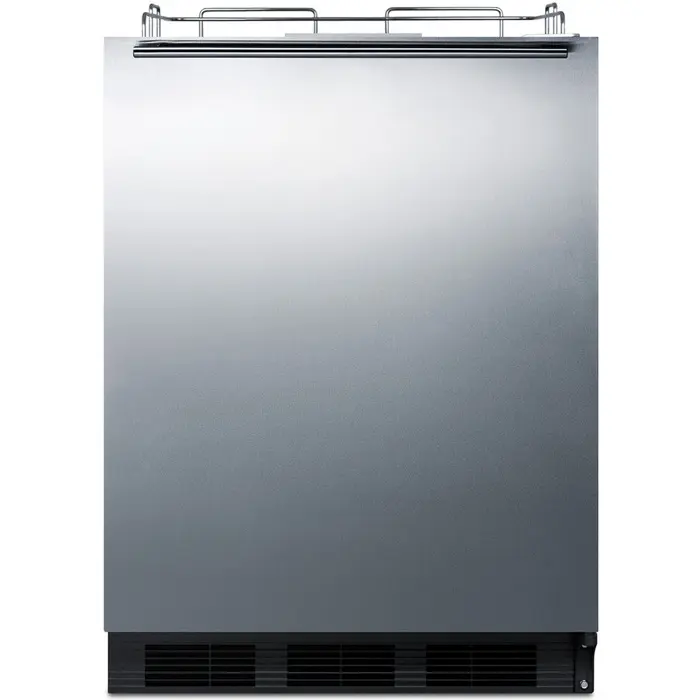

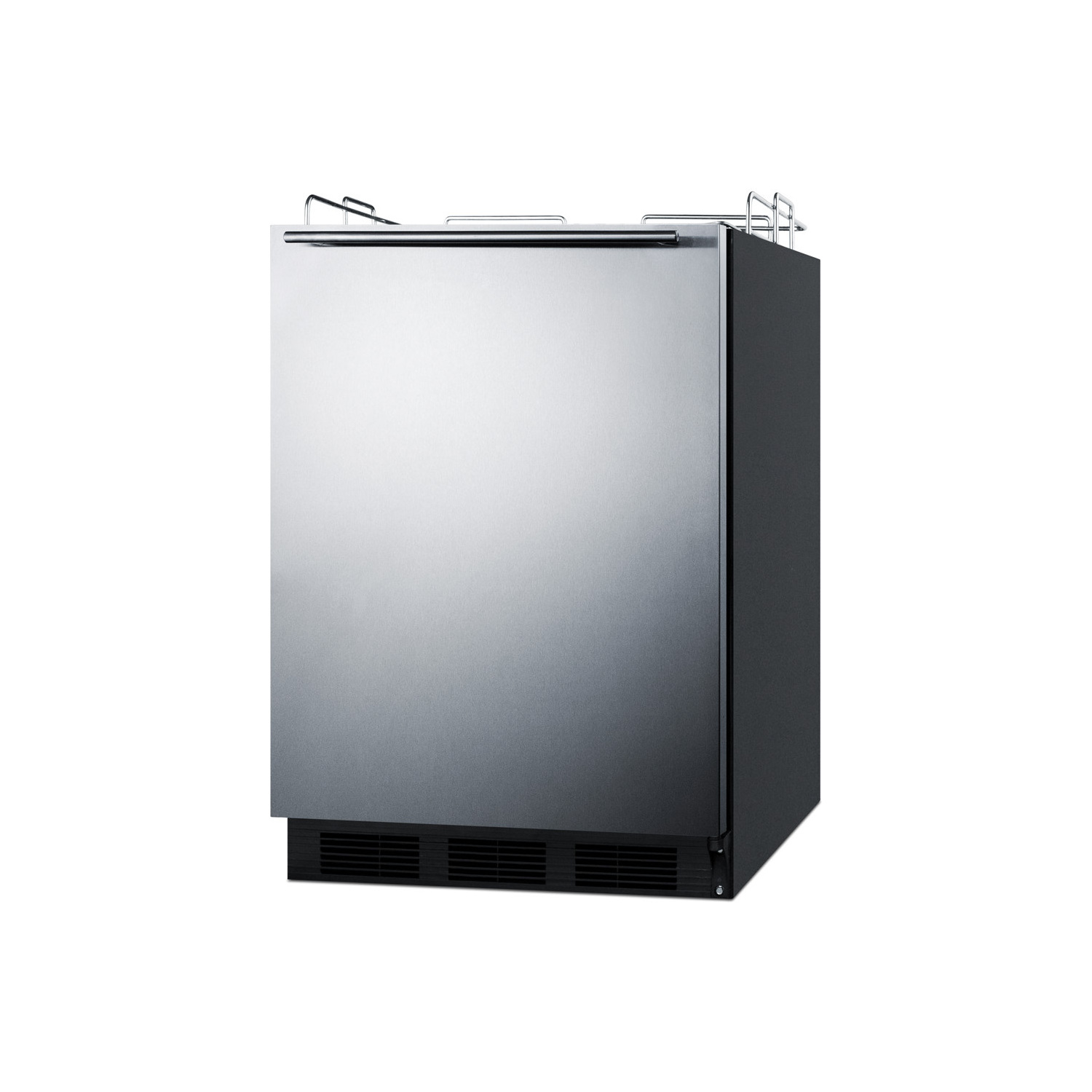

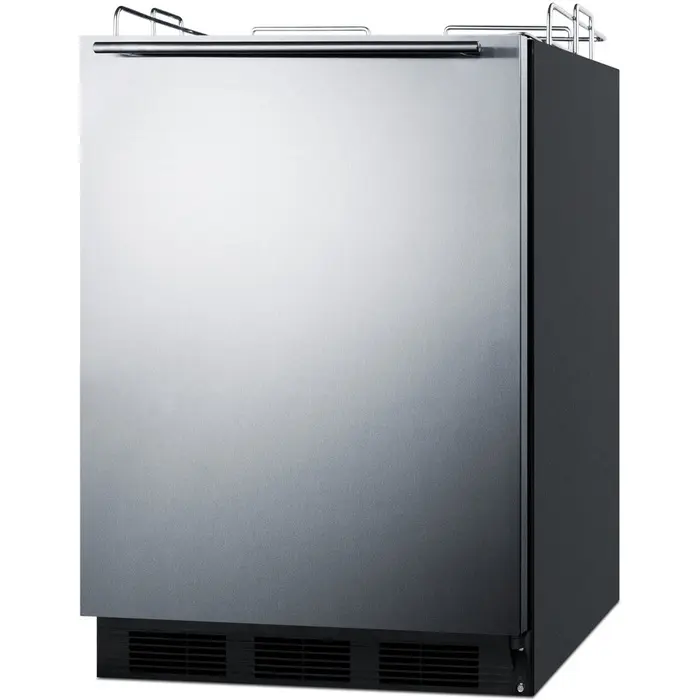

Sized at 32 inches high, the SBC58BLBIADANK is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a user-reversible 304 grade stainless steel wrapped door complete with a stainless steel handle mounted horizontally for a modern look. We include a removable two-piece stainless steel drip tray for cleaner service. This unit does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system.

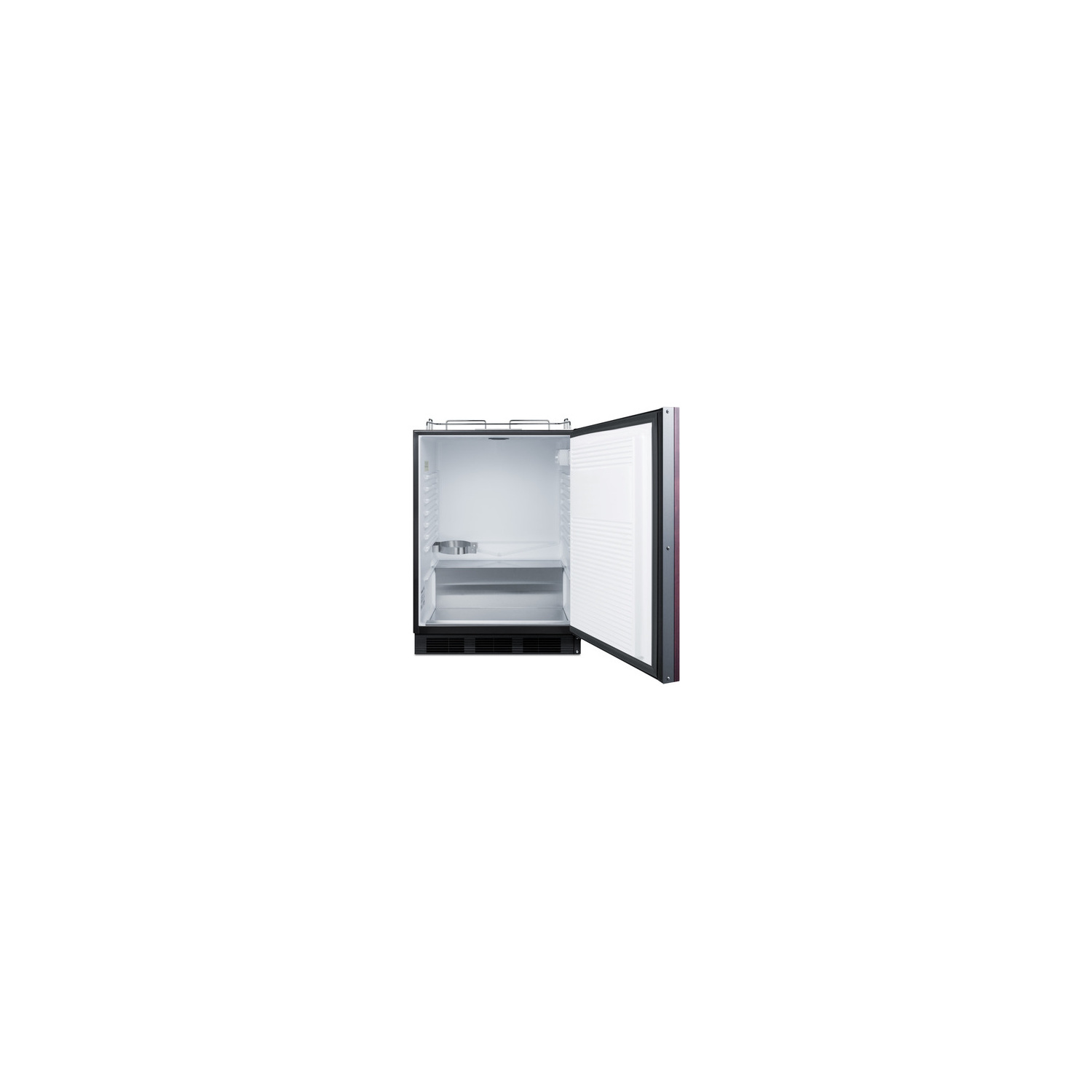

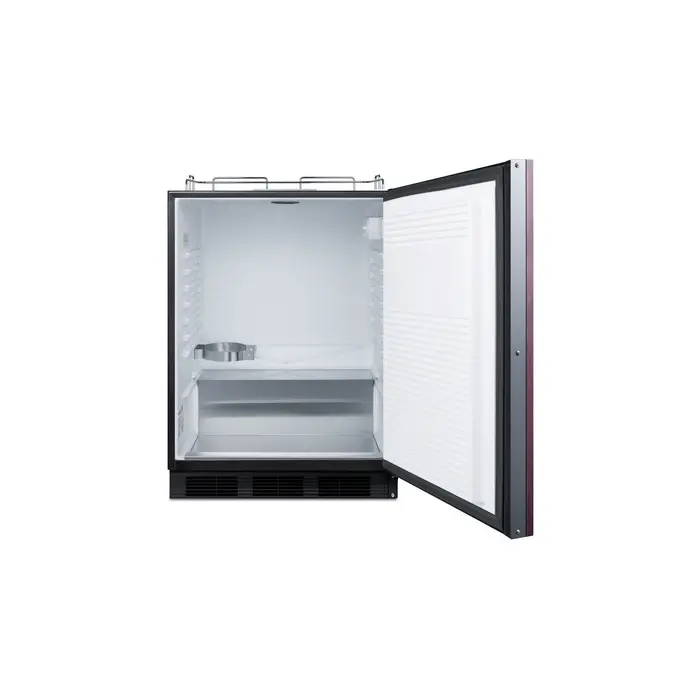

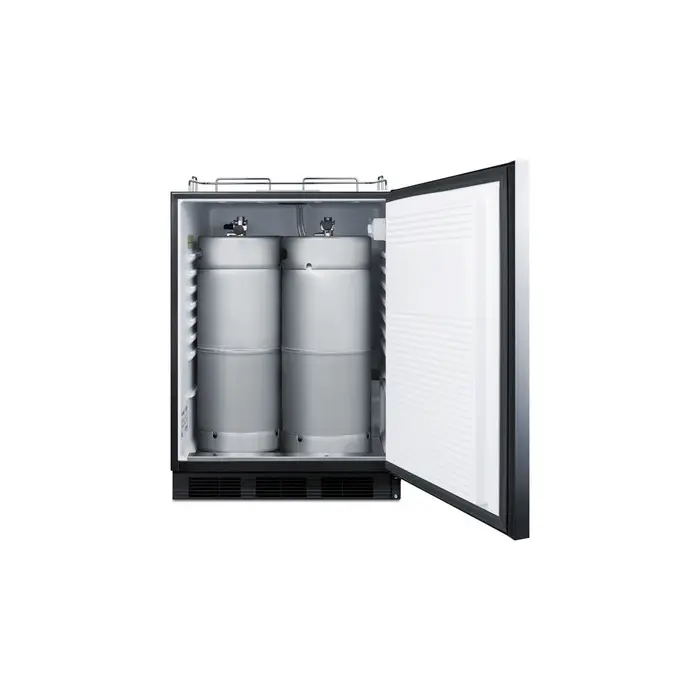

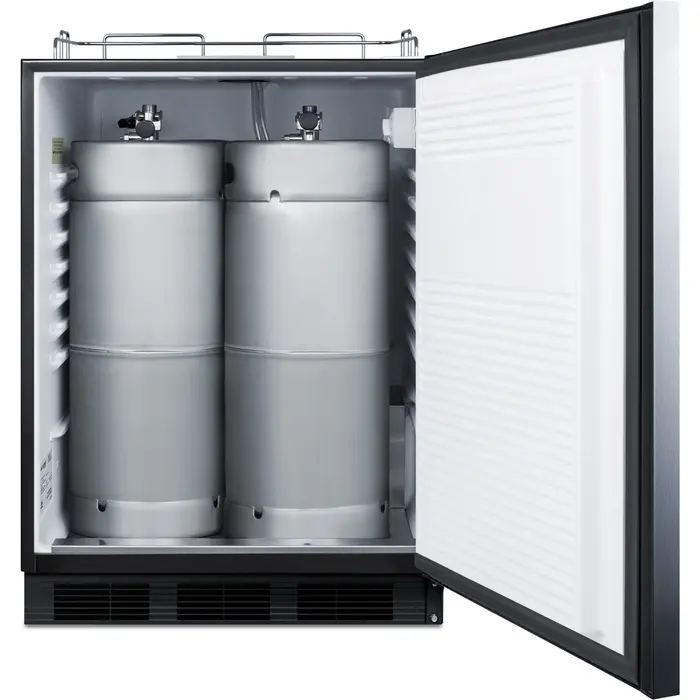

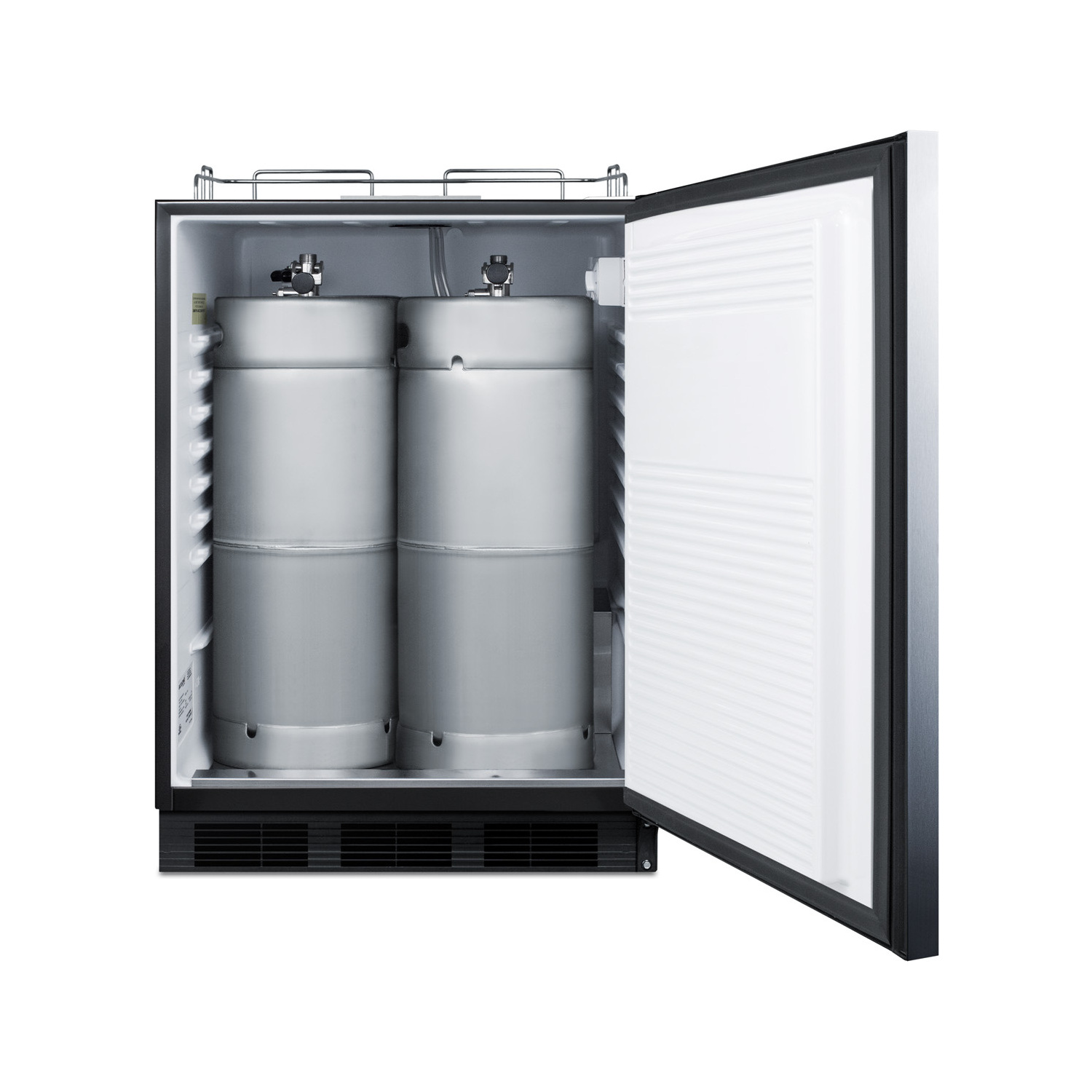

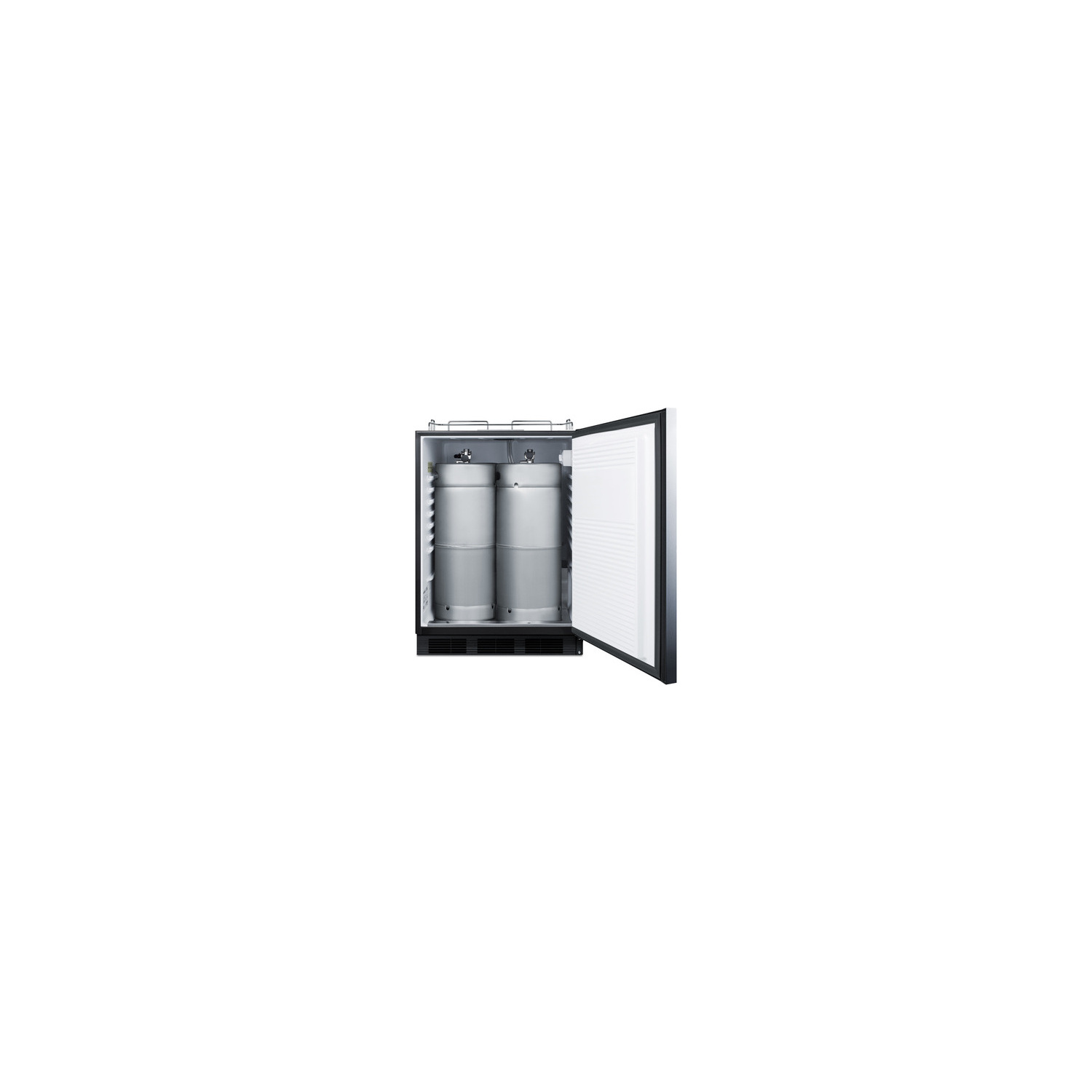

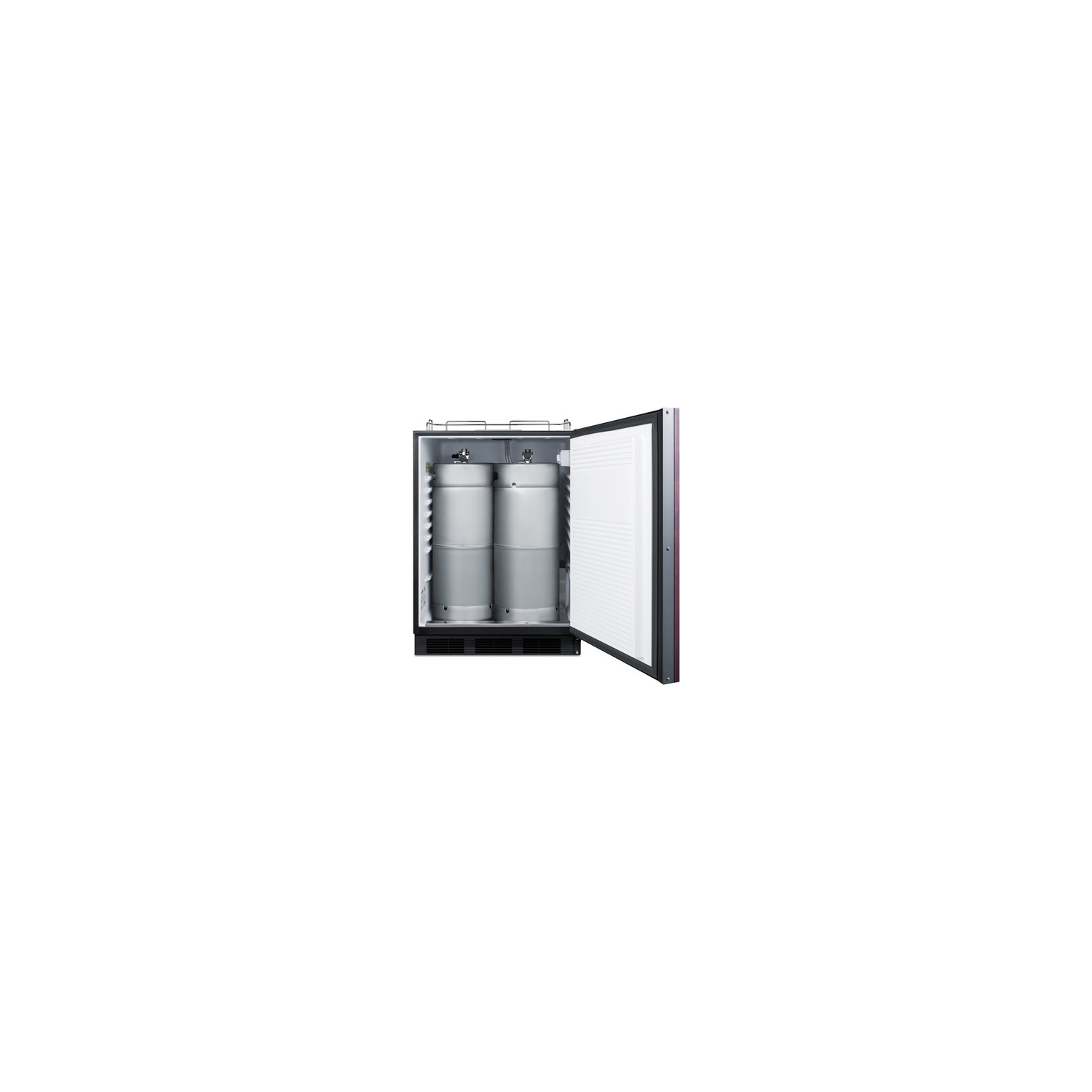

Inside, the SBC58BLBIADANK is designed to hold two 1/6 (sixtel) kegs or one tall quarter keg (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.

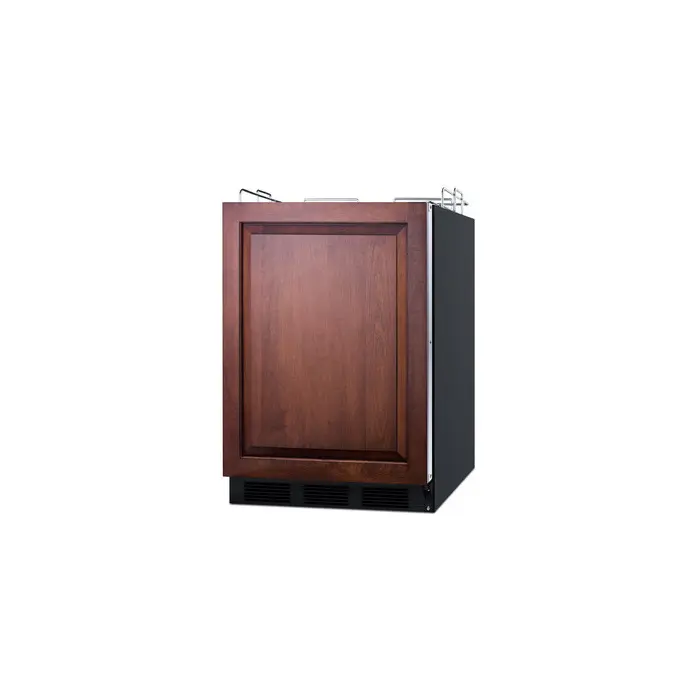

The SBC58BLBIADANK is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 24.25" (62 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101069715

Kegerator

Door Swing RHD

Reversible Yes

Thermostat Type Dial

Interior Light Yes

Fan Type Exterior

Refrigerant R600a

Refrigerant Amount 0.64 oz.

High Side PSI 180.0

Low Side PSI 80.0

Inter Height 25.75" (65 cm)

Interior Width 21.0" (53 cm)

Interior Depth 17.75" (45 cm)

Compressor Step Height 6.5" (17 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range 34º to 43ºF

FEATURES

ADA compliant height Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable Front-breathing design allows fully recessed installation under counters

Designed for 1/6 kegs Interior can store up to two sixtel kegs

Tap kit not included Install your own tapping equipment to create a customized beer cooler

Stainless steel wrapped door 304 grade stainless steel for a professional look with lasting durability

Professional handle Thin handle with common 14mm diameter in brushed stainless steel mounted horizontally

Adjustable thermostat Interior dial thermostat ensures easy temperature management

Automatic defrost No-frost operation for minimum user maintenance

Reversible door User-reversible door swing allows you to easily adjust to better accommodate your setting

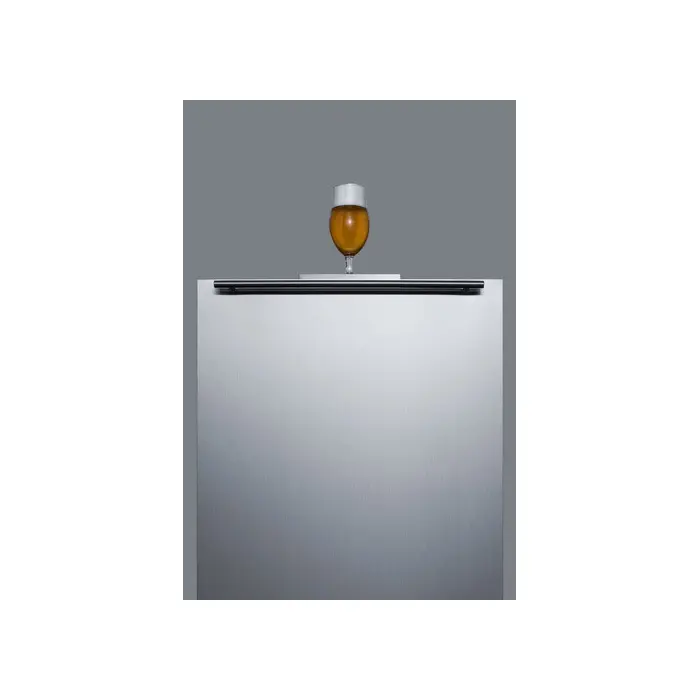

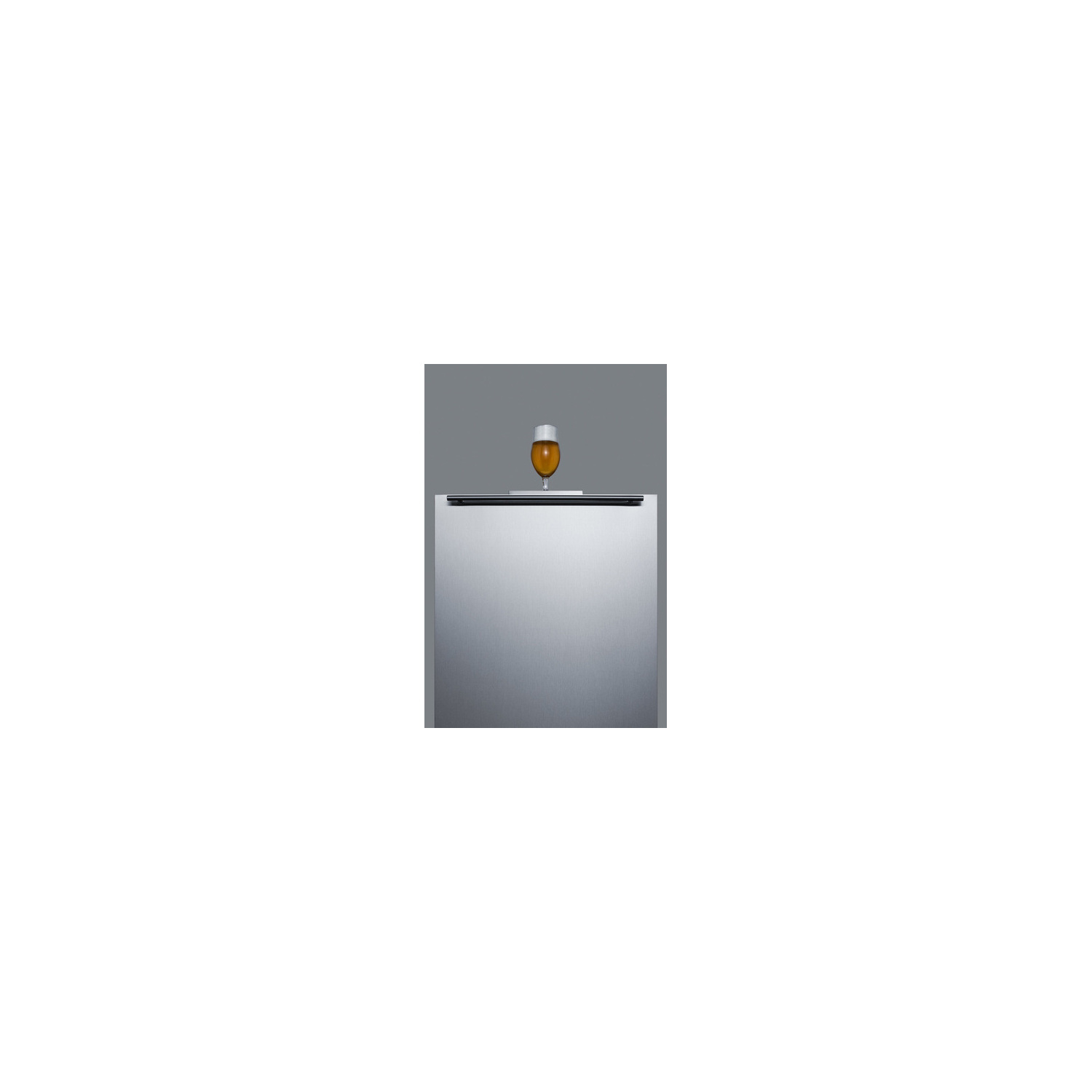

Stainless steel drip tray Removable two-piece drip tray included for added convenience

Interior light Turn the light on when you need it and off when you're done with a convenient rocker switch

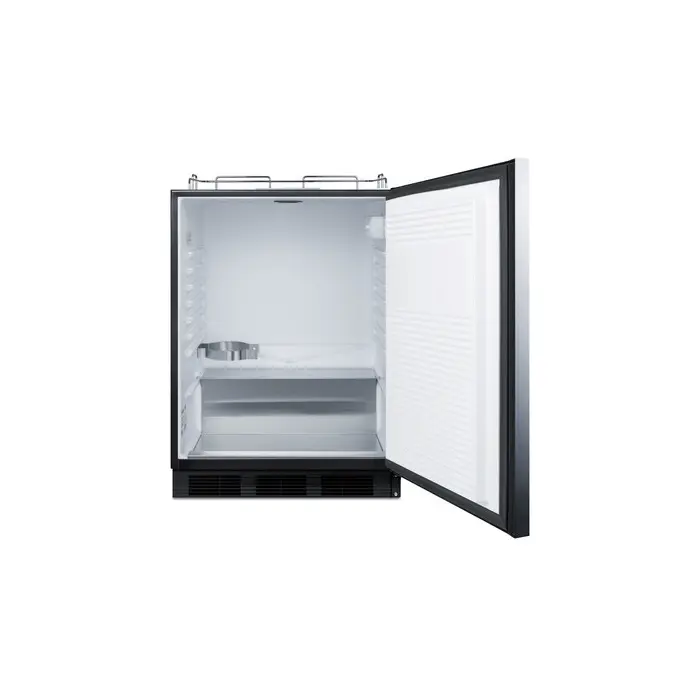

Interior CO2 holder Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SBC58BLBIADANK.pdf)

TECHNICAL DRAWING (.dwg) (SBC58BBIADA_BEER_DISP.__A-C_2010__2.dwg)

USE & CARE (SBC58BLBIADANK-User-Manual.pdf)
