Description
Summit's innovative series of commitment-free ADA compliant kegerators offers maximum convenience, eliminating the need to make alterations to countertops while still keeping easy access to coffee on tap in commercial and residential settings.

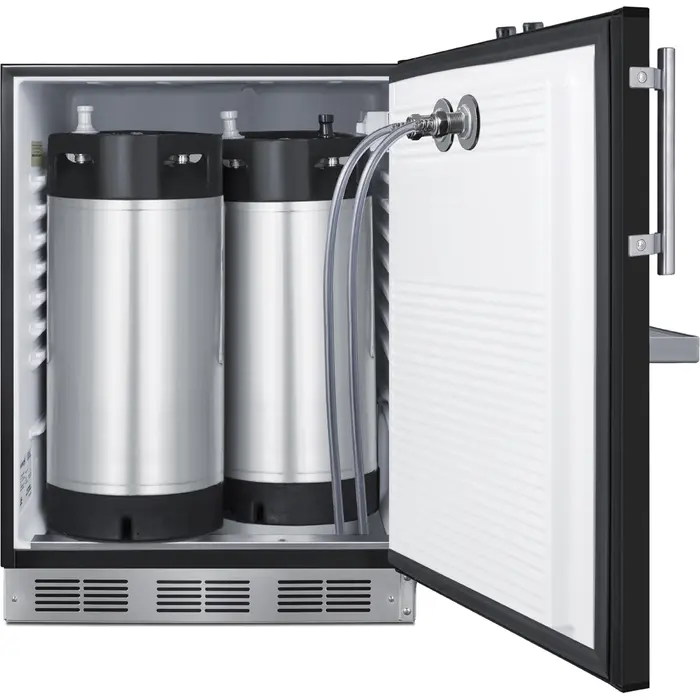

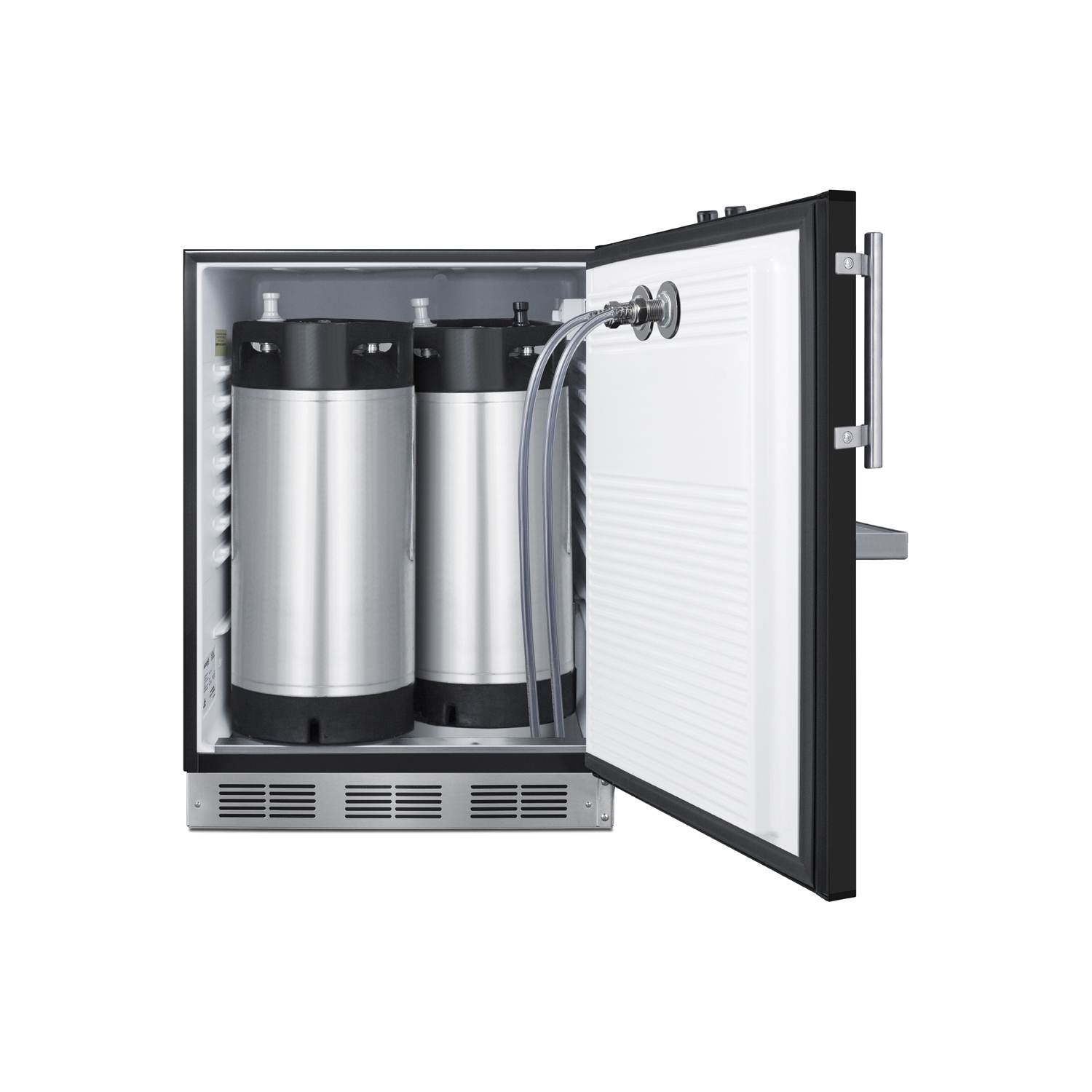

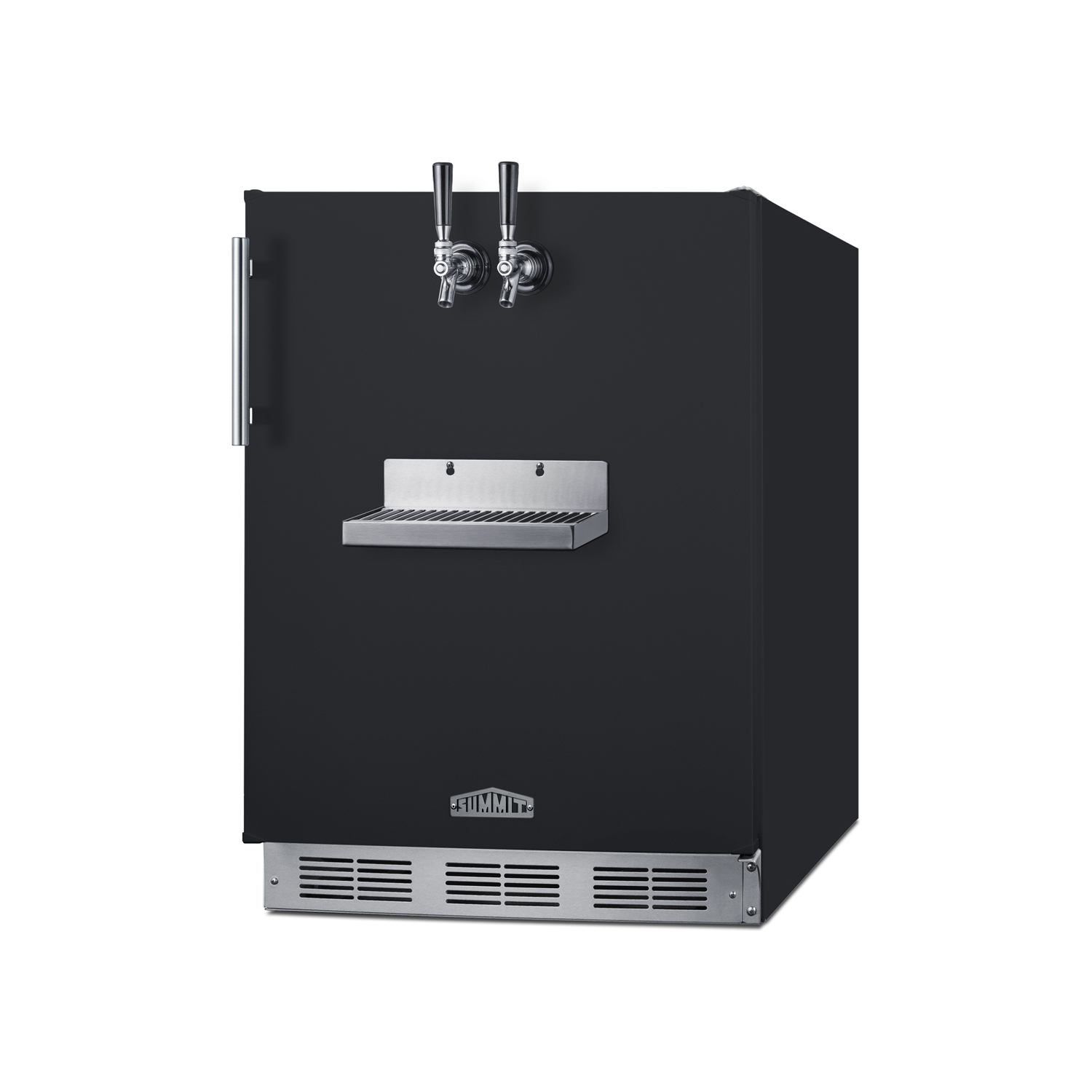

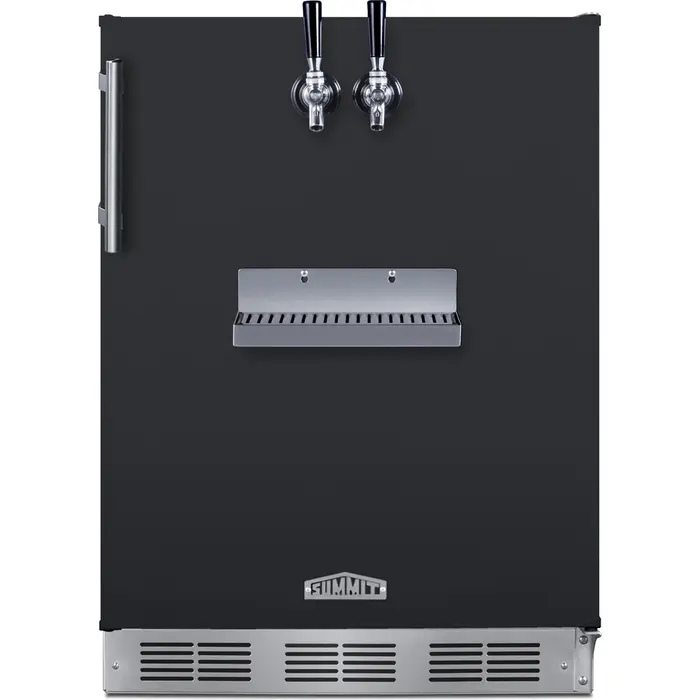

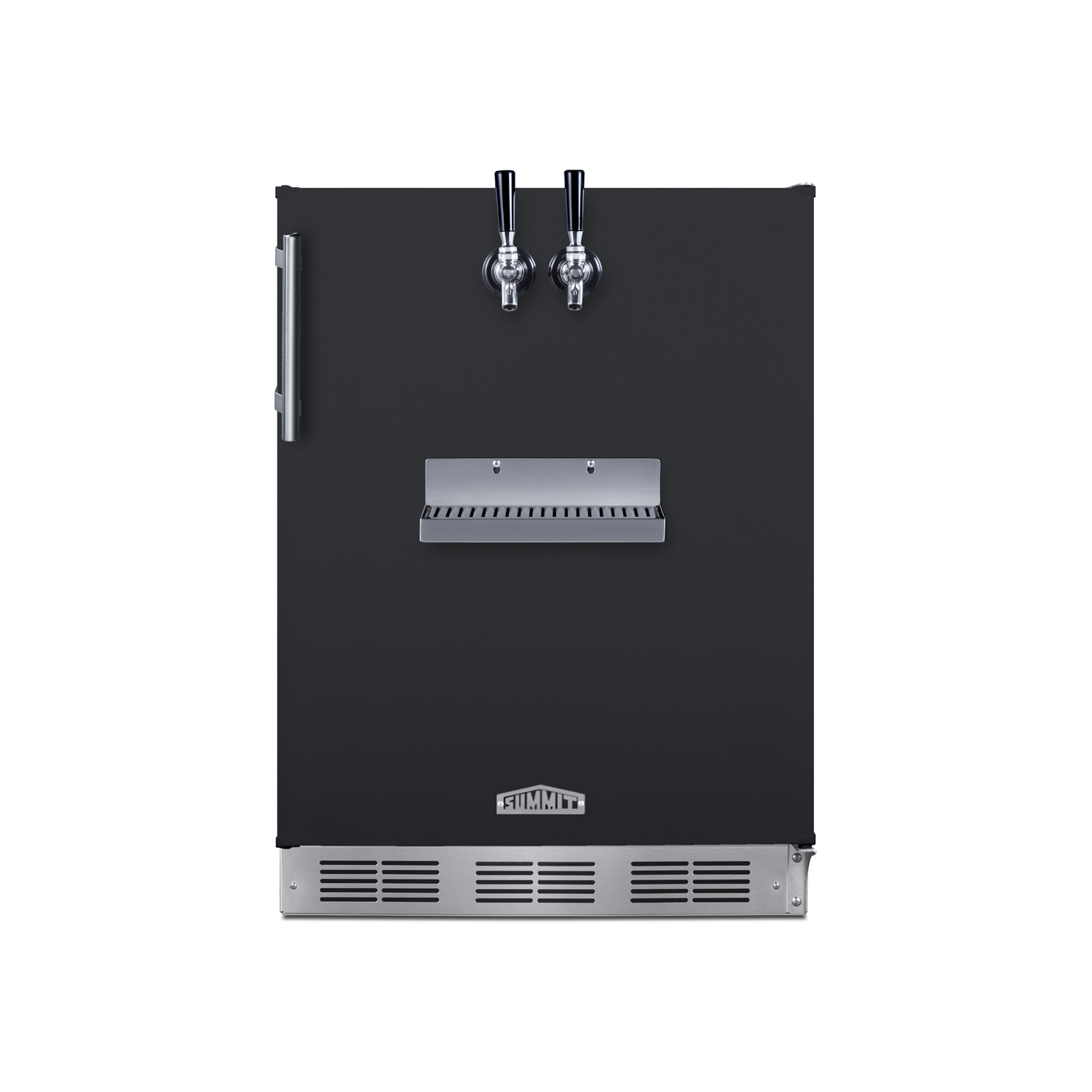

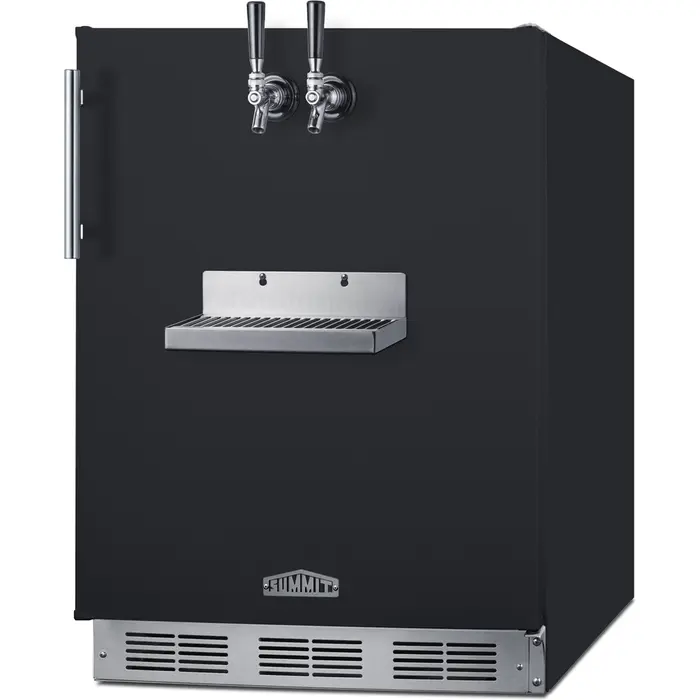

The SBC58BFRTPCFADA is unique because the twin taps are accessed via the unit's front door. The specialized design frees up valuable counter space in kitchens, home bars, and eateries with limited room. The kegerator can be installed under a counter without the need to modify the countertop with a hole for the draft tower. The front tap system also creates a more accessible kegerator experience. This kegerator ships fully assembled and includes a removable stainless steel drip tray that mounts on the door below the taps. Its commercial grade tower has two faucets serving coffee from two 1/6 (sixtel) kegs. We also include a nitrogen tank, regulator, and all the equipment you need to confidently serve perfectly chilled coffee or cold brew on tap.
Sized with a 24" footprint, this is a versatile front tap coffee dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments. At 32" high, it is ideal for built-in installation under lower ADA compliant counters. It comes in a jet black finish with stainless steel accents for a professional look.
The SBC58BFRTPCFADA features a crisp white interior liner and stainless steel floor, providing added protection when loading kegs. The interior light, with an on/off rocker switch located behind the dial thermostat, ensures visibility and convenience. Classic mechanical controls guarantee an intuitive, trouble-free performance without any internal boards or chips. The automatic defrost system reduces user maintenance, while our signature cold wall design ensures an efficient, reliable cooling system.
In addition to this dual tap kegerator, our commitment-free line also includes choices that dispense wine and beer, as well as model SBC7BRSFLTWADA which features our innovative floating tap design.
Summit also manufactures similar kegerators in standard heights and for outdoor applications. Browse the full Summit product lin
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.88" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 28.0" (71 cm)
Depth 27.38" (70 cm)
Depth with door at 90° 51.88" (132 cm)
Capacity 5.3 cu.ft. (150 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 293.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145488
Kegerator
Door Swing RHD
Reversible Factory Reversible
Height Adjustable Yes
Tap Kit Yes
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Refrigerant R600a
Refrigerant Amount 0.64 oz.
Inter Height 27.75" (70 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs Qty 4
Temperature Range 36 to 46°F
FEATURES
24" Wide Front-Tap Cold Brew Coffee Dispenser Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve cold brew coffee from two sixtel kegs
Commitment-free front-taps Unique design requires no alterations to your countertop, freeing up valuable countertop space
Dual tap system Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Built-in capable Designed for installation under the counter
Accessible design Taps are located on the front of the door, requiring no added reach
ADA-compliant height Sized at 32 inches high for installation under lower ADA-compliant counters
Commercially listed ETL-S listed to ANSI-NSF Standard 7 for commercial use
Versatile use Approved for both residential and commercial settings
Complete cold brew coffee tap kit included Includes a 5 lb. nitrogen tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Nitrogen tank included Full-sized cannister ships with tapping equipment (ships empty)
Interior tank holder Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Automatic defrost No-frost operation for minimum user maintenance
Adjustable mechanical thermostat Simple and intuitive analog controls located inside for easy temperature management
Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs
Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Leg shield included Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height
Stainless steel drip tray Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Professional handle Vertically-mounted handle bar in stainless steel
Stainless steel kickplate Attractive finish to match the taps and handle
Fully finished cabinet Allows the dispenser to be used freestanding
Made in Europe & USA Refrigeration unit constructed in Europe then designed and modified in the USA
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
