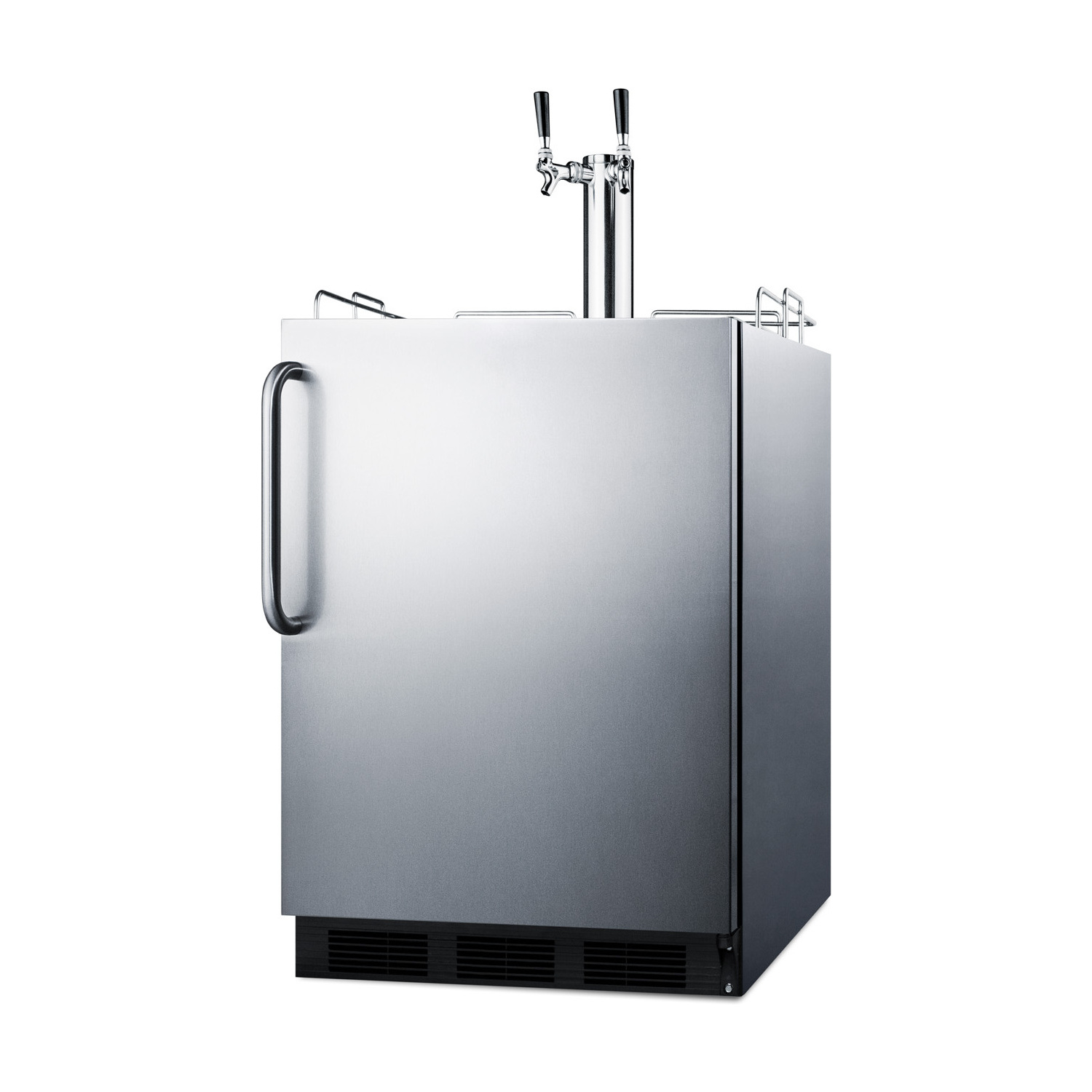

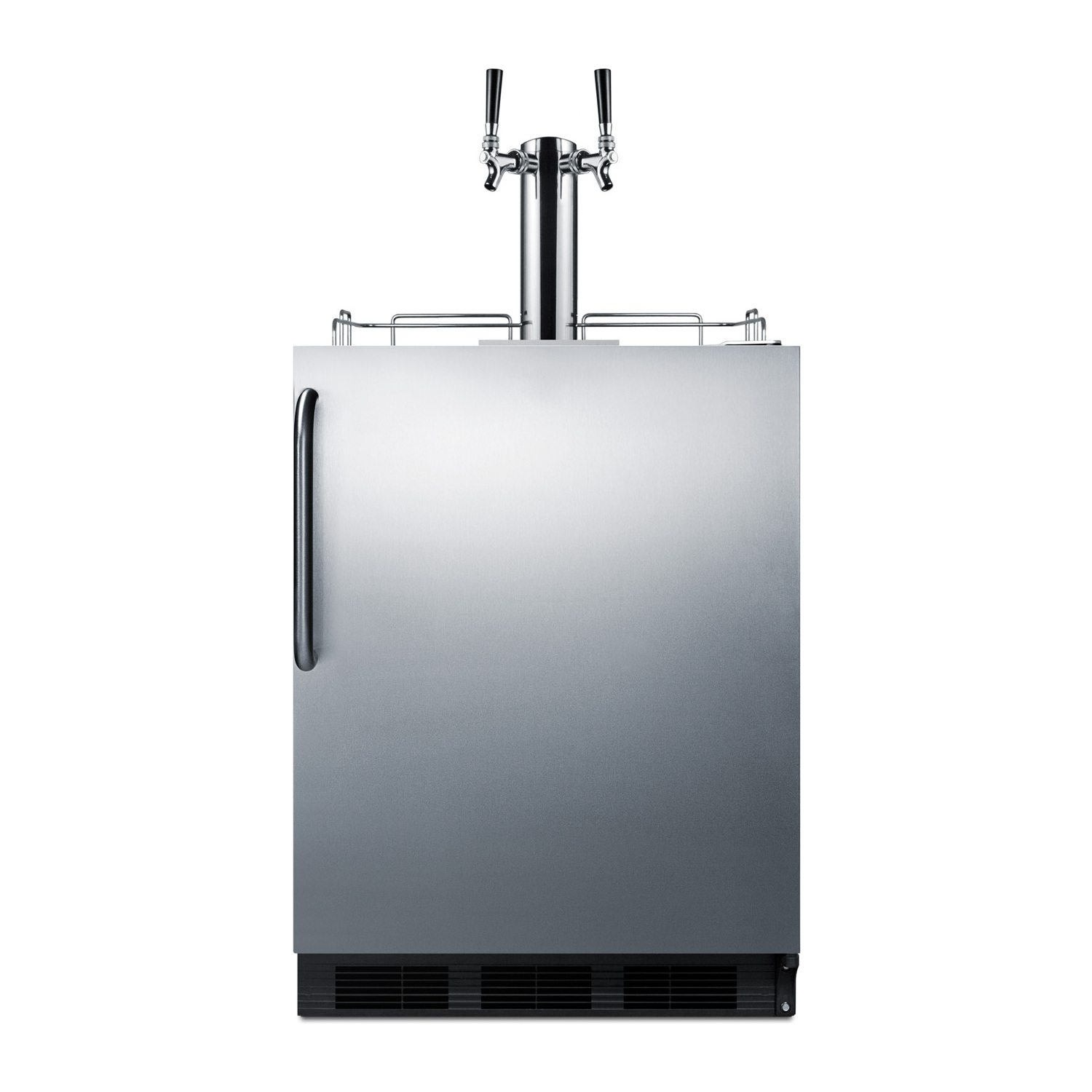

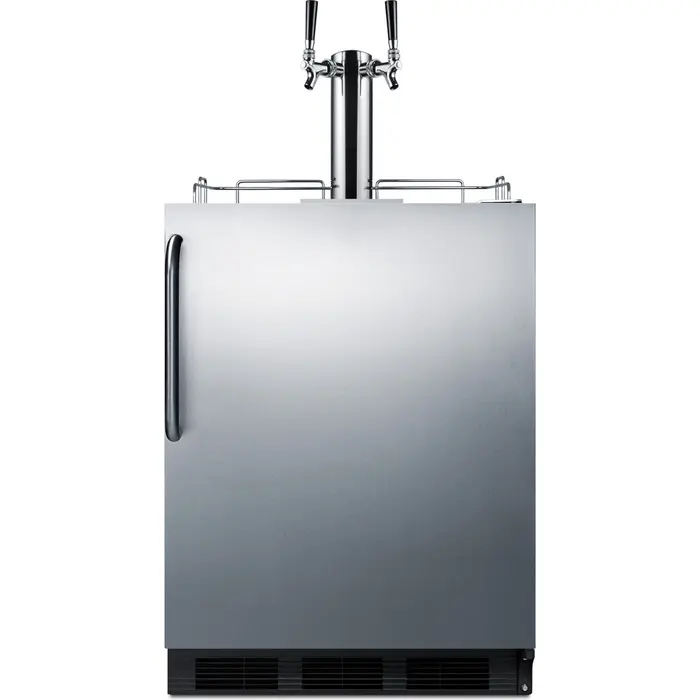

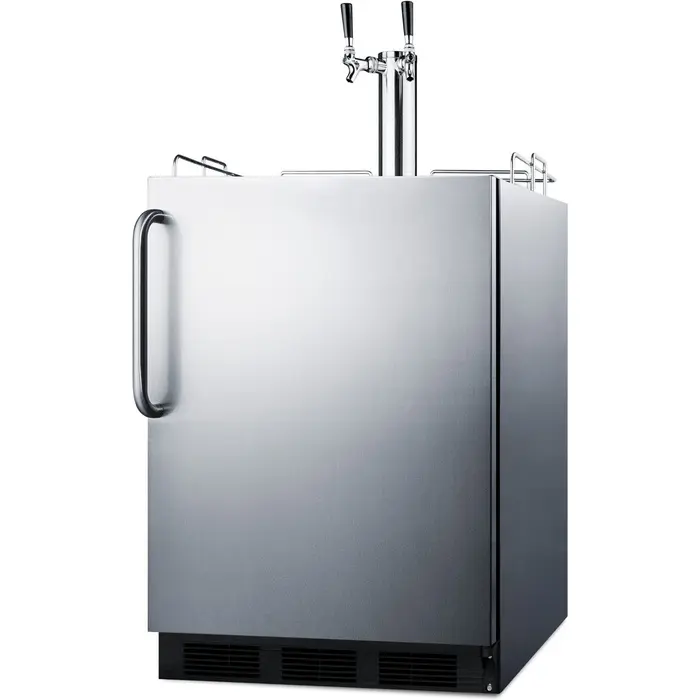

Summit ADA compliant commercial outdoor wine dispenser in complete stainless steel, designed for built-in or freestanding use, SBC54OSBIADAWKDTWIN

Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial wine dispensers made in Europe.

Sized at 32 inches high, the SBC54OSBIADAWKDTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle. We include a two-piece stainless steel drip tray for cleaner service. The SPR7BOSSTWKDTWINADA ships with a complete Sankey American dual tap kit complete with a draft tower, 5 lb. nitrogen/CO2 tank and regulator, and all the equipment you need to serve white wine on tap.

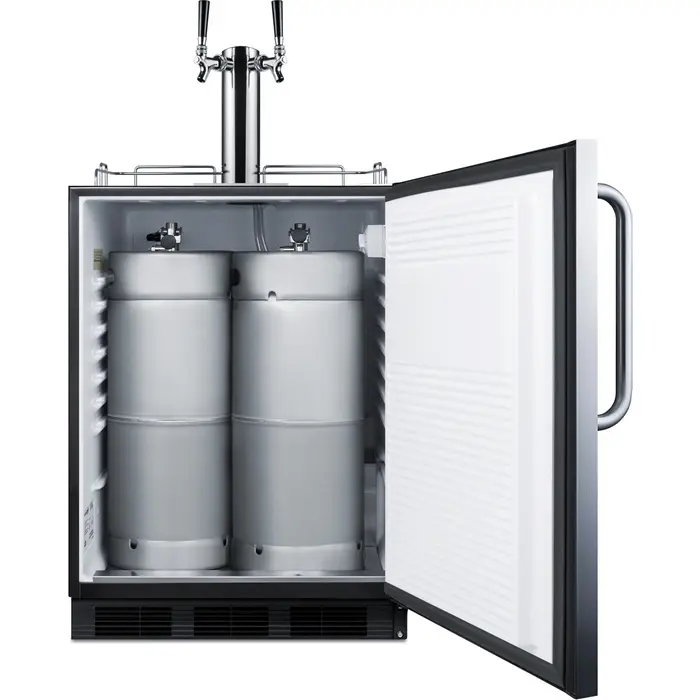

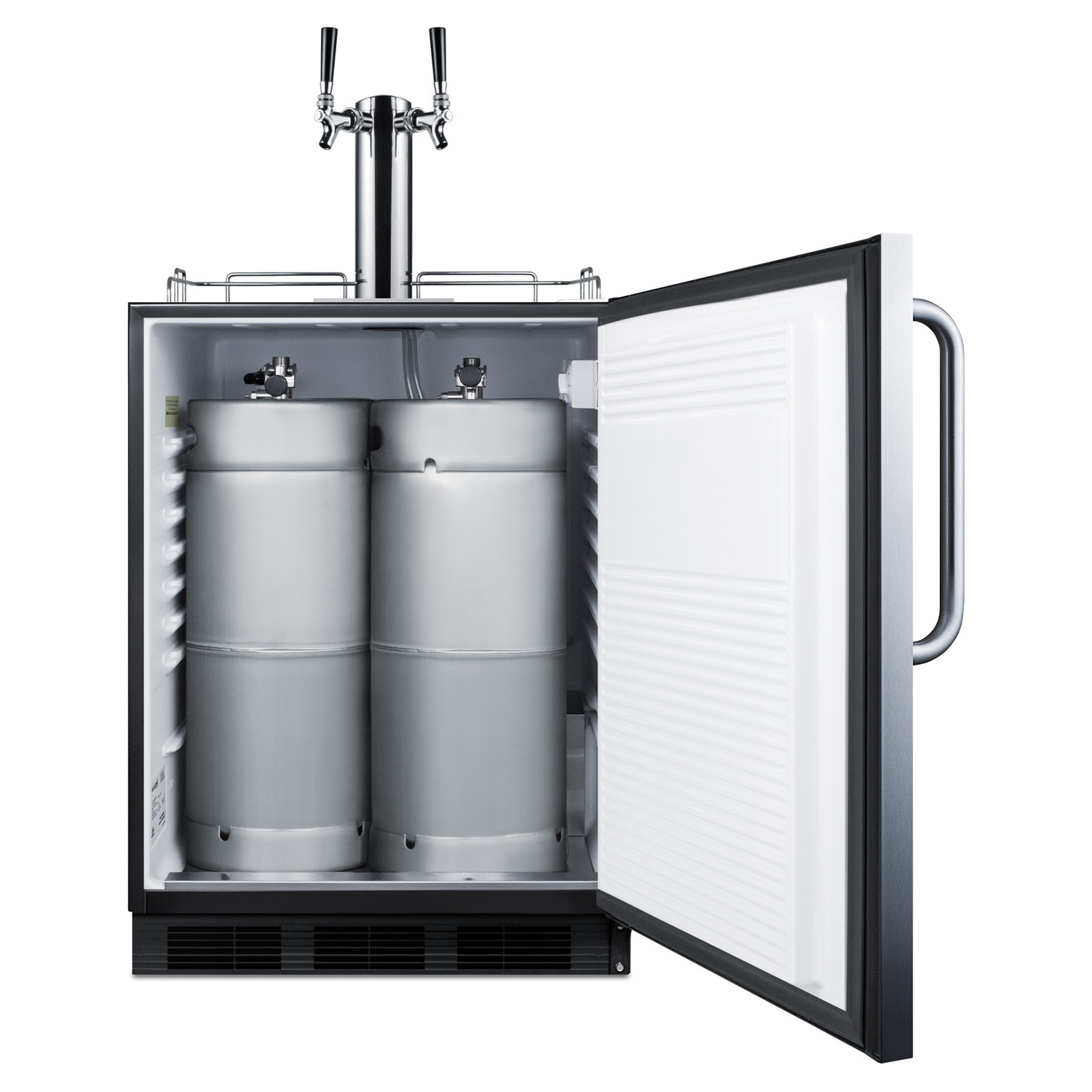

Inside, the SBC54OSBIADAWKDTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.

The SBC54OSBIADAWKDTWIN is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with alternate tap equipment for beer, coffee, or kombucha. Browse our website for more options or contact our sales team at 78-893-3900.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.75" (63 cm)

Depth with Handle 27.25" (69 cm)

Depth with door at 90° 47.0" (119 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101069609

Kegerator

Door Swing RHD

Reversible Factory Reversible

Tap Kit Yes

Height with Tap 47.5" (121 cm)

Number of Taps 2

Thermostat Type Dial

Interior Light Yes

Fan Type Exterior

Refrigerant R600a

Refrigerant Amount 0.64 oz.

High Side PSI 180.0

Low Side PSI 80.0

Inter Height 26.25" (67 cm)

Interior Width 21.0" (53 cm)

Interior Depth 17.75" (45 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 5.5" (14 cm)

Temperature Range 34º to 43ºF

FEATURES

ADA compliant height Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

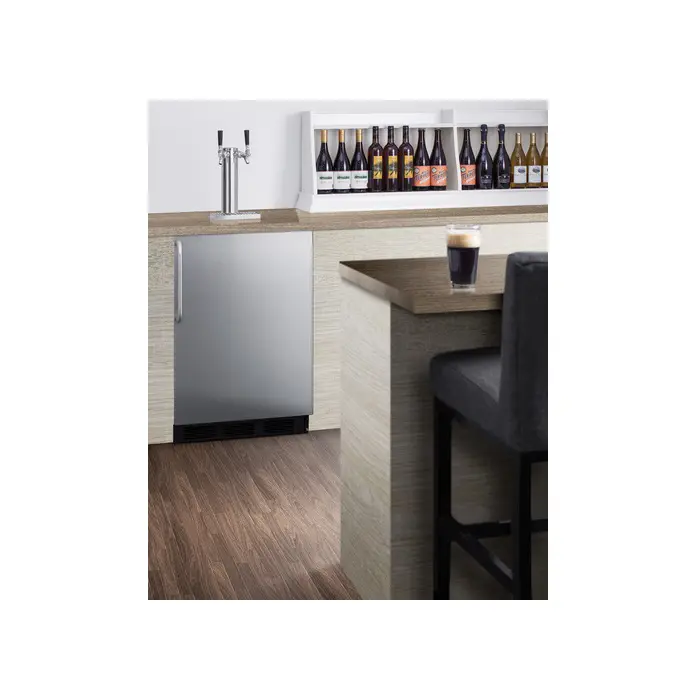

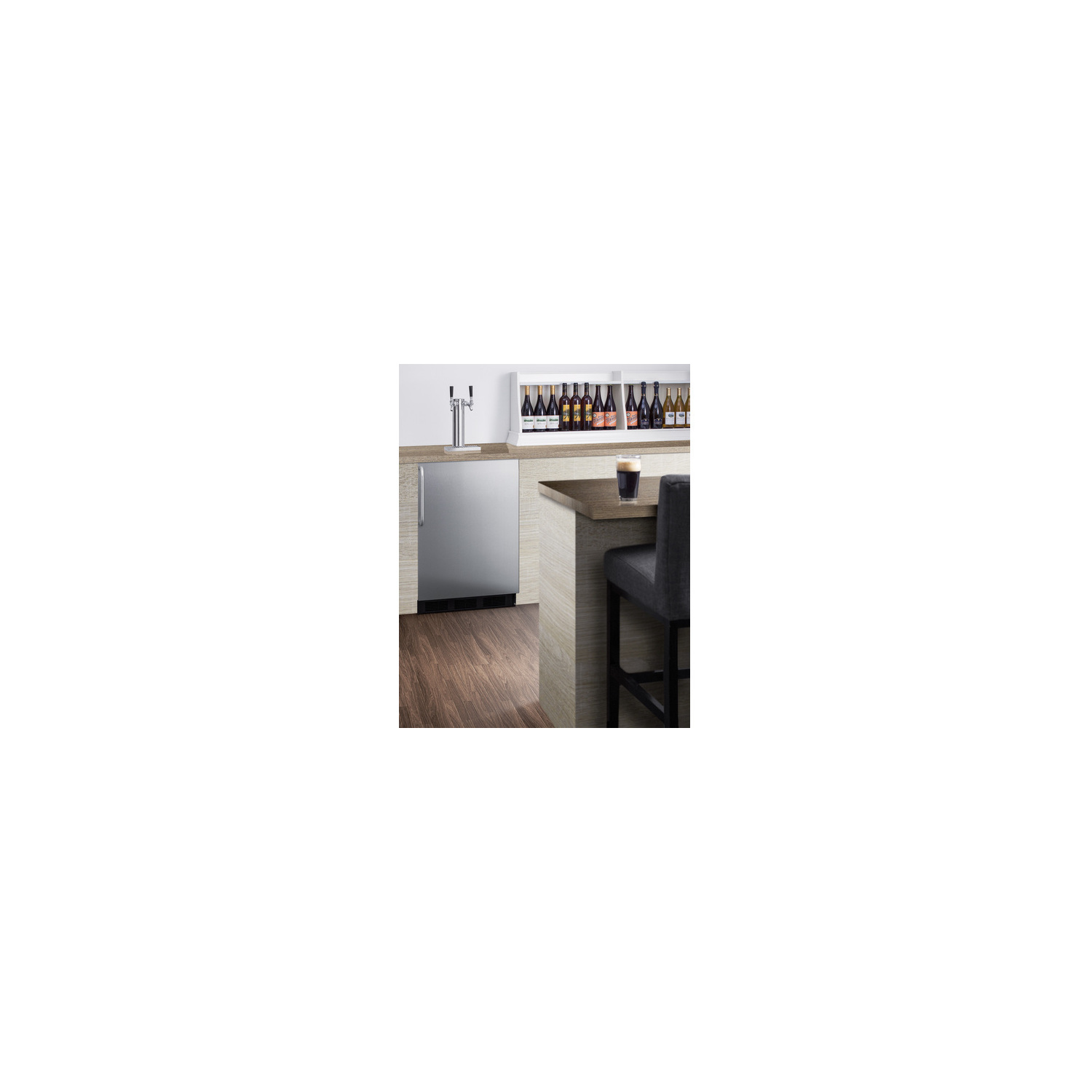

Built-in capable Front-breathing design allows fully recessed installation under counters

Complete dual tap kit Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

Dual tap system Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

304 grade stainless steel exterior Complete stainless steel construction for easy durability in the outdoors

Professional handle Curved towel bar style handle in brushed stainless steel

Adjustable thermostat Interior dial thermostat ensures easy temperature management

Automatic defrost No-frost operation for minimum user maintenance

Stainless steel drip tray Removable two-piece drip tray included for added convenience

Interior light Turn the light on when you need it and off when you're done with a convenient rocker switch

Nitrogen/CO2 tank included Canister is best suited for a 75% nitrogen/25% CO2 mixture

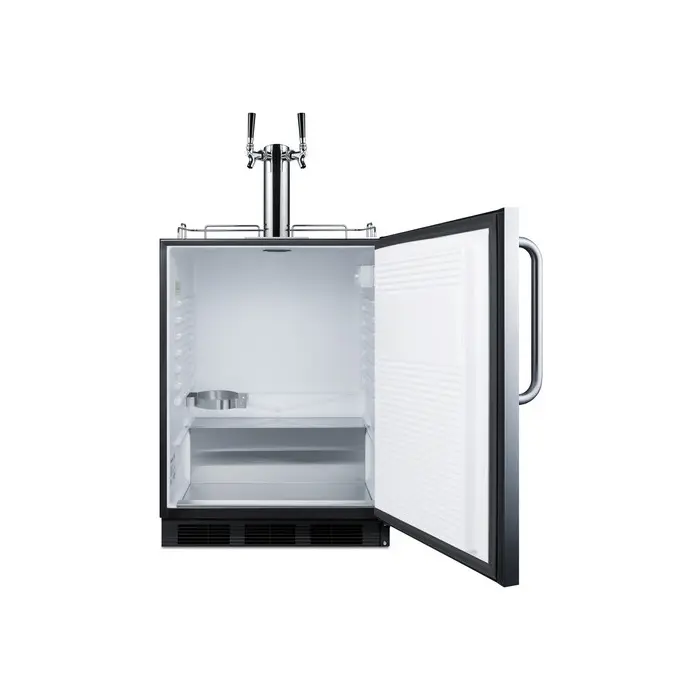

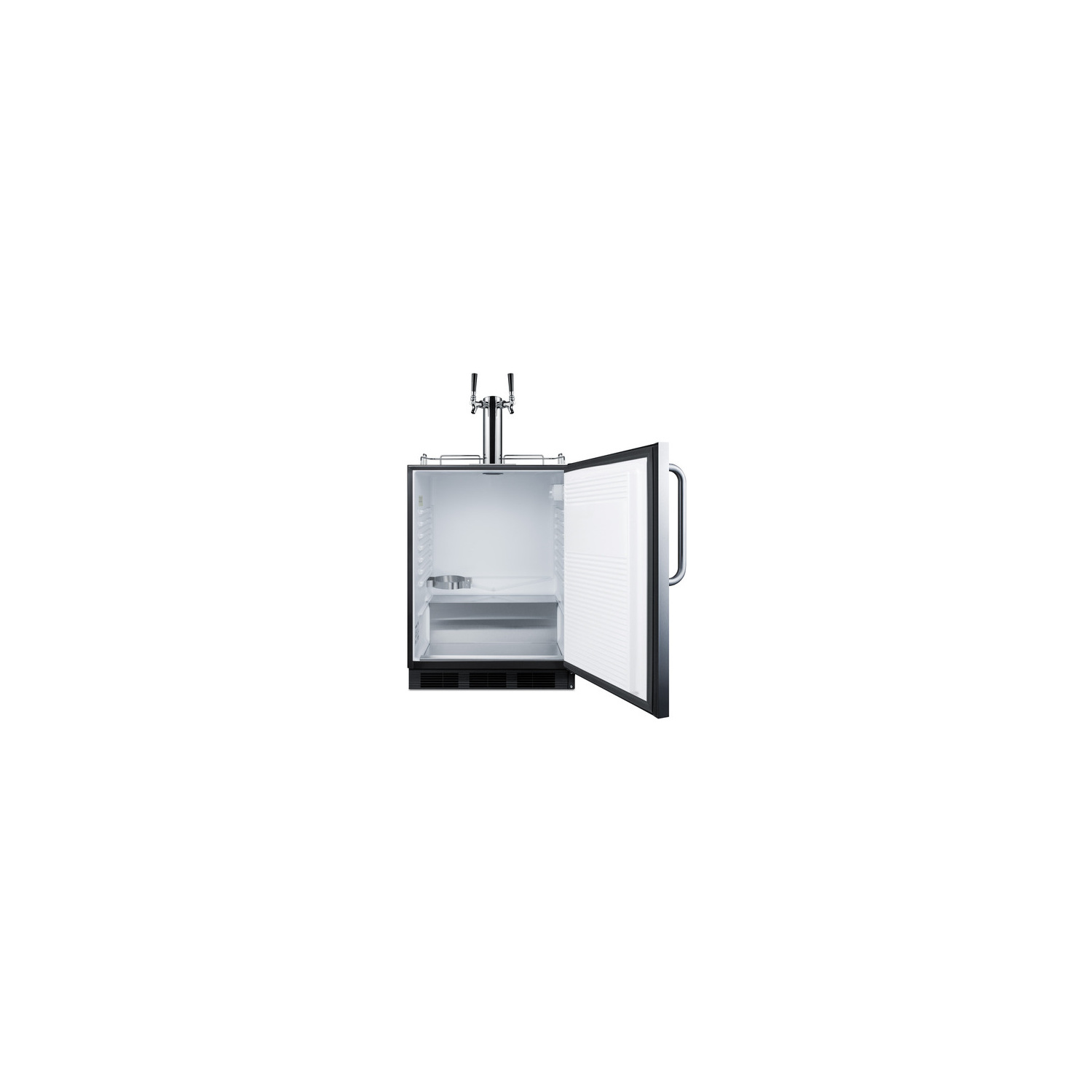

Interior CO2 holder Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet Allows the unit to be used freestanding

Ground Fault Circuit Interrupter Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

100% CFC free Environmentally friendly design without ozone-damaging chemicals
