Summit 15 inch wide built-in undercounter beer dispenser, 7.61101e+011, SBC15BEER

Summit offers a complete line of built-in kegerators/beer dispensers designed for use in commercial establishments.

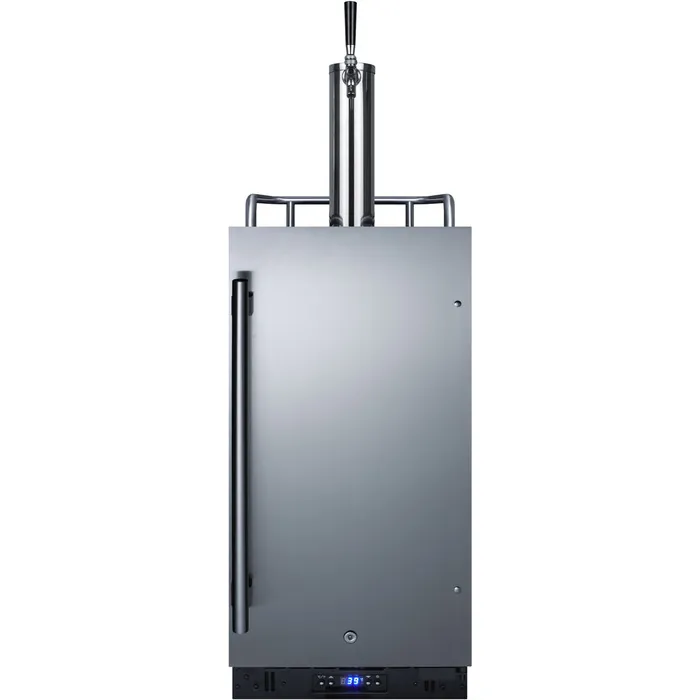

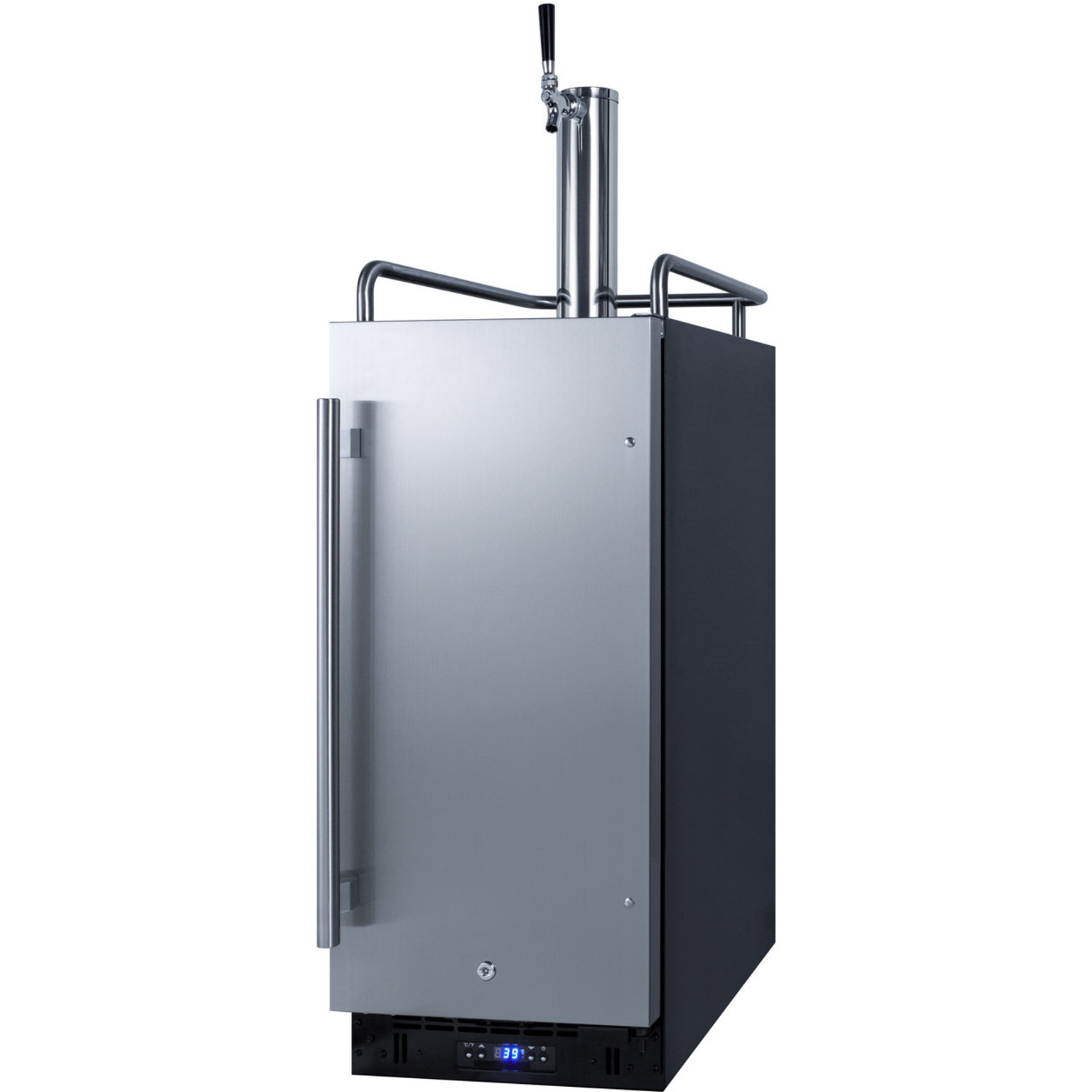

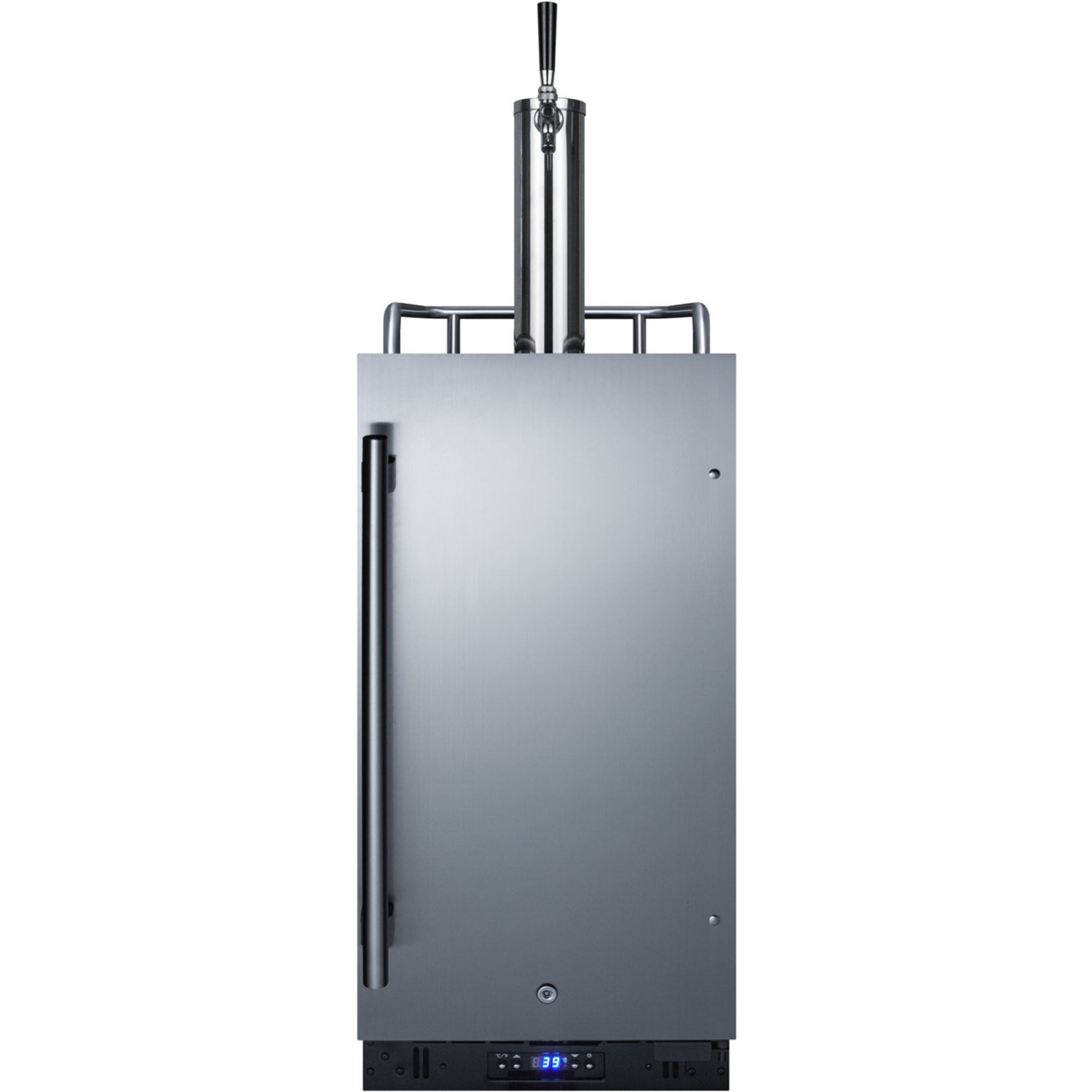

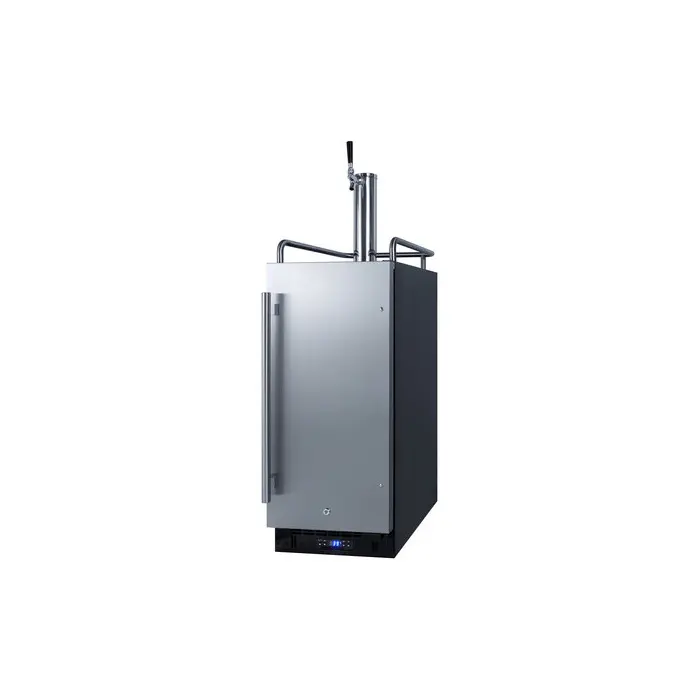

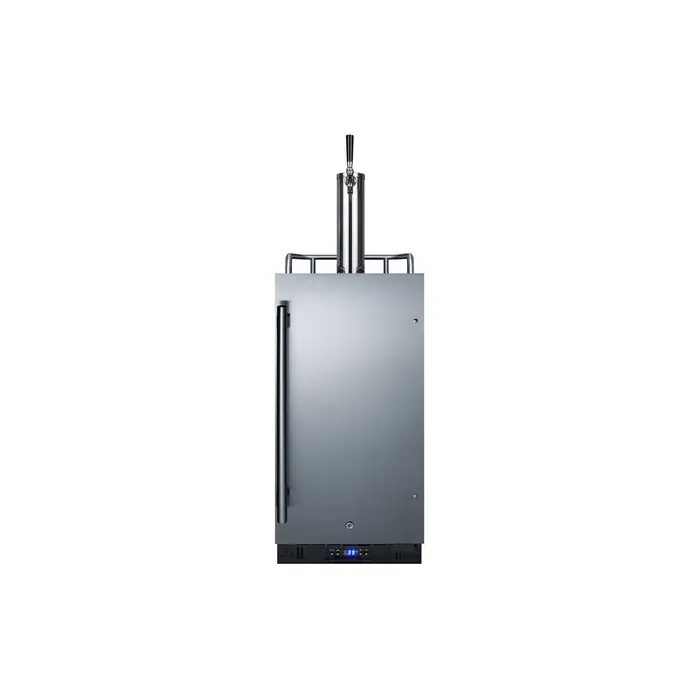

The SBC15BEER features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential applications. Sized at 15" wide, it features a front-breathing design for built-in installation under counters and a fully finished cabinet for freestanding use. A stainless steel door and black cabinet finish afford added elegance to any setting, while the stainless steel handle completes the look. The sealed back allows for easy cleaning of the unit. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup and four included casters (two are locking) make movement of the unit easy. A factory-installed lock provides added security.

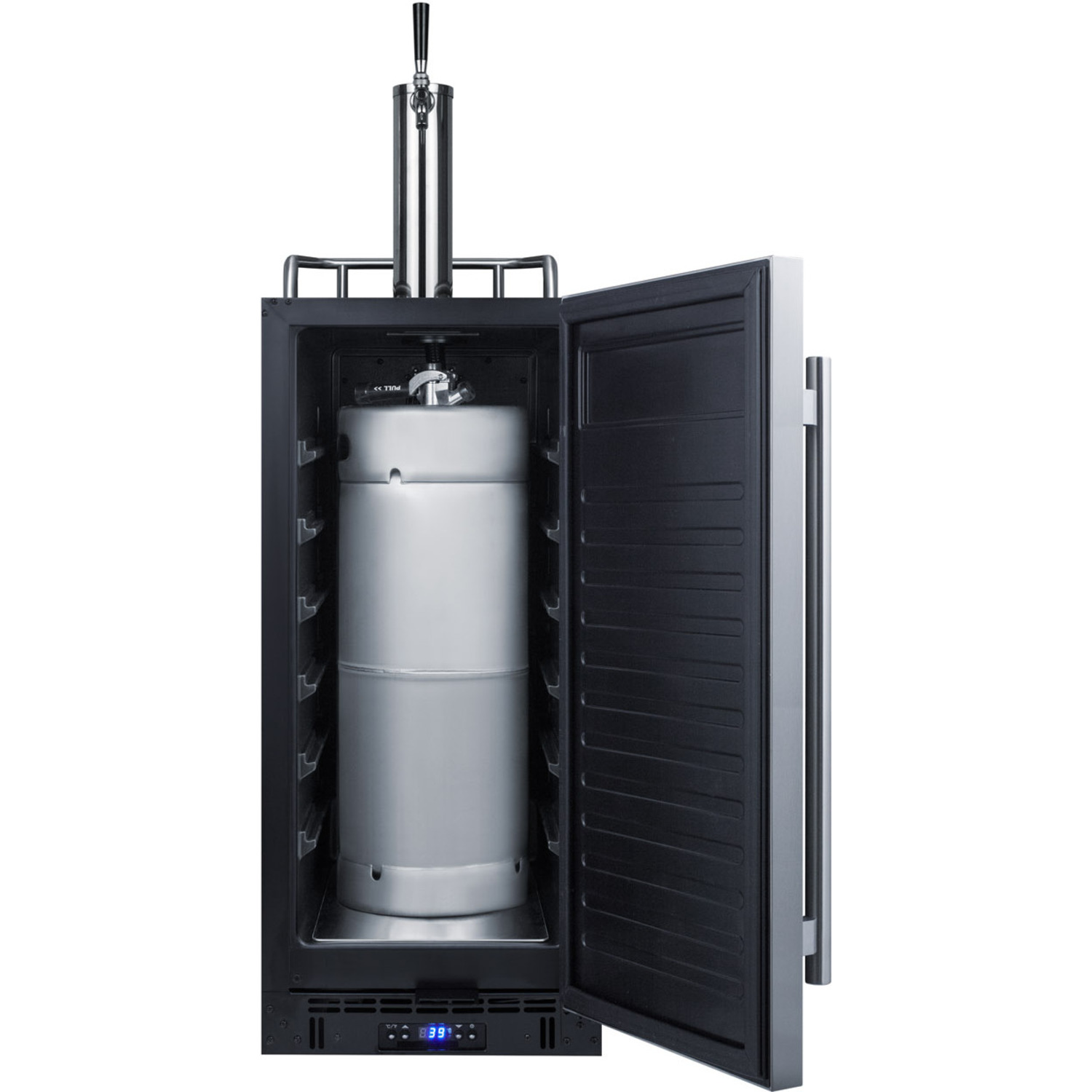

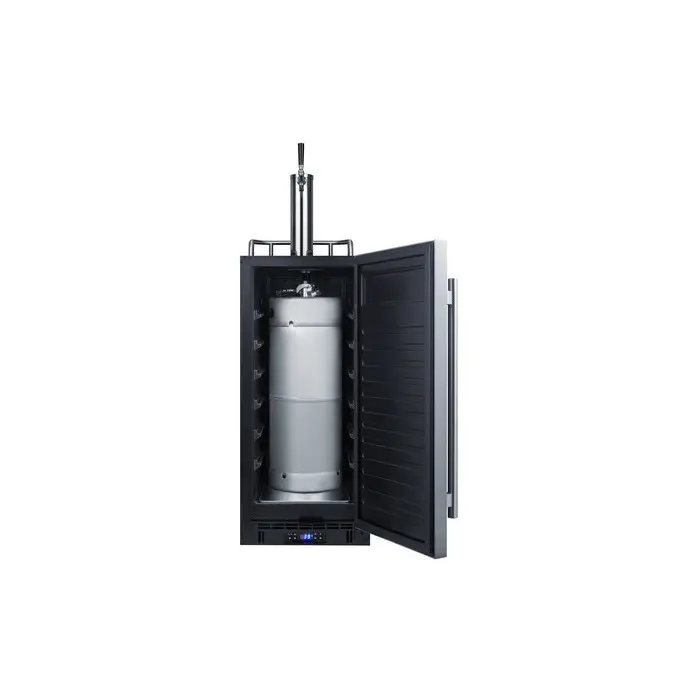

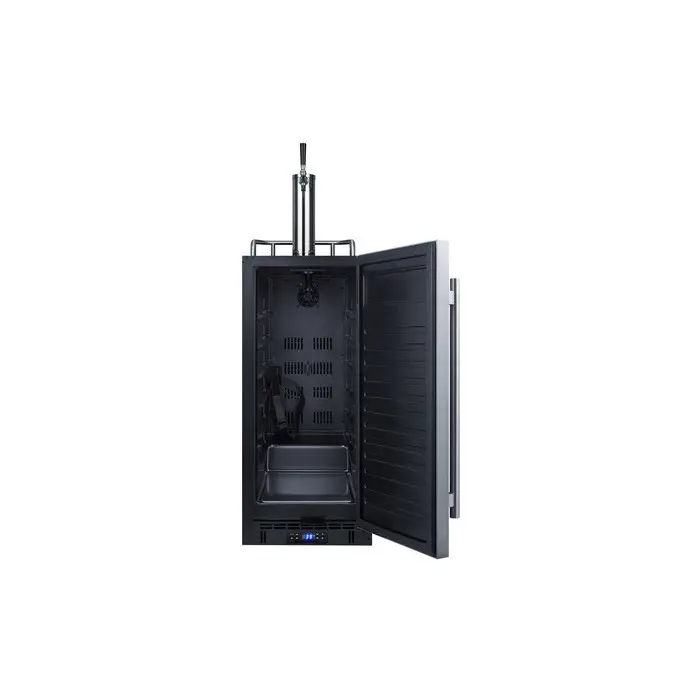

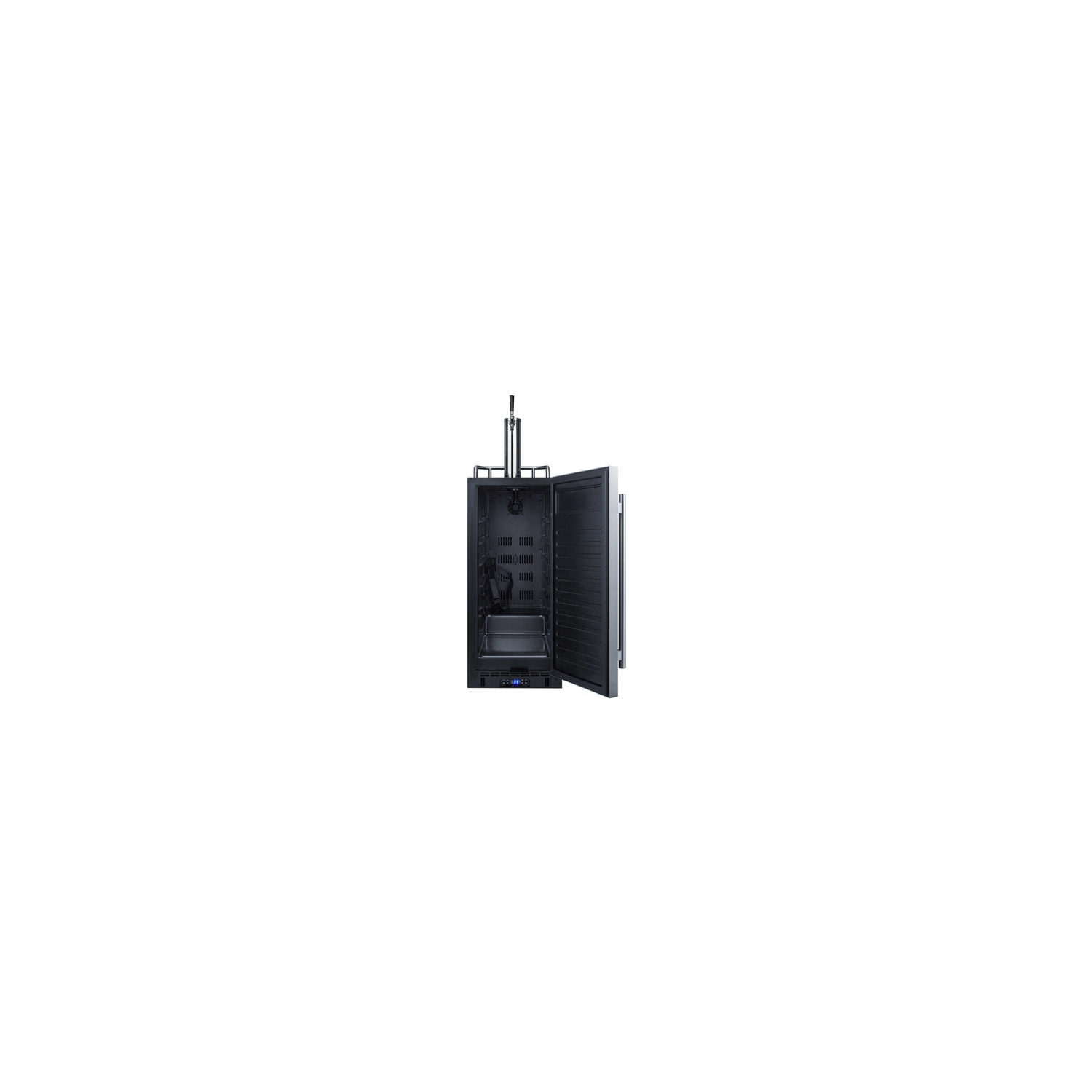

Inside, the 2.9 cu. ft. interior can hold a 1/6 (sixtel) or mini keg. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. We include a commercially approved Sankey tap kit that includes everything you need to serve beer, including a stainless steel draft tower, regulator, and Co2 tank. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the Co2 tank in place. A stainless steel floor plate provides added protection when placing and removing kegs.

For a similar unit designed to serve wine, see the SBC15WK. You can also create your own custom cold brew kegerator by combining any of our "NK" beer dispensers with our selection of cold brew tap kits.

Note: Due to its door design, the SBC15NKBEER requires an additional 1/4" of width for the door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 15.0" (38 cm)

Width 15.0" (38 cm)

Width with Door Open 15.25" (39 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 36.5" (93 cm)

Capacity 2.9 cu.ft. (82 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 280.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 78.0 lbs. (35 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101067889

Kegerator

Door Swing RHD

Reversible Yes

Tap Kit Yes

Height with Tap 49.75" (126 cm)

Number of Taps 1

Adjustable Shelves Yes

Shelf Type Chrome

Shelf Qty 2

Thermostat Type Digital

Fan Type Exterior

Refrigerant R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Inter Height 26.75" (68 cm)

Interior Width 11.75" (30 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 11.75" (30 cm)

Compressor Step Depth 5.0" (13 cm)

Level Legs Qty 4

Wheel Qty 4

Temperature Range 34º to 50º F

FEATURES

15" wide design Slim-fit design complements smaller commercial and residential spaces

Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Built-in capability Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require an extra ¼” of space due to the door design. For more information, see the user manual

Complete tap kit for serving beer Commercially approved tap kit includes a stainless steel tower, Co2 tank, and regulator

Co2 tank included 5 lb. Co2 tank included (ships empty)

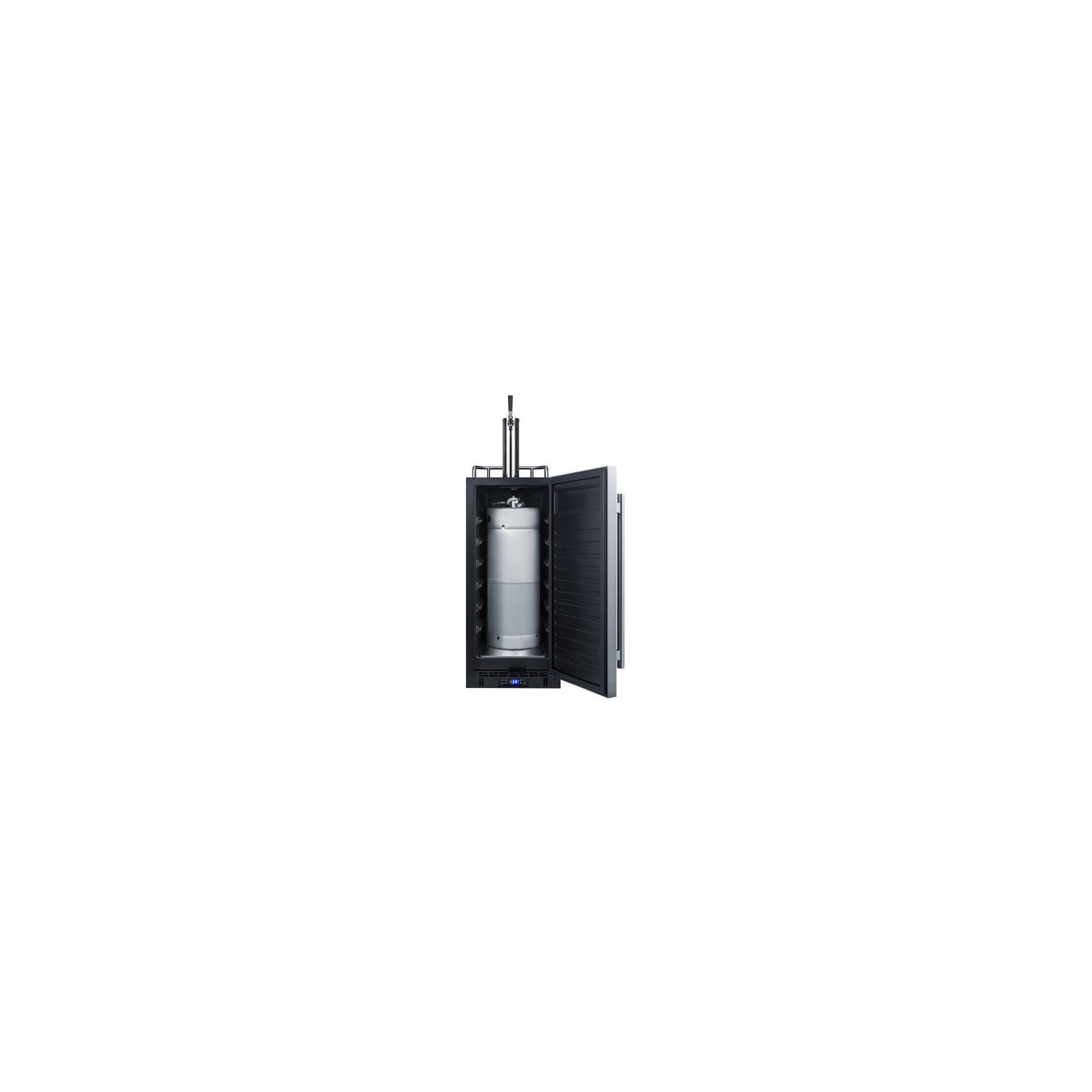

Beer dispenser 2.9 cu.ft. interior can accept a 1/6 (sixtel) barrel keg or a corny keg

Automatic defrost Reduced user maintenance with auto defrost operation

Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system Keeps cold air flowing to the tower for consistently cold beer

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled) Attractive chrome guard rail helps to reduce spills and neaten service

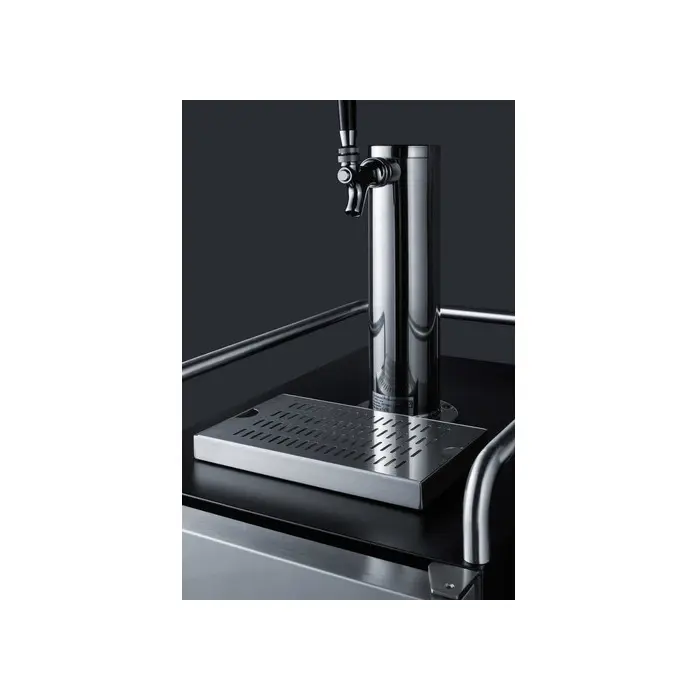

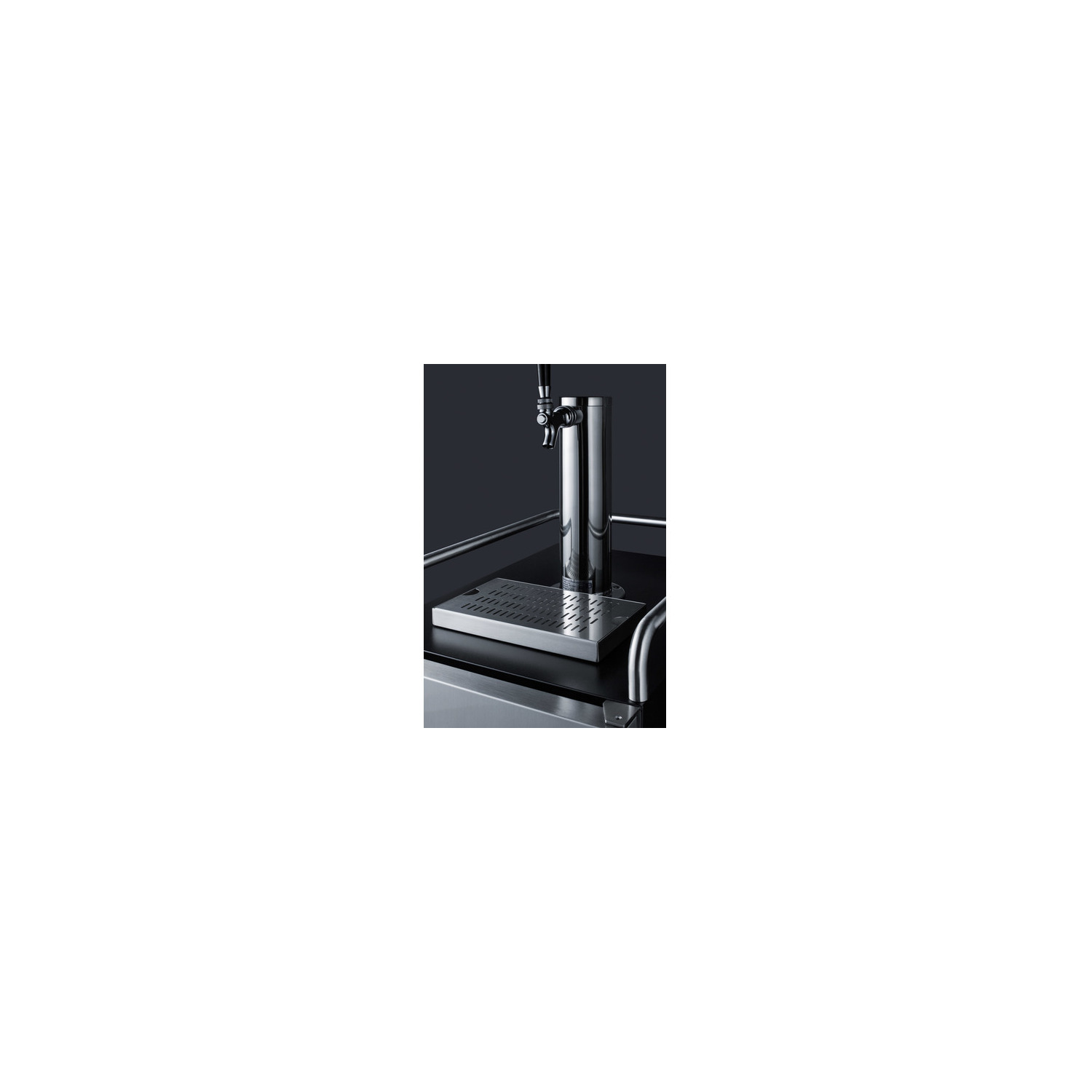

Stainless steel drip tray Removable two-piece drip tray catches spills to help contain the mess

Ideal beer temperature Operates between 34º and 50ºF to keep a variety of beers stored at just the right serving temperature

Wire shelves 2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator

Reversible door User-reversible door swing for added flexibility

Factory installed lock Keyed lock for a secure interior, with 2 keys included

Sealed back Space saving design with easier cleanability

Casters included (ship unassembled) To make the beer dispenser portable, install this set of 4 1/2" high casters (2 locking)

Pro style handle Stainless steel handle adds style to any setting

Fully finished black cabinet Allows the beer dispenser to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (SBC15BEER.pdf)

TECHNICAL DRAWING (.dwg) (SBC15NK_BEER_DISPENSER__A-C_2018_.dwg)

REVIT MODEL (QF_Summit_SBC15BEER_15_Wide_Built_In_Kegerator.rfa)

MSDS INFORMATION (R600a_K.pdf)

SUPPORT (BEER_DISPENSER_TAP_KIT_INSTRUCTIONS.docx.pdf)

USE & CARE (SBC15BEER-User-Manual.pdf)

Energy Guide
