Summit 20 inch wide gas range in black with sealed burners, 7.61101e+011, RG201B
$786.08
Retail Price: $1,280.00
Free shipping
$ 786.08
Description
Summit's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens.

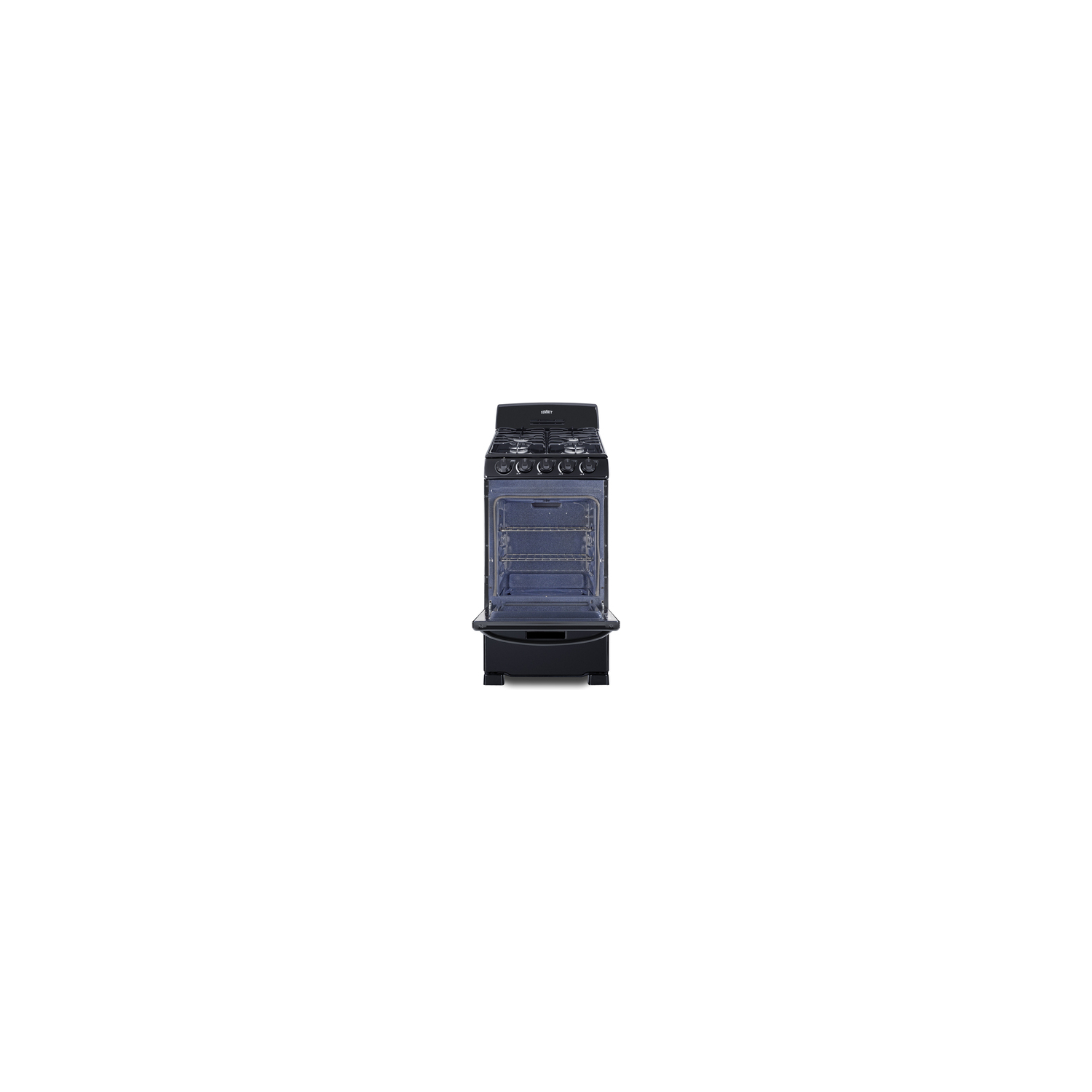

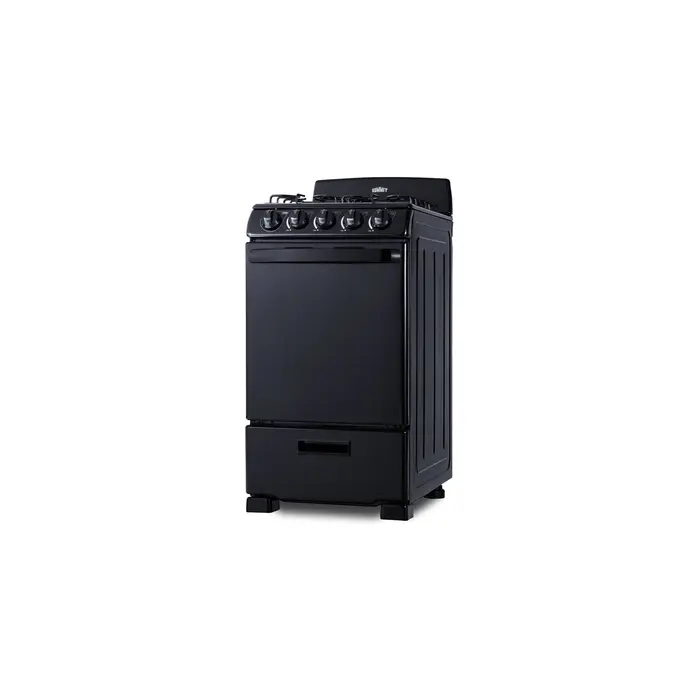

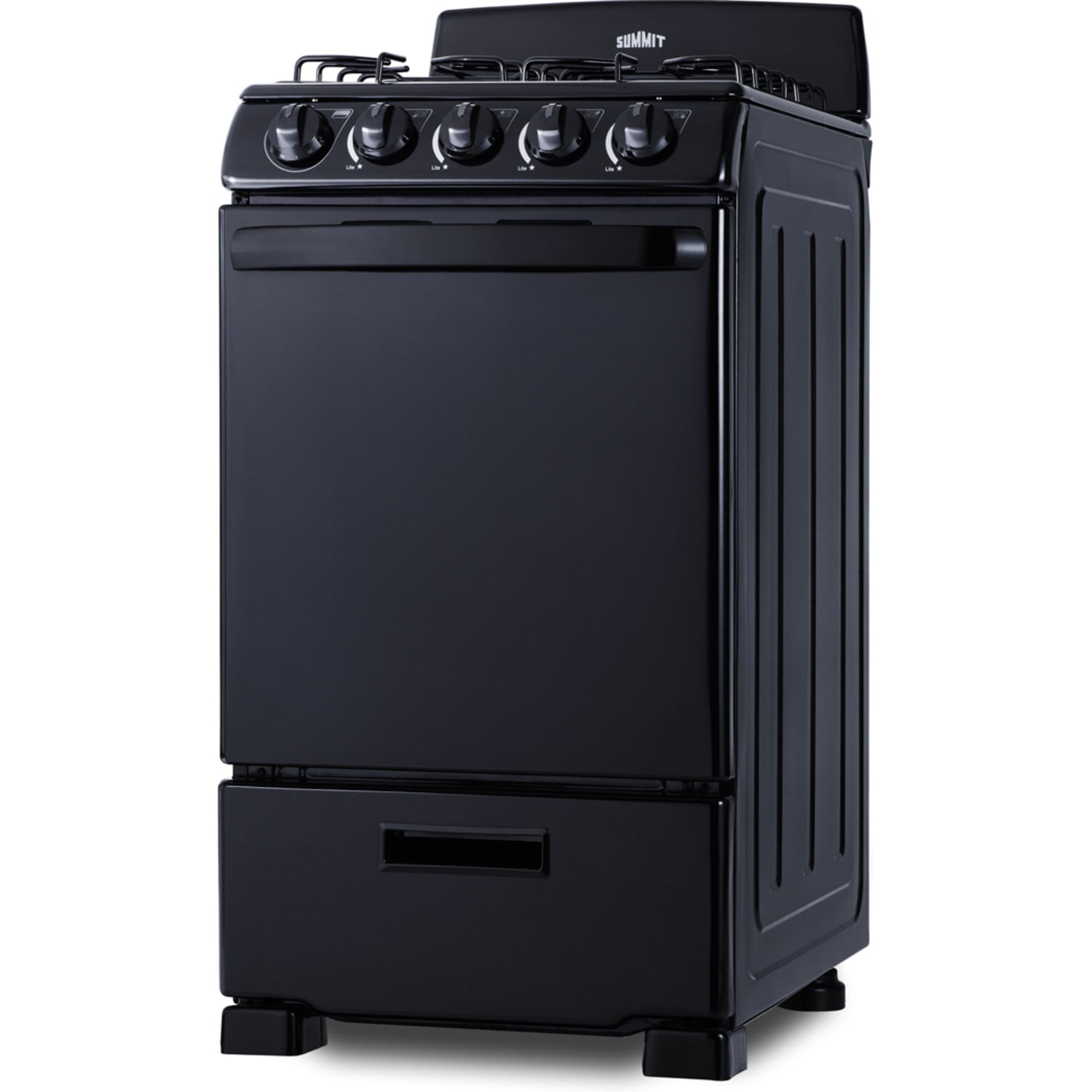

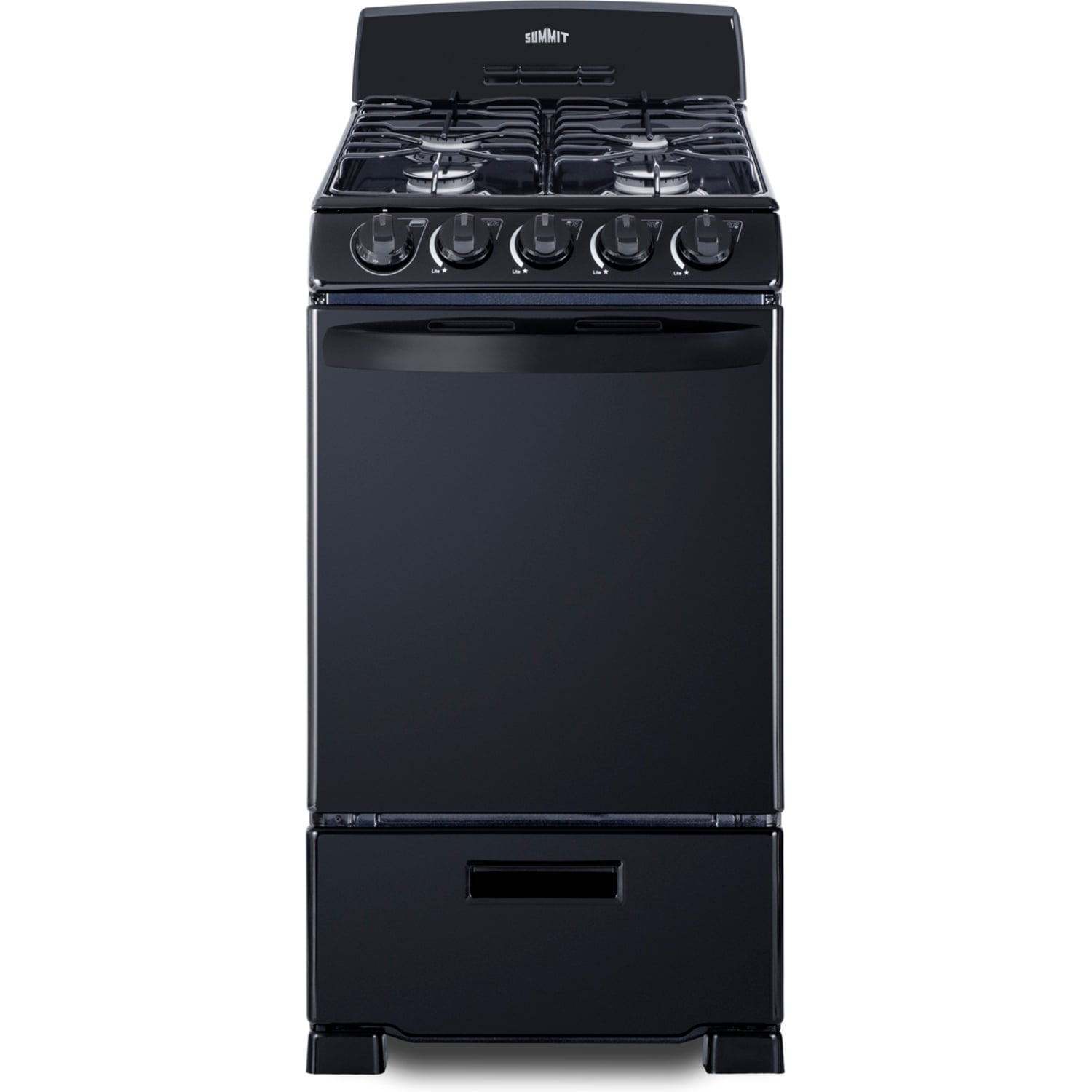

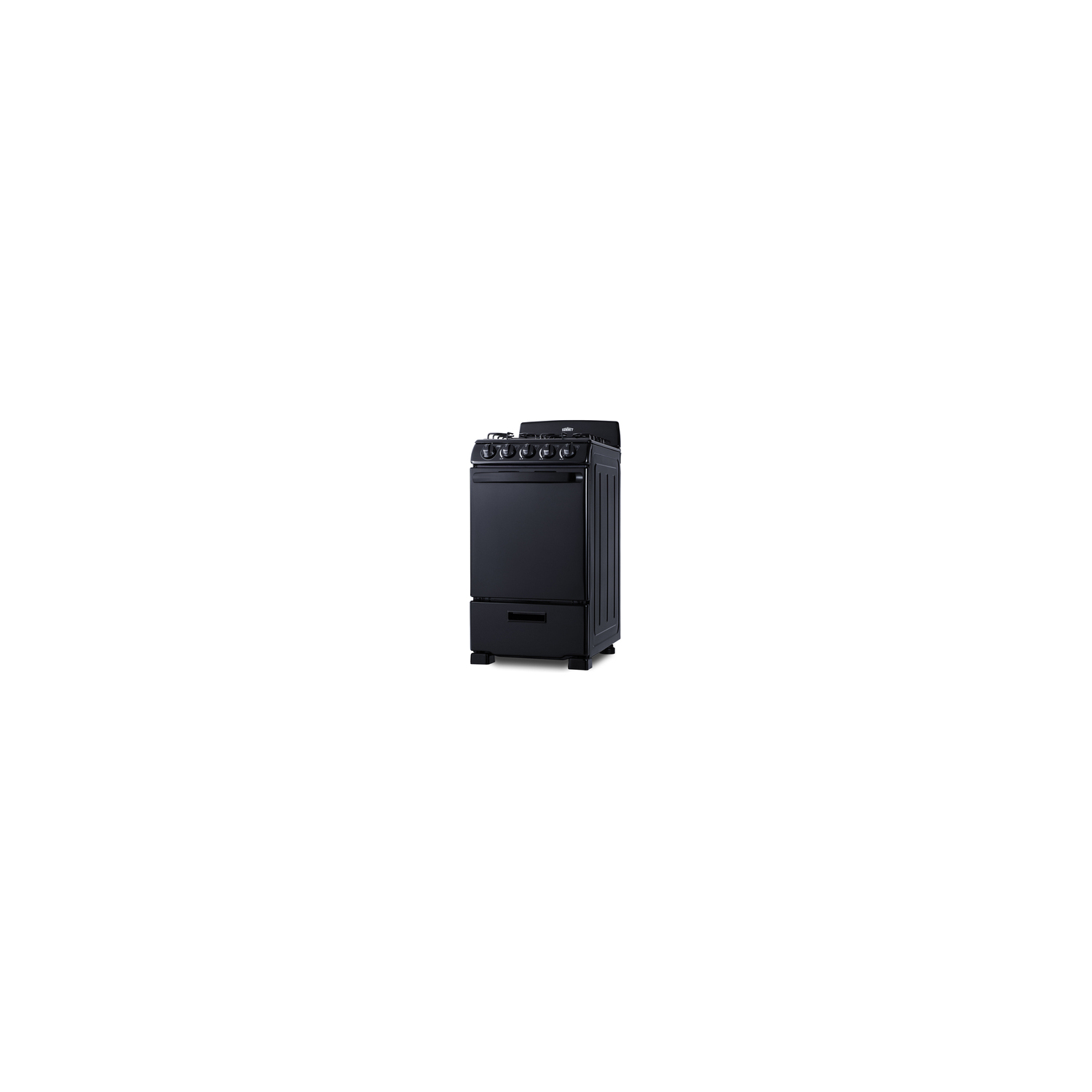

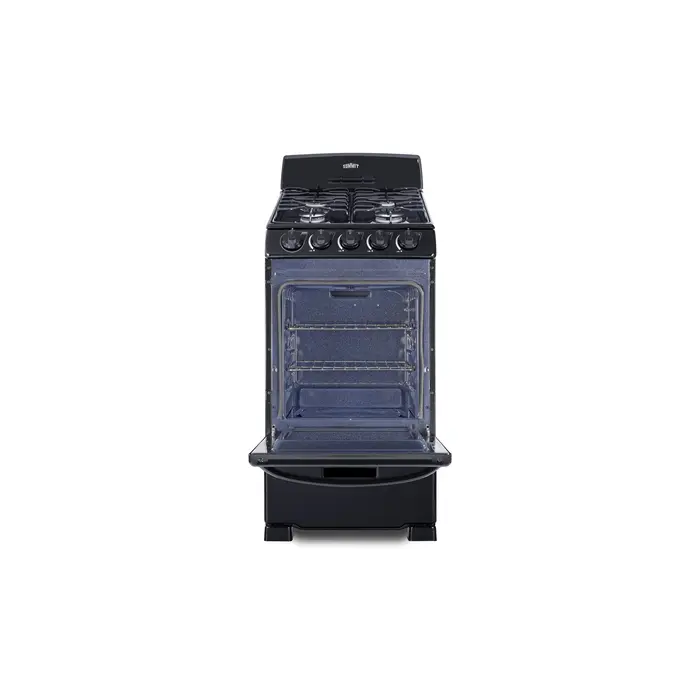

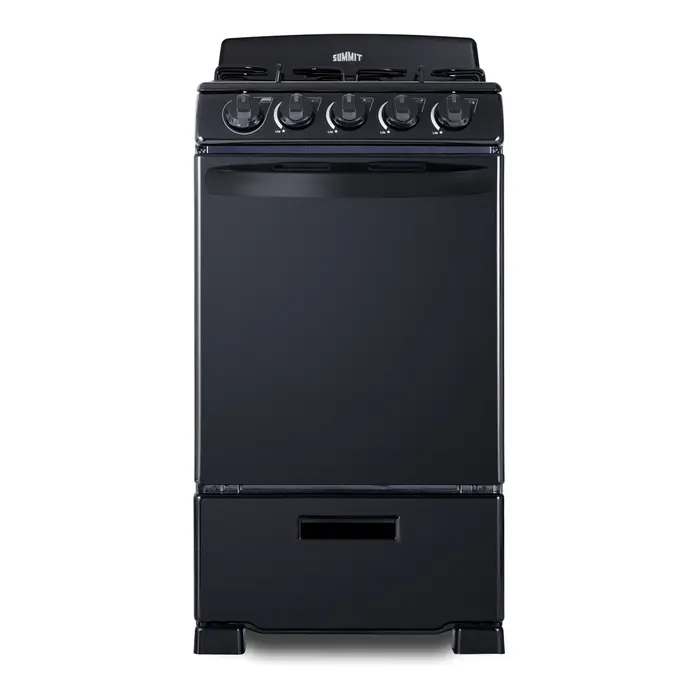

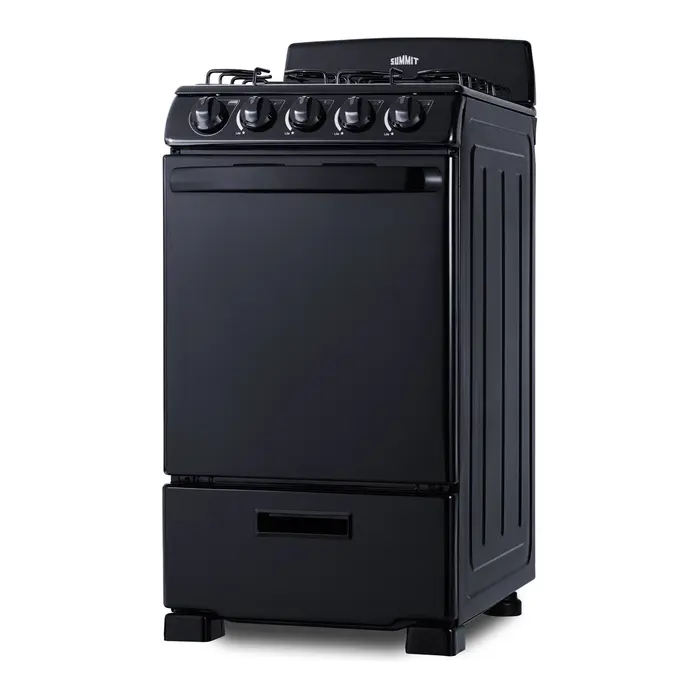

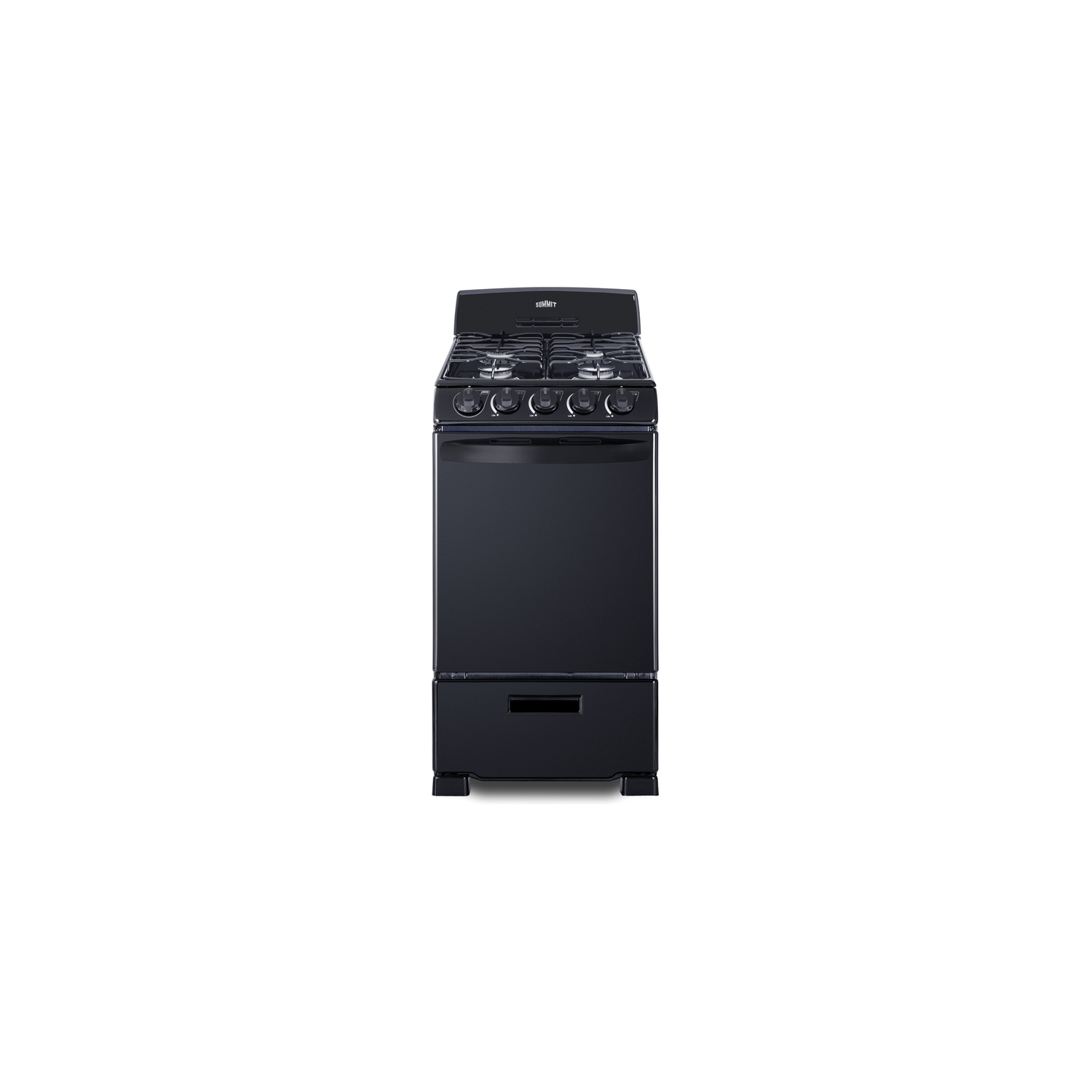

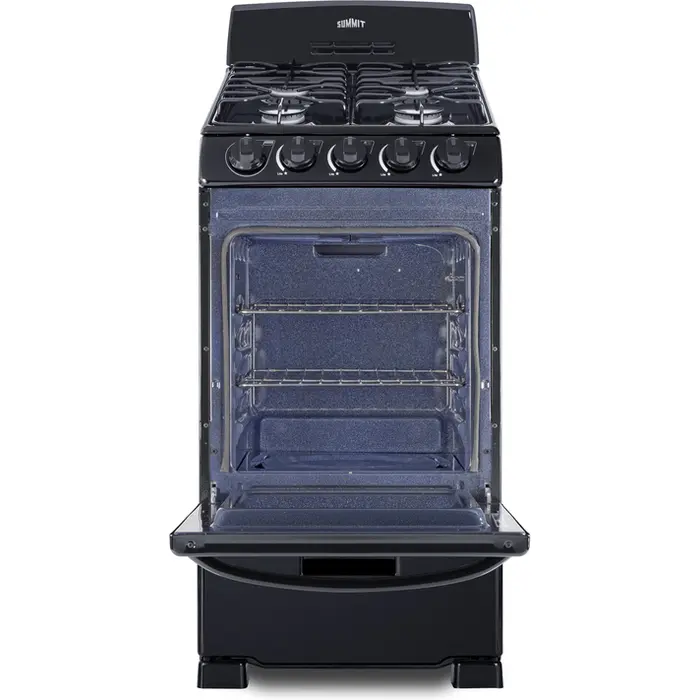

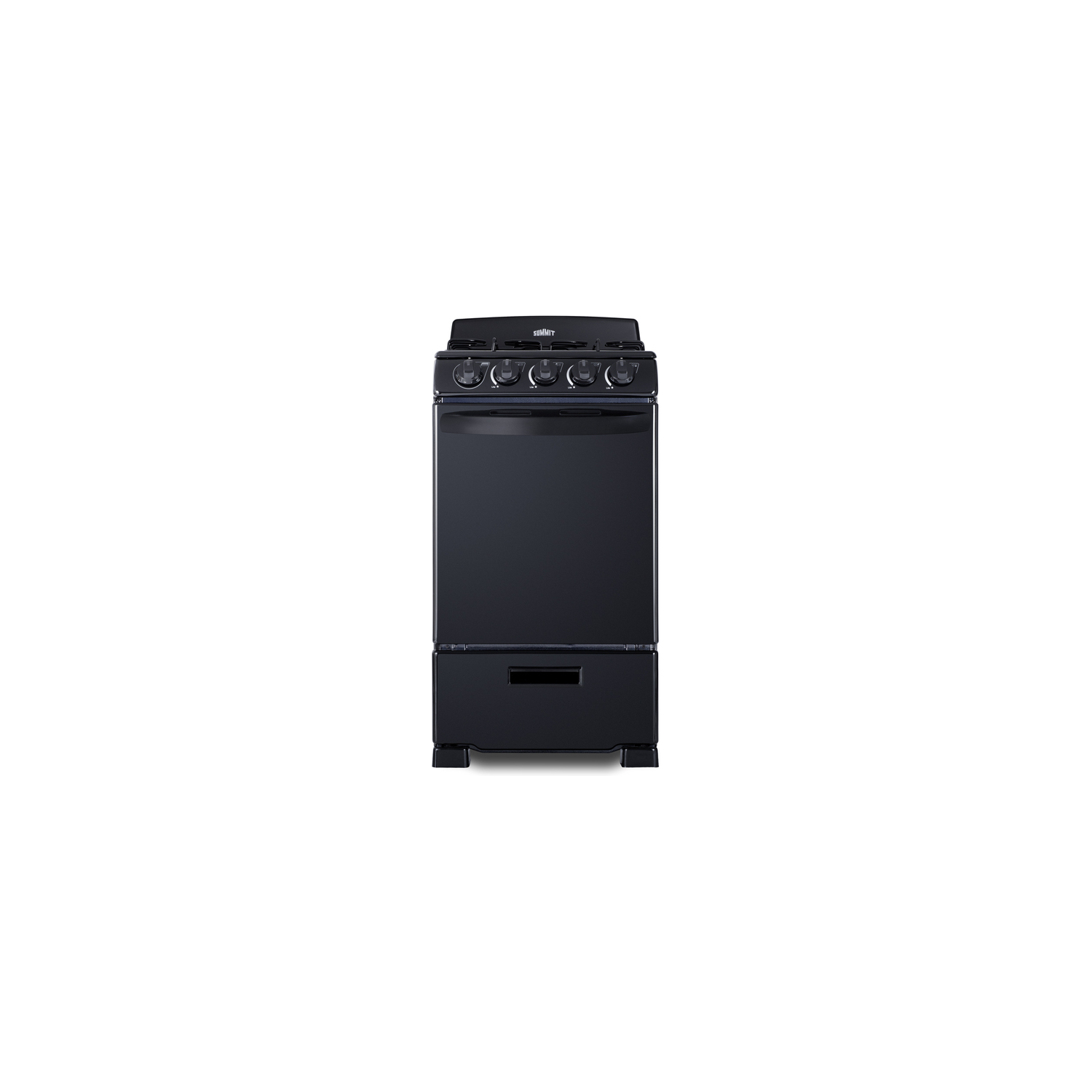

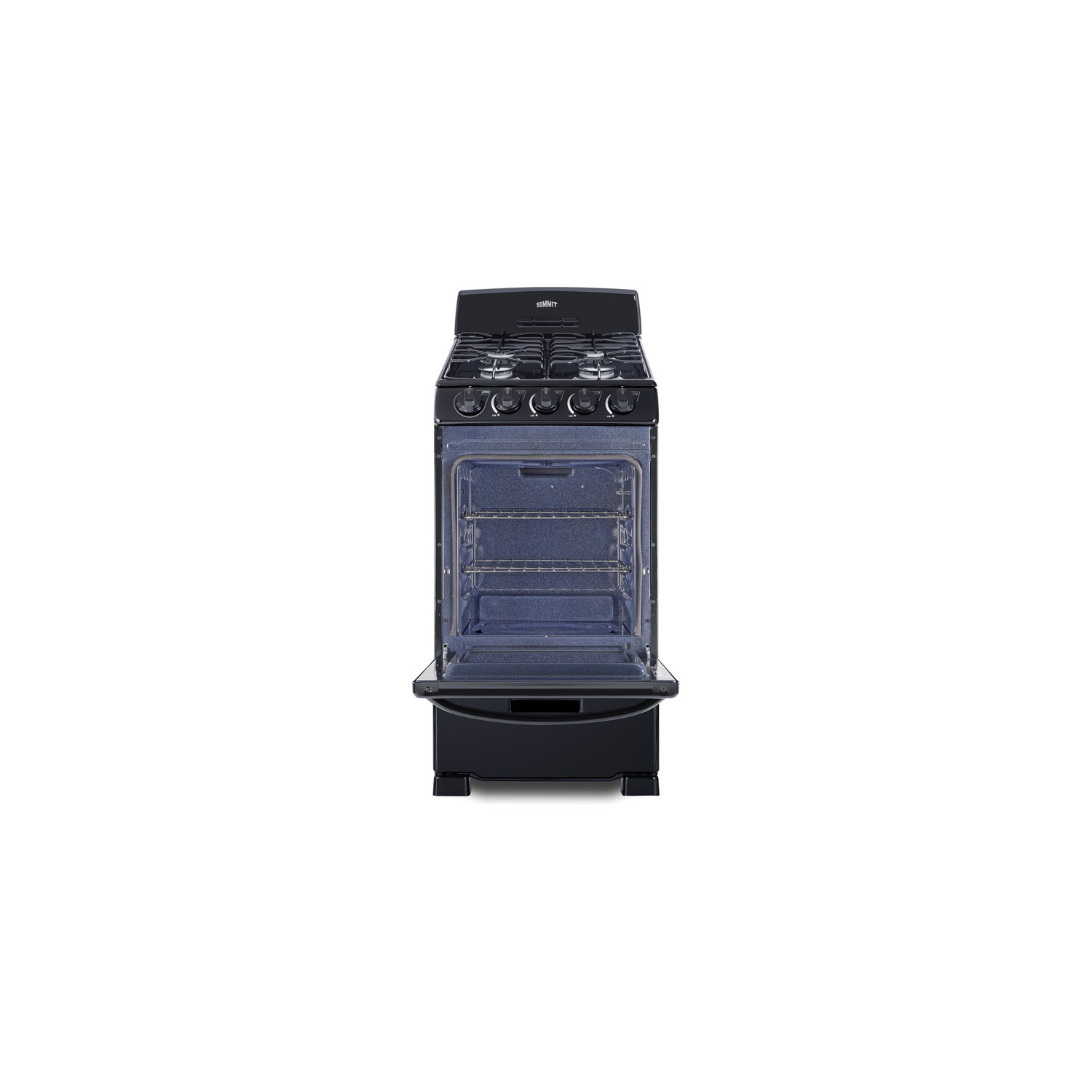

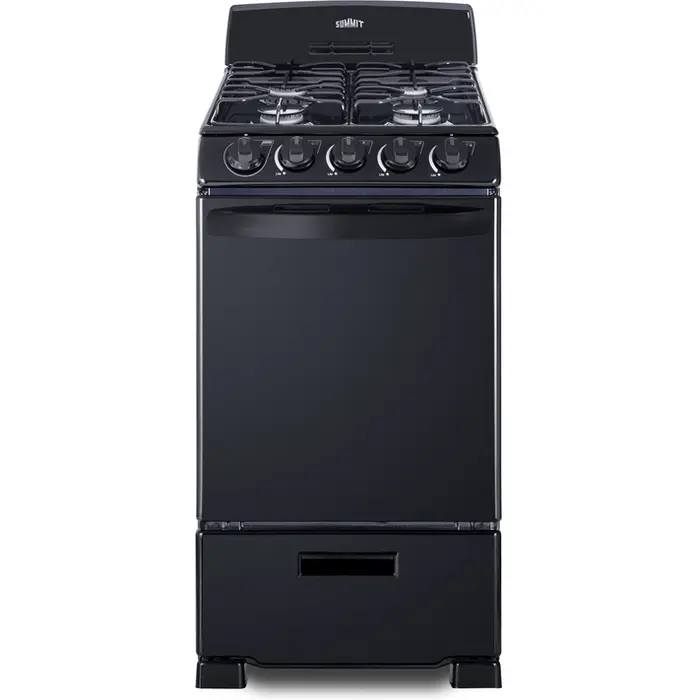

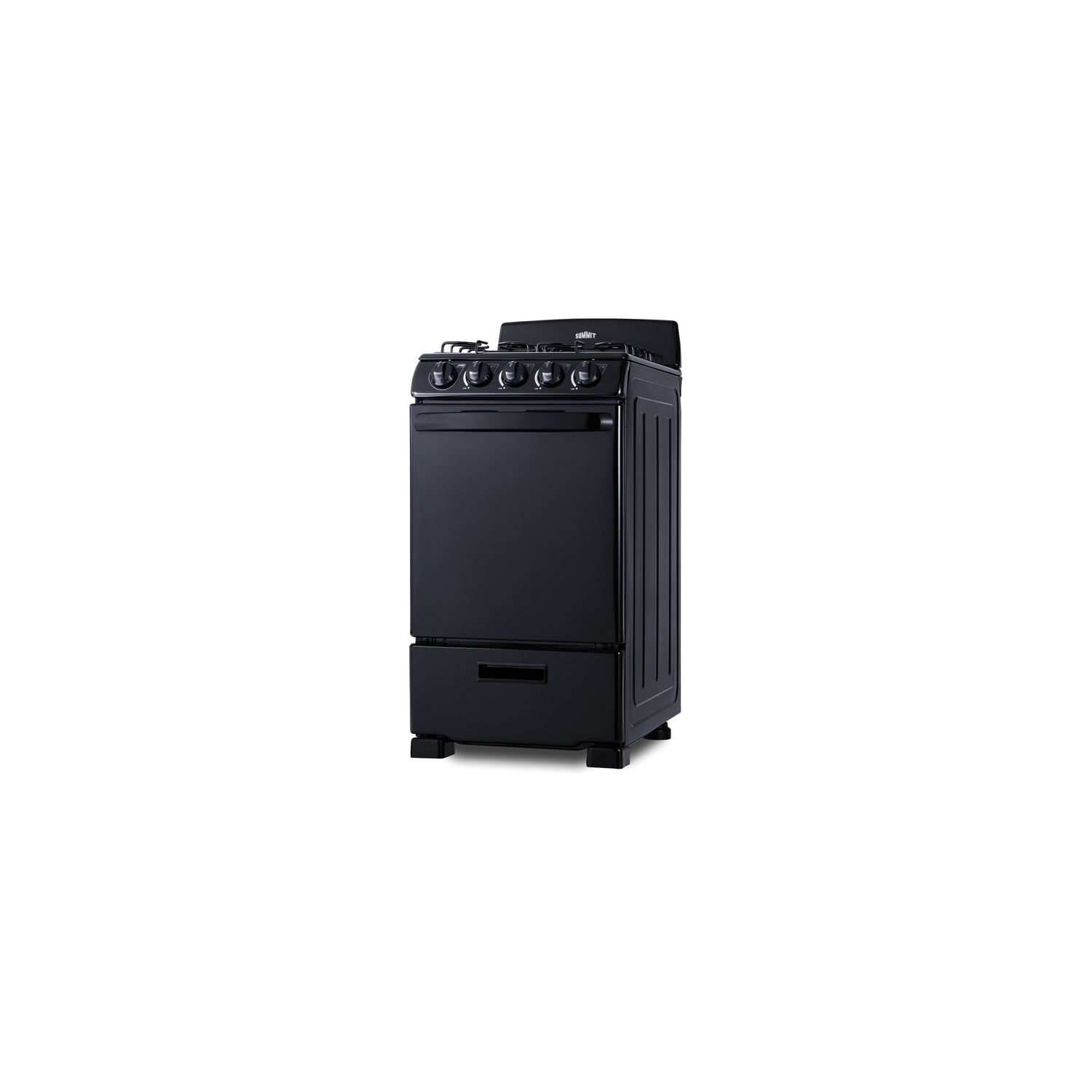

The RG201B is a 20" wide gas range designed for an easy fit in smaller kitchen spaces. The 2.3 cu.ft. oven includes two slide-out racks with a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment.

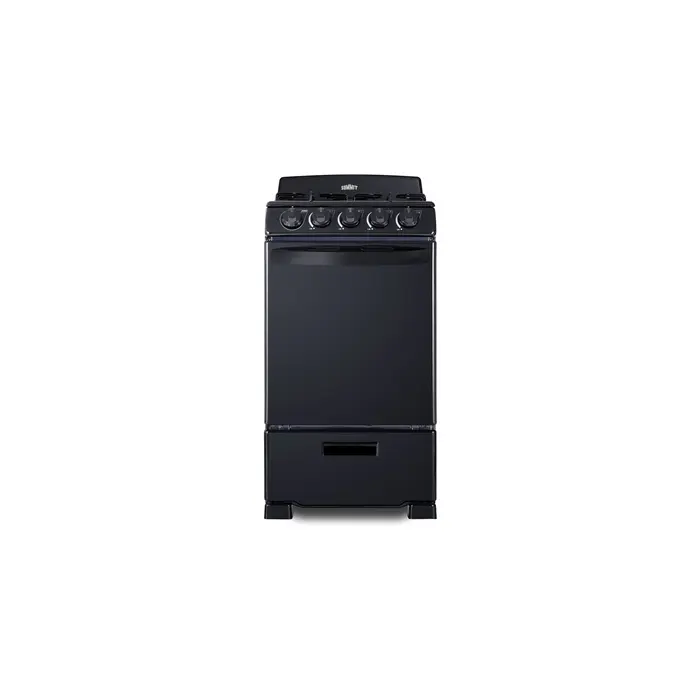

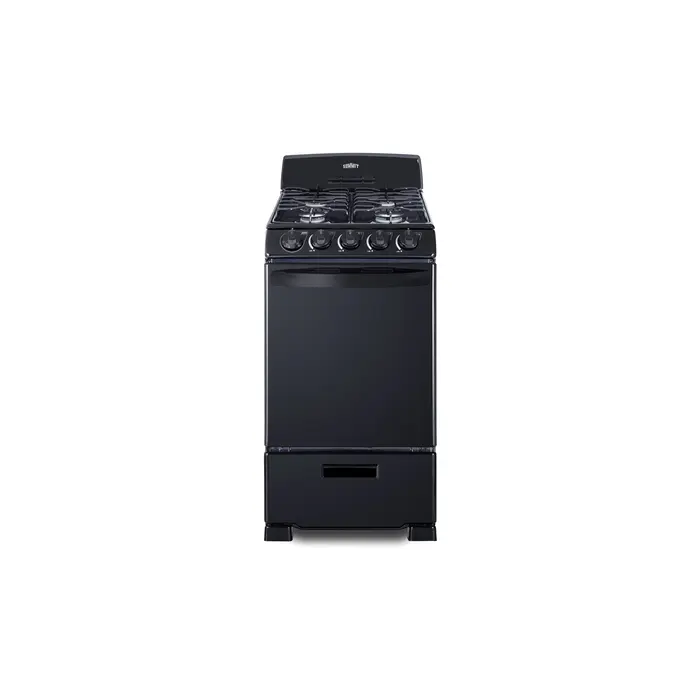

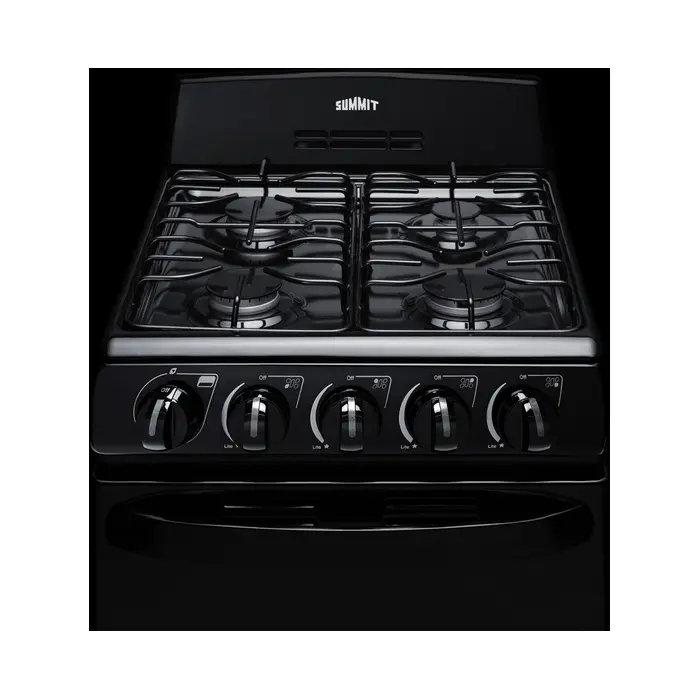

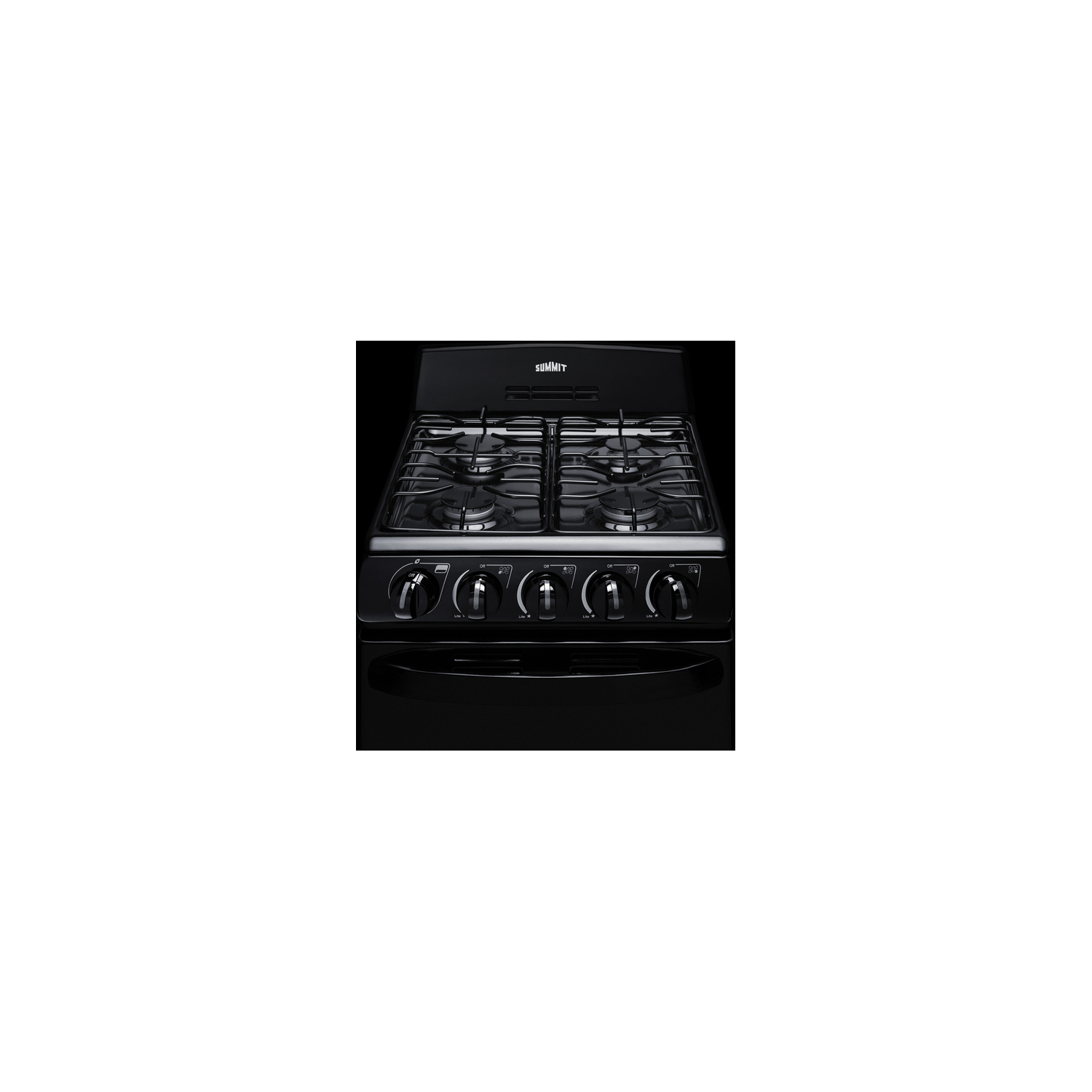

The RG201B comes in a jet black finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

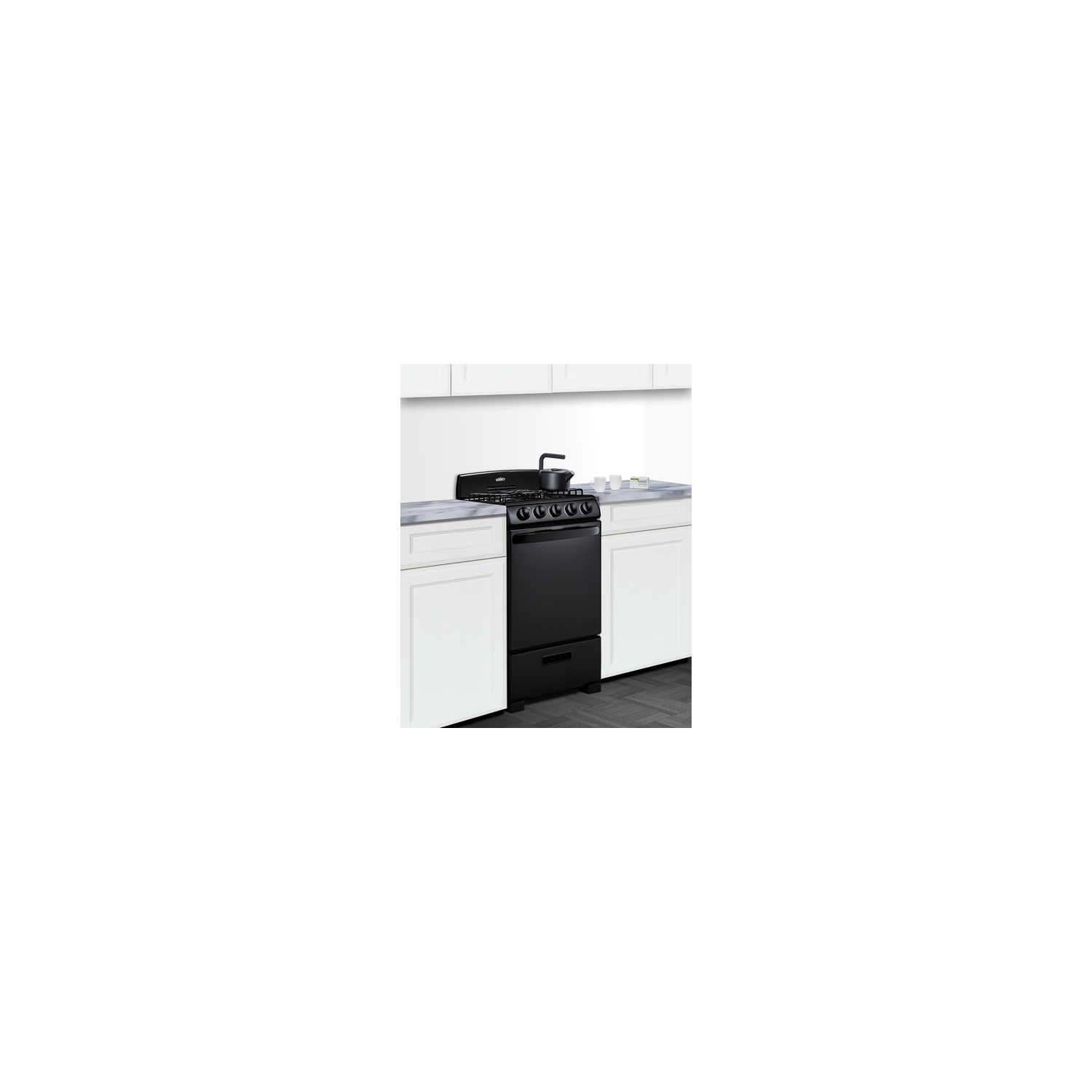

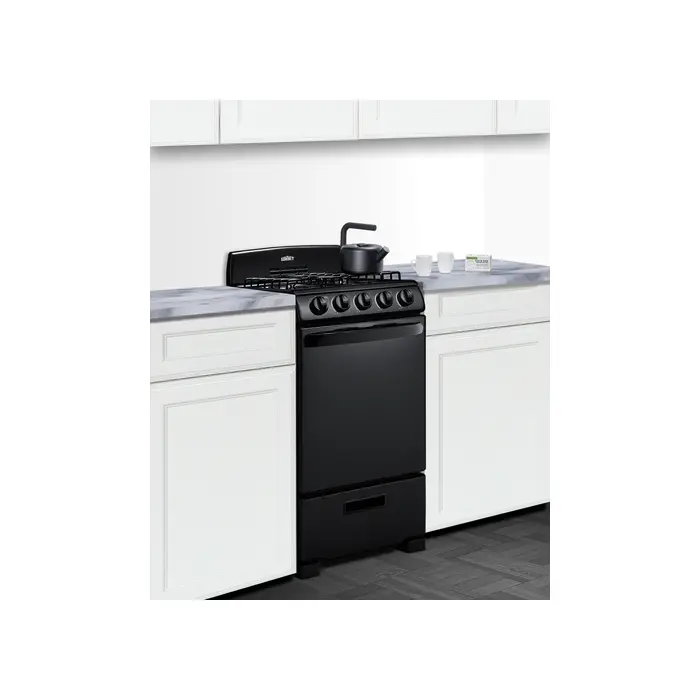

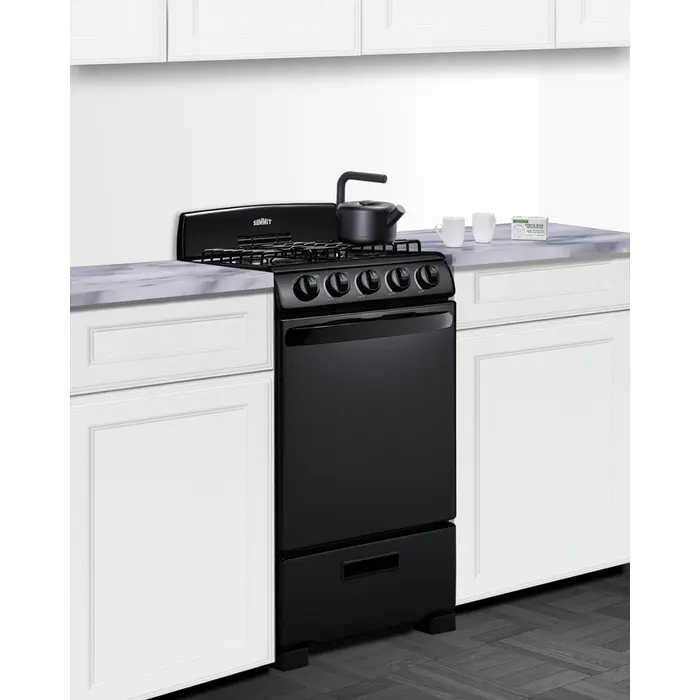

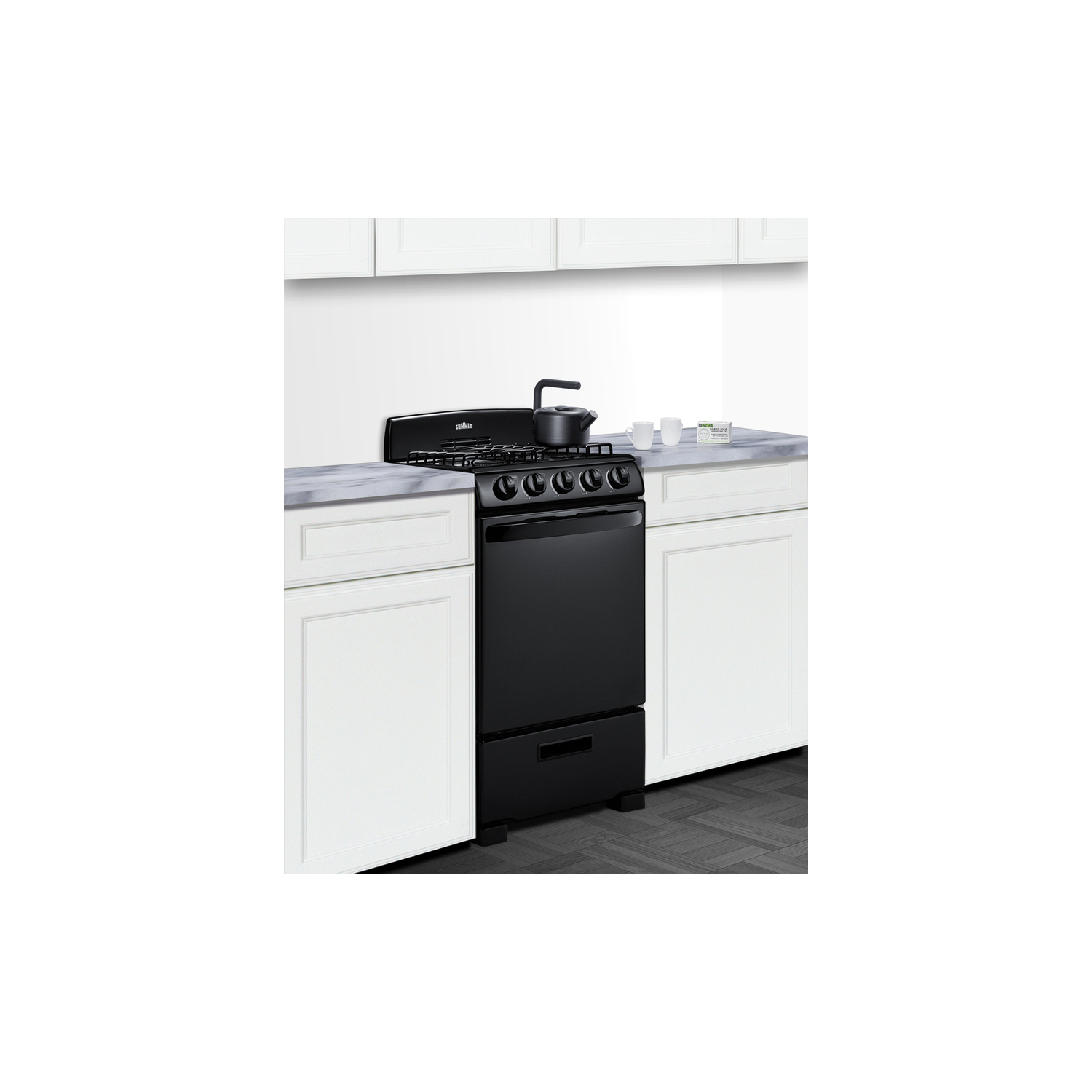

With its clean look and unique size, the RG201B s the ideal gas range for apartment and small home kitchens. For this unit in a white finish, see model RG200WS.
SPECIFICATIONS
Overview

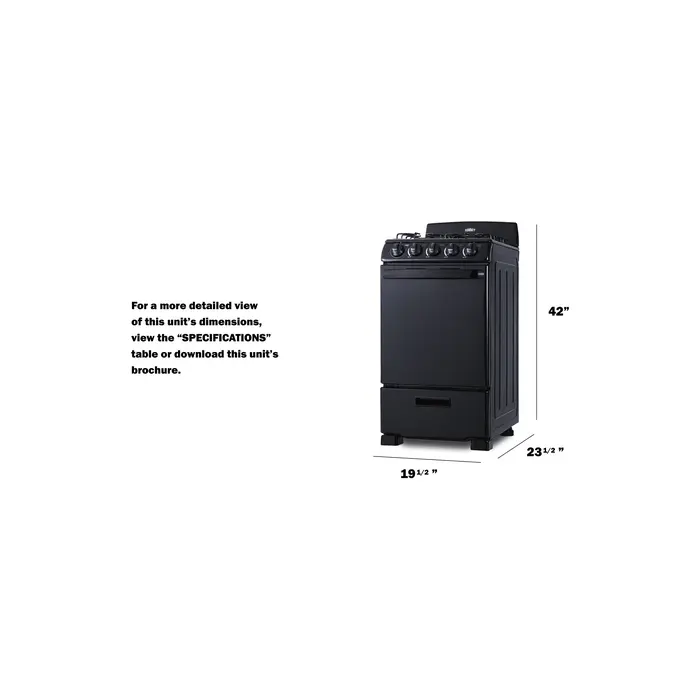

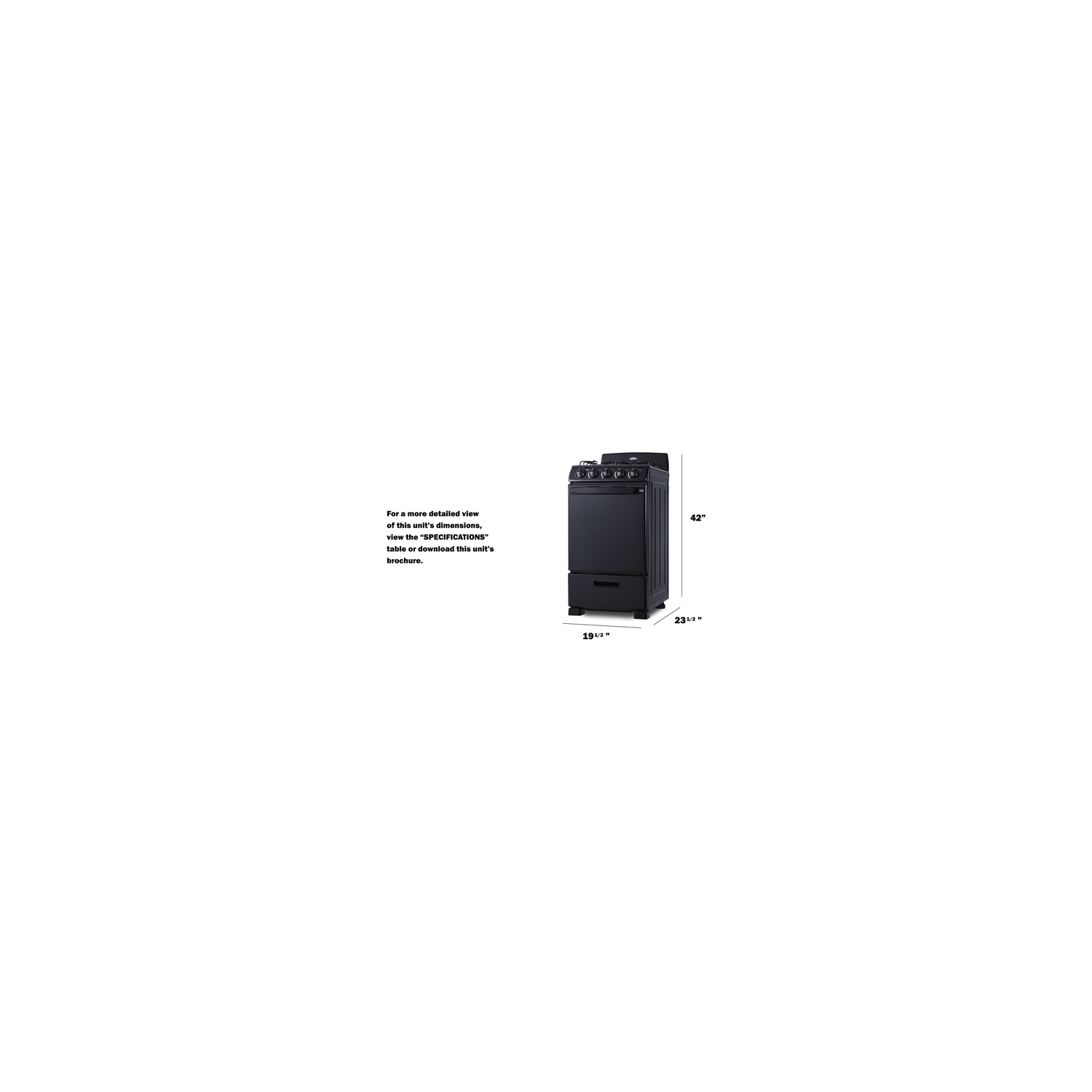

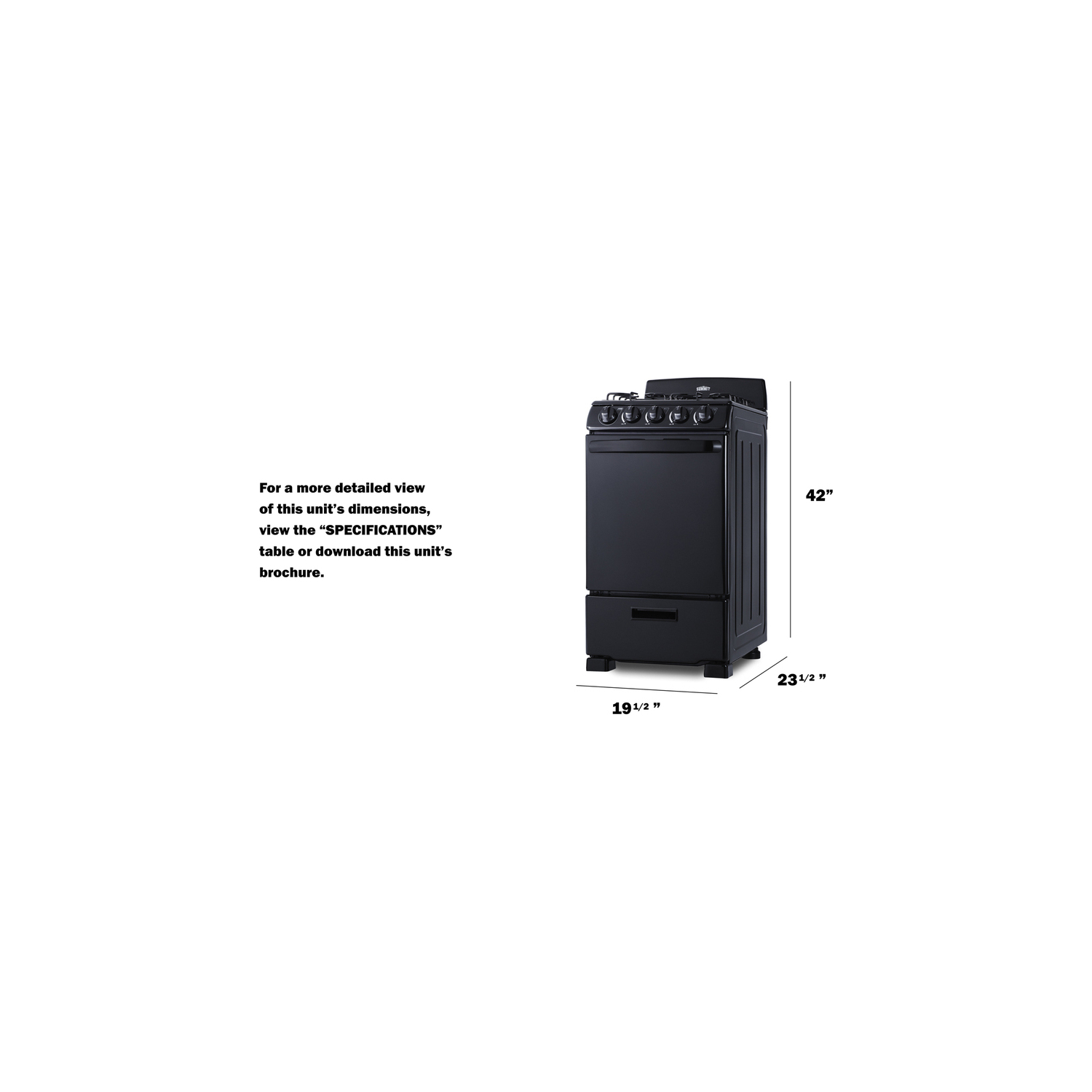

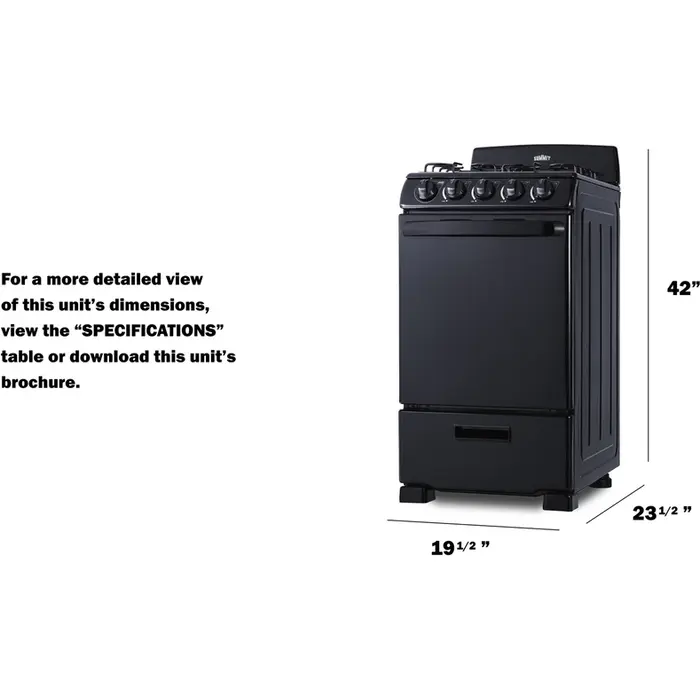

Nominal Height 42.0" (107 cm)
Height of Cabinet 42.0" (107 cm)
Nominal Width 20.0" (51 cm)
Width 19.5" (50 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 43.25" (110 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Amps 5.0
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
UPC 761101103761
Gas Range
Ignition Spark
LP Convertible Yes
Oven Capacity 2.3 cu.ft
Cooktop Surface Metal
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 12000.0
Burner #2 BTU 9500.0
Burner #3 BTU 9500.0
Burner #4 BTU 5000.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 15.25" (39 cm)
Oven Interior Width 14.5" (37 cm)
Oven Interior Depth 17.5" (44 cm)
Broiler Location Below Oven
FEATURES

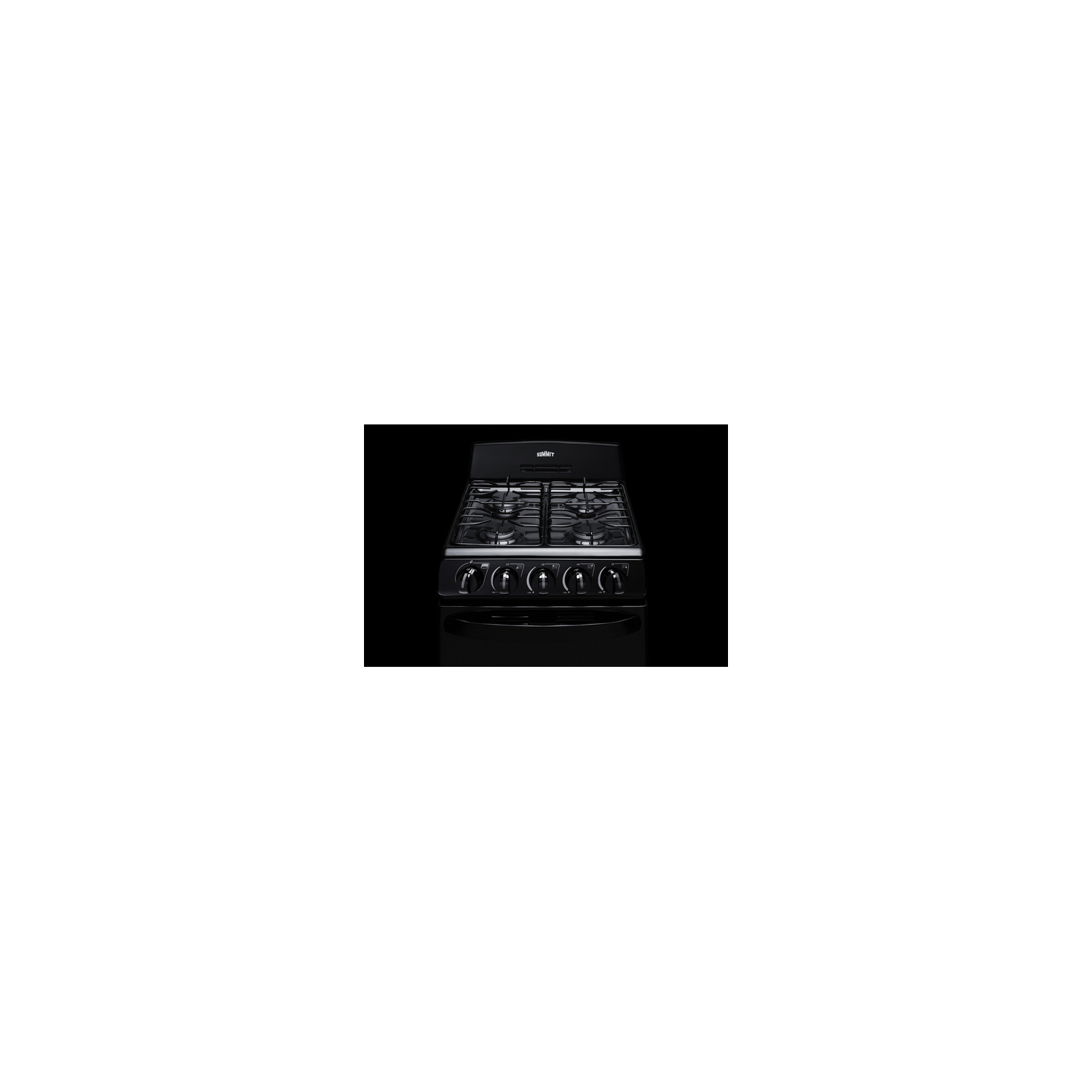

20" Wide Gas Range Featuring four sealed burners and a large oven to meet all cooking needs in smaller kitchens

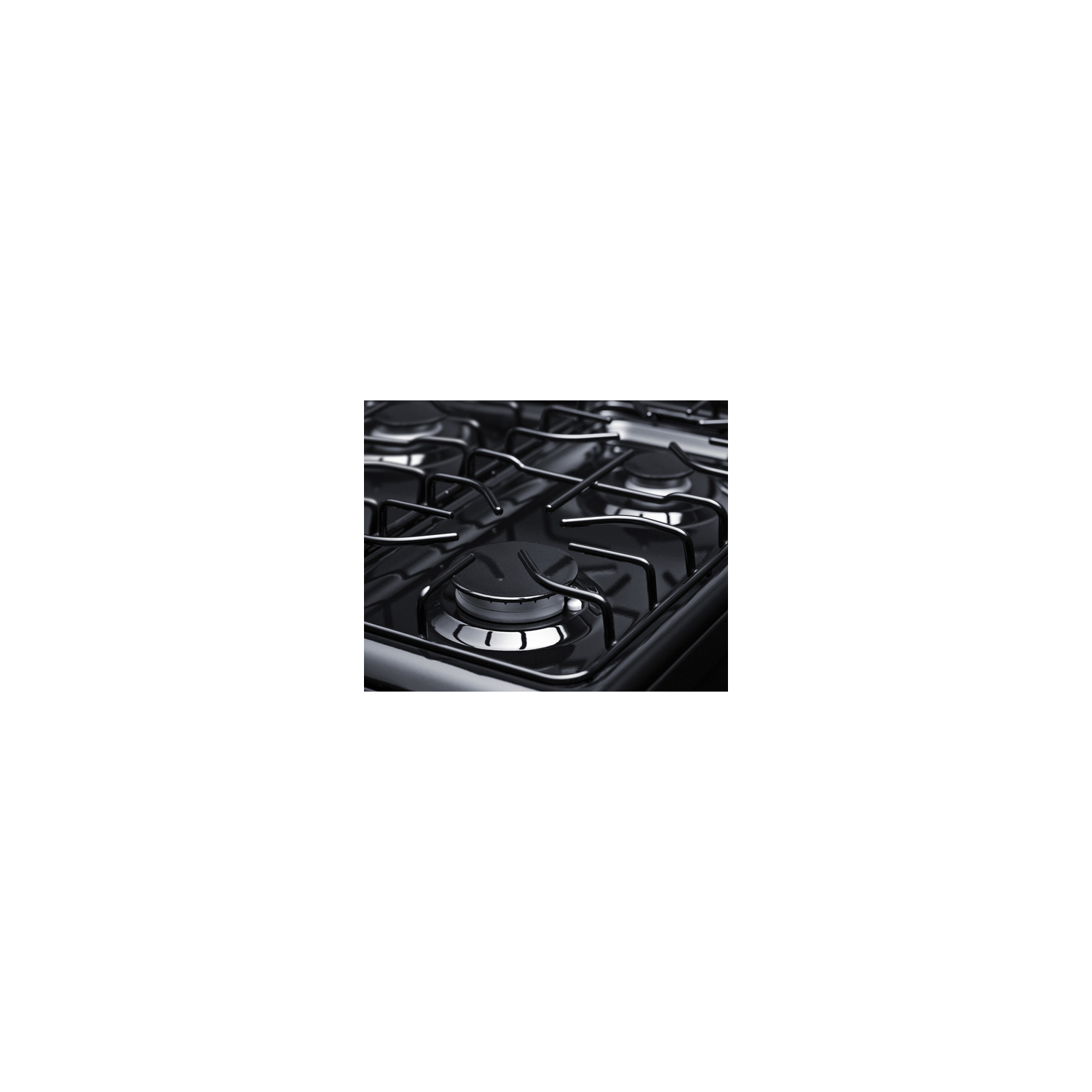

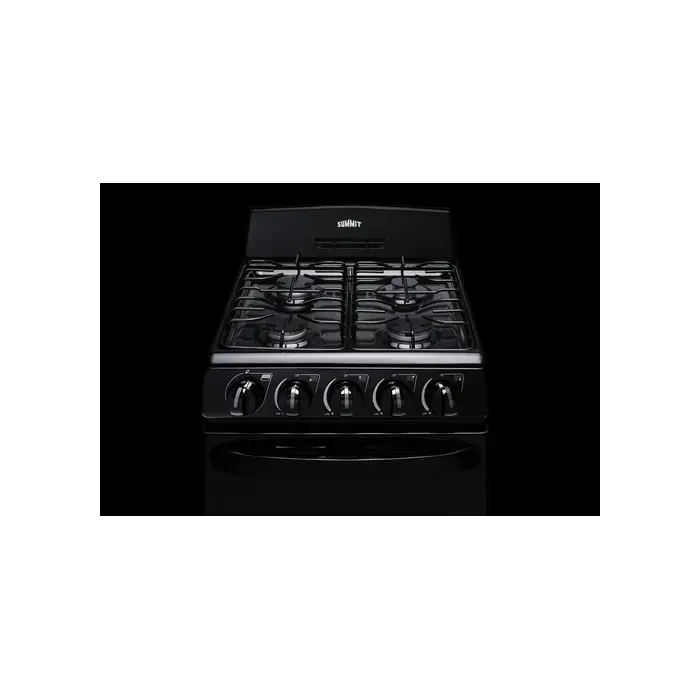

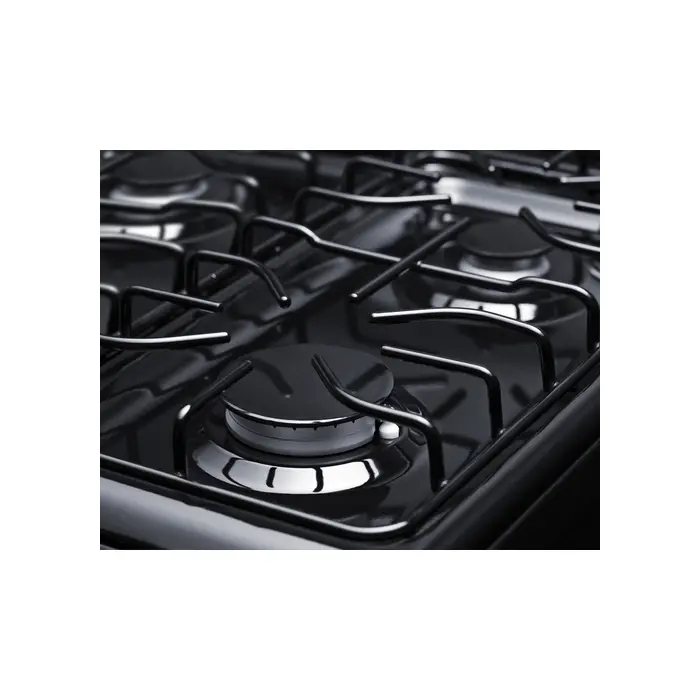

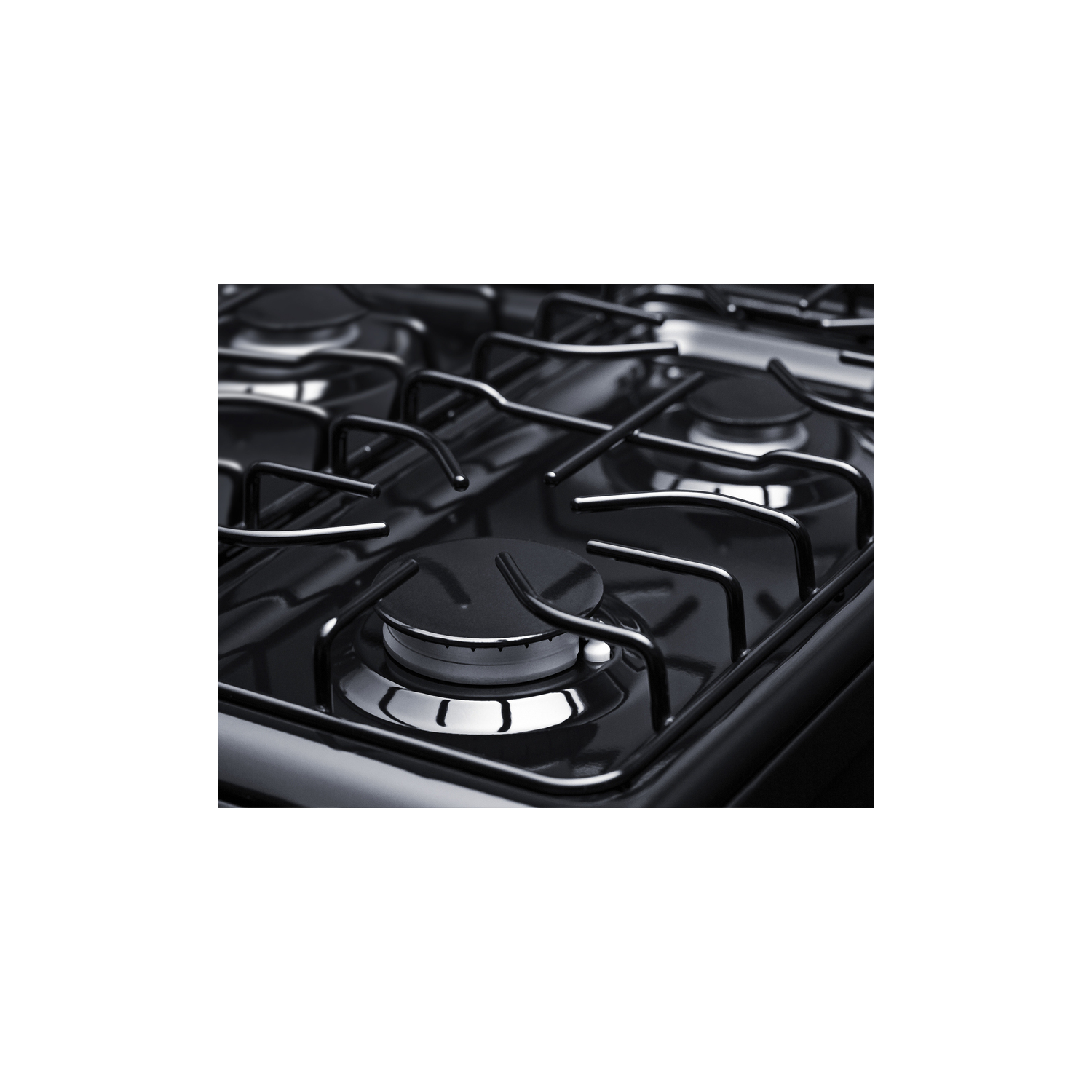

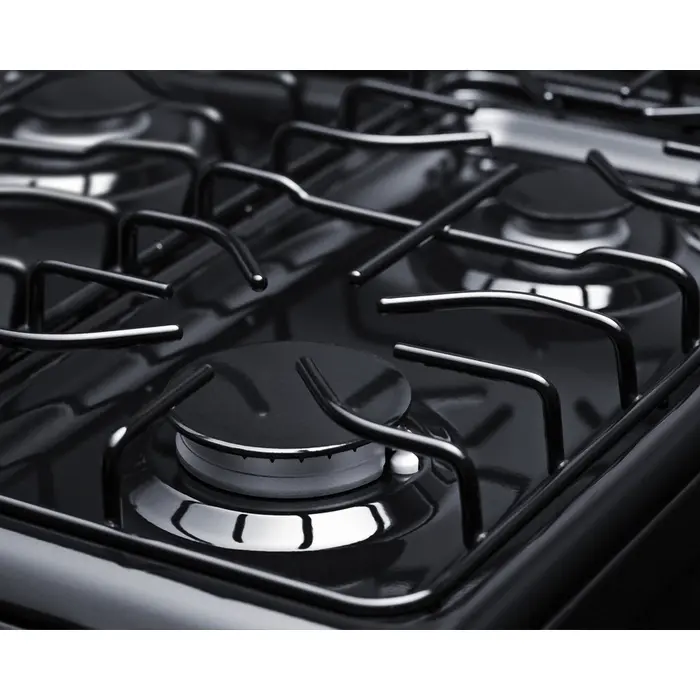

Sealed burners Four sealed burners with removable cast iron tops ensure safer, cleaner cooking
LP kit included Unit is set for natural gas but can be converted aftermarket with the included LP kit
Large oven Full 2.3 cu.ft. interior in slim 20" width
High output burner Front left burner features 12,500 BTU output for powerful cooking
Two semi-rapid burners Two right burners operate at 9,500 BTU to handle most heating needs
Low output burner Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Continuous grates Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans
Broiler compartment Drop-down lower compartment offers the ideal conditions for broiling
Push-to-turn knobs Safety knobs help prevent accidents from turning on the oven or burners
Electronic ignition Added safety with spark ignition system
Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism
Broiler pan included Two-piece broiler pan with lid included with each range
High backguard Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
Power cord included Standard 3-pronged 115V cord included for the electronic ignition
TAA compliant Ideal for GSA contracts and other applications requiring a unit to have been manufactured in a TAA designated country
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
Anti-tip bracket Included for user installation to help prevent accidents
DOWNLOADS
BROCHURE w/ DRAWINGS (RG201B.pdf)
TECHNICAL DRAWING (.dwg) (RG200WS_RANGE_GAS__A-C_2010__2.dwg)
REVIT MODEL (Qf_Summit_RG200WS_20_inches_Wide_Gas_Range_2.rfa)
