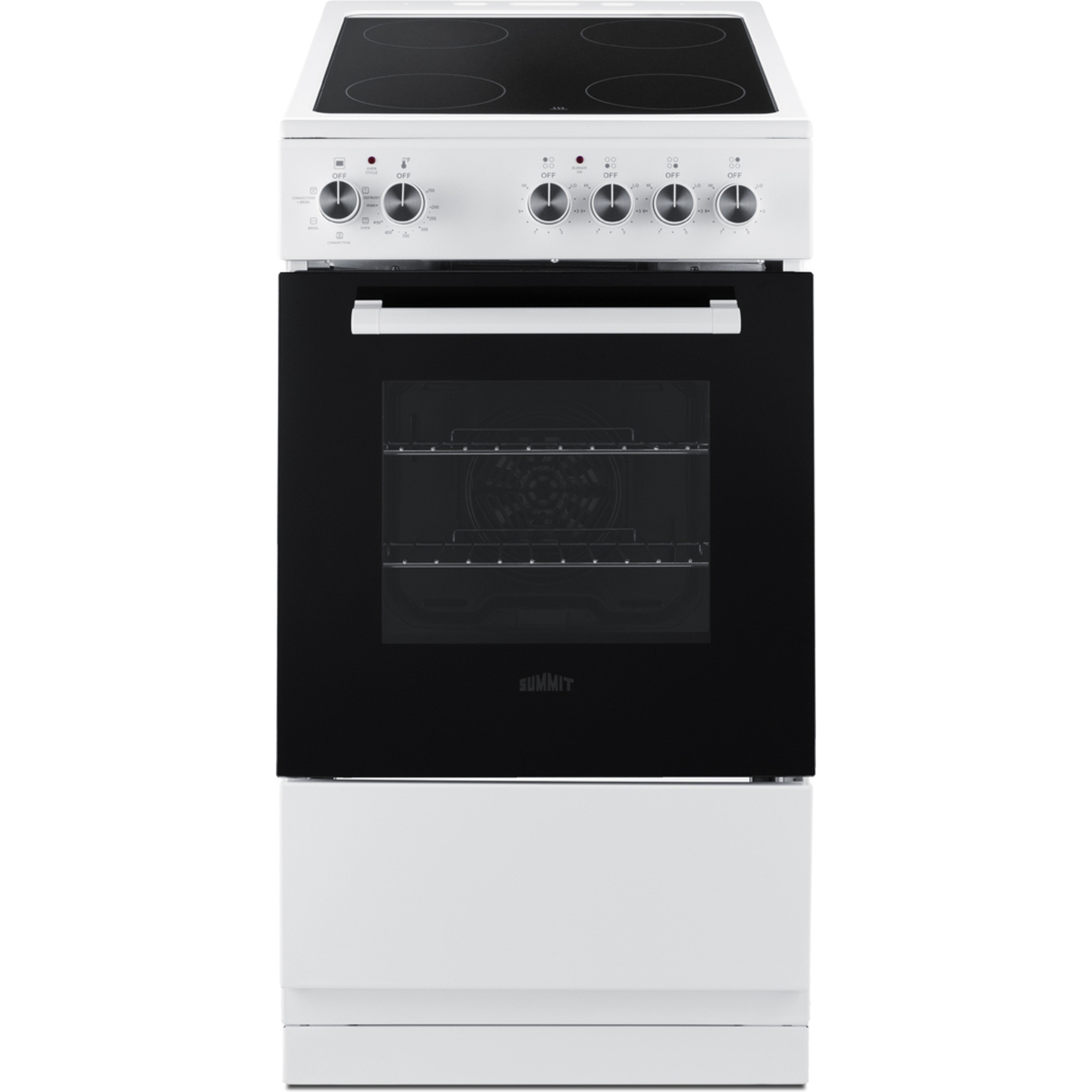

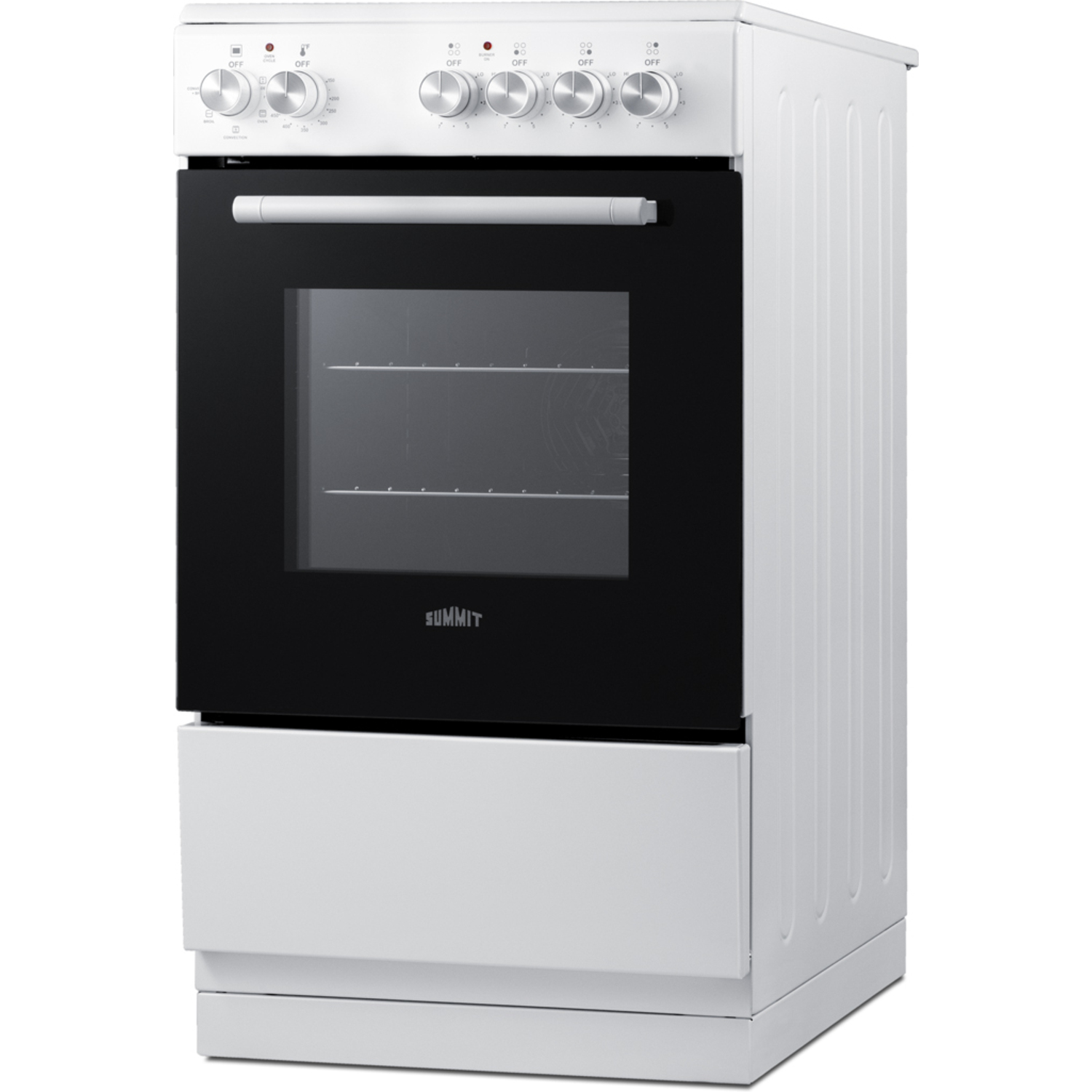

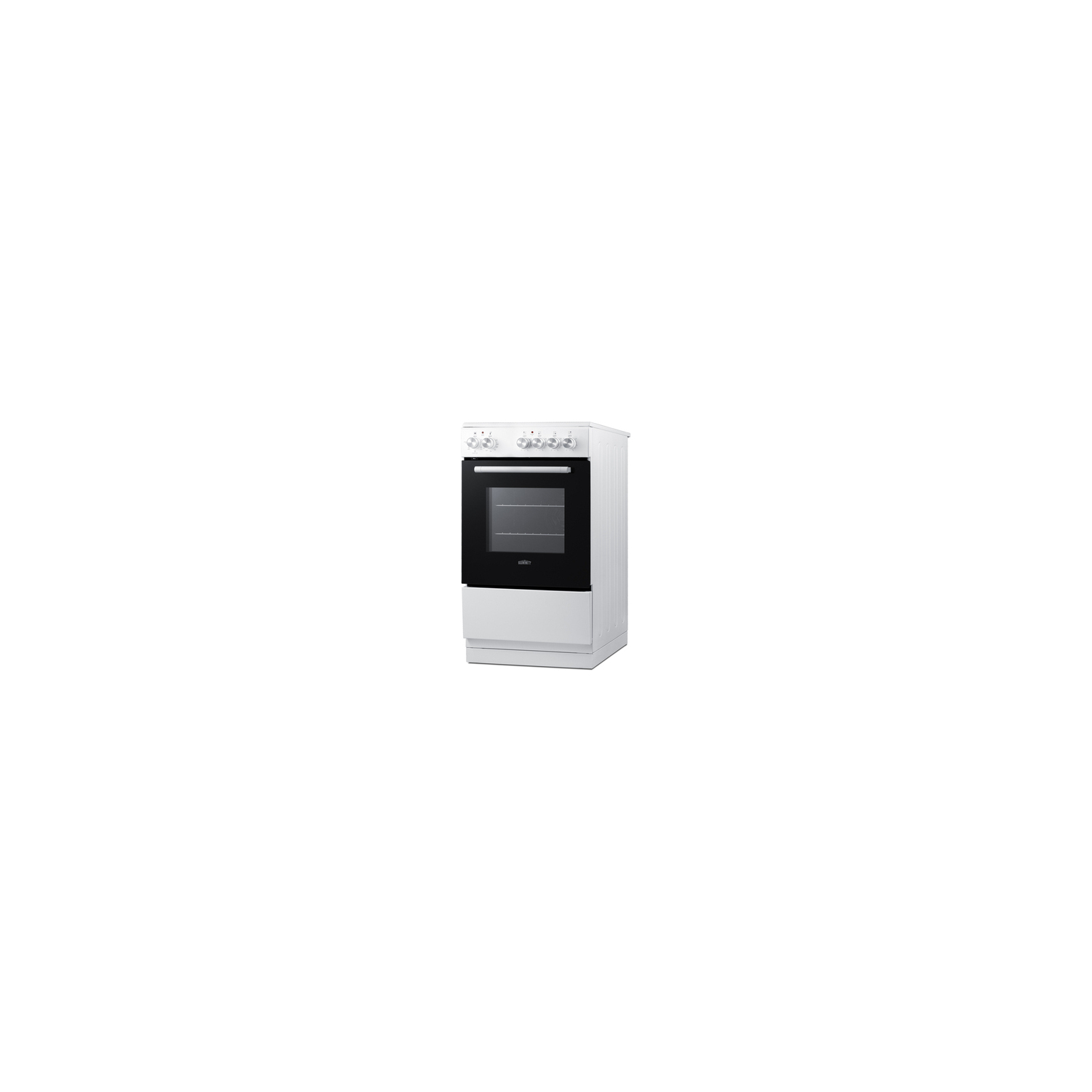

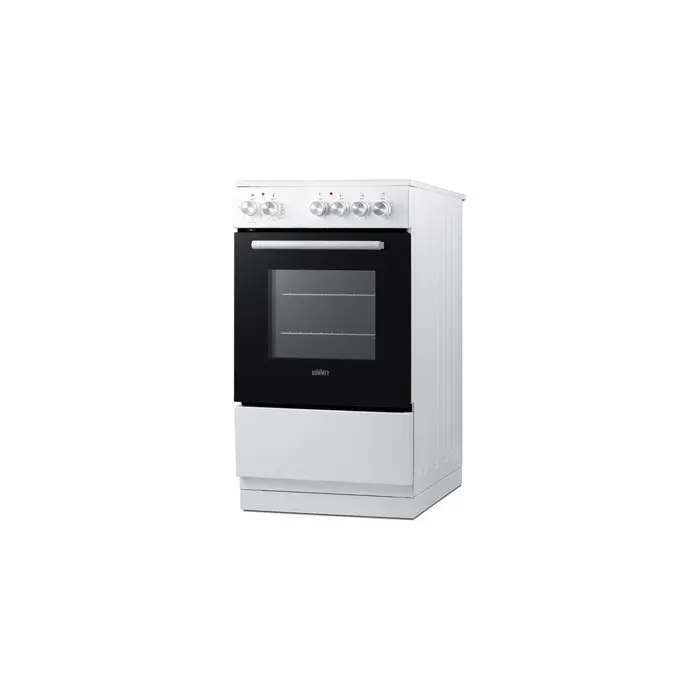

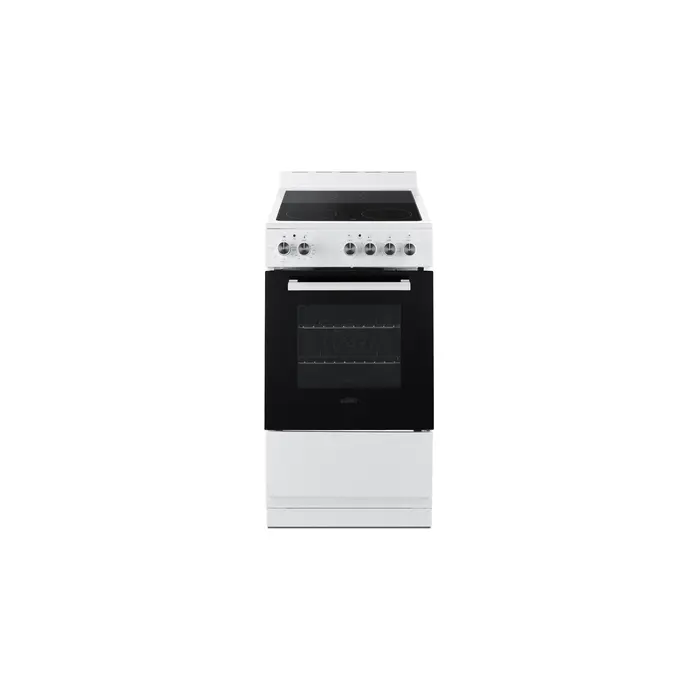

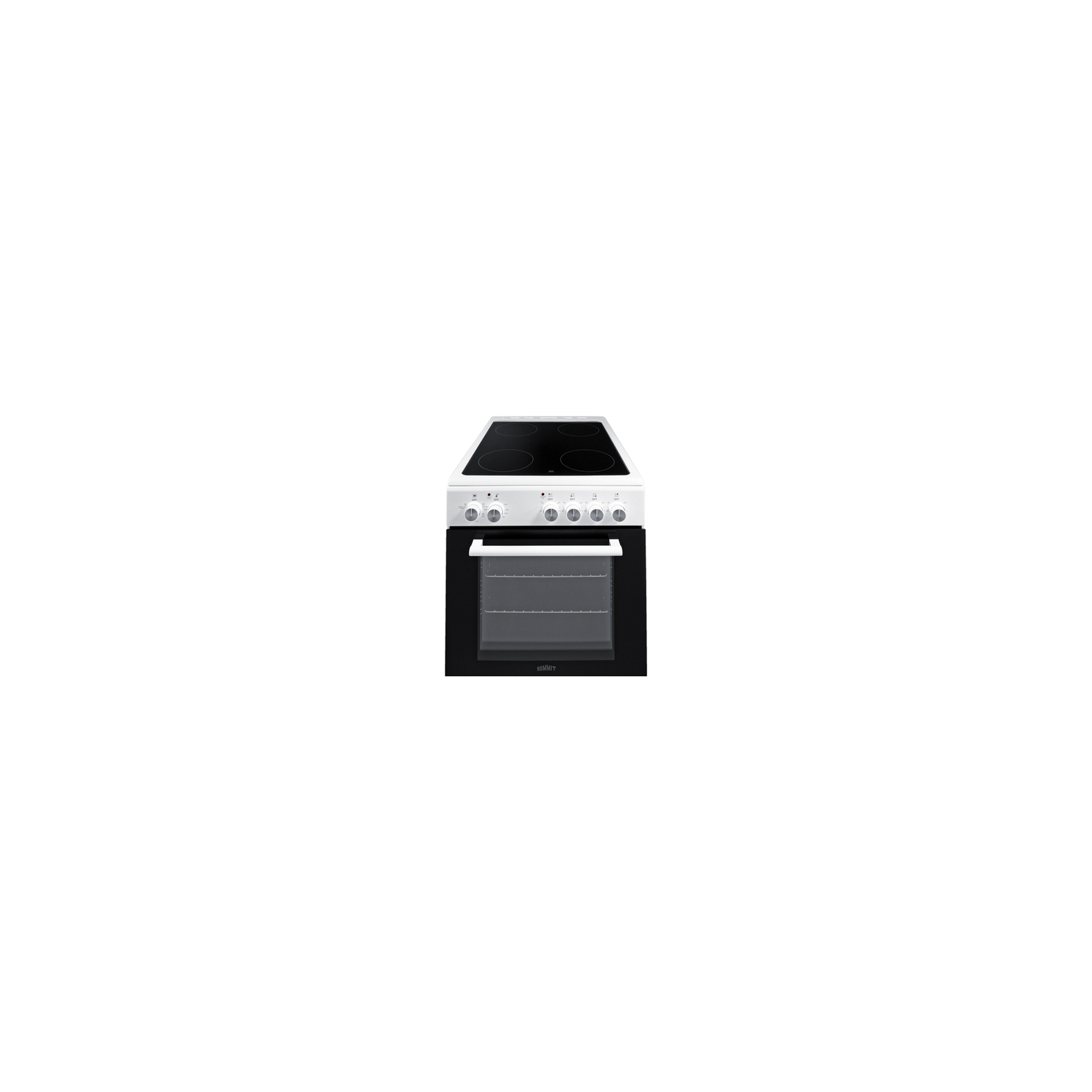

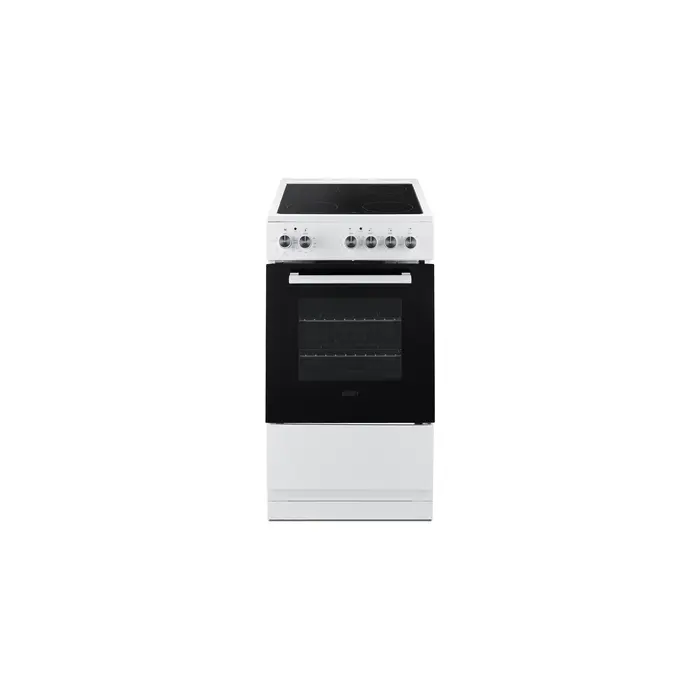

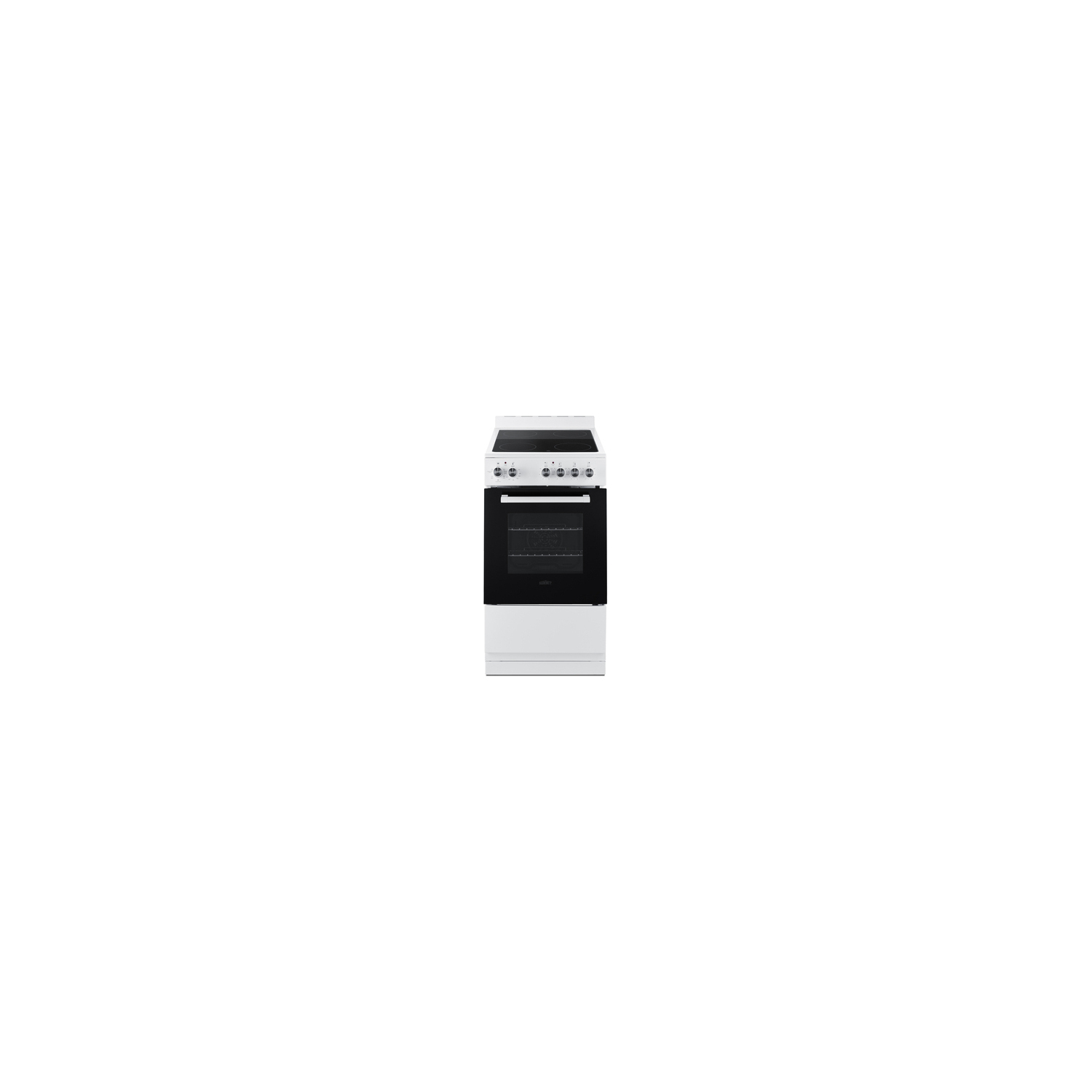

Summit 20 inch wide smooth-top electric range in white, 7.61101e+011, REXT20W

Summit's innovative series of European-made ranges offers full cooking convenience for apartments, ADUs, tiny homes, and other settings with limited kitchen space.

Made in Europe, the REXT20W is a 220V electric range sized at just under 20" wide with a depth under 24" making it ideal for L or U-shaped kitchens. For safer heating and easier clean up, these units feature a smooth glass cooking surface. There are four 6" burners to ensure the REXT20W can accommodate everyday cooking needs.

The versatile design includes a removable 2" matching white backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REXT20W features a slide-out drawer, perfect for storing your pots and freeing up more kitchen space.

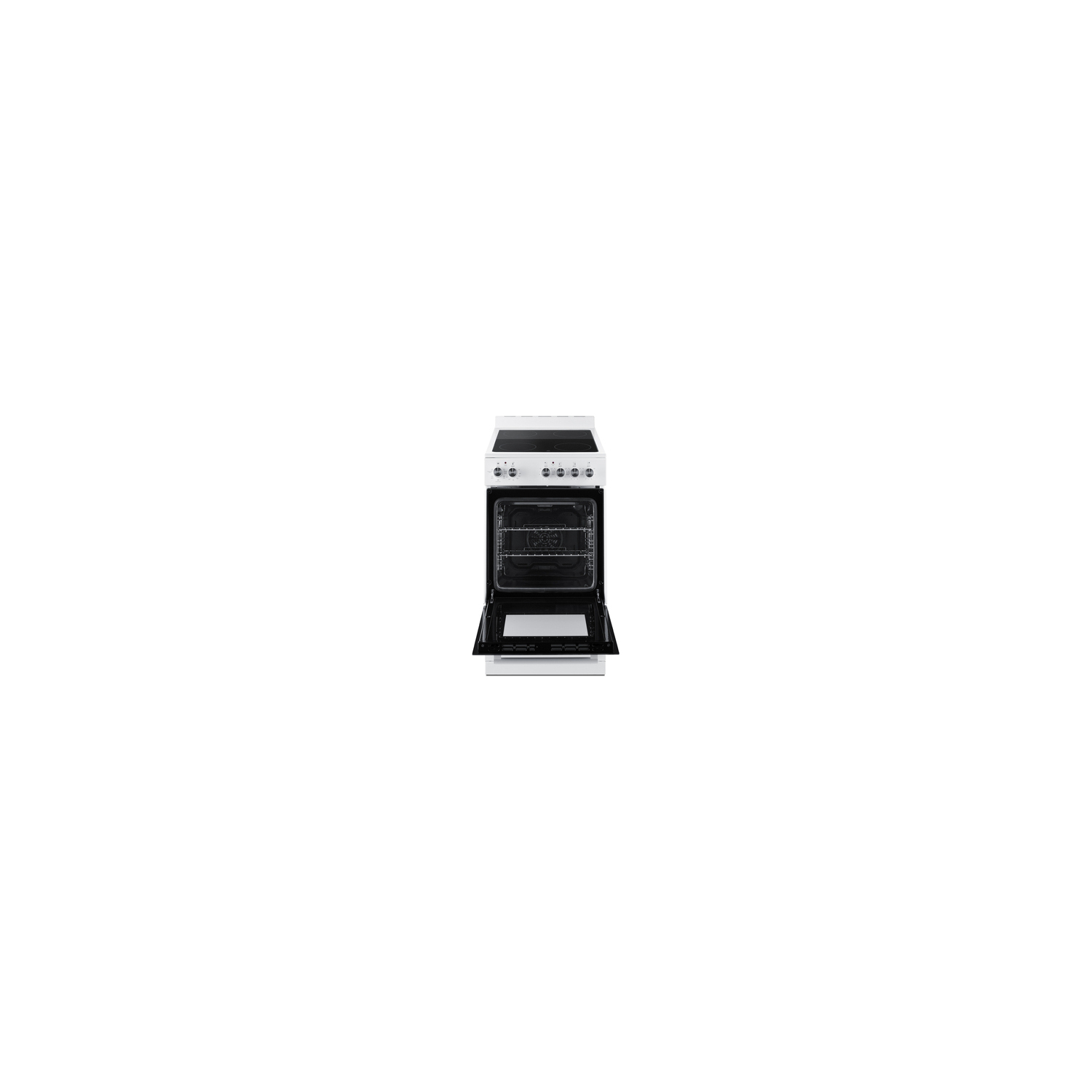

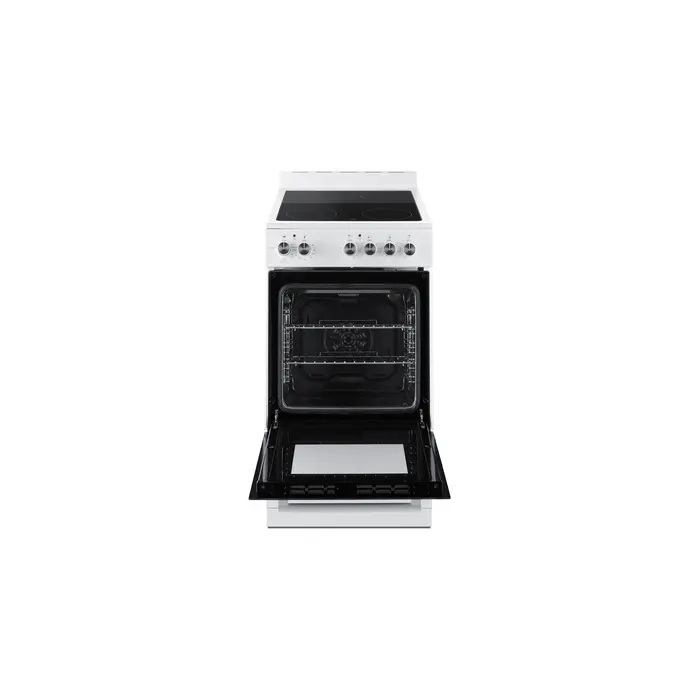

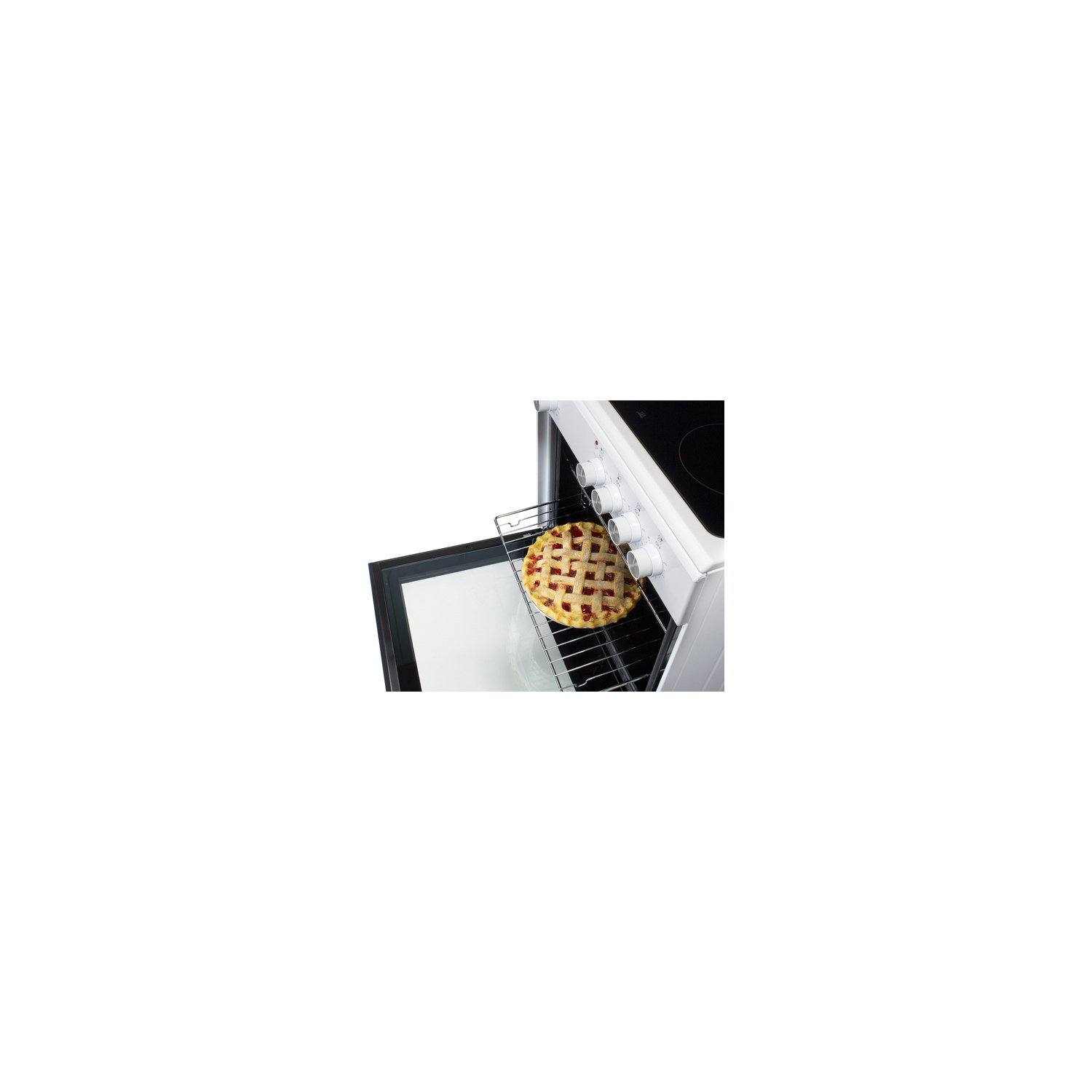

Inside, the REXT20W features a large 1.87 cu.ft. oven made from durable porcelain enamel and includes two sliding wire racks with five positions to let you fit various dish sizes. The large oven window provides a full view of your cooking, with an interior light. The oven door is constructed from low-e glass in black for a modern look, with a clean white finish on the cabinet, storage drawer, and manifold.

The REXT20W comes with multiple cooking functions to cater to various cooking methods. The oven settings include: defrost, static cooking, convection(fan), broiling, and even a broiling + convection(fan) function. All cooking controls meet ADA guidelines since each is located upfront, eliminating the danger of reaching across the cooktop surface.

For this unit in stainless steel or black see models REXT20SS and REXT20BL. For a 24" wide unit, see model REXT24W.

Browse our website to view our complete collection of ranges and cooking appliance at summitappliance.com

SPECIFICATIONS

Overview

Nominal Height 36.0" (91 cm)

Height of Cabinet 35.5" (90 cm)

Nominal Width 20.0" (51 cm)

Width 19.38" (49 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 40.88" (104 cm)

Capacity 1.87 cu.ft. (53 L)

Door White/Black

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 40.0

Voltage/Frequency 240 V AC/60 Hz

Weight 125.0 lbs. (57 kg)

Parts & Labor Warranty 1 Year

UPC 761101106816

Electric Range

Cooktop Surface Glass

Element Type Glasstop

Number of Elements 4

Element #1 Size 6.0" (15 cm)

Element #1 Wattage 1200.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 1200.0

Element #3 Size 6.0" (15 cm)

Element #3 Wattage 1200.0

Element #4 Size 6.0" (15 cm)

Element #4 Wattage 1200.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 13.25" (34 cm)

Oven Interior Width 15.25" (39 cm)

Oven Interior Depth 15.75" (40 cm)

Power Source 240V

Storage Compartment Yes

Broiler Location Inside Oven

FEATURES

20" Wide European-Made Electric Range European design is perfectly sized for apartments and smaller home kitchens

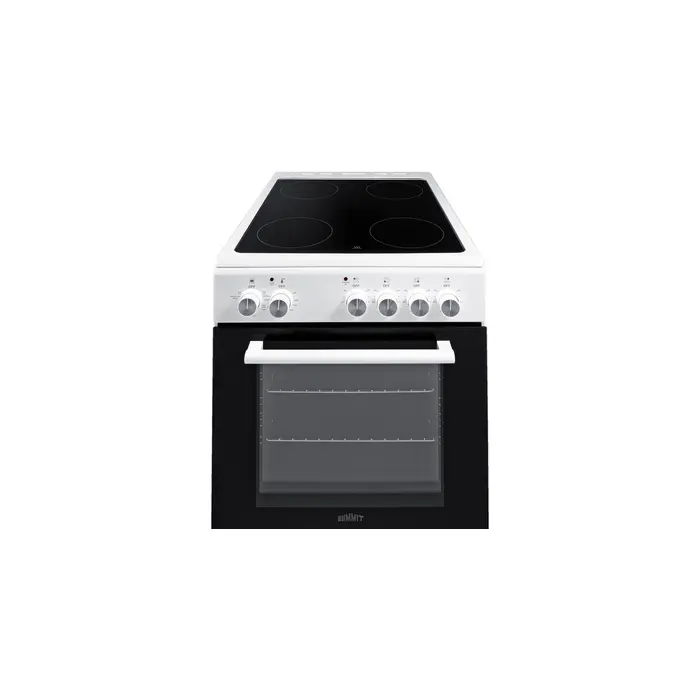

Smooth glass top A smooth cooking surface made from glass ensures improved safety and easy cleaning

Four cooking zones Surface features four 1200W 6" elements to accommodate a range of sizes and cooking needs

Oven window Large oven window makes it easy to monitor your cooking progress

Interior light Oven light automatically illuminates when the oven is on or when the door is opened

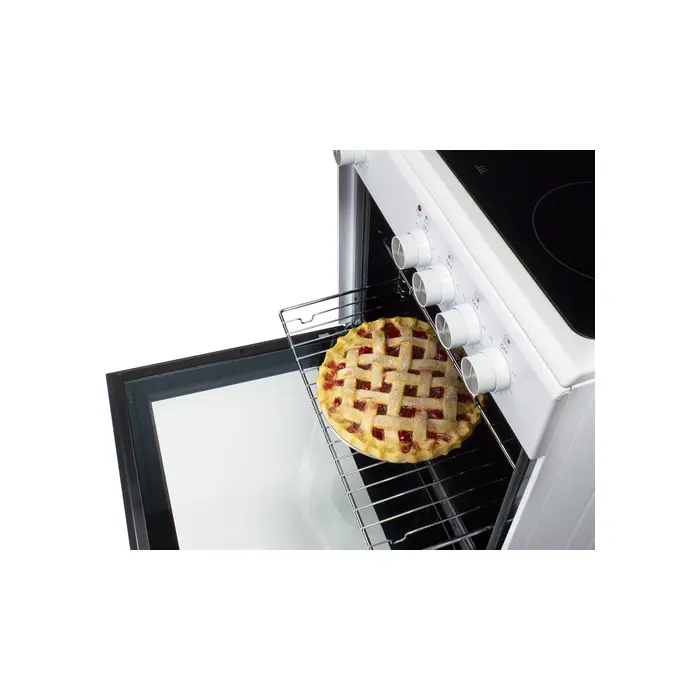

Adjustable racks Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Slide-out storage drawer Save even more space by storing your pots and pans in this pull-out compartment

Broiling function This function is used for broiling or toasting food on the upper oven shelves

Broiling and convection function This function is used for broiling thicker food on the upper oven shelves

Convection function Fan function is ideal for baking pastries and provides a slightly broiled effect

Defrost function This function is only to be used to defrost, not to cook or bake

Static cooking function This function is used for making pastries, cakes, and pizzas

Waist-high broiler Broiler is located inside the oven, making it easier to use

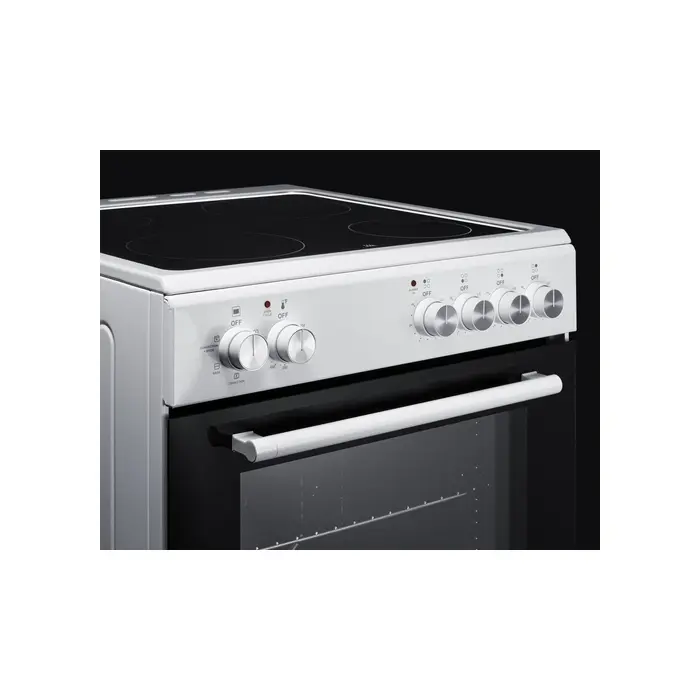

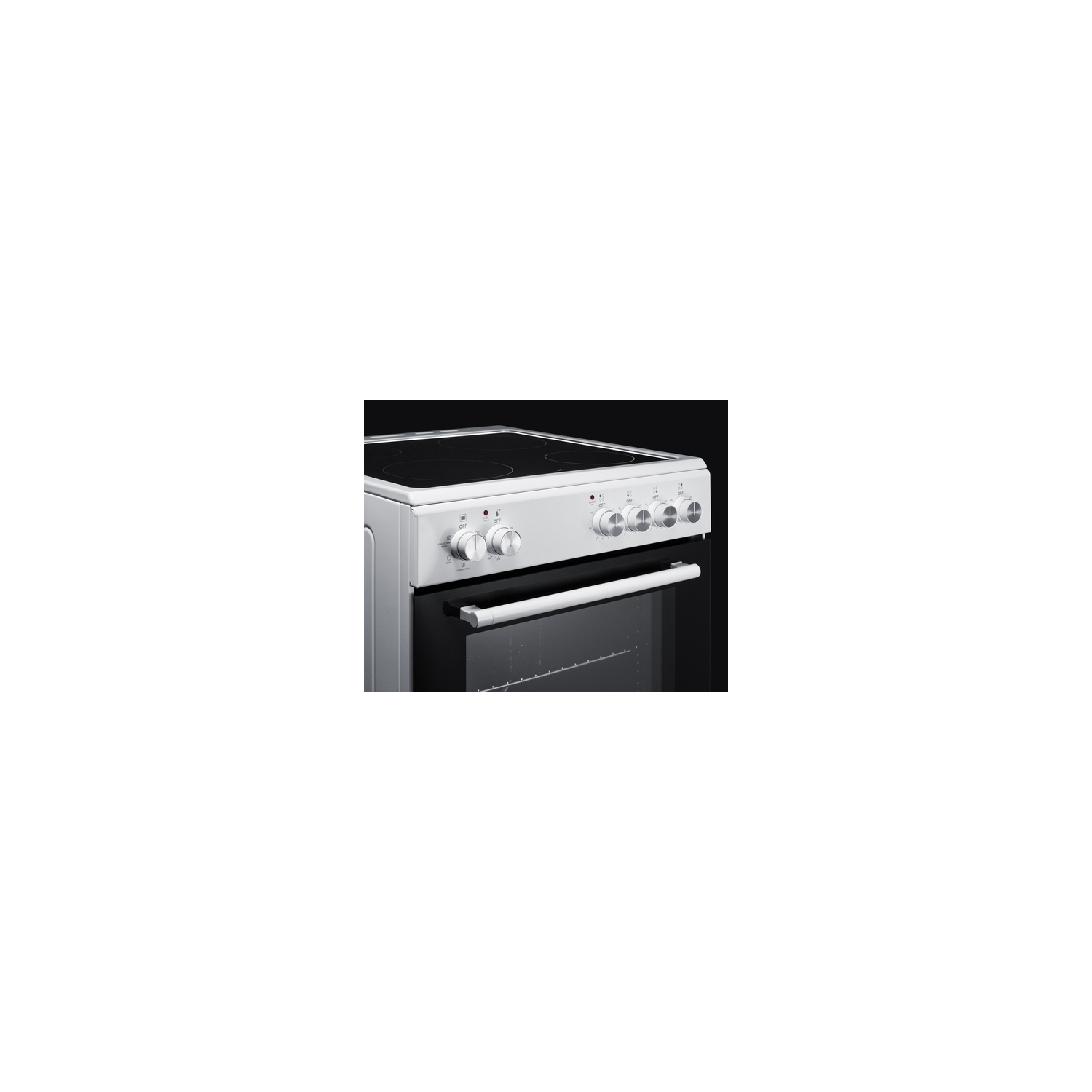

Push-To-Turn knobs To prevent accidents, all knobs require a small amount of force when turning

Slide-in style Optional rear backguard to allow you to customize your backsplash

Removable backguard Unit ships with low backguard but can be easily converted to a traditional slide-in style for a more integrated look

Anti-Tip bracket Recommended for installation to help prevent accidents

ADA-compliant design Front-located controls and proper sizing meets ADA guidelines for added accessibility

DOWNLOADS

BROCHURE w/ DRAWINGS (REXT20W.pdf)

TECHNICAL DRAWING (.dwg) (REXT20BL_3.dwg)

ASSEMBLY DRAWING (REXT20BL-Assembly__1_.pdf)

USE & CARE (REXT20W-User-Manual.pdf)
