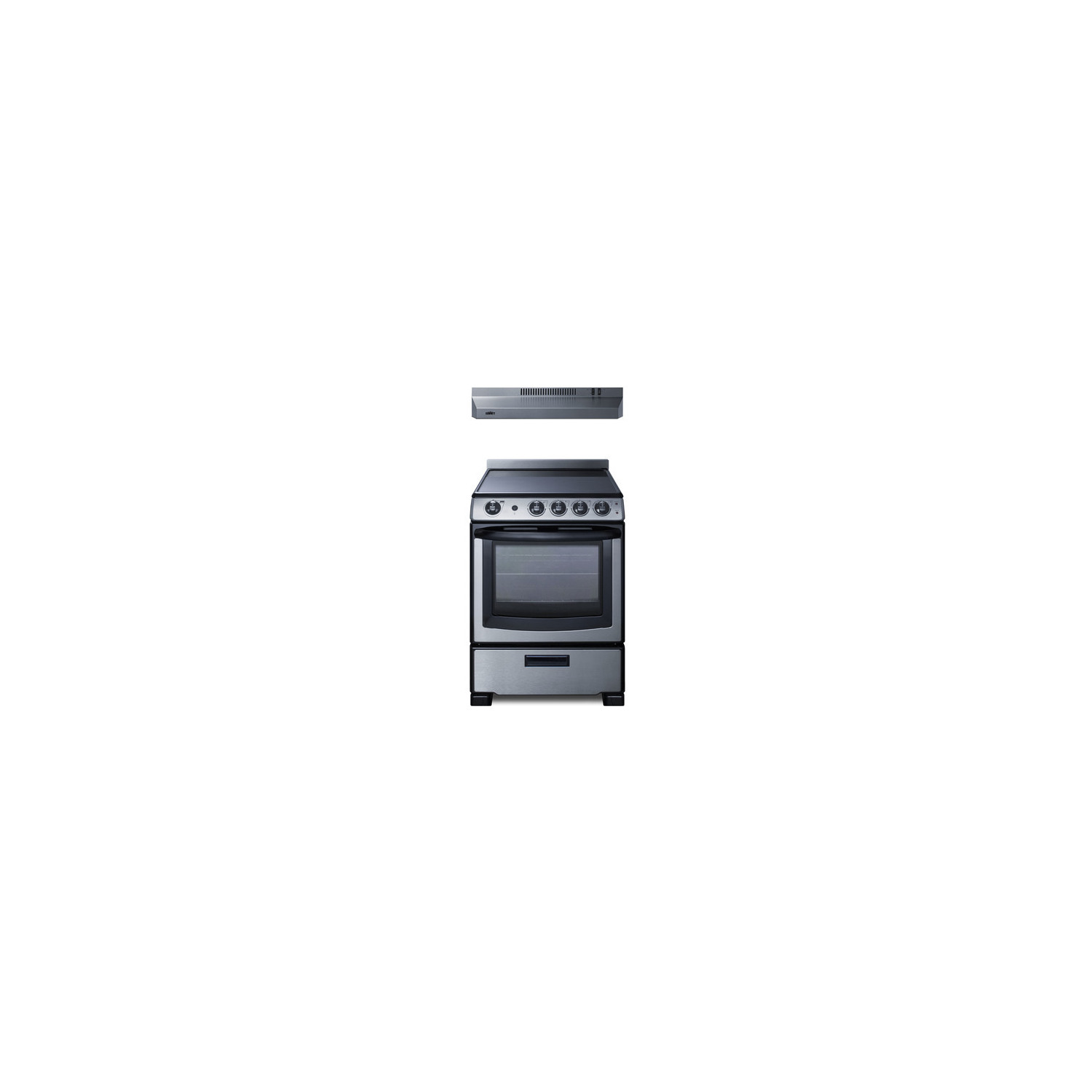

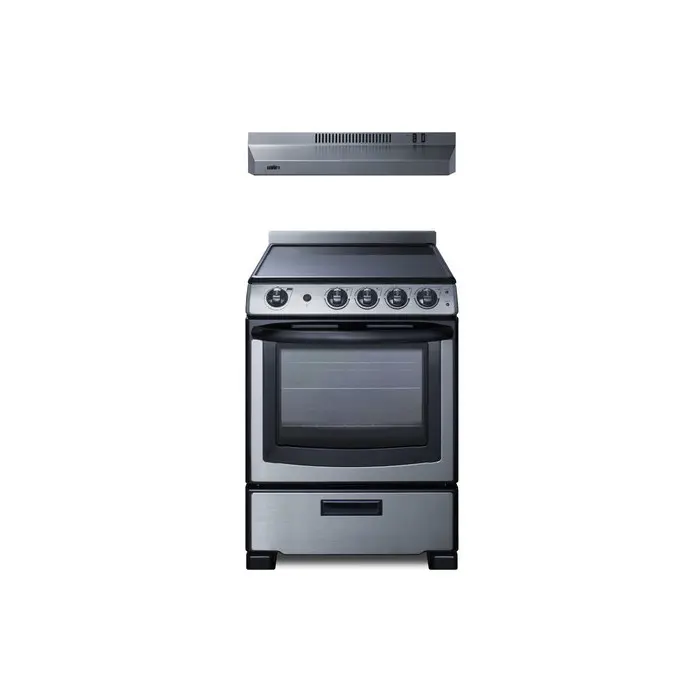

Summit 24 inch wide electric range (REX2451SSRT) and 24 inch wide convertible range hood (HR24RSS) shipped together, 7.61101e+011, REXH24RSS

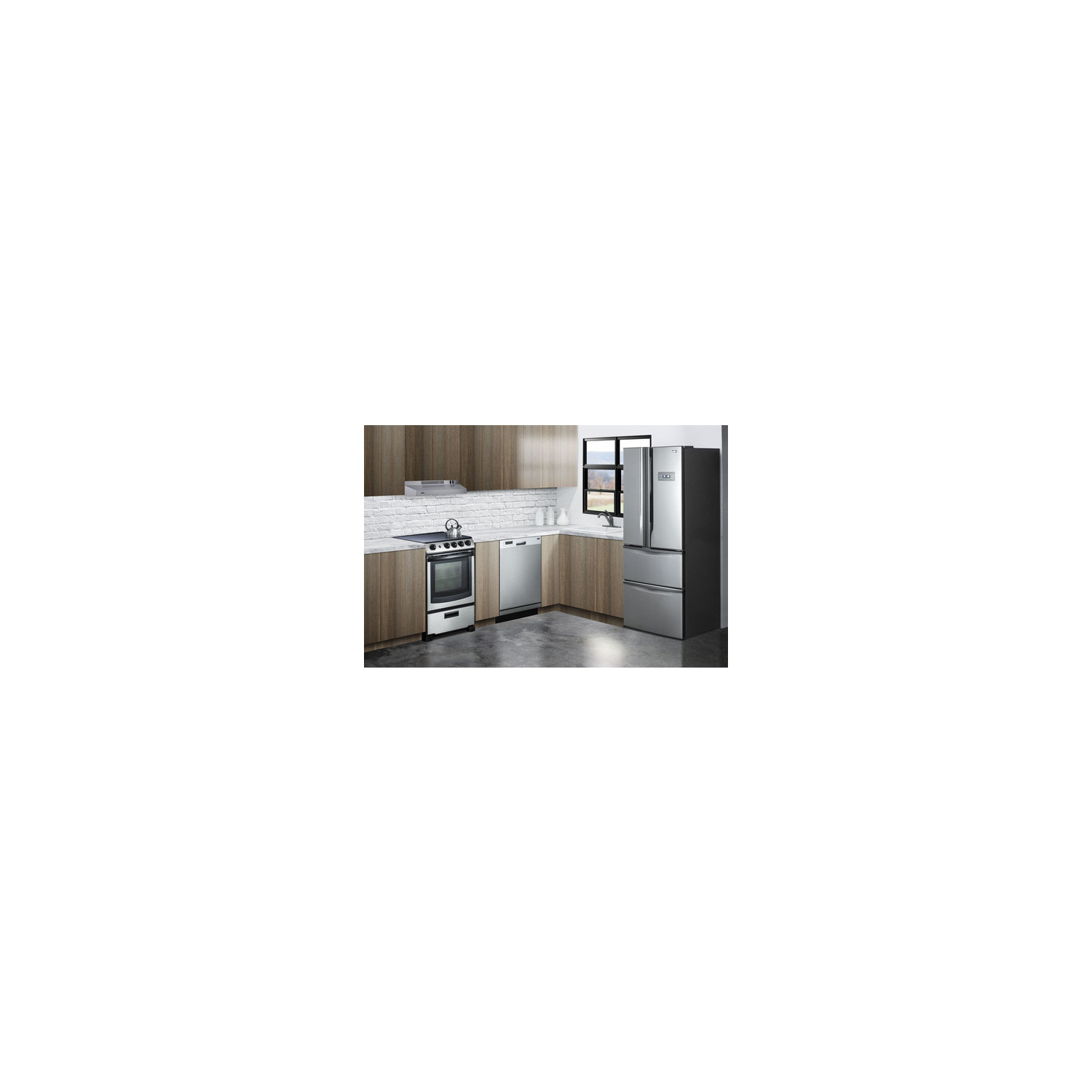

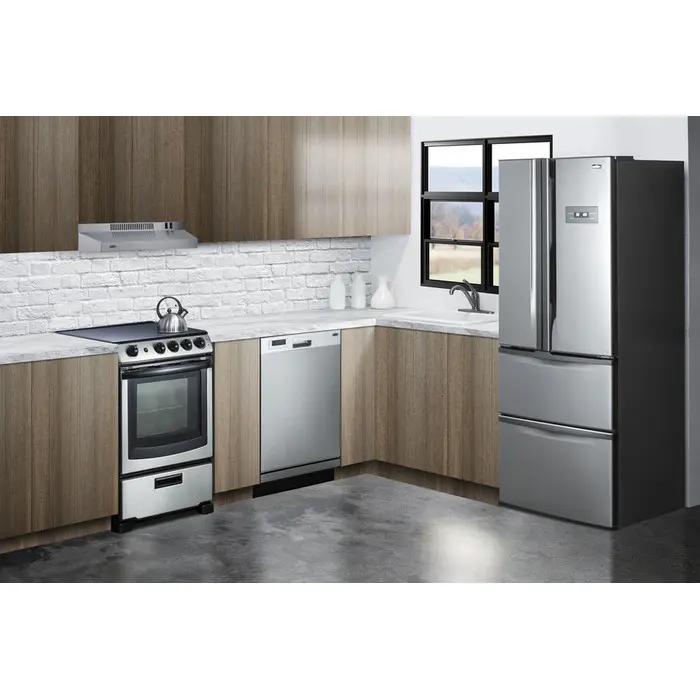

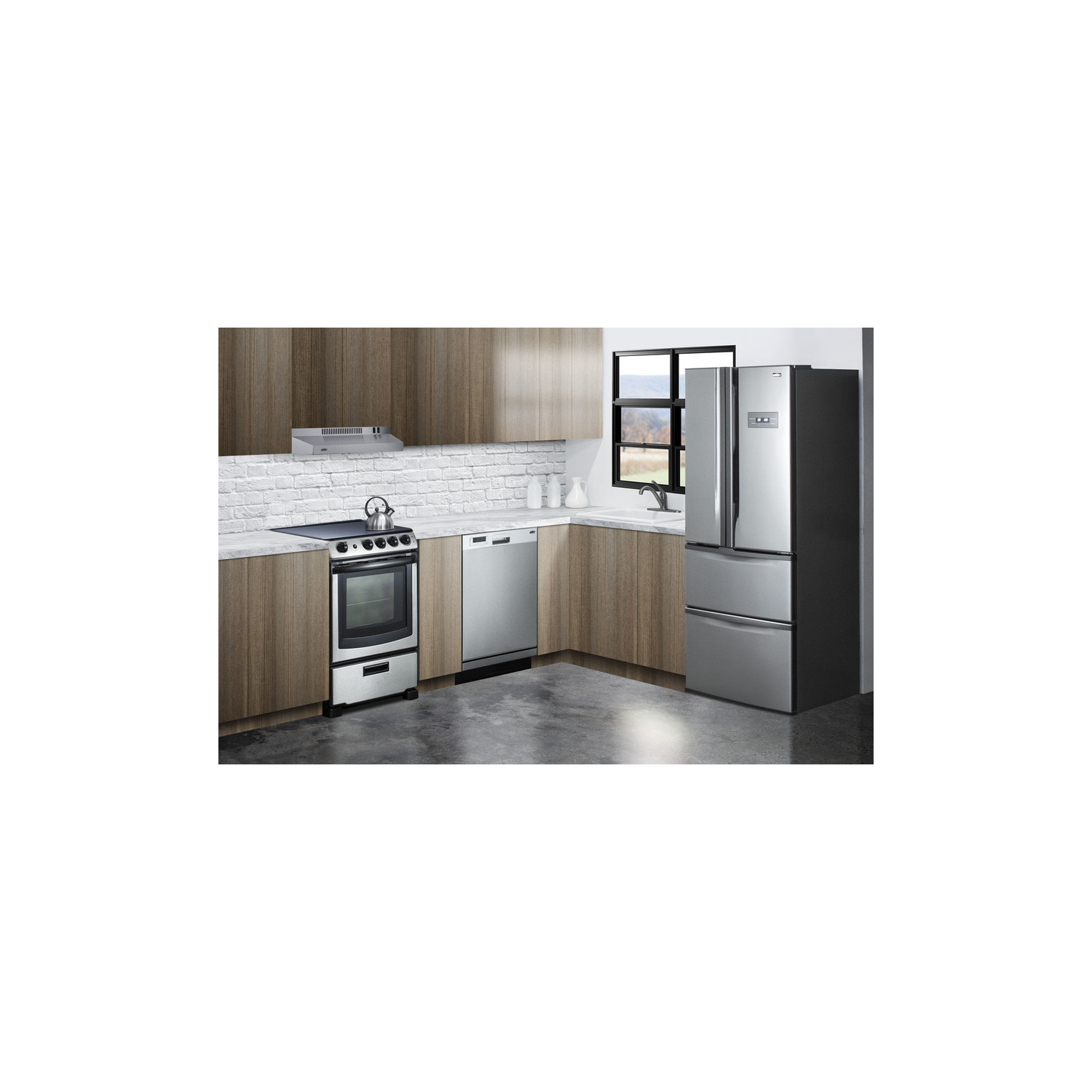

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets.

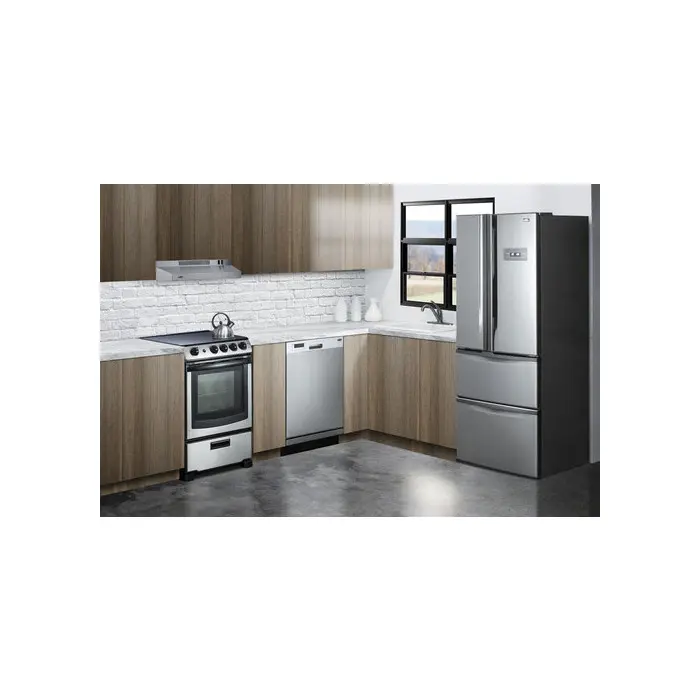

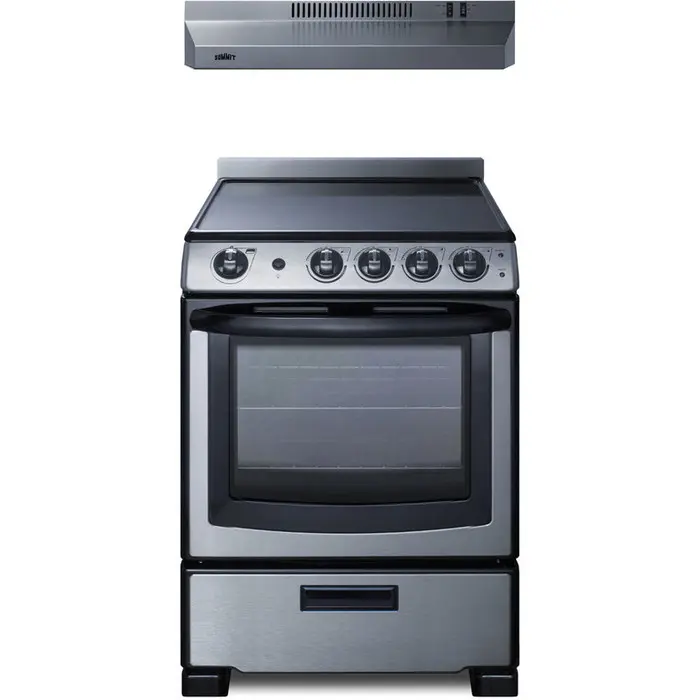

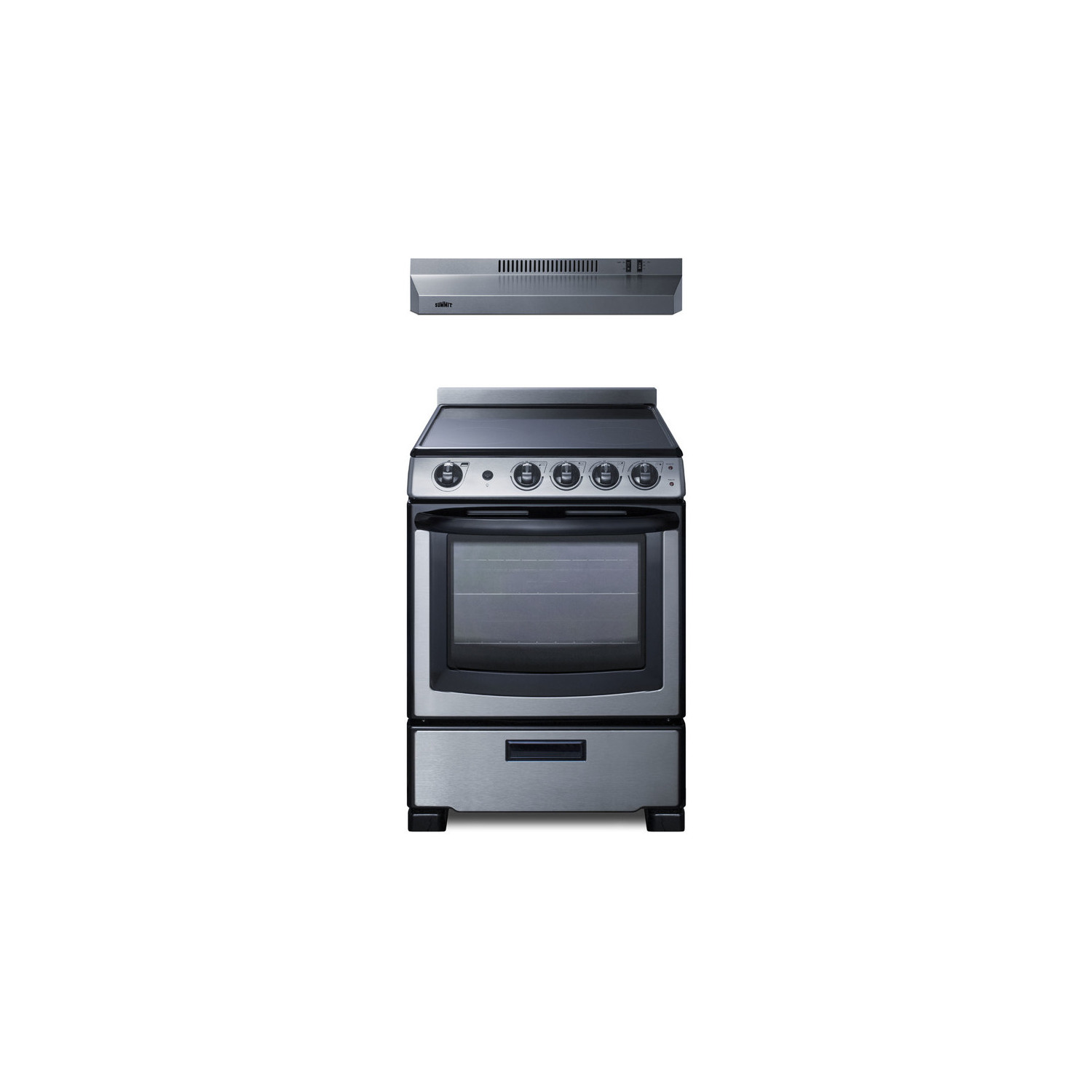

The REXH24RSS combines our popular REX2451SSRT North American-made smooth-top electric range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation options and an attractive finish in black and stainless steel.

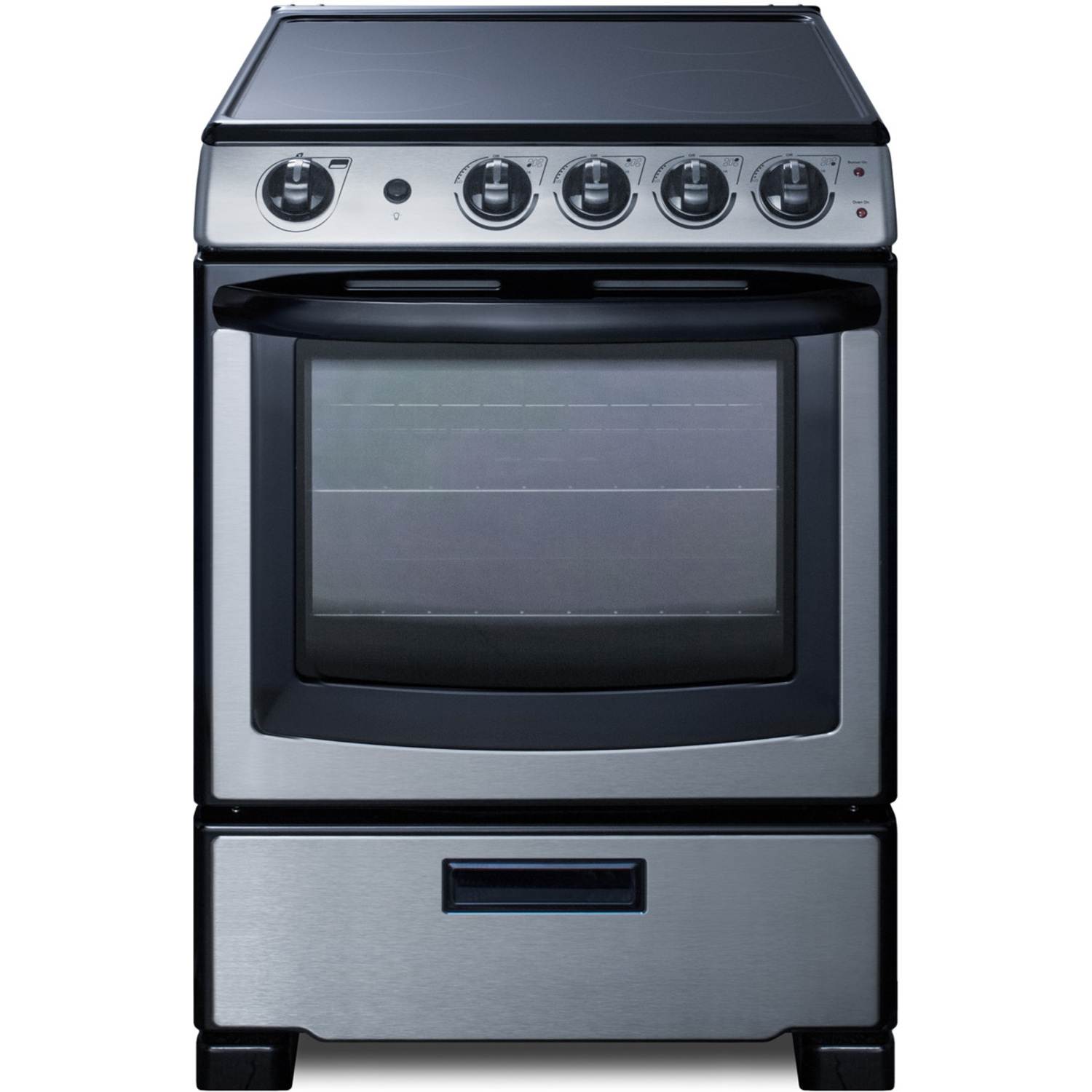

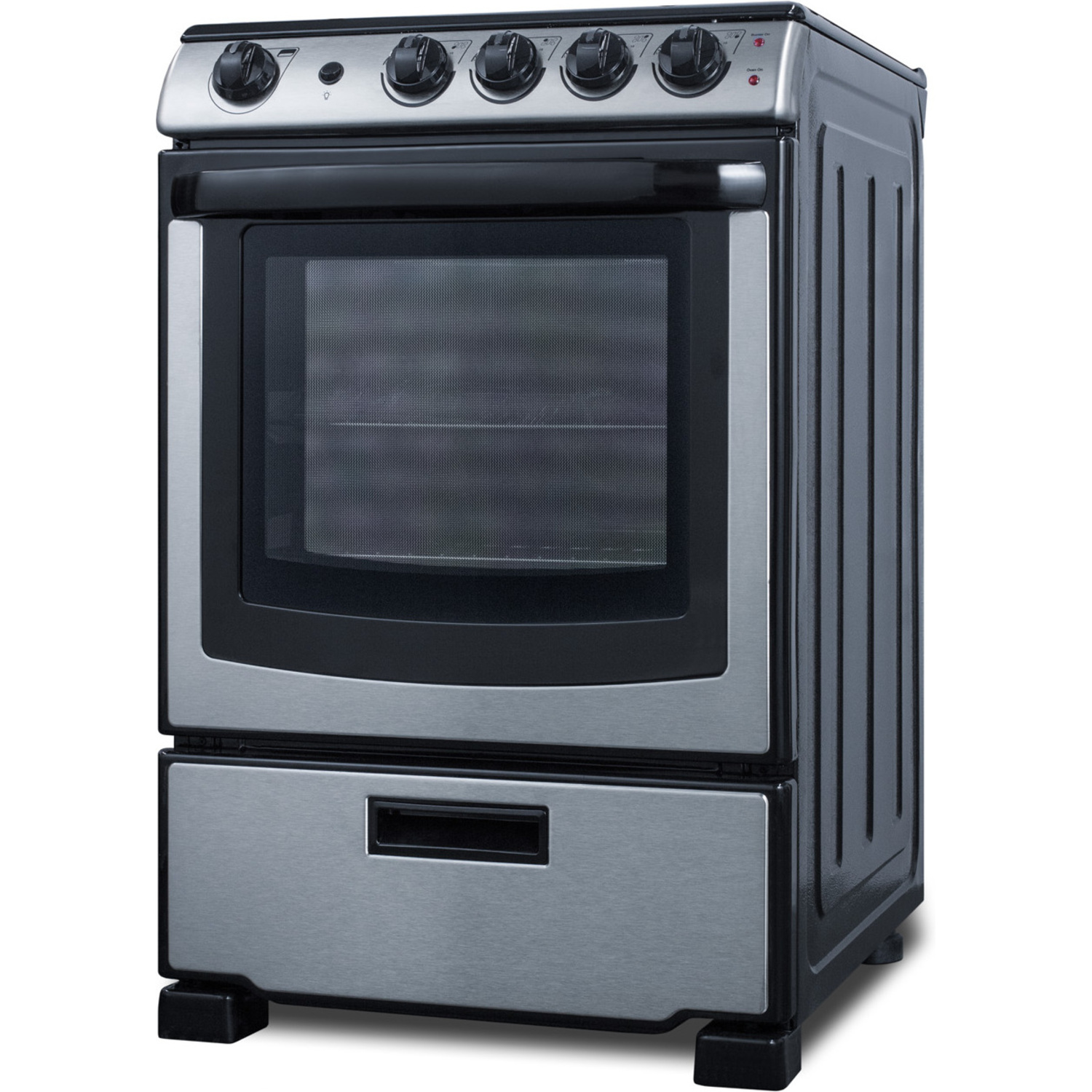

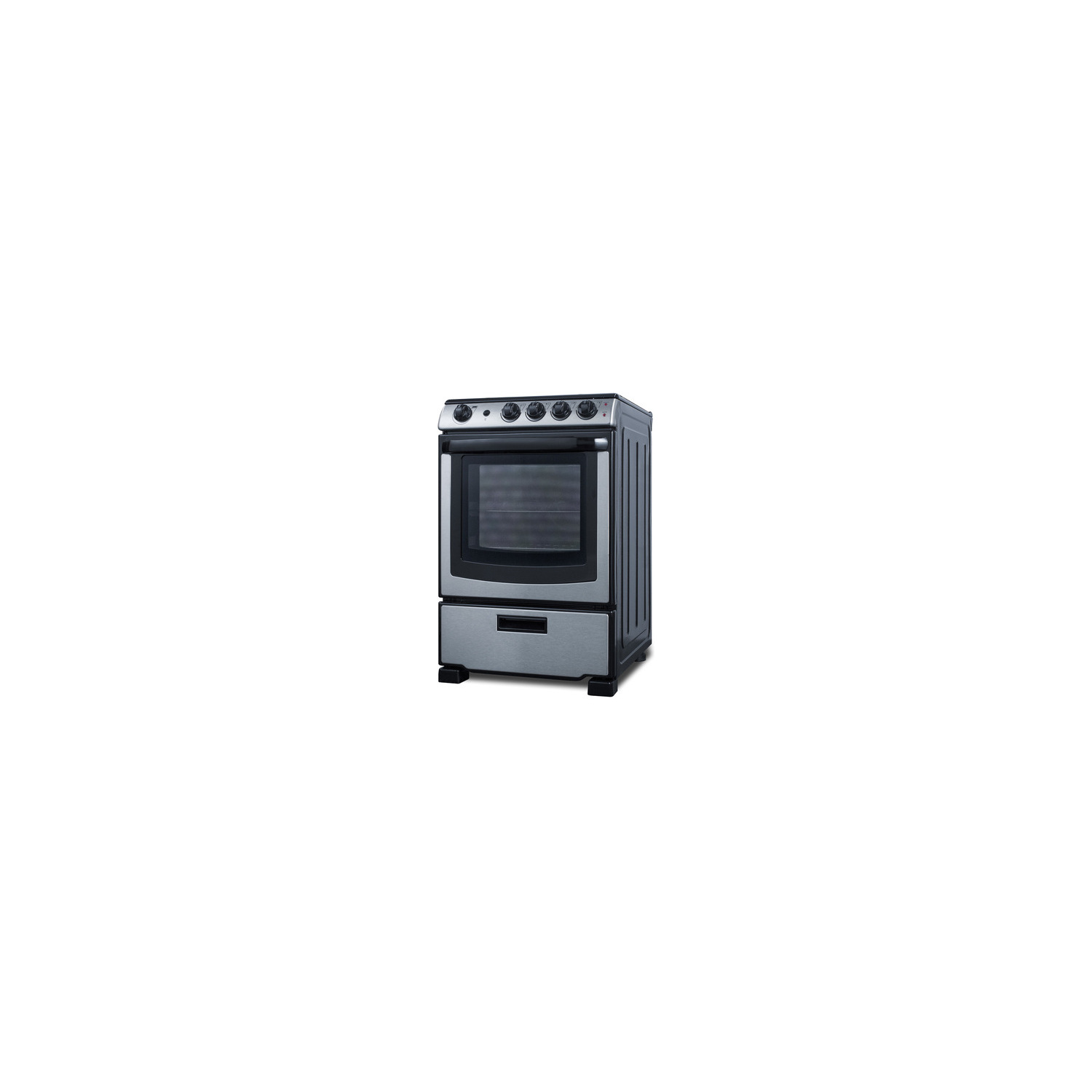

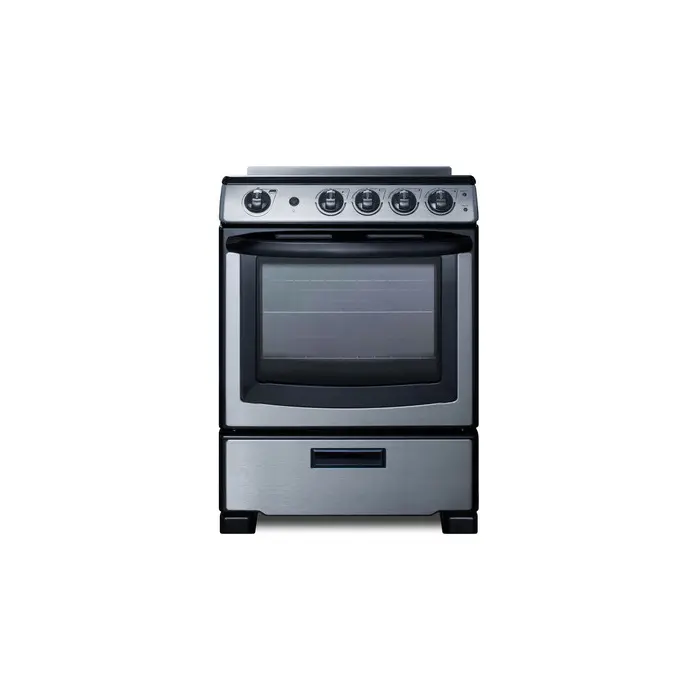

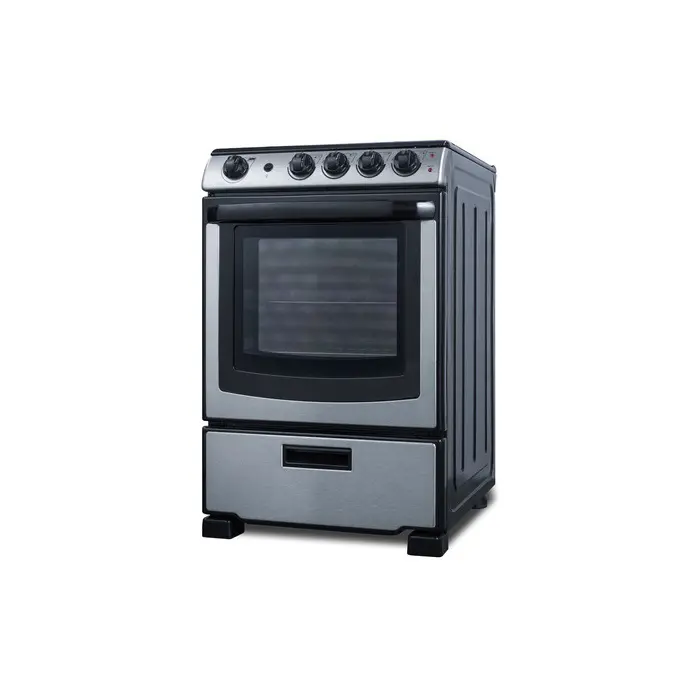

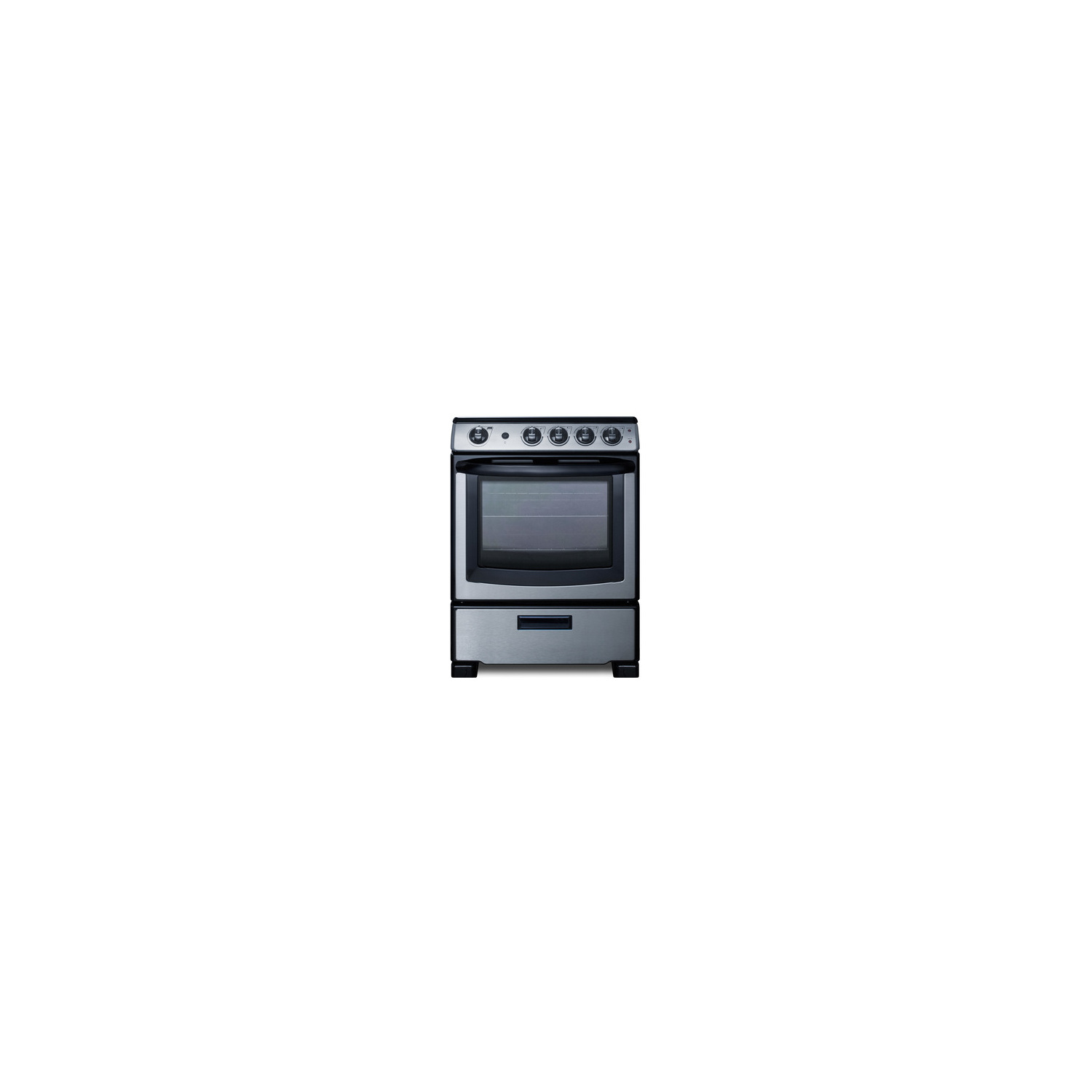

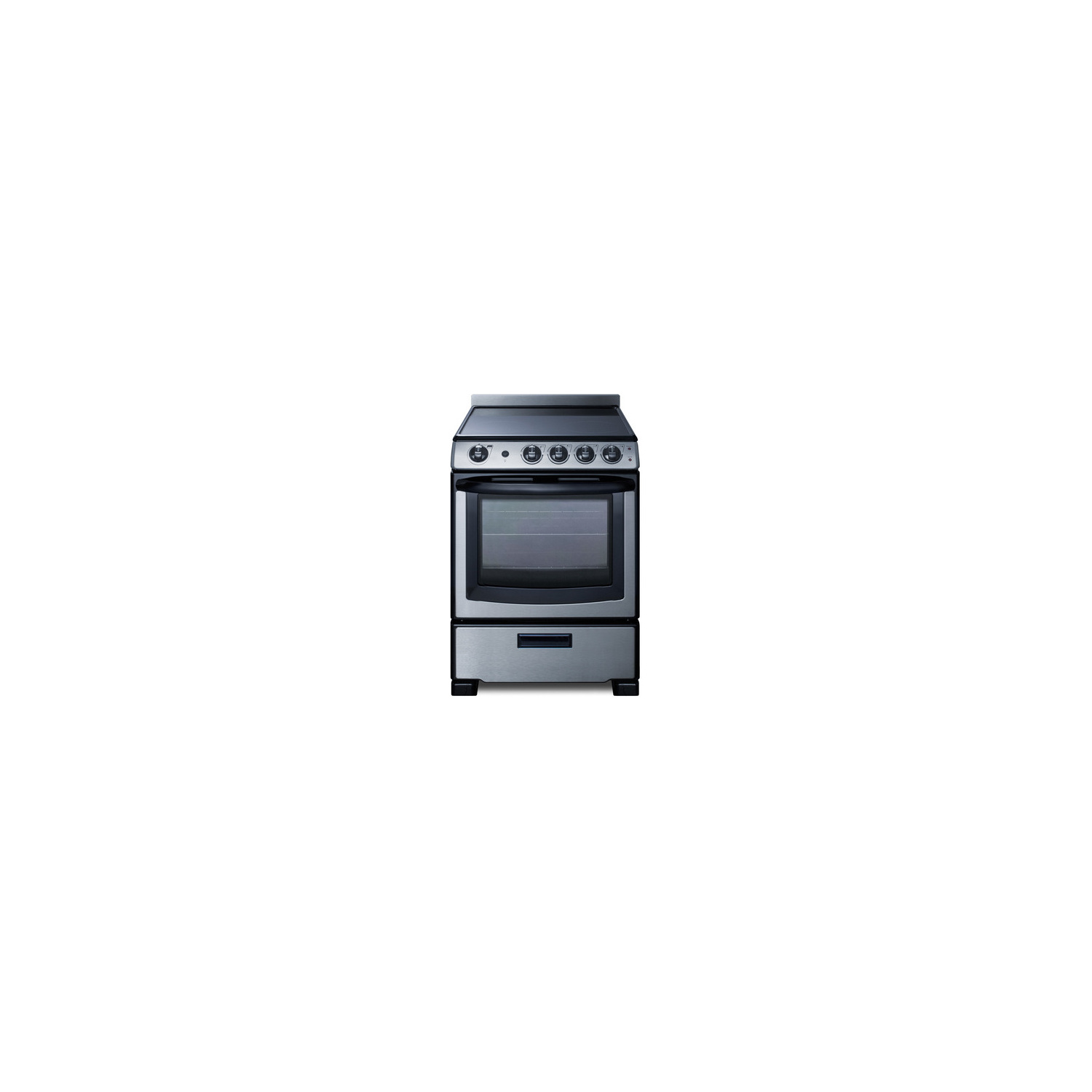

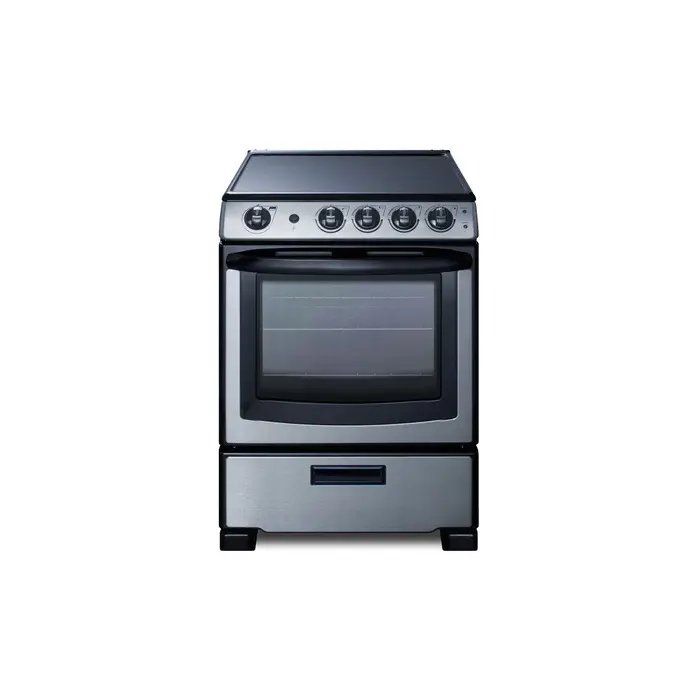

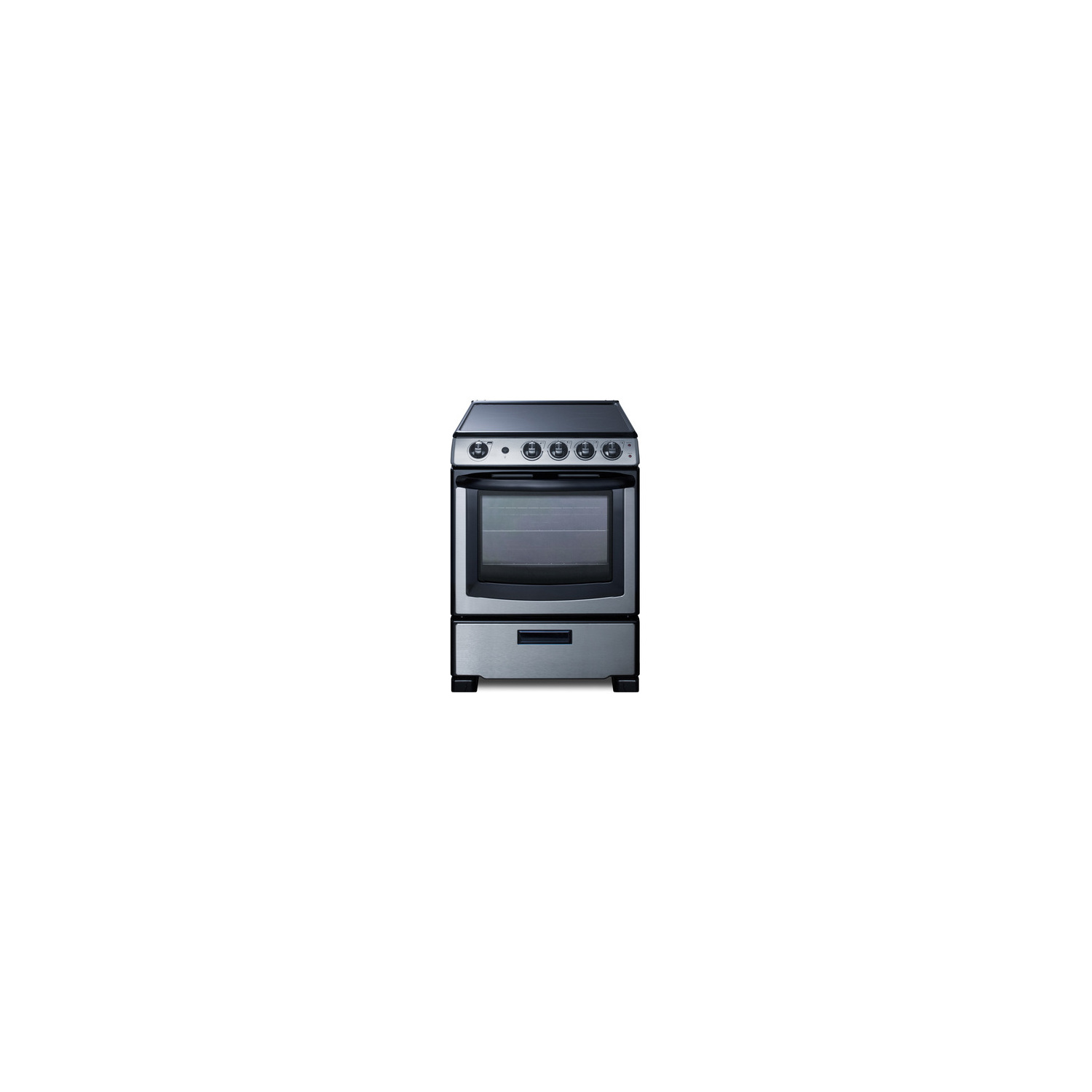

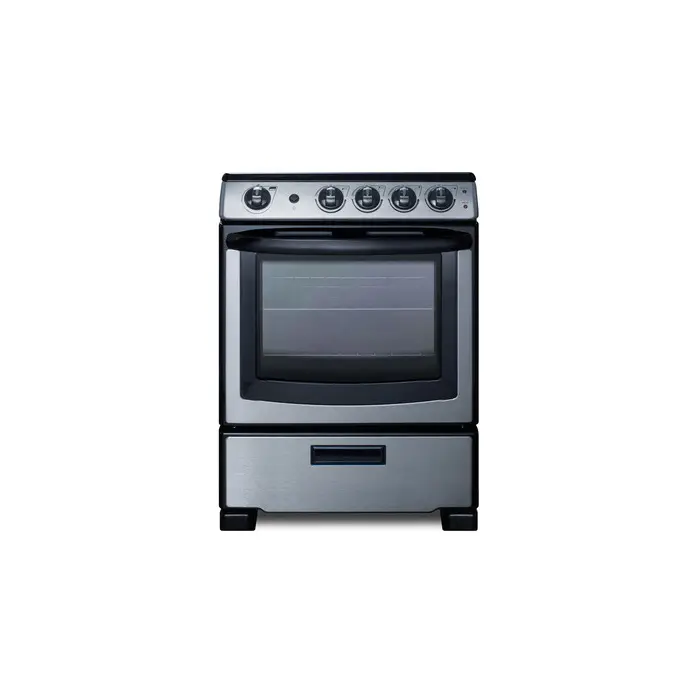

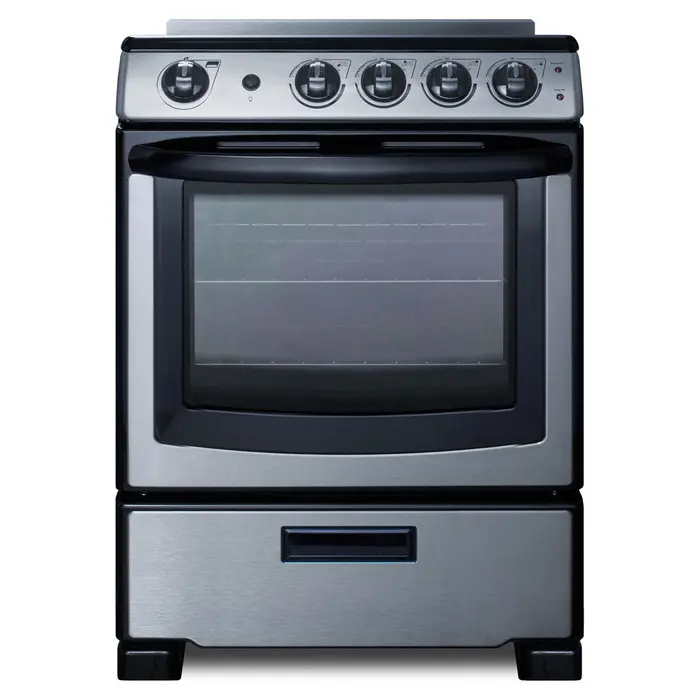

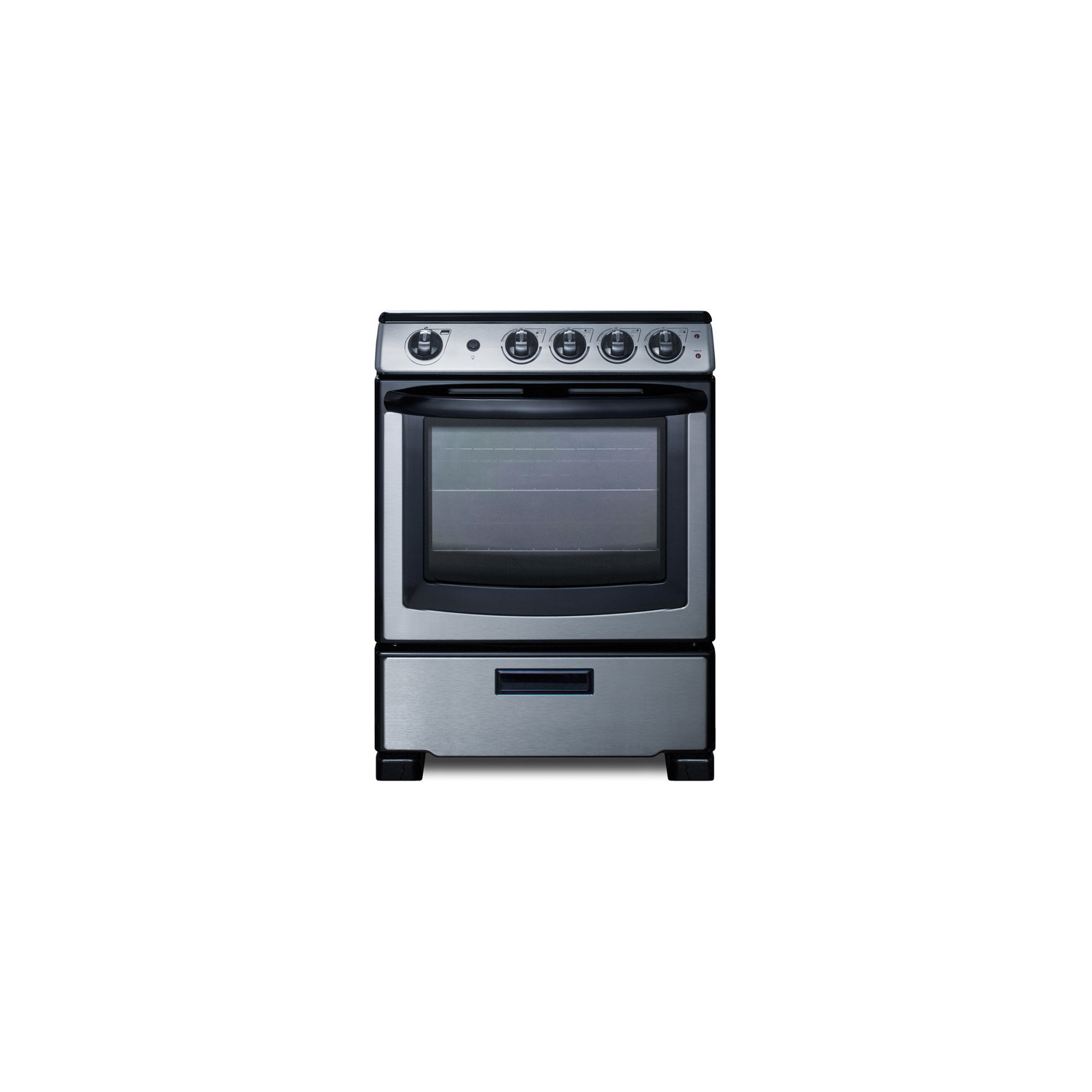

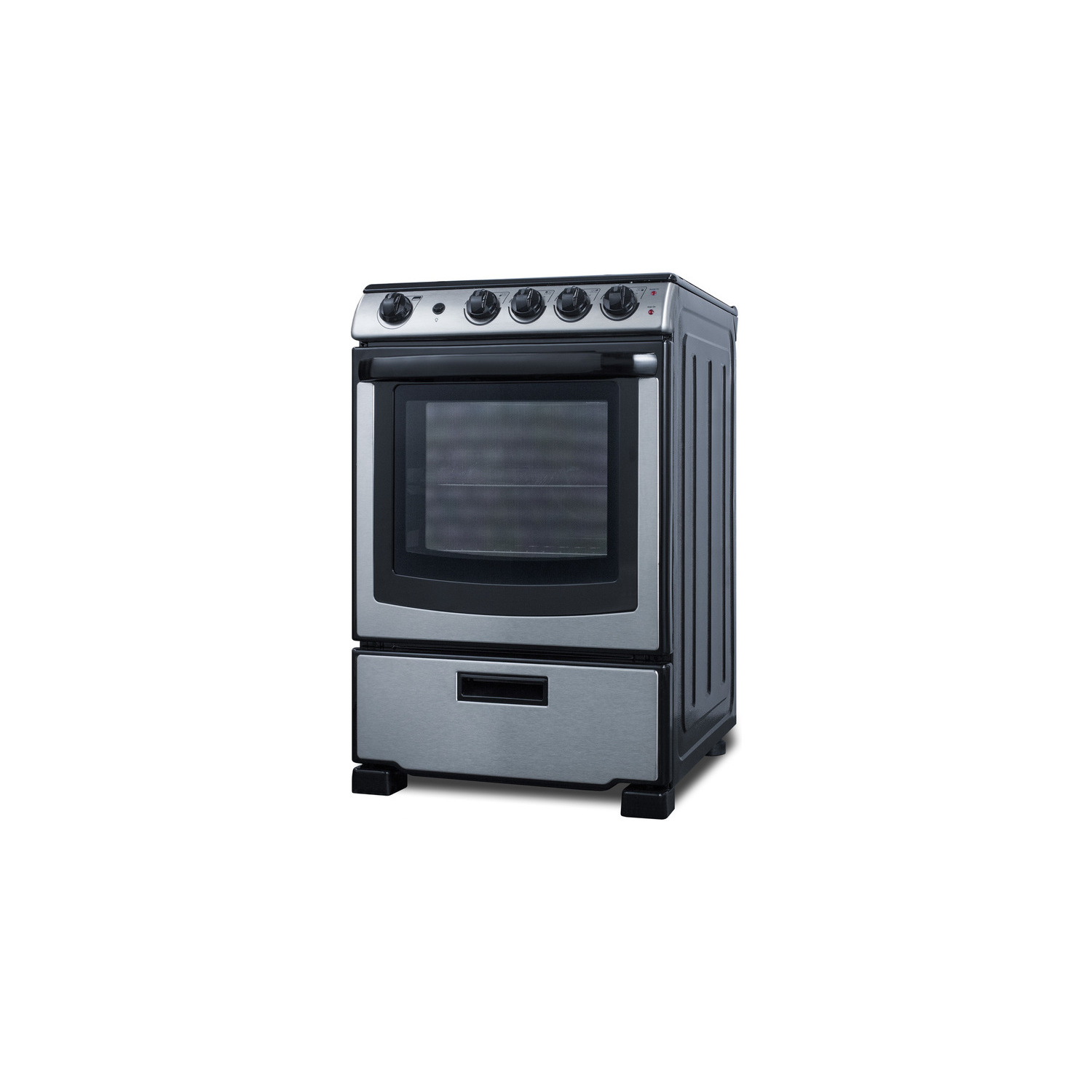

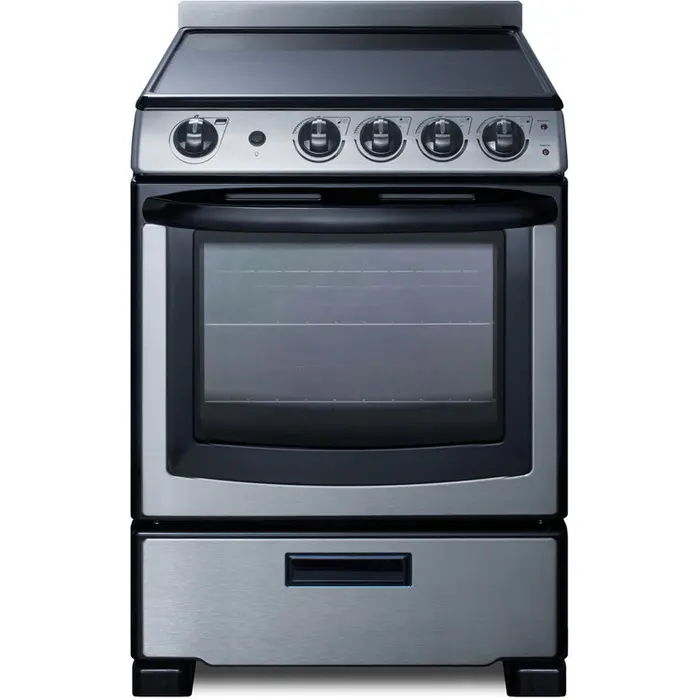

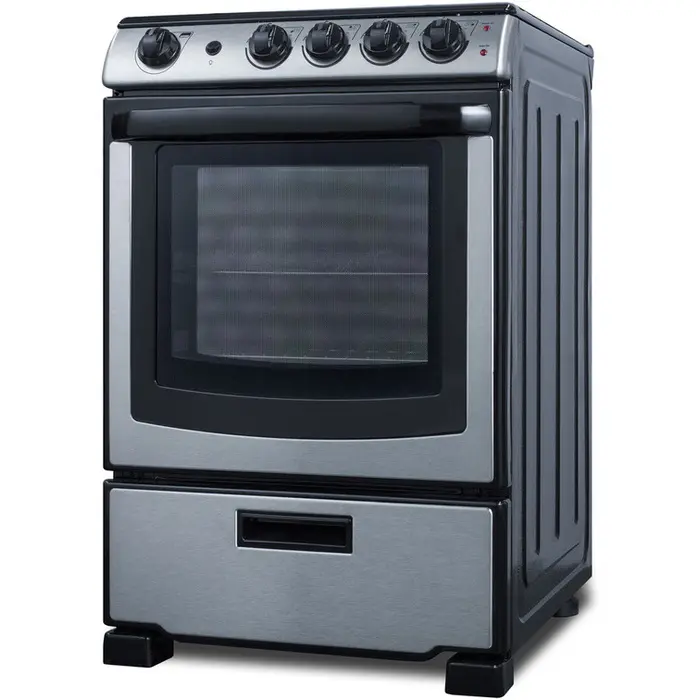

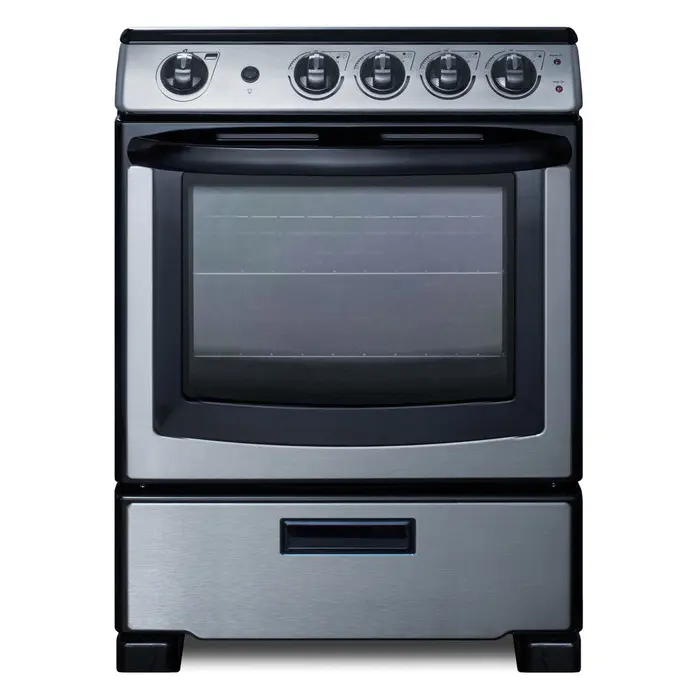

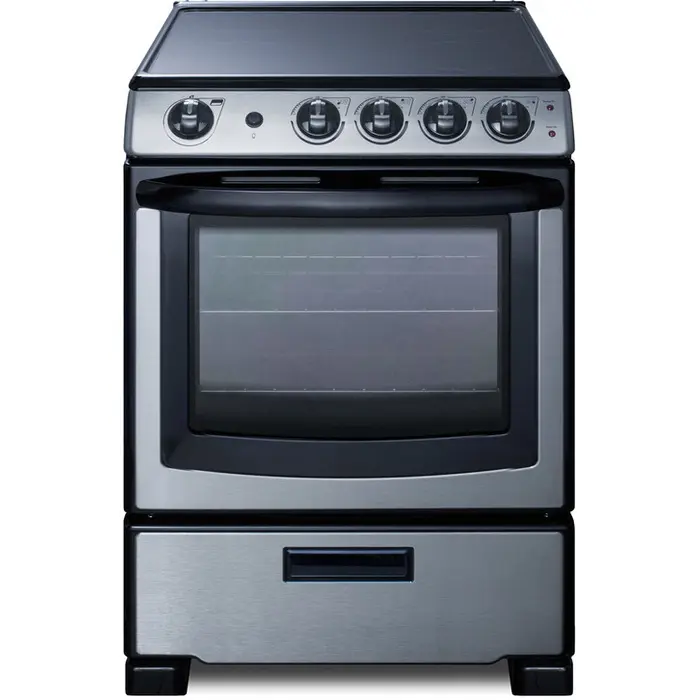

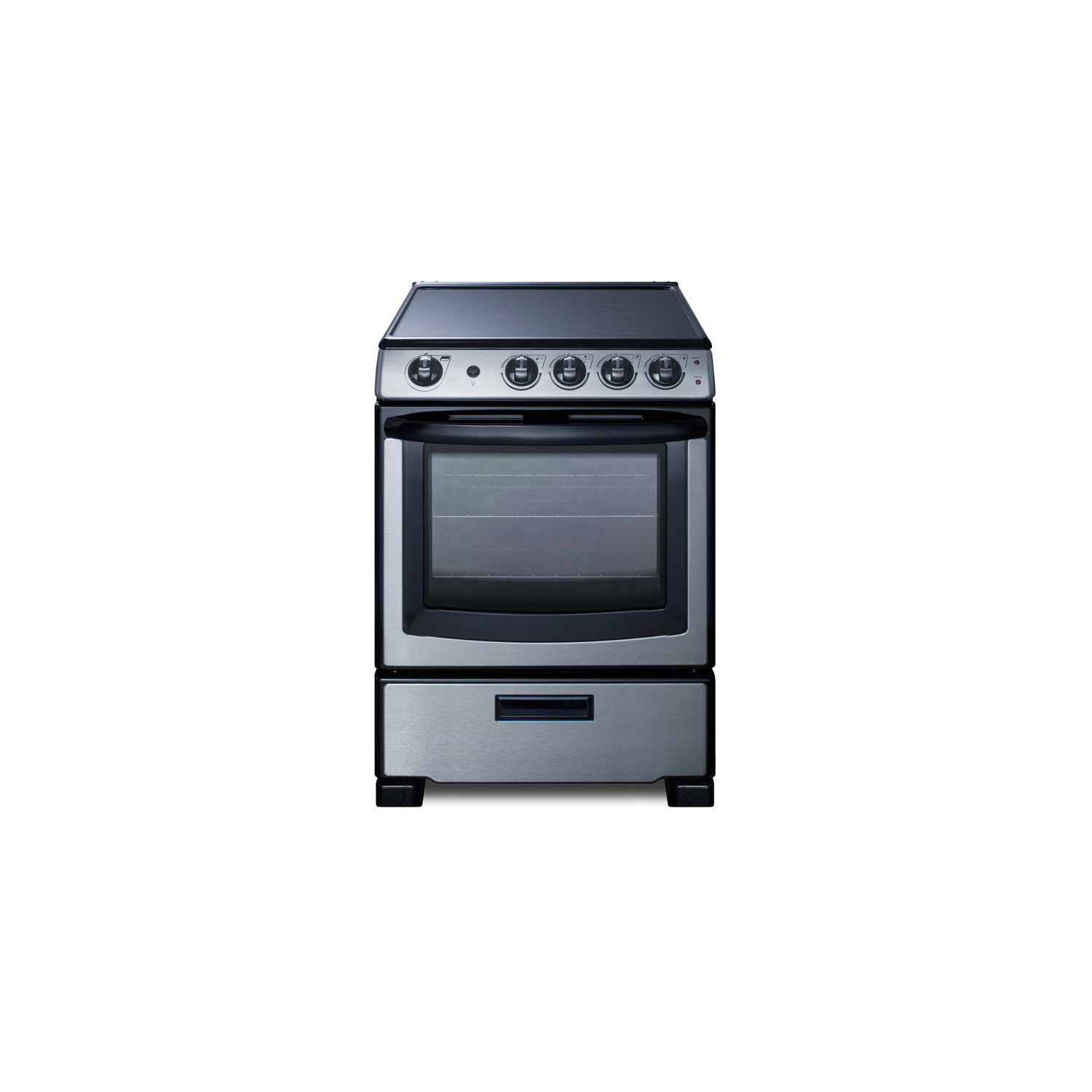

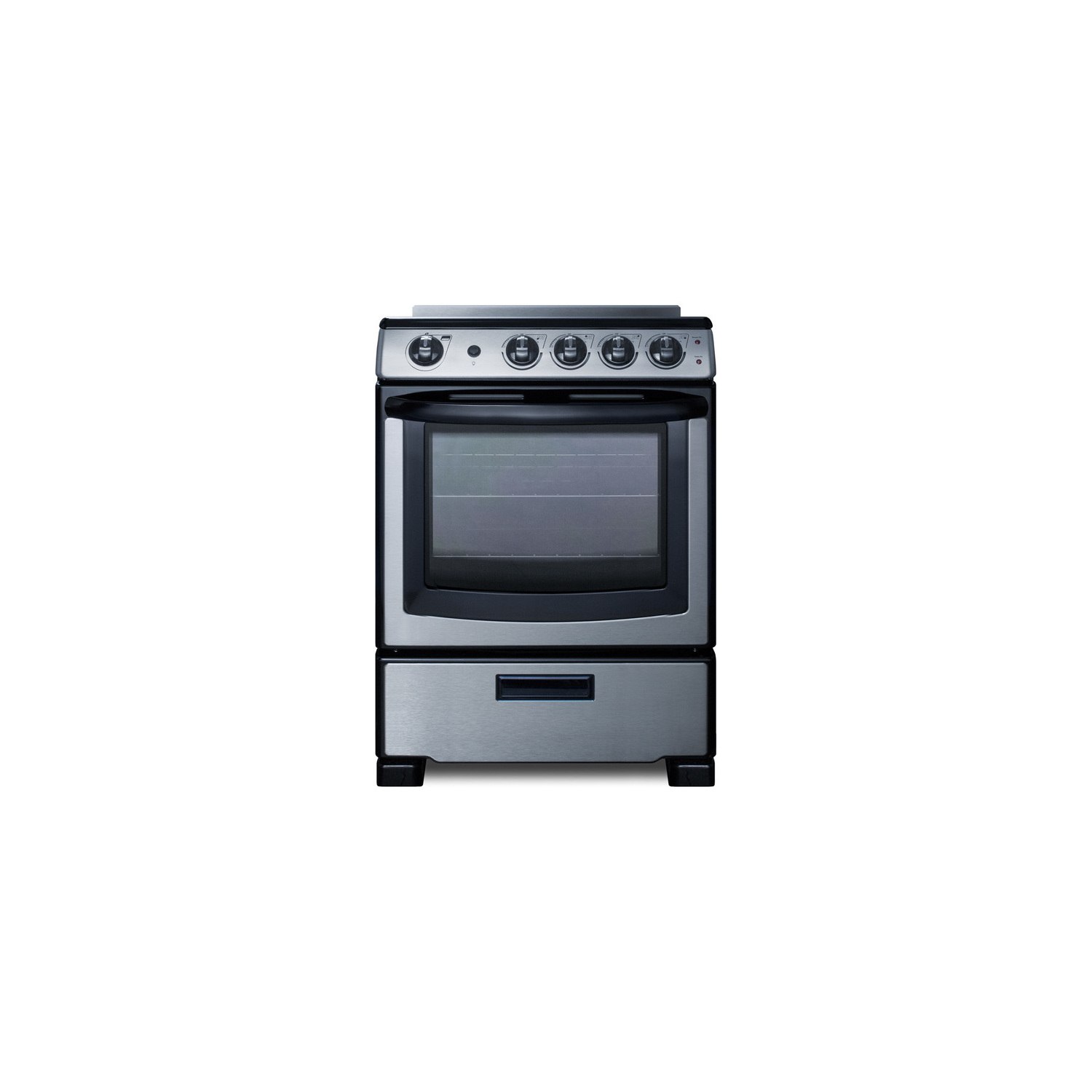

The REX2451SSRT is a 220V electric range sized at just under 24" wide. The front manifold, oven door, and lower drawer feature a stainless steel finish, with a black trimmed oven window and handle for a modern look. The versatile design includes a removable 2" high stainless steel backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REX2451SSRT features a slide-out drawer, perfect for storing your pots and pans and freeing up more kitchen space.

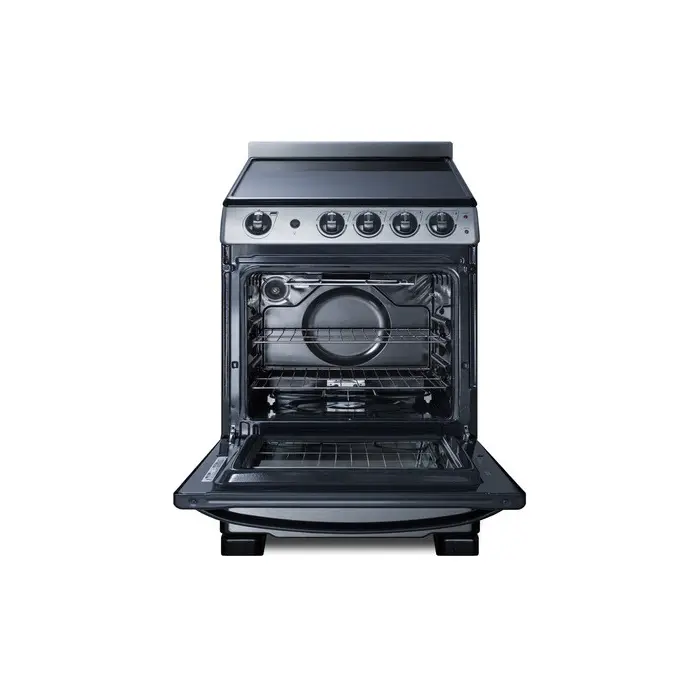

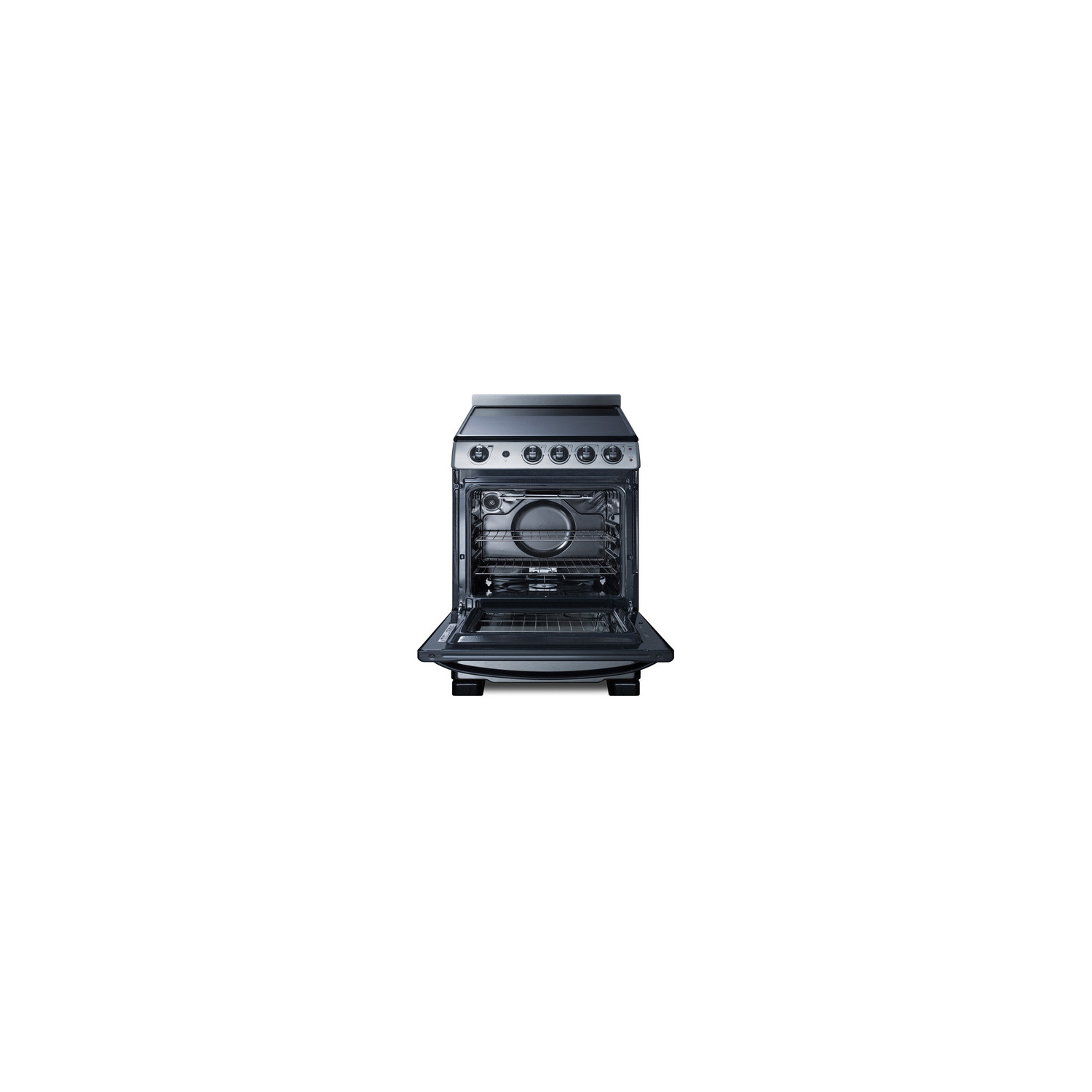

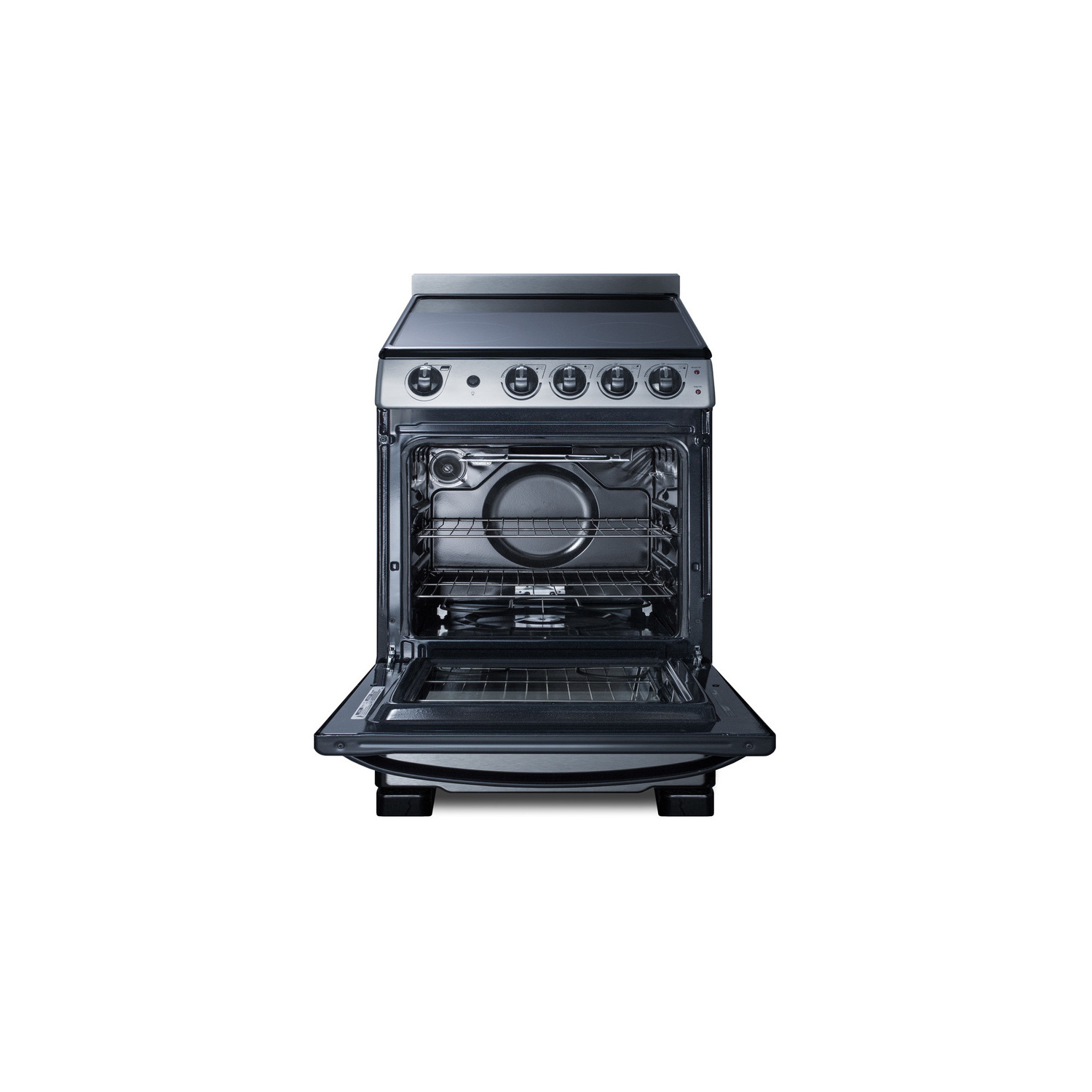

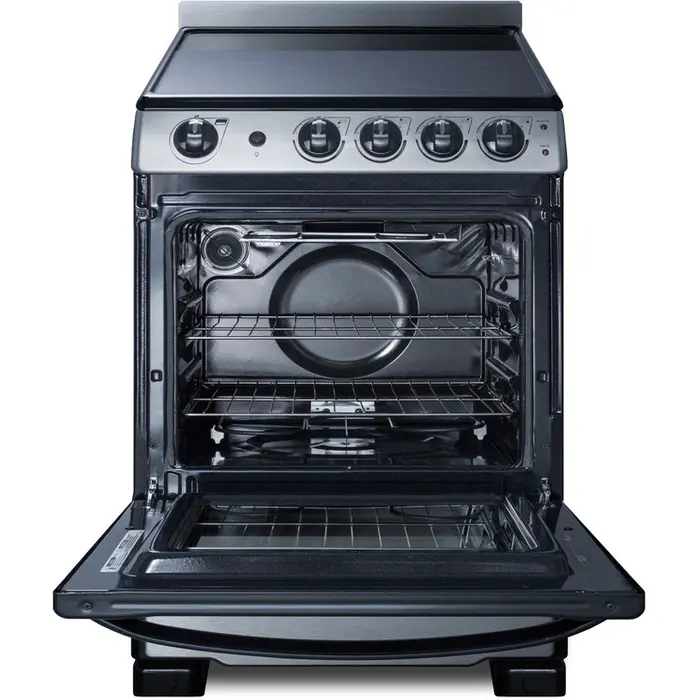

The smooth ceramic glass surface includes two 2000W elements to accommodate larger pots and pans, as well as two standard 1500W elements and a hot surface indicator light for added safety. Inside, the REX2451SSRT features a large 2.9 cu.ft. oven made from durable porcelain enamel. The waist-high broiler function is easy to use, with slide-out oven racks that can be adjusted in four different glide positions for the best fit. We include a small two-piece porcelain broiler tray with a grill cover. The large oven window and interior light make it easy to monitor your cooking.

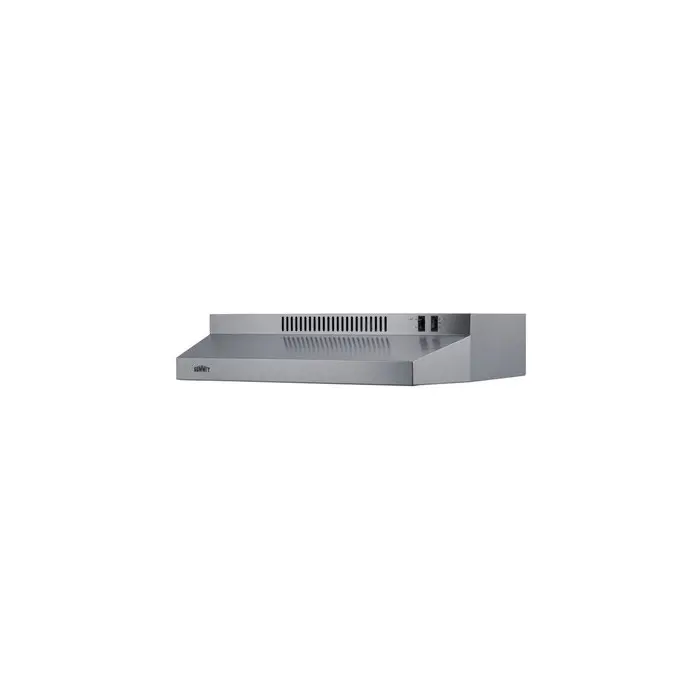

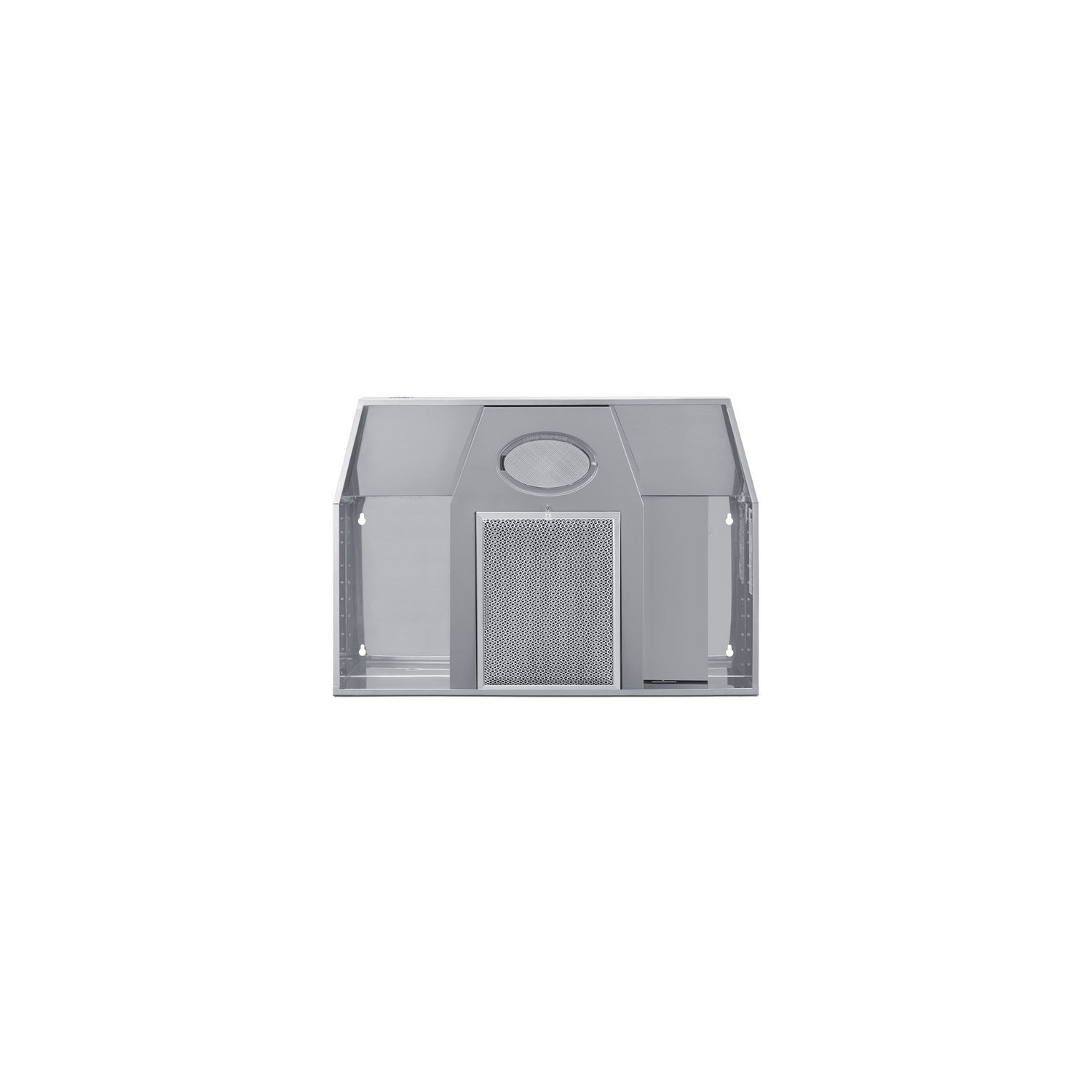

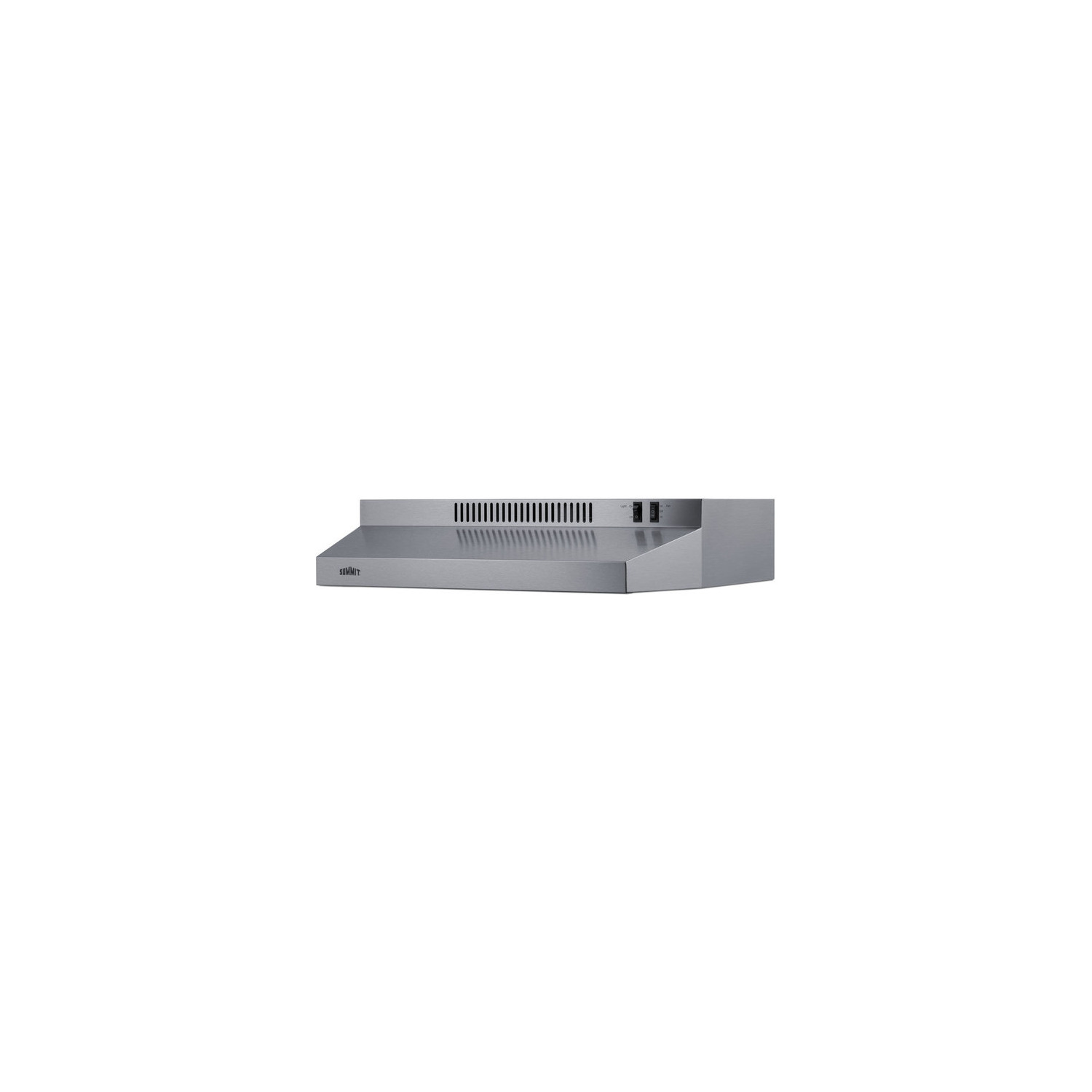

The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove.

The REXH24RSS ships together on one pallet. For a convertible gas stove and hood combination, see the RGH24RSS.

SPECIFICATIONS

Overview

Nominal Height 37.0" (94 cm)

Height of Cabinet 36.5" (93 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.25" (62 cm)

Depth with Handle 26.25" (67 cm)

Depth with door at 90° 43.5" (110 cm)

Door Stainless Steel

Cabinet Black

US Electrical Safety UL

Amps 40.0

Voltage/Frequency 220 V AC/60 Hz

Weight 160.0 lbs. (73 kg)

Parts & Labor Warranty 1 Year

UPC 761101088013

Electric Range

Oven Capacity 2.9 cu.ft. (82 L)

Cooktop Surface Glass

Element Type Glasstop

Number of Elements 4

Element #1 Size 8.0" (20 cm)

Element #1 Wattage 2000.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 1500.0

Element #3 Size 6.0" (15 cm)

Element #3 Wattage 1500.0

Element #4 Size 8.0" (20 cm)

Element #4 Wattage 2000.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 15.25" (39 cm)

Oven Interior Width 19.0" (48 cm)

Oven Interior Depth 17.5" (44 cm)

Power Source 220V

Storage Compartment Yes

Broiler Location Inside Oven

FEATURES

Range/hood set Includes our REX2451SSRT smooth-top electric range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens

24" width Perfectly sized for apartments and smaller home kitchens

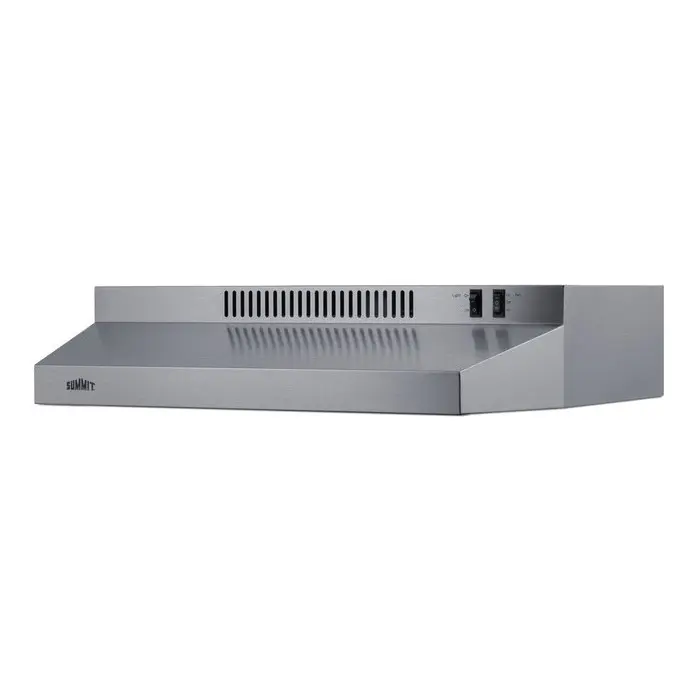

Under cabinet range hood in stainless steel Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain

Convertible hood Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

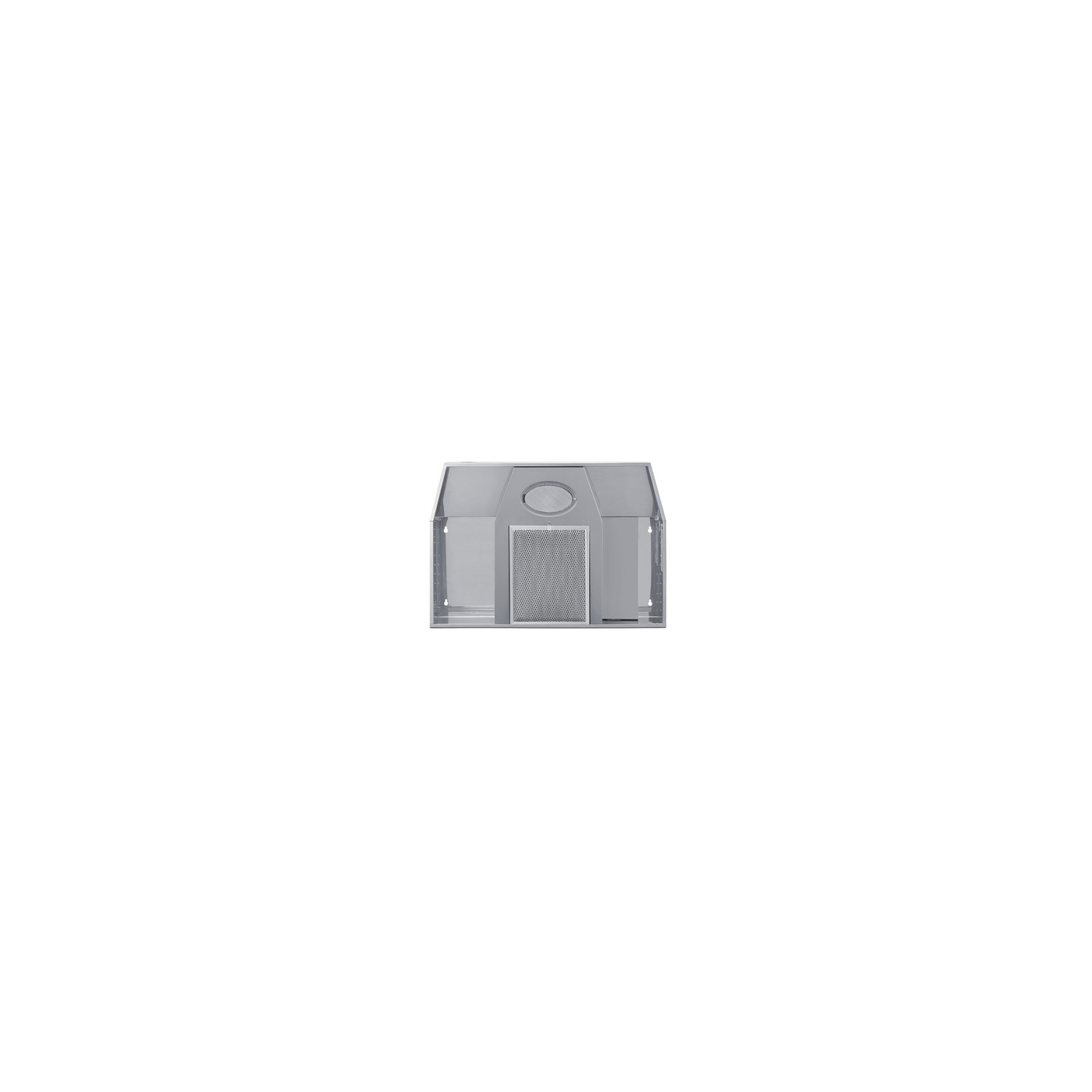

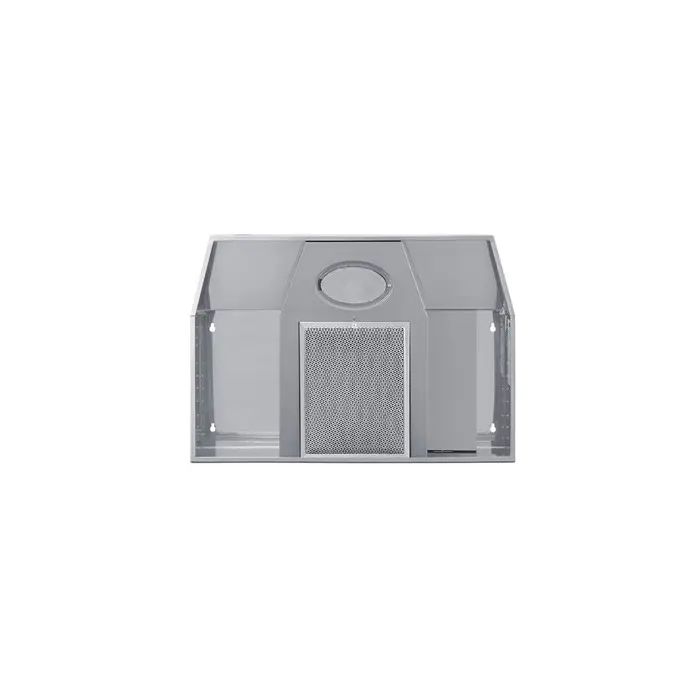

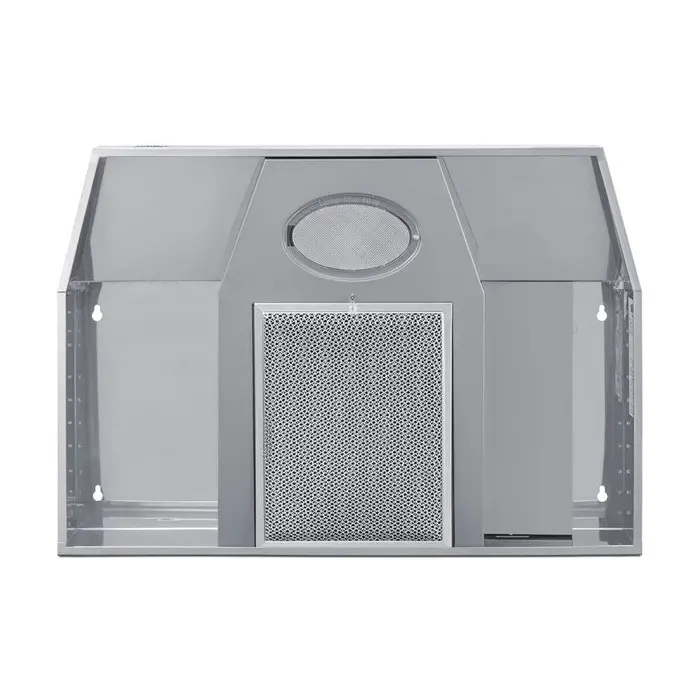

Filters included Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode

Smooth ceramic glass top Smooth cooking surface ensures improved safety and easy cleanability

Oven window with light Easier monitoring of your cooking with an oven window and on/off light

Storage drawer Save even more space by storing your pots and pans in this pull-out compartment

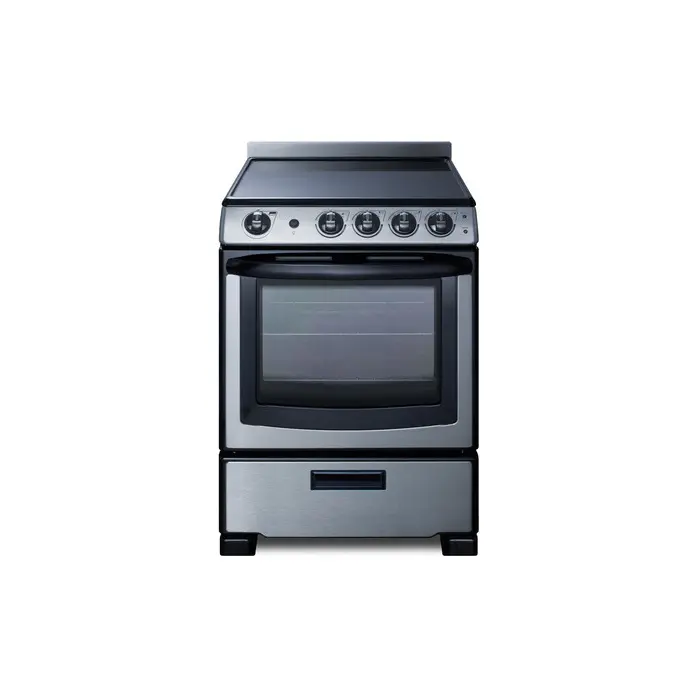

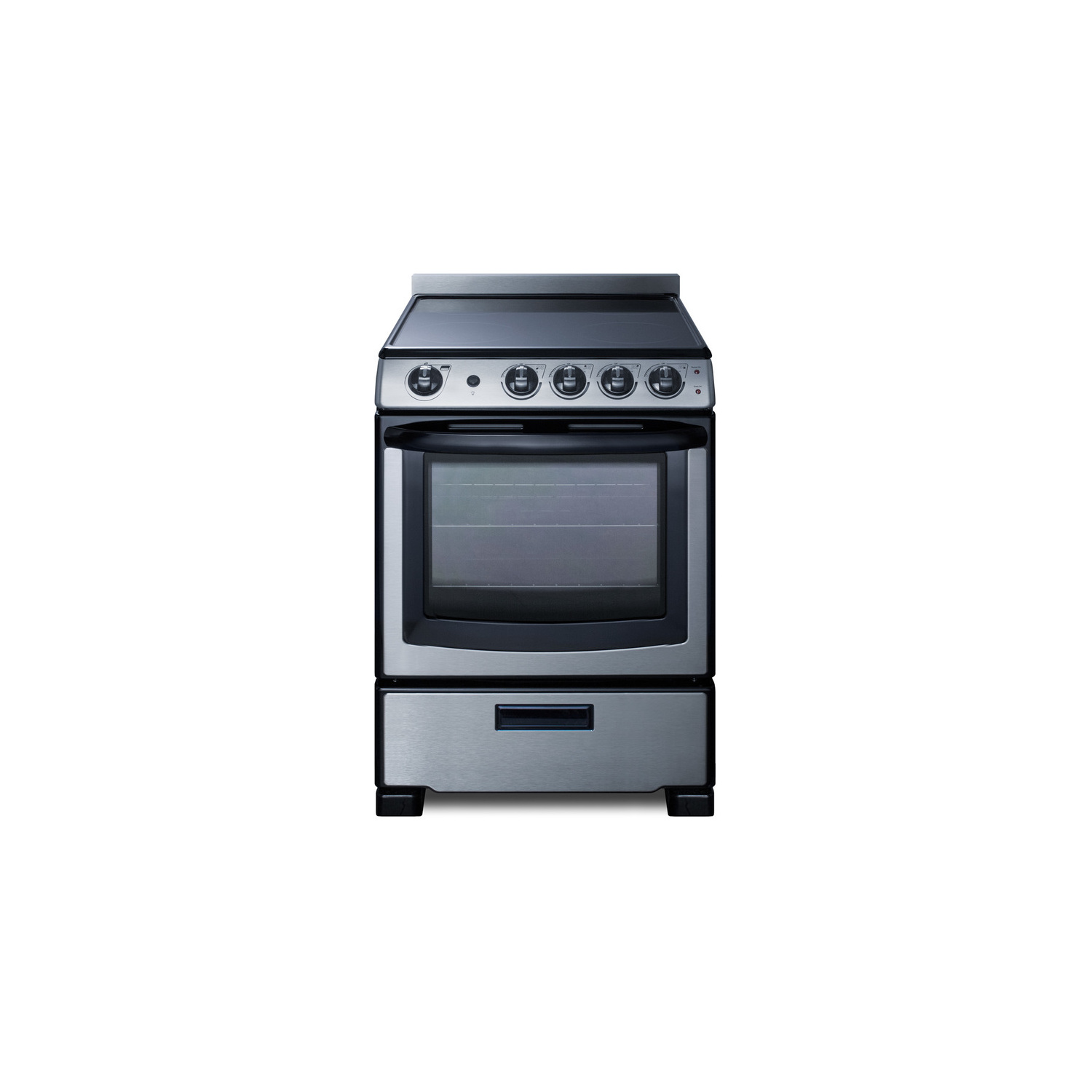

Removable backguard Unit ships with low stainless steel backguard but can be easily converted to a traditional slide-in style for a more integrated look

Waist-high broiler Broiler is located inside the oven, making it easier to use

Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Push-to-turn knobs To prevent accidents, knobs require a small amount of force when turning

Four cooking zones Surface features two 8" and two 6" elements to accommodate a range of sizes and cooking needs

Safety burners Cooking elements will cycle off before reaching dangerous flashpoint temperatures to prevent cooking fires, and will cycle back on to resume heating

Stainless steel finish Oven door, storage drawer, and control panel feature a stainless steel finish

Adjustable racks Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism

Hot surface indicator Indicator light shows if the cooking surface is still too hot to touch

Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range

Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability

Anti-tip bracket Included for user installation to help prevent accidents

Compact broiler tray Two-piece pan and cover included

Cord not included Compatible with standard 40 amp 3 or 4-wire range cords

DOWNLOADS

BROCHURE (REXH24RSS.pdf)

TECHNICAL DRAWING (.dwg) (REX2421WRT_ELEC._RANGE__A-C_2010__4.dwg)

TECHNICAL DRAWING (.dwg) (H24RSS_2.dwg)

ASSEMBLY DRAWING (H24RSS-Assembly_2.pdf)

ASSEMBLY DRAWING (REX2451SSRT_Brochure_with_Drawings.pdf)

USE & CARE (REXH24RSS-User-Manual.pdf)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (REXH24RSS-User-Manual_2.pdf)
