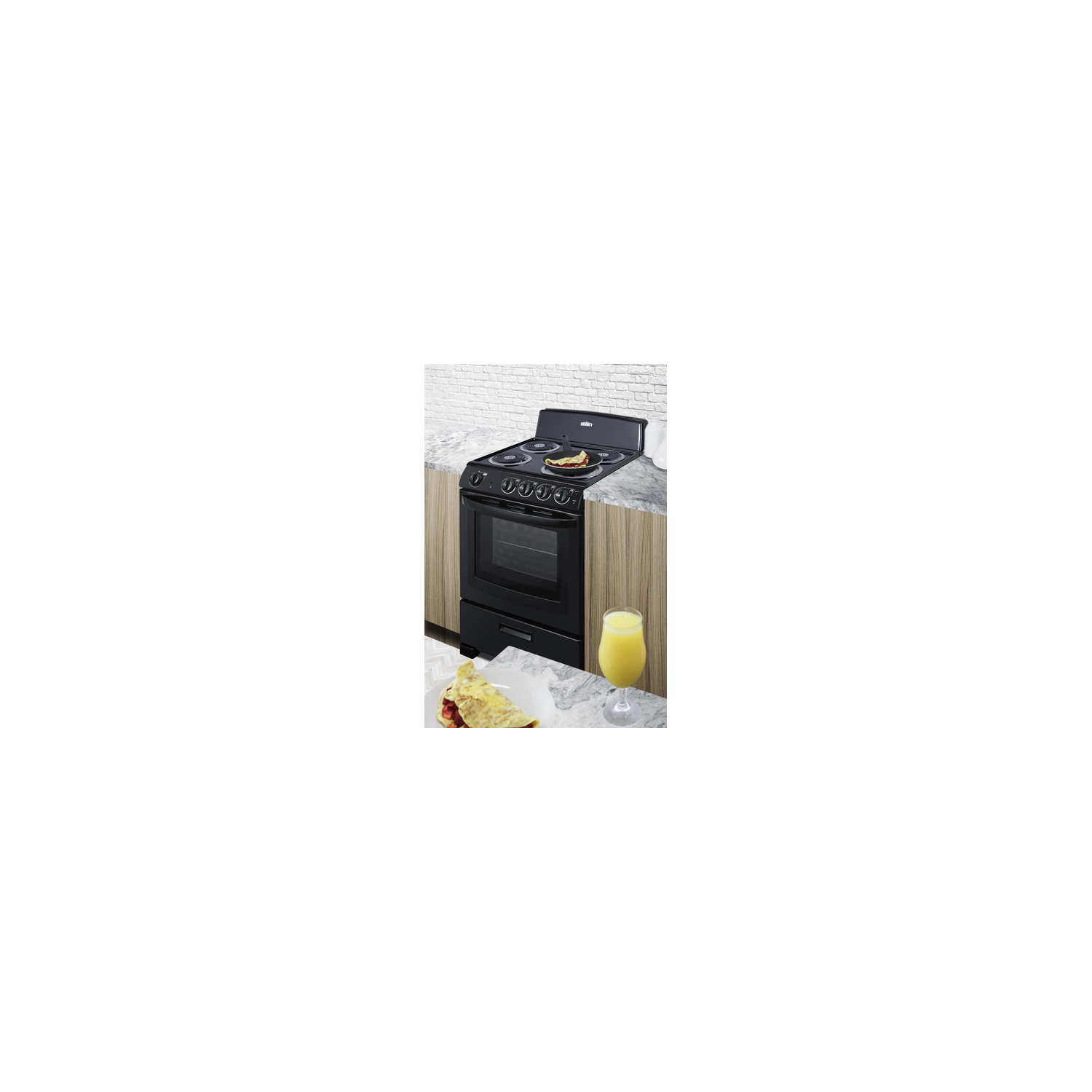

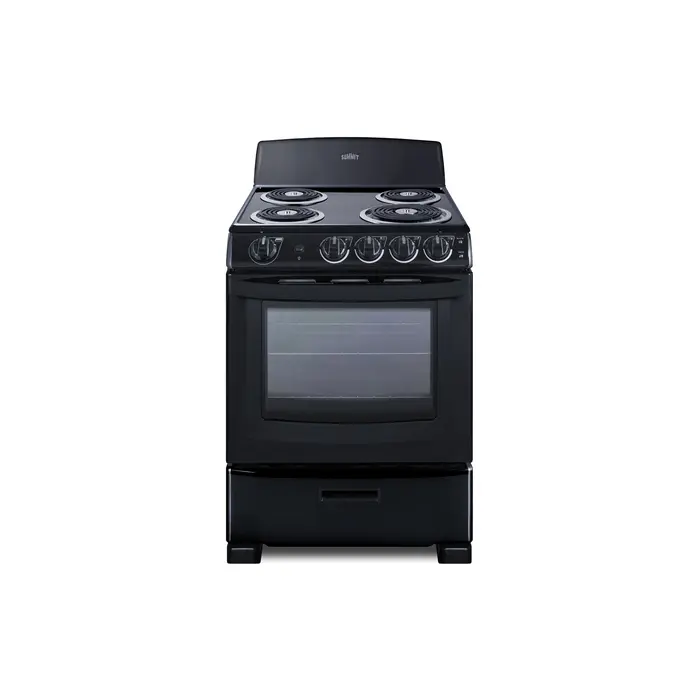

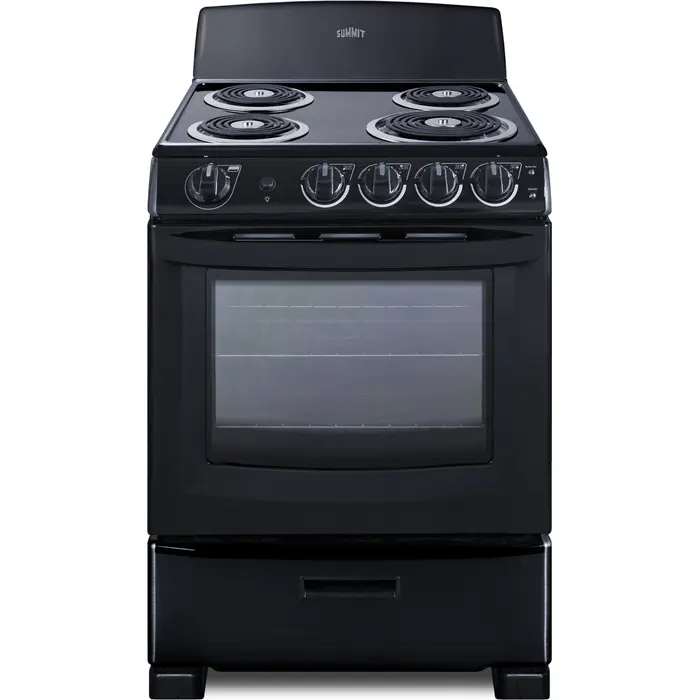

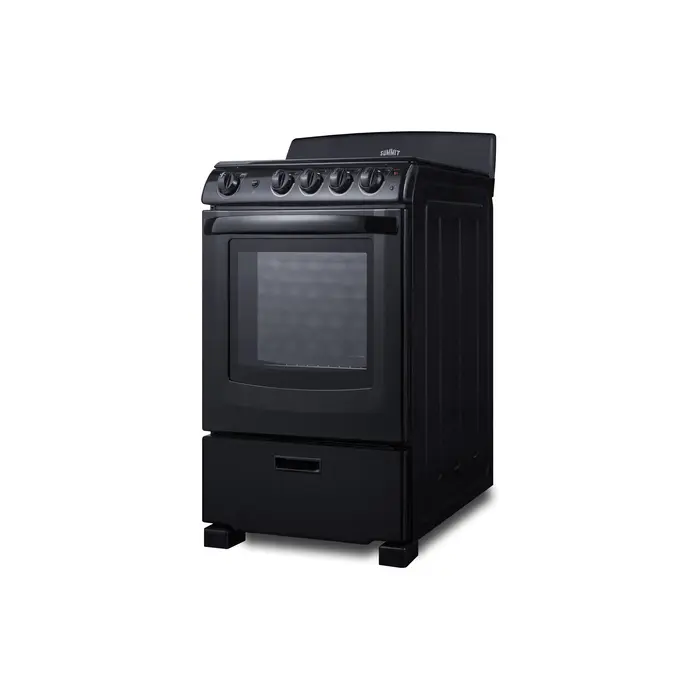

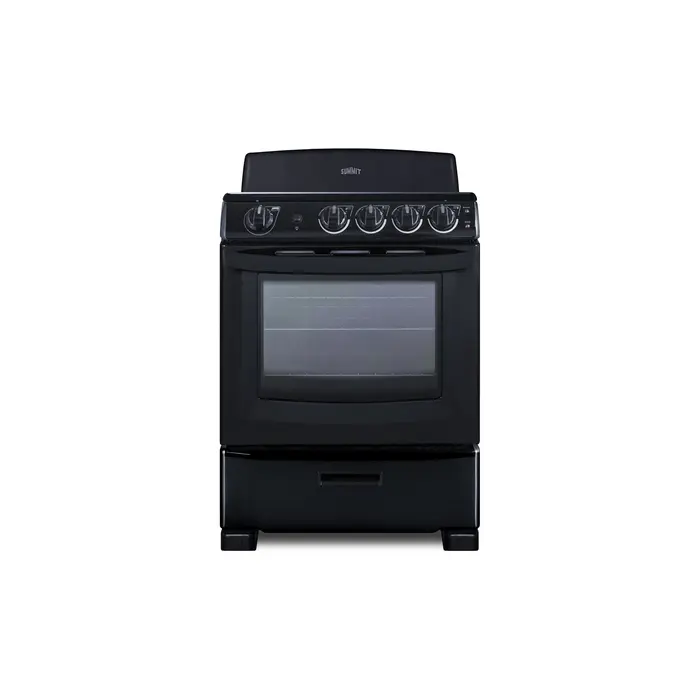

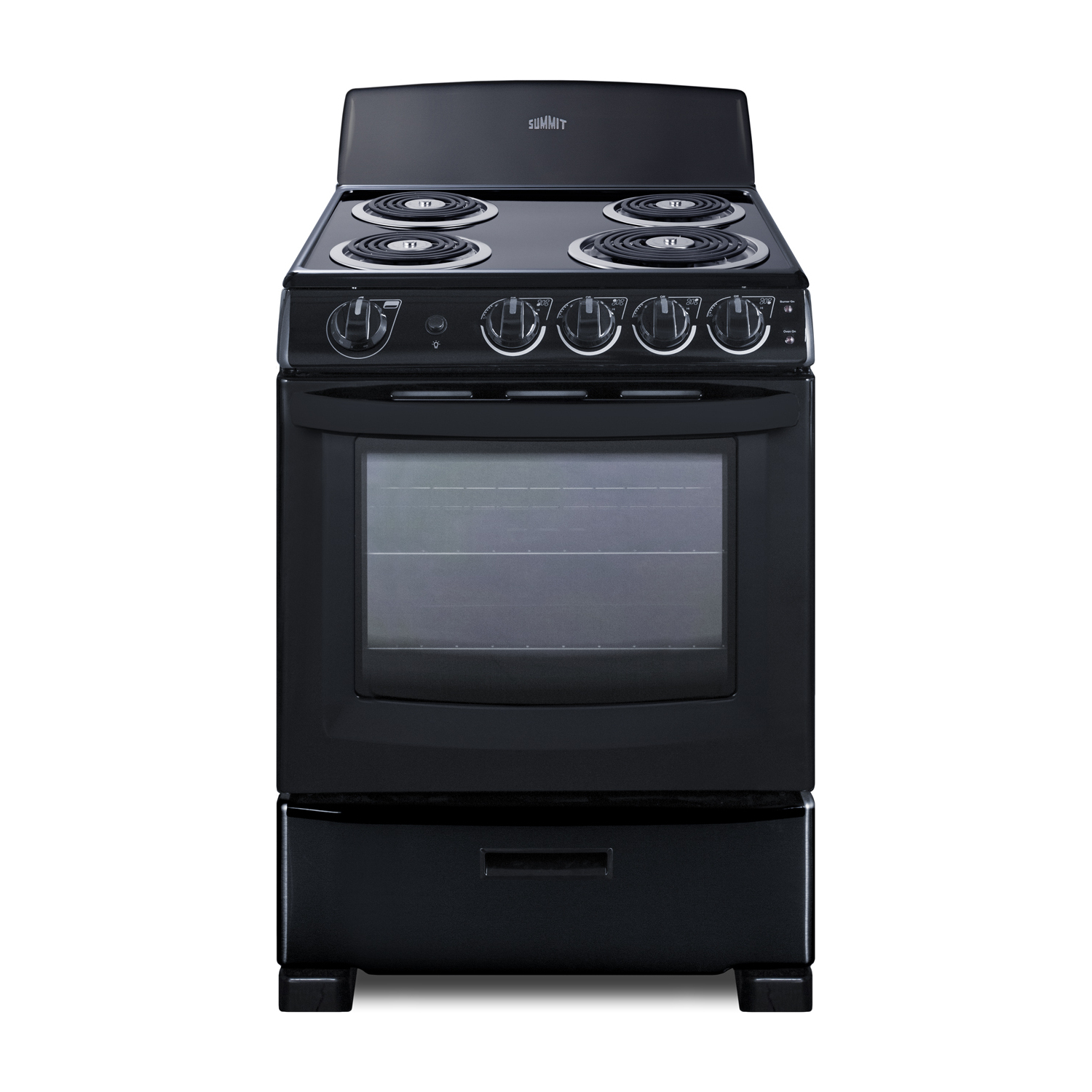

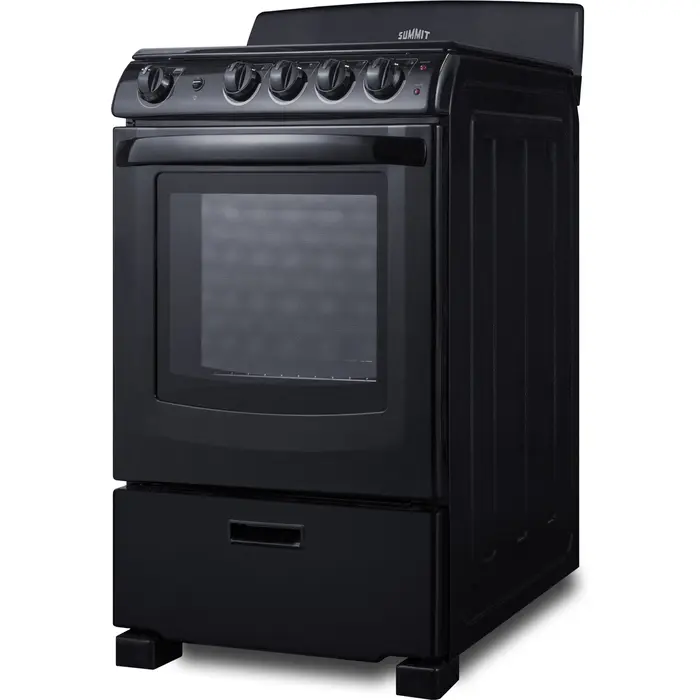

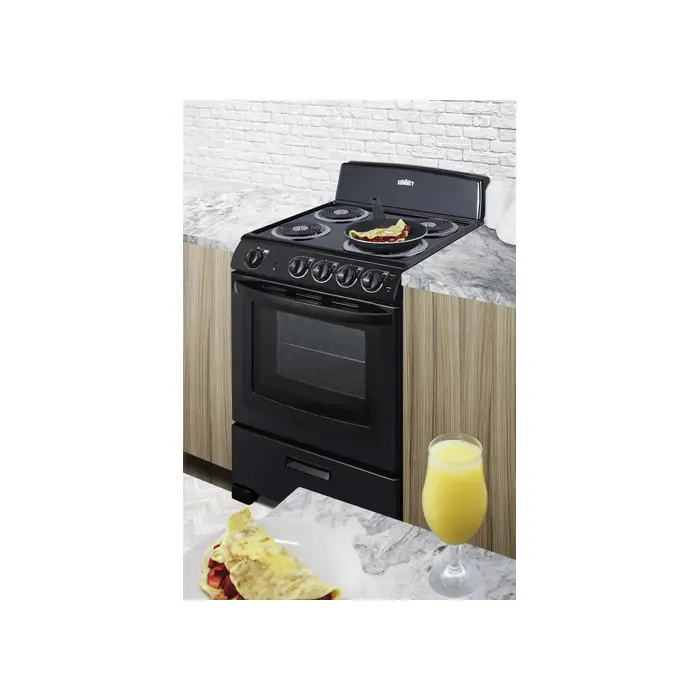

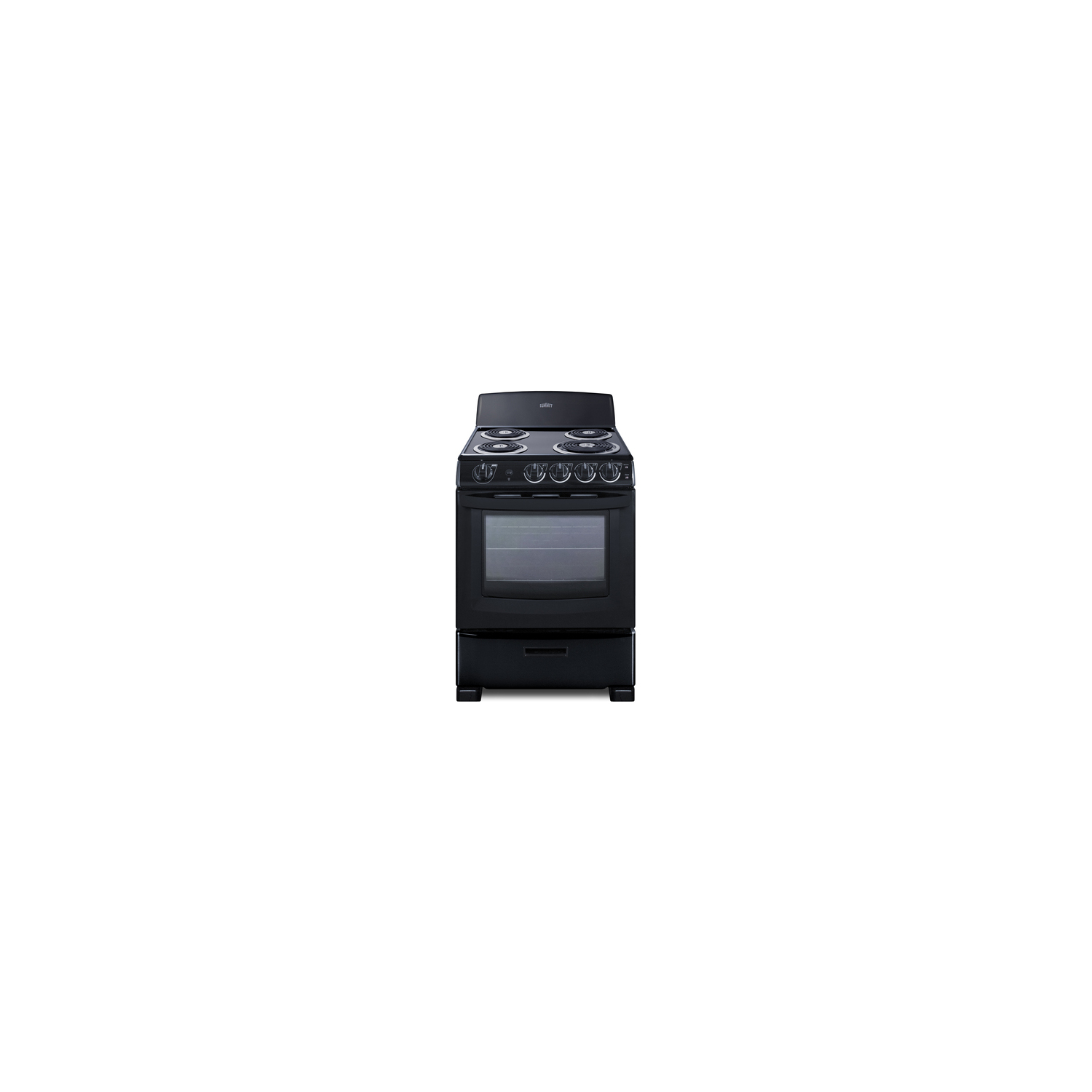

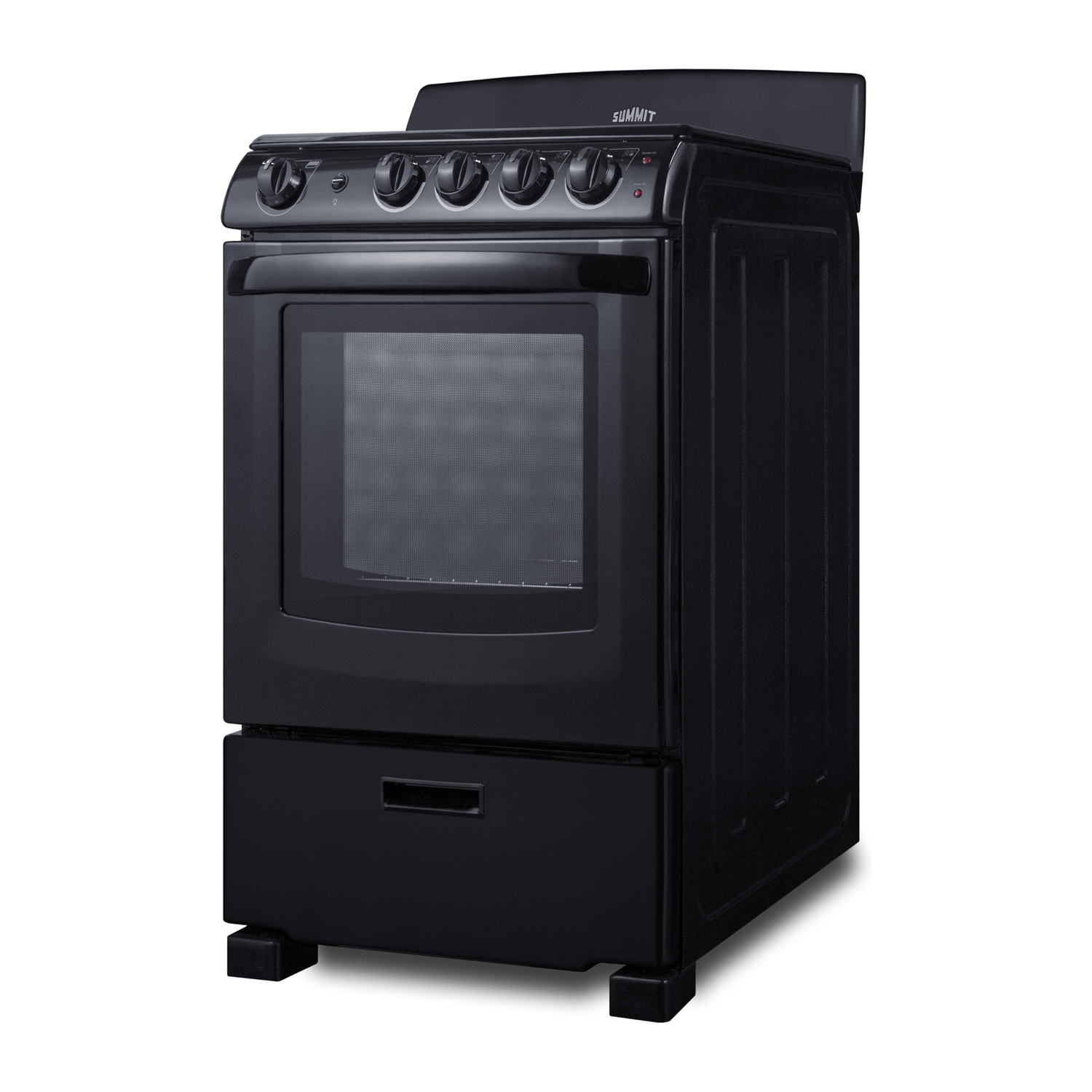

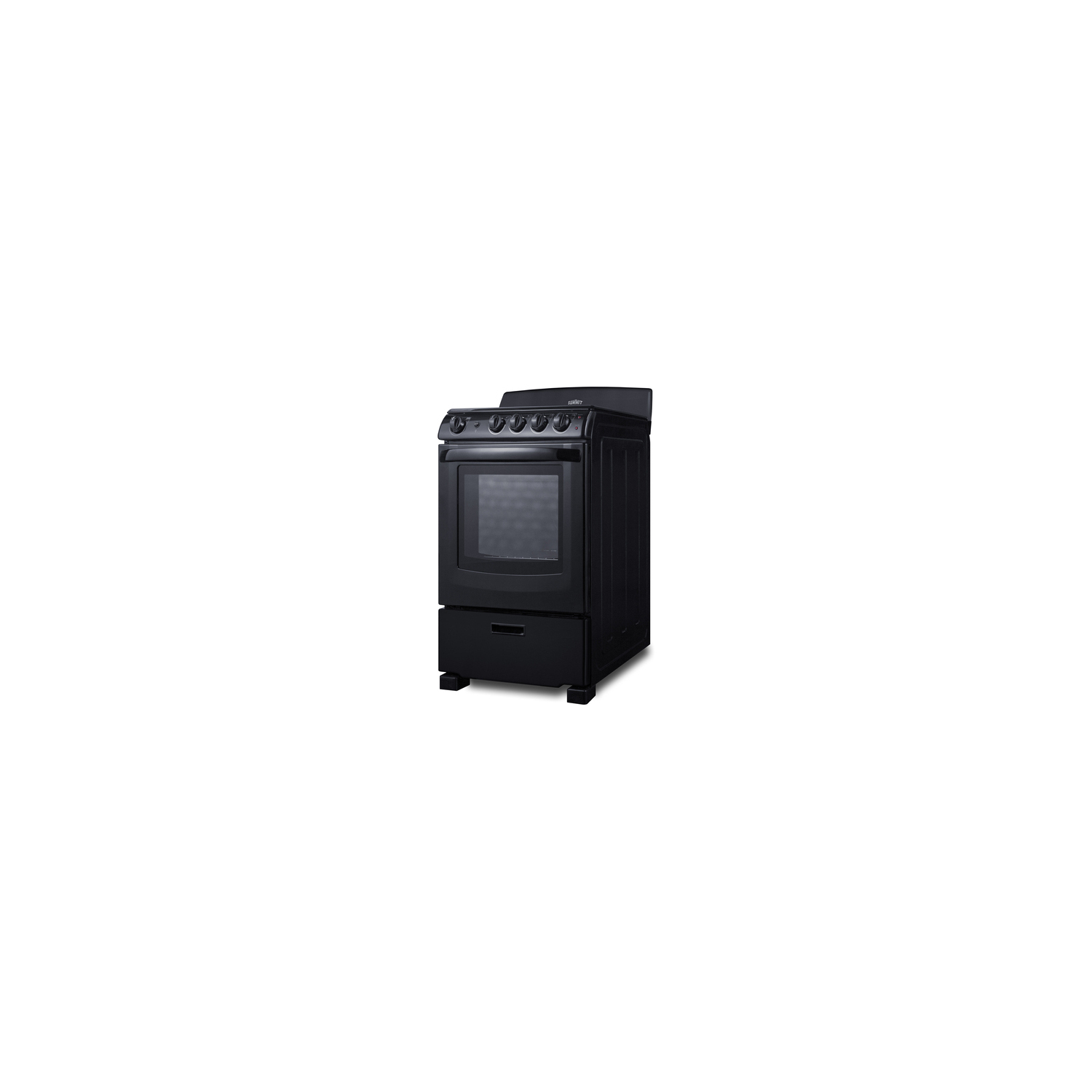

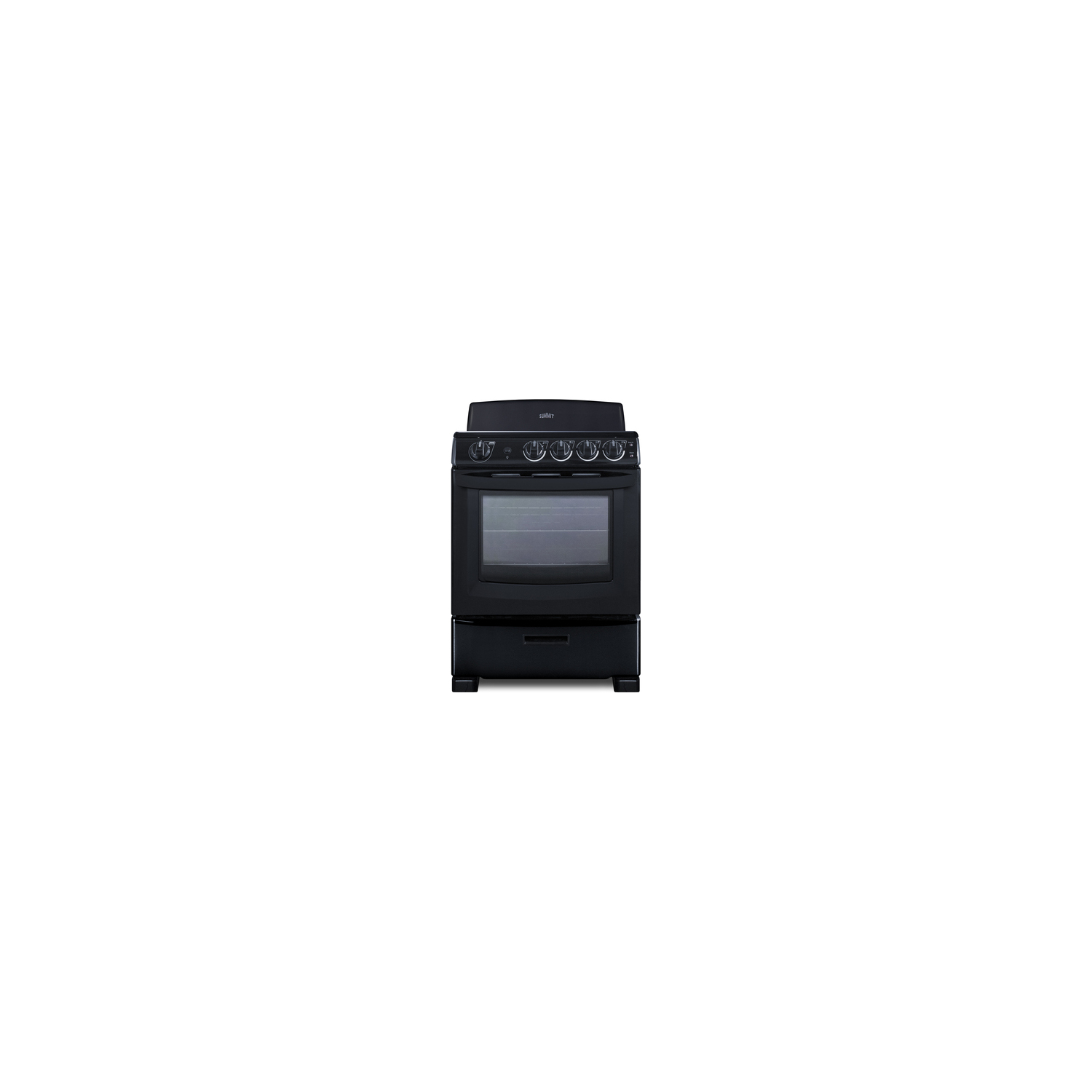

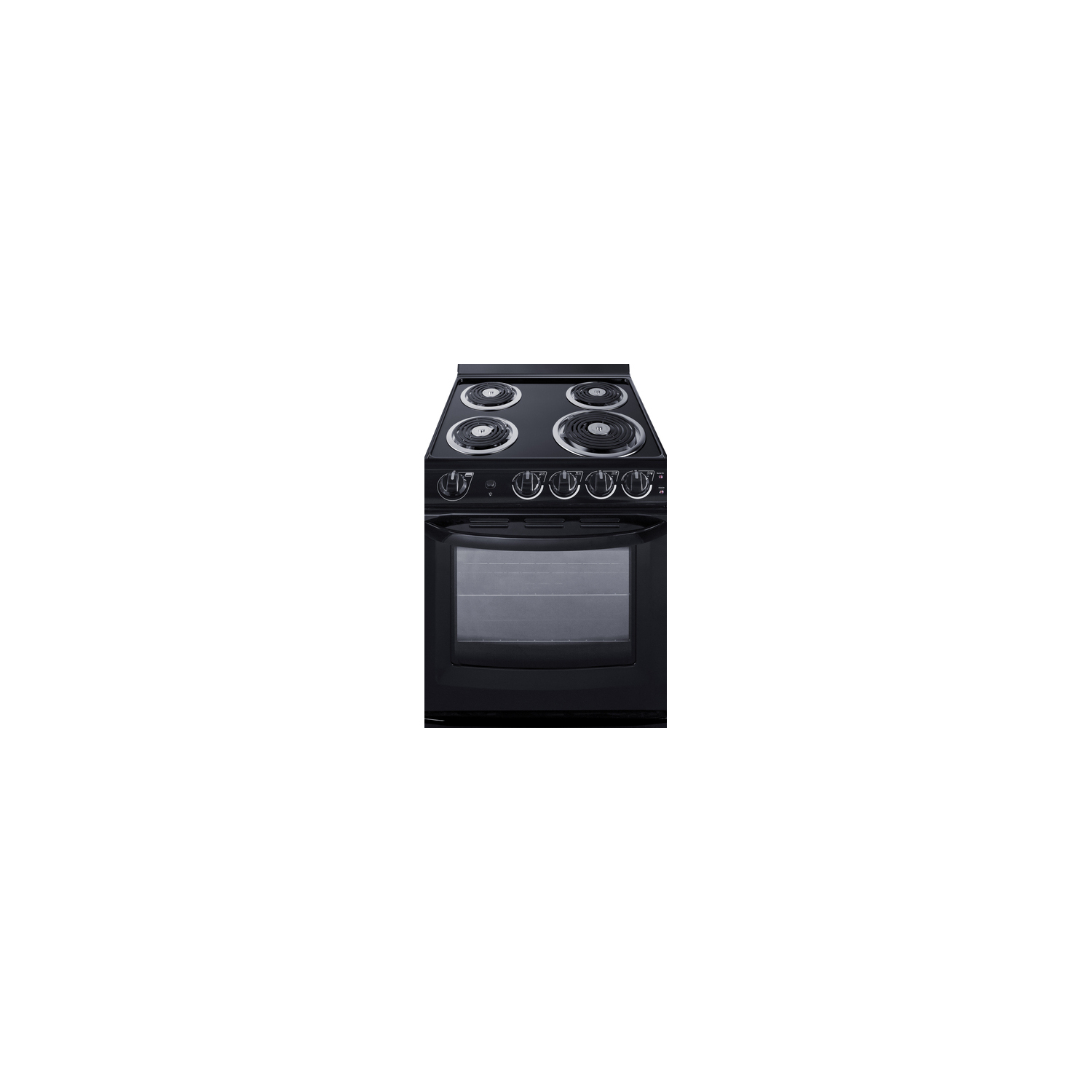

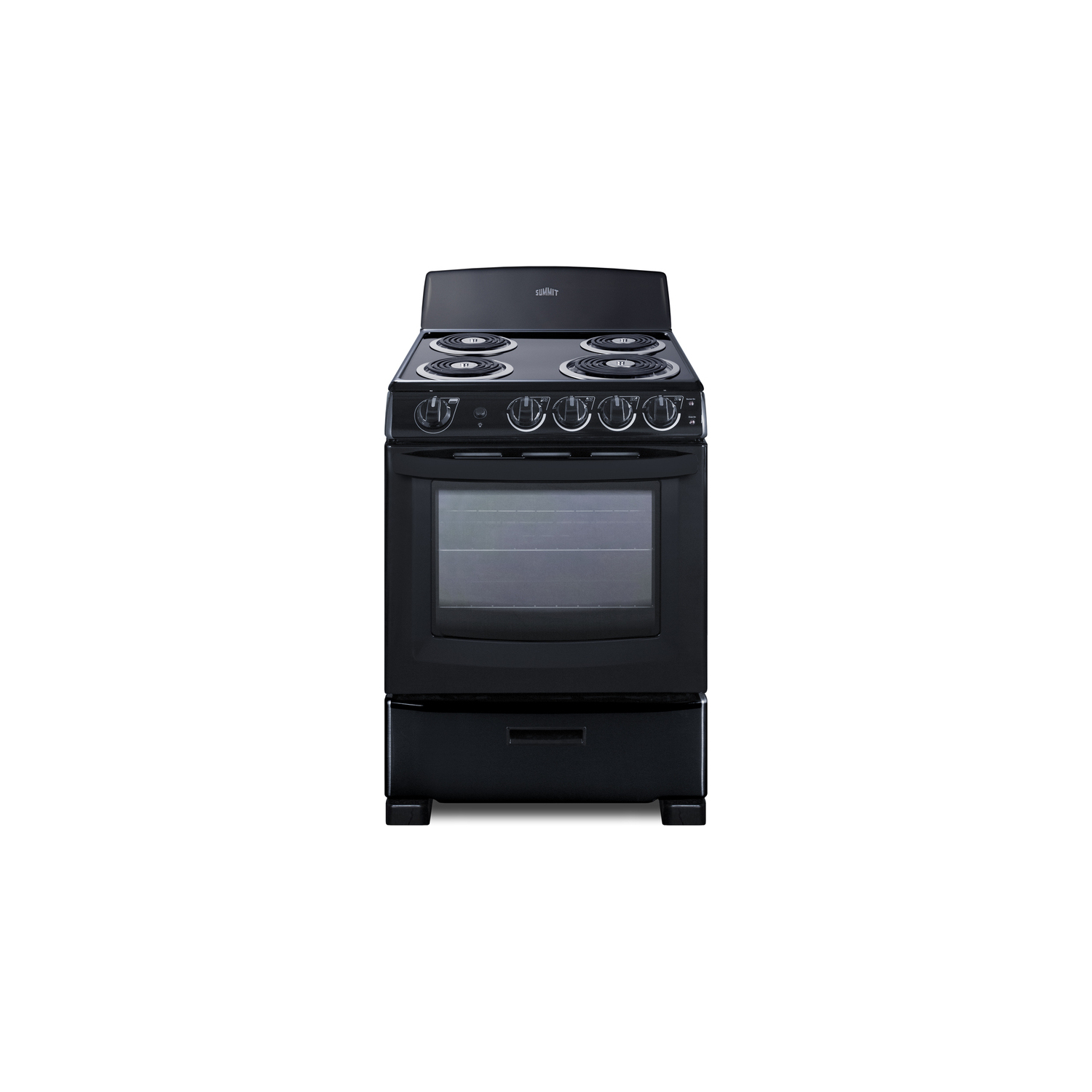

Summit 24 inch wide electric coil top range in black, RE2413B

Summit brings outstanding value to small kitchens with fully featured electric ranges in 24" wide fits.

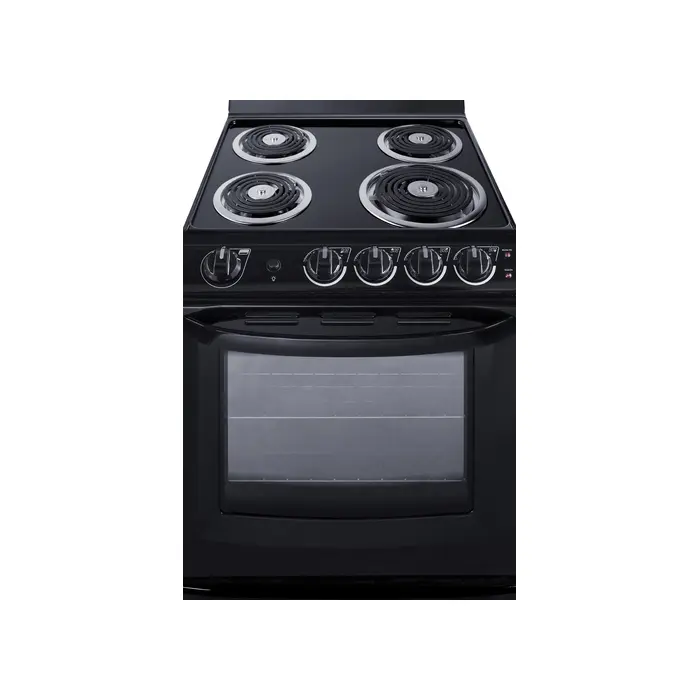

Made in North America, the RE2413B is a 240V electric range designed for 24" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the burners and oven are on.

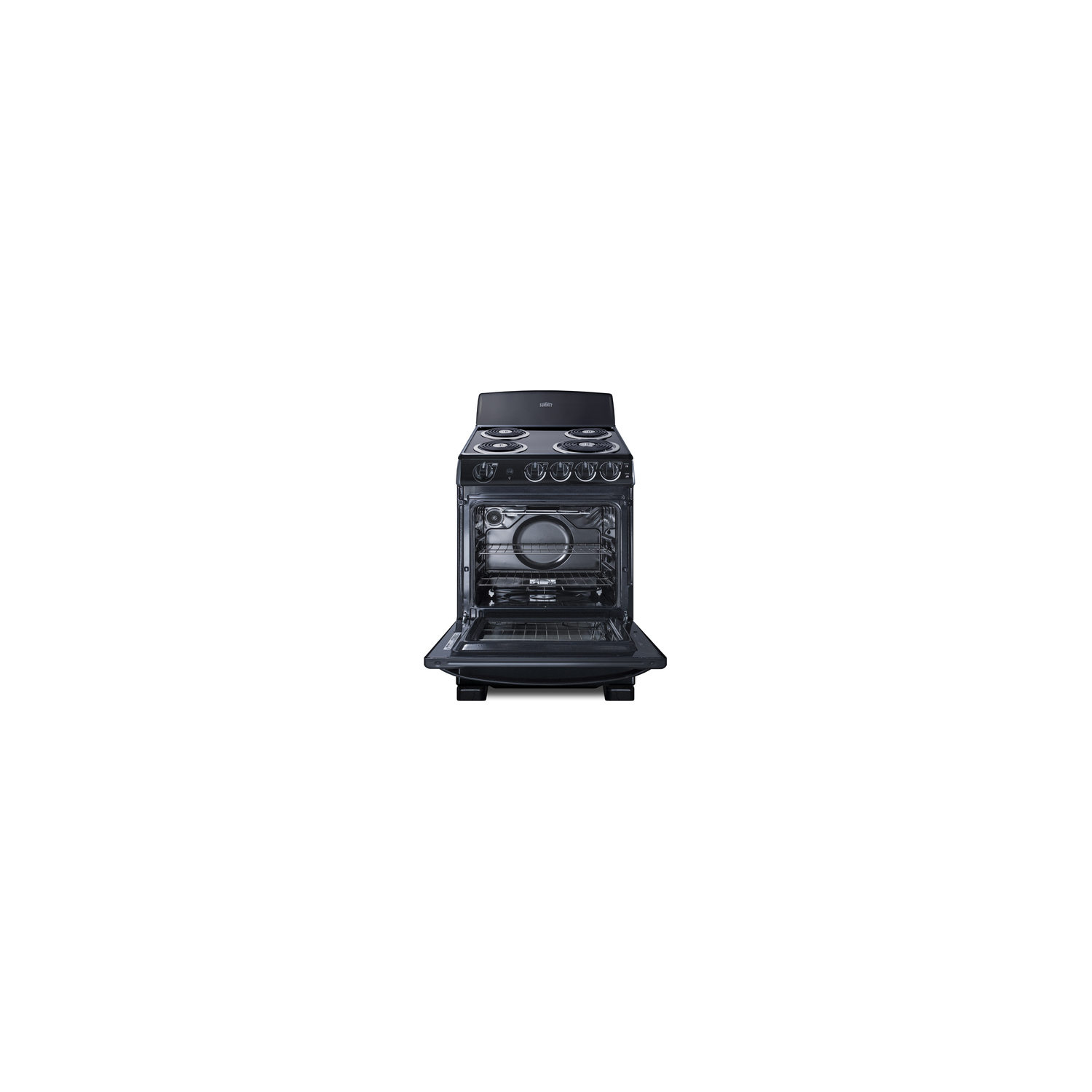

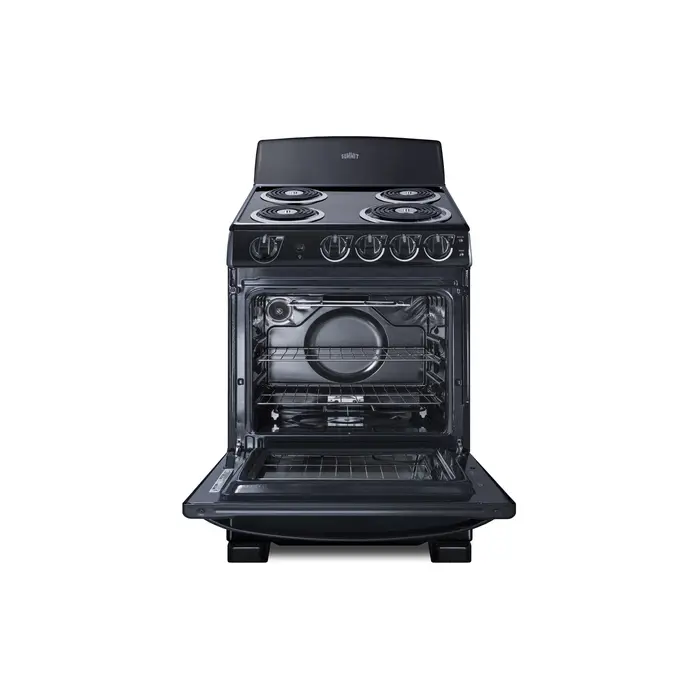

The RE2413B features a large oven window with an interior light to make it easy for users to monitor their cooking. Inside, the 2.9 cu.ft. interior is made from durable porcelain and includes two adjustable racks. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The unit's lower compartment is a slide-out storage drawer for added convenience.

The RE2413B comes with a jet-black exterior door, handle, and knobs for a contemporary kitchen design. With its slim fit and user-friendly features, this unit is the ideal choice for space-challenged kitchens on a budget.

For this unit in a 20" width see model RE2031B. For this unit in white and stainless steel see models RE2411W and PROEL24SS. Summit also manufactures smooth-top ranges and gas units.

Browse our website to explore the complete cooking collection.

SPECIFICATIONS

Overview

Nominal Height 42.0" (107 cm)

Height of Cabinet 41.75" (106 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 26.0" (66 cm)

Depth 25.13" (64 cm)

Depth with Handle 27.38" (70 cm)

Depth with door at 90° 46.38" (118 cm)

Door Black

Cabinet Black

US Electrical Safety UL

Amps 40.0

Voltage/Frequency 240 V AC/60 Hz

Weight 133.0 lbs. (60 kg)

Parts & Labor Warranty 1 Year

UPC 761101103754

Electric Range

Oven Capacity 2.9 cu.ft. (82 L)

Element Type Coils

Number of Elements 4

Element #1 Size 6.0" (15 cm)

Element #1 Wattage 1250.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 1250.0

Element #3 Size 6.0" (15 cm)

Element #3 Wattage 1250.0

Element #4 Size 7.5" (19 cm)

Element #4 Wattage 2400.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 15.25" (39 cm)

Oven Interior Width 18.5" (47 cm)

Oven Interior Depth 17.63" (45 cm)

Storage Compartment Yes

Broiler Location Inside Oven

FEATURES

24" Wide Electric 4-Burner Range Slim-fitting electric range perfectly sized for apartments and smaller home kitchens

Classic coil elements Durable design to hold up to everyday cooking

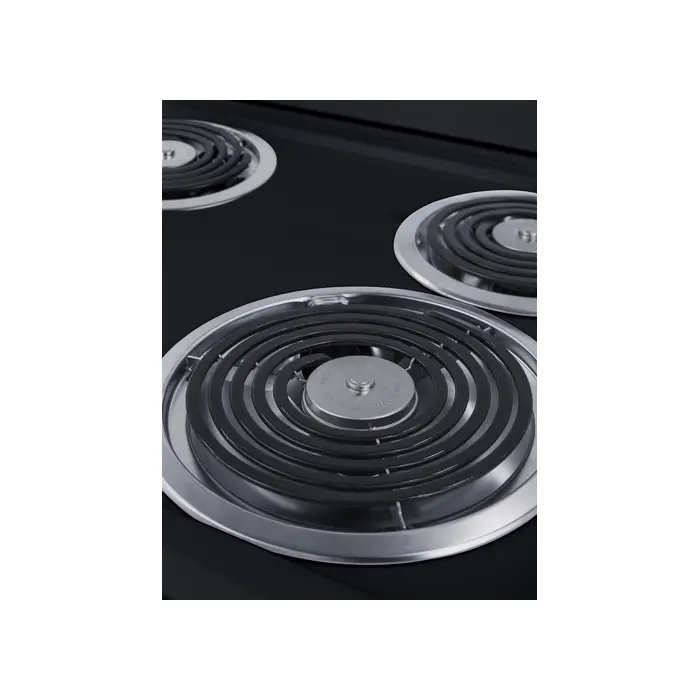

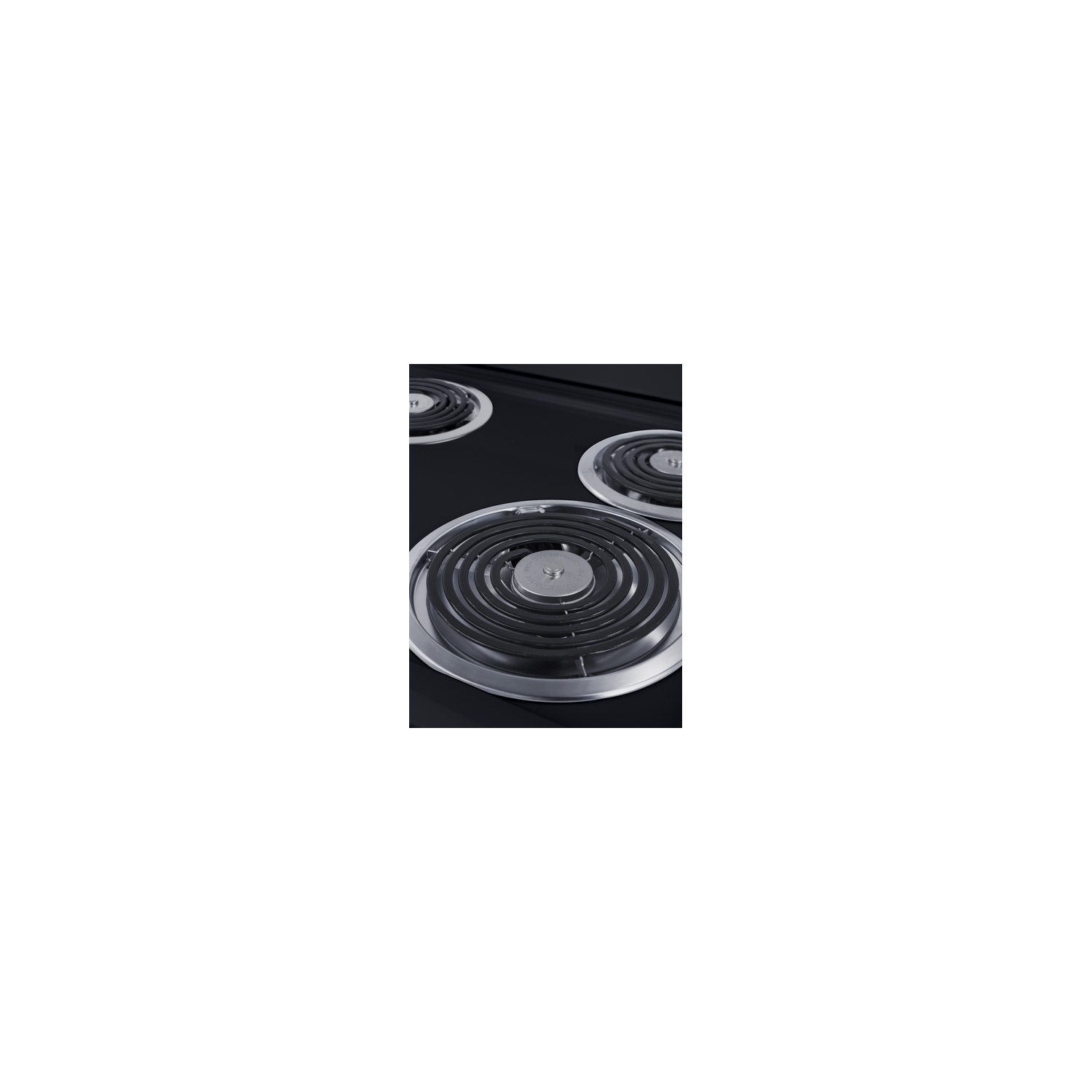

Four coil elements with chrome drip pans Surface features one 8" and three 6" elements to accommodate a range of sizes and cooking needs

Safety elements Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking

Slide-out storage drawer Save even more space by storing your pots and pans in this pull-out compartment

Waist-high broiler Broiler is located inside the oven, making it easier to use

Oven window Large window makes it easier to monitor your cooking

Oven light Interior light included for easy viewing

Backsplash High backing prevents stovetop contents from splashing up or boiling over and staining back walls

Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Push-to-turn knobs To prevent accidents, knobs require a small amount of force when turning

Chrome drip pans Each element includes a removable chrome pan for easier cleaning

Adjustable racks Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism

Compact broiler tray Two-piece pan and cover included

Porcelain interior Oven interior features high quality porcelain construction for long-lasting durability

Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range

Cord not included Compatible with standard 40 amp 3 or 4-wire range cords

Color matched handle & knobs Jet black surface and oven window, with matching knobs and handle for a modern look

ADA-compliant design Front-located controls and proper sizing meets ADA guidelines for added accessibility

TAA compliant This electric range was made in North America and meets the TAA guidelines

Anti-tip bracket Safety feature included for user installation to help prevent accidents

DOWNLOADS

BROCHURE w/ DRAWINGS (RE2413B.pdf)

TECHNICAL DRAWING (.dwg) (PROEL24SS_RE2413B_RE2411W_REX2451SSRT__2_.dwg)

ASSEMBLY DRAWING (PROEL24SS_RE2413B_RE2411W_REX2451SSRT-Assembly__1_.pdf)

USE & CARE (RE2413B-User-Manual.pdf)
