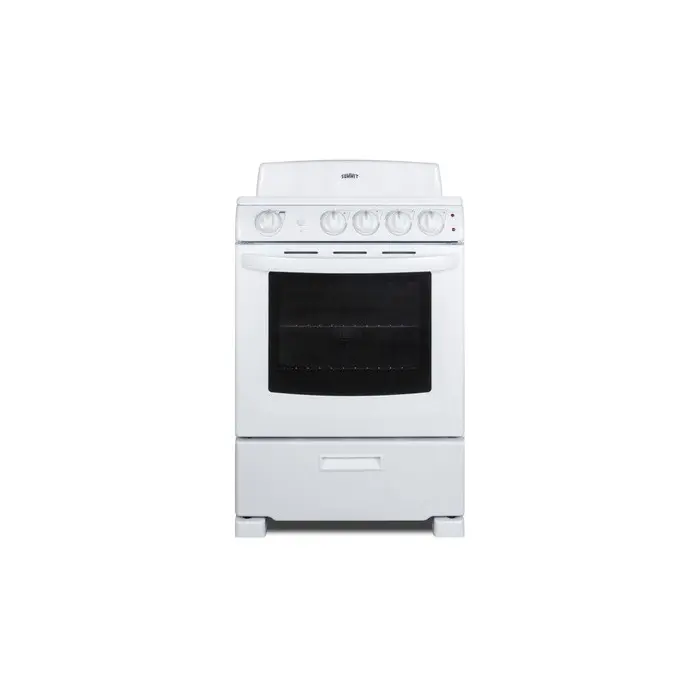

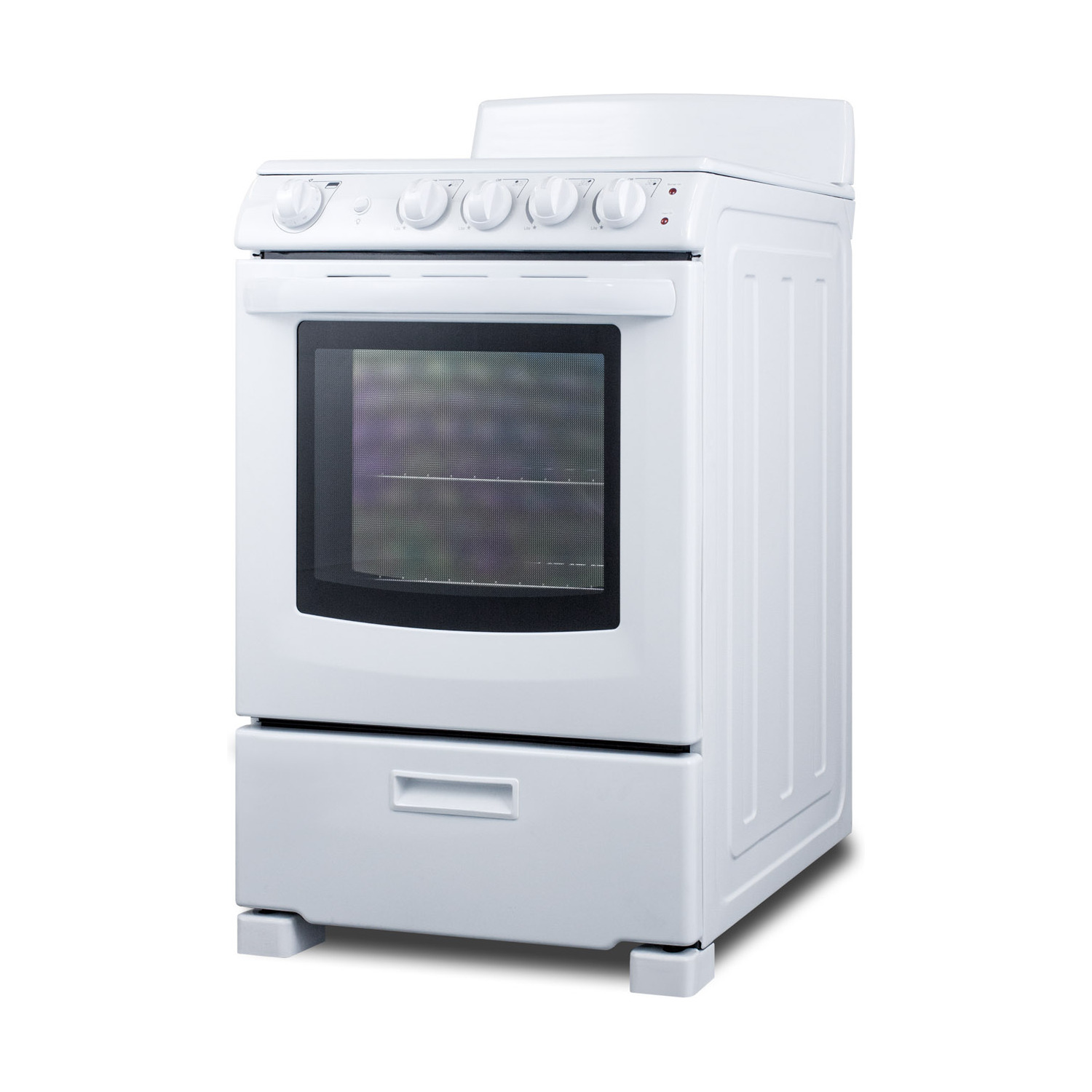

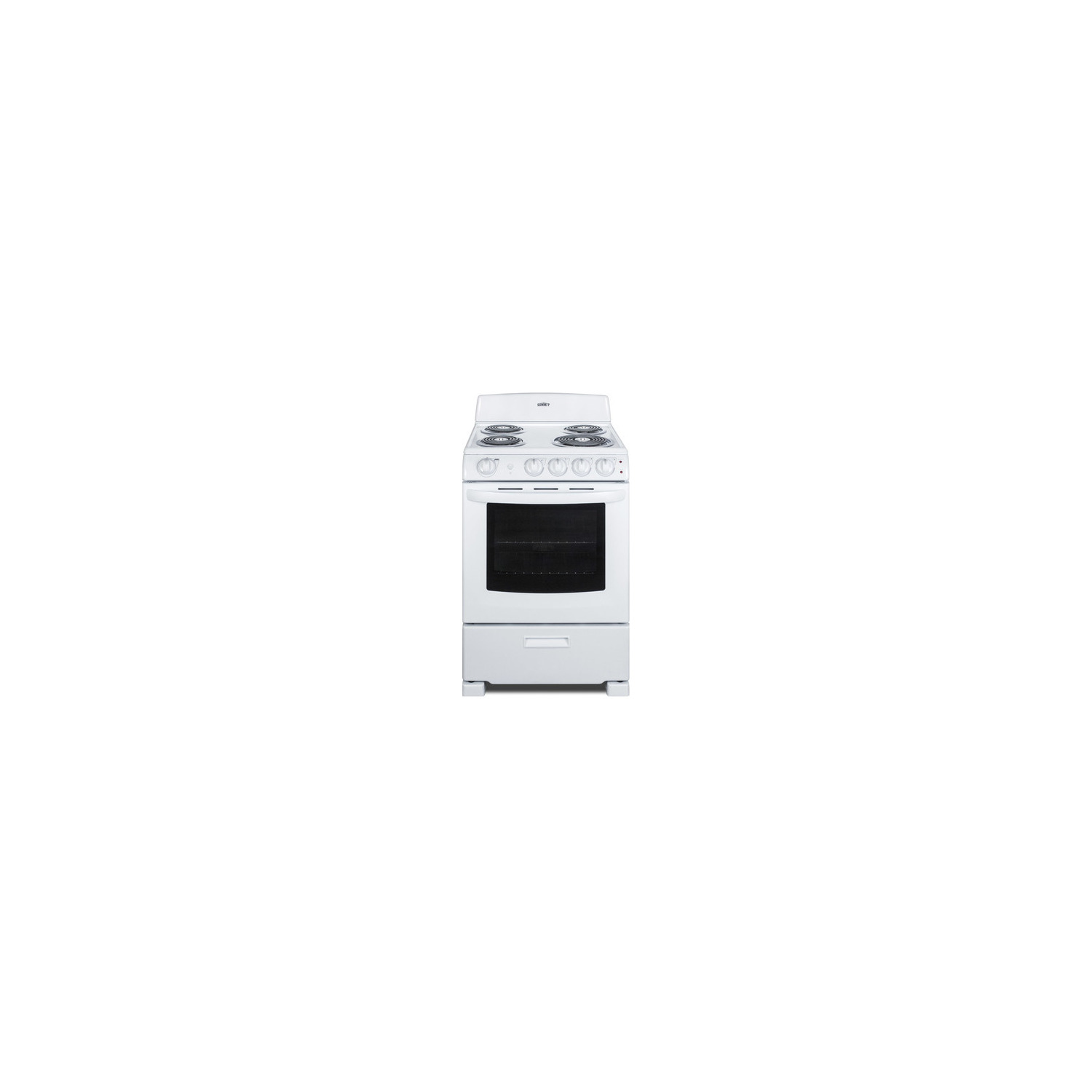

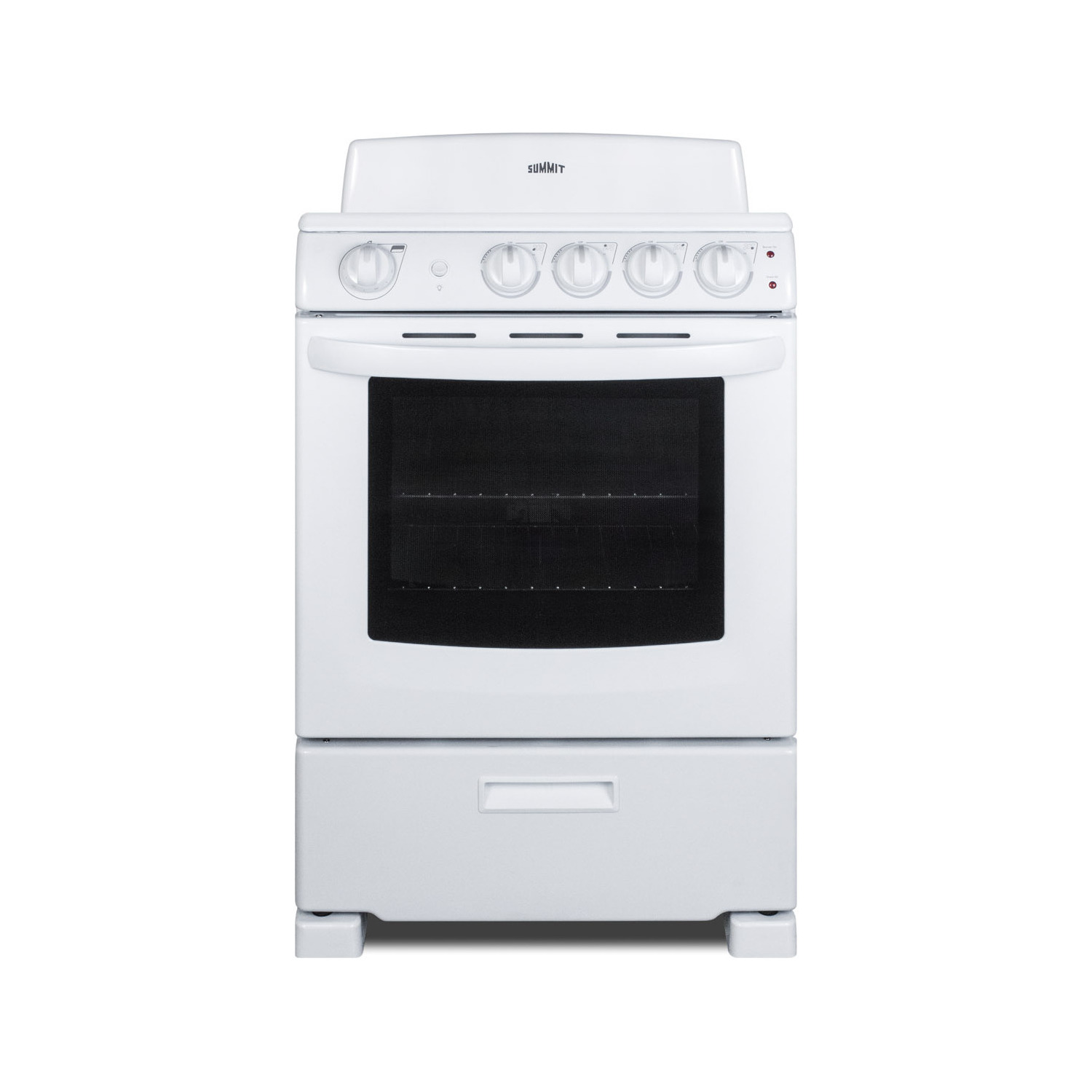

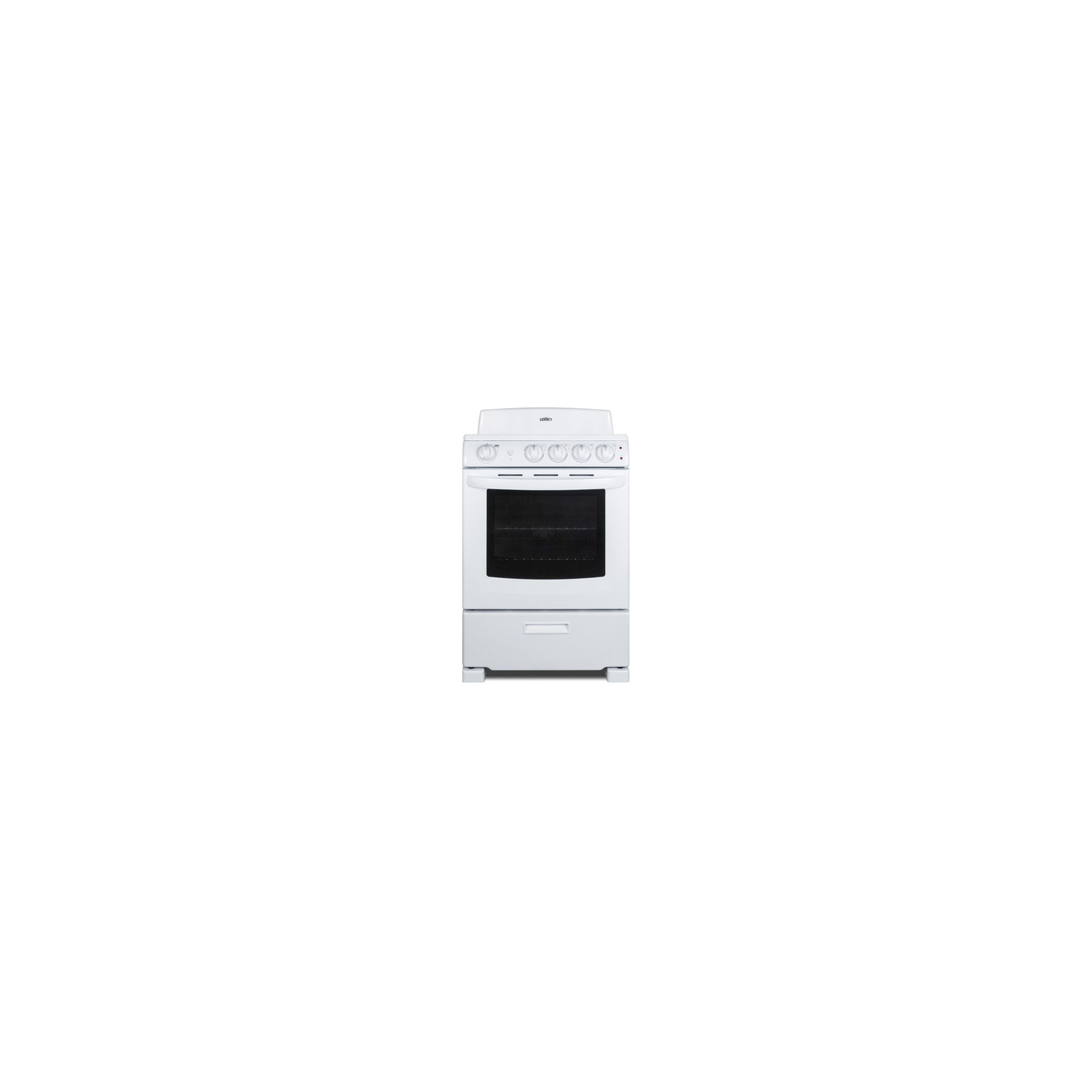

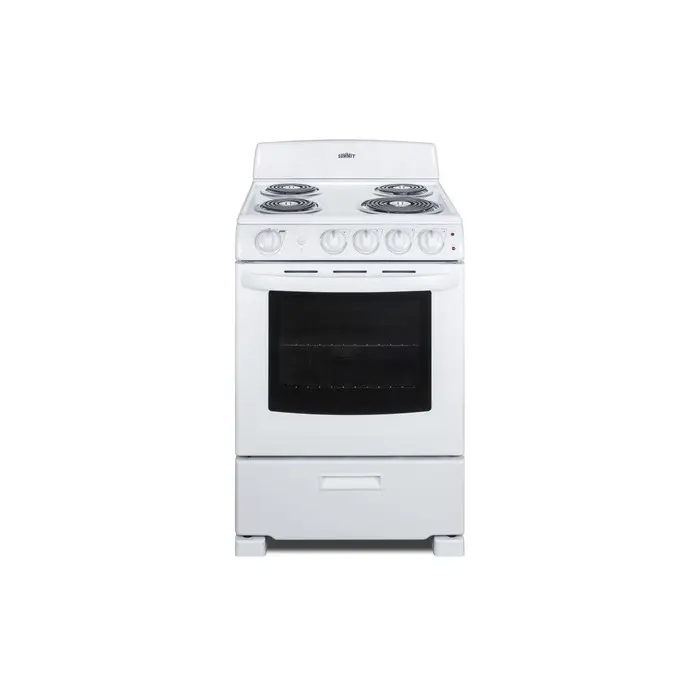

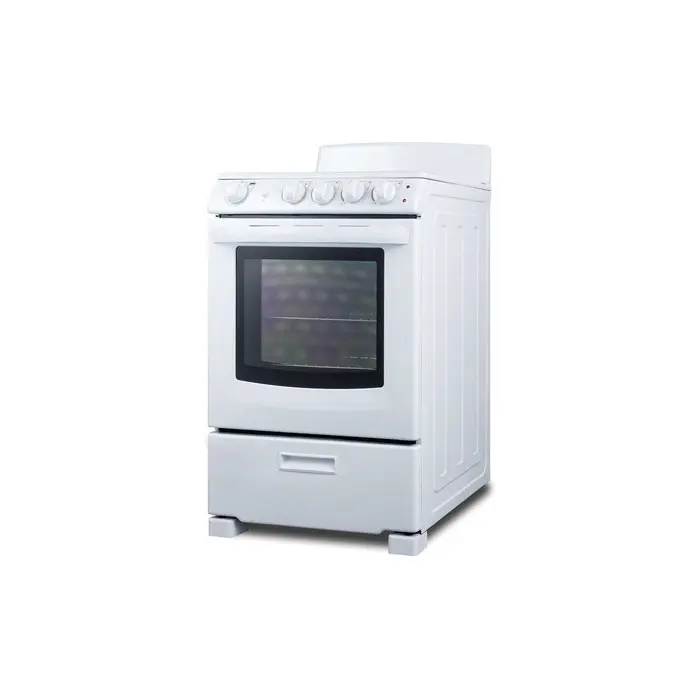

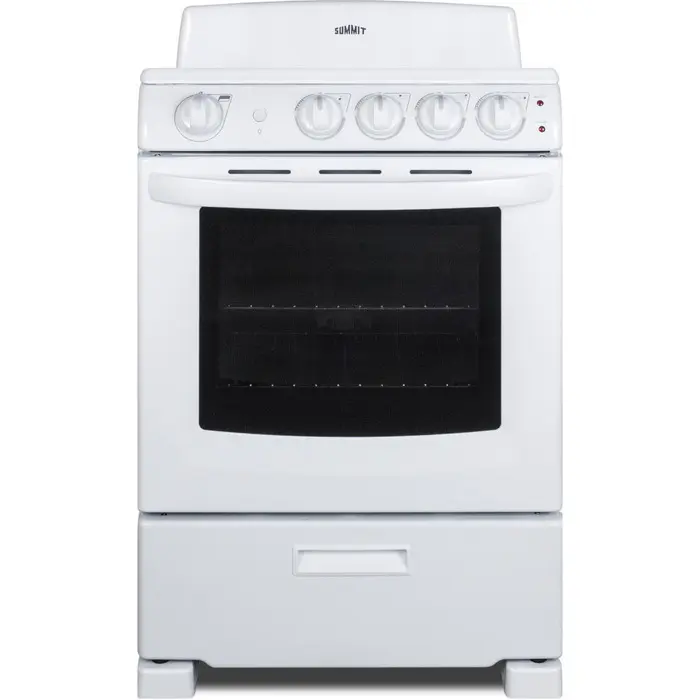

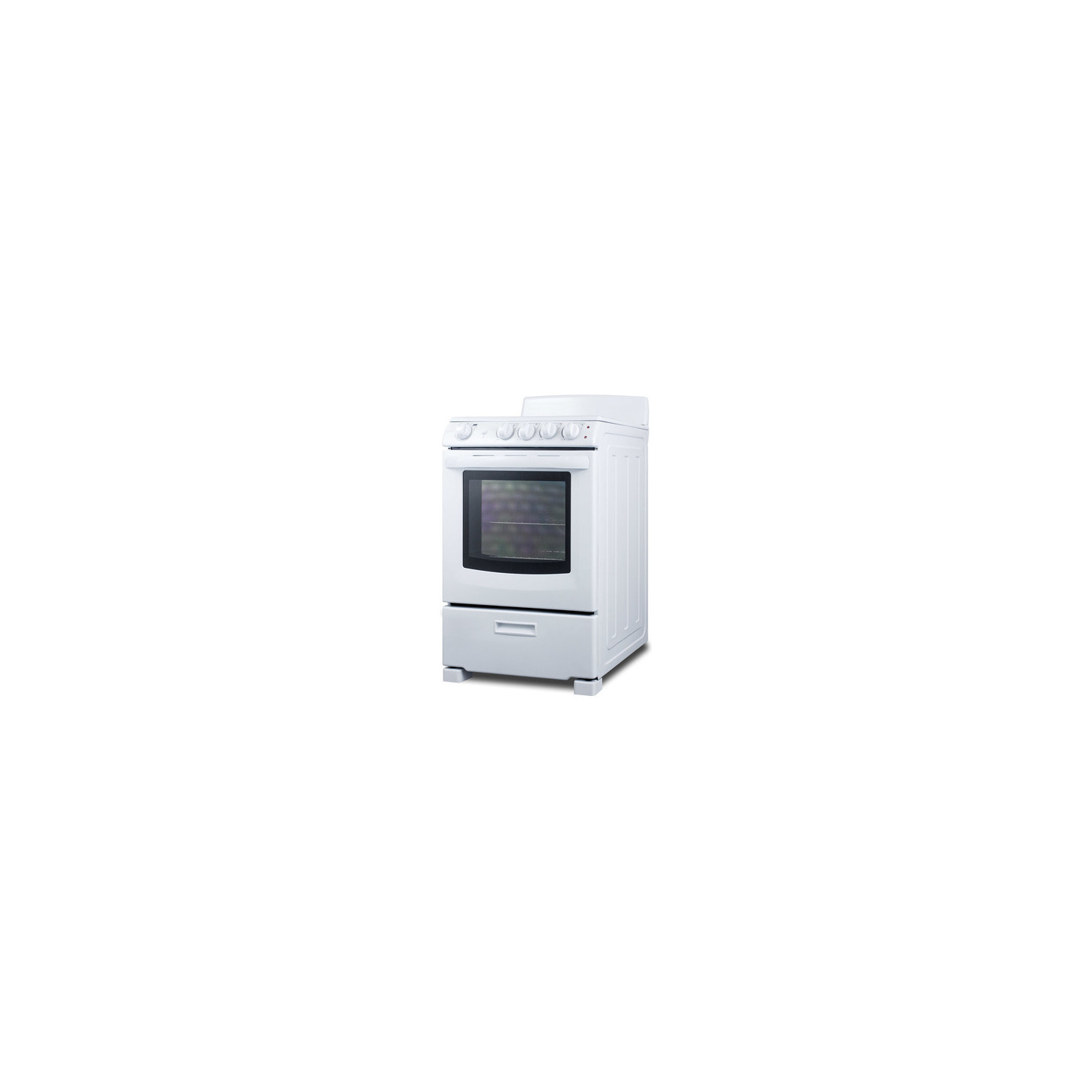

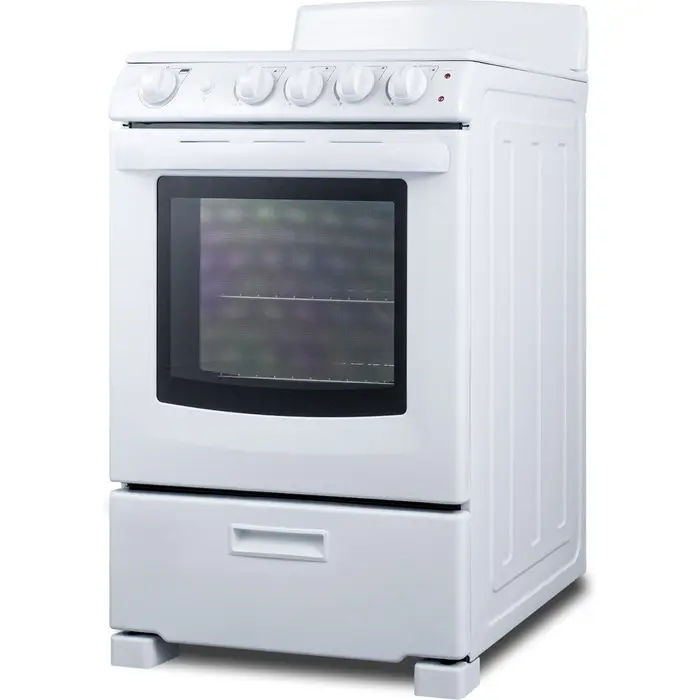

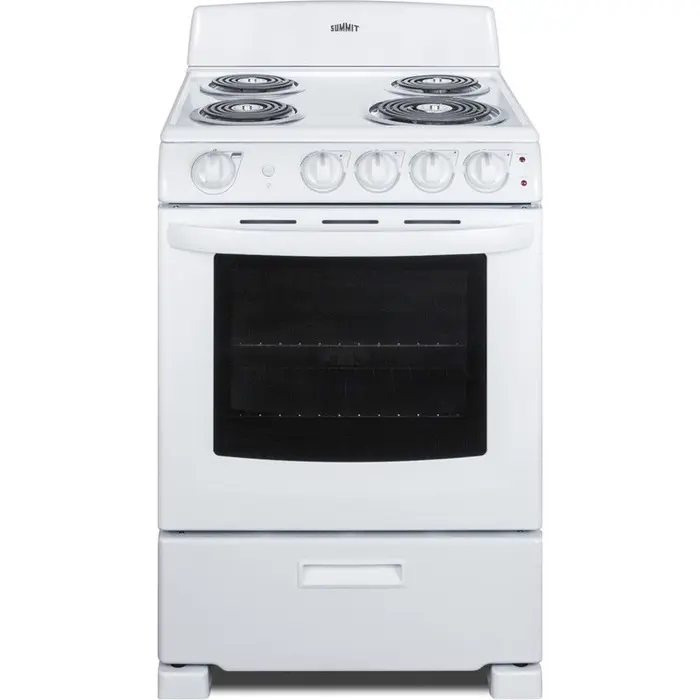

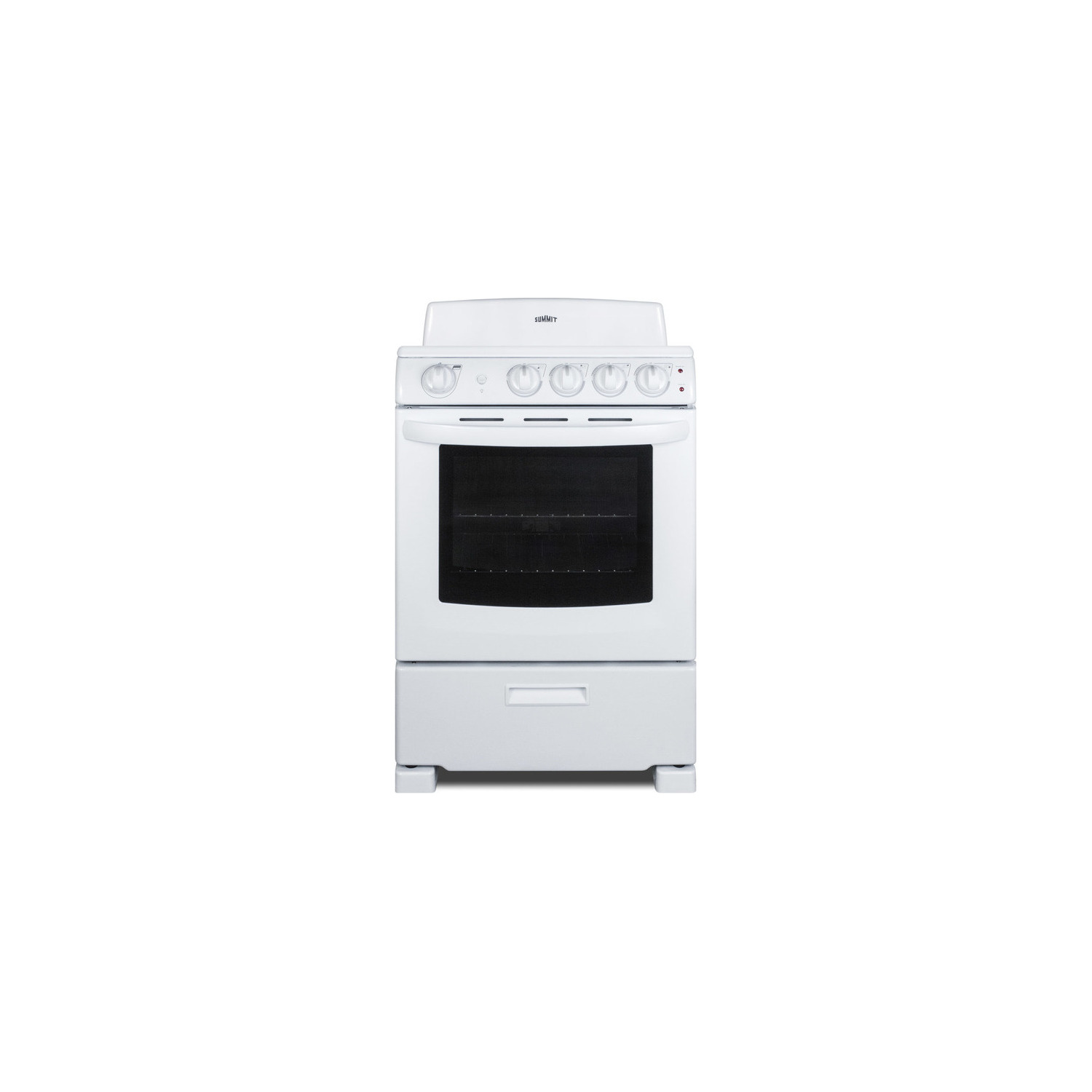

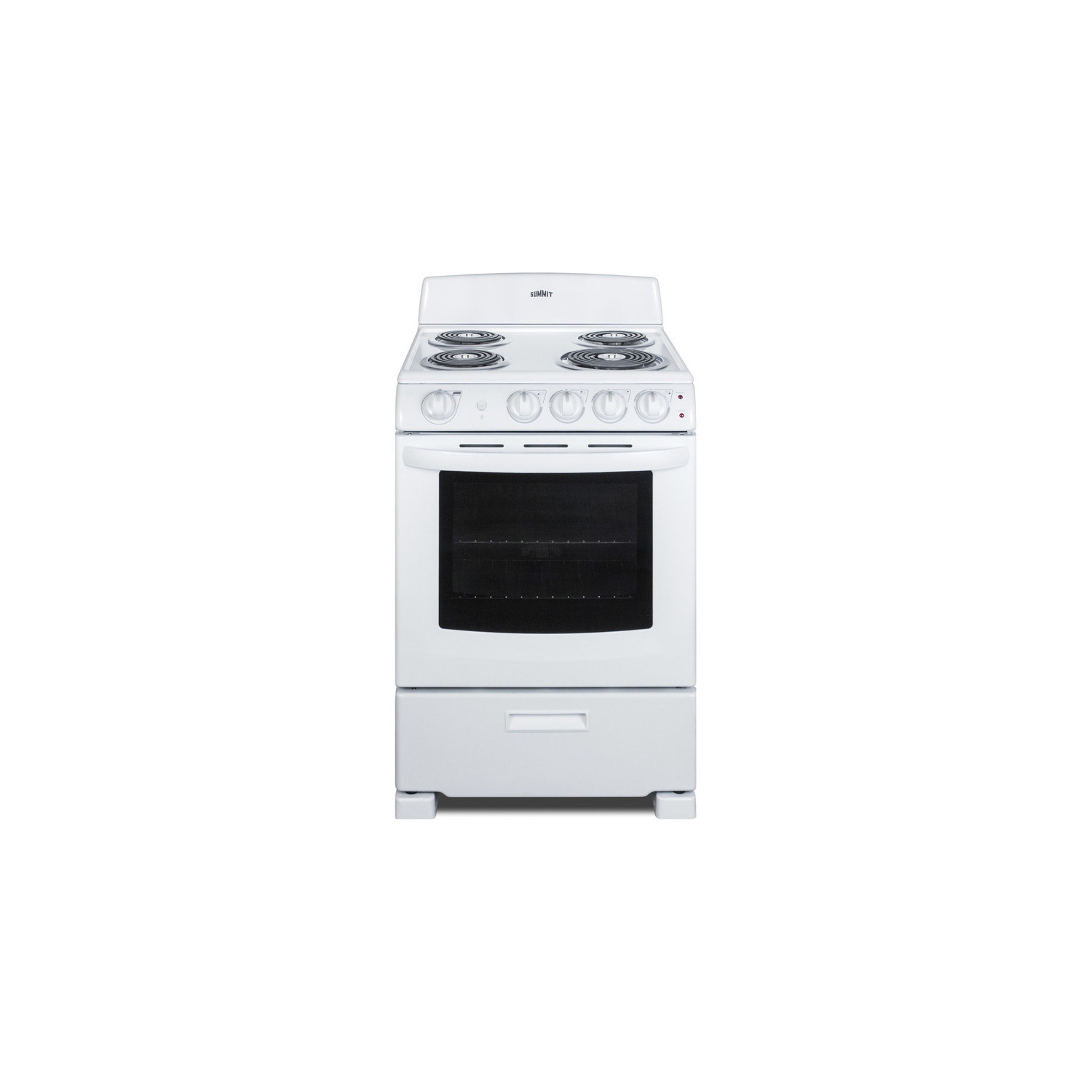

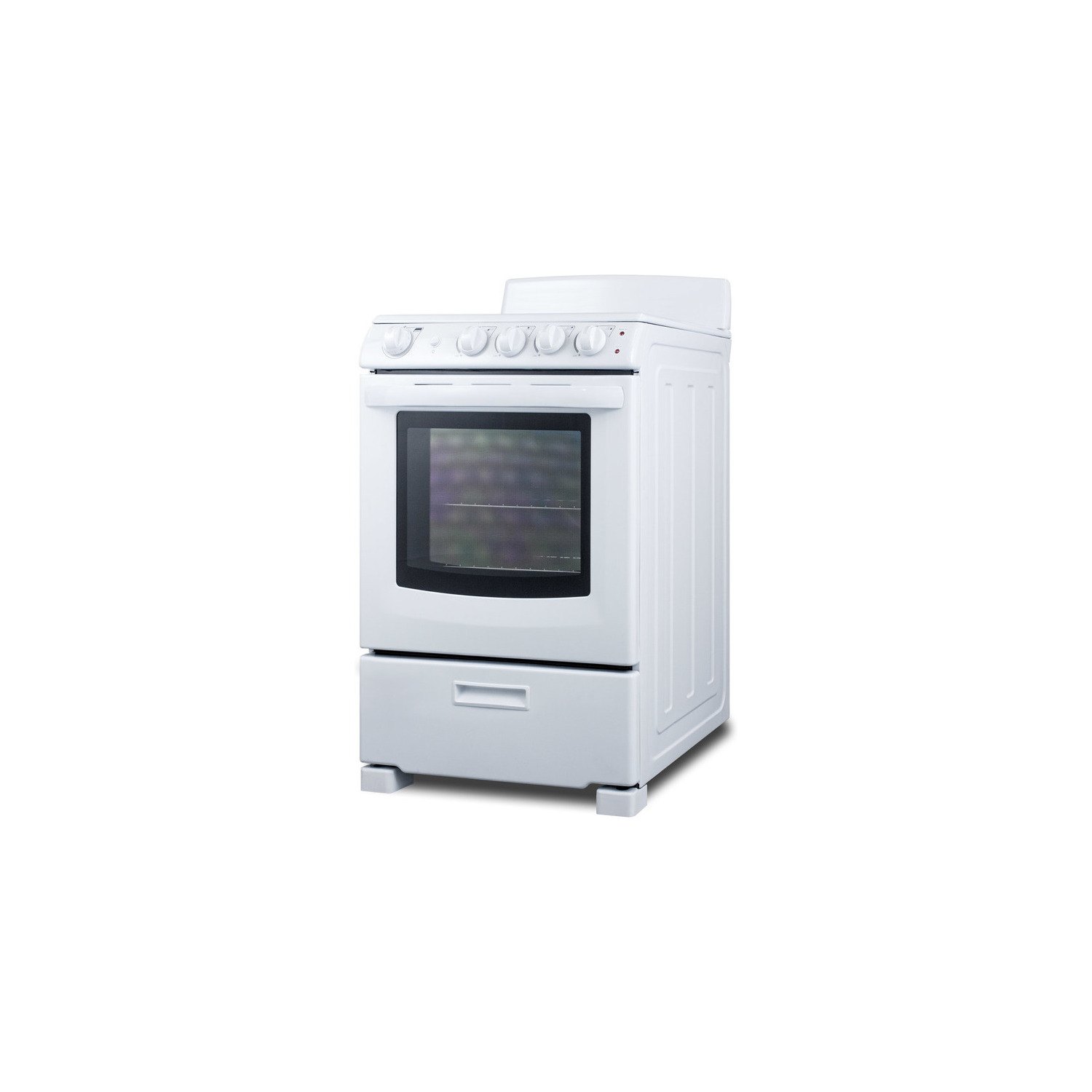

Summit 24 inch wide electric coil top range in white finish with oven window, RE2411W

SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 24" wide fits.

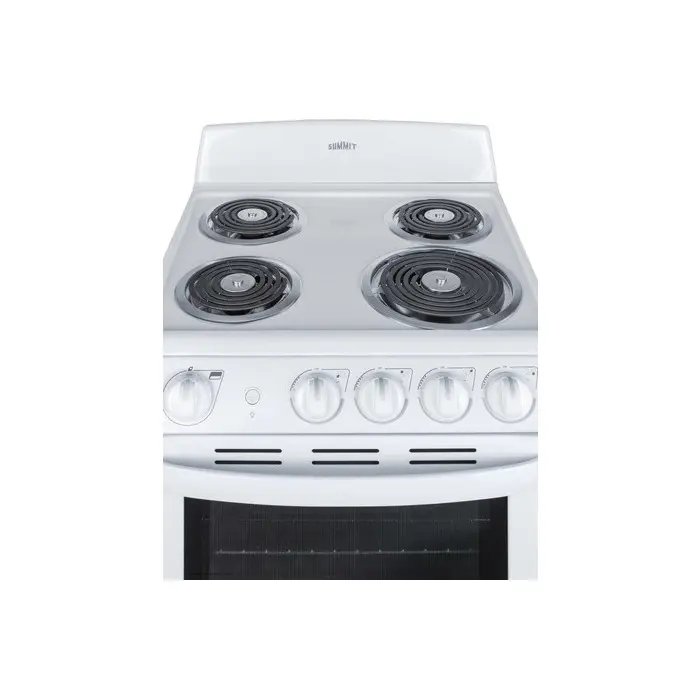

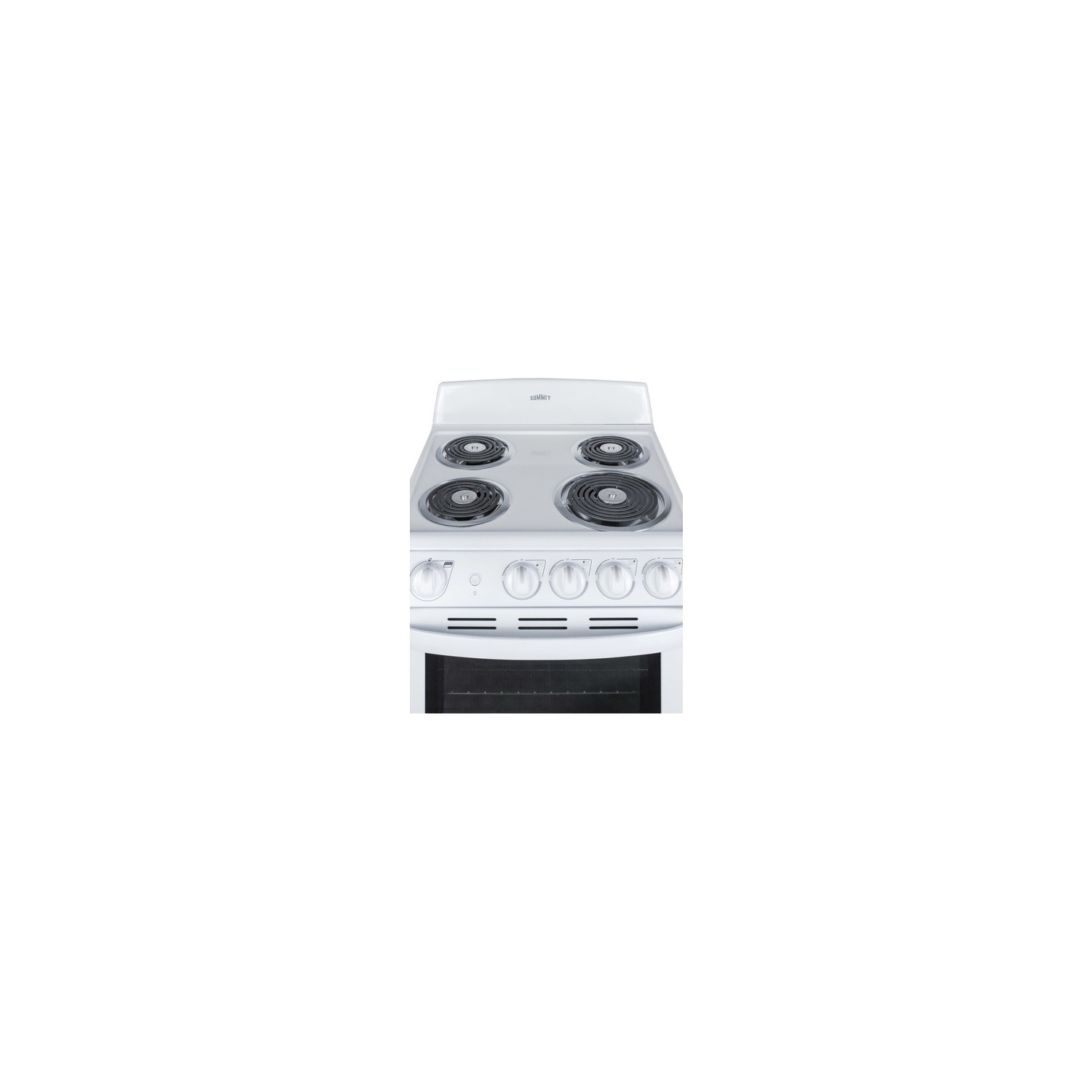

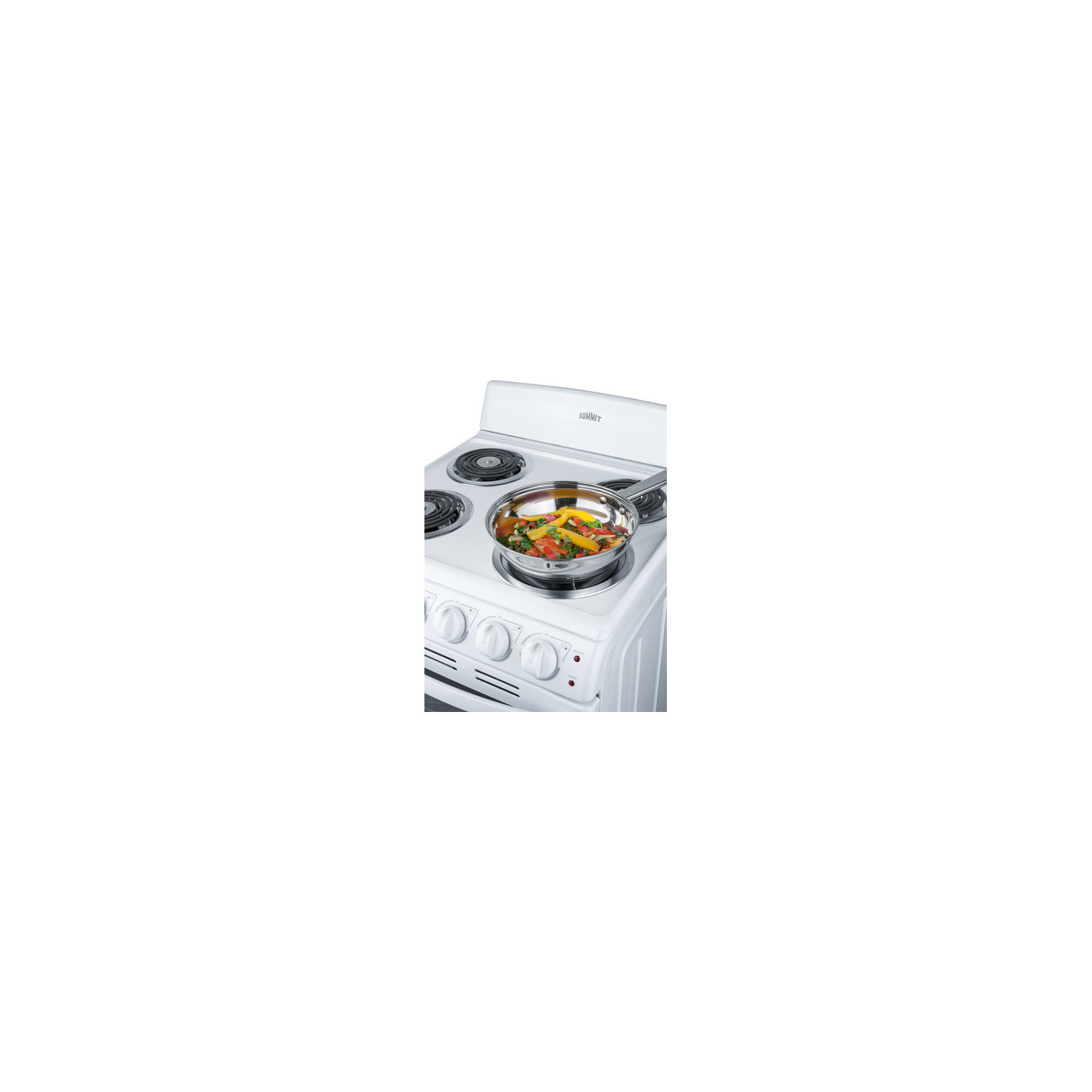

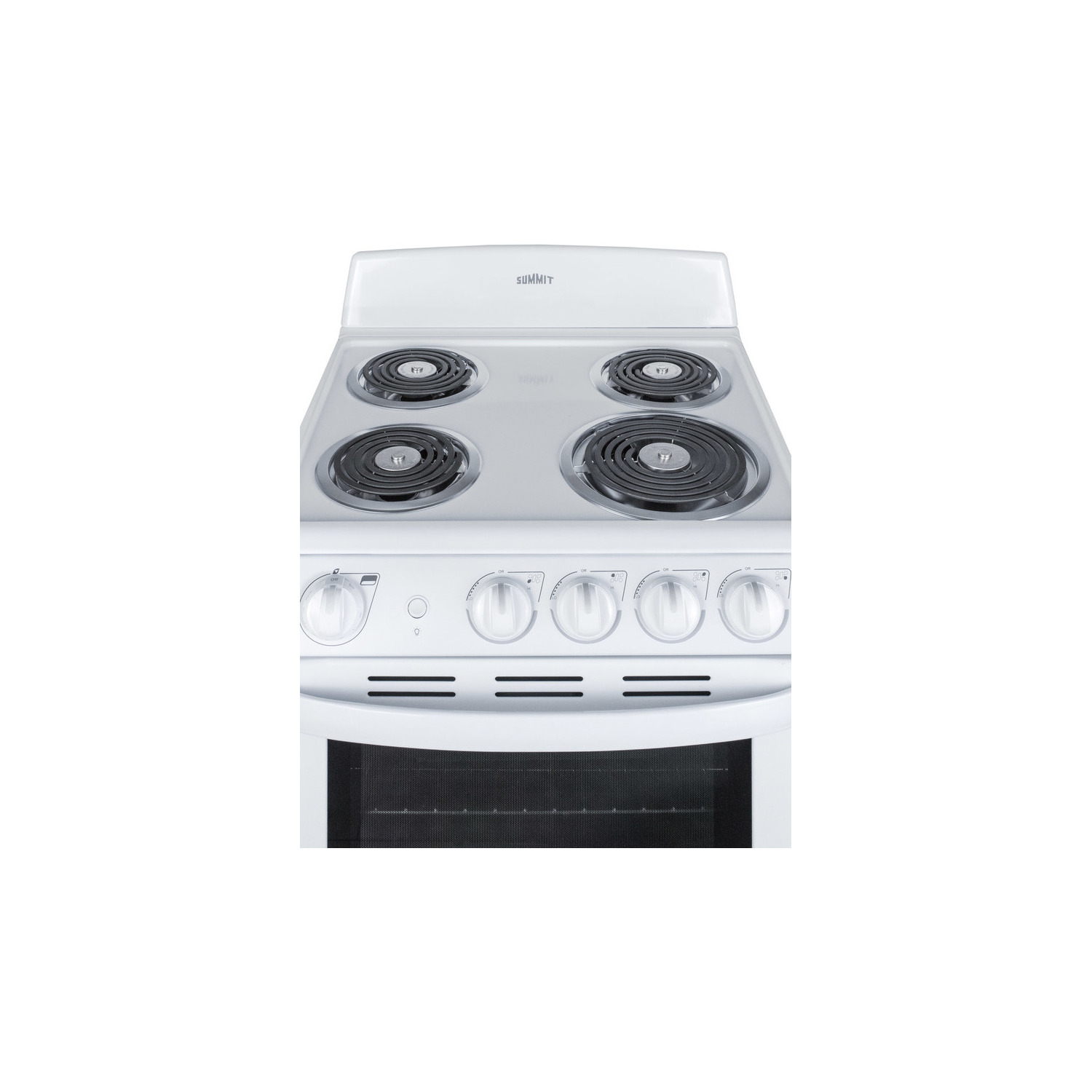

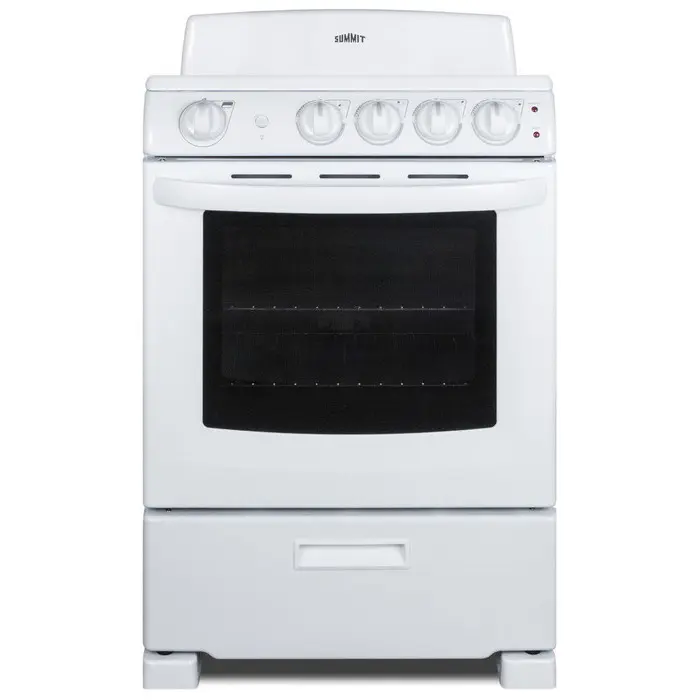

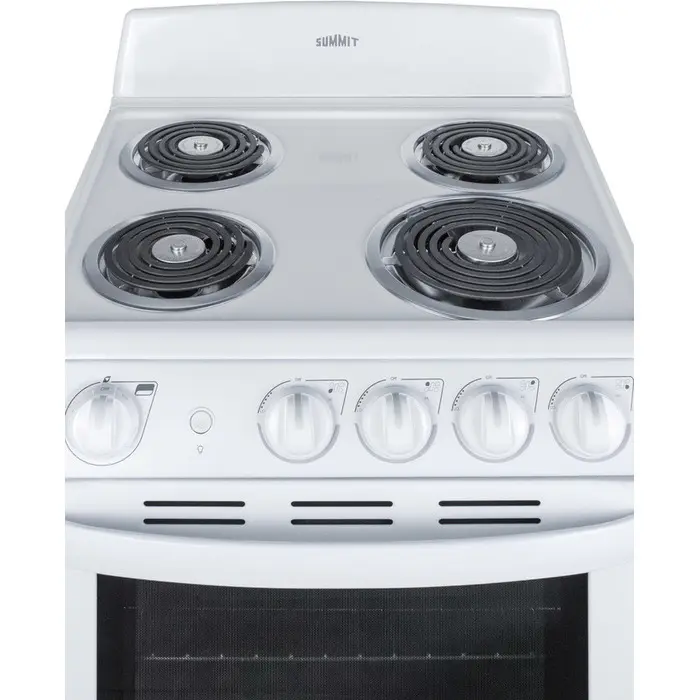

Made in North America, the RE2411W is a 220V electric range designed for 24" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the burners and oven are on.

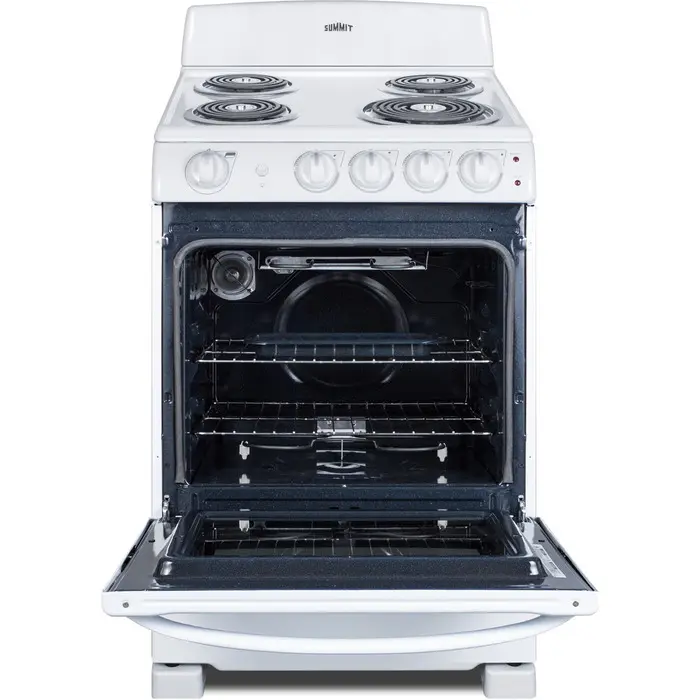

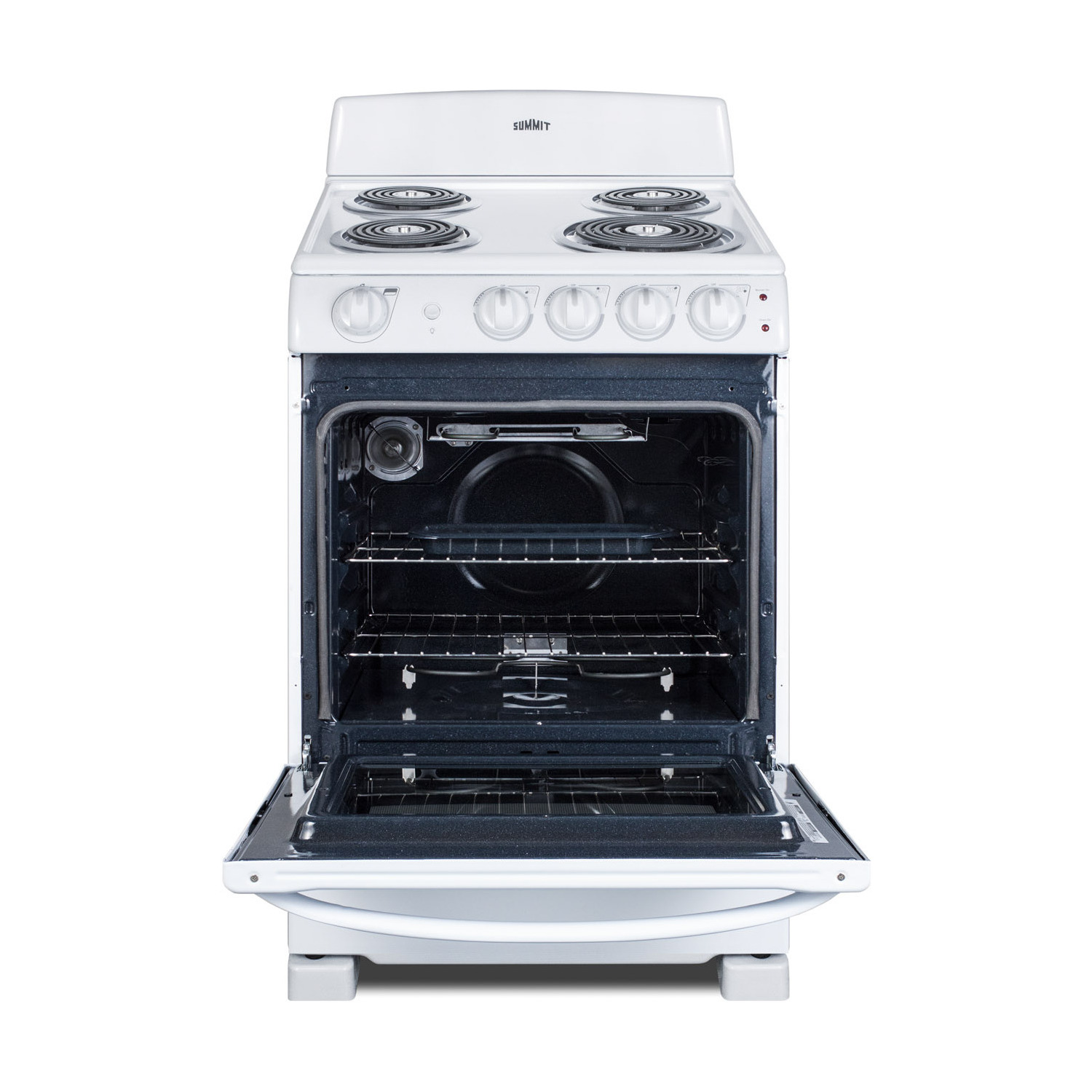

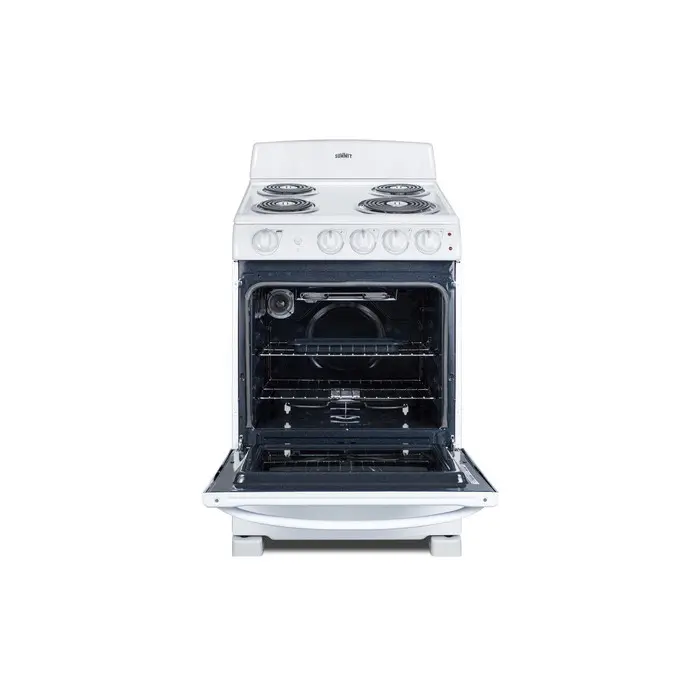

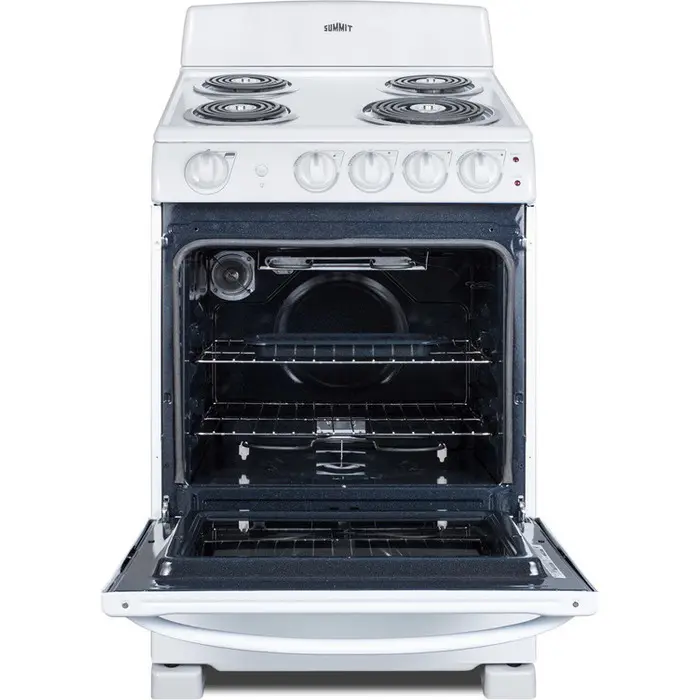

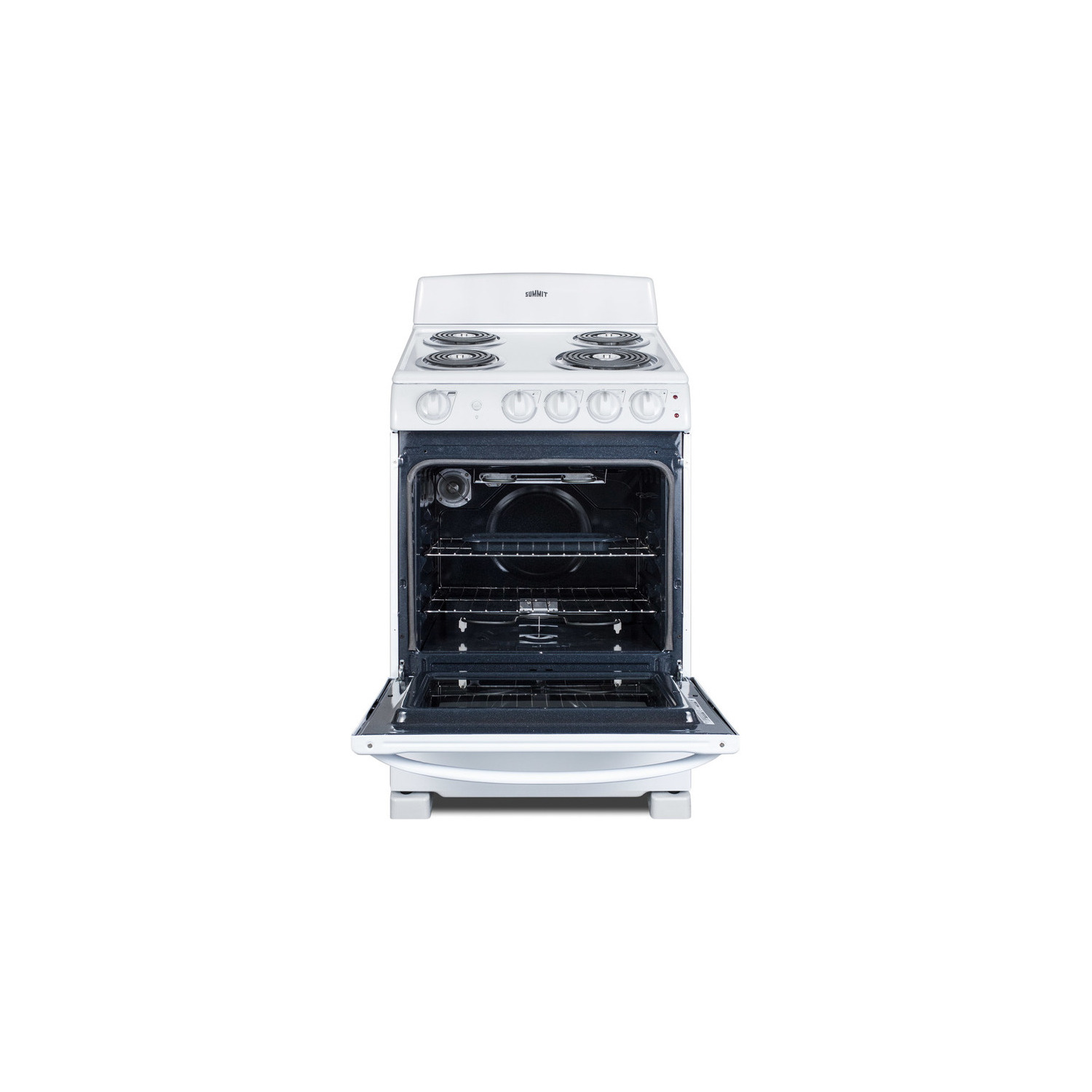

The RE2411W features a large oven window with an interior light to make it easy for users to monitor their cooking. Inside, the 2.9 cu.ft. interior is made from durable porcelain and includes two adjustable racks. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The lower compartment is a slide-out storage drawer for added convenience.

The RE2411W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and user-friendly features, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 20" wide choices, browse our website.

Note: this item replaces the RE241W.

SPECIFICATIONS

Overview

Nominal Height 42.0" (107 cm)

Height of Cabinet 42.0" (107 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.75" (65 cm)

Depth with door at 90° 43.25" (110 cm)

Door White

Cabinet White

US Electrical Safety UL

Voltage/Frequency 220 V AC/60 Hz

Weight 135.0 lbs. (61 kg)

Parts & Labor Warranty 1 Year

UPC 761101058290

Electric Range

Oven Capacity 2.9 cu.ft. (82 L)

Cooktop Surface Metal

Element Type Coils

Number of Elements 4

Element #1 Size 8.0" (20 cm)

Element #1 Wattage 2400.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 1250.0

Element #3 Size 6.0" (15 cm)

Element #3 Wattage 1250.0

Element #4 Size 6.0" (15 cm)

Element #4 Wattage 1250.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 15.0" (38 cm)

Oven Interior Width 20.0" (51 cm)

Oven Interior Depth 17.5" (44 cm)

Power Source 220V

Storage Compartment Yes

Broiler Location Inside Oven

FEATURES

24" width Perfectly sized for apartments and smaller home kitchens

Storage drawer Lower compartment offers the perfect space-saving storage solution for pots and pans

Oven window Large window makes it easier to monitor your cooking

Oven light Interior light included for easy viewing

Waist-high broiler Broiler is located inside the oven, making it easier to use

Backsplash High backing prevents stovetop contents from splashing up or boiling over and staining back walls

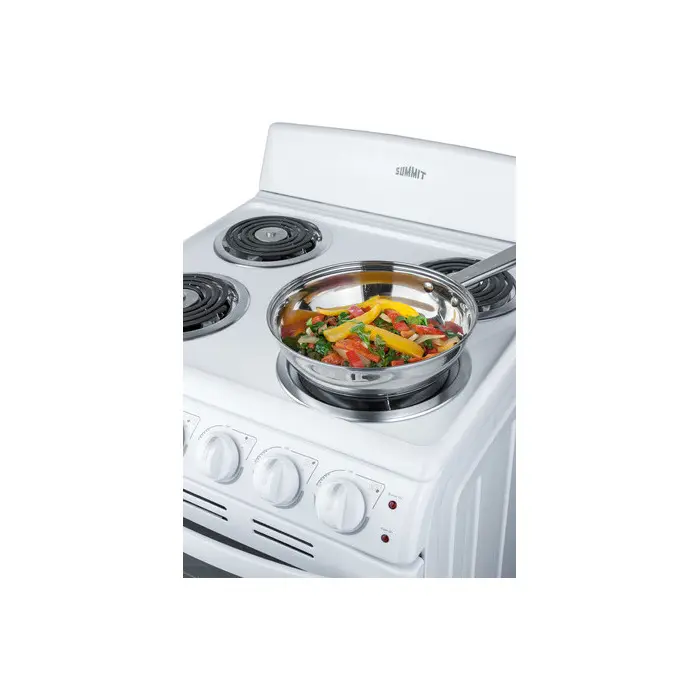

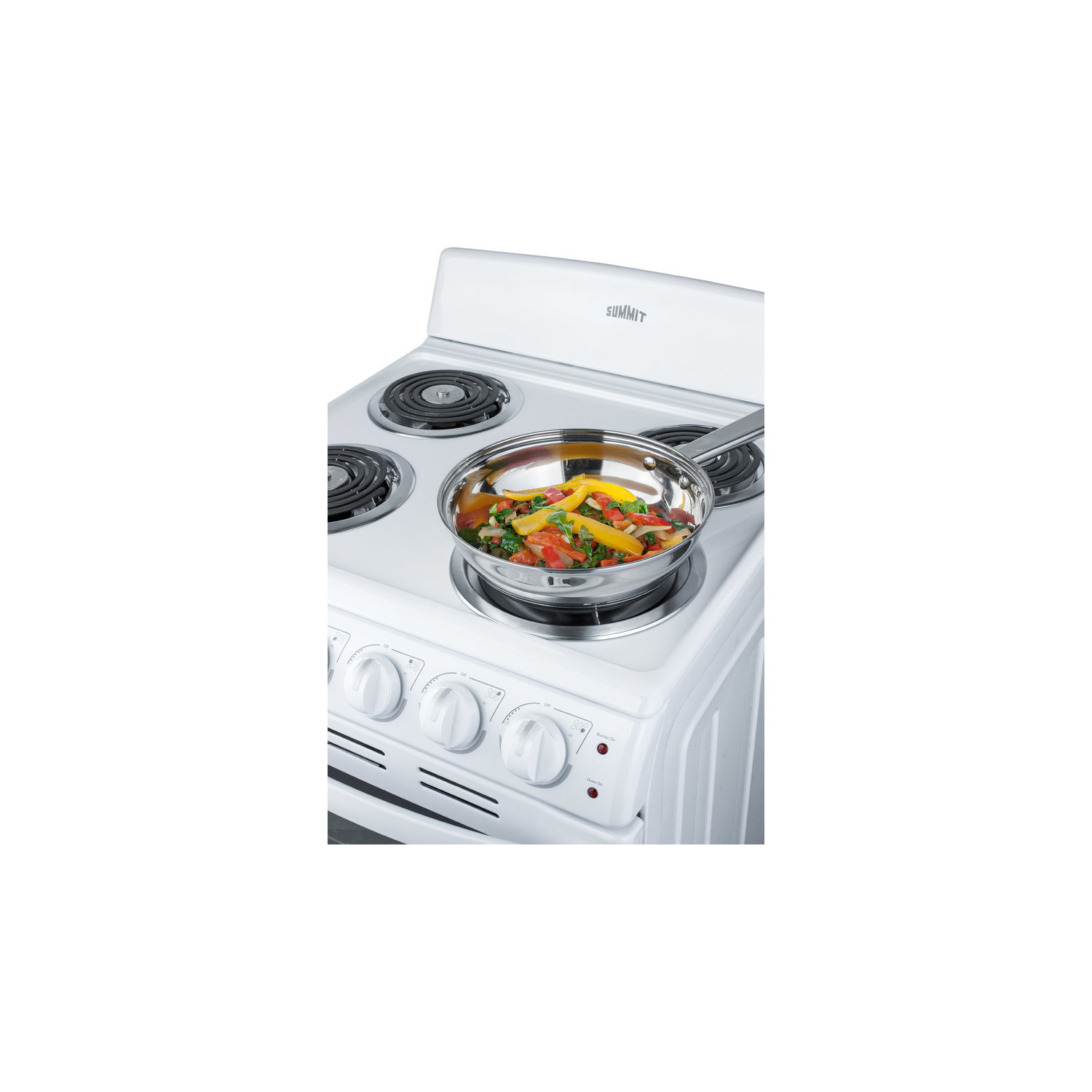

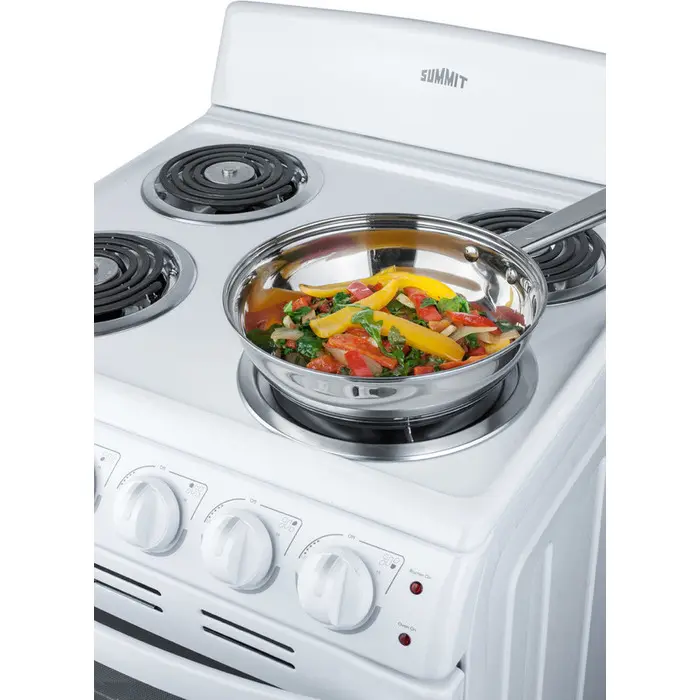

Four cooking zones Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs

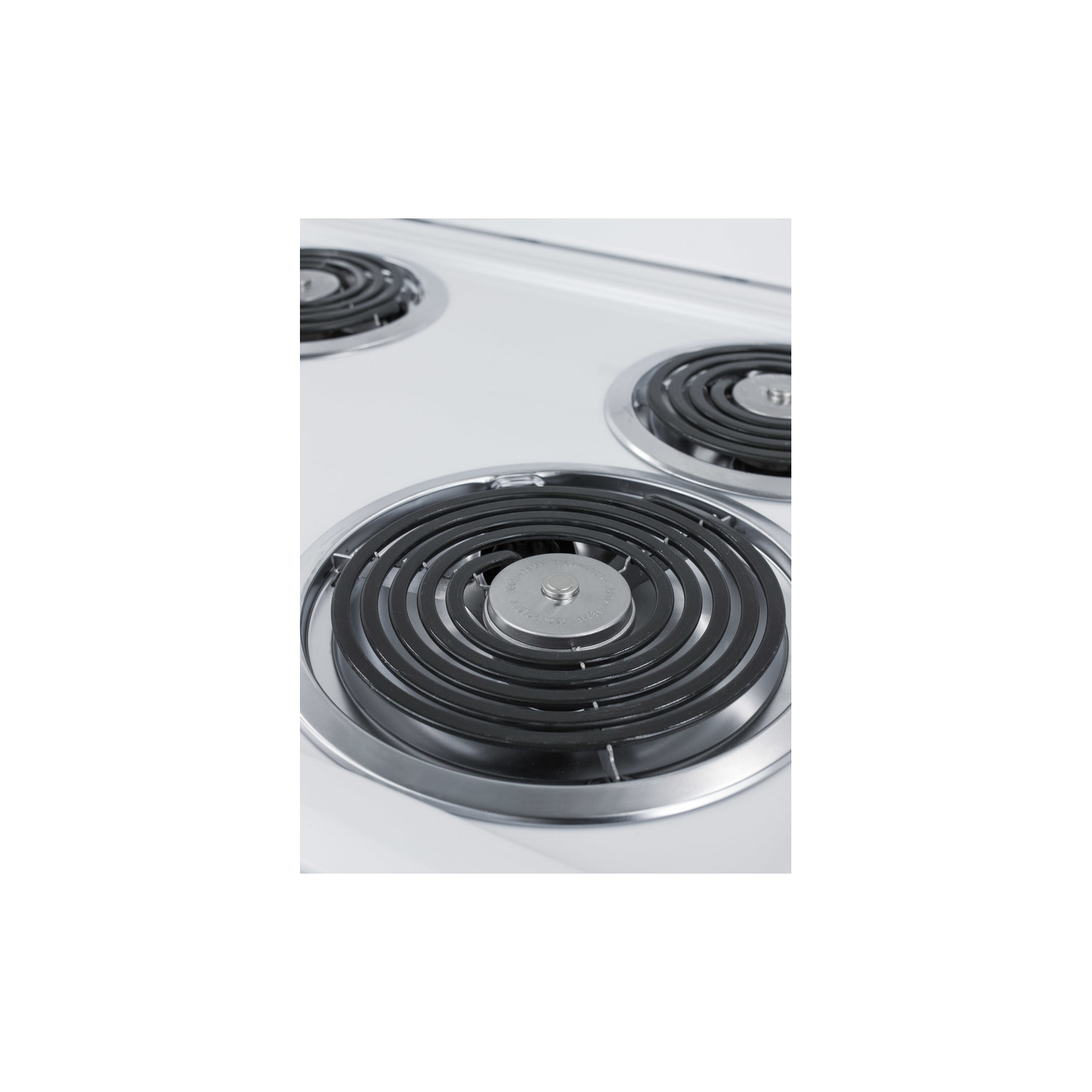

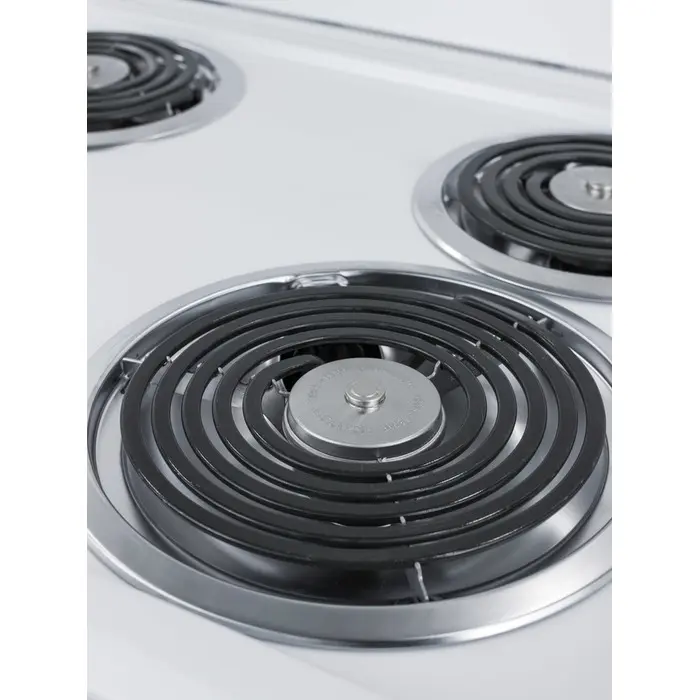

Safety elements Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking

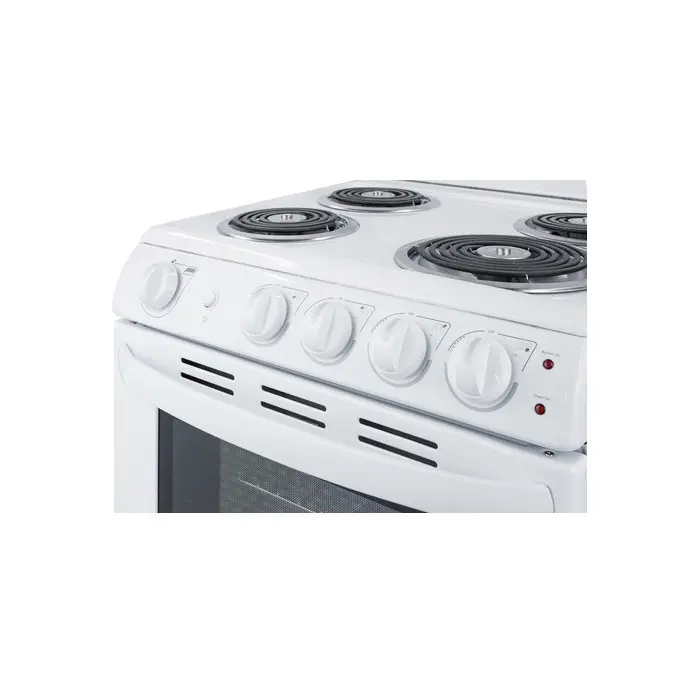

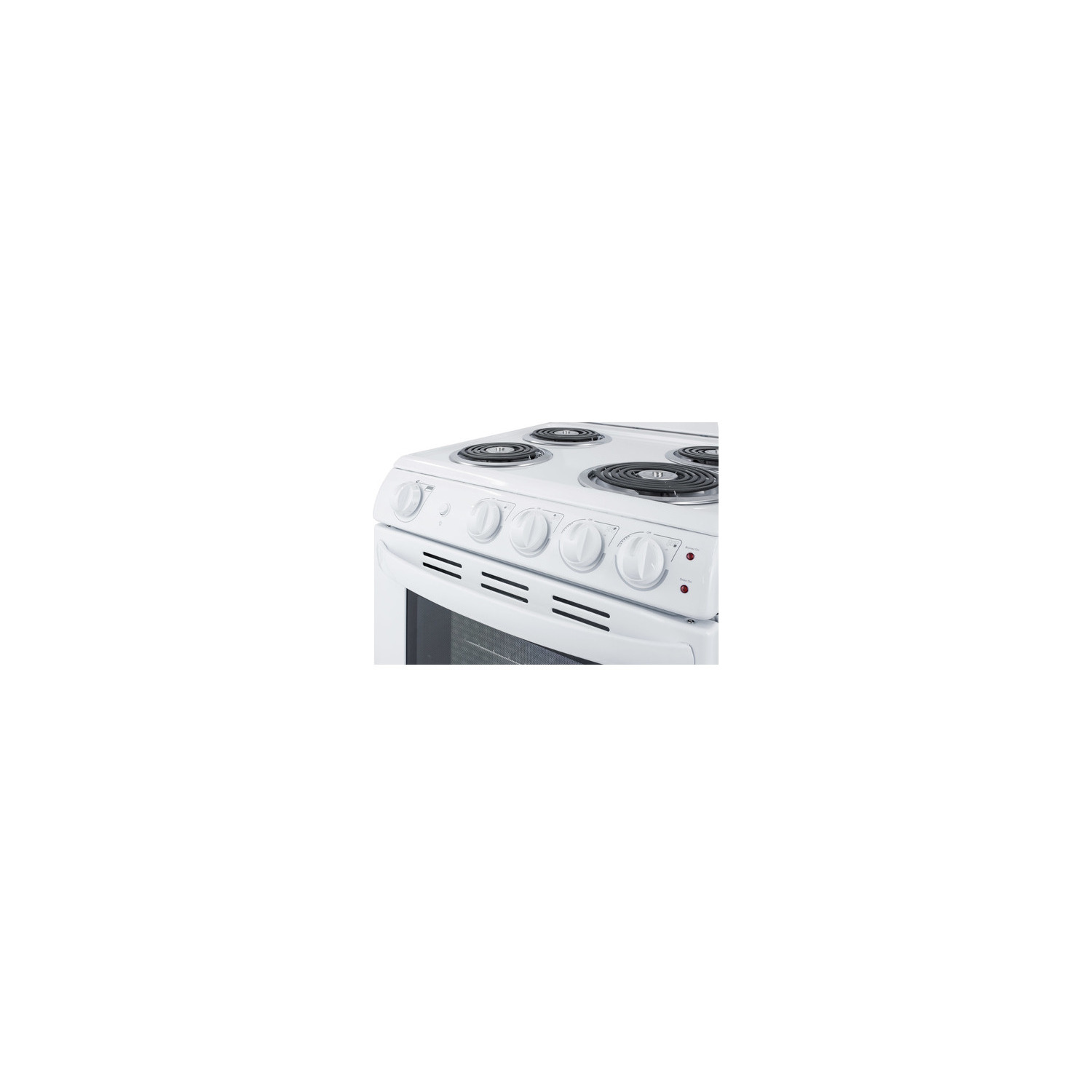

Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

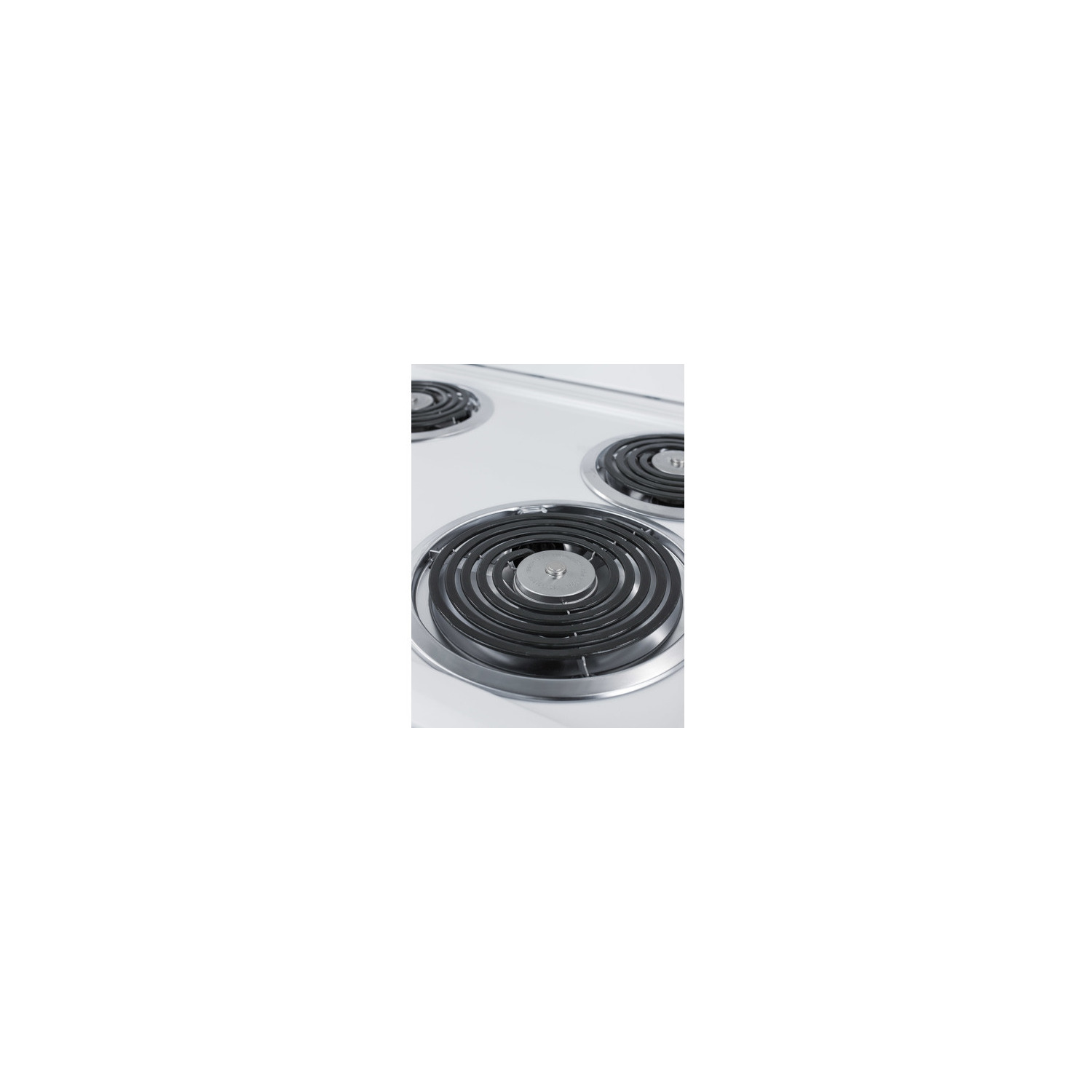

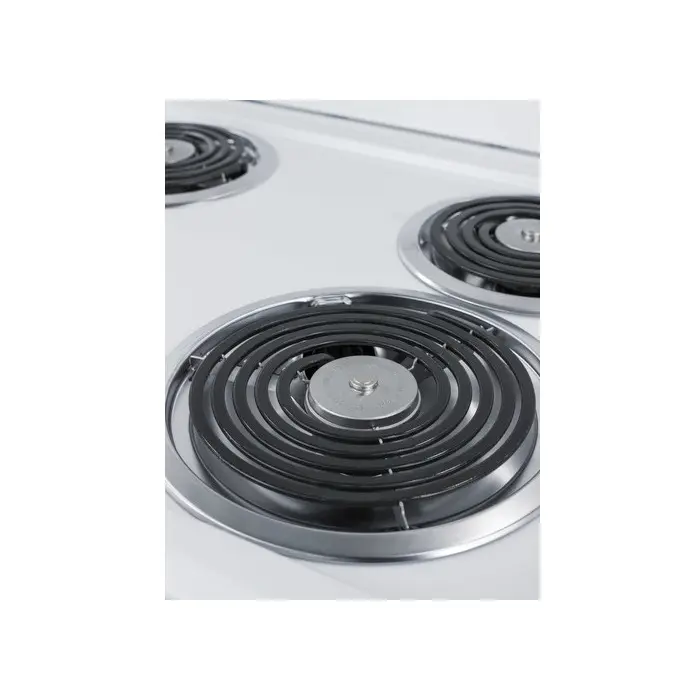

Chrome drip pans Each element includes a removable chrome pan for easier cleaning

Textured cabinet Fully finished white cabinet constructed from steel

Color matched knobs & handle White-on-white design for an attractive look ideal for any kitchen

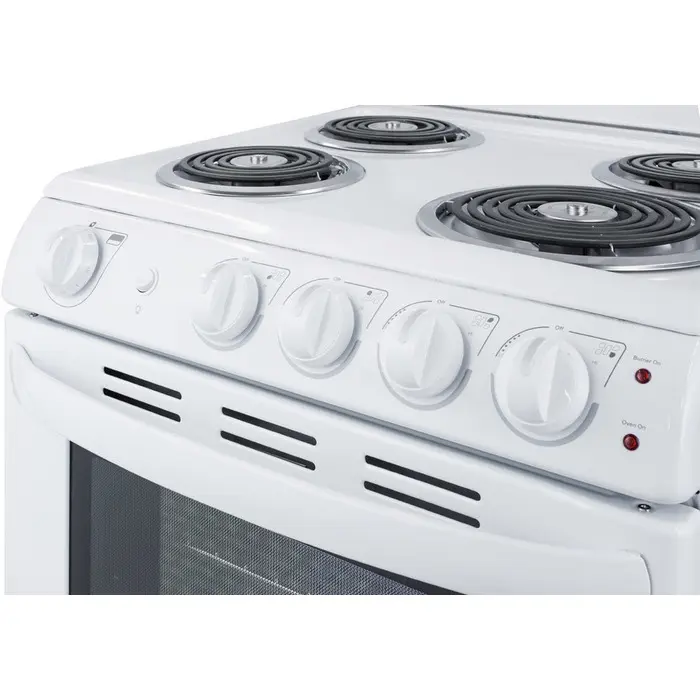

Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range

Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism

Push-to-turn knobs To prevent accidents, knobs require a small amount of force when turning

Cord not included Compatible with standard 40 amp 3 or 4-wire range cords

ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

DOWNLOADS

BROCHURE w/ DRAWINGS (RE2411W.pdf)

TECHNICAL DRAWING (.dwg) (RE2411W_ELECTRIC_RANGE__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_RE2411W_24_inches_Wide_Electric_Coil_Range.rfa)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (RE2411W-User-Manual.pdf)
