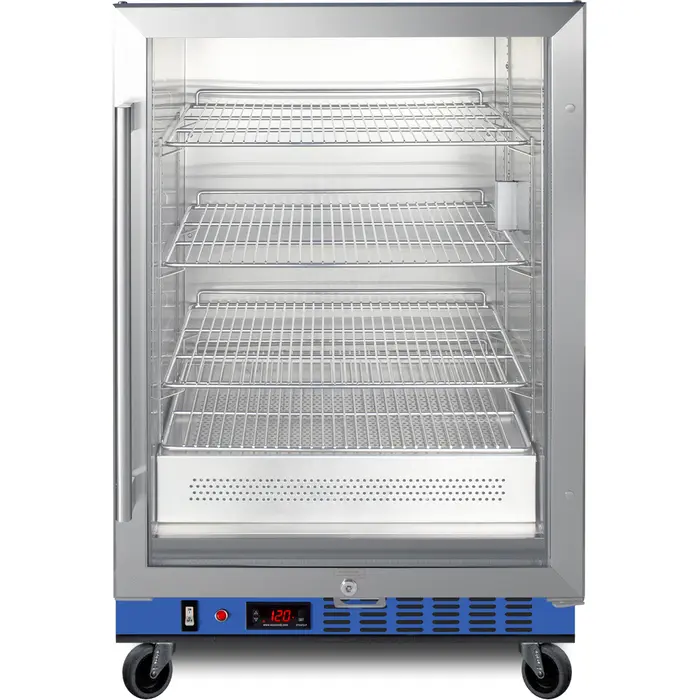

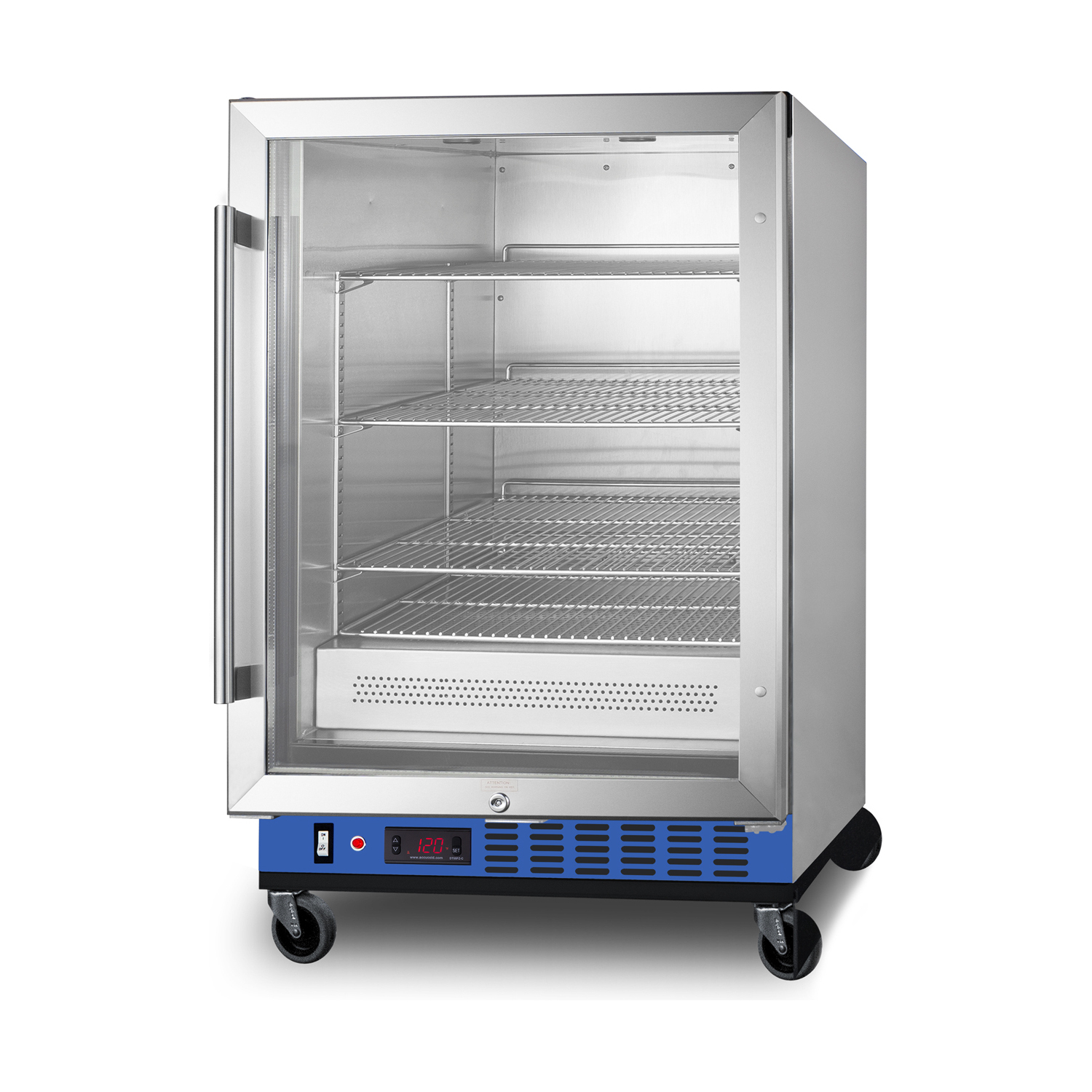

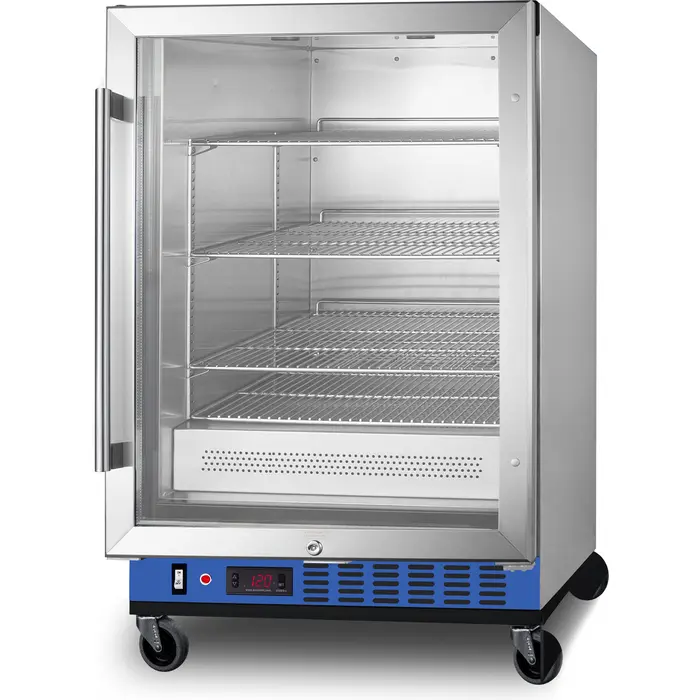

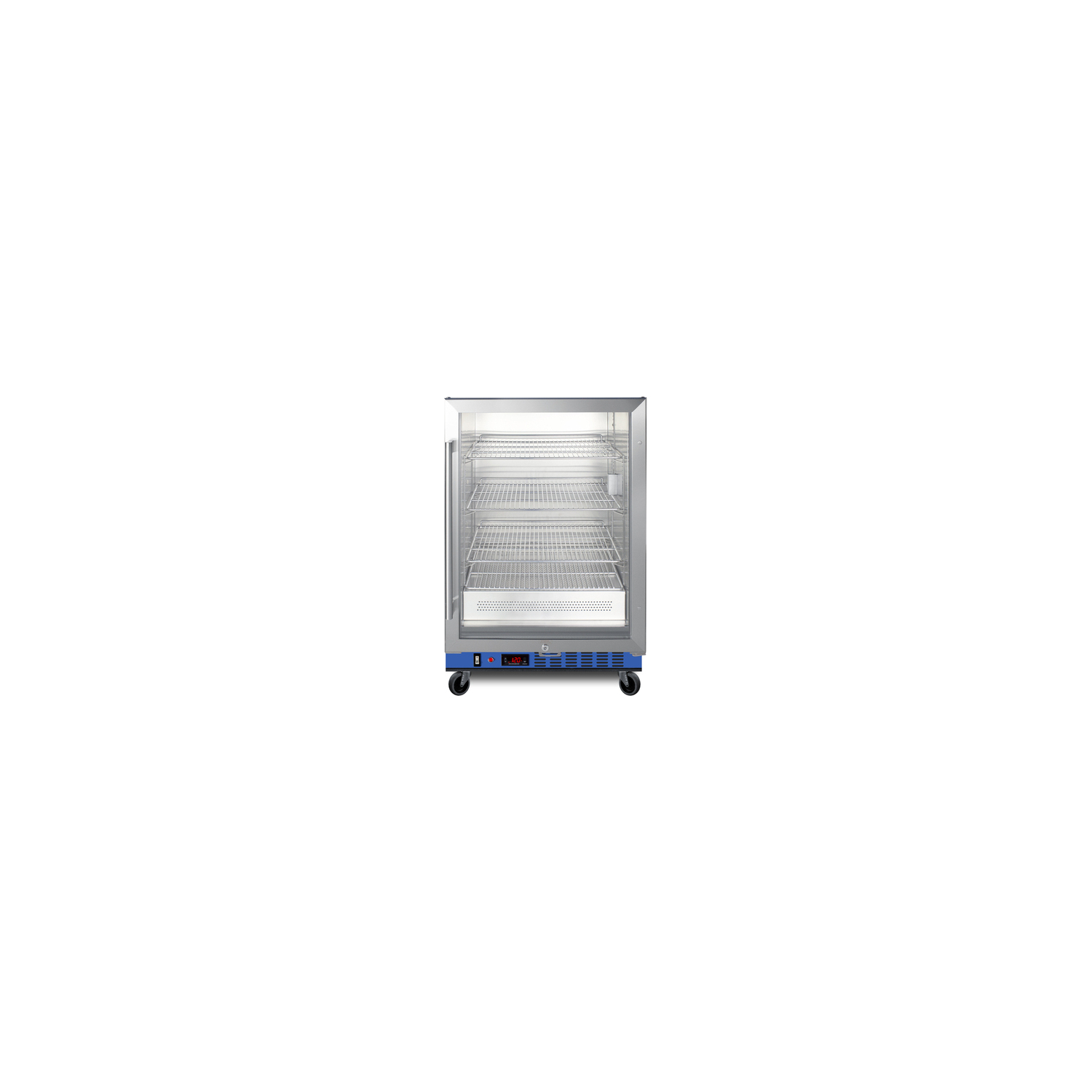

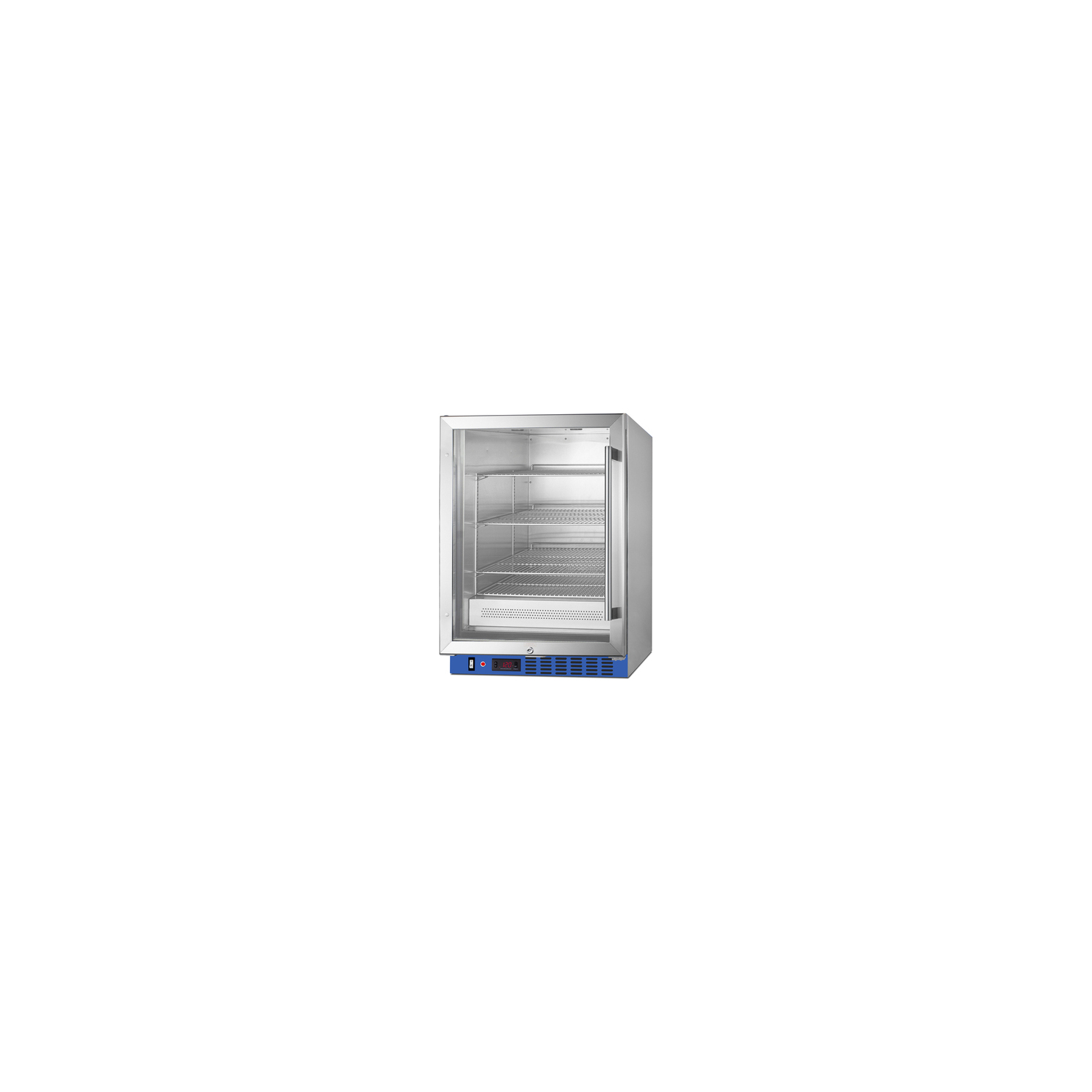

Summit Single chamber blanket warmer with glass door, stainless steel interior, digital thermostat, and lock, PTHC65GUC

PURETHERM by ACCUCOLD brings value and convenience to warming cabinets, with user-friendly models designed and assembled in the USA.

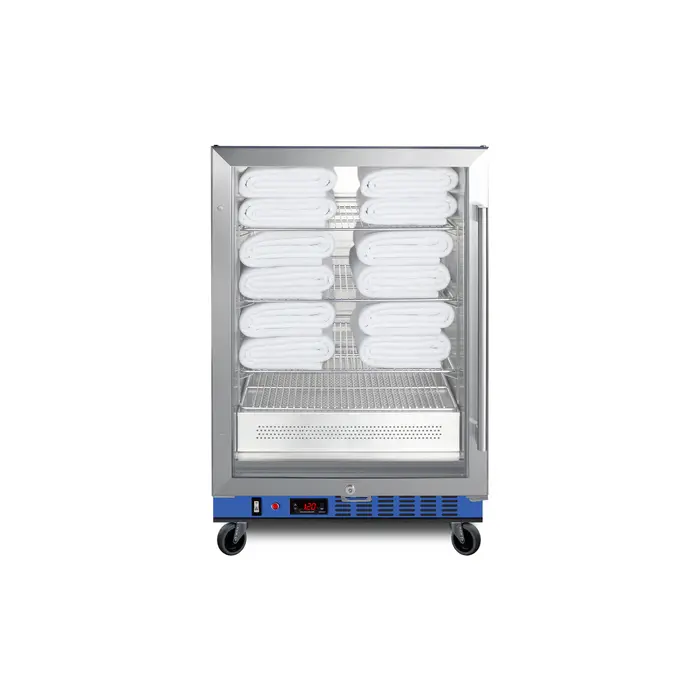

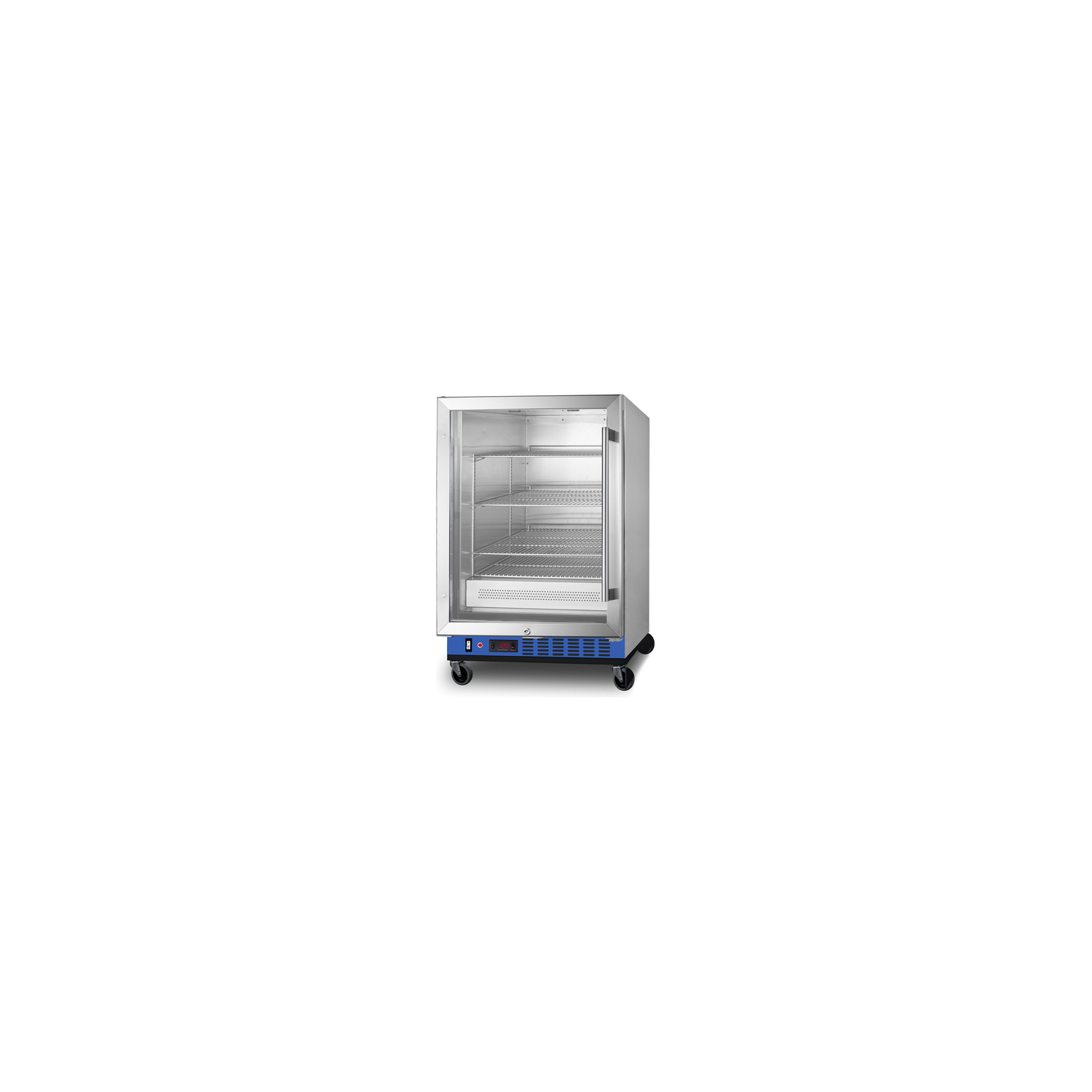

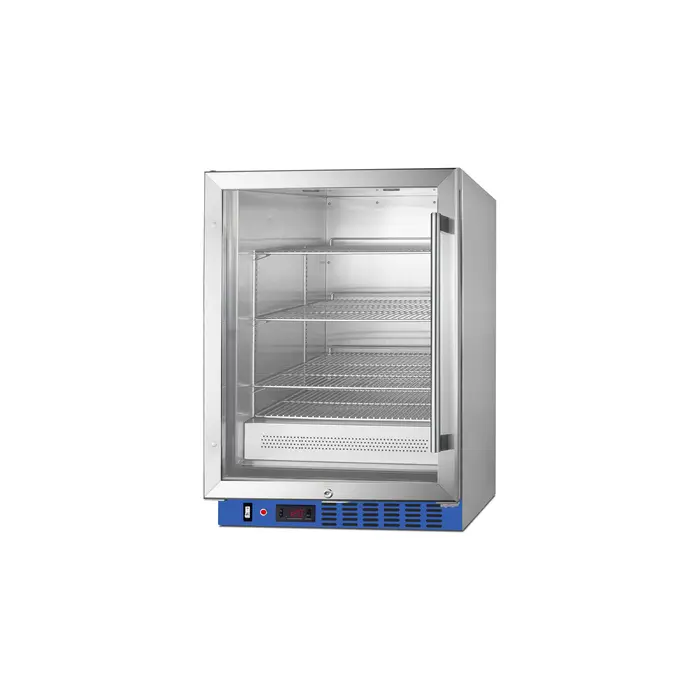

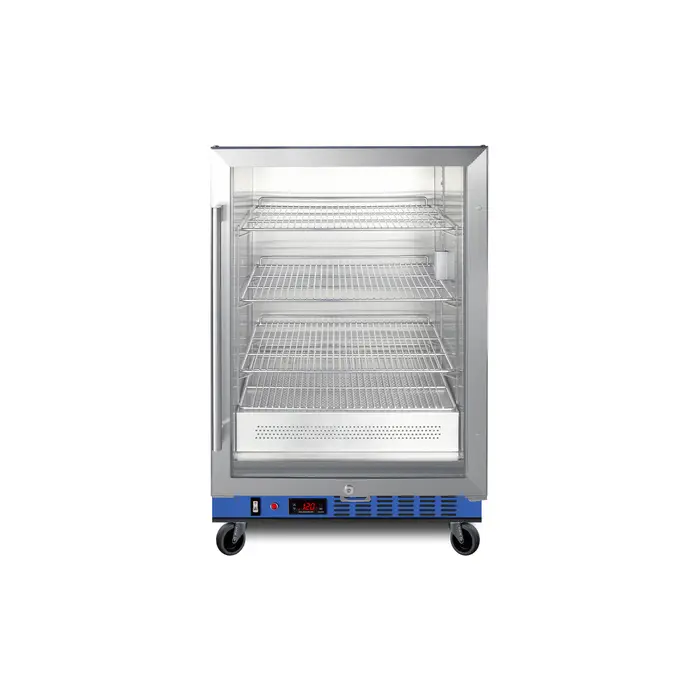

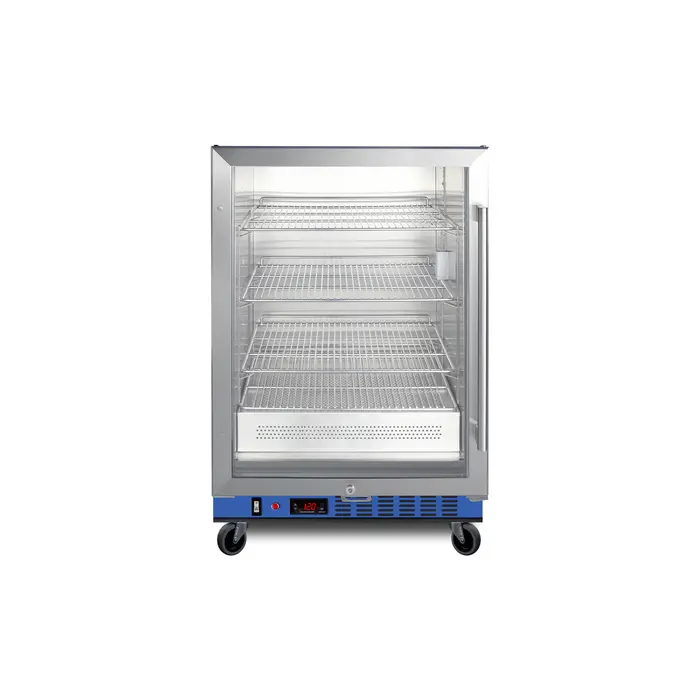

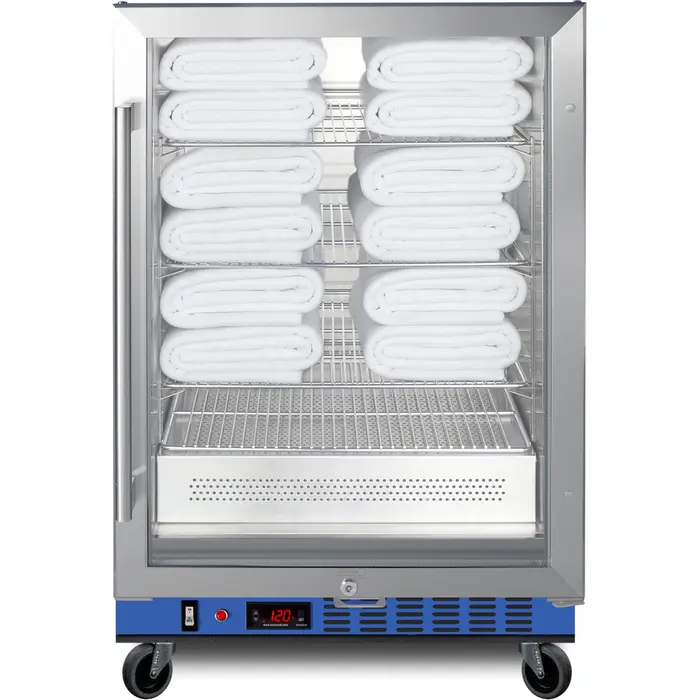

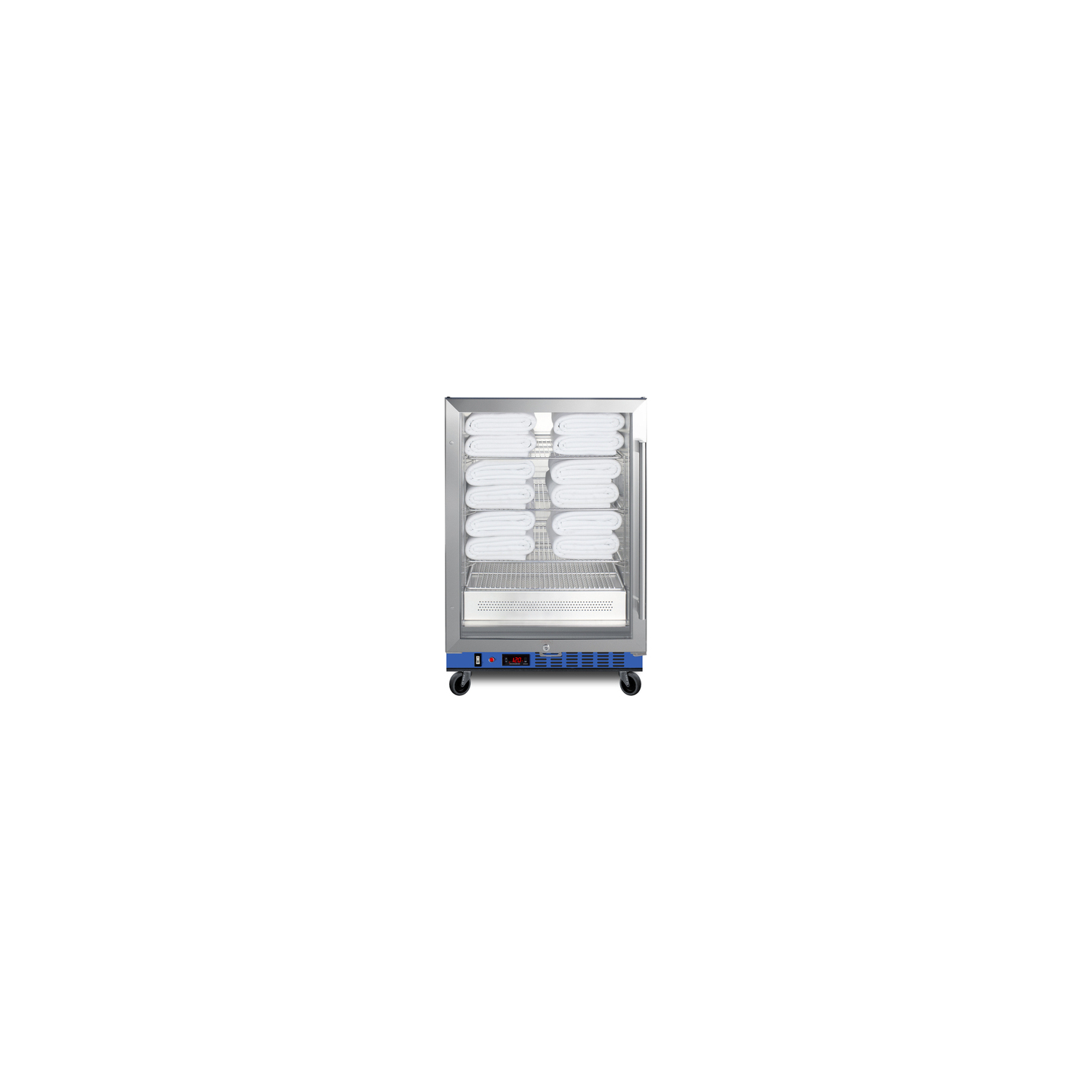

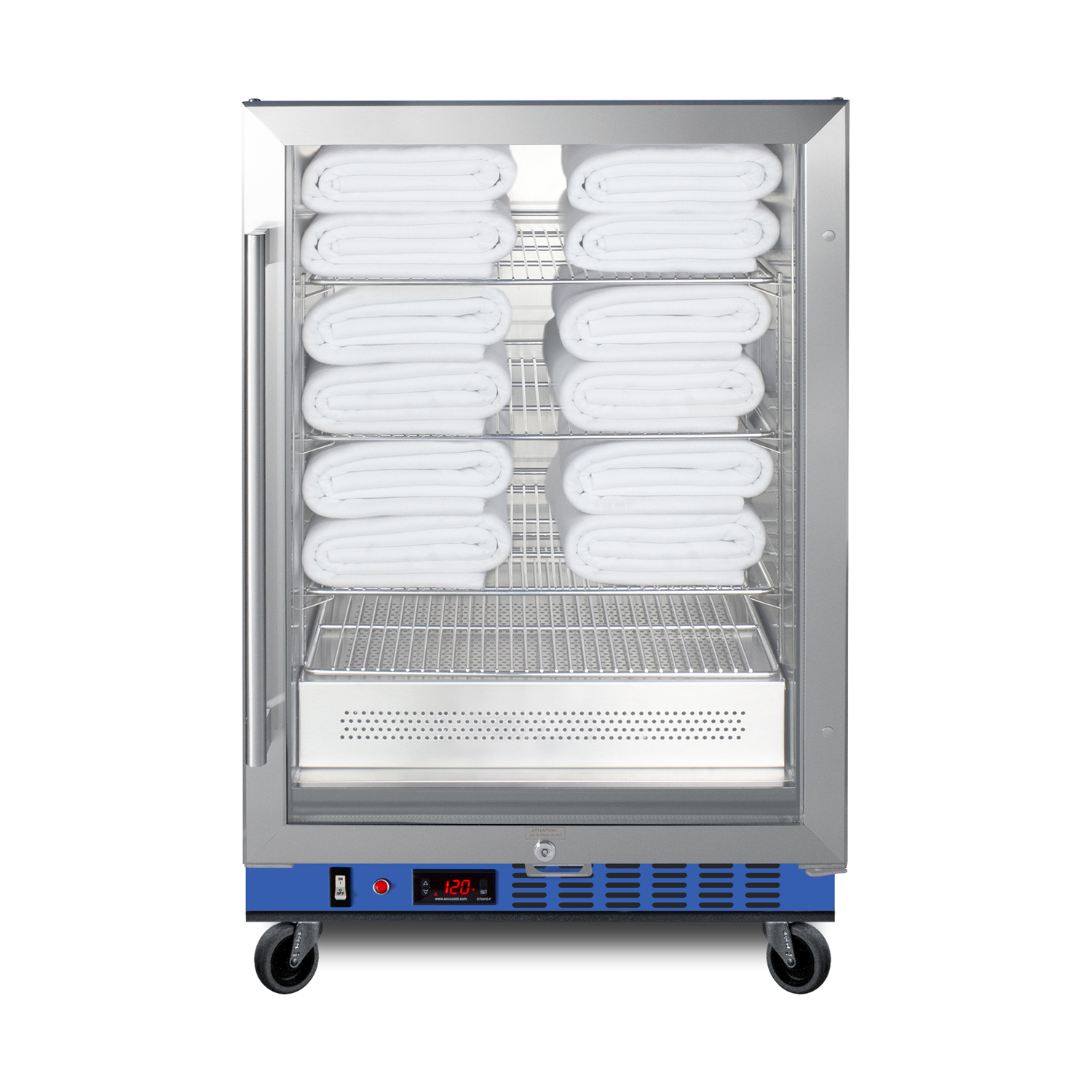

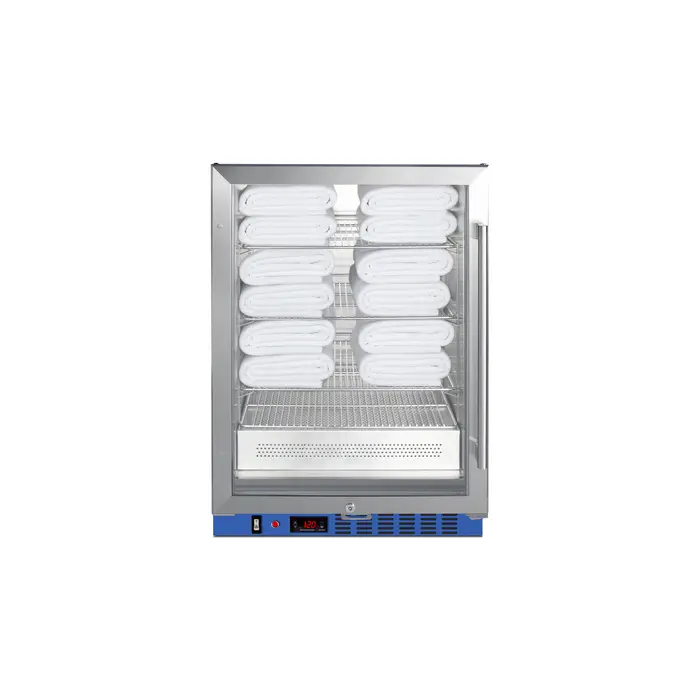

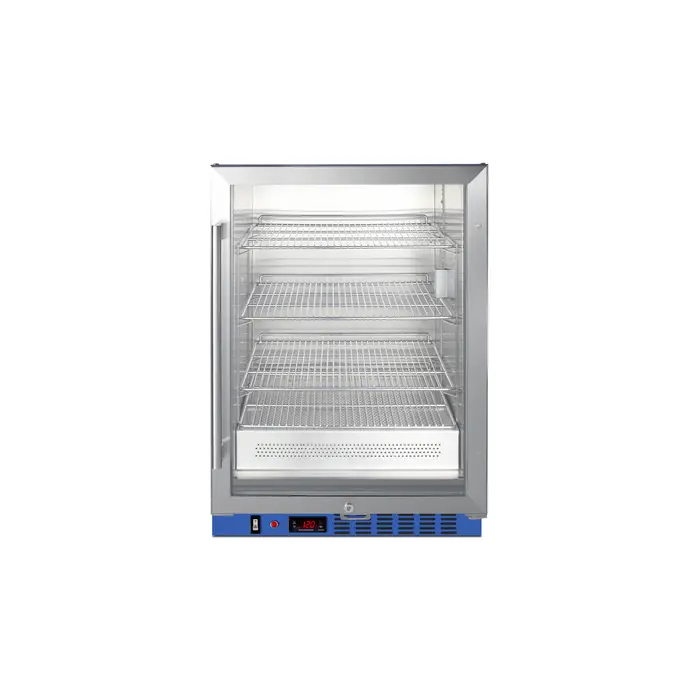

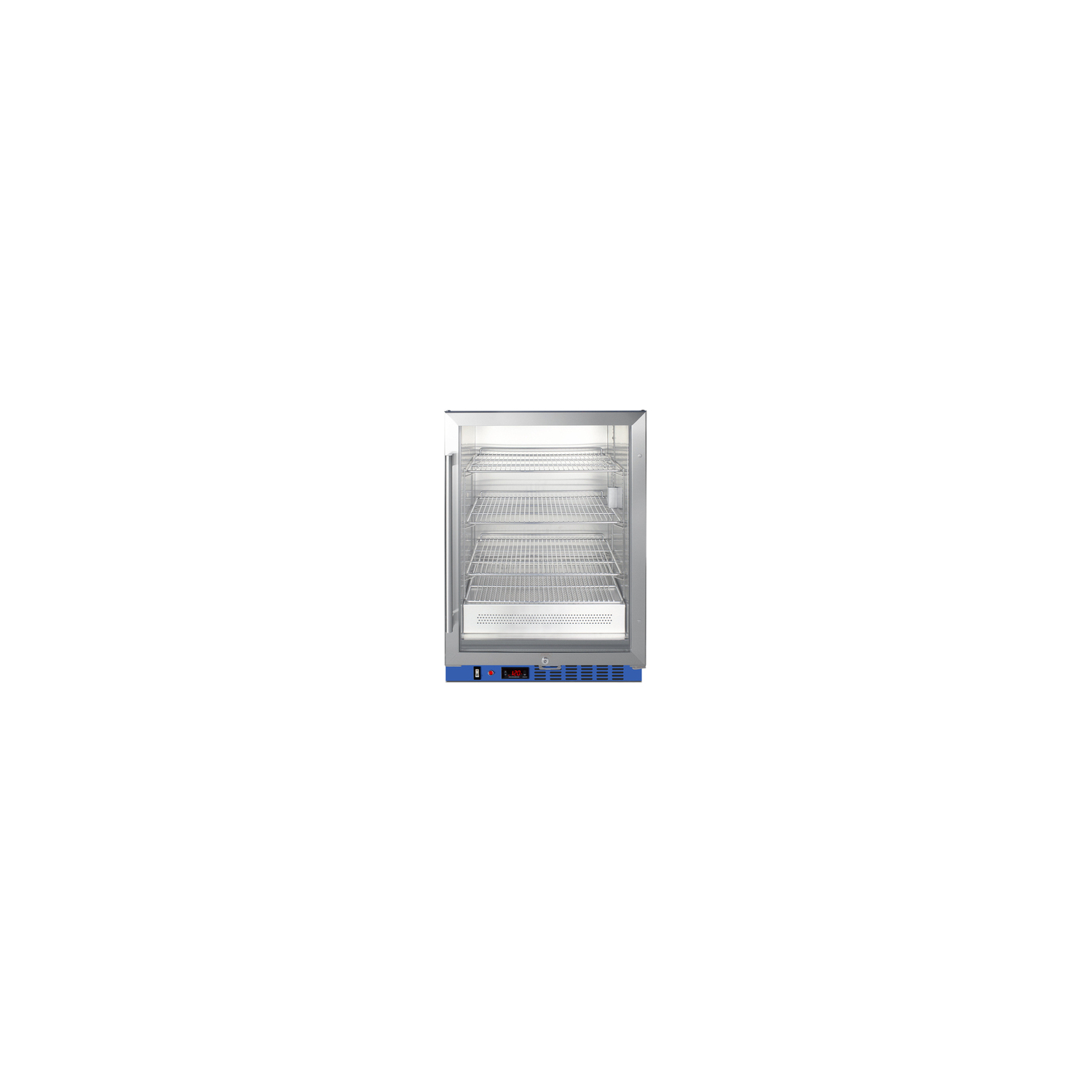

The PTHC65GUC is an undercounter single-chamber blanket warmer ideal for hospital settings keeping blankets at the proper temperature. The double-pane tempered glass door ensures your staff can quickly check inventory with a display that goes down to the floor. No internal fan helps to reduce lint buildup for safer, more efficient operation. Additionally, without fans or moving parts, there is no noise produced for silent operation. The interior walls are constructed from stainless steel to ensure easy cleanup and long-lasting durability. Sized with a 24" footprint, this unit takes up little space but can accommodate up to 4.57 cu.ft of storage.

Inside, the PTHC65GUC is designed to operate between 90º and 140ºF with a foamed-in-place cabinet to ensure efficient insulation. This unit is featured with a digital thermostat that includes a large LED temperature readout. The cantilevered shelving system includes three chrome shelves that can be adjusted to virtually any position to best suit your storage needs.

The PTHC65GUC includes a factory installed lock on the stainless steel trimmed door. A hospital grade cord with a 'green dot' plug ensures added safety in high traffic areas. This model comes with a stainless steel exterior cabinet finish.

With its conveniently slim dimensions and user-friendly features, the PTHC65GUC is a great way to keep blankets properly cared for in hospitals, medical and physical therapy offices, wellness centers, spas, and other facilities. Additional sizes are available. Visit www.accucold.com/puretherm to explore our complete selection.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 45.75" (116 cm)

Capacity 4.57 cu.ft. (129 L)

Door Glass

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 5.5

Voltage/Frequency 115 V AC/60 Hz

Weight 90.0 lbs. (41 kg)

Parts & Labor Warranty 1 Year

UPC 761101108056

Warming Cabinet

Door Swing RHD

Reversible Factory Reversible

Adjustable Shelves Yes

Shelf Type Chrome

Shelf Qty 3

Thermostat Type Digital

Interior Height 26.0" (66 cm)

Interior Width 19.38" (49 cm)

Interior Depth 17.38" (44 cm)

Level Legs 4

Dolly Optional

Temperature Range 90 to 140ºF

FEATURES

Undercounter Warming Cabinet 24" wide blanket warmer designed and constructed in the USA

90 to 140ºF temperature range Designed and set to keep blankets warm in hospitals, medical and physical therapy offices, spas, and other facilities

Passive heating Fixed heaters located at the bottom of the cabinet with no fans or moving parts to minimize lint buildup for safer, more efficient use

Built-In capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Digital thermostat Electronic controls are conveniently located externally for easy temperature adjustment

Electronic readout Large LED temperature display ensures your staff can easily monitor the interior temperature

Silent operation No moving parts to ensure a quiet performance

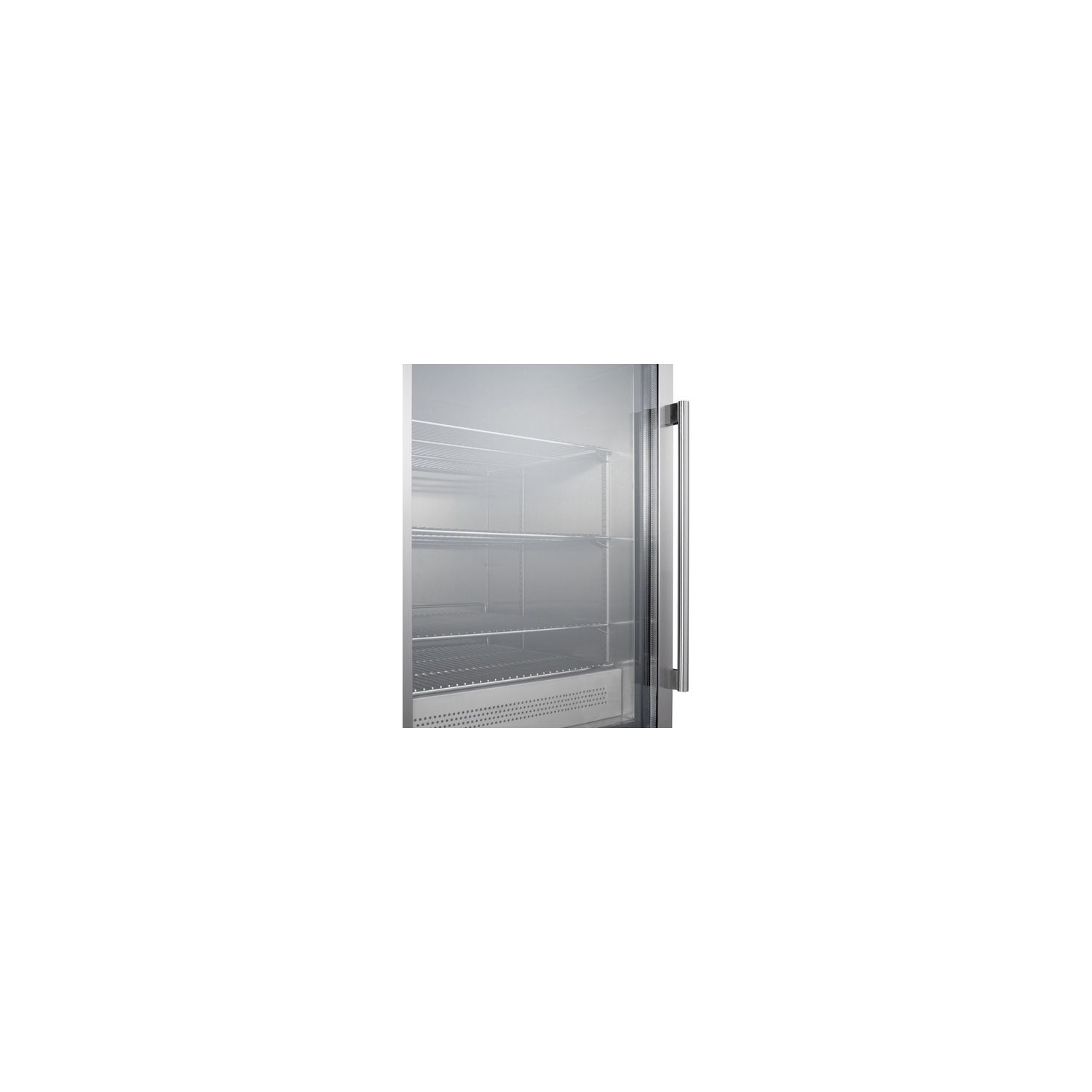

Double pane tempered glass door Heat-safe glass door offers a full view of stored contents, with a stainless steel door trim to highlight the interior

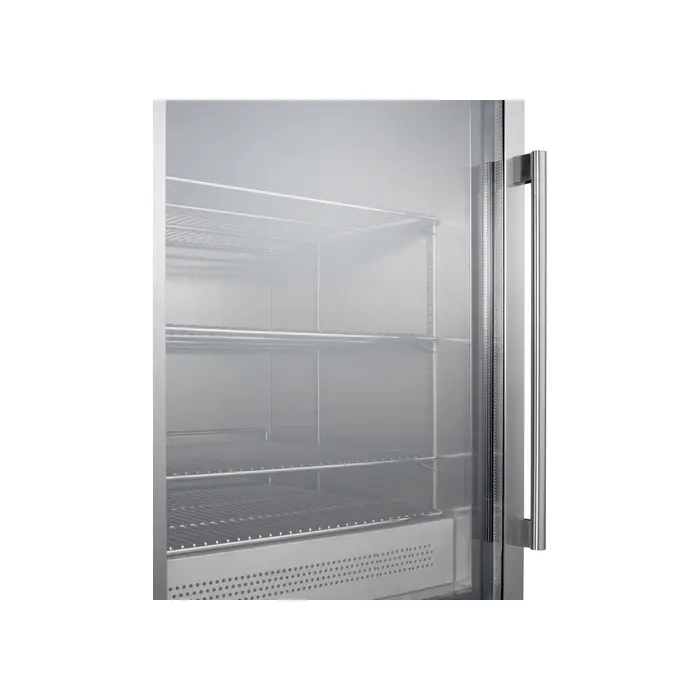

Professional handle Stainless steel handle completes the professional look

Stainless steel interior Interior walls are constructed from stainless steel to ensure lasting durability and easy cleaning

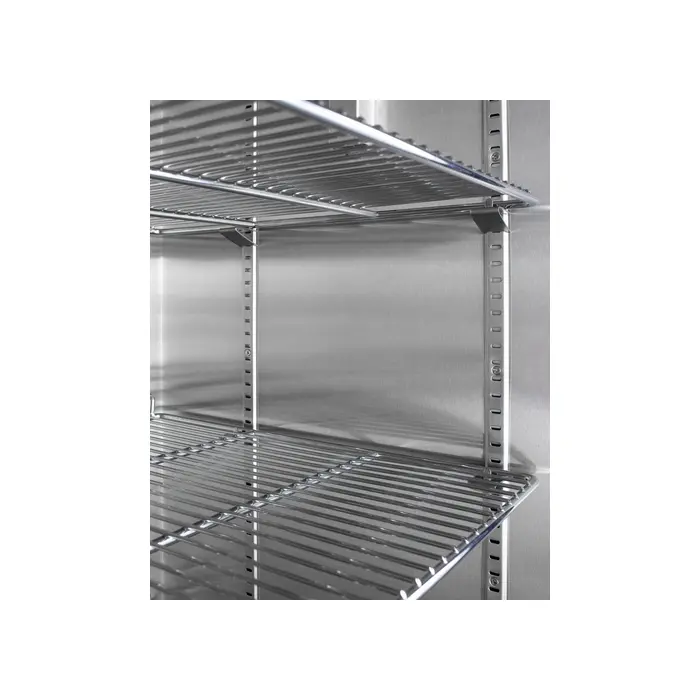

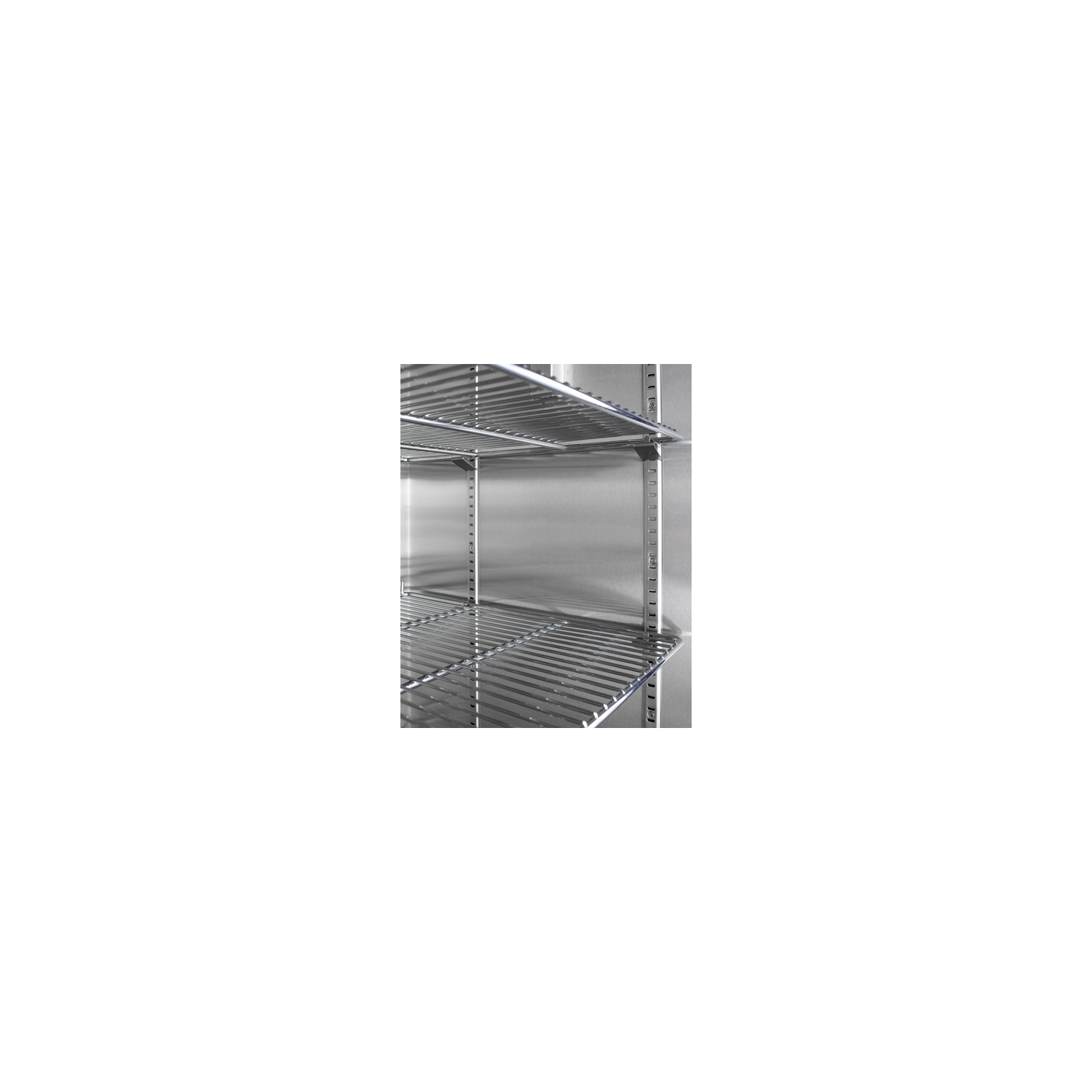

Cantilevered shelving system Three easily adjustable chrome shelves to accommodate virtually any size

Factory installed lock Keyed lock for a secure interior (2 keys included)

Flush back Space saving design with easier cleanability

Foamed-in-place cabinet Quality design ensures efficiently insulated interior

Full capacity 4.57 cu.ft. interior in a slim-fitting 24" footprint

Hospital grade cord with 'green dot' plug Extra protection in higher traffic settings with a green dot 3-pronged cord that won't be easily unplugged from the wall socket

Magnetic door gaskets Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished stainless steel cabinet Durable exterior in stainless steel

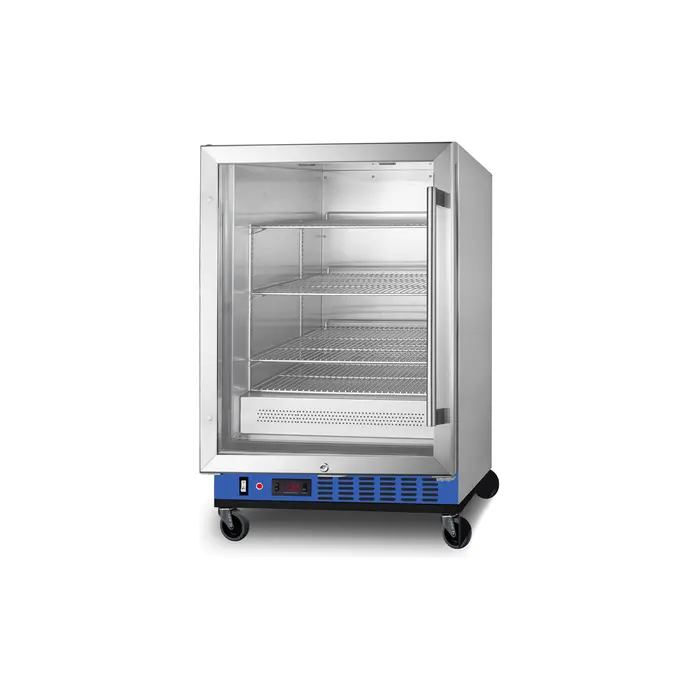

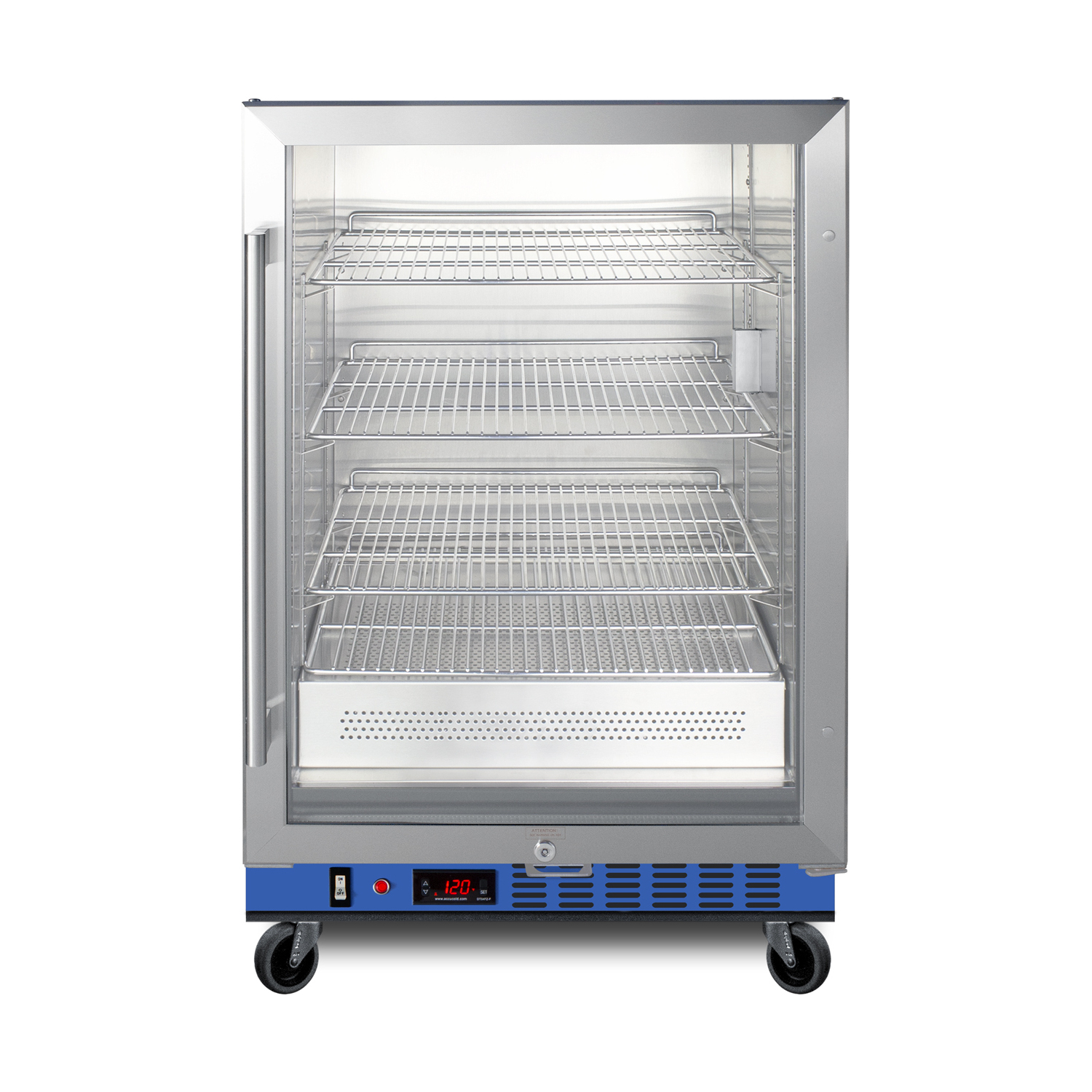

Optional dolly Specially designed for PURETHERM warming cabinets, DOLLYPHC features four locking casters and stainless steel construction for durability and easy mobility

DOWNLOADS

BROCHURE w/ DRAWINGS (PTHC65GUC.pdf)

TECHNICAL DRAWING (.dwg) (PTHC65GUC.dwg)

ASSEMBLY DRAWING (PTHC65GUC-Assembly.pdf)

USE & CARE (PTHC65GUC-User-Manual.pdf)
