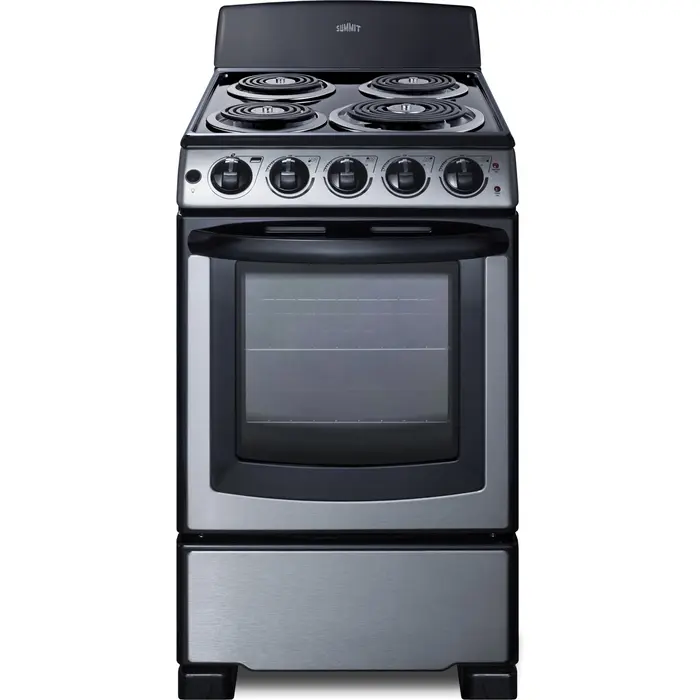

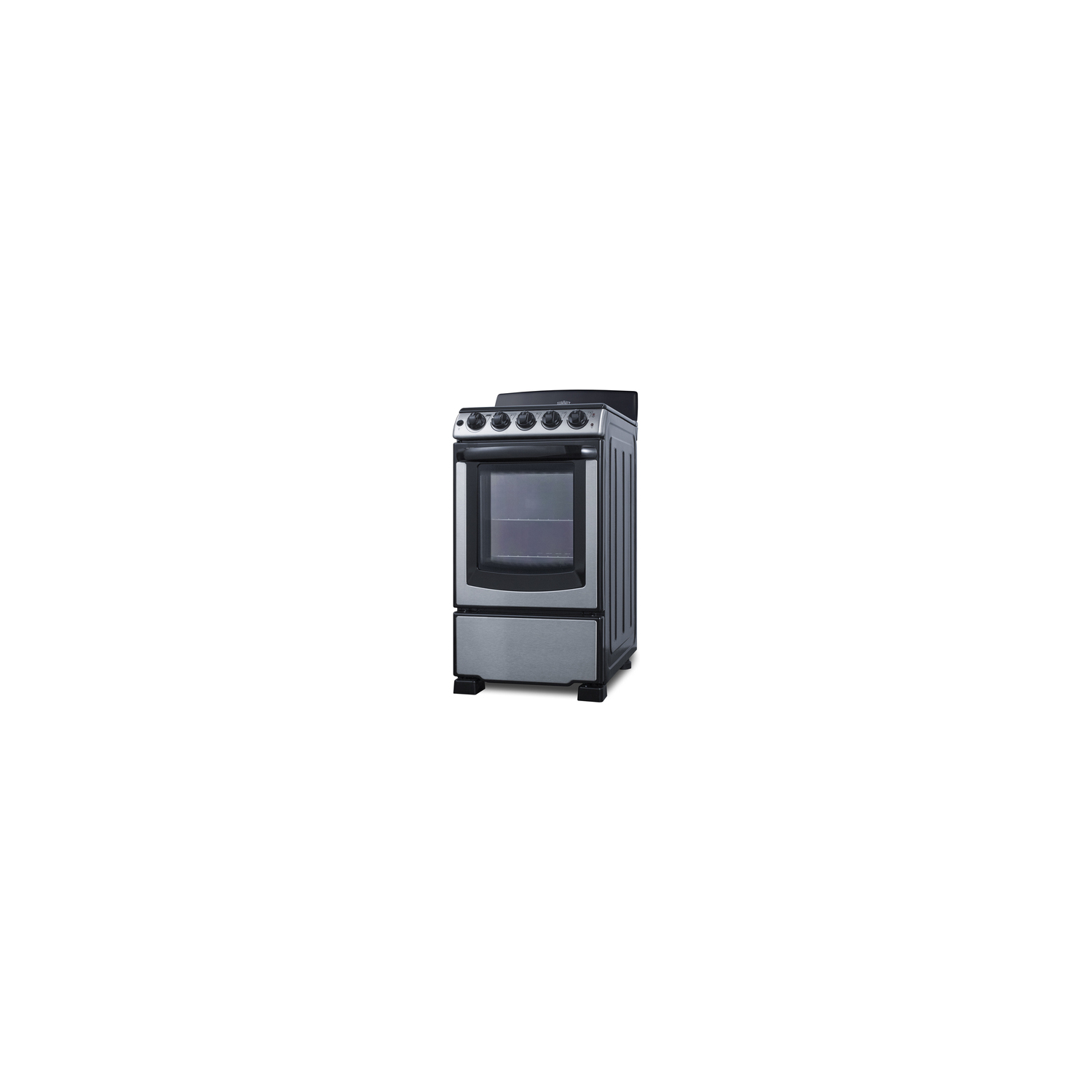

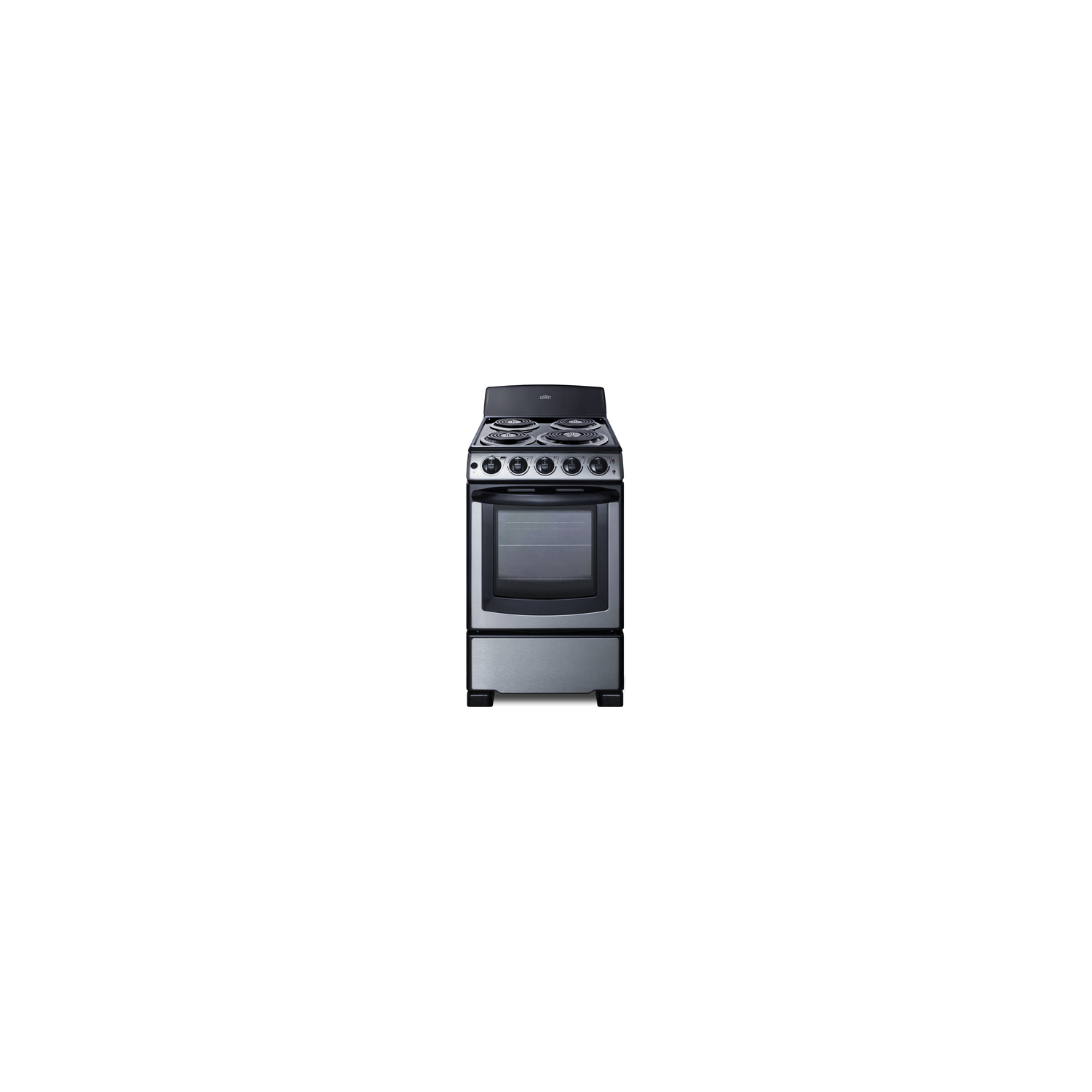

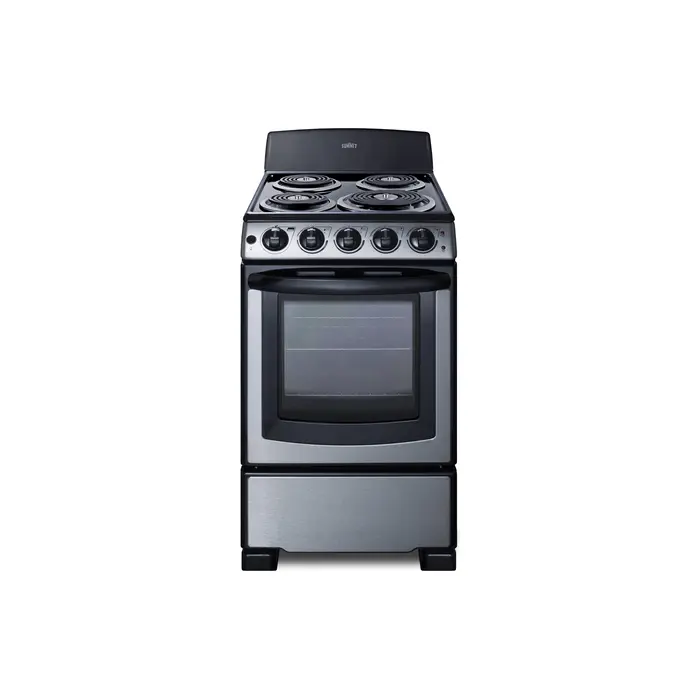

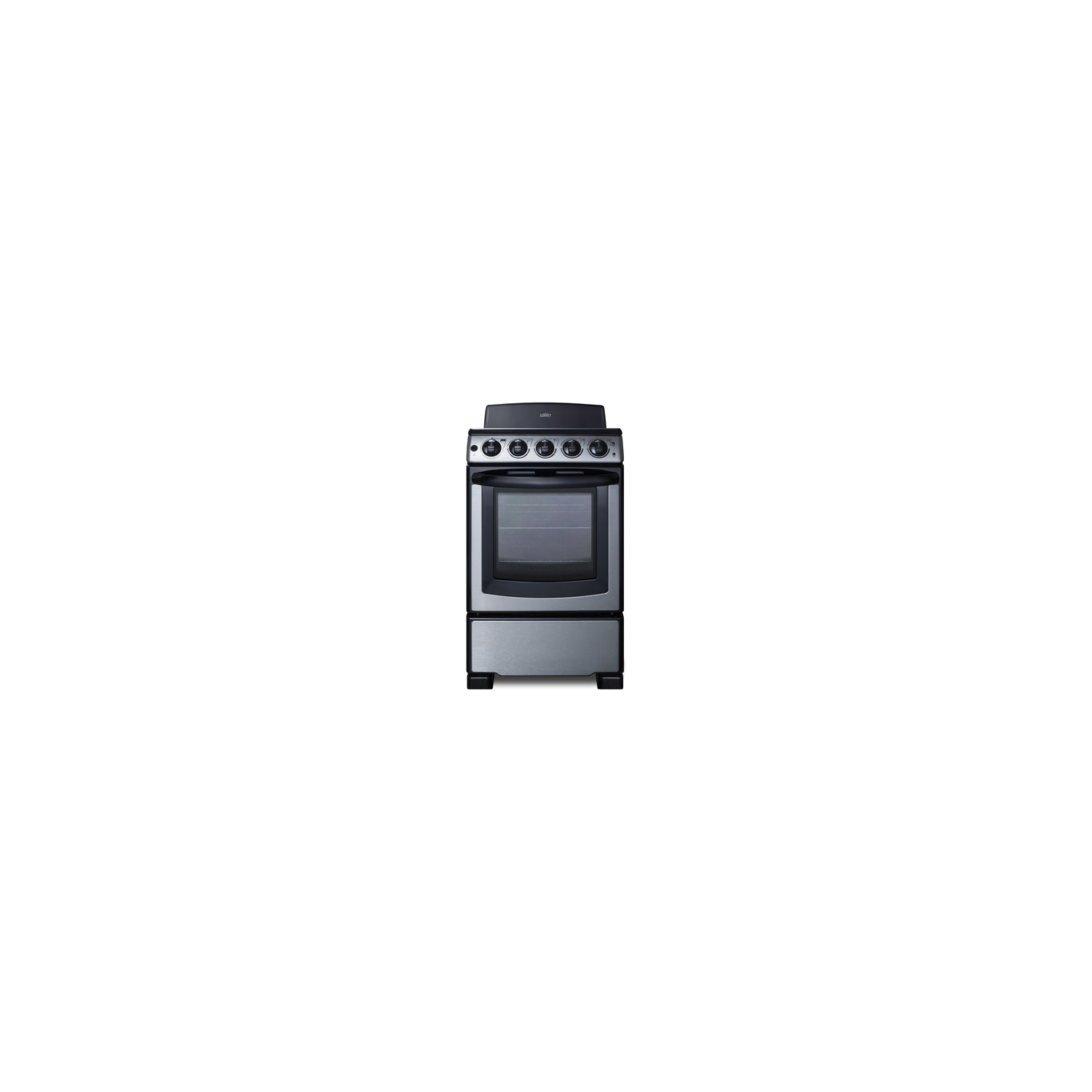

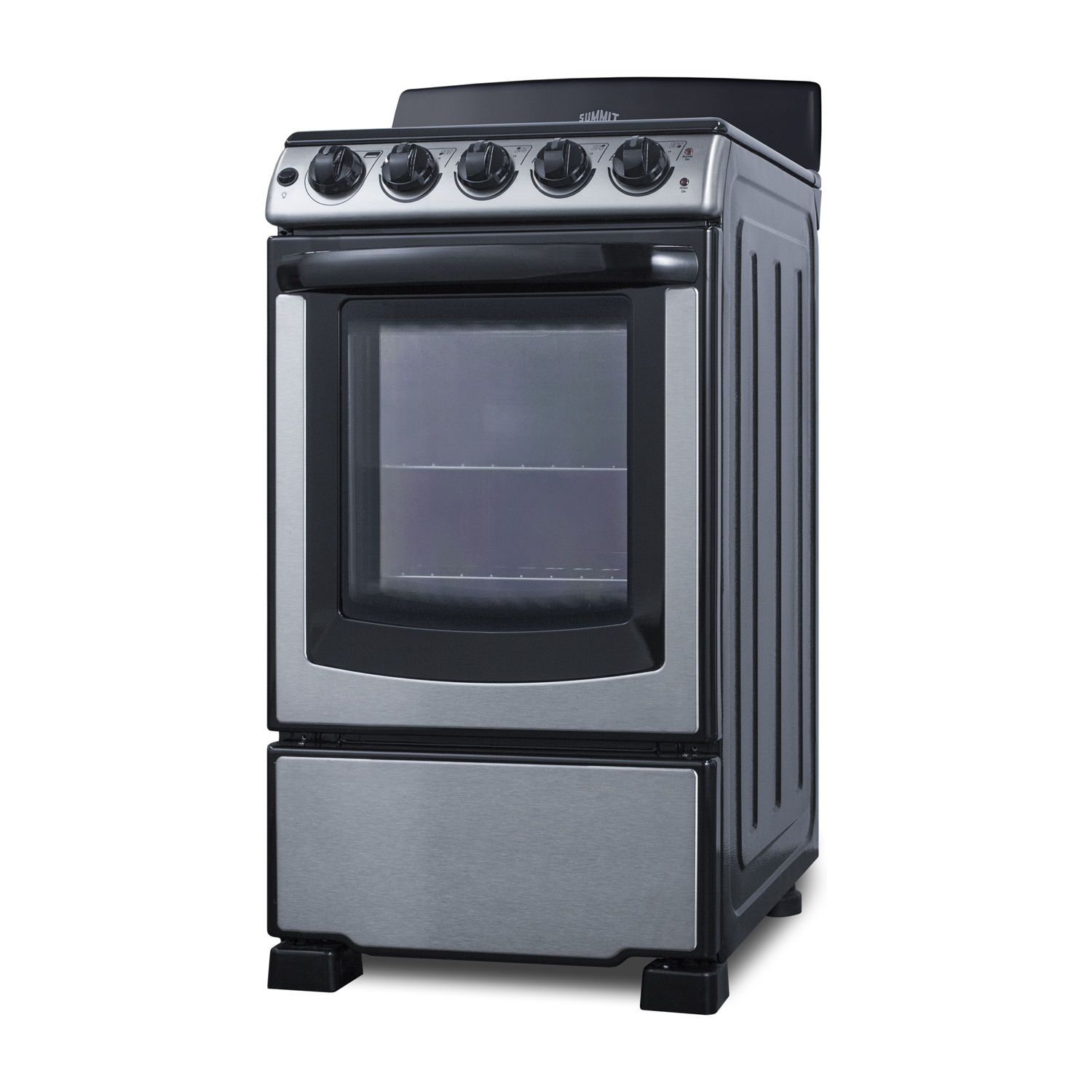

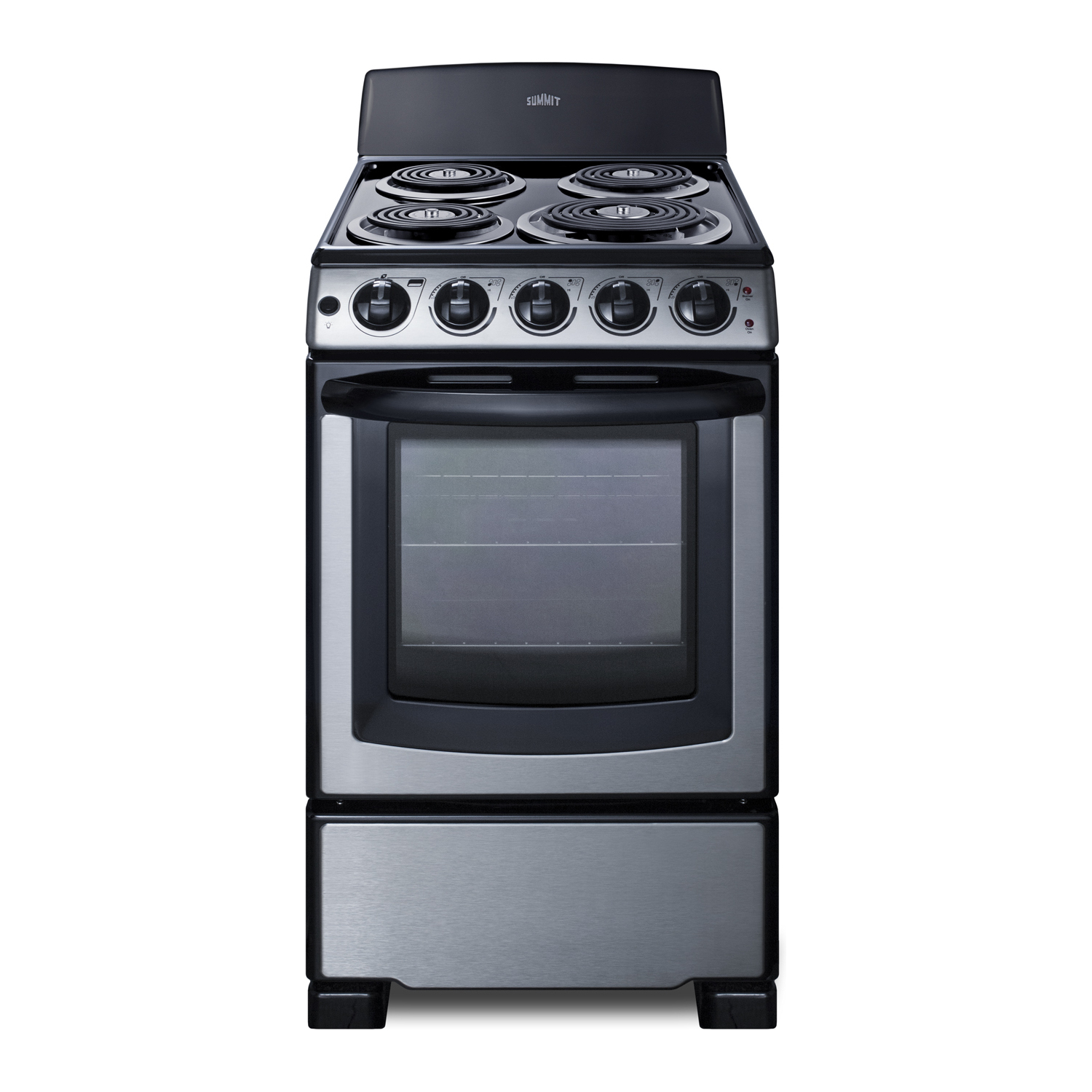

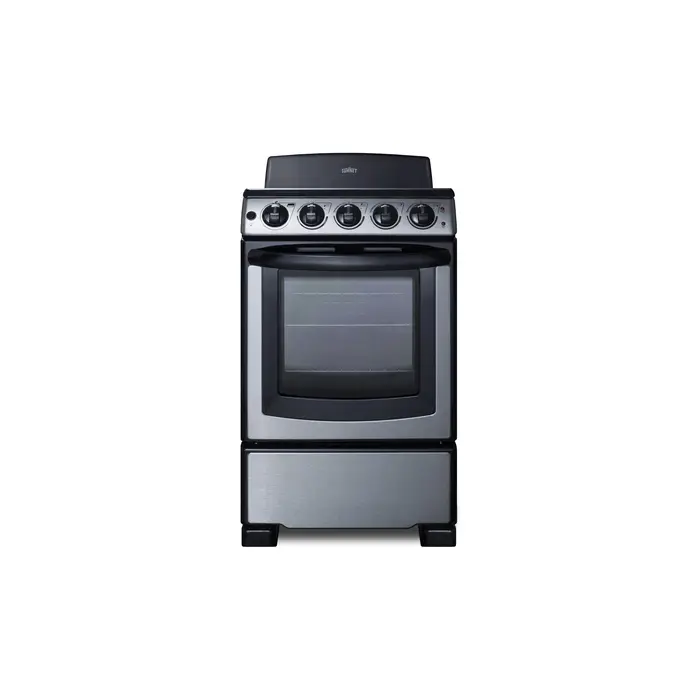

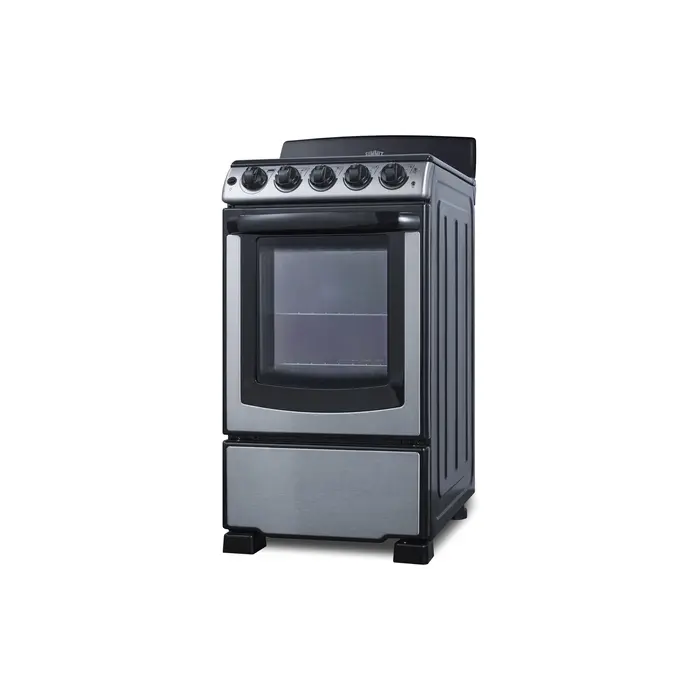

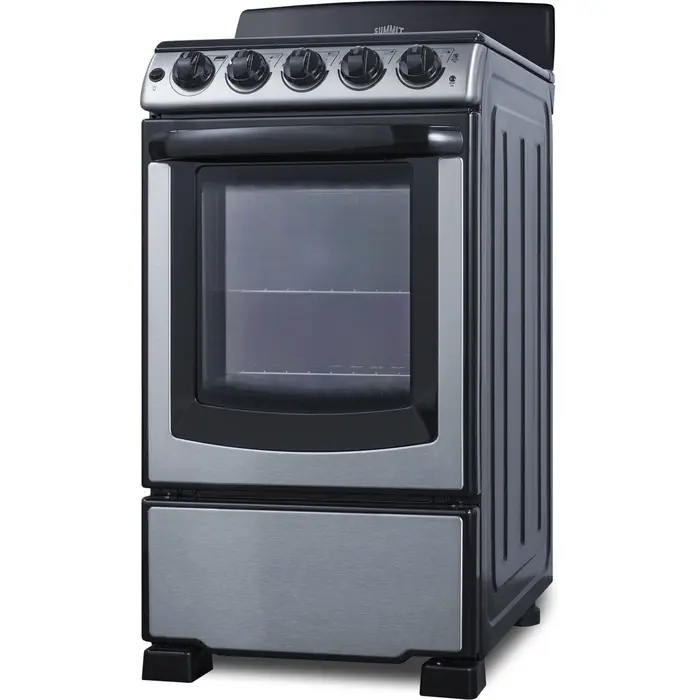

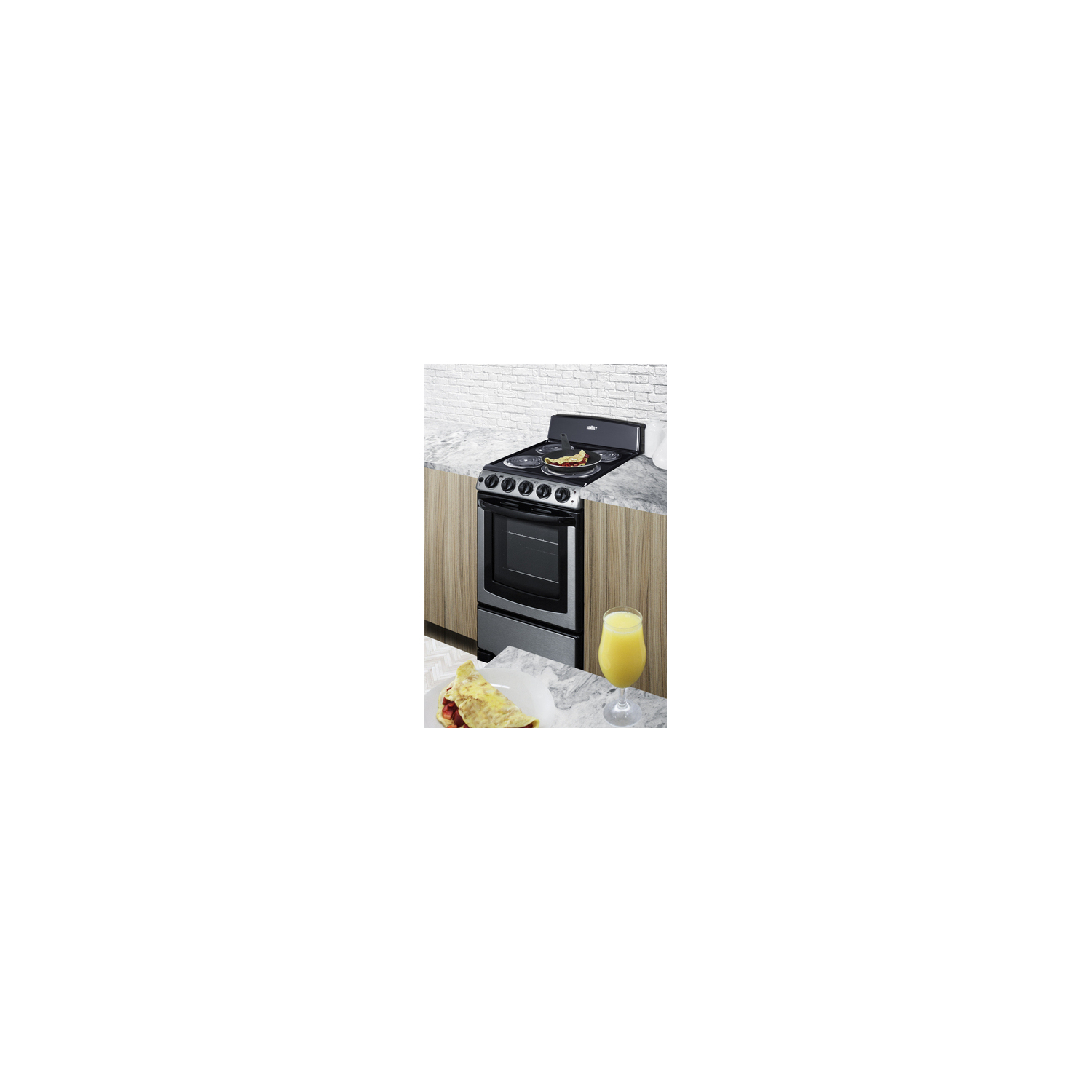

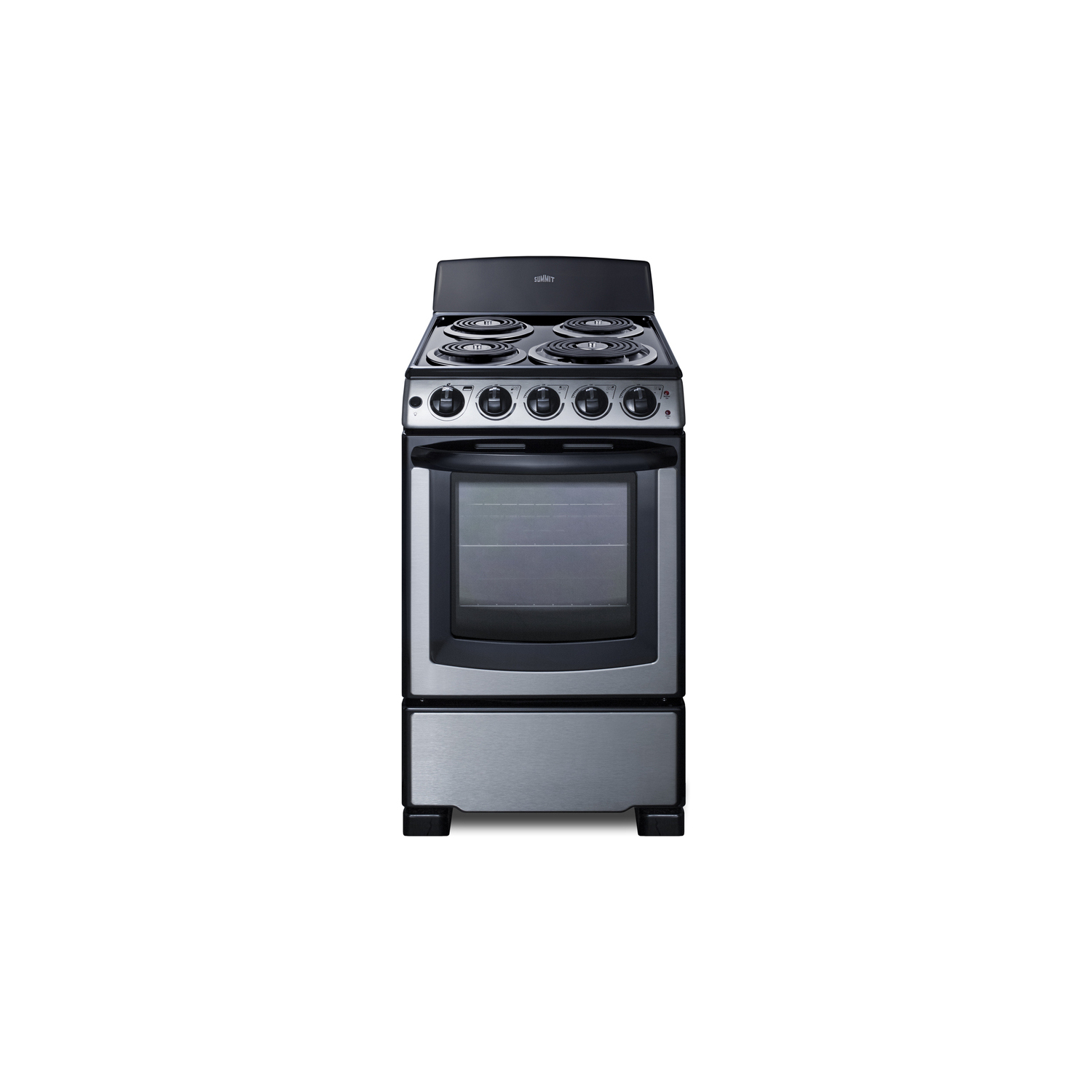

Summit 20 inch wide electric coil top range in stainless steel, PROEL20SS

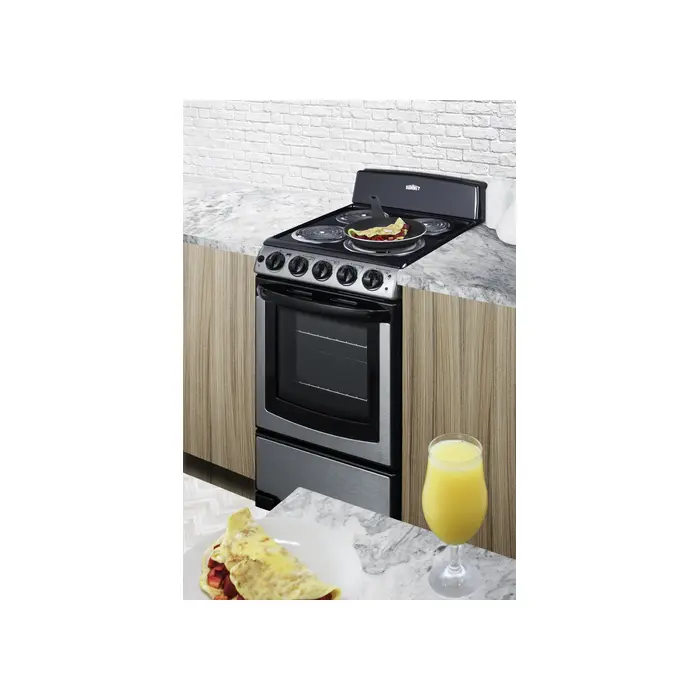

Summit brings unmatched value and convenience to apartments, tiny homes, and other small kitchens with fully featured electric ranges in 20" wide fits.

Made in North America, the PROEL20SS is a 240V electric range designed for 20" wide spaces, featuring one 8" and three 6" coil burners. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the oven is in use.

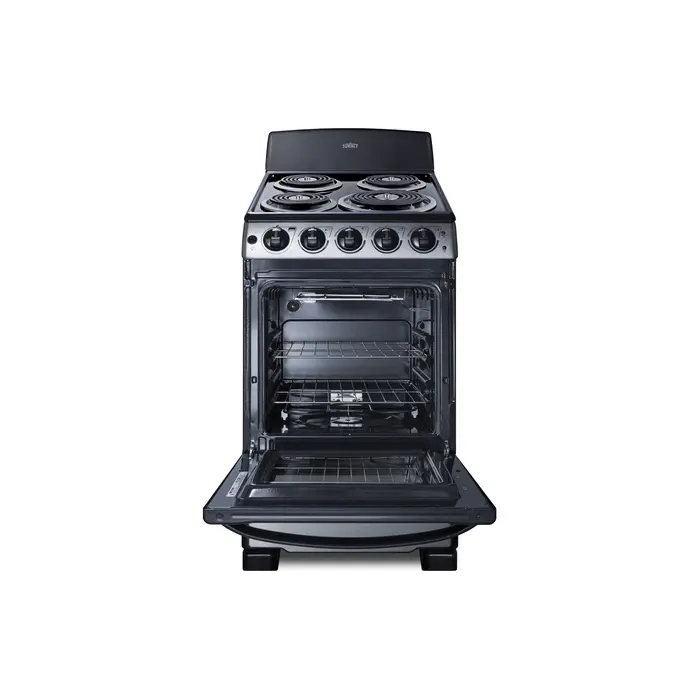

The PROEL20SS features a large oven window with an interior light to make it easy for users to monitor their cooking. Inside the PROEL20SS features a large 2.3 cu.ft. oven made from durable porcelain, with two adjustable racks. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor.

The PROEL20SS features a stainless steel exterior door with a jet-black handle and knobs for a contemporary kitchen design. With its slim fit and quality design, this unit is the ideal choice for space-challenged kitchens on a budget.

For this unit in a 24" width see model PROEL24SS. For this unit in white or black, see models RE203W and RE2031B. Summit also manufactures smooth-top ranges, and gas units.

Browse our website to explore the complete cooking collection.

SPECIFICATIONS

Overview

Nominal Height 42.0" (107 cm)

Height of Cabinet 41.75" (106 cm)

Nominal Width 20.0" (51 cm)

Width 19.5" (50 cm)

Nominal Depth 26.0" (66 cm)

Depth 25.13" (64 cm)

Depth with Handle 27.38" (70 cm)

Depth with door at 90° 46.38" (118 cm)

Door Stainless Steel

Cabinet Black

US Electrical Safety UL

Amps 40.0

Voltage/Frequency 240 V AC/60 Hz

Weight 115.0 lbs. (52 kg)

Parts & Labor Warranty 1 Year

UPC 761101103723

Electric Range

Oven Capacity 2.3 cu.ft. (65 L)

Element Type Coils

Number of Elements 4

Element #1 Size 6.0" (15 cm)

Element #1 Wattage 1250.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 1250.0

Element #3 Size 6.0" (15 cm)

Element #3 Wattage 1250.0

Element #4 Size 7.5" (19 cm)

Element #4 Wattage 2400.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Oven Interior Height 15.25" (39 cm)

Oven Interior Width 14.5" (37 cm)

Oven Interior Depth 17.63" (45 cm)

Broiler Location Inside Oven

FEATURES

20" Wide Electric 4-Burner Range Slim-fitting electric range perfectly sized for apartments and smaller home kitchens

Classic coil elements Durable design to hold up to everyday cooking

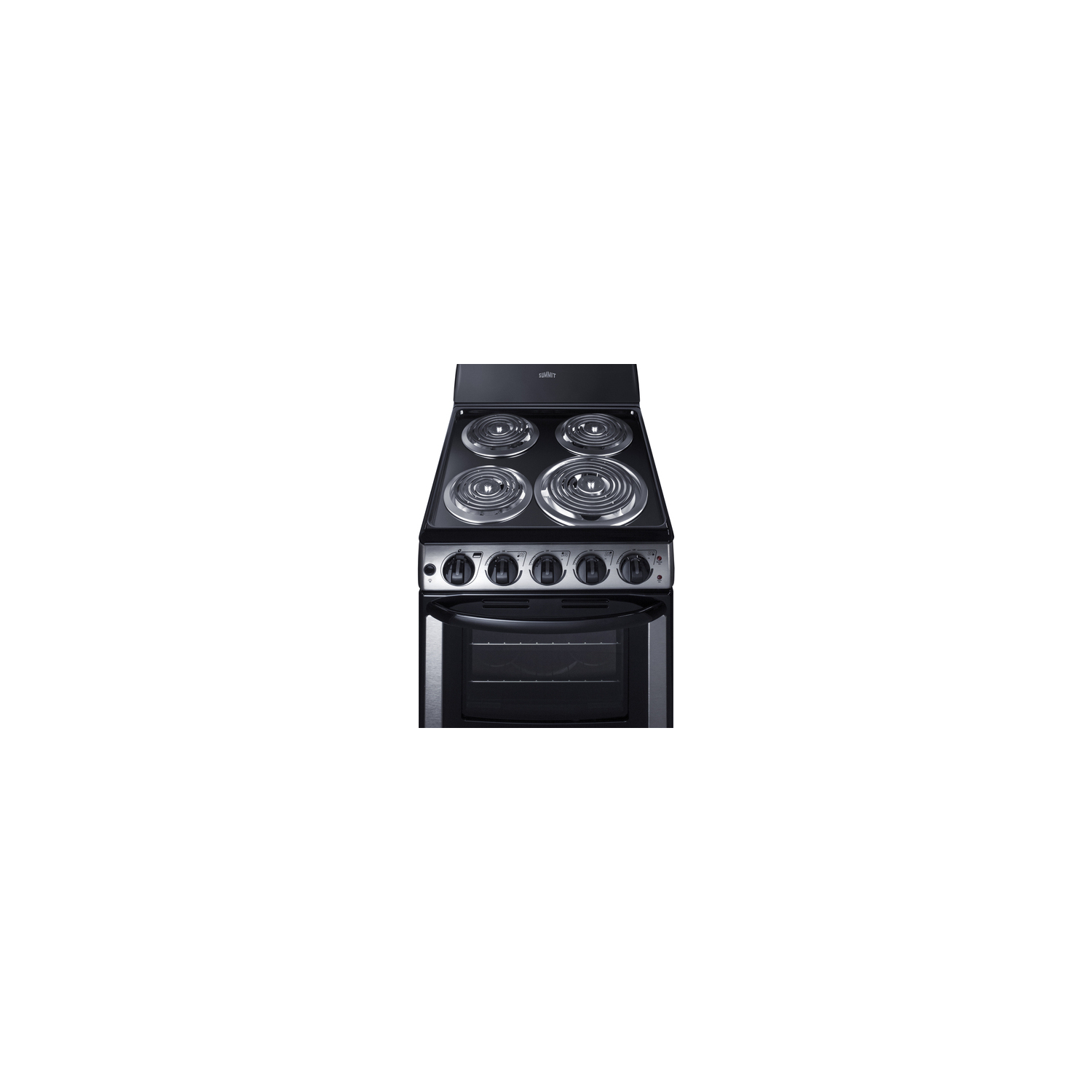

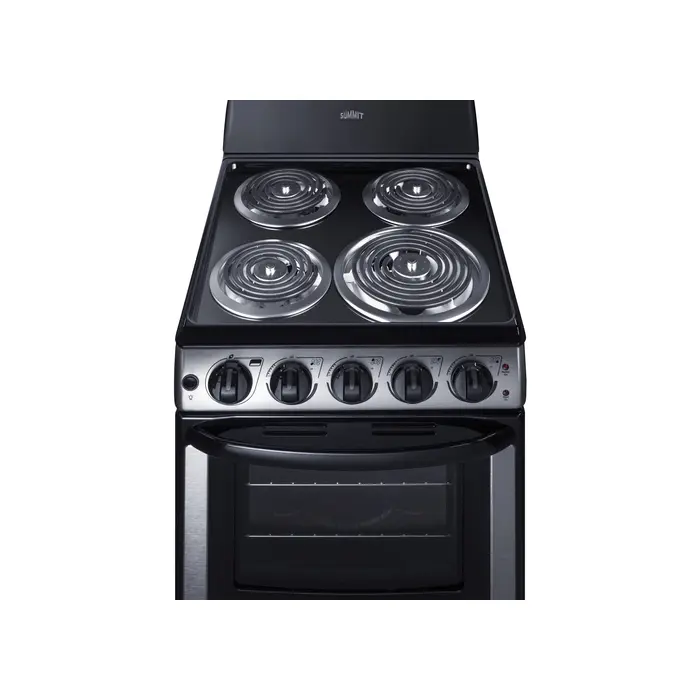

Four elements with chrome drip pans Surface features one 8" and three 6" elements to accommodate a range of sizes and cooking needs

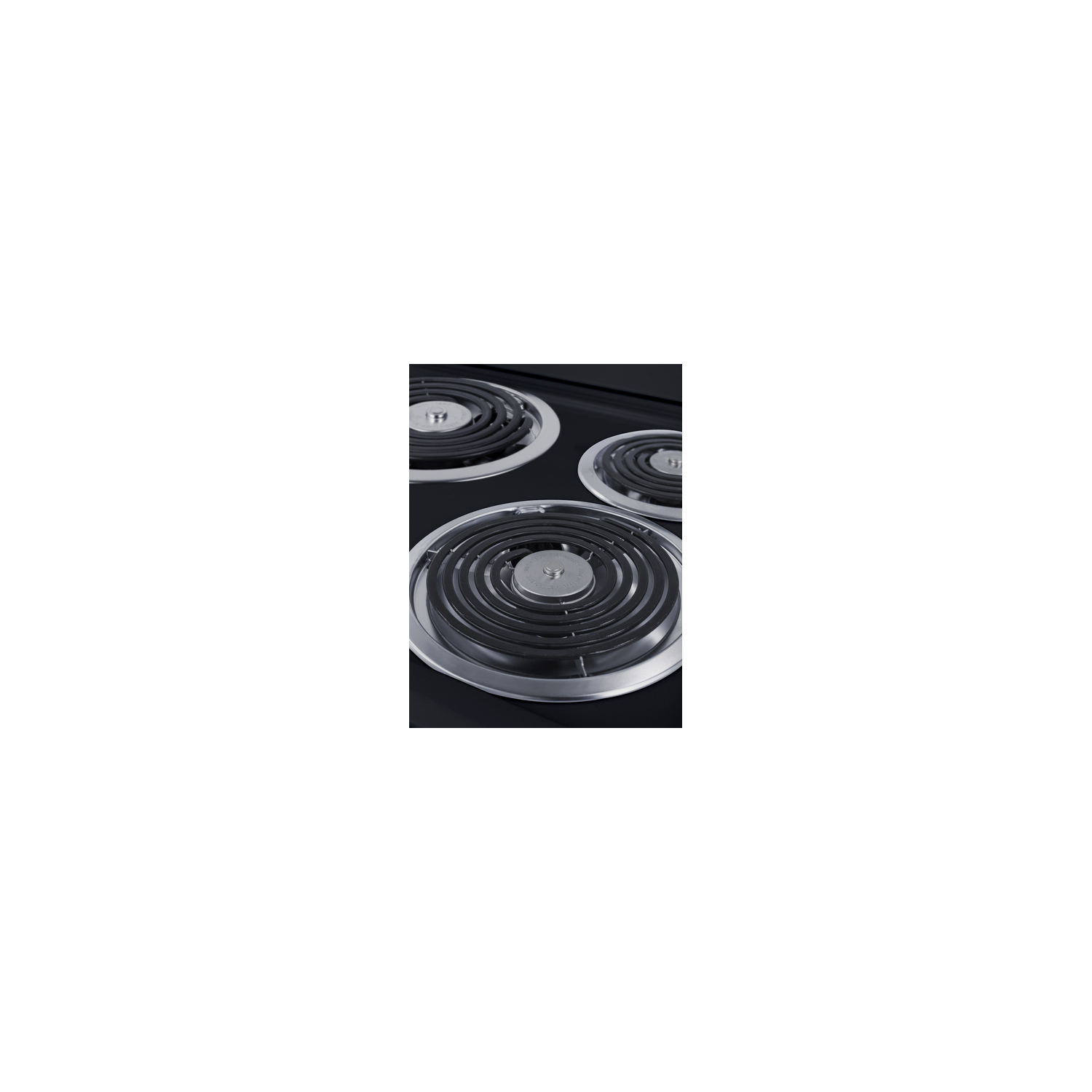

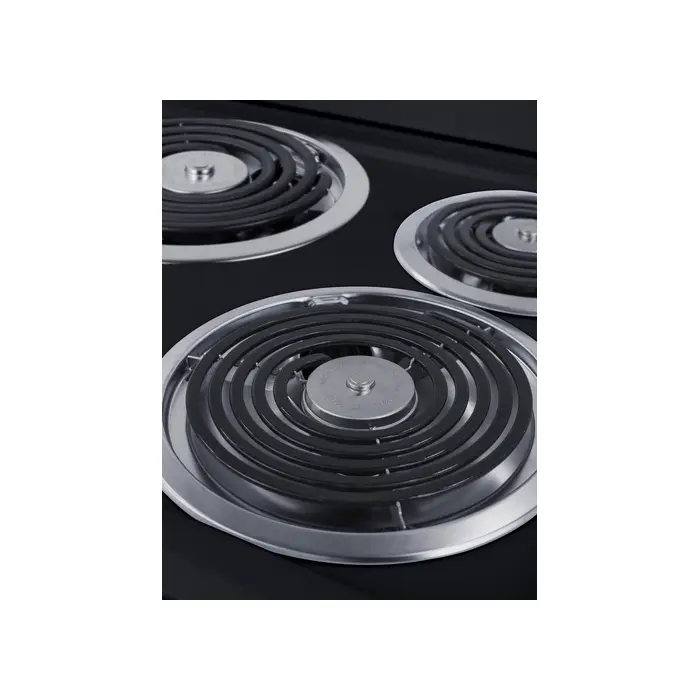

Safety elements Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking

Waist-high broiler Broiler is located inside the oven, making it easier to use

Oven window Large window makes it easier to monitor your cooking

Oven light Interior light included for easy viewing

Backsplash High backing prevents stovetop contents from splashing up or boiling over and staining back walls

Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Push-to-turn knobs To prevent accidents, knobs require a small amount of force when turning

Chrome drip pans Each element includes a removable chrome pan for easier cleaning

Adjustable racks Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism

Compact broiler tray Two-piece pan and cover included

Porcelain interior Oven interior features high quality porcelain construction for long-lasting durability

Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the range

Cord not included Compatible with standard 40 amp 3 or 4-wire range cords

Stainless steel finish Sleek stainless steel front for an attractive look ideal for any kitchen

Color matched handle & knobs Jet black surface and oven window, with matching knobs and handle for a modern look

ADA-compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

TAA compliant This electric range was made in North America and meets the TAA guidelines

Anti-tip bracket Safety feature included for user installation to help prevent accidents

DOWNLOADS

BROCHURE w/ DRAWINGS (PROEL20SS.pdf)

TECHNICAL DRAWING (.dwg) (PROEL20SS_REX2071SSRT.dwg)

ASSEMBLY DRAWING (PROEL20SS_REX2071SSRT-Assembly.pdf)

USE & CARE (PROEL20SS-User-Manual.pdf)
