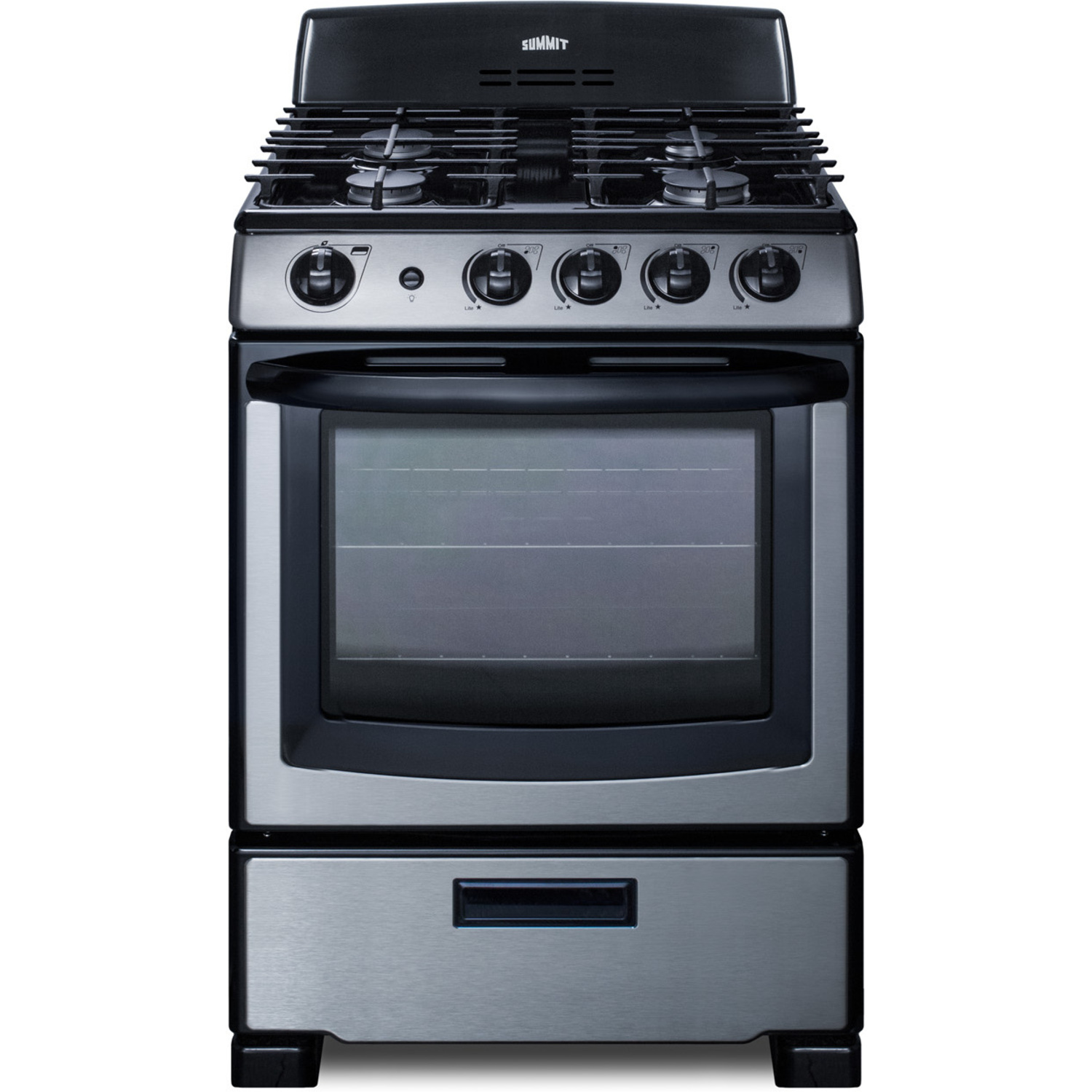

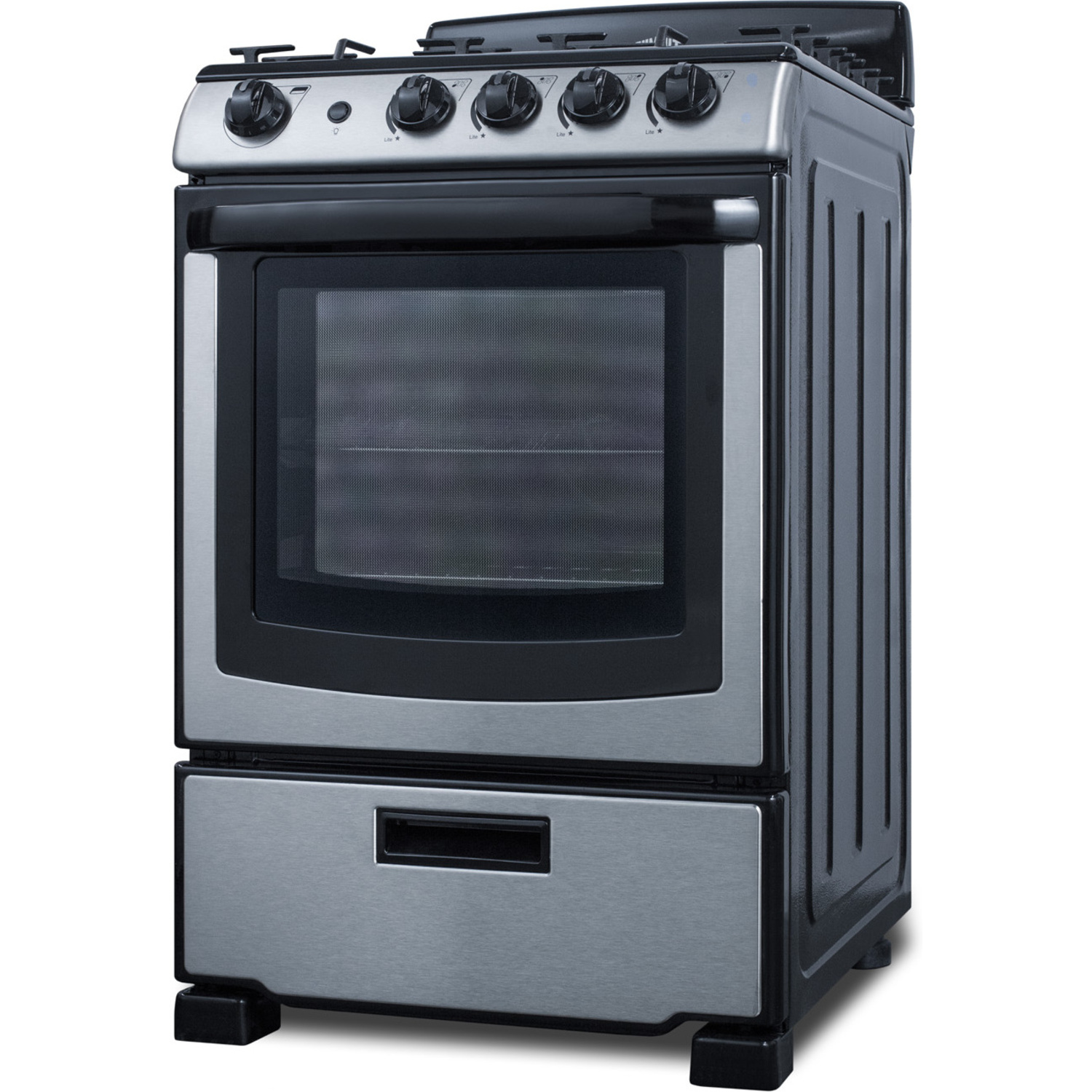

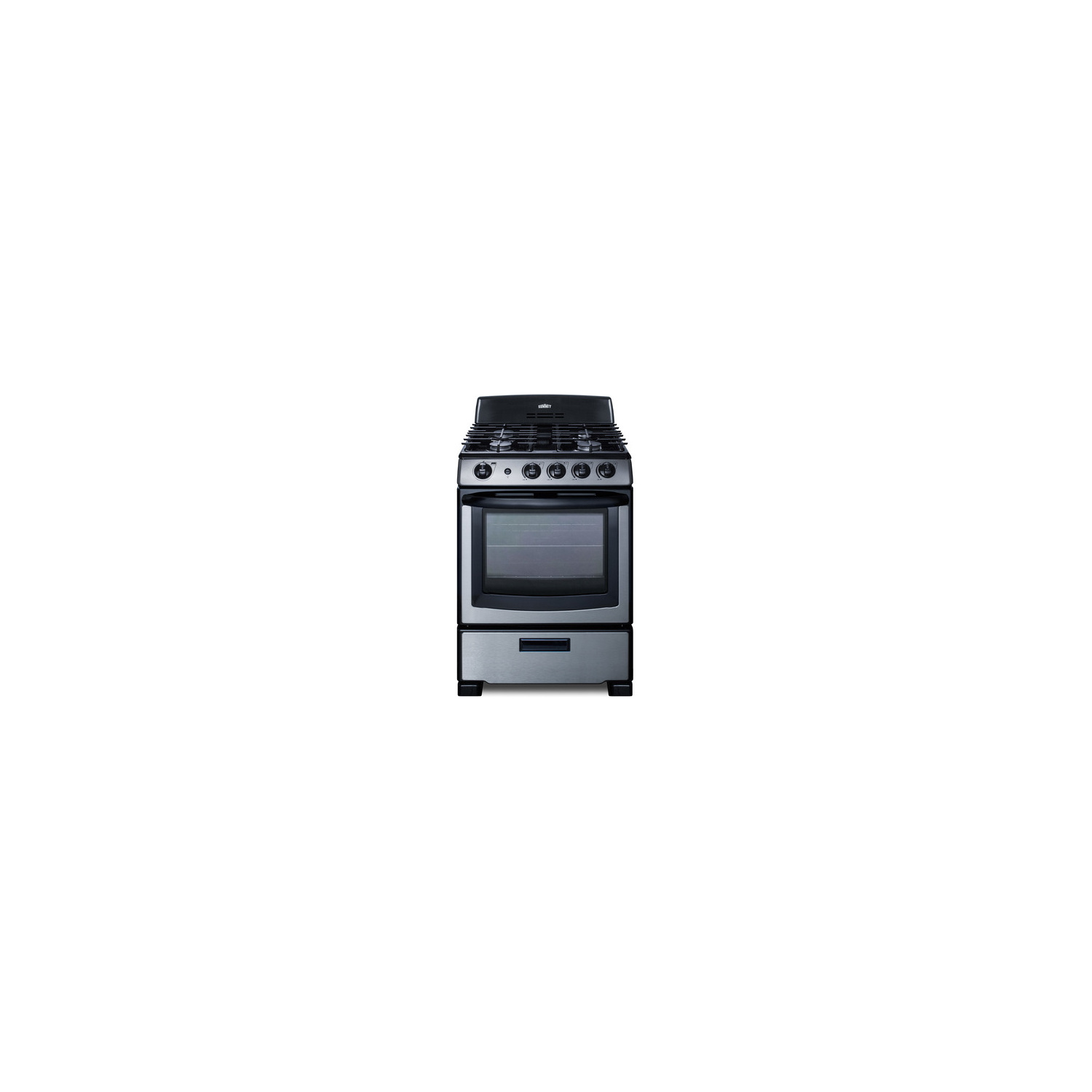

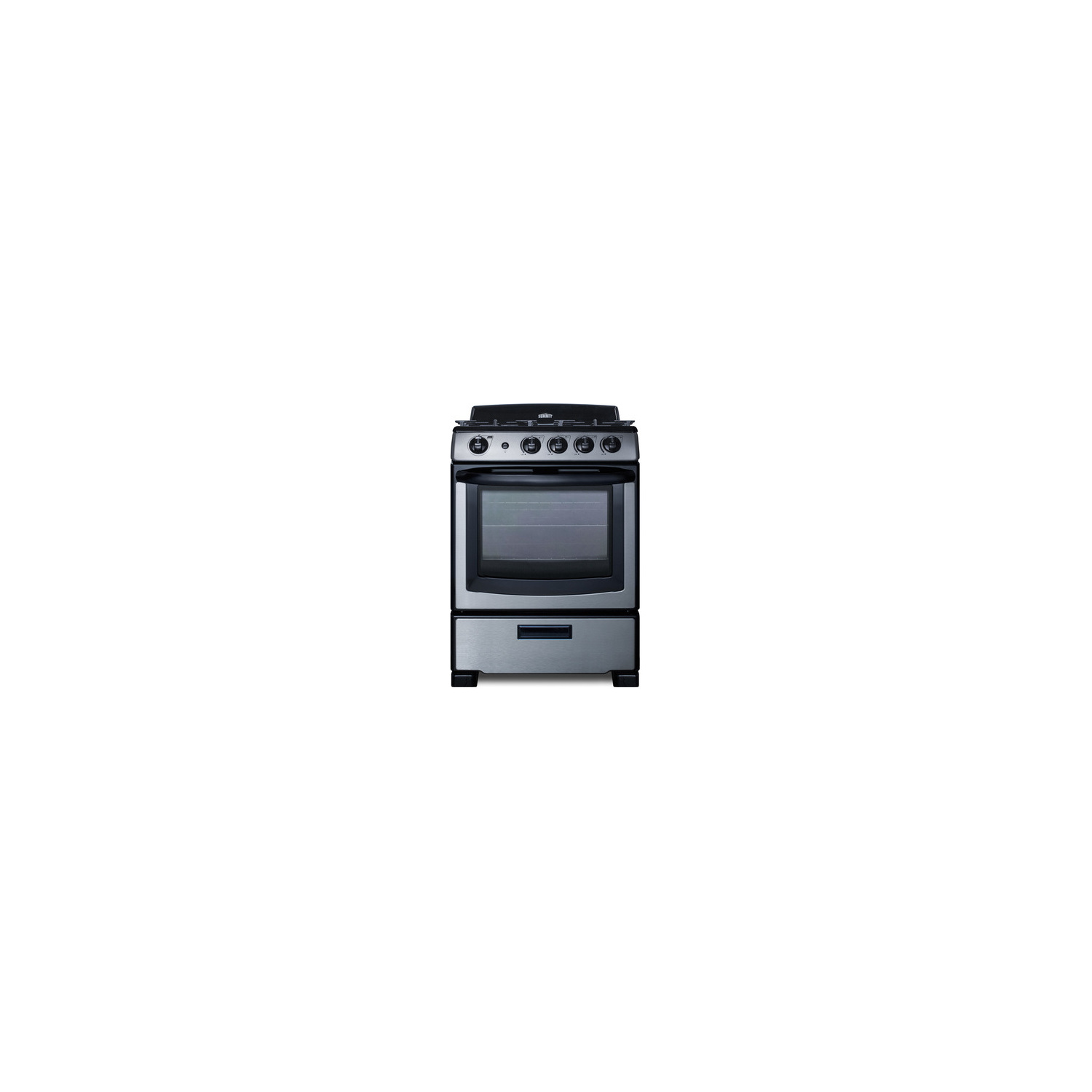

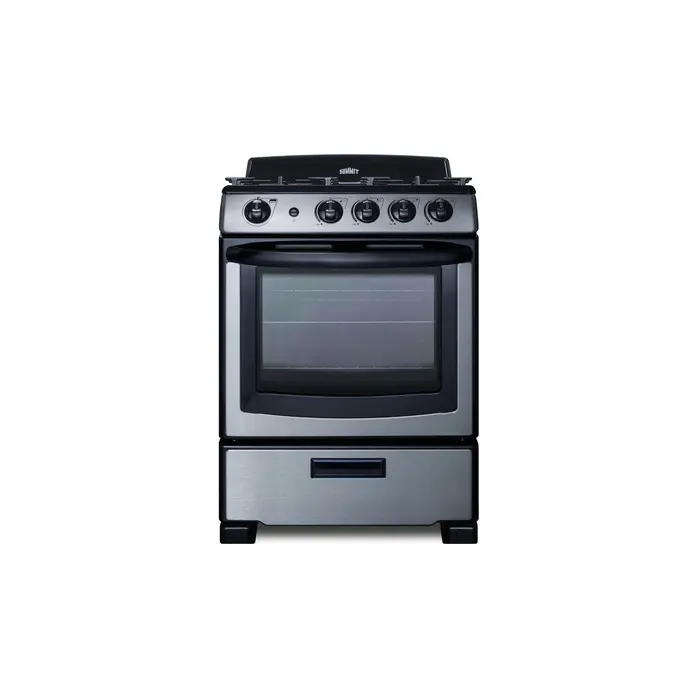

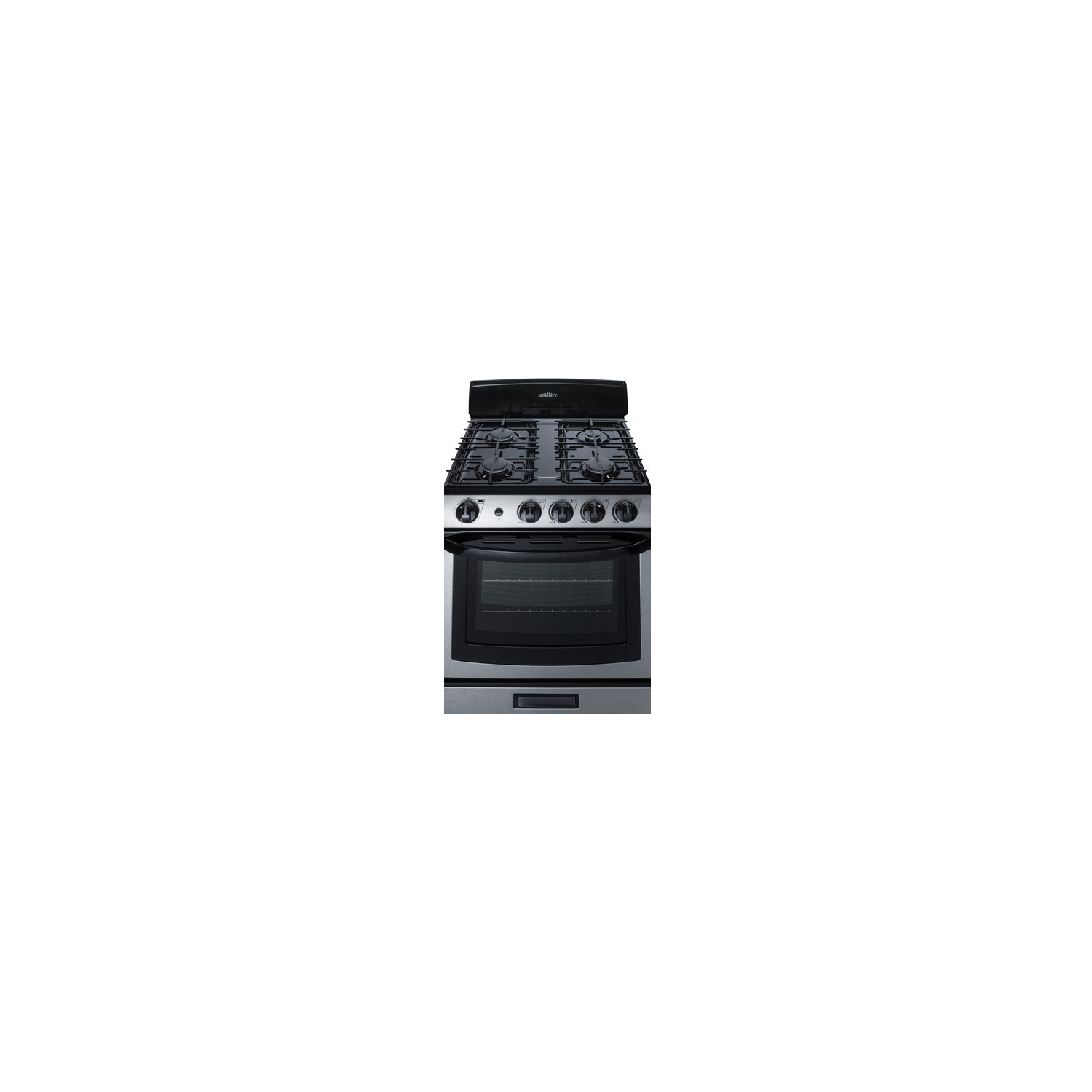

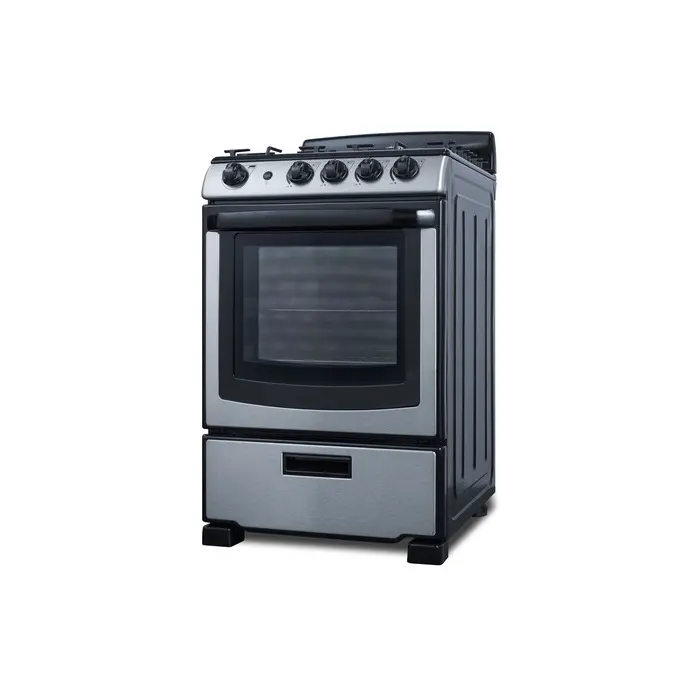

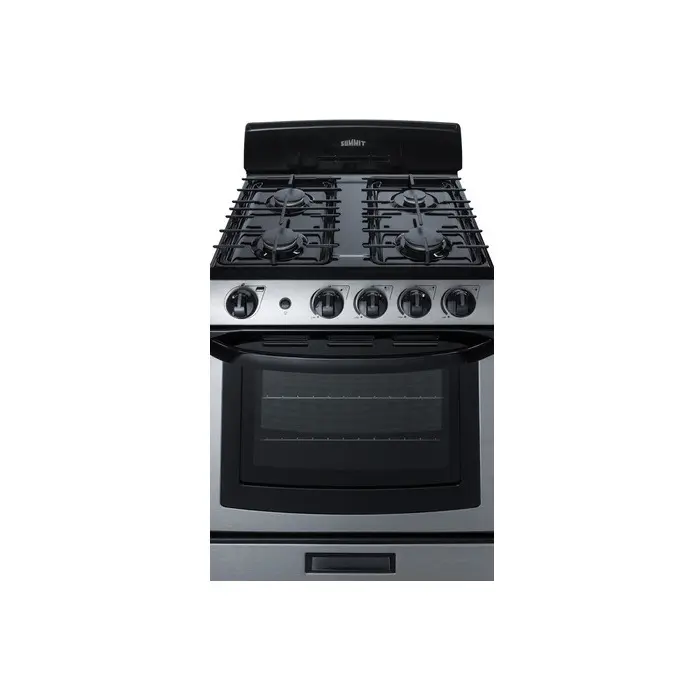

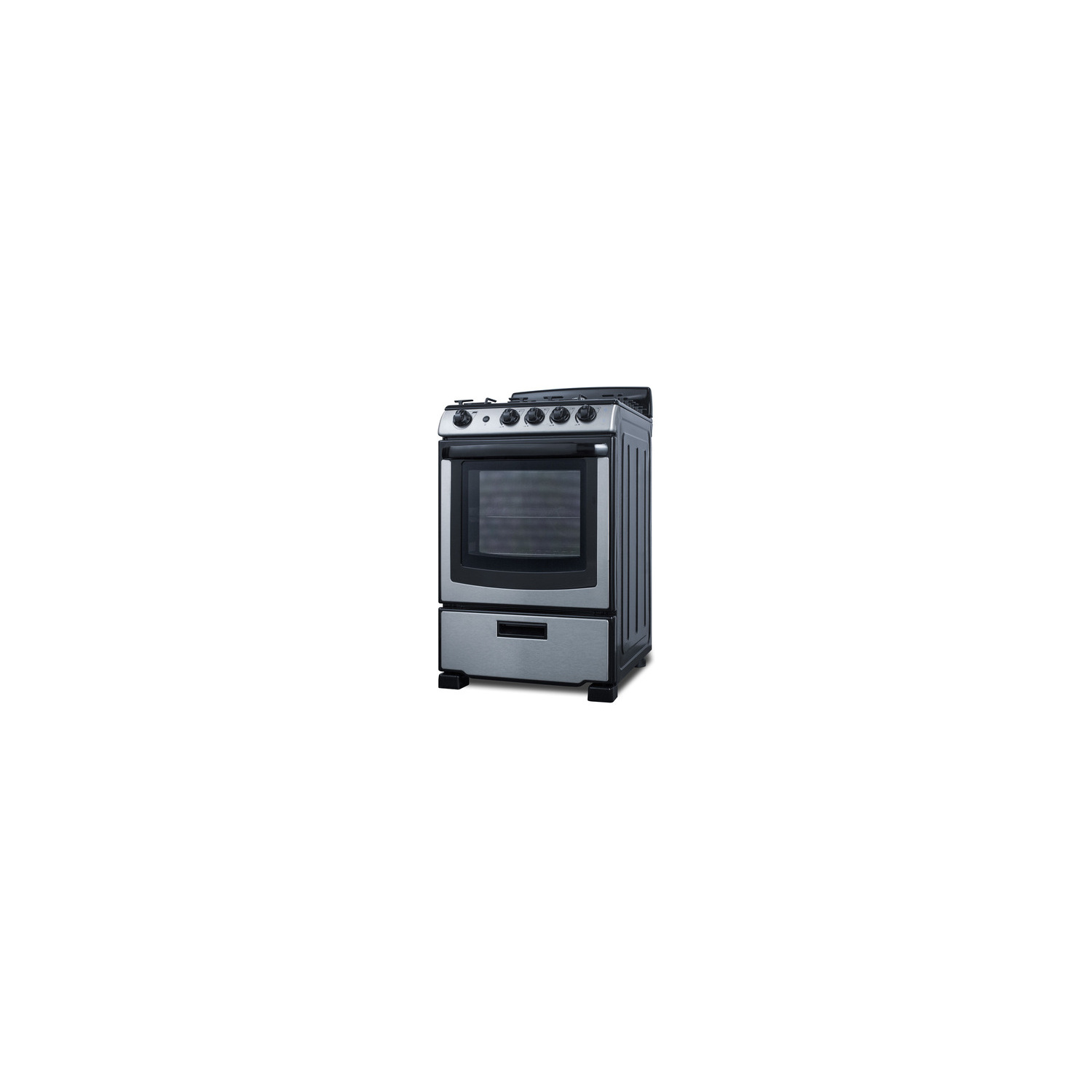

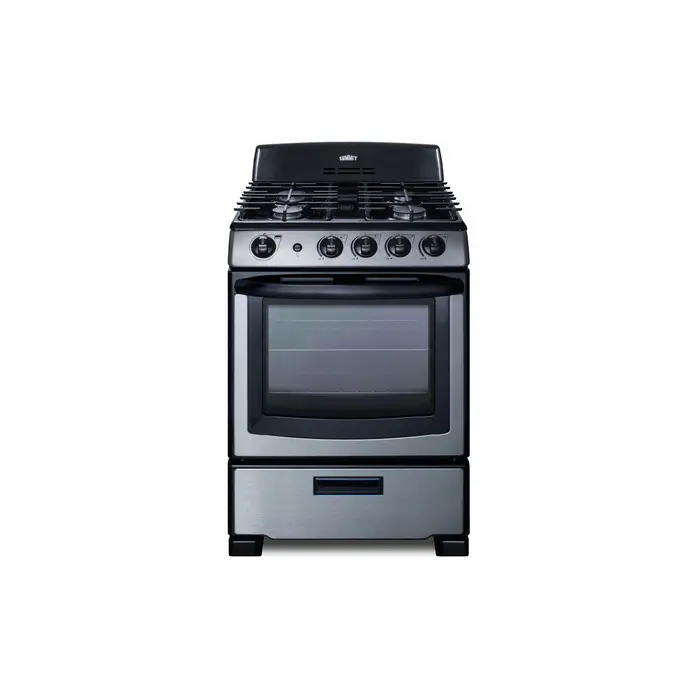

Summit 24 inch wide gas range in stainless steel with electronic ignition, oven window, and sealed burners, 7.61101e+011, PRO247SS

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens.

The PRO247SS is sized at just 24" wide for an easy fit in smaller kitchen spaces. The front manifold, oven door, and broiler front feature a stainless steel finish, with a black trimmed oven window, handle, and backguard for a modern look. The oven includes a large window, interior light, and easy-grip handle for cooking convenience.This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. Two sets of continuous grates feature a lightweight but durable cast iron design. The control panel includes upfront push-to-turn burner knobs for added safety.

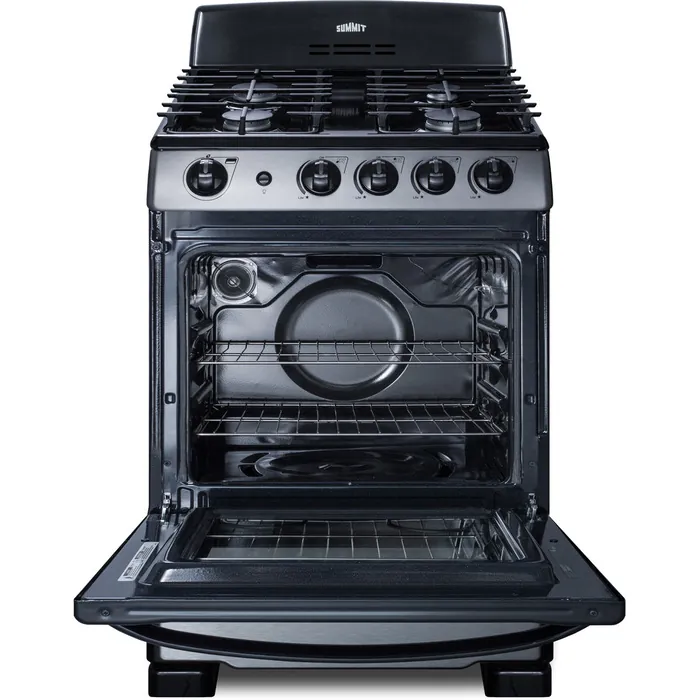

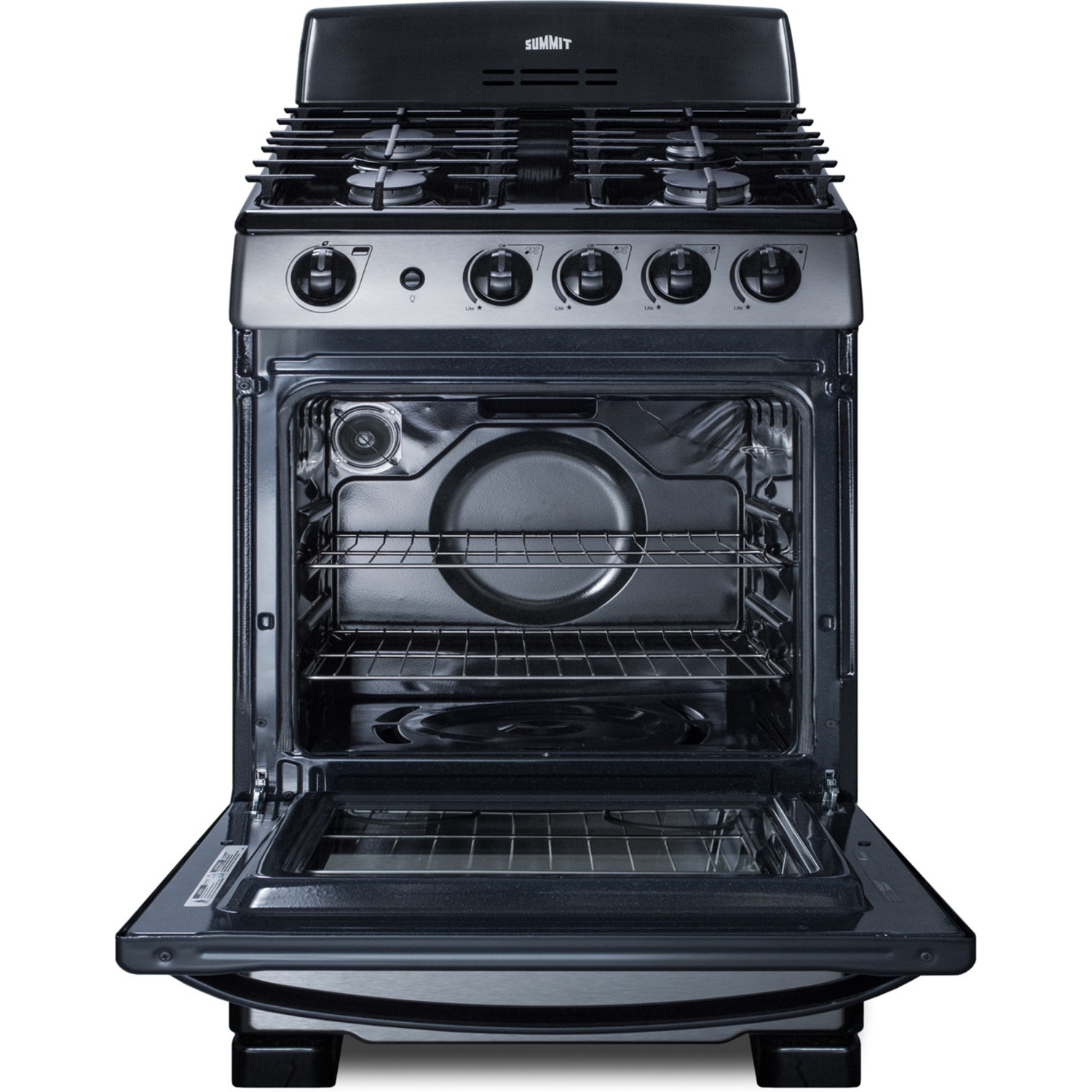

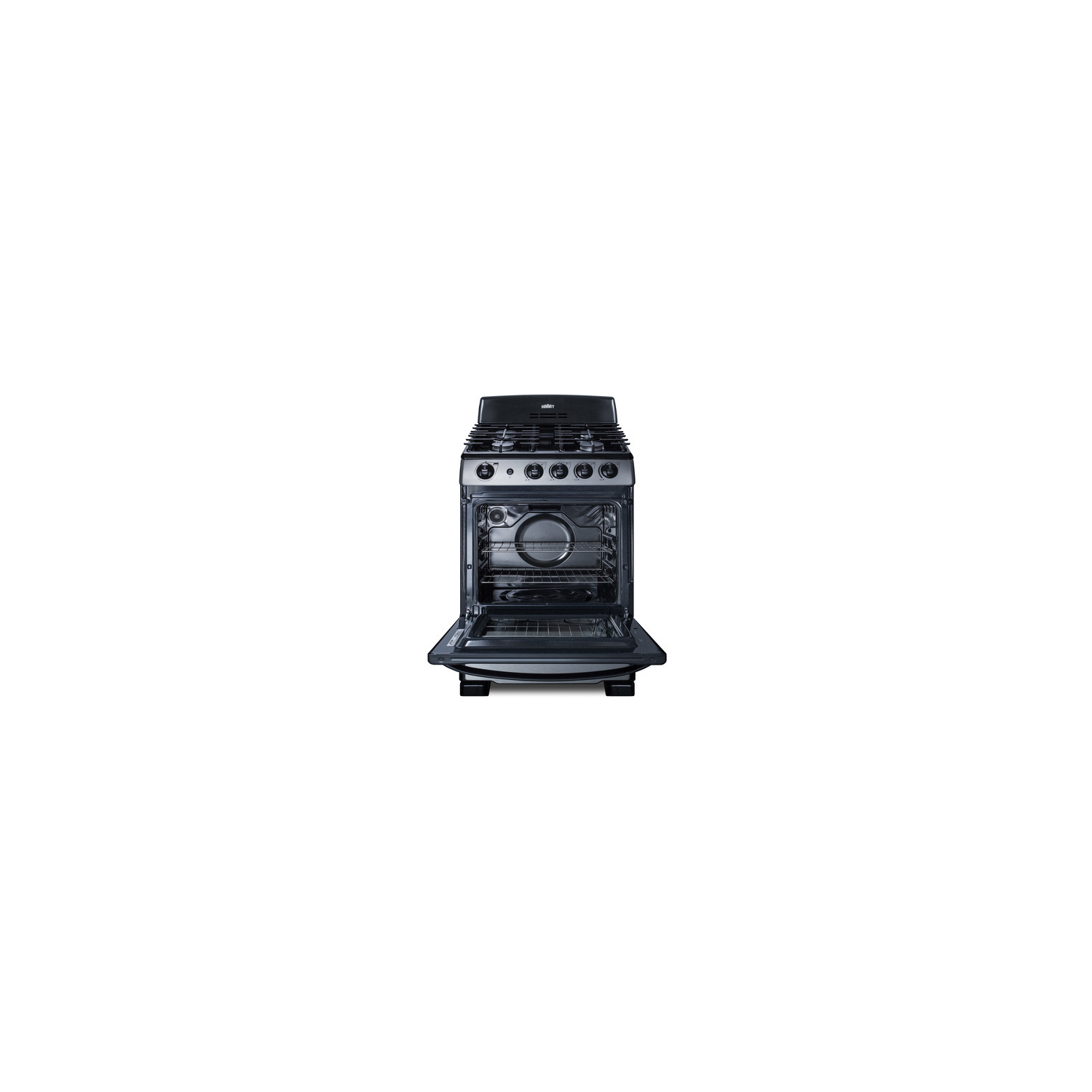

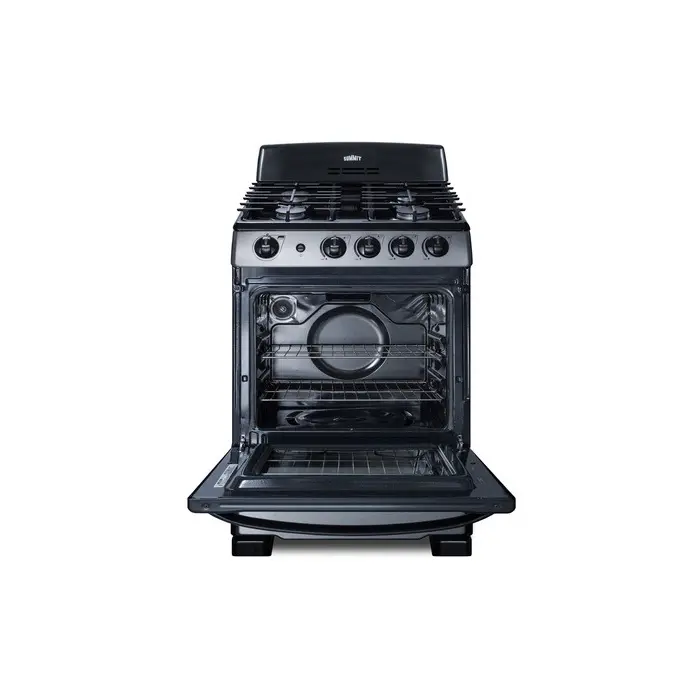

Inside, the PRO247SS features a 2.9 cu.ft. porcelain oven. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment with a convenient pocket handle. We include a two-piece broiler pan with lid. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

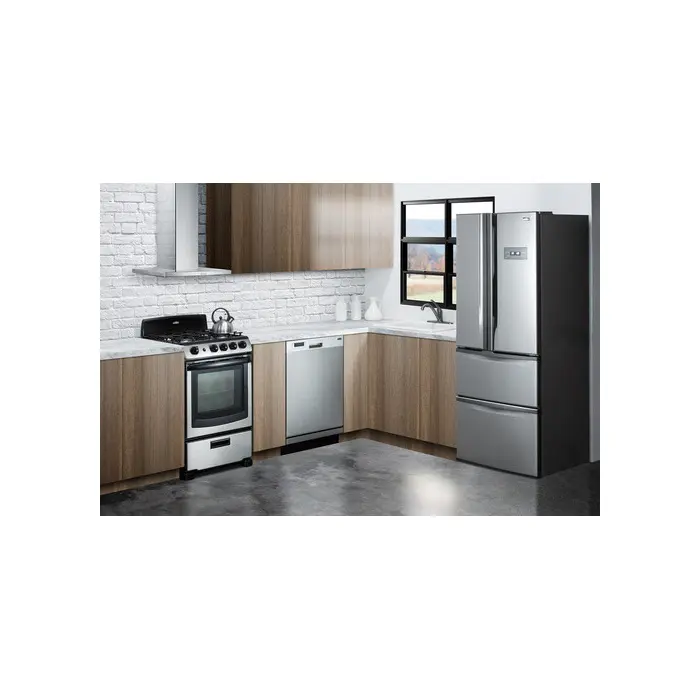

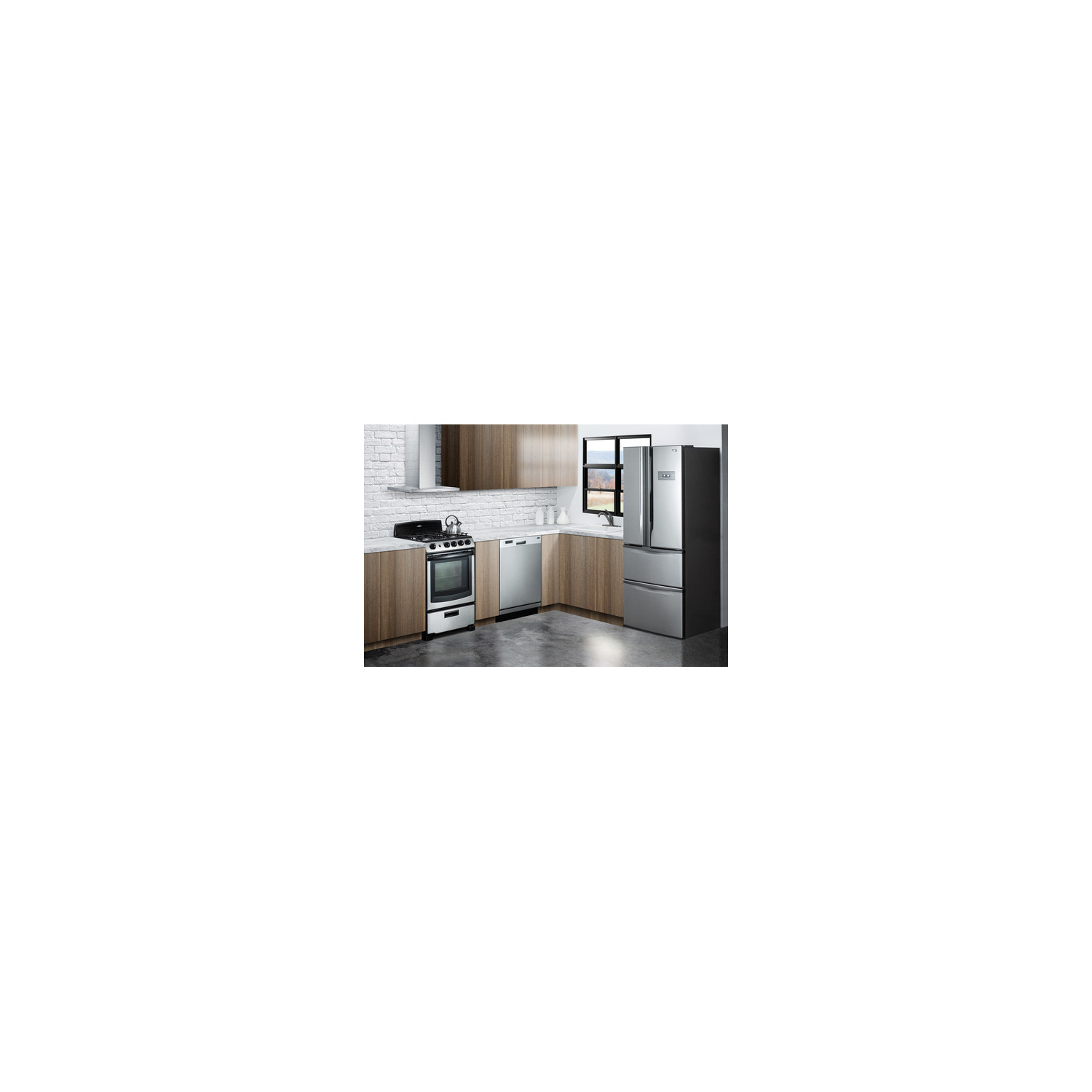

With its clean look and unique size, the PRO247SS is the ideal gas range for apartment and small home kitchens.

NOTE: This unit replaces model PRO246SS but features an upgraded sealed burner design.

SPECIFICATIONS

Overview

Nominal Height 42.0" (107 cm)

Height of Cabinet 42.0" (107 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.5" (62 cm)

Depth with Handle 25.75" (65 cm)

Depth with door at 90° 40.25" (102 cm)

Door Stainless Steel

Cabinet Black

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

UPC 761101058375

Gas Range

Ignition Spark

LP Convertible Yes

Oven Capacity 2.9 cu.ft

Burner Type Sealed

Number of Burners 4

Grate Material Cast Iron

Burner #1 BTU 12000.0

Burner #2 BTU 9500.0

Burner #3 BTU 5000.0

Burner #4 BTU 9500.0

Burner Controls Dial

Oven Controls Dial

Oven Light Yes

Backguard Yes

Cleaning Type Manual

Oven Rack Qty 2

Oven Window Yes

Broiler Location Below Oven

FEATURES

Sealed burners Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

24" Width Perfectly sized for apartments and smaller kitchens

LP Convertible Unit is set for natural gas but can be converted aftermarket with the included LP kit

Stainless steel finish Door, broiler, and control panel, and handle feature a stainless steel finish for a professional look

Oven window with light Easier monitoring of your cooking with an oven window and on/off light

Cast iron grates Two sets of continuous cast iron burner grates offer durable cooking with a lightweight feel for easier cleaning

High output burner Front right burner features 12,00 BTU output for powerful cooking

Two semi-rapid burners Two left burners operate at 9,500 BTU to handle most heating needs

Low output burner Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability

Slide-out oven racks Two racks with four glide positions for flexible cooking

Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism

Broiler compartment Drop-down lower compartment offers the ideal conditions for broiling

Push-to-turn controls Burner knobs require a small amount of force to turn on for added protection against accidents

Electronic ignition Spark ignition for added safety

Broiler pan included Two-piece broiler pan with lid included with each range

ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

High backguard Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included Standard 3-pronged 115V cord included for the electronic ignition

Anti-tip bracket Safety feature included for user installation to help prevent accidents

DOWNLOADS

BROCHURE w/ DRAWINGS (PRO247SS.pdf)

TECHNICAL DRAWING (.dwg) (PRO247SS_RANGE_GAS__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_PRO247SS_24_inches_Wide_Gas_Range.rfa)

OTHER (Summit_Anti-Tip_Bracket.pdf)

USE & CARE (PRO247SS-User-Manual.pdf)
