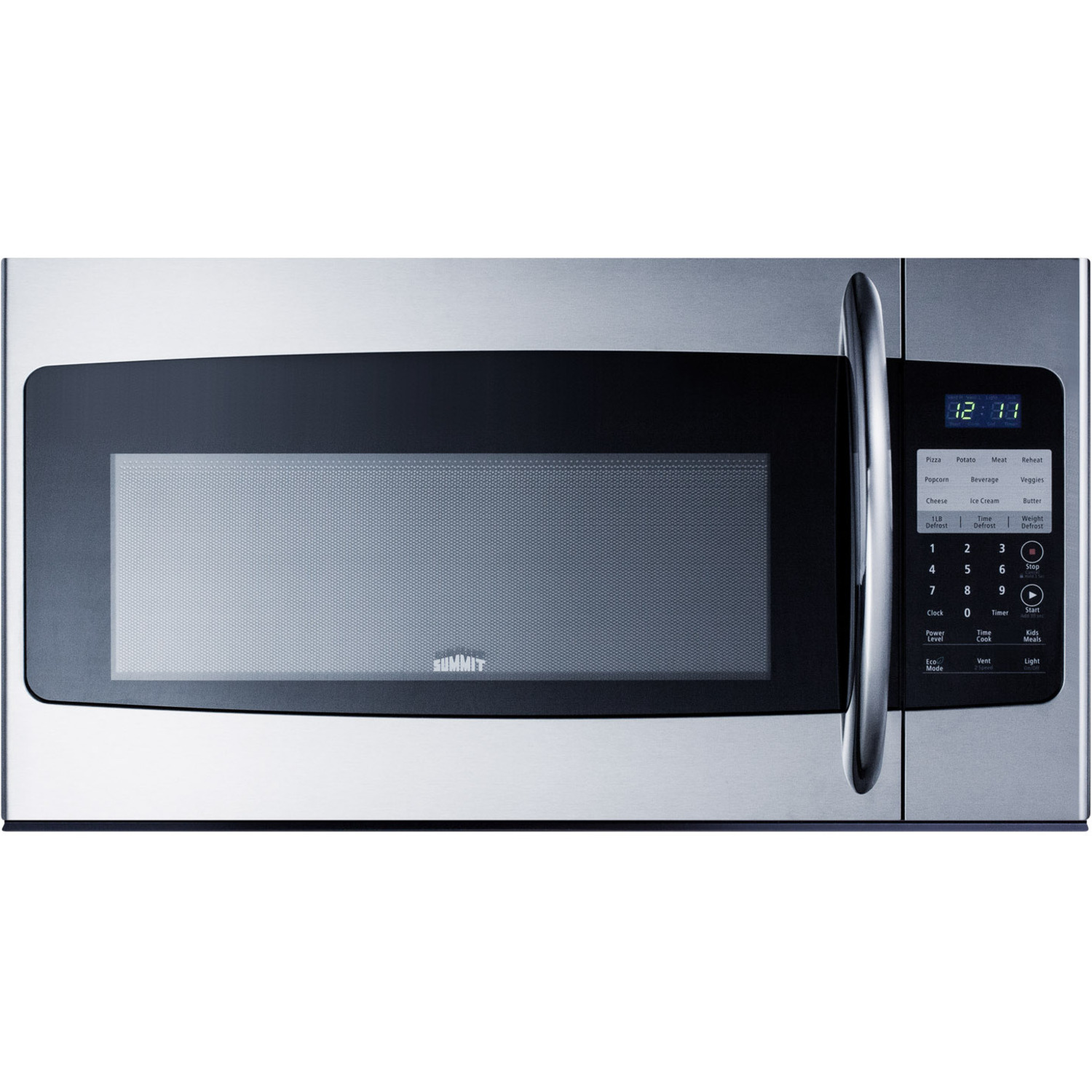

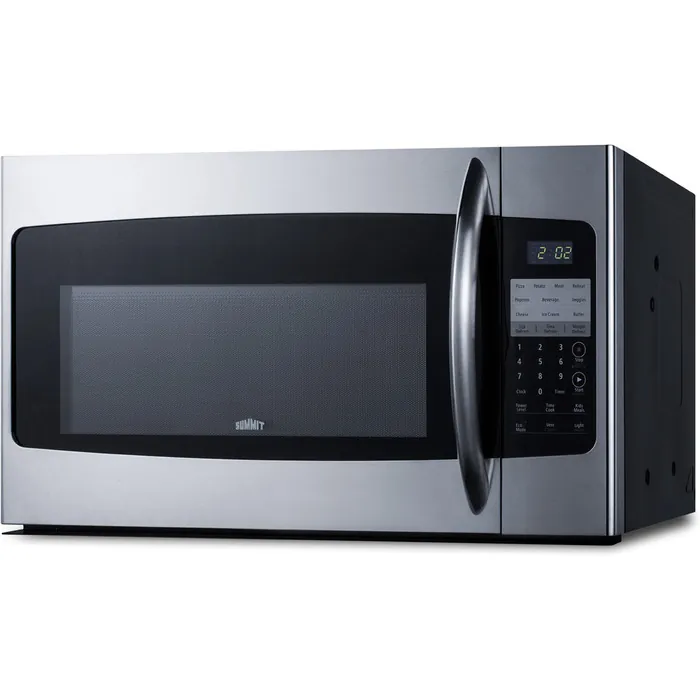

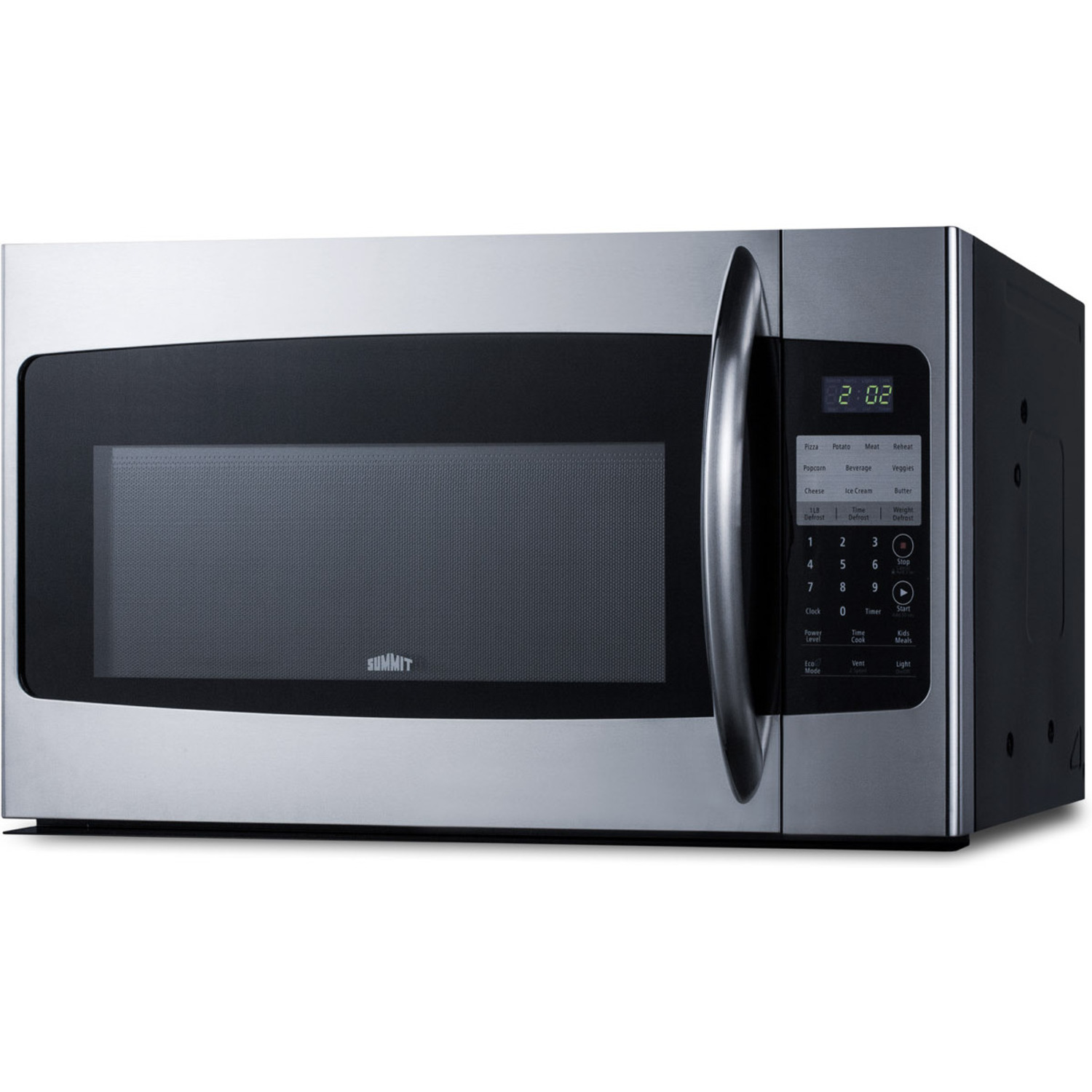

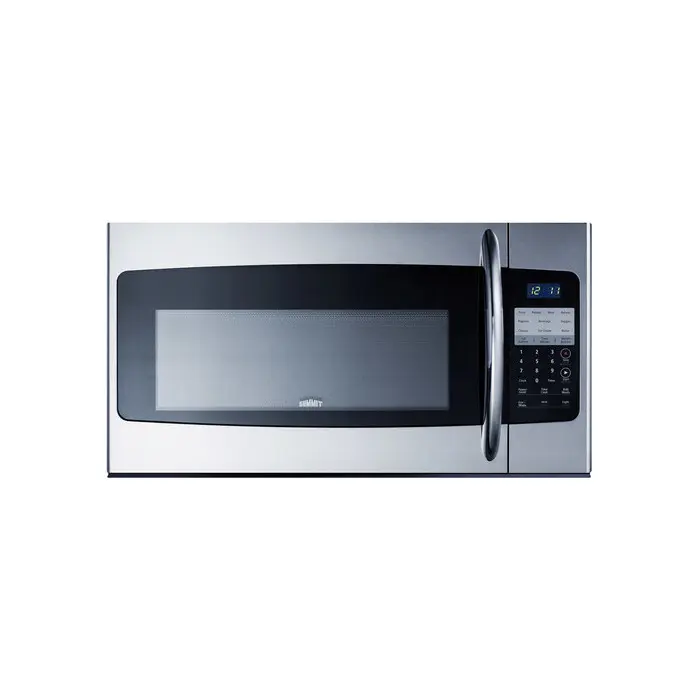

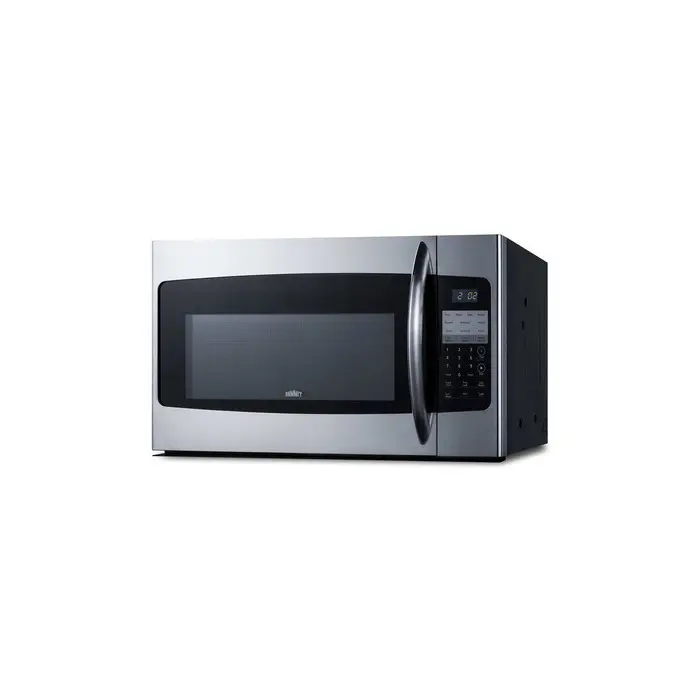

Summit 30 inch wide over-the-range microwave with hood in stainless steel, 7.61101e+011, OTRSS301

SUMMIT OTRSS301 is an over-the-range microwave with a user-friendly design for residential kitchens.

Sized at 30" wide, the OTRSS301 offers a generous 1.6 cu.ft. interior capacity, with a removable shelf included to make the best use of space. Intuitive touch controls provide a variety of one-touch cooking options, including settings for popcorn, beverages, butter, pizza, ice cream, common kids' meals, and more. Multiple power levels and multi-stage cooking allow you to achieve the perfect heating conditions for a variety of dishes. Defrost settings offer the choice of heating by time or weight.

This unit is equipped with a versatile ventilation system that can be set up with a vertical duct, horizontal duct, or for recirculating (ductless) operation with a charcoal filter included. The range hood includes two lights under the cabinet for added convenience over your range or cooktop. We include a mounting plate, exhaust adapter for top or rear-venting, and the hardware required for installation, along with a top cabinet and rear wall template. NOTE: This unit features a top vented system that must be clear for adequate ventilation. The depth from rear to the vented area is 14 1/8".

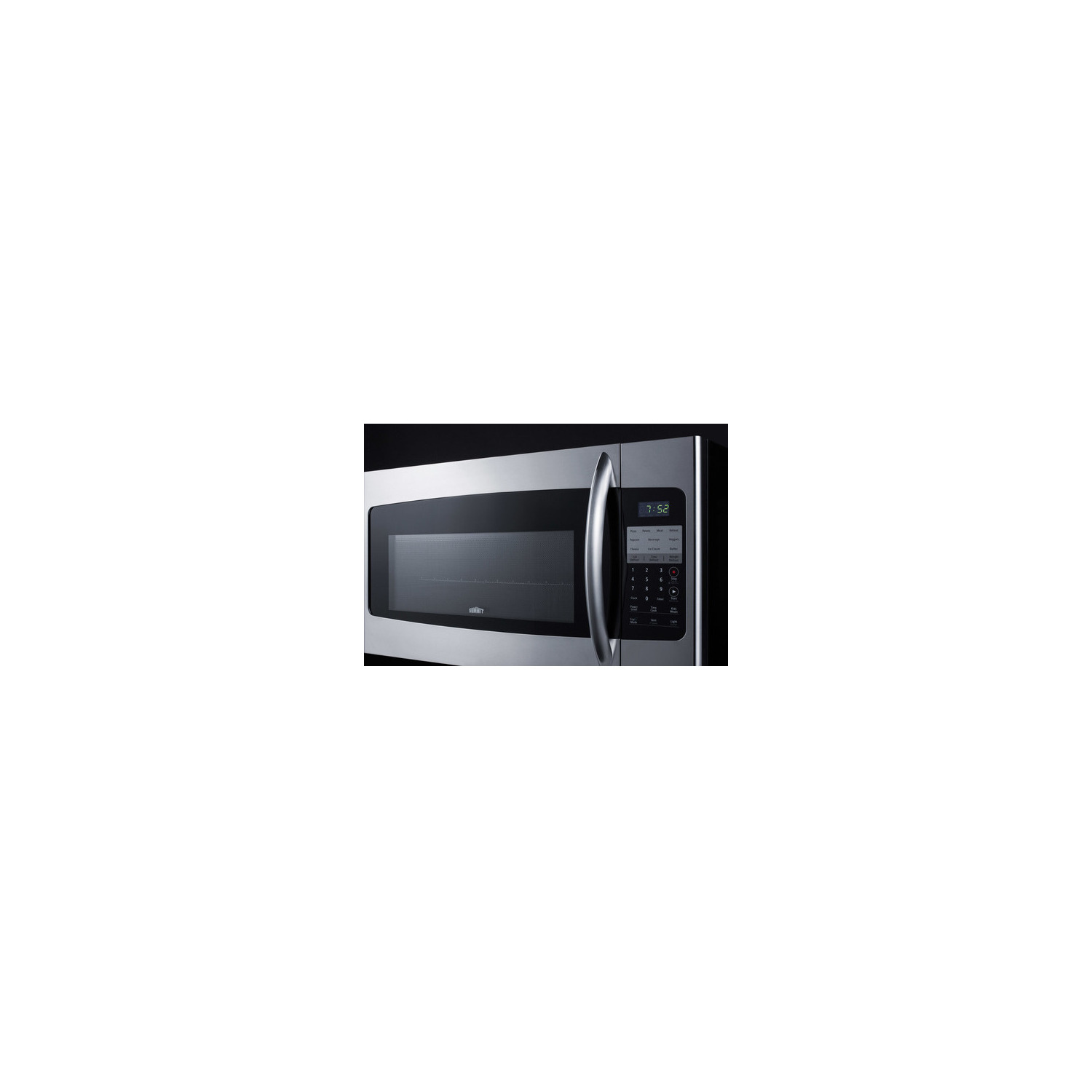

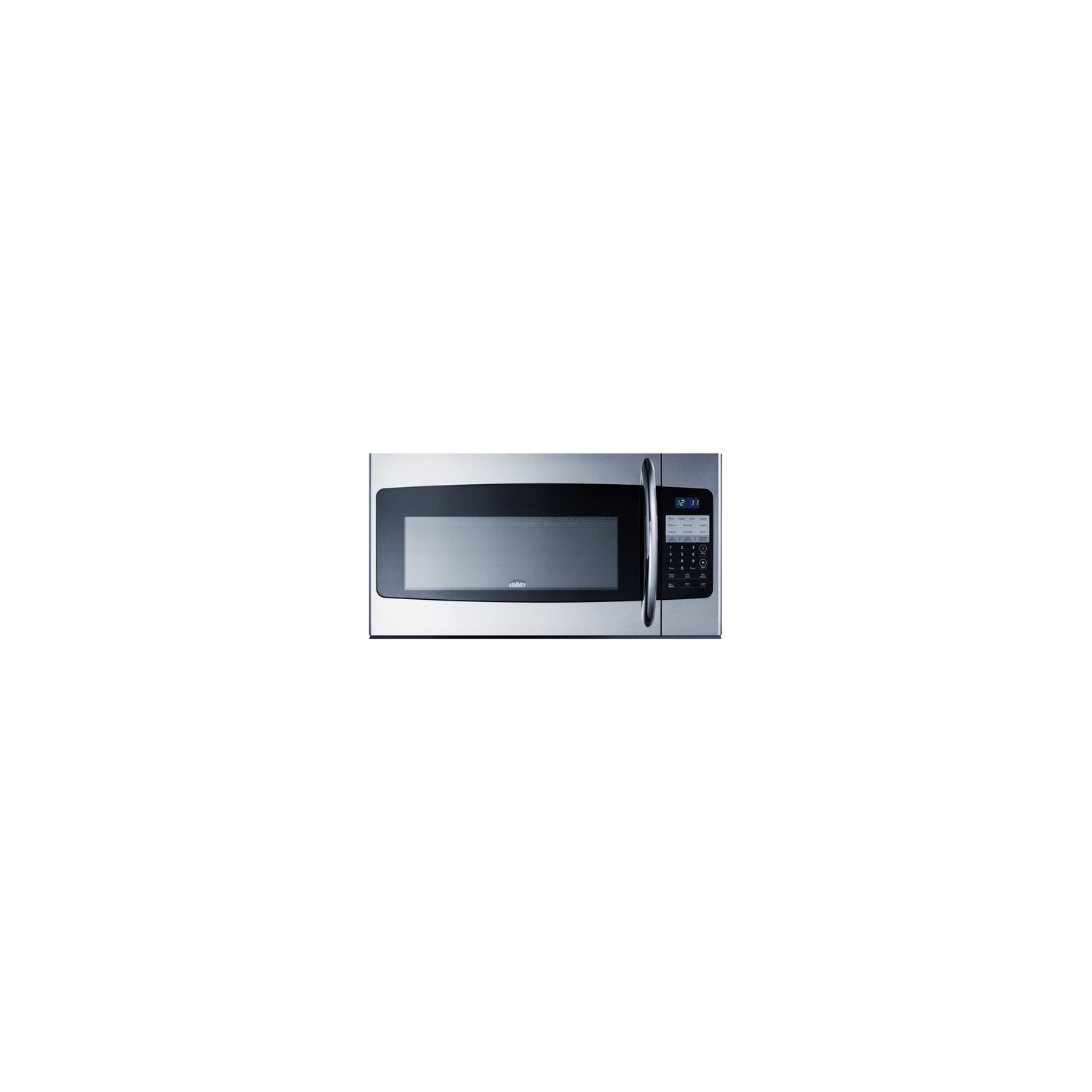

The OTRSS301 features a stainless steel finish complete with a pro style easy-grip handle. With its professional look and advanced controls, this is a great choice for completing any kitchen space.

SPECIFICATIONS

Overview

Nominal Height 17.0" (43 cm)

Height of Cabinet 16.88" (43 cm)

Nominal Width 30.0" (76 cm)

Width 29.88" (76 cm)

Nominal Depth 16.0" (41 cm)

Depth 15.5" (39 cm)

Depth with Handle 17.75" (45 cm)

Depth with door at 90° 39.13" (99 cm)

Capacity 1.6 cu.ft. (45 L)

Door Stainless Steel

Cabinet Black/SS

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 12.0

Voltage/Frequency 115 V AC/60 Hz

Weight 55.0 lbs. (25 kg)

Parts & Labor Warranty 90 Days

UPC 761101056692

Microwave

Wattage 1000.0

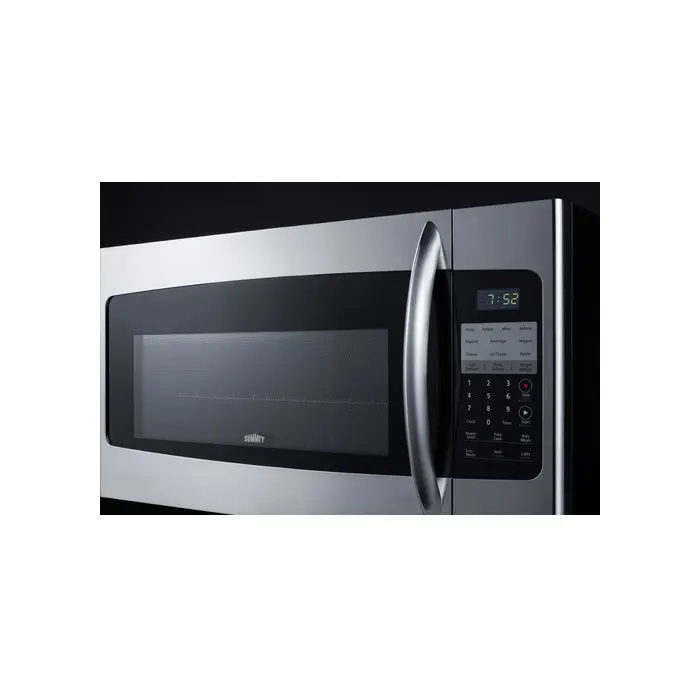

Controls Digital

Digital Display Yes

Turntable Yes

Turntable Diameter 12.0" (30 cm)

Specialized Cooking Buttons Yes

Interior Height 9.75" (25 cm)

Interior Width 21.0" (53 cm)

Interior Depth 13.75" (35 cm)

FEATURES

Range hood function Under-cabinet ventilation with a high/low setting

Versatile ventilation options This unit can be set up with a vertical duct, horizontal duct, or for recirculating operation

Charcoal filter included Single charcoal filter is included to accommodate ductless (recirculating) setups

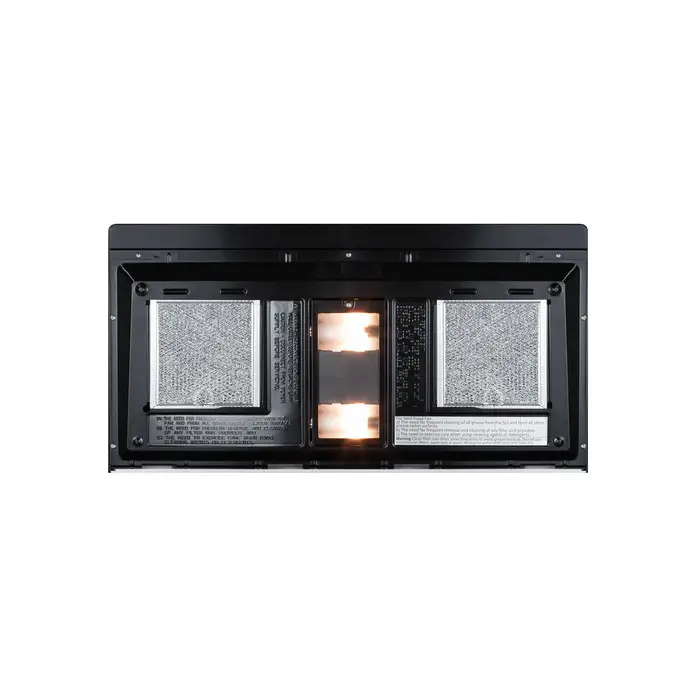

Removable cassette filters Two removable aluminum filters help to absorb odors

One-touch cooking options Touch controls for easy heating of pizza, potatoes, meat, beverages, veggies, butter, cheese, and ice cream

Kids Meals heating option Designed for easy reheating of common children's meals, with settings specifically designed for hot dogs, nuggets, and french fries

Popcorn setting One-touch option is ideal for the perfect bag of popcorn

Glass turntable with on/off mode Unit includes a removable glass turntable and a setting to operate the microwave with the turntable function on or off

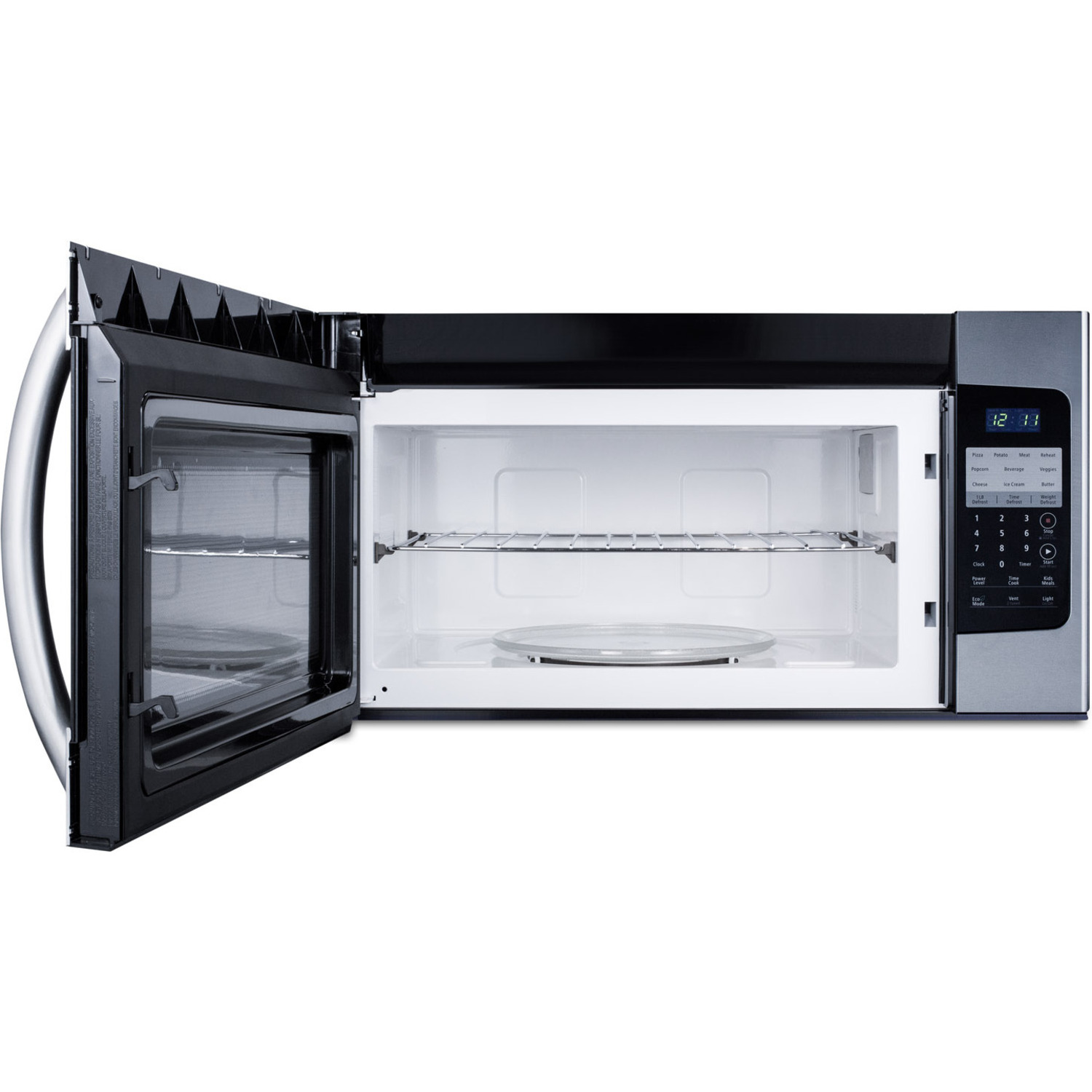

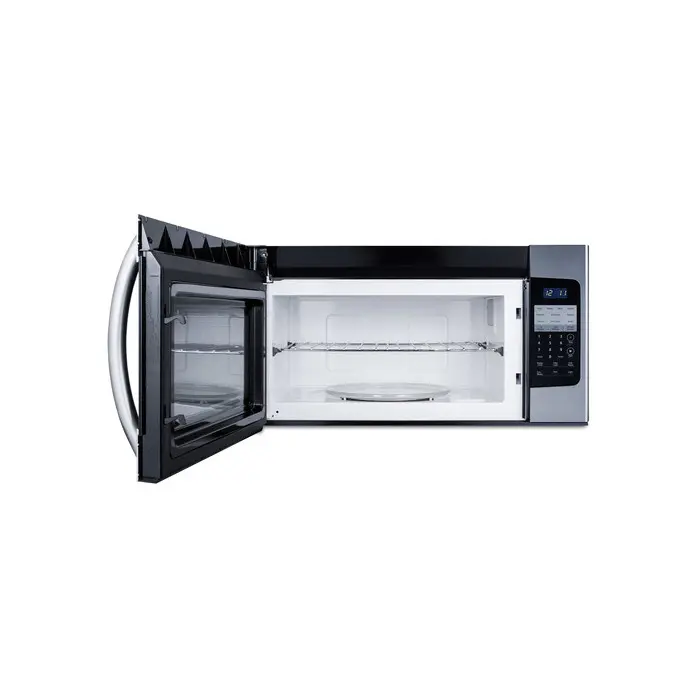

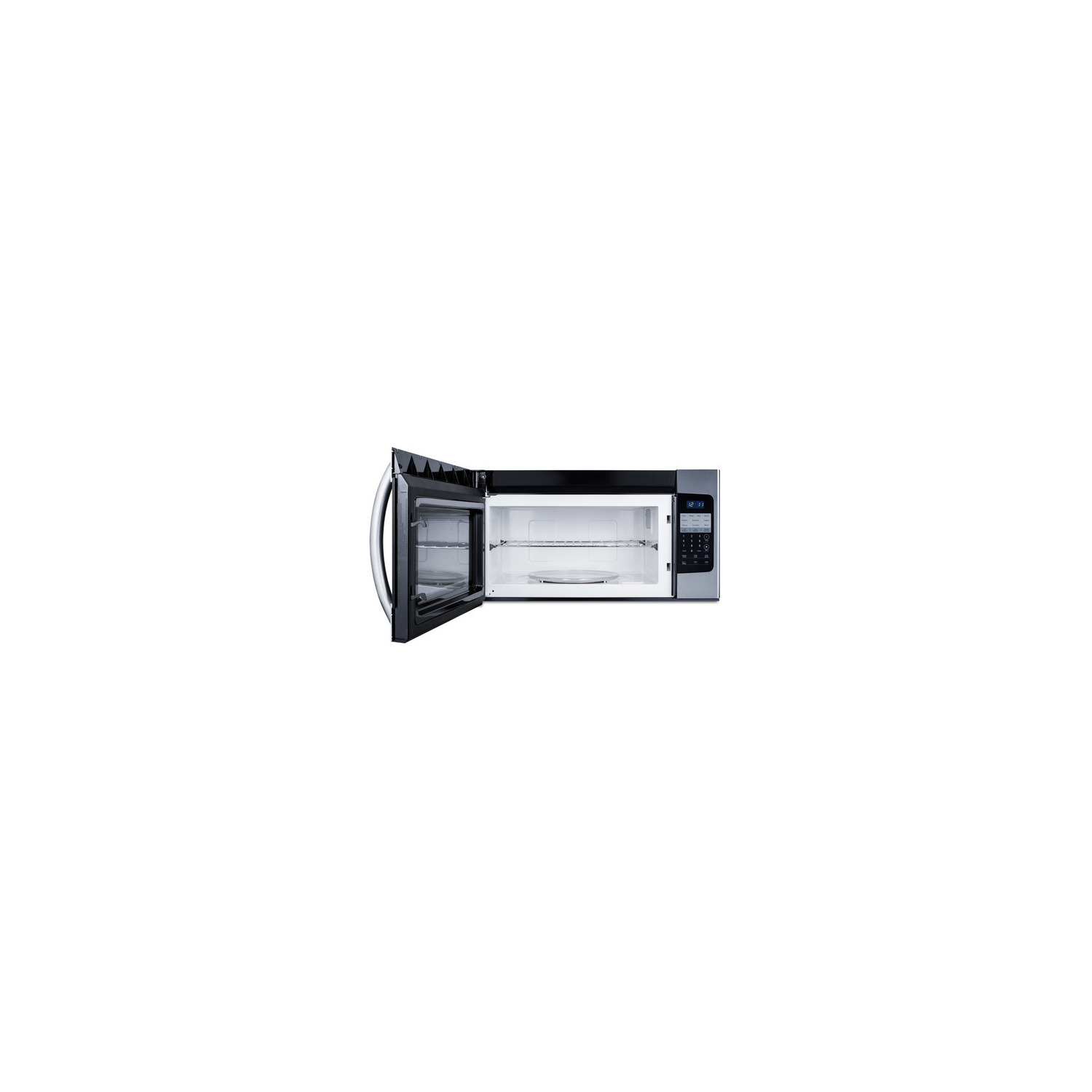

Removable shelf Chrome shelf included to help maximize the interior capacity

Interior light Microwave light automatically illuminates when the door is opened

Pro style handle Easy-to-grab stainless steel handle adds a modern touch

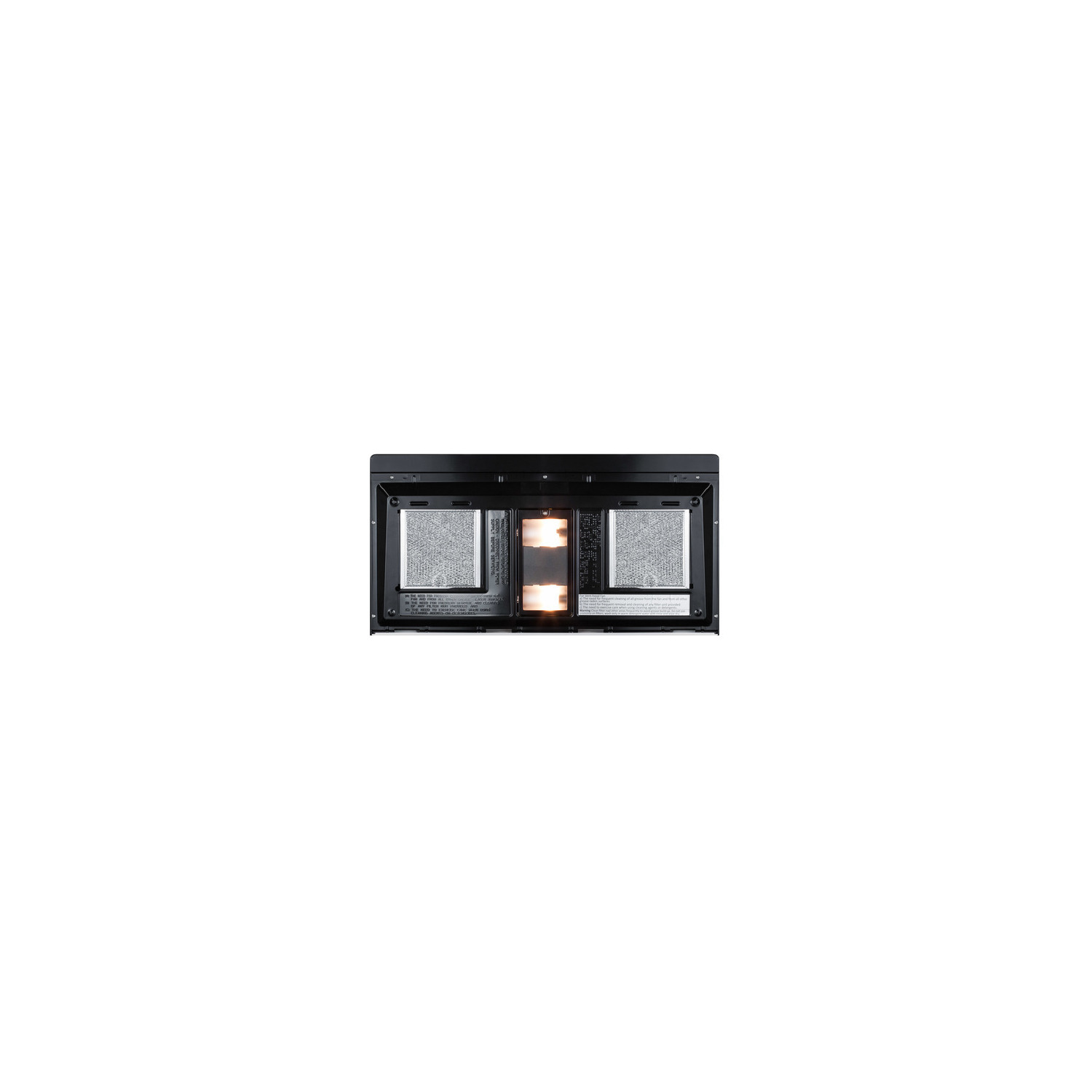

Under cabinet lighting Range hood includes two bulbs for convenient illumination of the cooking zone with a high and low setting

Multi-stage cooking Allows you to program two cooking settings with different power levels for best results with certain recipes

Multiple power levels Choose from 6 power levels to ensure the optimum level of heating for your food

Add 30 seconds option Push the start button to add 30 seconds to cooking time

Defrost settings Separate options allow you to set the defrost by time or weight, with a 1 lb. option included for one-touch defrosting of larger dishes

Kitchen timer Microwave includes timer setting (up to 99 minutes) with an audible warning

Child lock Optional setting can be activated to prevent unsupervised operation

DOWNLOADS

BROCHURE w/ DRAWINGS (OTRSS301.pdf)

TECHNICAL DRAWING (.dwg) (OTRSS301_MICROWAVE_OVEN__A-C_2010_.dwg)

REVIT MODEL (Qf_Summit_OTRSS301_30_inches_Wide_Over-the-Range_Microwave.rfa)

SUPPORT (OTRSS301_Installation_Guide.pdf)

USE & CARE (OTRSS301-User-Manual.pdf)
