Summit Commercial dipping cabinet with pre-installed sneeze guard, sliding glass lid, digital thermostat, and ice cream tub holder baskets, 7.61101e+011, NOVA53PDC

Summit Commercial offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving.

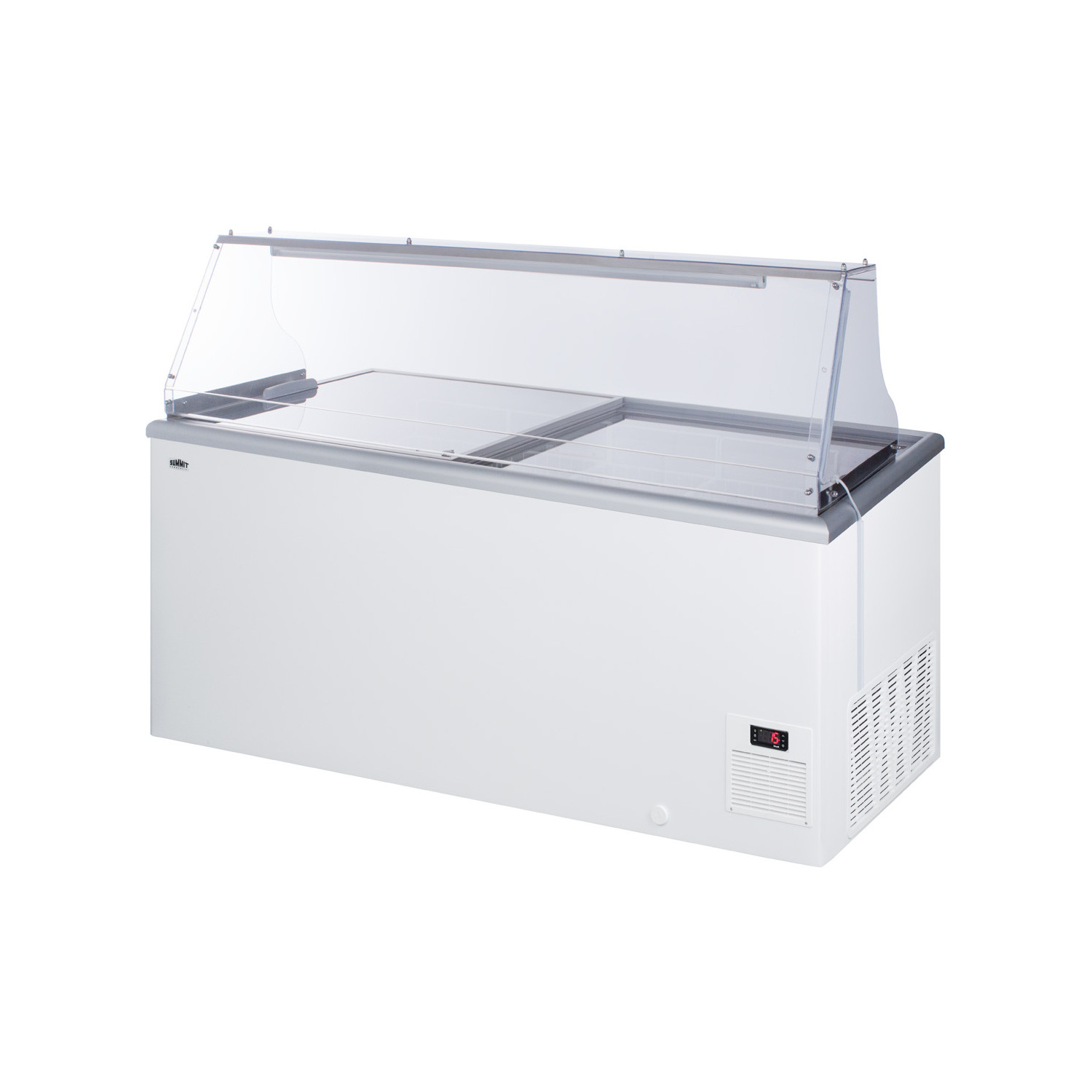

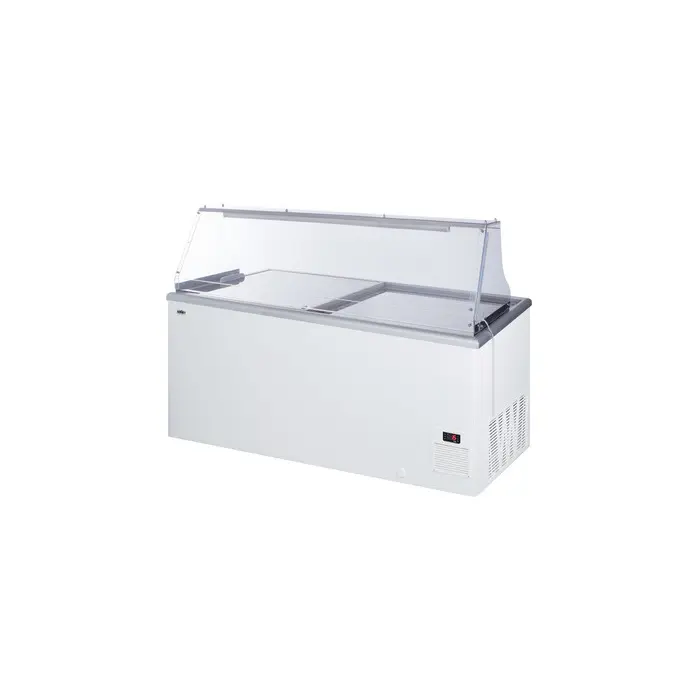

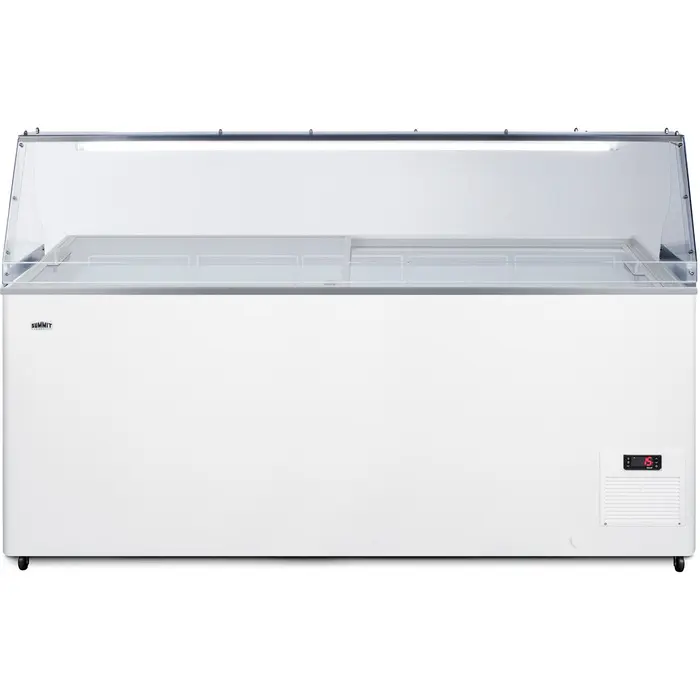

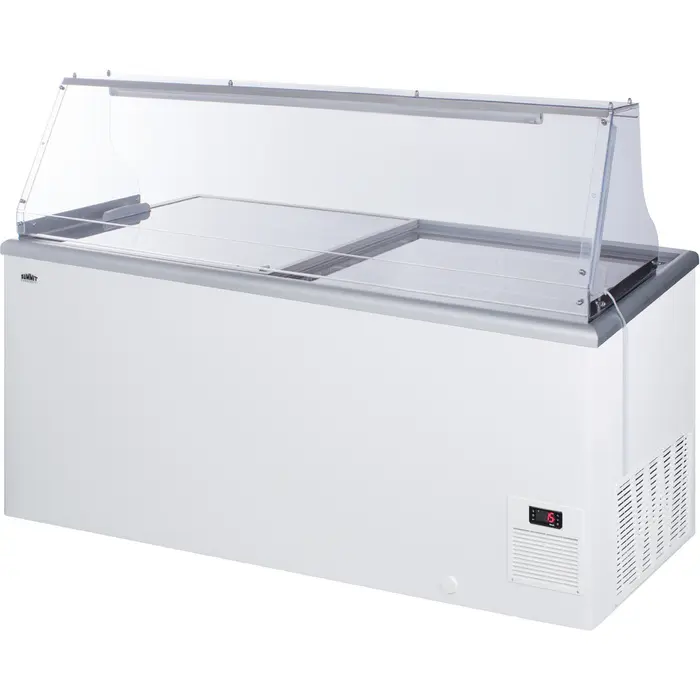

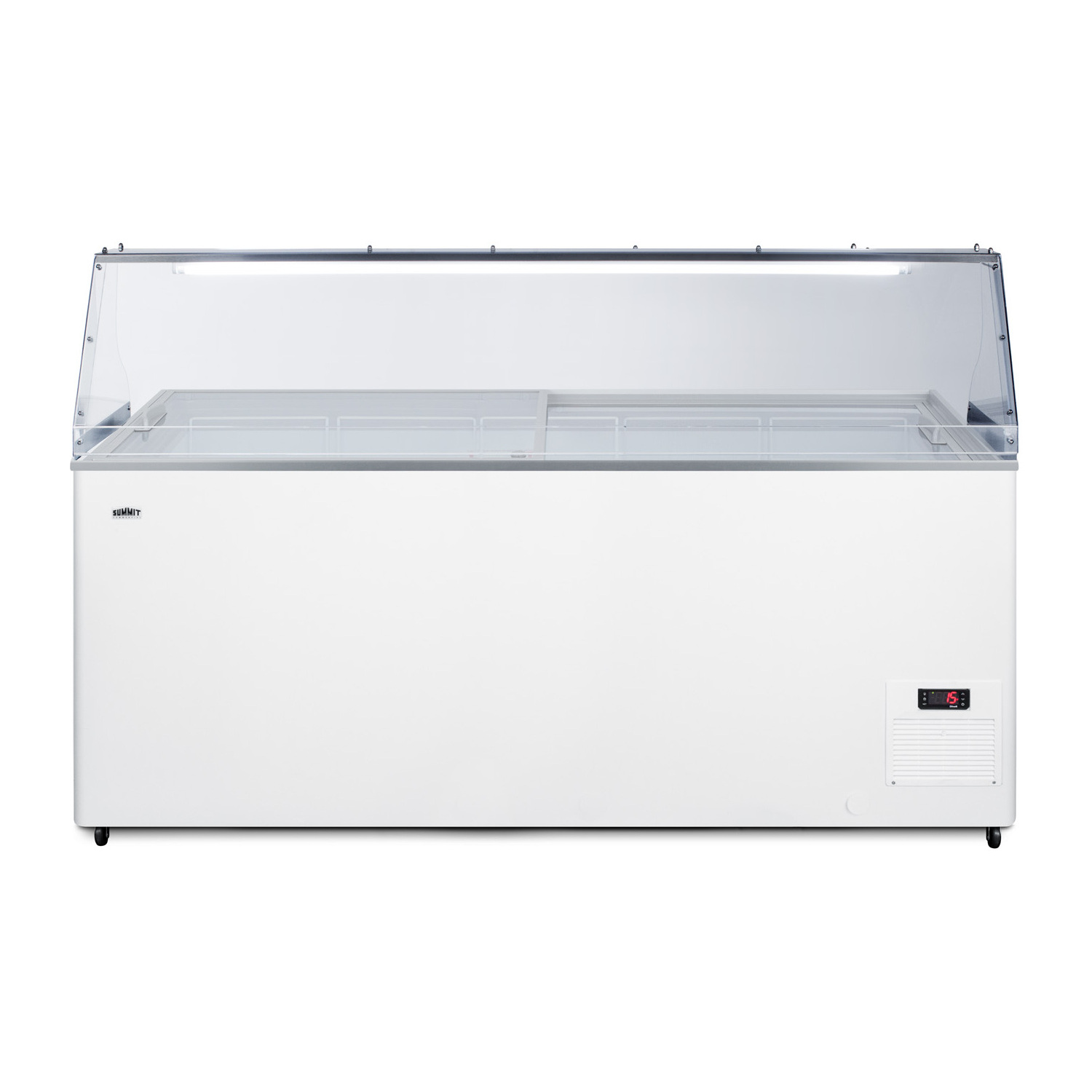

Made for us by Elcold in Denmark, the NOVA53PDC is a 61" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

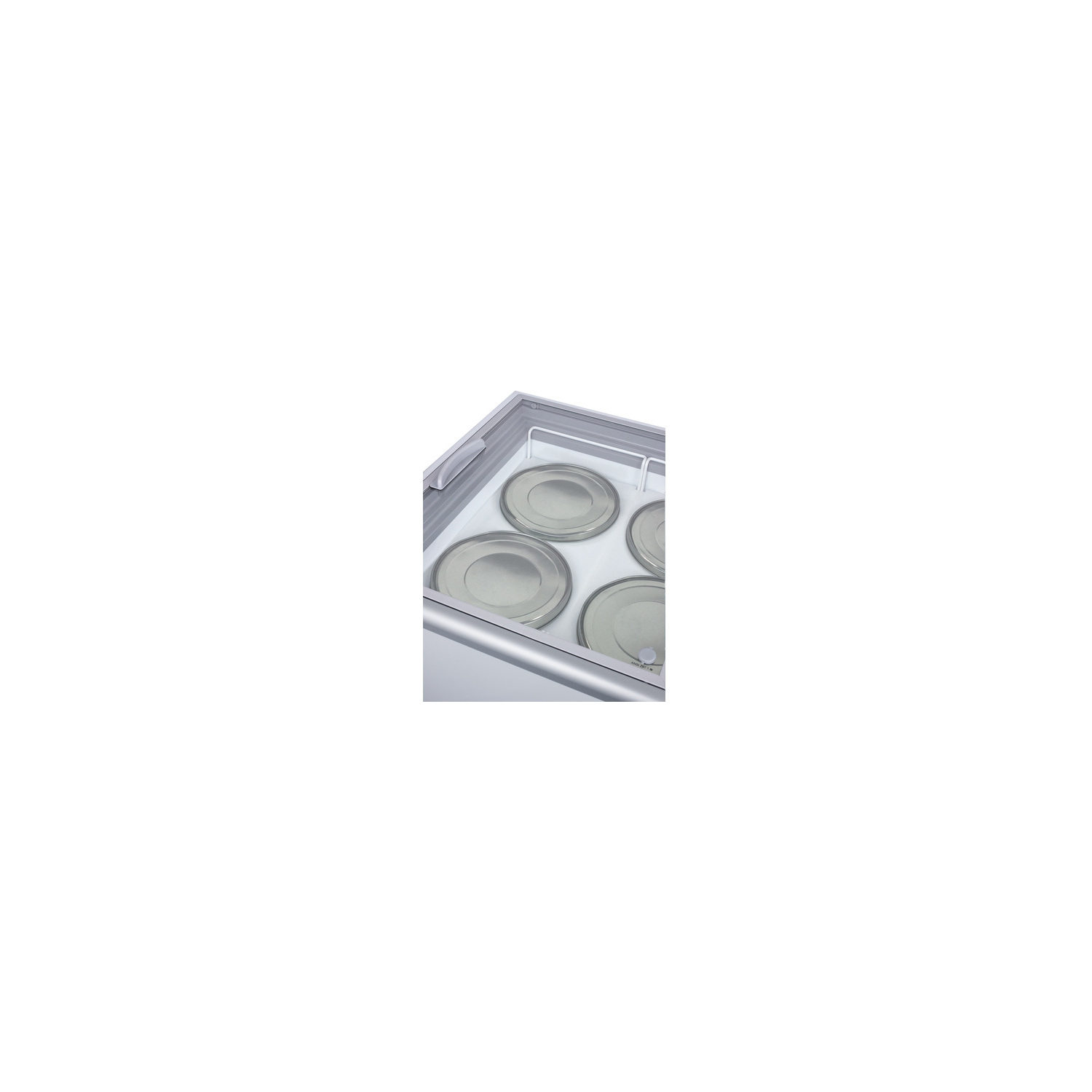

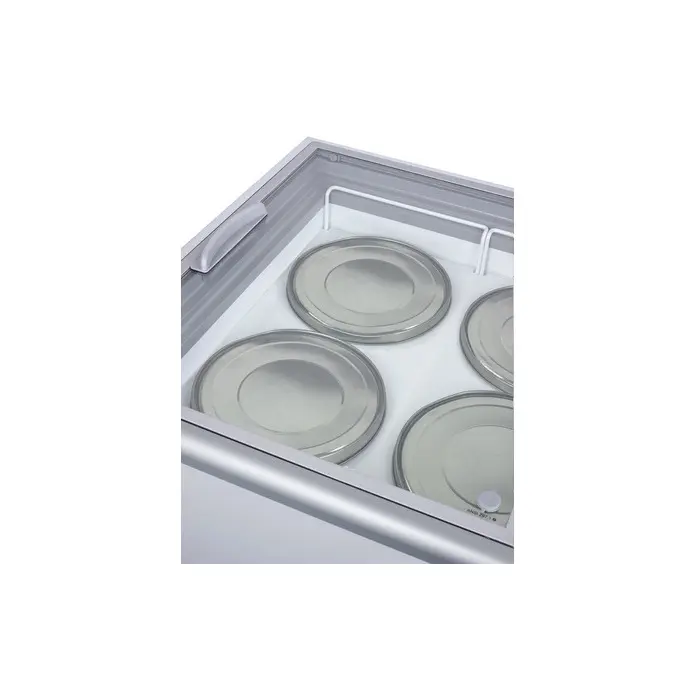

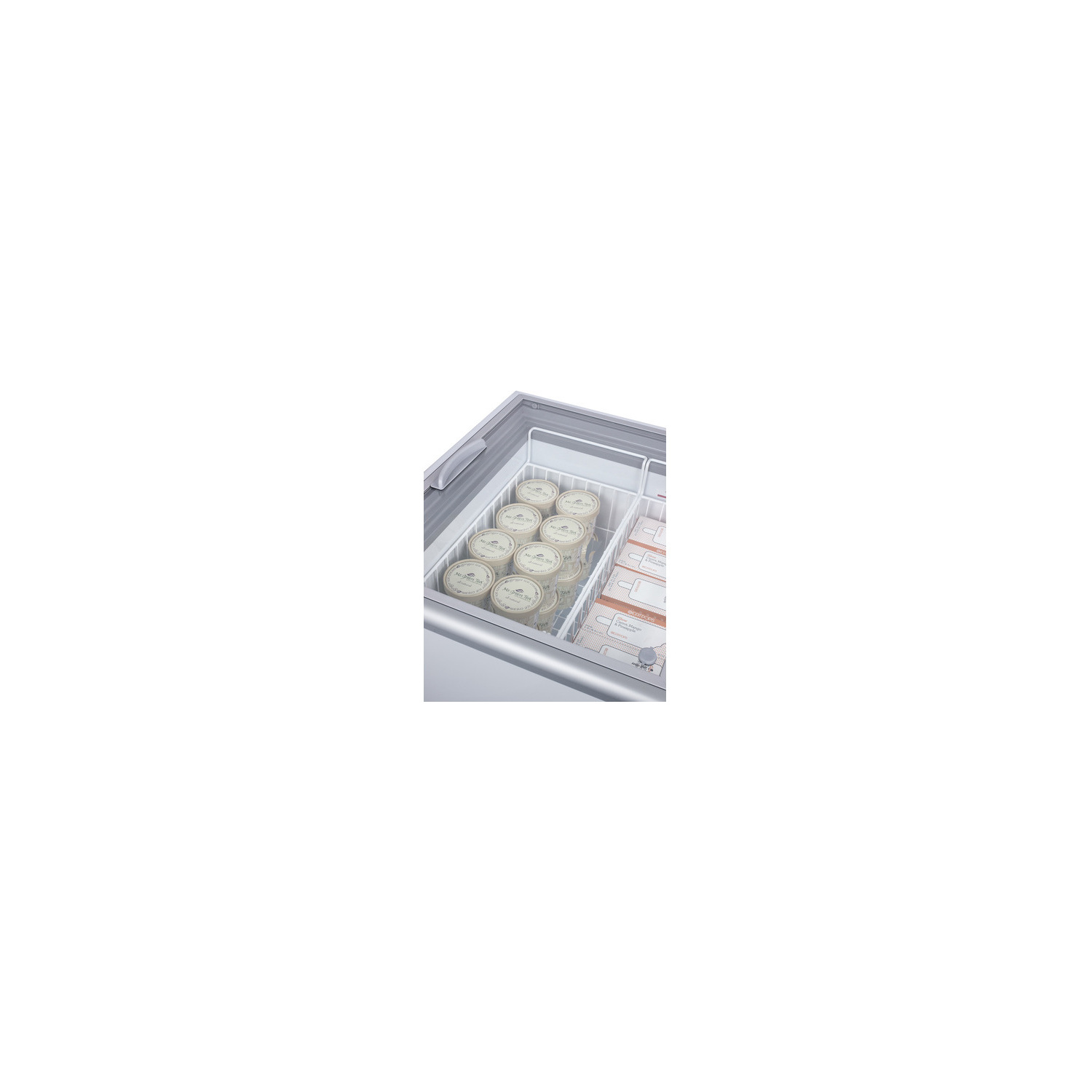

Inside, the NOVA53 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The NOVA53PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available.

Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Nominal Height 46.0" (117 cm)

Height of Cabinet 45.5" (116 cm)

Nominal Width 61.0" (155 cm)

Width 60.75" (154 cm)

Nominal Depth 28.0" (71 cm)

Depth 27.25" (69 cm)

Capacity 17.8 cu.ft. (504 L)

Defrost Type Manual

Door Glass

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation UL-S

Amps 4.2

Voltage/Frequency 115 V AC/60 Hz

Weight 190.0 lbs. (86 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101060187

Freezer

Door Swing Sliding

Interior Height 26.0" (66 cm)

Interior Width 54.5" (138 cm)

Interior Depth 21.0" (53 cm)

Thermostat Type Digital

Refrigerant Type R290

Refrigerant Amount 3.17 oz.

High Side PSI 345.0

Low Side PSI 140.0

Wheels 4

Compressor Step Height 9.75" (25 cm)

Compressor Step Width 7.88" (20 cm)

Compressor Step Depth 21.0" (53 cm)

Temperature Range -13 to 23ºF

FEATURES

Commercially listed UL-S listed to NSF-7 Standards for use in commercial establishments

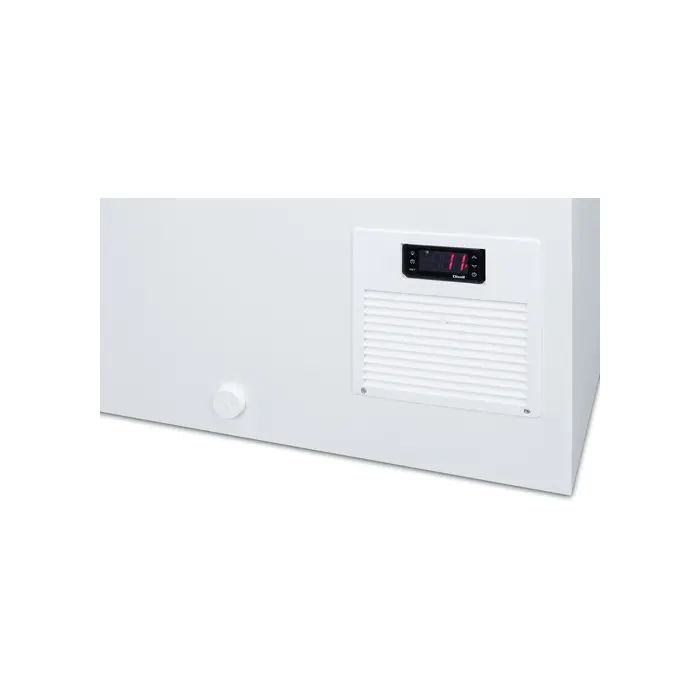

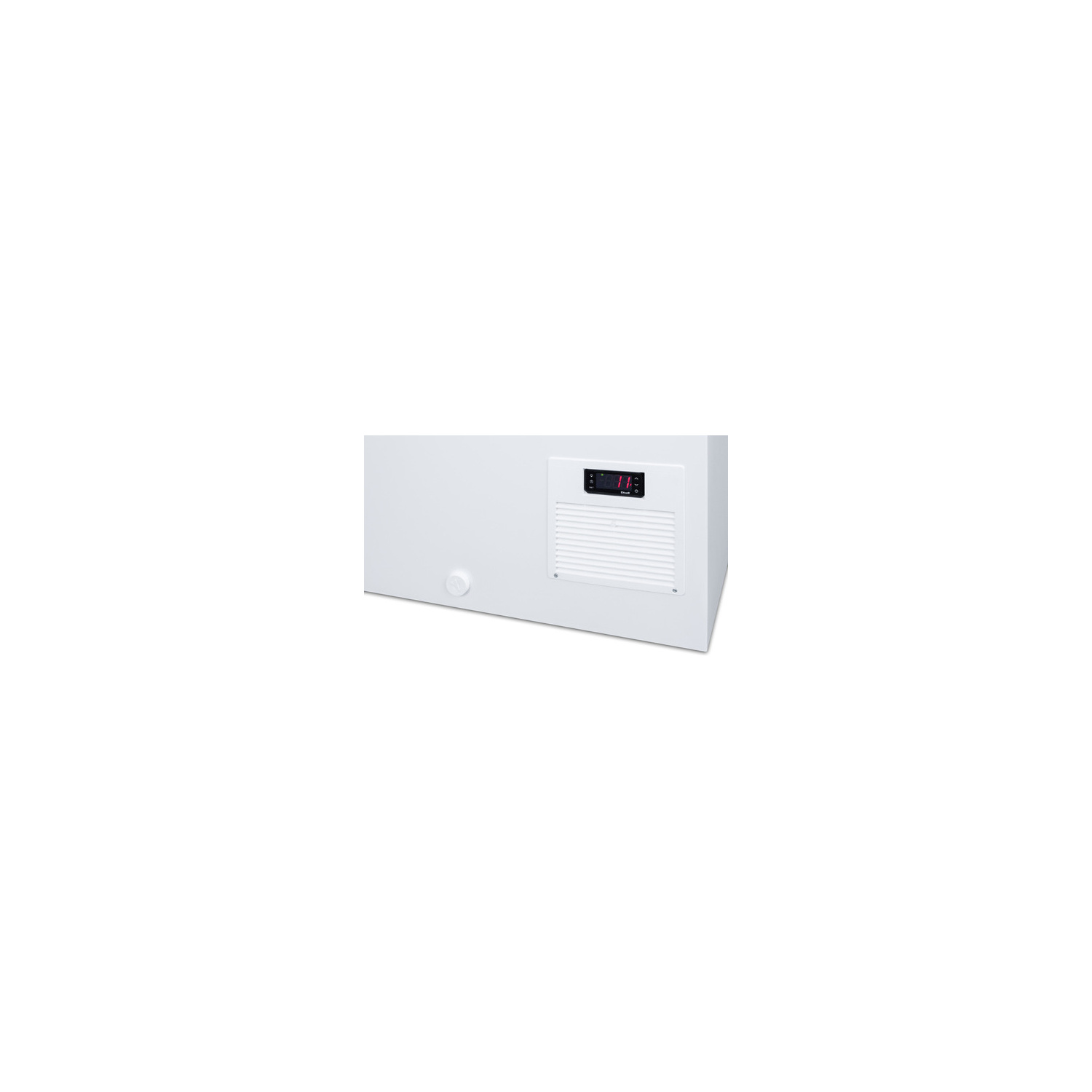

Digital thermostat Electronic controls for precise temperature management

Wide temperature range Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

Sneezeguard Durable polycarbonate sneezeguard is pre-installed

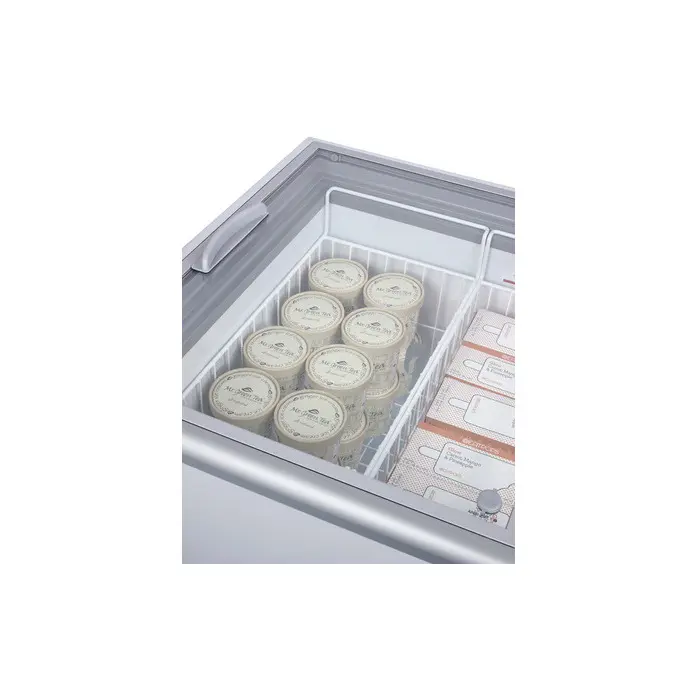

Ice cream tub holders Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Holds 18 standard 3 gallon tubs Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets

Strong insulation 3" thick insulation helps to ensure items stay cold

Casters Heavy duty wheels for smooth mobility (ship unassembled)

Sliding glass lid Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Removable lock A keyed lock is included for optional use

Manual defrost Static cooling system for improved temperature stability

Fan-cooled compressor Offers improved temperature performance throughout the interior

Steel interior Durable construction in a white finish for easy visibility

Light Sneezeguard light for added visibility

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (NOVA53PDC.pdf)

TECHNICAL DRAWING (.dwg) (NOVA53PDC_Freezer___Sneeze__A-C_2018__2.dwg)

REVIT MODEL (Qf_Summit_NOVA53PDC_17_Cu.Ft._Dipping_Cabinet.rfa)

USE & CARE (NOVA53PDC-User-Manual.pdf)
