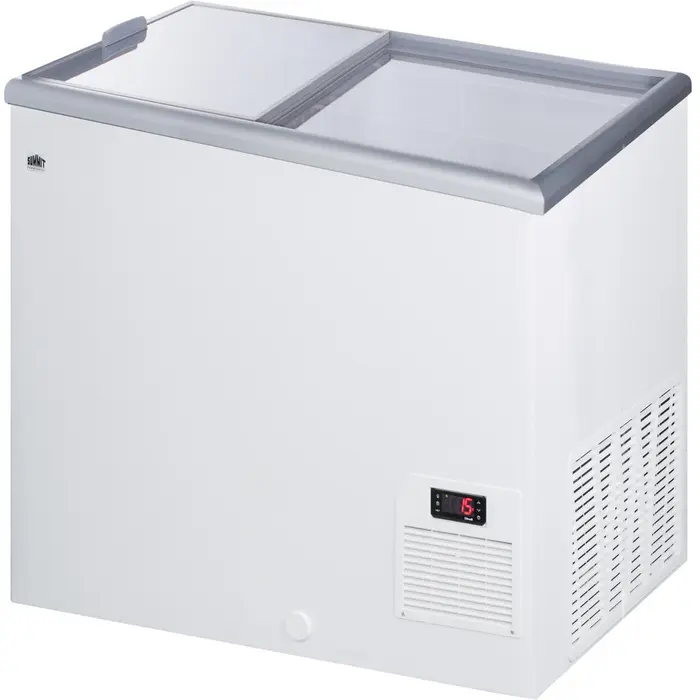

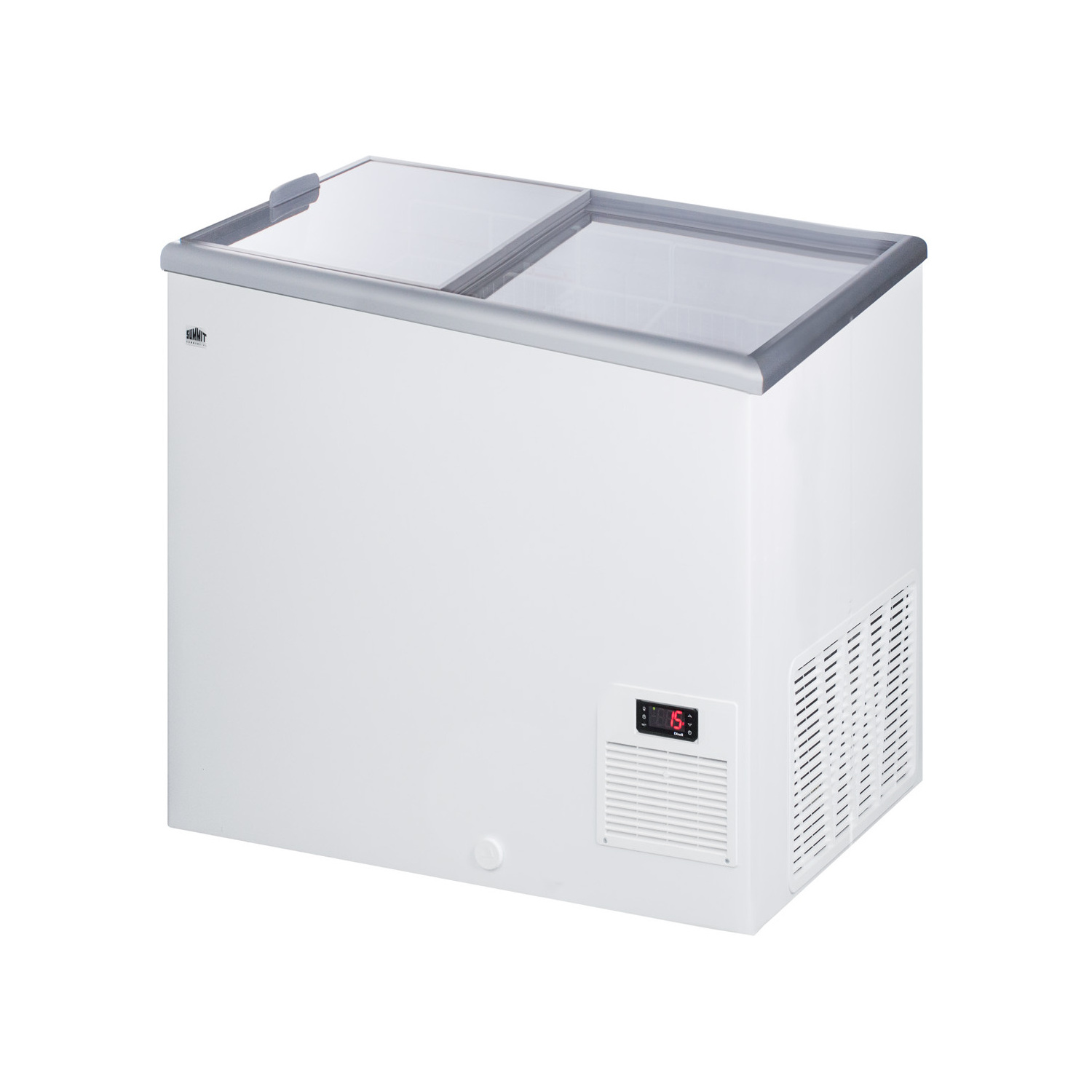

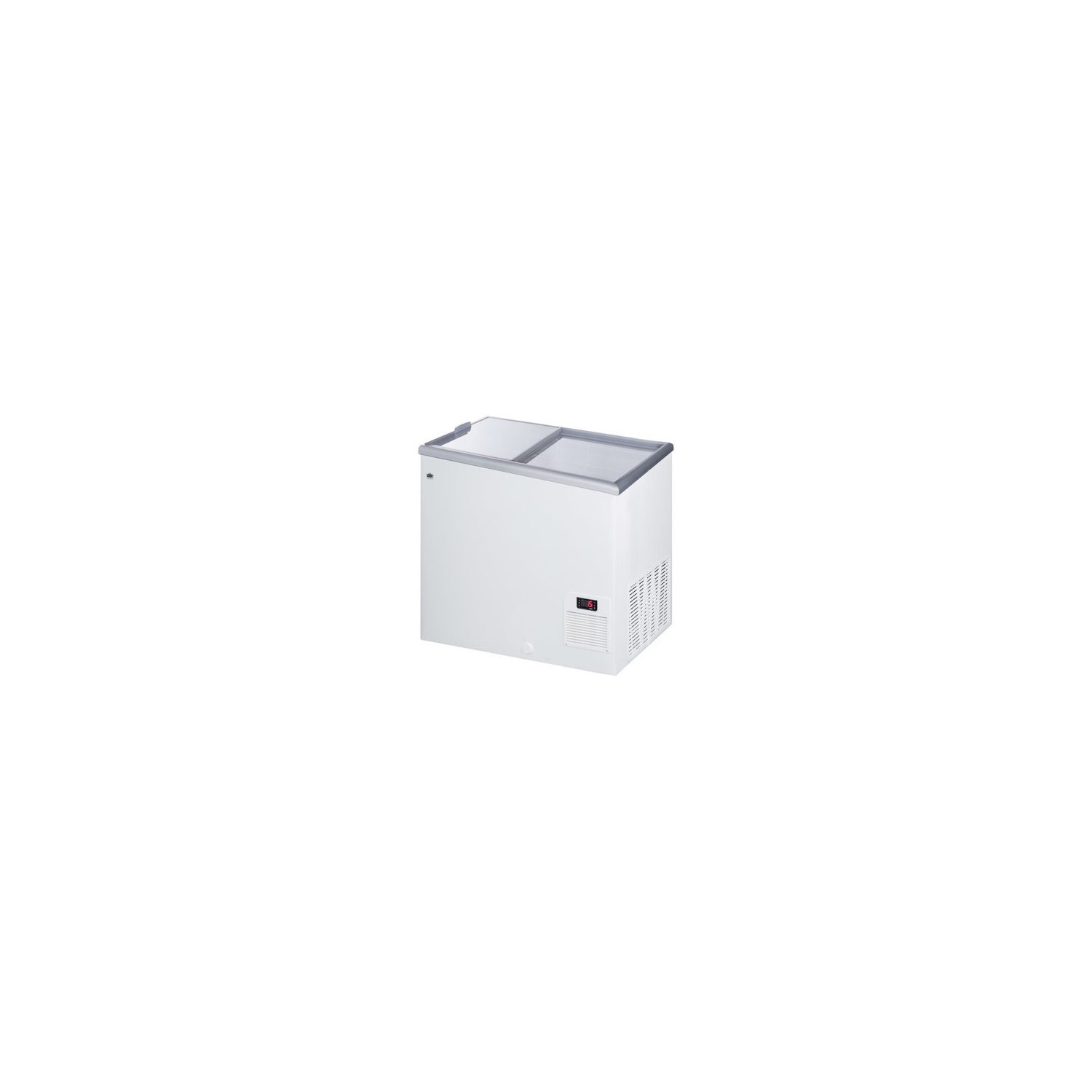

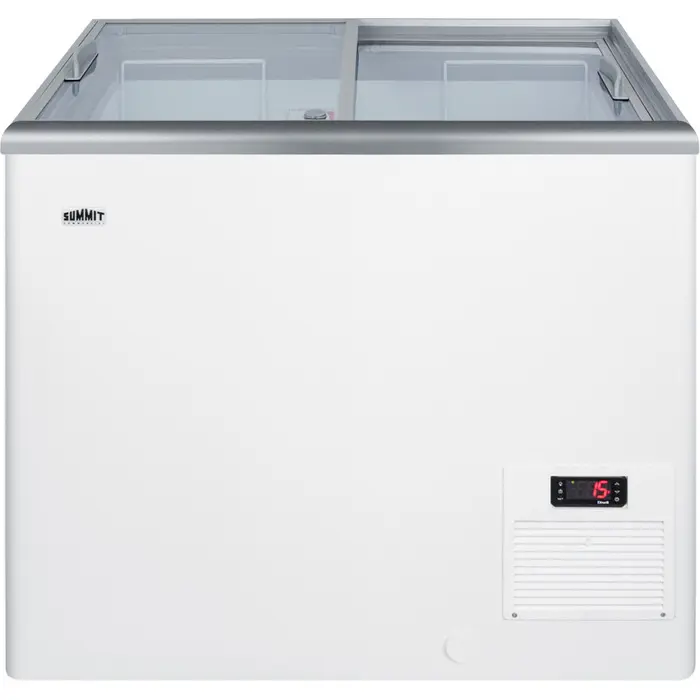

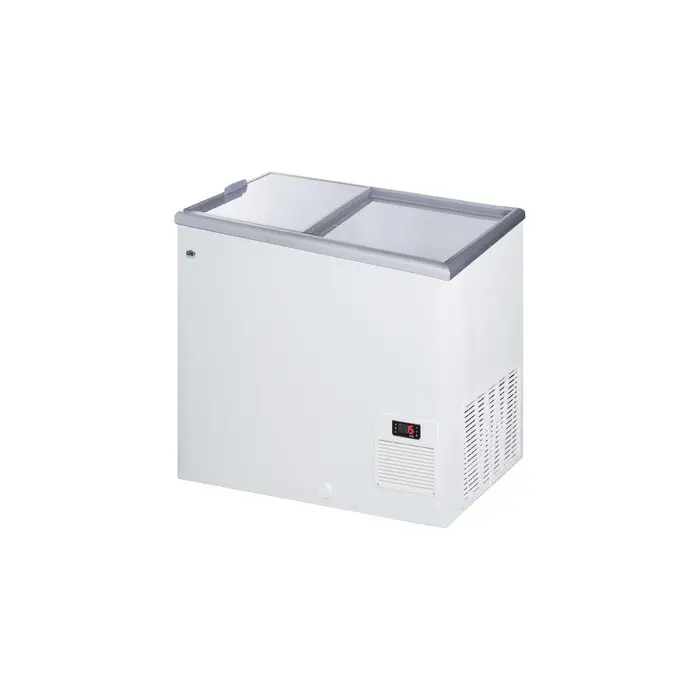

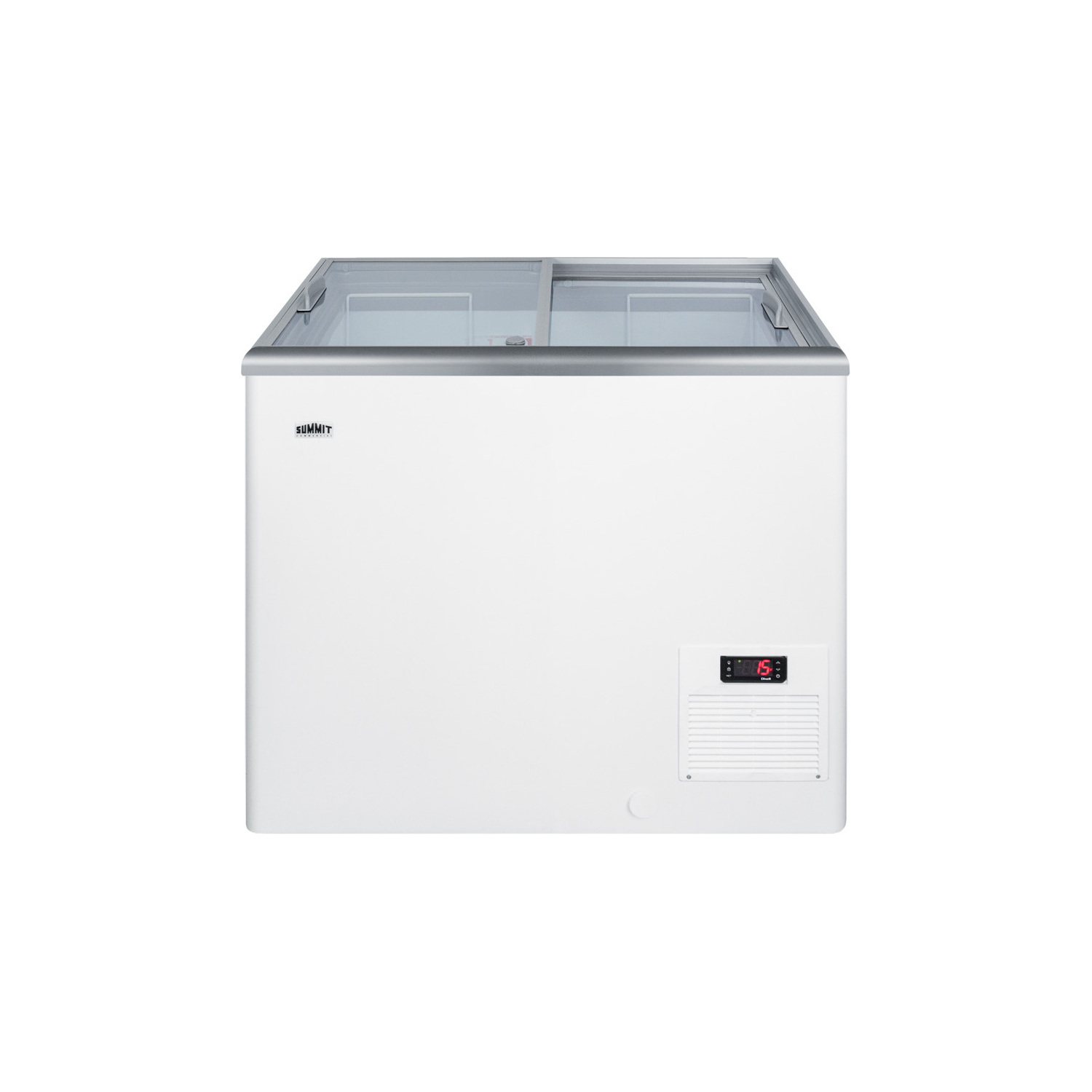

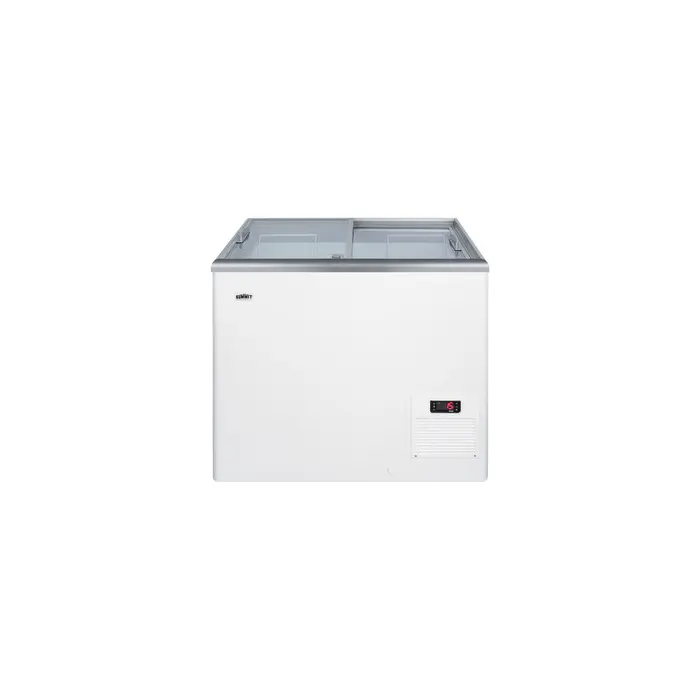

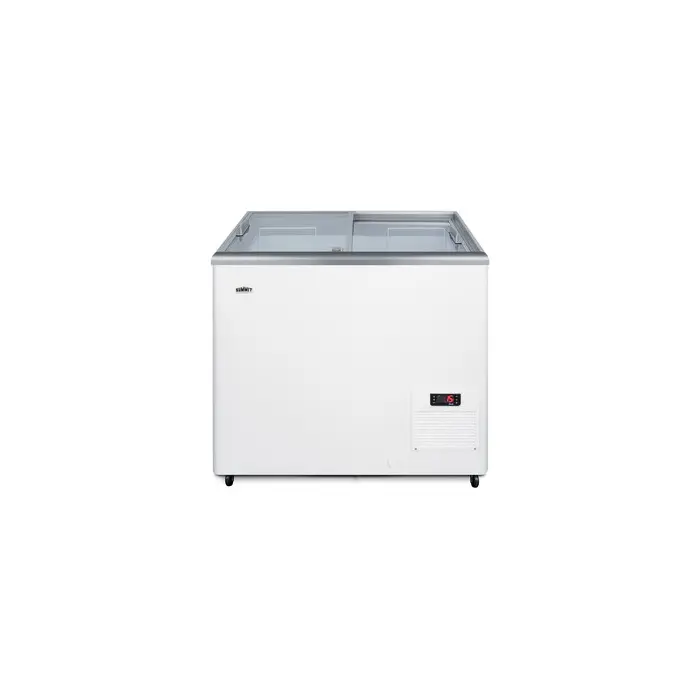

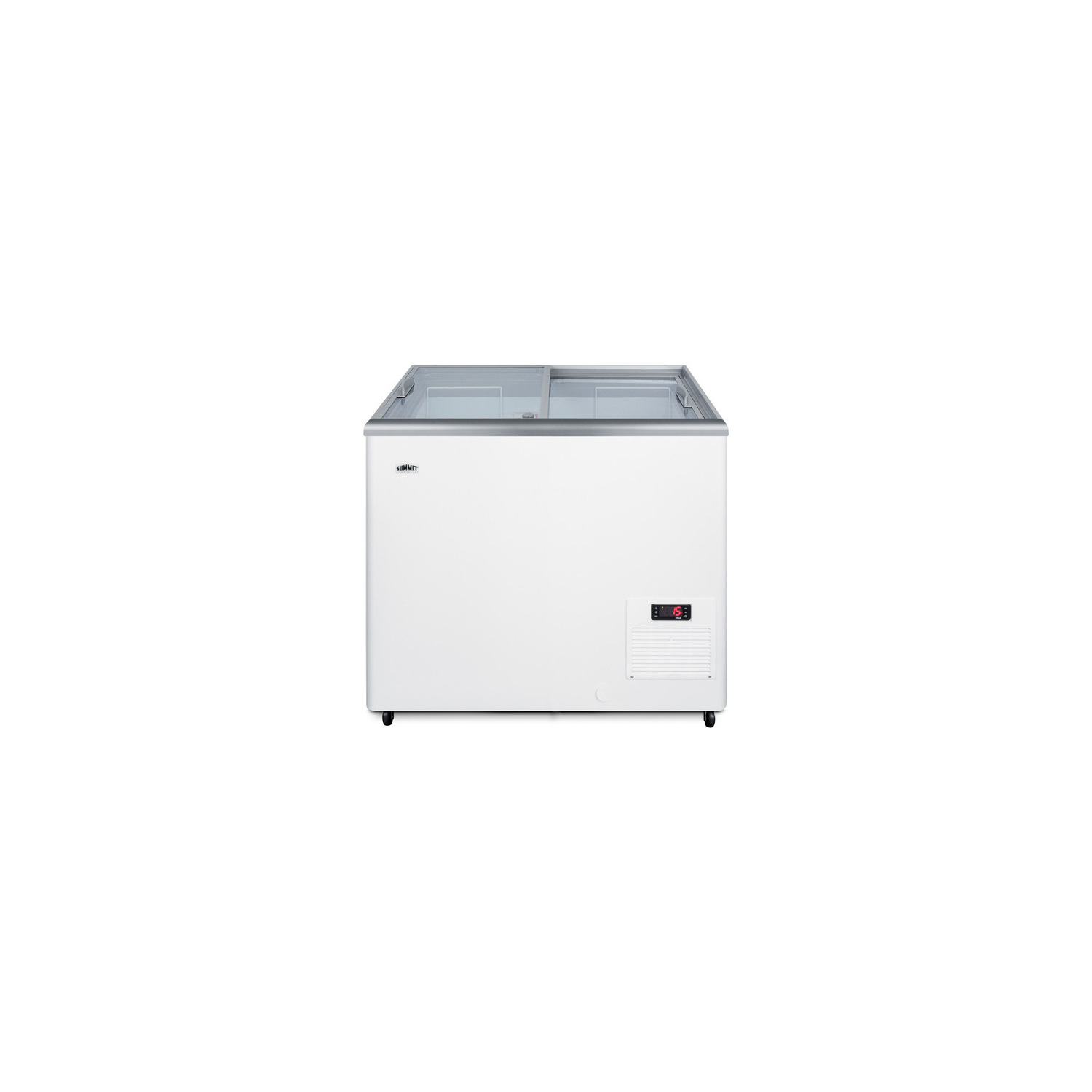

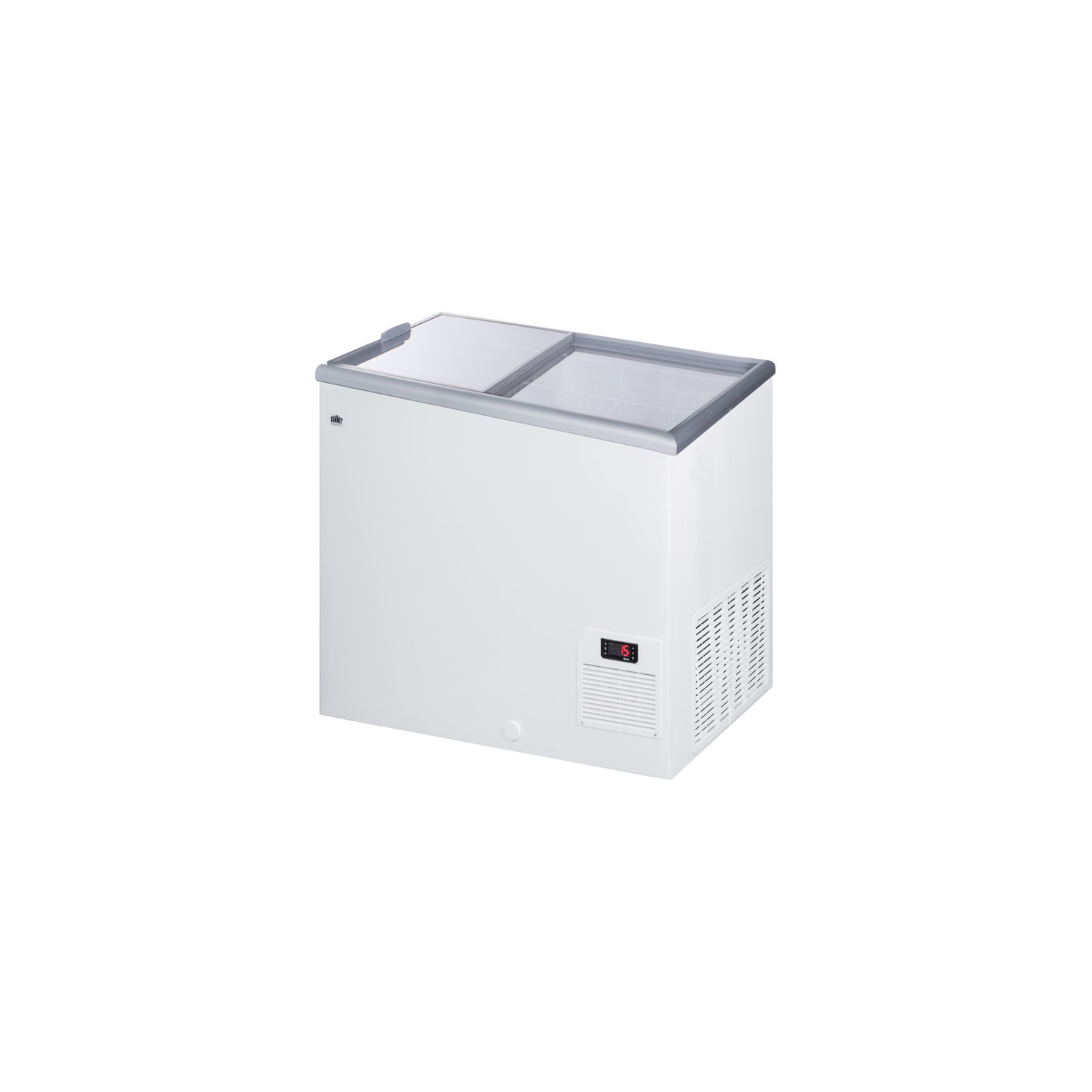

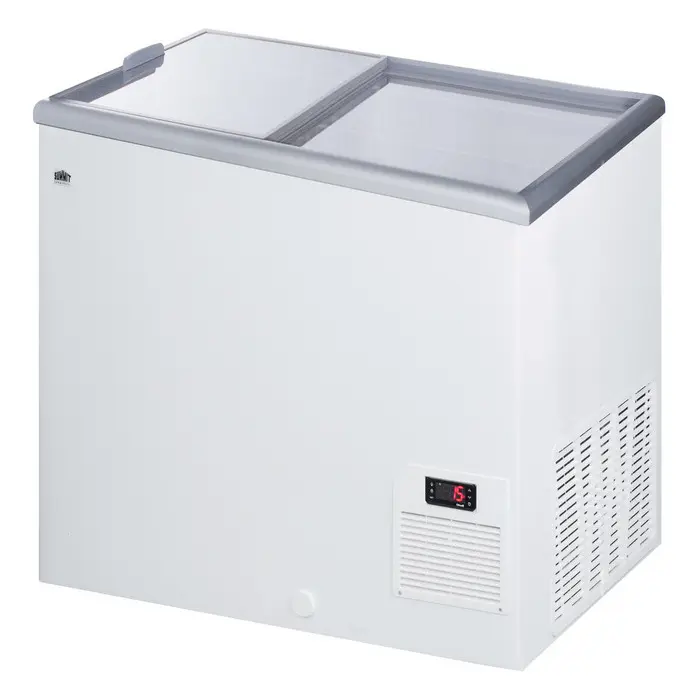

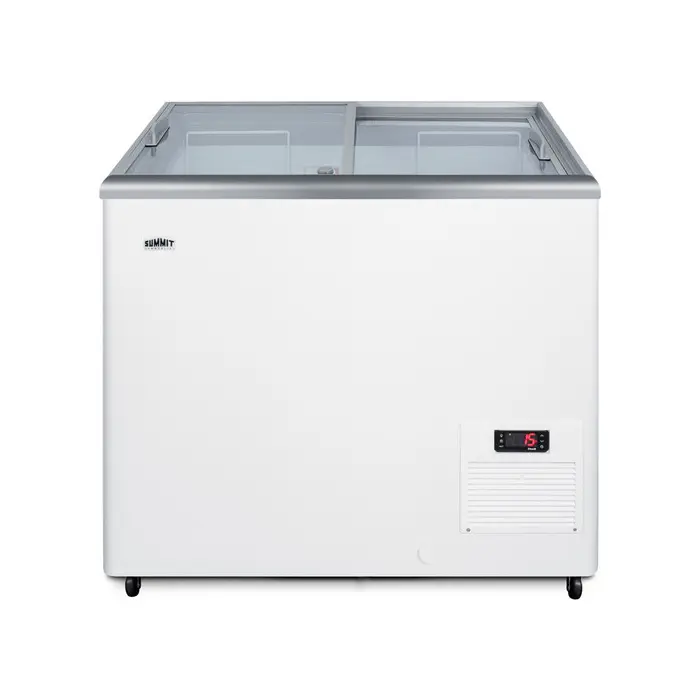

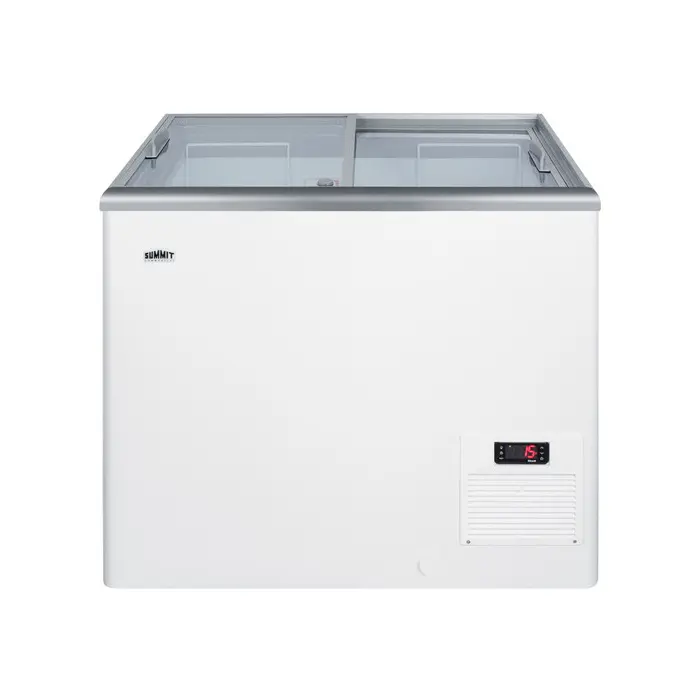

Summit Flat top commercial ice cream freezer with sliding glass lid, digital thermostat, and novelty baskets, 7.61101e+011, NOVA22

Summit Commercial's line of flat top ice cream freezers features a deluxe European design to provide quality storage and long-lasting convenience.

Made for us by Elcold in Denmark, the NOVA22 features two tempered glass lids on ball-bearing glides that open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

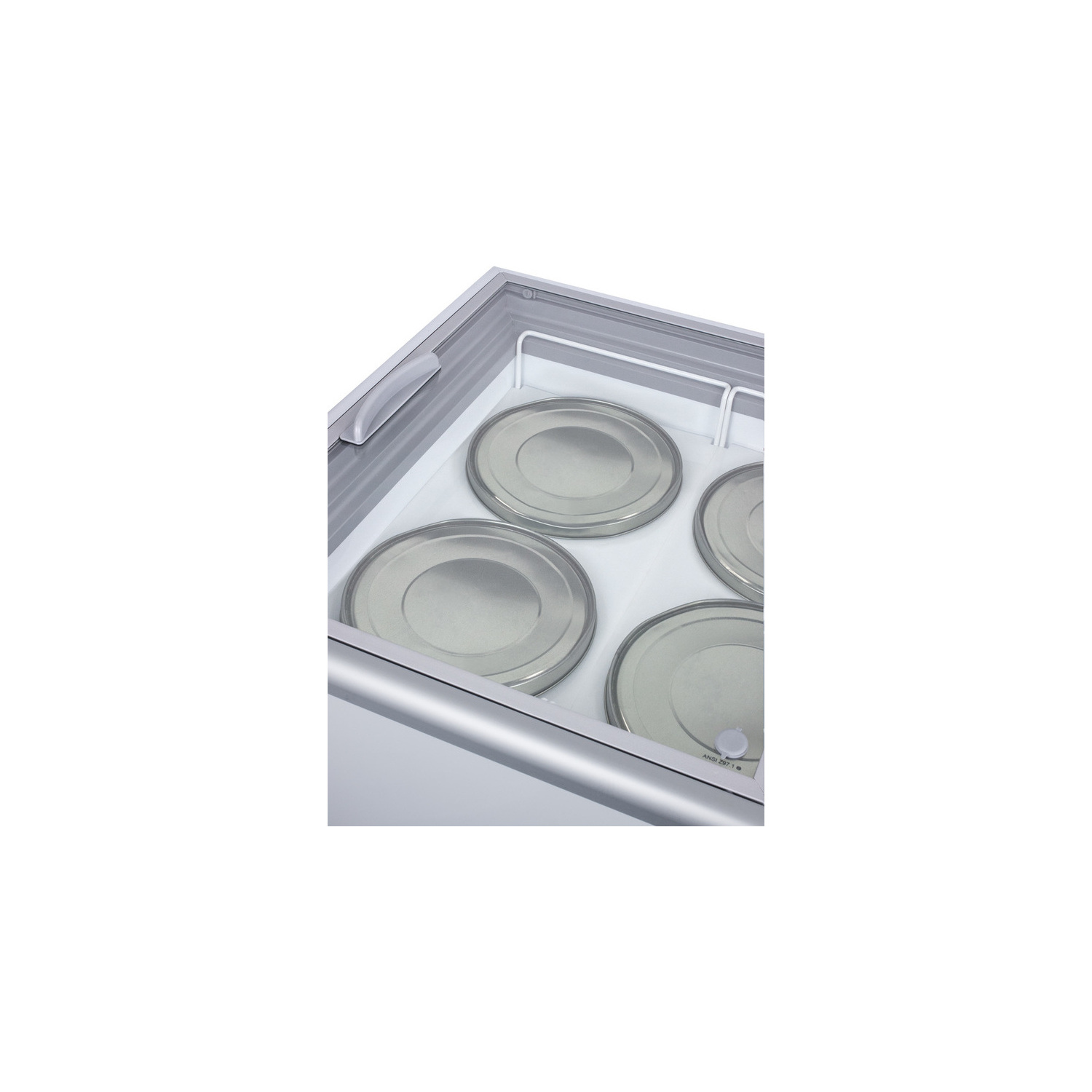

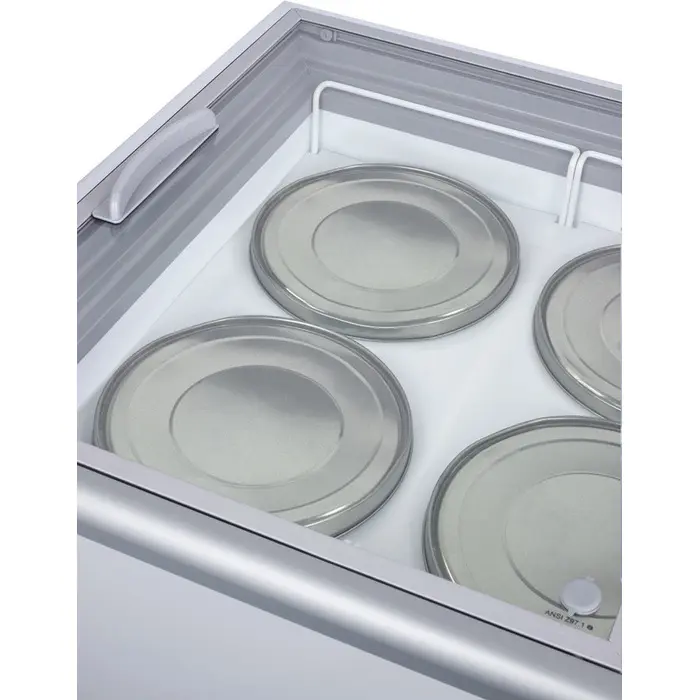

Inside, the NOVA22 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include two epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

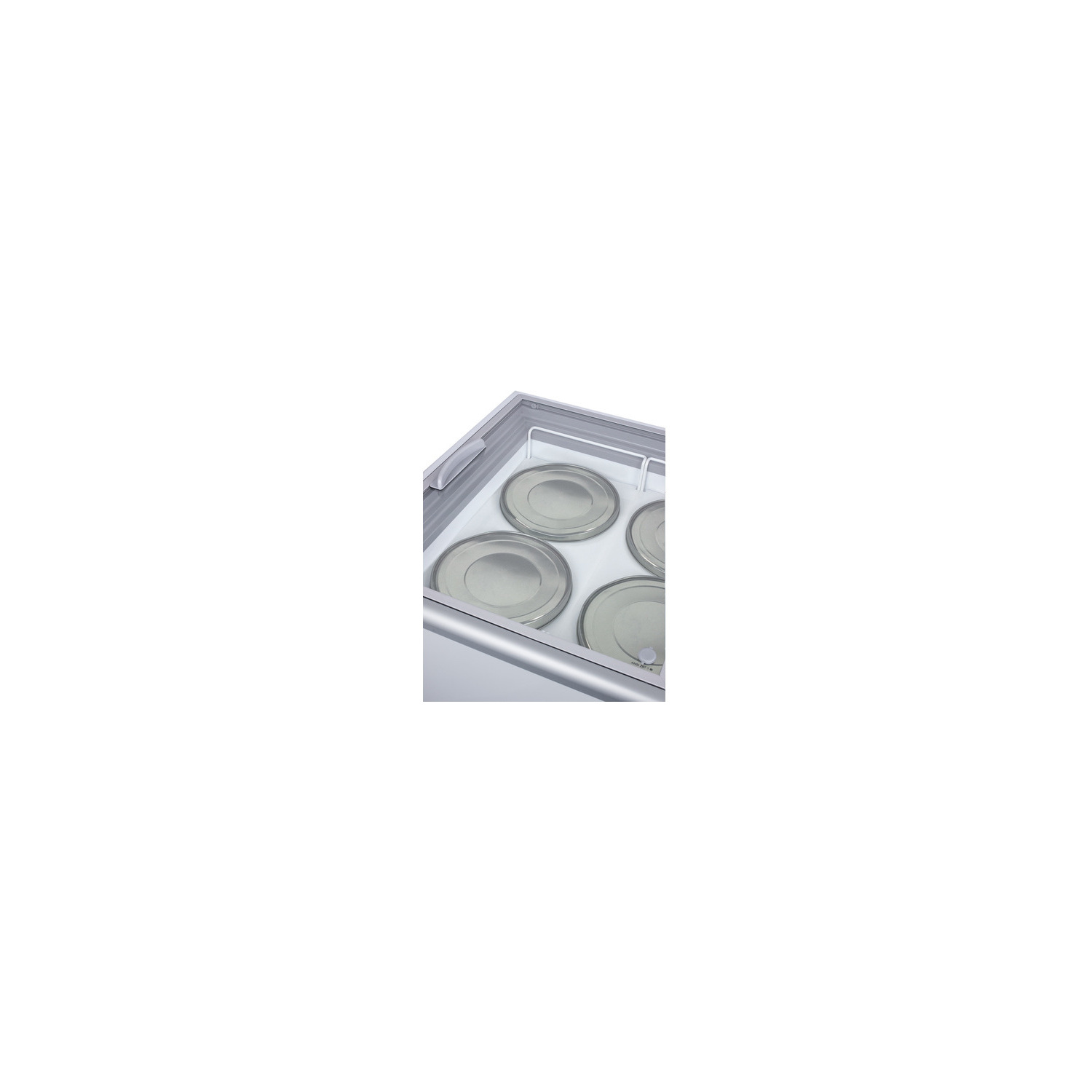

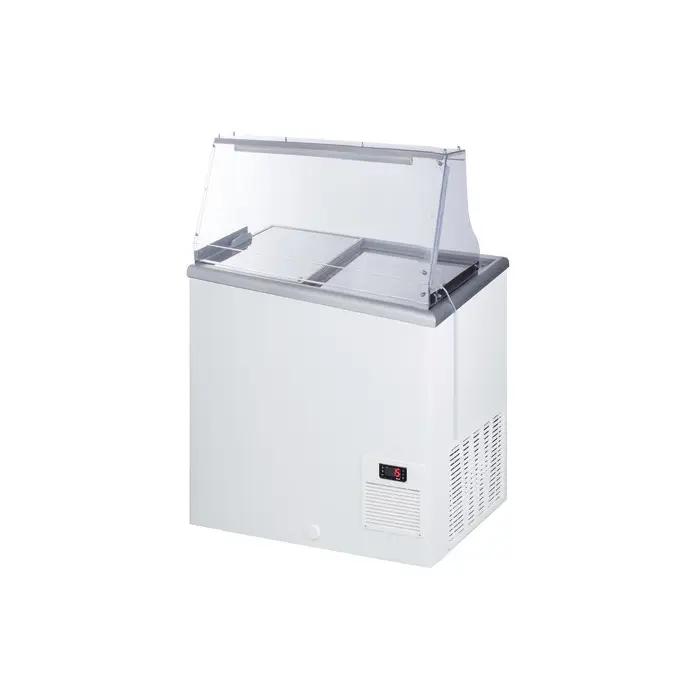

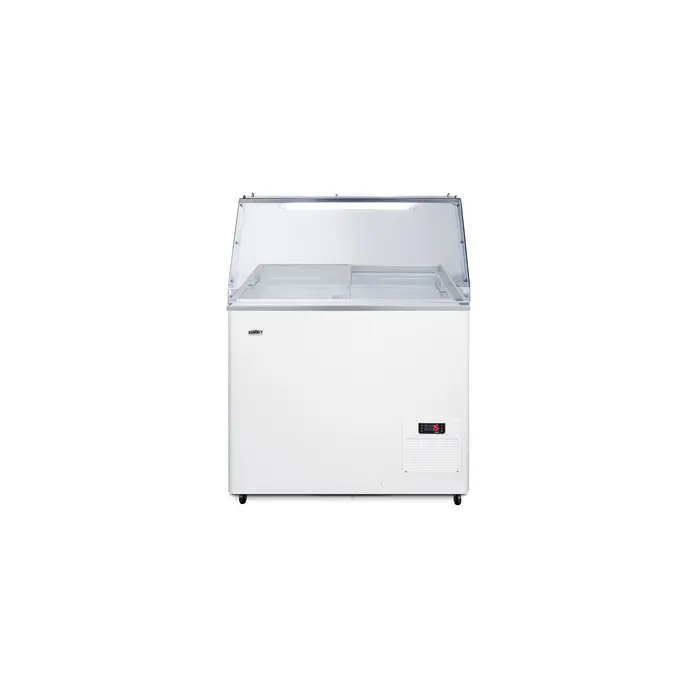

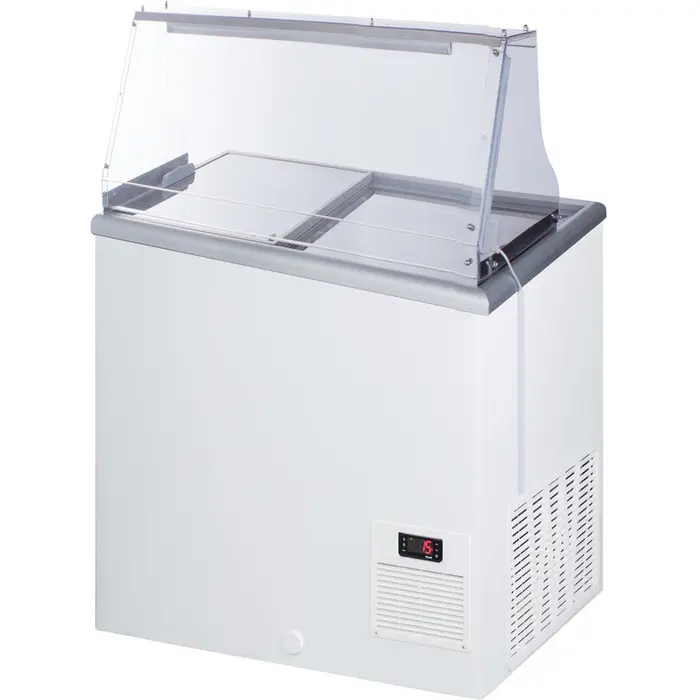

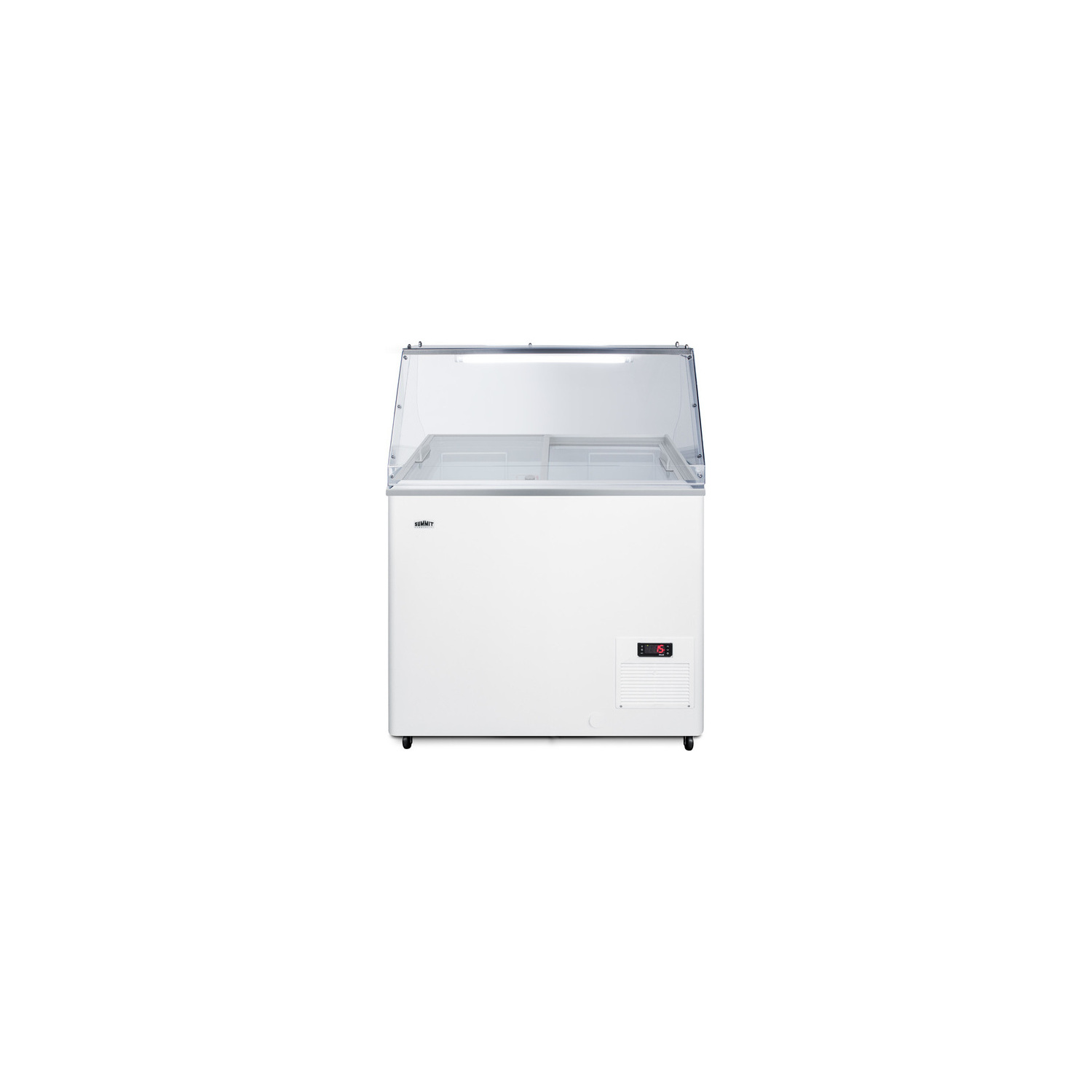

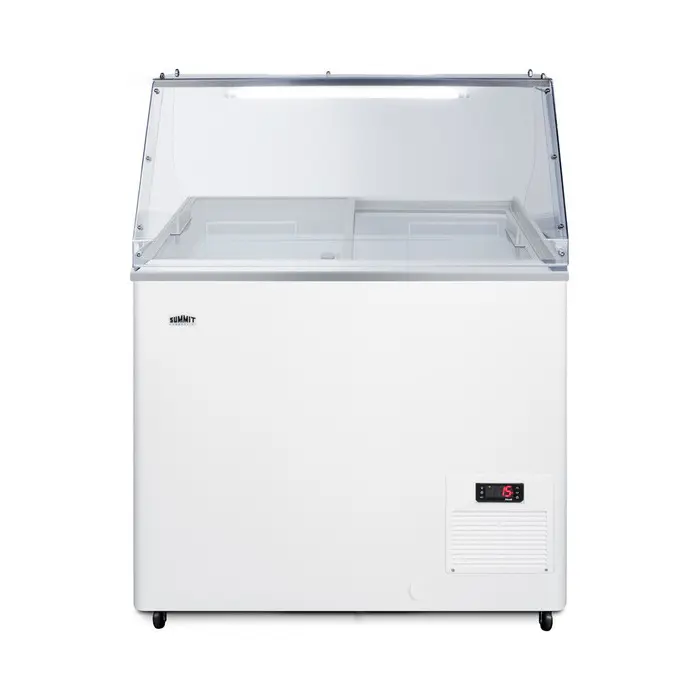

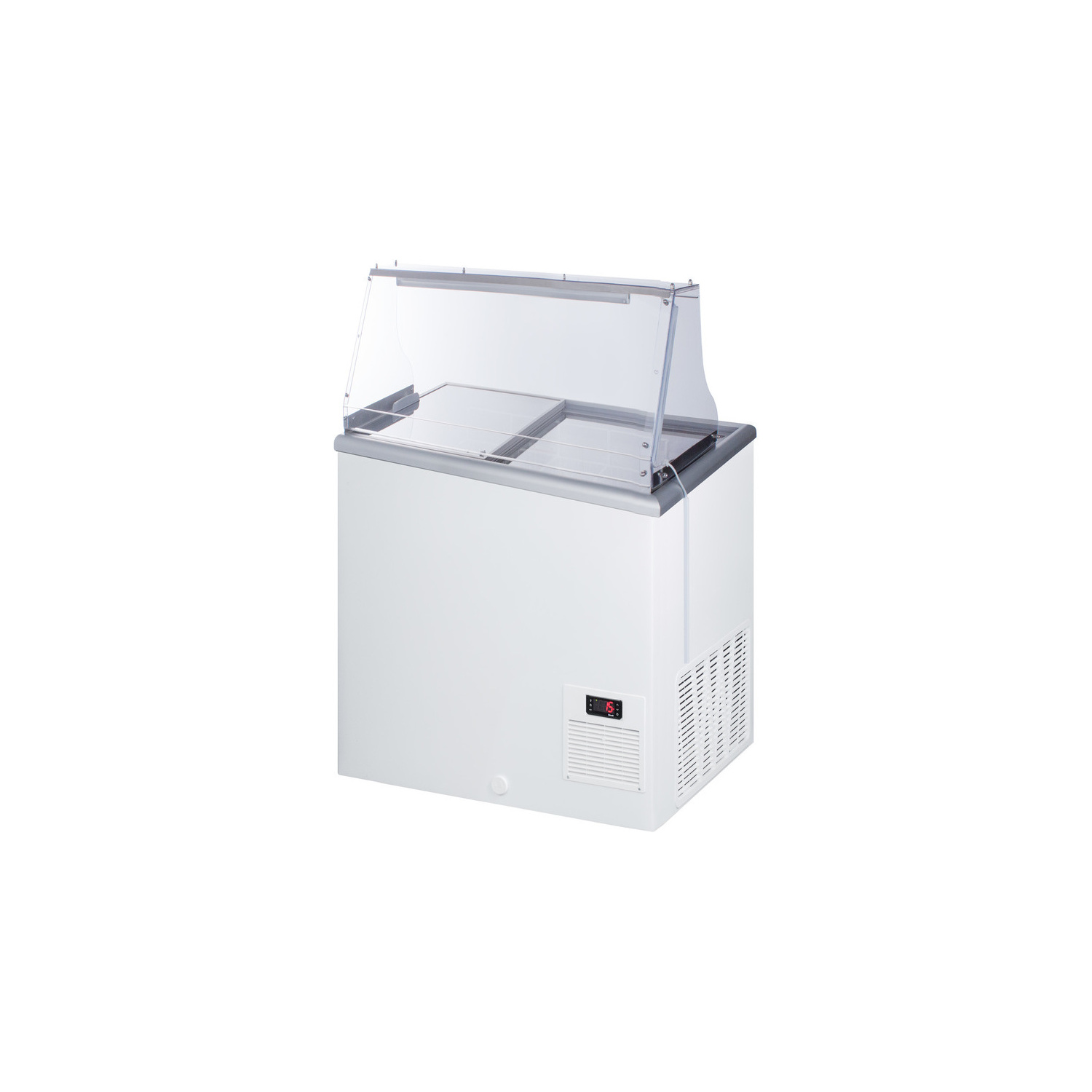

The NOVA22 is UL-S listed to NSF-7 commercial standards. Additional sizes are available. This freezer can also be ordered as a dipping cabinet with a factory-installed sneezeguard (model NOVA22PDC).

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.5" (80 cm)

Nominal Width 30.0" (76 cm)

Width 30.0" (76 cm)

Nominal Depth 28.0" (71 cm)

Depth 27.25" (69 cm)

Capacity 7.2 cu.ft. (204 L)

Defrost Type Manual

Door Glass

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation UL-S

Amps 7.2

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101064925

Freezer

Door Swing Sliding

Interior Height 26.0" (66 cm)

Interior Width 23.75" (60 cm)

Interior Depth 21.0" (53 cm)

Thermostat Type Digital

Refrigerant Type R290

Refrigerant Amount 3.03 oz.

High Side PSI 345.0

Low Side PSI 140.0

Compressor Step Height 9.75" (25 cm)

Compressor Step Width 7.88" (20 cm)

Compressor Step Depth 21.0" (53 cm)

Temperature Range -13 to 23ºF

FEATURES

Commercially approved UL-S listed to NSF-7 Standards for use in commercial establishments

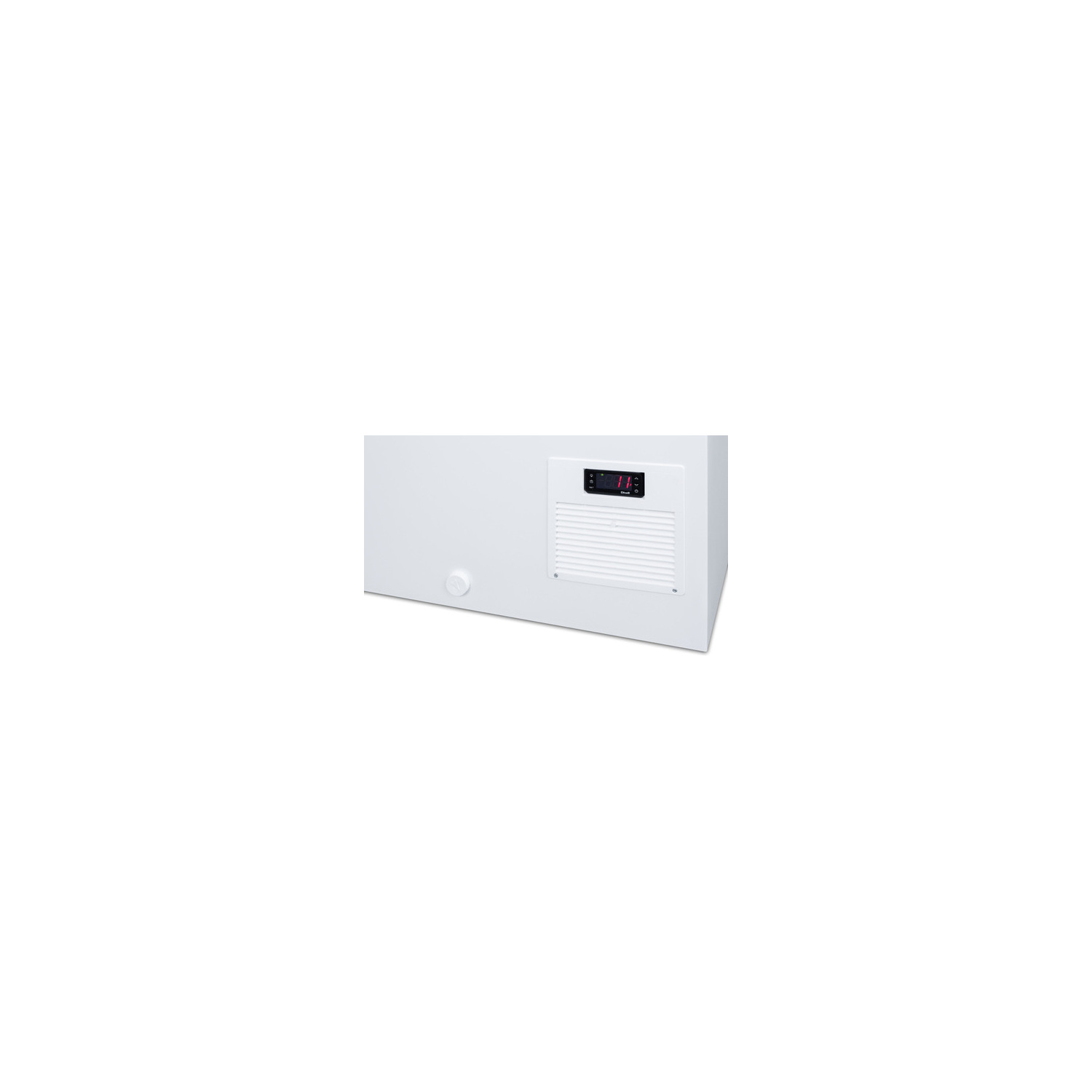

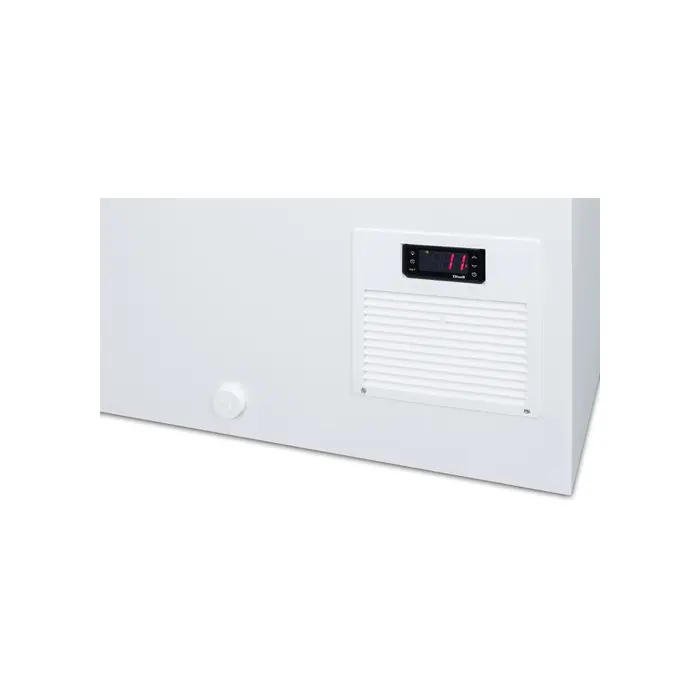

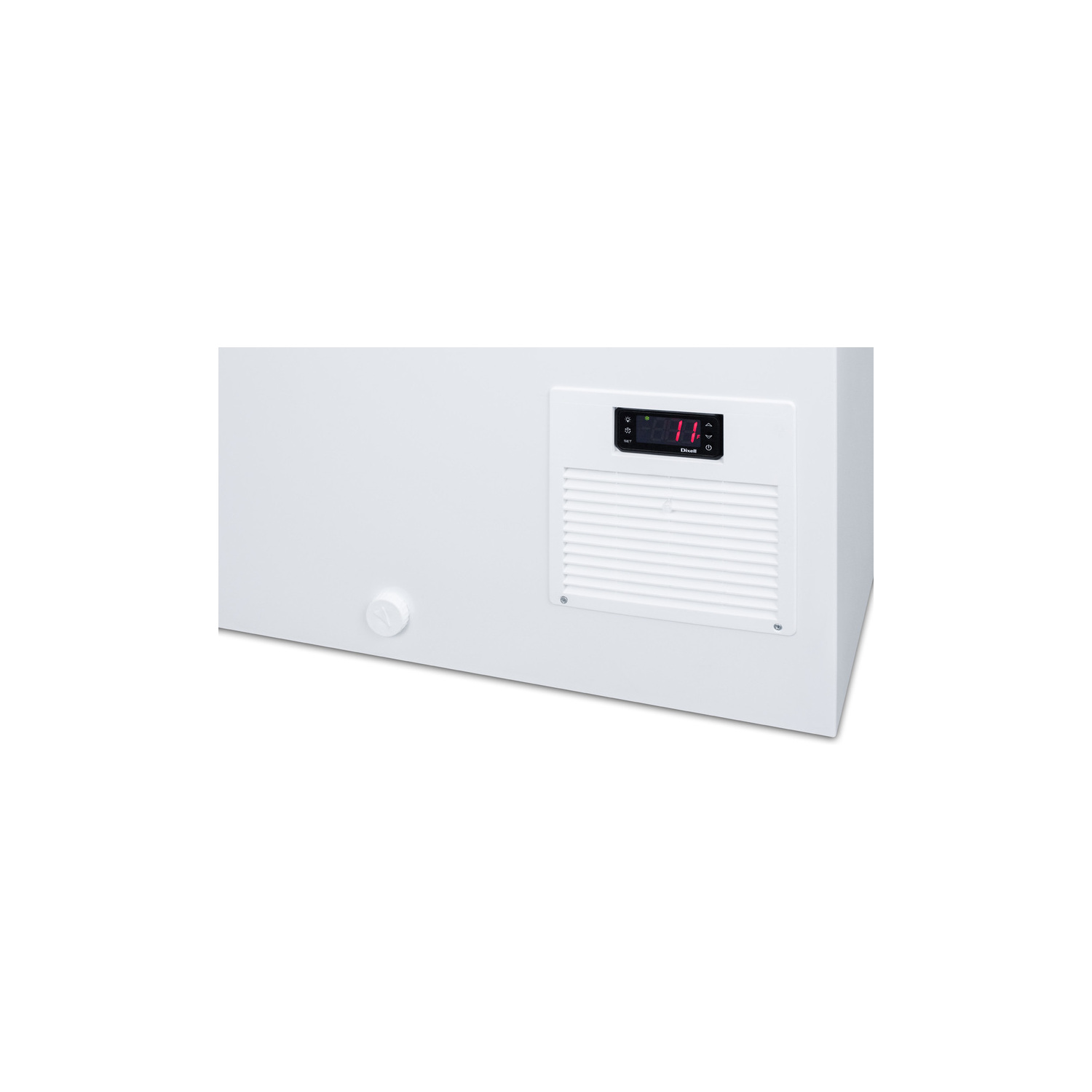

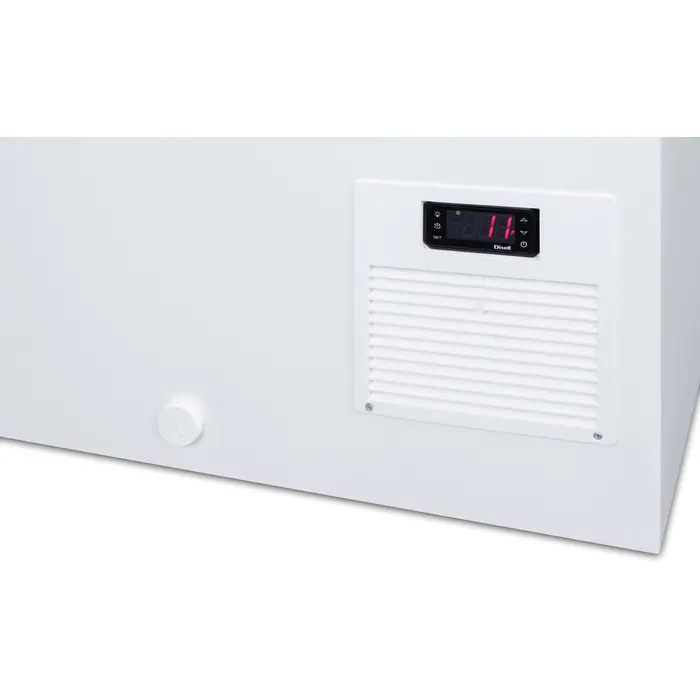

Digital thermostat Electronic controls for more precise temperature management

Wide temperature range Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

Baskets included Two epoxy-coated wire baskets included to store novelty items

Sliding glass lid Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation 3" thick insulation helps to ensure items stay cold

Manual defrost Static cooling system for improved temperature stability

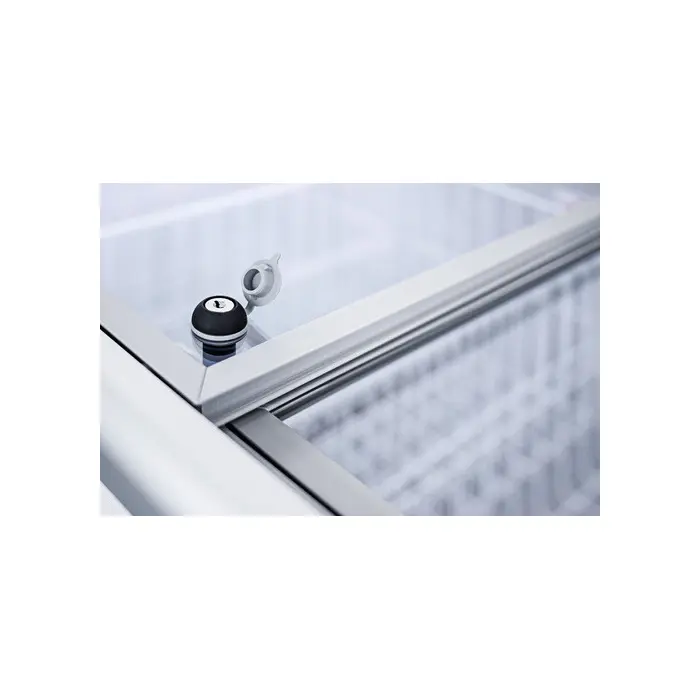

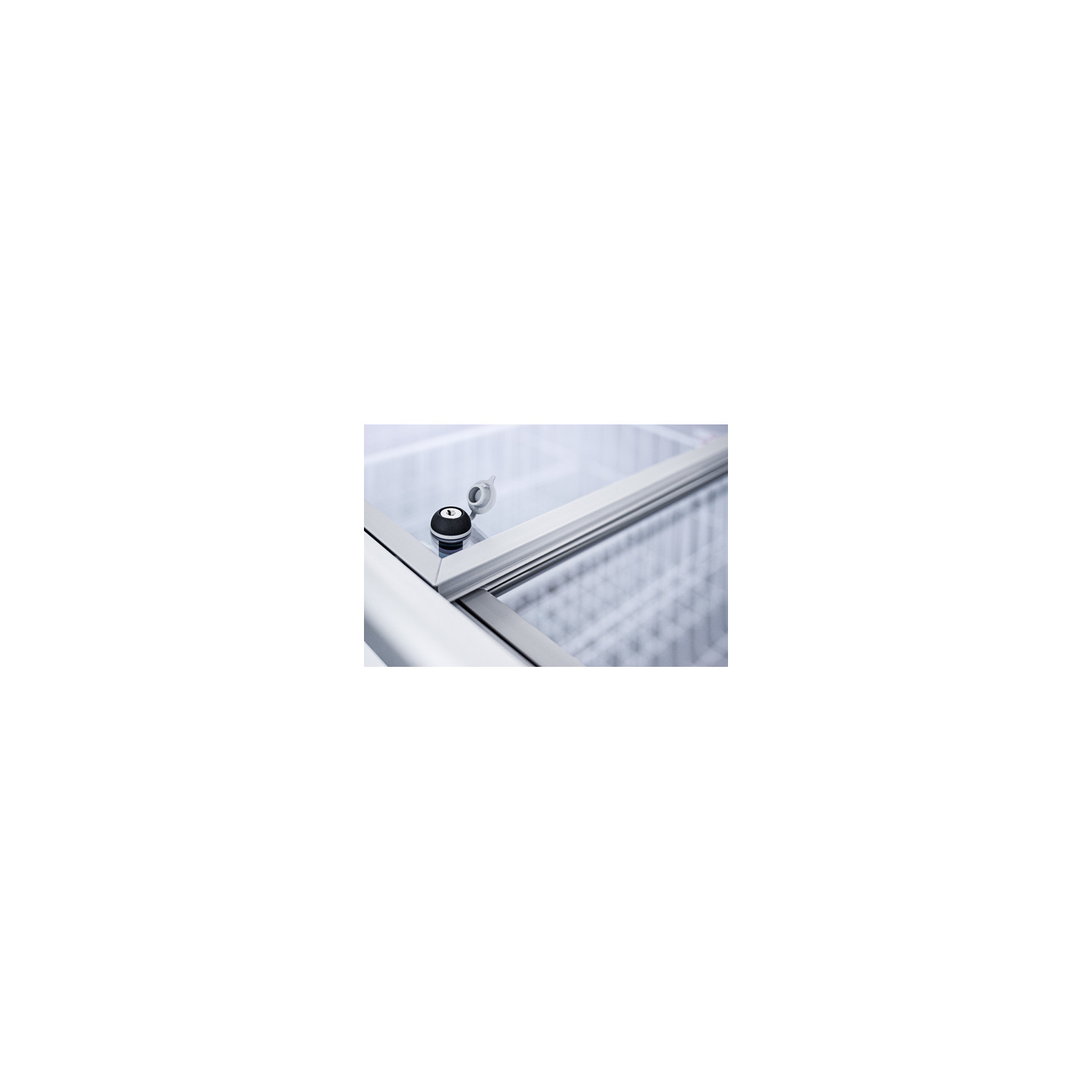

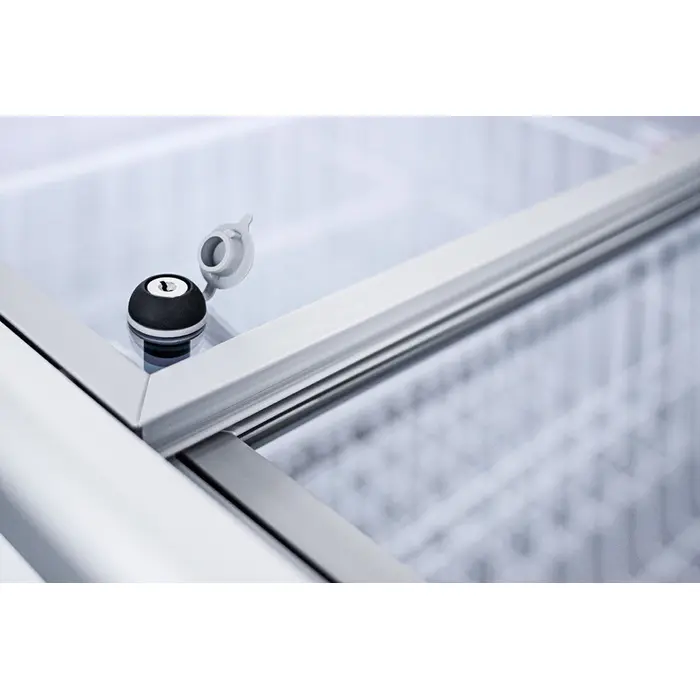

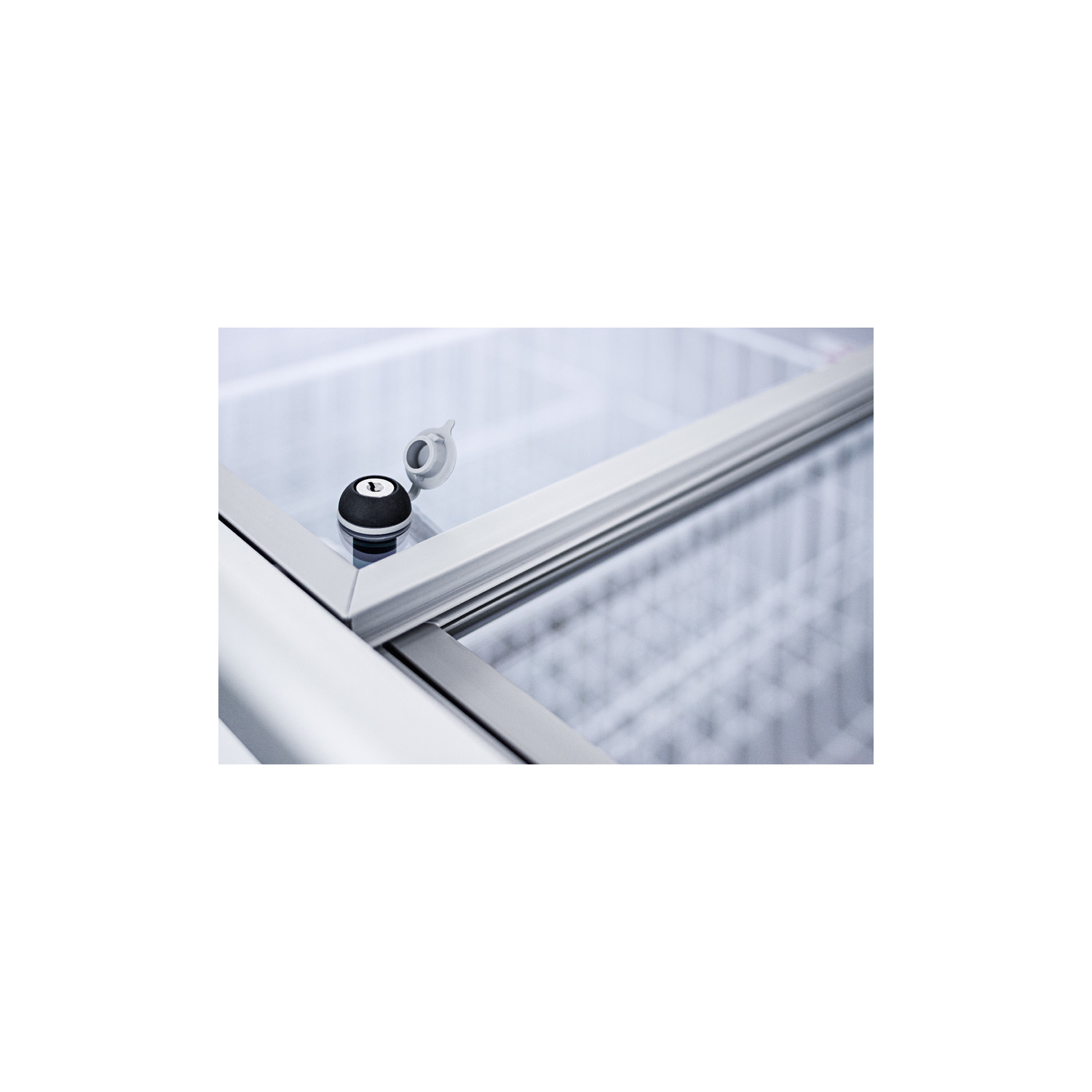

Removable lock A keyed lock is included for optional use

Steel interior Durable construction in a white finish for easy visibility

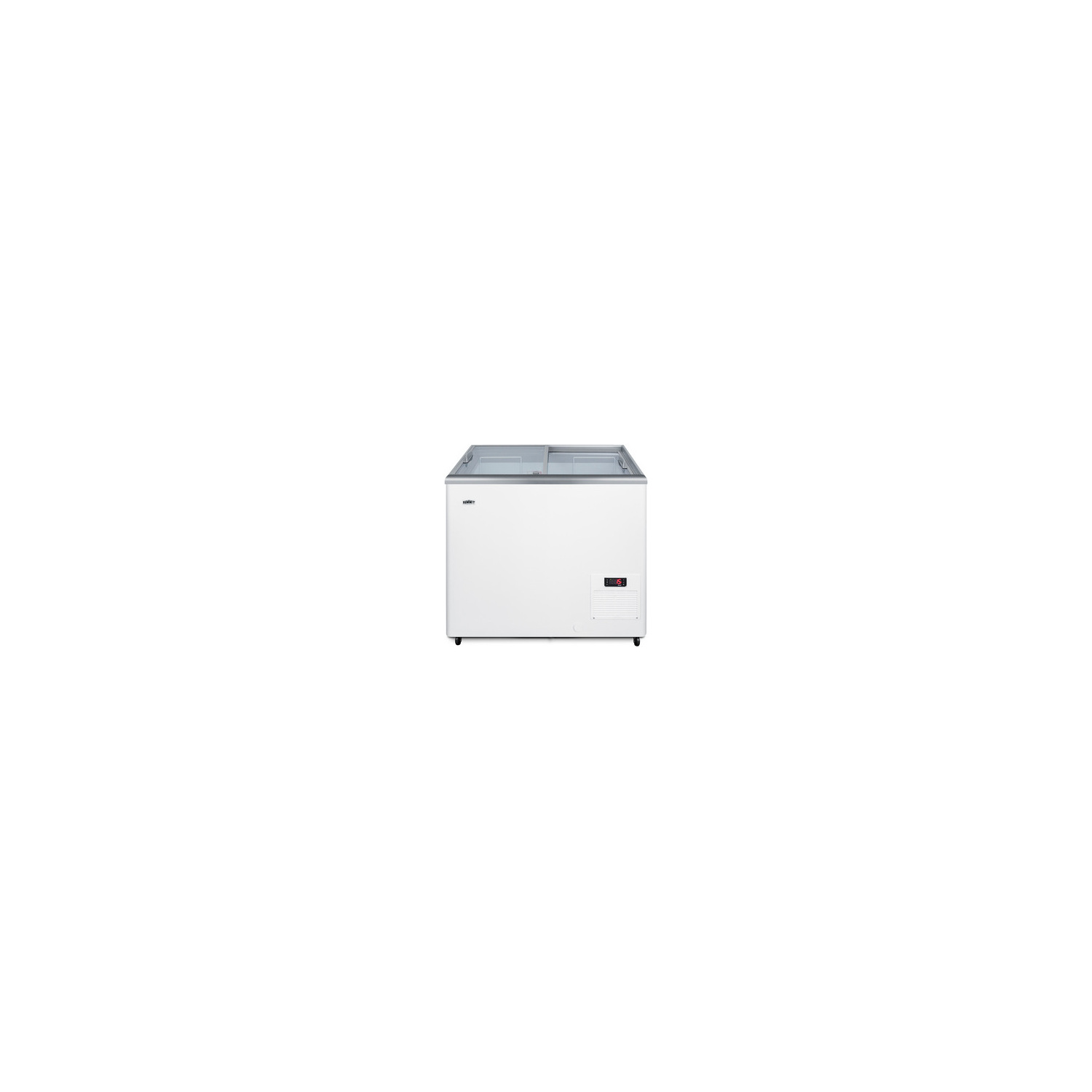

Casters Heavy duty wheels for smooth mobility (ship unassembled)

Fan-cooled compressor Offers improved temperature performance throughout the interior

Defrost drain Front located for easier defrosting

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
