Summit Combination refrigerator-freezer and microwave with built-in allocator, with brackets included (ships in 3 boxes on one pallet), MRF962A

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience.

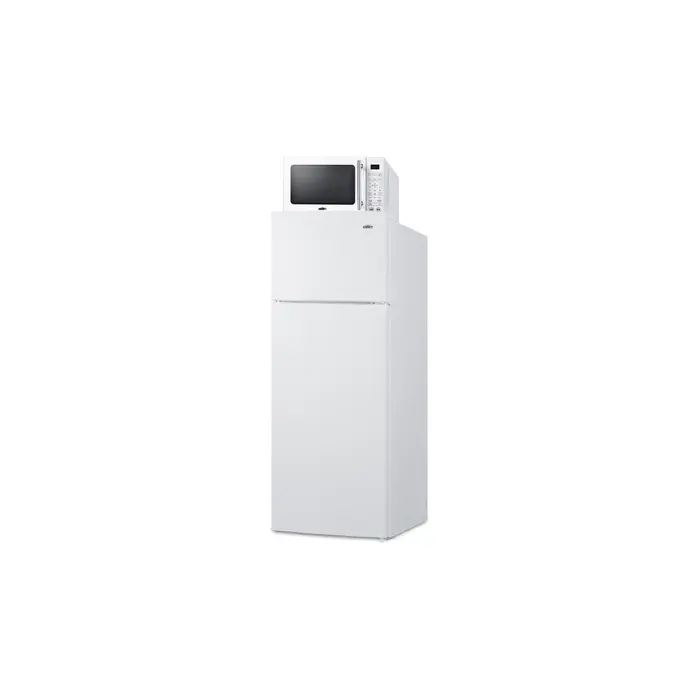

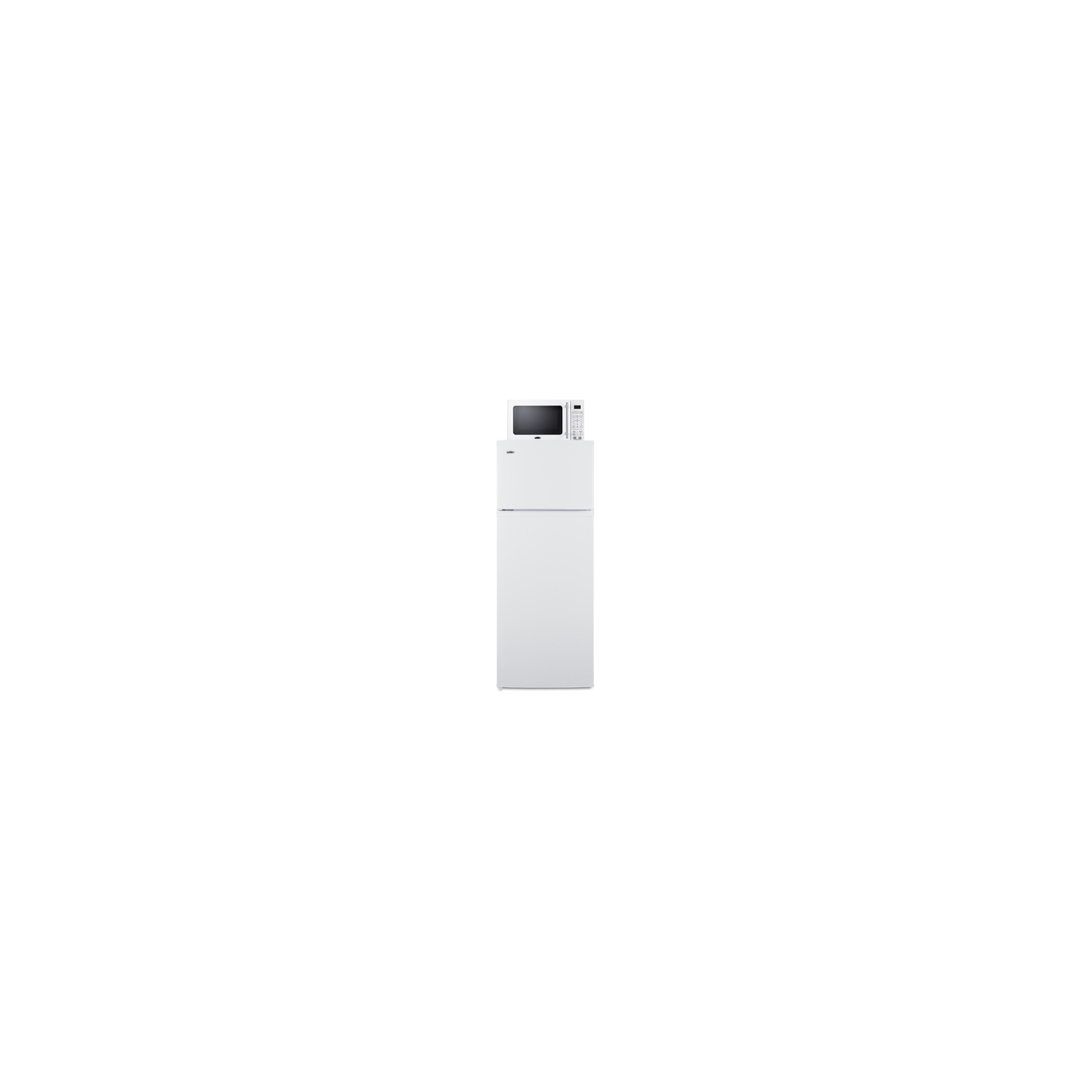

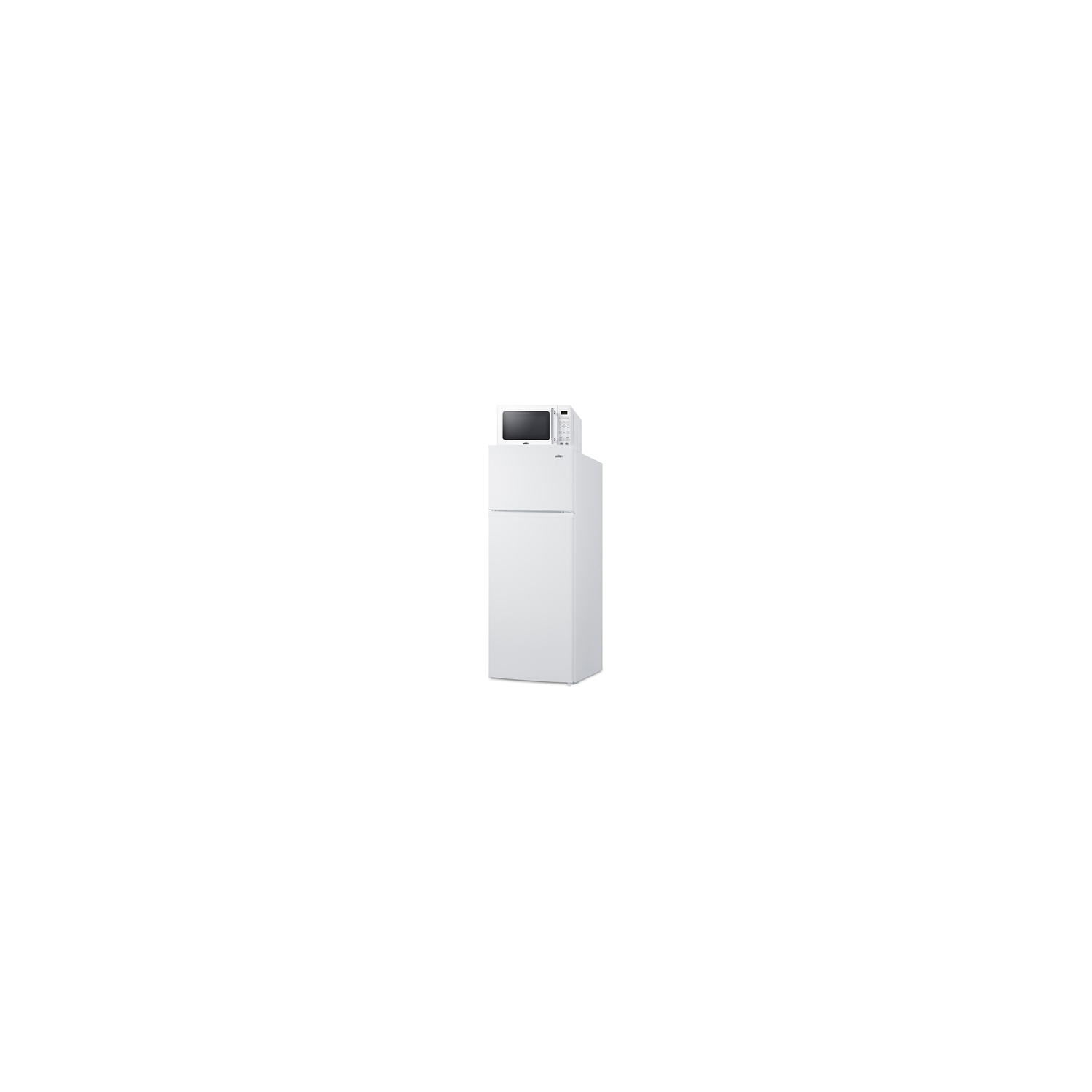

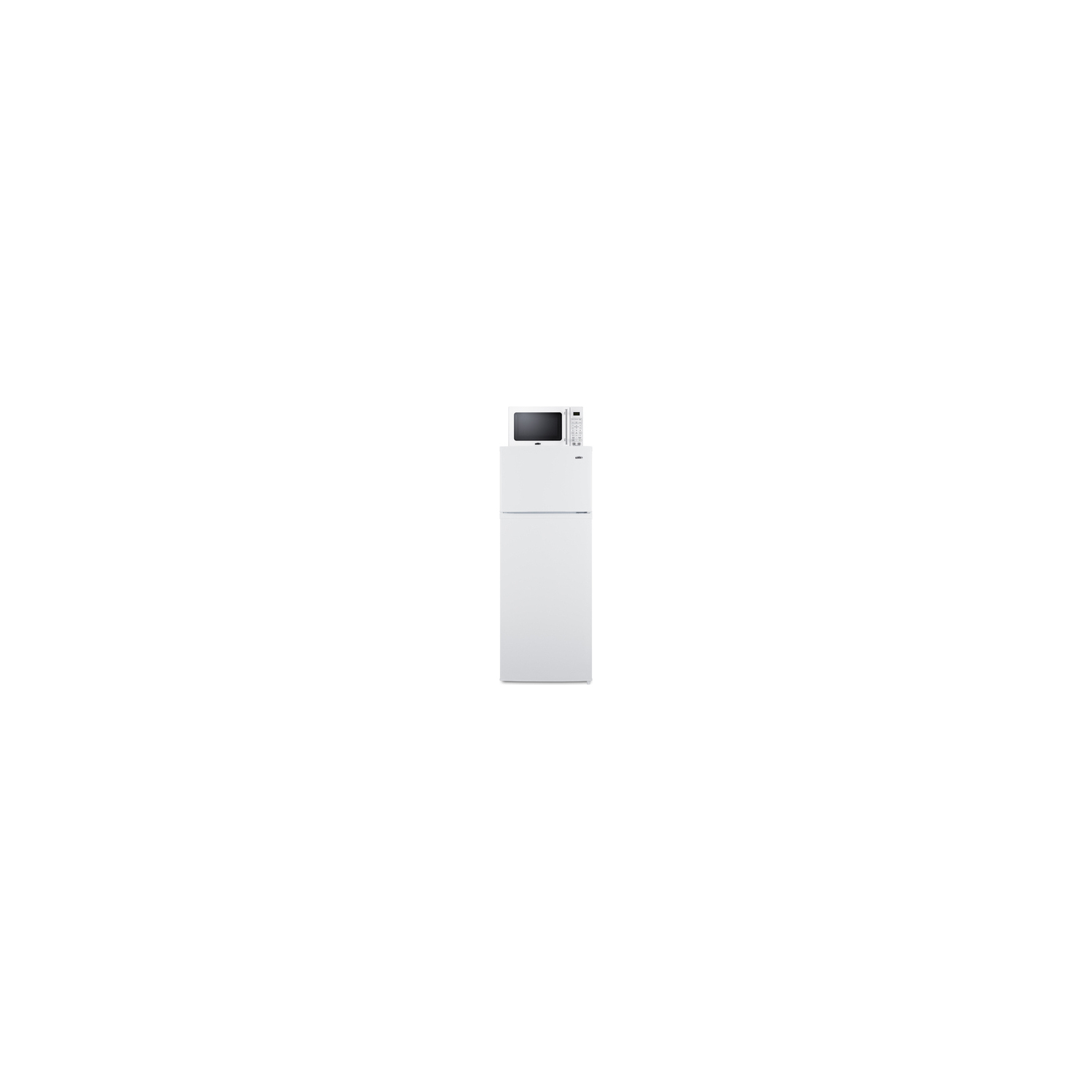

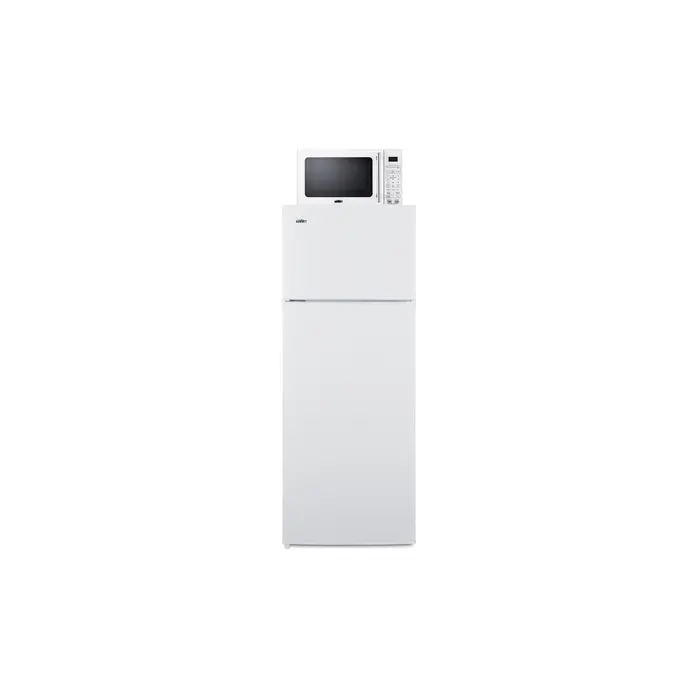

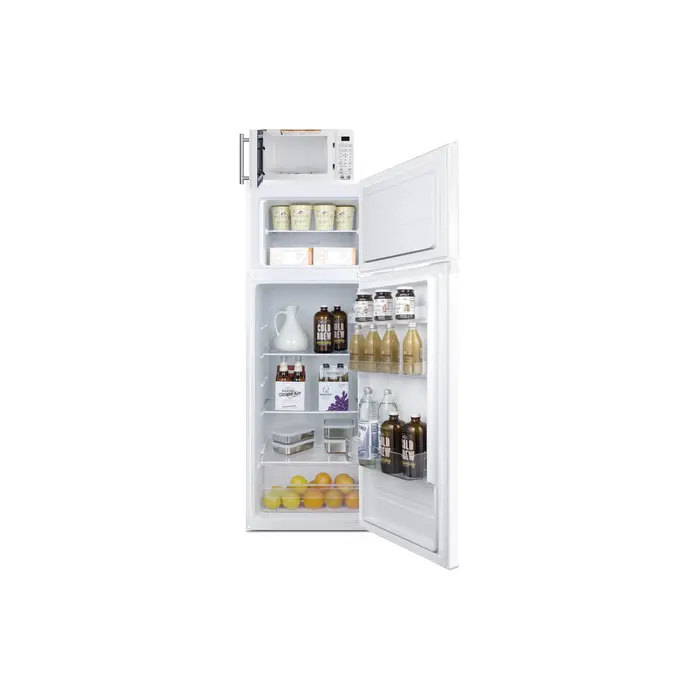

Model MRF962A combines a fully featured compact microwave with our two-door mid-sized CP962 refrigerator-freezer. The complete unit is sized at just under 22" wide for an easy fit. The refrigerator-freezer comes in a clean white finish with user-reversible doors. The microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

The SM904WA microwave comes in a white finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.

The MRF962A ships on one pallet in three boxes (refrigerator-freezer CP962, microwave SM904WA and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM903BSA1 microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Nominal Height 67.0" (170 cm)

Height of Cabinet 66.38" (169 cm)

Nominal Width 22.0" (56 cm)

Width 21.5" (55 cm)

Width with Door Open 22.25" (57 cm)

Nominal Depth 22.0" (56 cm)

Depth 21.75" (55 cm)

Depth with door at 90° 41.5" (105 cm)

Capacity 7.1 cu.ft. (201 L)

Defrost Type Cycle

Door White

Cabinet White

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159553

Microwave-Refrigerator

Refrigerator Included CP962

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 2

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 3

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 1.62 oz.

High Side PSI 245.0

Low Side PSI 110.0

Refrigerator Interior Height 36.5" (93 cm)

Refrigerator Interior Width 17.5" (44 cm)

Refrigerator Interior Depth 17.0" (43 cm)

Freezer Interior Height 10.38" (26 cm)

Freezer Interior Width 15.5" (39 cm)

Freezer Interior Depth 16.0" (41 cm)

Level Legs 2

Microwave Wattage 700.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

Microwave/Refrigerator-Freezer Combination Mid-sized refrigerator-freezer and compact microwave ship with a bracket kit for easy installation and one-plug operation

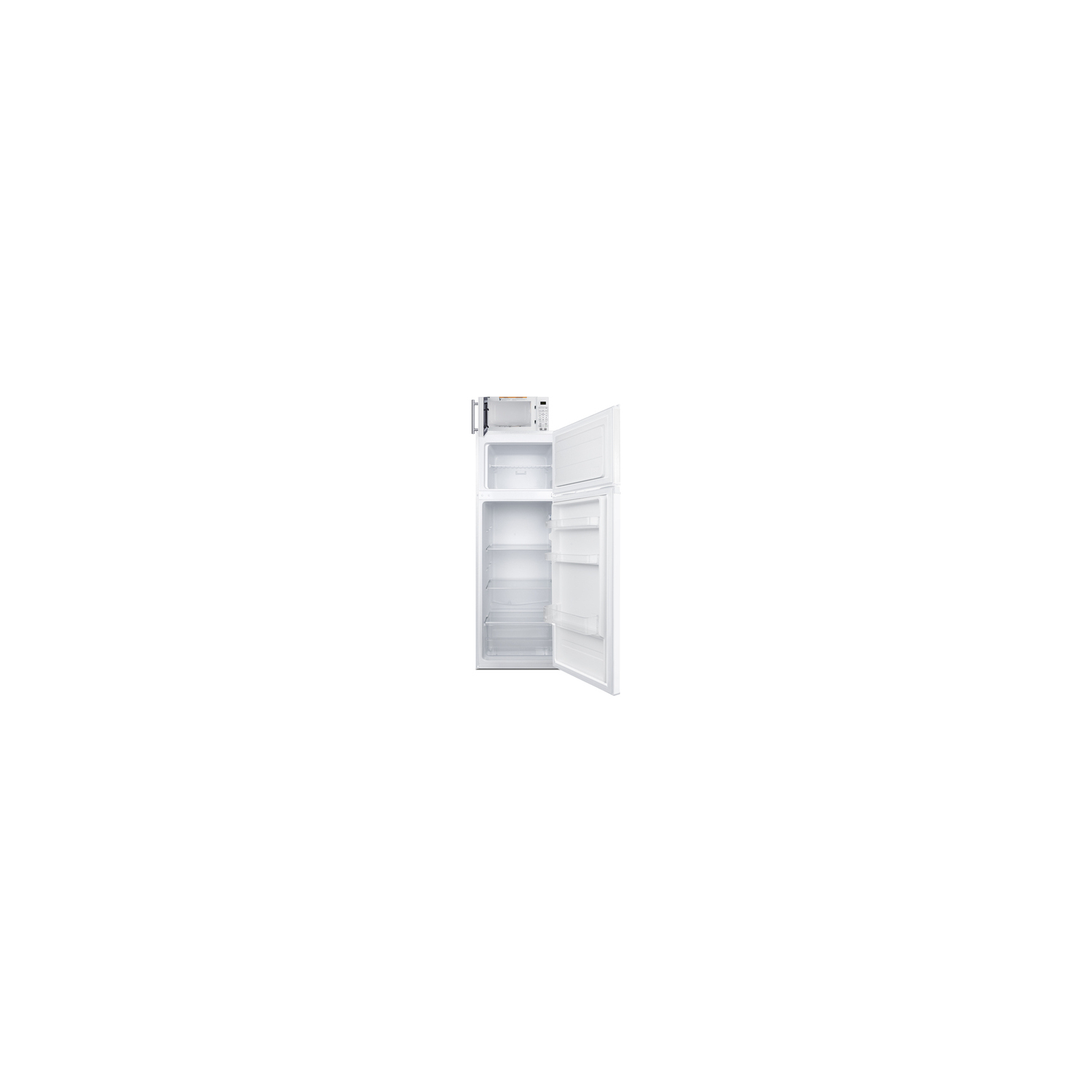

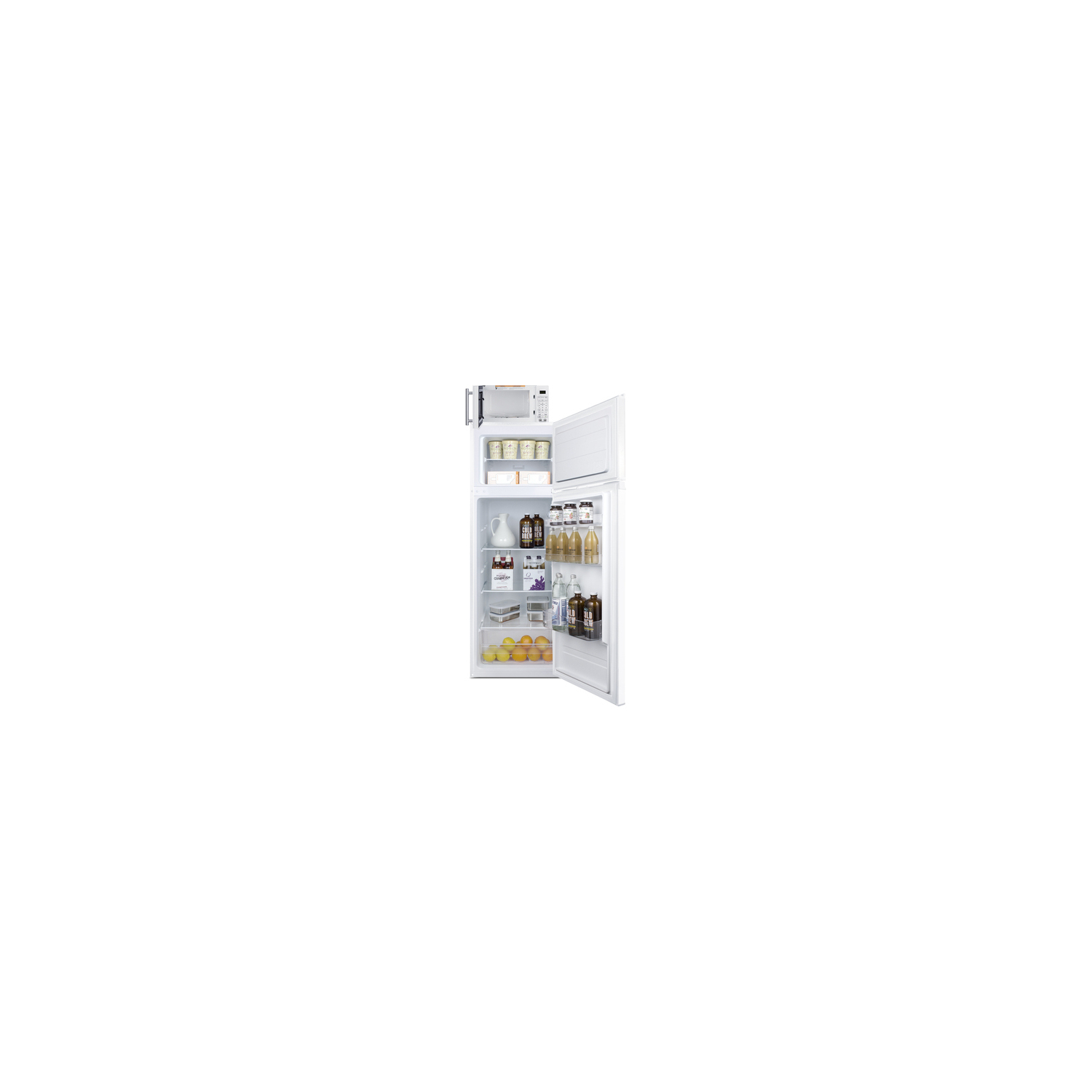

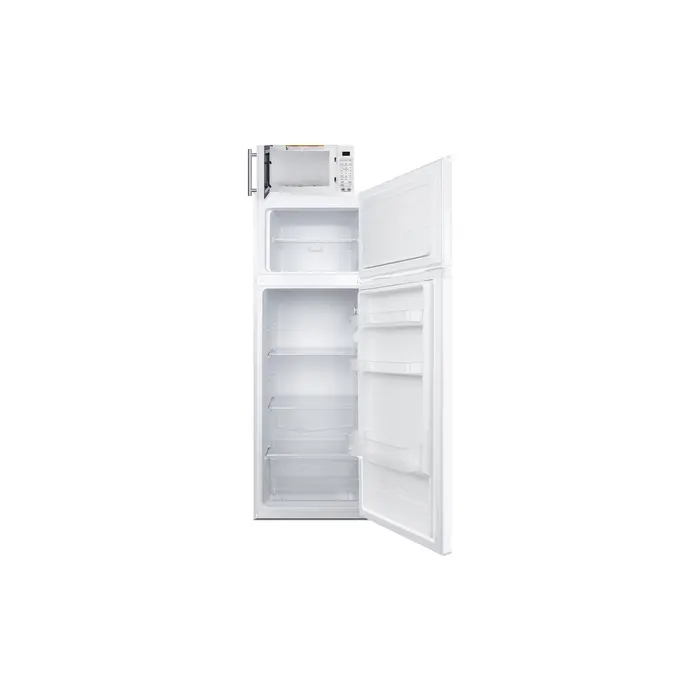

CP962 Refrigerator-freezer Two-door mid-sized refrigerator-freezer with cycle defrost operation, spill-proof glass shelves, door storage, and a large crisper drawer

SM904WA microwave Compact microwave in white with window, stainless steel handle, and digital controls for easy heating

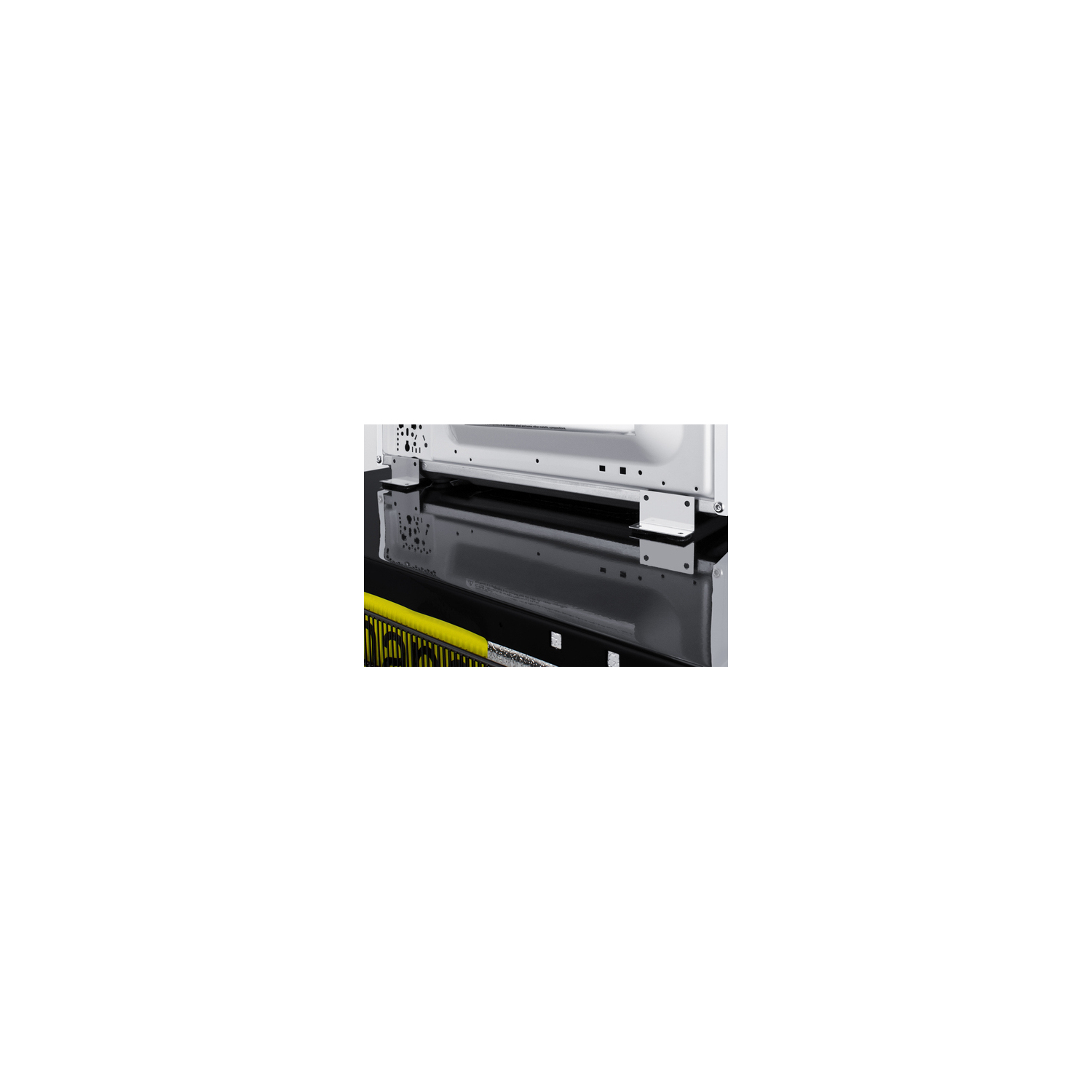

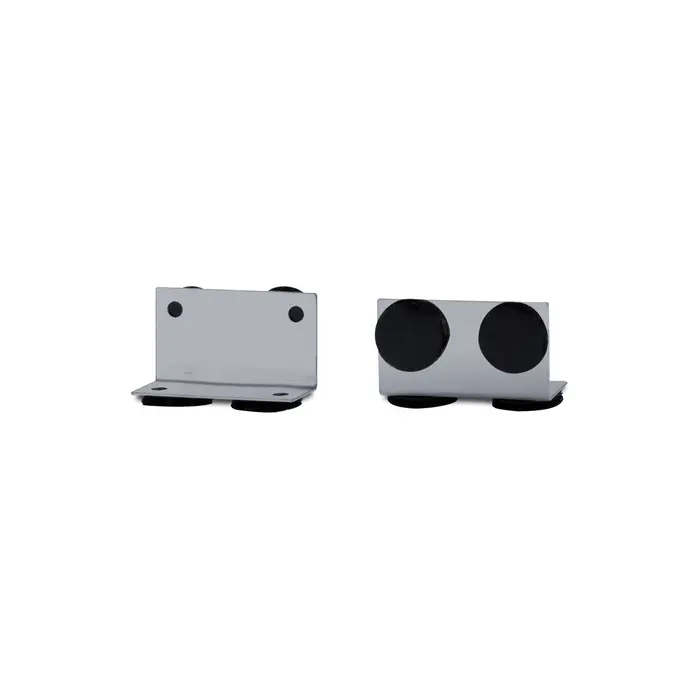

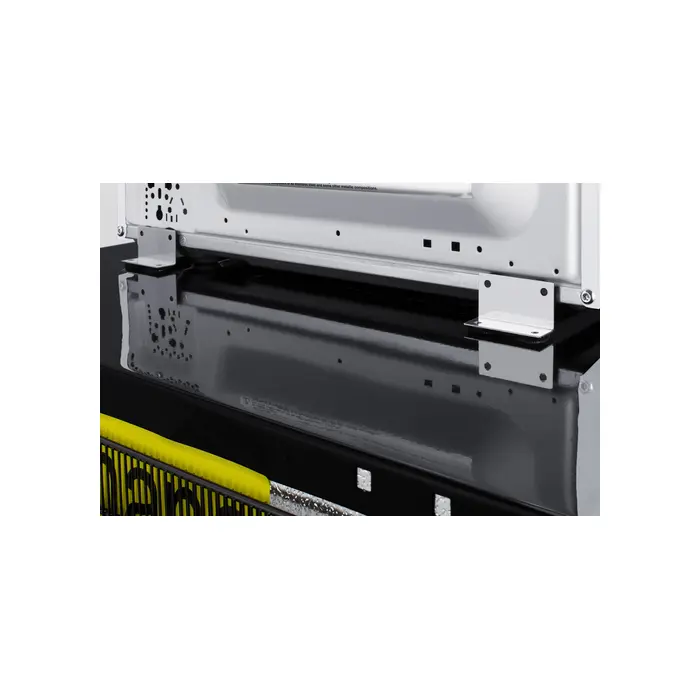

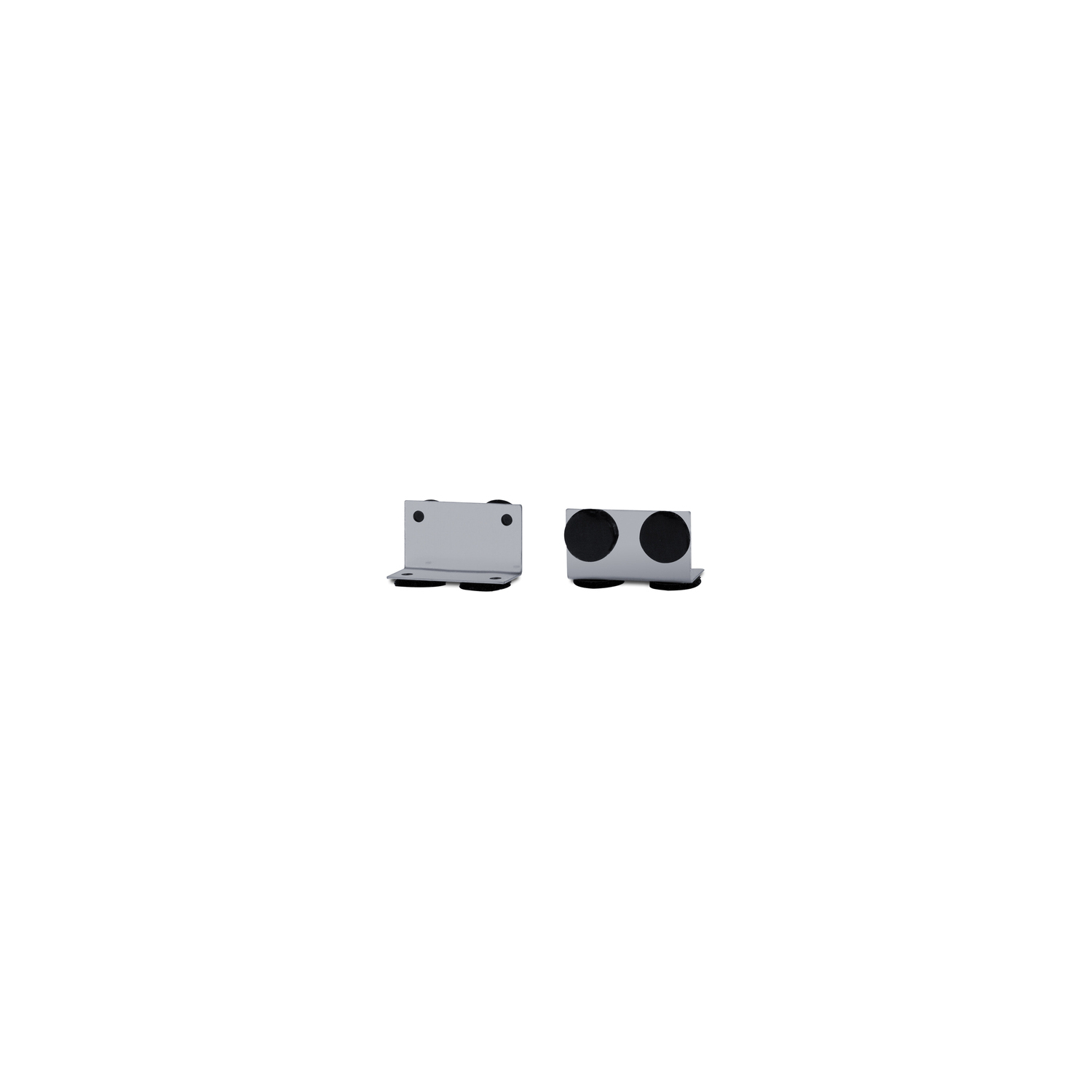

Easy assembly Ships with two removable brackets that let you secure the microwave on top of the refrigerator

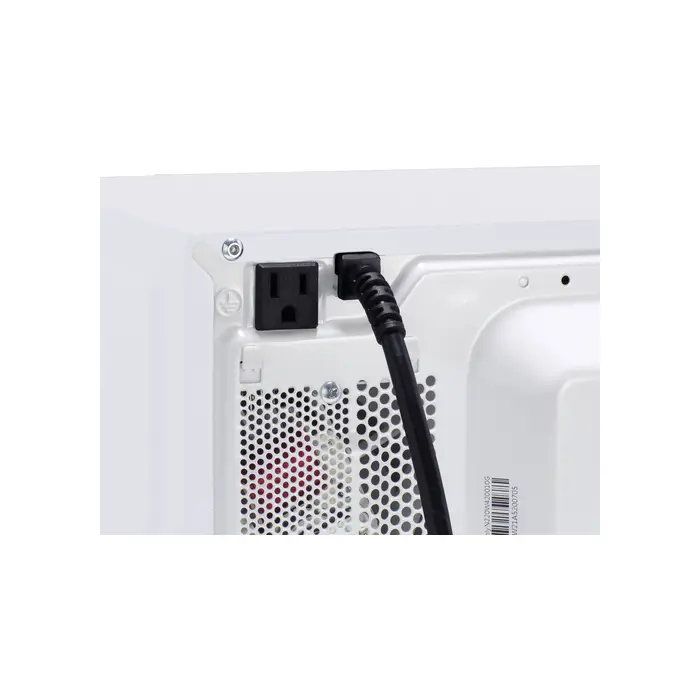

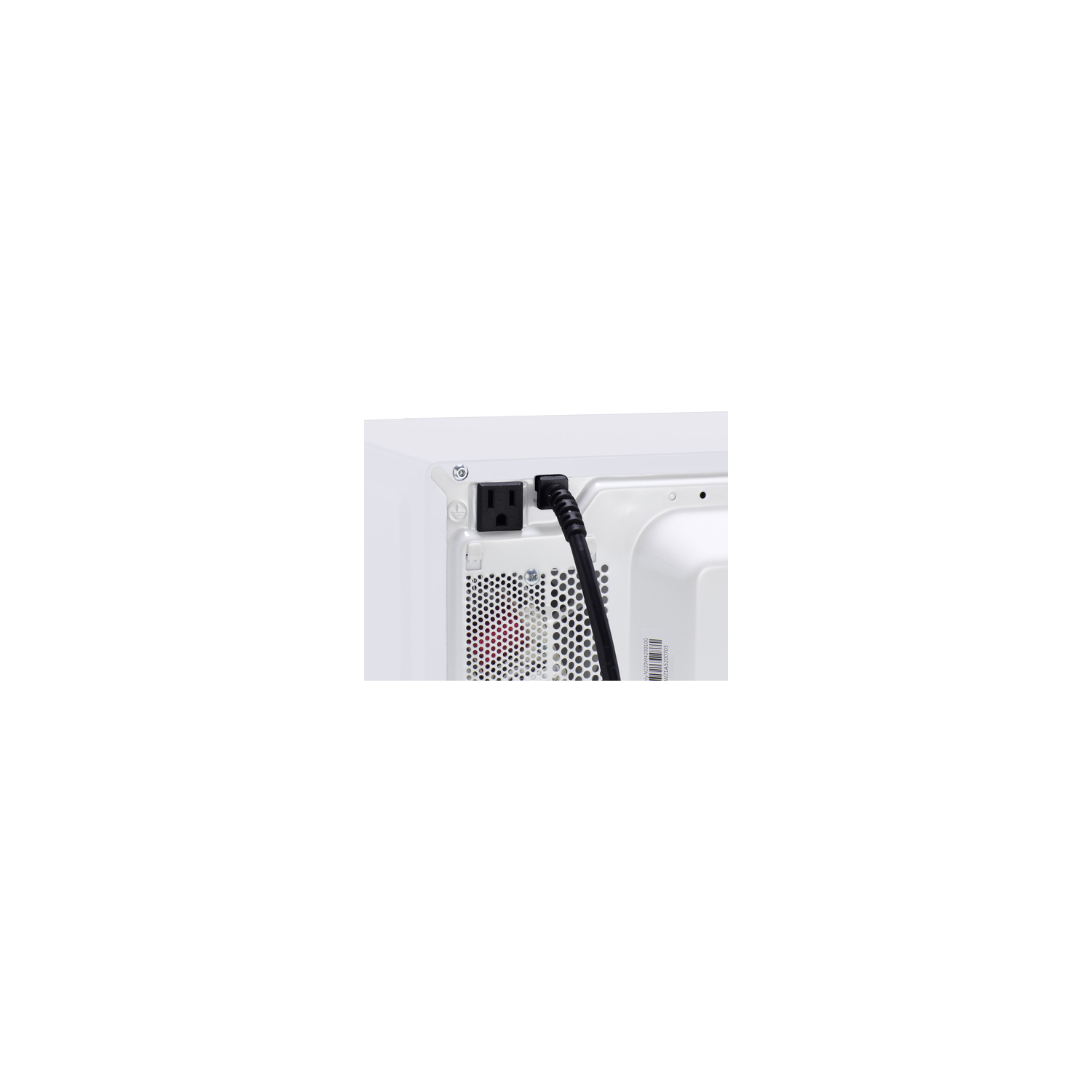

Built-in power allocator Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

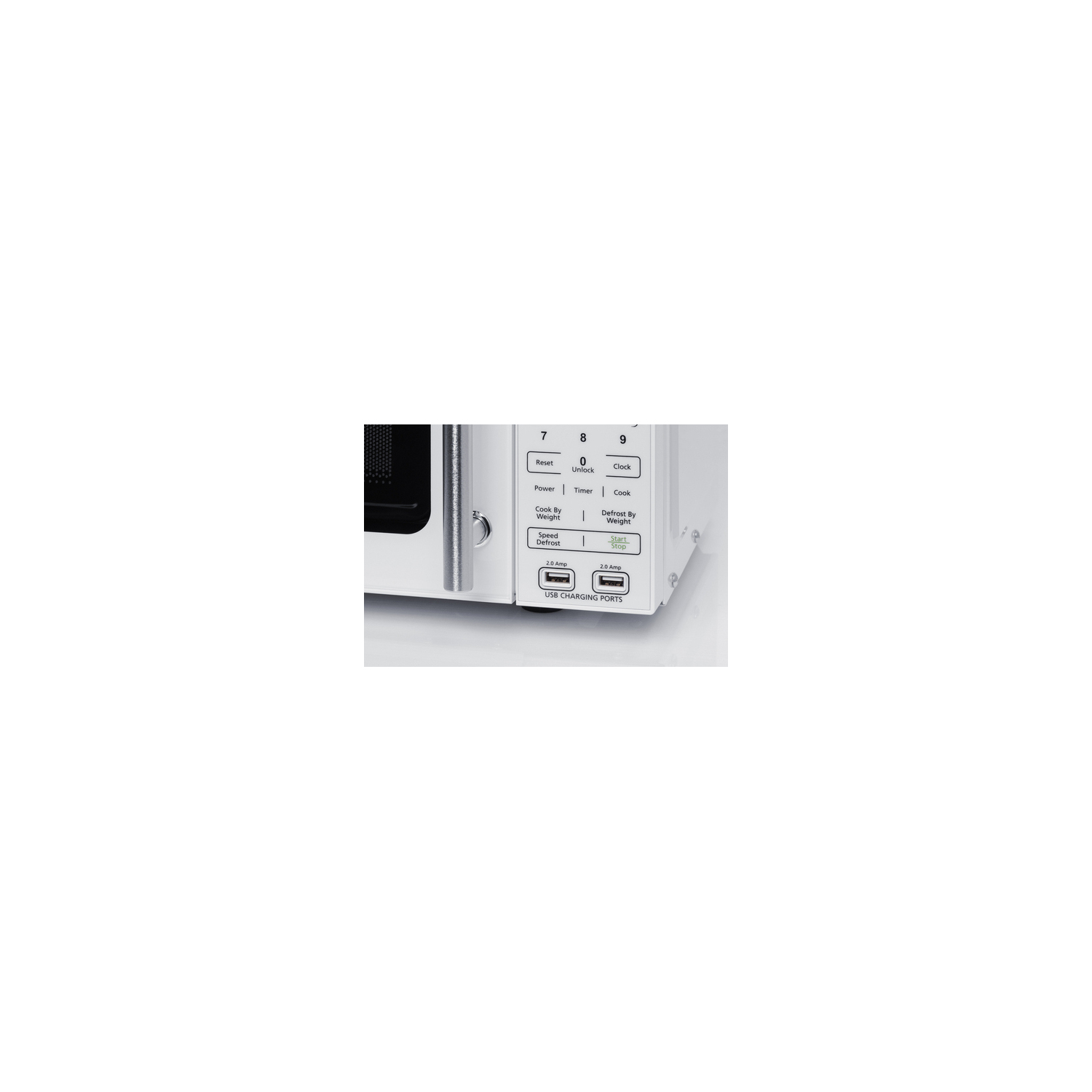

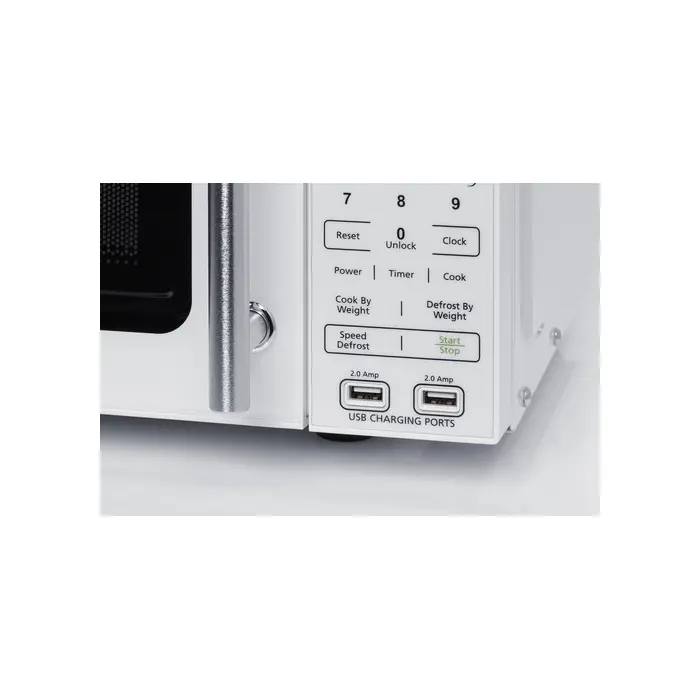

(2) USB ports Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Cycle defrost Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents

Reversible doors (refrigerator) User-reversible door swing for added flexibility

Sealed back Allows for a better fit and easier cleanability

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Mute function Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode Power-saving option lets you disable the digital display

Right angle plug (microwave) Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
