Summit Mid-sized 2-door refrigerator-freezer and microwave, MRF712WA

Summit’s innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience and save space.

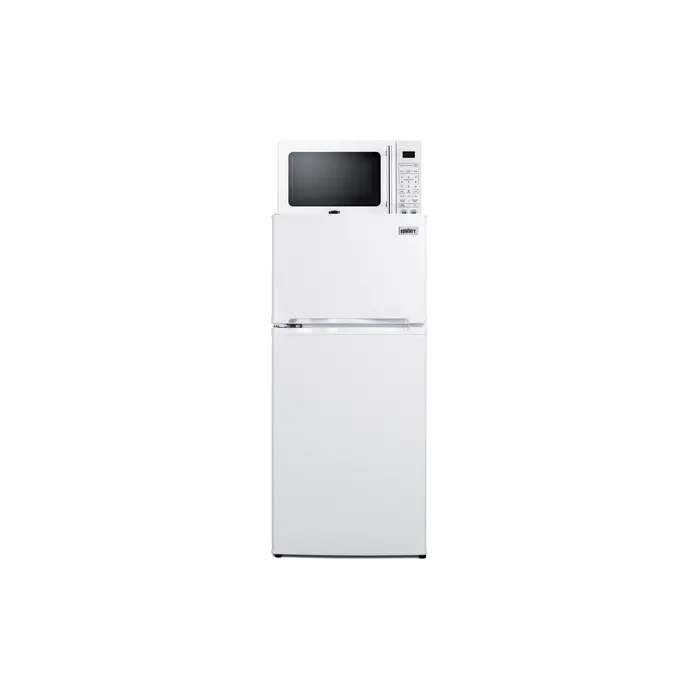

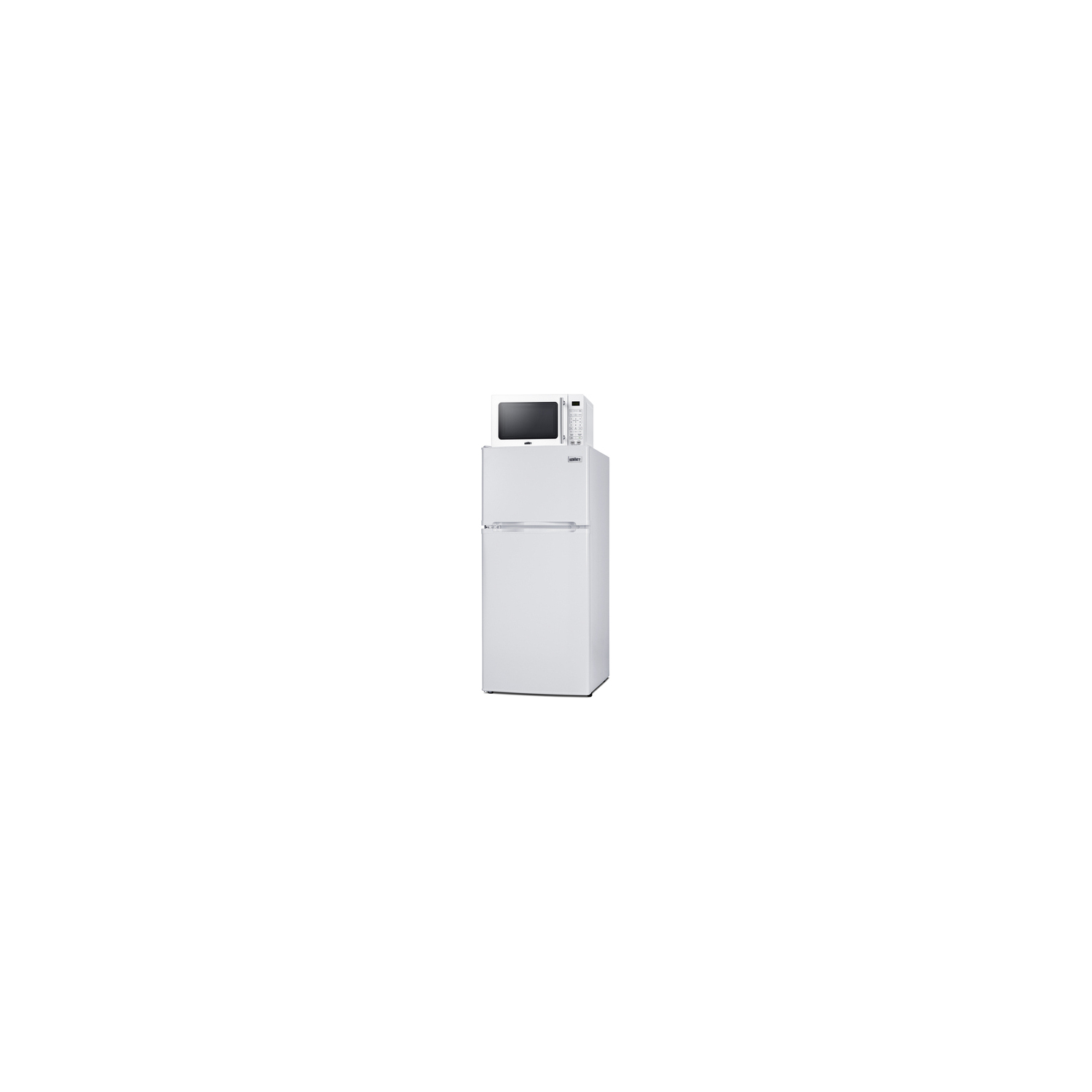

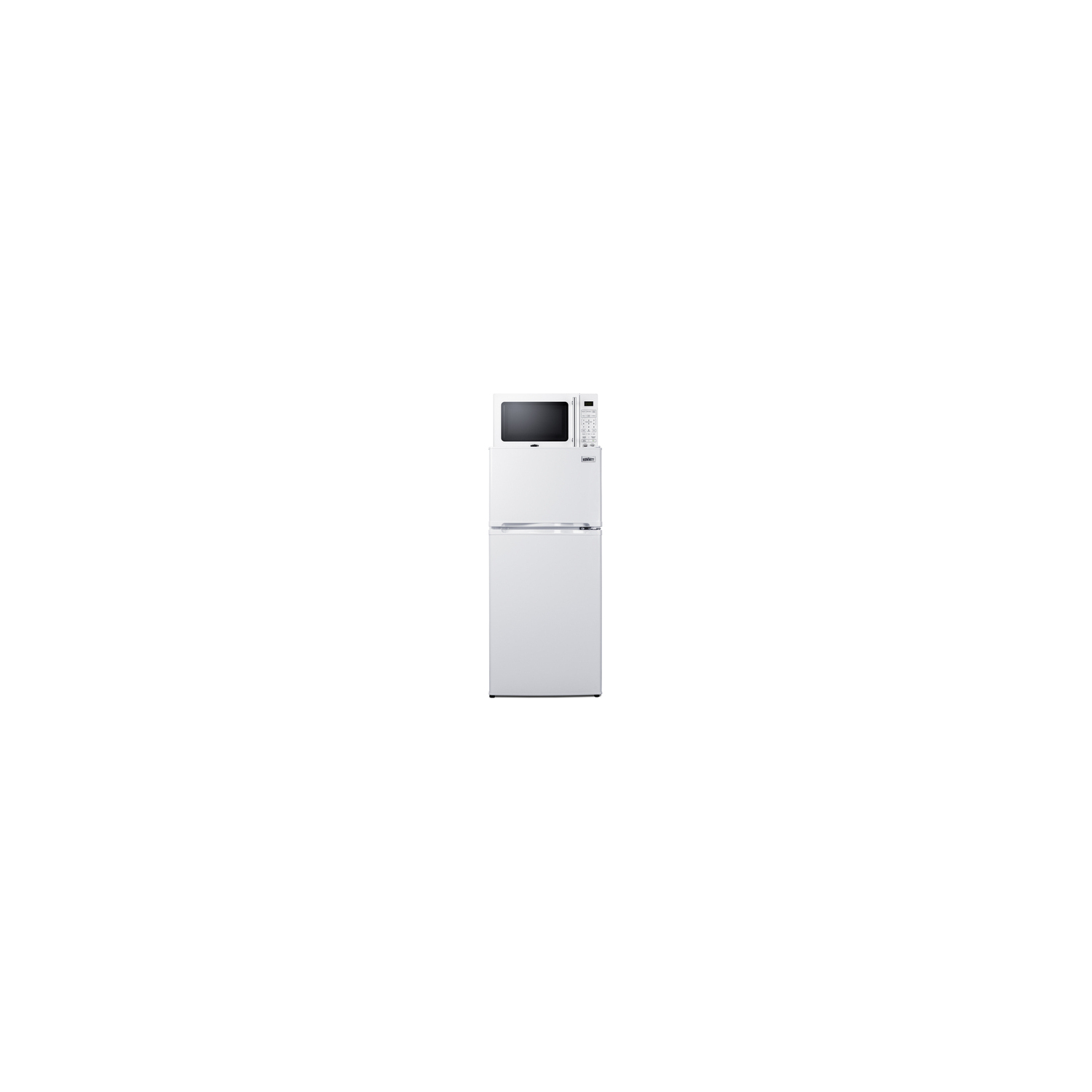

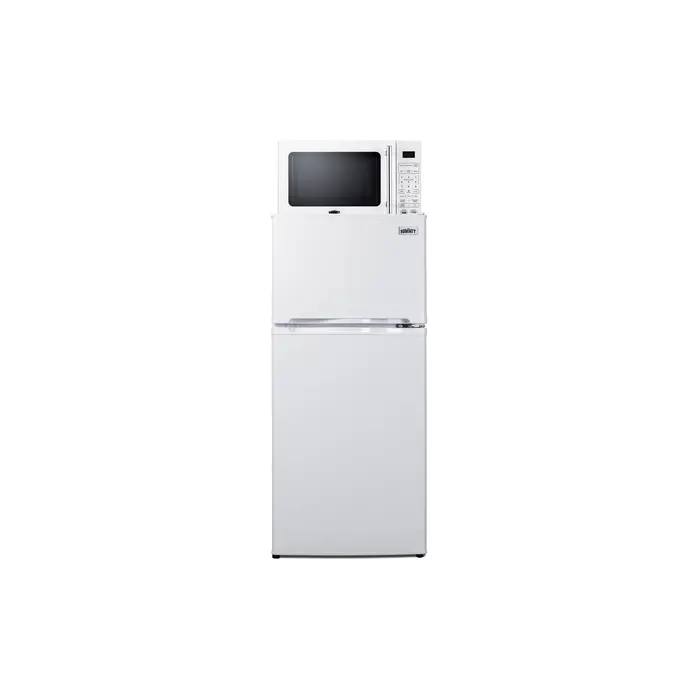

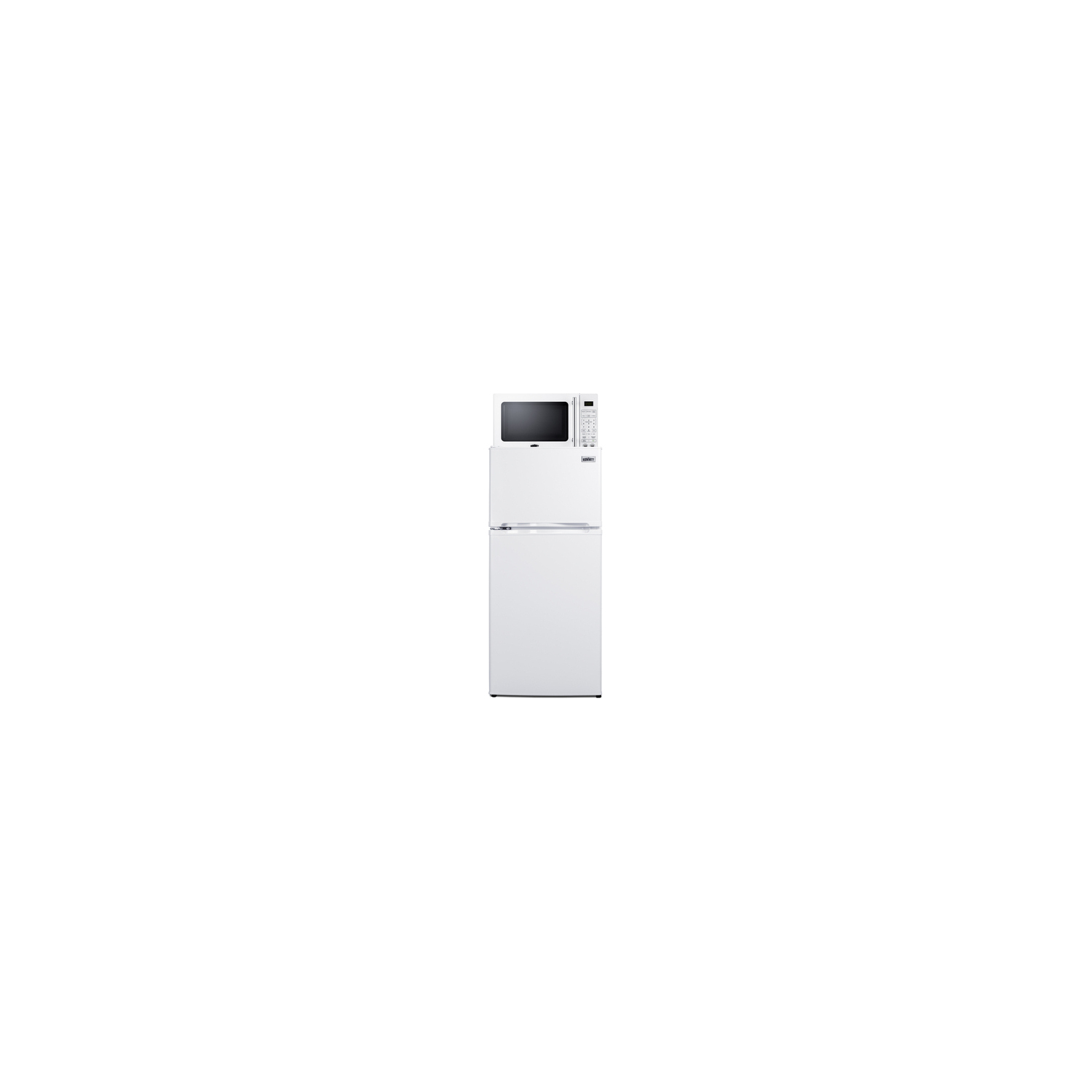

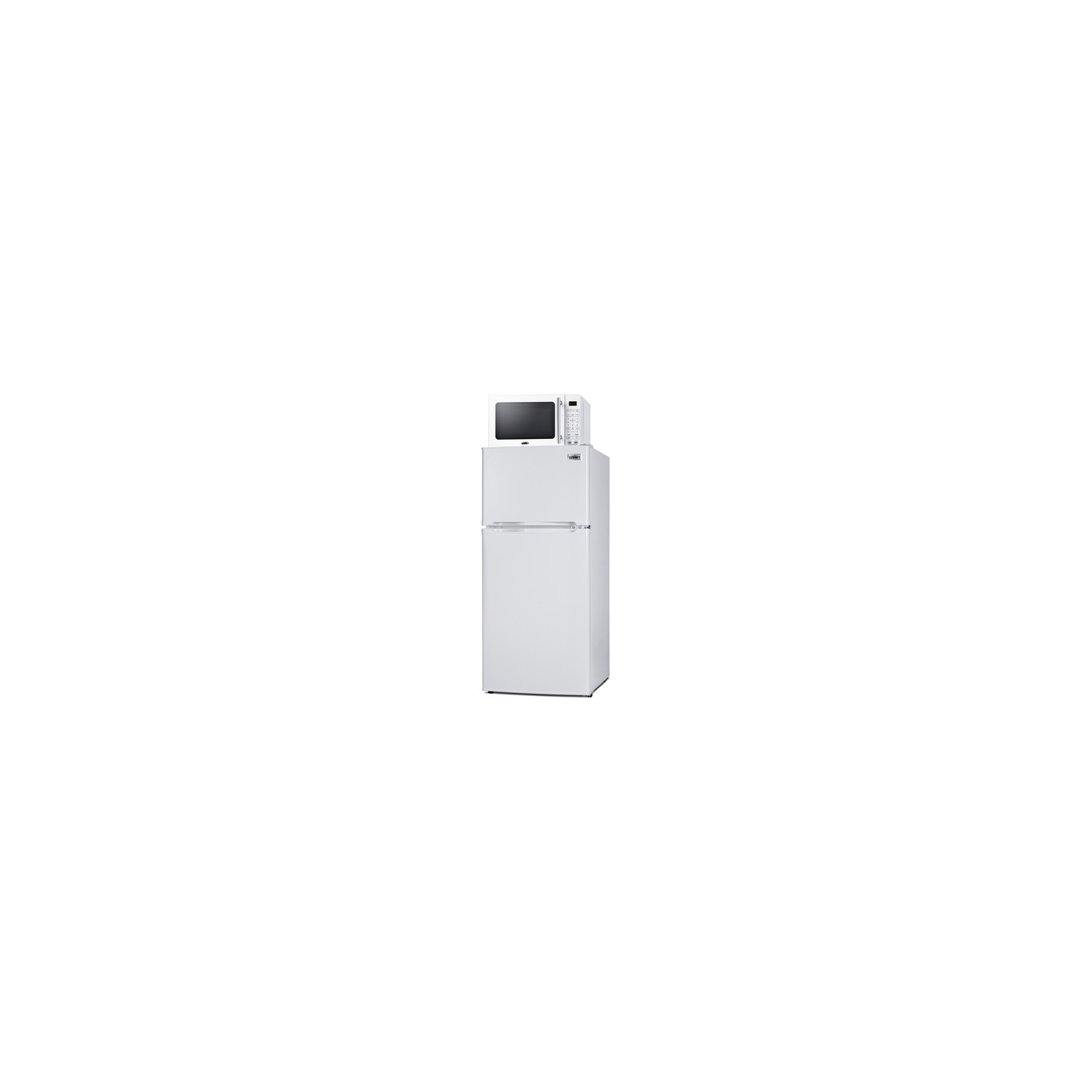

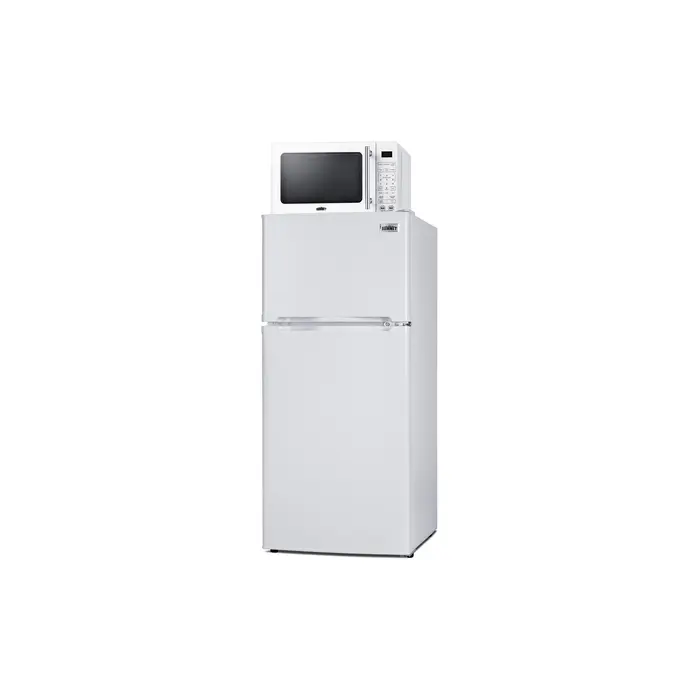

Model MRF712WA combines a fully featured compact microwave with an ENERGY STAR-certified two-door refrigerator-freezer. The complete unit is sized at 19” wide, with a 43" height to meet ADA guidelines for easy accessibility.

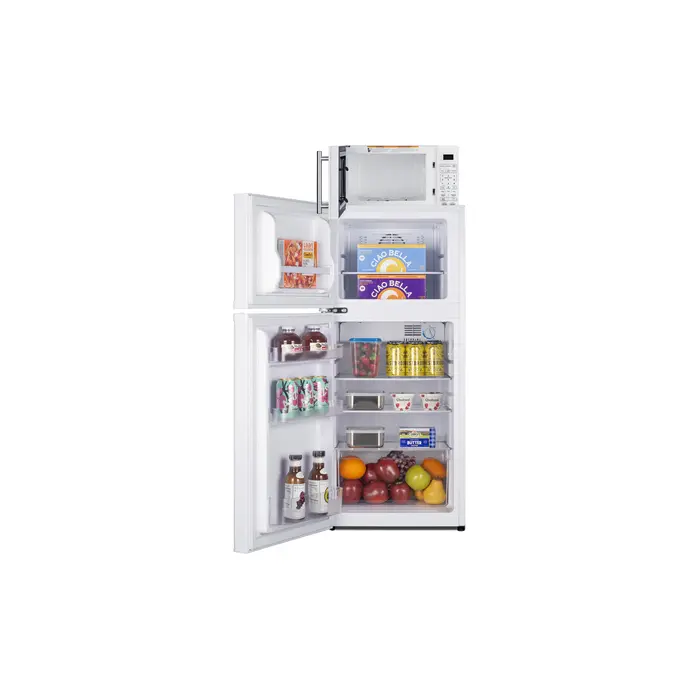

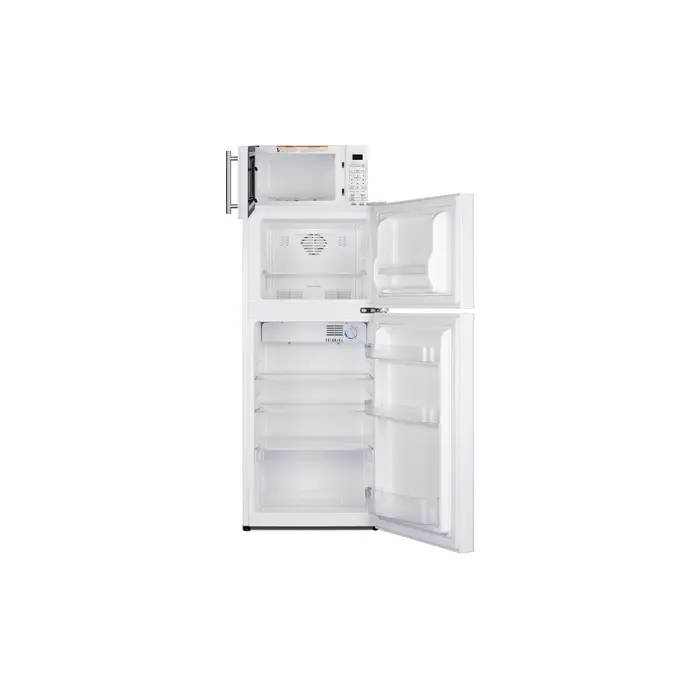

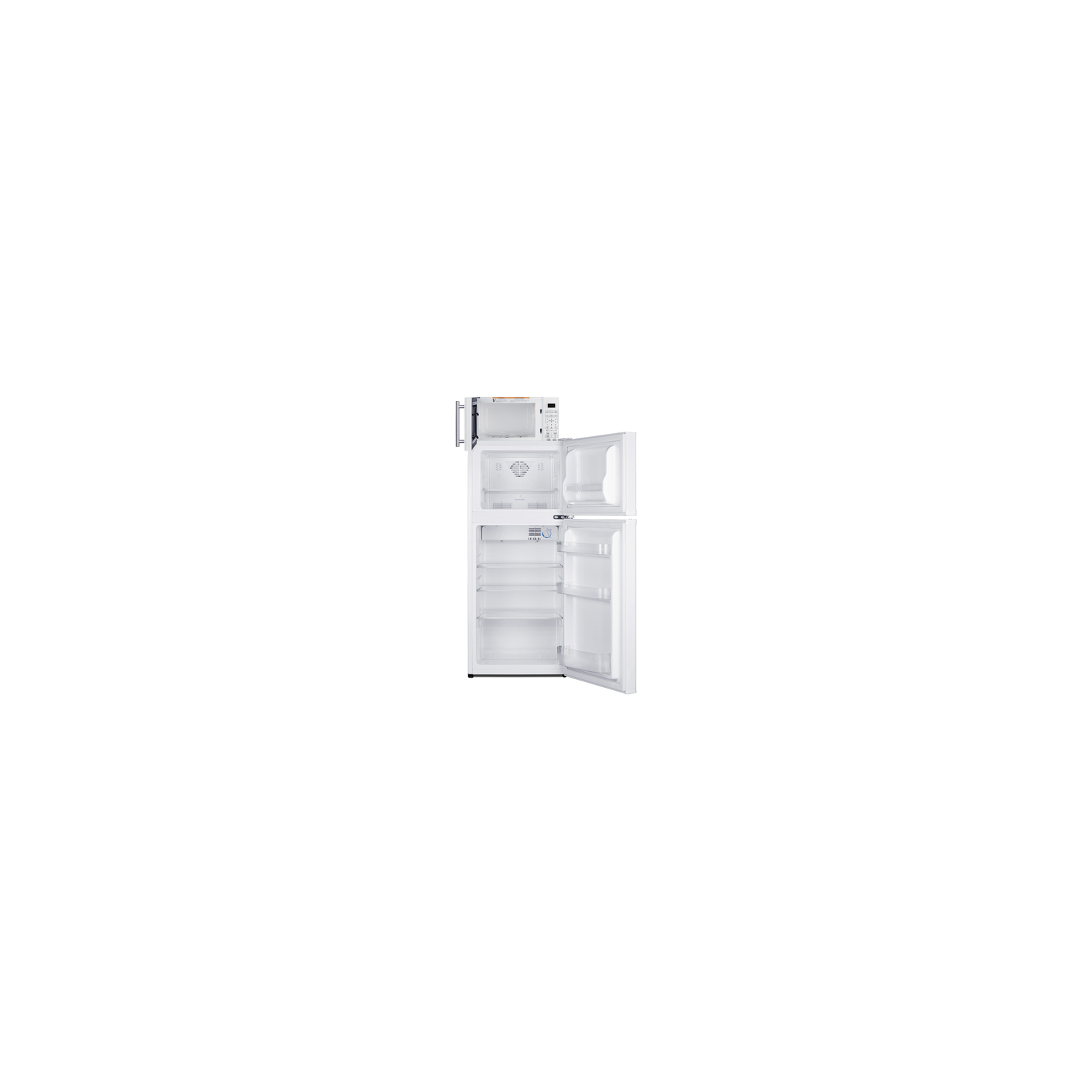

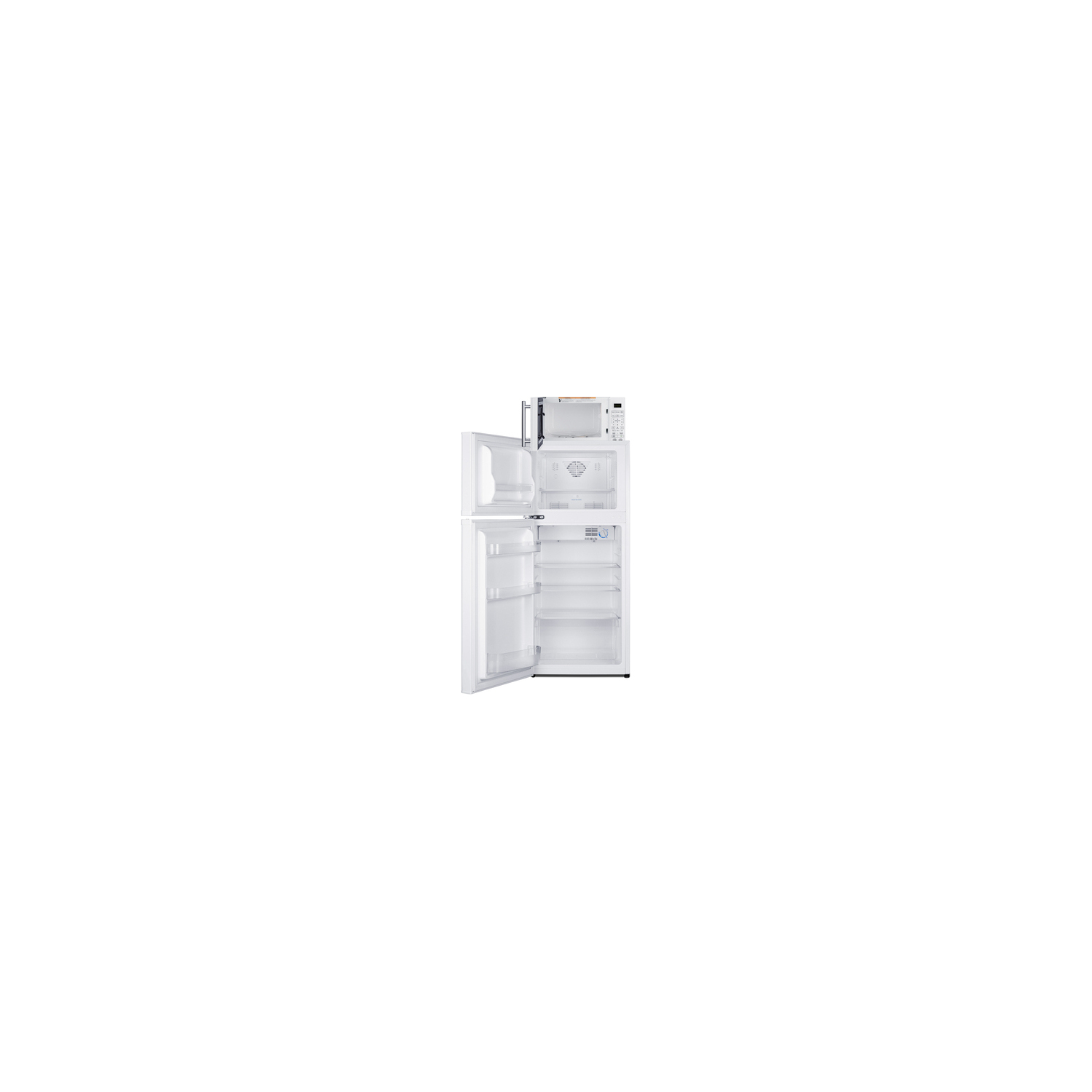

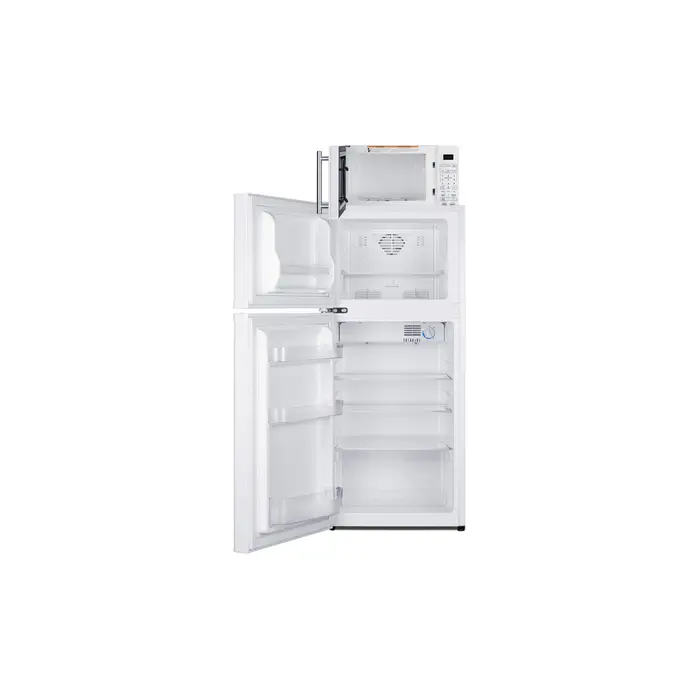

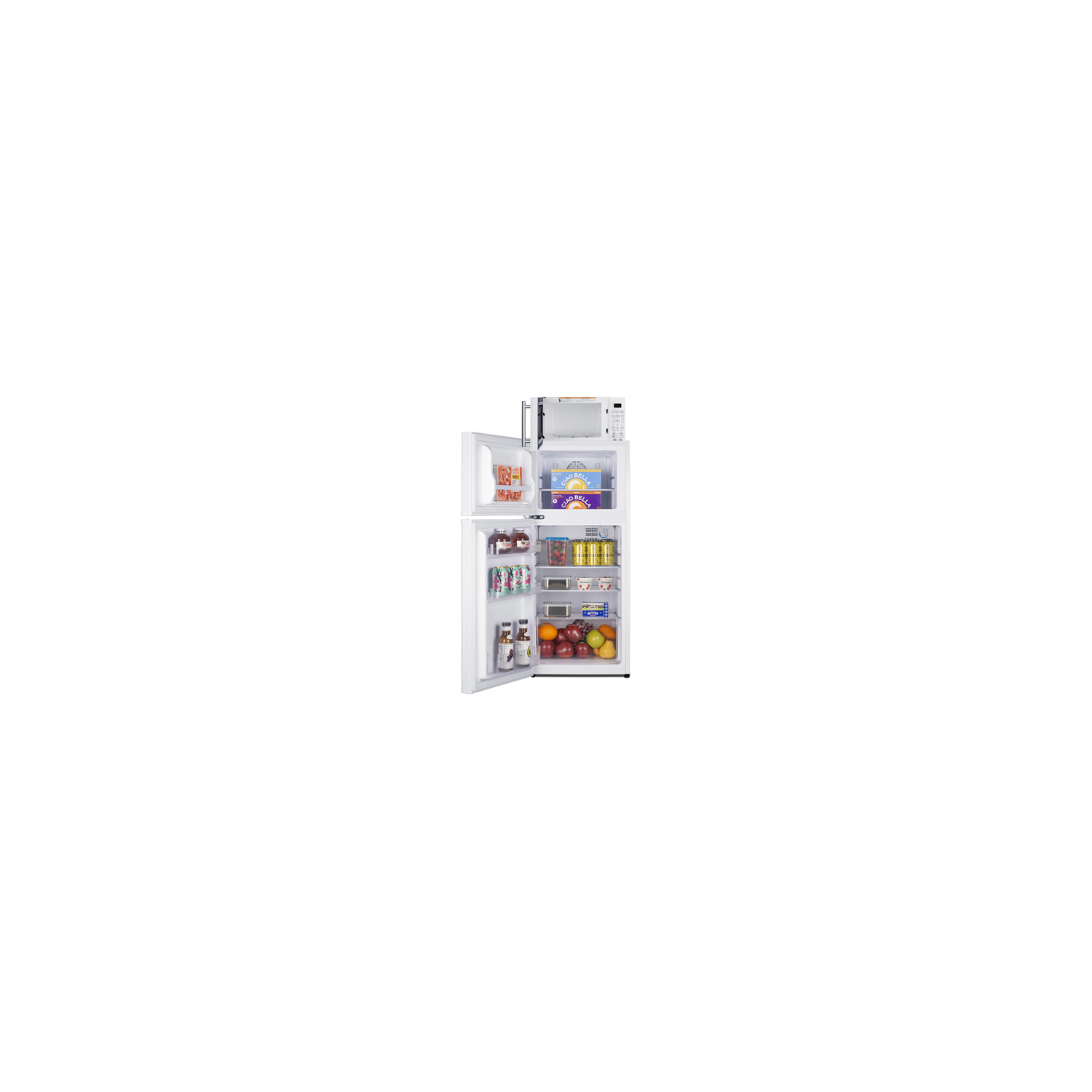

The refrigerator-freezer, model FF712W, offers 4.3 cu.ft. of interior storage capacity, one of the largest in this size class of compact refrigerator-freezers. Both refrigerator and freezer sections include adjustable glass shelves and door storage, with the fridge also featuring a clear crisper drawer, and door racks offer convenient storage in the fresh food section. This unit comes in a white finish with reversible doors.

The included microwave, model SM904WA, comes in the same classic white finish as the fridge and includes an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave.

Power Note: The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

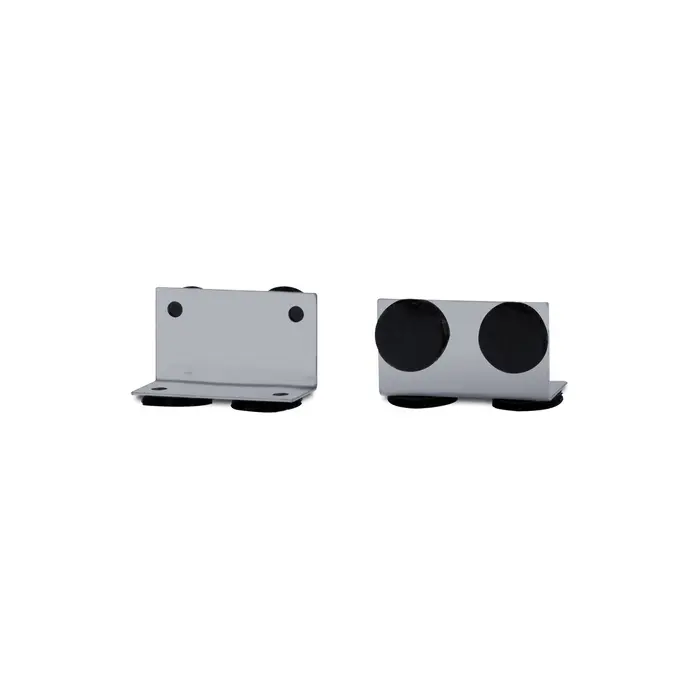

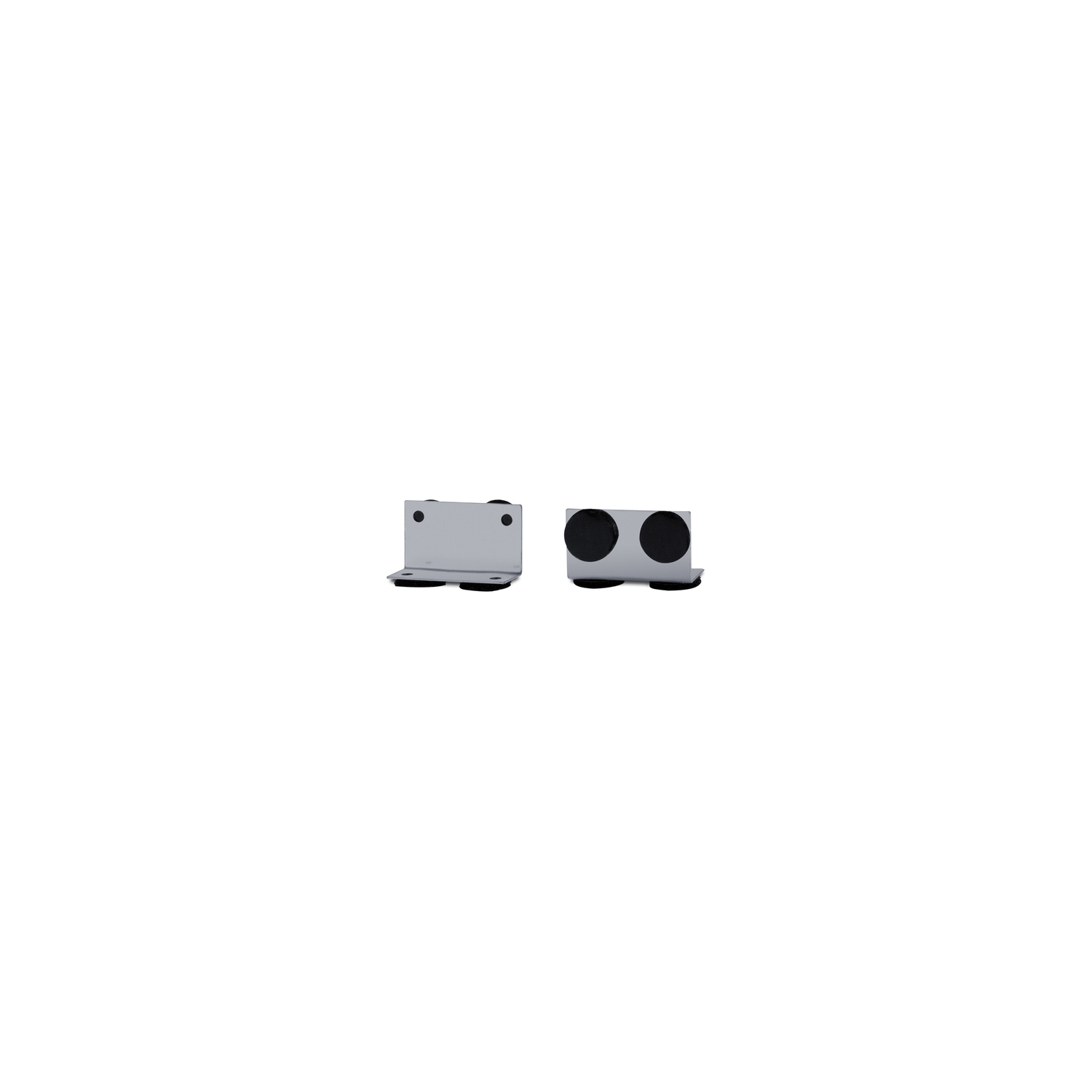

The microwave features a door window and a digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure it with adhesive. This unit ships on one pallet in three boxes (refrigerator-freezer, microwave, and our bracket set).

With its ENERGY STAR performance and compact fit, the MRF712WA is the ideal combo solution for senior living facilities, smaller housing units, offices, dorms, and other space-restricted kitchens. For this unit in a modern black finish, see model MRF713BA. Additional combinations are available in stainless steel, as well as larger and smaller sizes.

SPECIFICATIONS

Overview

Height of Cabinet 53.38" (136 cm)

Width 19.13" (49 cm)

Width with Door Open 20.38" (52 cm)

Depth 22.5" (57 cm)

Depth with door at 90° 39.38" (100 cm)

Capacity 4.3 cu.ft. (122 L)

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Amps 1.5

Plug Type (2) NEMA 5-15P

Voltage/Frequency 115 V AC/60 Hz

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101161525

Microwave-Refrigerator

Refrigerator Included FF712W

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 2

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 3

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.02 oz.

High Side PSI 300.0

Low Side PSI 120.0

Refrigerator Interior Height 25.0" (64 cm)

Refrigerator Interior Width 15.0" (38 cm)

Refrigerator Interior Depth 17.25" (44 cm)

Freezer Interior Height 10.25" (26 cm)

Freezer Interior Width 13.0" (33 cm)

Freezer Interior Depth 12.75" (32 cm)

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 15.0" (38 cm)

Compressor Step Depth 5.5" (14 cm)

Microwave Wattage 1000.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

19" Wide Microwave/Refrigerator-Freezer Combination Compact 4.3 cu.ft refrigerator-freezer and microwave with allocator offer a convenient 1-plug solution for food storage and heating

SM904WA microwave Fully featured microwave in white with window, stainless steel handle, USB ports, and digital controls for easy operation

FF712W Refrigerator-freezer Two-door ENERGY STAR qualified compact featuring frost-free operation and deluxe interior that includes glass shelving, door racks, and a clear crisper

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

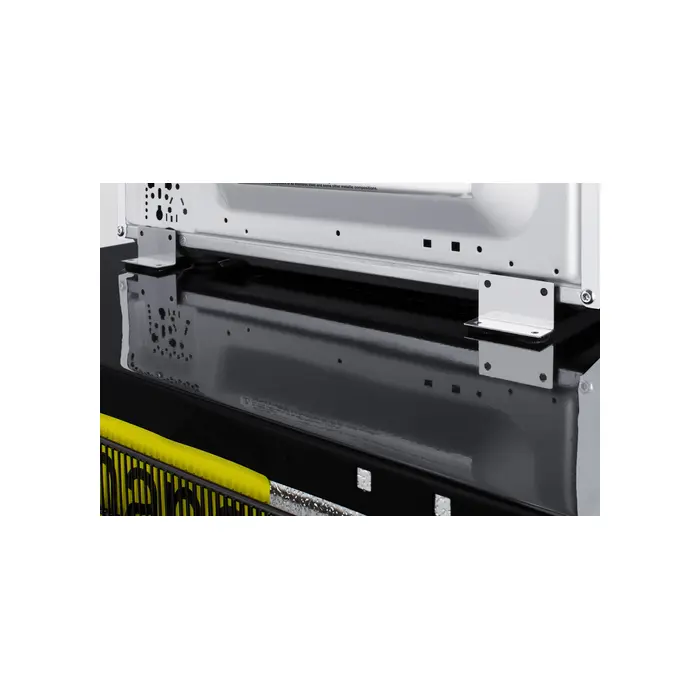

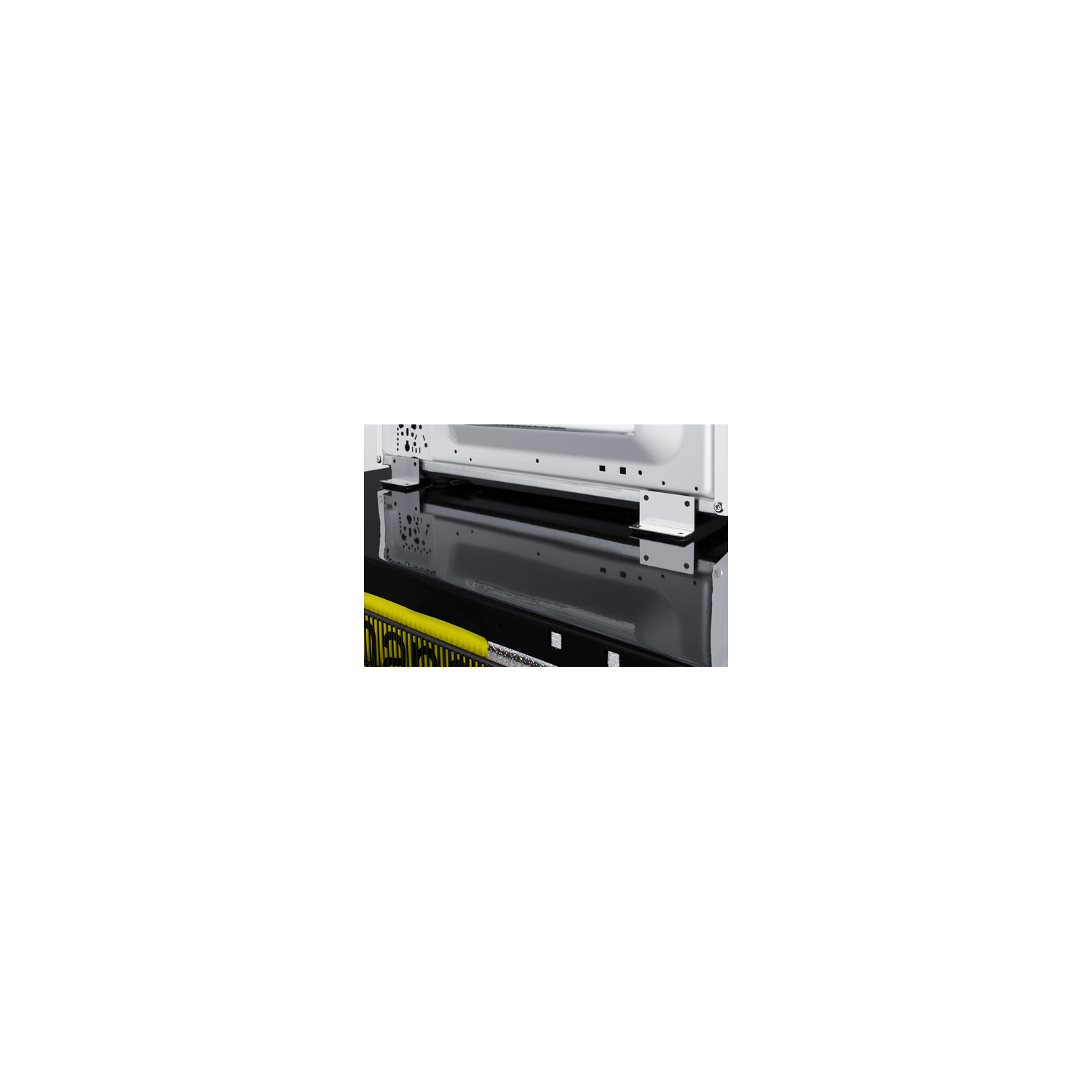

Easy assembly Ships with two removable brackets that let you secure the microwave on top of the refrigerator

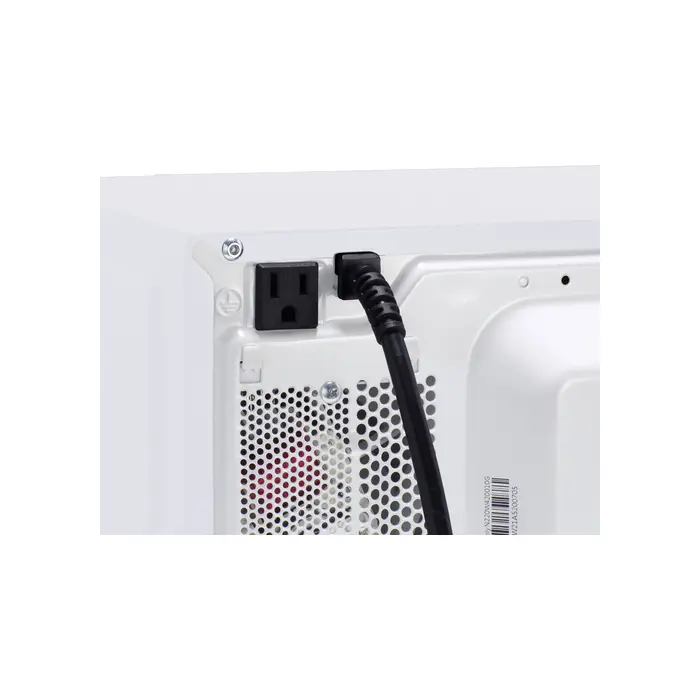

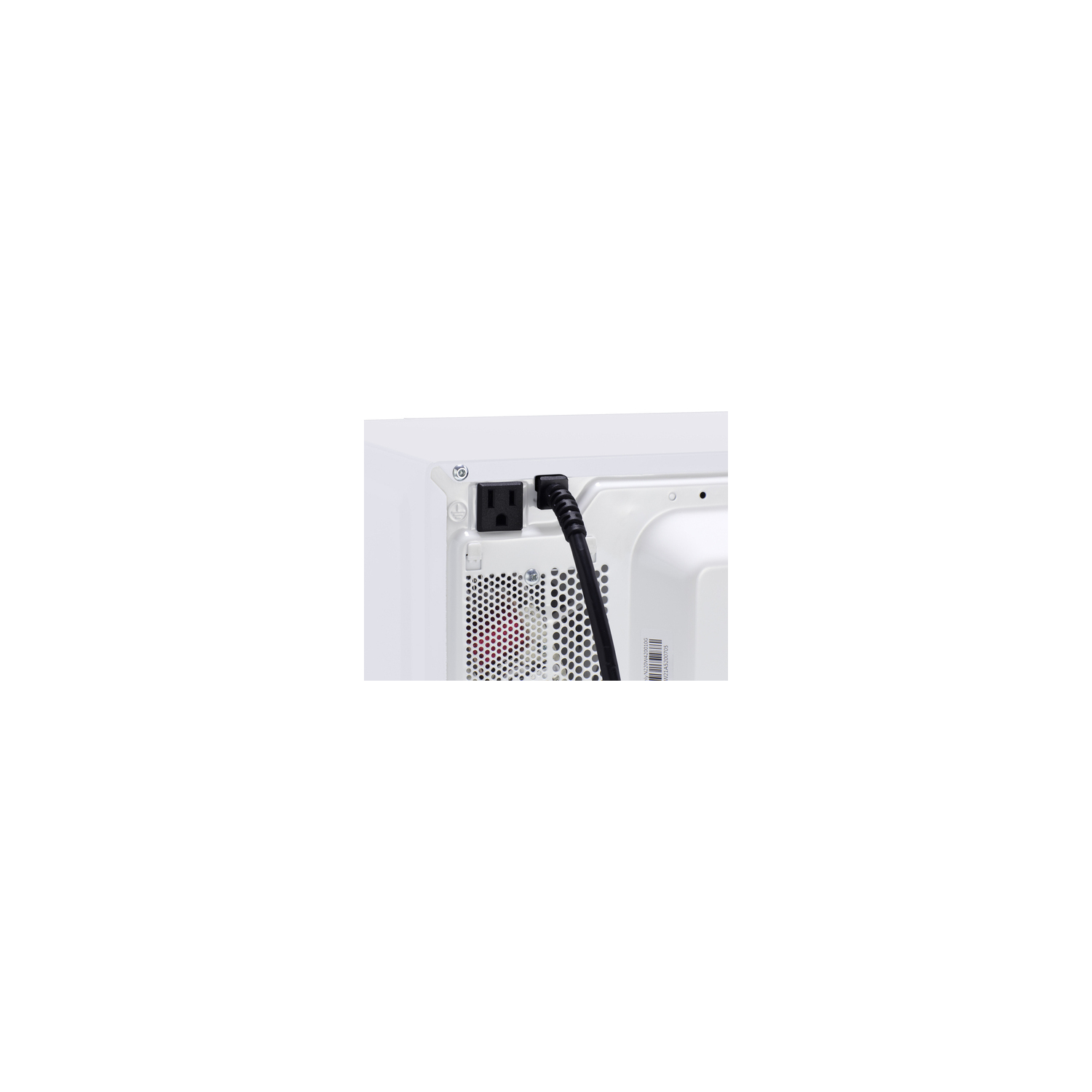

Built-in power allocator (microwave) Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

(2) USB ports (microwave) Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking (microwave) Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Frost-free operation (refrigerator) No-frost convenience for reduced user maintenance

Adjustable glass shelves (refrigerator) Spill-proof shelving for easy cleanup and flexible storage

Door storage (refrigerator) Store tall bottles and condiments right on the door for convenient access

Clear crisper (refrigerator) Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Interior LED lighting (refrigerator) Automatically illuminates when you open the door

Adjustable thermostat (refrigerator) Dial controls for simple and intuitive temperature management

Reversible doors User-reversible door swing for added flexibility to best accommodate your setting

Sealed rear No exposed coils for easier cleaning and a better fit

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals
