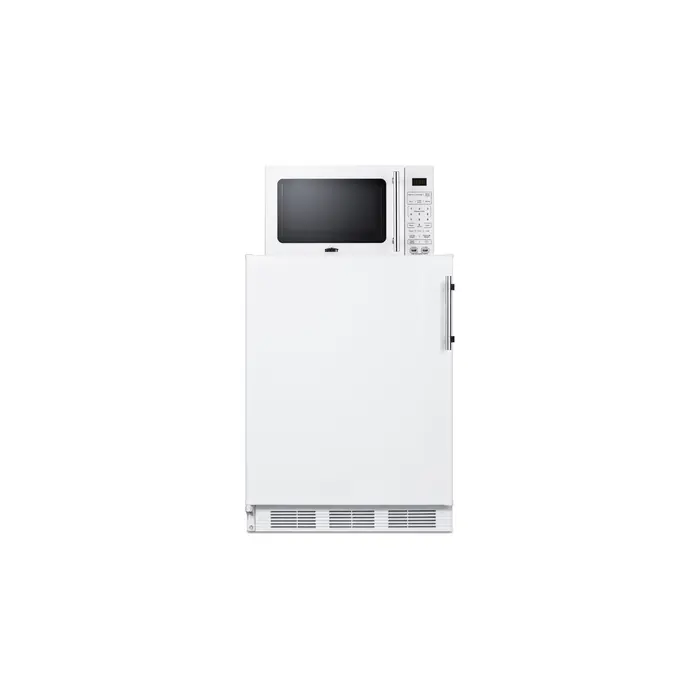

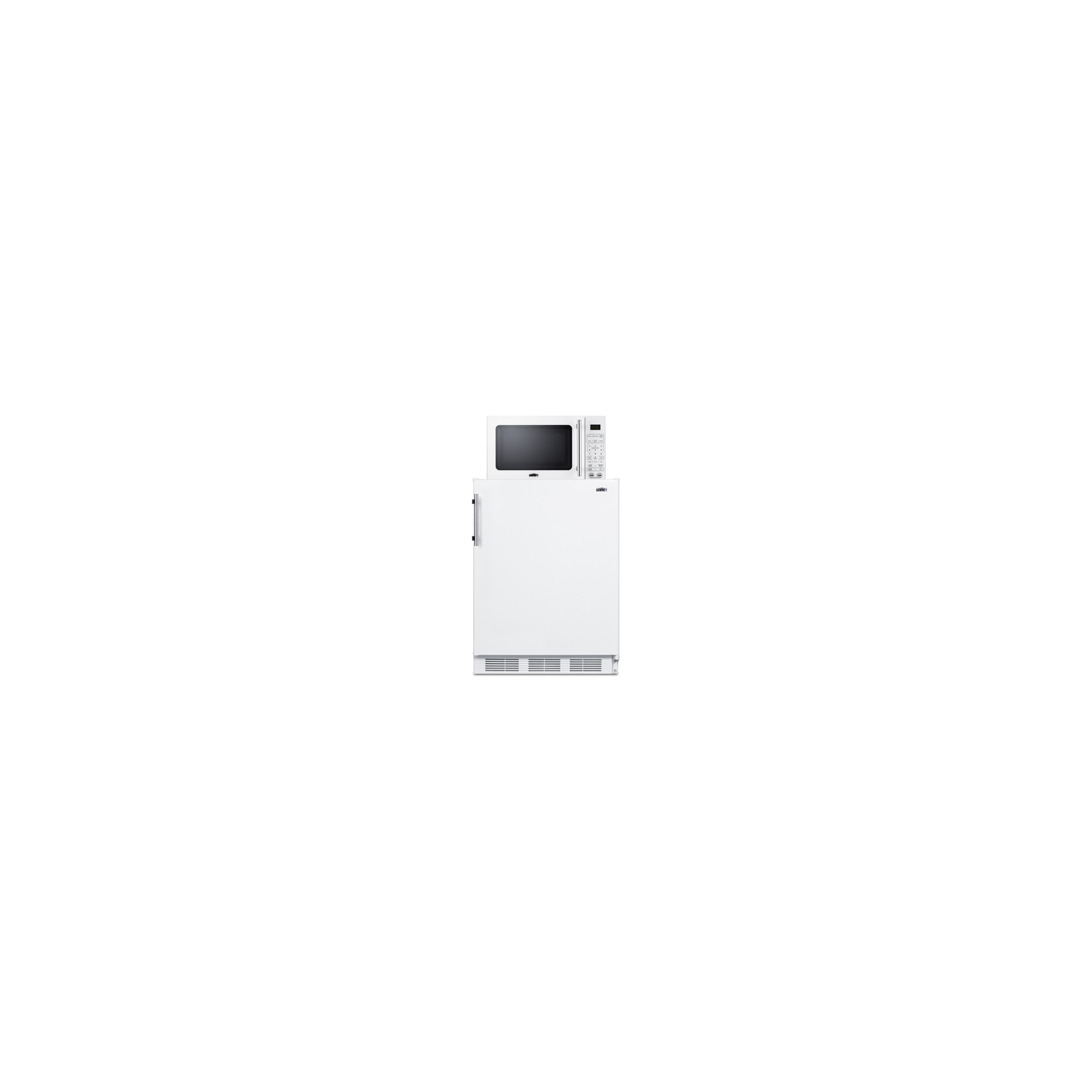

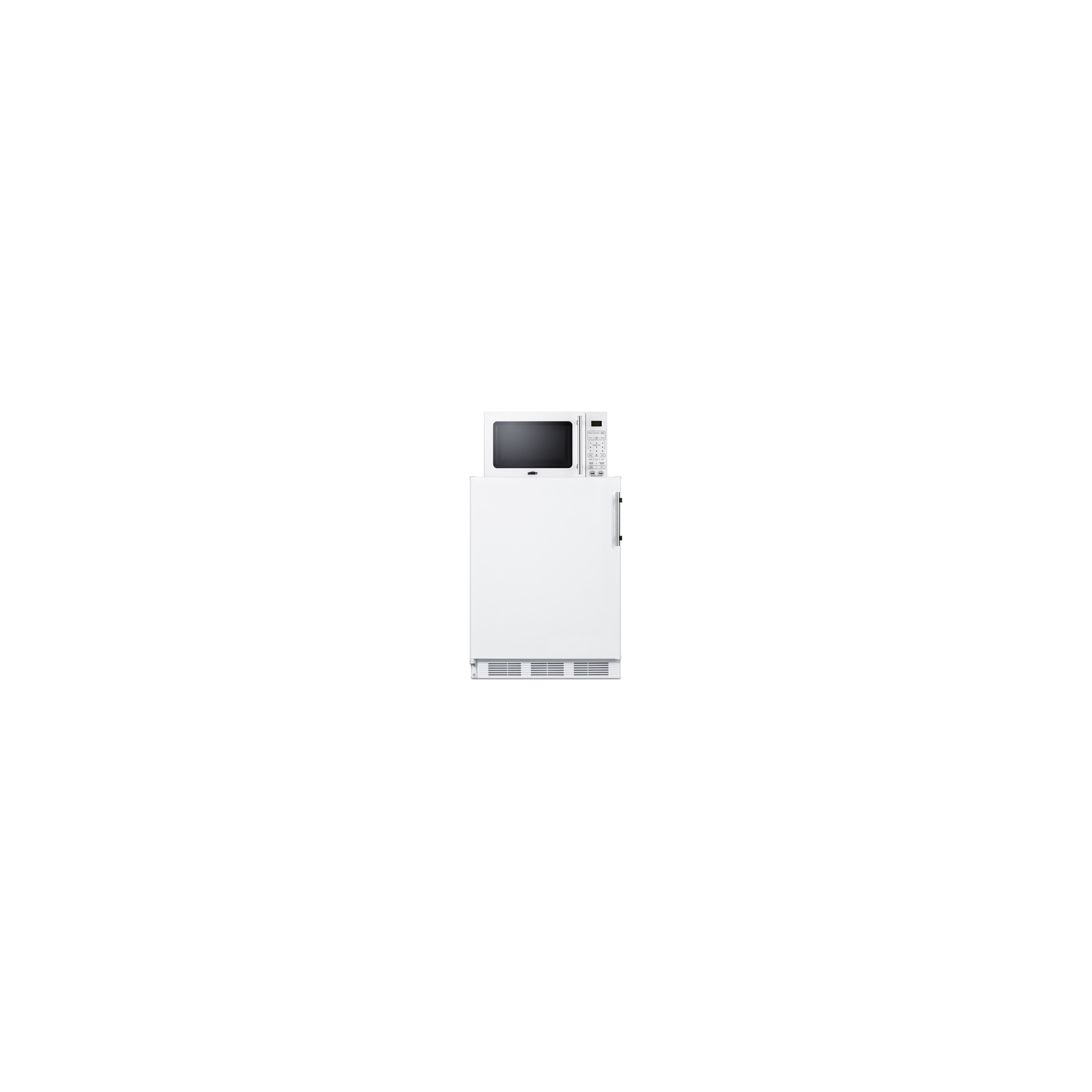

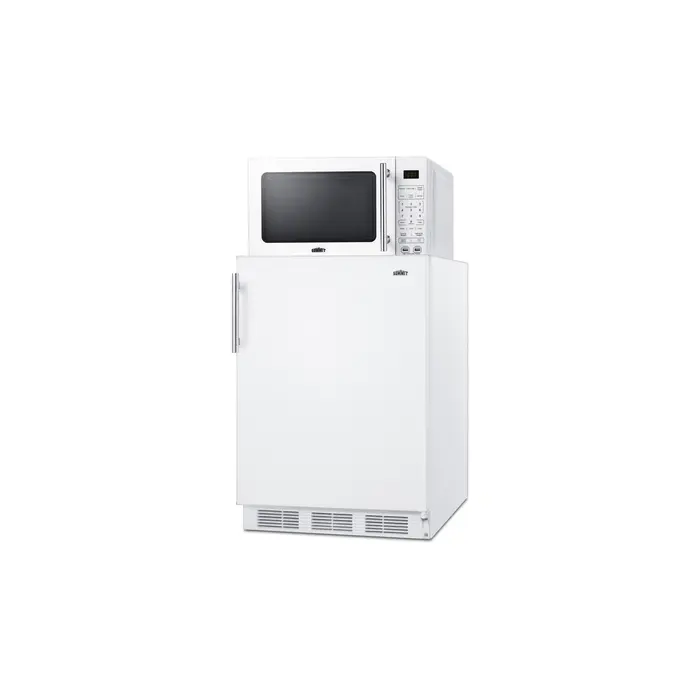

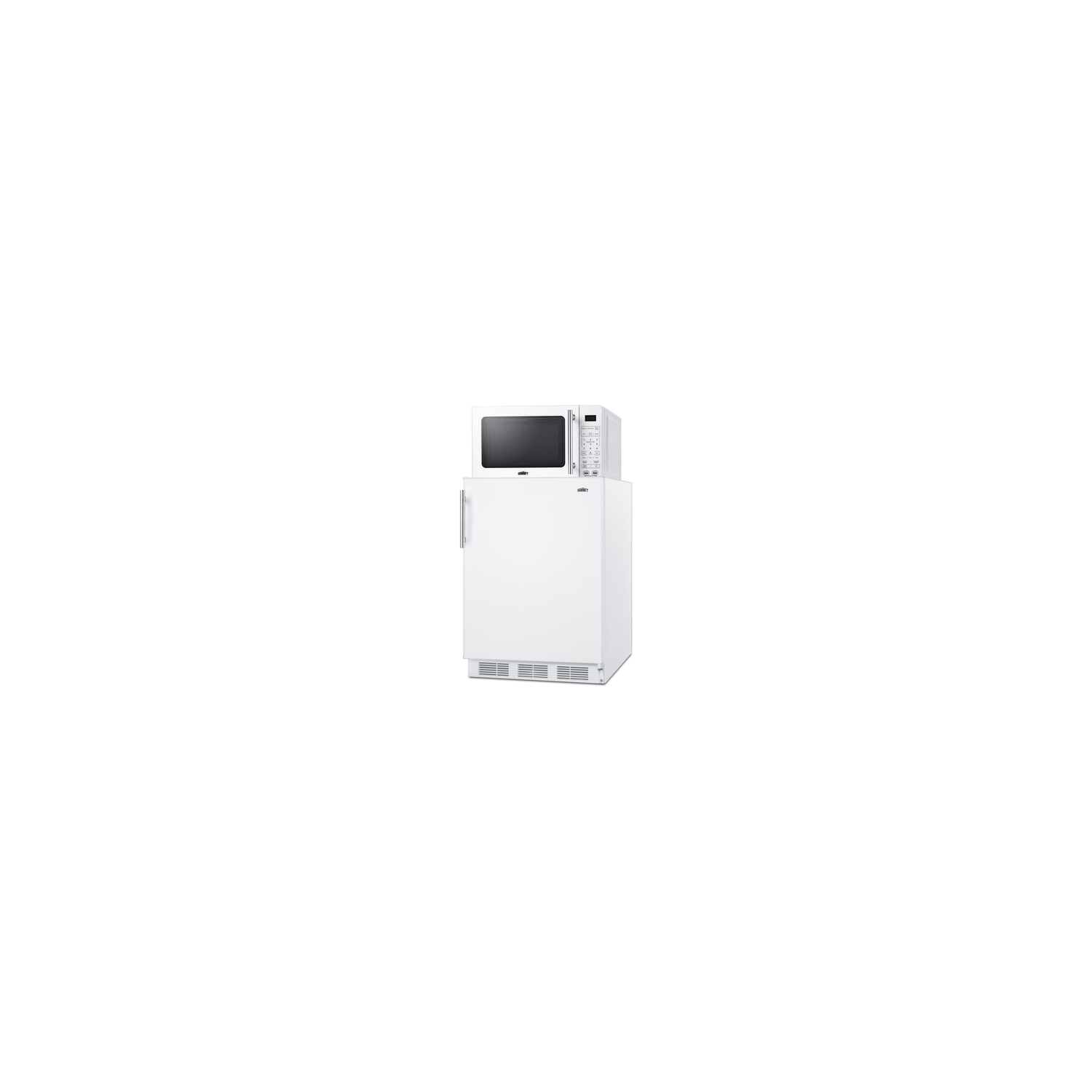

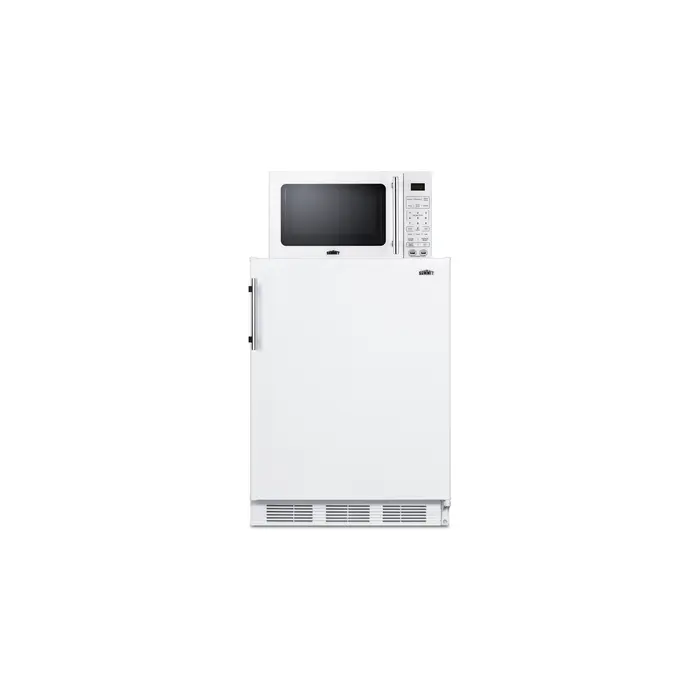

Summit Combination refrigerator-freezer and microwave with built-in allocator, with brackets included (ships in 3 boxes on one pallet), MRF661WA

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels, offices, efficiency apartments, and other settings looking to maximize user convenience.

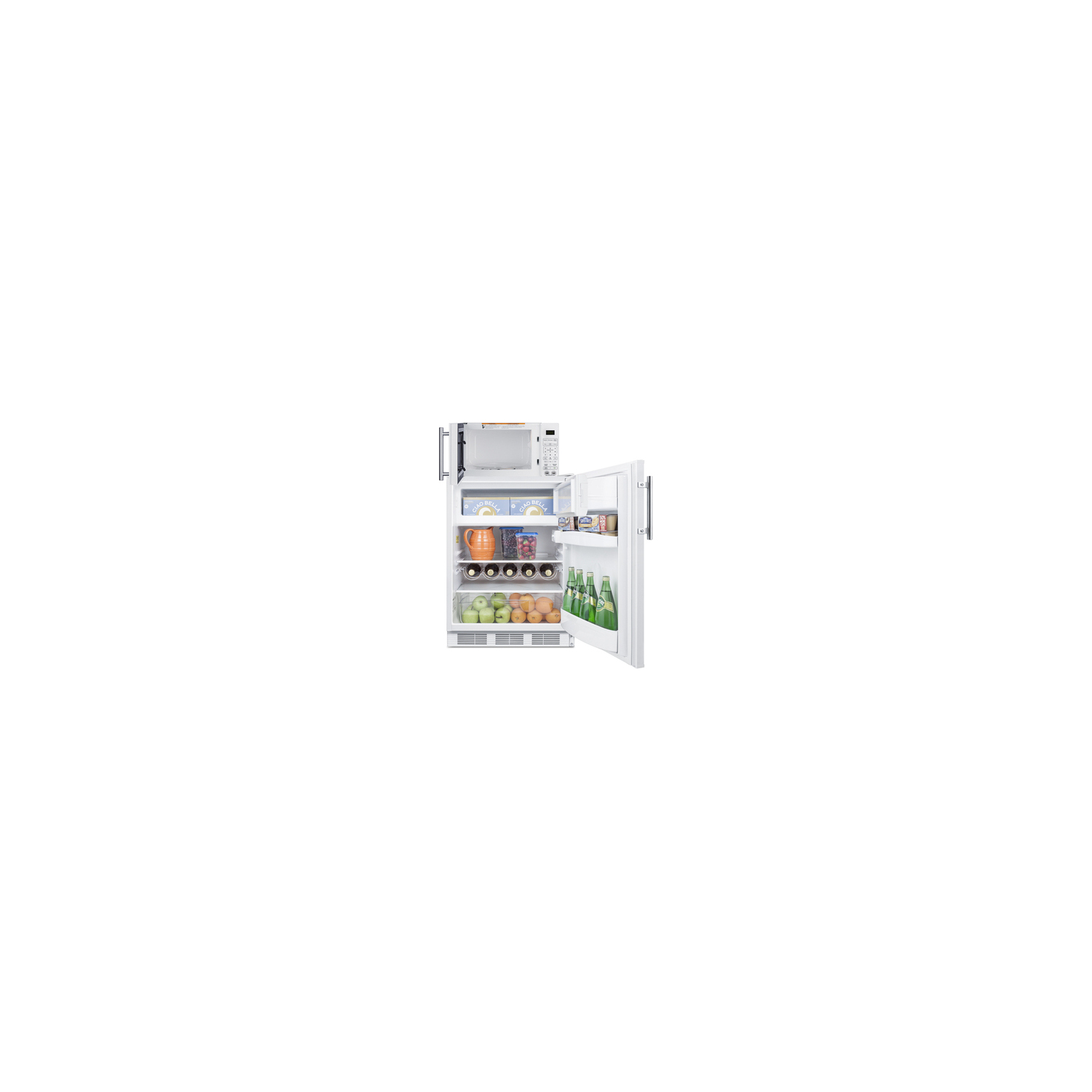

Model MRF661WA combines a fully featured microwave with our European CT661W refrigerator-freezer. The complete unit is sized at just 24" wide for an easy fit. The refrigerator's reversible door make it easy to adjust to any setting, while the microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

The CT661W offers over 5 cu.ft. of interior storage capacity, one of the largest in this size class of undercounter refrigerator-freezers. The generously sized freezer compartment includes an interior door. Adjustable glass shelves, removable scalloped steel bottle rack, a clear crisper drawer, and door racks offer convenient storage in the fresh food section. This unit comes in white with a stainless steel handle.

The SM904WA microwave comes in a clean white finish with an easy-grab handle in brushed stainless steel to complement the refrigerator. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. The display and end-of-cycle alerts can be disabled and muted as needed. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive.

The MRF661WA ships on one pallet in three boxes (refrigerator-freezer CT661W, microwave SM904WA, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM904WA microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Nominal Height 44.0" (112 cm)

Height of Cabinet 43.63" (111 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 24.0" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 5.04 cu.ft. (143 L)

Defrost Type Cycle

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159539

Microwave-Refrigerator

Refrigerator Included CT661W

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 3

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 3

Wine Bottle Shelving Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Refrigerator Interior Height 18.0" (46 cm)

Refrigerator Interior Width 21.0" (53 cm)

Refrigerator Interior Depth 18.0" (46 cm)

Freezer Interior Height 5.25" (13 cm)

Freezer Interior Width 19.0" (48 cm)

Freezer Interior Depth 11.5" (29 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

Level Legs 2

Microwave Wattage 700.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

Combination refrigerator-freezer/microwave Refrigerator with freezer compartment and compact microwave offer full storage and food prep convenience in a slim fit

CT661W Refrigerator-freezer 24 inch wide 5 cu.ft. European refrigerator with interior freezer compartment

SM904WA microwave Compact microwave in white with window, stainless steel handle, and digital controls for easy operation

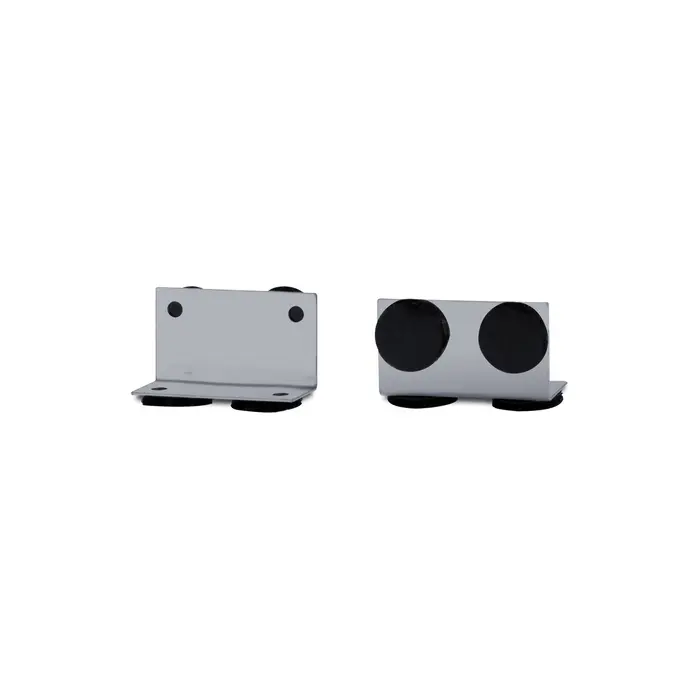

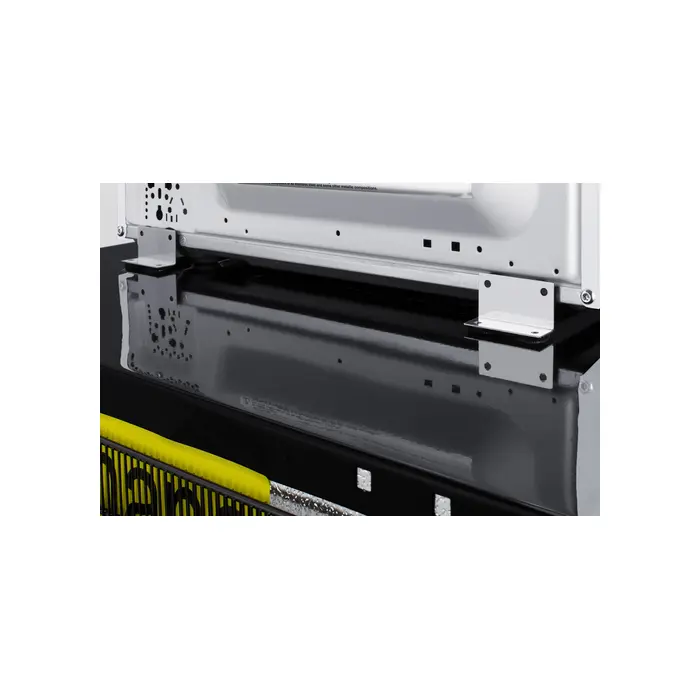

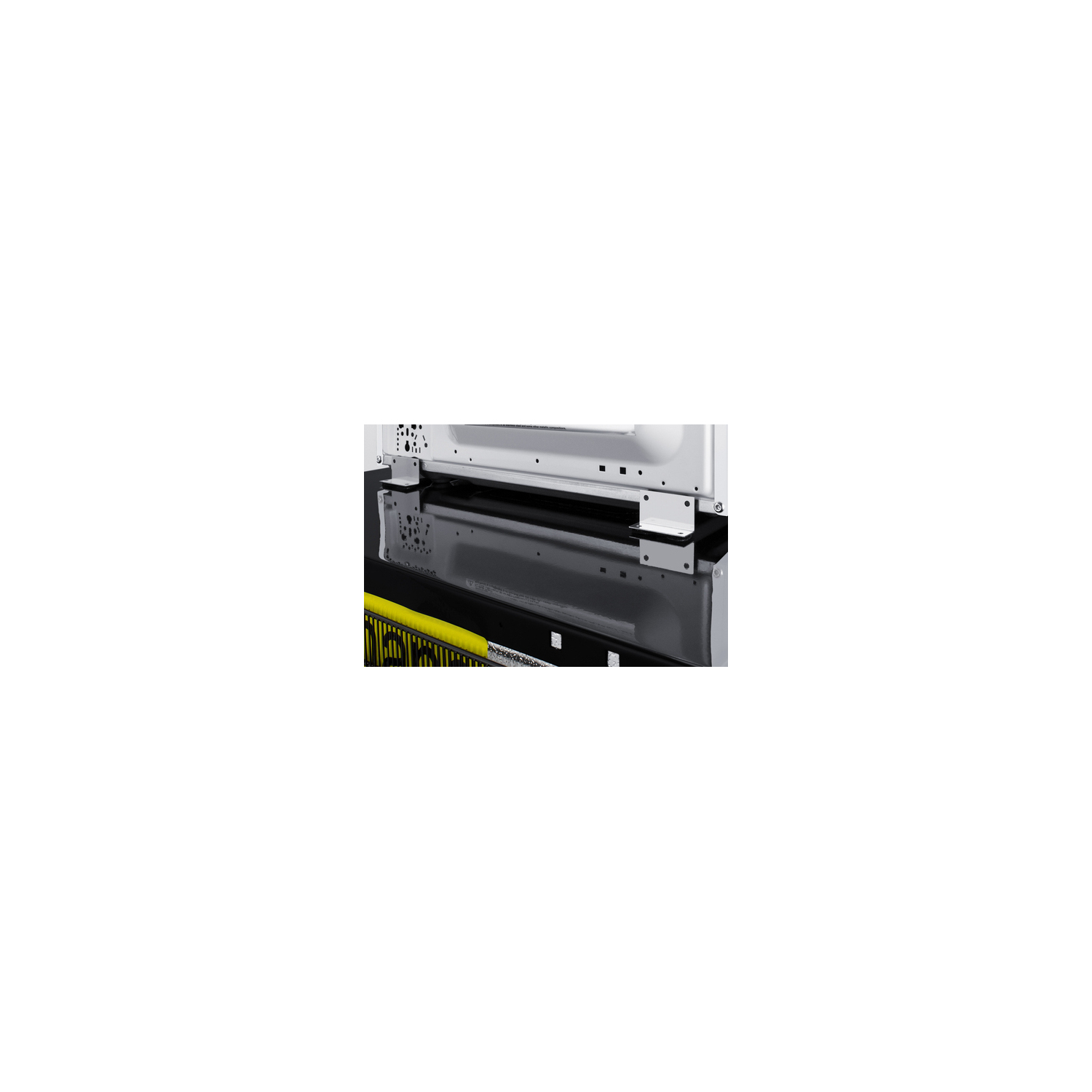

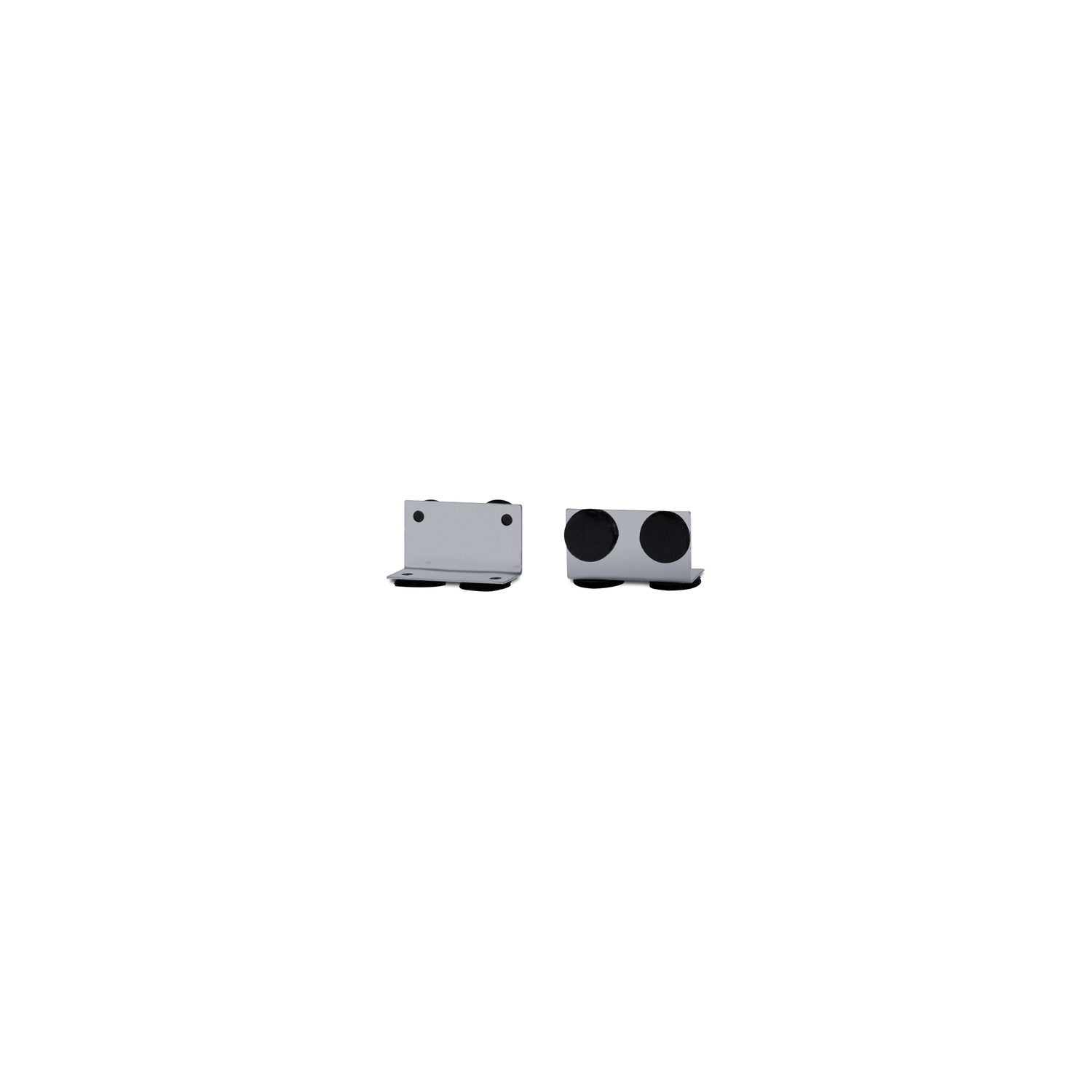

Easy assembly Ships with two removable brackets that let you secure the microwave on top of the refrigerator

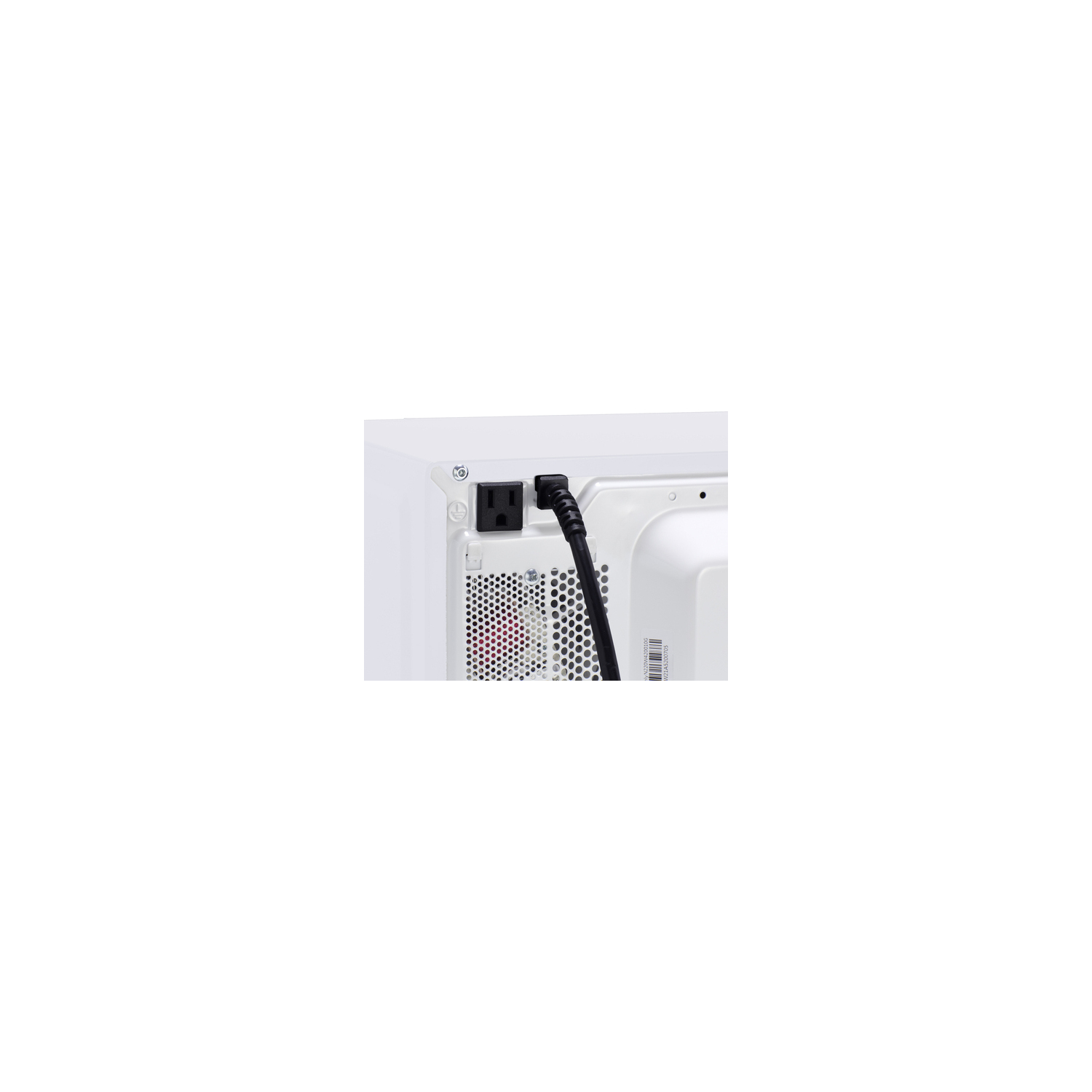

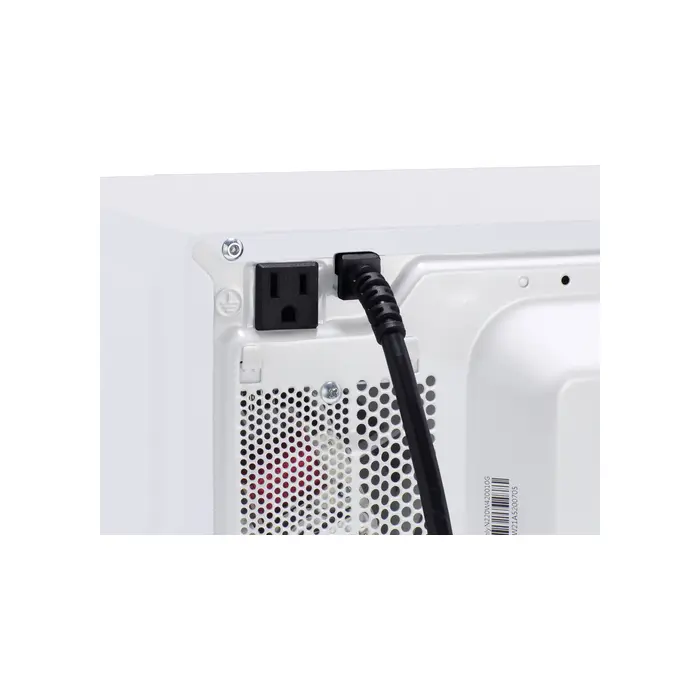

Built-in power allocator Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

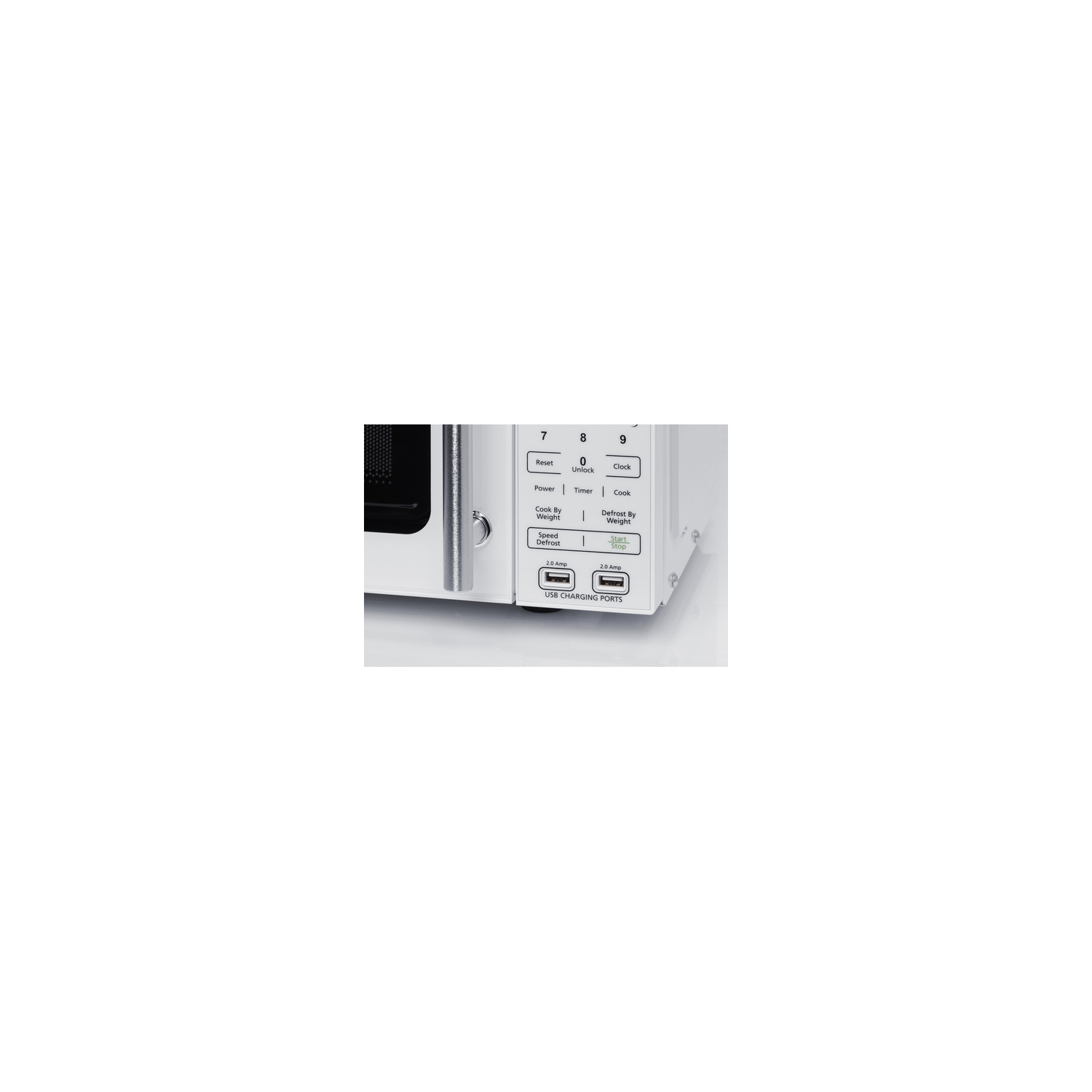

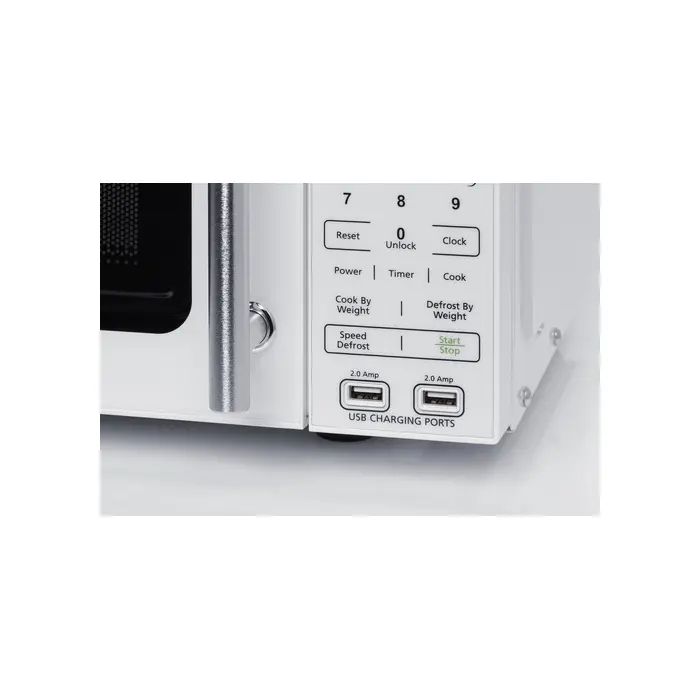

(2) USB ports Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Reversible door (refrigerator) User-reversible door swing for added flexibility

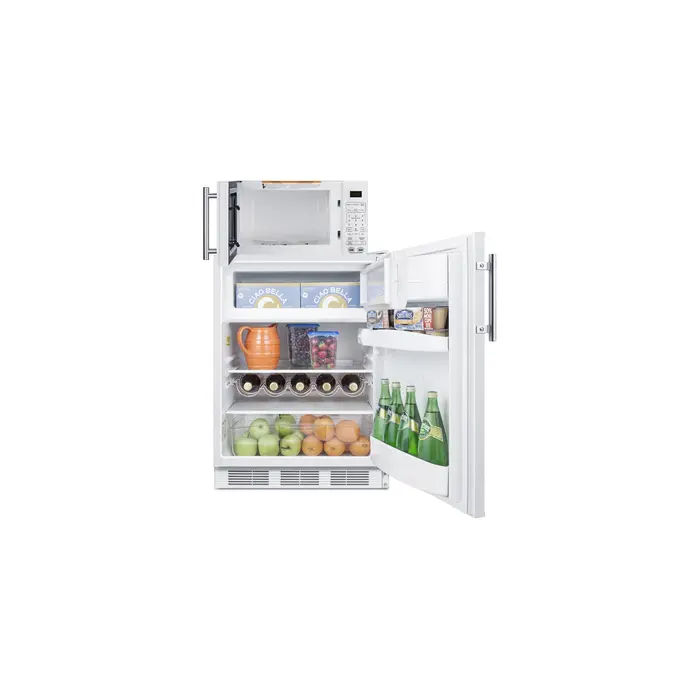

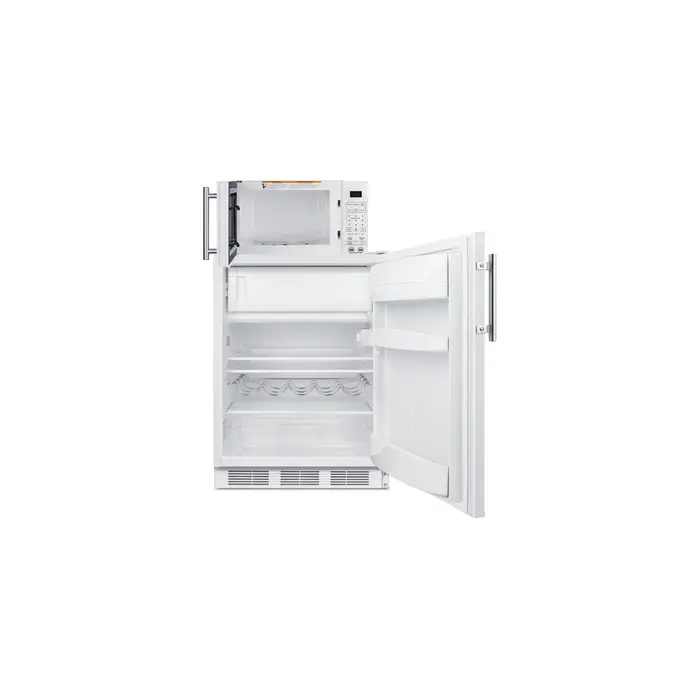

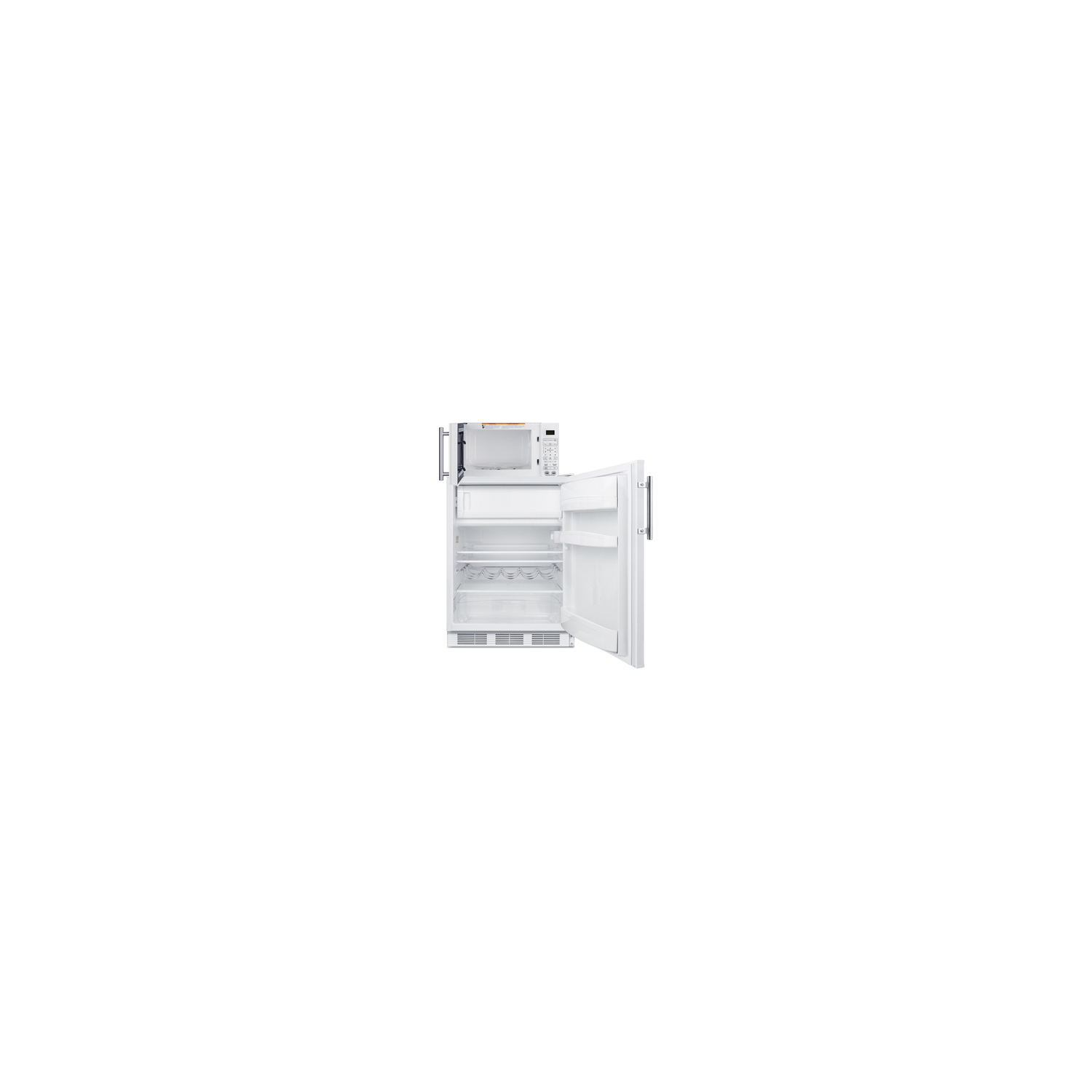

Deluxe refrigerator interior Clean white interior includes door racks, adjustable spill-proof glass shelves, a large crisper drawer, and removable bottle shelf

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Mute function Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode Power-saving option lets you disable the digital display

Right angle plug (microwave) Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (MRF661WA.pdf)

REVIT MODEL (Qf_Summit_MRF66BK2SSA_Microwave-Refrig.-Freezer_Combination_with_Allocator_2.rfa)

ENERGY GUIDES (EnergyGuide-CT661W.pdf)

USE & CARE (MRF661WA-User-Manual.pdf)

USE & CARE (MRF661WA-User-Manual_2.pdf)

SUPPORT (MRF_Microwave_Braces_09.2021.pdf)
