Summit Mid-sized refrigerator-freezer and microwave with built-in allocator, with brackets included (ships in 3 boxes on one pallet), MRF1088WA

Summit's innovative MRF series offers combination refrigerator-microwaves with one-plug operation, ideal for hotels and other settings looking to maximize user convenience.

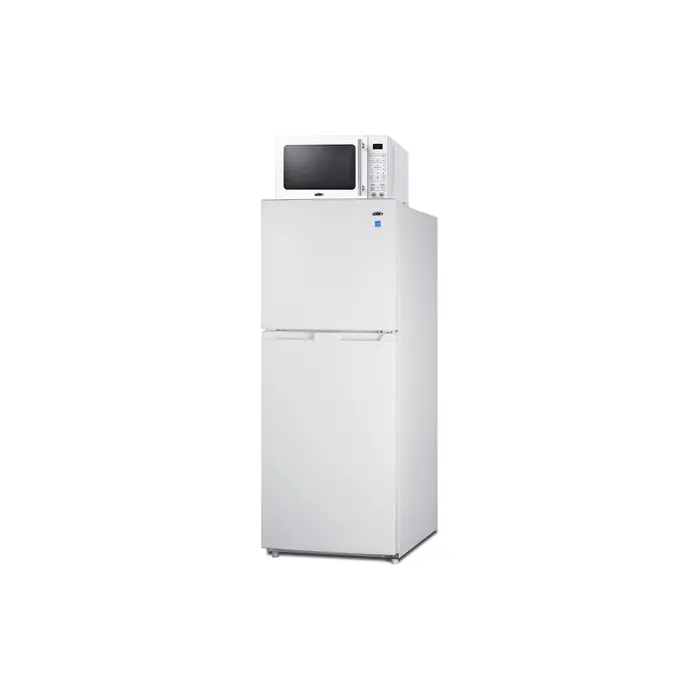

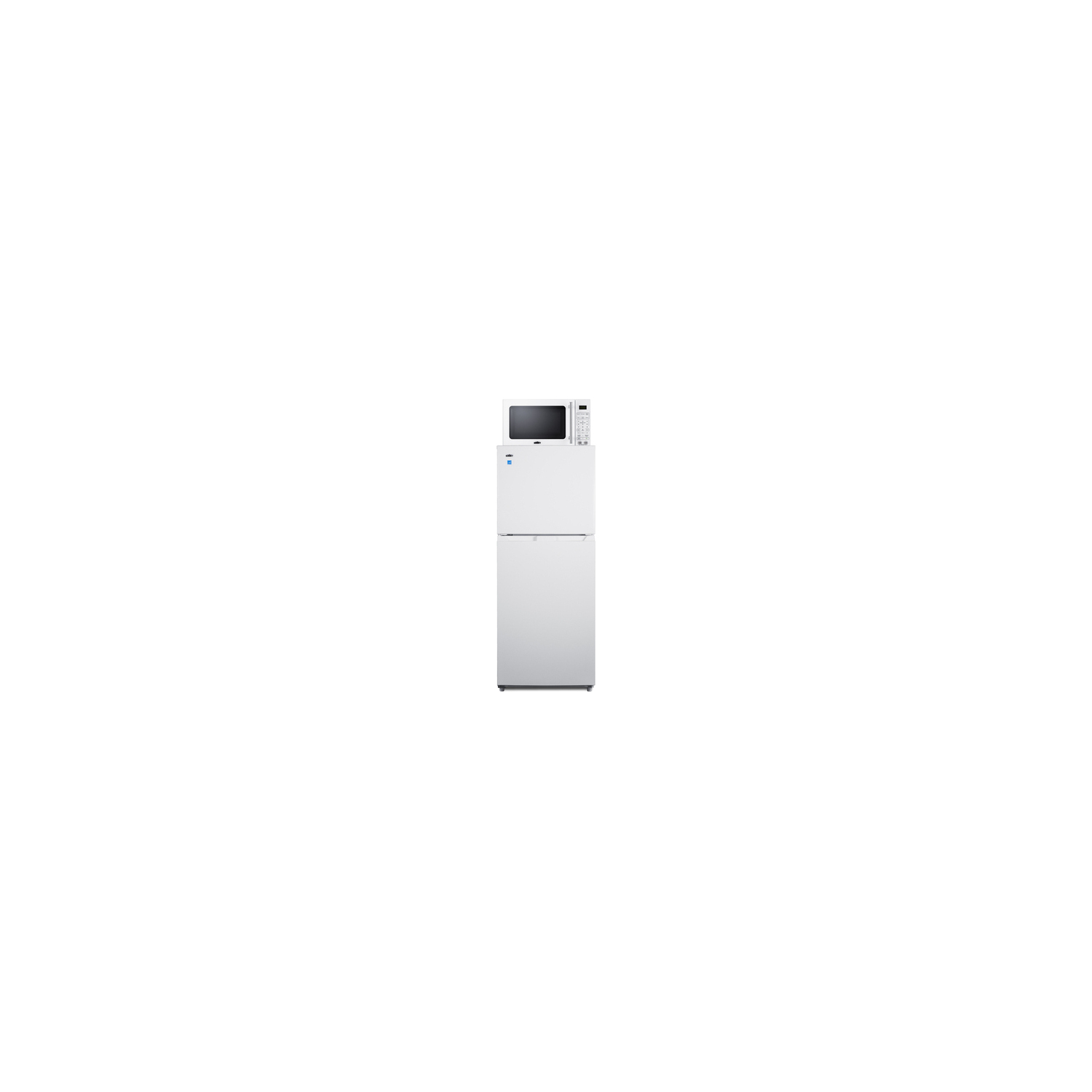

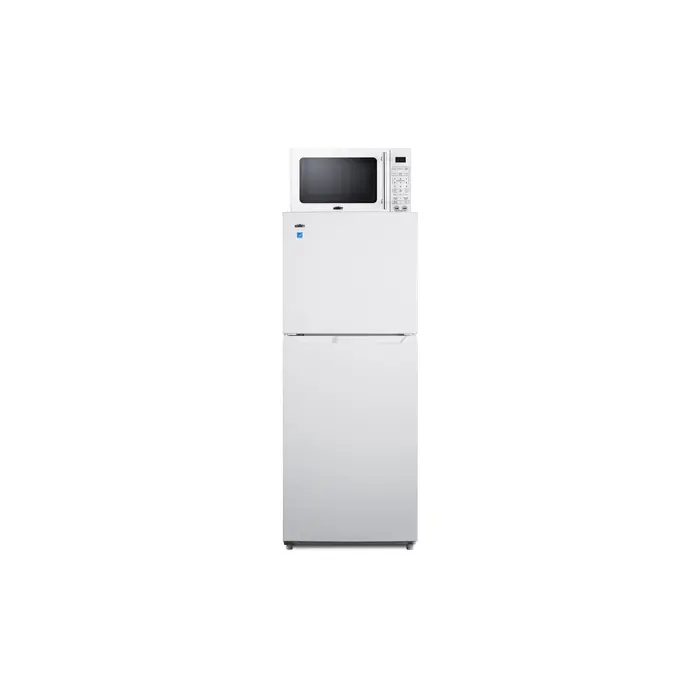

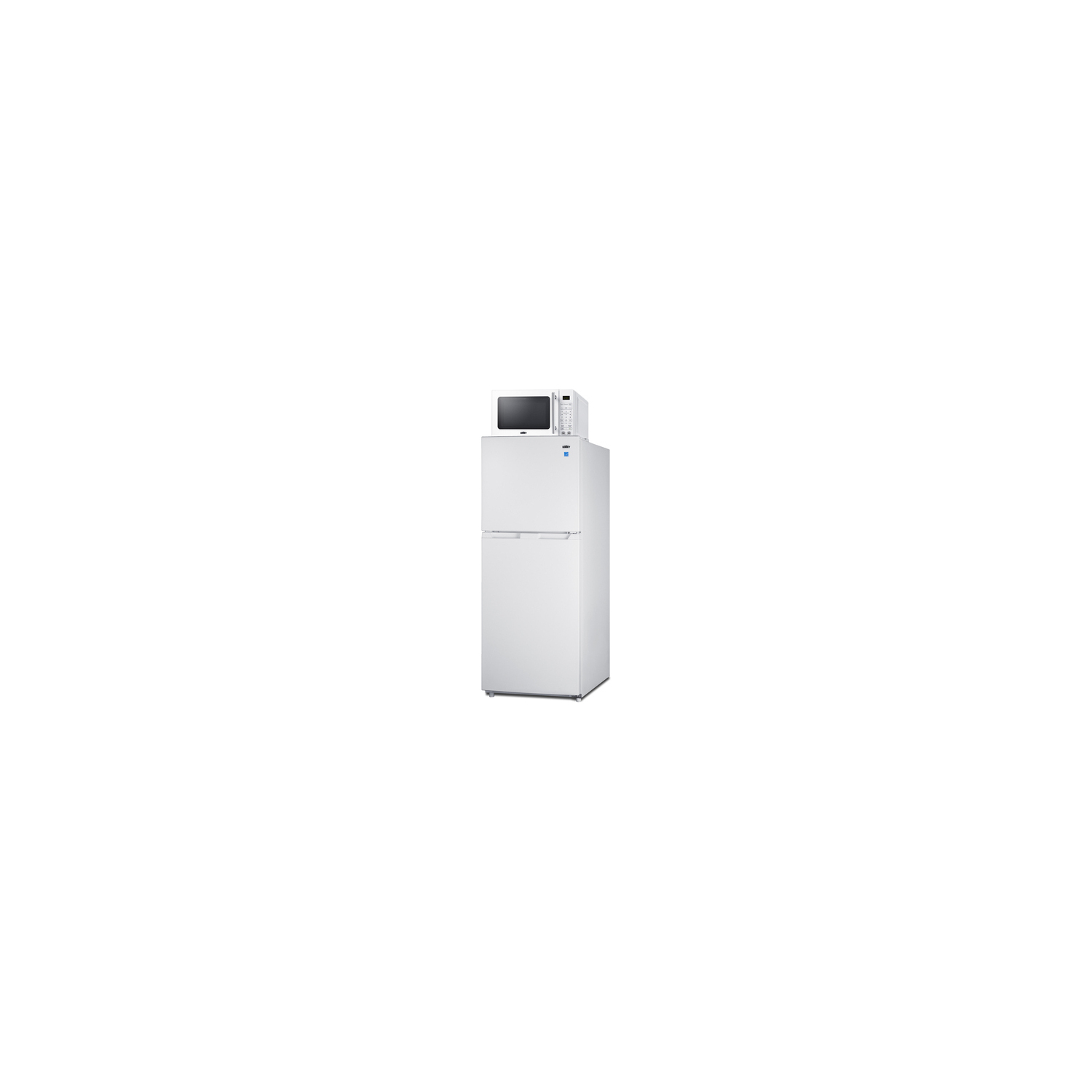

Model MRF1088WA combines a fully featured compact microwave with our frost-free 10.1 cu.ft. FF1088W refrigerator-freezer. The FF1088W is ENERGY STAR certified, with a classic white exterior and user-reversible doors. The microwave includes a built-in allocator, allowing you to plug the fridge directly into the microwave. The allocator will temporarily disable the power of the refrigerator while the microwave is in use, resuming after the cooking cycle is complete in order to protect against power surges.

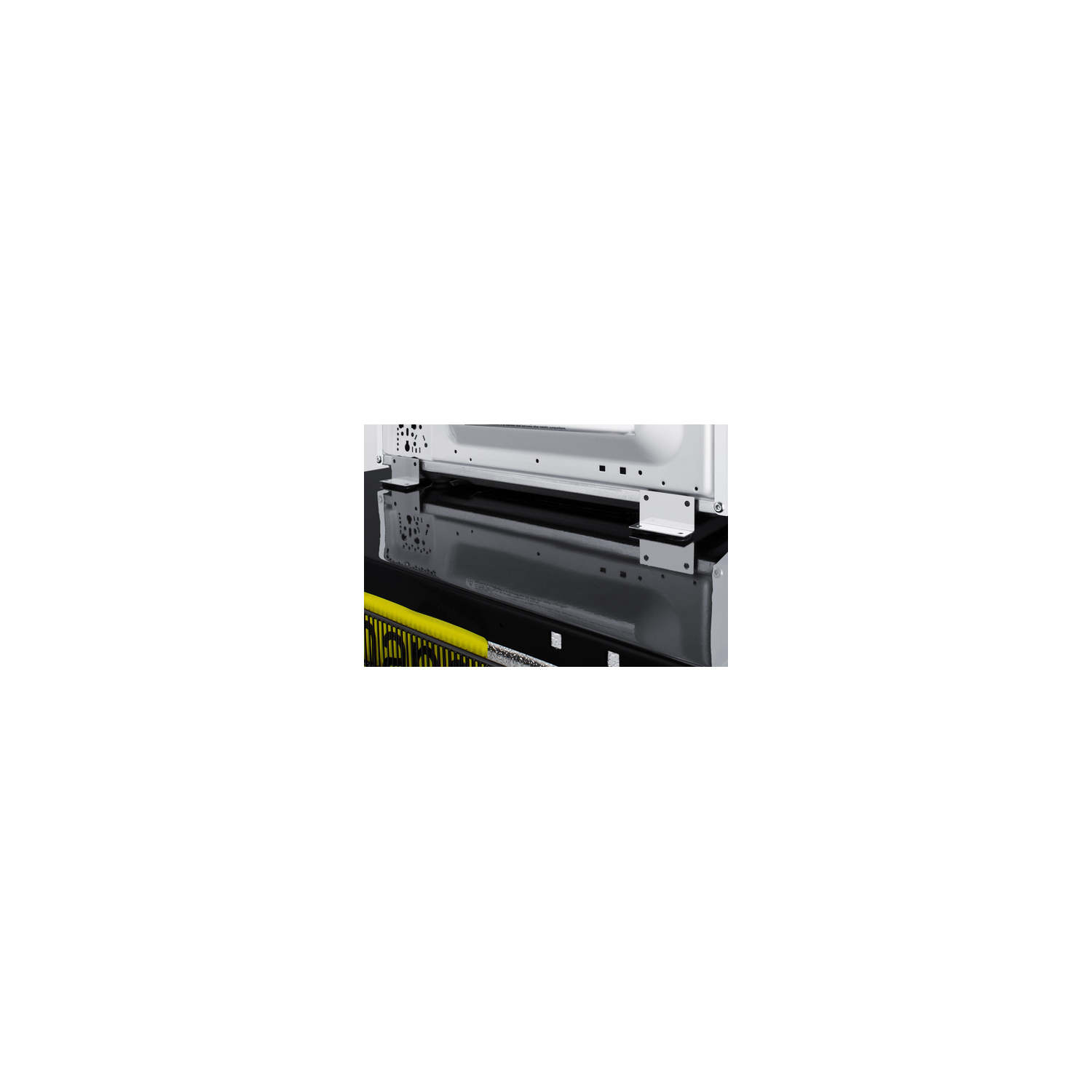

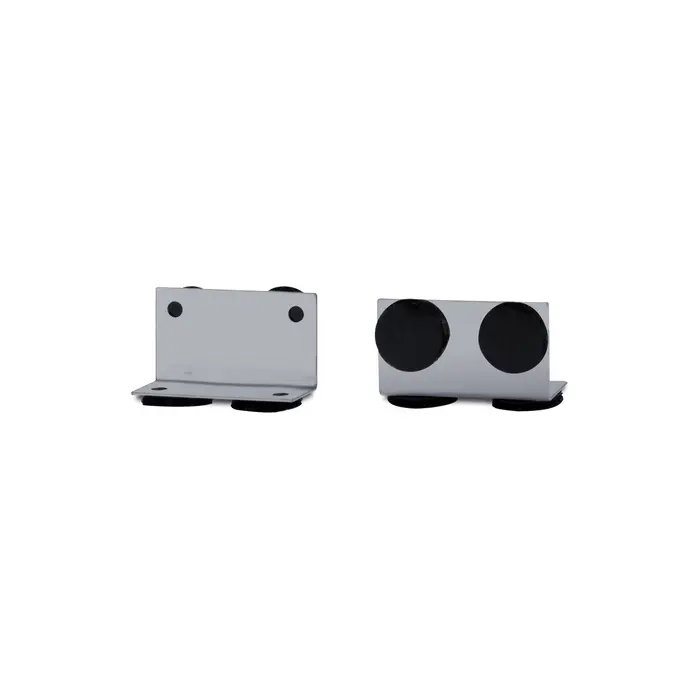

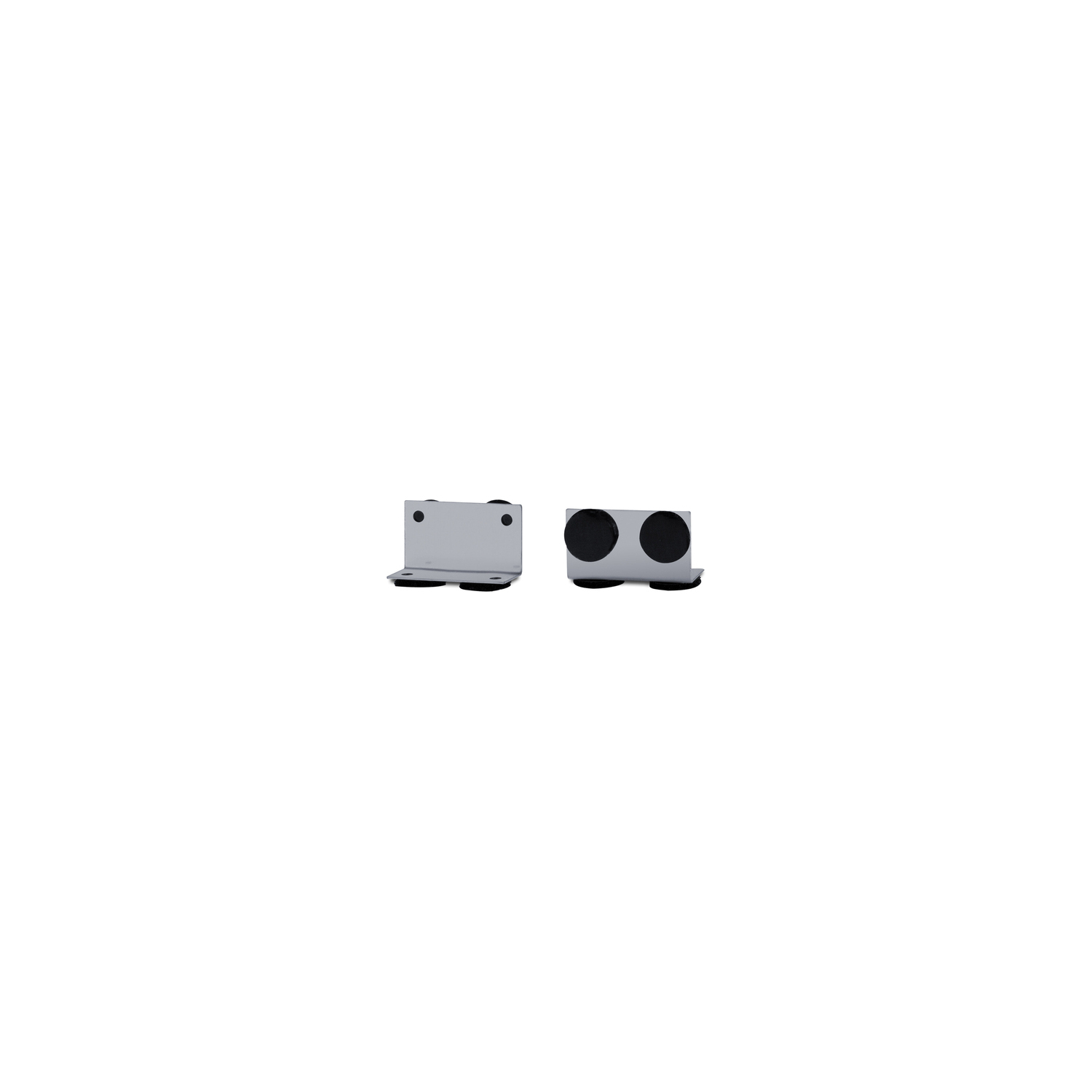

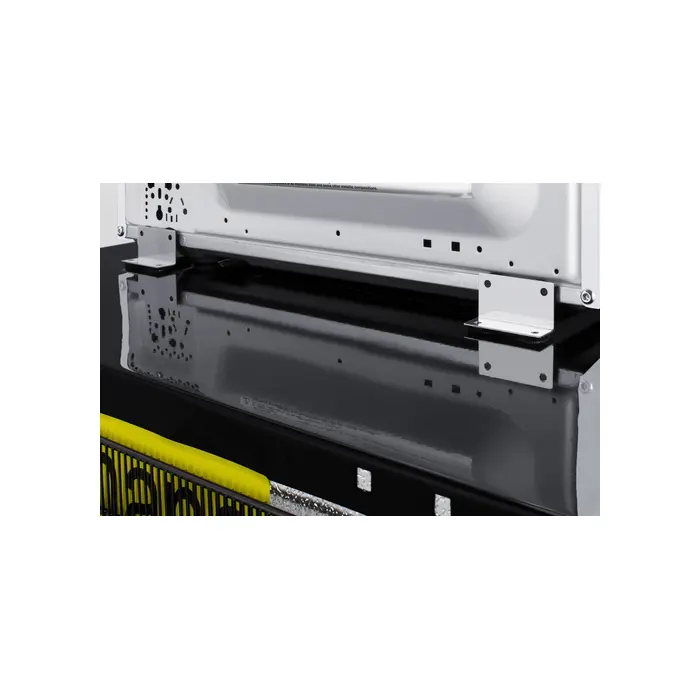

The SM904WA microwave comes in a clean white finish with an easy-grab handle in brushed stainless steel. Two USB ports are included to charge mobile devices. The microwave has a door window and digital touchpad control panel with one-touch settings for common meals, including frozen food, potatoes, pizza, and popcorn. We include two brackets that let you set the microwave on top of the refrigerator and gently secure with included adhesive strips.

The MRF1088WA ships on one pallet in three boxes (refrigerator-freezer FF1088W, microwave SM904W, and our MRFKit bracket set). If you prefer to have the unit fully assembled before shipping, add option "MRFAssembly" upon order (note: this will incur an additional charge and added lead time). Alternate combinations can be created by ordering your choice of a Summit refrigerator, the SM904W microwave, and our MRFKit. For more information, contact our product specialists at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview

Height of Cabinet 70.0" (178 cm)

Width 23.25" (59 cm)

Width with Door Open 24.0" (61 cm)

Depth 26.5" (67 cm)

Depth with door at 90° 48.0" (122 cm)

Capacity 10.1 cu.ft. (286 L)

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Amps 15.0

Voltage/Frequency 115 V AC/60 Hz

Weight 150.0 lbs. (68 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159560

Microwave-Refrigerator

Refrigerator Included FF1088W

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 2

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 1

Half Door Shelves 4

Gallon Door Storage Yes

Thermostat Type Dial

Interior Light Yes

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.73 oz.

Refrigerator Interior Height 24.75" (63 cm)

Refrigerator Interior Width 19.5" (50 cm)

Refrigerator Interior Depth 21.0" (53 cm)

Freezer Interior Height 16.25" (41 cm)

Freezer Interior Width 17.25" (44 cm)

Freezer Interior Depth 17.0" (43 cm)

Compressor Step Height 8.5" (22 cm)

Compressor Step Width 19.5" (50 cm)

Compressor Step Depth 7.0" (18 cm)

Level Legs 2

Microwave Wattage 700.0

Microwave Controls Digital

Specialized Cooking Buttons Yes

FEATURES

Microwave/Refrigerator Combination Frost-free 10.1 cu.ft. refrigerator-freezer and compact microwave ship with a bracket kit for easy installation and one-plug operation

FF1088W Refrigerator-freezer ENERGY STAR certified frost-free refrigerator-freezer with a 10.1 cu.ft. capacity

SM904WA microwave Compact microwave in white with window, stainless steel handle, and digital controls for easy heating

Fully assembled Ships with microwave installed on top of refrigerator for fast setup

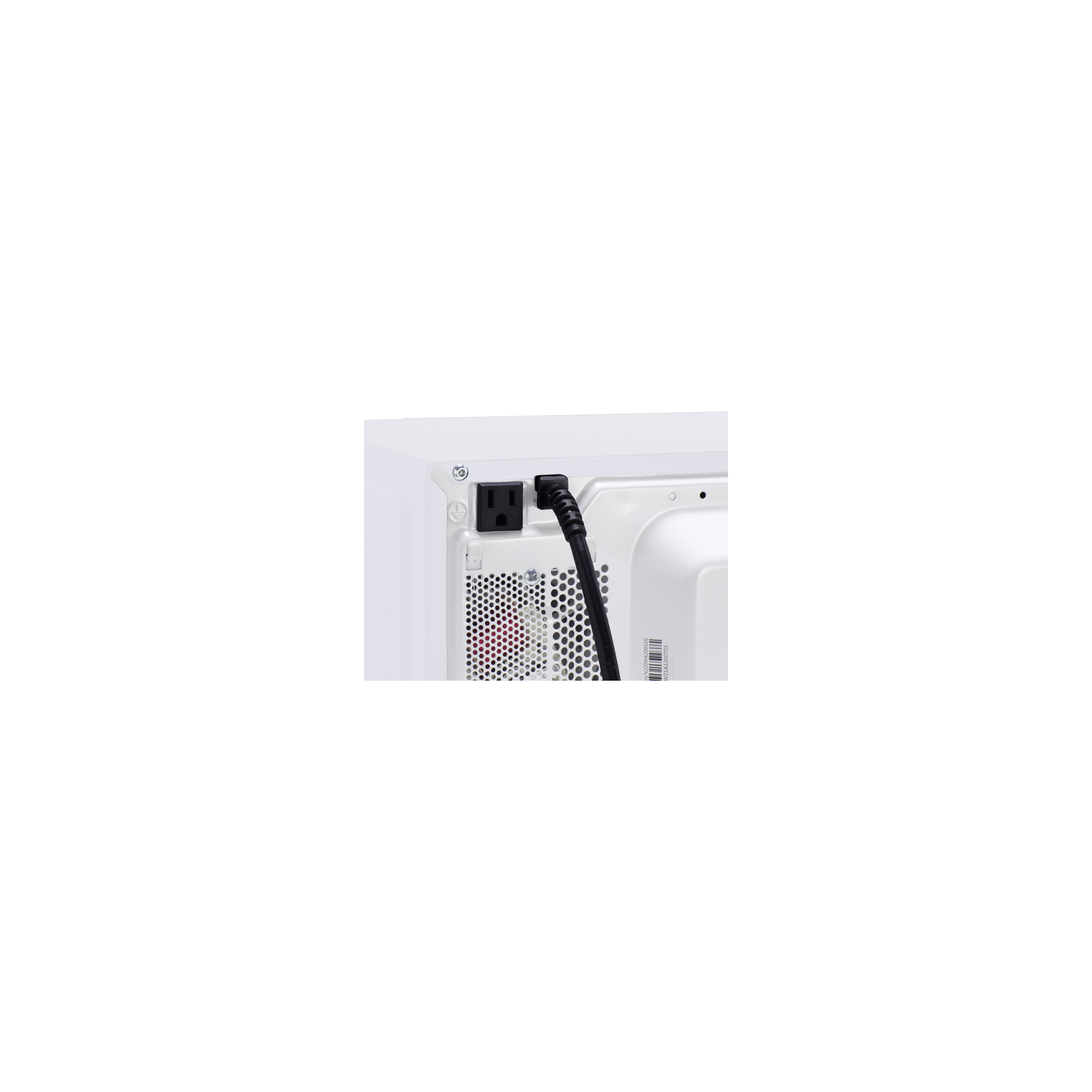

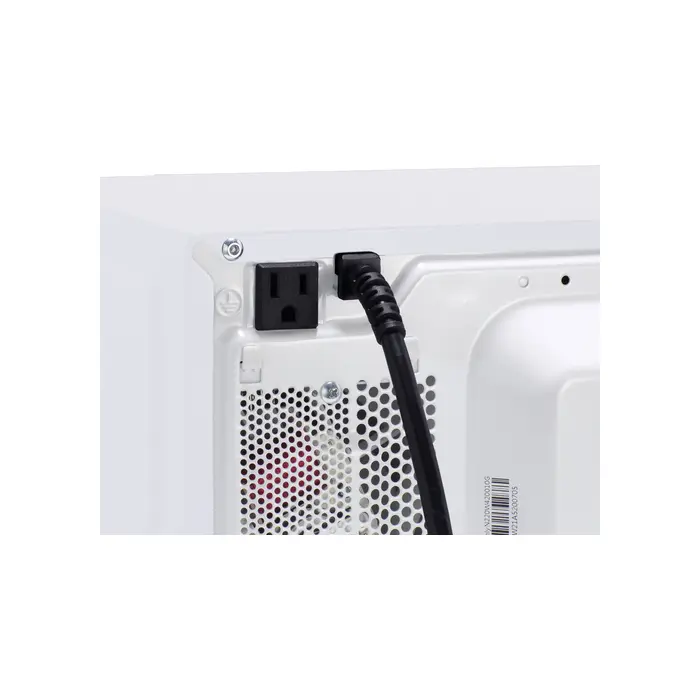

Built-in power allocator Plug the refrigerator into the microwave's rear outlet for easy 1-plug operation that will temporarily disable the fridge while the microwave is in use to prevent power surges

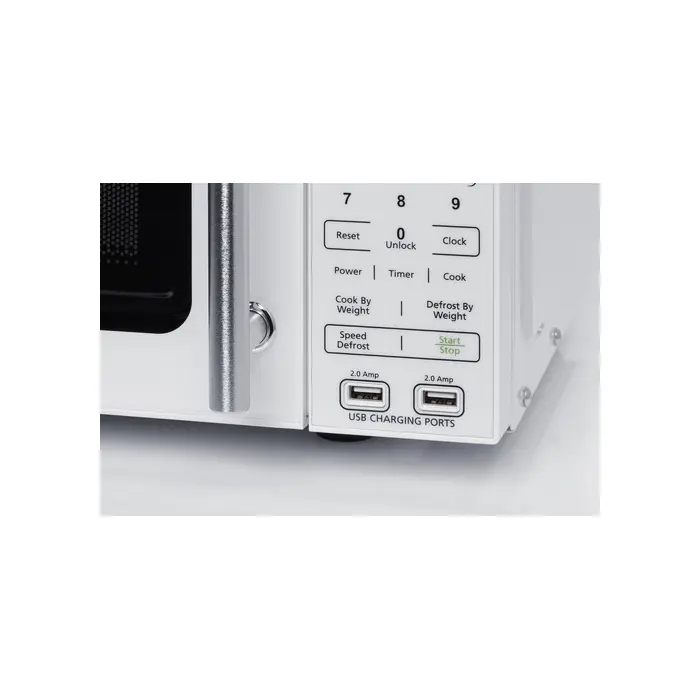

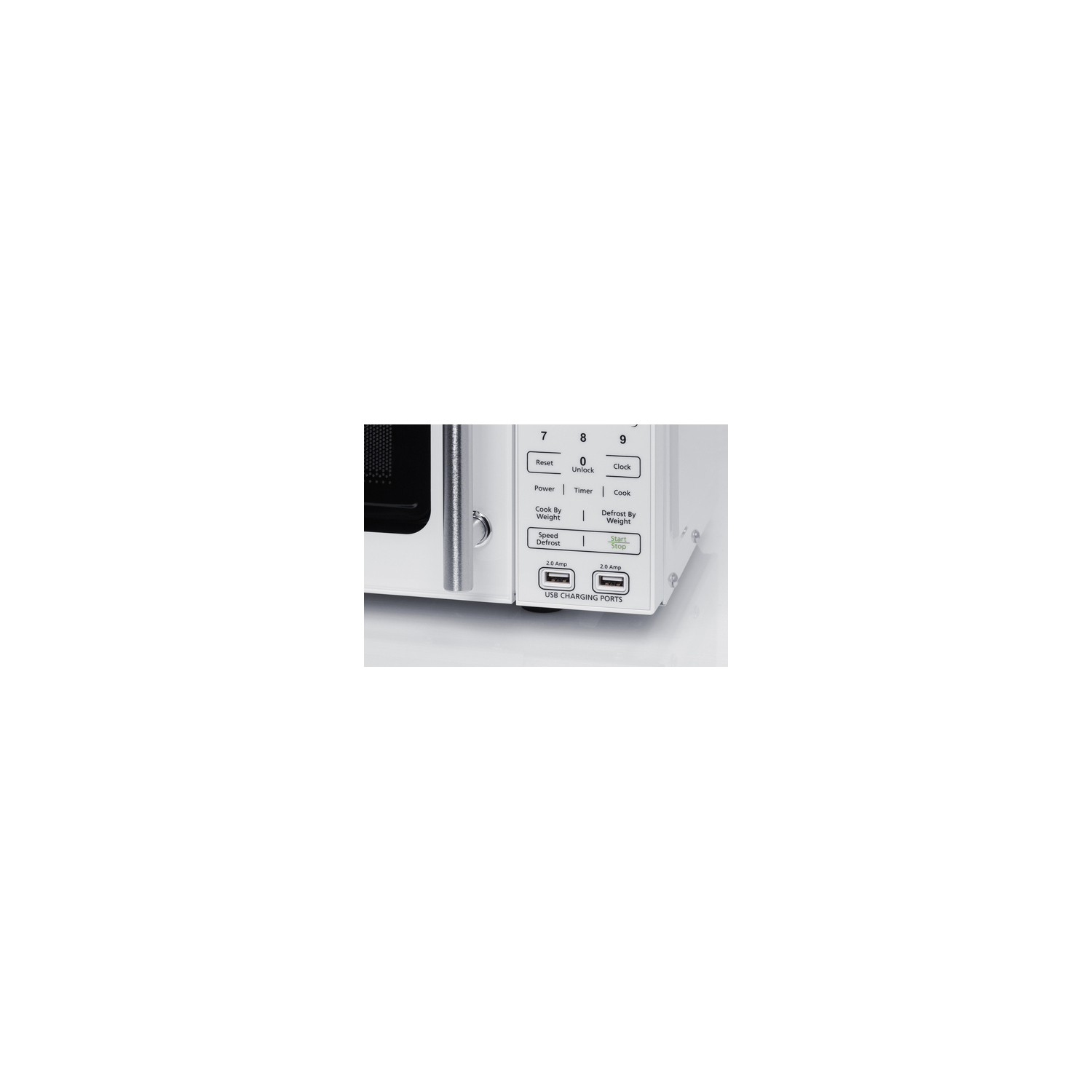

(2) USB ports Charge your mobile devices through the pre-installed ports, located on the microwave's front for added convenience

Frost-free No-frost operation for minimum user maintenance

Reversible doors (refrigerator) User-reversible door swing for added flexibility

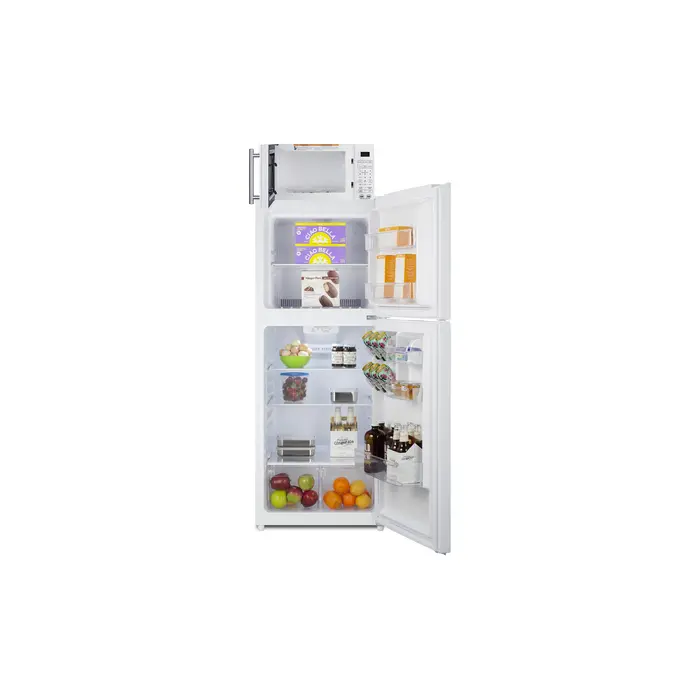

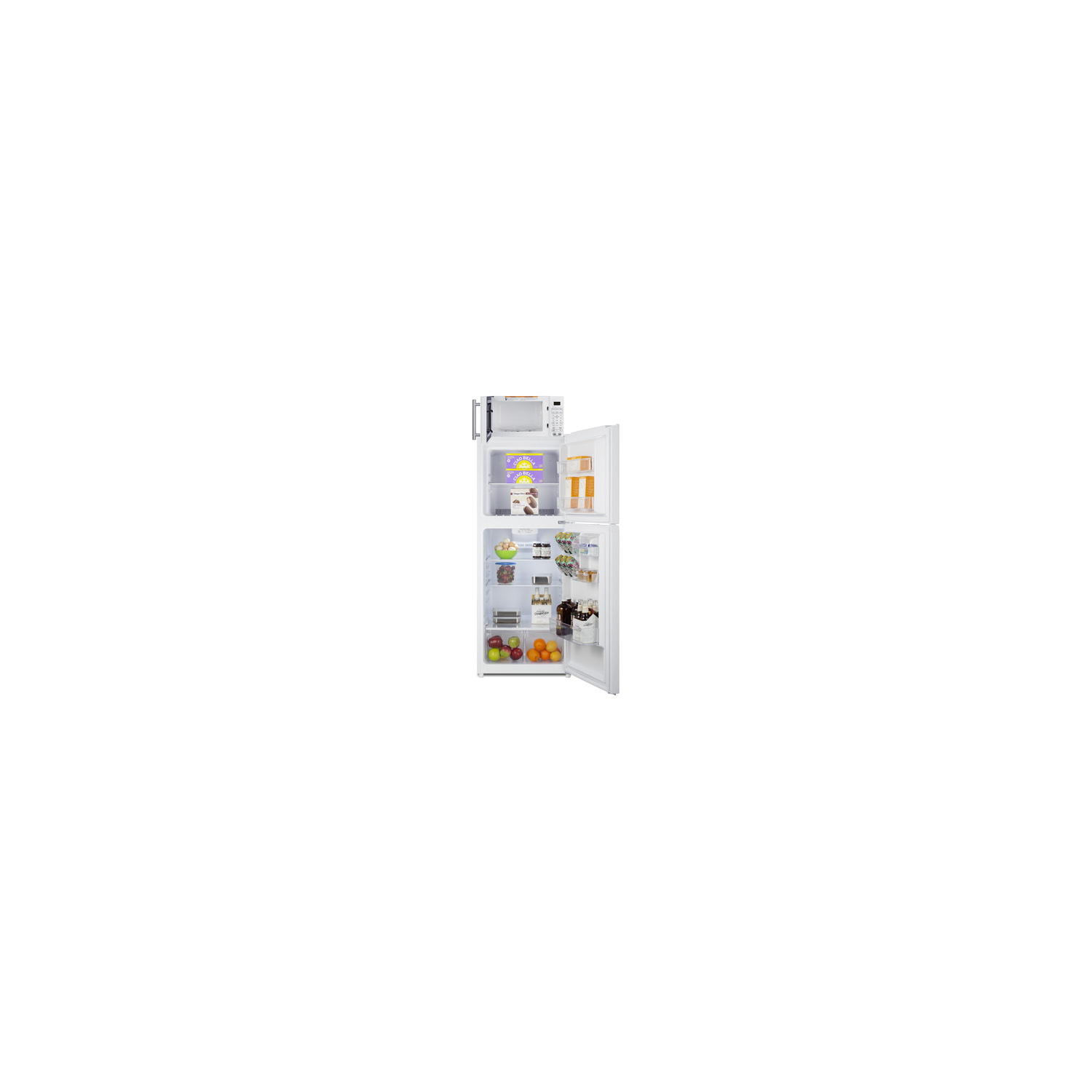

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Gallon door shelf Refrigerator includes multiple door racks, including a deeper shelf that can hold full-sized gallon containers

Stainless steel handle (microwave) Easy-grab handle in brushed stainless steel elevates the look for the microwave

One-touch cooking Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating, as well as options for multi-stage cooking, cook by weight, and auto defrost

Mute function Press and hold ON/OFF for 3 seconds to disable the sound of your microwave

Eco Mode Power-saving option lets you disable the digital display

Right angle plug (microwave) Microwave's cord design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
