Summit 24 inch wide over-the-range microwave with hood in black and stainless steel, 7.61101e+011, MHOTR24SS

Summit's selection of specialty appliances provides the perfect solutions for completing small kitchens in modern style.

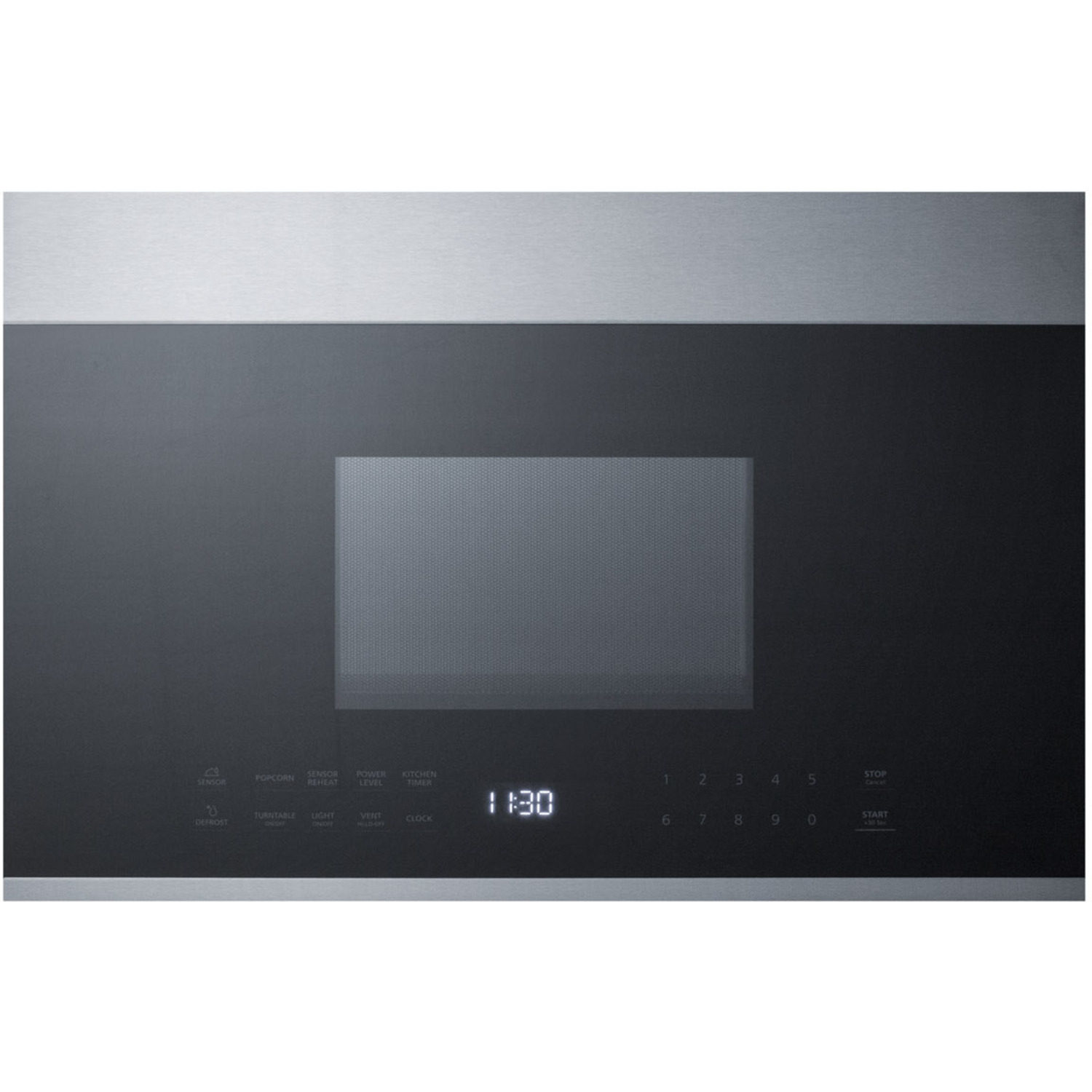

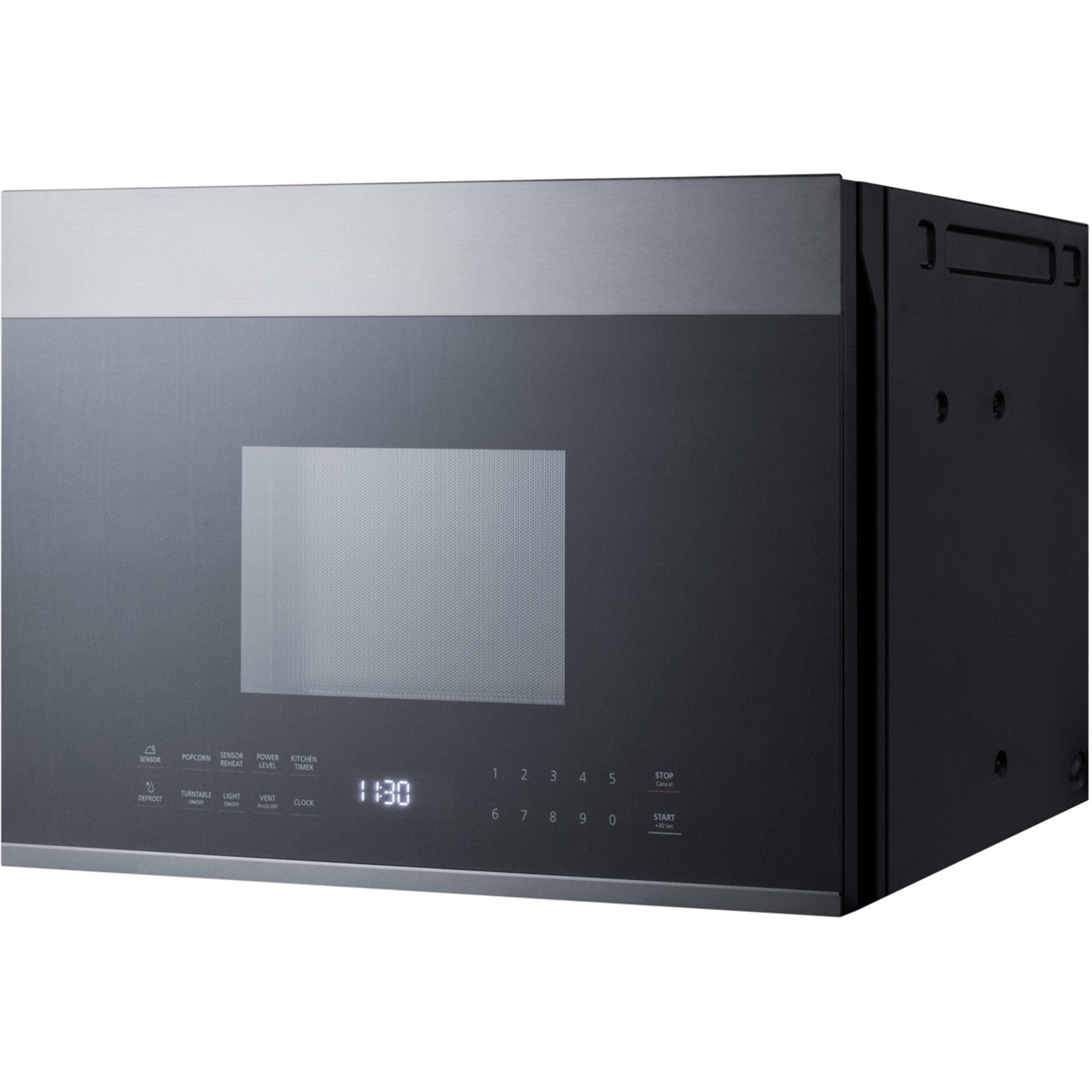

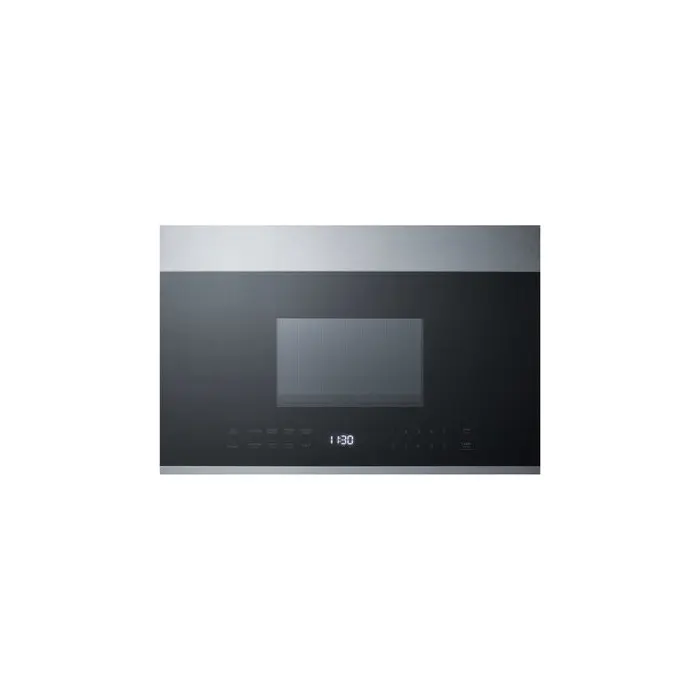

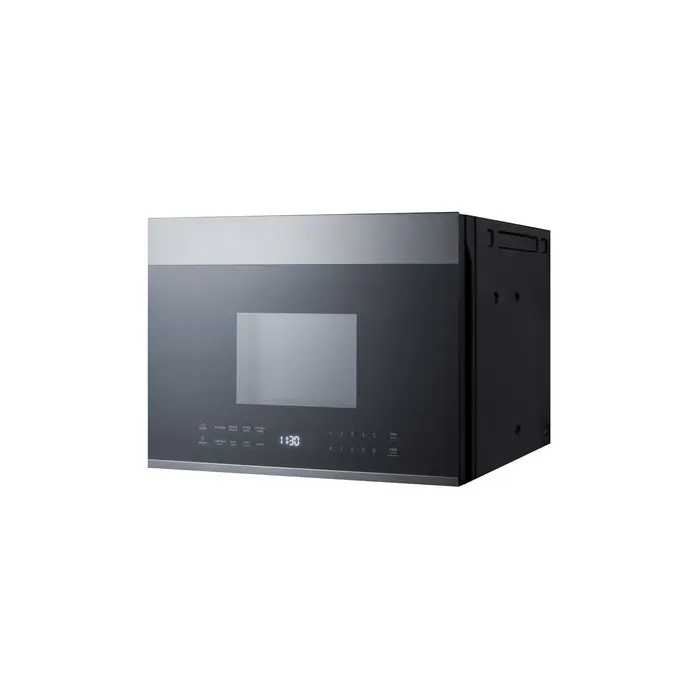

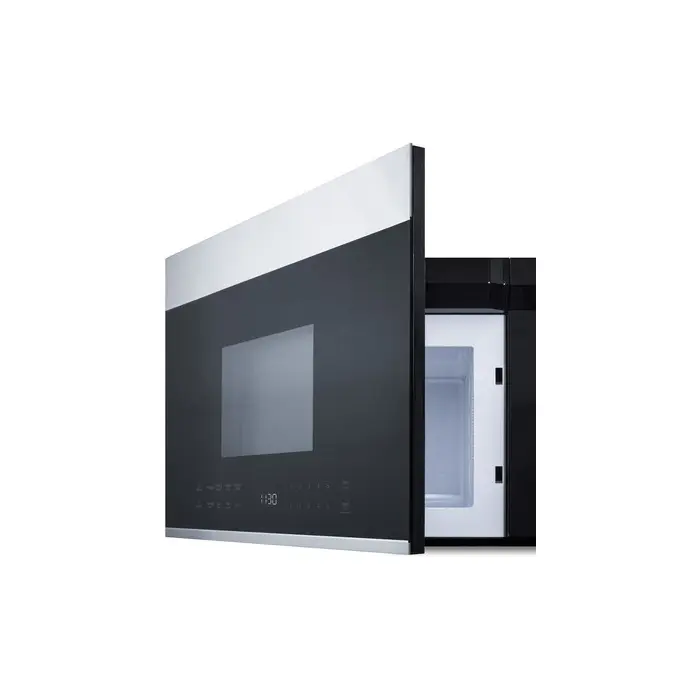

The MHOTR24SS is a 24 inch wide over-the-range microwave designed for easy one-touch cooking and effective ventilation. The sleek jet black door is accented by real stainless steel trim, with a small window that lets you keep watch of your cooking. It features a side pocket handle for a more streamlined look to complement any kitchen style.

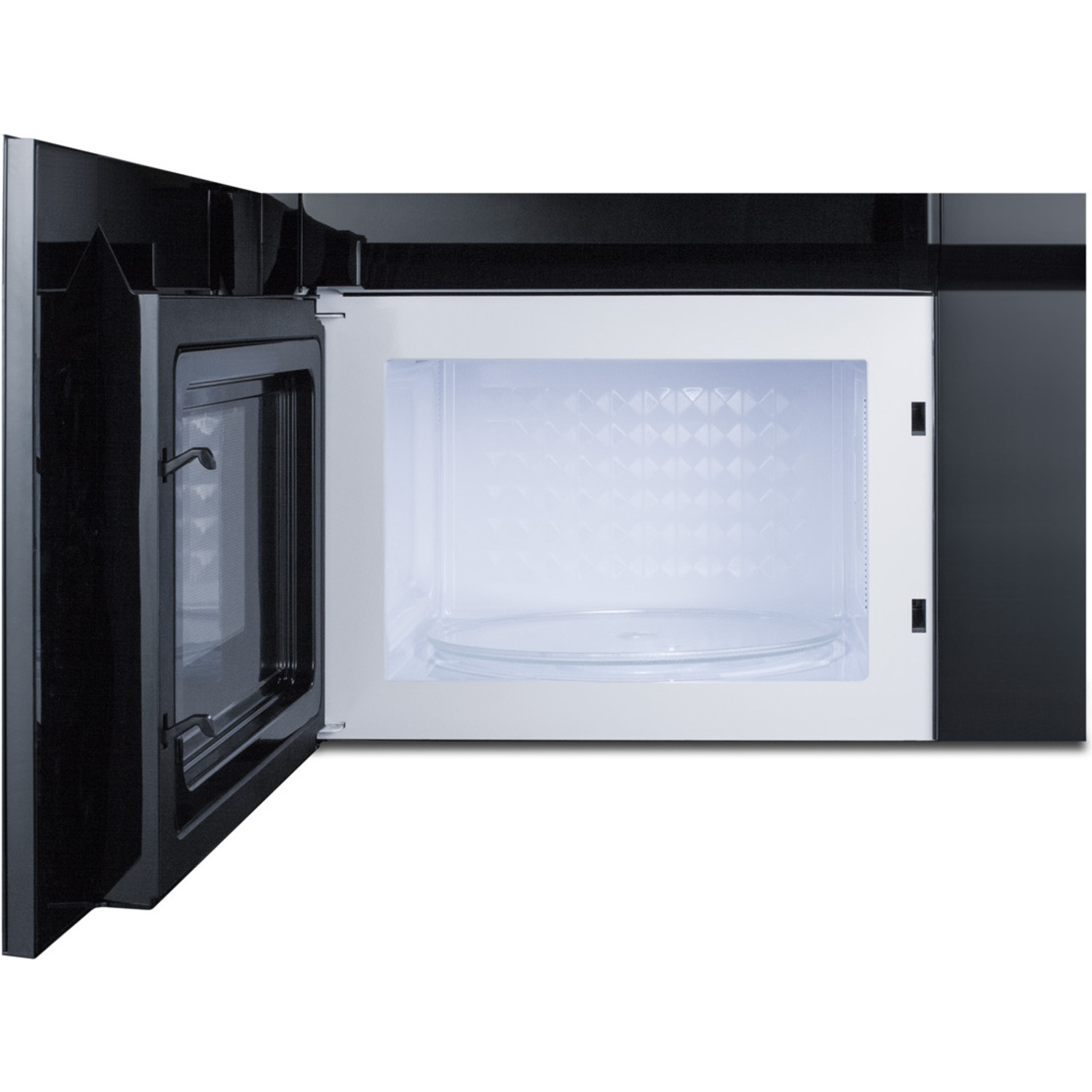

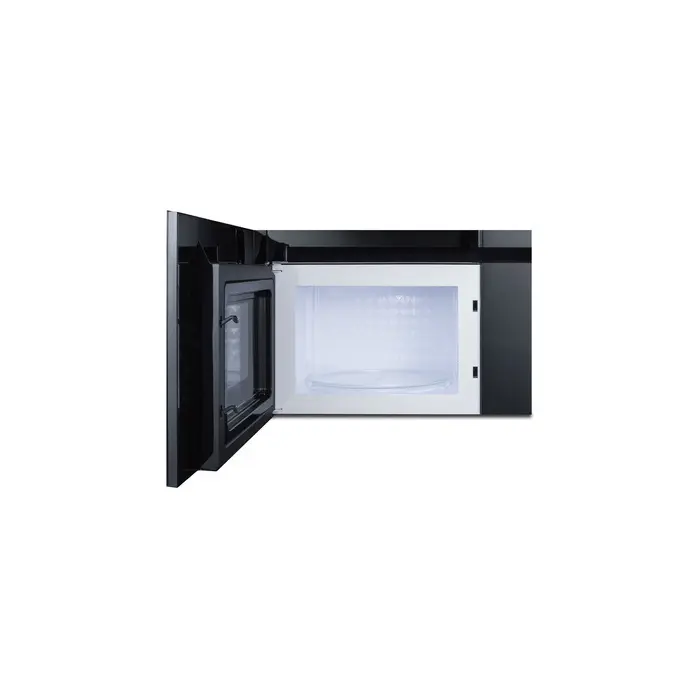

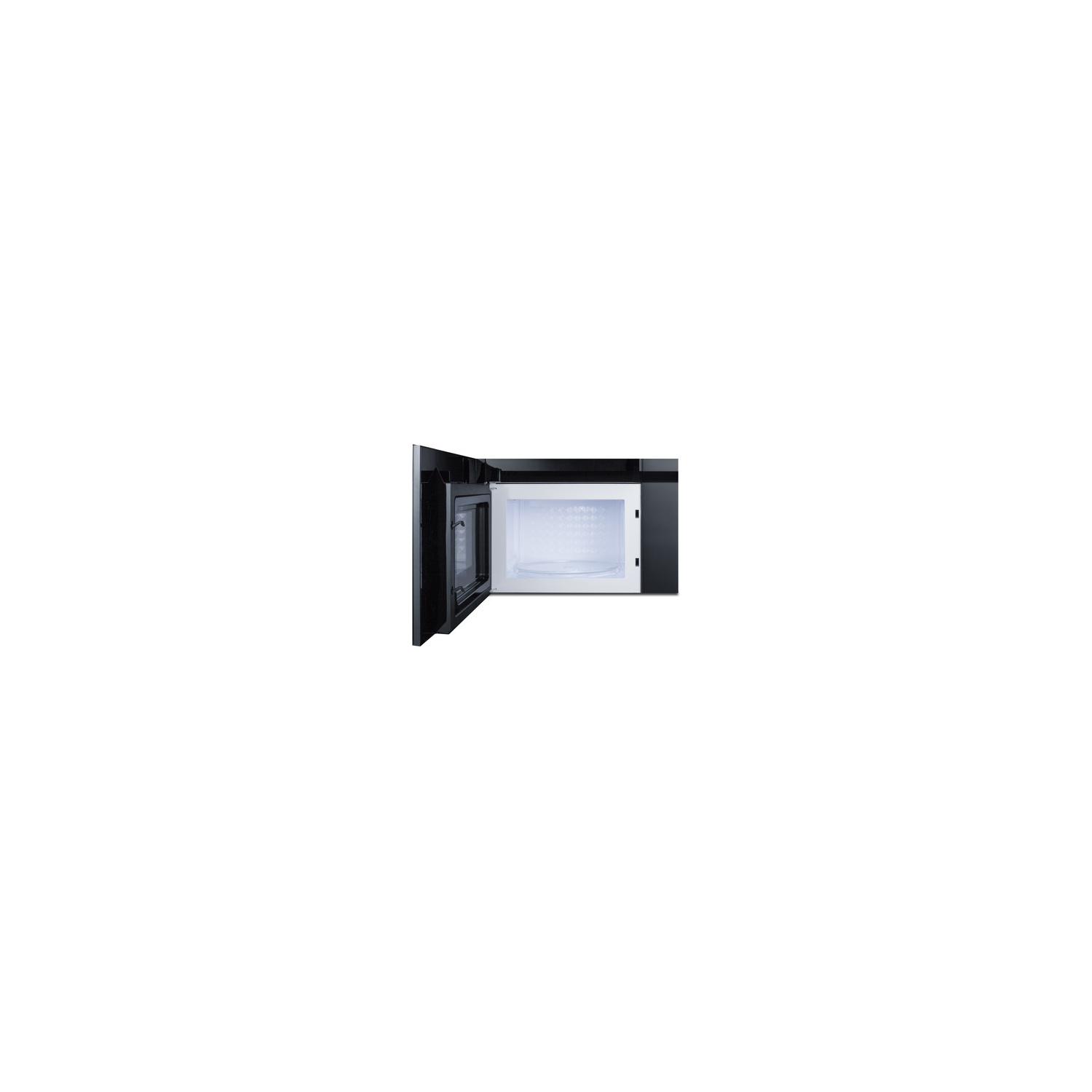

Inside, the MHOTR24SS offers a full 1.34 cu.ft. capacity with an oversized 13.5 inch glass turntable. The controls include a "turntable off" setting, making it easier to heat larger or oddly shaped dishes. Ten power levels and multi-stage cooking options allow you to set the proper conditions for virtually every meal. The defrost option lets you program the microwave for meat, poultry, fish, and bread, while the sensor reheat function includes pre-programmed settings for beverages, dinner plates, pizza, soup, sauce, and casseroles. Sensor cook settings include potatoes, fresh or frozen vegetables, frozen dinner, rice, frozen breakfast, and meat. The MHOTR24SS also includes a popcorn setting and timer.

The MHOTR24SS is equipped with a versatile ventilation system that can be set up with a vertical duct, horizontal duct, or for recirculating (ductless) operation. The ventilation controls include a high and low setting to operate at 300 or 190 CFM, with two aluminum mesh filters and a charcoal filter included. LED lighting offers efficient illumination for your cooking surface with two levels of brightness.

With its attractive style and convenient size, the MHOTR24SS is the perfect finish for any small kitchen space.

NOTE: If using this for recirculating operation, be sure to consult the installation instructions and rotate the motor before installing in your cabinet.

SPECIFICATIONS

Overview

Nominal Height 17.0" (43 cm)

Height of Cabinet 16.75" (43 cm)

Nominal Width 24.0" (61 cm)

Width 23.88" (61 cm)

Width with Door Open 24.88" (63 cm)

Nominal Depth 17.0" (43 cm)

Depth 16.38" (42 cm)

Depth with door at 90° 38.5" (98 cm)

Capacity 1.34 cu.ft. (38 L)

Door Black/SS

Cabinet Black/SS

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 13.5

Voltage/Frequency 115 V AC/60 Hz

Weight 57.0 lbs. (26 kg)

Parts & Labor Warranty 90 Days

UPC 761101063683

Microwave

Type Over-the-Range

Wattage 1000.0

Controls Digital

Digital Display Yes

Turntable Yes

Turntable Diameter 13.5" (34 cm)

Specialized Cooking Buttons Yes

Interior Height 9.75" (25 cm)

Interior Width 14.5" (37 cm)

Interior Depth 13.75" (35 cm)

FEATURES

24 inch width Smartly sized for full service use in smaller kitchens

Range hood function Under-cabinet ventilation with a high/low setting to function at 300 or 190 CFM

Versatile ventilation options This unit can be set up with a vertical duct, horizontal duct, or for recirculating operation

Charcoal filter Included inside the microwave to help absorb smoke and odors

Removable cassette filters Two removable aluminum filters help to absorb odors

Black glass door Sleek, modern look with black glass

Stainless steel trim Top and bottom feature a brushed stainless steel accent for added luxury in the kitchen

Window included Small window lets you keep watch of your cooking

Under cabinet LED lighting Range hood includes two bulbs for convenient illumination of the cooking zone with a high and low setting

One-touch cooking options Touch controls for heating, with a Start +30 seconds option included

Glass turntable Large 13.5" turntable included

Turntable on/off setting Turntable rotation can be disabled at the touch of a button, allowing you to heat larger or oddly shaped dishes with more ease

Popcorn setting One-touch option is ideal for the perfect bag of popcorn

Interior light Microwave light automatically illuminates when the door is opened

Multi-stage cooking Allows you to program two cooking settings with different power levels for best results with certain recipes

Multiple power levels Choose from 10 power levels to ensure the optimum level of heating for your food

Sensor cook Cooking setting lets you choose from potatoes, fresh/frozen vegetables, frozen dinner, rice, frozen breakfast, and meat

Defrost option Pre-programmed function for meat, poultry, fish, and bread

Sensor reheat Specially programmed to reheat beverages, dinner plates, pizza, soup, sauces, and casseroles

Kitchen timer Microwave includes timer setting (up to 99 minutes) with an audible warning

DOWNLOADS

BROCHURE w/ DRAWINGS (MHOTR24SS.pdf)

TECHNICAL DRAWING (.dwg) (MHOTR24SS_MICROWAVE_OVER__A-C_2018_.dwg)

REVIT MODEL (Qf_Summit_MHOTR24SS_24_inches_Wide_Over-the-Range_Microwave.rfa)

SUPPORT (MHOTR24SS_Installation_Manual.pdf)

SUPPORT (MHOTR24SS_Rear_Wall_Installation_Template.pdf)

SUPPORT (MHOTR24SS_Top_Cabinet_Installation_Template.pdf)

USE & CARE (MHOTR24SS-User-Manual.pdf)
