Summit 54 inch wide Turnkey Mesa Dry Bar Series, MESAMN33

Summit's fully assembled Turnkey Kitchens & Bars bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and other hospitality settings.

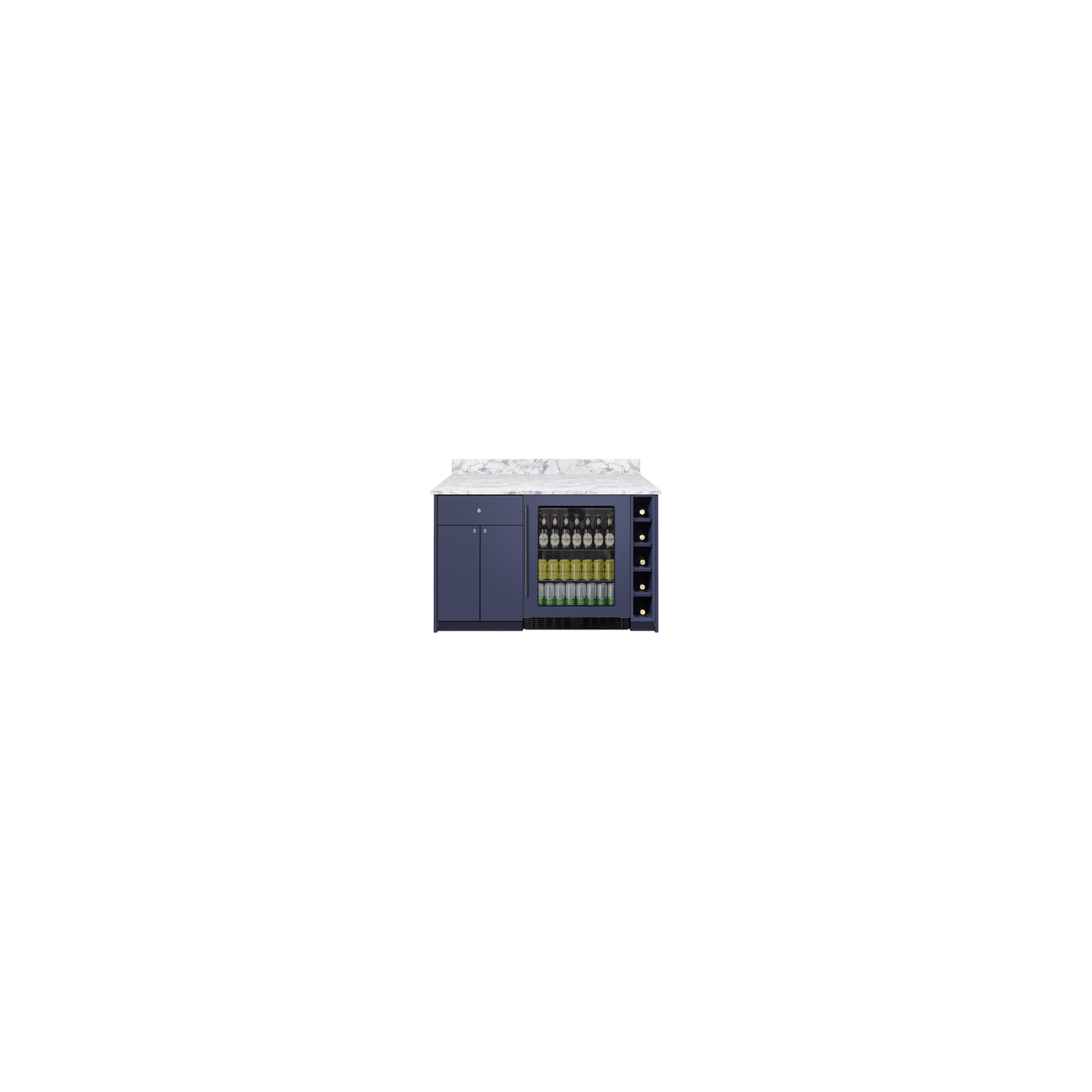

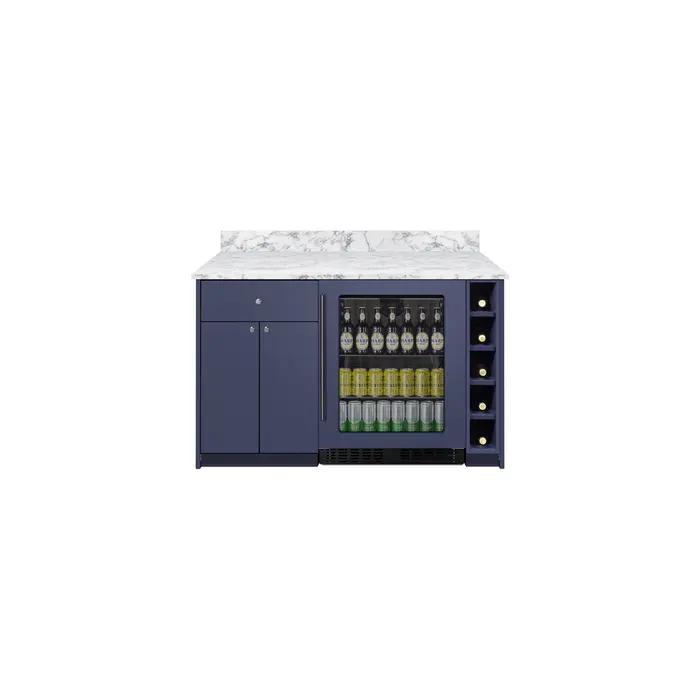

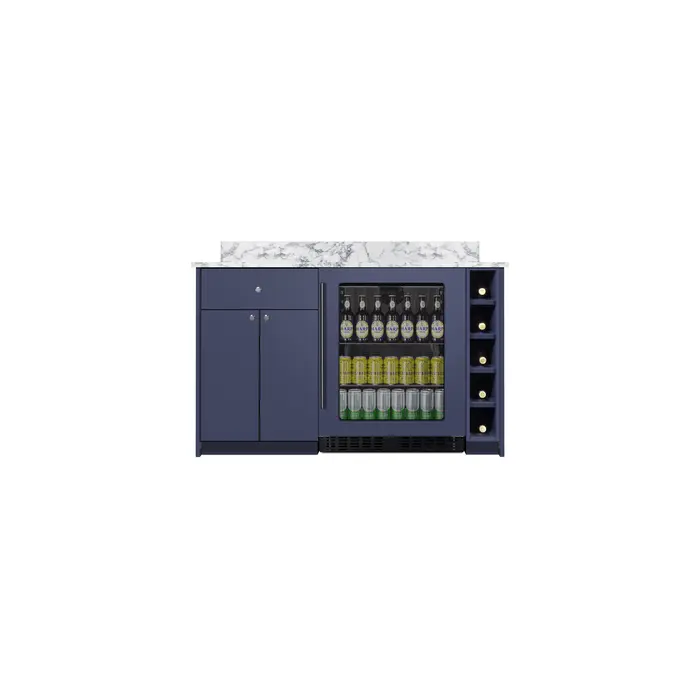

The Mesa Dry Bar is a 54" wide home dry bar in a midnight navy finish that ships fully assembled for easy entertaining. Sized just under 34" high, it is ideal for ADA compliant spaces. It features hardwood construction and a pre-installed countertop made from a water-resistant laminate material with a marble look. This model has a two-door storage cabinet, soft-close drawer, and wine cubby designed to hold five bottles. The cabinetry comes in a modern slab style.

The MESAMN33 includes Summit's frost-free commercial grade beverage center (model ASDG2411PNR). This 24" wide beverage refrigerator features a double-pane tempered glass door with a pre-installed wood panel for an uninterrupted cabinetry design. A stainless steel handle completes the look. The kickplate includes a factory-installed lock for optional security.

Inside, the ASDG2411PNR features stainless steel construction for improved durability. Three adjustable glass shelves utilize a cantilevered shelving system to accommodate any size and ensure flexible storage. This beverage center includes LED lighting, digital controls, an open door alarm, a high temperature alarm, and Sabbath mode setting.

The MESAMN33 is shipped in two boxes on one pallet. Simply unbox both pieces, set in place, slide the beverage center under the counter, plug in, and start enjoying full bar capabilities. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). This unit has a finished back and can be used freestanding with proper installation (see manual for details). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 56.25" W x 23.5" D. Unpackaged, the final product dimensions are 33.75" H x 54" W x 20.75" D.

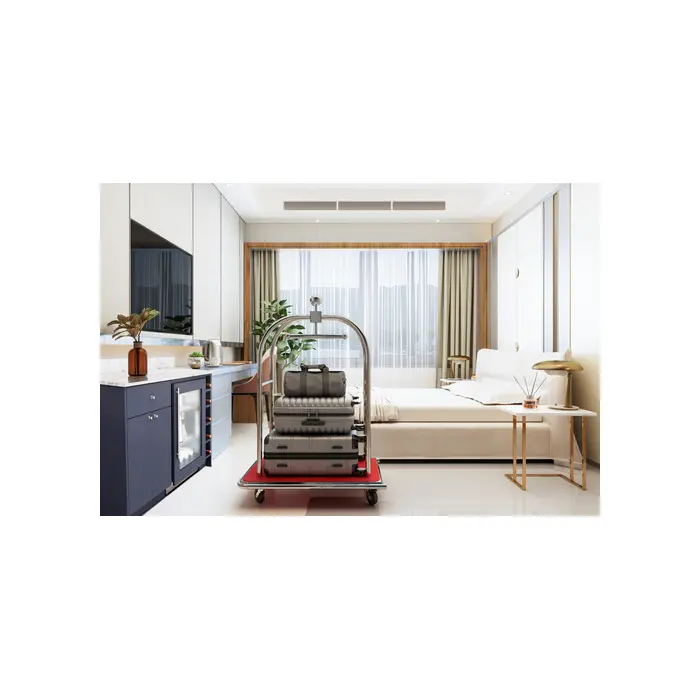

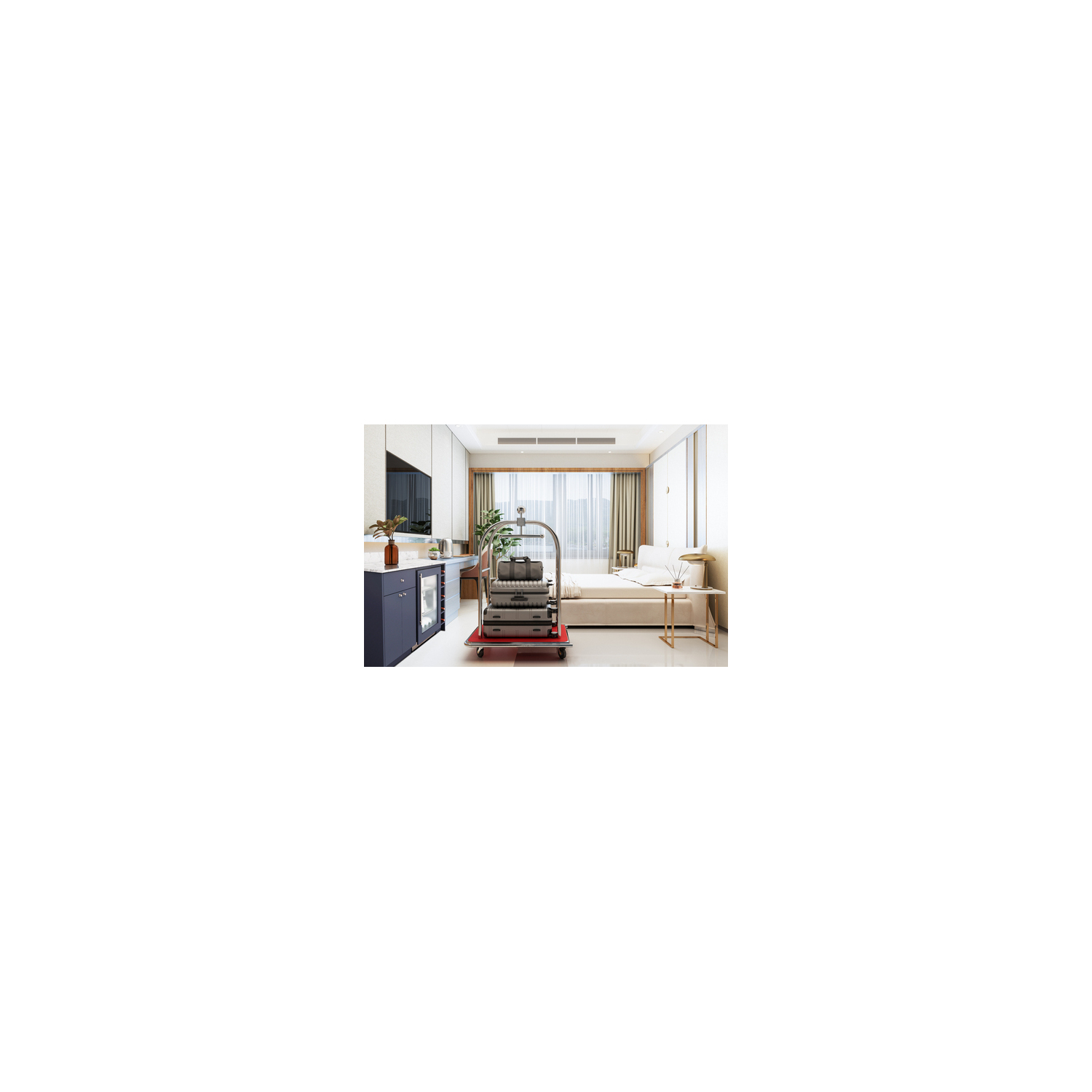

With its shallow 21" depth, ADA-compliant height, and easy plug-and-play setup, the MESAMN33 is the perfect solution to complete any home bar or hotel space. For this unit in a classic white finish, see model MESAWH33. For this unit featuring a standard counter height, see the model MESAMN35.

Summit’s Turnkey collection also features wet bars with stainless steel sinks and faucets and complete kitchens with full cooking capabilities. Explore the entire Turnkey Kitchens & Bars lineup at summitappliance.com.

SPECIFICATIONS

Overview

Height of Cabinet 33.75" (86 cm)

Width 54.0" (137 cm)

Depth 20.75" (53 cm)

Depth with door at 90° 43.5" (110 cm)

Capacity 3.25 cu.ft. (92 L)

Defrost Type Frost-Free

Door Glass

Cabinet Blue

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 350.0 lbs. (159 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101153797

Kitchenette

Refrigerator Included ASDG2411PNR

Refrigerator Door Swing RHD

Reversible No

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 3

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.38 oz.

High Side PSI 270.0

Low Side PSI 105.0

Temperature Range 36 to 43ºF

FEATURES

Mesa Turnkey Dry Bar Series The Mesa Dry Bar series includes sleek, functional, and fully assembled bars, featuring a 115v powered beverage center

Fully assembled Ships with pre-assembled cabinetry and installed countertop for fast and easy setup

Plug-and-play operation Simply slide the beverage center into place, plug in the unit, and enjoy

ADA-compliant design Countertop is just under 34" high to comply with ADA guidelines

Shallow profile Optimize any space with a 21" depth, perfect for small footprints

Solid construction Hardwood cabinetry for lasting durability

Modern design This unit's slab-style cabinetry comes in a modern midnight navy finish to elevate the aesthetic of any space

Pre-installed countertop Solid laminate countertop in a marble look

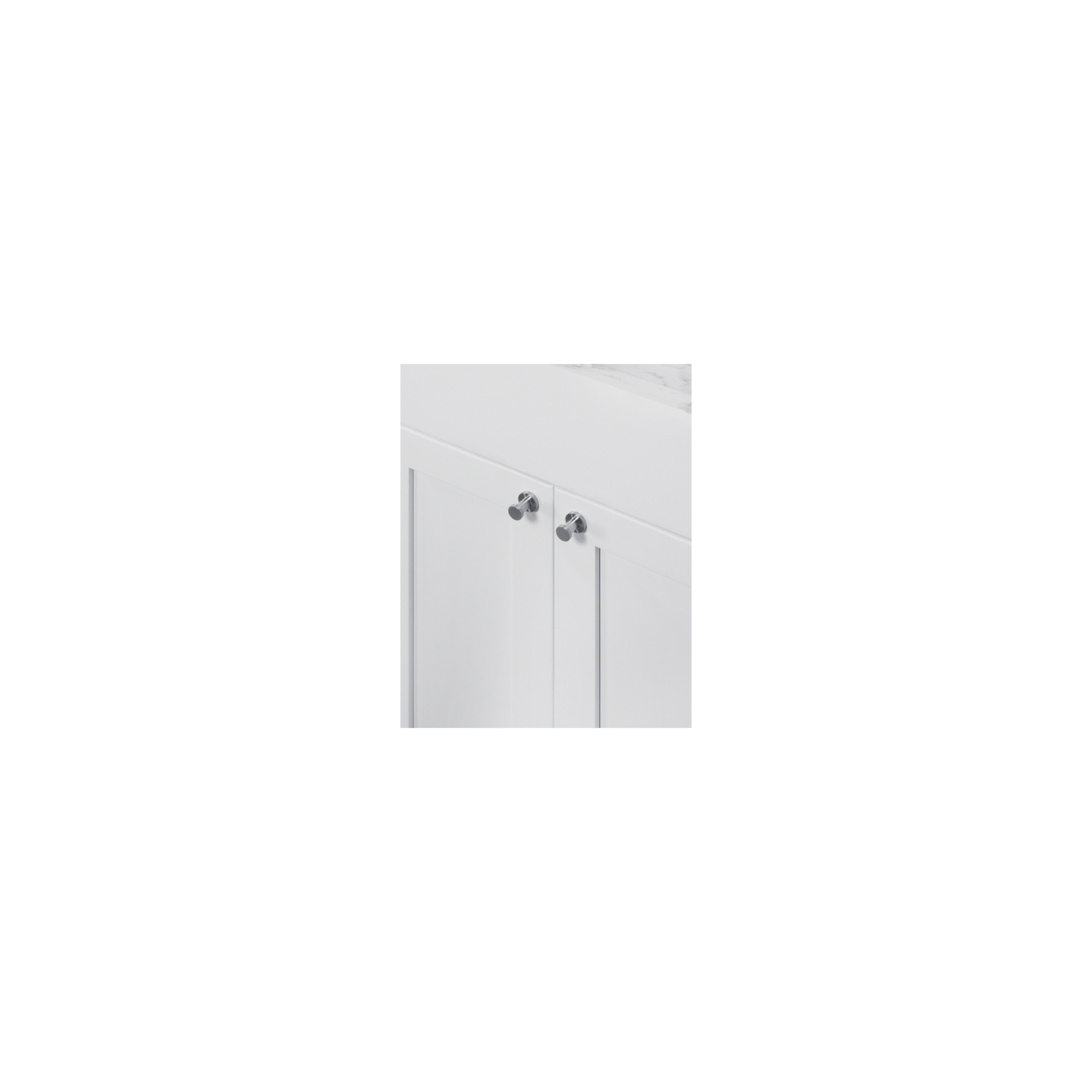

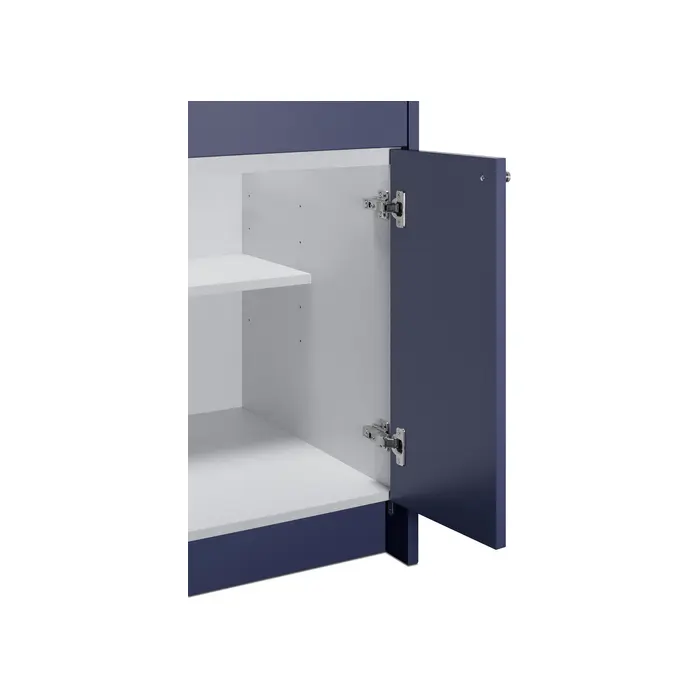

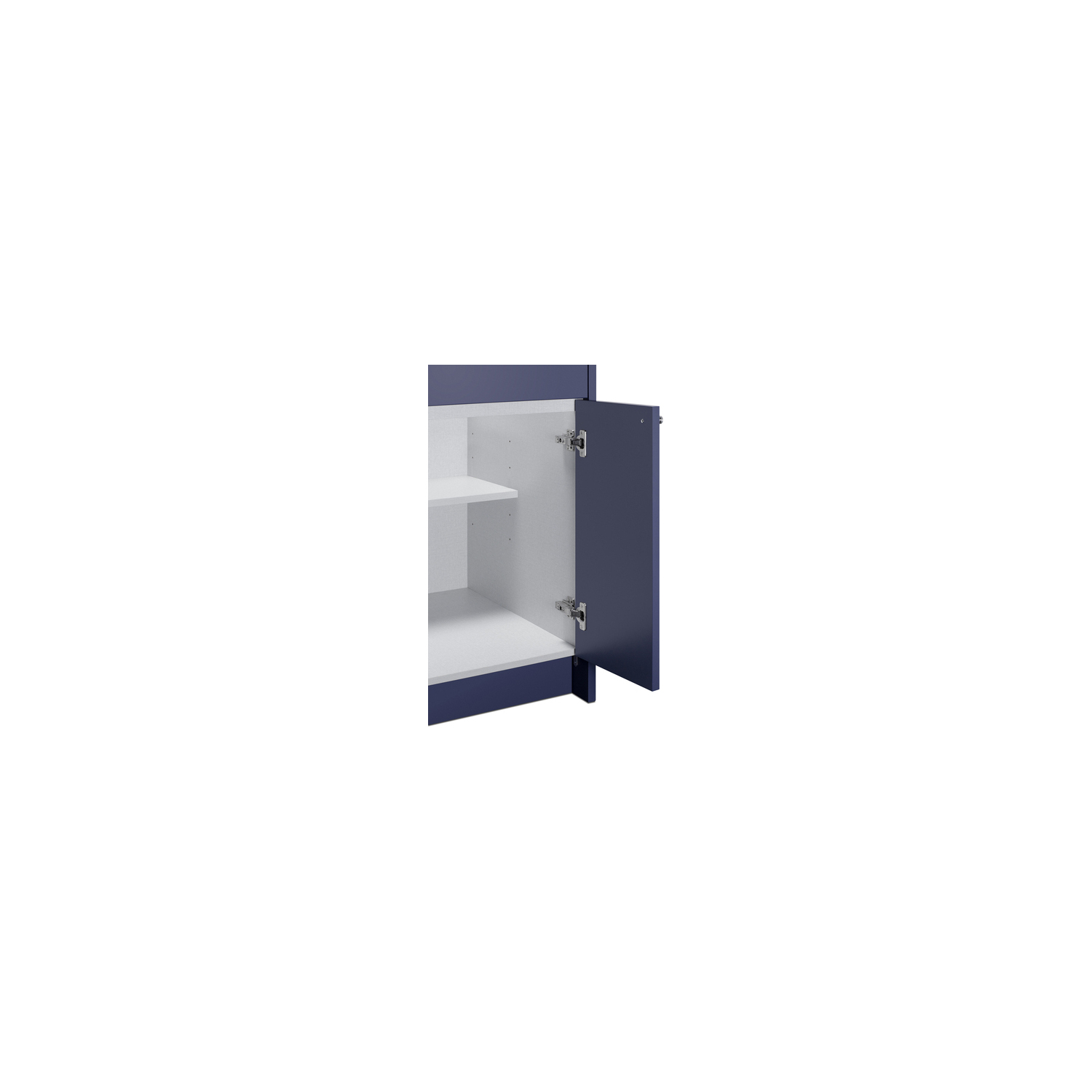

Storage cabinetry 2-door cabinet with removable shelf ideal for storing supplies and non-refrigerated items

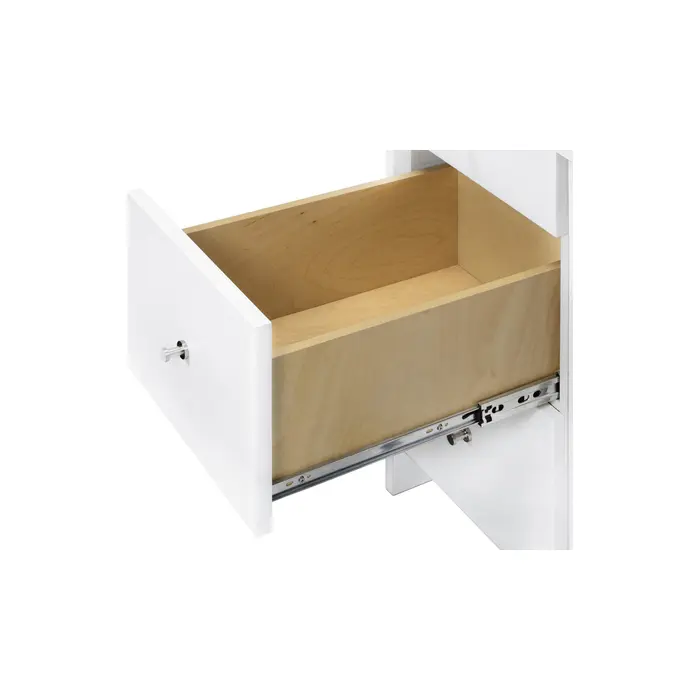

Slide-out drawer Hardwood storage drawer with soft-close glides is perfect for holding menus, beverage accessories, and other bar extras

Wine storage 5-bottle wine cubby for convenient storage

Beverage Center This unit includes model ASDG2411PNR, a 24" wide frost-free beverage center

Frost-free operation Beverage center features no-frost operation for minimum user maintenance

Double pane tempered glass door (beverage center) Provides a full view of stored beverages, with a pre-installed wood panel to seamlessly match the cabinetry

Stainless steel interior (beverage center) The refrigerator's walls and floor are constructed from stainless steel for added strength and easy cleanup

Cantilevered shelving (beverage center) Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Factory-installed lock (beverage center) Keyed lock for a secure interior

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Backsplash included Matching backguard is packaged with the unit for optional use

Matching wall cabinetry available Browse the CABMN lineup to complete your setup

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

Easy shipping Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack. Overall shipping dimensions are 73" H x 31" W x 77" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 56.25" W x 23.5" D.

DOWNLOADS

BROCHURE (MESAMN33.pdf)

TECHNICAL DRAWING (.dwg) (MESAWH33.dwg)

ASSEMBLY DRAWING (MESAWH33-Assembly.pdf)

SUPPORT (985.bin)

ENERGY GUIDES (EnergyGuide-ASDG2411PNR.pdf)

USE & CARE (MESAMN33-User-Manual.pdf)

USE & CARE (MESAMN33-User-Manual_2.pdf)
