Summit 30 inch wide drawer microwave, 7.61101e+011, MDR30SS
$1,213.08
Retail Price: $1,755.00
Free shipping
$ 1,213.08
Description

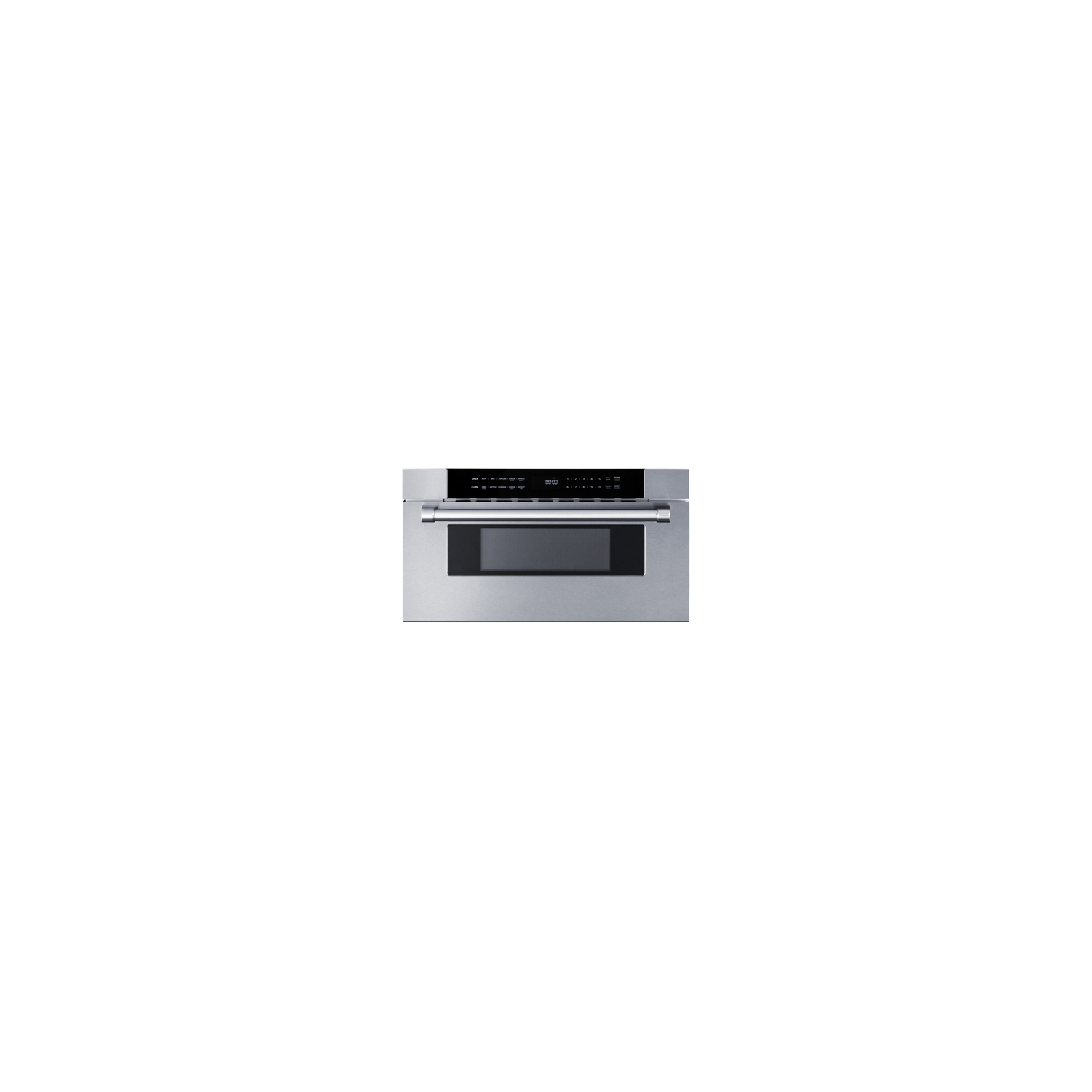

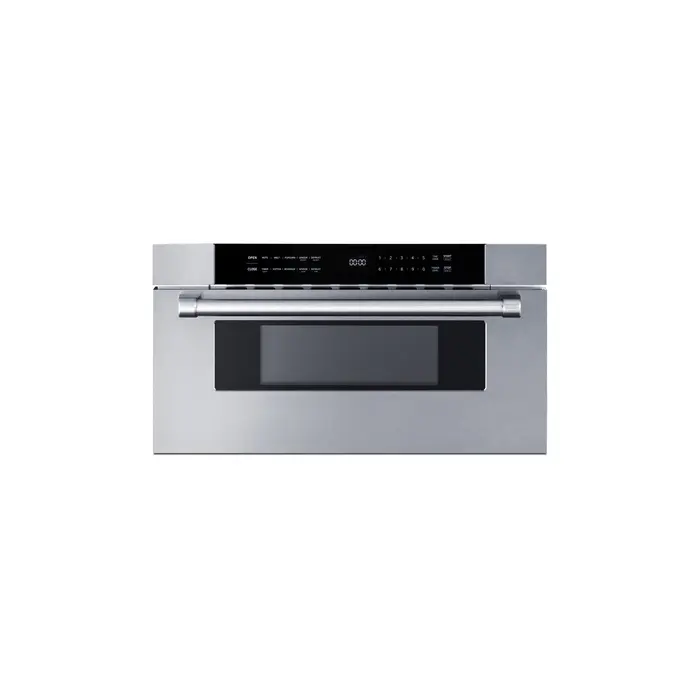

Summit's innovative one-touch drawer microwave brings modern style and complete functionality under the counter.

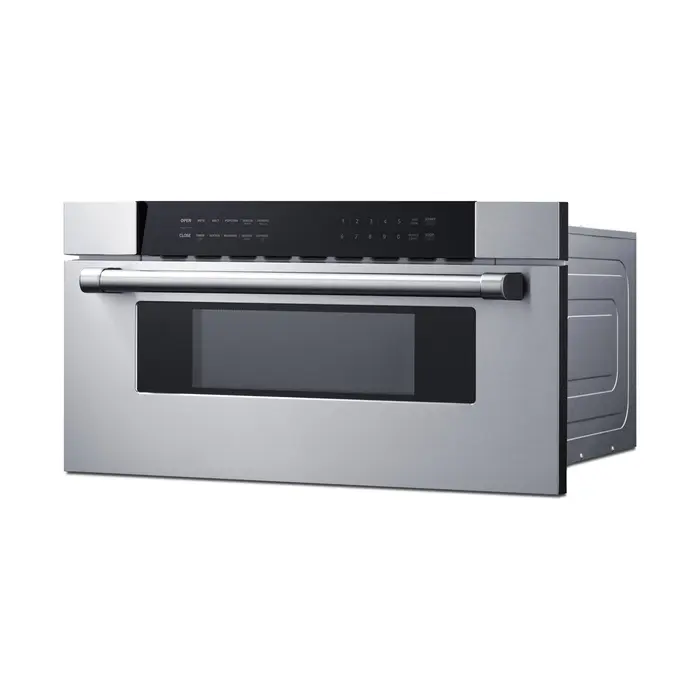

The MDR30SS is a 1.2 cu.ft microwave drawer sized at 30" wide. With one-touch open and close buttons, users have easy access paired with the top-loading design, which lets you monitor your cooking progress from the perfect position. The control panel is set at a slight angle, making it easier to keep the settings in full view from any position.
The unit's interior features a crisp, clean white interior and a standard light for added safety when removing hot items. The MDR30SS has user-friendly features and 10 convenient power levels that let you select the right conditions for any meal. The "defrost by weight" setting helps to ensure a more efficient thawing process. Additional functions include a +30 seconds setting, popcorn button, beverage button, and melt + soften settings that lets you achieve the best conditions for butter, cream cheese, chocolate, or ice cream.
This unit has an audible end-of-cycle buzzer, which can be disabled if you prefer a quieter operation. An energy-saving eco mode, child lock, and digital clock with a timer are also included.

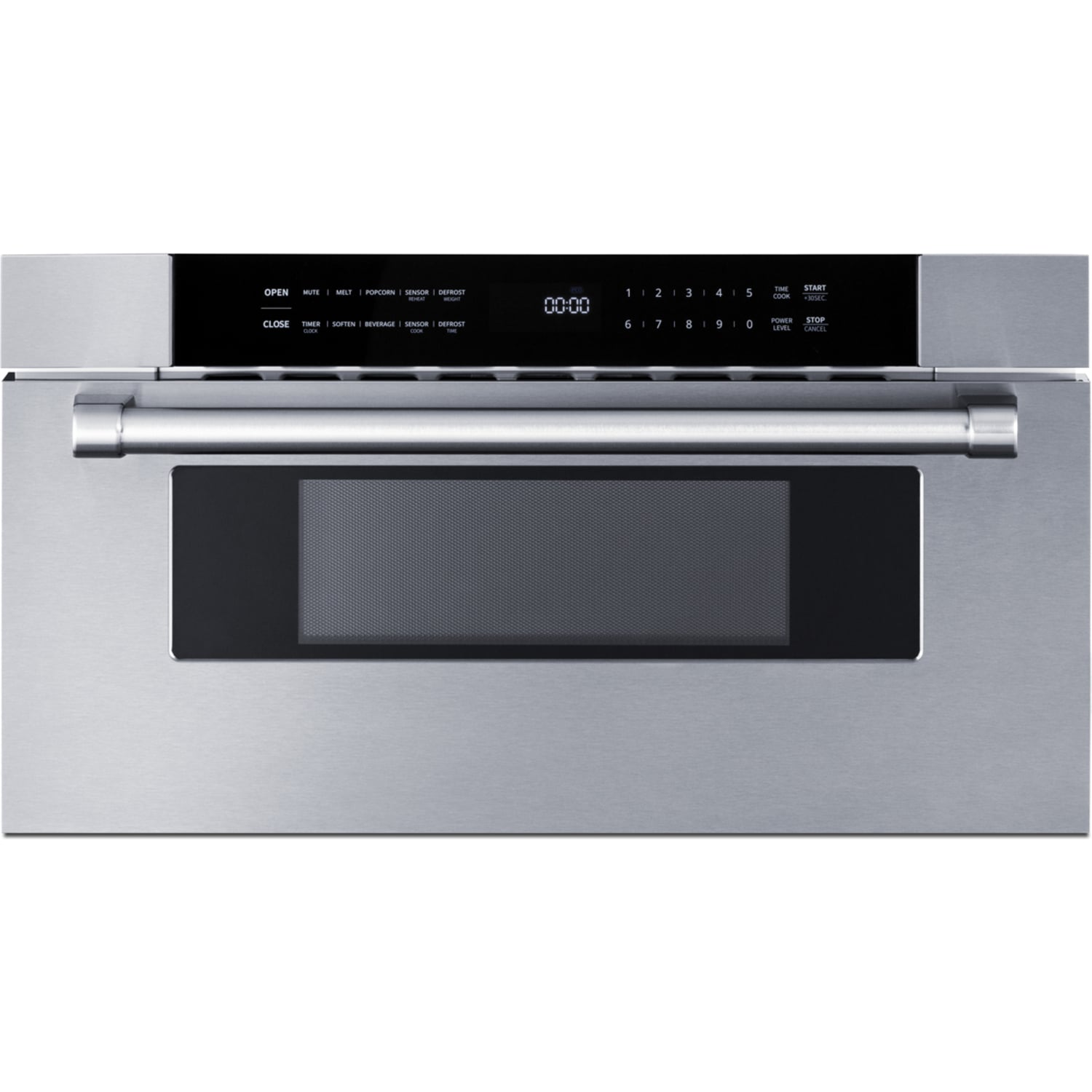

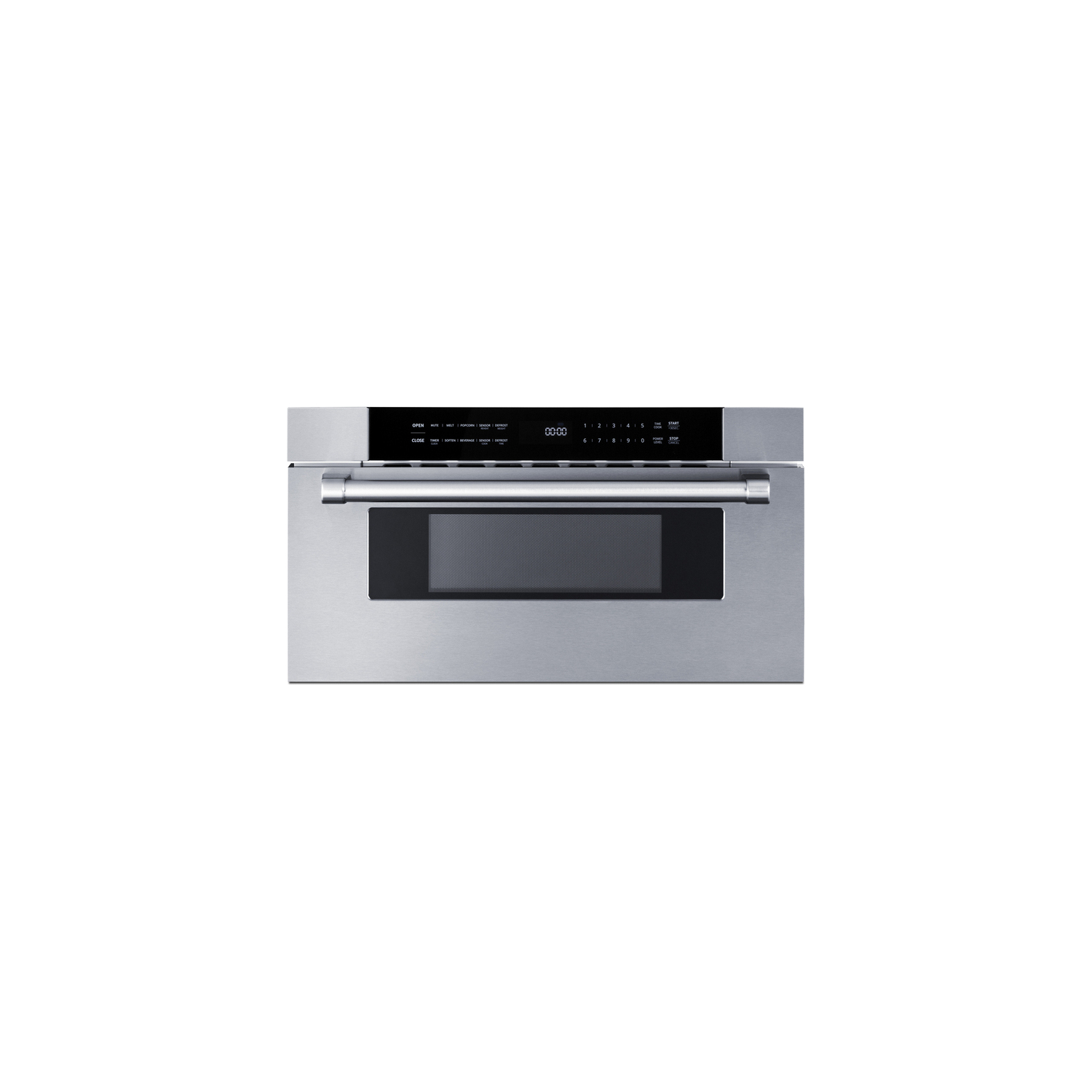

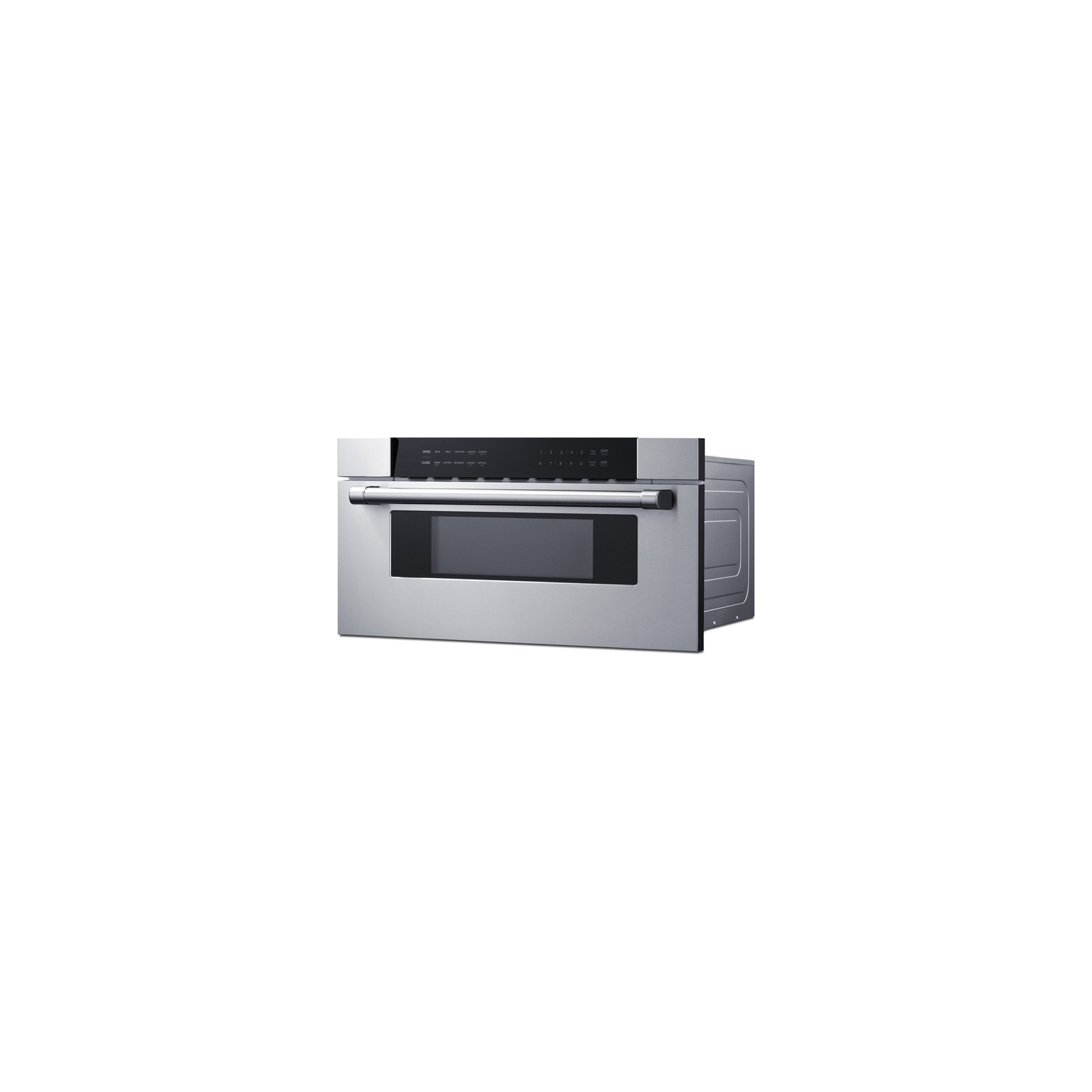

We've designed the MDR30SS to fit inside traditional 30" wide cabinet openings (recommended cutout: 14.81" H x 28.44" W x 23.5" D). The drawer front comes in a brushed stainless steel finish with a horizontal grain and large window in dark glass. A professional style handle with a 1 1/4" thick diameter completes the luxurious look.
In addition to this built-in drawer microwave, Summit manufactures other integrated appliances, including gas and electric wall ovens, wine cellars, and single-drawer refrigerators. Browse our full selection to explore your options.
SPECIFICATIONS
Overview
Nominal Height 16.0" (41 cm)
Height of Cabinet 15.88" (40 cm)
Nominal Width 30.0" (76 cm)
Width 29.75" (76 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 35.13" (89 cm)
Capacity 1.2
Door Stainless Steel
Cabinet Gray
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 12.0
Voltage/Frequency 115 V AC/60 Hz
Weight 87.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
UPC 761101108131
Microwave
Type Drawer
Wattage 1000.0
Controls Digital
Digital Display Yes
Specialized Cooking Buttons Yes
Cutout Height 14.81" (38 cm)
Cutout Width 28.44" (72 cm)
Cutout Depth 23.5" (60 cm)
Interior Height 7.75" (20 cm)
Interior Width 16.13" (41 cm)
Interior Depth 16.75" (43 cm)
FEATURES

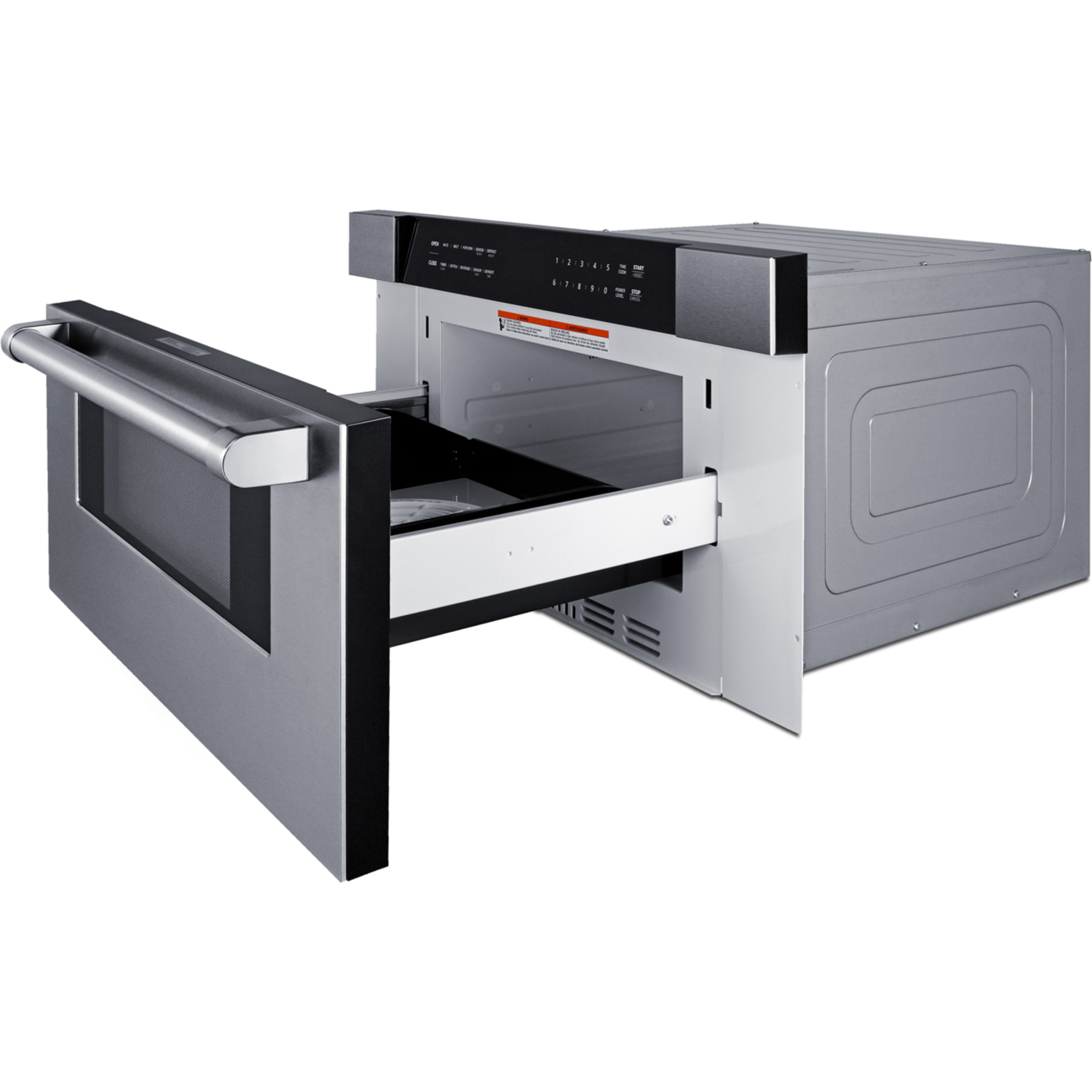

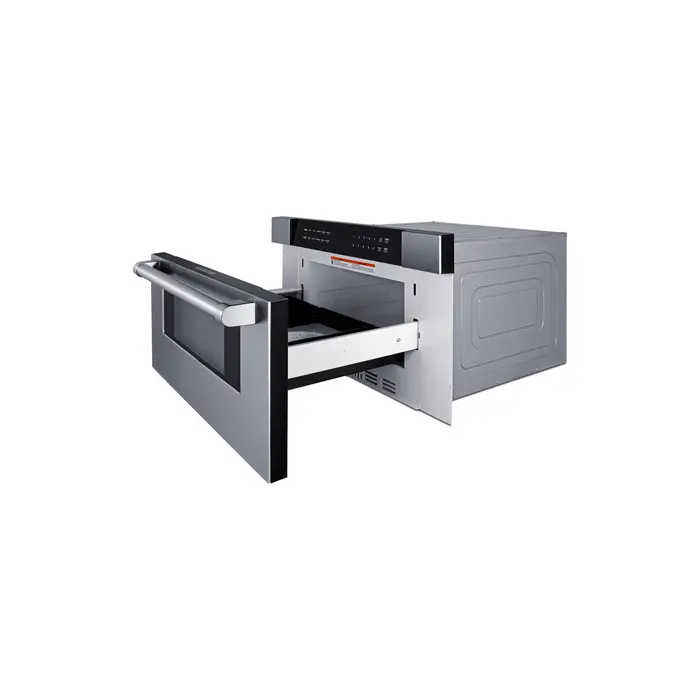

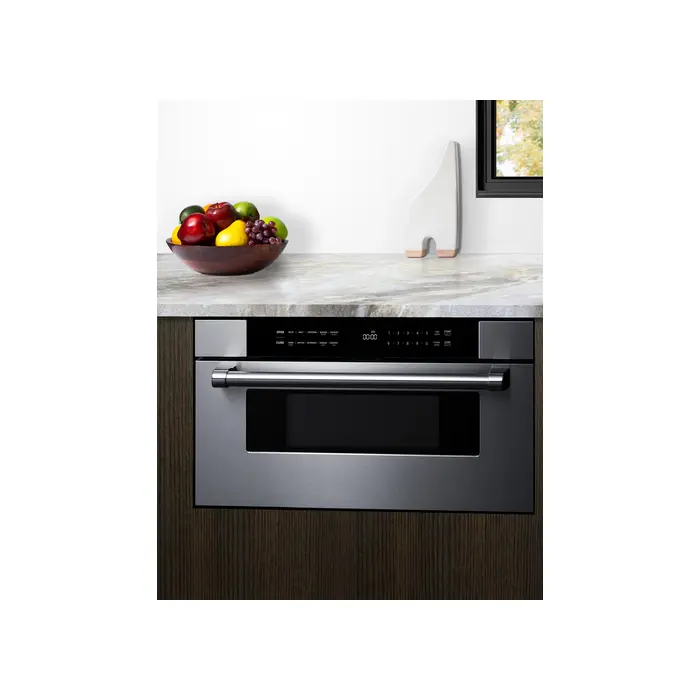

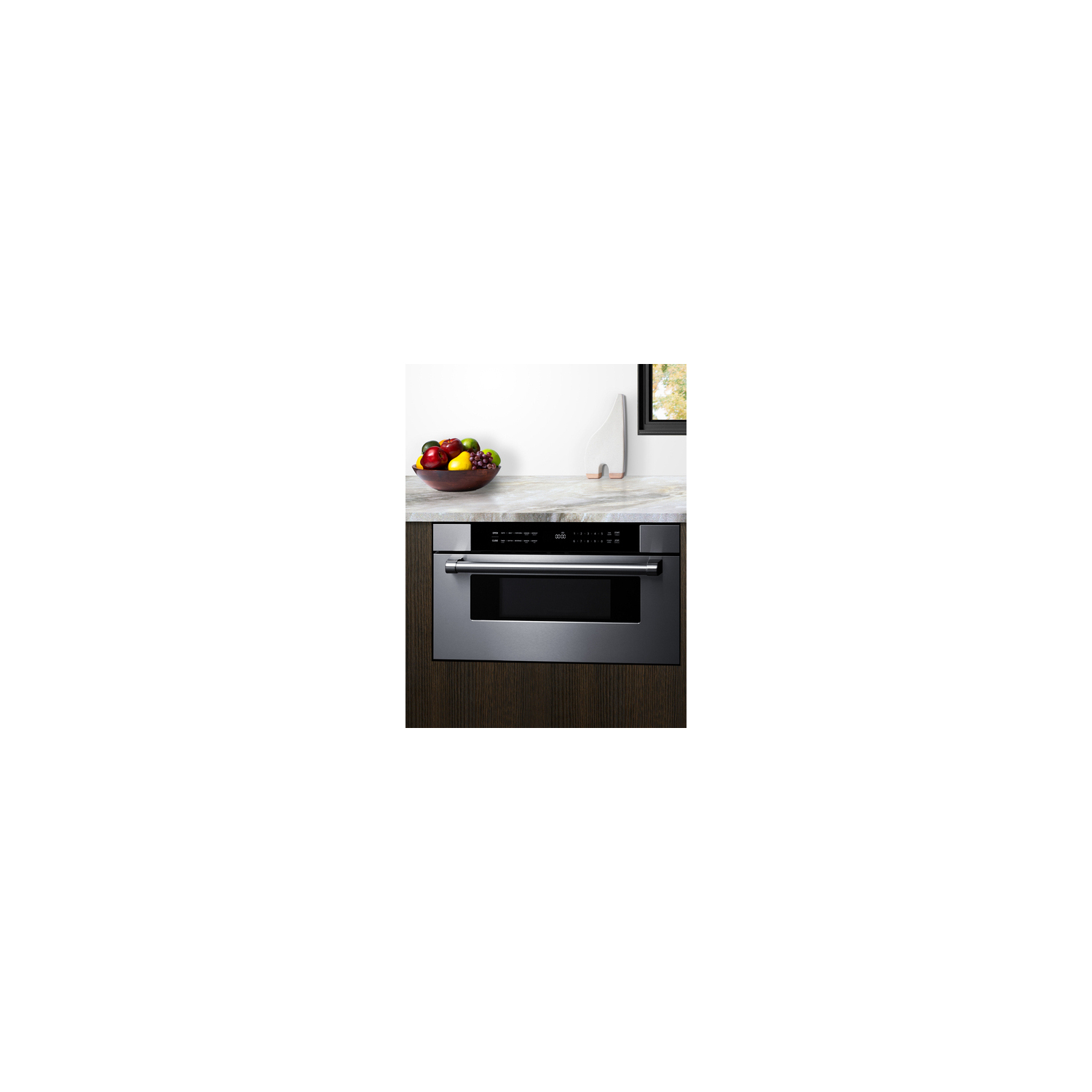

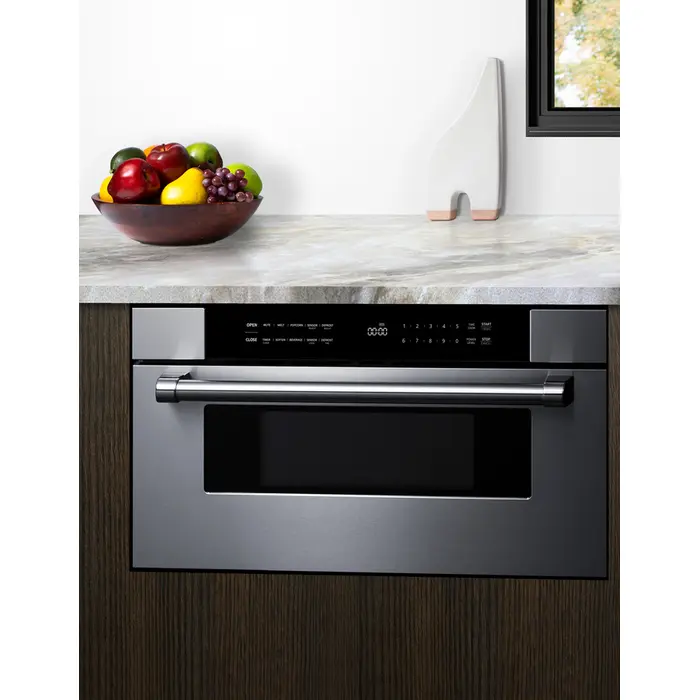

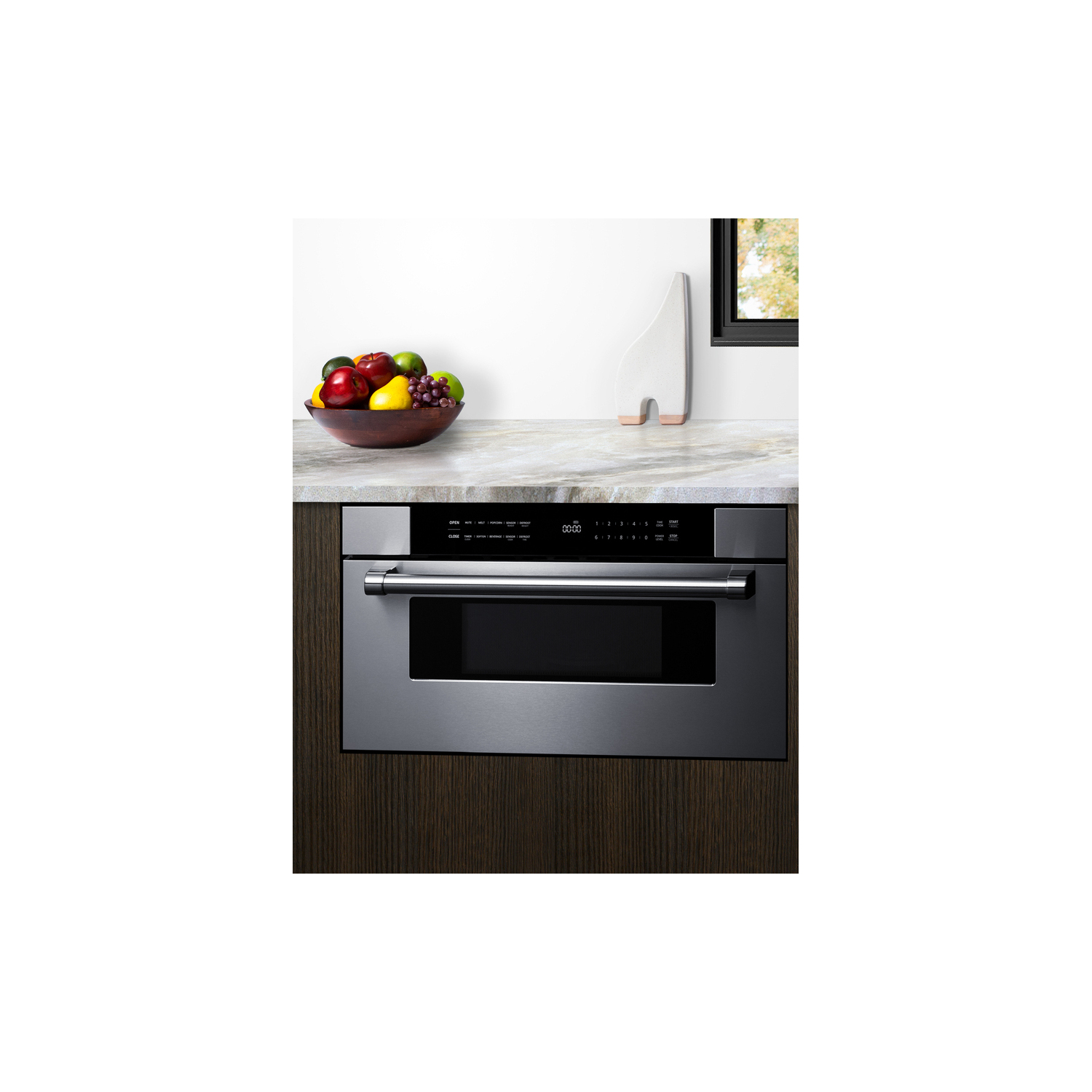

30" Wide Drawer Microwave Built-in microwave oven designed for installation under the counter or in wall openings
Large capacity 1.2 cu.ft. interior offers spacious cooking space for medium to large dishes
Built-in design Sized to fit 14 13/16" H x 28 7/16" W x 23 1/2" openings
One touch open/close Easy-to-use touch controls to access the microwave with minimal effort

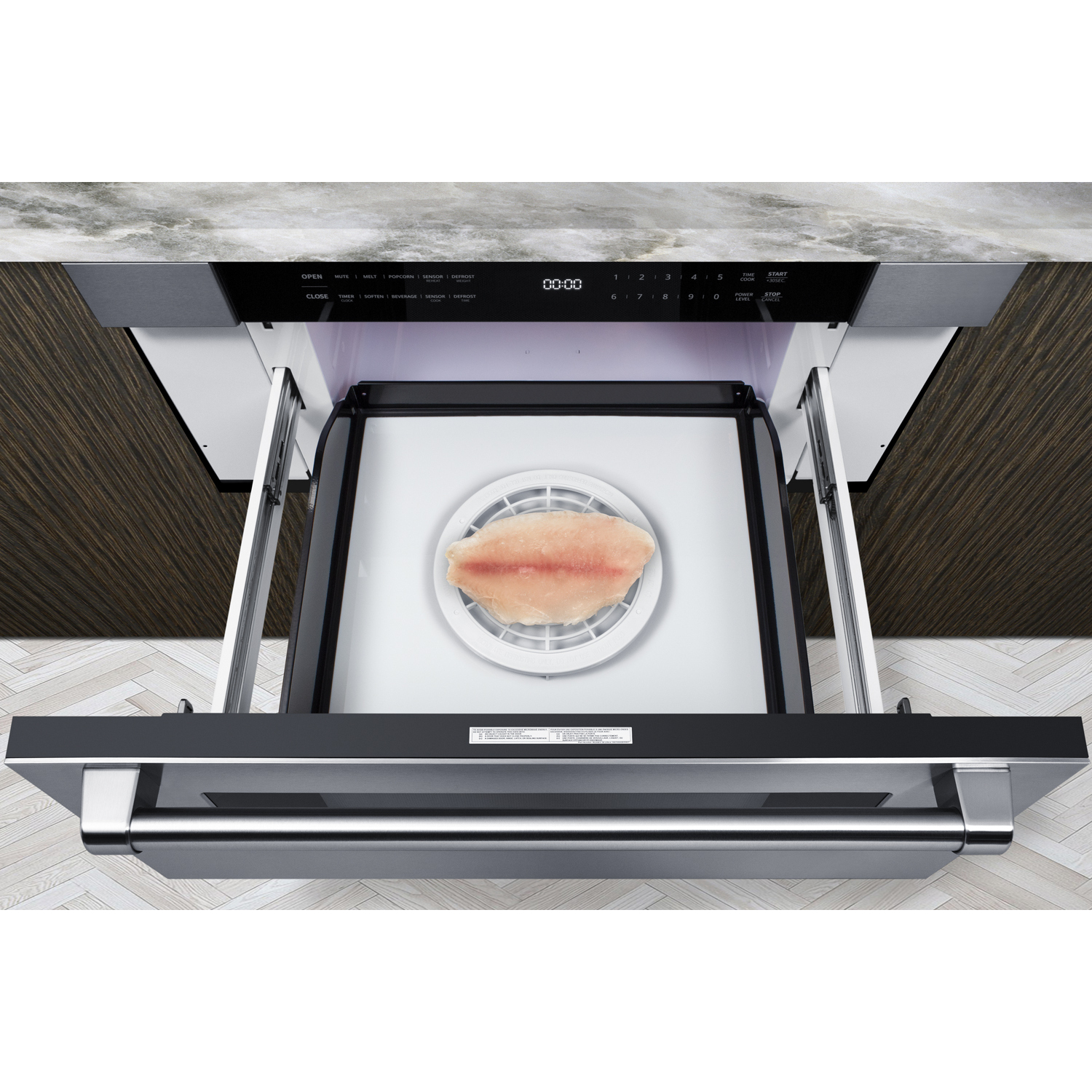

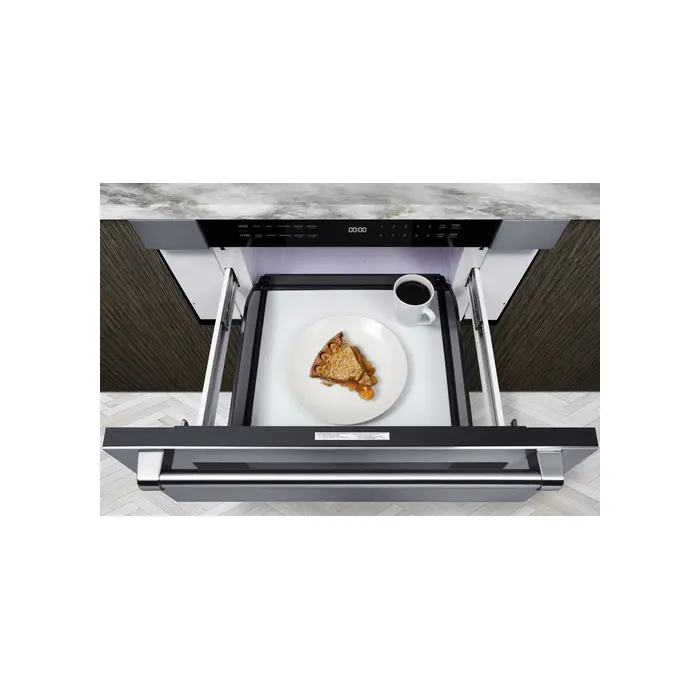

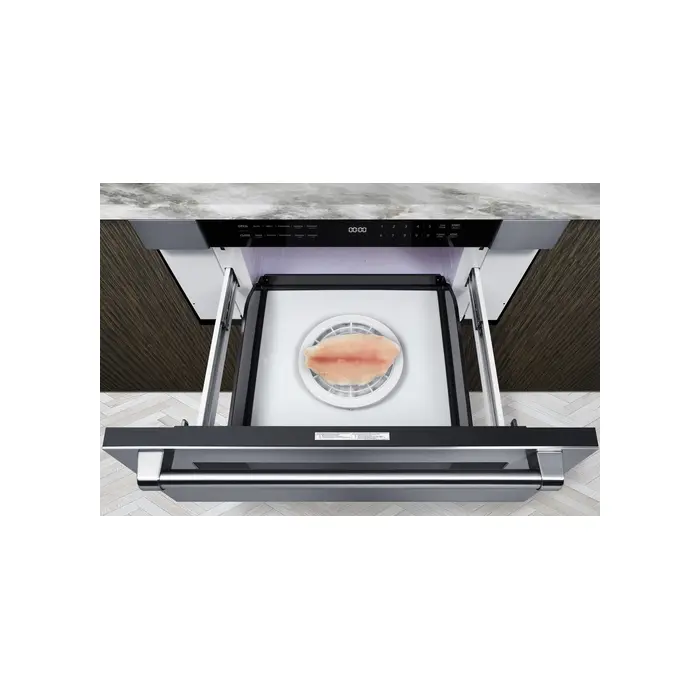

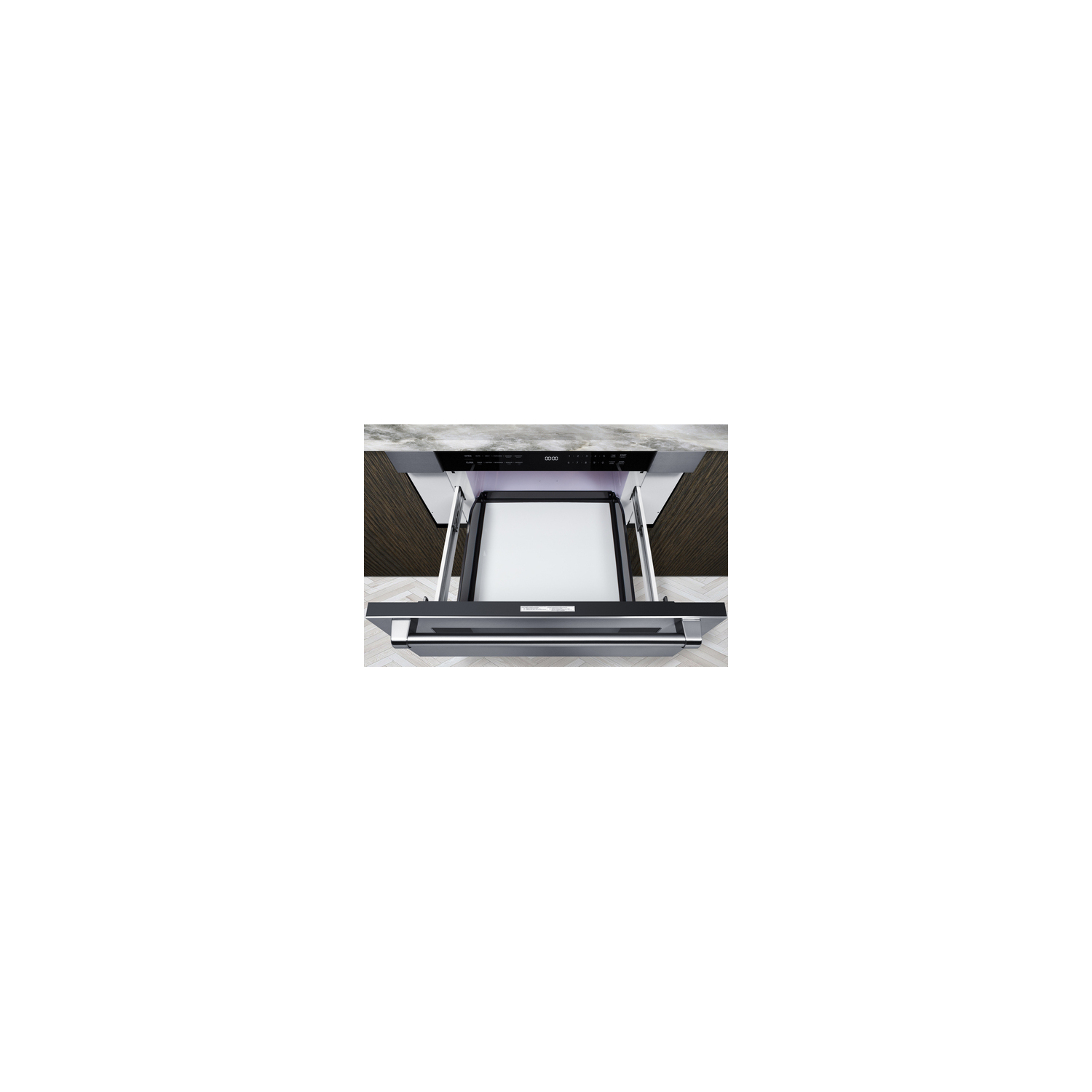

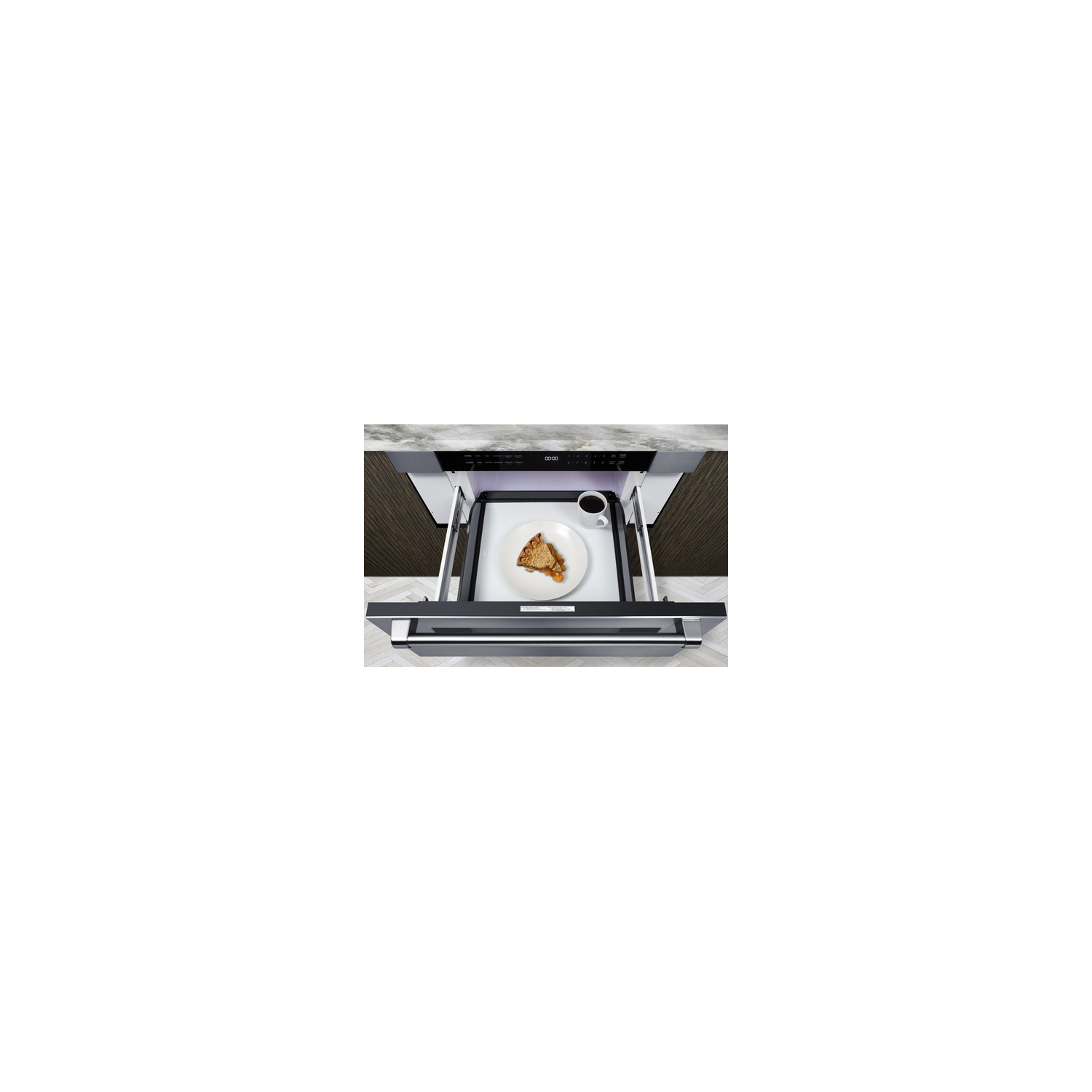

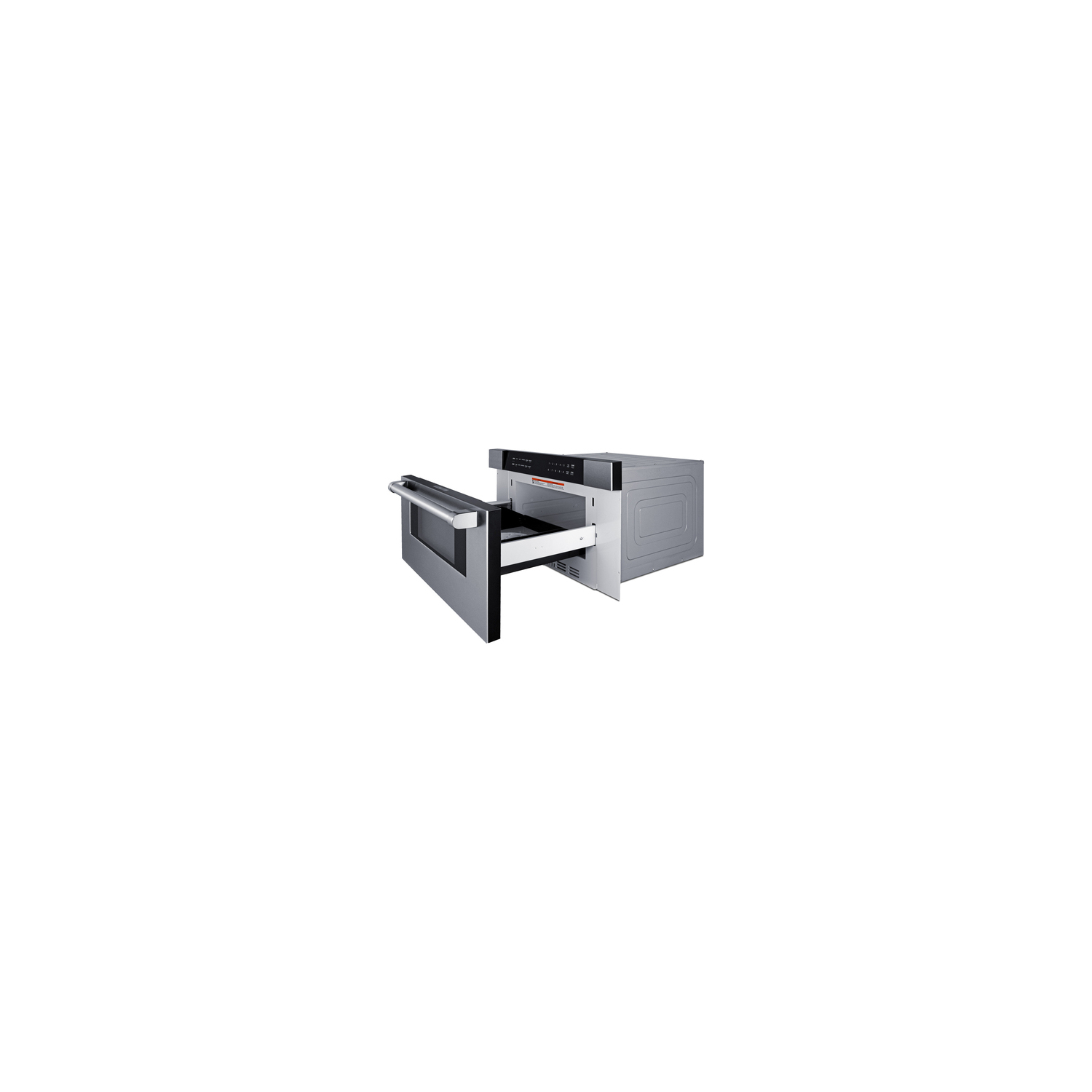

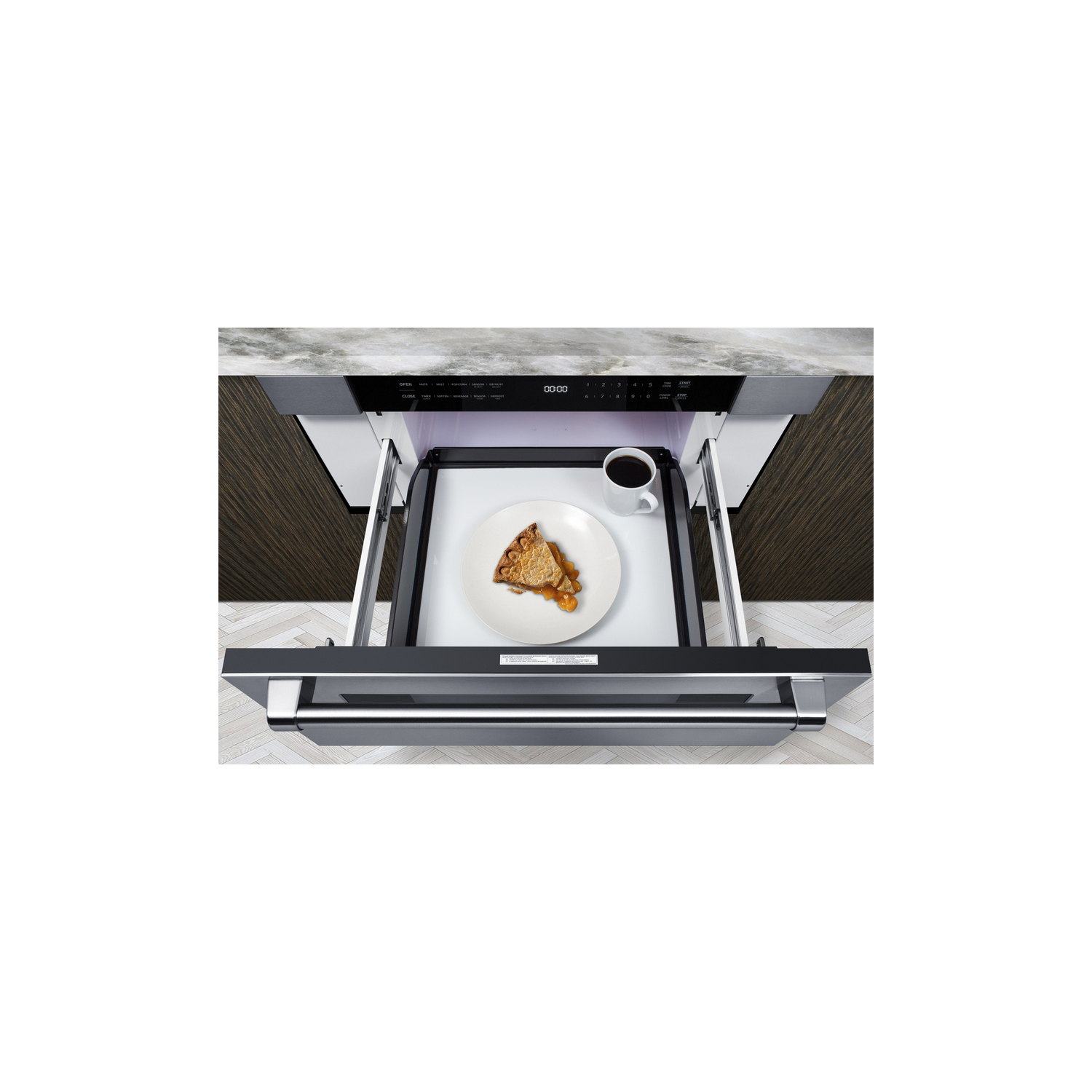

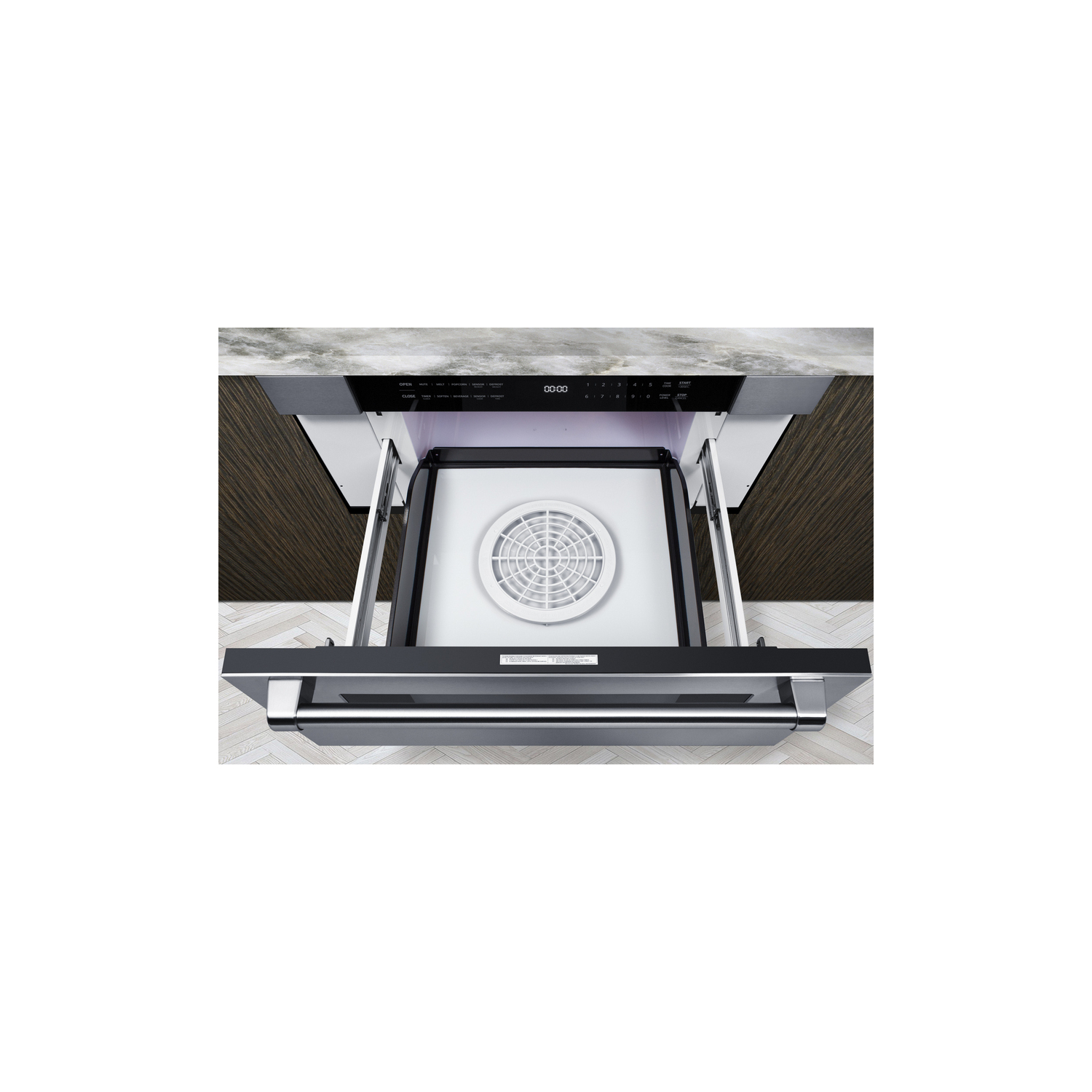

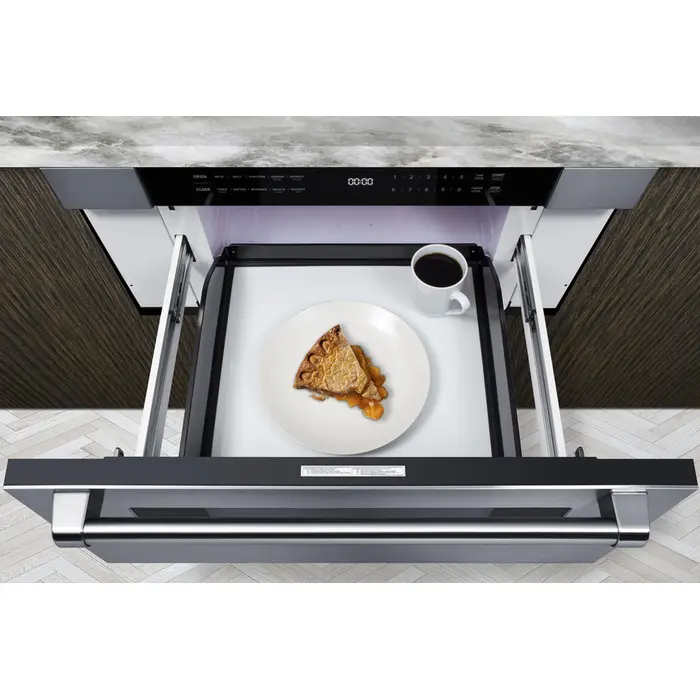

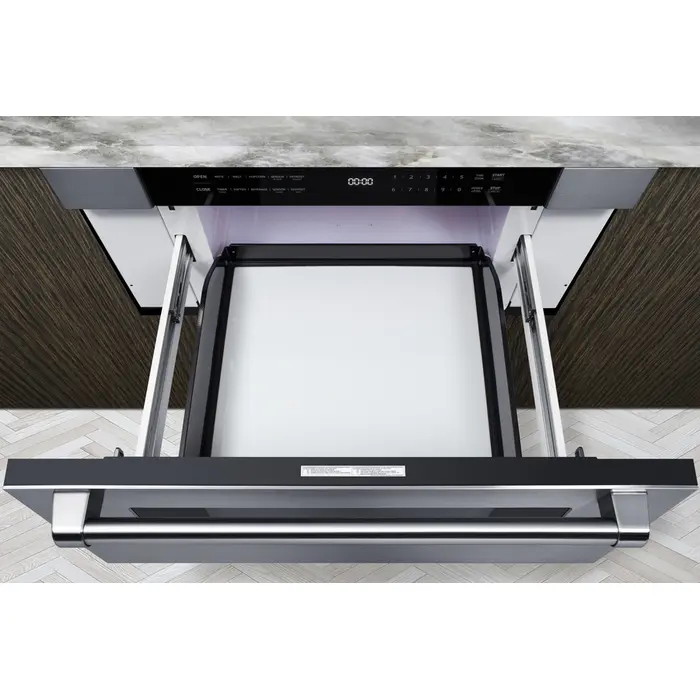

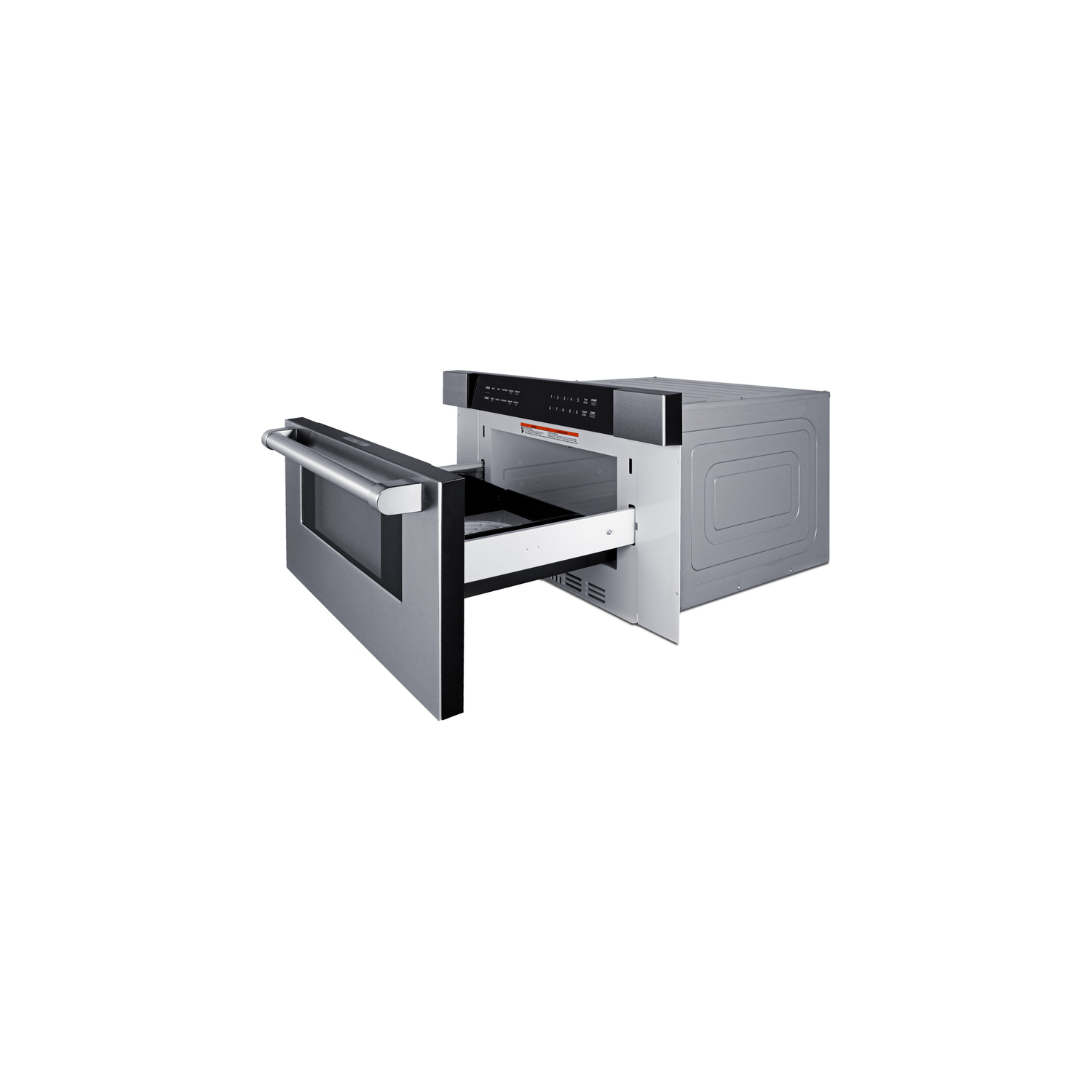

Top-load design Slide-out drawer design provides an overhead view that lets you check your food without removing it from the microwave, helping to reduce spills
Stainless steel finish Modern look with a brushed stainless steel drawer finish in a horizontal grain to match other pieces

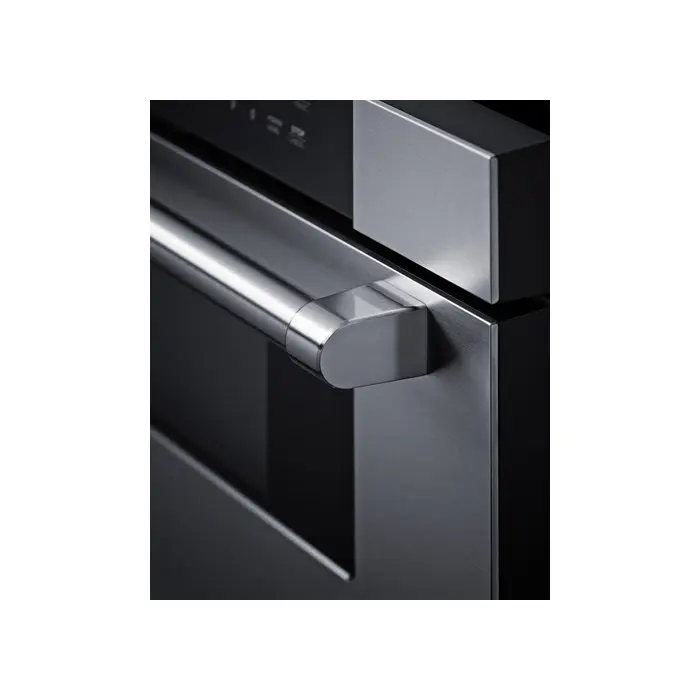

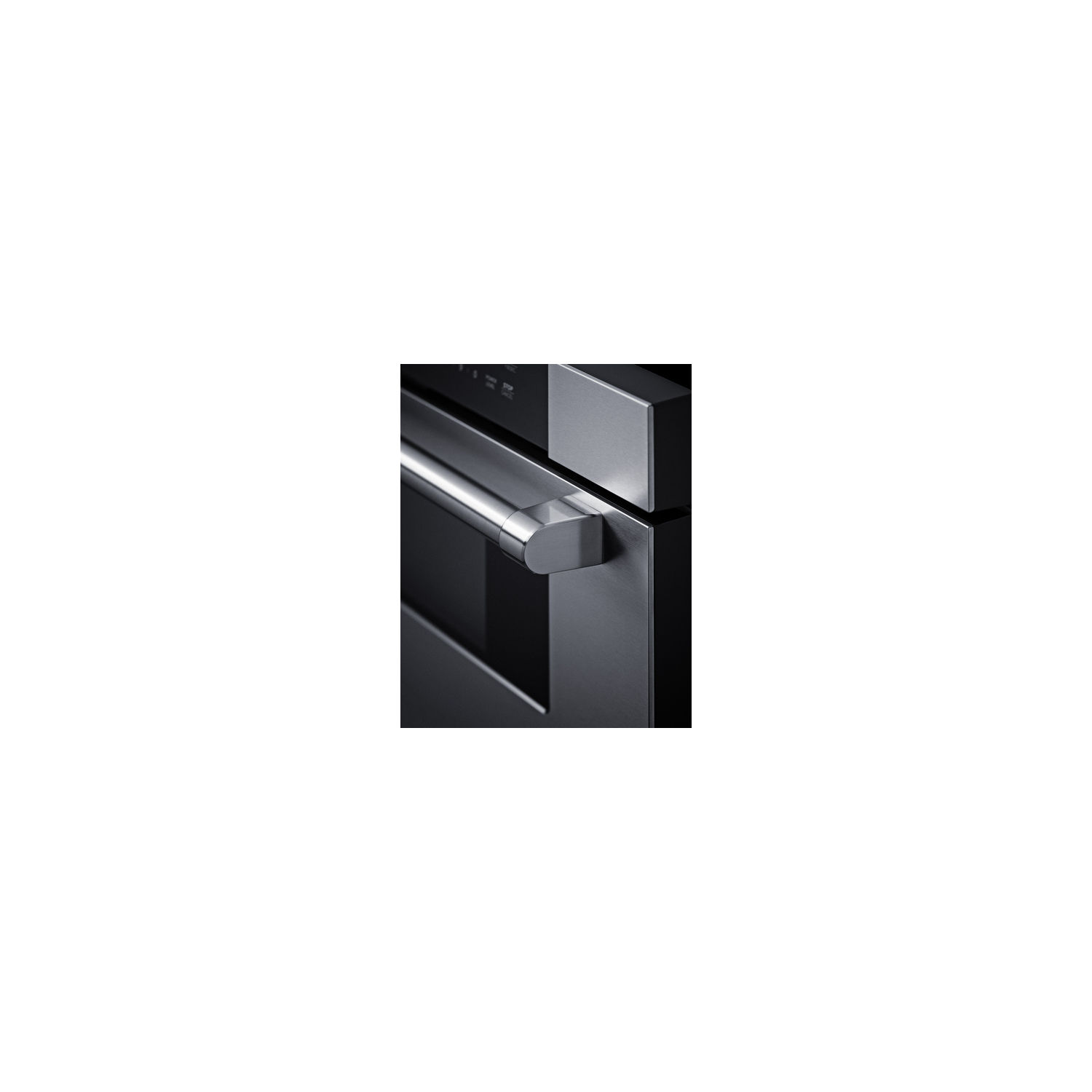

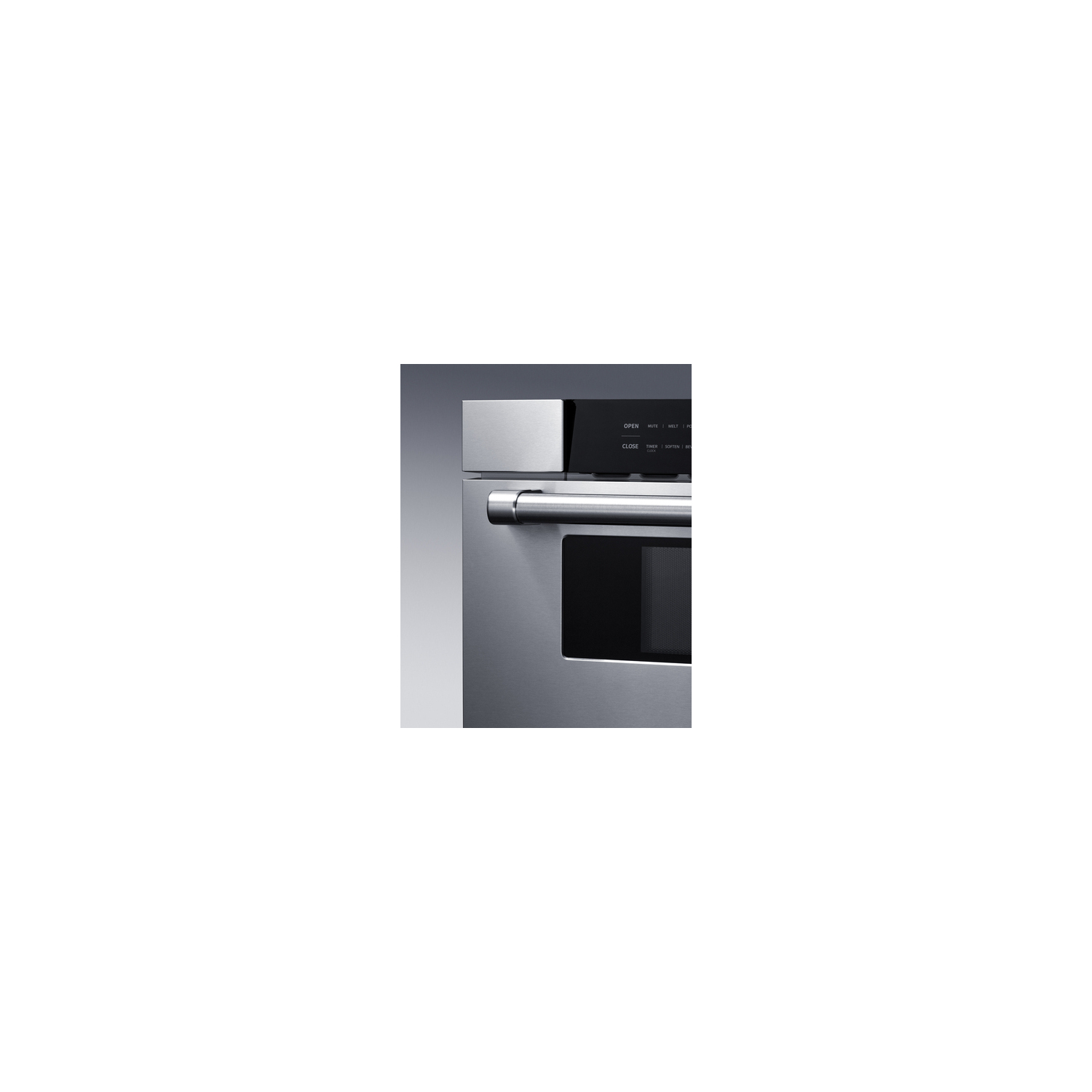

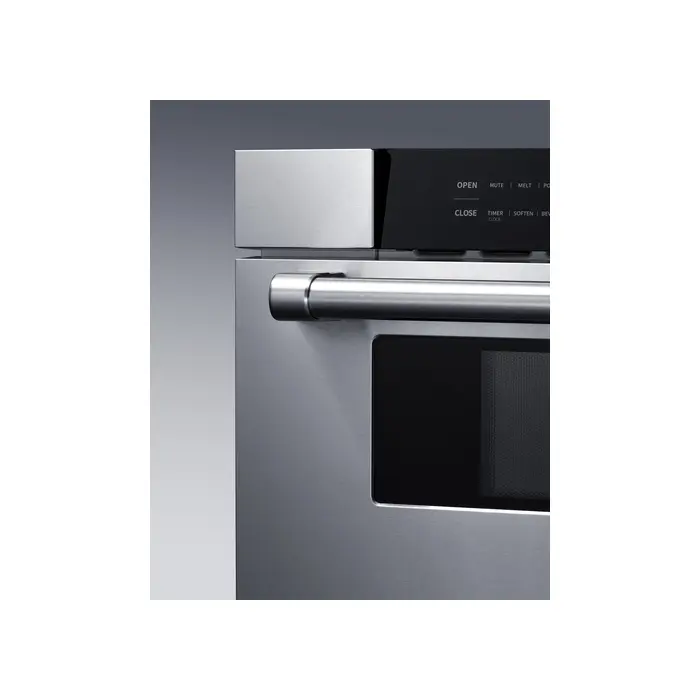

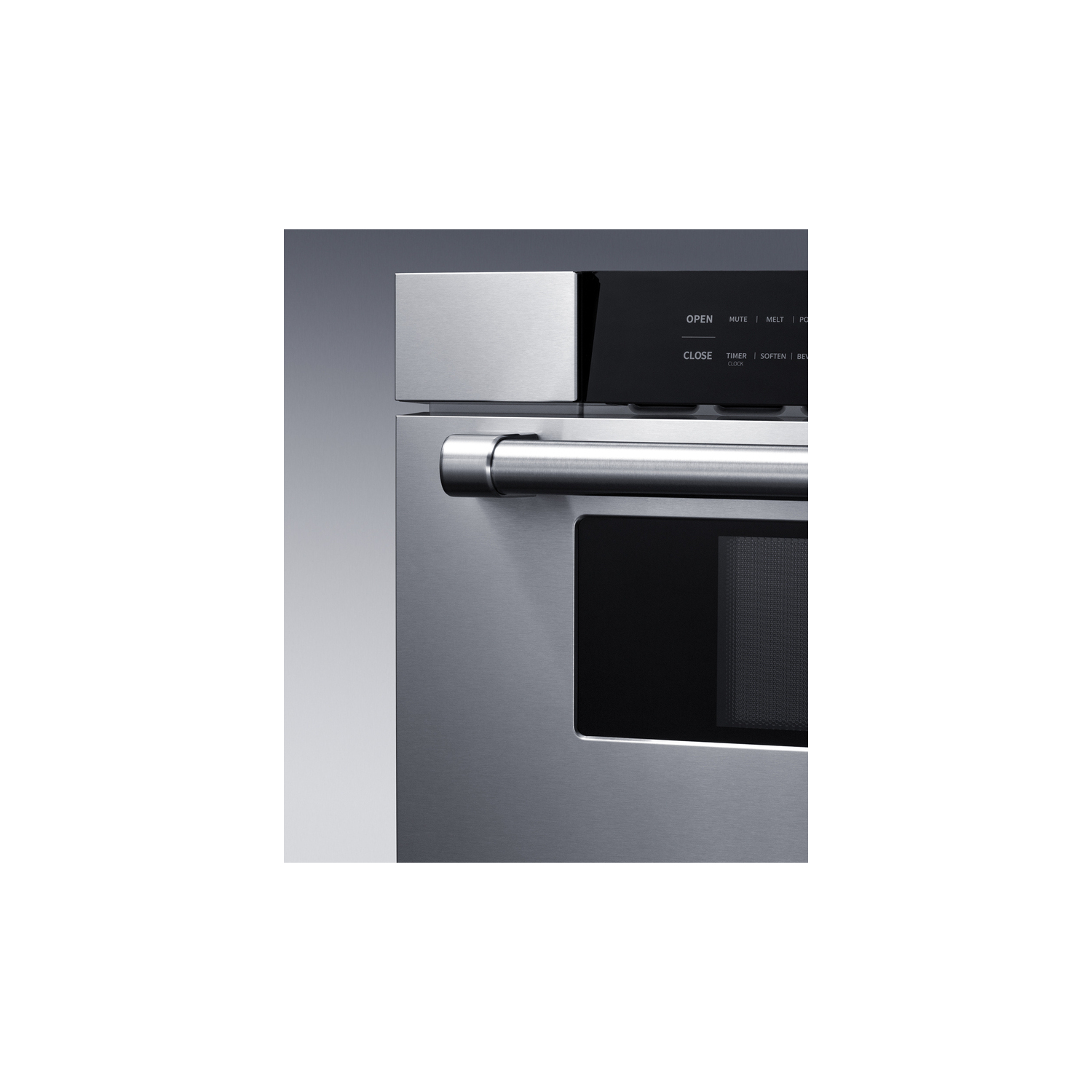

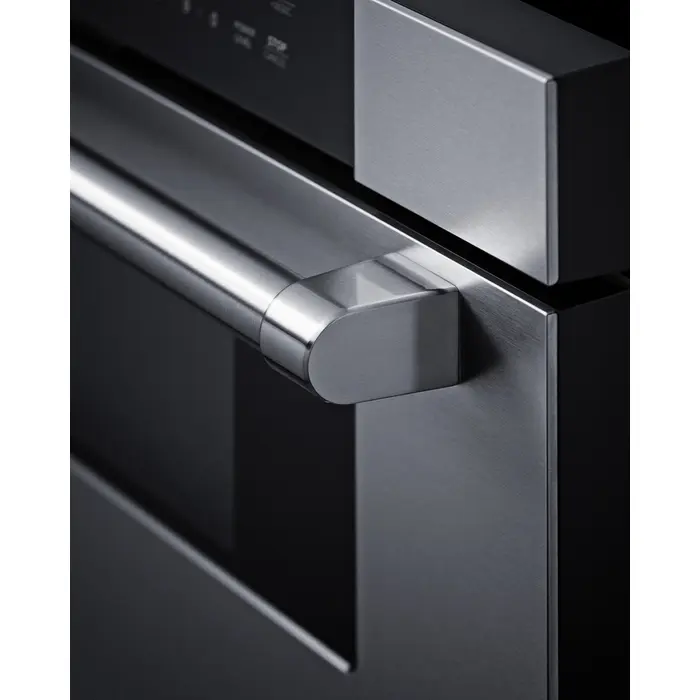

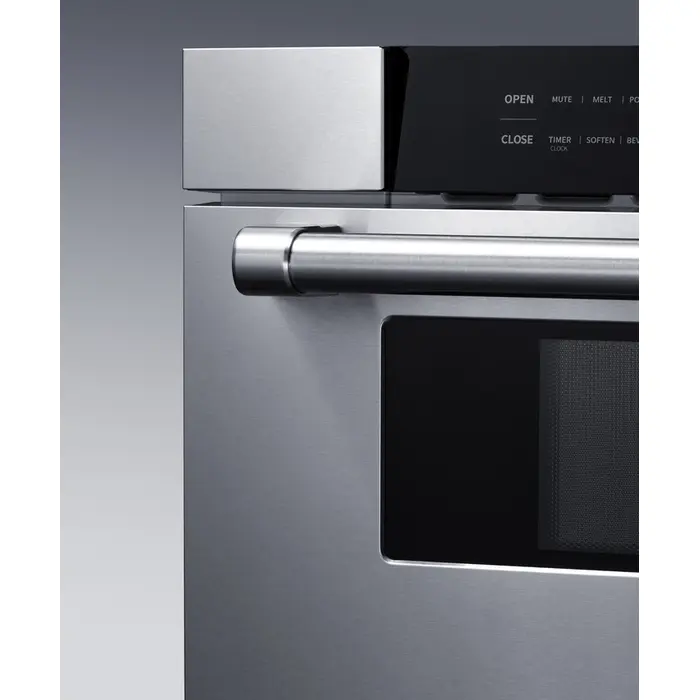

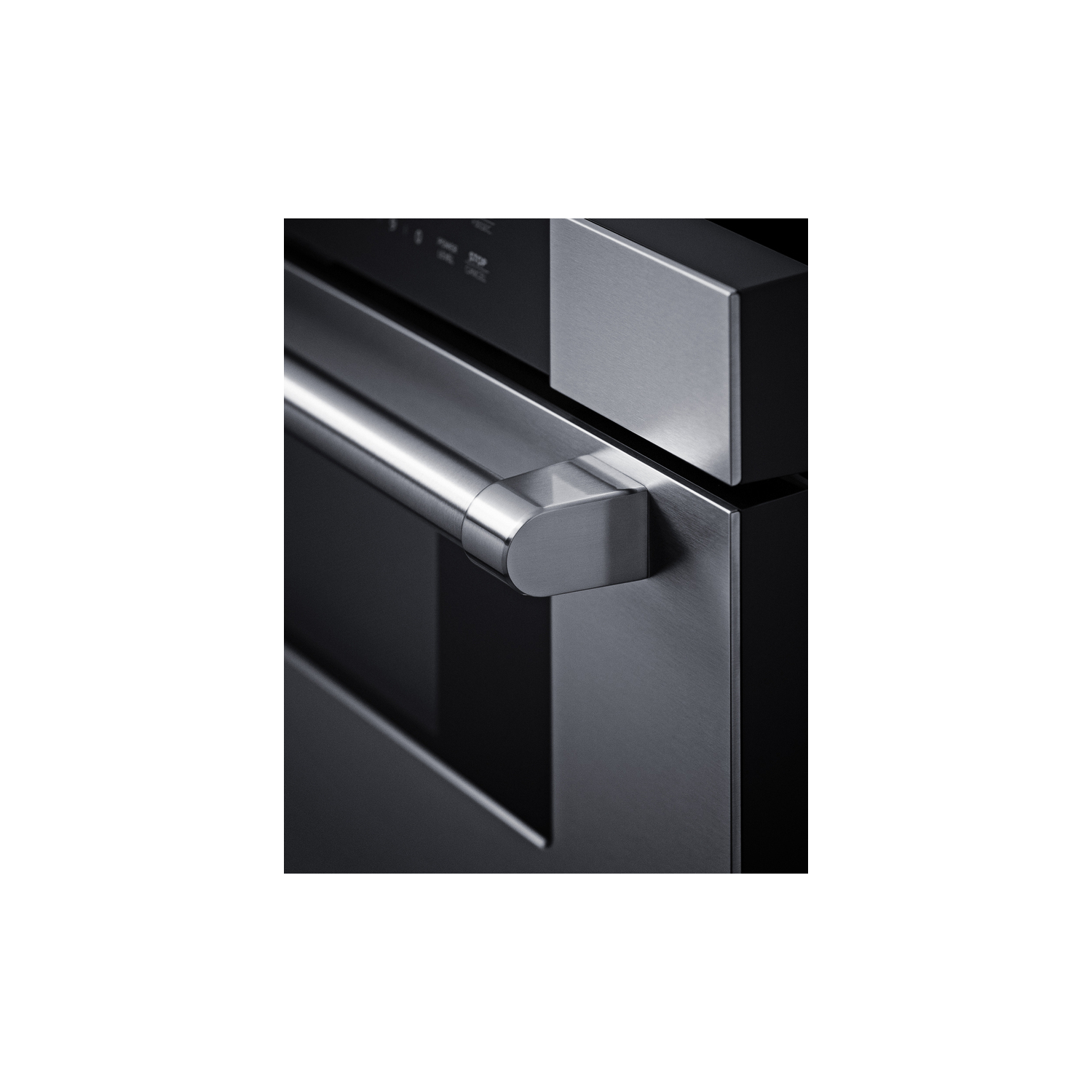

Professional handle Thick 1 1/4" diameter in brushed stainless steel adds a touch of luxury to your space
Tilted touch controls Control panel is set at a slight upward angle, making it easier to read all cooking functions
Specialty 1-touch cooking options Includes buttons for popcorn, beverages, melting, and softening
Multiple power levels 10 power levels of allow you to find the proper heat settings for every dish
Melt + soften function "Melt" setting lets you choose from commonly melted items (buter, chocolate, cheese, or marshmallows) and "soften" lets you choose from butter, ice cream, or cream cheese
Multiple settings function Program up to 2 cooking sequences to achieve the proper heating results

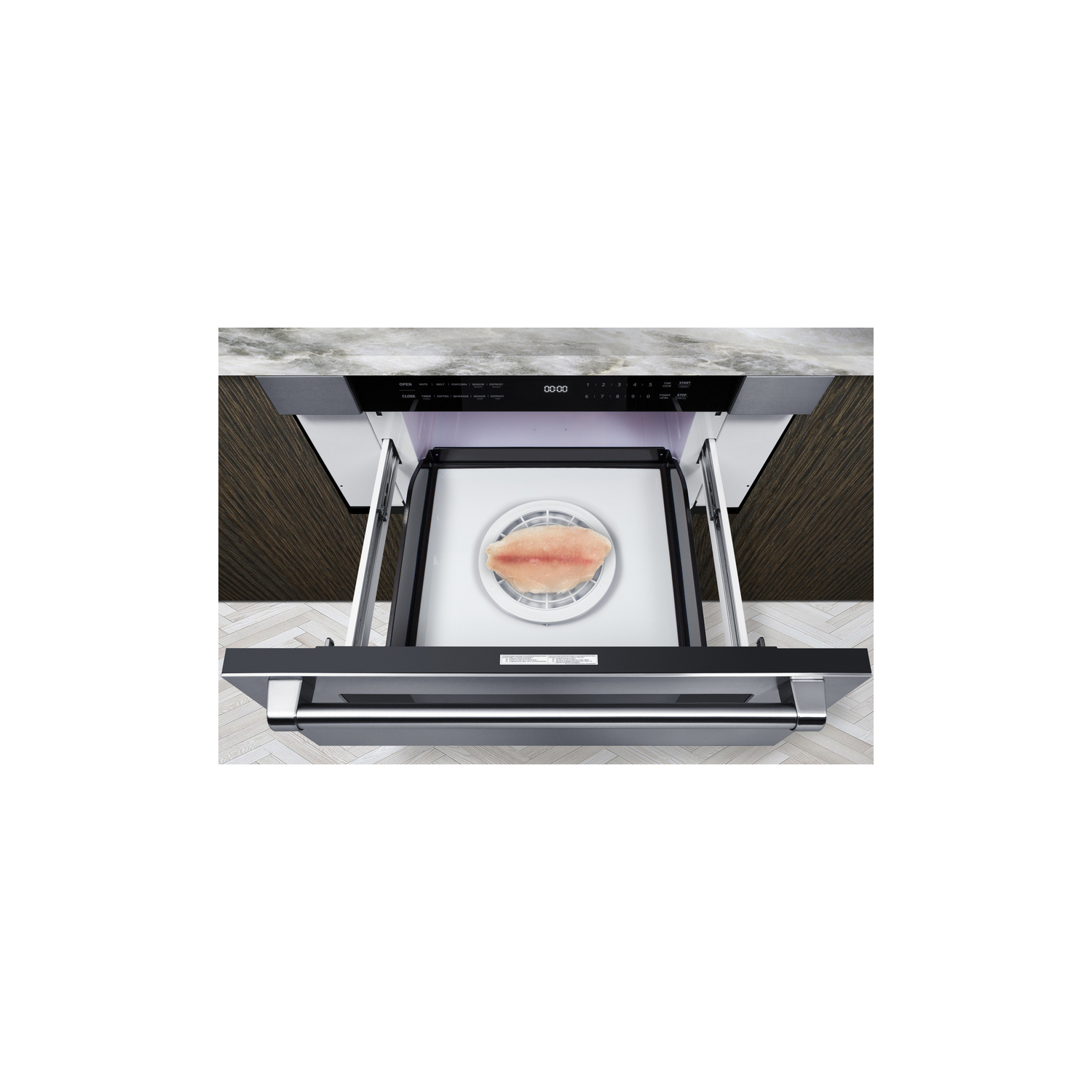

Defrost function Defrost by weight or time to best suit your cooking needs
+30 seconds function One-touch setting lets you add 30 seconds at the same cook setting
Time inquiry function Setting allows you to view a digital readout of the time or timer countdown
Sensor cook function Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked
End of cycle alarm An audible signal lets you know when the cooking time is complete
Mute function Setting allows you to disable the end of cycle alert
Eco function Setting reduces reduces stand-by power by turning off the display when the unit is not in use
Child lock Control lockout setting lets you protect the microwave from accidental changes

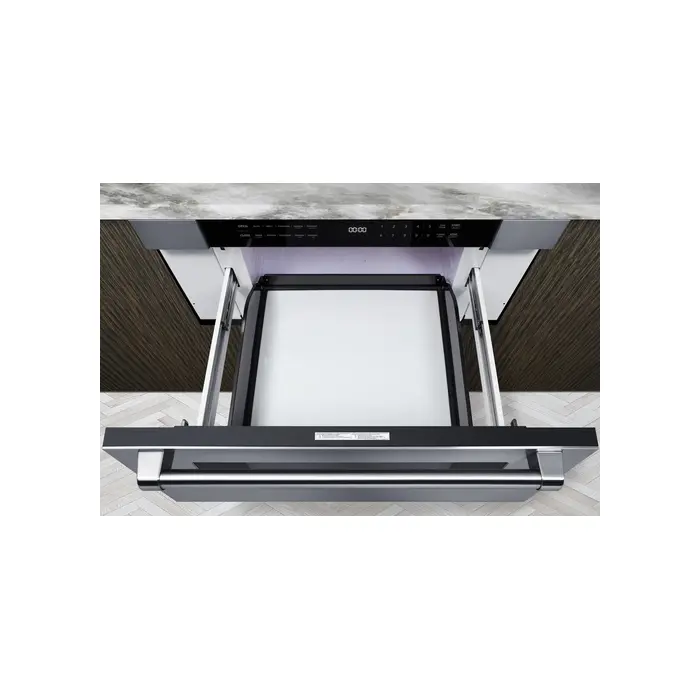

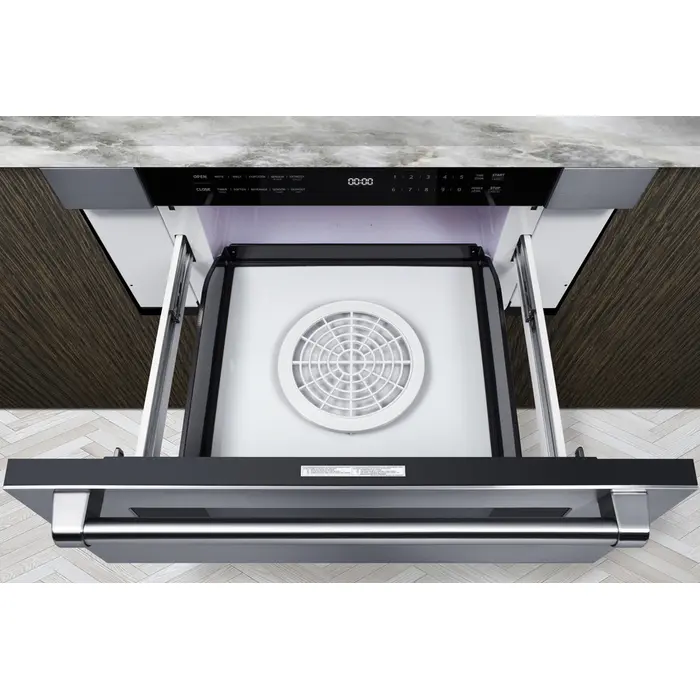

Drawer lighting Interior light will remain on when the drawer is open, making it easier to see your progress in the clean white interior
115V with cord included Includes a pre-installed right angle NEMA 5-15 plug on a 54" long cord
ADA-compliant design Accessible design to conform to the Americans with Disabilities Act when installed according to the guidelines
Full warranty Limited 1-year parts and labor
DOWNLOADS
BROCHURE w/ DRAWINGS (MDR30SS.pdf)
TECHNICAL DRAWING (.dwg) (MDR30SS.dwg)
