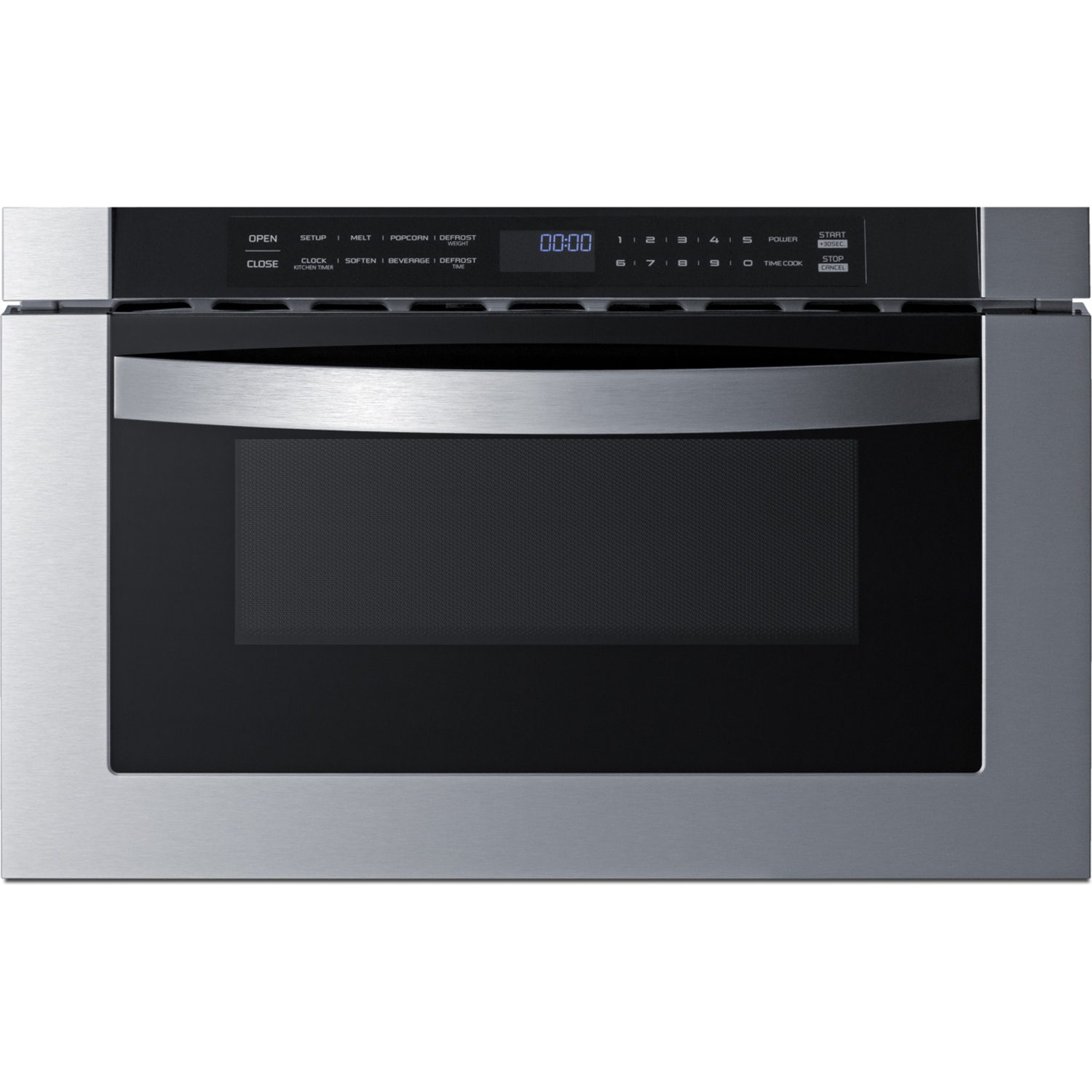

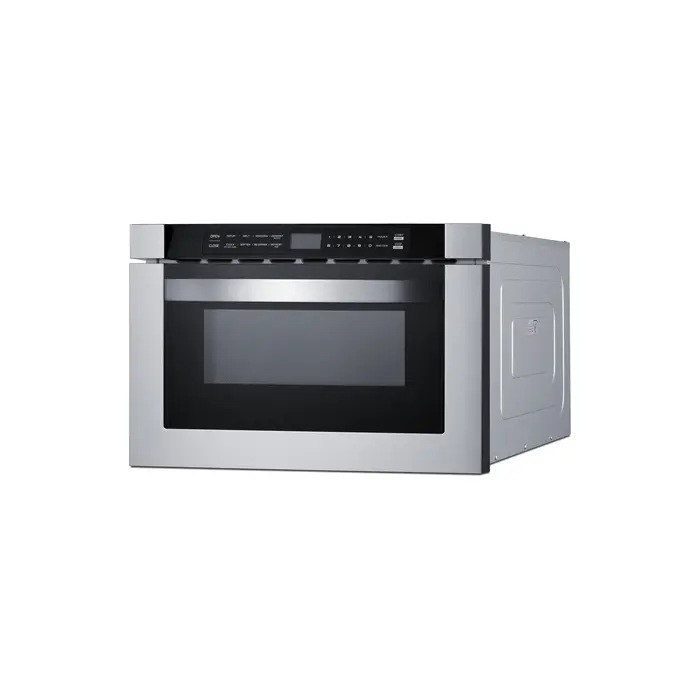

Summit 24 inch wide drawer microwave, 7.61101e+011, MDR245SS
$995.56
Retail Price: $1,350.00
Free shipping
$ 995.56
Description
Summit's innovative one-touch drawer microwave brings new style and function under the counter.
Sized for 24" wide openings, model MDR245SS is a 1.2 cu.ft. microwave with a pull-out drawer that can be installed in wall openings and kitchen islands, helping to free up counter space. One-touch open and close buttons make it easy to access and the top-loading design lets you monitor your cooking progress from the perfect position. The white interior includes a light, making it safer to remove hot items. This unit comes with a brushed stainless steel and jet black exterior for a modern look to suit any kitchen. This unit can be installed in compliance with ADA guidelines to ensure user accessibility. The control panel is set at a slight angle, making it easier to keep the settings in full view from any position.
Enjoy full microwave functionality with the MDR245SS's convenient features. 11 power levels let you select the right conditions for any meal. The "defrost by weight" setting helps to ensure a more efficient thawing process. Additional one-touch settings include a +30 seconds setting, popcorn button, beverage button, and melt setting that lets you choose from butter, chocolate, cheese, or marshmallow. A "soften" setting lets you achieve the best conditions for butter, cream cheese, or ice cream. This unit has an audible buzzer, which can be disabled if you prefer a quieter operation. A child lock and clock/timer are also included.
Model MDR245SS is designed to fit inside traditional 24" wide cabinet openings (for detailed installation guidelines, see page 12 of the use and care manual). In addition to our built-in drawer microwave, Summit offers other integrated appliances including gas and electric wall ovens, wine cellars, and single drawer refrigerators. Browse our full selection to explore your options.

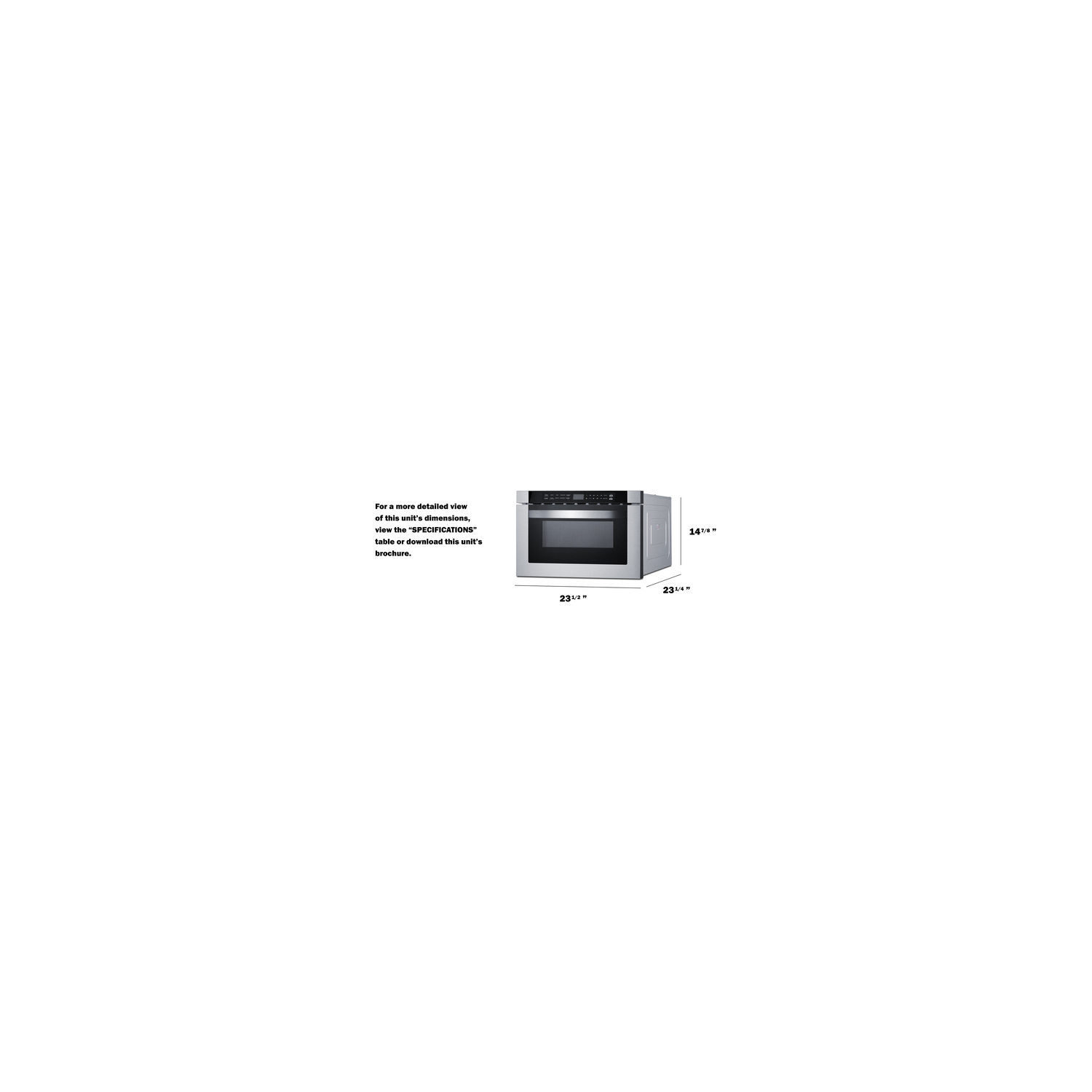

SPECIFICATIONS
Overview

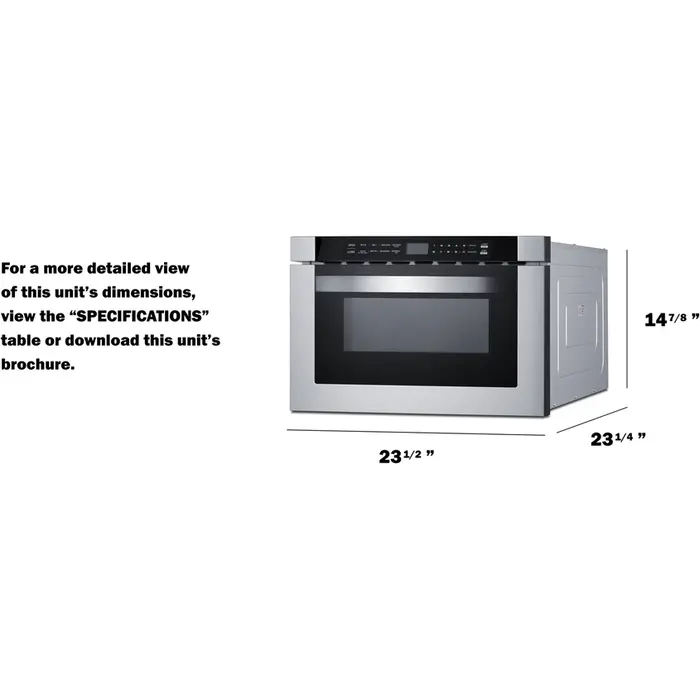

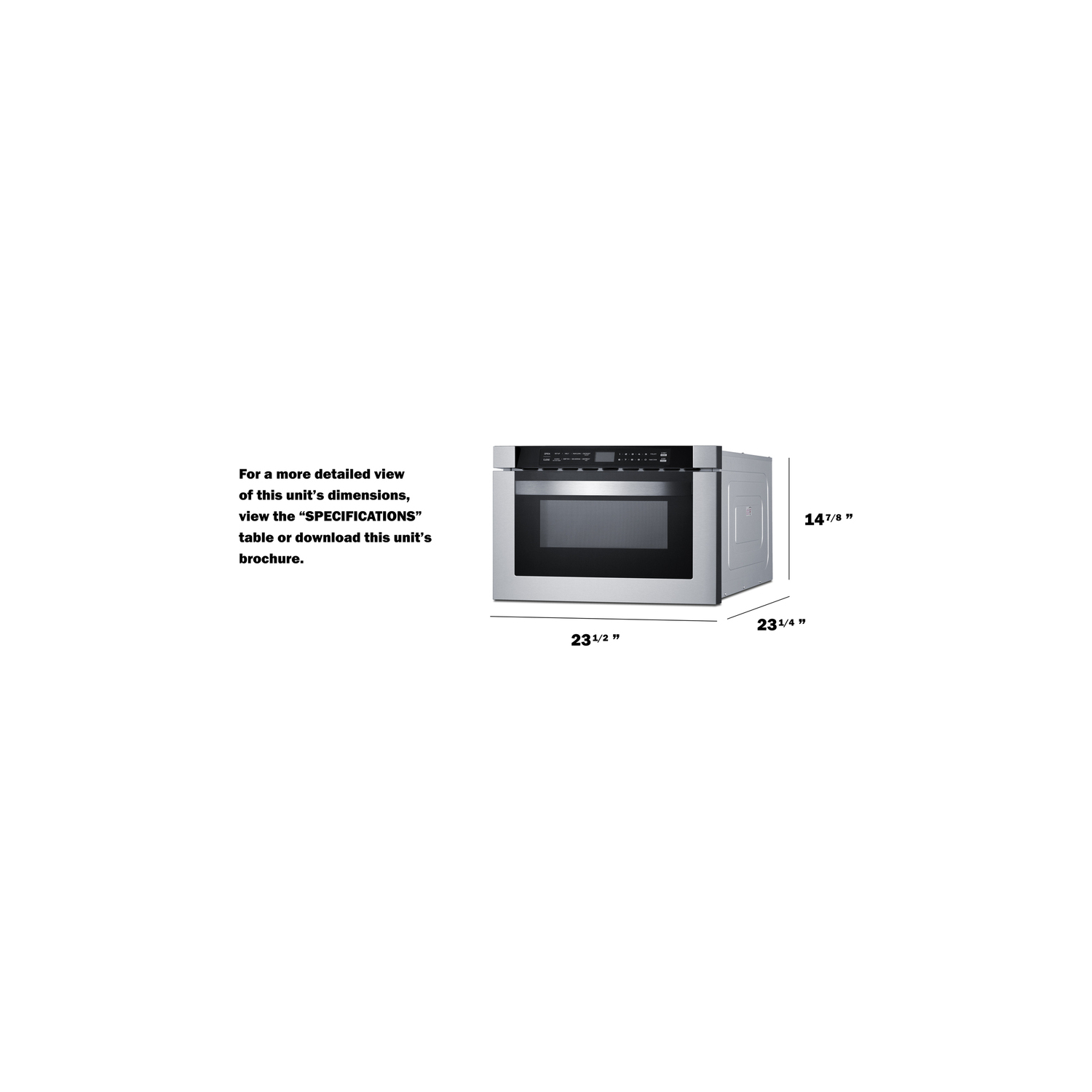

Nominal Height 15.0" (38 cm)
Height of Cabinet 14.88" (38 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 38.38" (97 cm)
Capacity 1.2 cu.ft. (34 L)
Door Black/SS
Cabinet Gray
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 12.0
Voltage/Frequency 115 V AC/60 Hz
Weight 33.0 lbs. (15 kg)
Parts & Labor Warranty 1 Year
UPC 761101086750
Microwave
Type Drawer
Wattage 1000.0
Controls Digital
Digital Display Yes
Specialized Cooking Buttons Yes
Cutout Height 14.81" (38 cm)
Cutout Width 22.13" (56 cm)
Cutout Depth 23.5" (60 cm)
Interior Height 7.13" (18 cm)
Interior Width 16.13" (41 cm)
Interior Depth 16.75" (43 cm)
FEATURES
24" wide drawer microwave Built-in microwave designed for installation in wall or island openings
Easy access with touch open/close Simply hold down the "open" and "close" buttons to access the microwave with minimal effort

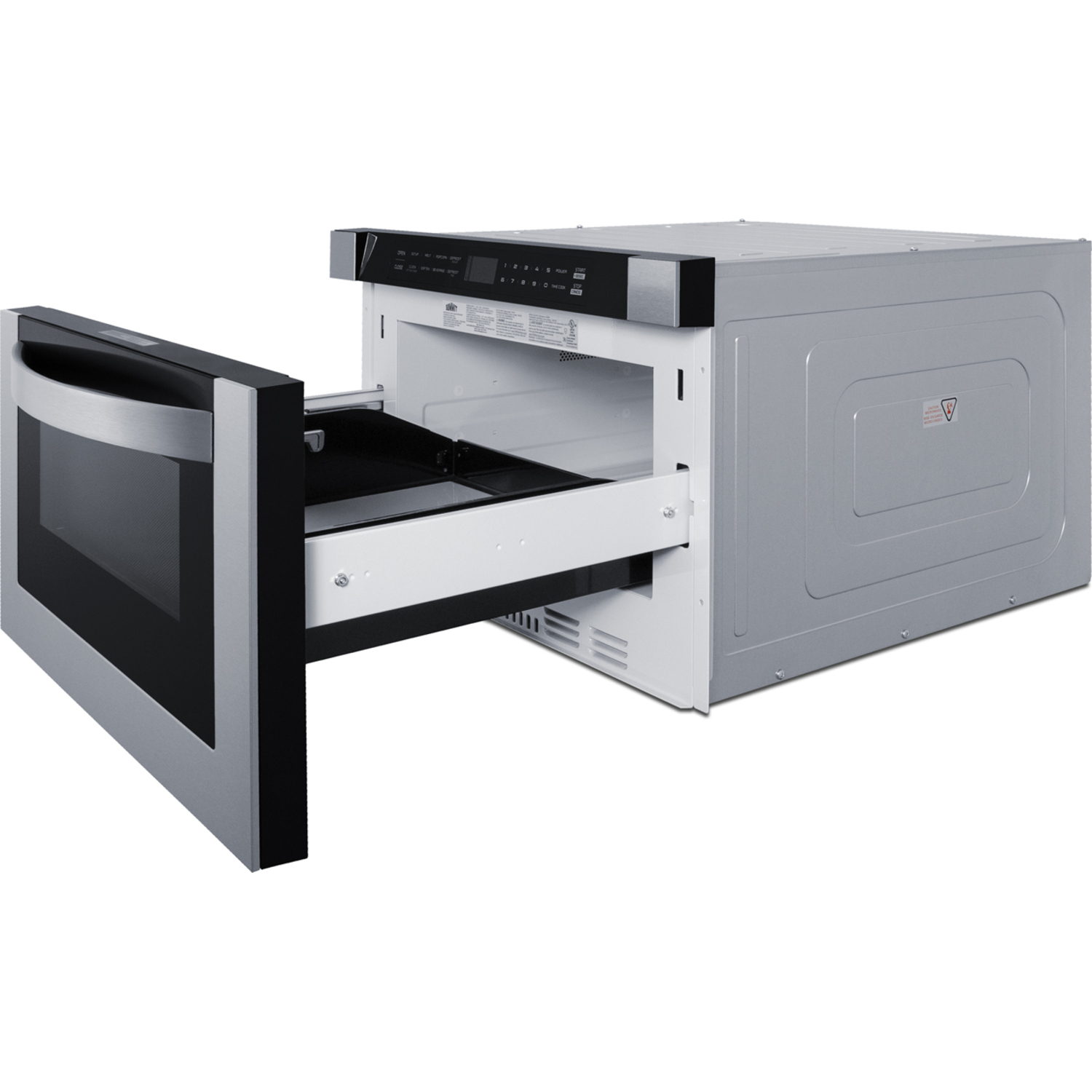

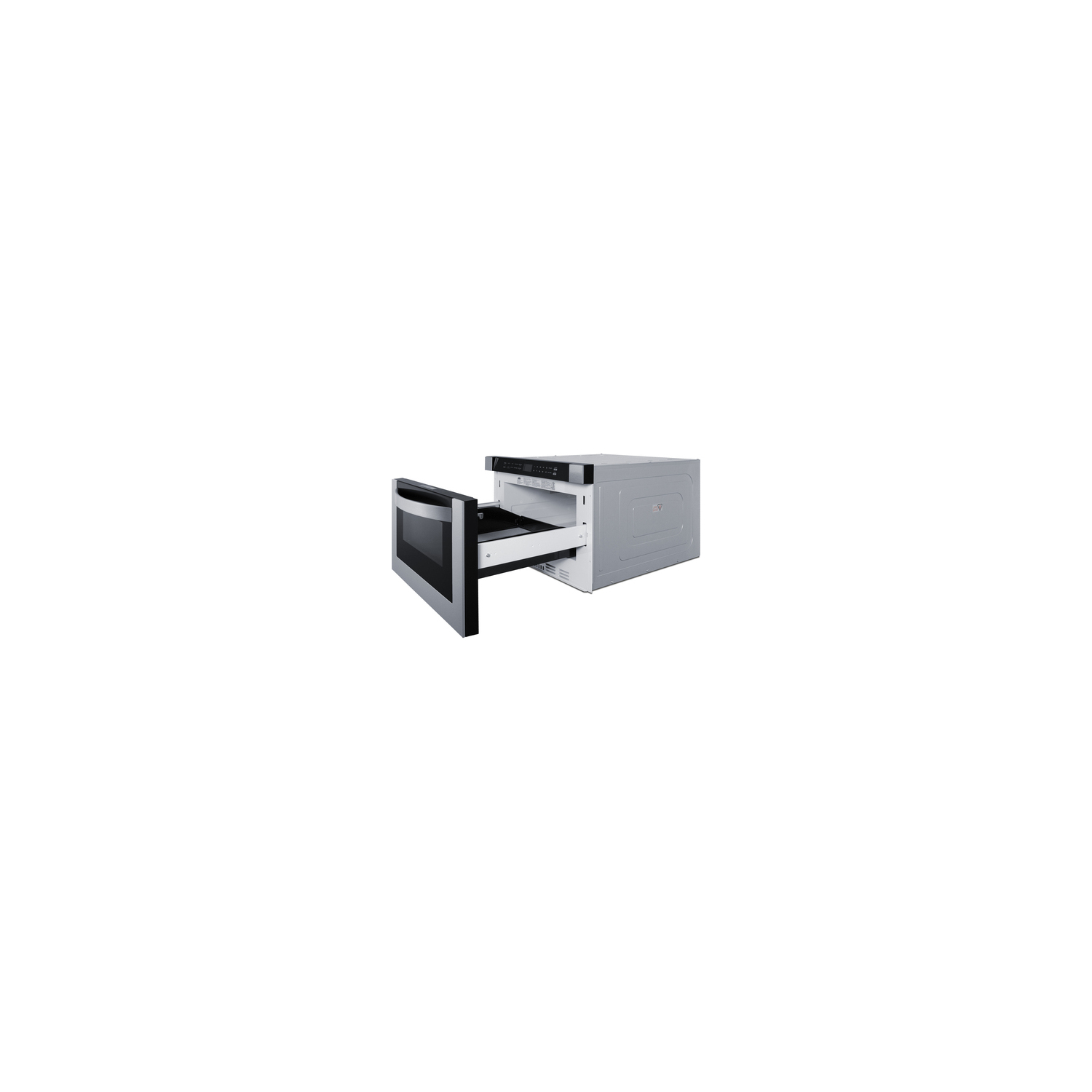

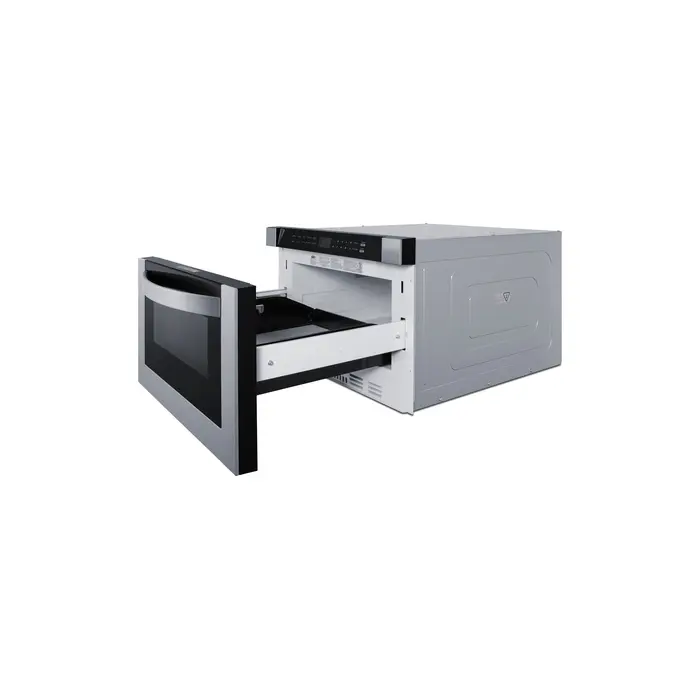

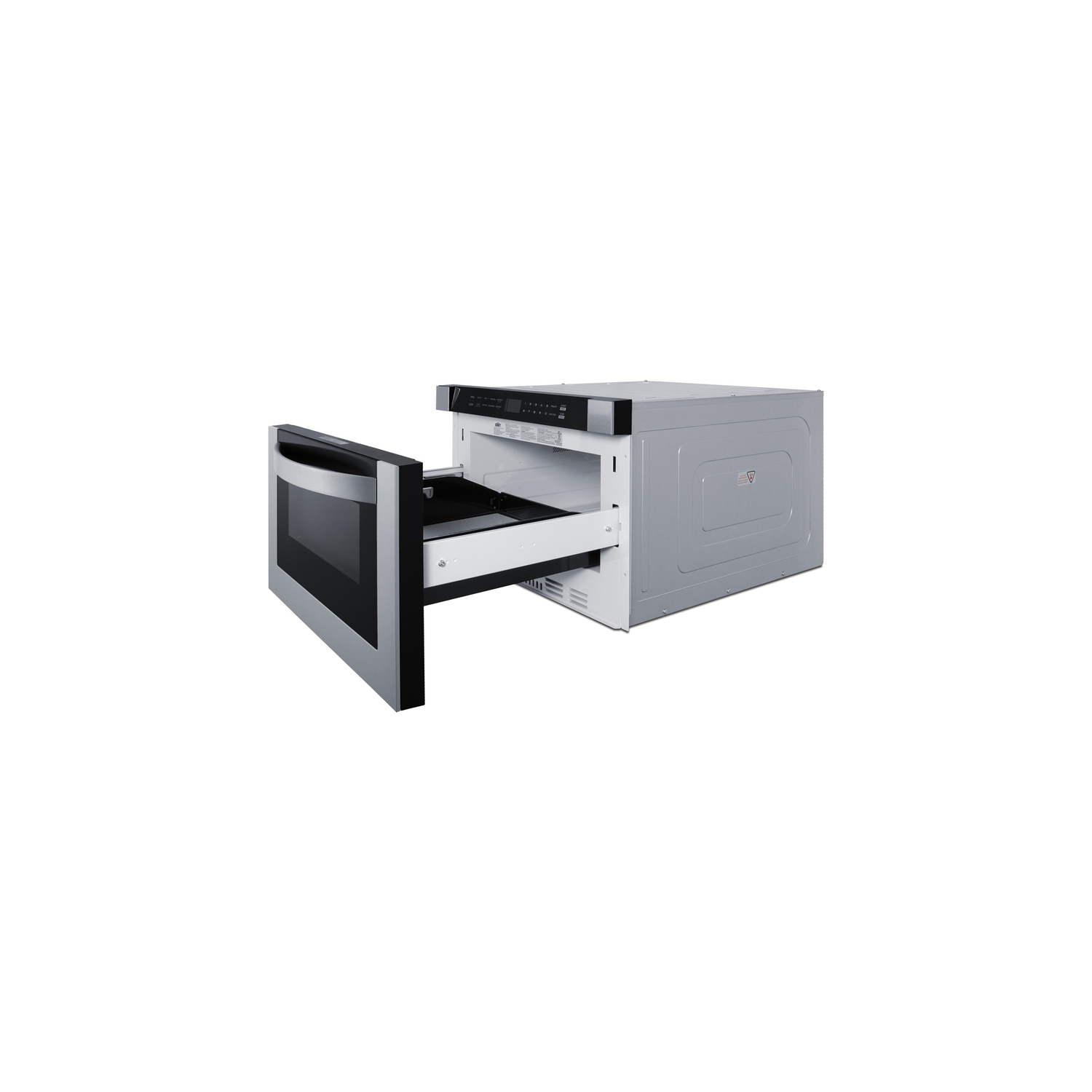

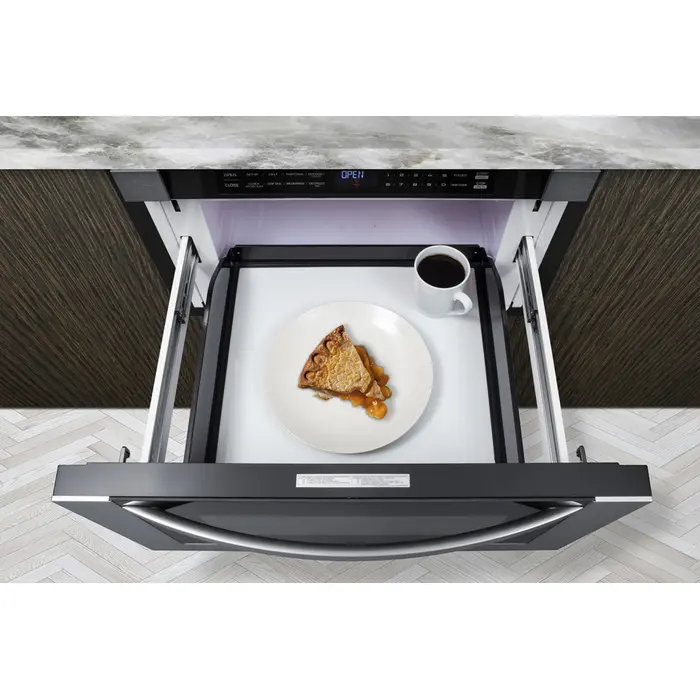

Top-load design Slide-out drawer lets you check your cooking without removing it from the microwave, helping to reduce spills
Large capacity 1.2 cu.ft. interior offers plenty of space for large dishes
Stainless steel finish Exterior features a brushed stainless steel trim to elevate your kitchen design
Blade style handle Brushed stainless steel in a modern shape that suits any kitchen style

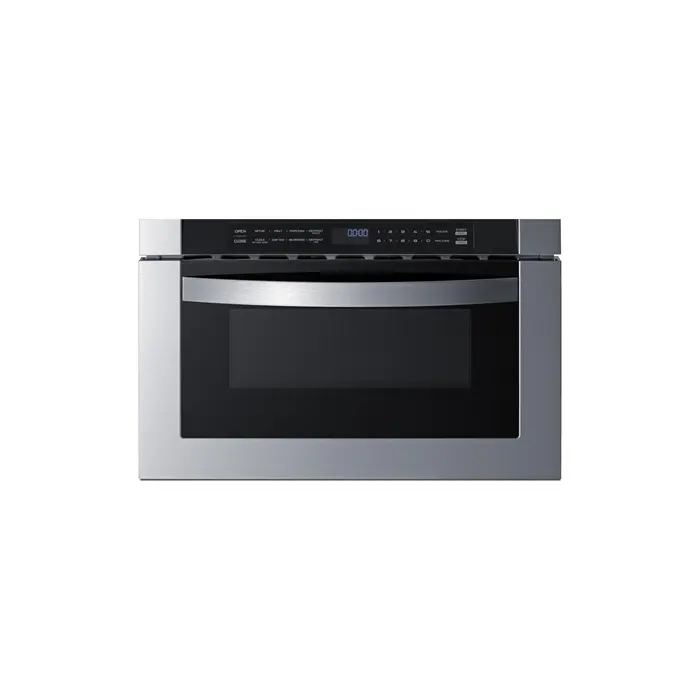

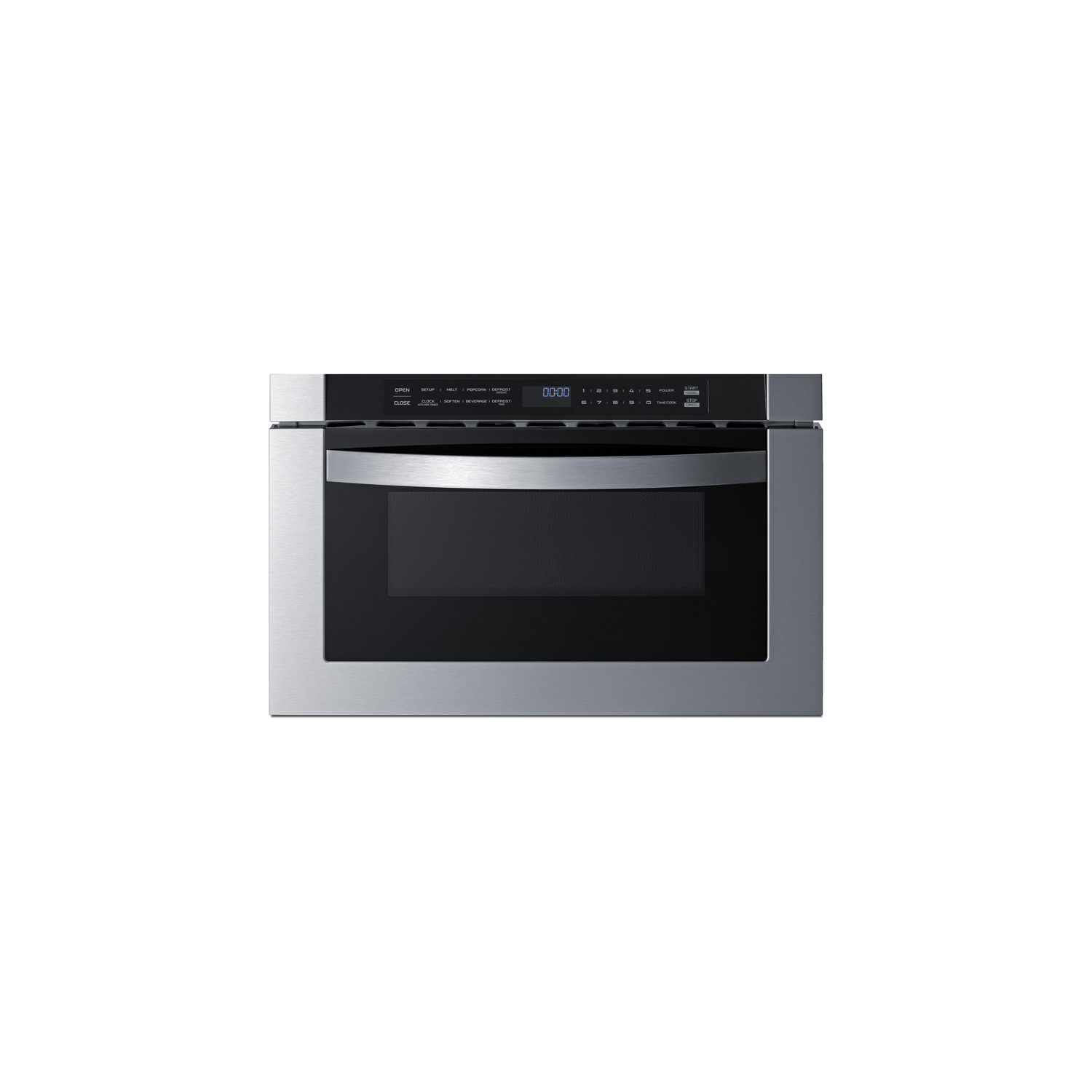

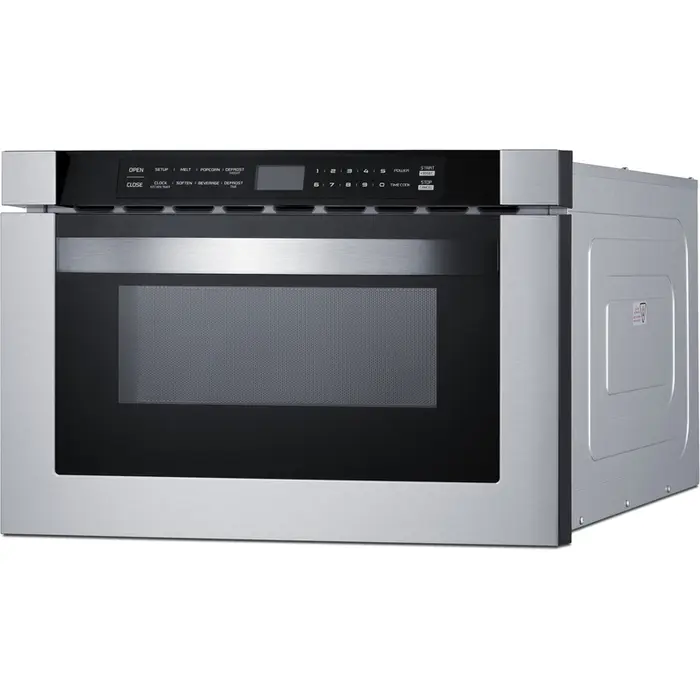

Easy-to-read controls Control panel is set at a slight angle, making it easier to read all of the functions in any position
One-touch cooking Includes buttons for popcorn, beverages, melting, and softening
Melt and soften options "Melt" setting lets you choose from commonly melted items (buter, chocolate, cheese, or marshmallows) and "soften" lets you choose from butter, ice cream, or cream cheese
+30 Seconds Function One-touch setting lets you add 30 seconds at the same cook setting
Multiple power levels 11 levels of heat allow you to find the proper settings for every dish

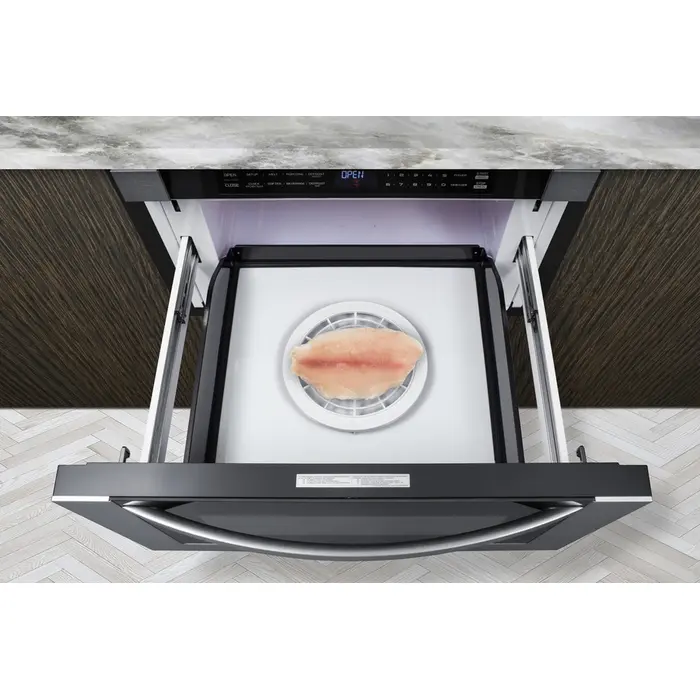

Defrost options Defrost by weight or time to best suit your preference

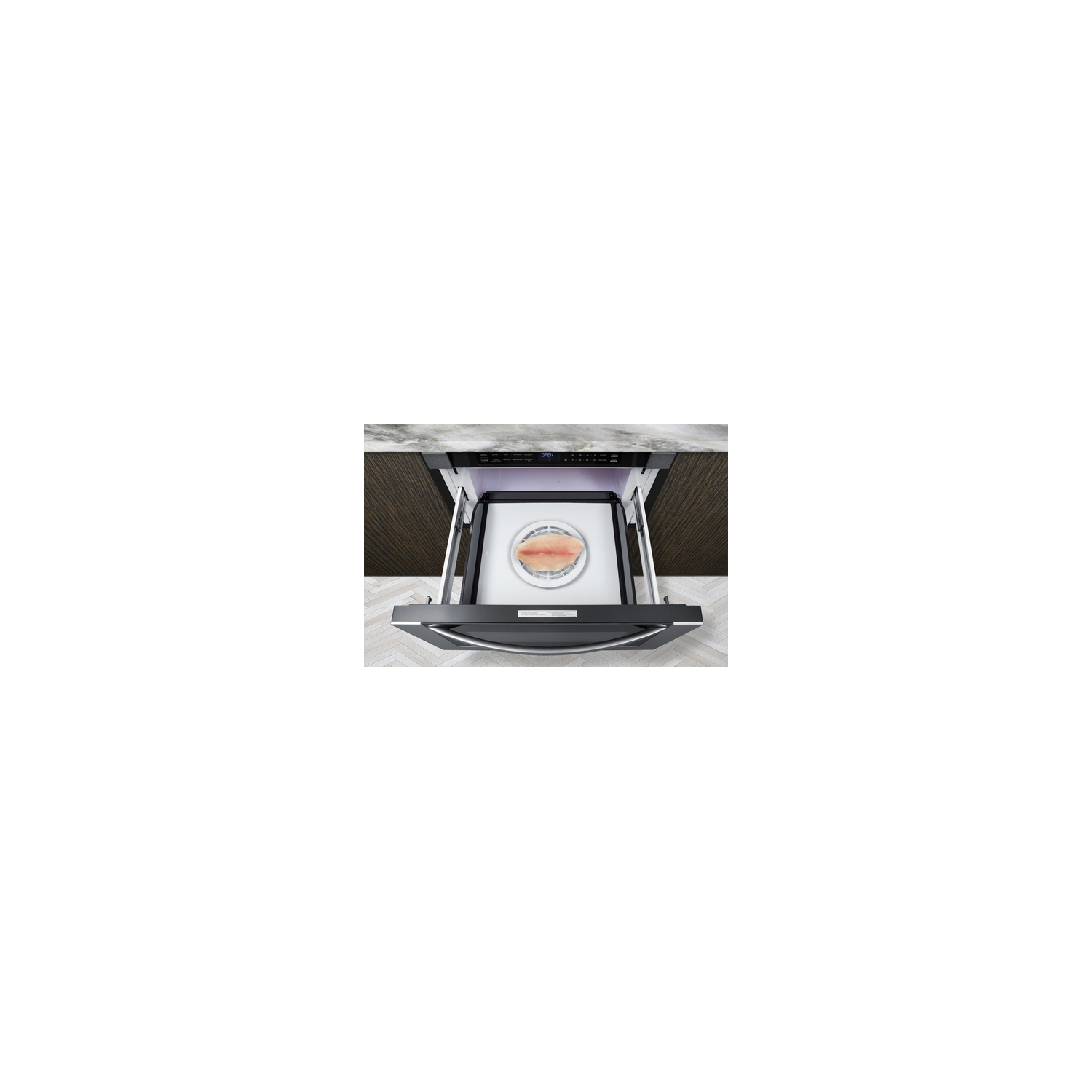

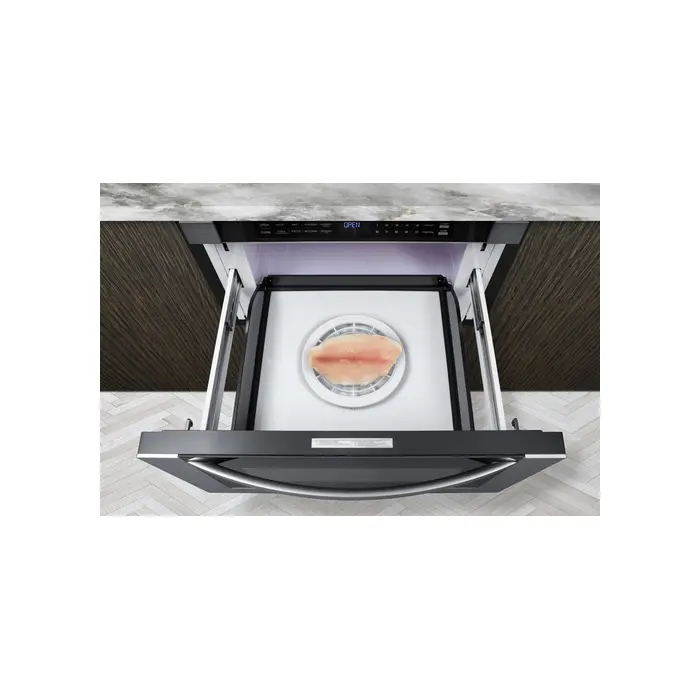

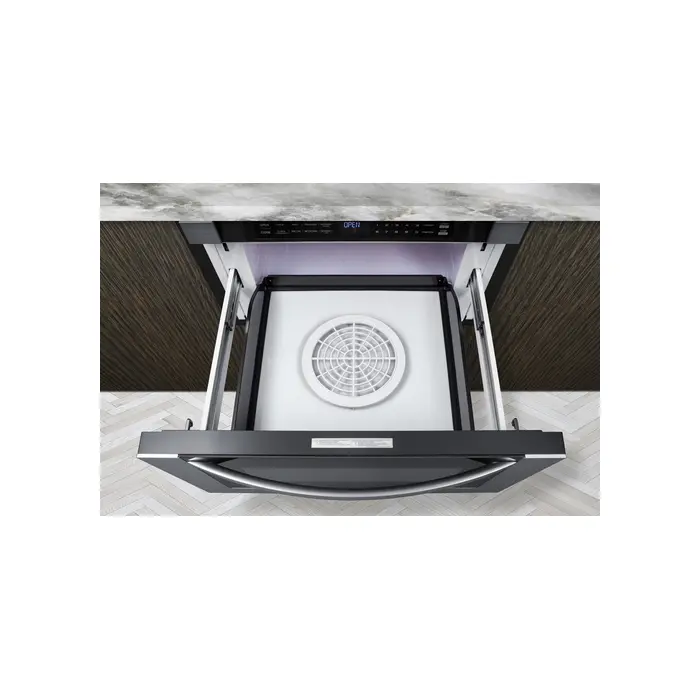

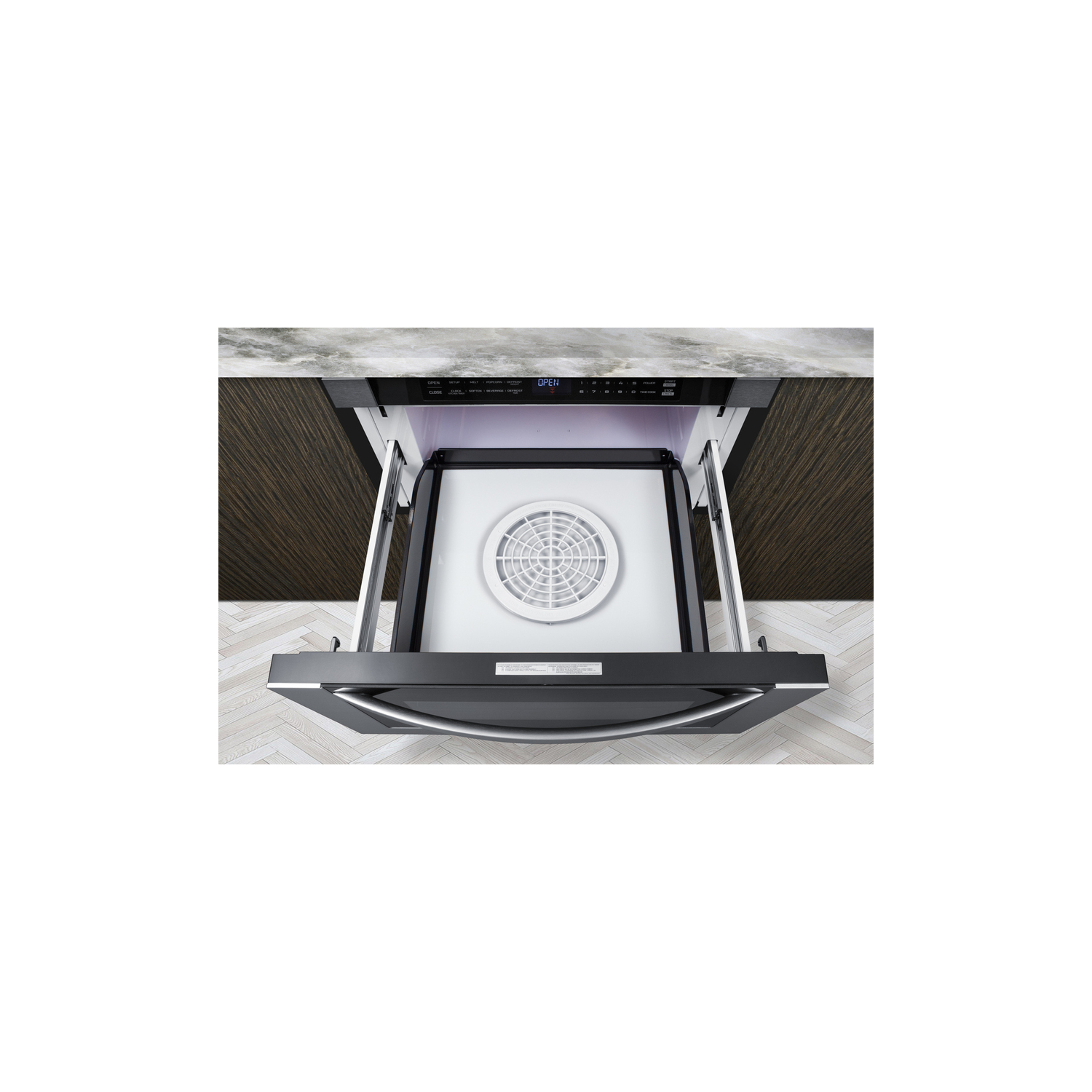

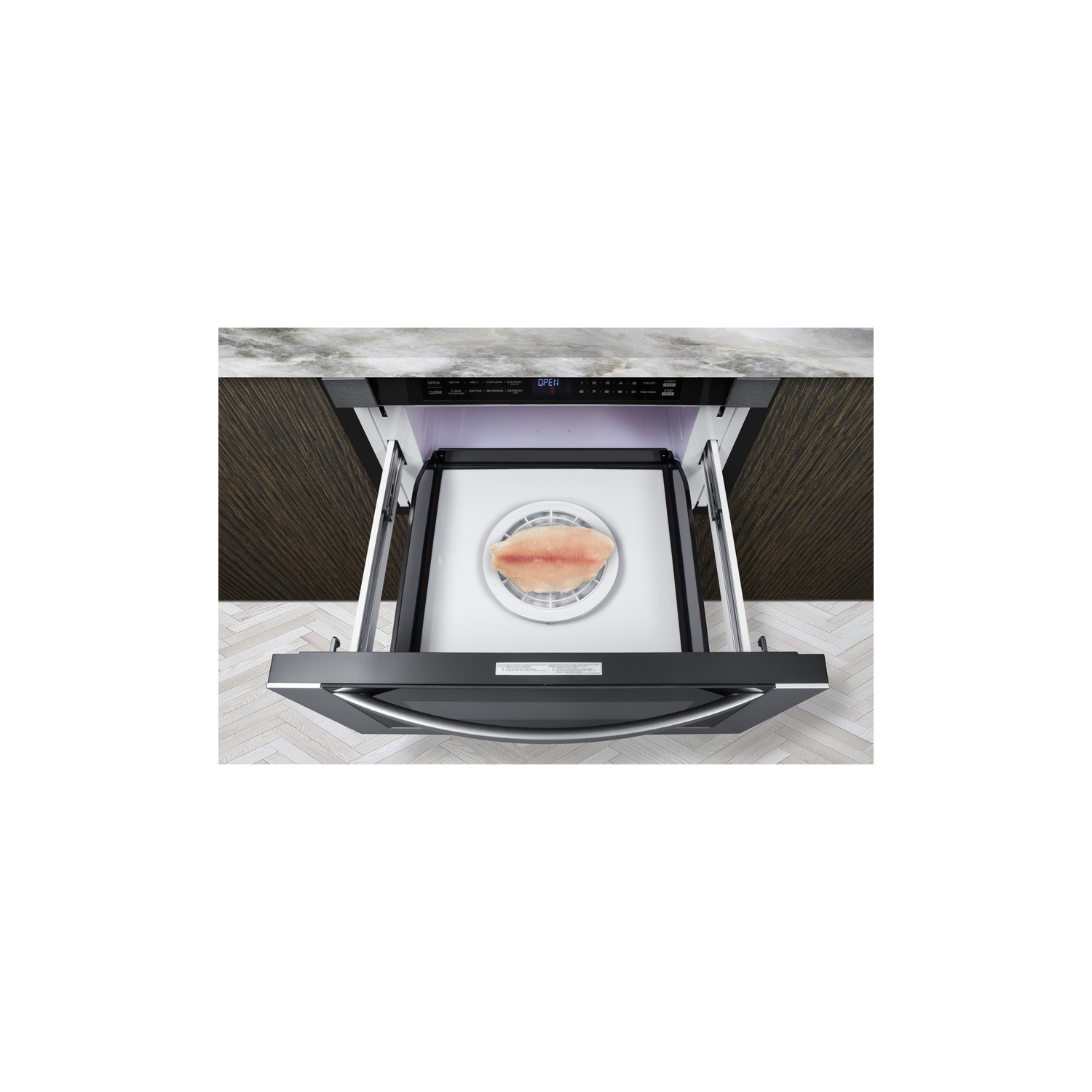

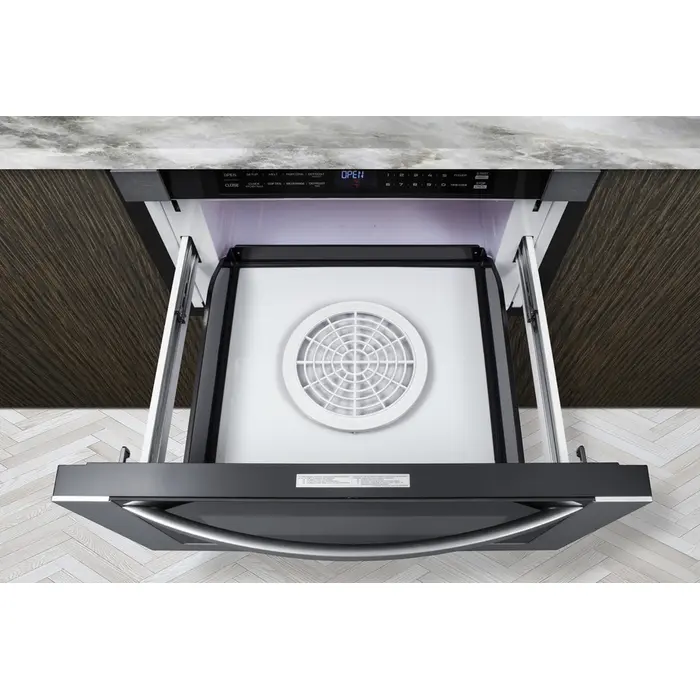

Defrost tray included Round rack to hold meat and other items in place when using the defrost setting
Mute function Option allows you to disable the end of cycle alert
Clock and timer Centered display shows a digital readout of the time or timer countdown
Child lock Control lockout setting lets you protect the microwave from accidental changes

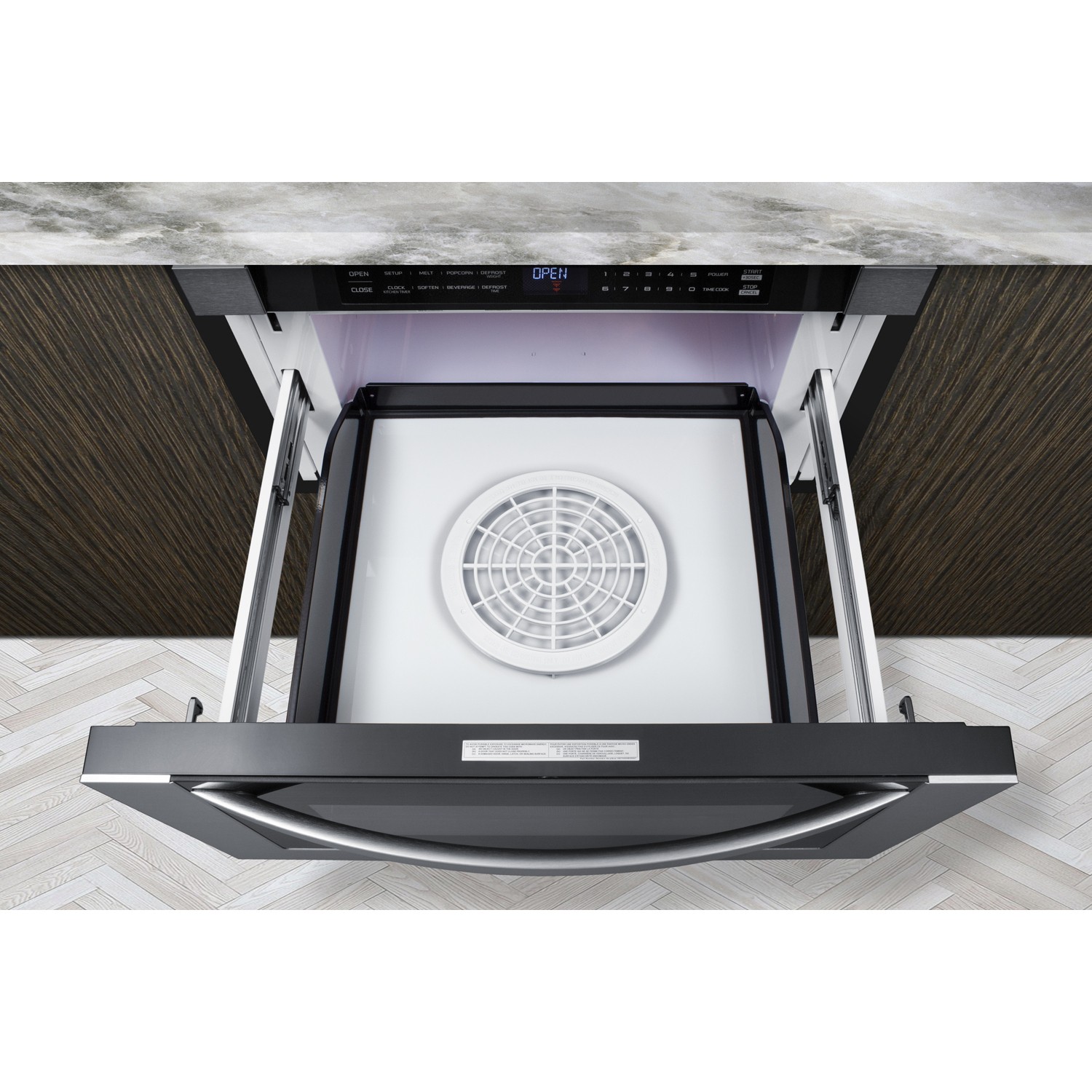

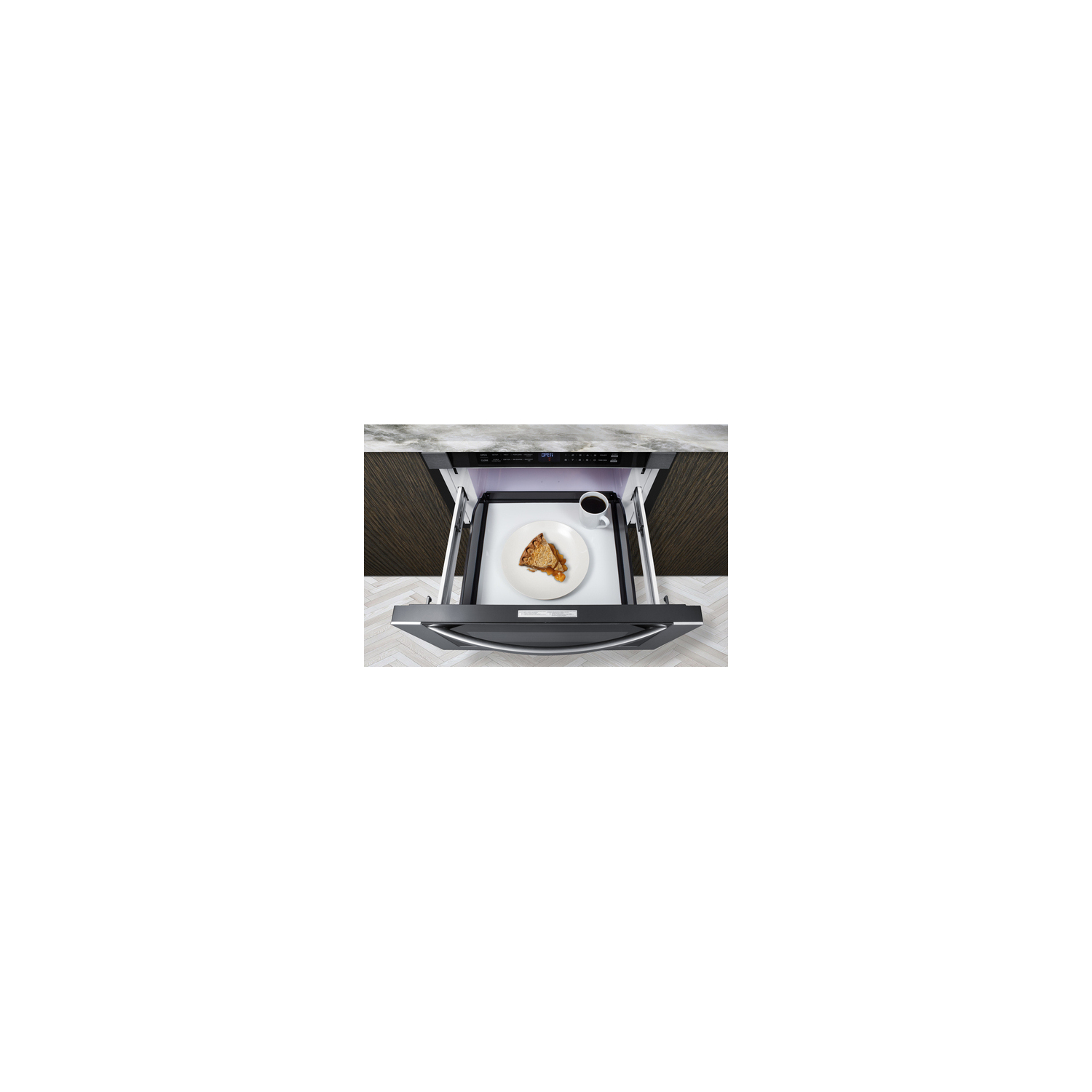

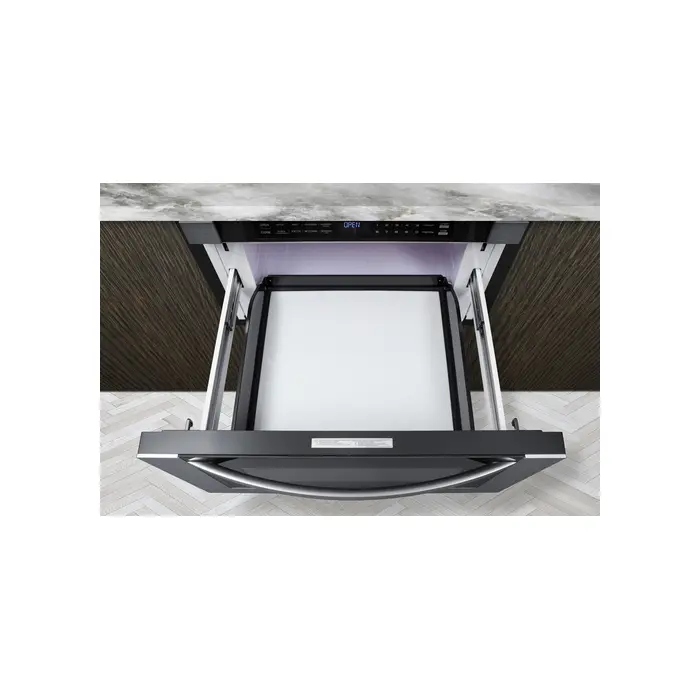

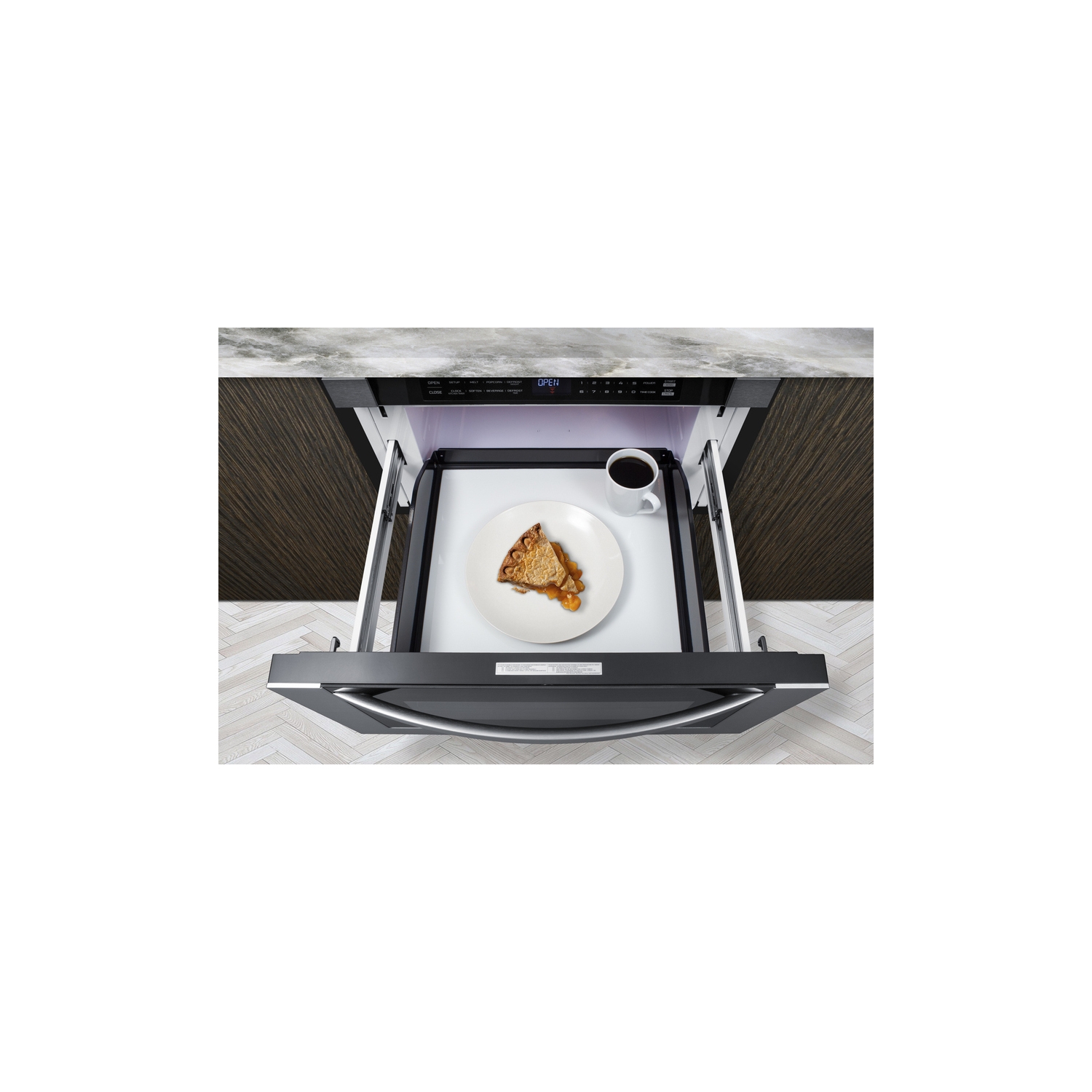

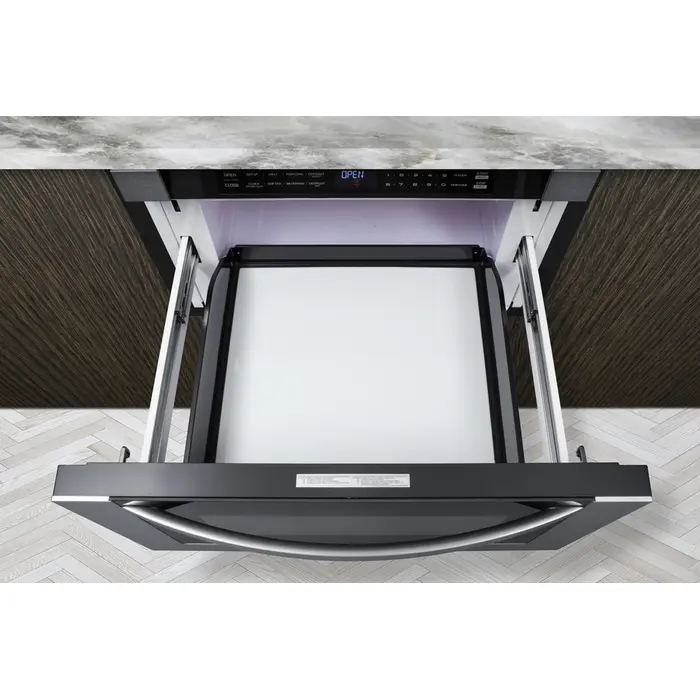

Drawer lighting Interior light will remain on when the drawer is open, making it easier to see your progress in the clean white interior

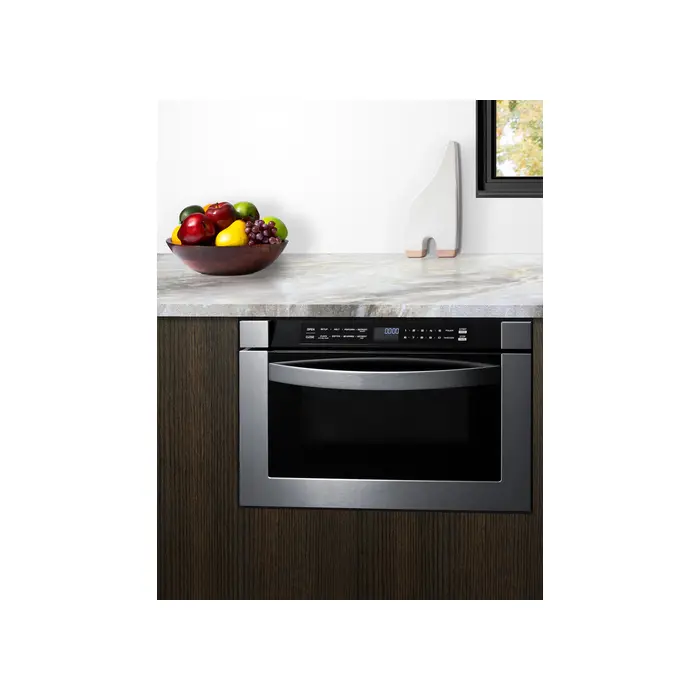

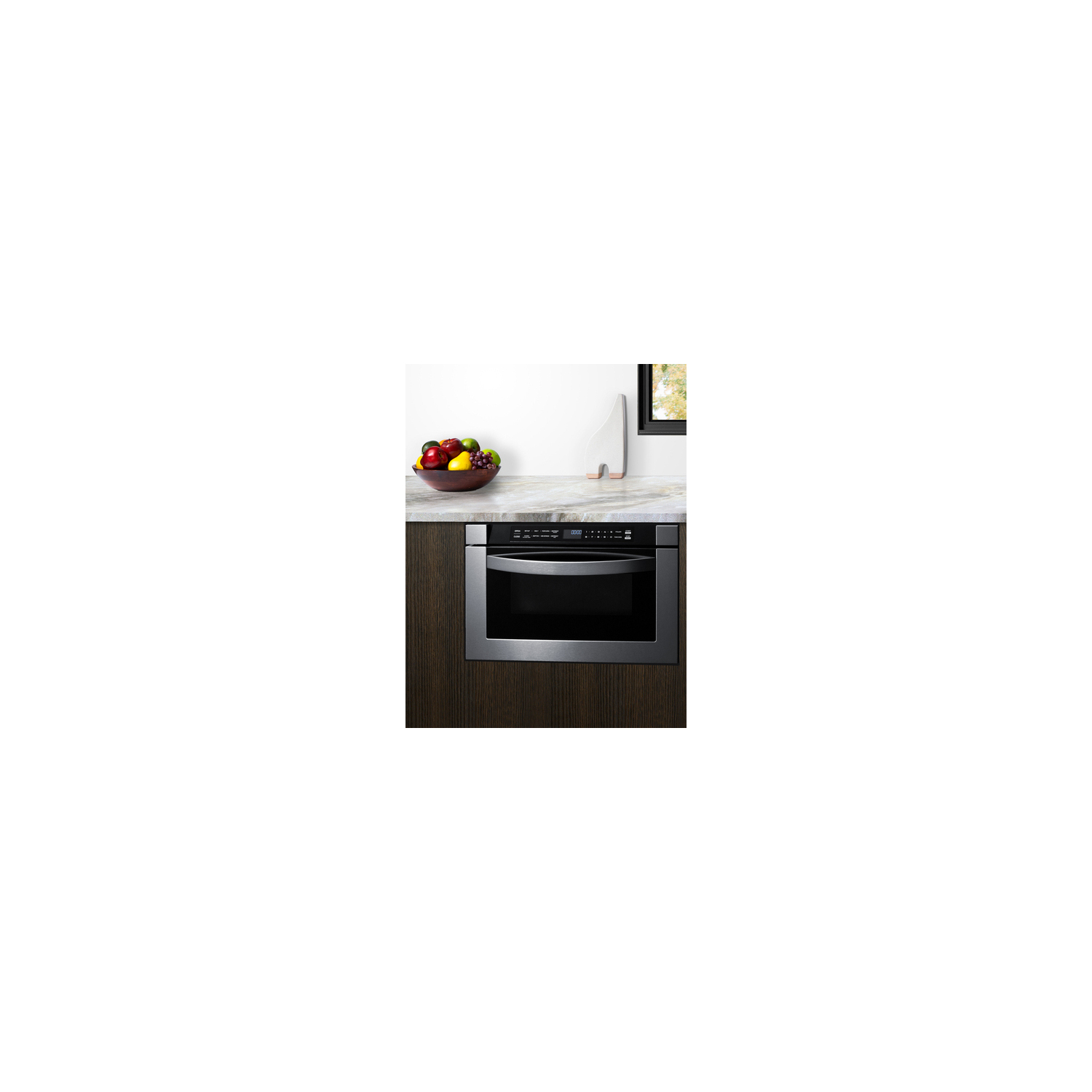

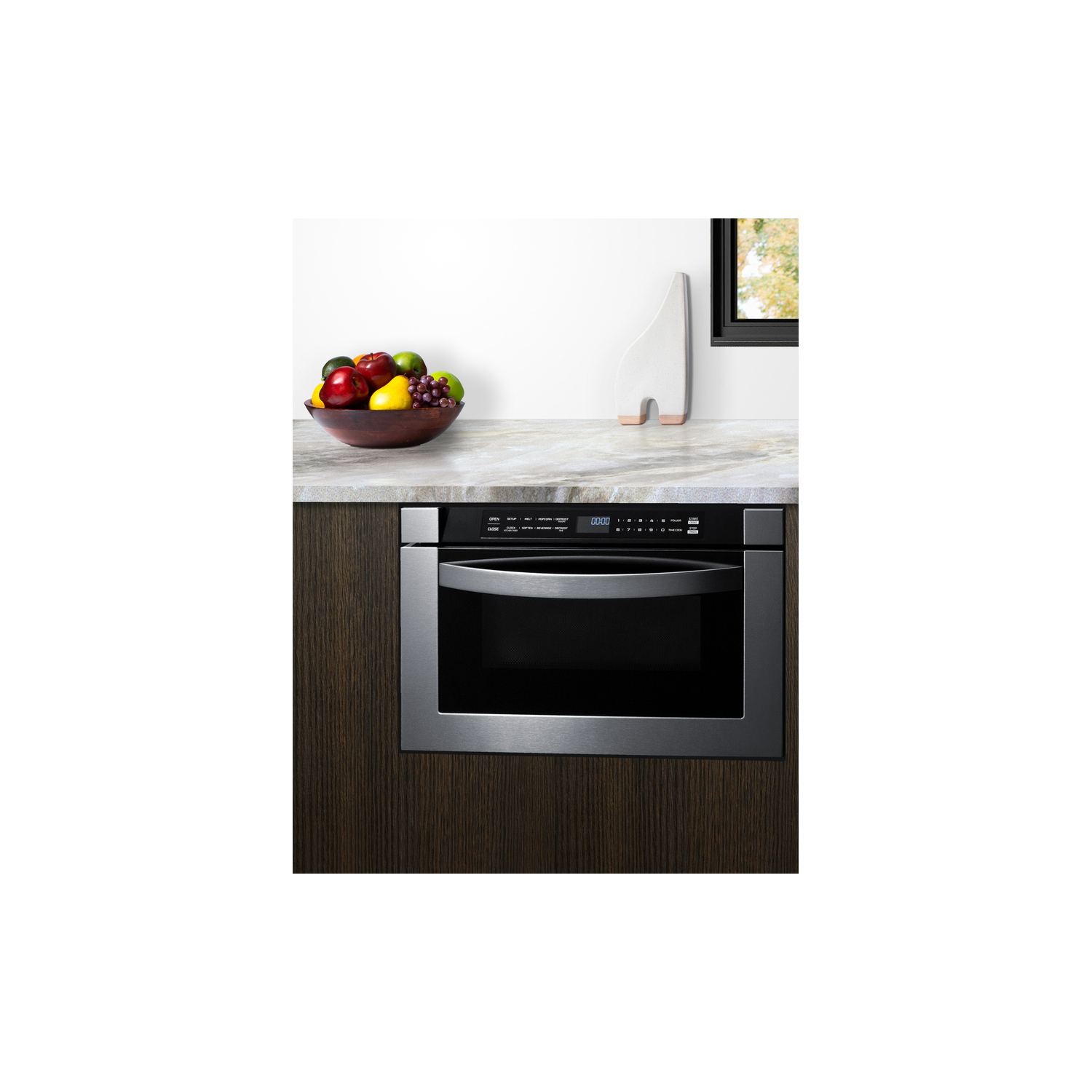

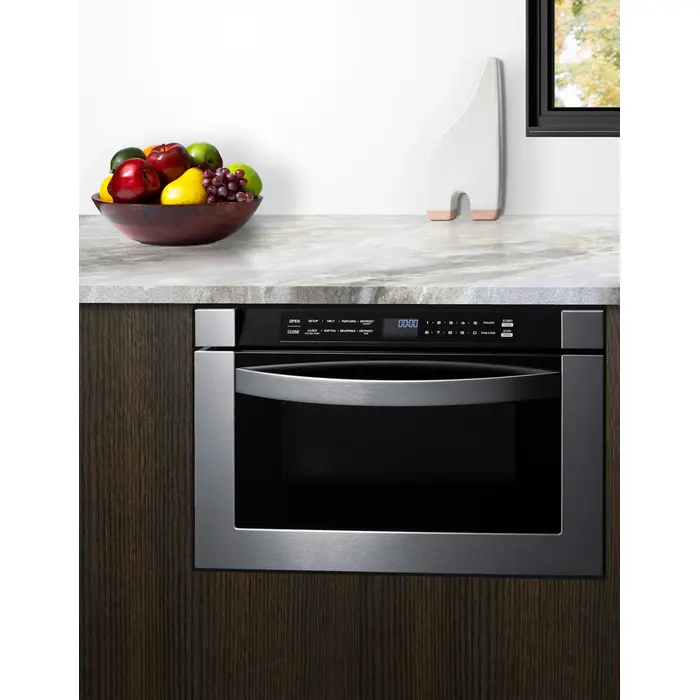

Versatile installation Drawer microwave oven can be installed in a wall or island cutout and under a built-in wall oven
115V with cord included Includes a pre-installed right angle NEMA 5-15 plug on a 54" long cord
ADA compliant Accessible design to conform to the Americans with Disabilities Act when installed according to the guidelines
Full warranty Limited 1-year parts and labor
