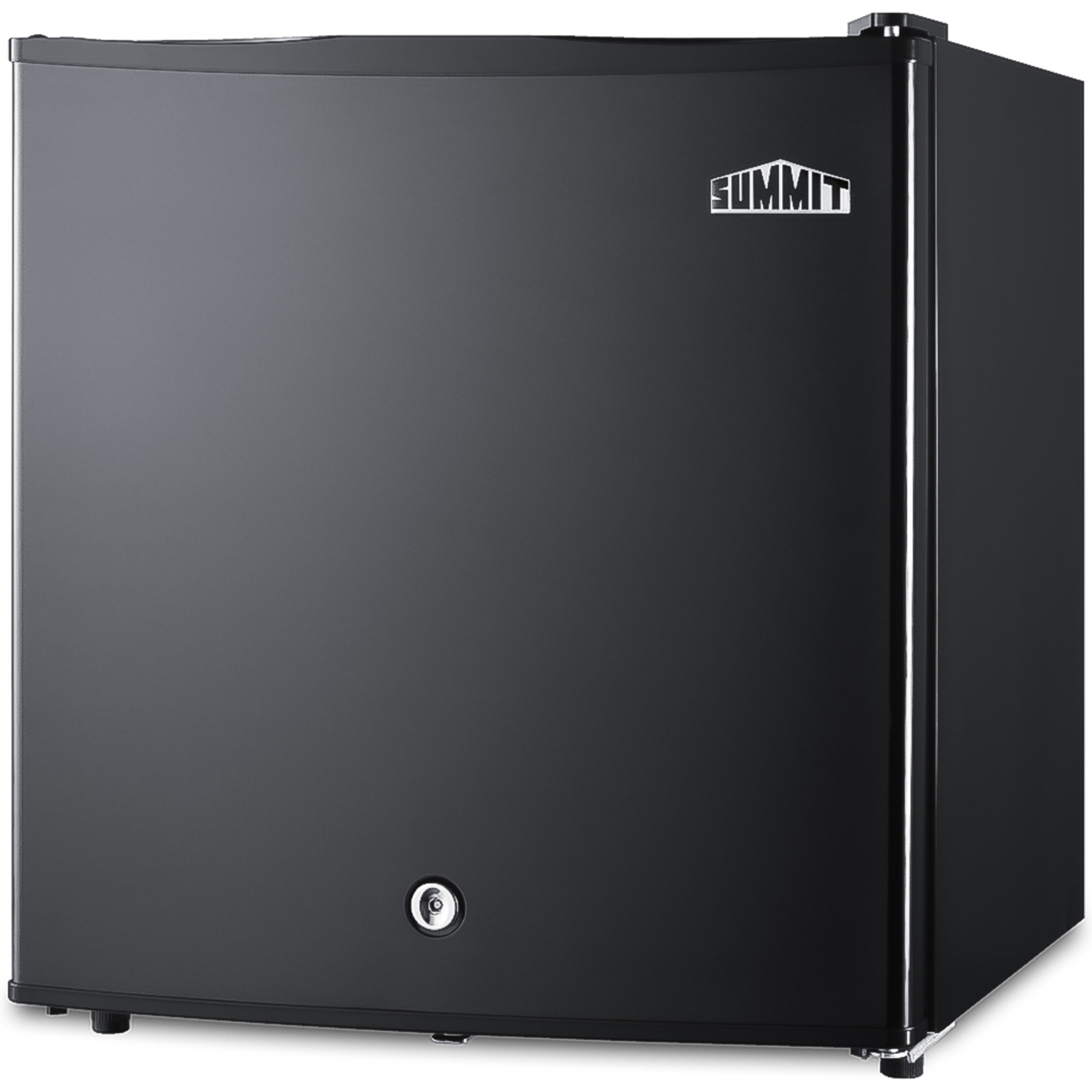

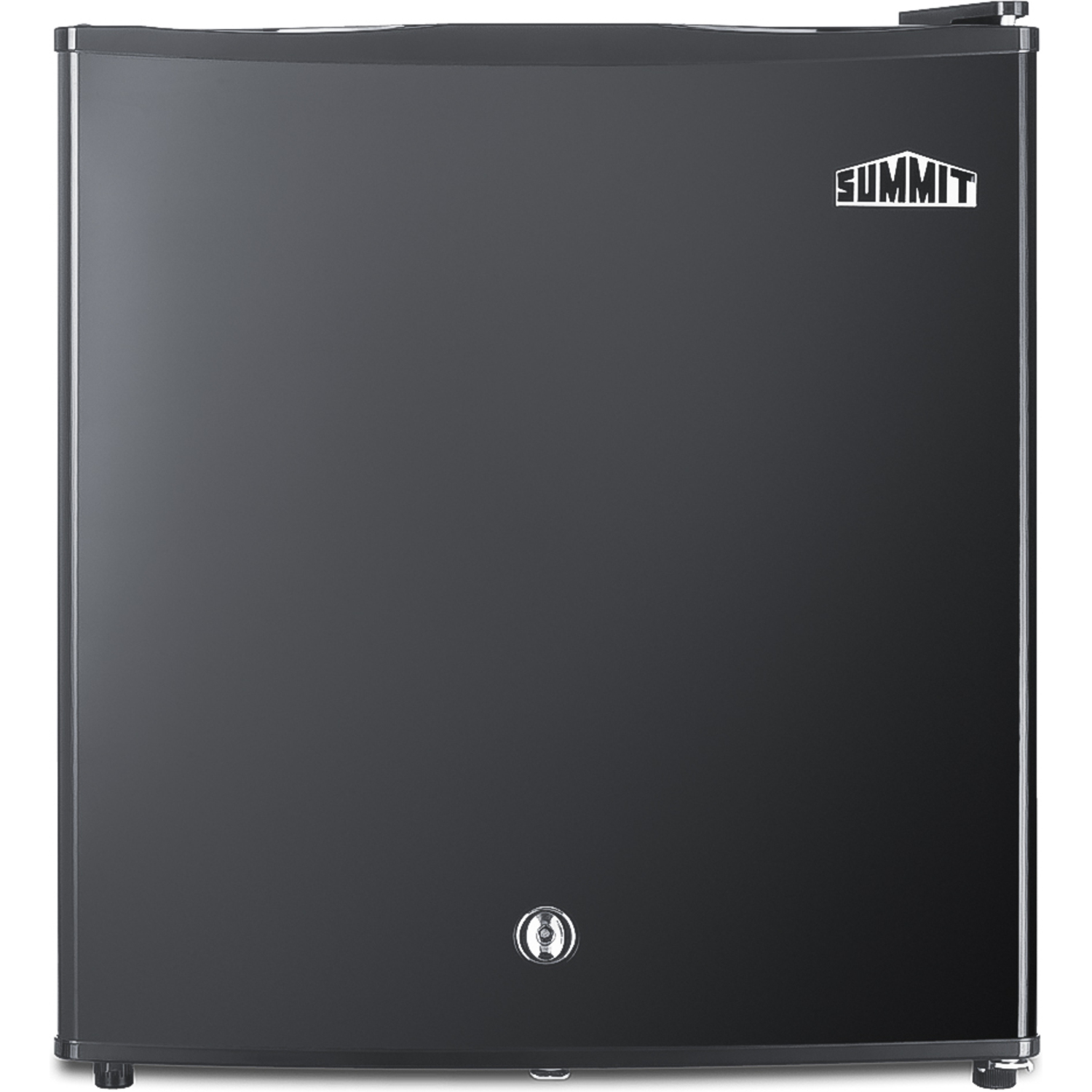

Summit Compact solid door minibar in black with front lock, MB41B

Summit manufactures a selection of minibars perfectly sized for compact hospitality spaces and featured for easy guest use.

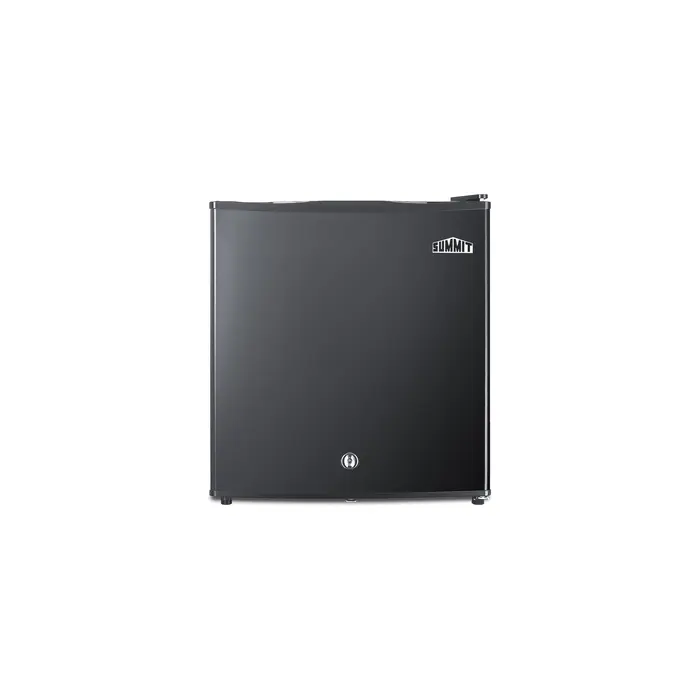

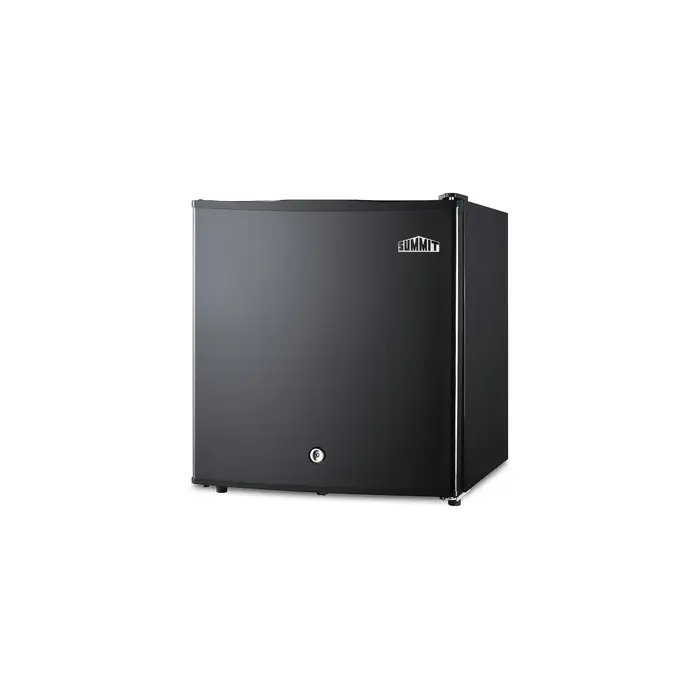

Sized just under 18 inches wide, the MB41B is a compact in-room minibar in a jet black finish. The user-reversible door swing makes it easy to best accommodate any space, while the 6' long power cord allows more flexibility in placement. The door includes a factory-installed lock for security as needed. We include two keys with each unit.

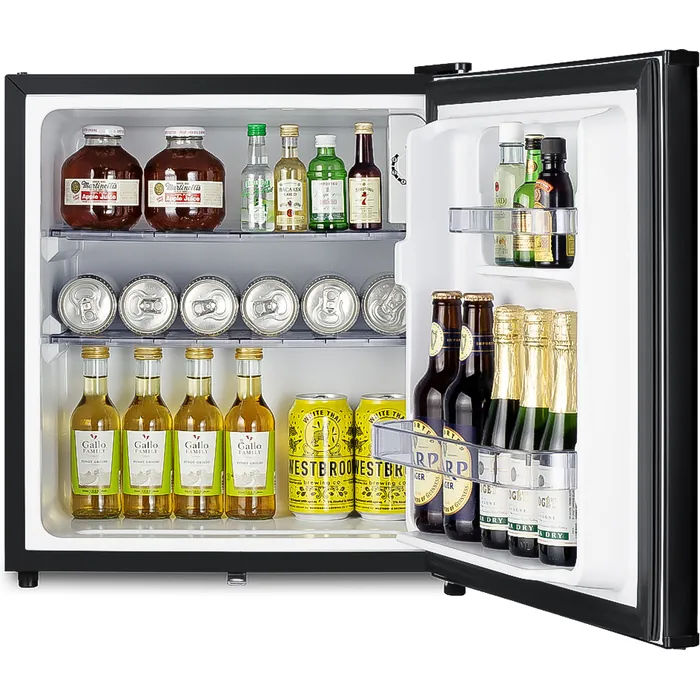

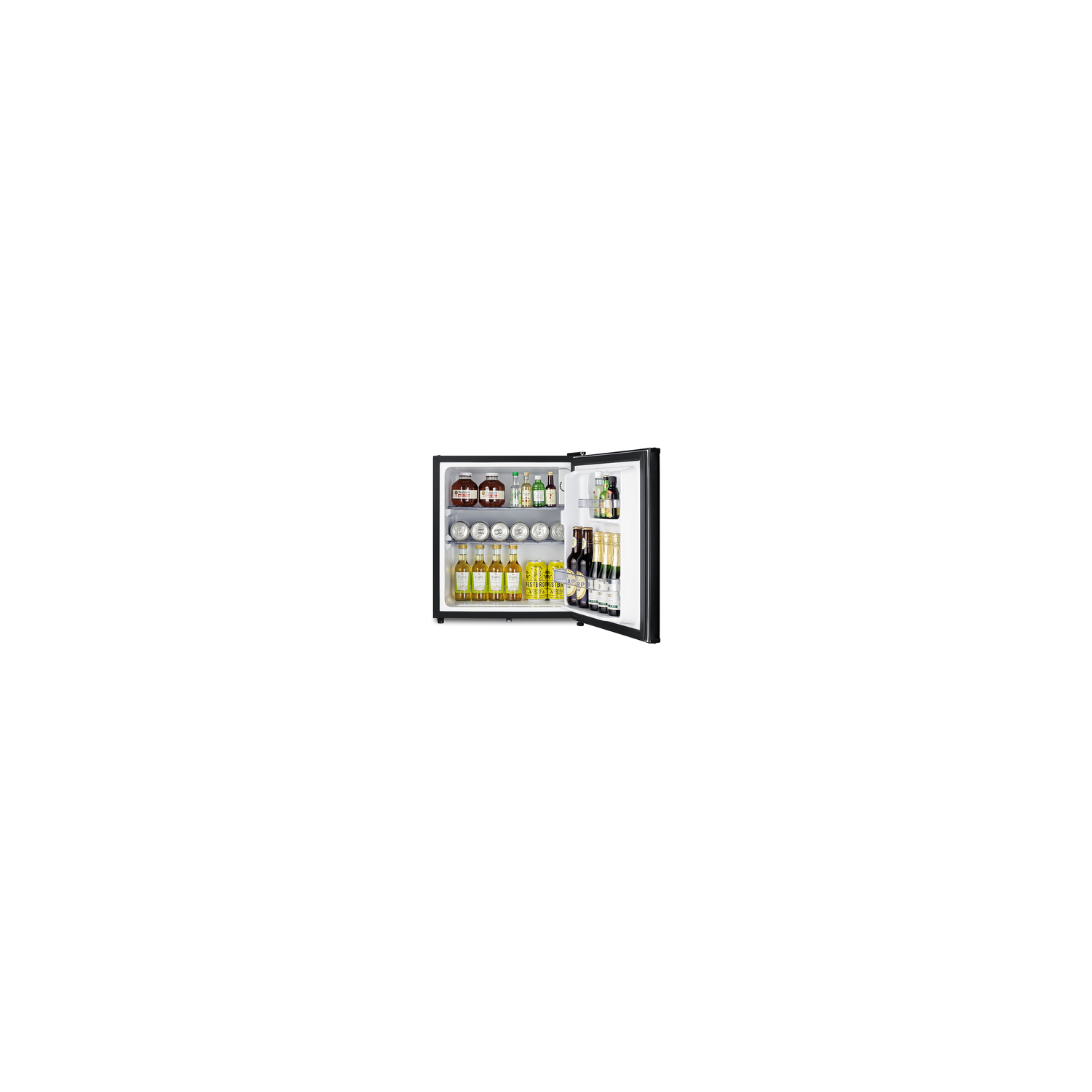

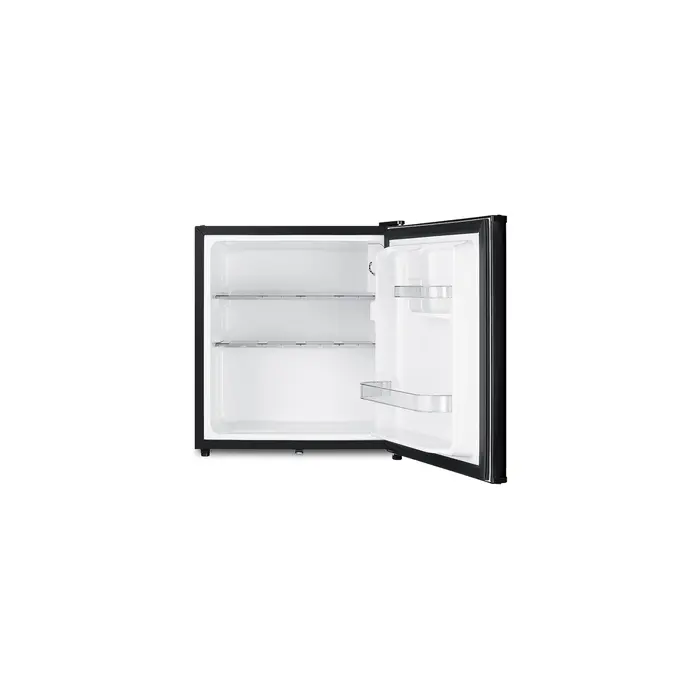

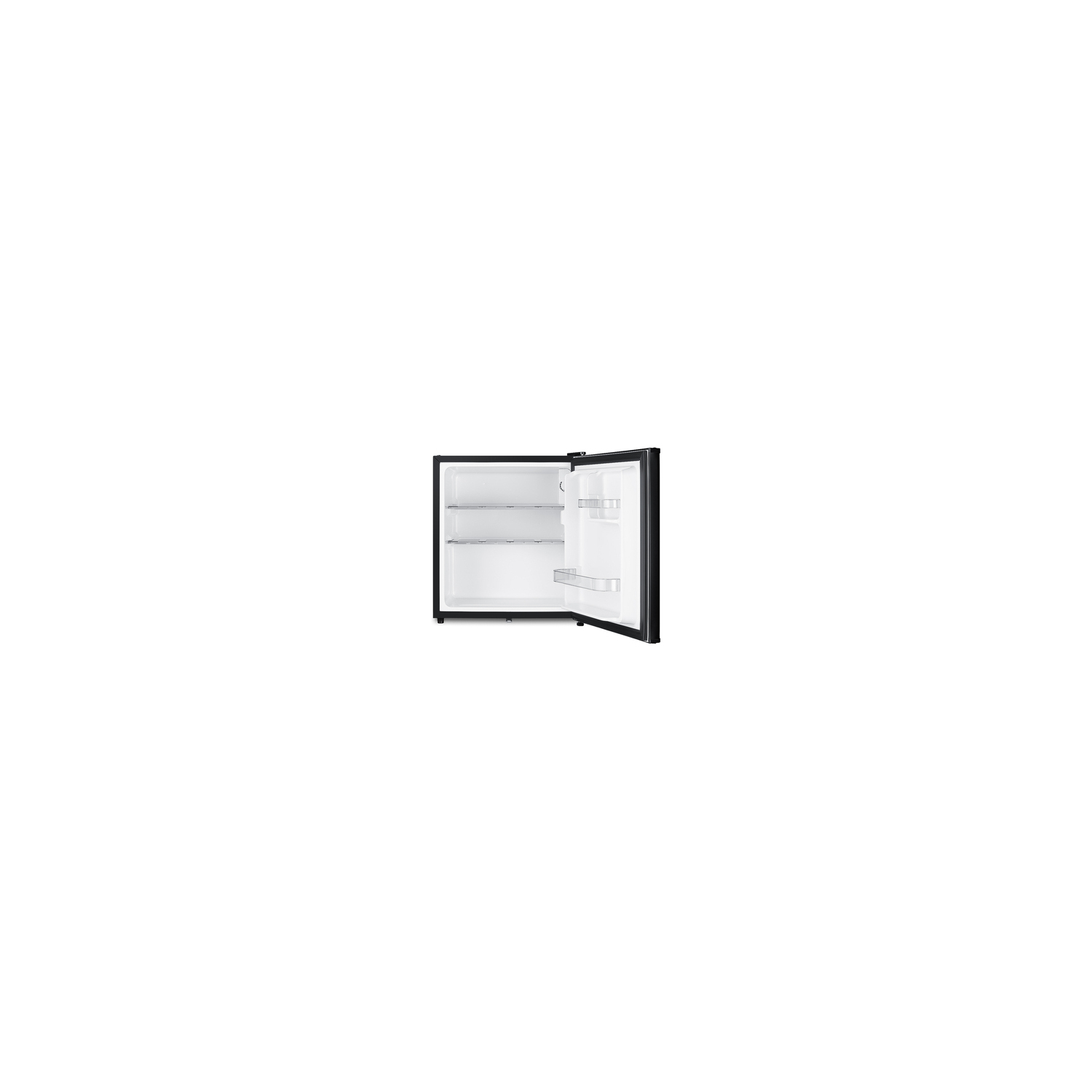

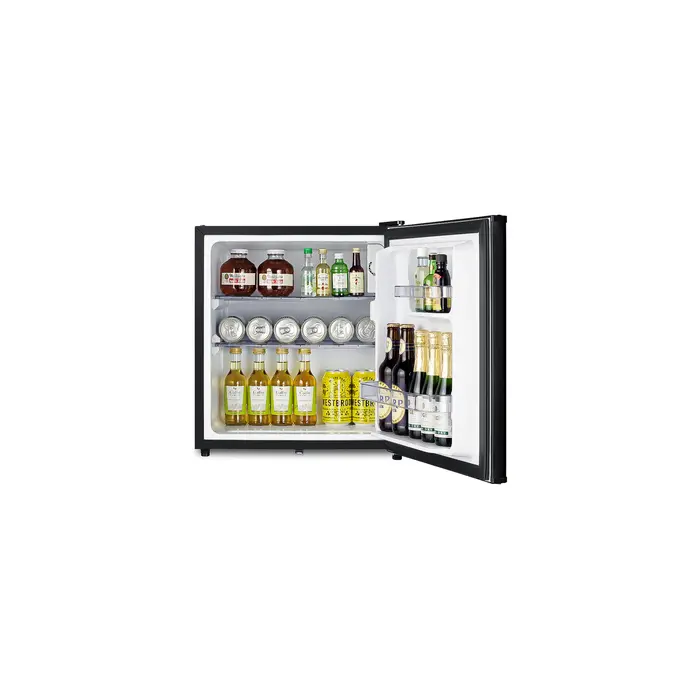

Inside, this minibar offers a generous 1.6 cu.ft. capacity with a clean white interior for full visibility of contents. A compressor-based cooling system provides proper refrigeration conditions to keep stored items cold, while the laboratory-tested operation ensures quiet operation at under 33 decibels. Two removable plastic shelves offer versatile storage, with flat bottoms to help keep bottles standing and perforation to ensure more efficient cooling. The door includes one full-width and one half shelf for added storage convenience. An intuitive dial thermostat is located inside for easy temperature adjustments.

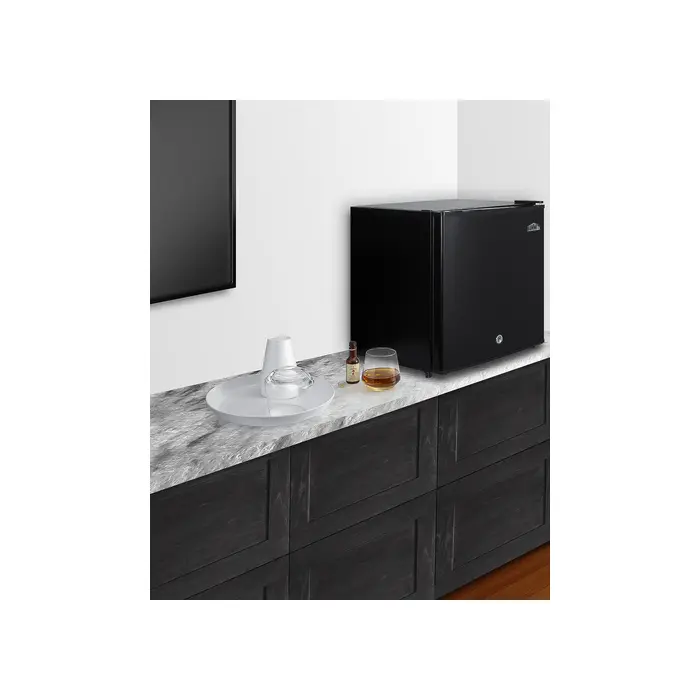

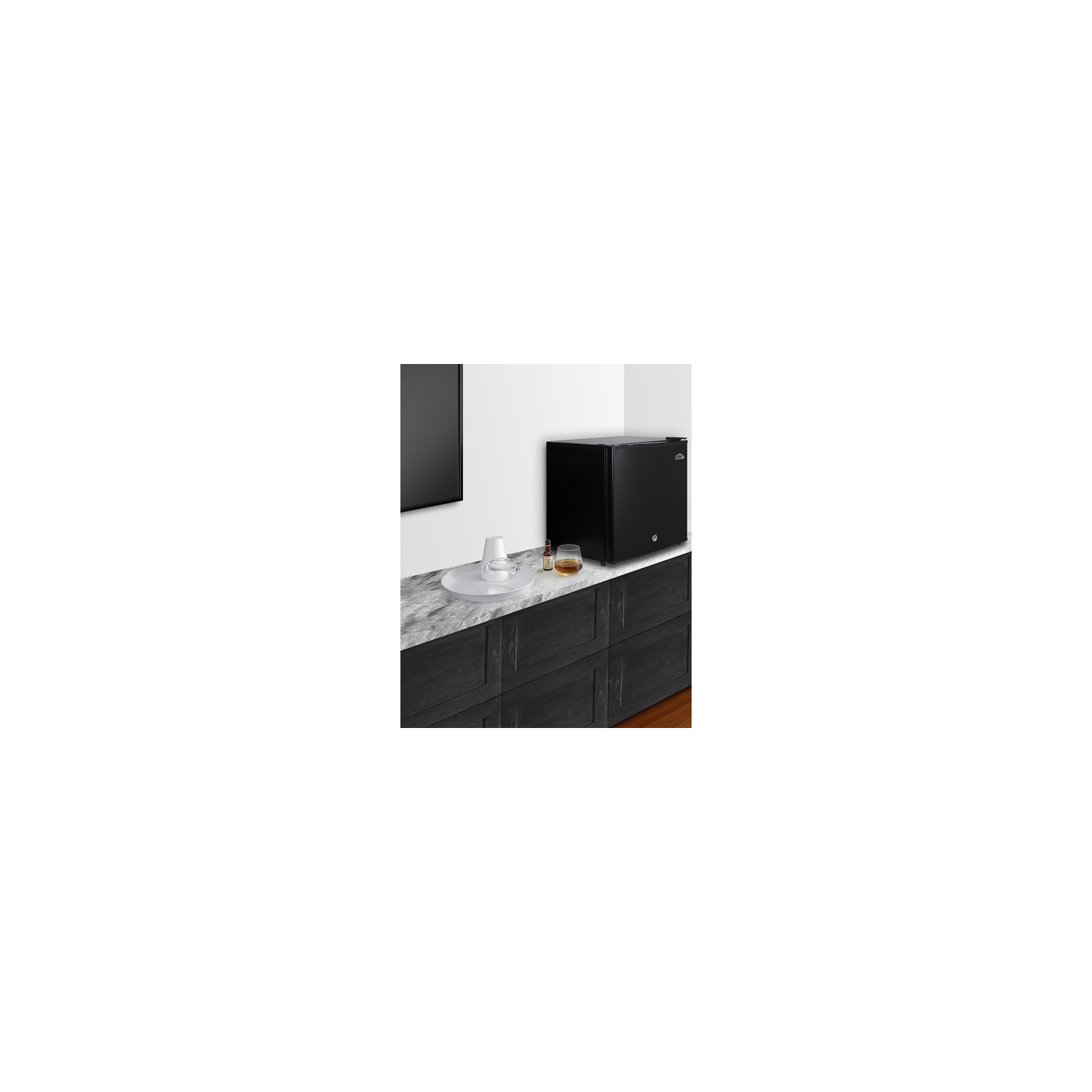

With a compact size and user-friendly design, the MB41B is the perfect choice for hotels, offices, and other settings in need of reliable, quiet cooling in a slim fit. This unit is also offered with a door in stainless steel (model MB42SS) or glass (model MB43GL). Browse the full Summit product line to discover more choices.

SPECIFICATIONS

Overview

Nominal Height 19.0" (48 cm)

Height of Cabinet 18.75" (48 cm)

Height to Hinge Cap 19.88" (50 cm)

Nominal Width 18.0" (46 cm)

Width 17.63" (45 cm)

Width with Door Open 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.13" (87 cm)

Capacity 1.6 cu.ft. (45 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 270.0kWh/year

Amps 0.7

Voltage/Frequency 115 V AC/60 Hz

Weight 31.0 lbs. (14 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101102962

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Plastic

Shelf Qty 2

Full Door Shelf Qty 1

Half Door Shelf Qty 1

Adjustable Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.42oz.

High Side PSI 120.0

Low Side PSI 70.0

Level Legs Qty 2

Temperature Range 34 - 46°F

Sound Level 32.9 dB

Dimensions

Interior Height 16.25" (41 cm)

Interior Width 14.88" (38 cm)

Interior Depth 13.13" (33 cm)

Compressor Step Height 7.5" (19 cm)

Compressor Step Width 14.88" (38 cm)

Compressor Step Depth 5.38" (14 cm)

FEATURES

In-Room Minibar Compact and quiet all-refrigerator ideal for use in hotel rooms

Compact dimensions Slim fit offers the ideal choice for hotel rooms and other settings with limited counter and cabinet space

Compressor-based cooling system True refrigeration system ensures minibar items are properly stored at the proper temperature

Factory installed lock Front lock offers convenient security, with two keys included

Reversible door User-reversible door swing for added flexibility

Quiet operation Runs at just 32.9 dB for a quiet performance that won't disturb your guests

Jet black finish Matte door and cabinet for a clean look to suit any hotel space

Removable shelves Two plastic shelves with flat bottoms to keep bottles and other items reliably stored

Door storage Full and half racks are perfect for keeping smaller bottles and condiments in easy reach

Adjustable thermostat Dial thermostat located inside for easy and intuitive temperature management

White interior Clean interior finish offers improved visibility

Automatic defrost Reduced user maintenance with auto defrost system

Fully finished black cabinet Allows the refrigerator to be used freestanding

Leveling legs Ideal for ensuring the refrigerator is level when placed on slightly unlevel surfaces

6' long power cord Standard 3-prong plug on a 6' cord allows more flexibility in where you can place the minibar

Sealed rear Space-saving design with no exposed coils for easier cleanability

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (MB41B.pdf)

TECHNICAL DRAWING (.dwg) (MB41B_MB42SS.dwg)

ASSEMBLY DRAWING (MB41B_MB42SS-Assembly.pdf)

REVIT MODEL (Qf_Summit_MB41B_18_inches_Wide_Compact_Minibar.rfa)

MSDS INFORMATION (R600a_AO.pdf)

USE & CARE (MB41B-User-Manual.pdf)

Energy Guide
