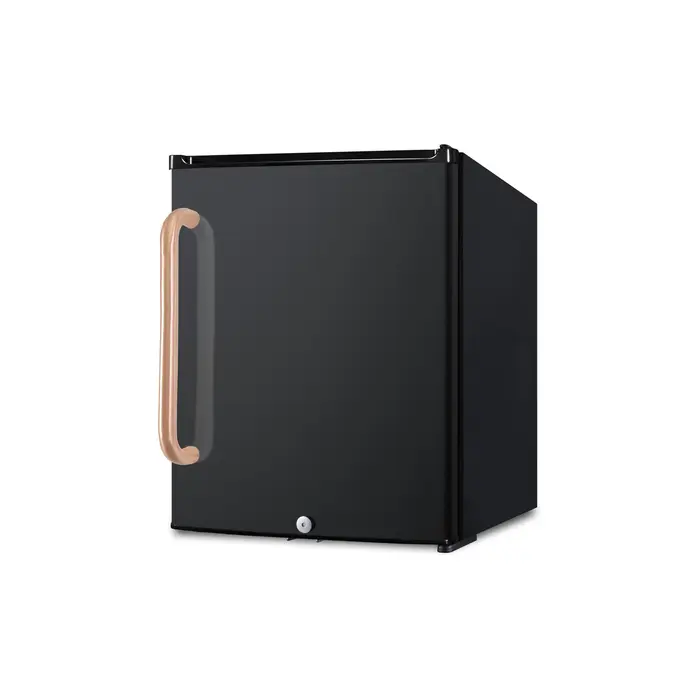

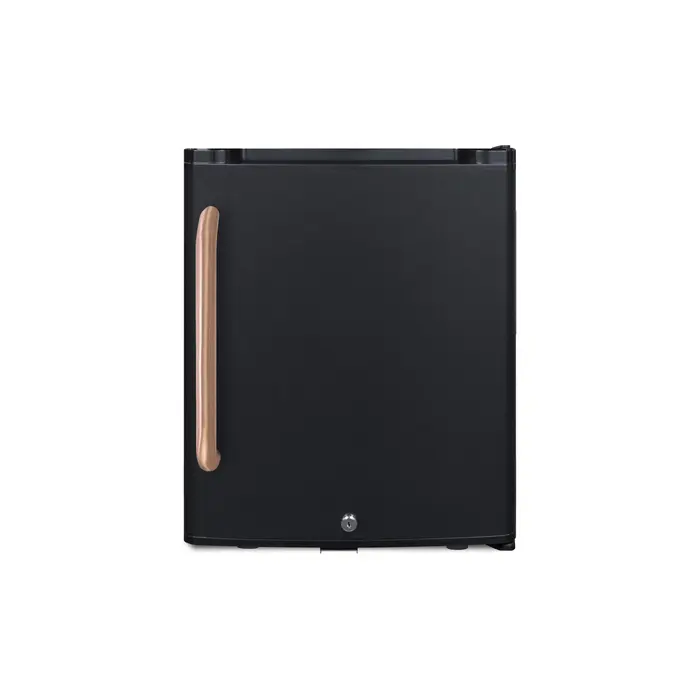

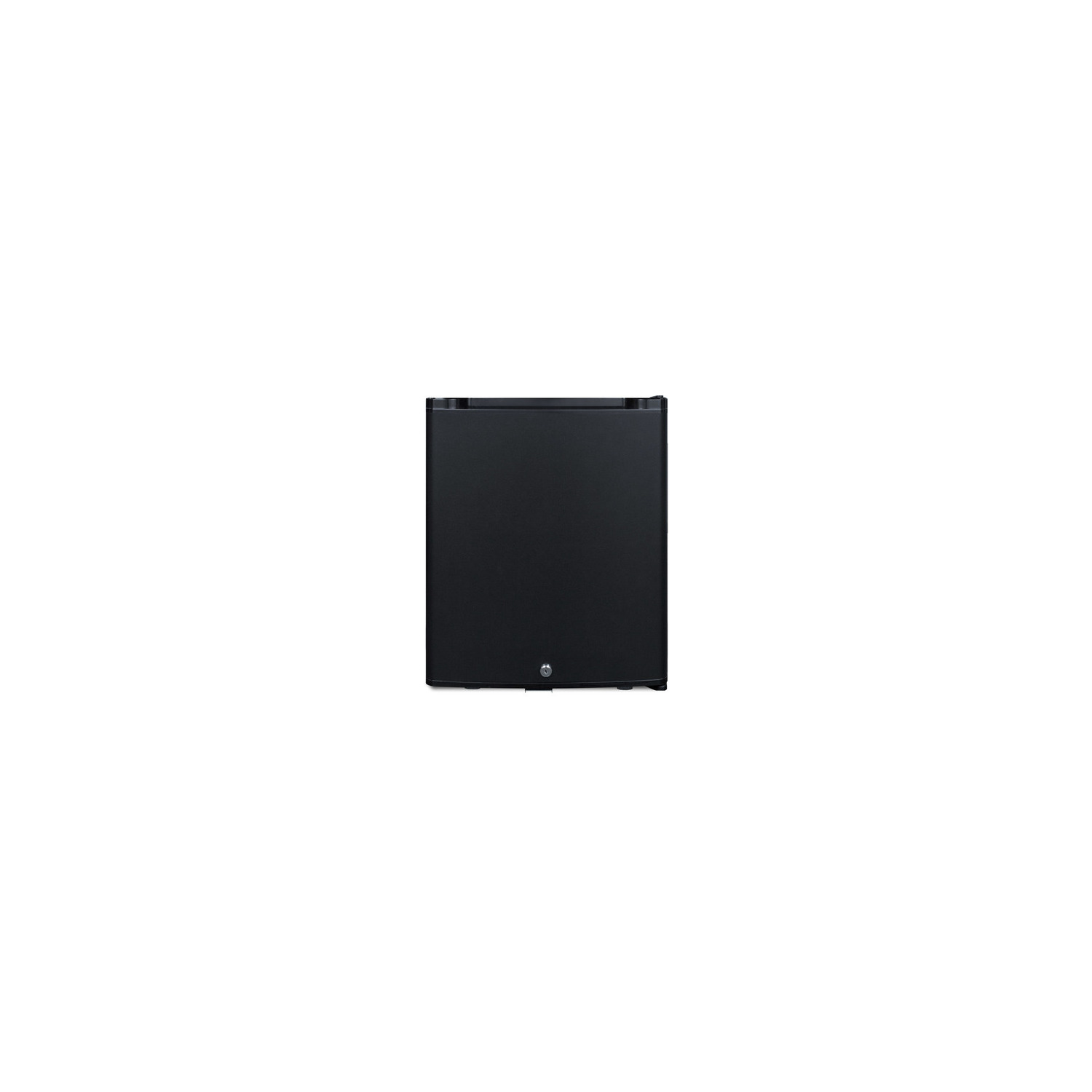

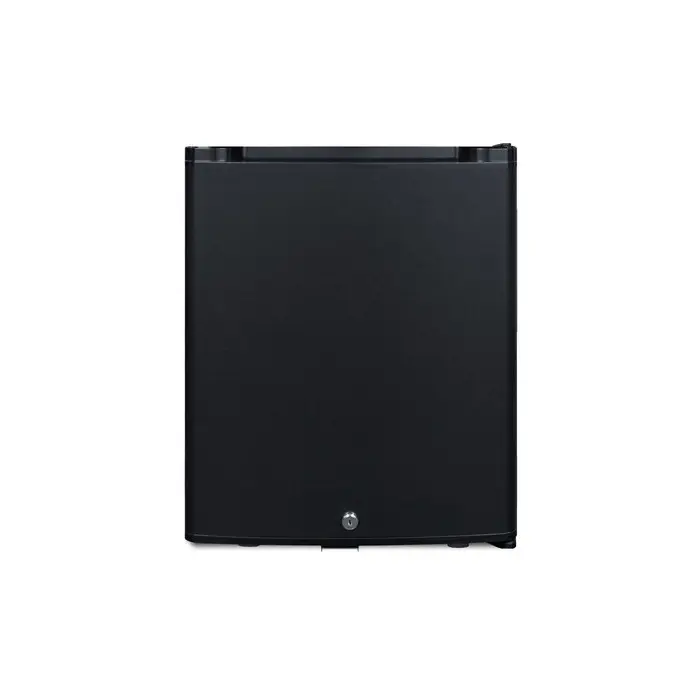

Summit Compact solid door minibar in black with front lock, MB12B

Summit offers a selection of minibars perfectly sized for compact spaces.

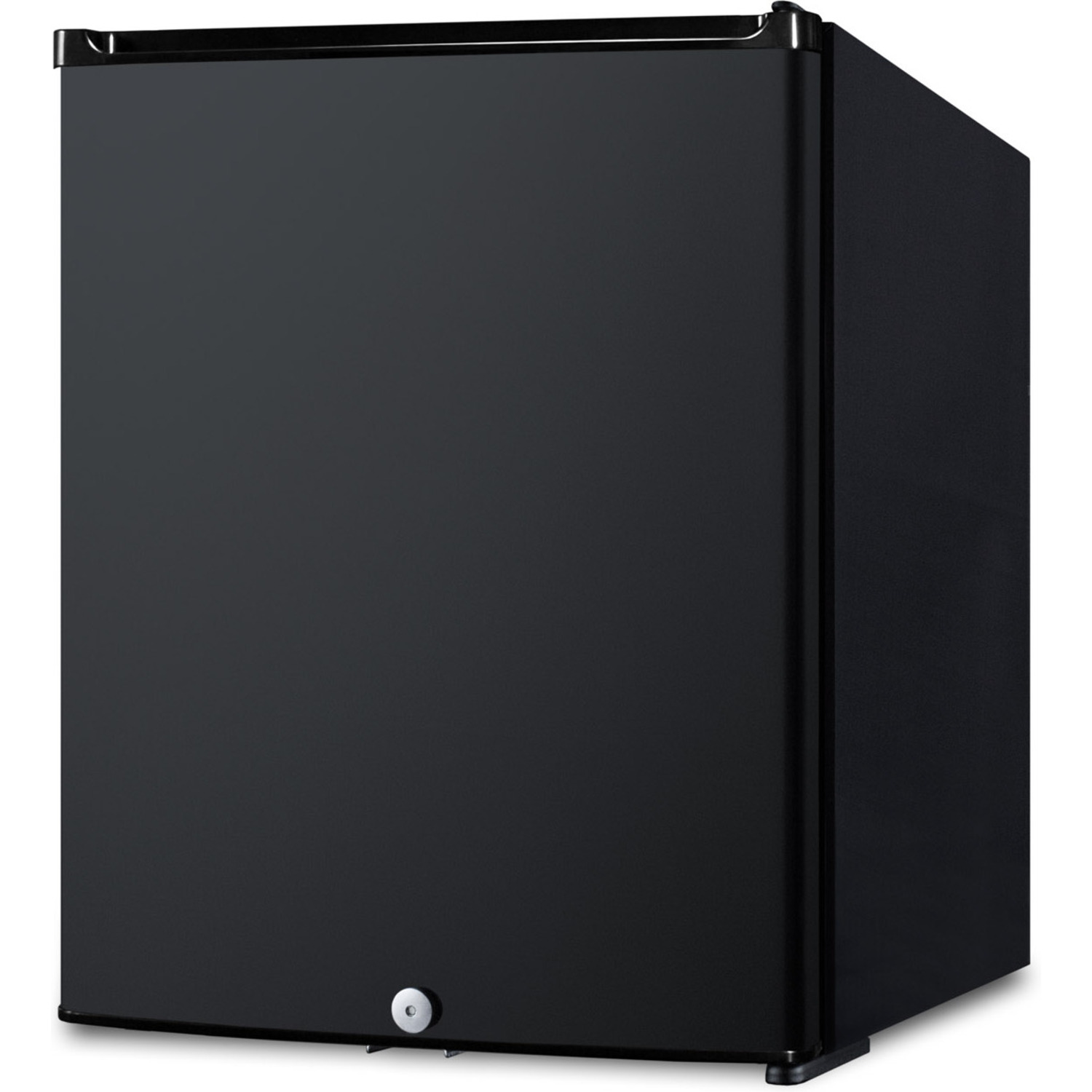

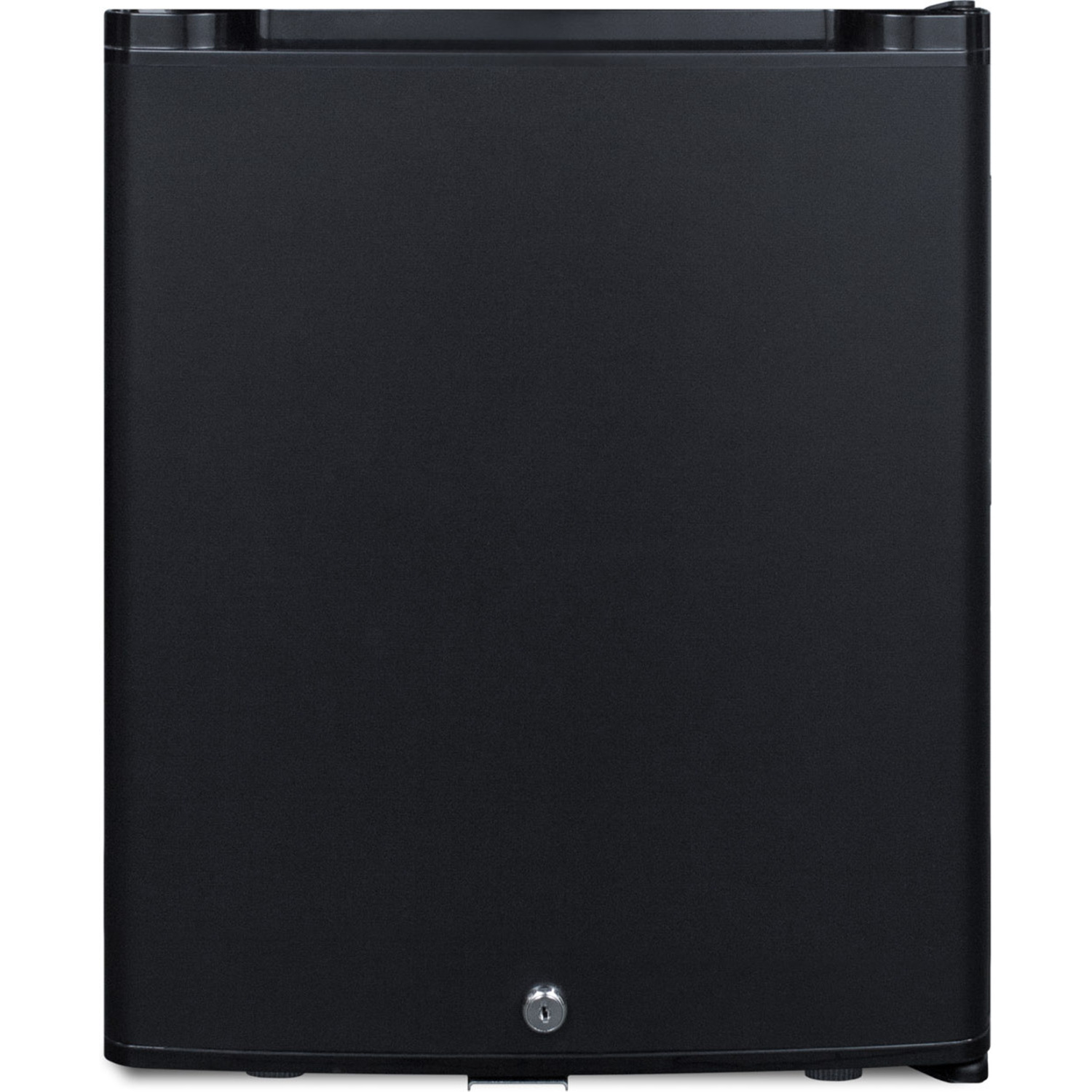

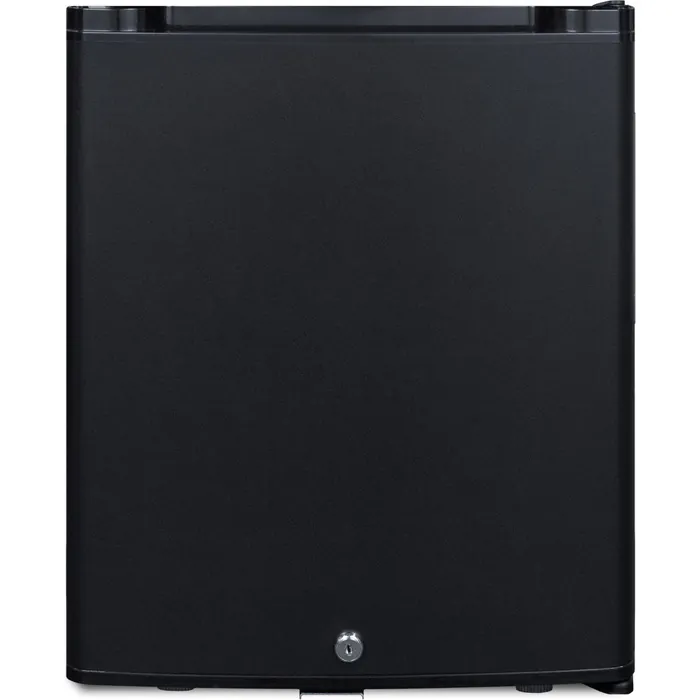

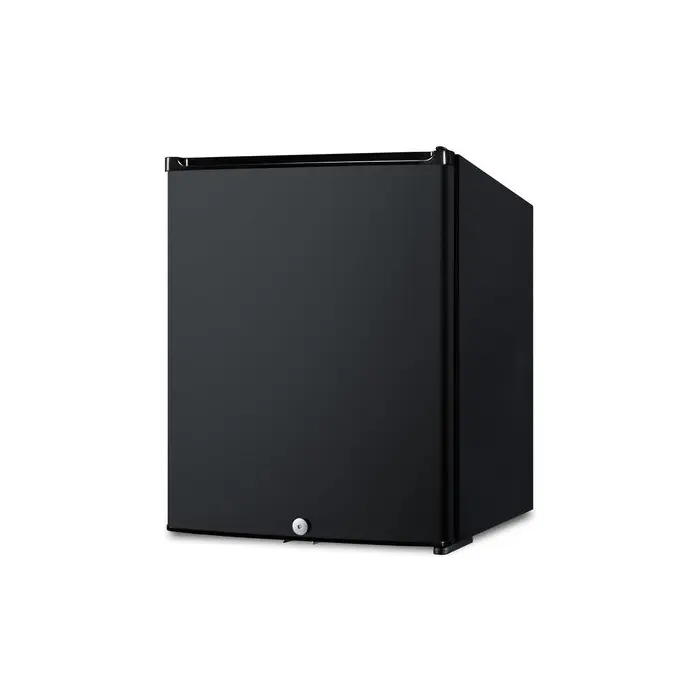

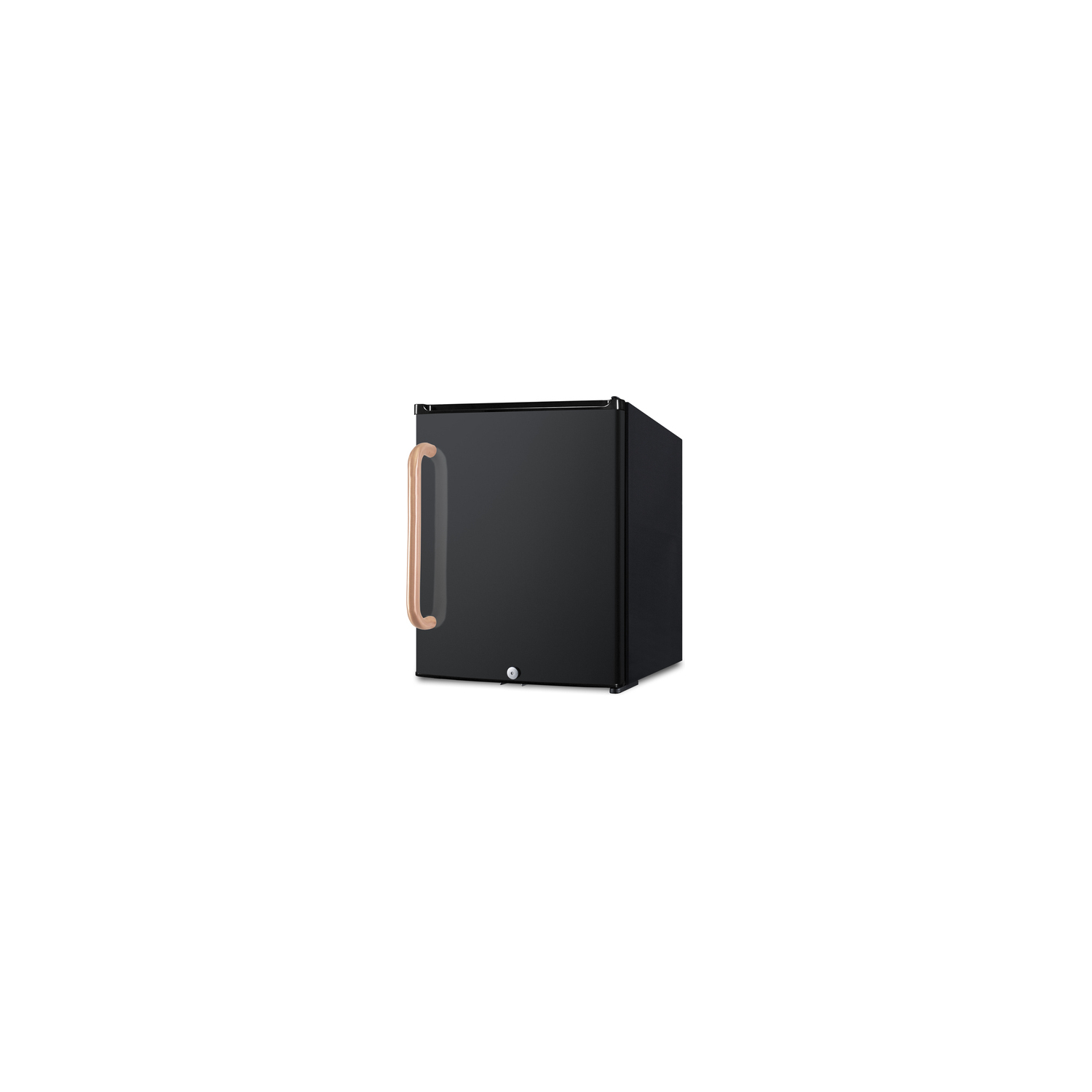

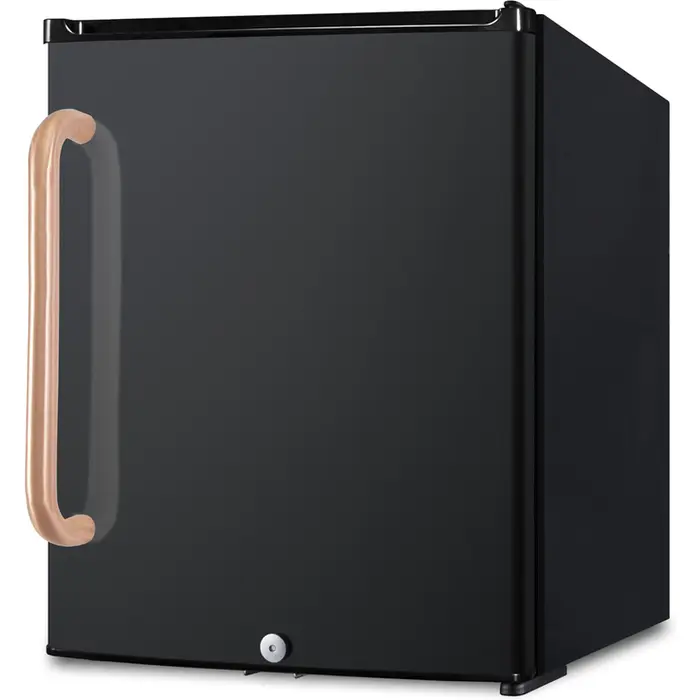

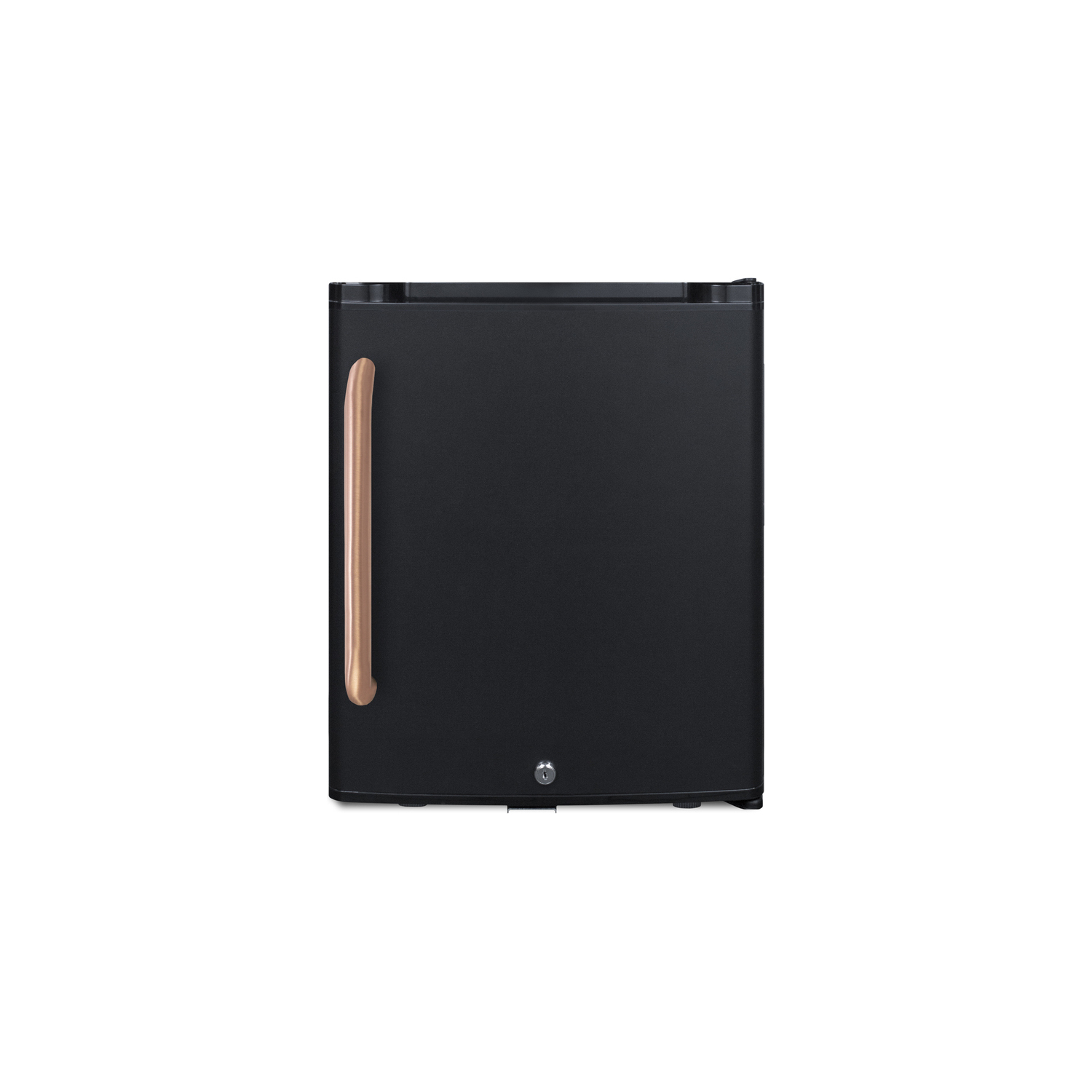

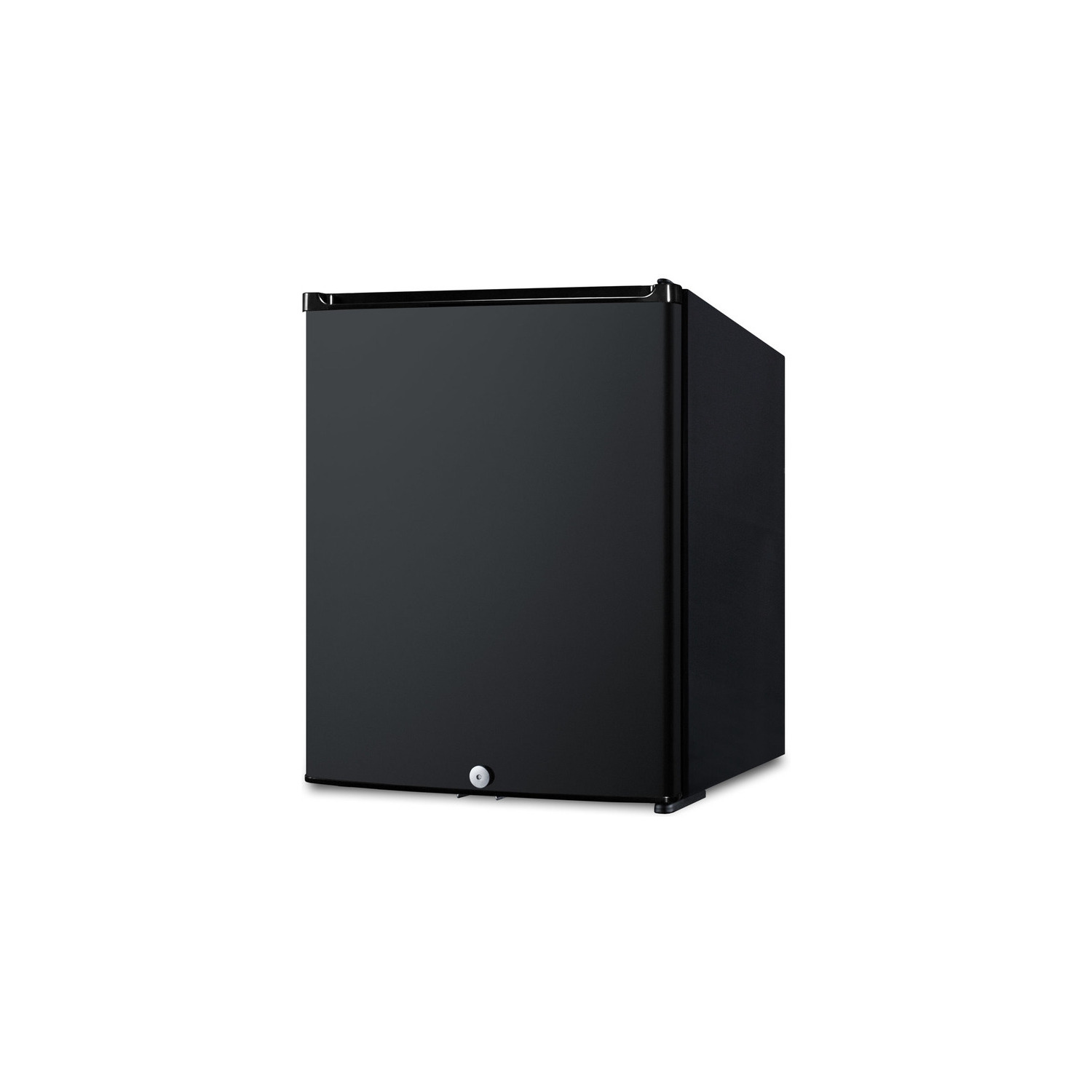

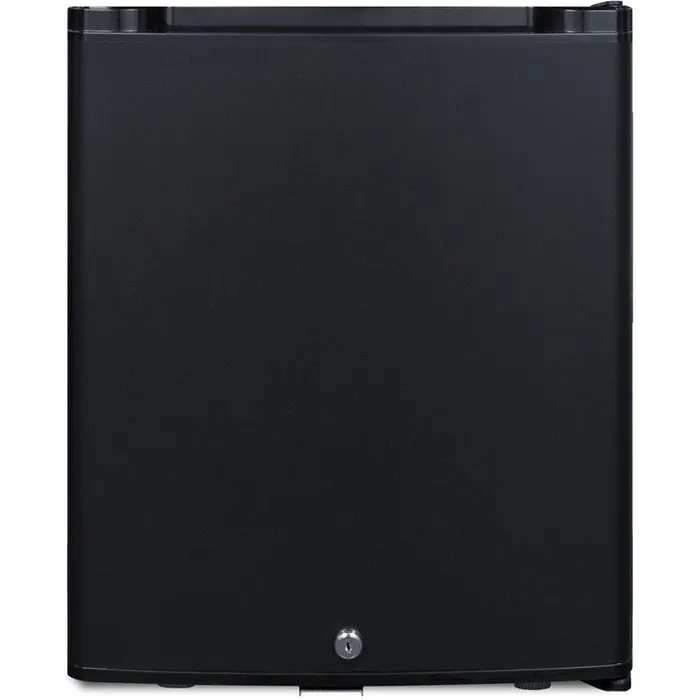

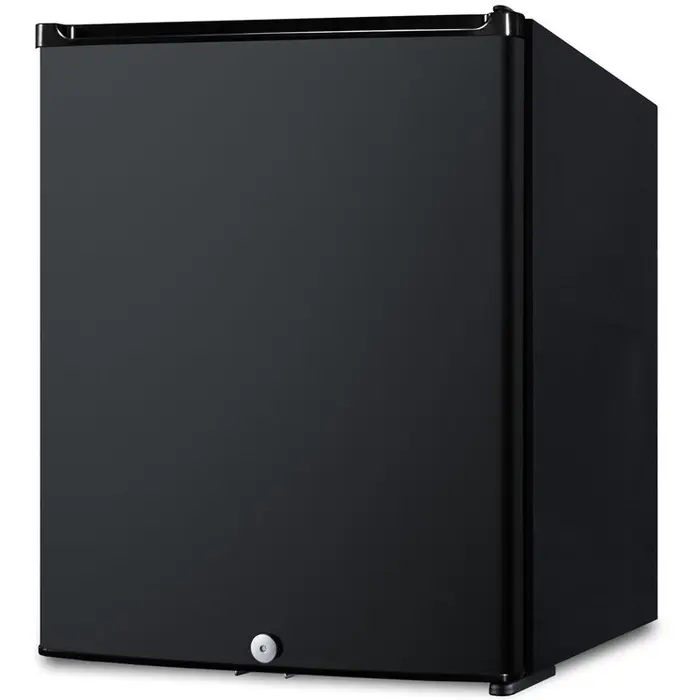

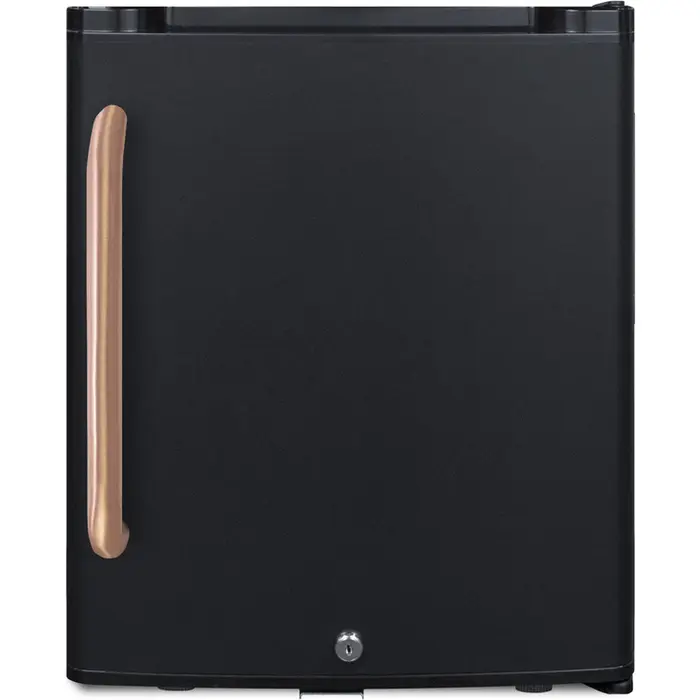

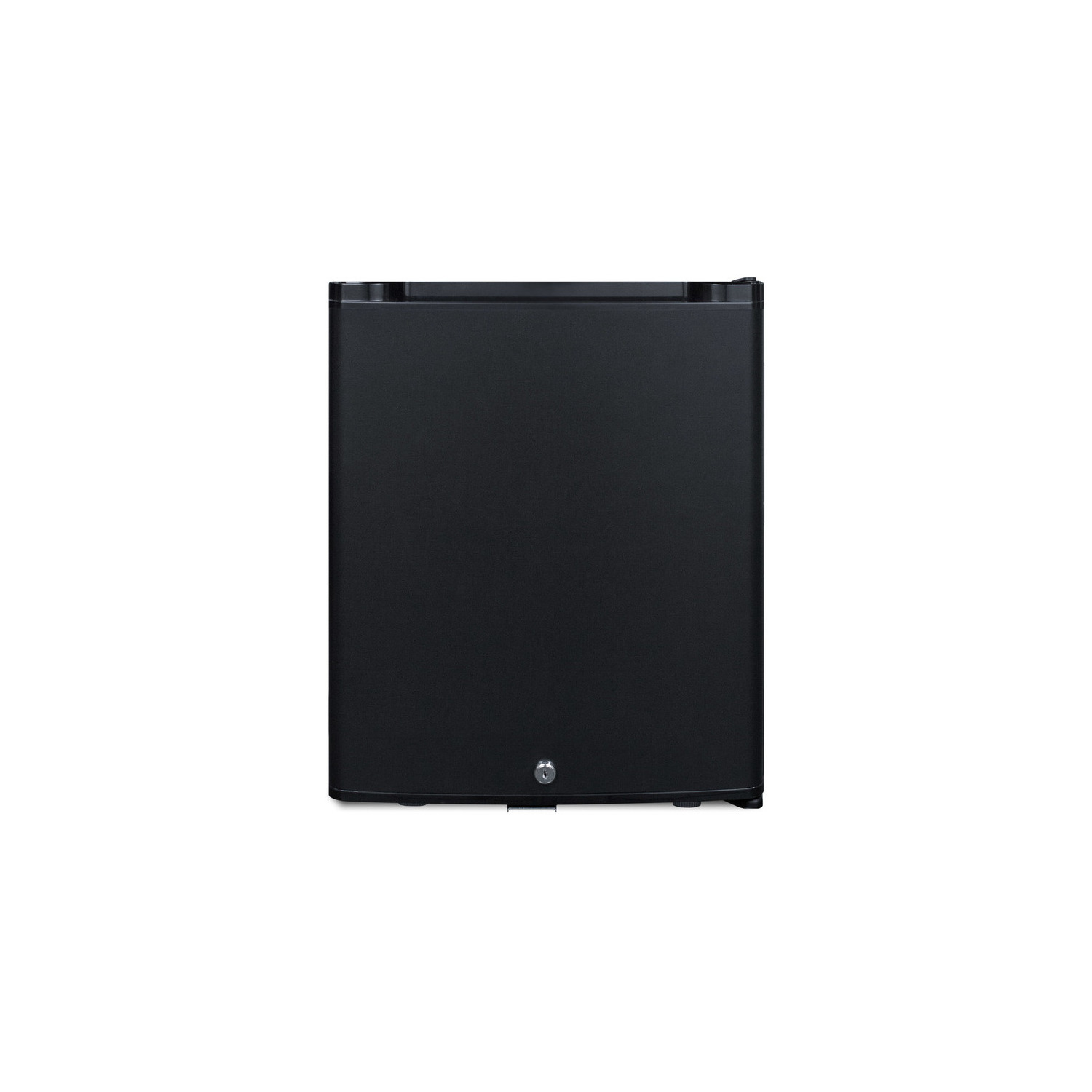

Sized at under 16 inches wide, the MB12B is a compact minibar in a black finish. Its fully finished cabinet allows for freestanding use. The user-reversible door affords variation in unit placement and includes a factory-installed lock for added security. The digital controls with six temperature levels makes adjusting the temperature easy.

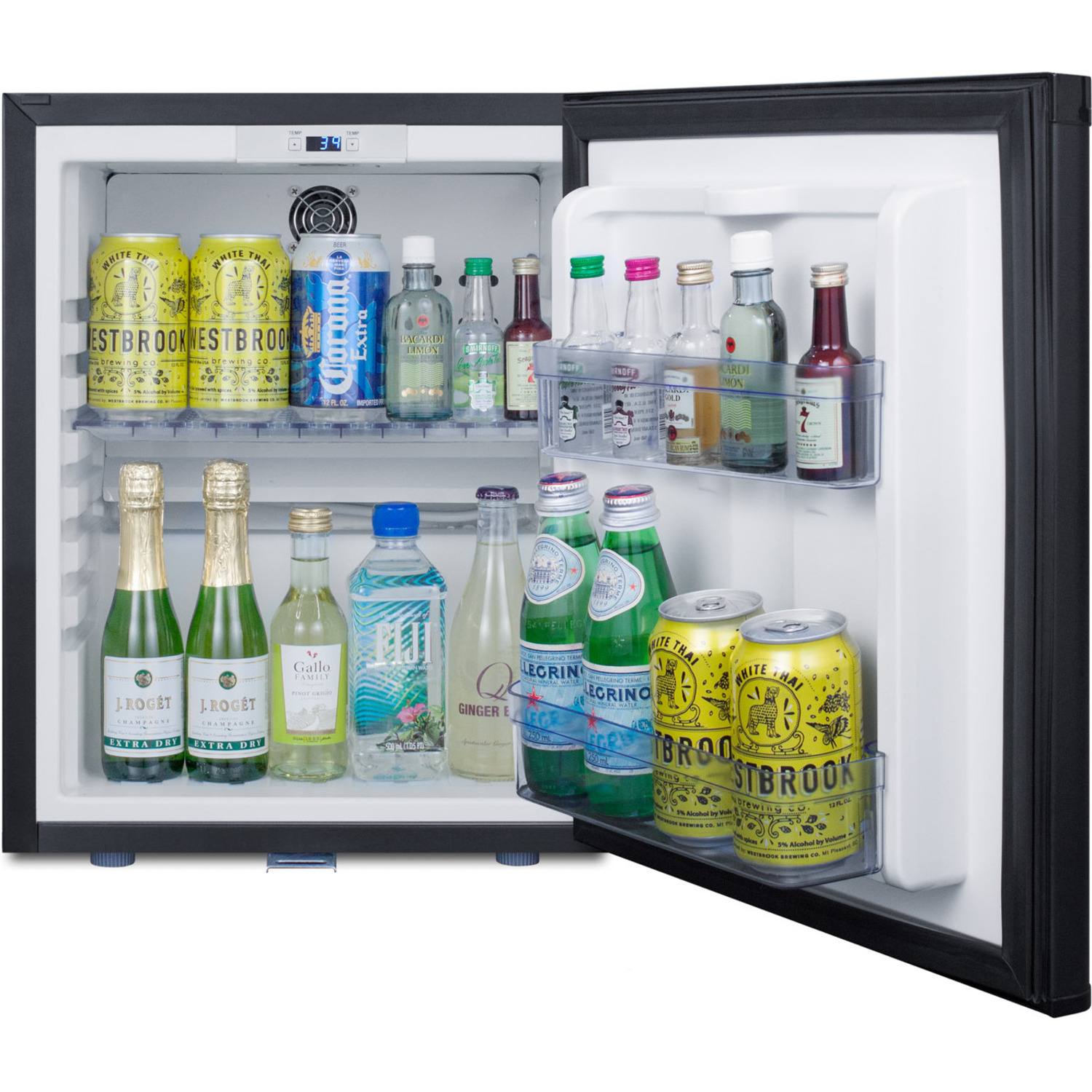

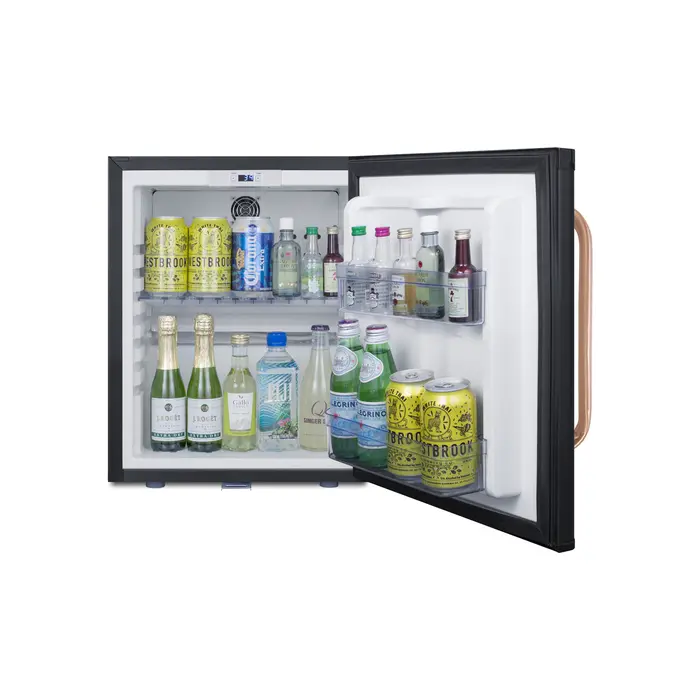

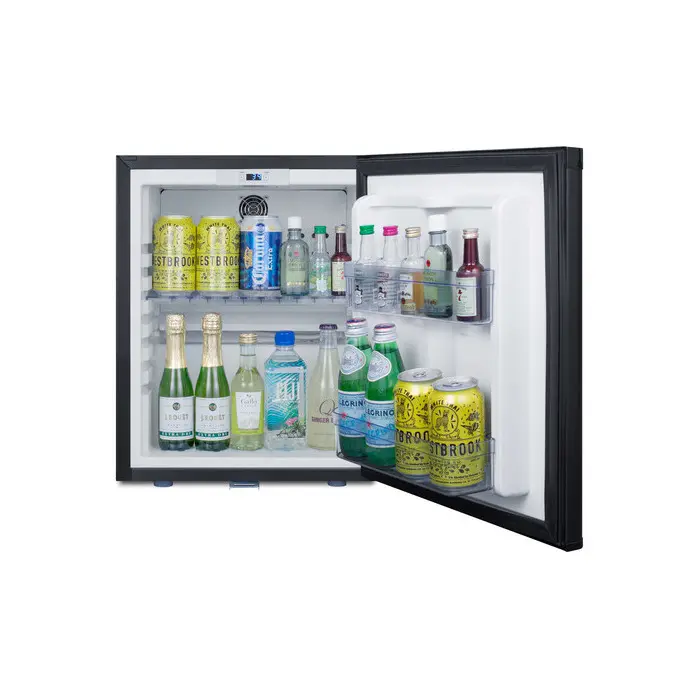

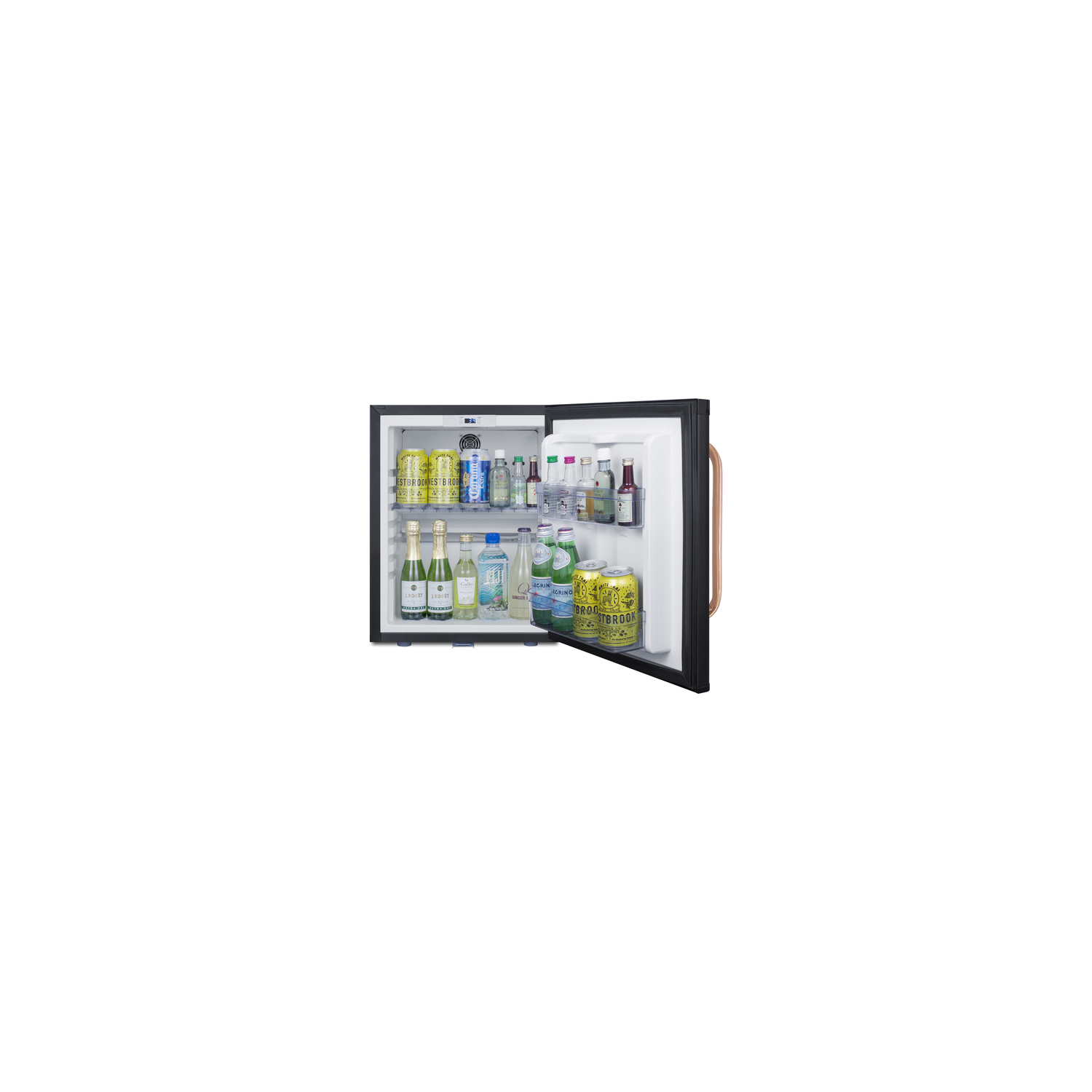

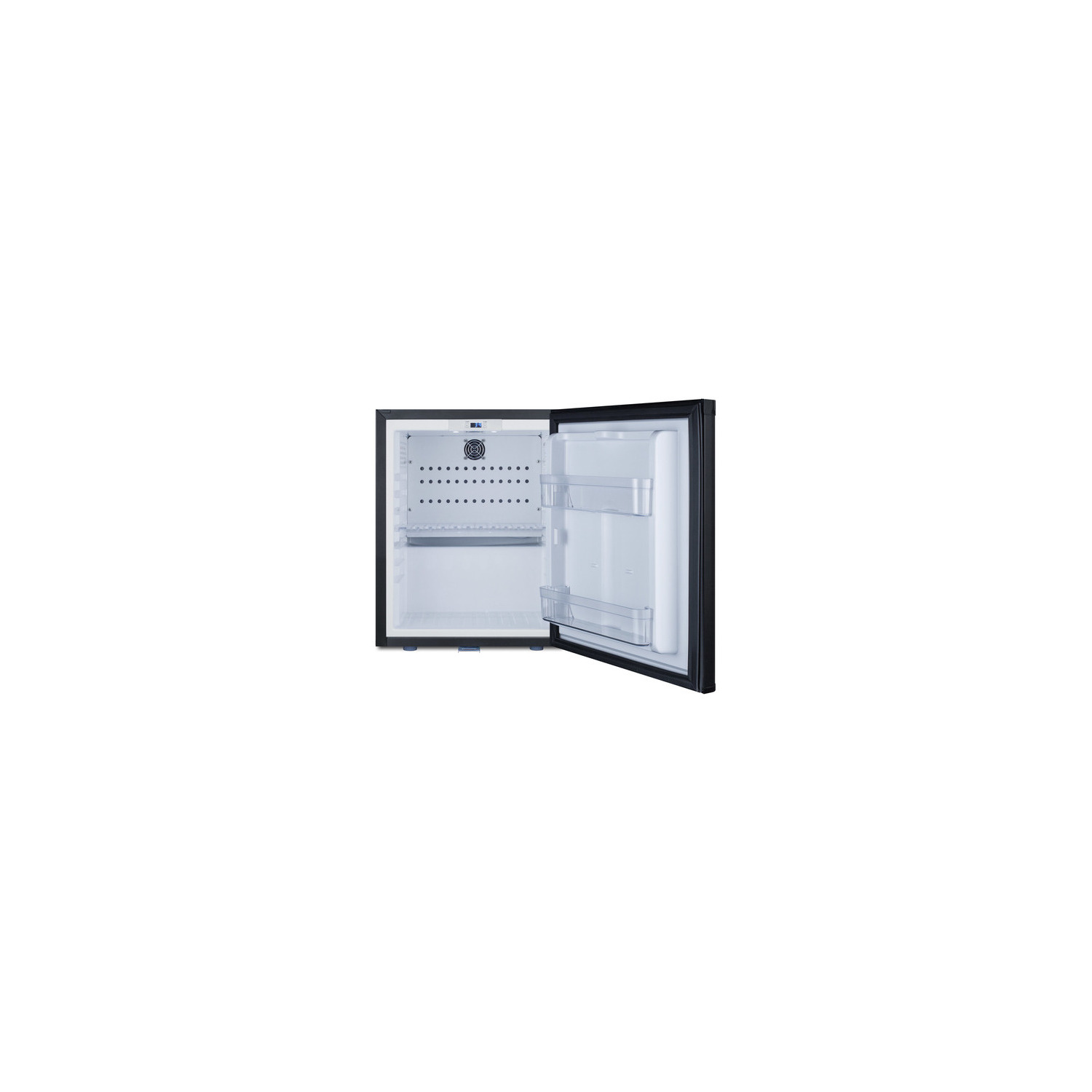

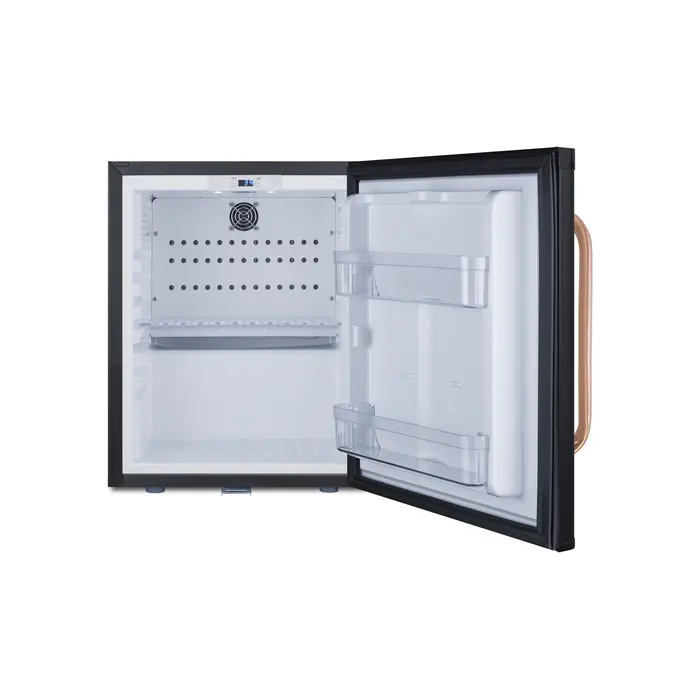

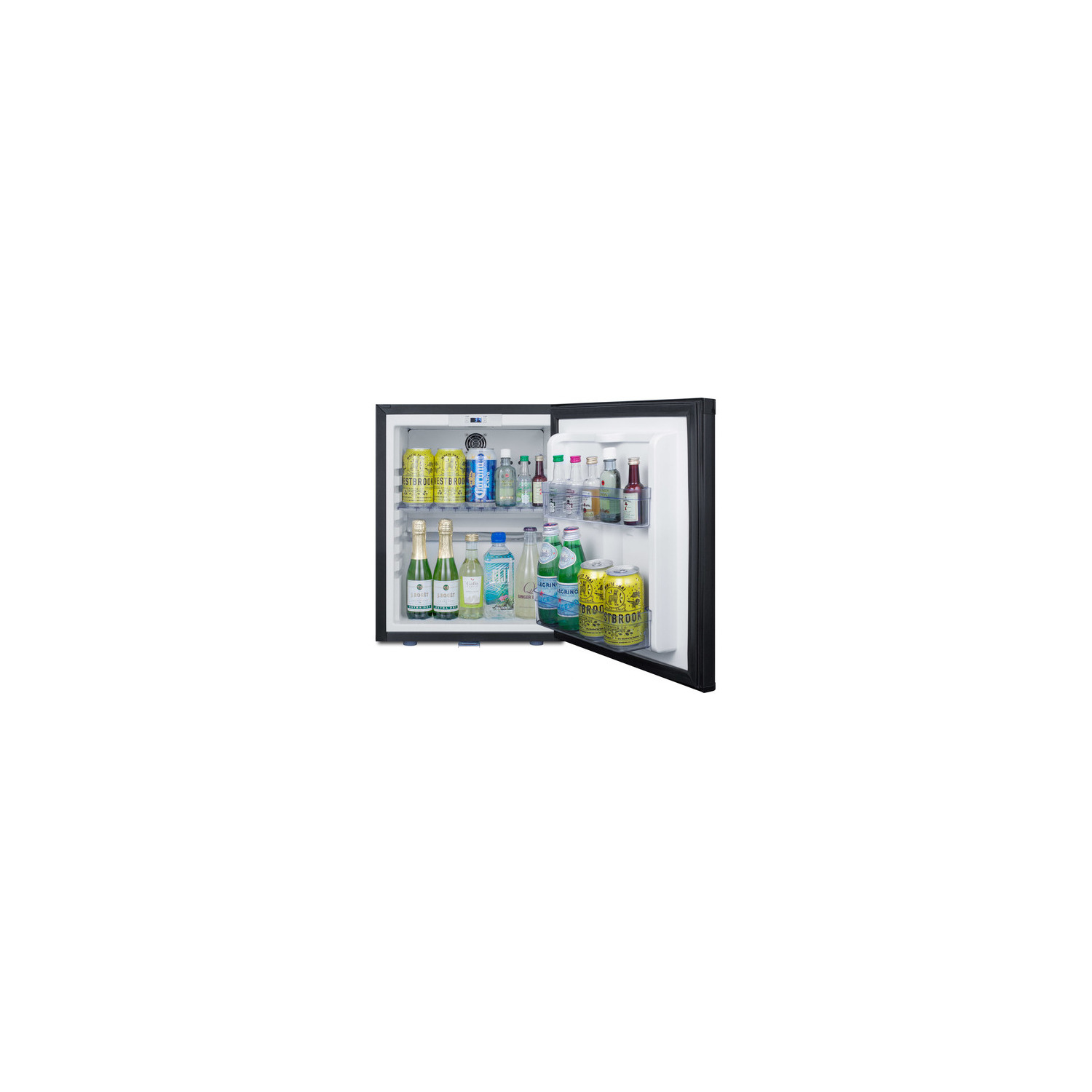

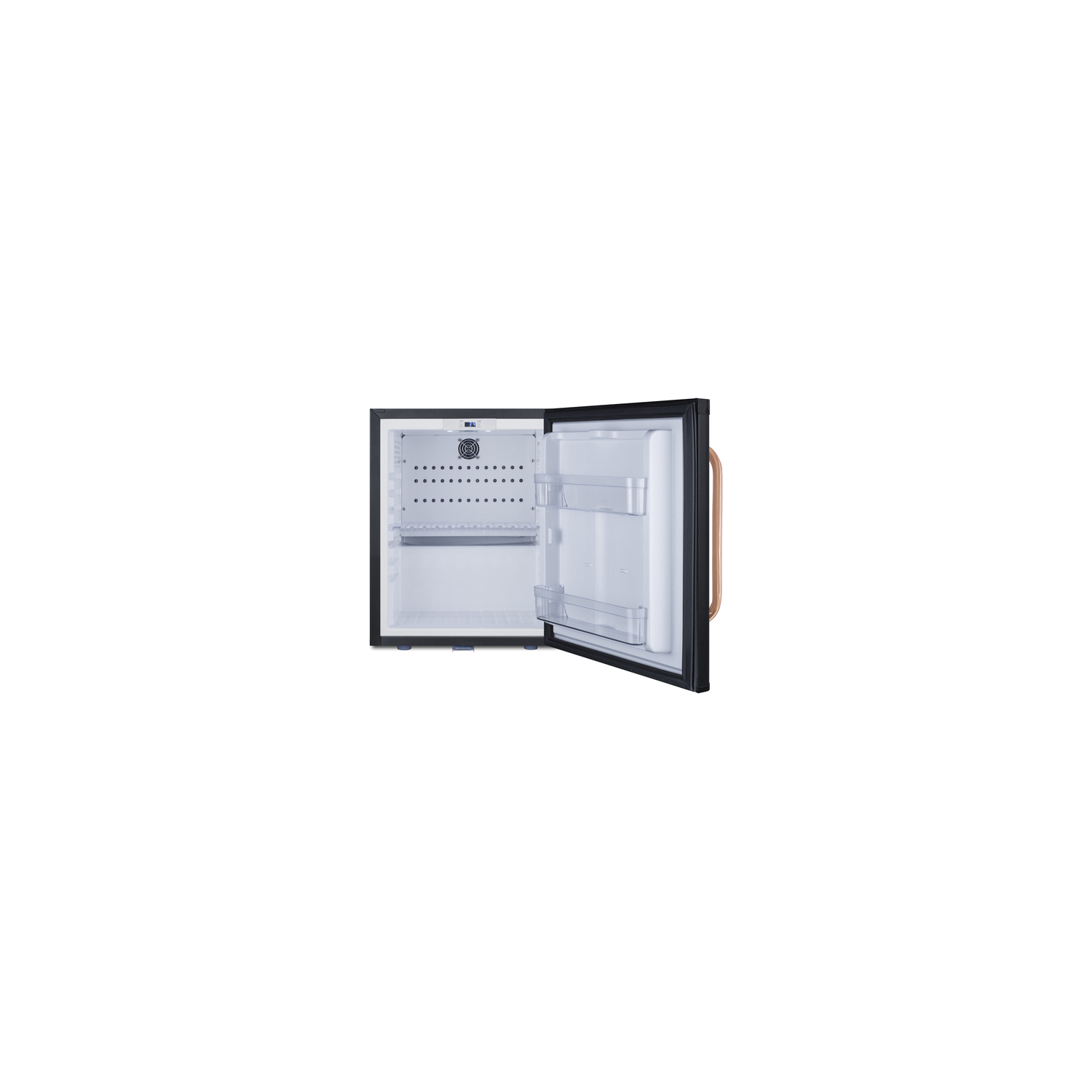

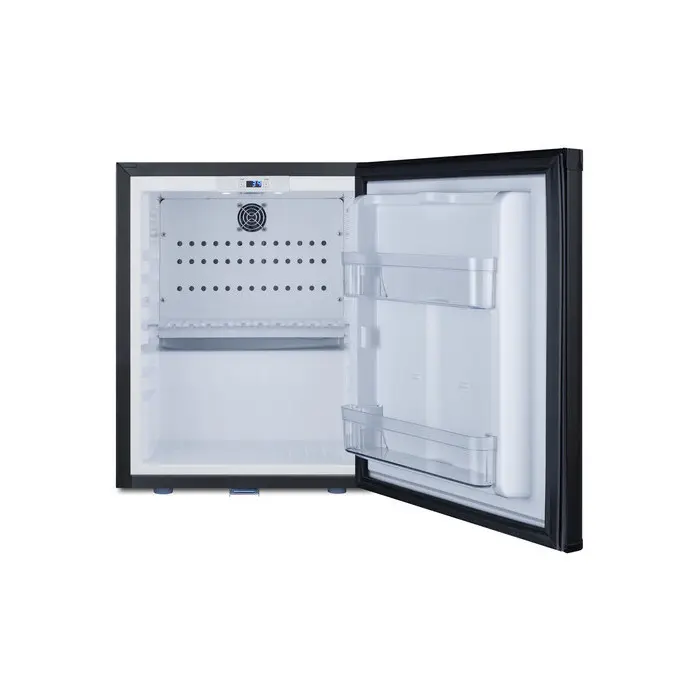

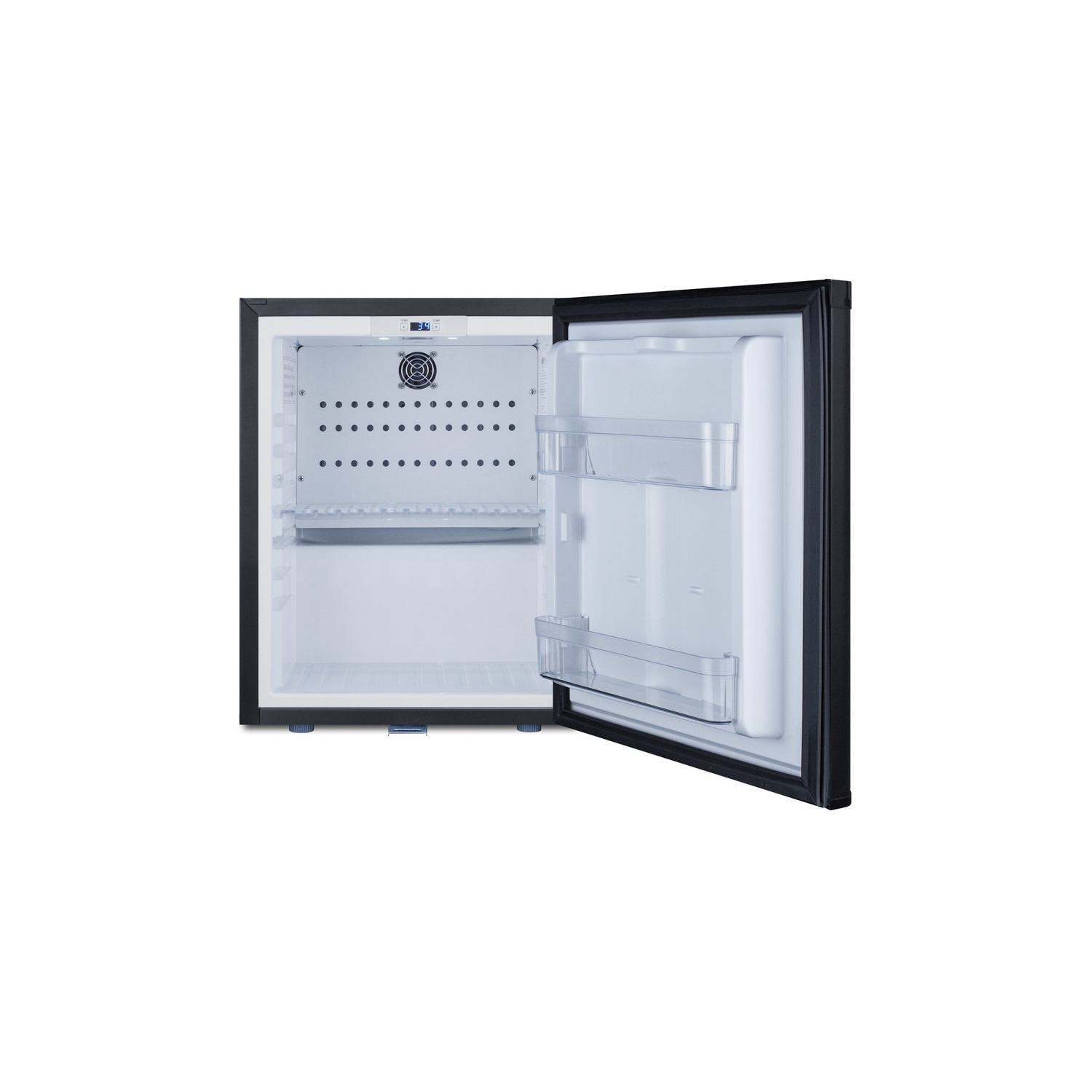

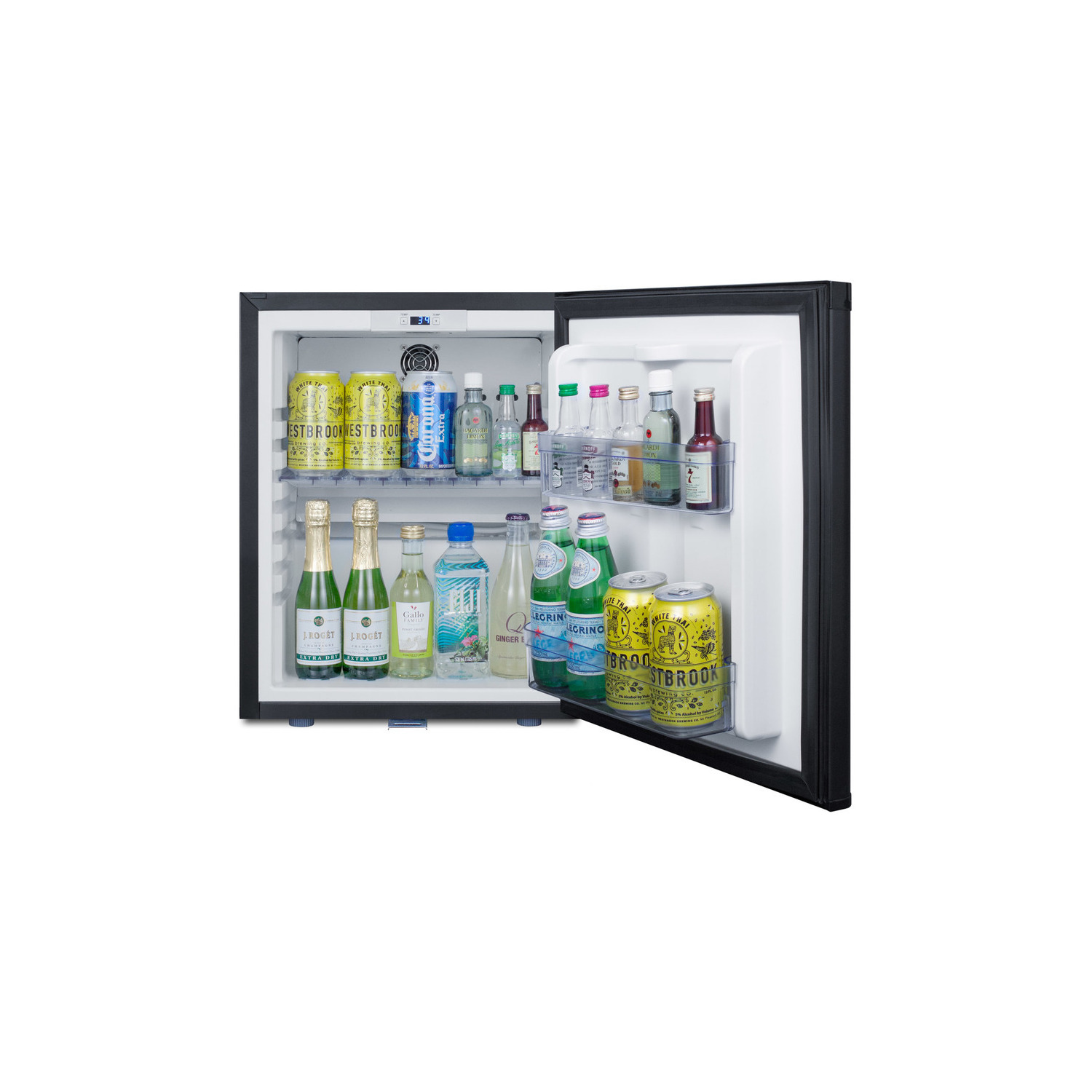

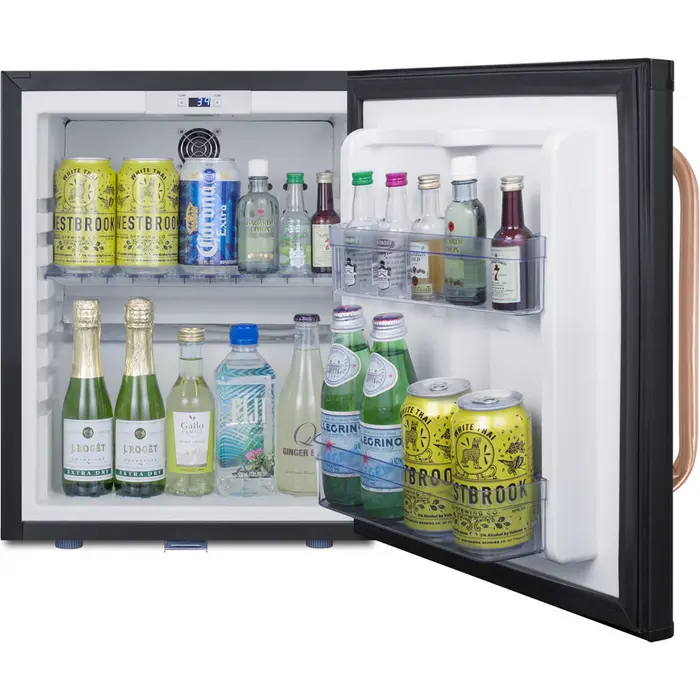

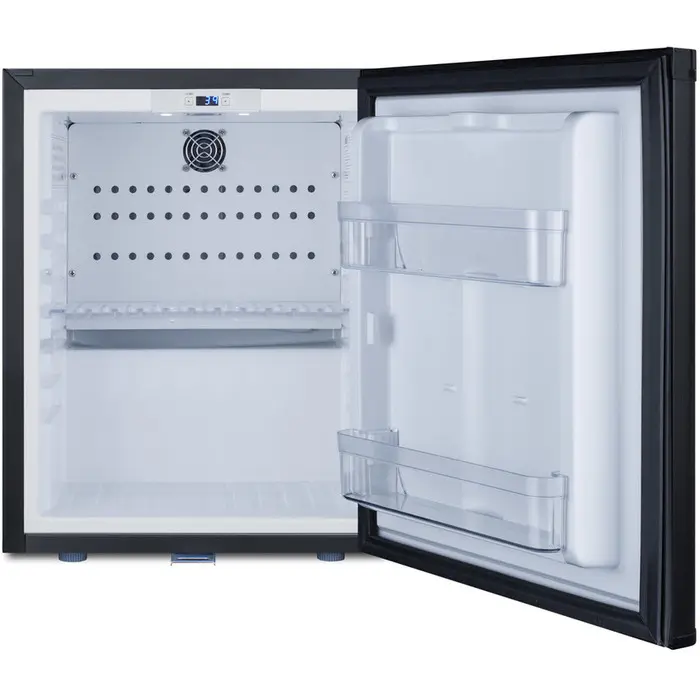

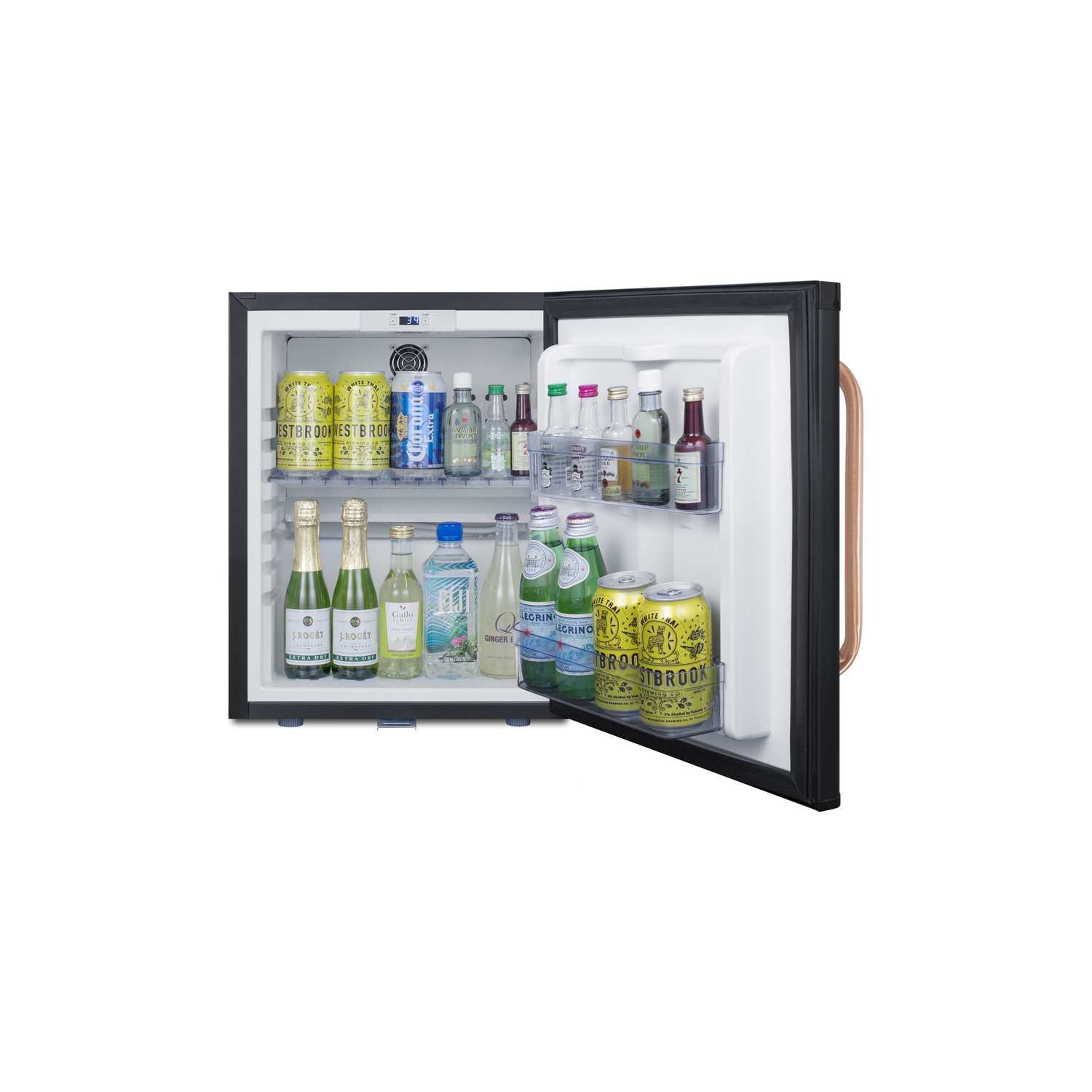

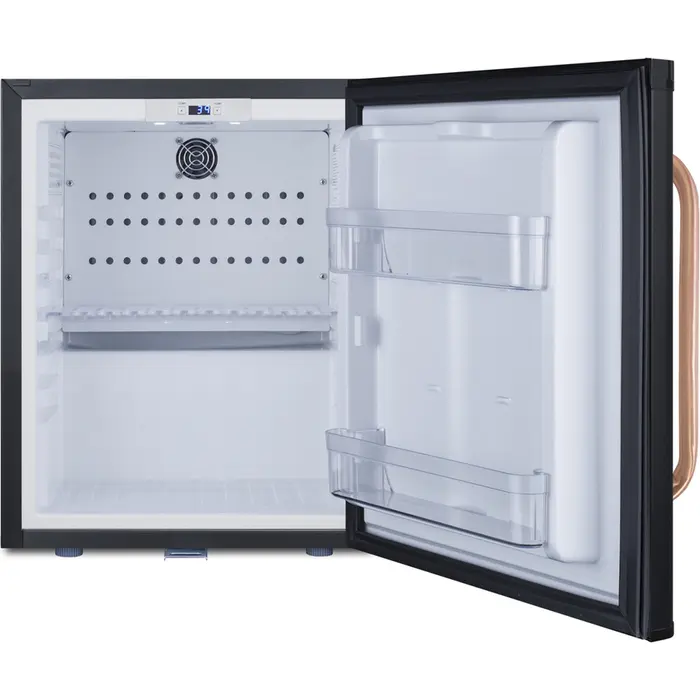

Inside, the MB12B has 0.7 cu.ft. of storage space and a white interior for full visibility of contents. A compressor-based cooling system ensures proper refrigeration to keep stored items cold, while the laboratory-tested operation keeps it quiet with a sound level of 34.4 decibels, sure to not disturb guests' sleep. A removable half shelf, with seven placement options, lets you maximize storage capacity. Two door racks accommodate taller items. The LED light illuminates the interior for quick viewing, and the automatic defrost ensures minimum user maintenance.

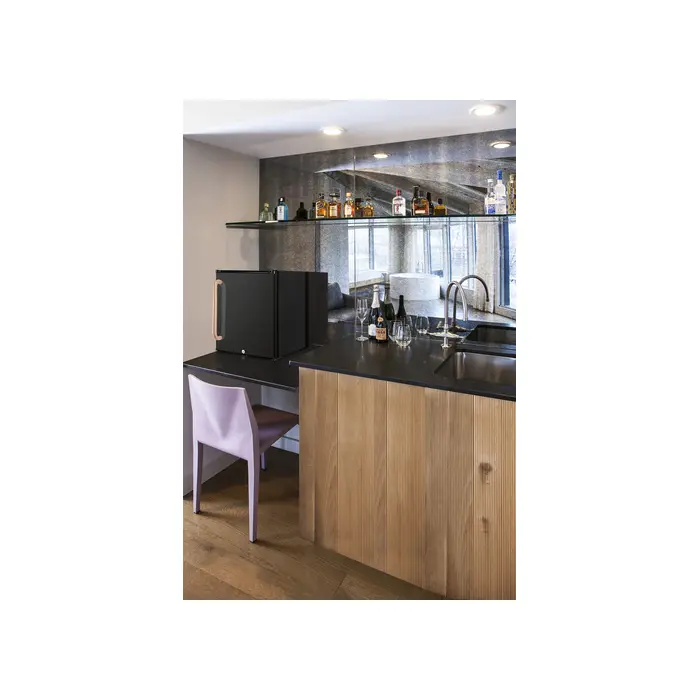

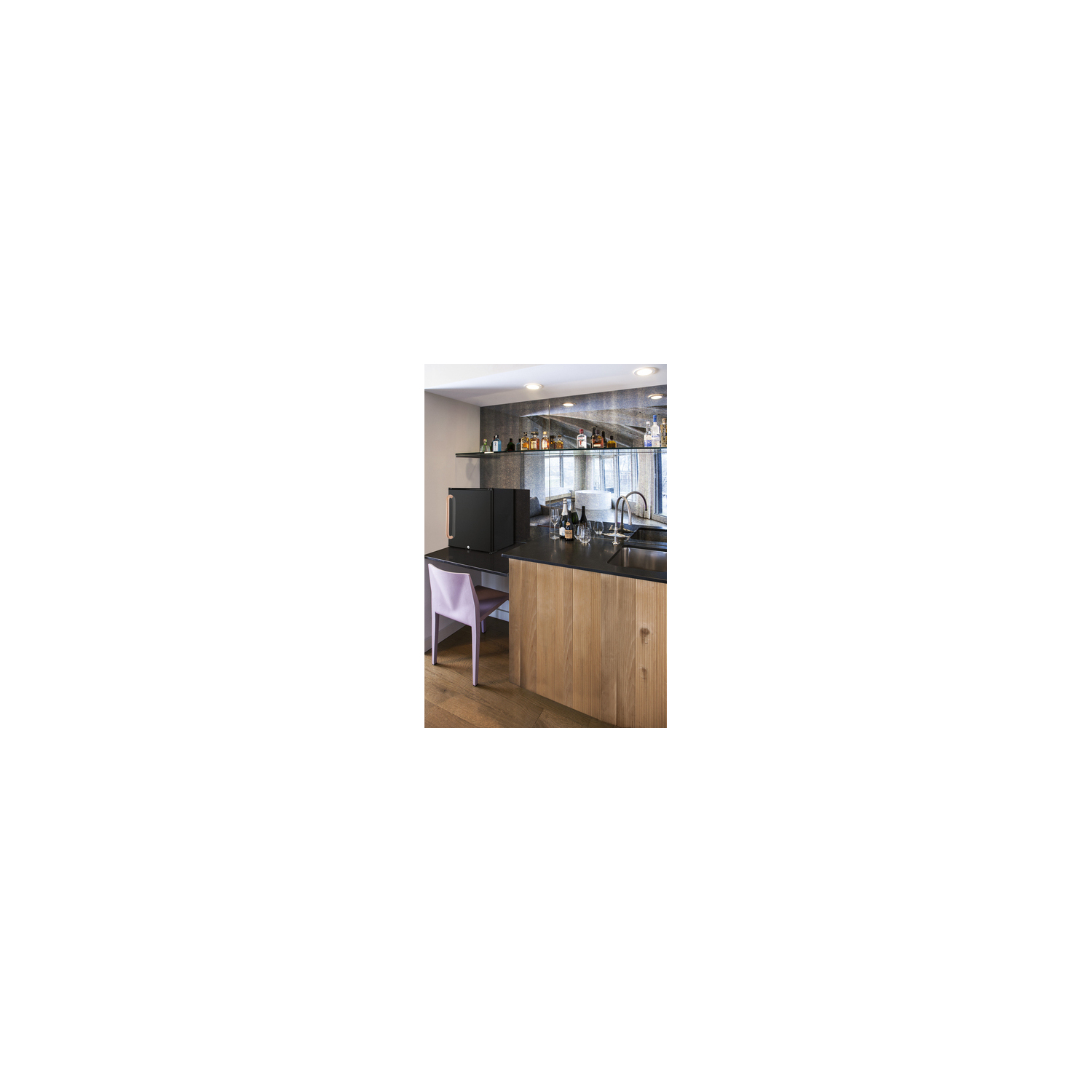

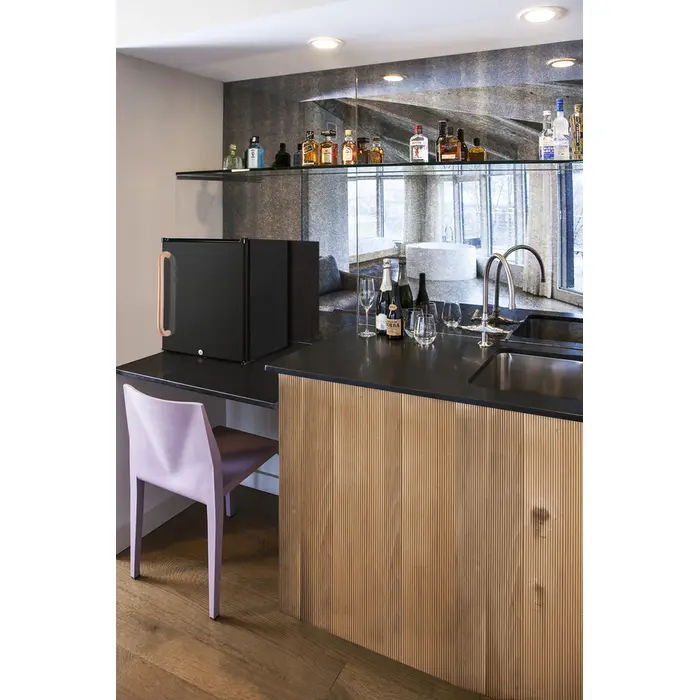

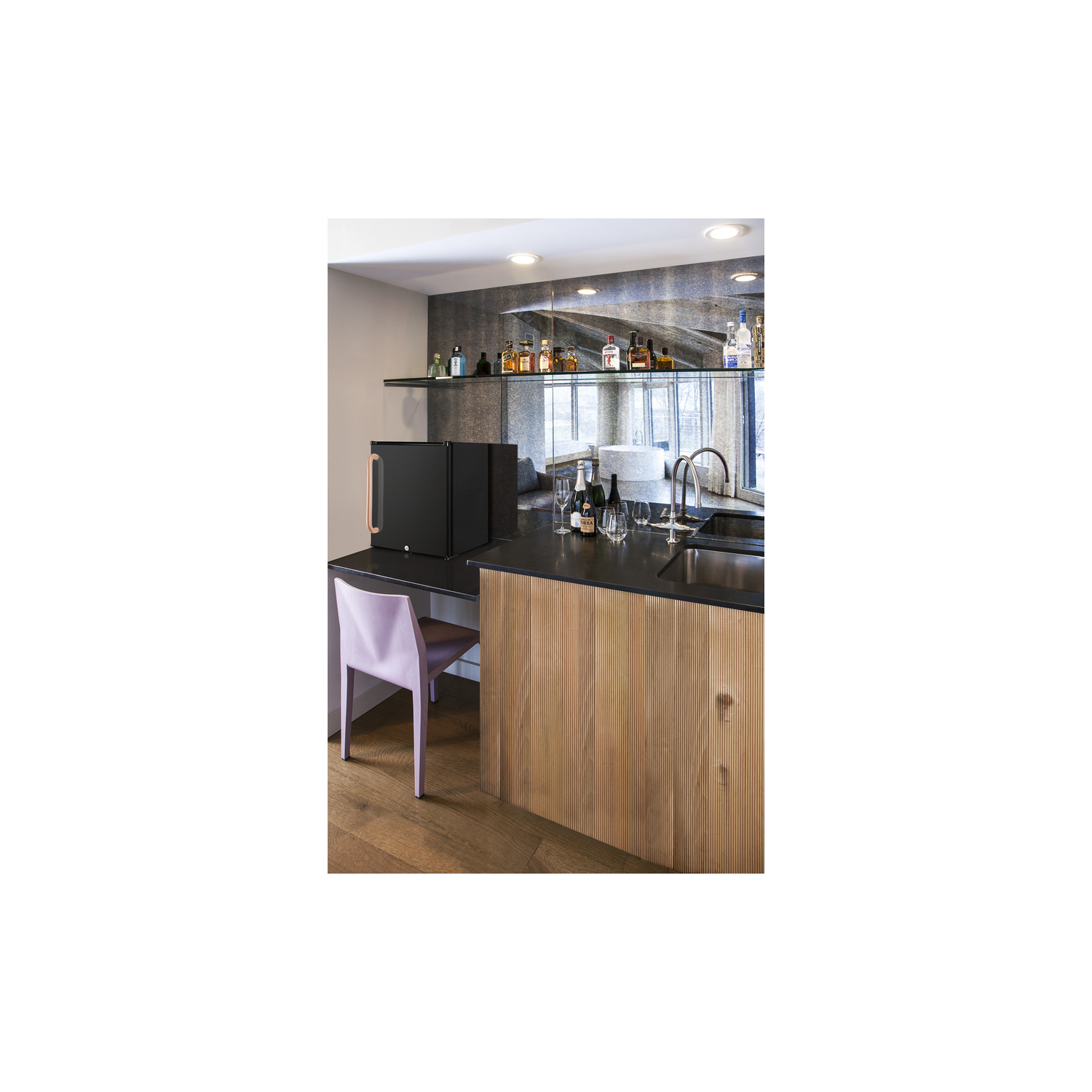

With a compact size and user-friendly design, the MB12B is the perfect choice for hotels, offices, and other settings in need of reliable, quiet cooling in a slim fit.

SPECIFICATIONS

Overview

Nominal Height 21.0" (53 cm)

Height of Cabinet 20.25" (51 cm)

Nominal Width 16.0" (41 cm)

Width 15.88" (40 cm)

Width with Door Open 16.13" (41 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.25" (44 cm)

Depth with door at 90° 31.5" (80 cm)

Capacity 0.7 cu.ft. (20 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 148.0kWh/year

Amps 0.4

Voltage/Frequency 115 V AC/60 Hz

Weight 36.0 lbs. (16 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101065298

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Plastic

Shelf Qty 1

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Refrigerant Type R600a

Refrigerant Amount 0.85oz.

High Side PSI 106.0

Low Side PSI 55.0

Interior Light Yes

Temperature Range 34 - 46 °F

Sound Level 34.4 dB

Dimensions

Interior Height 15.88" (40 cm)

Interior Width 12.25" (31 cm)

Interior Depth 8.5" (22 cm)

Compressor Step Height 7.5" (19 cm)

Compressor Step Width 12.25" (31 cm)

Compressor Step Depth 1.5" (4 cm)

FEATURES

Compact dimensions Slim fit offers the ideal choice for hotel rooms and other settings with limited counter and cabinet space

Digital controls Easy temperature management with a digital control panel that lets you choose between six temperature levels at the touch of a button

Compressor-based cooling system True refrigeration system that keeps stored items cold

Quiet operation Runs at just 34.4 dB for a quiet performance that won't disturb your guests

Factory installed lock Front lock offers convenient security, with two keys included

Reversible door User-reversible door swing for added flexibility

Adjustable shelving Attractive plastic shelf included, with seven glide positions to allow you to accommodate a range of sizes

Door storage Two door racks are perfect for keeping smaller bottles and condiments in easy reach

Interior LED light Automatically illuminates when the door is opened for an attractive, energy efficient view

White interior Clean interior finish offers improved visibility

Automatic defrost Reduced user maintenance with auto defrost system

Fully finished black cabinet Allows the refrigerator to be used freestanding

Leveling legs Ideal for ensuring the refrigerator is level when placed on slightly unlevel surfaces

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (MB12B.pdf)

TECHNICAL DRAWING (.dwg) (MB12B_MINIBAR__A-C_2018_.dwg)

REVIT MODEL (Qf_Summit_MB12B_16_inches_Wide_Compact_Minibar.rfa)

USE & CARE (MB12B-User-Manual.pdf)

MSDS INFORMATION (R600a_AO.pdf)

Energy Guide
