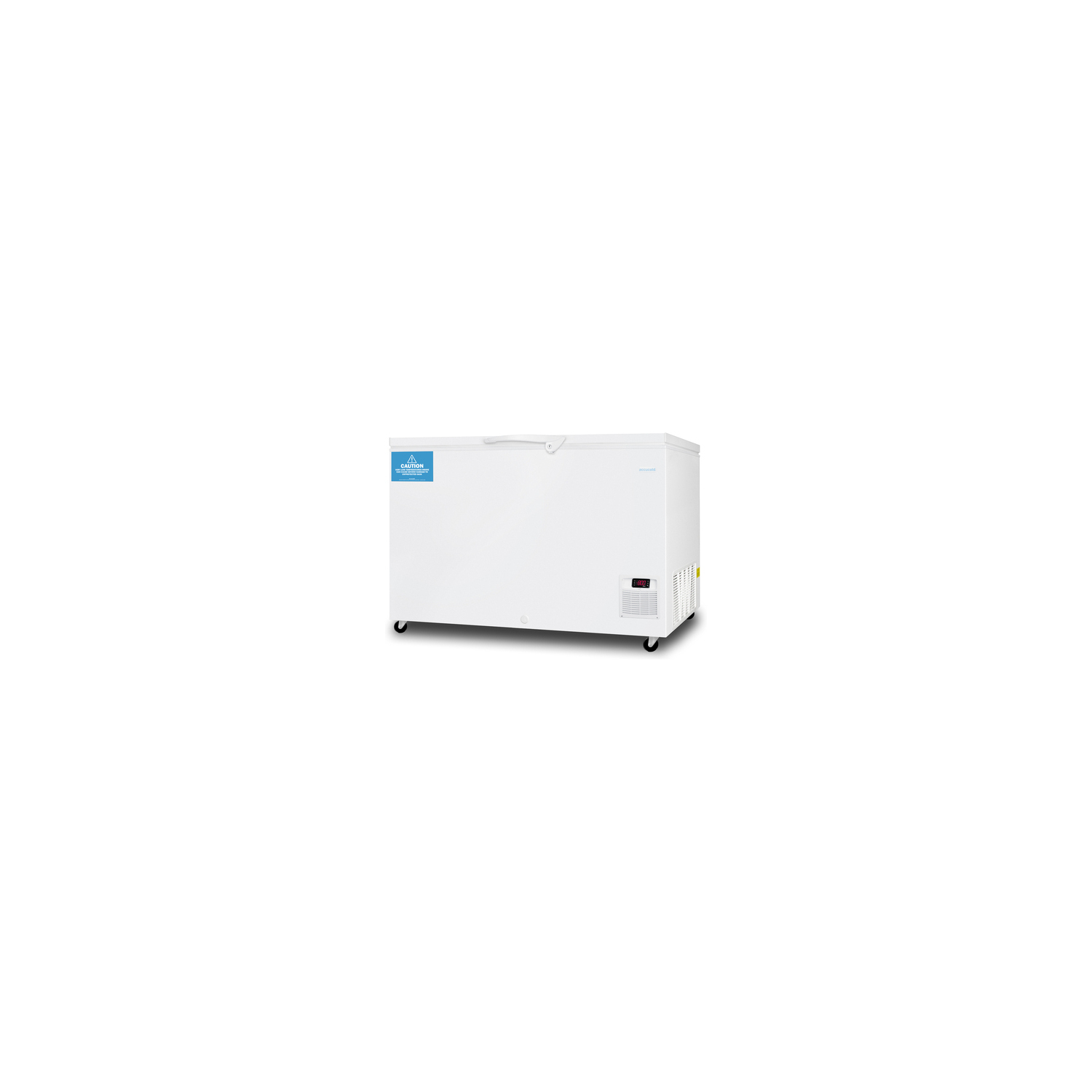

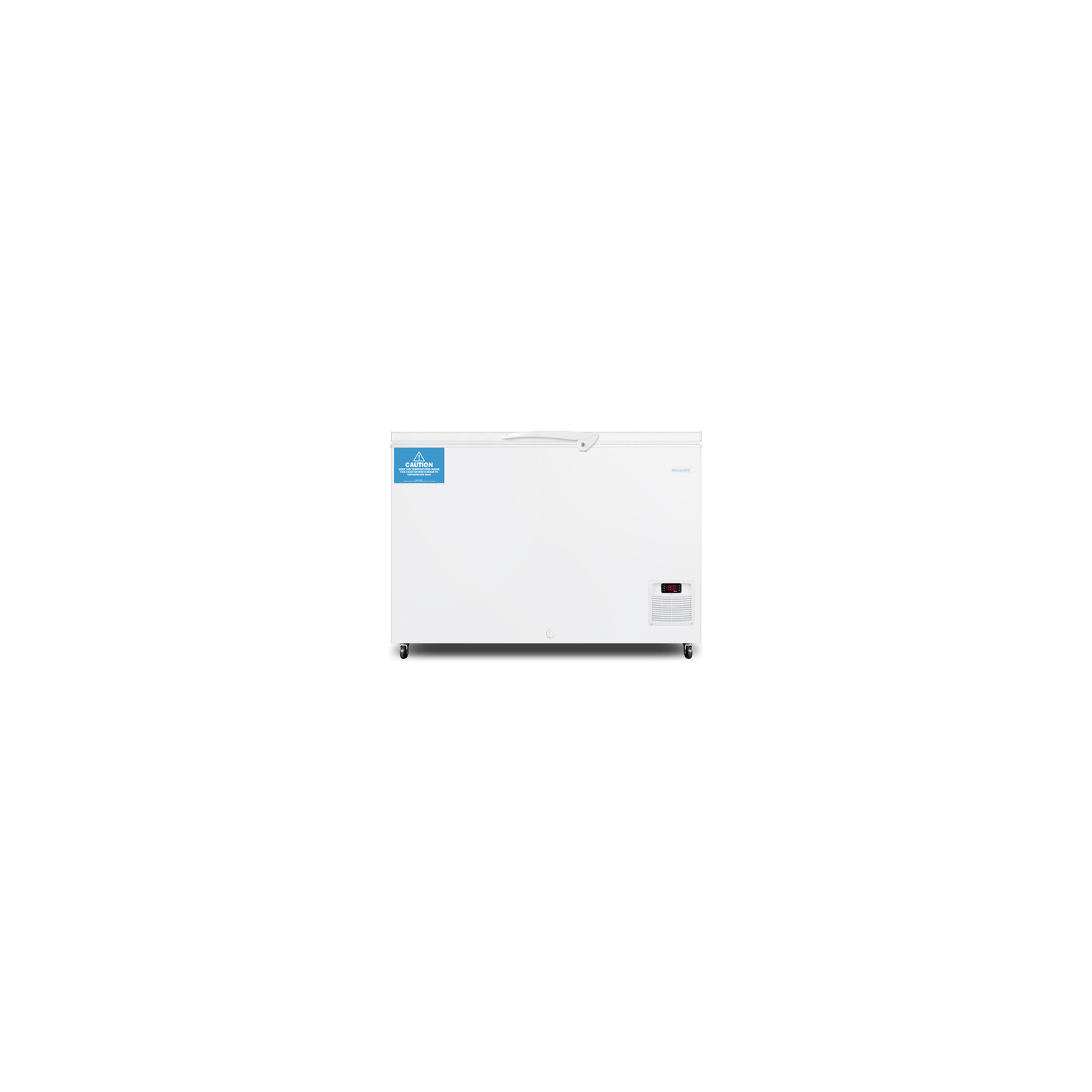

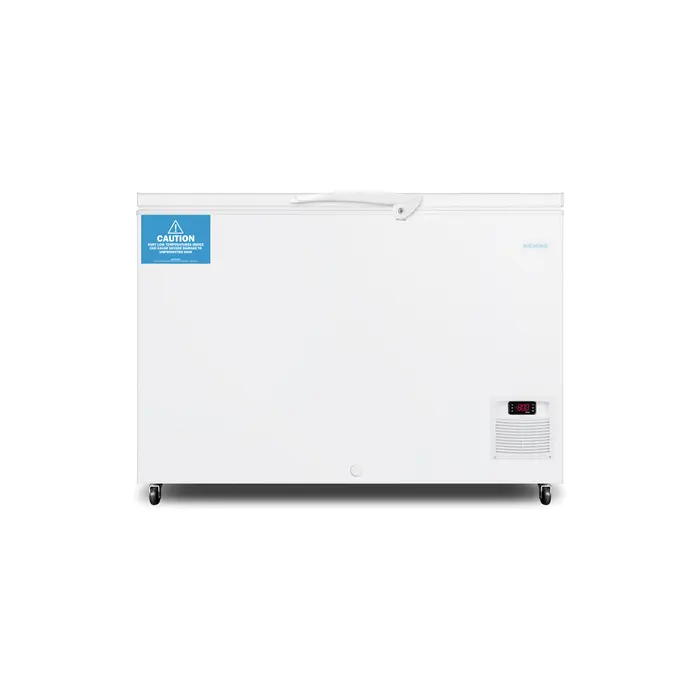

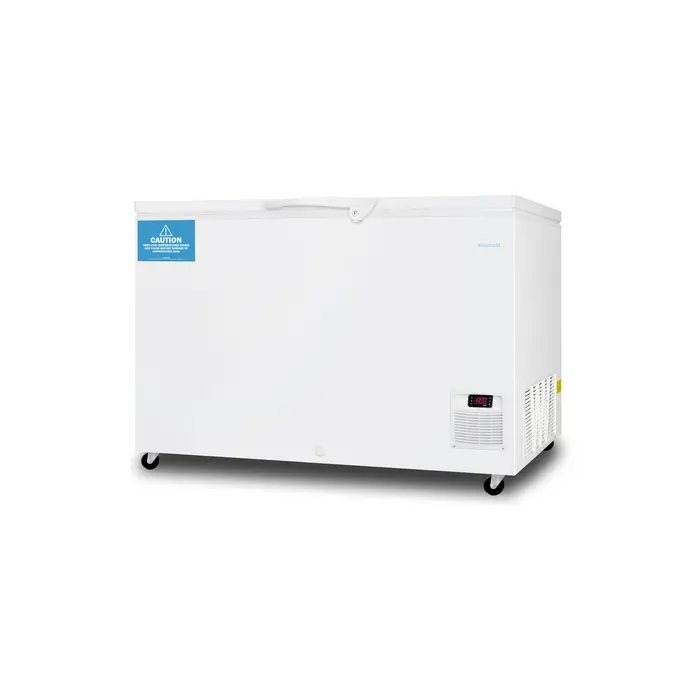

Summit -85º C capable laboratory chest freezer, LAB31

Accucold introduces a new series of ultra low temperature chest freezers designed for reliable storage at -86ºC for laboratory, life science, and other institutional settings.

Manufactured for Accucold in Denmark by ELCOLD, model LAB31 offers 11.1 cu.ft. of storage. Extra thick 4 1/2" insulation and static manual defrost operation help to maintain ultra low temperatures suitable for maintaining the integrity of biological samples, industrial materials, laboratory specimens, select vaccines, and other materials with highly specific cold storage requirements. Five inner lids offer added protection by shielding contents when the outer lid is opened. The digital microprocessor controls are mounted in the front for convenient access. This unit has a temperature range that can be set between -50 and -86ºC, with a display viewable in Celsius or Fahrenheit. The thermostat's high/low temperature alarm warns if the interior goes out of the set range. There is also an audible 9V battery-powered alarm in the rear of the unit that will sound in the event of power failure.

For added convenience, the LAB31 comes with pre-installed casters, including two front locking wheels to help keep the unit in place. The easy-grip handle includes a factory-installed keyed lock for added security.

The LAB31 is UL listed for use in the US and Canada, and also meets ANSI/NSF-7. Additional sizes are available. Browse the full Accucold lineup for more options.

SPECIFICATIONS

Overview

Height of Cabinet 37.25" (95 cm)

Width 51.18" (130 cm)

Depth 25.63" (65 cm)

Depth with Handle 30.0" (76 cm)

Capacity 11.1 cu.ft. (314 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation UL-S

Amps 6.0

Voltage/Frequency 115 V AC/60 Hz

Weight 176.0 lbs. (80 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159072

Freezer

Door Swing Lift-Up

Interior Height 24.5" (62 cm)

Interior Width 43.25" (110 cm)

Interior Depth 17.5" (44 cm)

Thermostat Type Digital

High Side PSI 400.0

Low Side PSI 174.0

Wheels 4

Compressor Step Height 9.84" (25 cm)

Compressor Step Width 7.87" (20 cm)

Compressor Step Depth 17.5" (44 cm)

Temperature Range -50 to -86ºC

FEATURES

Ultra Low Temperature -86ºC Chest Freezer Designed for highly specialized cold storage storage applications of biological samples, DNA/RNA material, chemicals, select vaccines and antibiotics, and other substances with strict low temperature requirements

Advanced design Interior walls feature more than 8 layers of D-shaped cooling pipes to ensure increased contact with the freezer walls in order to ensure maximum insulation and product efficiency

Manufactured by Elcold for Accucold Designed and constructed in Denmark

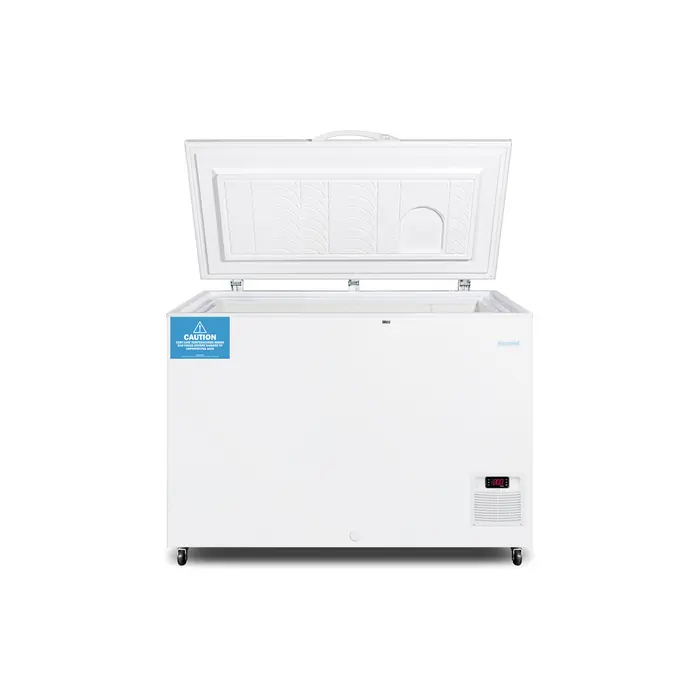

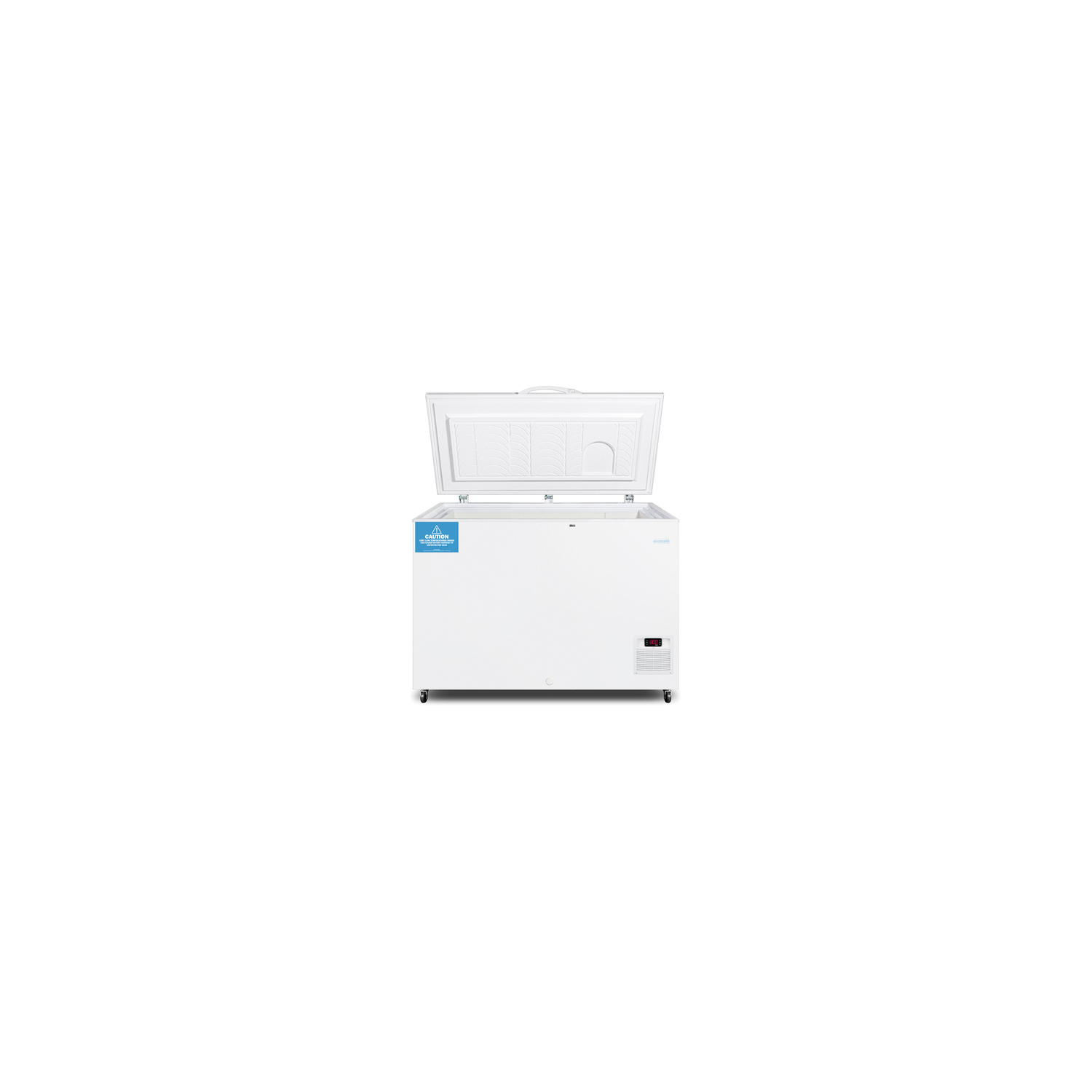

Inner lids Includes five removable inner lids for added protection from ambient air when opening the outer lid

Extra thick insulation 4 1/2" thick walls for added efficiency and stable cooling

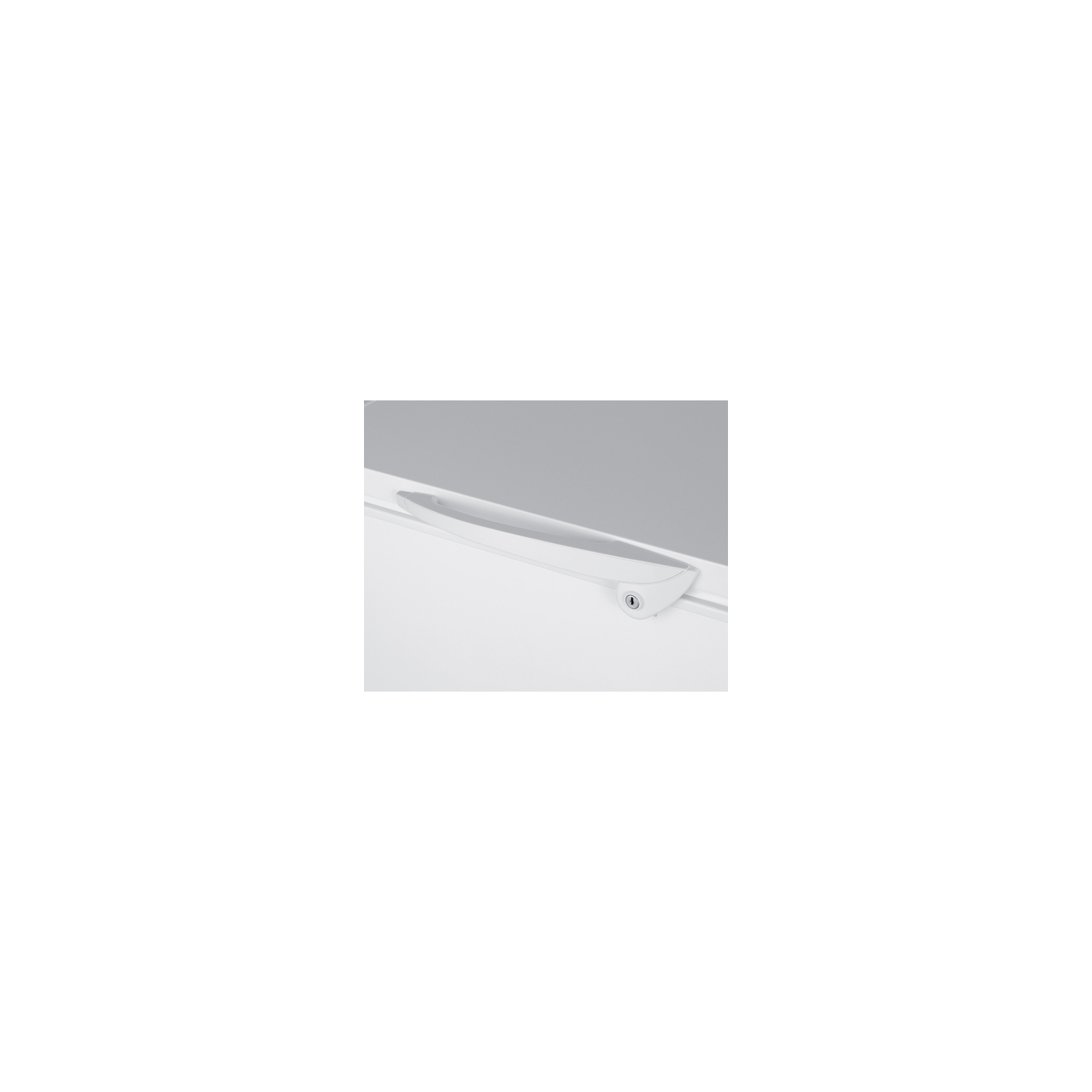

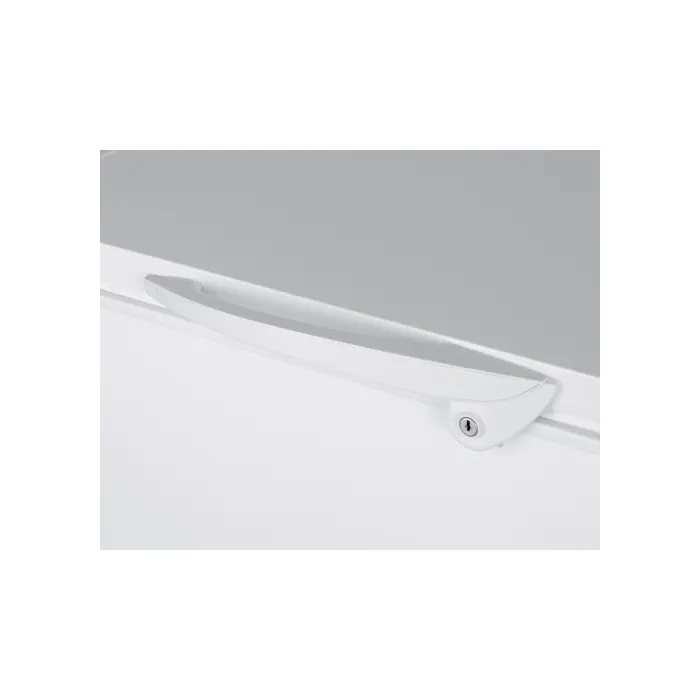

Factory installed lock Exterior lock on the handle for reliable security (2 keys included)

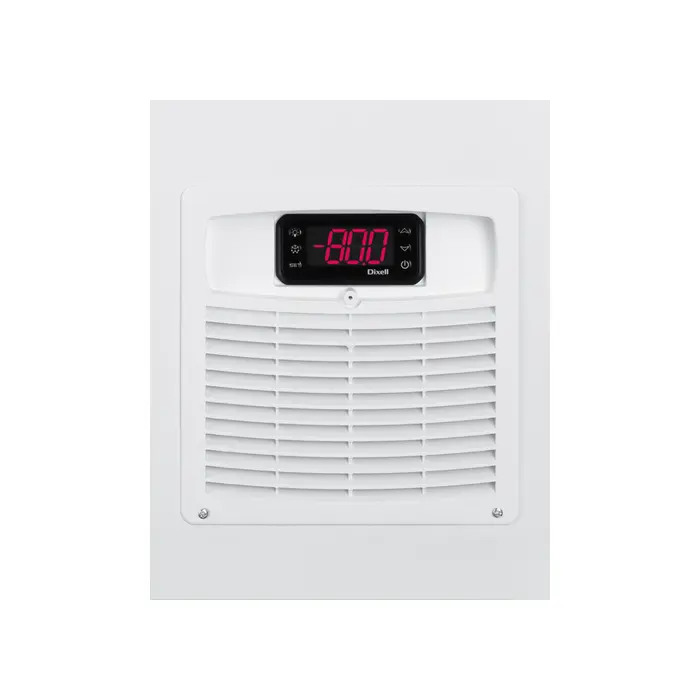

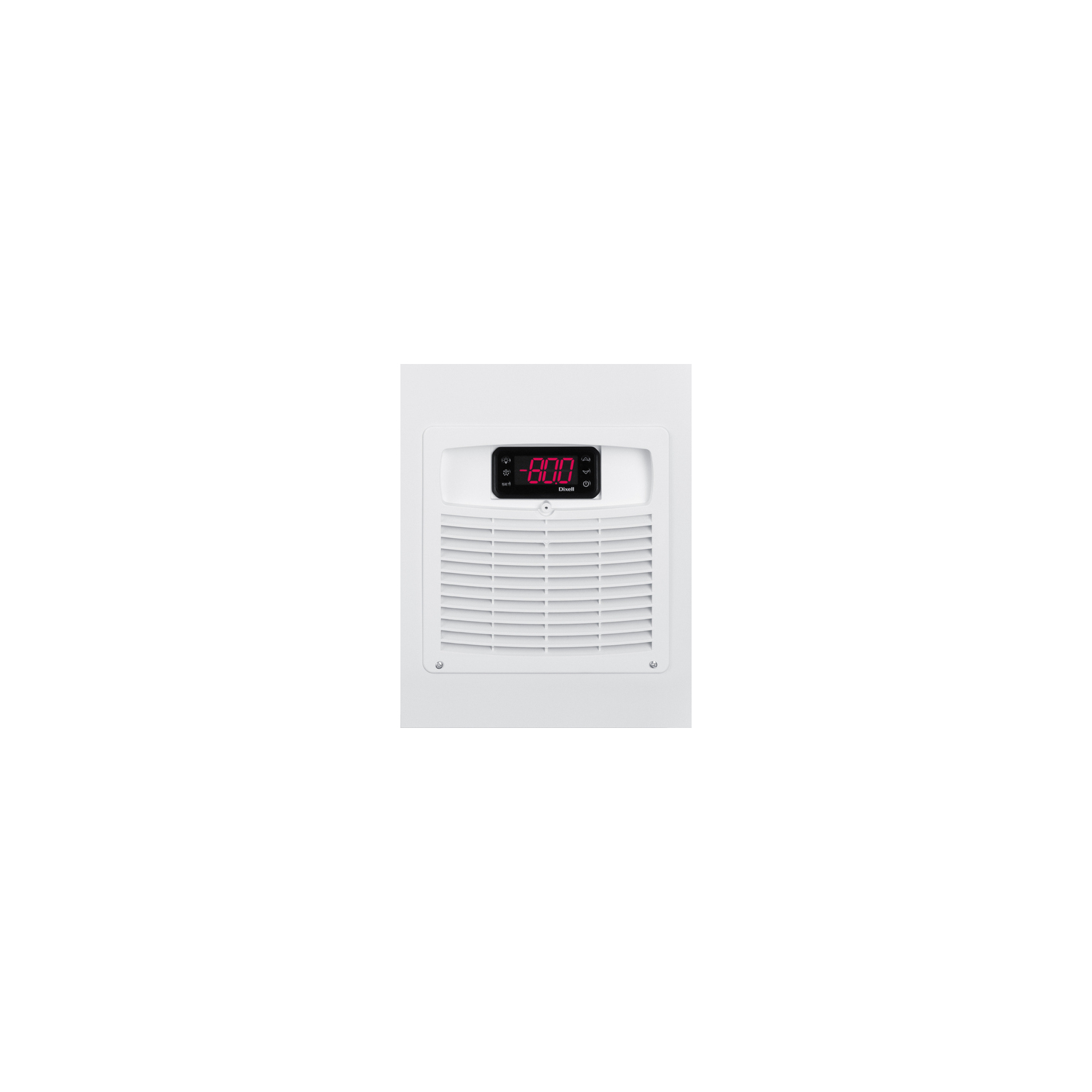

Digital thermostat Electronic microprocessor controls for precise temperature management, with temperature readout and controls externally located for added convenience

ºC/ºF Readout Temperature display can be alternated between Celsius or Fahrenheit to best suit your preference

High/low temperature alarm Audible alarm warns if the interior temperature goes out of the set range

Counterbalanced hinges Easy and safe loading and unloading with a lid that remains open when lifted past 45º angles

Pre-installed casters Four wheels (front two locking) to allow easier mobility when cleaning or moving the unit

Manual defrost Static cooling for a stable interior

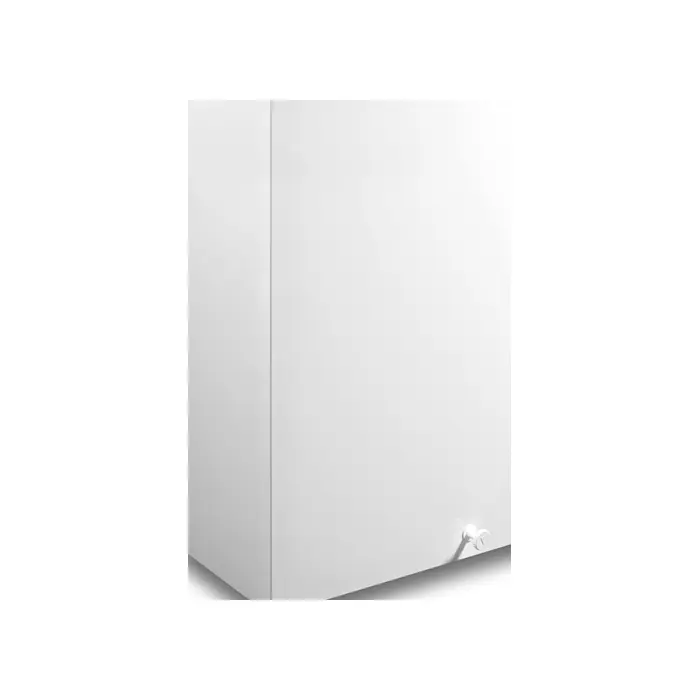

Defrost drain Front-located drain helps to make the defrosting process more convenient

Steel interior Durable construction in a white finish for easy visibility

Power-out alarm 9V battery-powered audible alarm mounted in the rear sounds in the event of power failure

Hermetically sealed compressor Ensures lasting durability and reduced maintenance in busy facilities

Approved for use in USA and Canada UL and UL-C listed

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
